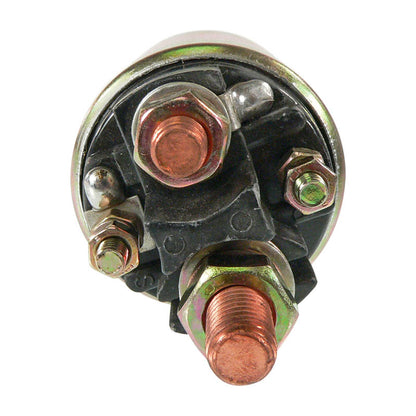

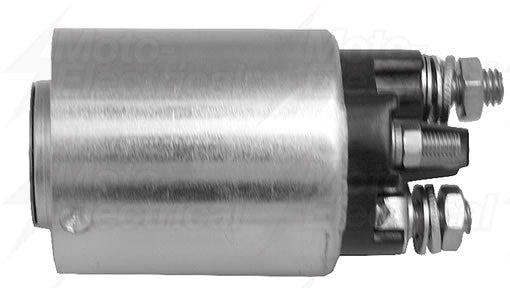

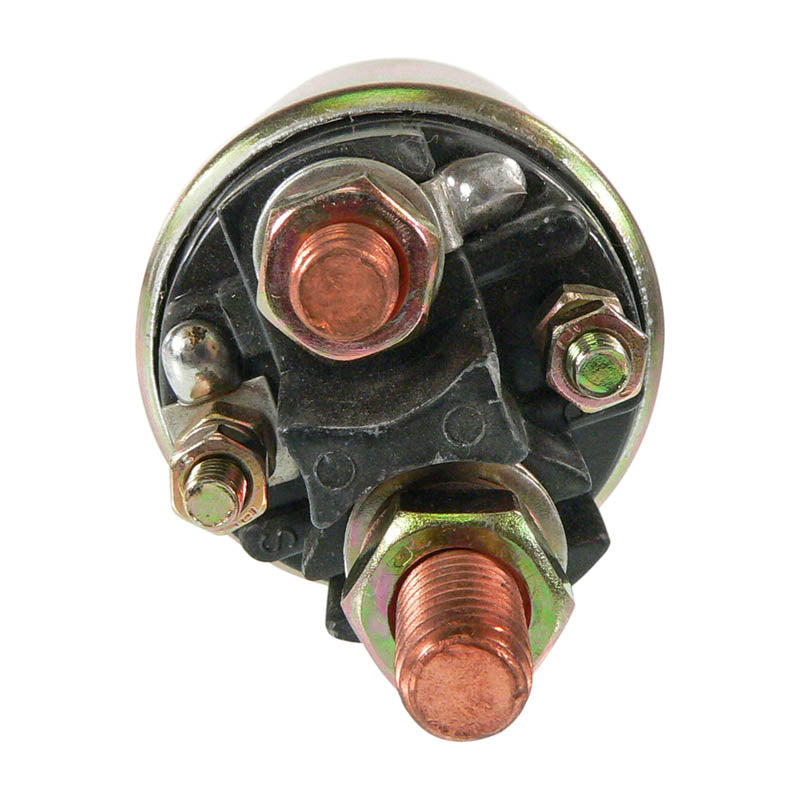

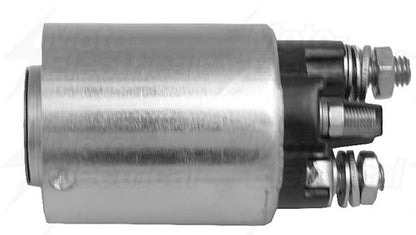

Starter Solenoid for Delco PG200 & PG250 Starters - 12V 4-Terminal
12-volt, 4-terminal solenoid for Delco PG-series starters
This 12-volt, 4-terminal starter solenoid is built to OEM specification as a direct replacement for the unit fitted to Delco PG200 and PG250 series starters. Mounted on top of the starter motor, it acts as the high-current switch that engages the drive gear with the flywheel and then closes the main contacts that feed the starter motor directly from the battery.
It uses the standard 8mm B+ stud and 4-terminal layout, so it fits and functions exactly like the original without any modification to the wiring. Replacing a worn solenoid like this is usually far more cost-effective than replacing the entire starter motor when the motor itself is still sound.
Key Features
- Direct OEM fit and function for Delco PG200/PG250 starters
- 12-volt operation
- 4-terminal configuration with 8mm B+ stud
- Bolts straight onto the existing starter motor
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Part Type | Solenoid |
| Voltage | 12V |
| Terminals | 4-Terminal |
| B+ Stud | 8mm |
| Compatible Series | Delco PG200 / PG250 |
Vehicle Fitment Guide
Universal fitment - this part is not model specific. Check the specifications above against the unit you are replacing.
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| SDR6052 | J&N / Arrowhead |
| ZM1862 / ZM1-862 | Arrowhead / ZM Solenoids |
| 10467985 | Delco |
| 1114580 | Delco |
| 1114581 | Delco |
Frequently Asked Questions
Will this fit without modification?
Yes, it is a direct replacement for the 4-terminal solenoid fitted to Delco PG200 and PG250 starters.
What's included?
One starter solenoid, ready to fit in place of the original unit, reusing your existing mounting bolts and wiring.
How do I know my old solenoid has failed?
Typical signs are a single loud click when turning the key with no cranking, no response at all from the starter motor, or a starter motor that spins but does not engage the flywheel.
Is this the 3-terminal or 4-terminal version?
This is the 4-terminal version. A 3-terminal version is also available for PG200/PG250 starters fitted with the earlier configuration - check your original unit's terminal count before ordering.
