Stator 650W for Can-Am Commander 800 & 1000, Outlander & Renegade 2020-2025
Stator 650W for Can-Am Commander 800 & 1000, Outlander & Renegade 2020-2025
SKU:RMS010-108660
Free shipping over £150. Terms apply
Couldn't load pickup availability

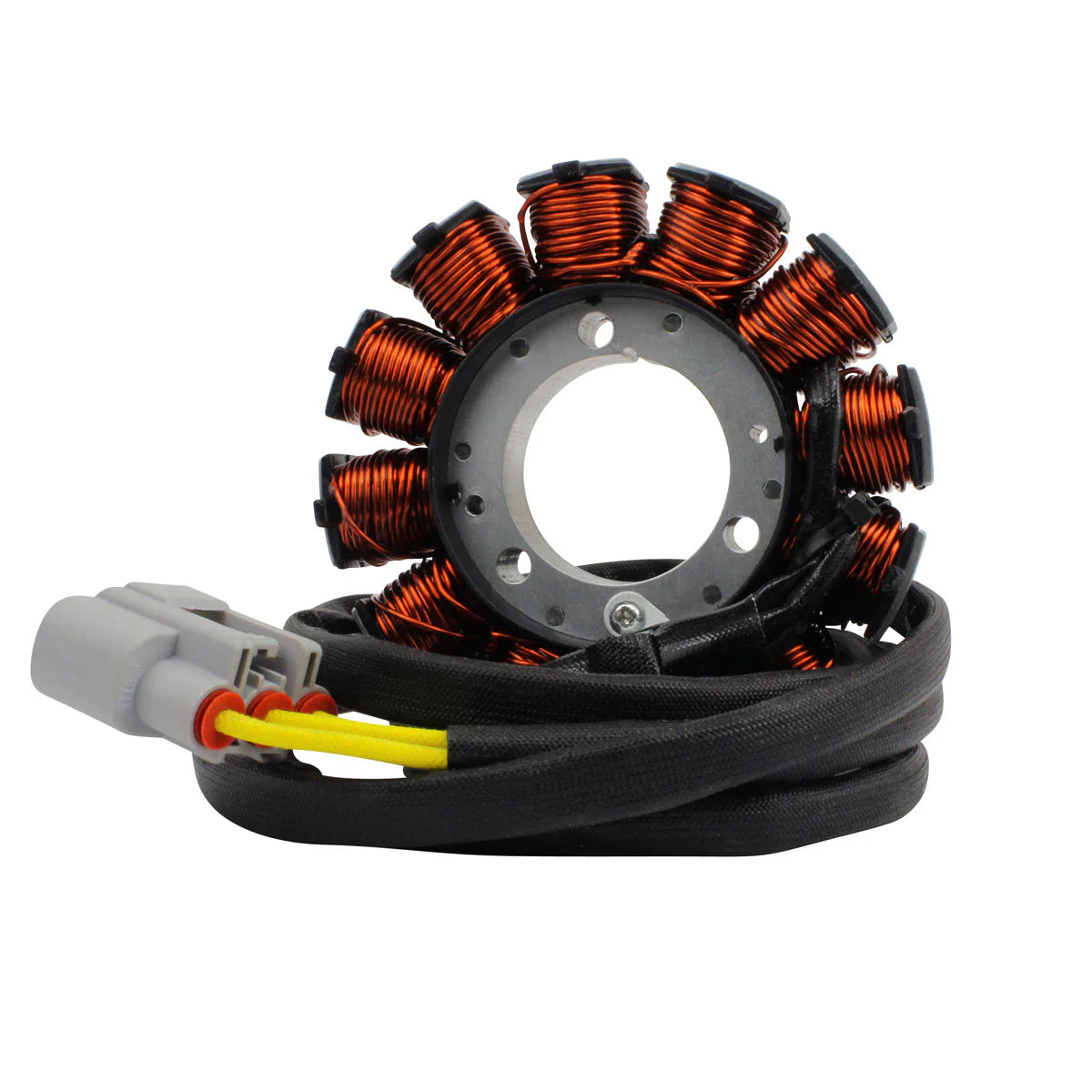

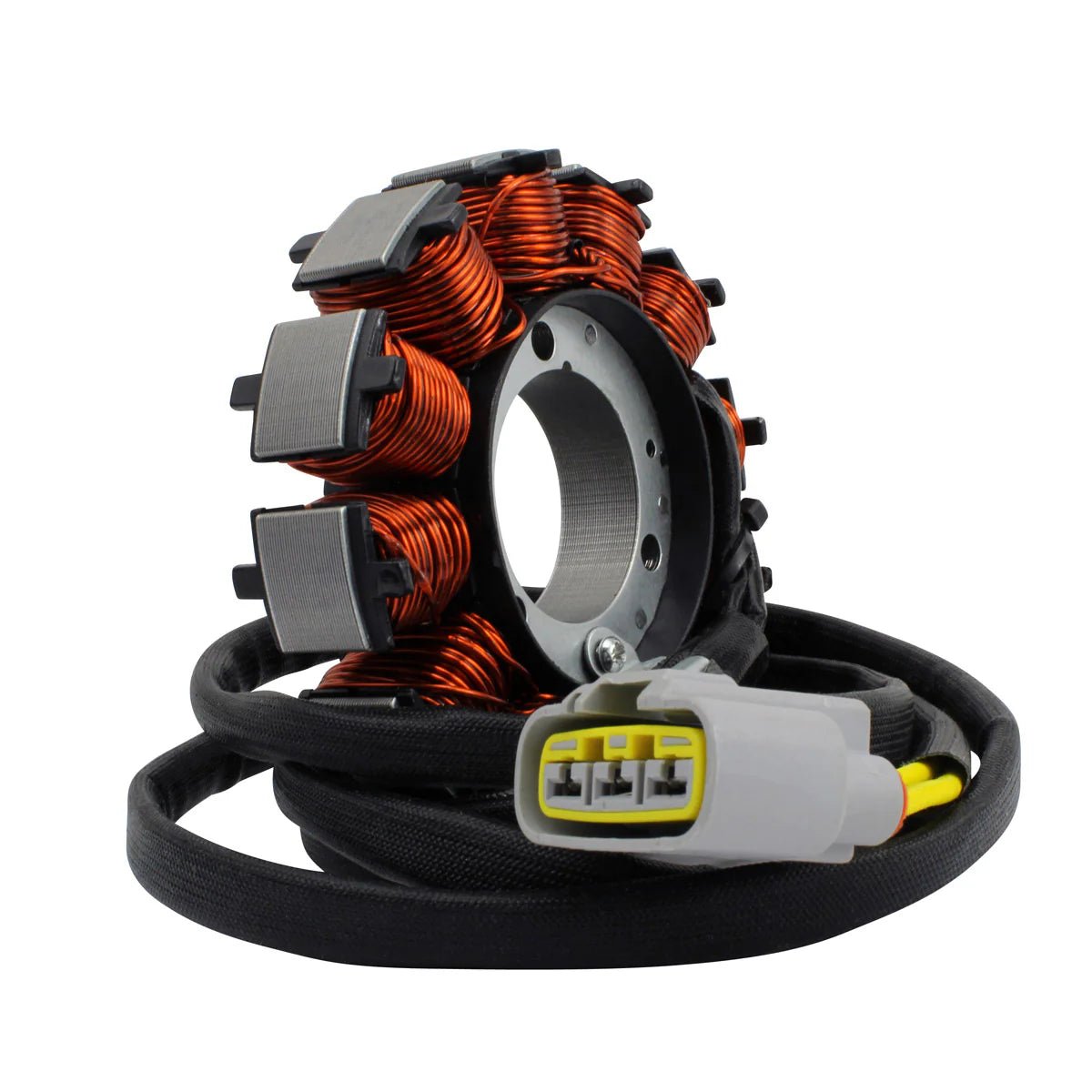

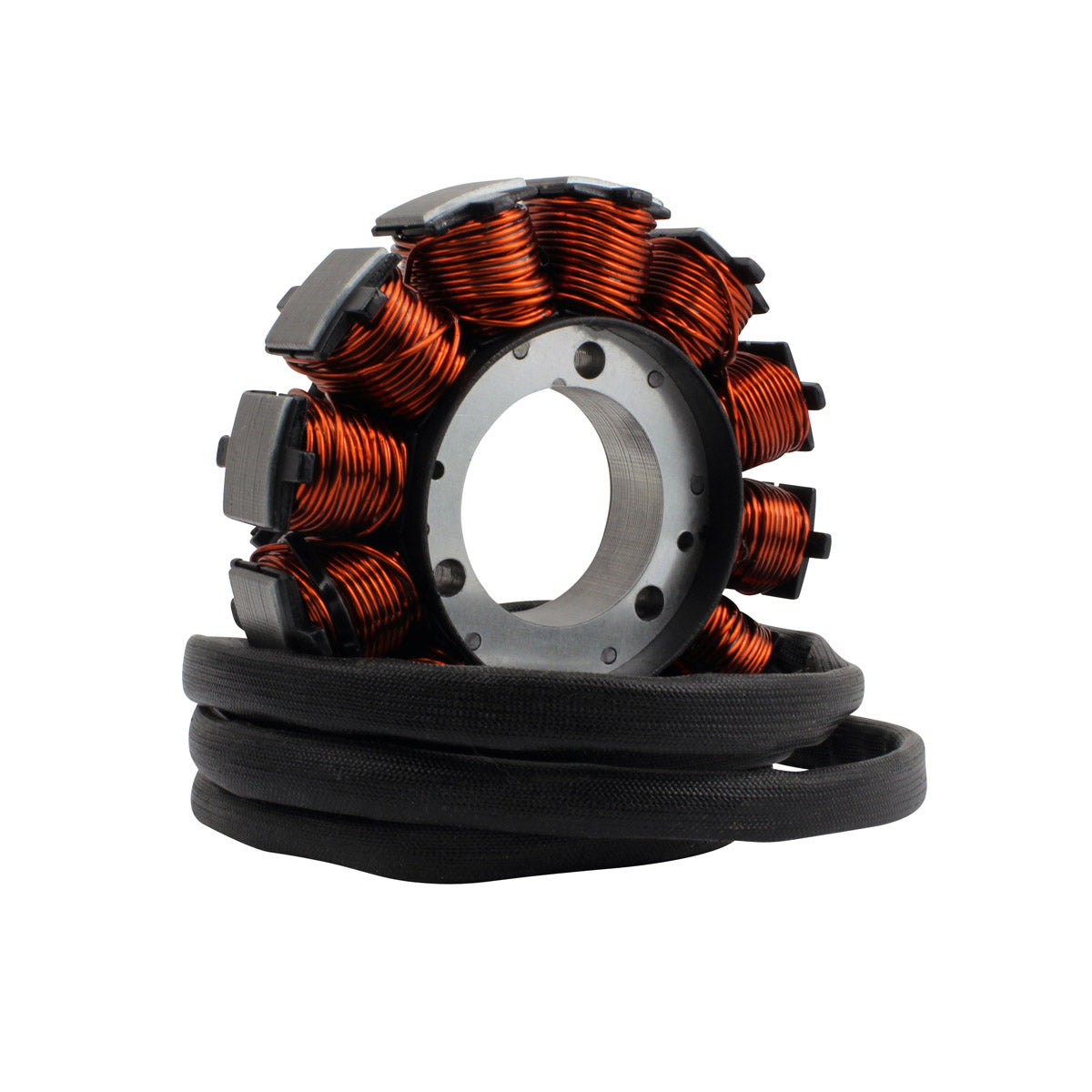

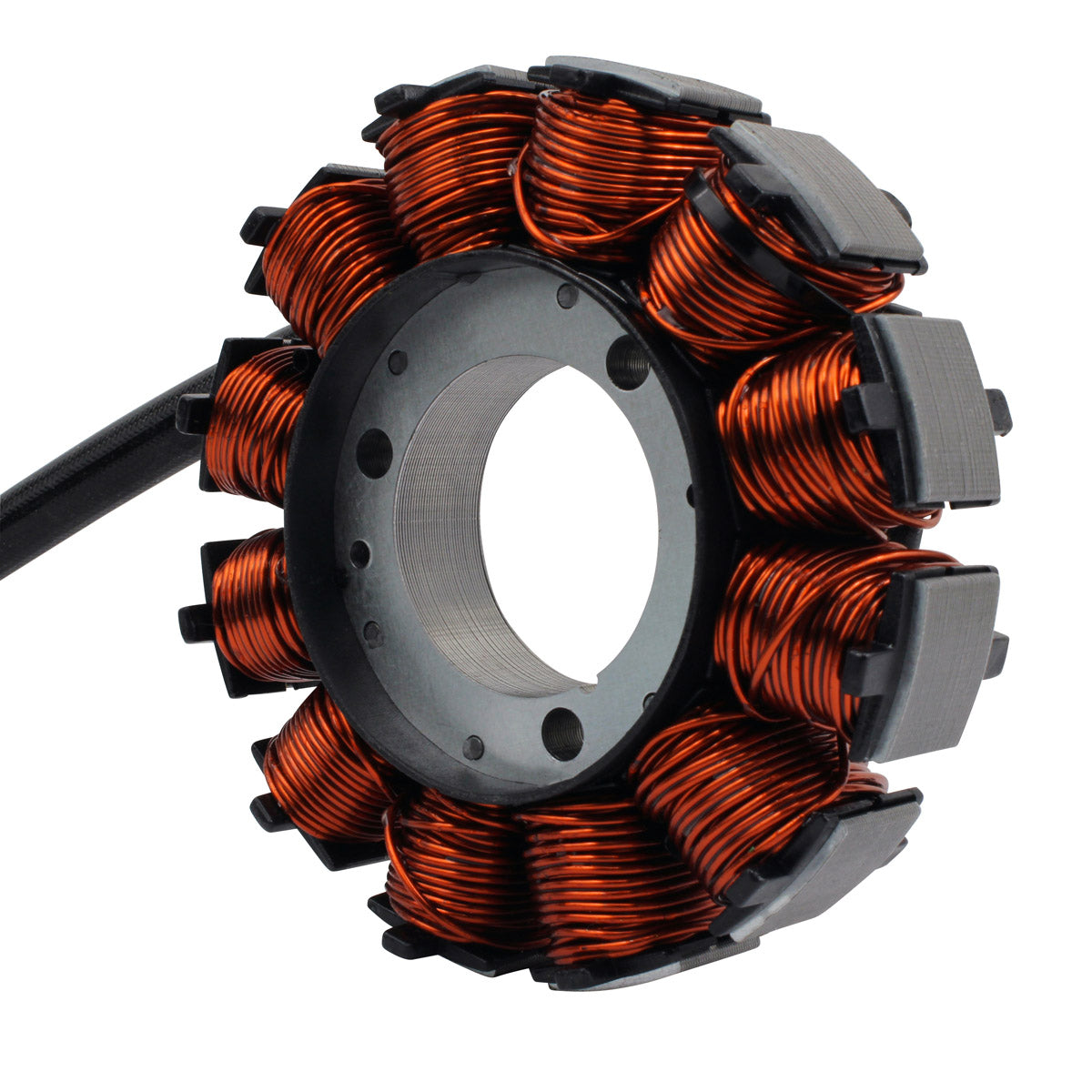

650W Stator for Can-Am Commander, Outlander and Renegade
Commander 800 and 1000, Outlander and Renegade 570, 650, 850 and 1000, 2020-2025 - OEM 420685634 and 420685922
This is a brand new aftermarket 650W stator covering a wide span of the current Can-Am range - the Commander 800 and 1000 side-by-sides and the Outlander and Renegade 570, 650, 850 and 1000 ATVs from 2020 to 2025. It is a direct replacement for the original unit and fits plug-and-play, so the standard harness connects to it without modification and nothing needs to be cut, spliced or machined.
Construction follows the same specification RMSTATOR use across their premium stators: the highest grade of lamination materials, and the highest grade of copper winding, resistant to 200 degrees Celsius. The lead from the grommet to the plug is a full 1500 mm on this unit, which is what allows one part to serve both the side-by-side and the ATV chassis without extensions. RMSTATOR also include the opposite connector - the main harness side - because these are frequently found melted, corroded or defective and are a major cause of repeat electrical faults. The connectors and rubber grommet are supplied, and every stator is tested before it is shipped.
Key Features
- 650W output
- Direct replacement for the original unit, plug-and-play fitment

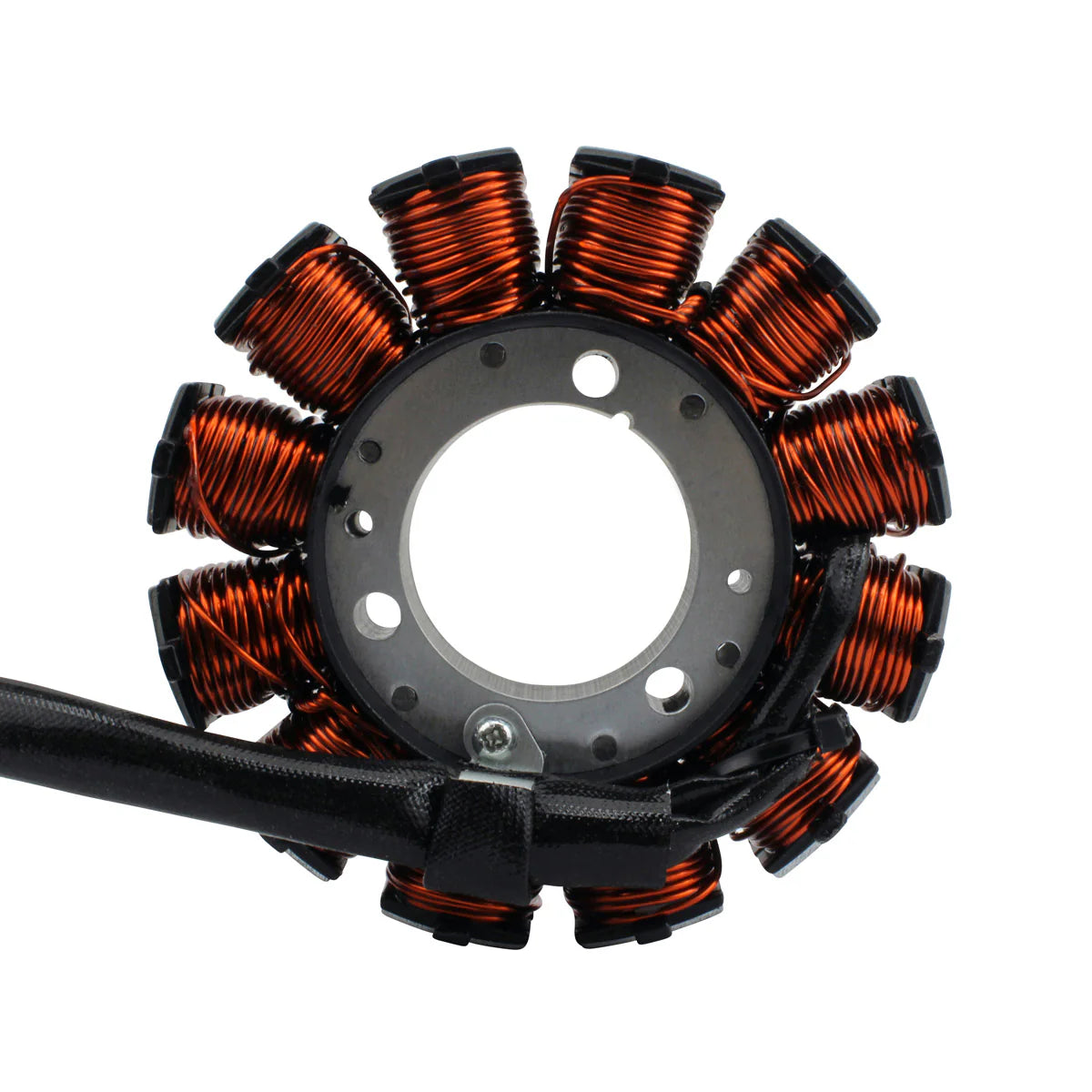

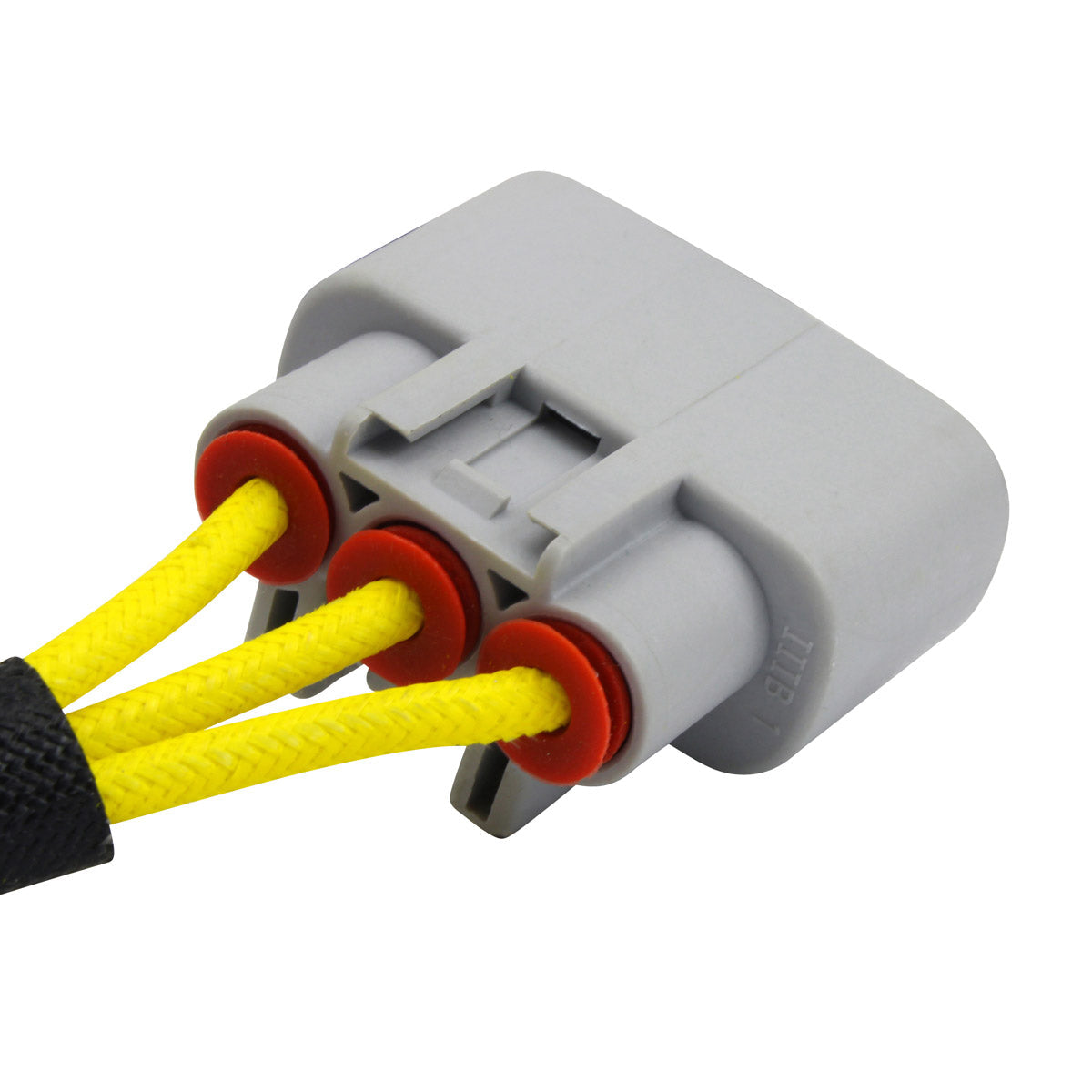

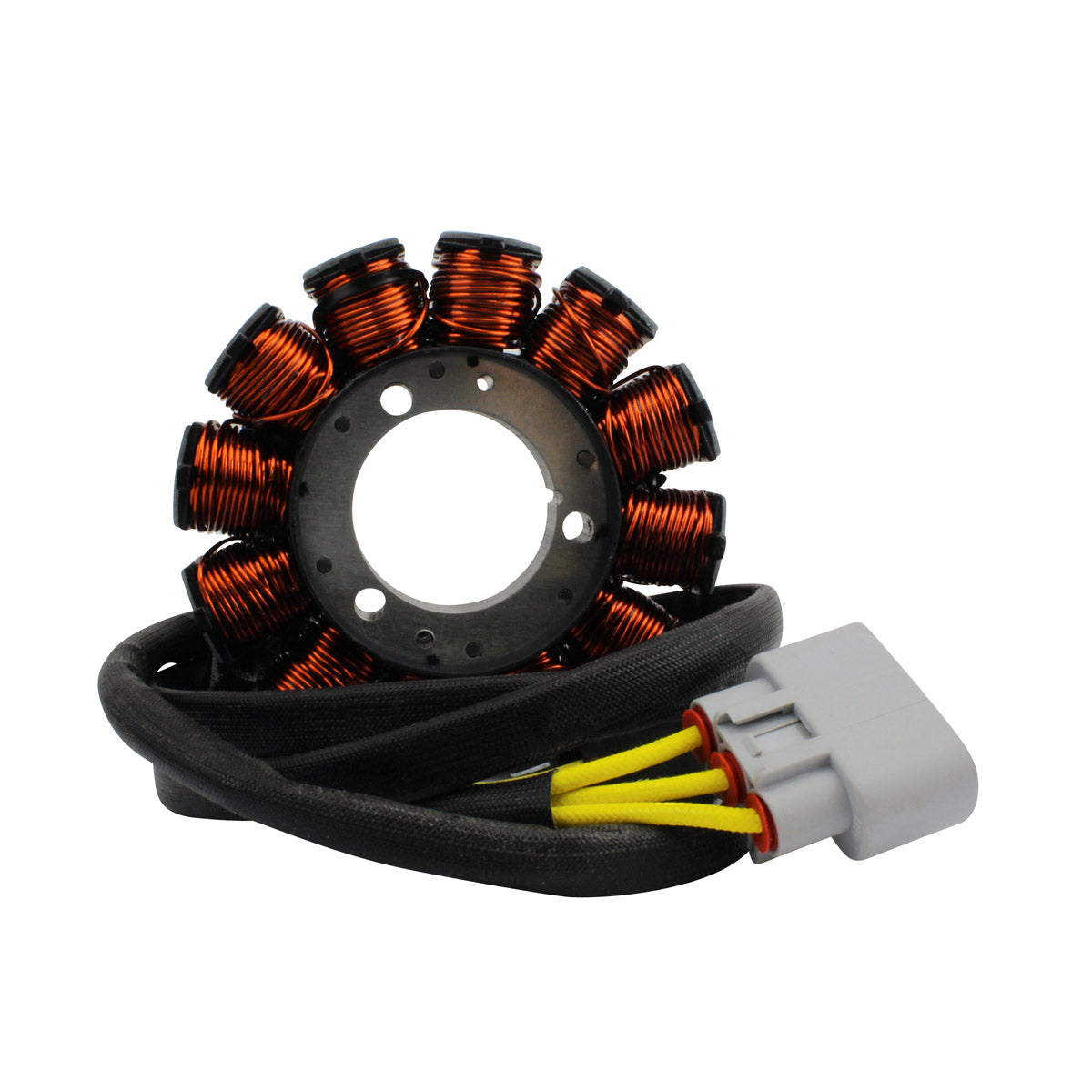

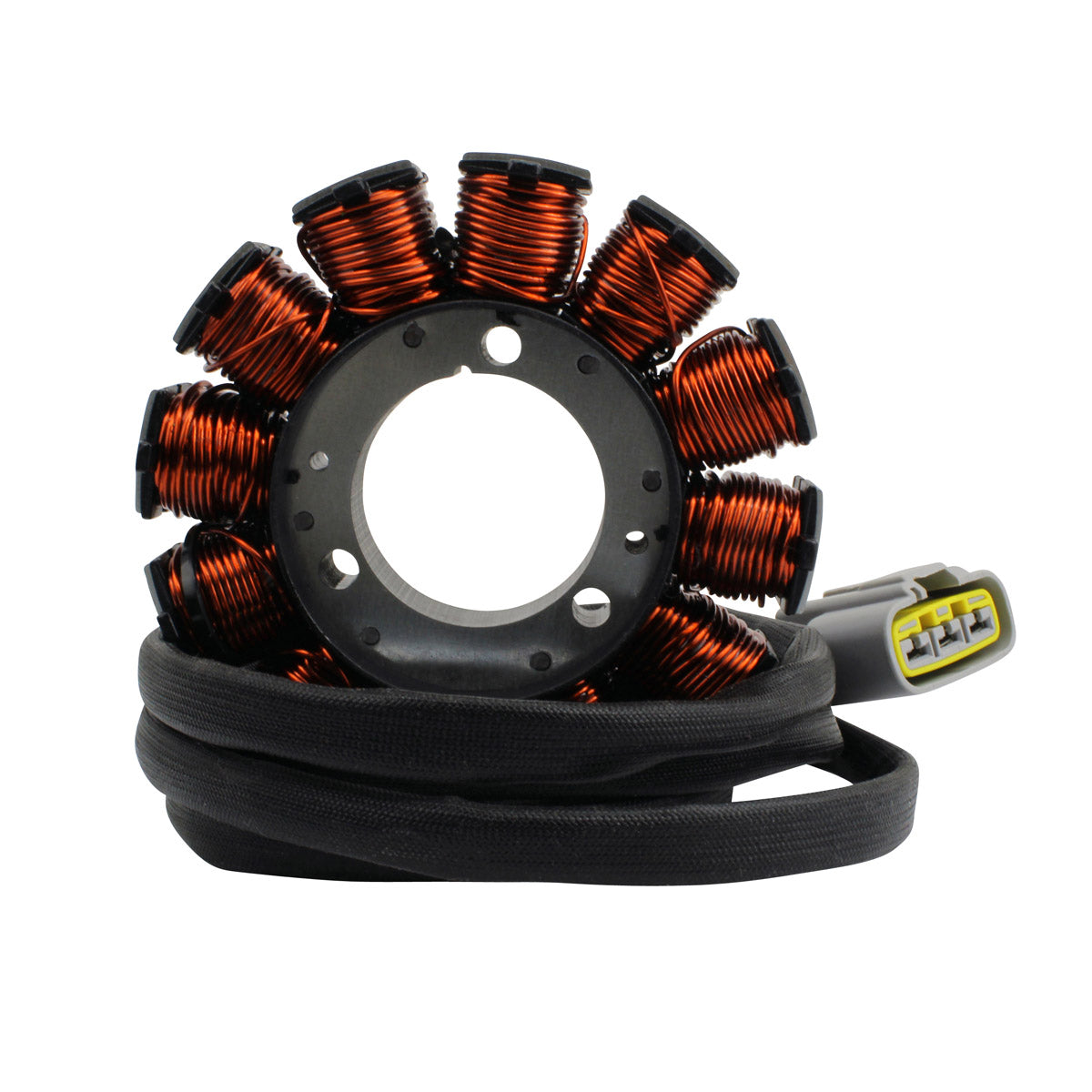

- 12 poles, 3 wires, single 3-pin plug
- Long 1500 mm lead from grommet to plug

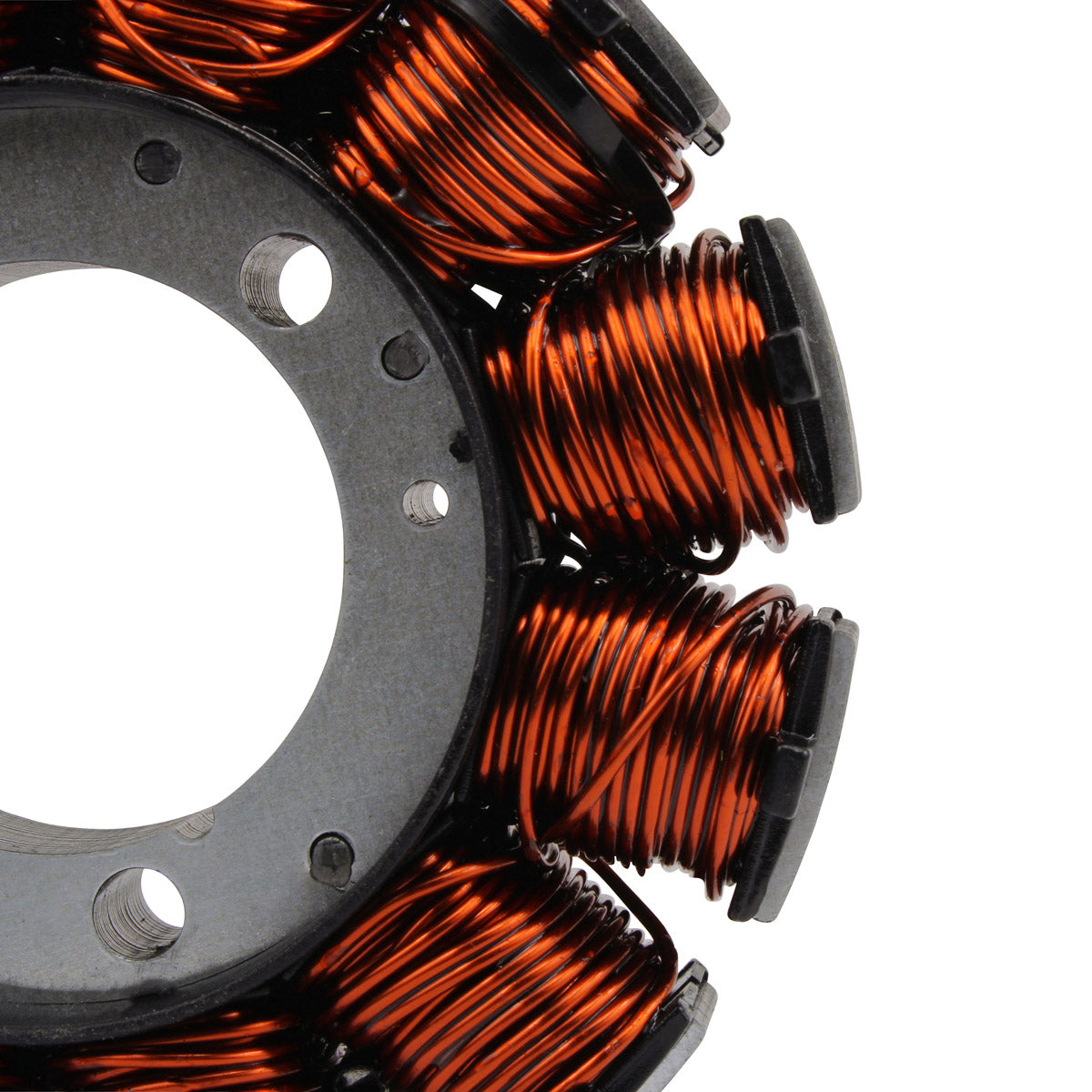

- Highest grade lamination materials and copper winding
- Windings resistant to 200 degrees Celsius

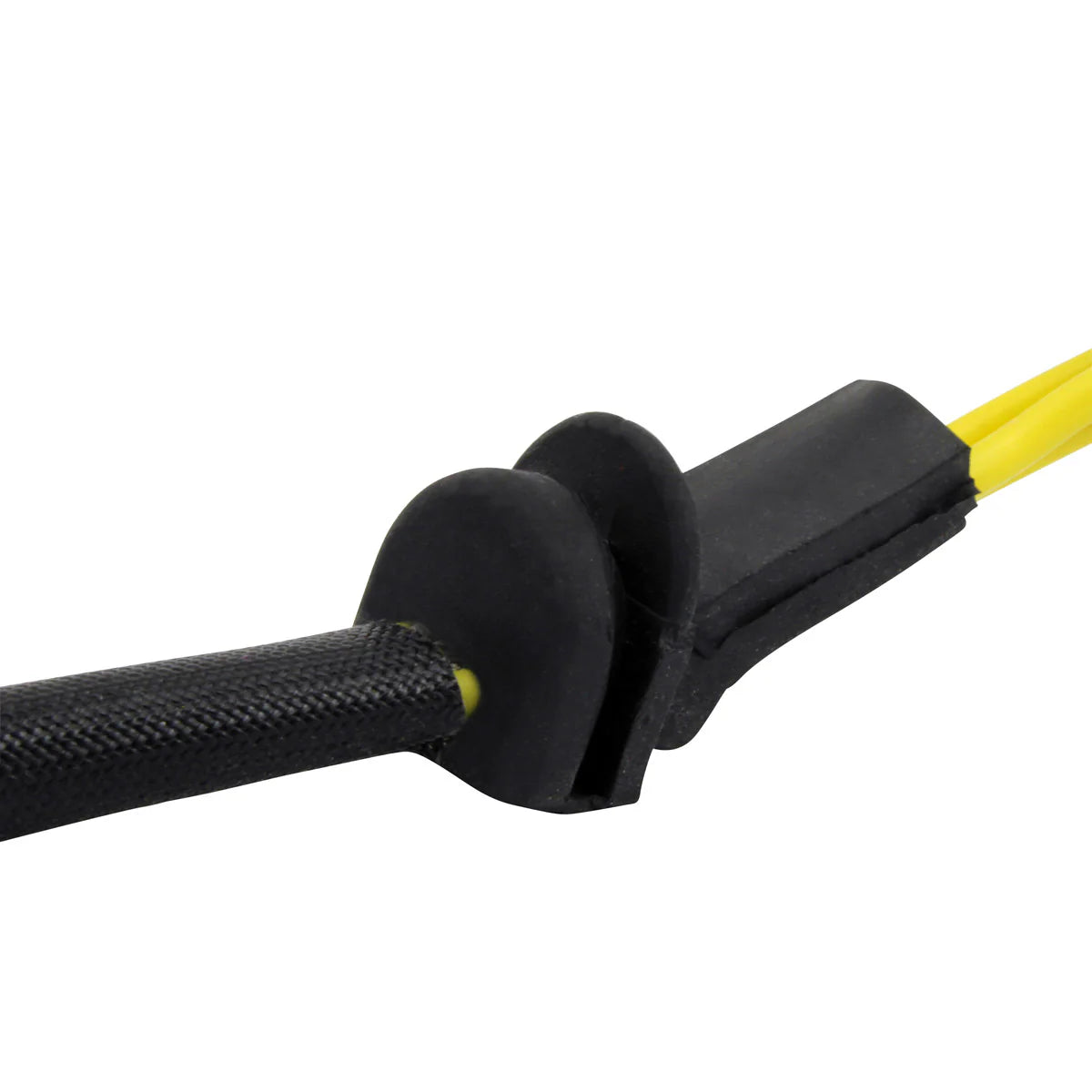

- Connectors and rubber grommet included

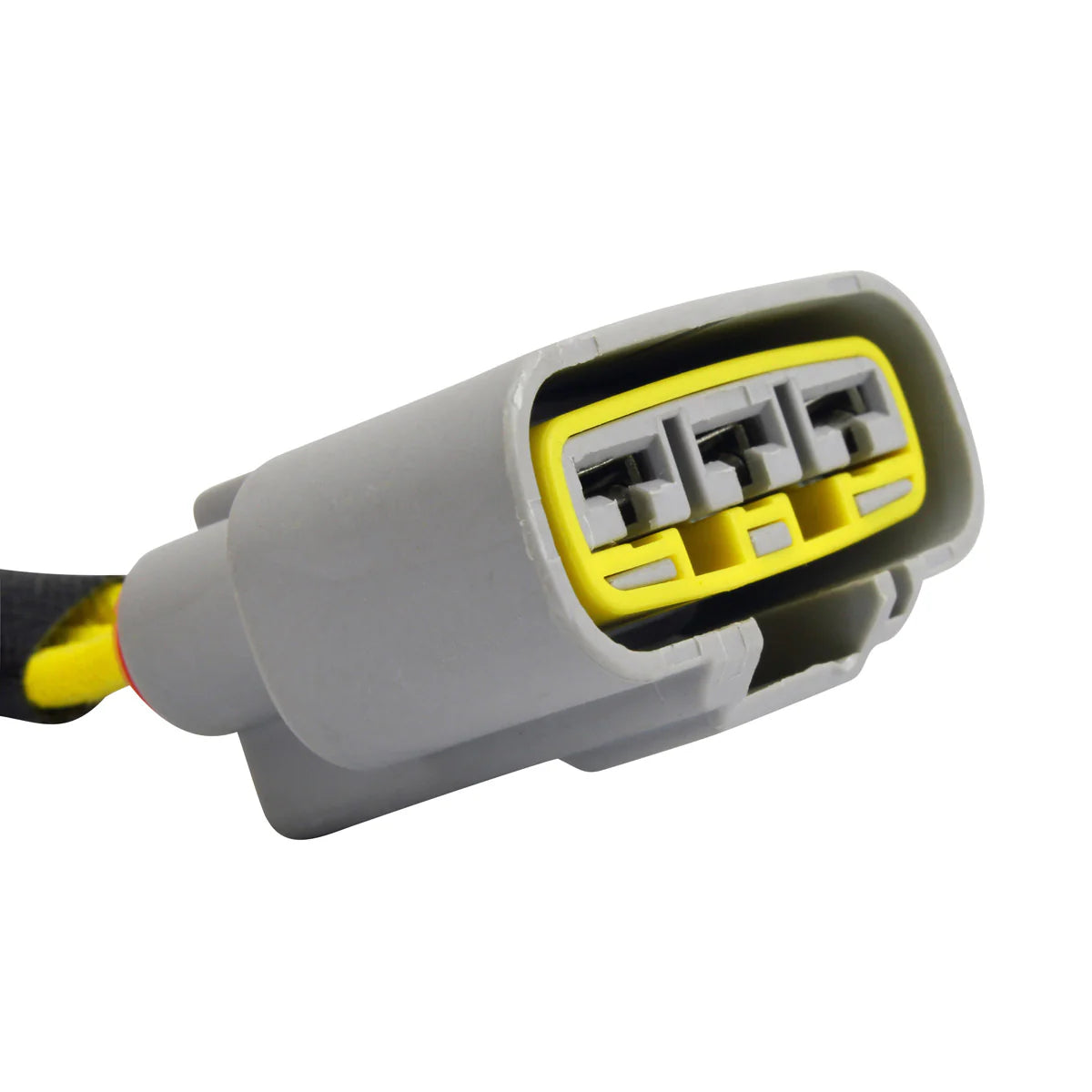

- Opposite connector (main harness side) also supplied
- Every unit tested before shipping
Technical Specs
| Specification | Detail |
|---|---|
| Power output | 650 watts |
| Interior diameter | 42 mm |
| Exterior diameter | 115 mm |

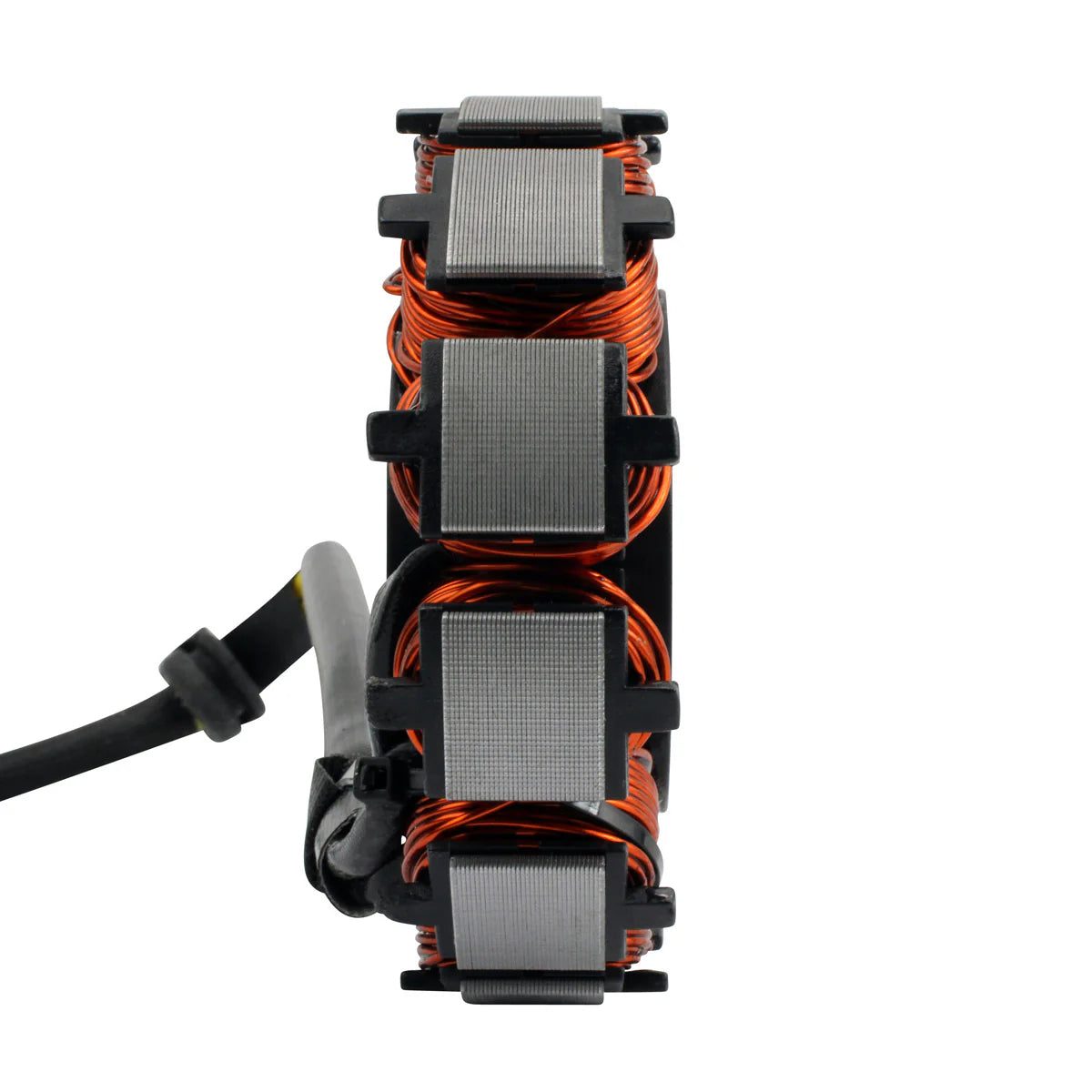

| Thickness | 16 mm |
| Wire length (stator to grommet) | 170 mm |
| Wire length (grommet to plug) | 1500 mm |
| Number of wires | 3 |
| Number of plugs | 1 |
| Number of pins | 3 |
| Number of poles | 12 |
| Resistance (Yellow to Yellow) | 0.3 ohms +/-20% |
| Temperature rating | 200 degrees Celsius |
| Part number | RMS010-108660 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Can-Am Commander 800 | 2020-2025 |
| Can-Am Commander 1000 | 2020-2025 |
| Can-Am Outlander 570 | 2020-2025 |
| Can-Am Outlander 650 | 2020-2025 |
| Can-Am Outlander 850 | 2020-2025 |
| Can-Am Outlander 1000 | 2020-2025 |
| Can-Am Renegade 570 | 2020-2025 |
| Can-Am Renegade 650 | 2020-2025 |
| Can-Am Renegade 850 | 2020-2025 |
| Can-Am Renegade 1000 | 2020-2025 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 420685634 | Can-Am |
| 420685922 | Can-Am |
Frequently Asked Questions
Does this fit without modification?
Yes. It is a direct plug-and-play replacement for the original stator, so the standard harness connects to it and no cutting, splicing or machining is required.
What is included in the box?
The stator, its connectors and the rubber grommet, along with the opposite connector for the main harness side.
How do I confirm the stator has failed?
With the engine off and the plug disconnected, measure between the Yellow wires - this unit reads 0.3 ohms +/-20% between each pair. An open circuit, a near-zero reading, or continuity between any wire and the engine case all indicate a failed winding. A machine that runs and starts normally but keeps flattening its battery is the usual first symptom.
One part number covers both a side-by-side and an ATV - is that right?
Yes. Can-Am use the same charging system across these platforms, and the 1500 mm lead from the grommet to the plug is long enough to reach on both. Check the number on your original stator against the cross reference table above before ordering.
