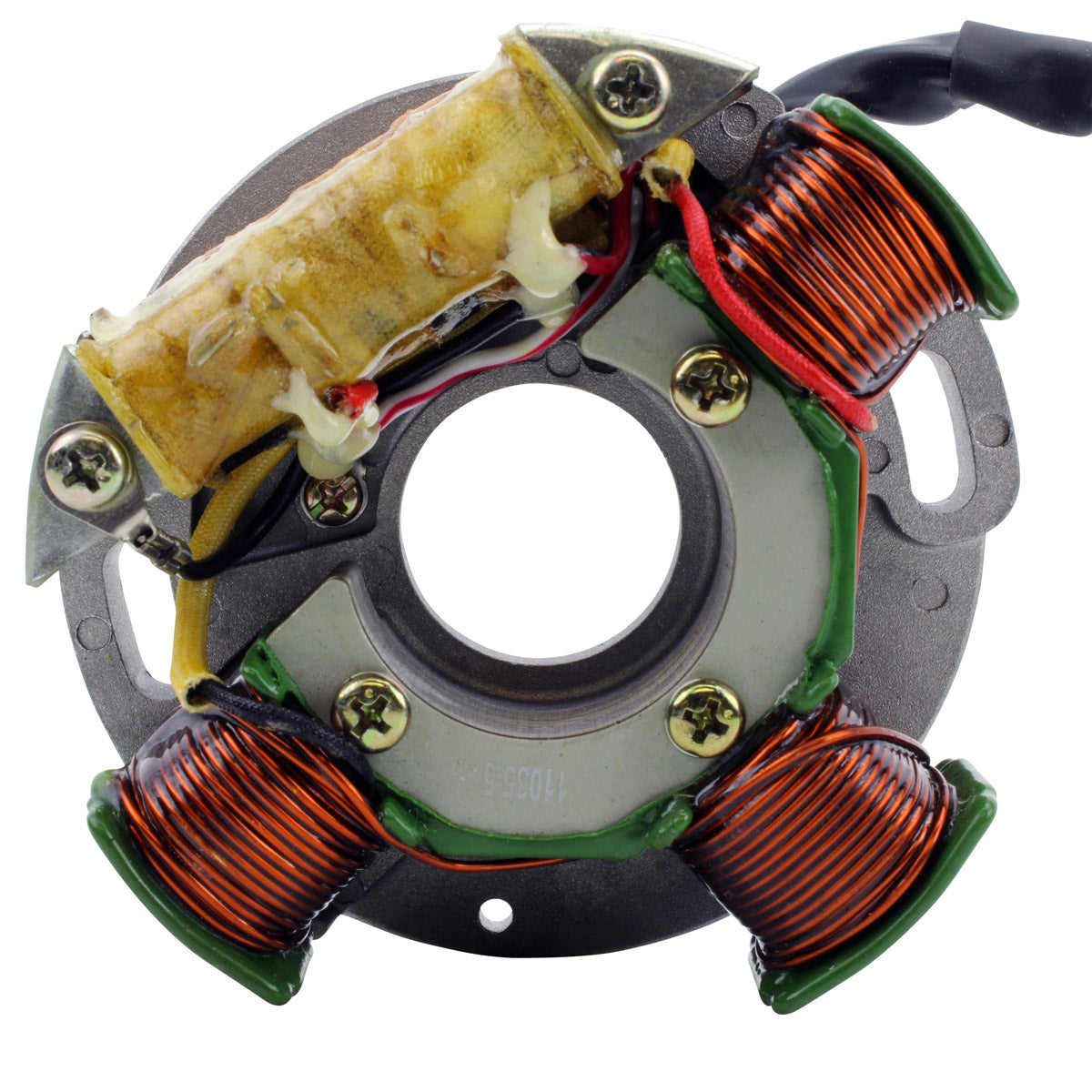

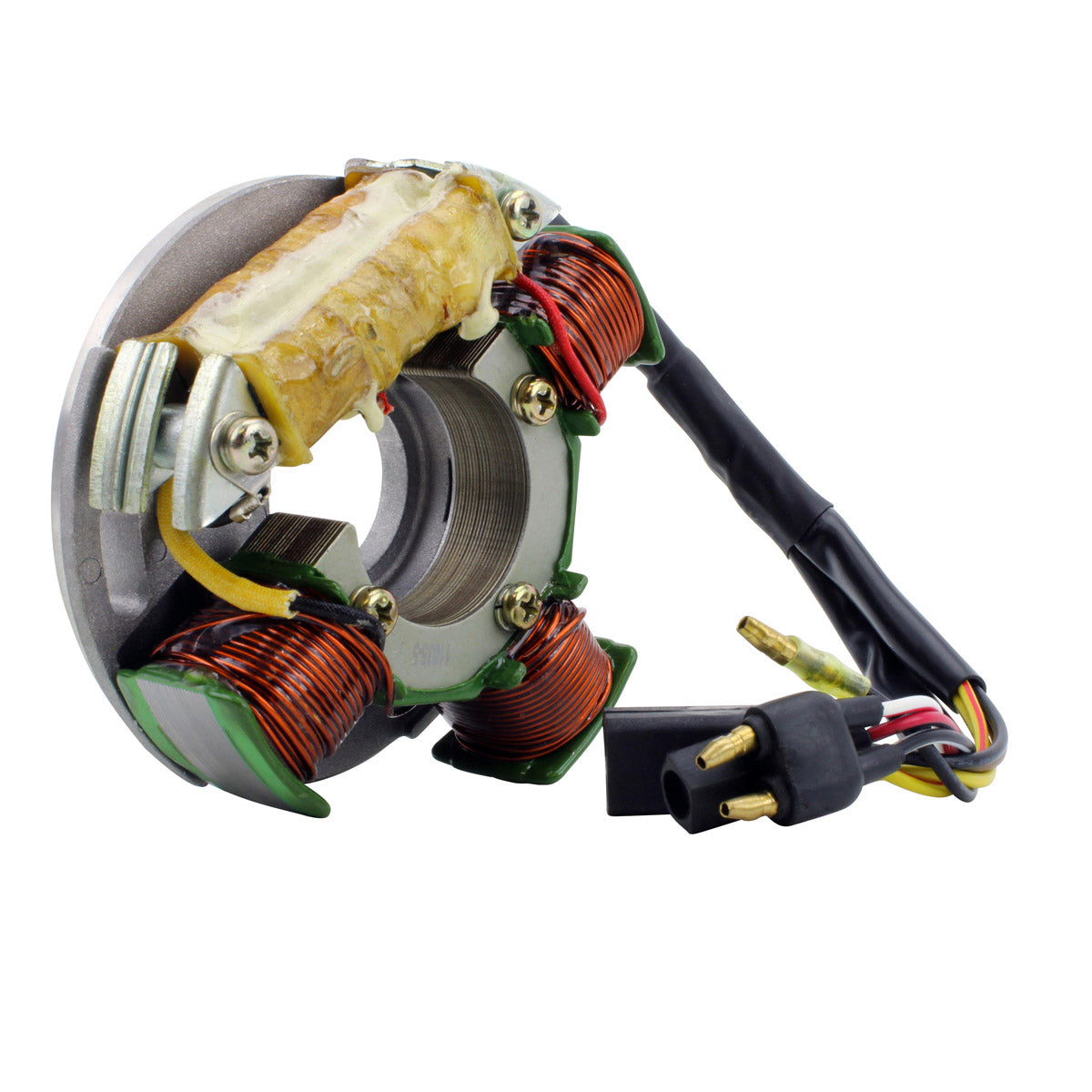

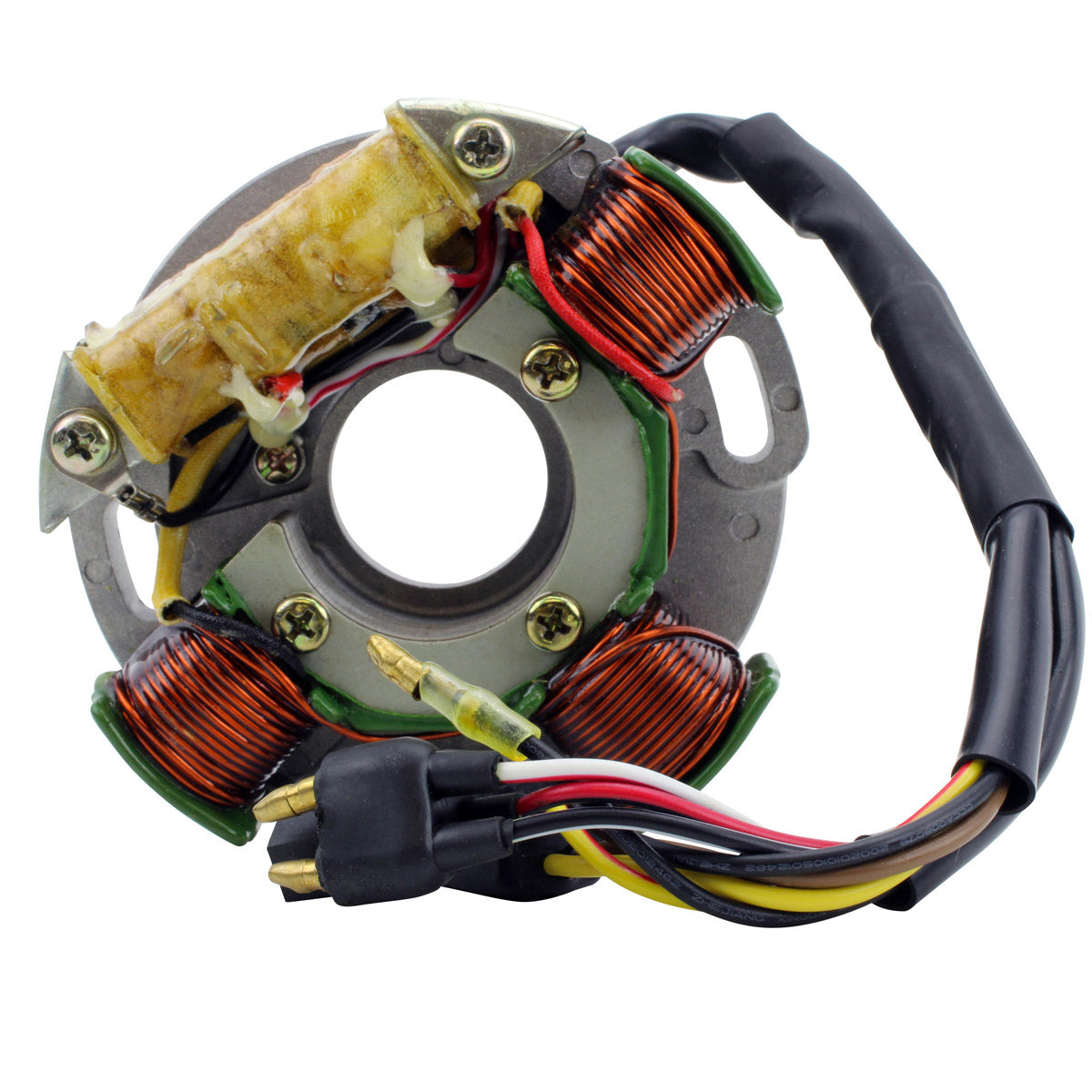

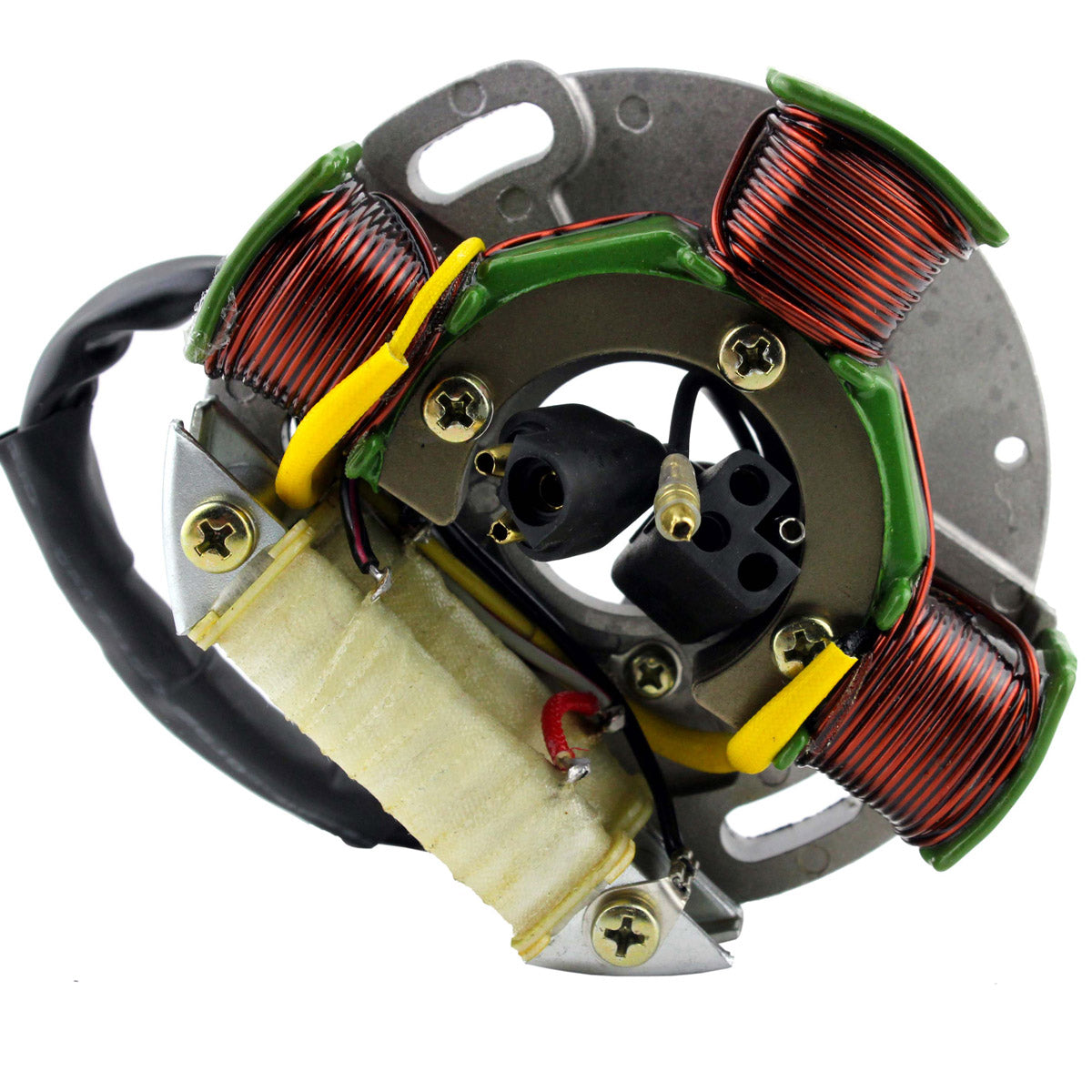

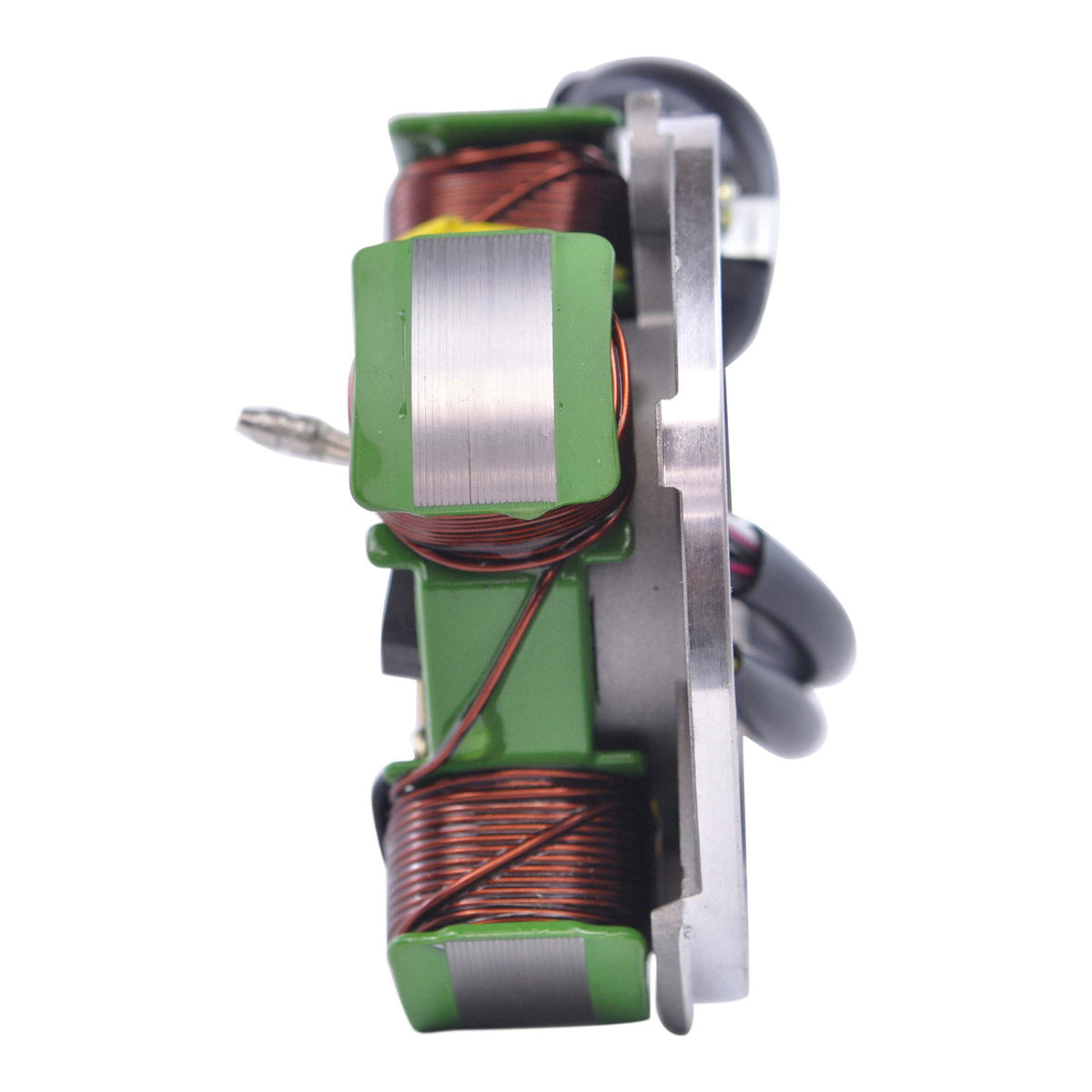

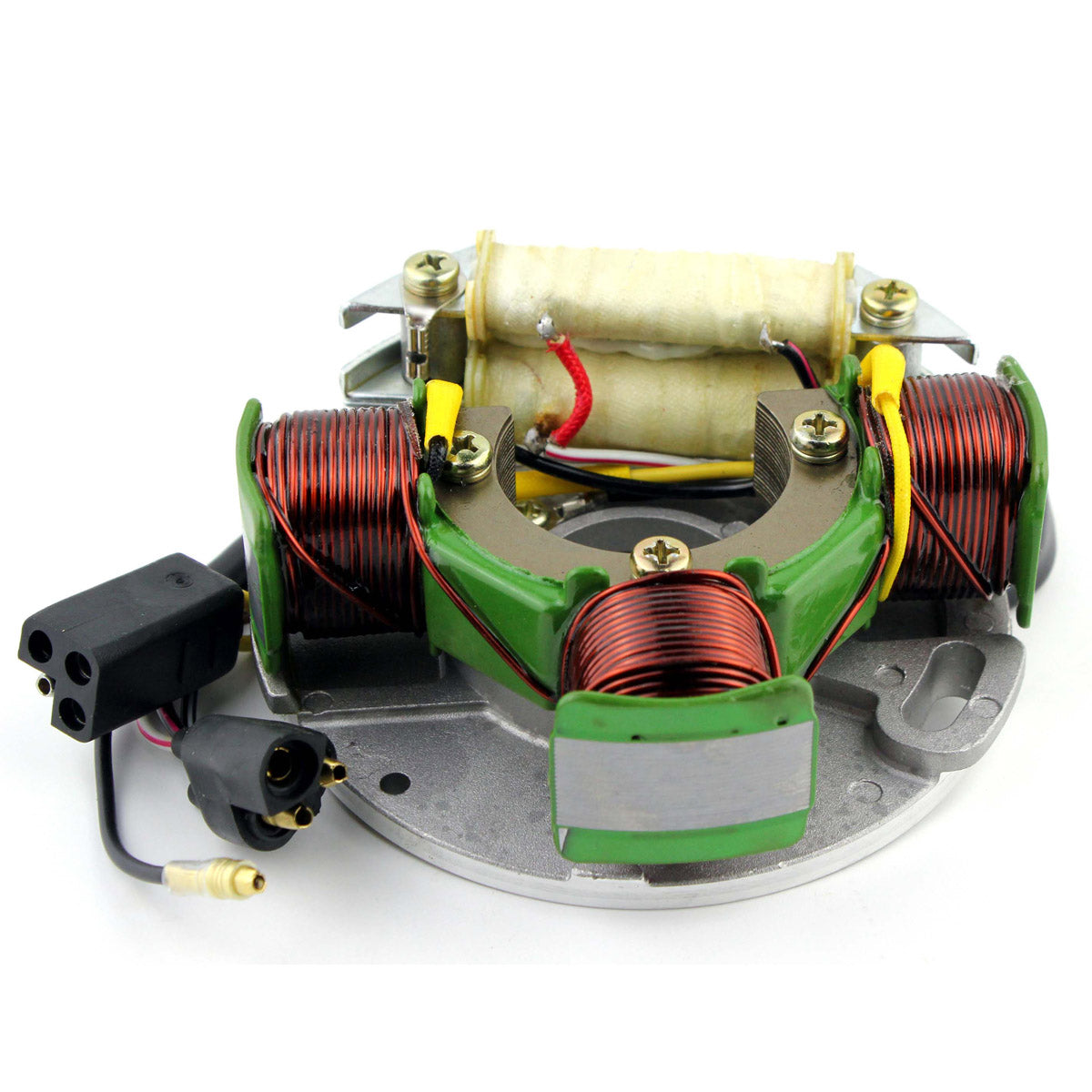

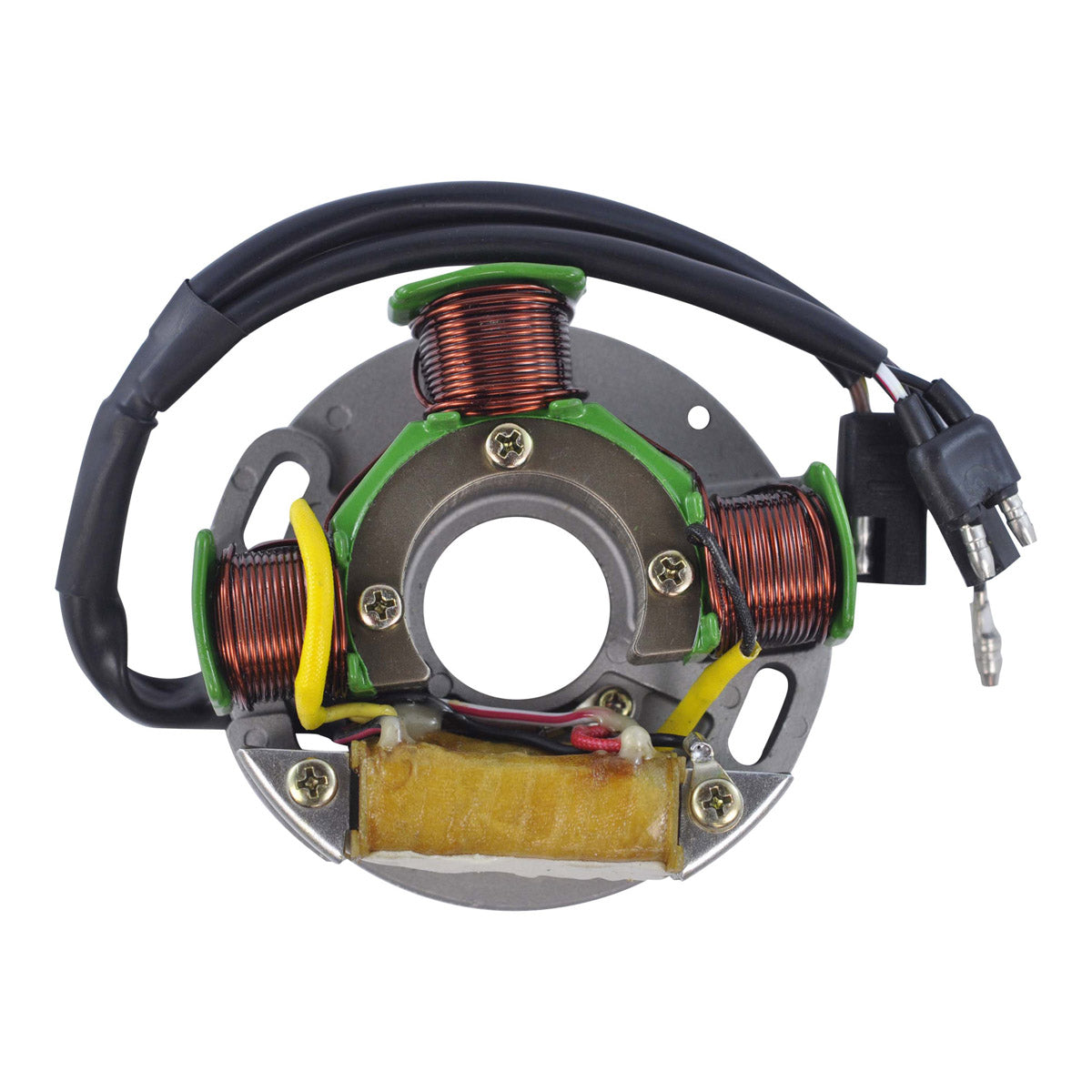

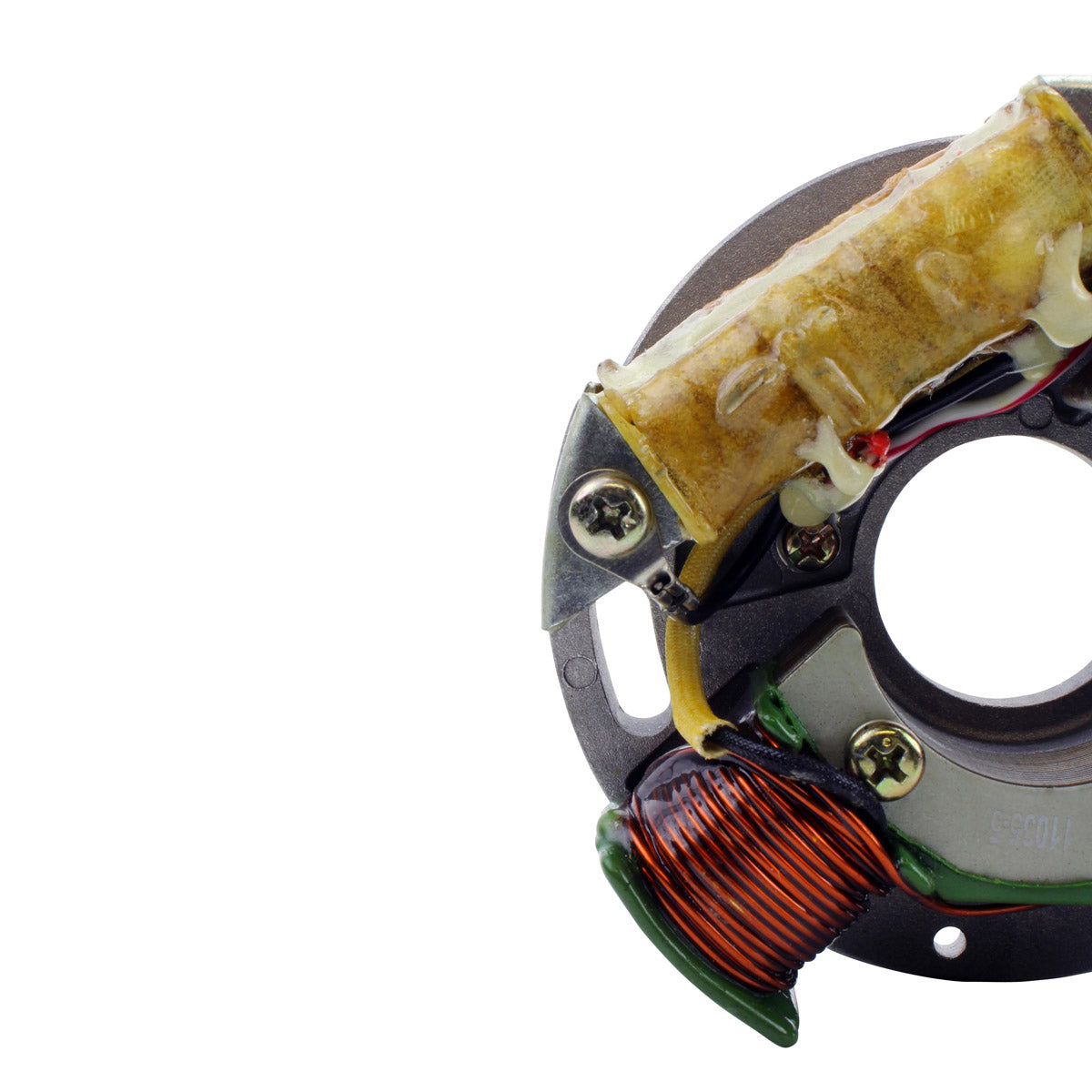

Stator for Arctic Cat Bearcat, Cheetah, Cougar and Wildcat Snowmobiles
Bearcat 440, Cheetah 500, Cougar 550, El Tigre EXT 530 and Wildcat 700 - 1984 to 2005 - RMSTATOR RM01300
A brand new aftermarket stator built as a direct replacement for the original charging and ignition unit fitted to a long list of Arctic Cat snowmobiles produced between 1984 and 2005. It is a plug-and-play, direct fit assembly, so it mounts in the original position using the original fixings and needs no modification to the engine, the flywheel or the wiring loom. The connector and the back plate are supplied with the unit, so nothing has to be salvaged from the old stator before you fit it.
The stator is wound with the highest grade of copper wire, rated to withstand 200 degrees Celsius, on the highest grade of lamination material. Every unit is bench tested before it is shipped. Please note the manufacturer's own caution on this part: two different stators exist against OEM 3005-346, so compare your original unit against the photographs on this listing and against the dimensions in the specification table before ordering.
Key Features
- Direct replacement for the original Arctic Cat stator
- Plug-and-play, direct fit, easy installation
- No modification to engine, flywheel or loom required
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

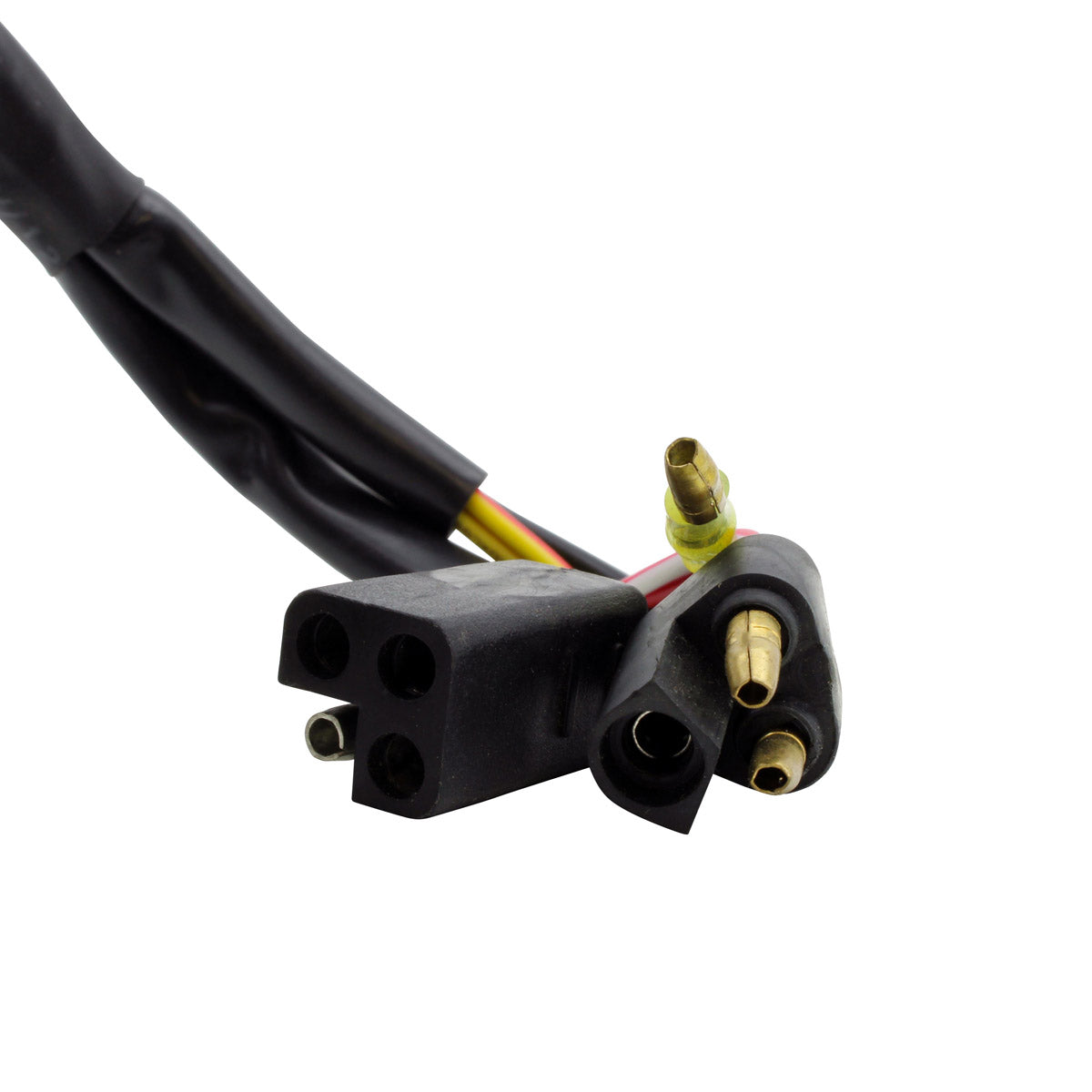

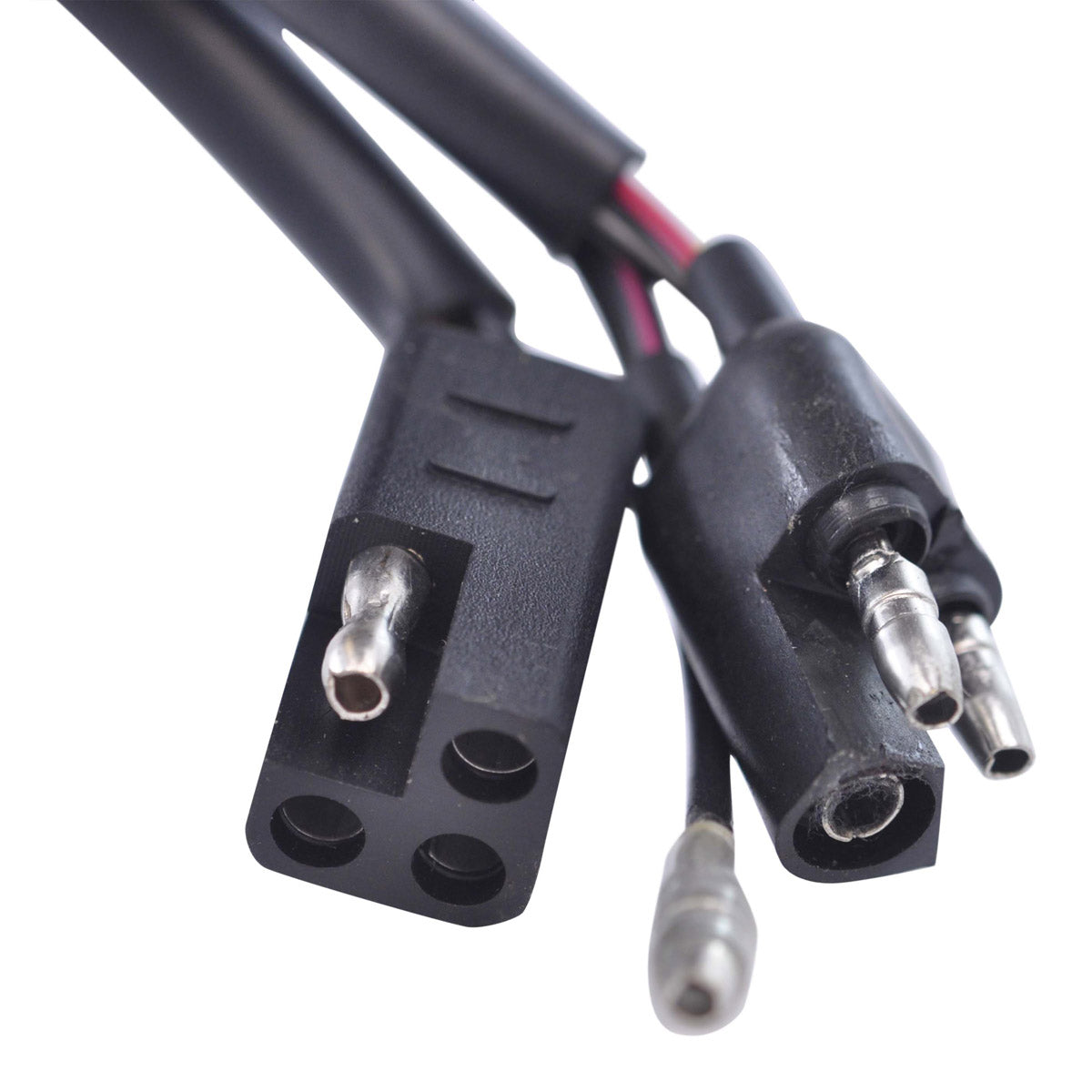

- Connector included

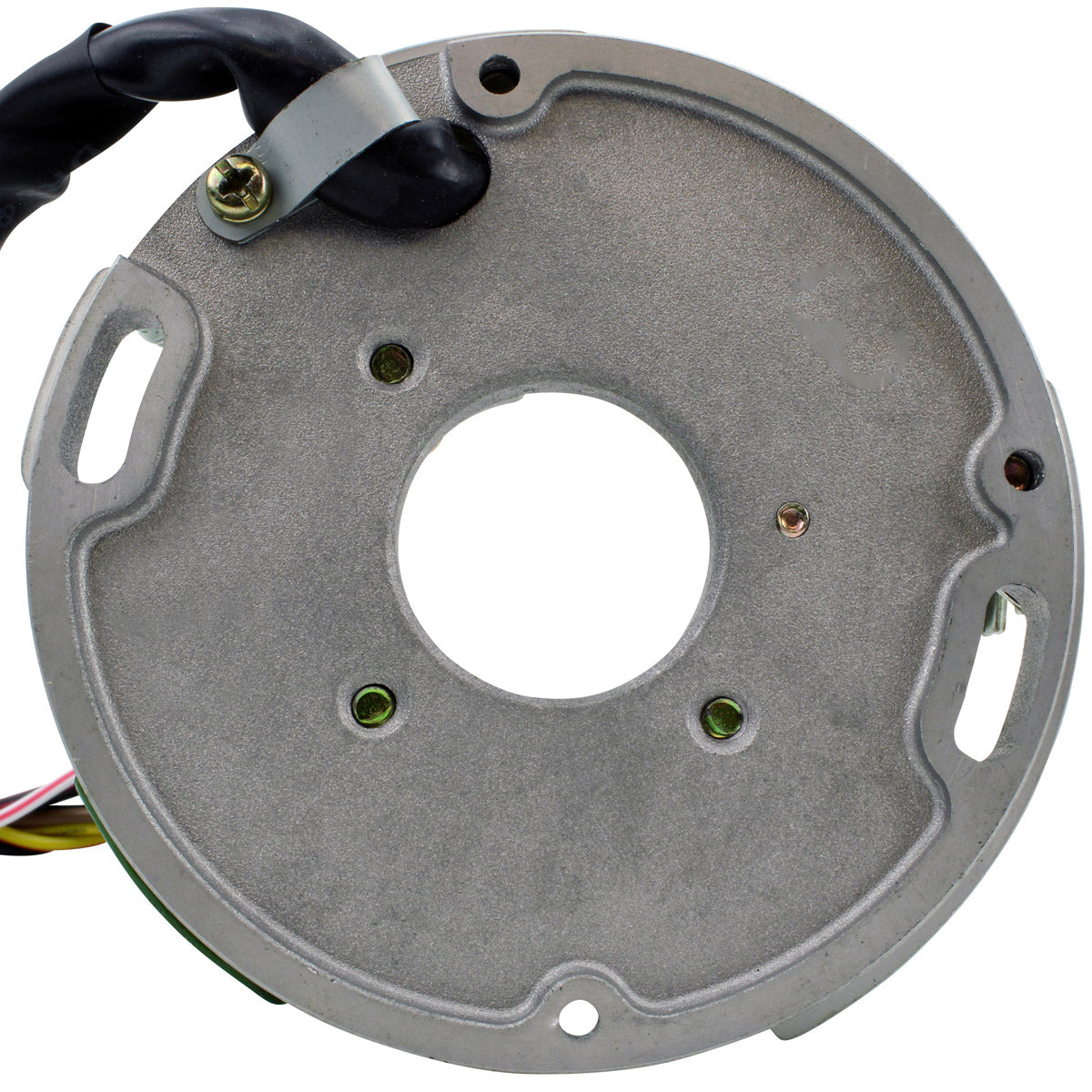

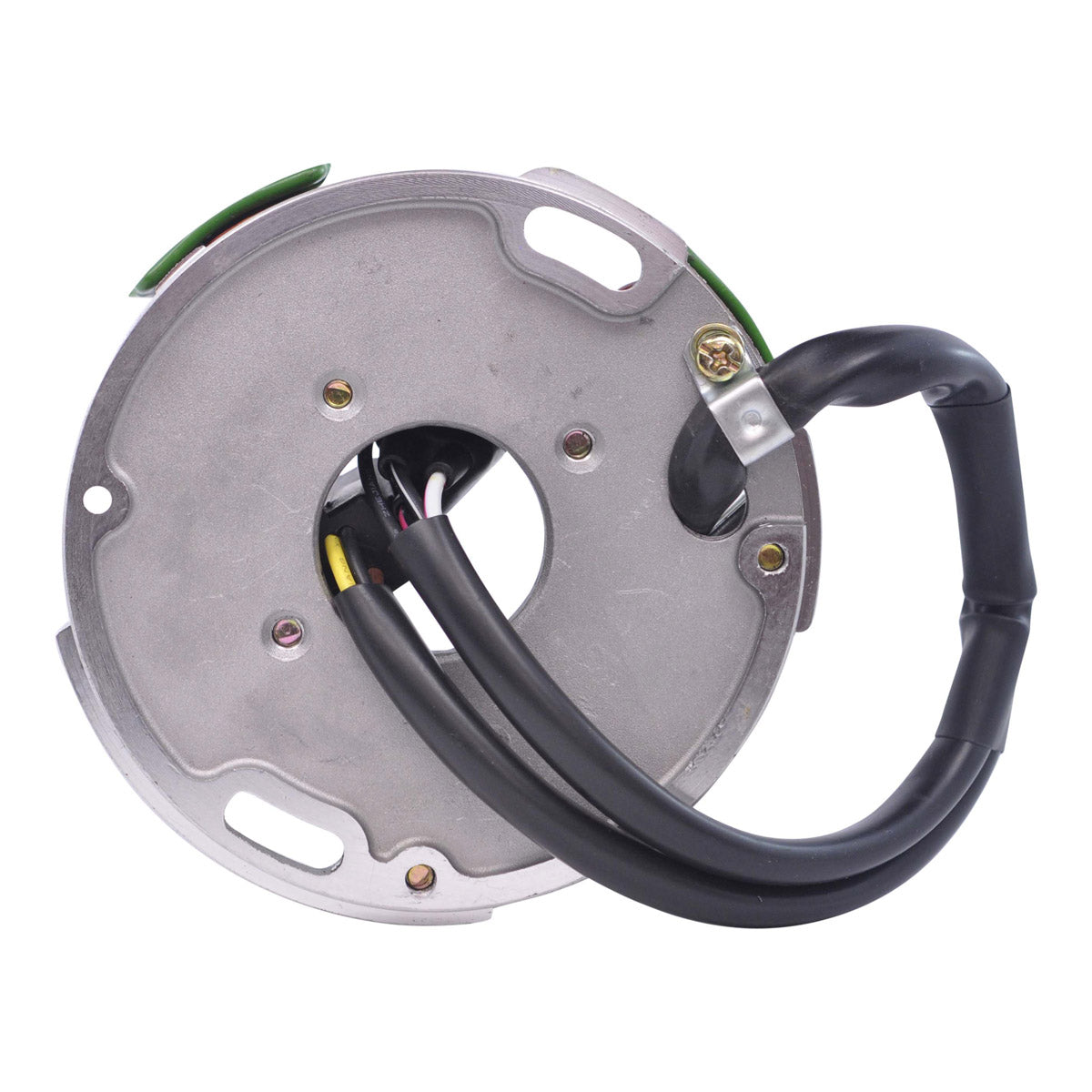

- Back plate included
- Every unit is tested before it is shipped
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 40 mm |
| Exterior diameter | 113 mm |
| Thickness | 18 mm |
| Length of wires, stator to plug | 240 mm |
| Number of wires | 8 |
| Number of plugs | 2 |
| Number of pins | 8 |
| Alternator resistance | Yellow to Yellow = 0.5 ohms +/-20% |
| Source coil resistance | Black/Red to Black/White = 200 ohms +/-20% |
| Source coil 2 resistance | White/Red to Black/Red = 20 ohms +/-20% |
| Winding temperature rating | 200 degrees Celsius |
| Manufacturer part number | RM01300 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Arctic Cat Bearcat 440 | 1984-2005 |
| Arctic Cat Cheetah 500 | 1984-2005 |
| Arctic Cat Cougar 550 | 1984-2005 |
| Arctic Cat El Tigre EXT 530 | 1984-2005 |
| Arctic Cat Wildcat 700 | 1984-2005 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 3003-400 | Arctic Cat |
| 3002-887 | Arctic Cat |
| 3003-010 | Arctic Cat |
| 3003-157 | Arctic Cat |
| 3003-326 | Arctic Cat |
| 3003-379 | Arctic Cat |
| 3003-532 | Arctic Cat |
| 3003-533 | Arctic Cat |
| 3003-567 | Arctic Cat |
| 3003-569 | Arctic Cat |
| 3003-570 | Arctic Cat |
| 3003-578 | Arctic Cat |
| 3003-584 | Arctic Cat |
| 3003-976 | Arctic Cat |
| 3004-043 | Arctic Cat |
| 3004-829 | Arctic Cat |
| 3004-833 | Arctic Cat |
| 3004-971 | Arctic Cat |
| 3005-375 | Arctic Cat |
Frequently Asked Questions
Will this stator fit without modification?
Yes. It is a direct replacement for the original unit on the models listed above. It mounts in the factory position using the original fixings, and no modification to the engine, the flywheel or the wiring loom is needed.
What is included?
The stator itself, the connector and the back plate. Every unit is tested before it is shipped.
How do I tell whether the old stator has failed?
Common signs are a battery that will not hold charge, dim or flickering lights, a weak or intermittent spark, and the machine cutting out once it is hot. The quickest confirmation is to measure the wire-to-wire resistance on your original unit and compare the readings against the figures in the specification table above.
I have read that there are two stators for OEM 3005-346 - which is this one?
Two different stators exist against that OEM reference. Compare your original part with the photographs on this listing and check it against the dimensions and the wire, plug and pin counts in the specification table before ordering.
