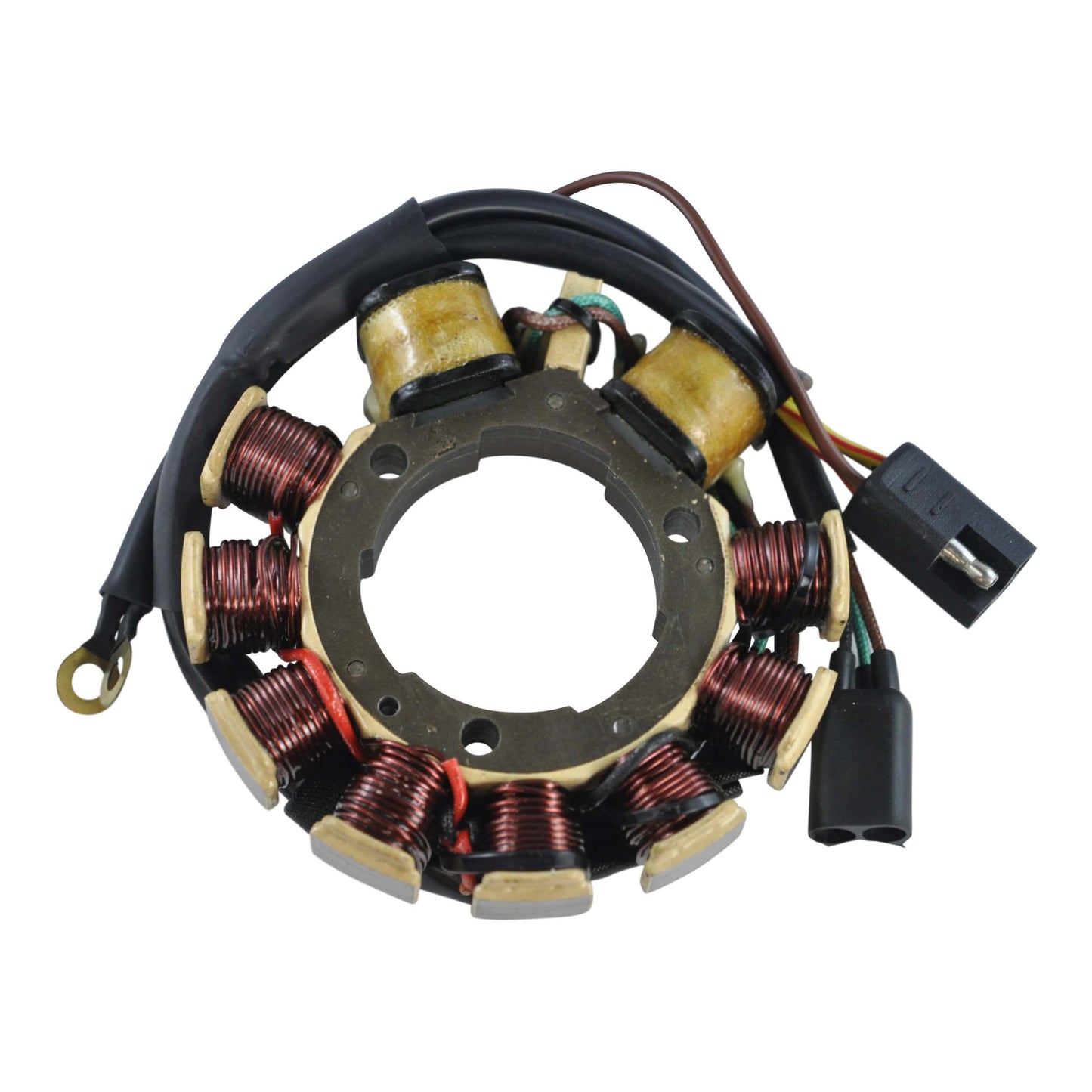

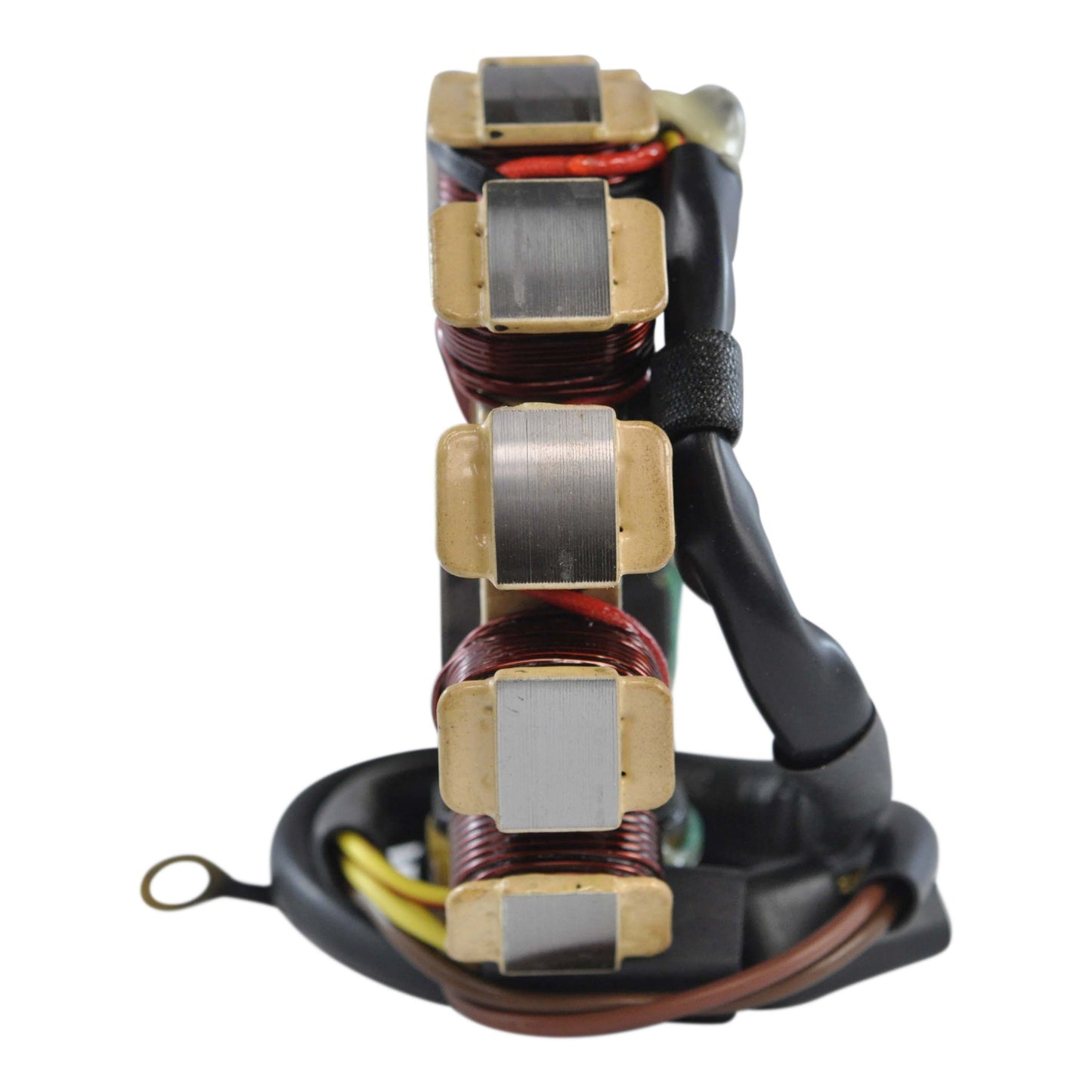

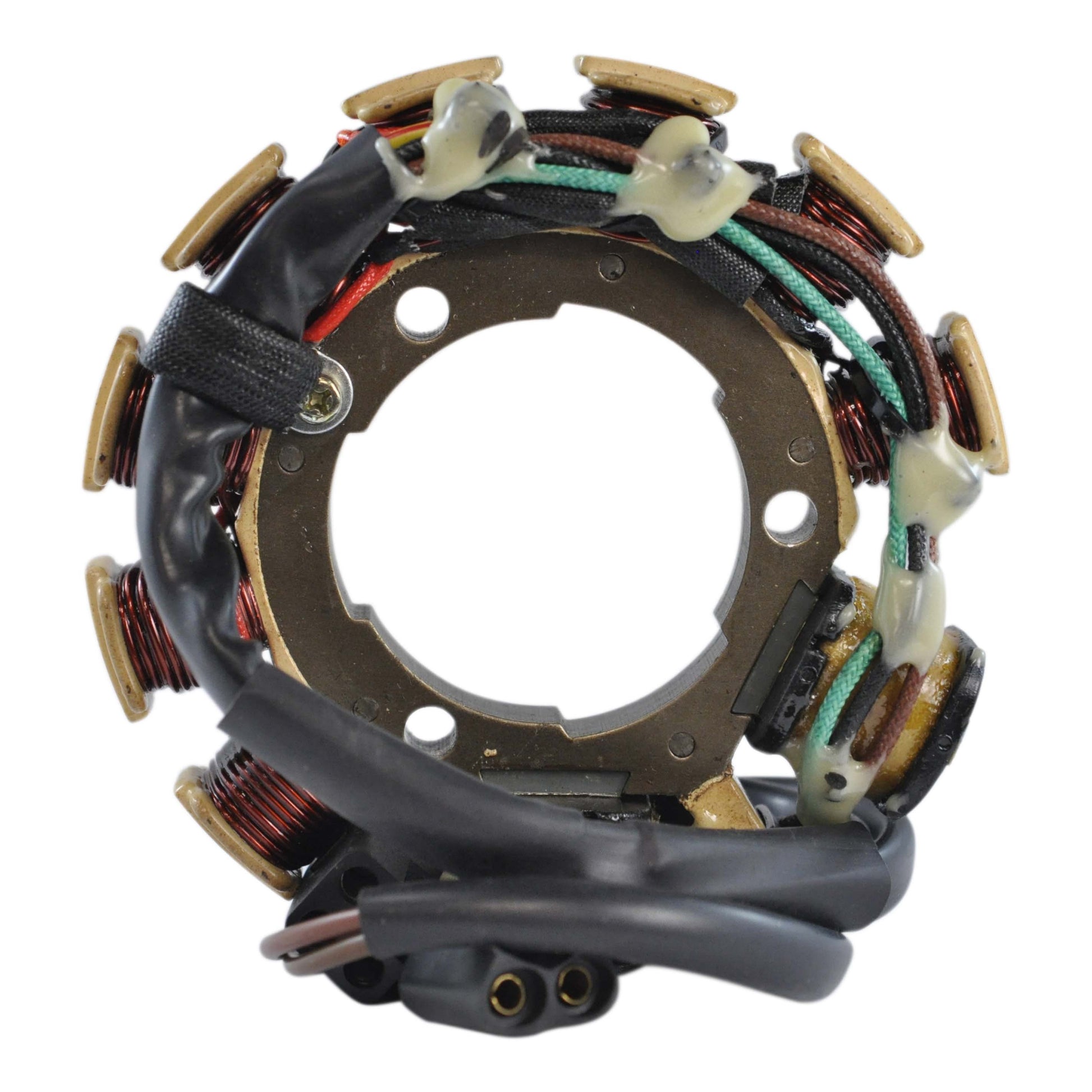

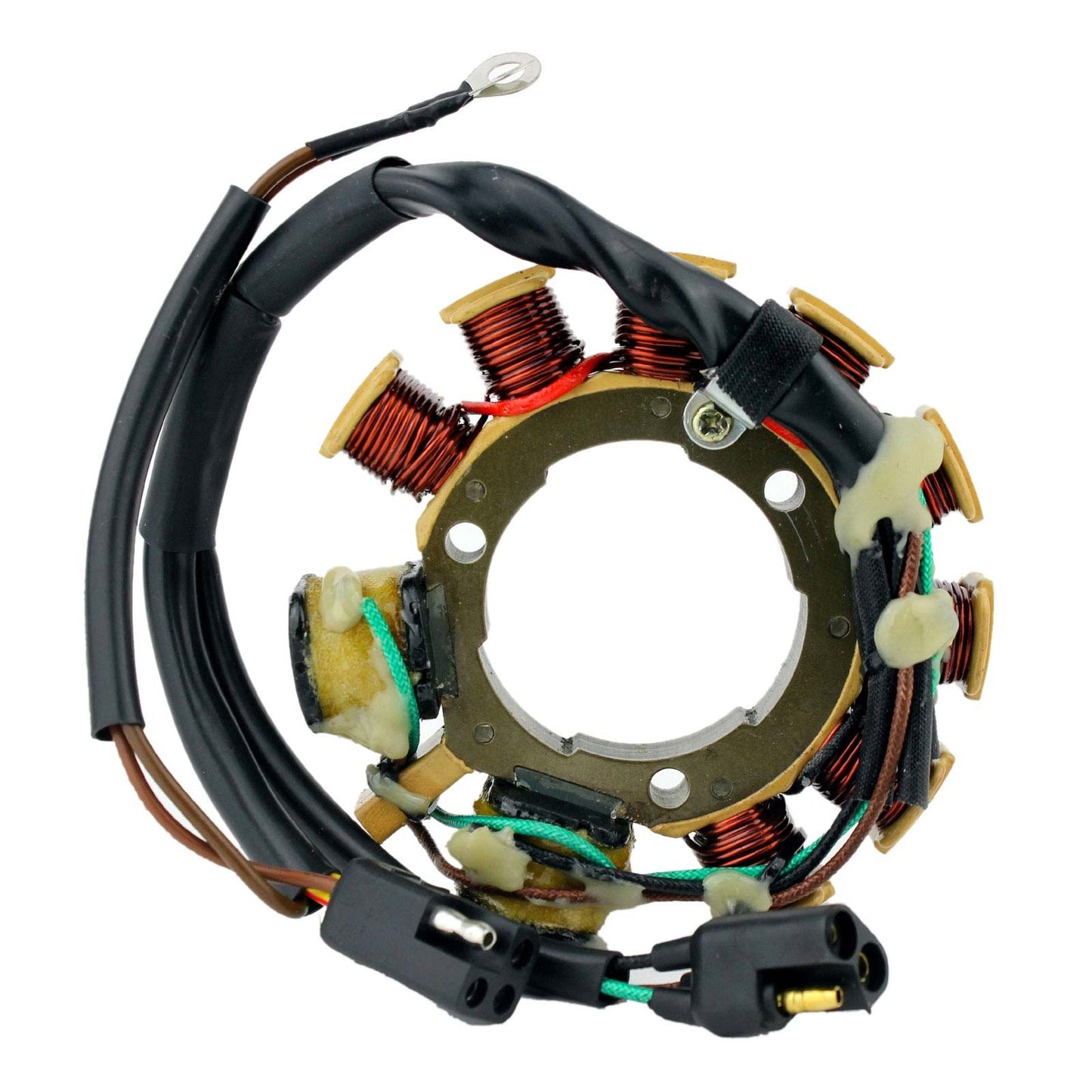

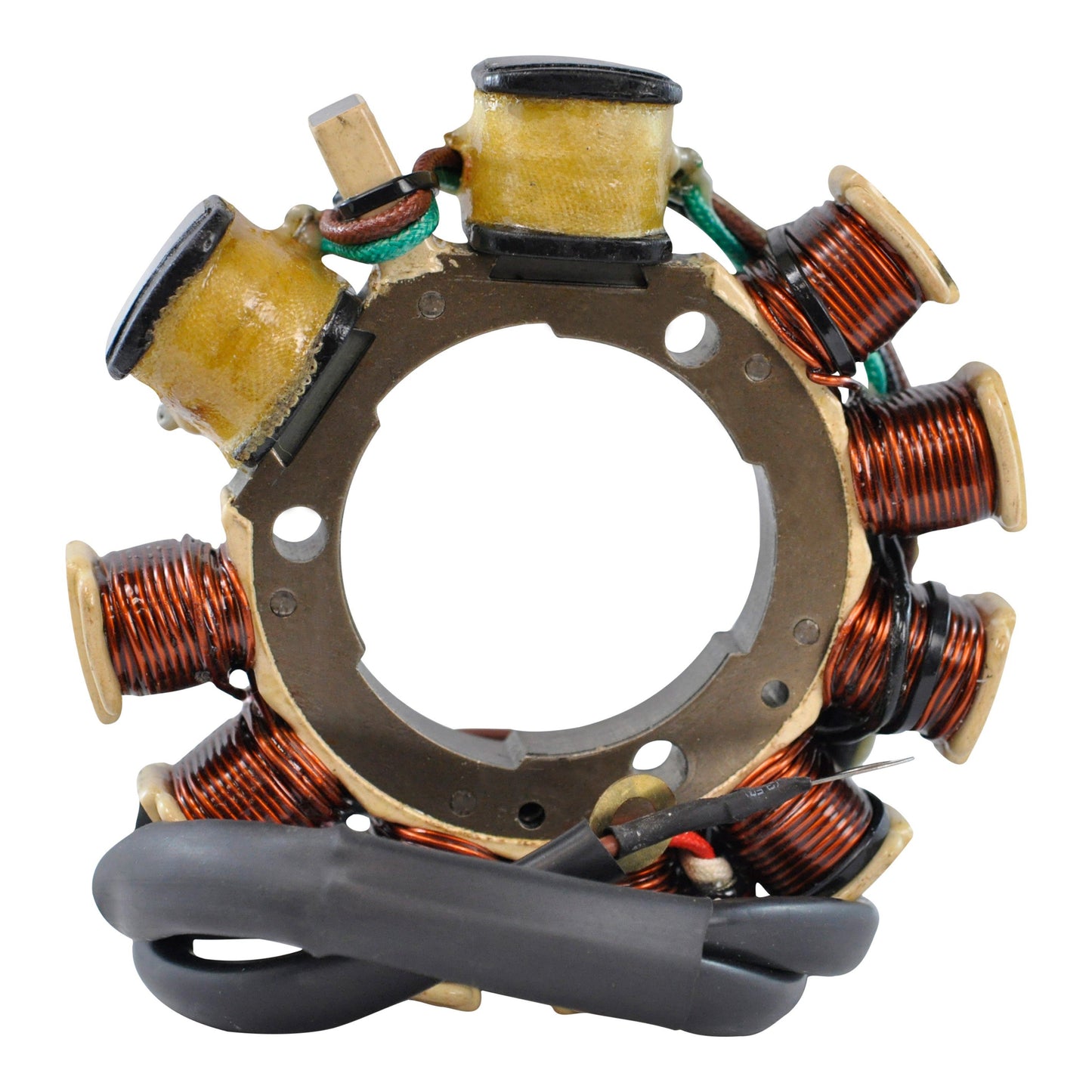

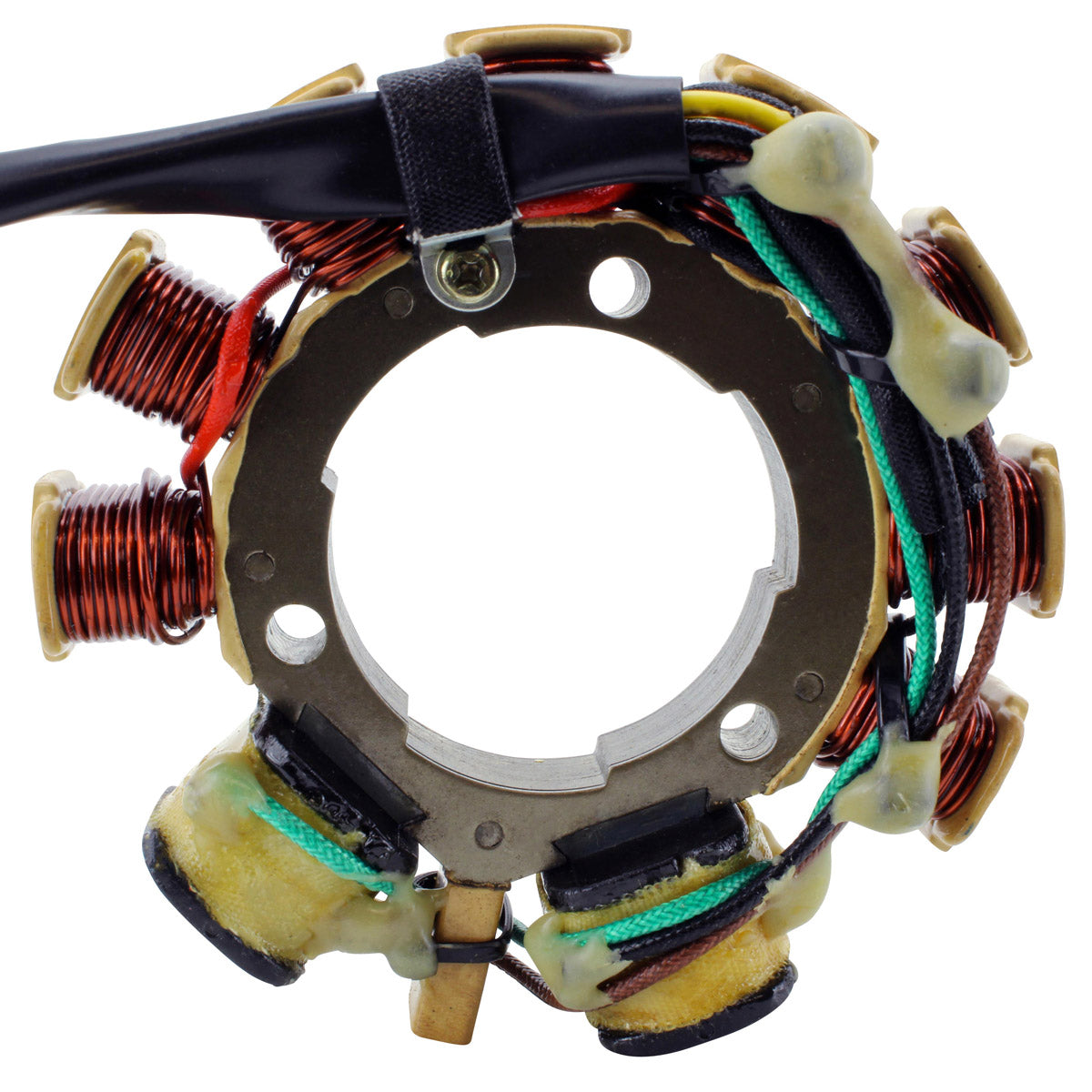

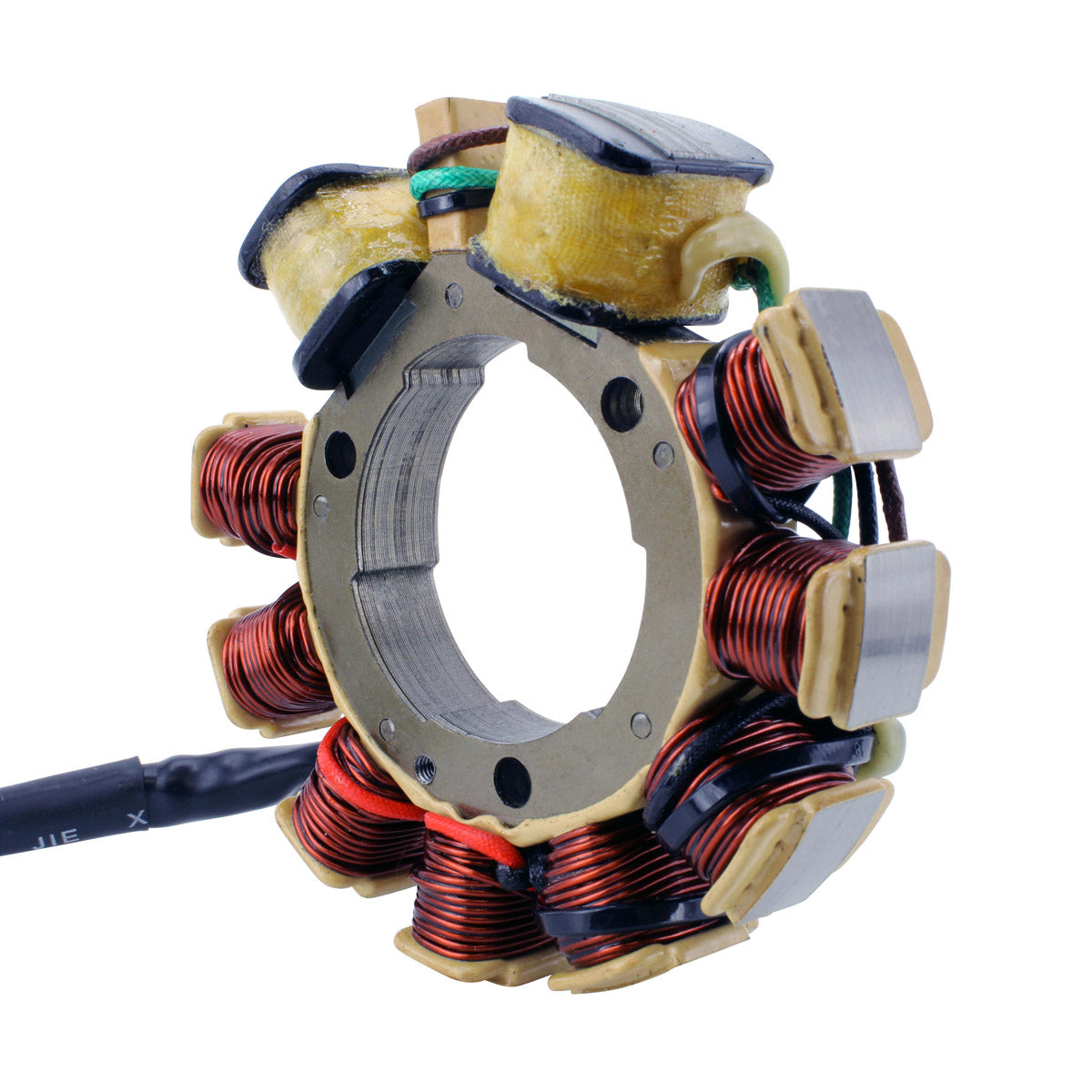

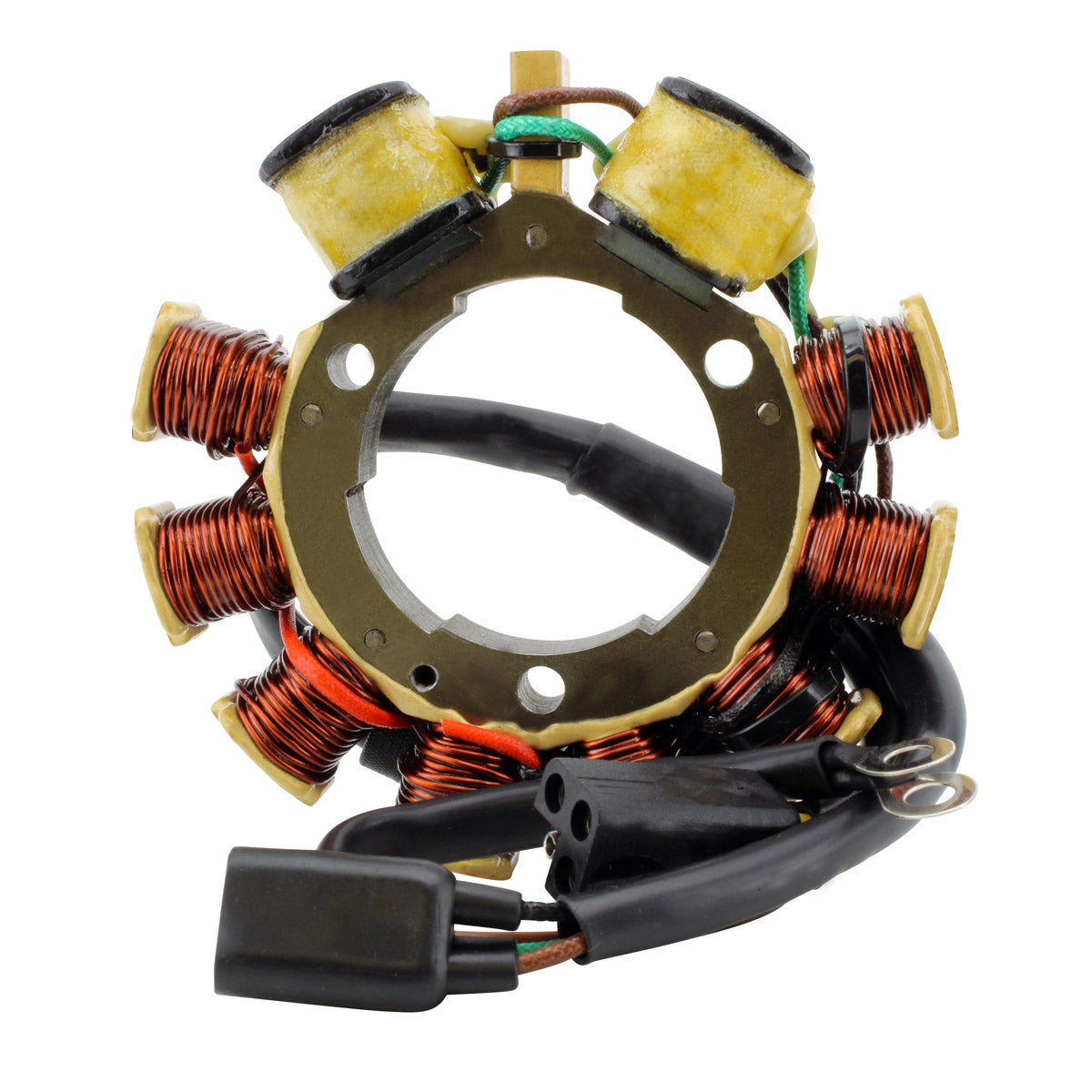

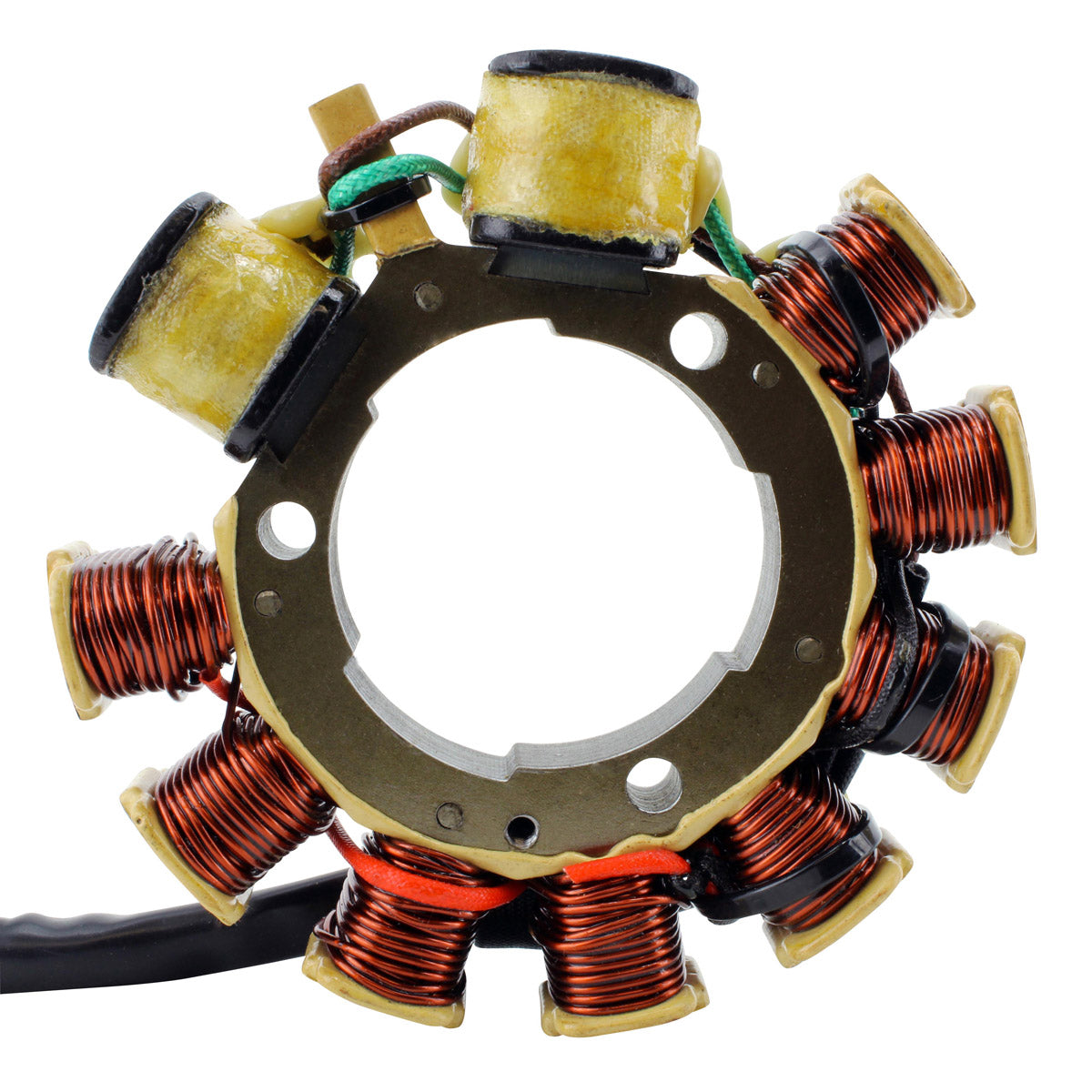

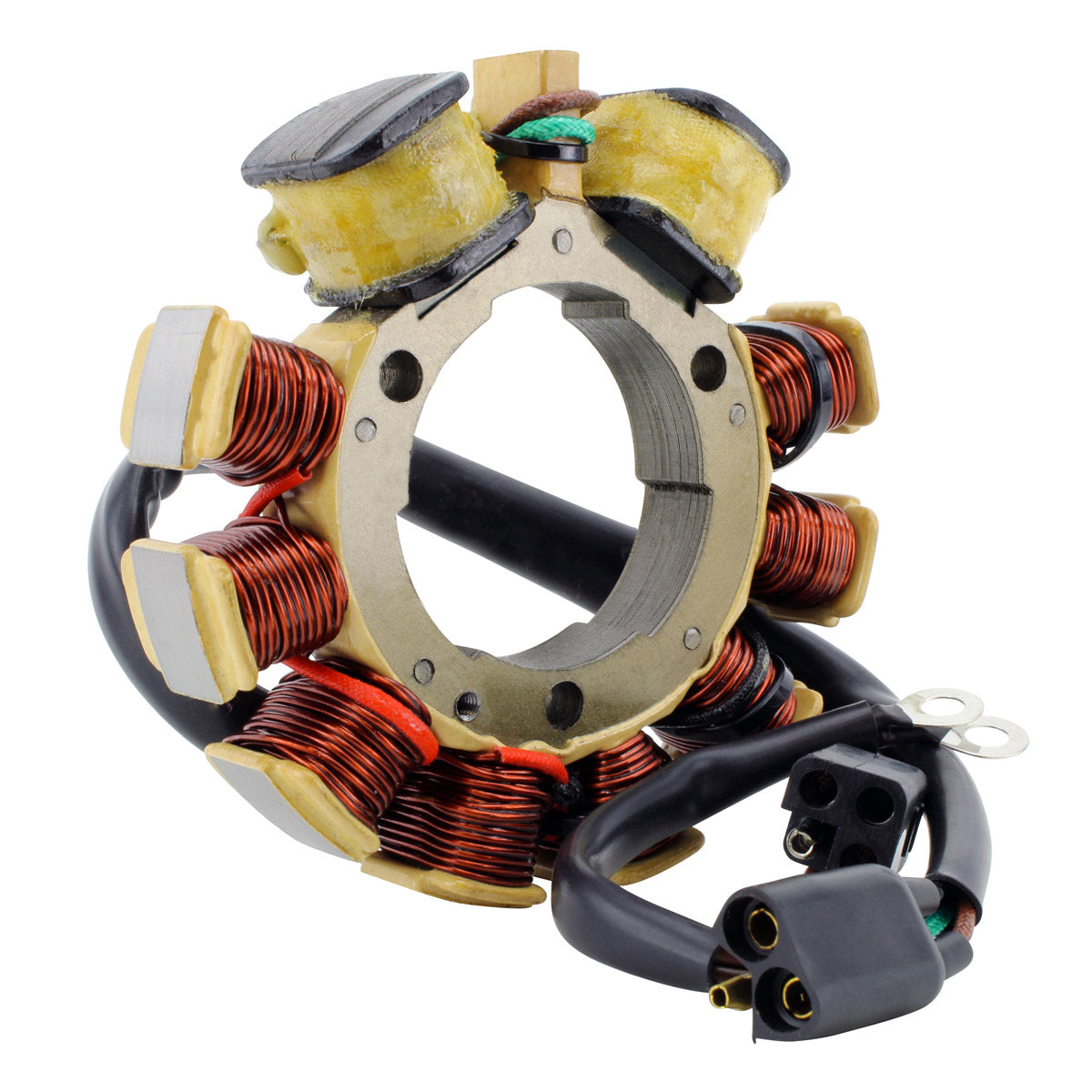

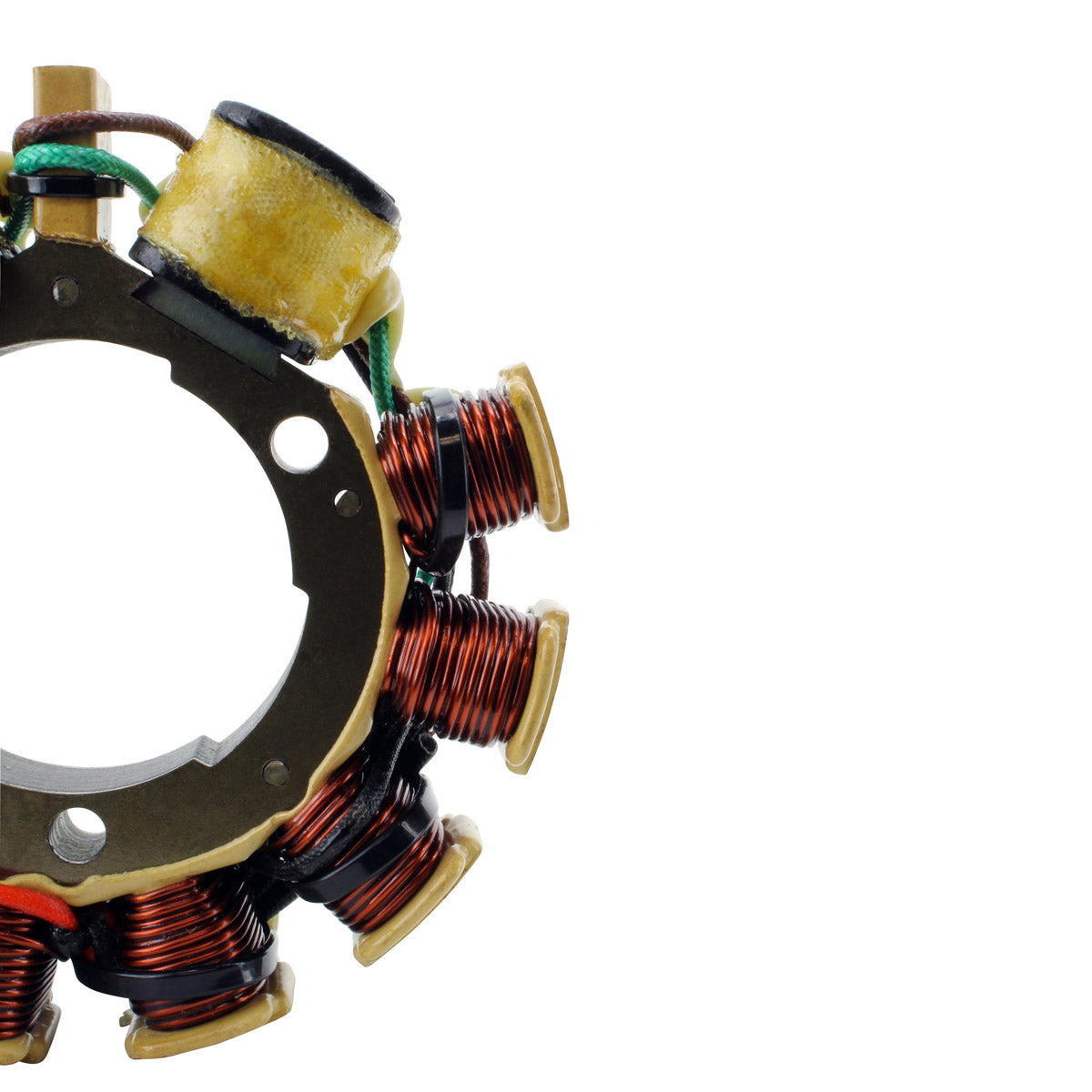

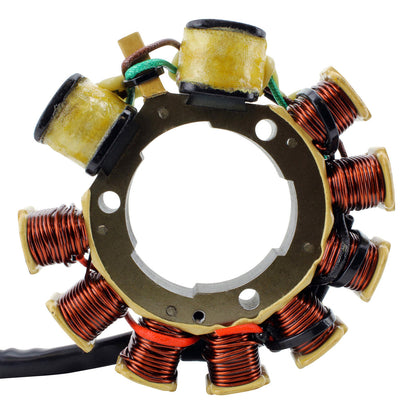

Stator for Arctic Cat EXT 580 EFI, Pantera 580 & Wildcat 700
EXT 580 EFI, EXT 580 Mountain Cat, Pantera 580, Wildcat 700 and ZR 580 EFI - 1991-1996 - Part RM01098S
This is a brand new aftermarket stator built as a direct replacement for the original unit fitted to the Arctic Cat EXT 580 EFI, EXT 580 Mountain Cat, Pantera 580, Wildcat 700 and ZR 580 EFI between 1991 and 1996. It is a plug-and-play, direct fit part, so it mounts in the original position and connects to the existing loom without cutting, splicing or modification.

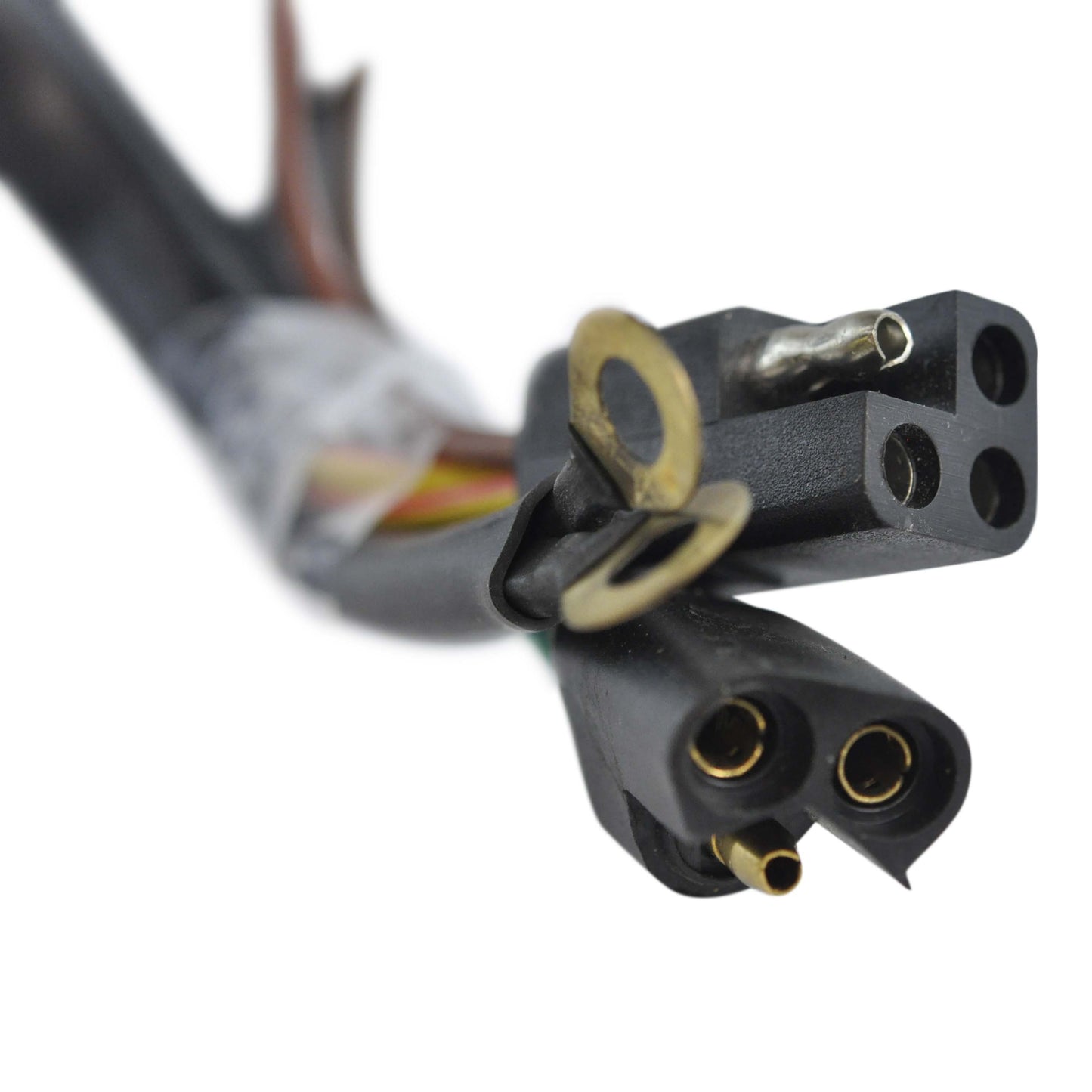

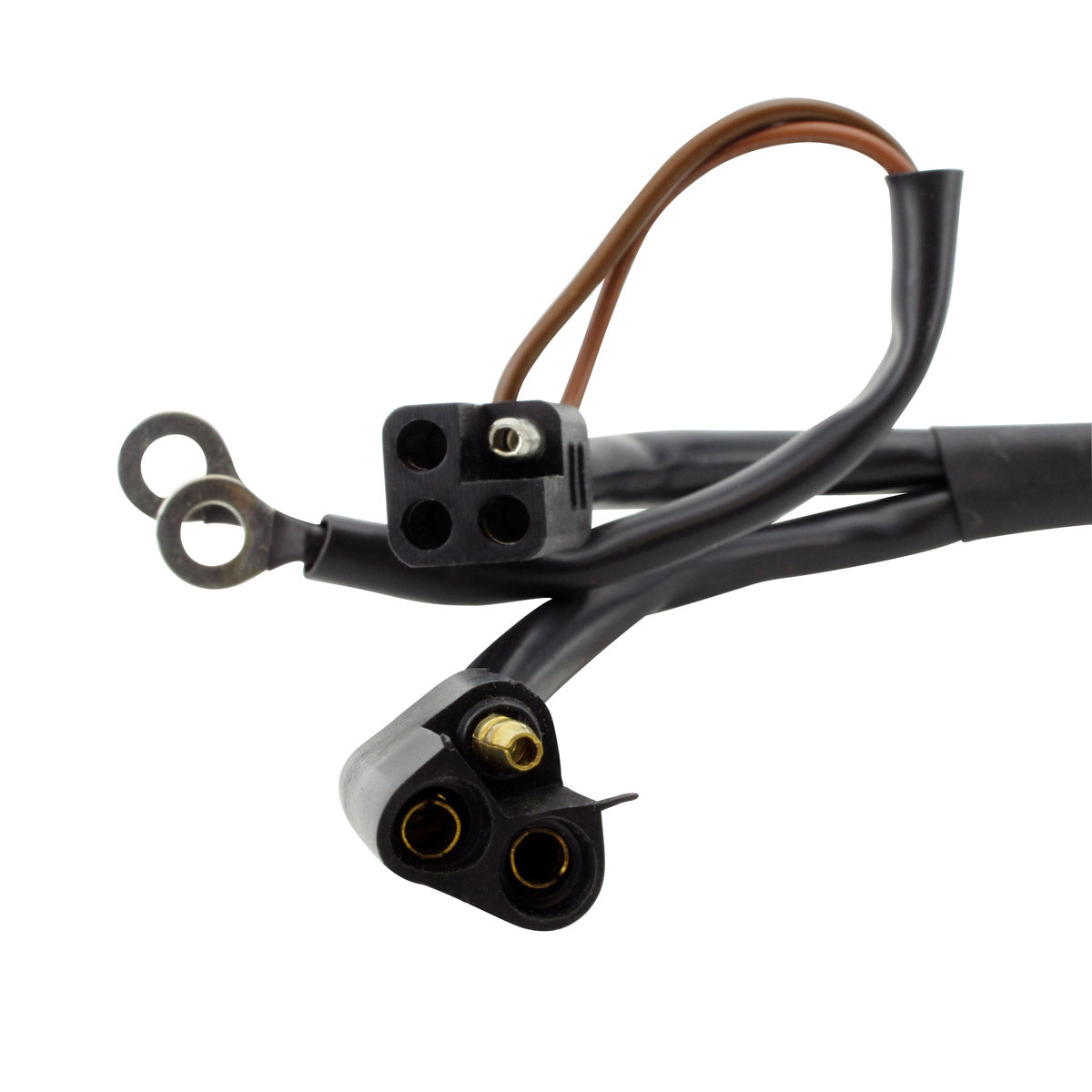

The unit is built on the highest grade of lamination materials and wound with the highest grade of copper winding, resistant to 200 degrees Celsius, which is what an original stator normally fails on after years of heat and vibration inside the flywheel. A connector is included with the part, and all products shipped are tested before they leave the warehouse. The stator measures 114 mm across the outside with a 51 mm interior diameter and a 15 mm thickness, and carries nine wires into four plugs.
Key Features
- Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Connector included
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Part number |
RM01098S |
| Interior diameter |
51 mm |
| Exterior diameter |
114 mm |
| Thickness |
15 mm |
| Wire lengths |
200 mm and 210 mm |
| Number of wires |
9 |
| Number of plugs |
4 |
| Number of pins |
9 |
| Alternator resistance (Yellow/Red to Yellow/Red) |
0.4 ohms +/-20% |
| Alternator resistance (Yellow to Brown) |
0.4 ohms +/-20% |
| Source 1 resistance (Black to Green) |
45 ohms +/-20% |
| Source 2 resistance (Brown to Green) |
450 ohms +/-20% |
| Copper winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Arctic Cat EXT 580 EFI |
1991-1996 |
| Arctic Cat EXT 580 Mountain Cat |
1991-1996 |
| Arctic Cat Pantera 580 |
1991-1996 |
| Arctic Cat Wildcat 700 |
1991-1996 |
| Arctic Cat ZR 580 EFI |
1991-1996 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 3003-907 |
Arctic Cat |
Frequently Asked Questions
Will this stator fit without modification?
Yes. It is a direct replacement for the original unit on the models and years listed above, it mounts in the original position and it is plug-and-play, so no cutting or rewiring is needed. Check the OEM number on your existing unit against the cross reference table before ordering.
What is included?
The stator and the connector. Every unit is tested before it is shipped.
How do I tell whether my old stator has failed?
Common symptoms are a battery that will not hold its charge, dim or flickering lights, a weak or absent spark, and an engine that cuts out. The quickest confirmation is a wire-to-wire resistance test against the figures in the specification table - readings well outside the stated tolerance, or an open circuit, point to a failed winding.
What resistance readings should I expect from this unit?
The alternator windings read approximately 0.4 ohms +/-20%, both from Yellow/Red to Yellow/Red and from Yellow to Brown. Source 1 reads approximately 45 ohms +/-20% from Black to Green, and Source 2 approximately 450 ohms +/-20% from Brown to Green.
