Stator for Arctic Cat Crossfire 700, F6 & F7 Firecat, M6 600 2005-2006
Stator for Arctic Cat Crossfire 700, F6 & F7 Firecat, M6 600 2005-2006
SKU:RM01274
Free shipping over £150. Terms apply
Couldn't load pickup availability
Stator for Arctic Cat Crossfire 700, F6 & F7 Firecat, M6 600
Also Mountain Cat 600, 2005-2006 - part number RM01274

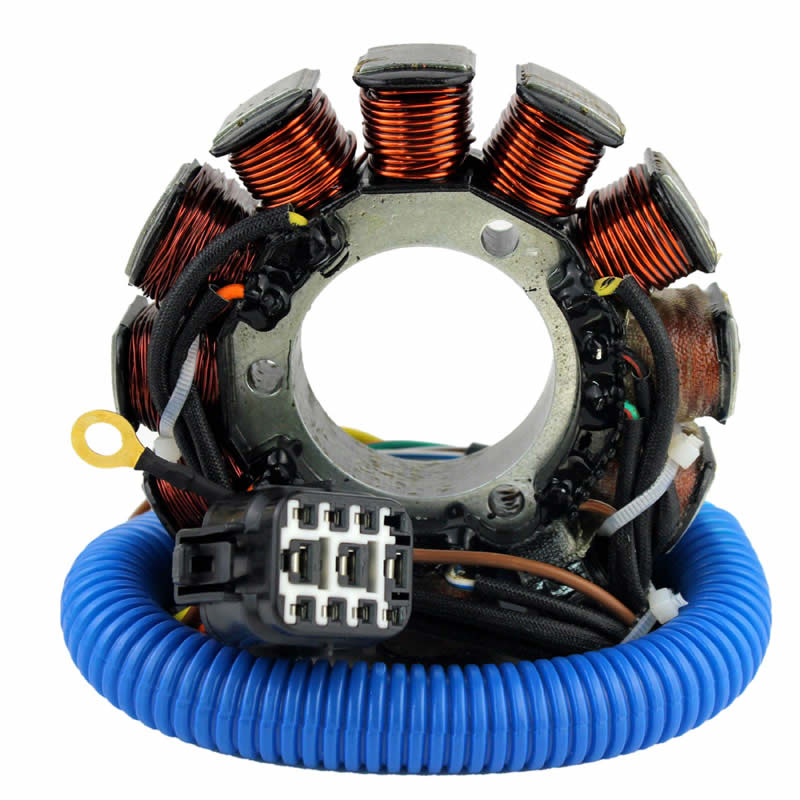

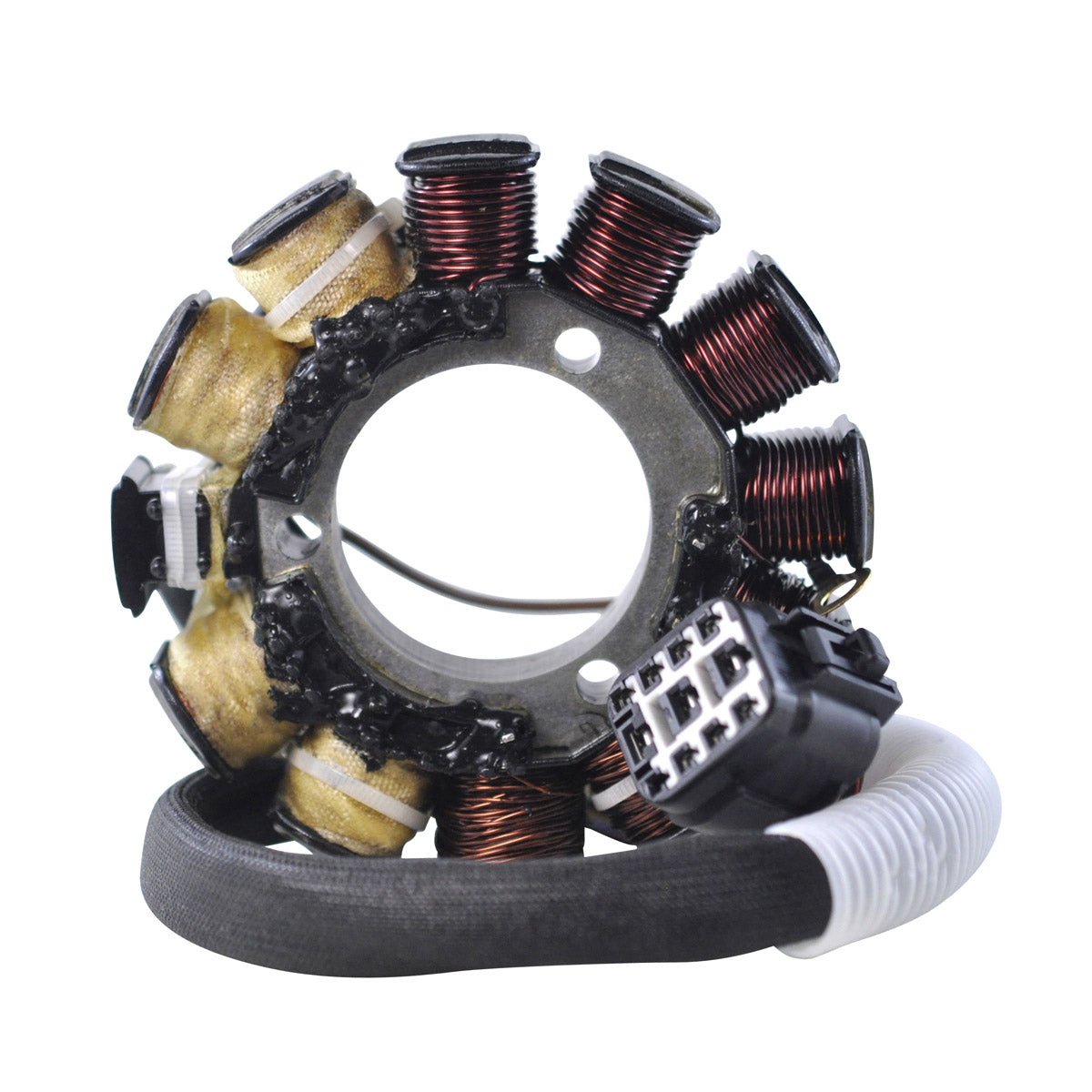

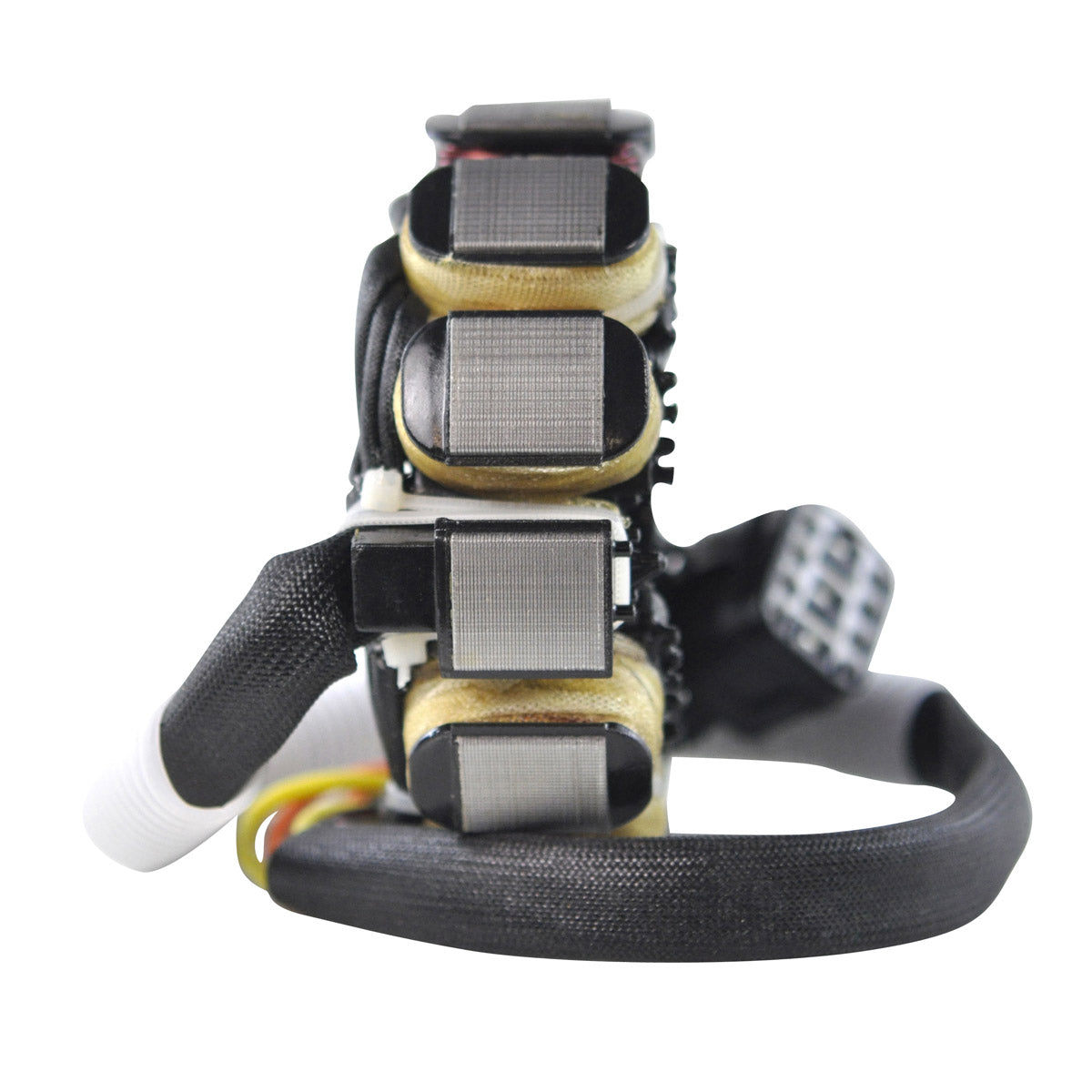

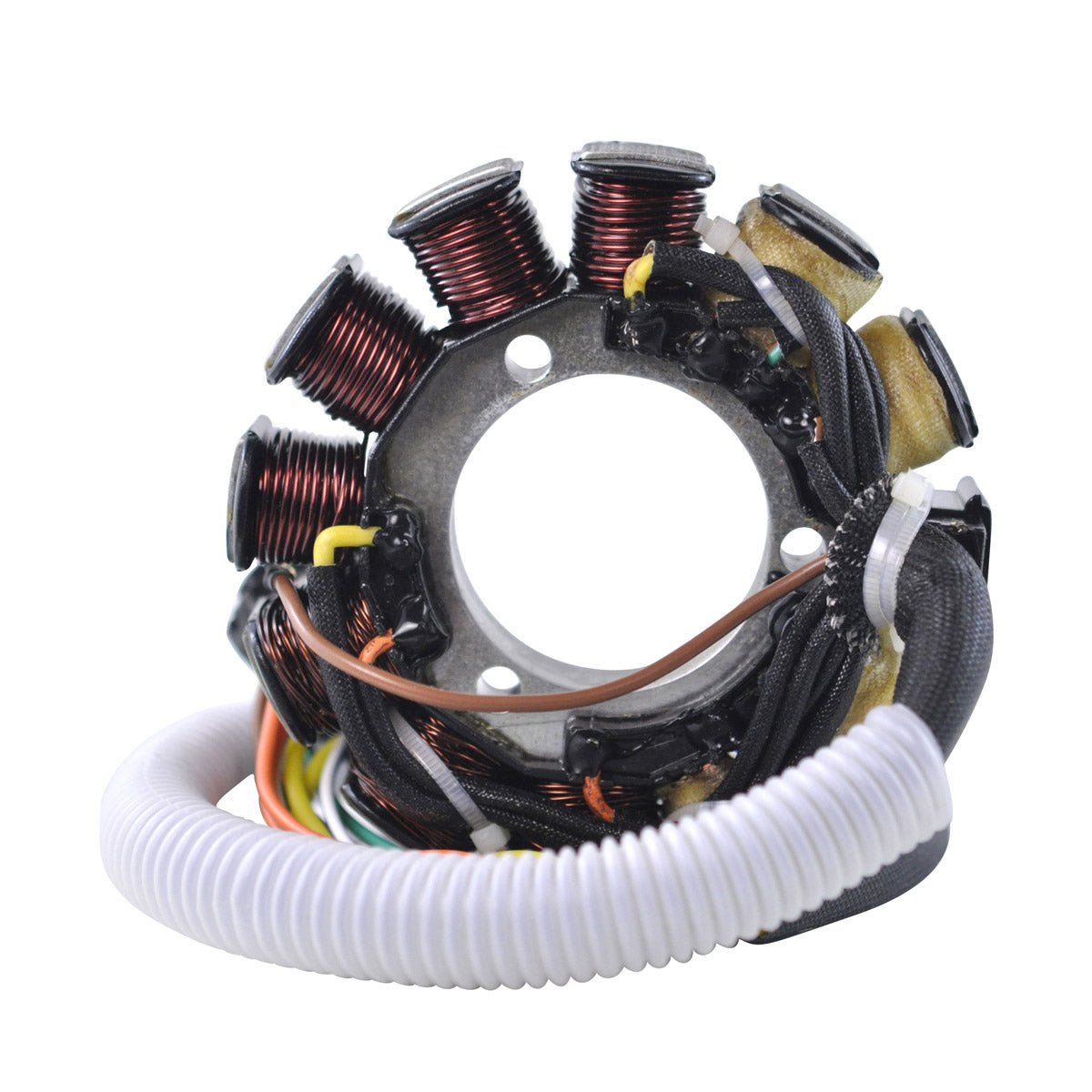

This is a brand new aftermarket stator built as a direct replacement for the original unit fitted to Arctic Cat CRF Crossfire 700, F6 and F7 Firecat, M6 600 and Mountain Cat 600 snowmobiles from 2005 to 2006. It is plug-and-play and a direct fit, so the factory mounting points, the wiring route and the connector are all retained and no modification is required.
Nine wires leave this stator through a single plug, carrying two alternator circuits, a pickup circuit and two ignition source coils. The core is built from the highest grade lamination material and the windings from the highest grade copper, rated to withstand 200 degrees Celsius, which is the specification that matters most because heat is what finishes off an original stator. The connector is included.
Key Features
- Brand new stator, not a rebuilt or reconditioned core
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

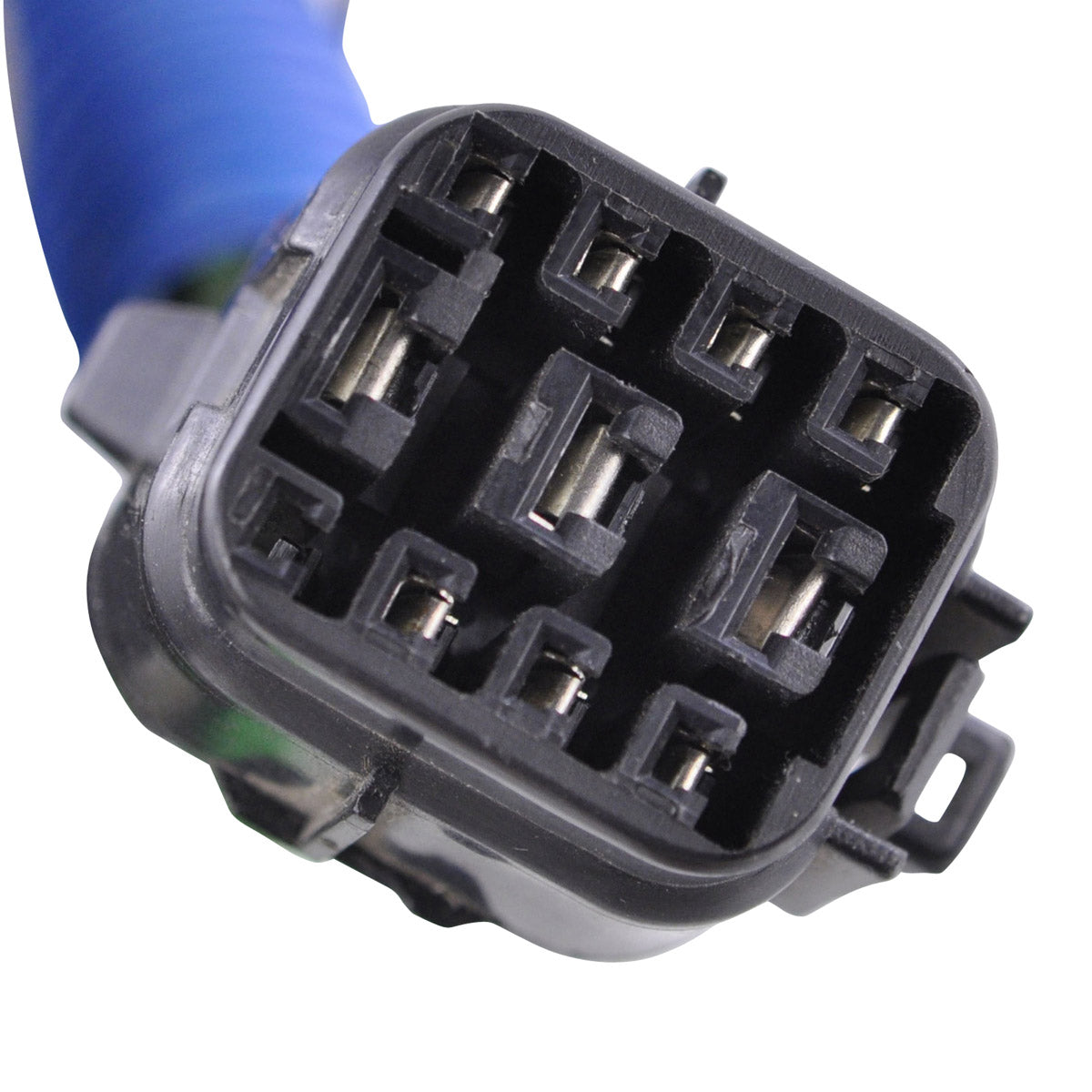

- Nine wires through a single nine-pin plug, as per the original
- 500 mm of wire from the stator to the plug
- Connector included
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 47 mm |
| Exterior diameter | 115 mm |
| Thickness | 20 mm |
| Wire length, stator to plug | 500 mm |
| Number of wires | 9 |
| Number of plugs | 1 |
| Number of pins | 9 |
| Alternator 1, yellow | 0.4 ohms +/-20% |
| Alternator 2, white/blue | 17.2 ohms +/-20% |
| Pickup, orange | 2 ohms +/-20% |
| Source 1, green to brown | 10 ohms +/-20% |
| Source 2, green to black | 10 ohms +/-20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Arctic Cat CRF Crossfire 700 | 2005-2006 |
| Arctic Cat F6 Firecat | 2005-2006 |
| Arctic Cat F7 Firecat | 2005-2006 |
| Arctic Cat M6 600 | 2005-2006 |
| Arctic Cat Mountain Cat 600 | 2005-2006 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 3007-018 | Arctic Cat |
| 3006-943 | Arctic Cat |
Frequently Asked Questions
Does this stator need any modification to fit?
No. It is a direct replacement for the original unit, plug-and-play, using the same single nine-pin plug and a 500 mm wire run to match the factory harness.
What is included in the box?
The stator with its connector.
How do I tell whether my old stator has failed?
Measure each circuit with a multimeter and compare against the specification table: yellow 0.4 ohms, white/blue 17.2 ohms, orange 2 ohms, green to brown 10 ohms and green to black 10 ohms, all plus or minus 20 percent. A reading well outside those values, an open circuit, or continuity from any winding to the stator body means the unit has failed.
How do I tell this apart from the similar 2002-2006 stator?
The 2005-2006 unit is 115 mm across, 20 mm thick and runs nine wires through one plug. The earlier design is 114 mm across, 19 mm thick and runs ten wires through three plugs. Checking the plug count and the original part number, 3007-018 or 3006-943, is the quickest way to be certain.
