Stator for Arctic Cat Prowler HDX, TBX, Thundercat & TRV 550 700 1000 2008-2015
Stator for Arctic Cat Prowler HDX, TBX, Thundercat & TRV 550 700 1000 2008-2015
SKU:RM01072
Free shipping over £150. Terms apply
Couldn't load pickup availability
Stator for Arctic Cat 550, 700 and 1000 ATVs and Side by Sides
Mudpro, Prowler HDX, TBX, Thundercat and TRV 550 700 1000 - 2008-2015

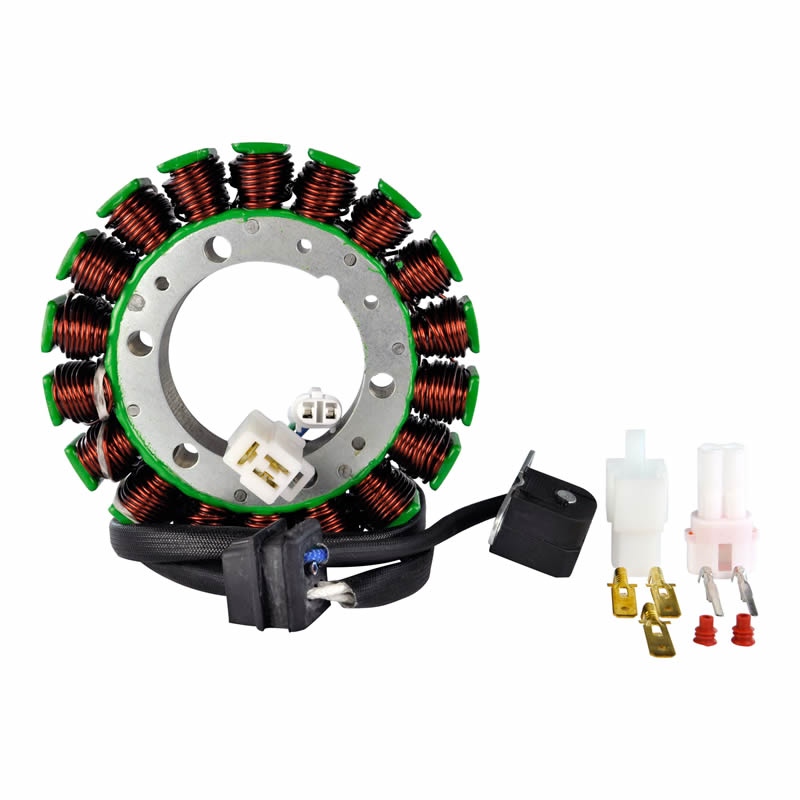

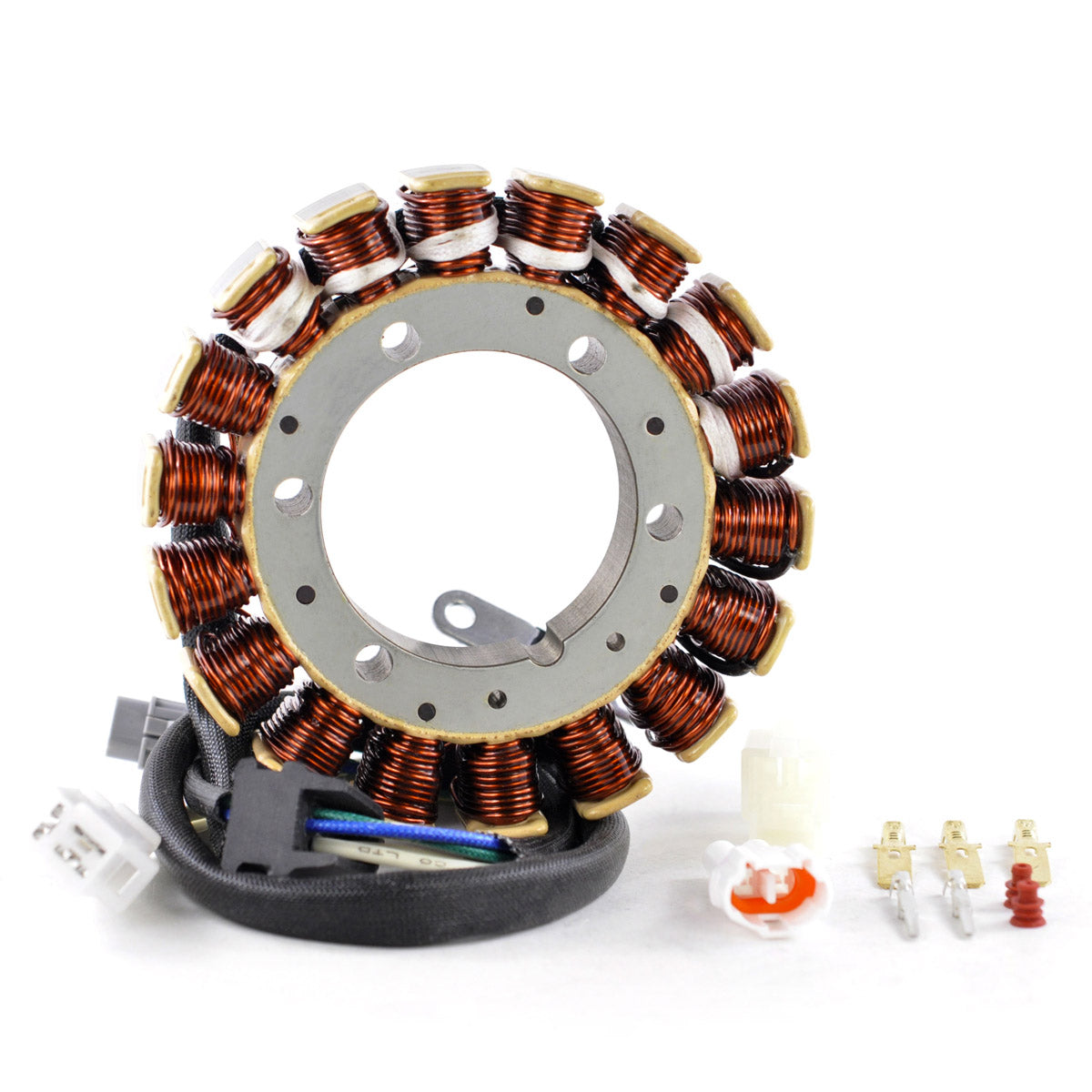

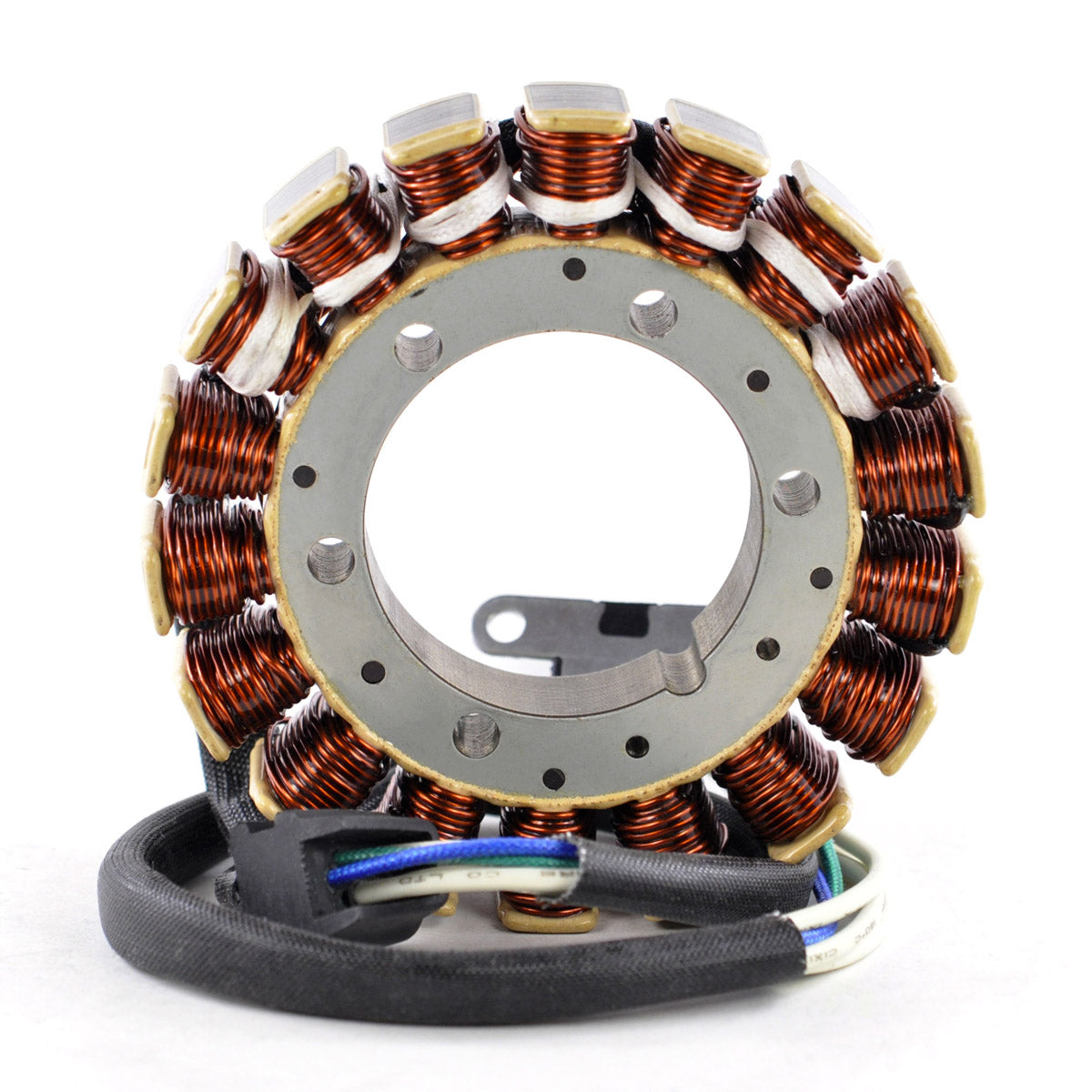

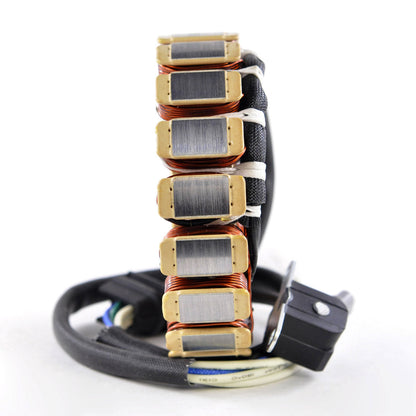

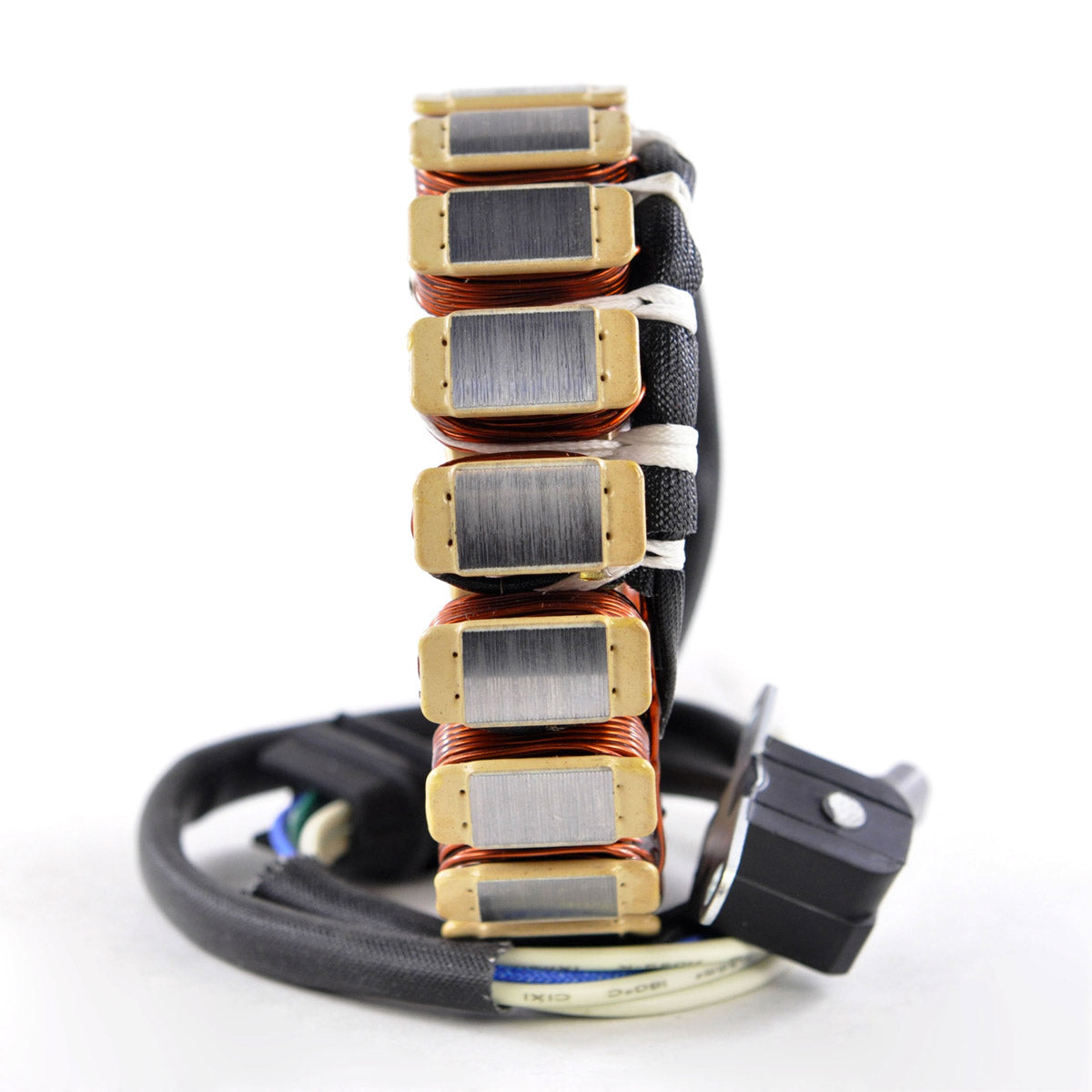

This is a brand new aftermarket stator (RMSTATOR part RM01072) supplied as a direct replacement for the original charging unit fitted to the Arctic Cat 550, 700 and 1000 machines built between 2008 and 2015 - Mudpro, Prowler HDX, TBX, Thundercat and TRV. It is a plug-and-play, direct fit part: the two plugs, five pins and 300 mm harness lead match the factory unit, so no cutting or splicing of the wiring is needed.
It is built with the highest grade lamination materials and highest grade copper windings rated to 200 degrees Celsius. Heat is the usual cause of stator failure on these bigger Arctic Cat singles and twins, particularly on machines used for slow work or in mud, so the winding temperature rating is the specification that matters most here. The pickup pulsar coil, connector and rubber grommet are all supplied, and every unit is tested before it ships.
Key Features
- Brand new aftermarket stator - direct replacement for the original
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, rated to 200 degrees Celsius
- Pickup pulsar coil included

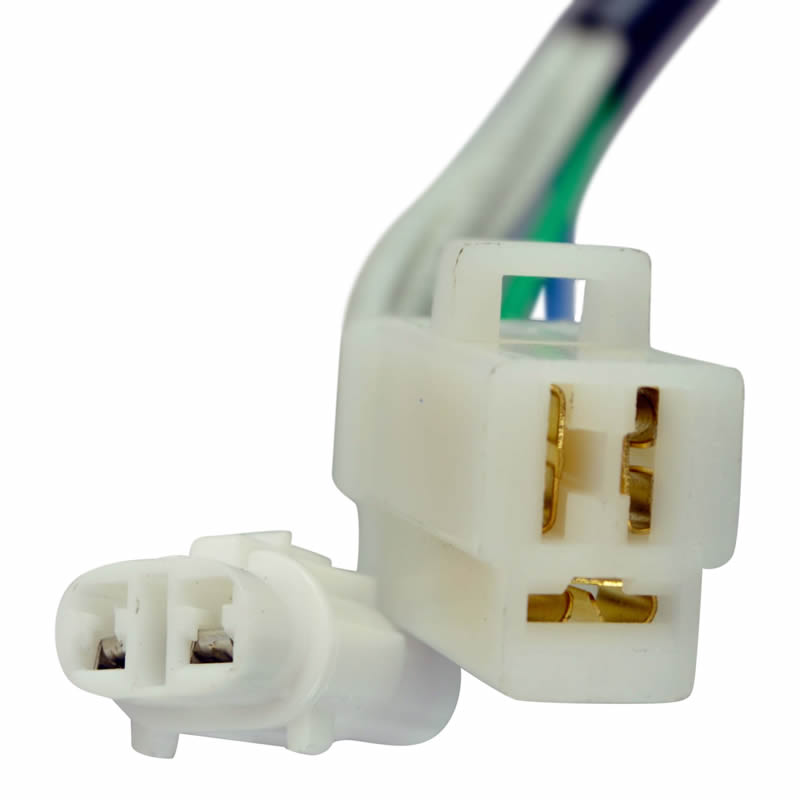

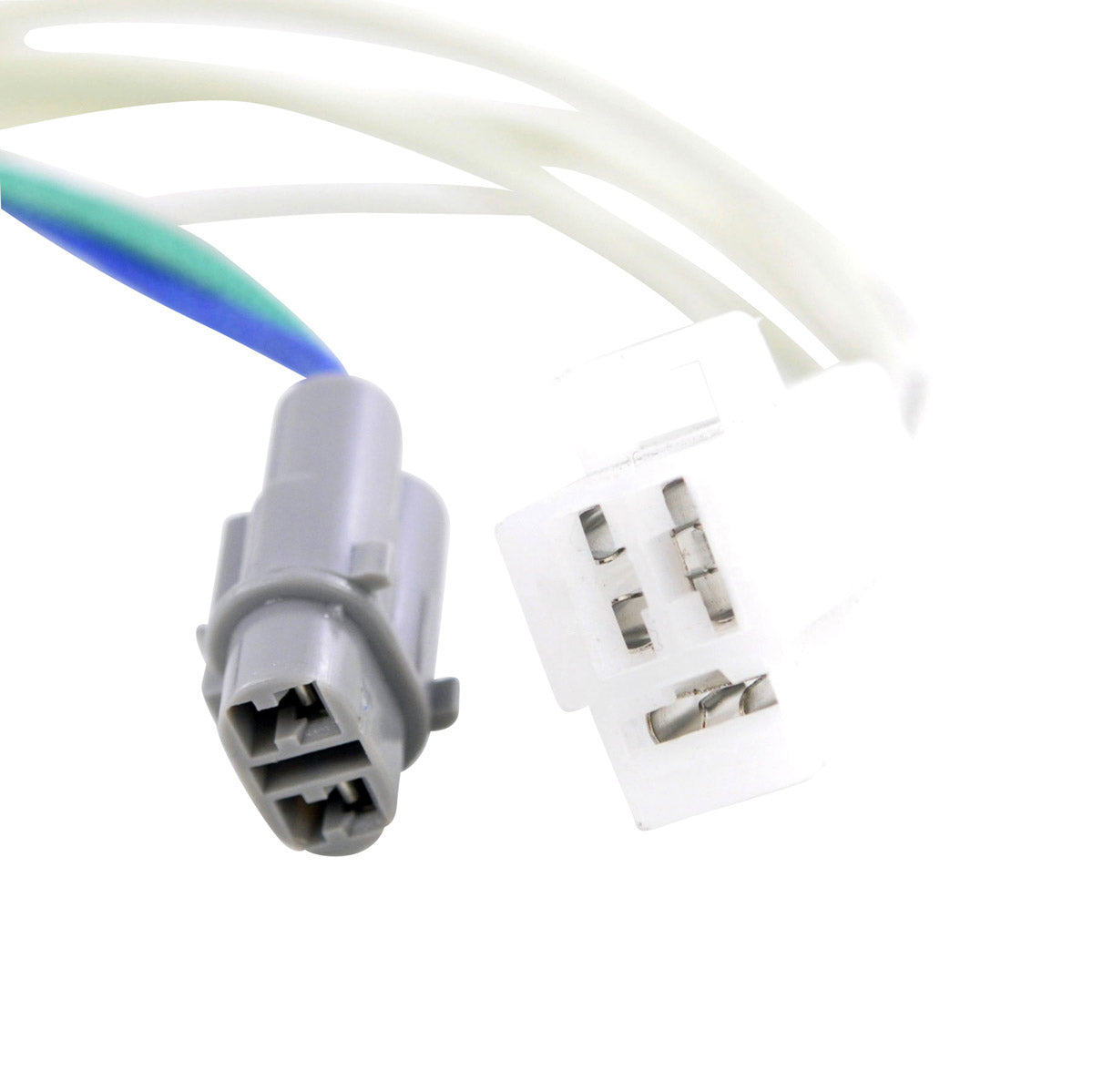

- Connector included
- Rubber grommet included
- All shipped units are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM01072 |
| Interior diameter | 53 mm |
| Exterior diameter | 114 mm |
| Thickness | 17 mm |
| Wire length - stator to grommet | 100 mm |
| Wire length - grommet to plug | 300 mm |
| Pickup coil wire length | 70 mm |
| Number of wires | 5 |
| Number of plugs | 2 |
| Number of pins | 5 |
| Alternator wire resistance | 0.4 ohms +/-20% |
| Pickup resistance | 200 ohms +/-20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Arctic Cat Mudpro 550, 700, 1000 | 2008-2015 |
| Arctic Cat Prowler HDX 550, 700, 1000 | 2008-2015 |
| Arctic Cat TBX 550, 700, 1000 | 2008-2015 |
| Arctic Cat Thundercat 550, 700, 1000 | 2008-2015 |
| Arctic Cat TRV 550, 700, 1000 | 2008-2015 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 0802-041 | Arctic Cat |
Frequently Asked Questions
Will this fit without modifying my wiring?
Yes. It is a plug-and-play, direct fit replacement with the same two plugs, five pins and 300 mm lead as the original, so the harness does not need to be cut or spliced.
What is included in the box?
The stator assembly, the pickup pulsar coil, the connector and the rubber grommet.
How do I know my old stator has failed?
Measure the windings cold. The alternator legs should read about 0.4 ohms and the pickup about 200 ohms, each within plus or minus 20 percent, and every winding should be open circuit to the stator body. A shorted or open winding, charging voltage that never rises above battery voltage, or a machine that will not fire at all point to a failed unit.
Does it replace Arctic Cat 0802-041?
Yes. RMSTATOR list 0802-041 as the OEM number this stator cross references to. Check the number on your original unit before ordering.
