Ignition Stator for Arctic Cat
Fits Arctic Cat Cheetah, Cougar, Mountain Cat, Jag, Pantera, Prowler and ZL 440 1990-2000 - RMSTATOR part RM01096

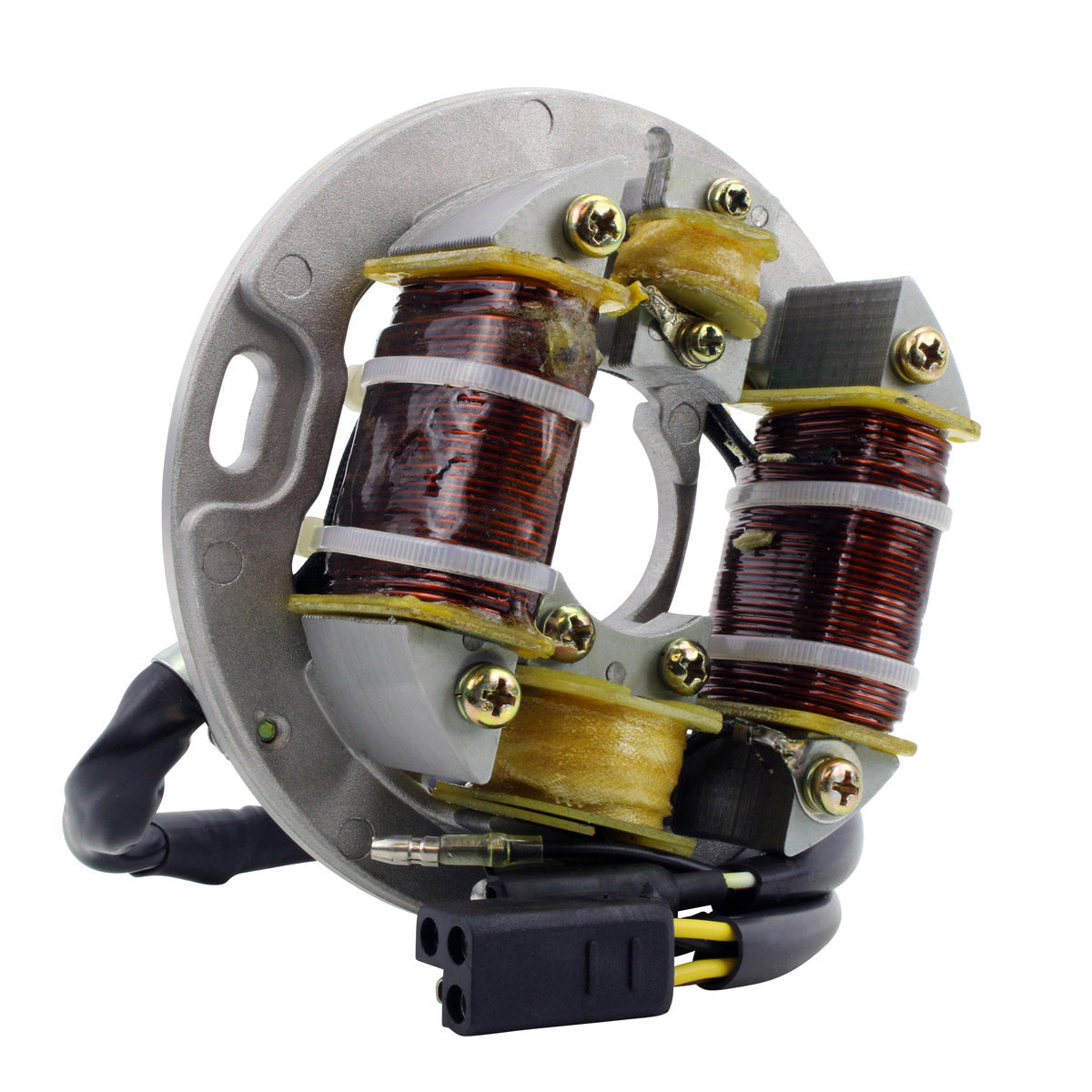

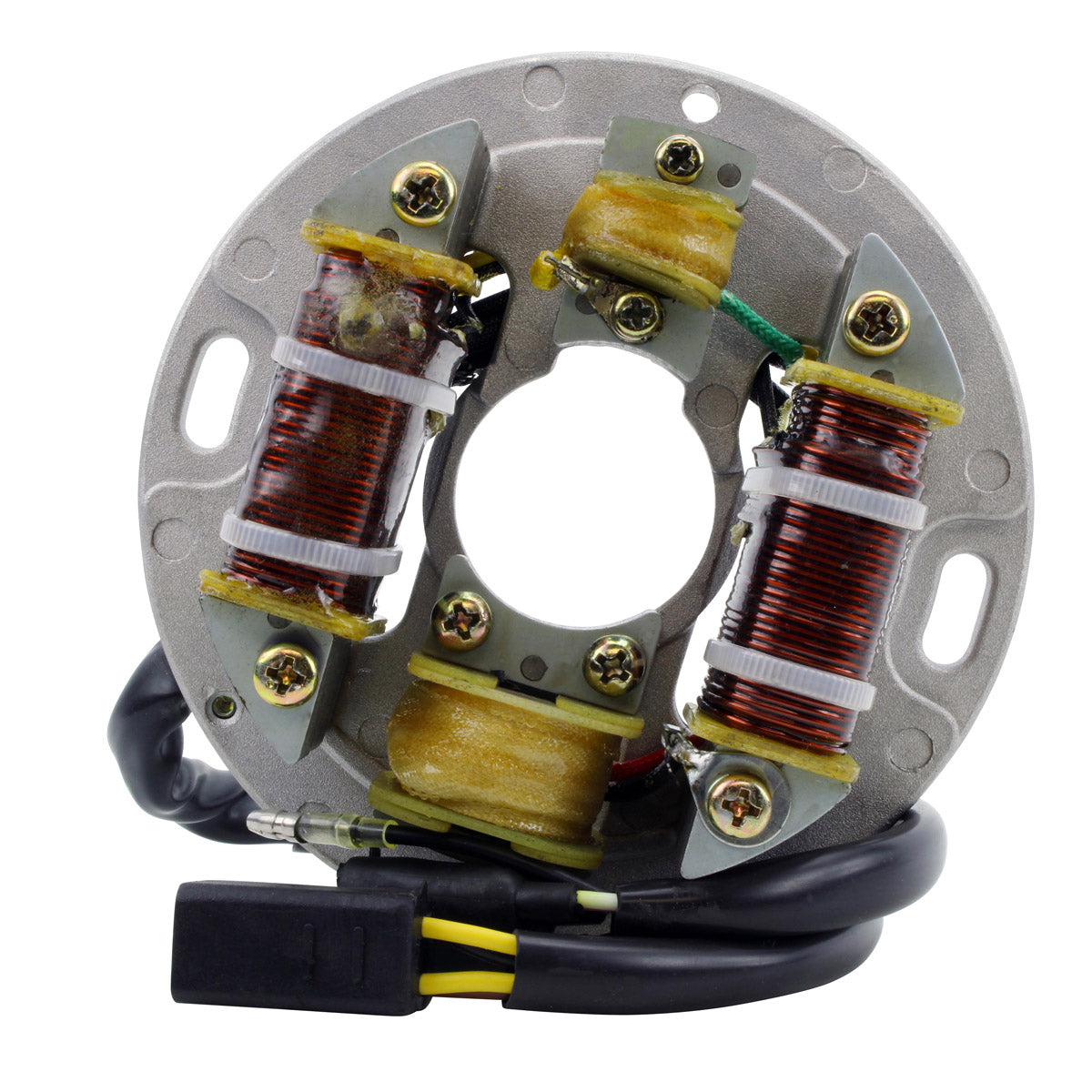

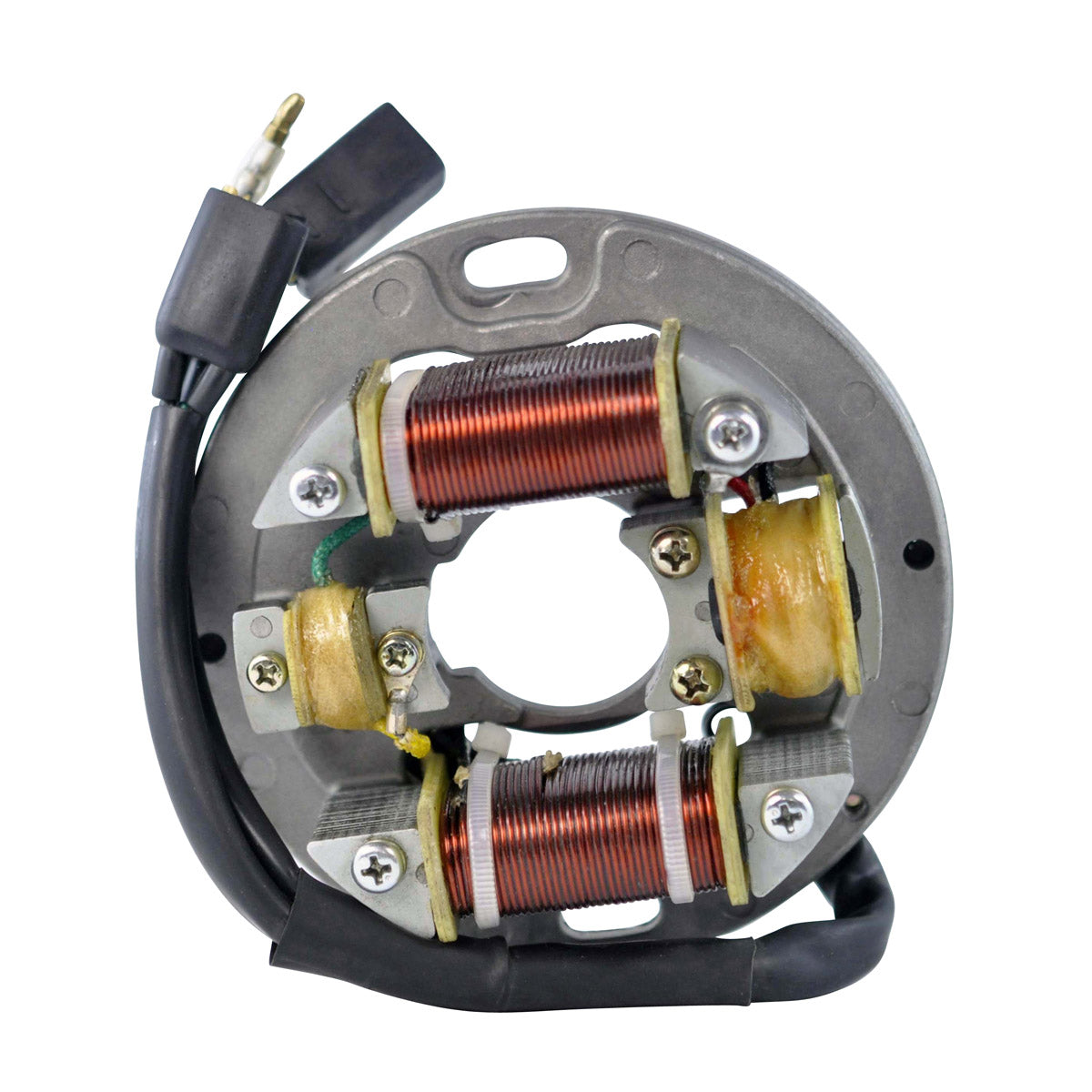

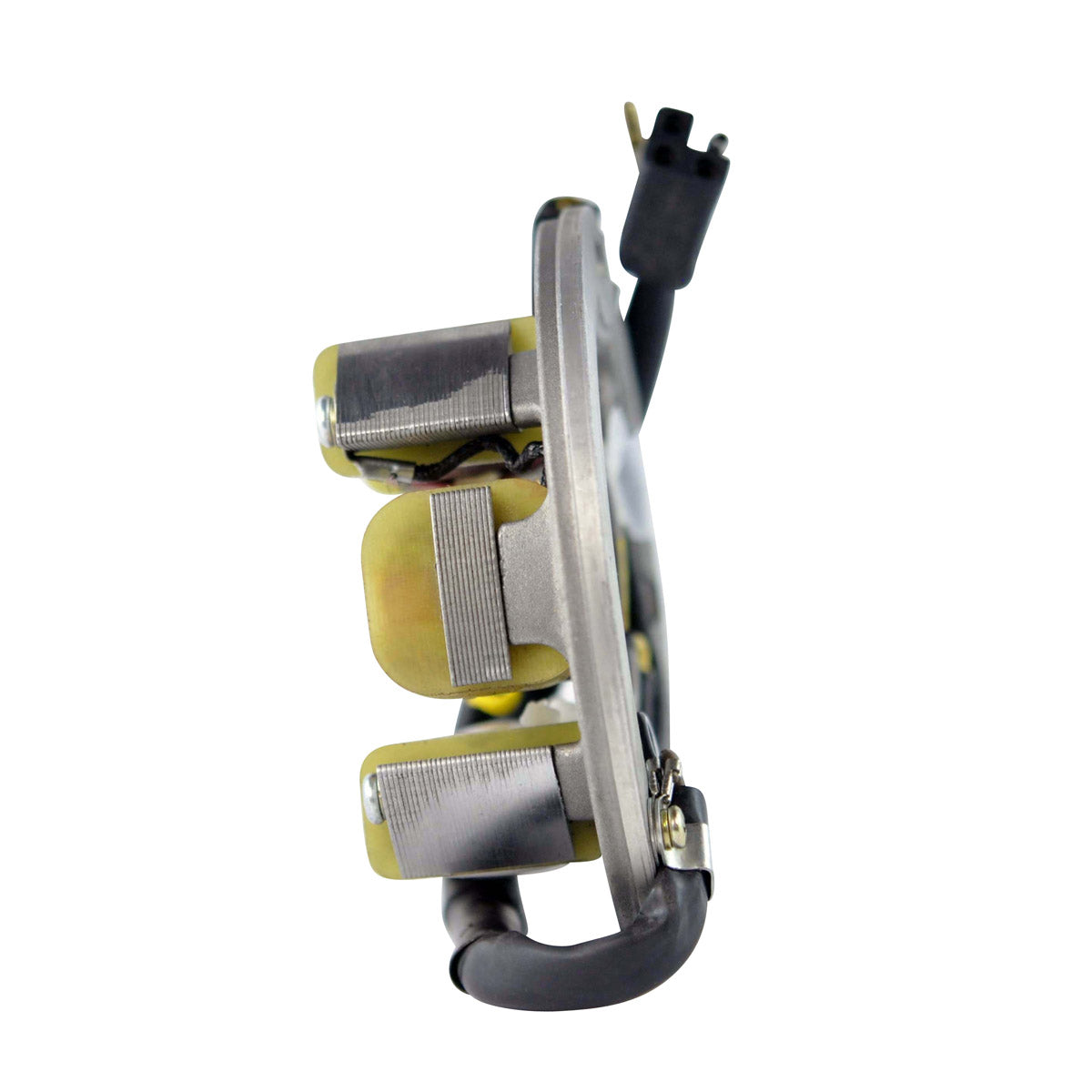

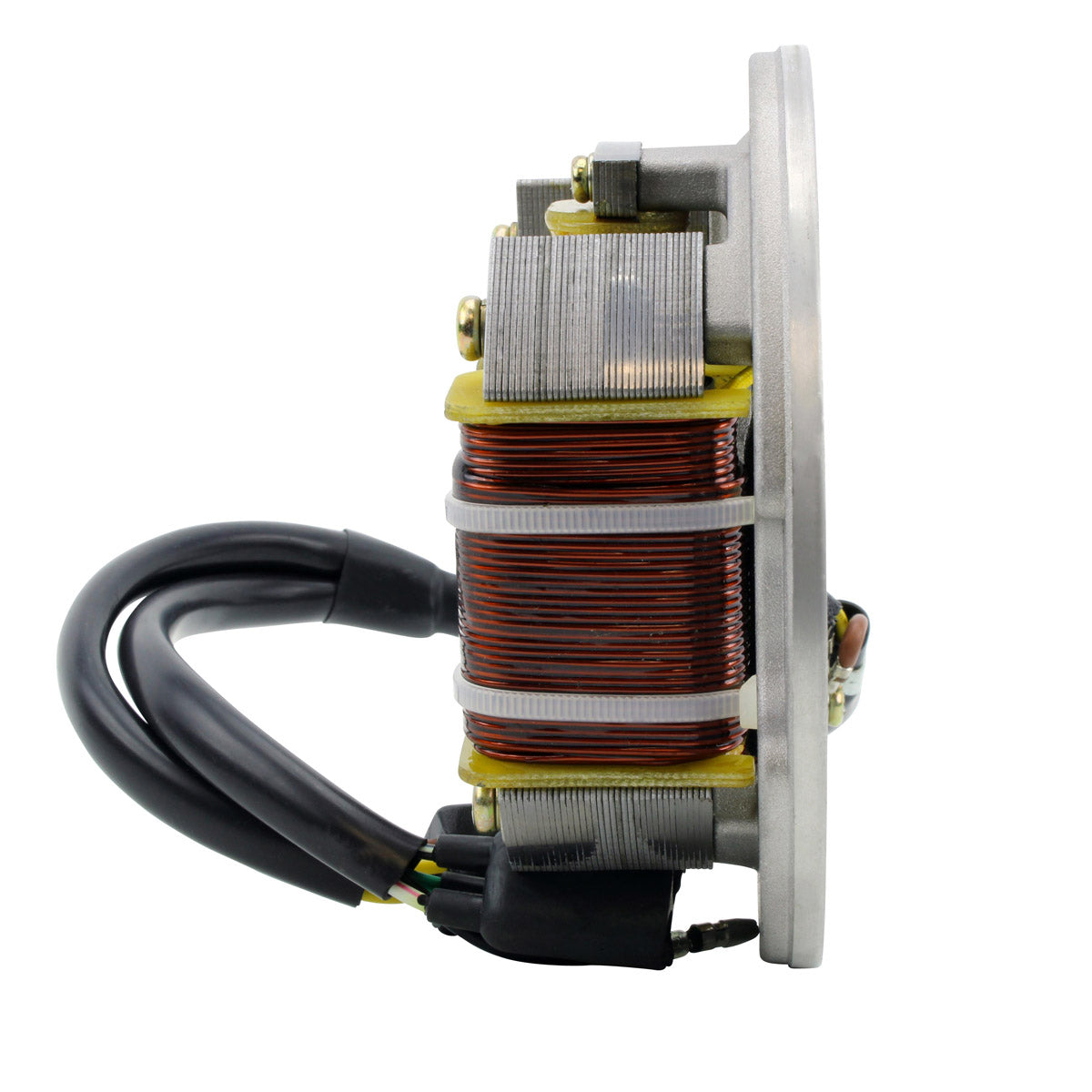

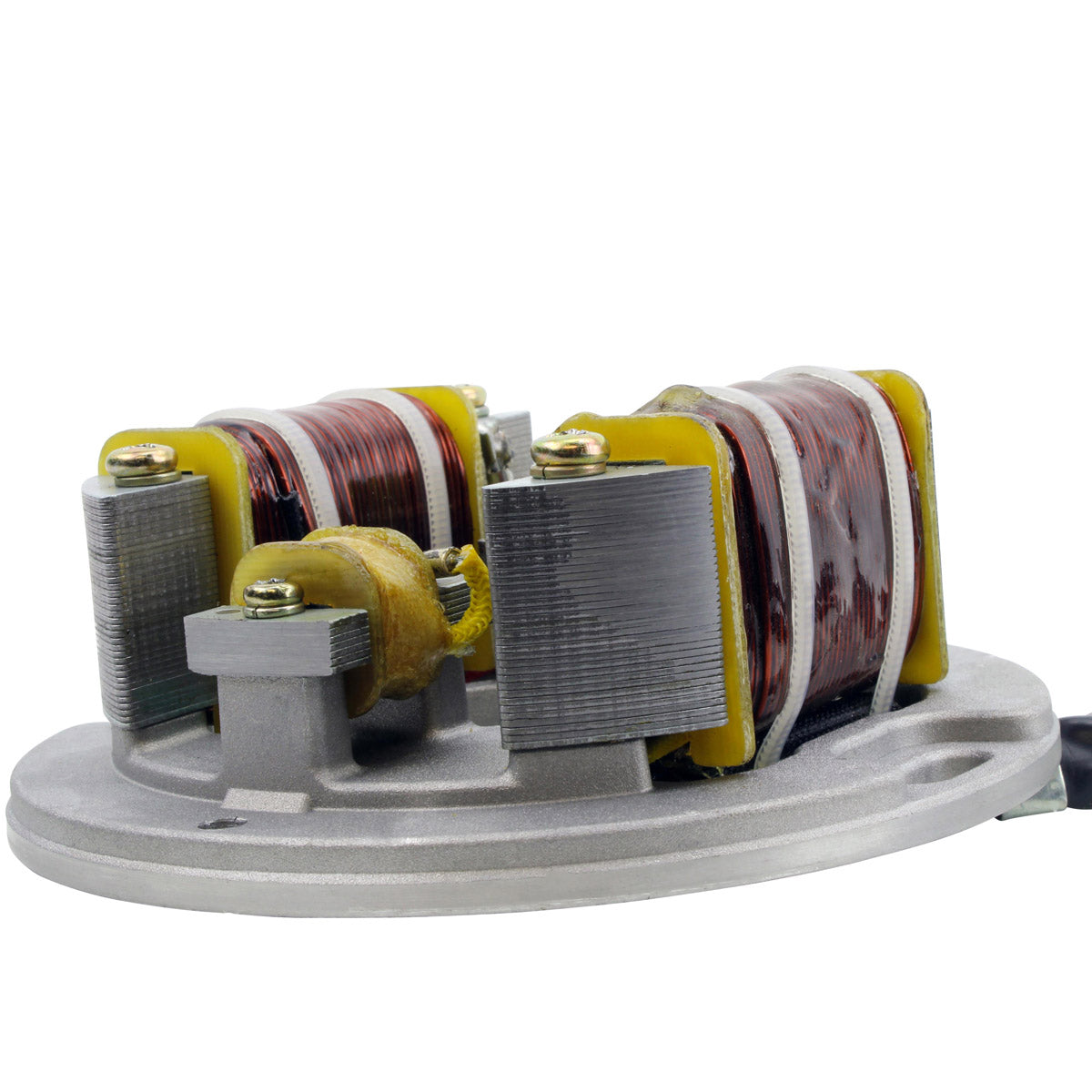

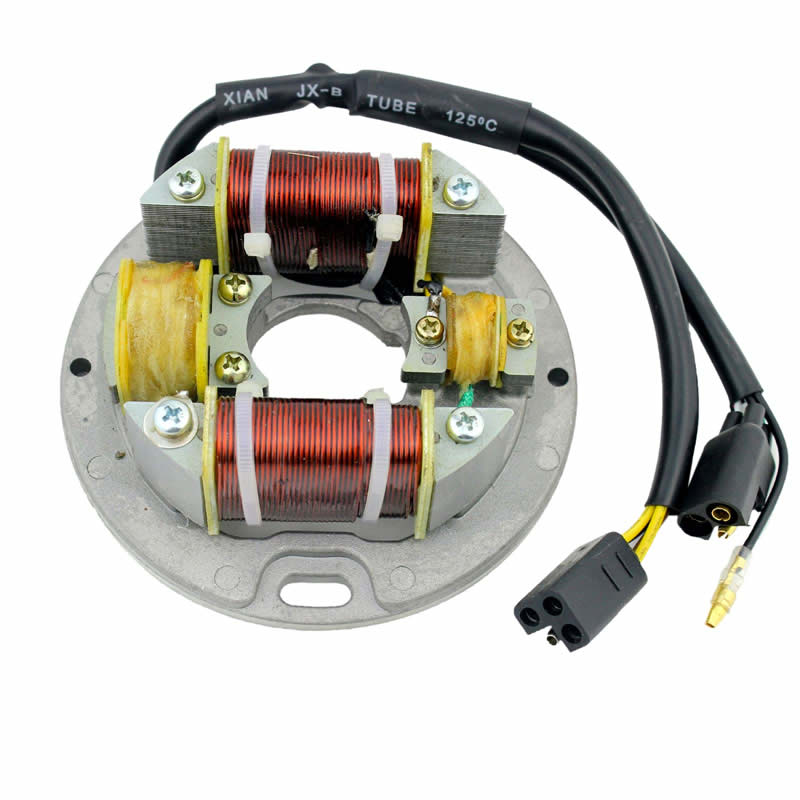

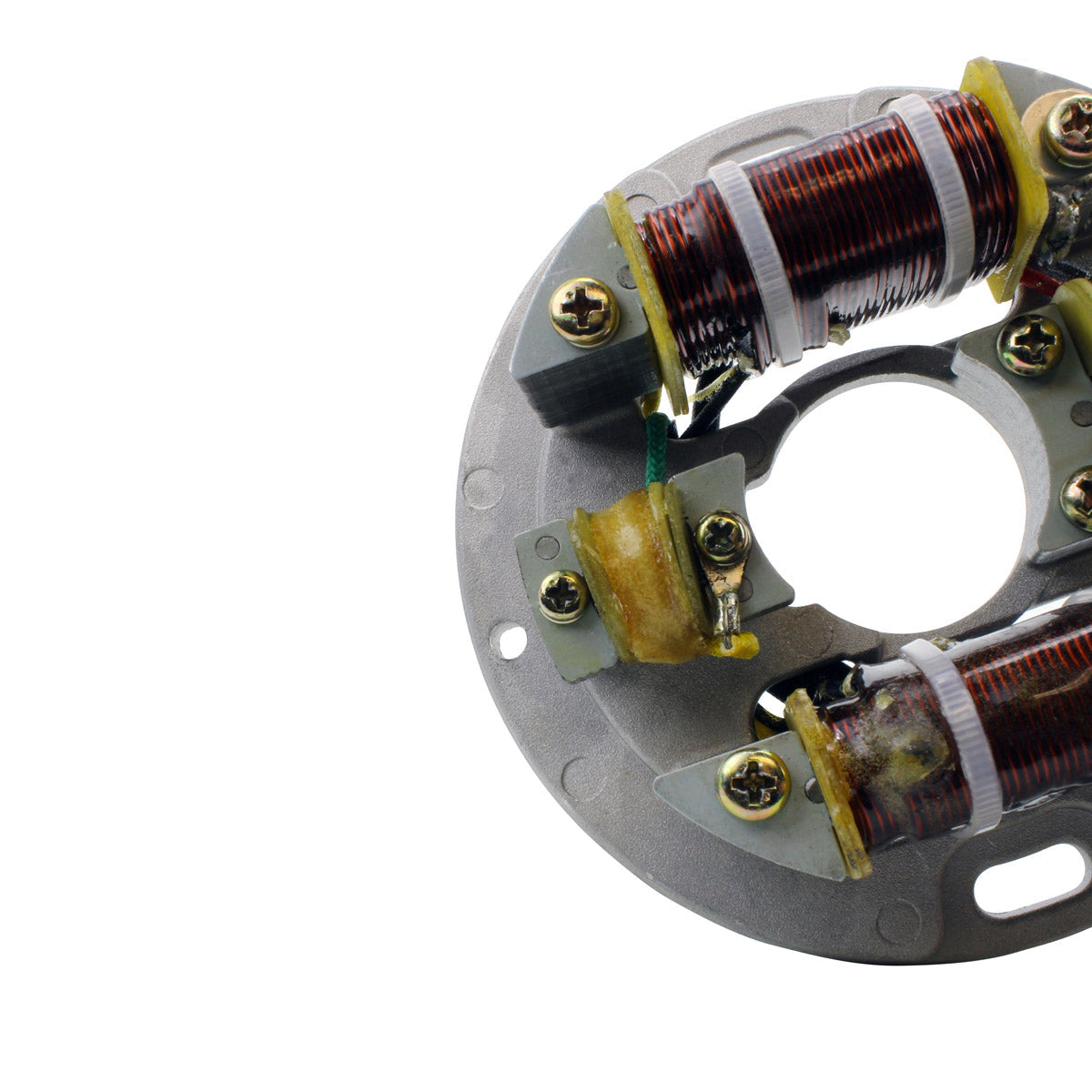

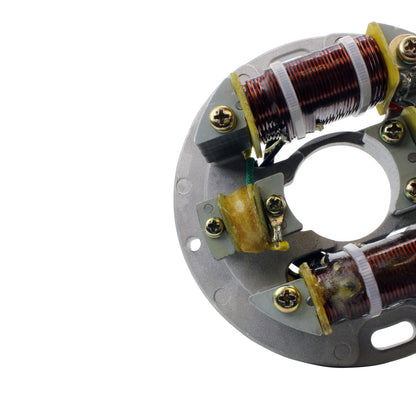

A brand new RMSTATOR ignition stator for the 1990s Arctic Cat sled range, supplied as a direct replacement for the original unit. It is plug-and-play, a direct fit and easy to install, and both the pickup coil and the back plate are included so the assembly goes back on complete.

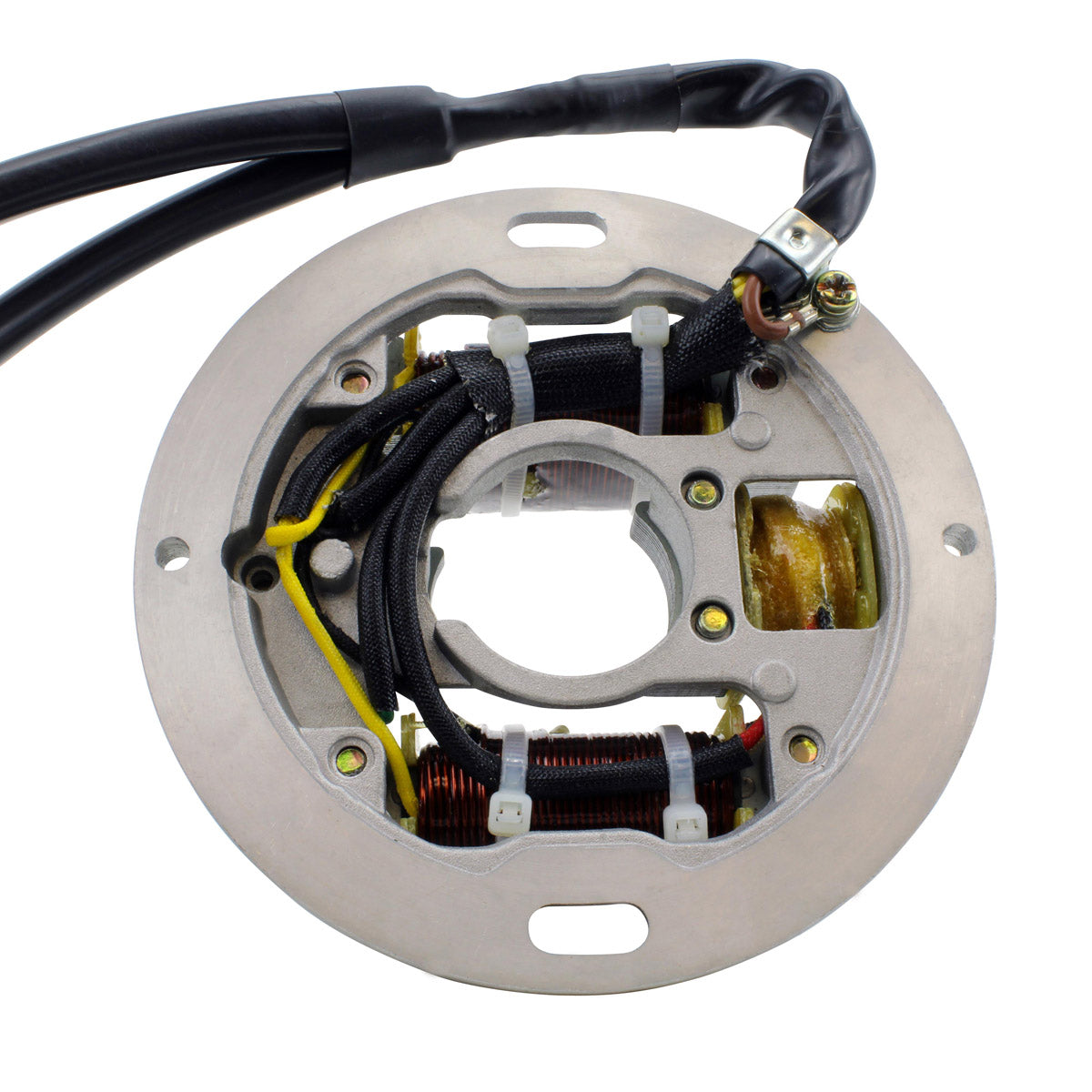

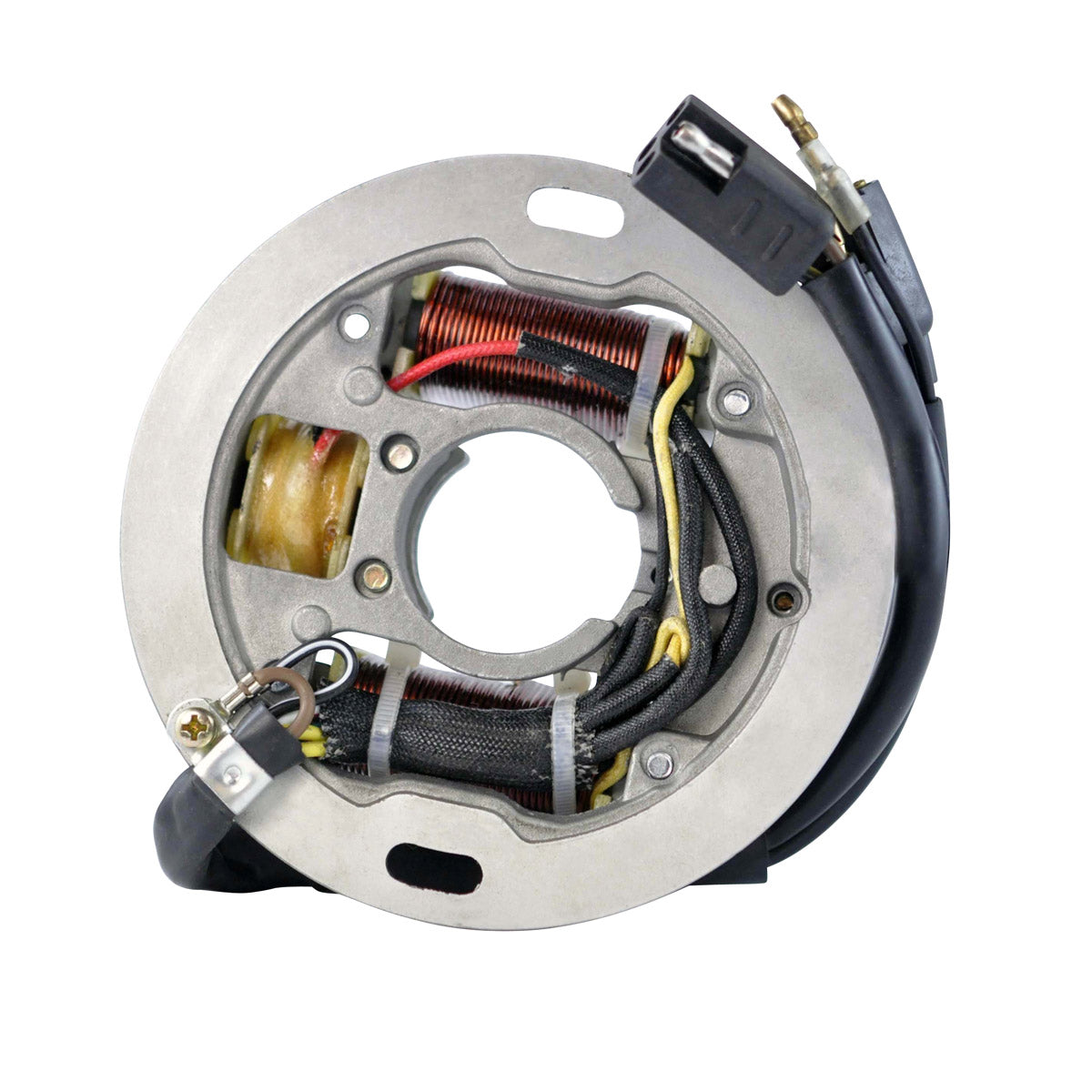

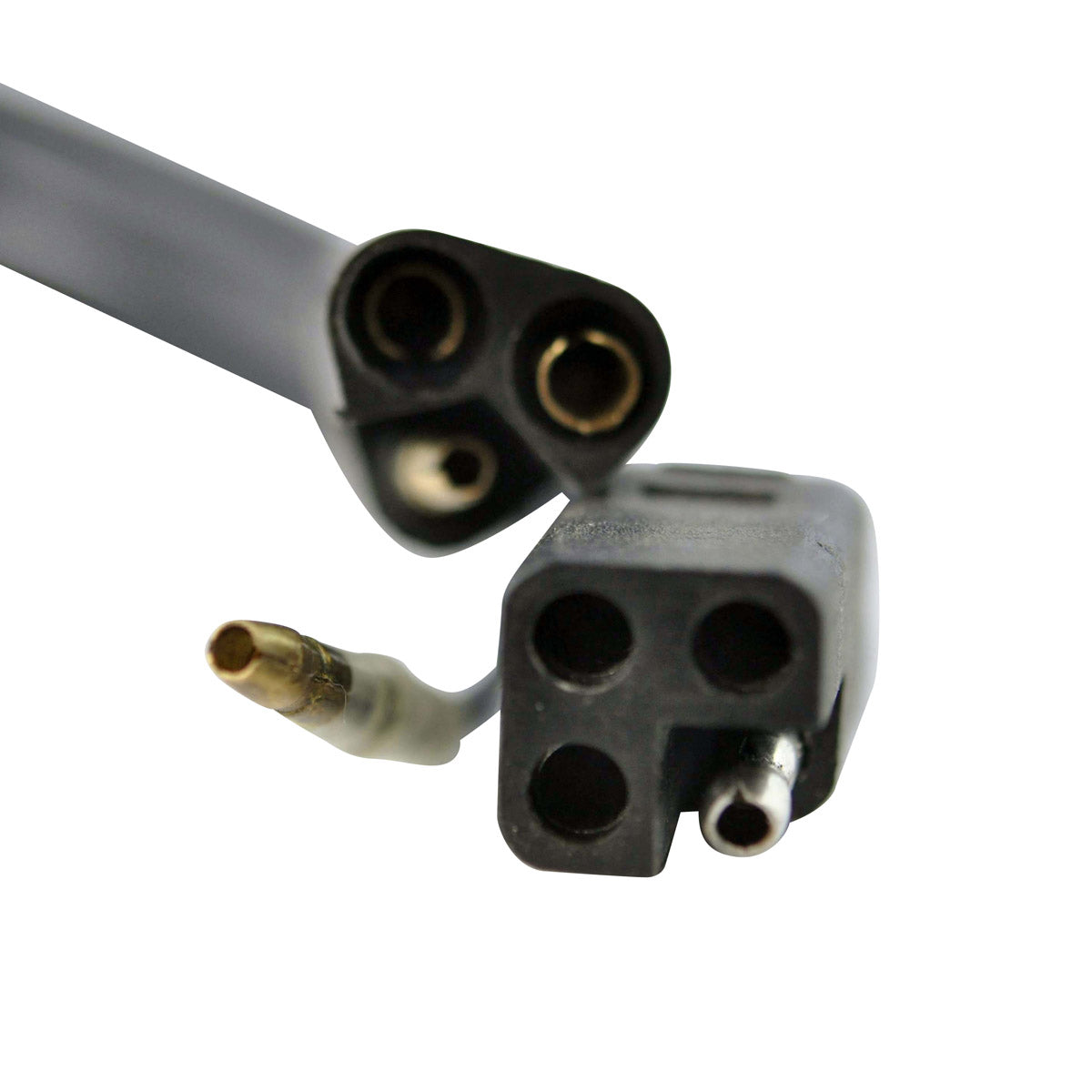

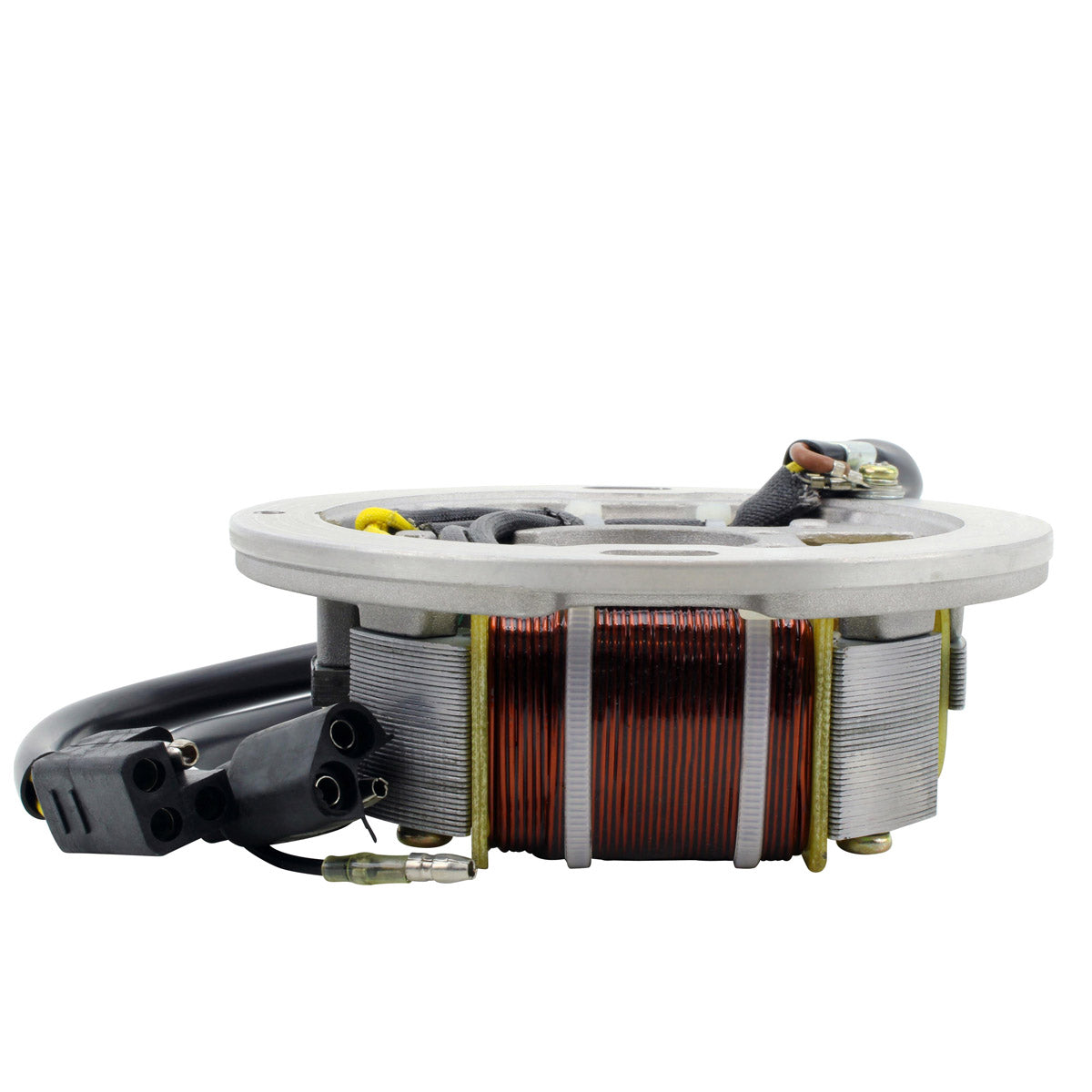

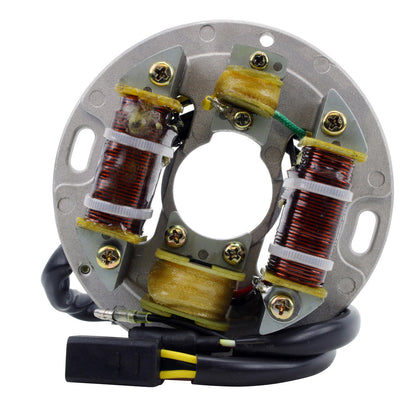

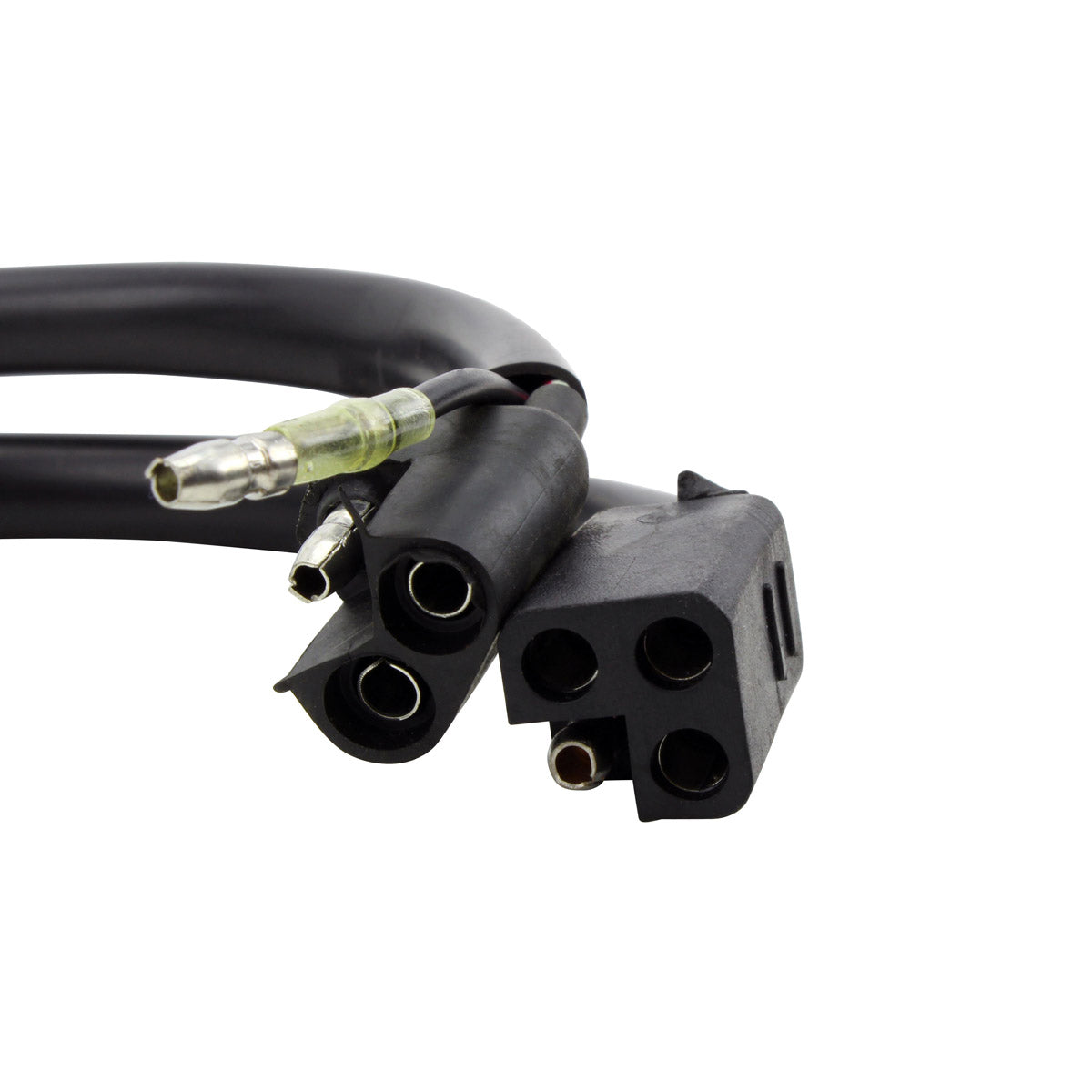

The plate carries eight wires across three plugs and combines the alternator, pickup and source circuits. It is wound with the highest grade copper on the highest grade lamination materials, resistant to 200 degrees Celsius, and the connector is included. All products shipped are tested before dispatch.
Key Features
- Brand new ignition stator, direct replacement for the original Arctic Cat unit
- Pickup coil included
- Back plate included
- Connector included
- Highest grade lamination materials
- Highest grade copper winding, resistant to 200 degrees Celsius
- Eight wires, three plugs, eight pins
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Interior diameter |
36.6 mm |
| Exterior diameter |
126.6 mm |
| Thickness |
46 mm |
| Wire length, stator to plug |
270 mm |
| Number of wires |
8 |
| Number of plugs |
3 |
| Number of pins |
8 |
| Alternator resistance, Yellow to Yellow |
0.5 ohms +/-20% |
| Pickup resistance, Black/White to White/Red |
27.7 ohms +/-20% |
| Source resistance, Black/White to Green |
1.124k ohms +/-20% |
| Winding temperature rating |
200 degrees Celsius |
| RMSTATOR part number |
RM01096 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Arctic Cat Cheetah |
1990-2000 |
| Arctic Cat Cougar |
1990-2000 |
| Arctic Cat Mountain Cat |
1990-2000 |
| Arctic Cat Jag |
1990-2000 |
| Arctic Cat Pantera |
1990-2000 |
| Arctic Cat Prowler |
1990-2000 |
| Arctic Cat ZL 440 |
1990-2000 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 3005-325 |
Arctic Cat |
| 3004-060 |
Arctic Cat |
| 3003-691 |
Arctic Cat |
| 3003-773 |
Arctic Cat |
| 3005-338 |
Arctic Cat |
| 3005-560 |
Arctic Cat |
Frequently Asked Questions
Does it fit without modification?
Yes. It is a direct replacement for the original Arctic Cat unit - plug-and-play, direct fit, easy installation, supplied with the back plate and connector.
What is included in the box?
The stator, the pickup coil, the connector and the back plate.
How do I know the ignition stator has failed?
Test each circuit with a multimeter. The alternator should read 0.5 ohms +/-20% from Yellow to Yellow, the pickup 27.7 ohms +/-20% from Black/White to White/Red, and the source coil 1.124k ohms +/-20% from Black/White to Green. A circuit that reads open or shorted explains a no-spark or no-charge fault.
Which Arctic Cat models does this stator cover?
RMSTATOR lists the Cheetah, Cougar, Mountain Cat, Jag, Pantera, Prowler and ZL 440 across the 1990 to 2000 span. Confirm using the OEM number on your original unit against the cross reference table above.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
