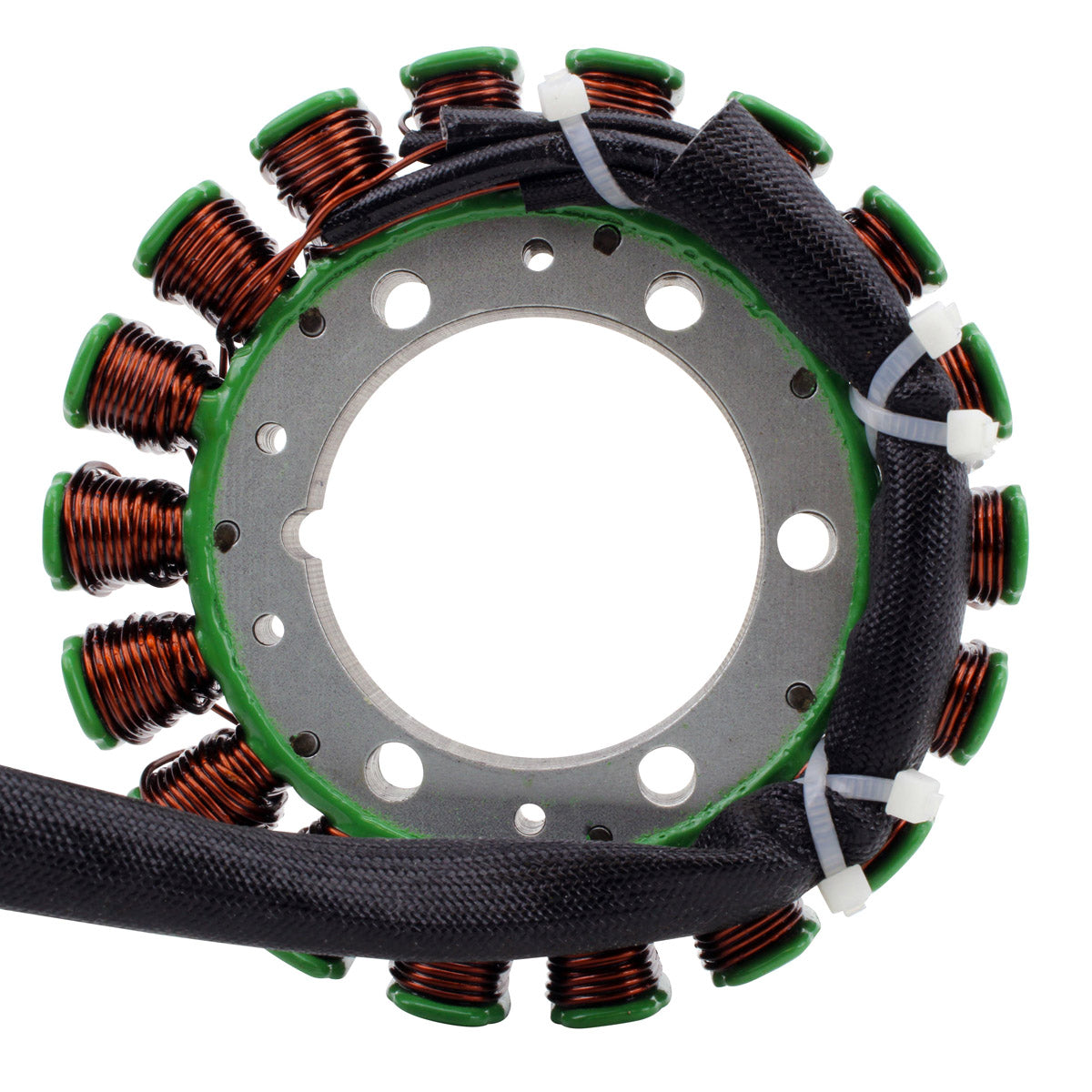

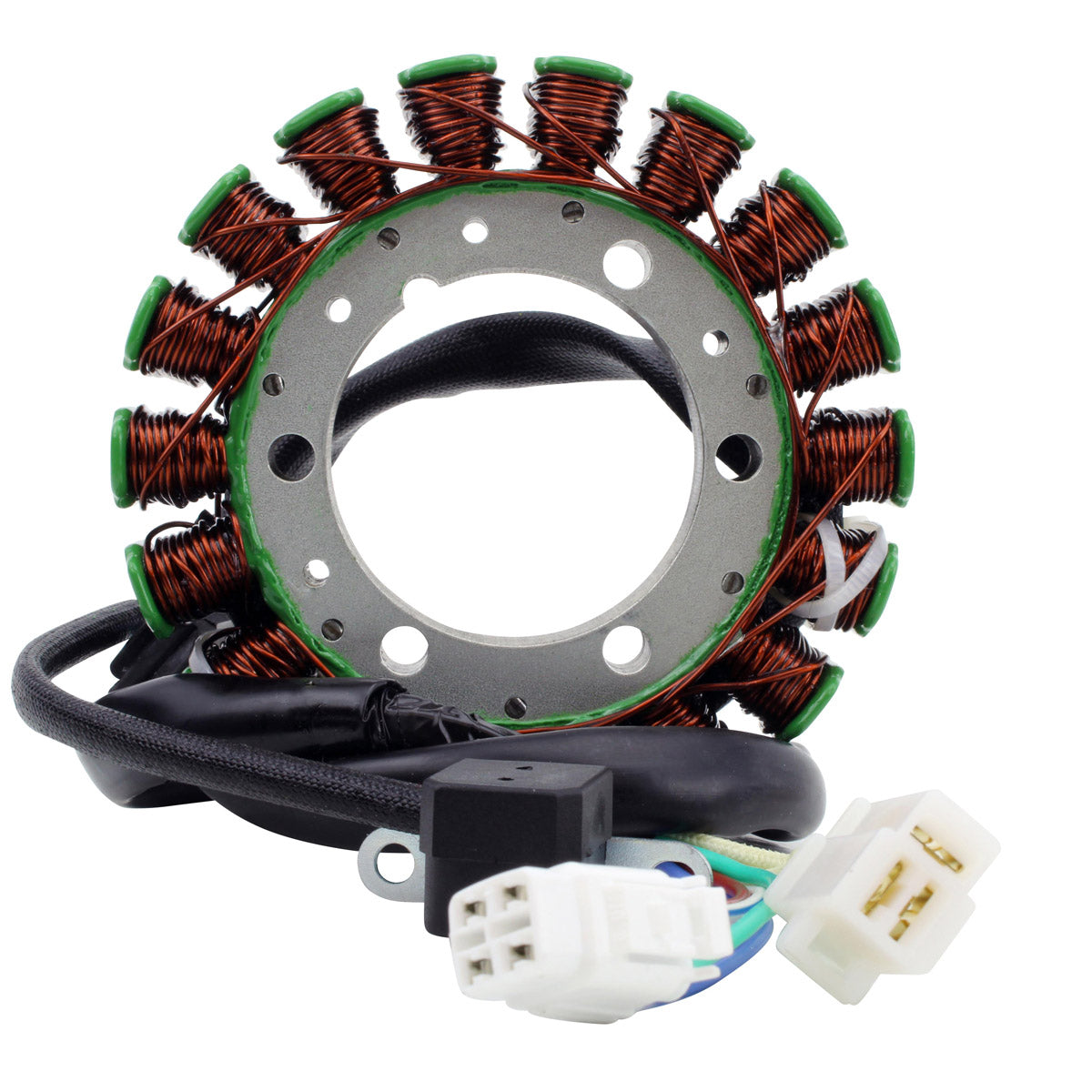

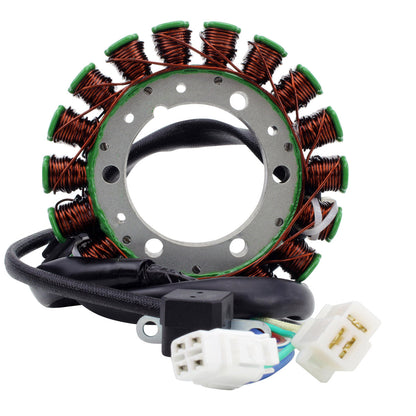

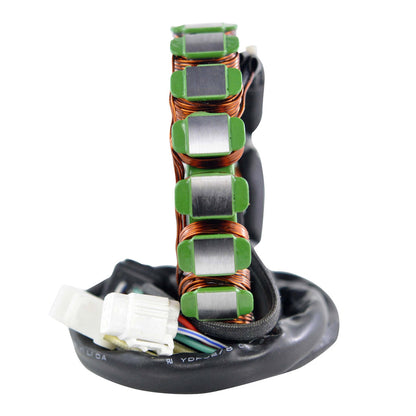

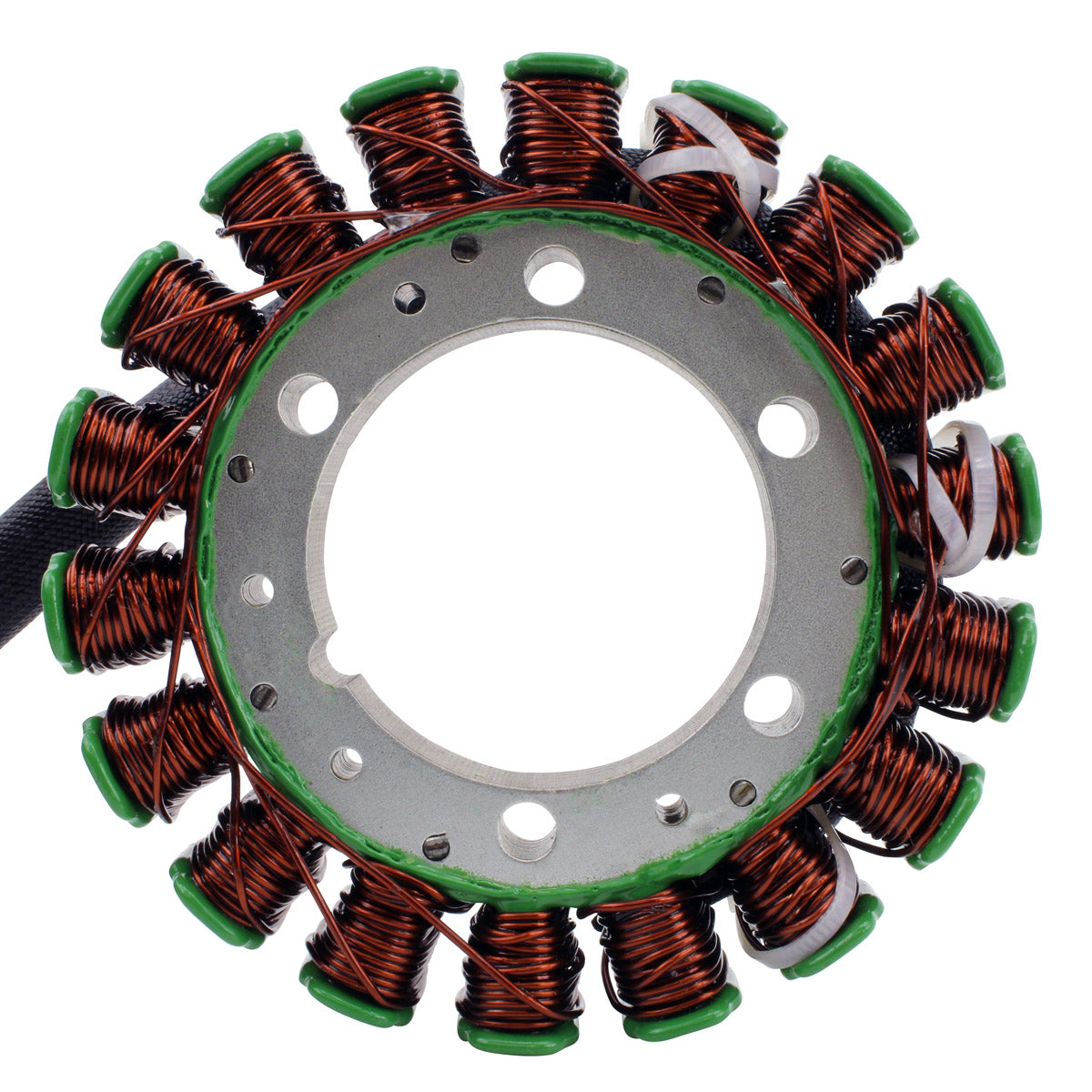

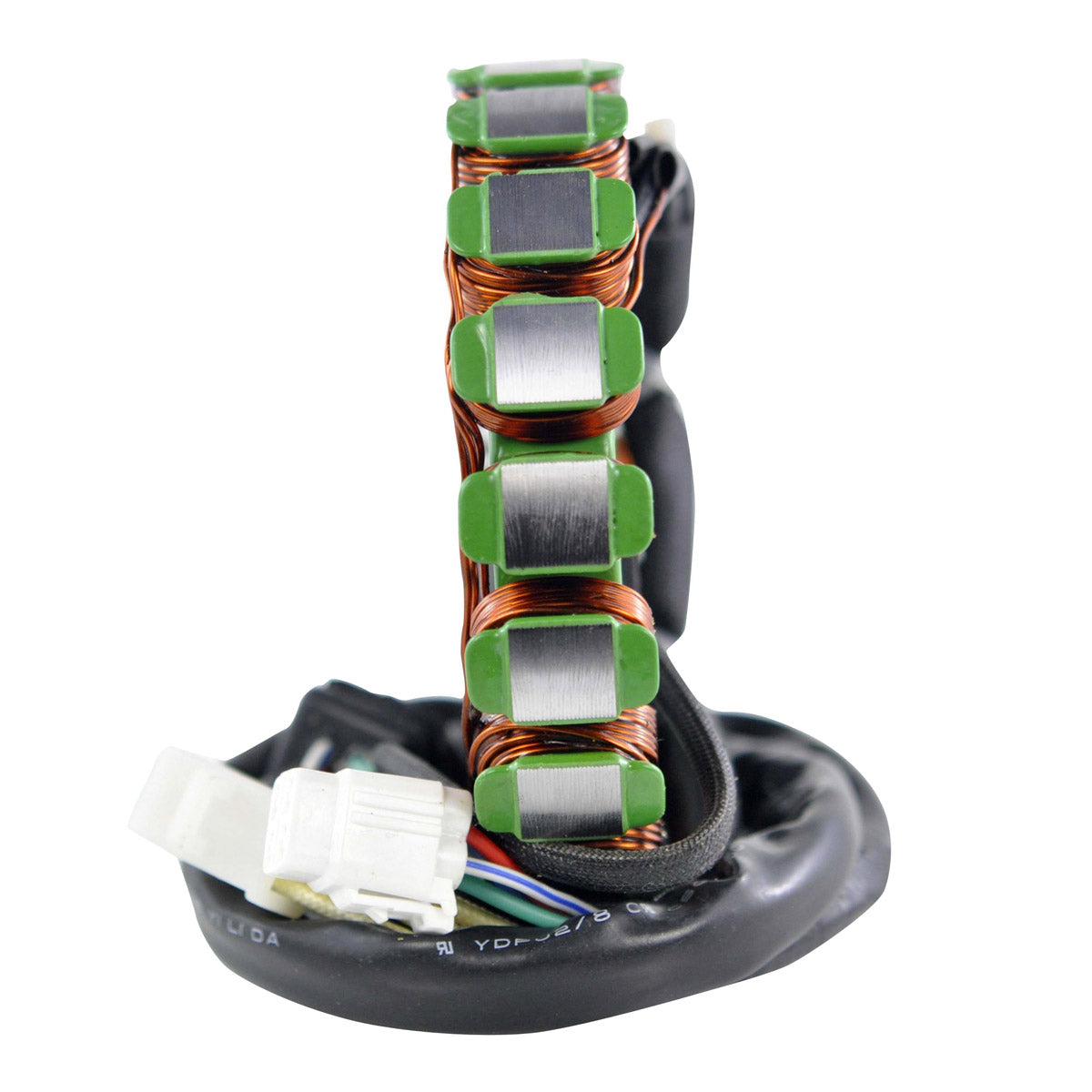

This is a brand new aftermarket generator stator for the Arctic Cat 500 TBX and 500 TRV of 2003 to 2009 and the Suzuki LT 500 Vinson of 2002 to 2007. It is a direct replacement for your original unit, mounting in the same position with the same wire routing and the same plugs, so fitting is plug-and-play with no modification, no rewiring and no drilling.

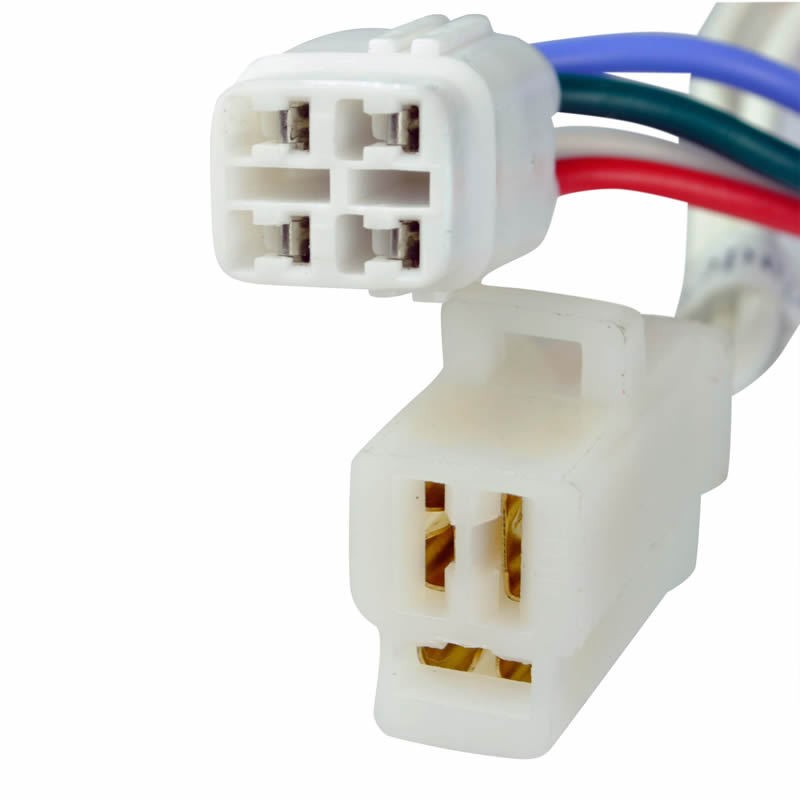

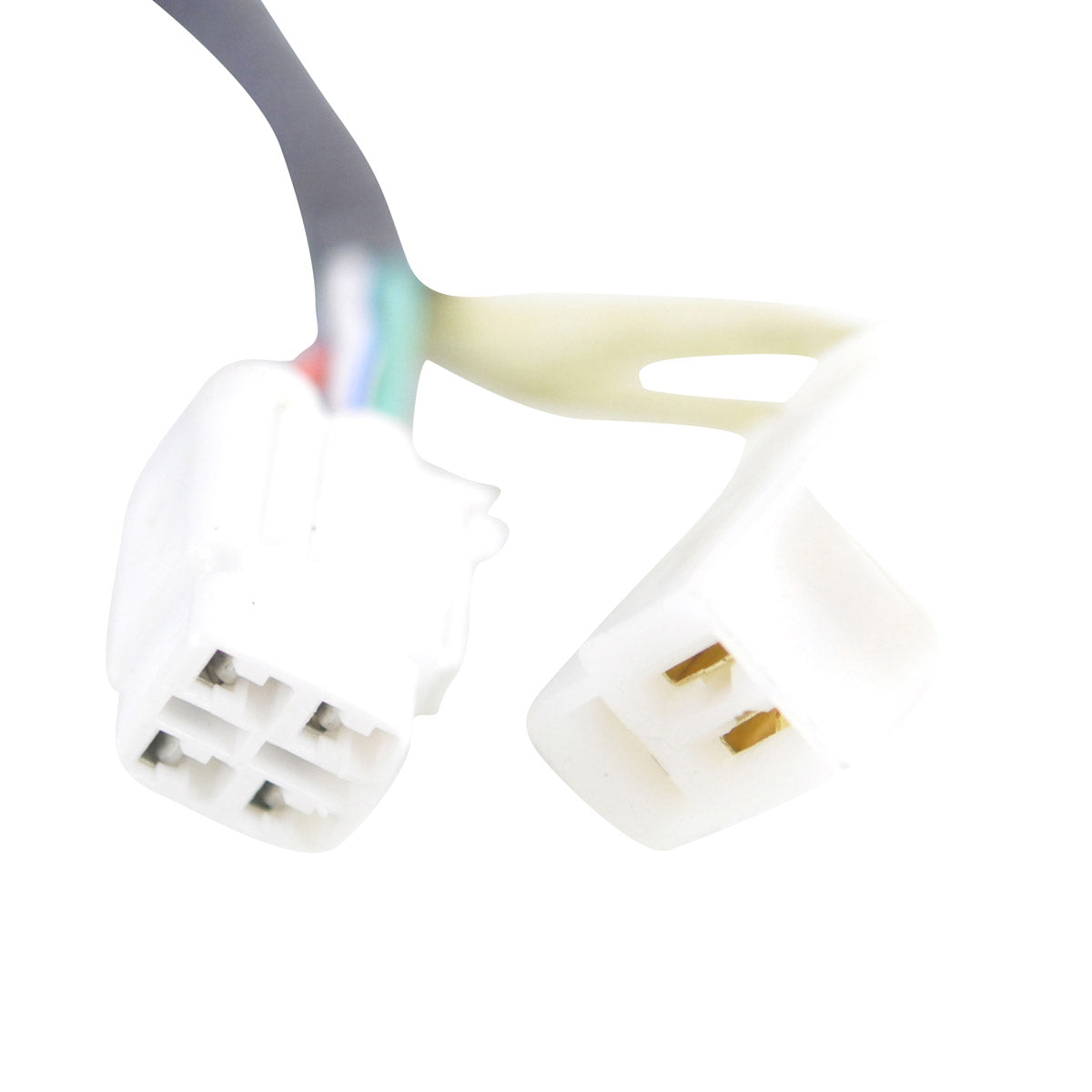

The assembly is built on the highest grade lamination materials and wound with the highest grade copper windings, resistant to 200 degrees Celsius. It integrates the pick-up pulsar coil and the crank position sensor circuit alongside the charging winding, and the connector and rubber grommet are supplied with it. We also include the opposite connector, the main harness side half of the plug, since that half is frequently melted or corroded on a machine that has suffered a charging fault. Every unit is tested before it is shipped.
Key Features
- Brand new aftermarket stator, a direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

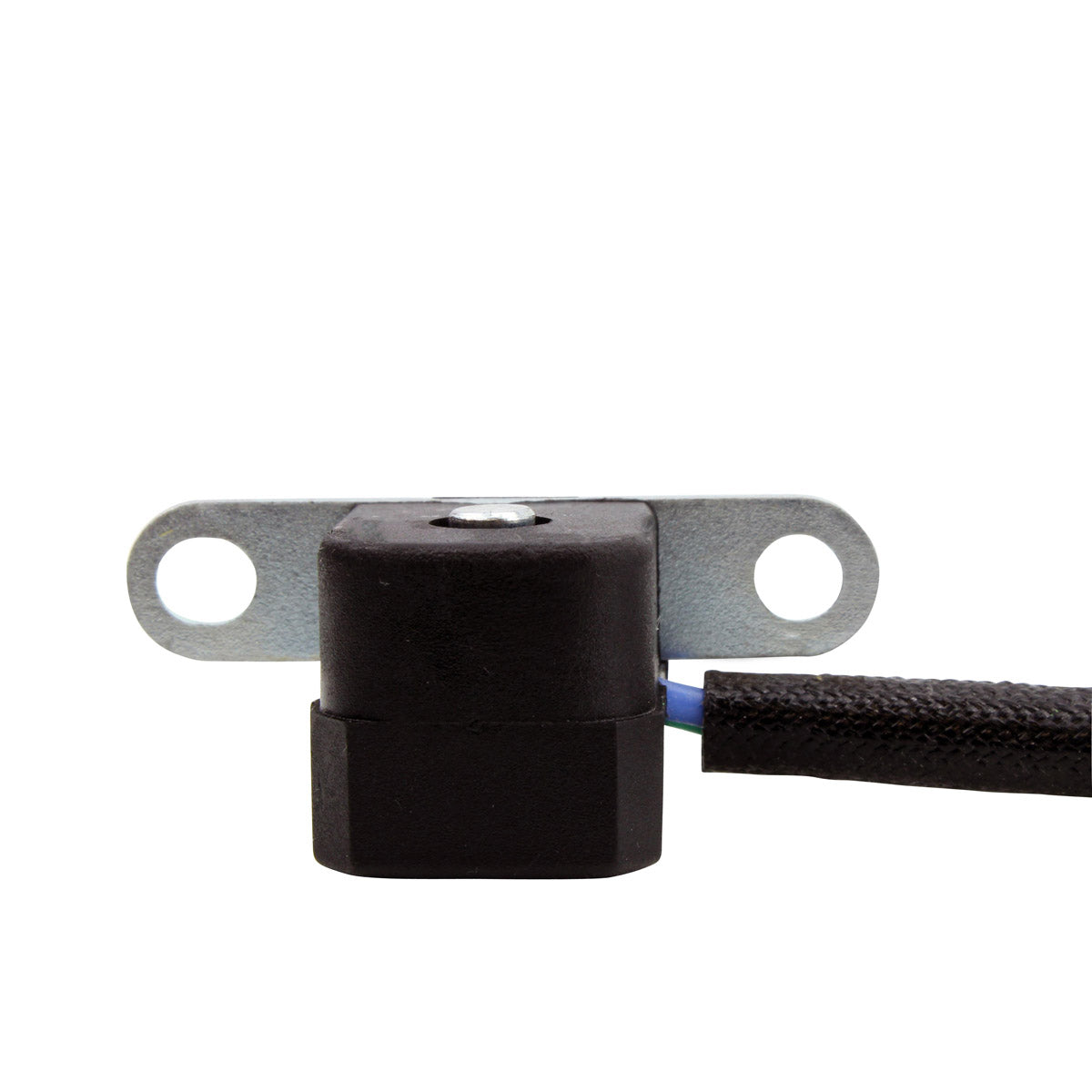

- Pick-up pulsar coil included

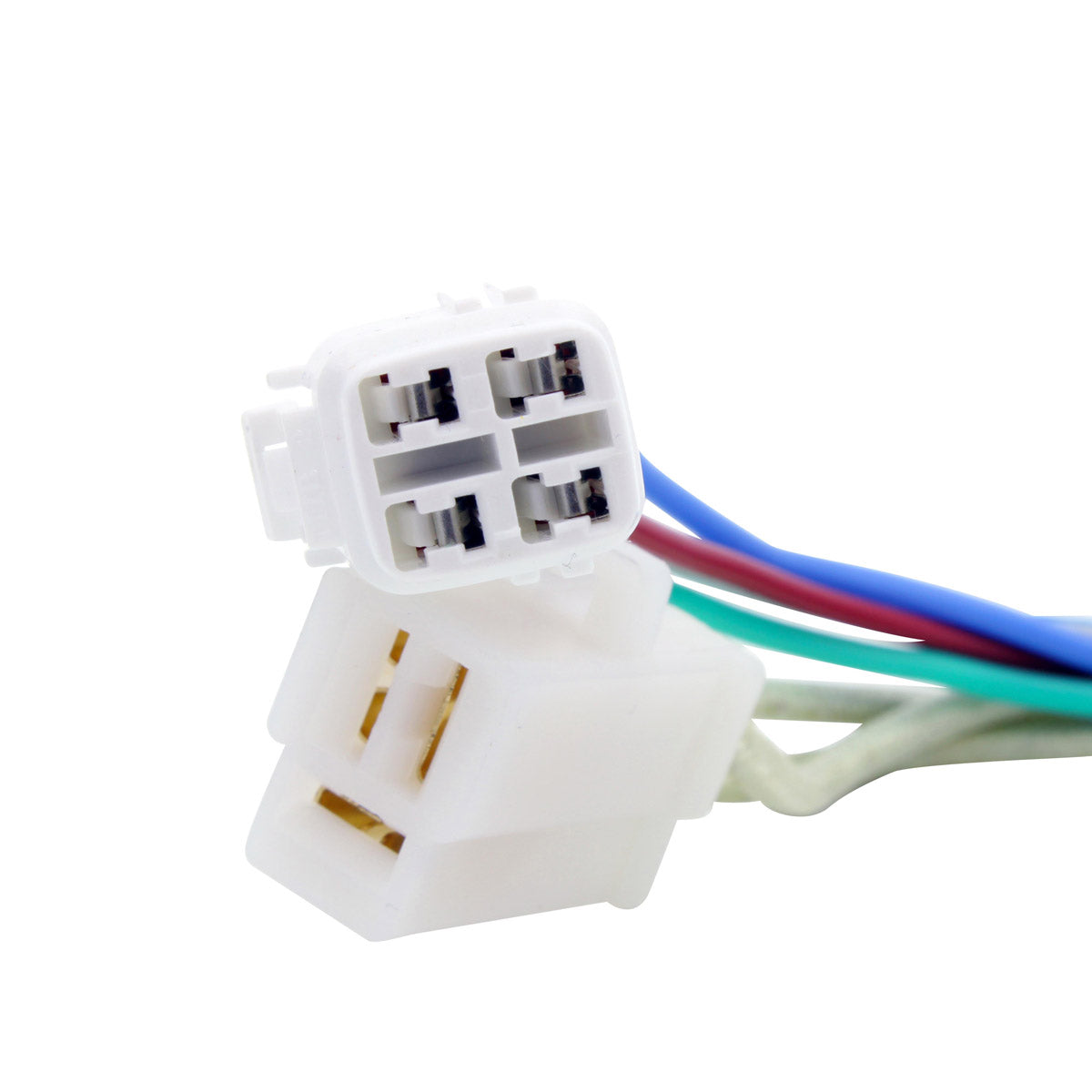

- Connector and rubber grommet included

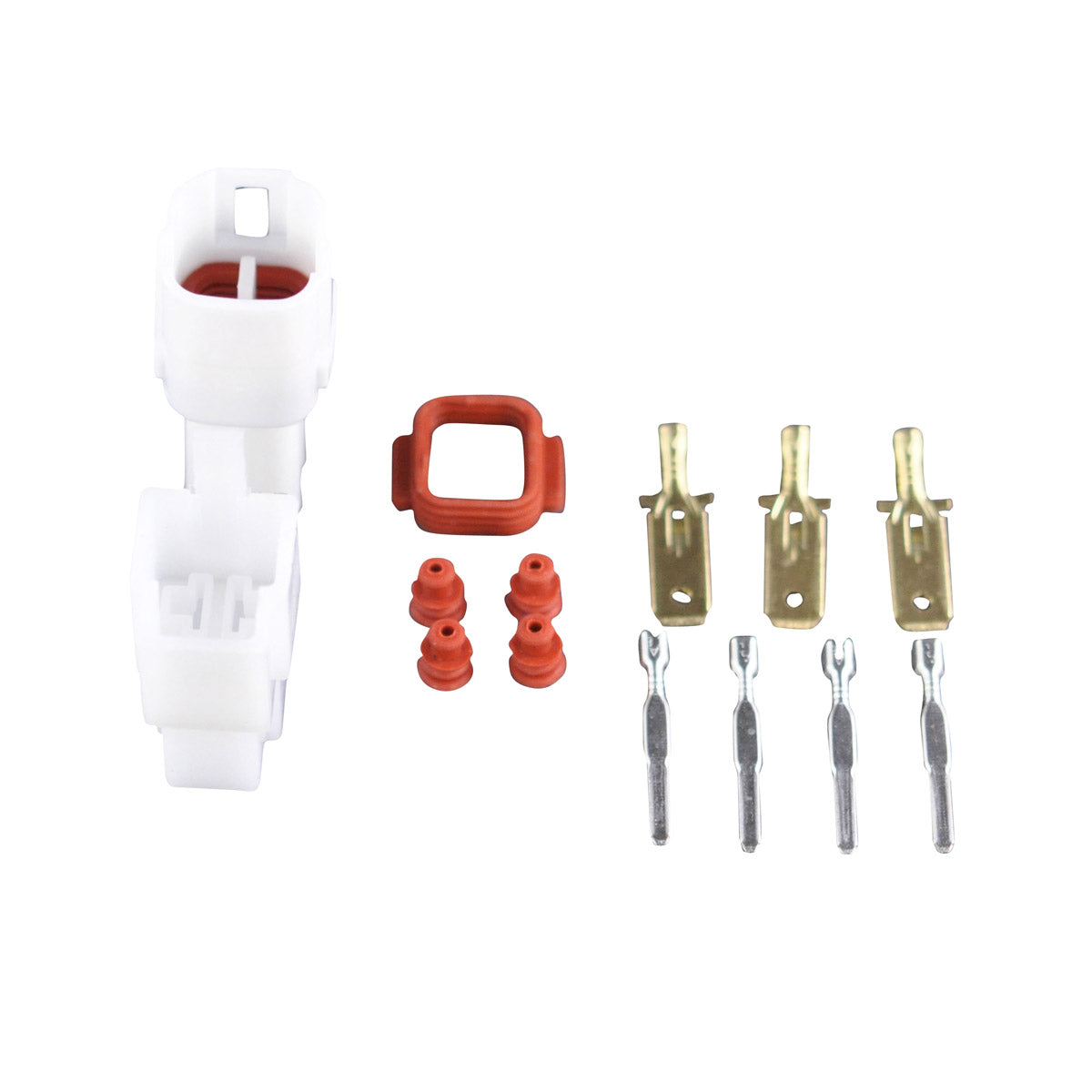

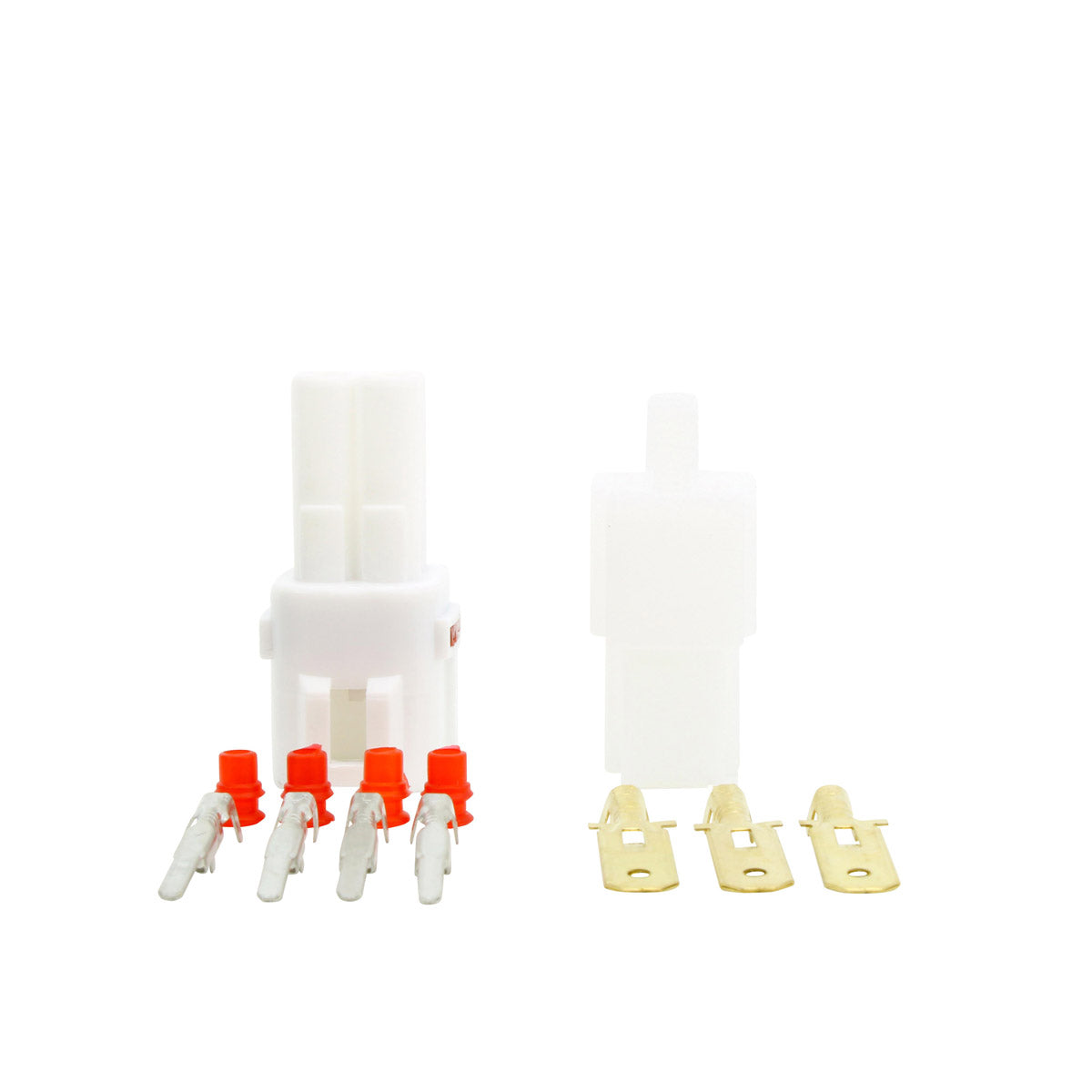

- Opposite connector (main harness side) also included
- All units are tested before shipping
Technical Specs
| Specification |
Detail |
| Interior diameter |
53 mm |
| Exterior diameter |
114 mm |
| Thickness |
13 mm |
| Wire length (stator to grommet) |
110 mm |
| Wire length (grommet to plug) |
100 mm |
| Pick-up coil wire length (to grommet) |
380 mm |
| Number of wires |
7 |
| Number of plugs |
2 |
| Number of pins |
7 |
| Alternator resistance (White to White) |
0.4 ohms +/-20% |
| Pick-up resistance (Blue to Green) |
200 ohms +/-20% |
| Position sensor resistance (Red to White/Blue) |
0.1 ohms +/-20% |
| Copper winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model |
Years |
| Arctic Cat 500 TBX |
2003-2009 |
| Arctic Cat 500 TRV |
2003-2009 |
| Suzuki LT 500 Vinson |
2002-2007 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 3430-058 |
OEM |
| 32101-09F30 |
OEM |
| 32101-09F40 |
OEM |
Frequently Asked Questions
Will this stator fit without modification?
Yes. It is a direct replacement for the original unit on the models and years listed above, with the same seven wire, two plug layout and the same mounting. Nothing needs to be cut, drilled or re-wired. Please confirm the OEM part number on your original stator against the cross reference table before ordering.
What is included in the box?

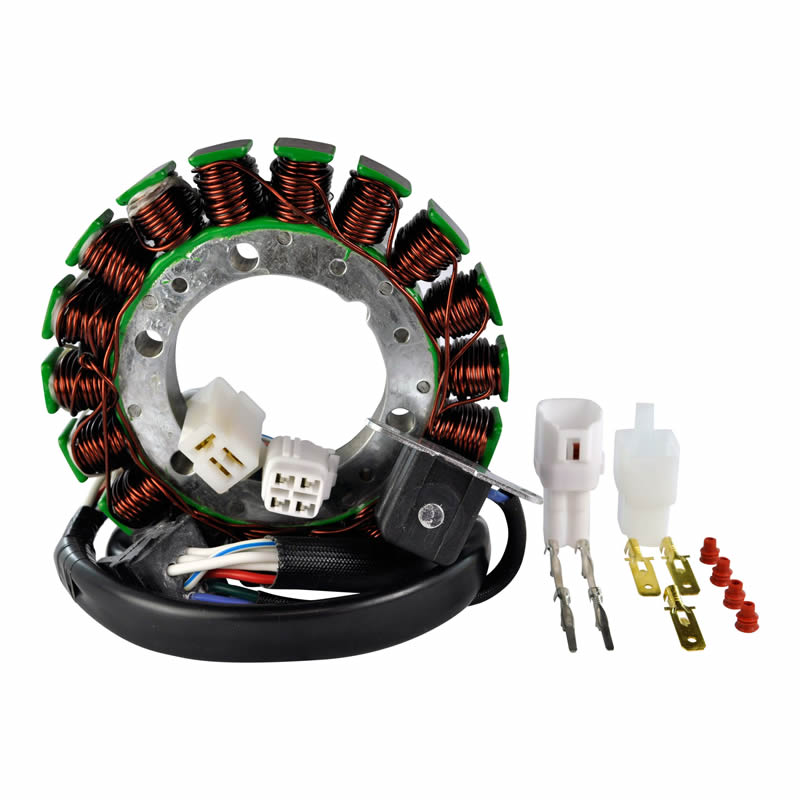

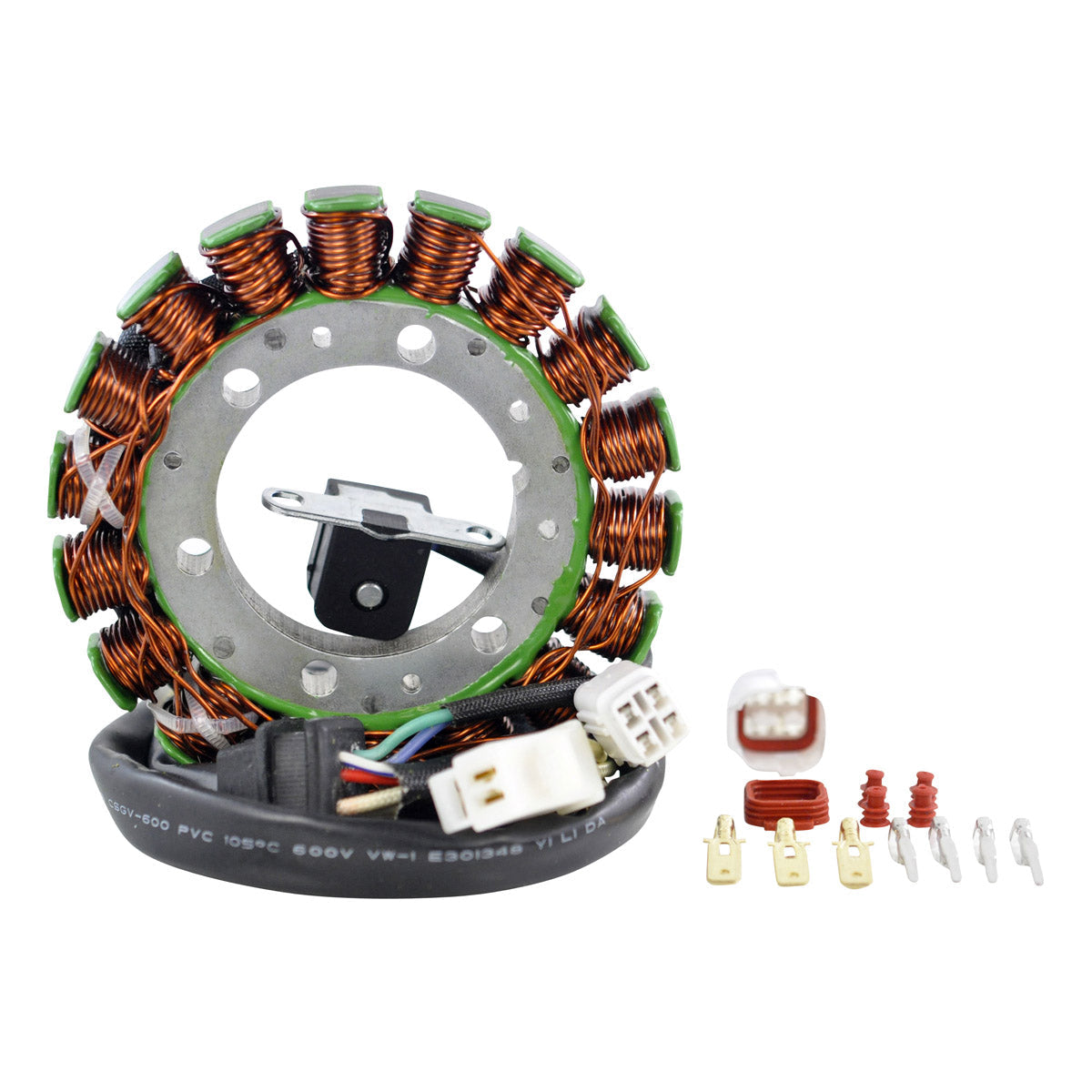

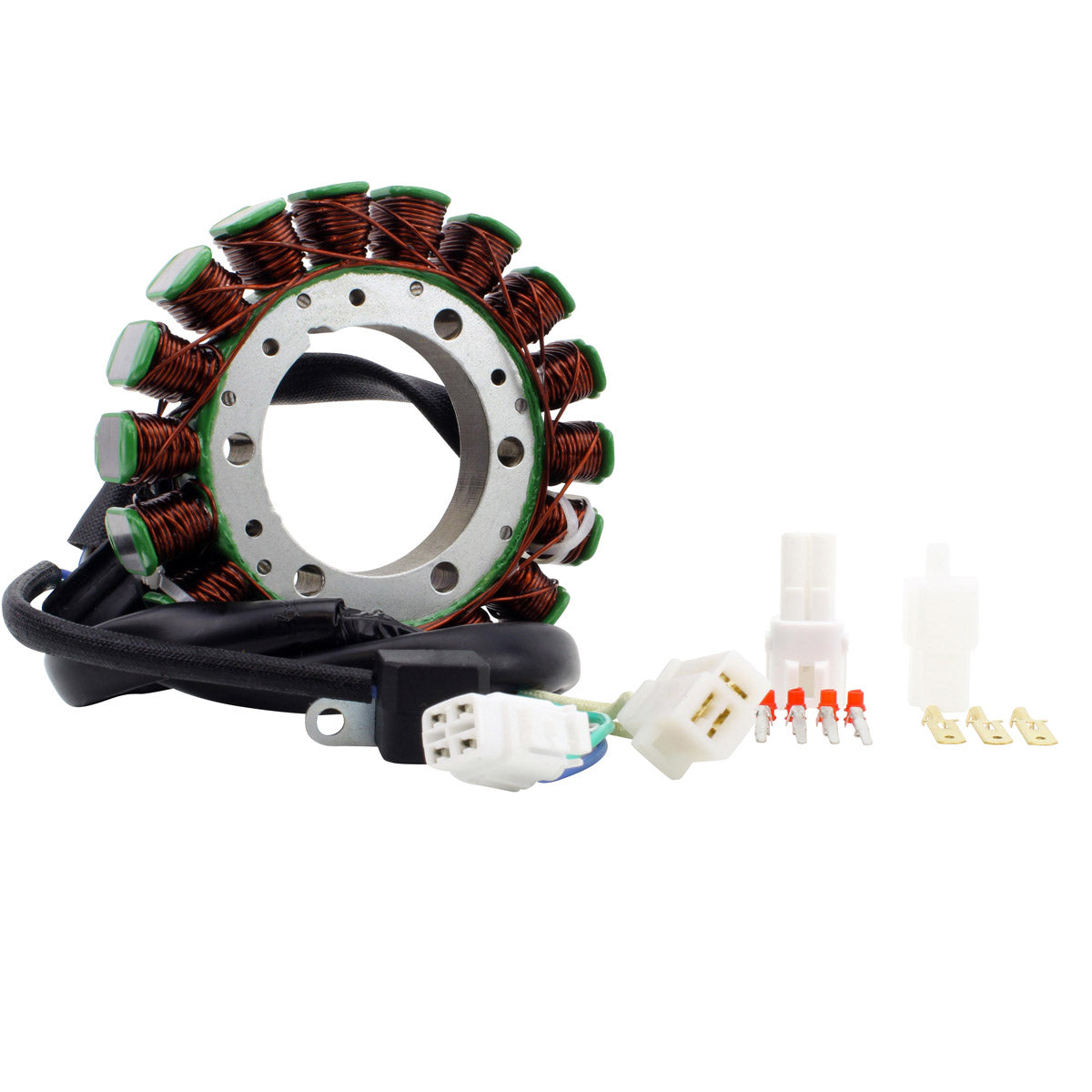

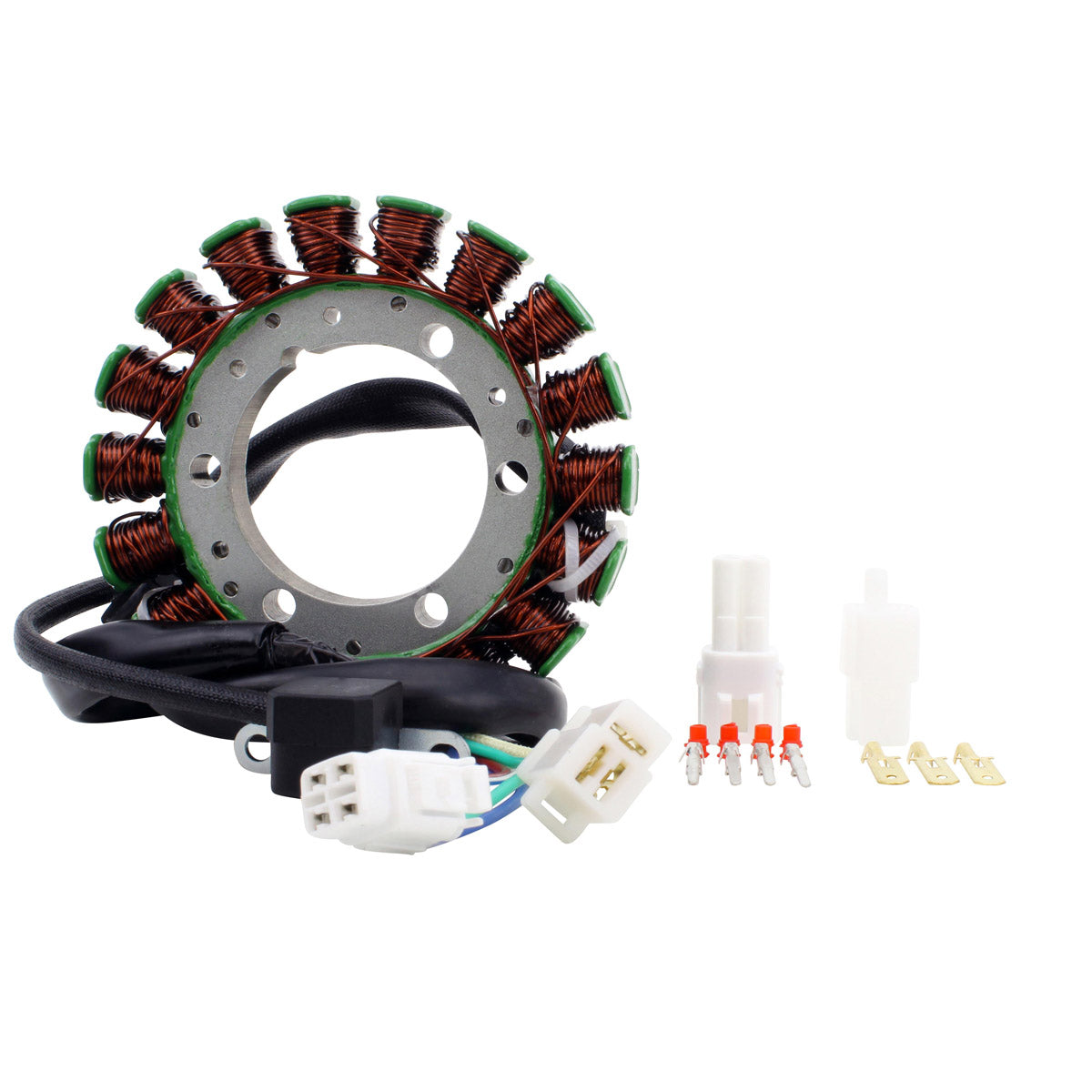

The stator assembly, the pick-up pulsar coil, the connector, the opposite connector for the main harness side, and the rubber grommet.
How can I tell that my old stator has failed?
The usual signs are a flat or steadily discharging battery, dim or flickering lights, hard starting, or a machine that cuts out and will not restart. With the engine off and the unit unplugged, the white alternator wires should read about 0.4 ohms between them, the pick-up about 200 ohms from blue to green, and the position sensor about 0.1 ohms from red to white/blue. Readings well outside those figures, or continuity from a winding to the stator body, indicate a failed unit.
Why does one part cover both an Arctic Cat and a Suzuki?
The Arctic Cat 500 of this period uses a Suzuki-derived engine, so the same stator serves the Arctic Cat 500 TBX and 500 TRV and the Suzuki LT 500 Vinson. That is also why the cross reference list carries both an Arctic Cat style part number and Suzuki style part numbers for what is the same component.
