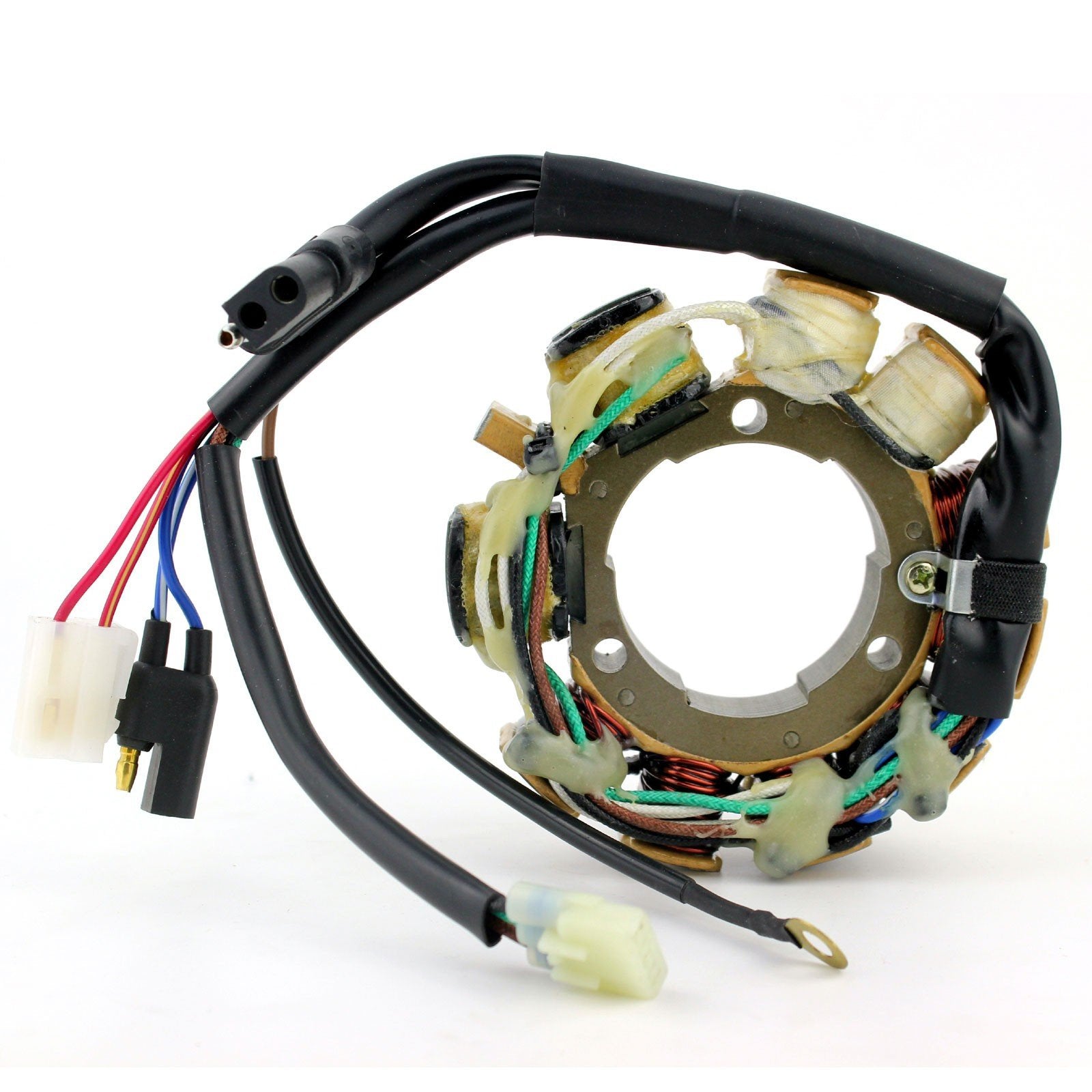

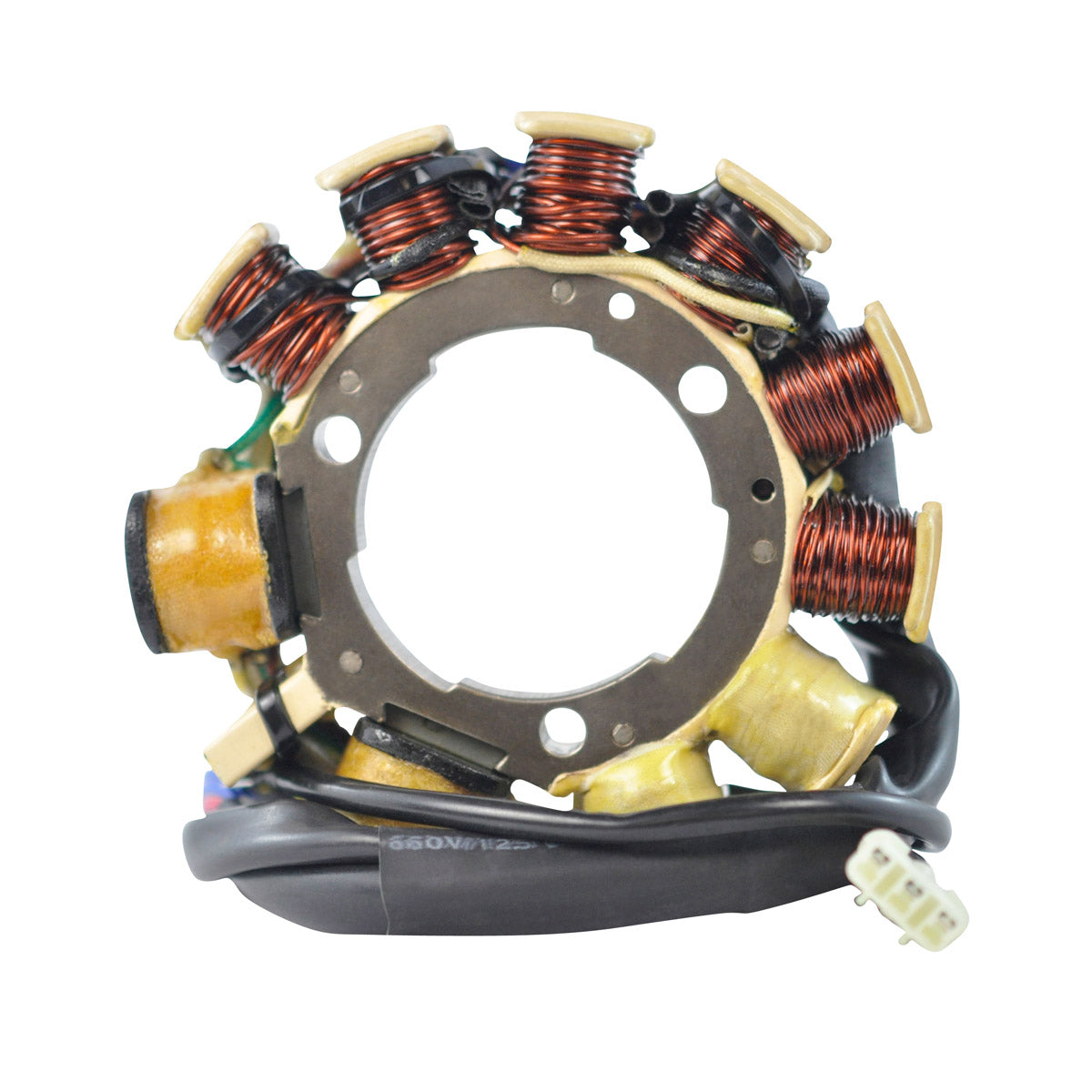

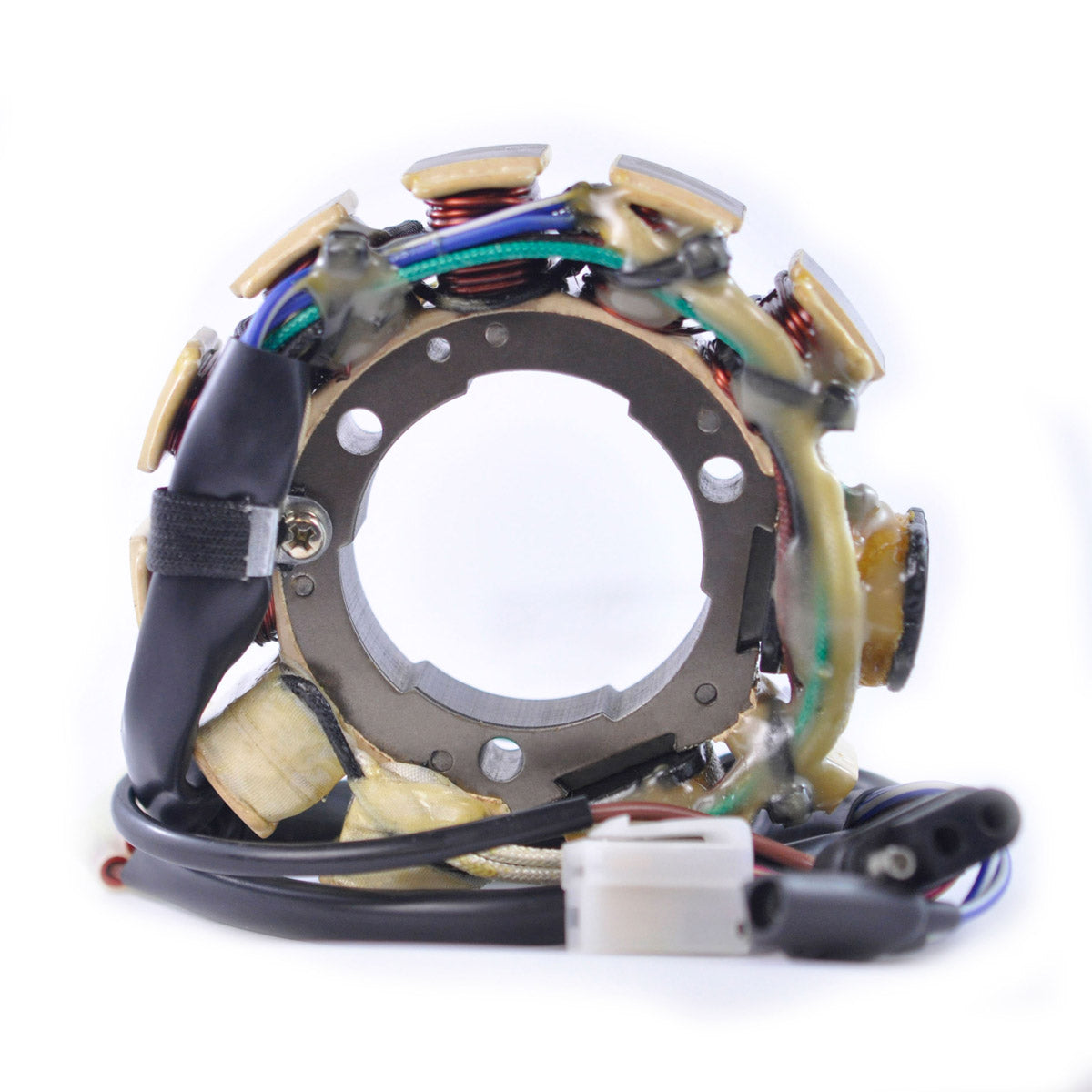

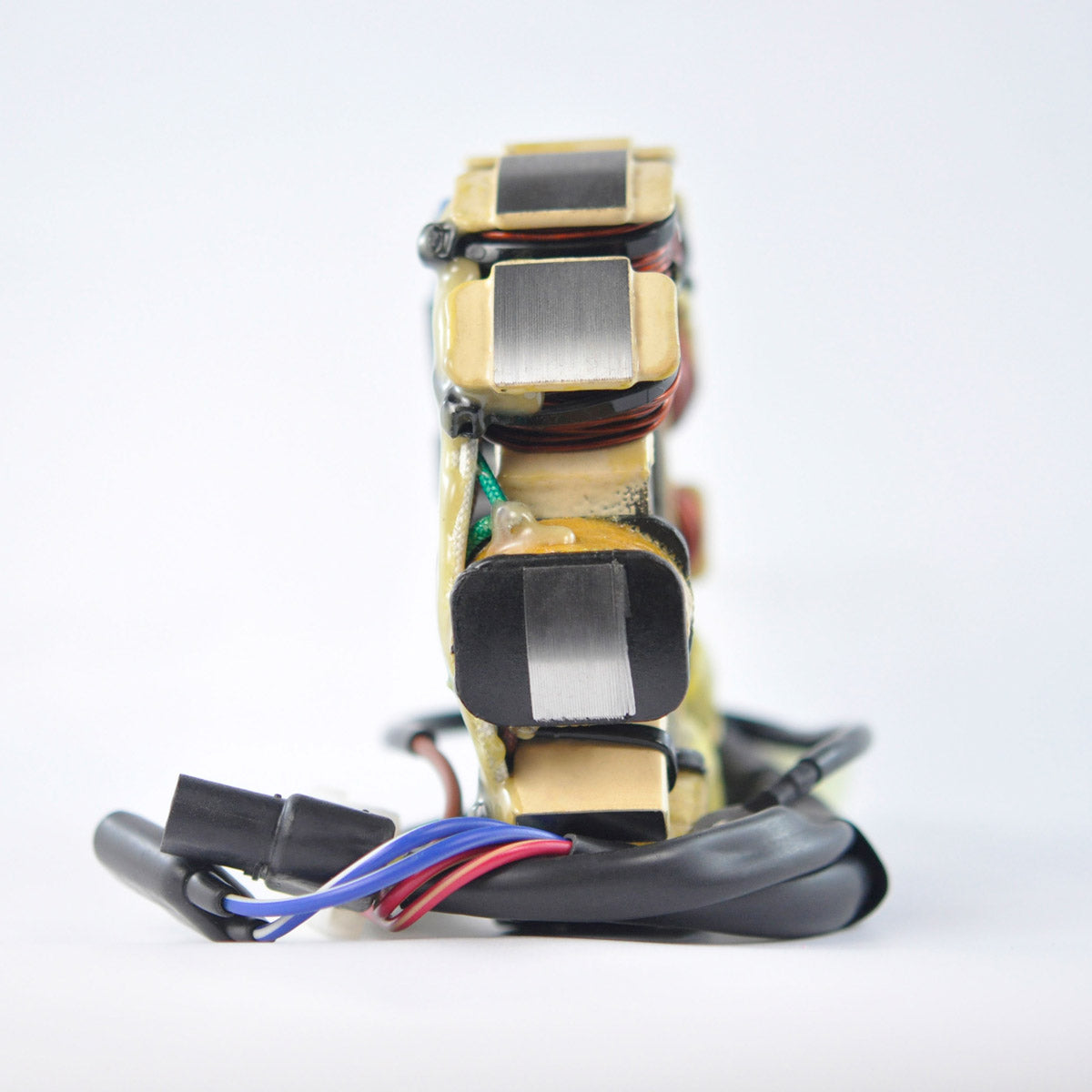

Stator for Arctic Cat EXT 580 and Pantera 580
EXT 580, Pantera 580, Powder Special 600, ZL 500 580 600 and ZR 500 600 EFI, 1997-2001 - OEM 3005-080
This is a brand new aftermarket stator for Arctic Cat snowmobiles, supplied under part number RM01001S. It is a direct replacement for the original unit and fits plug-and-play, so it connects to the existing harness without cutting, splicing or adapters.

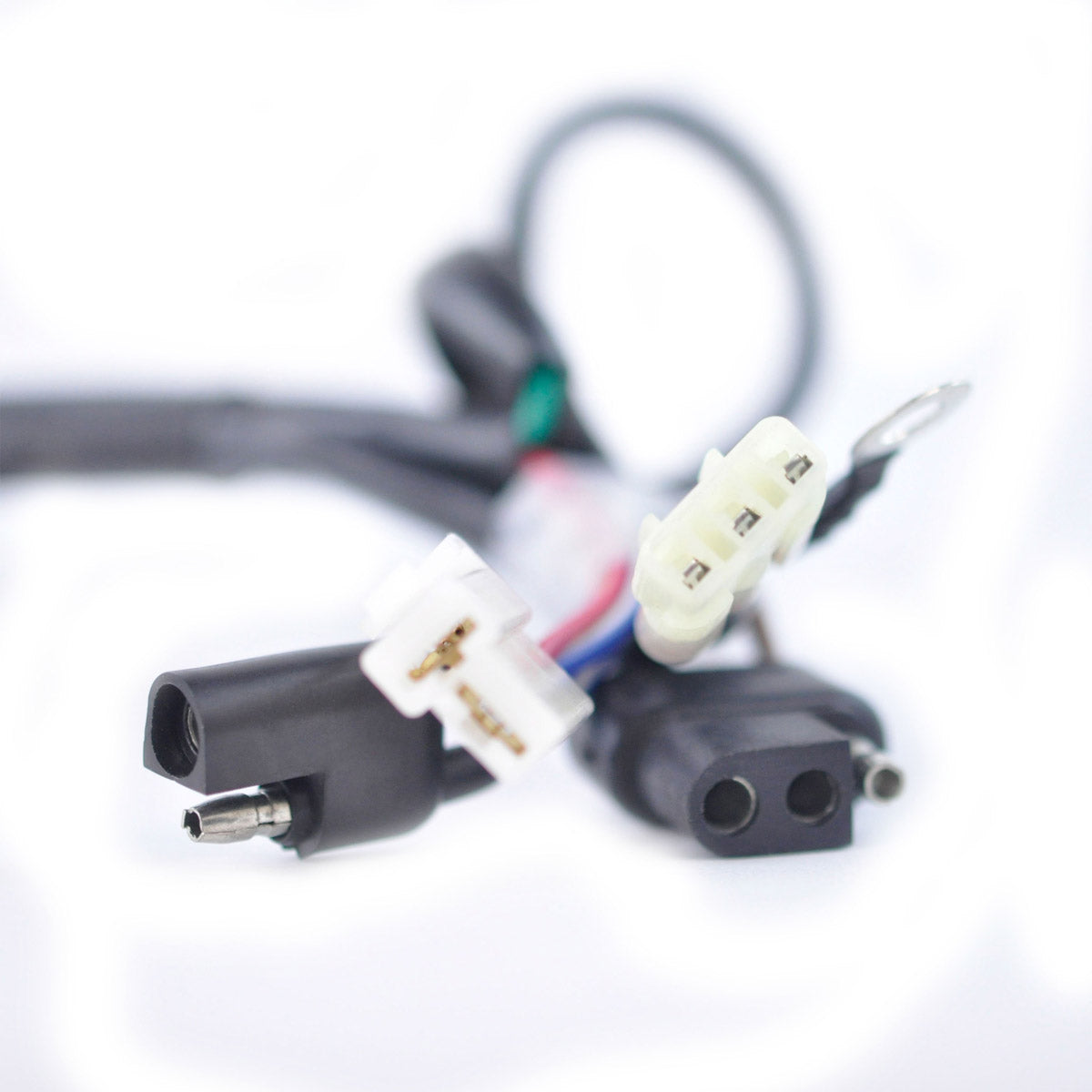

This is a multi-circuit stator: eleven wires terminate in four separate plugs, carrying the alternator winding, two independent source coils, an accessories circuit and a further winding, so one component feeds charging, ignition and accessory supply. It is built on the highest grade lamination materials and wound with the highest grade copper, rated to withstand 200 degrees Celsius. The connector is included and every stator is tested before it is shipped.
Key Features
- Brand new aftermarket stator, a direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials and highest grade copper winding
- Copper winding resistant to 200 degrees Celsius
- 11 wires across 4 plugs and 11 pins, covering charging, source and accessory circuits
- 200 mm of lead from the stator to the connectors
- Connector included
- All products shipped are tested
- Cross references to Arctic Cat 3005-080
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 51 mm |
| Exterior diameter | 114 mm |
| Thickness | 20 mm |
| Wire length, stator to connectors | 200 mm |
| Number of wires | 11 |
| Number of plugs | 4 |
| Number of pins | 11 |
| Alternator resistance (yellow to yellow) | 0.4 ohms +/- 20% |
| Source 1 resistance (black to green) | 42 ohms +/- 20% |
| Source 2 resistance (brown to green) | 450 ohms +/- 20% |
| Resistance (blue/white to blue/white) | 20 ohms +/- 20% |
| Accessories resistance (red/yellow to red/yellow) | 0.2 ohms +/- 20% |
| Temperature rating | 200 degrees Celsius |
| Part number | RM01001S |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Arctic Cat EXT 580 | 1997-2001 |
| Arctic Cat Pantera 580 | 1997-2001 |
| Arctic Cat Powder Special 600 | 1997-2001 |
| Arctic Cat ZL 500 / 580 / 600 | 1997-2001 |
| Arctic Cat ZR 500 / 600 EFI | 1997-2001 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 3005-080 | Arctic Cat |
Frequently Asked Questions
Does this stator fit without modification?
Yes. It is a plug-and-play direct replacement for the original unit on the listed Arctic Cat models from 1997 to 2001, cross referencing to part number 3005-080. The four plugs match the factory harness, so no cutting or splicing is needed.
What is included?
The stator assembly with its connector fitted. Every unit is tested before despatch.
How do I know the old stator has failed?
Symptoms range from a flat battery and dim lights to no spark at all, depending on which winding has gone down. Test each circuit at the plug: yellow to yellow should read about 0.4 ohms, black to green about 42 ohms, brown to green about 450 ohms, blue/white to blue/white about 20 ohms and red/yellow to red/yellow about 0.2 ohms, all within 20 per cent. Any circuit reading open, shorted, or showing continuity to the stator body means the stator has failed.
Why does this stator carry so many circuits?
These Arctic Cat machines run charging, ignition source coils and an accessories supply from the same stator, which is why there are eleven wires split across four plugs. It also means a fault in one circuit can leave the others working normally, so all five resistance readings are worth checking before condemning the part.
