Stator for Suzuki GSX-R1000 2005-2008 - Replaces 31401-41G00
Stator for Suzuki GSX-R1000 2005-2008 - Replaces 31401-41G00
SKU:RMS010-100089
Free shipping over £150. Terms apply
Couldn't load pickup availability

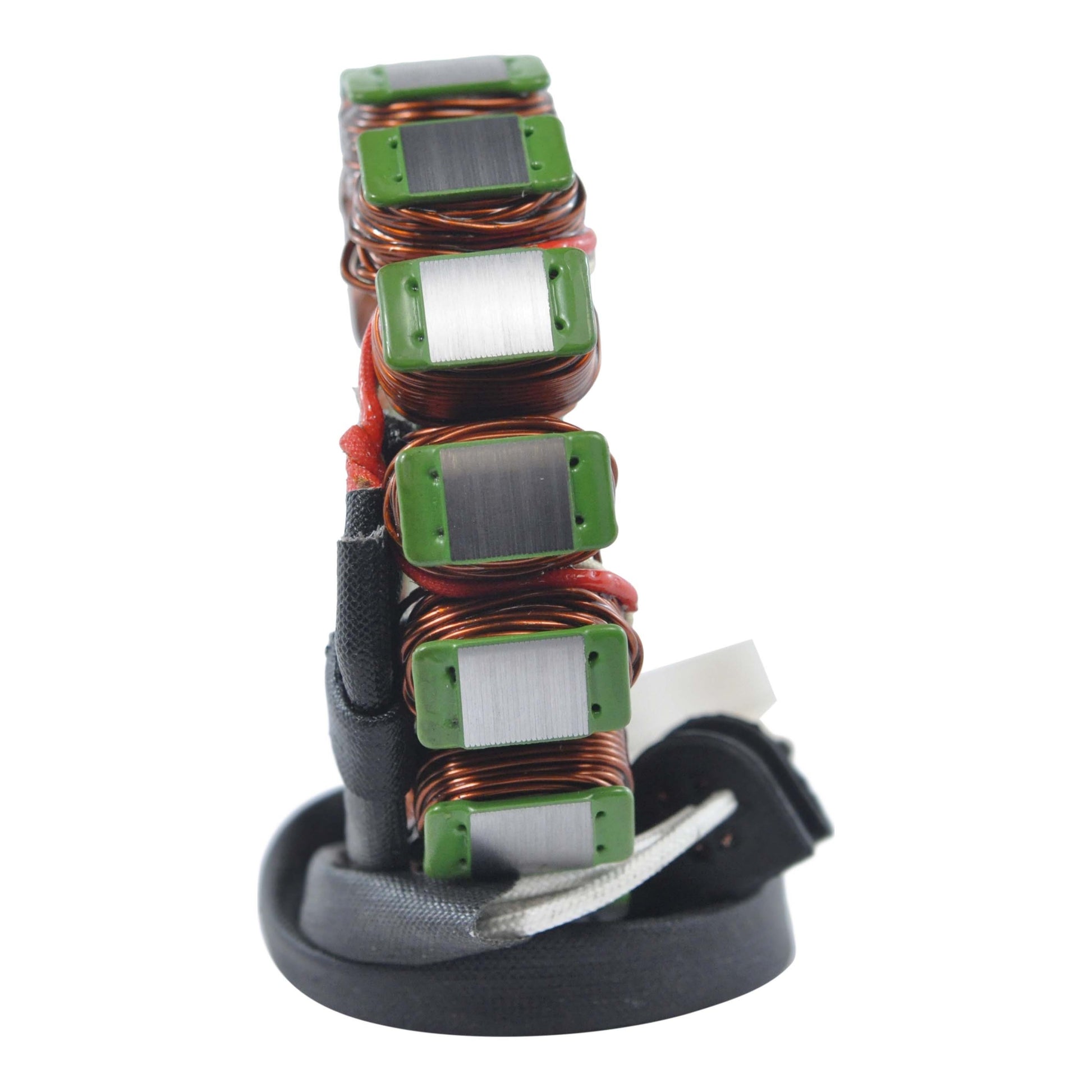

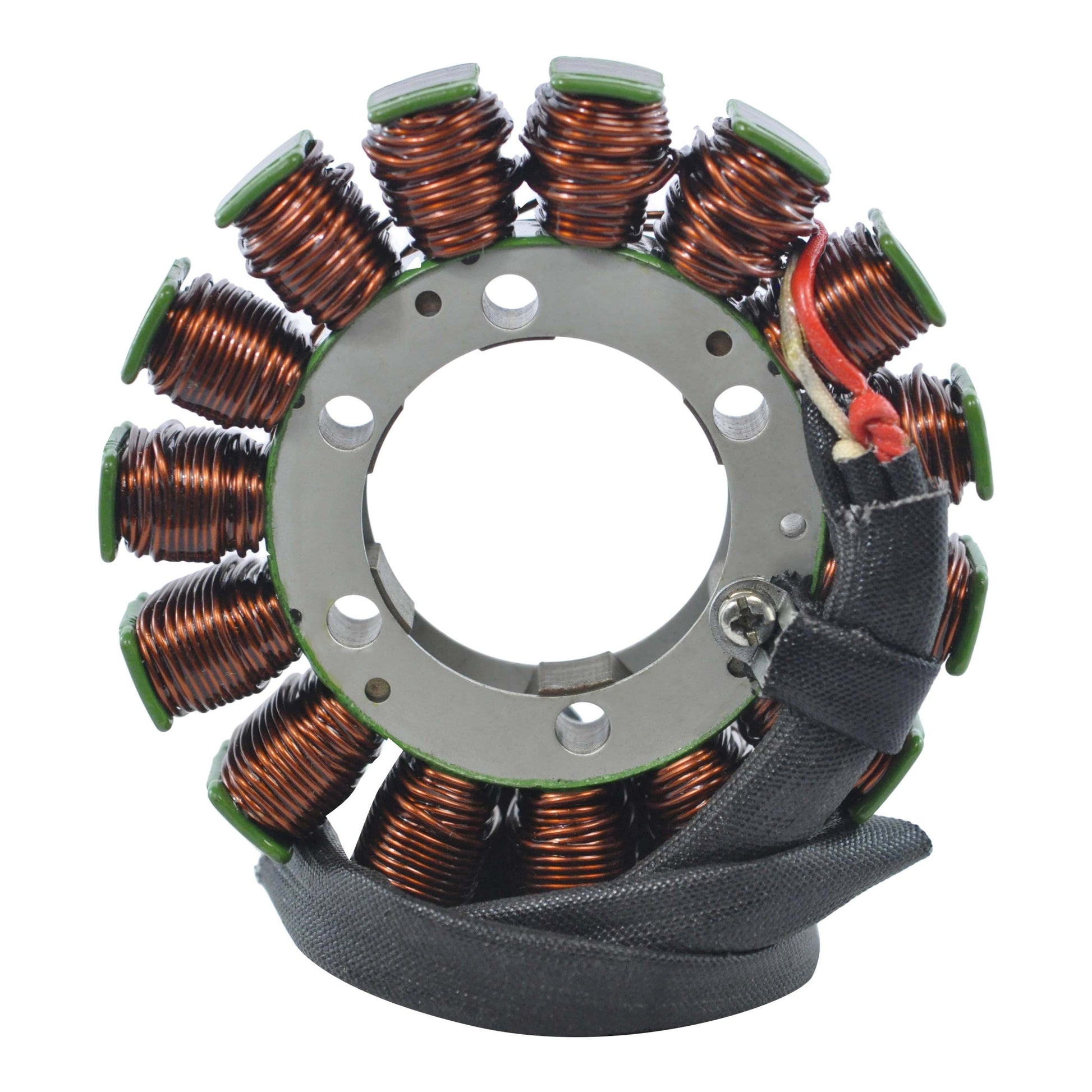

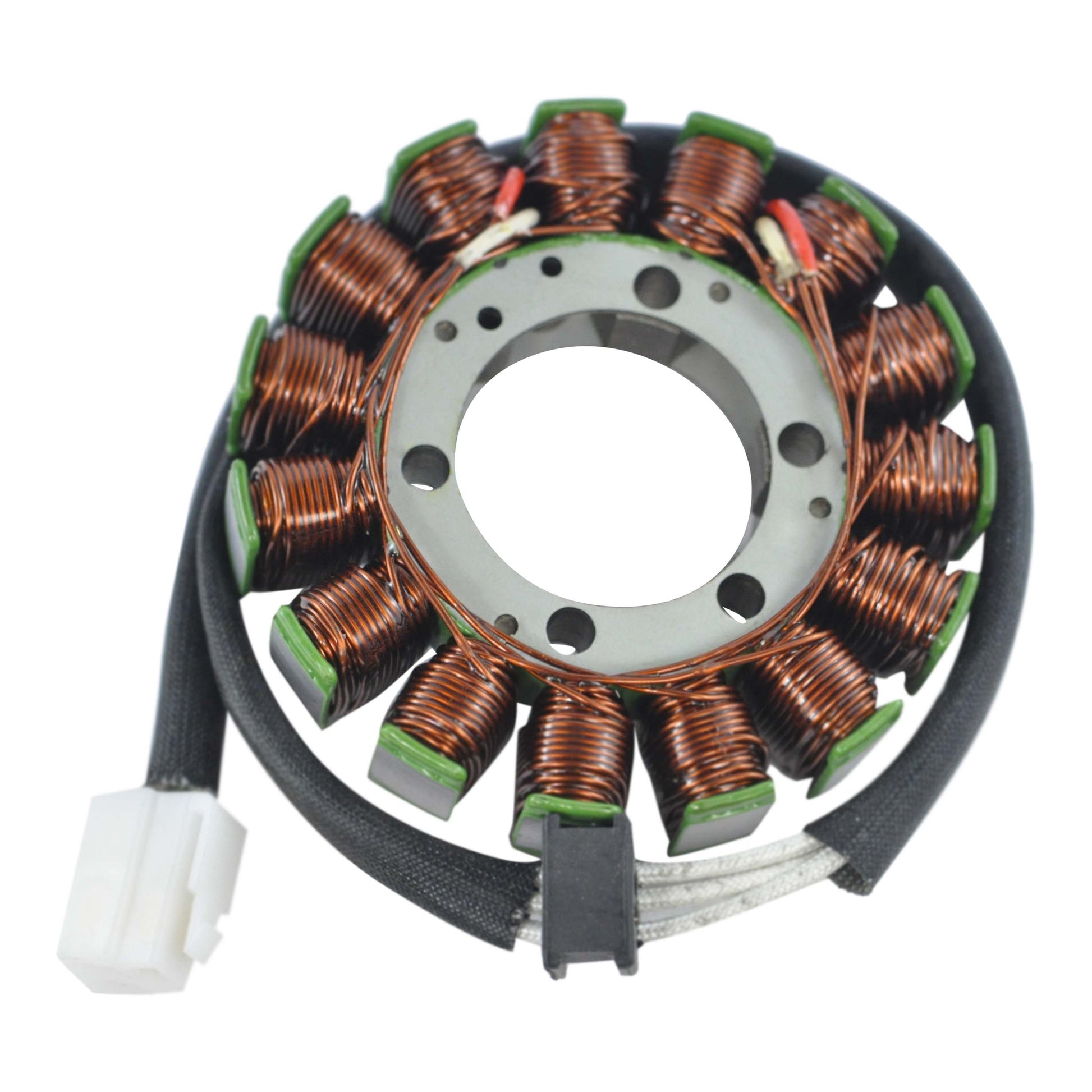

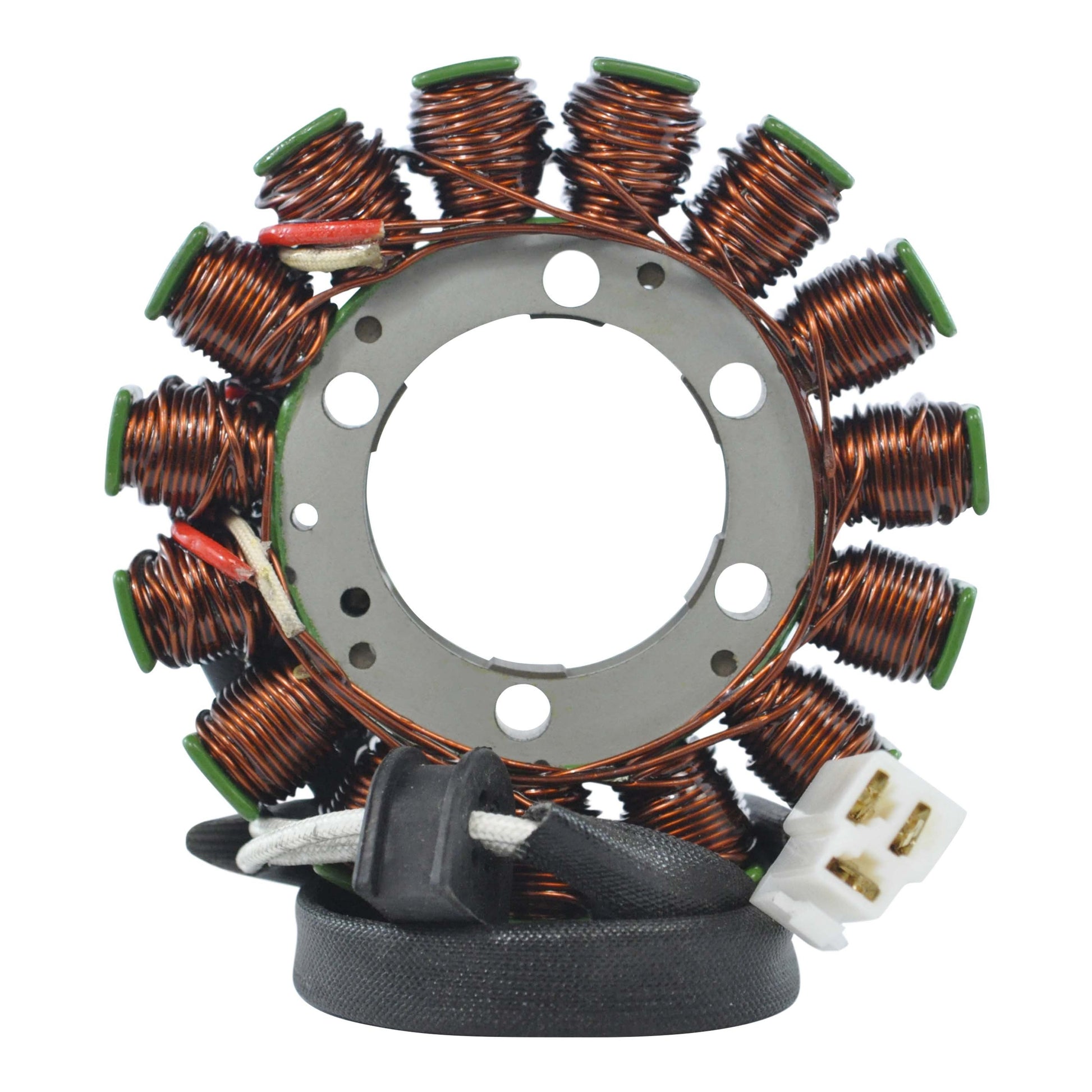

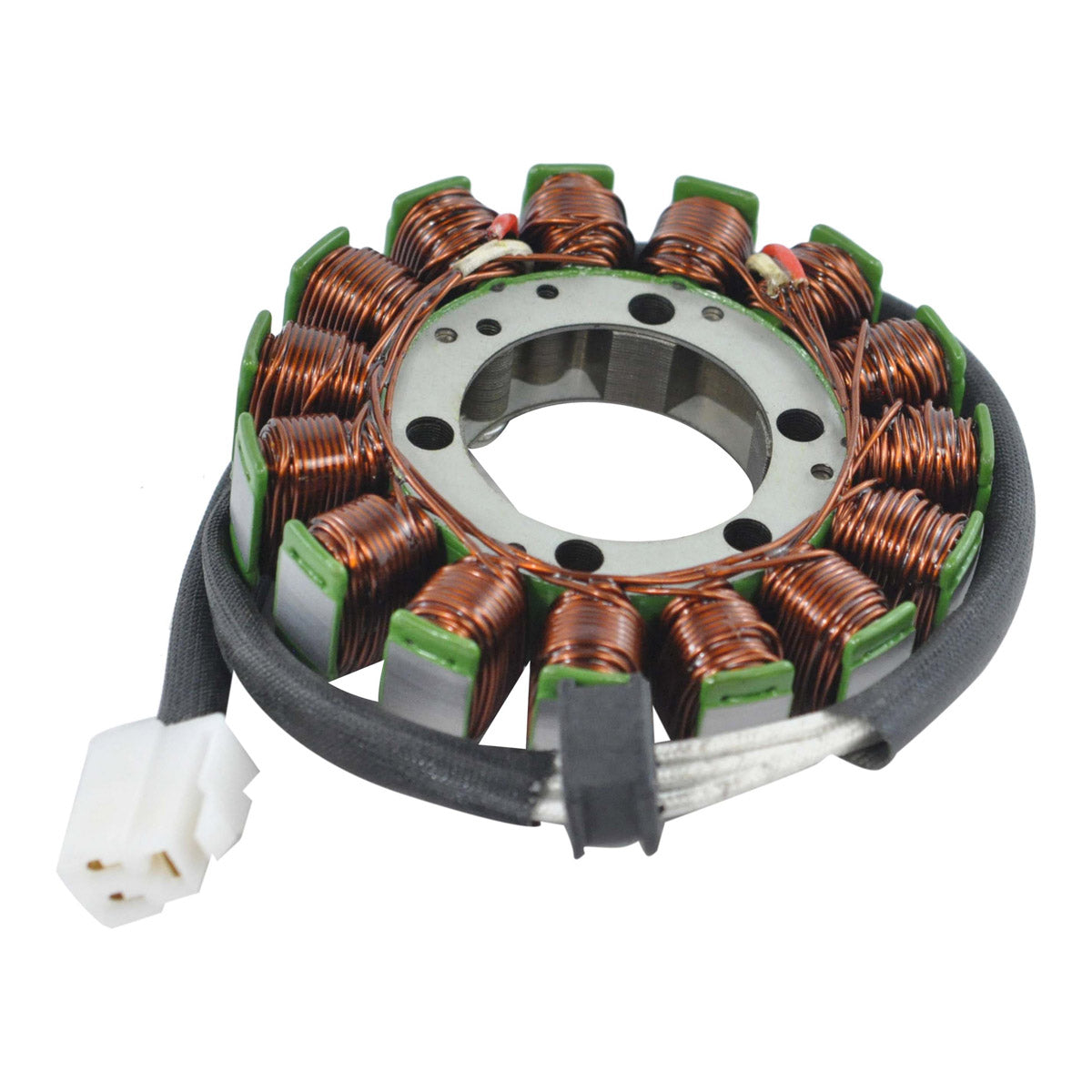

Stator for Suzuki GSX-R1000 - OEM 31401-41G00 / 31401-41G10
Suzuki GSX-R1000 2005-2008 - part number RMS010-100089
A brand new aftermarket stator for the 2005 to 2008 Suzuki GSX-R1000, built as a direct replacement for the original charging unit. It is a plug-and-play, direct fit part: the mounting pattern, the three-wire output and the factory connector all match the original, so the job is a straight swap behind the generator cover with no rewiring and no modification to the bike.
The stator is built on highest grade lamination materials and wound with highest grade copper windings rated to resist 200 degrees Celsius, which matters on a litre sportbike where the charging system runs hot and hard. Every unit is tested before shipping. The opposite connector for the main harness side is supplied as well, because on a bike that has already lost a stator that plug is very often melted, corroded or defective, and leaving a damaged plug in place is one of the most common reasons a replacement stator appears to fail again.
Key Features
- Brand new aftermarket stator - direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

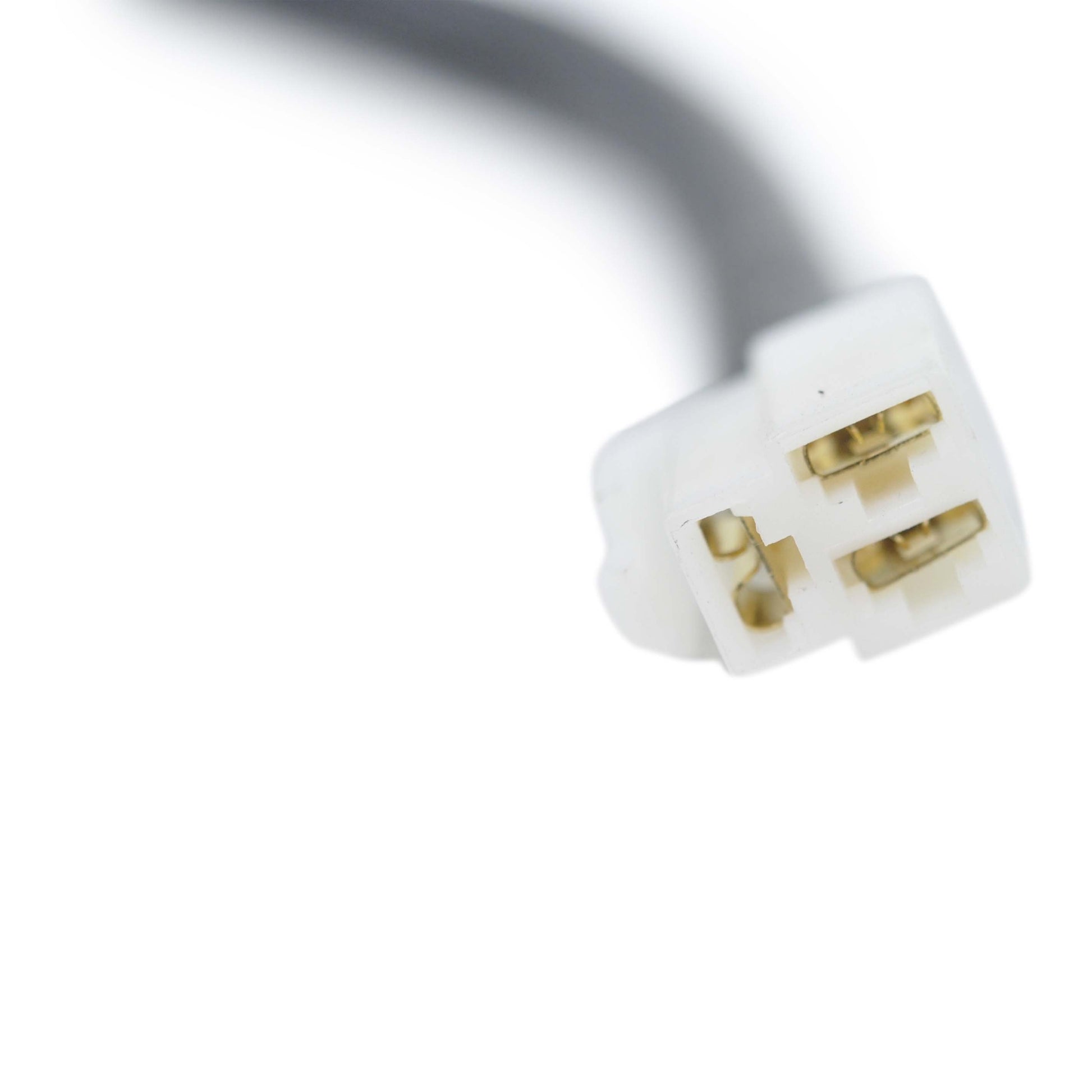

- Connector included
- Rubber grommet included
- Opposite connector for the main harness side included
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RMS010-100089 |
| Interior diameter | 39 mm |
| Exterior diameter | 105 mm |
| Thickness | 16 mm |
| Wire length, stator to grommet | 120 mm |
| Wire length, grommet to plug | 330 mm |
| Number of wires | 3 |
| Number of plugs | 1 |
| Number of pins | 3 |
| Wire to wire resistance, White to White | 0.4 ohms +/-20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Suzuki GSX-R1000 | 2005-2008 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 31401-41G00 | Suzuki |
| 31401-41G10 | Suzuki |
Frequently Asked Questions
Do I need to modify anything to fit it?
No. This is a direct replacement for the original unit and fits plug-and-play using the standard mounting points and the standard three-pin connector. Confirm the OEM number on your original unit reads 31401-41G00 or 31401-41G10 before ordering.
What comes in the box?
The stator, the connector, the rubber grommet, and the opposite connector for the main harness side. Every unit is tested before it is shipped.
How can I tell my old stator has failed?
Measure between each pair of the three white wires with the plug disconnected. Each pair should read around 0.4 ohms, plus or minus 20 per cent, and all three should be similar to one another. A reading that is open circuit, wildly different from the other two, or that shows continuity to the stator body indicates a failed winding.
Why does it come with a spare connector?
Because on the GSX-R1000 the three-pin joint between the stator and the main harness takes the full charging current and often shows heat damage. Renewing the harness-side half at the same time as the stator removes a known repeat-failure point rather than leaving a burnt plug in the circuit.
