Stator for Yamaha FZ1, FZS1, FZ8 & YZF-R1 2004-2015 - Replaces 2D1-81410-10-00
Stator for Yamaha FZ1, FZS1, FZ8 & YZF-R1 2004-2015 - Replaces 2D1-81410-10-00
SKU:RM01303
Free shipping over £150. Terms apply
Couldn't load pickup availability

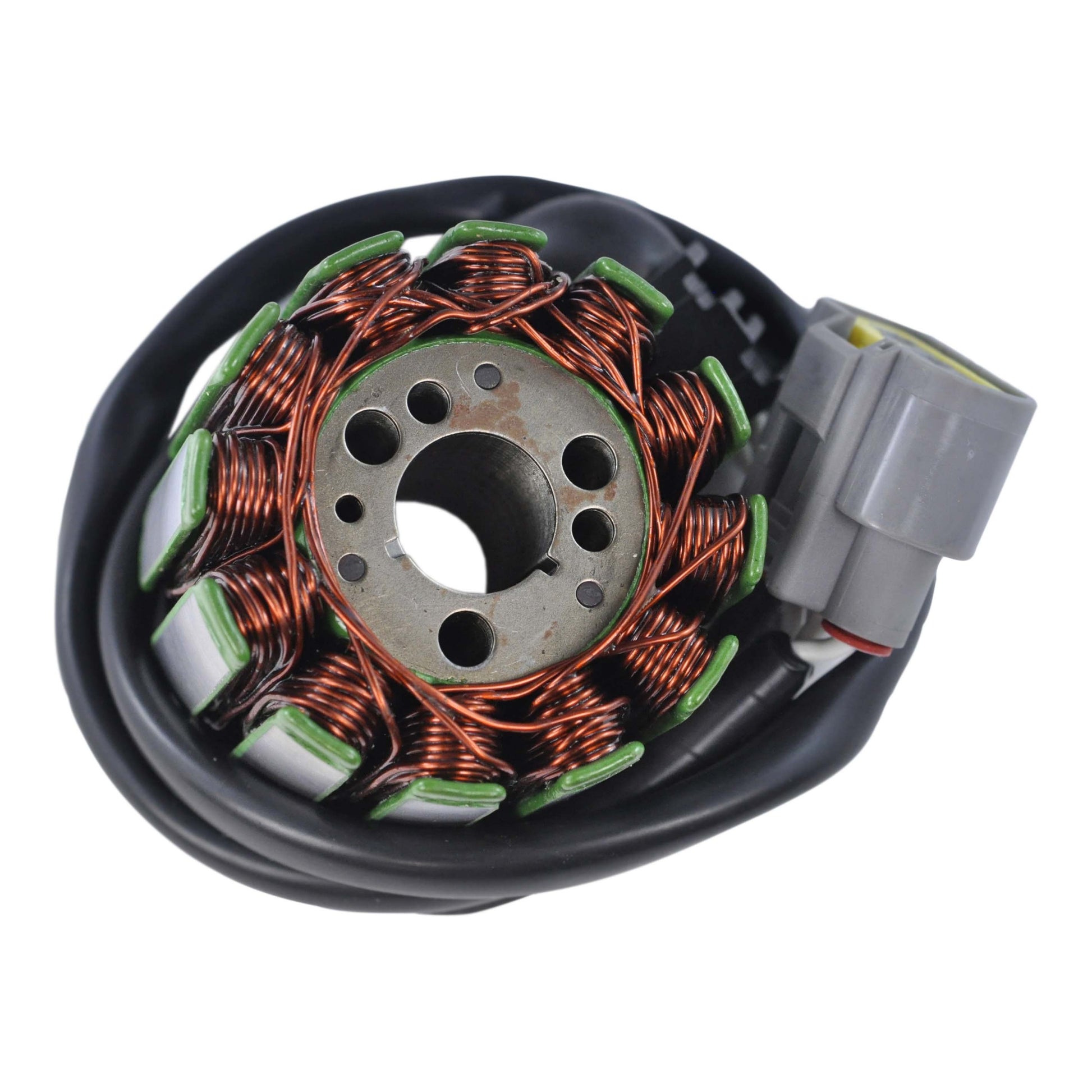

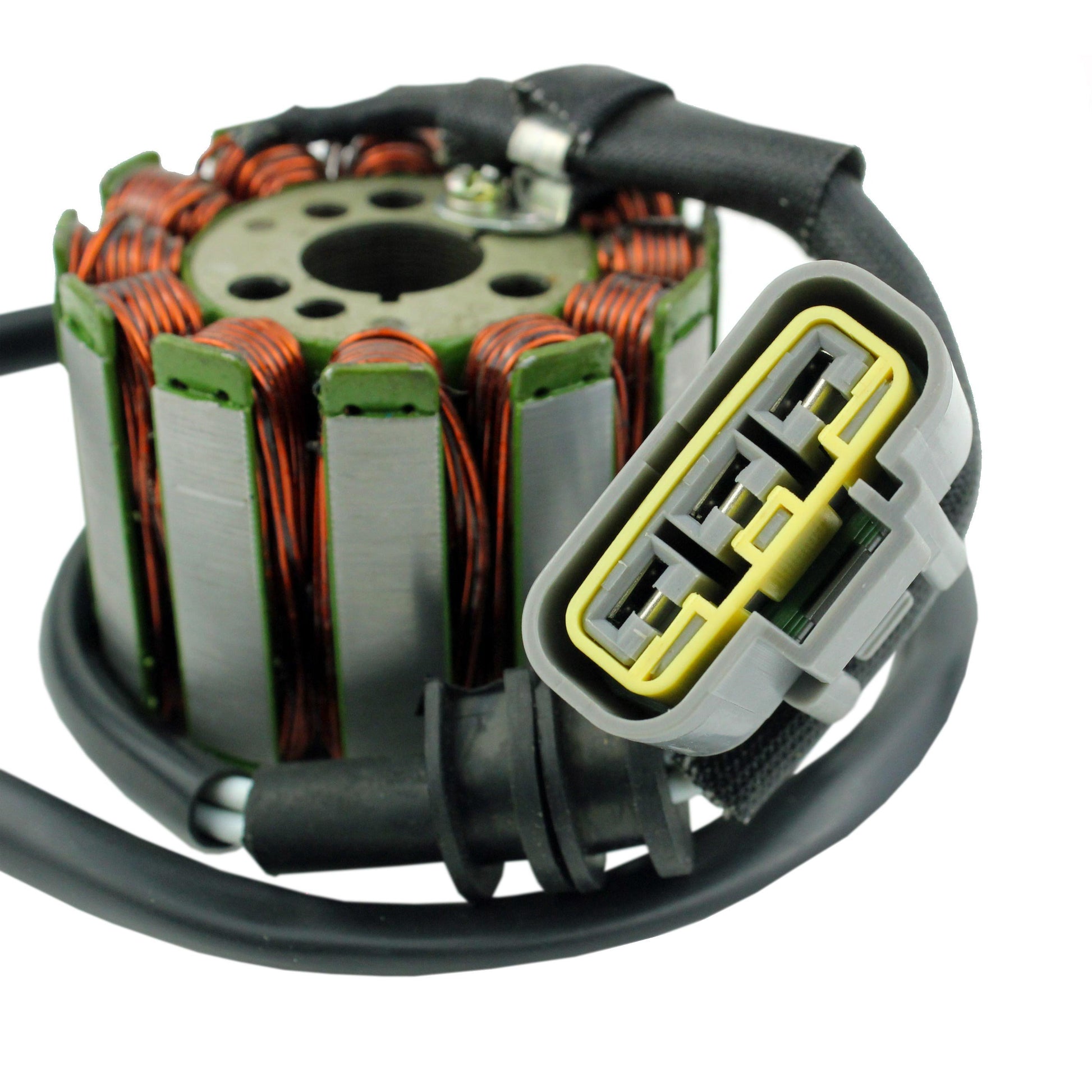

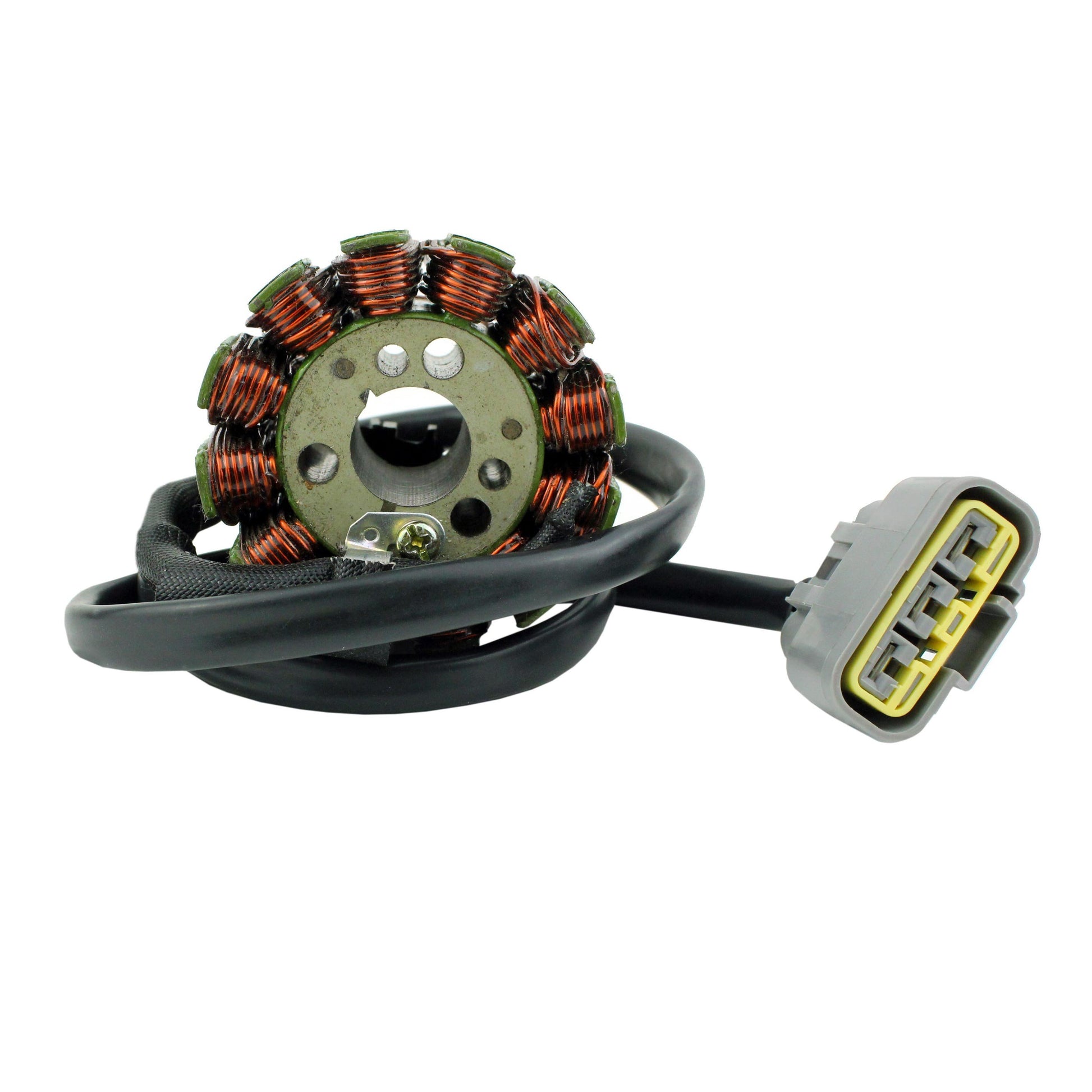

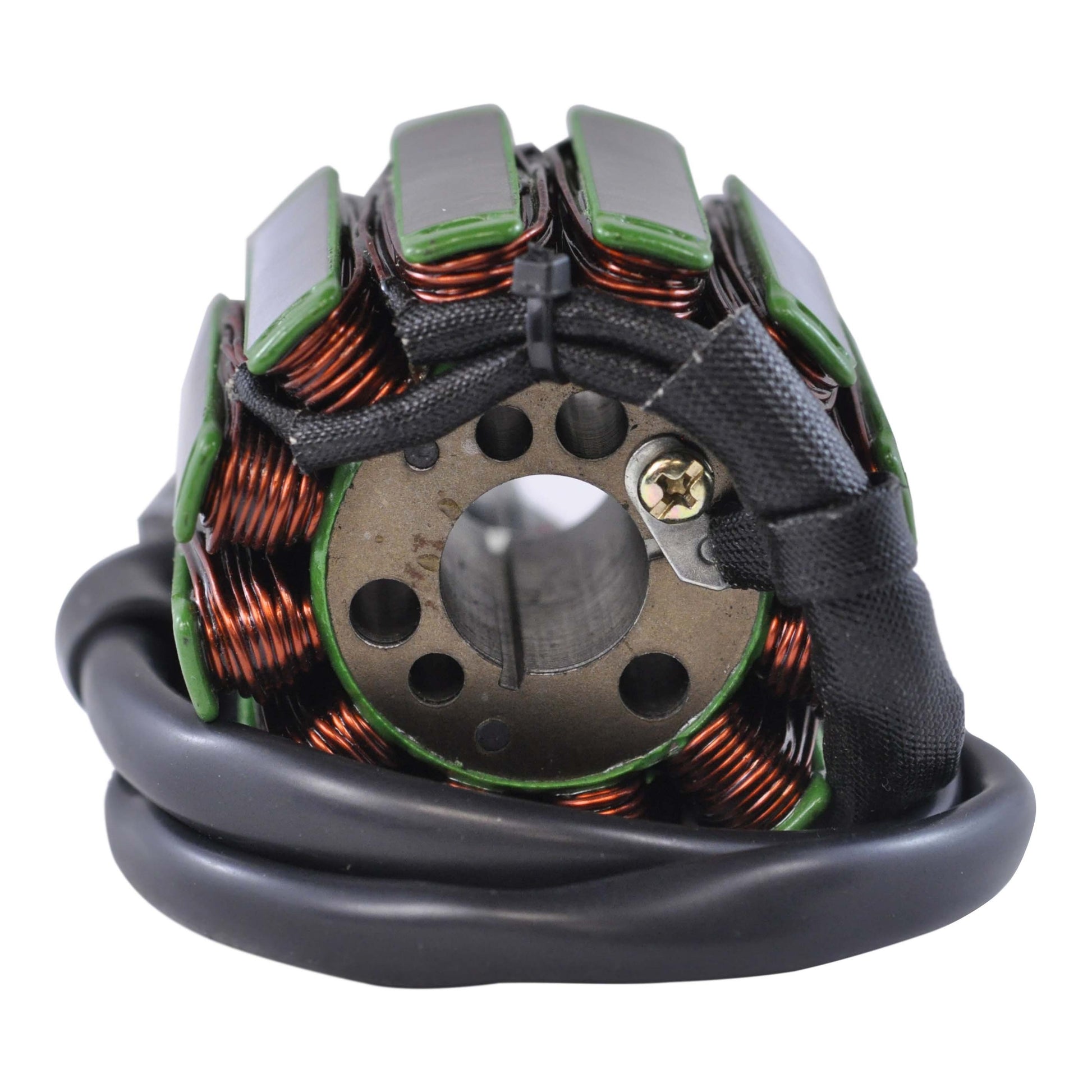

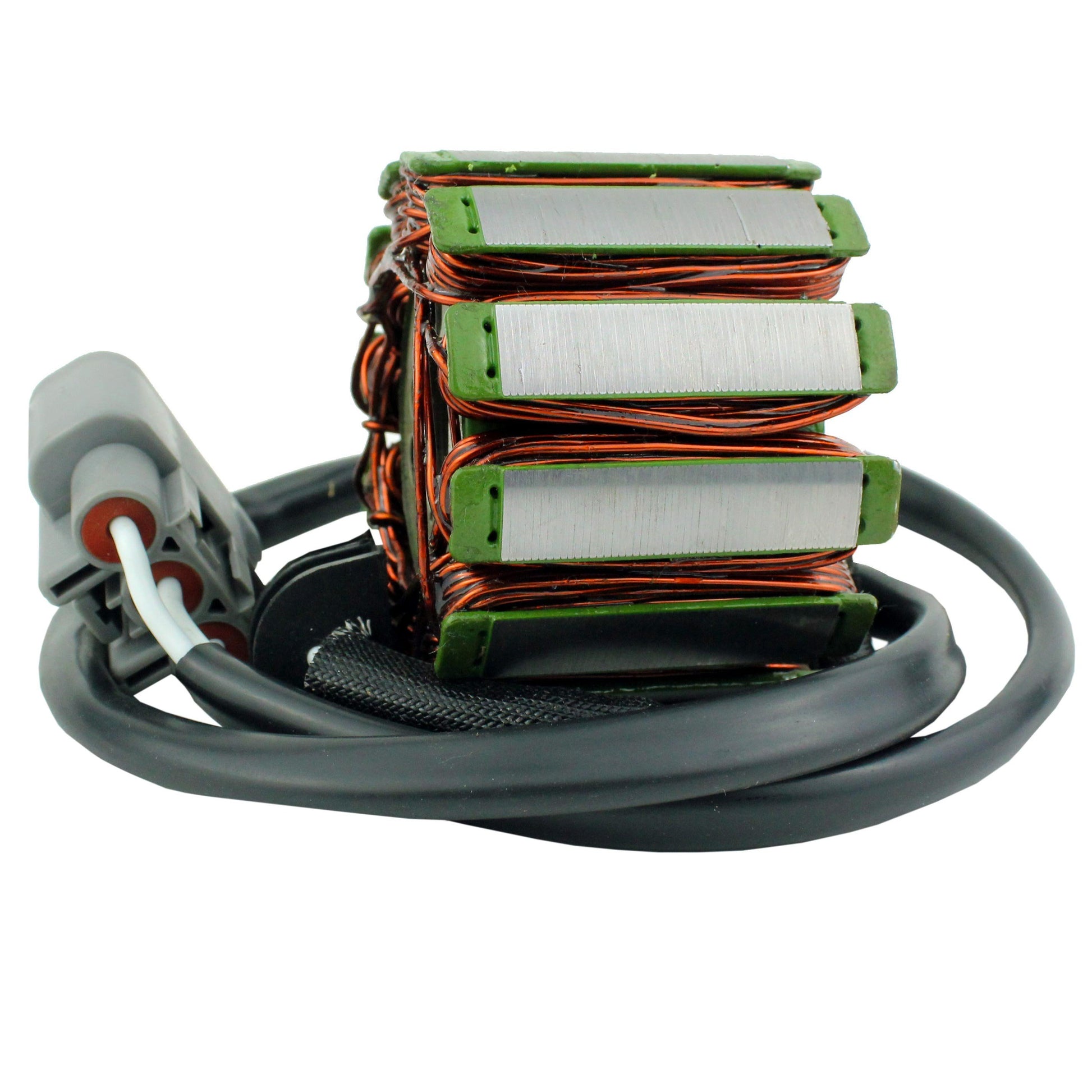

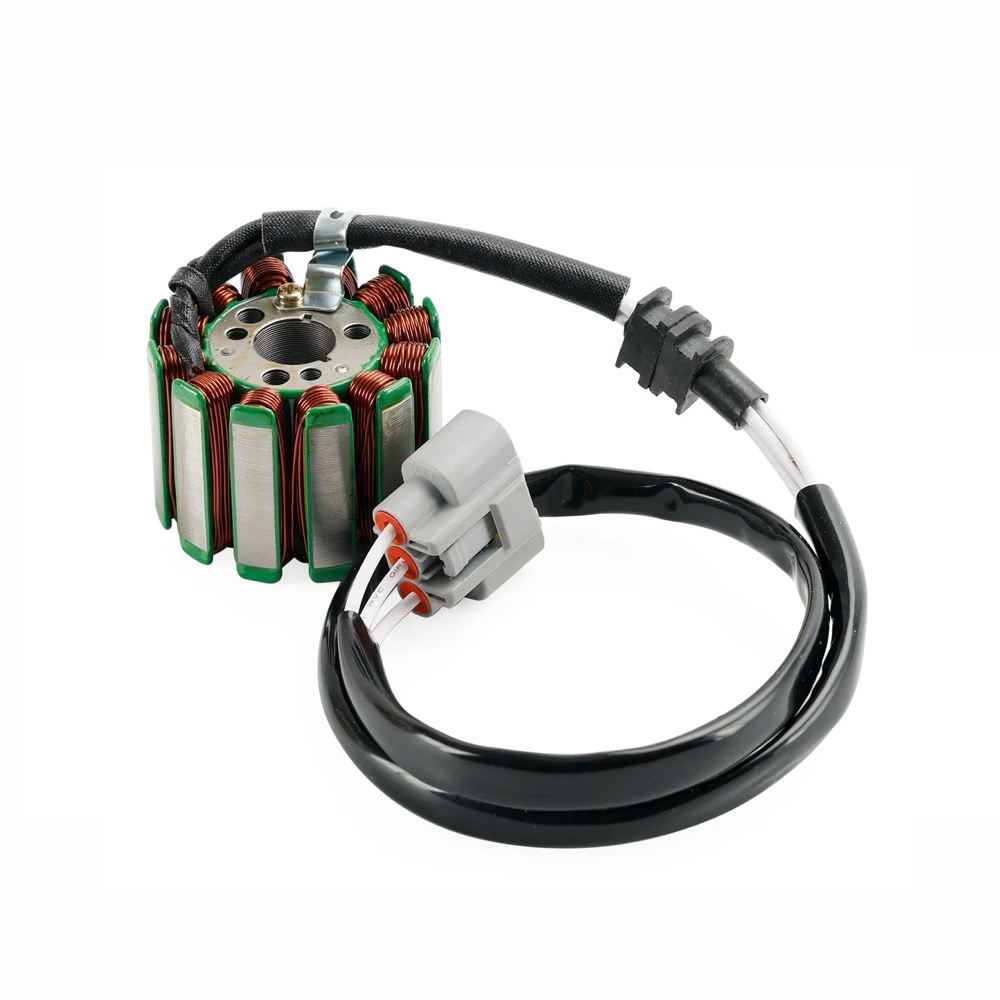

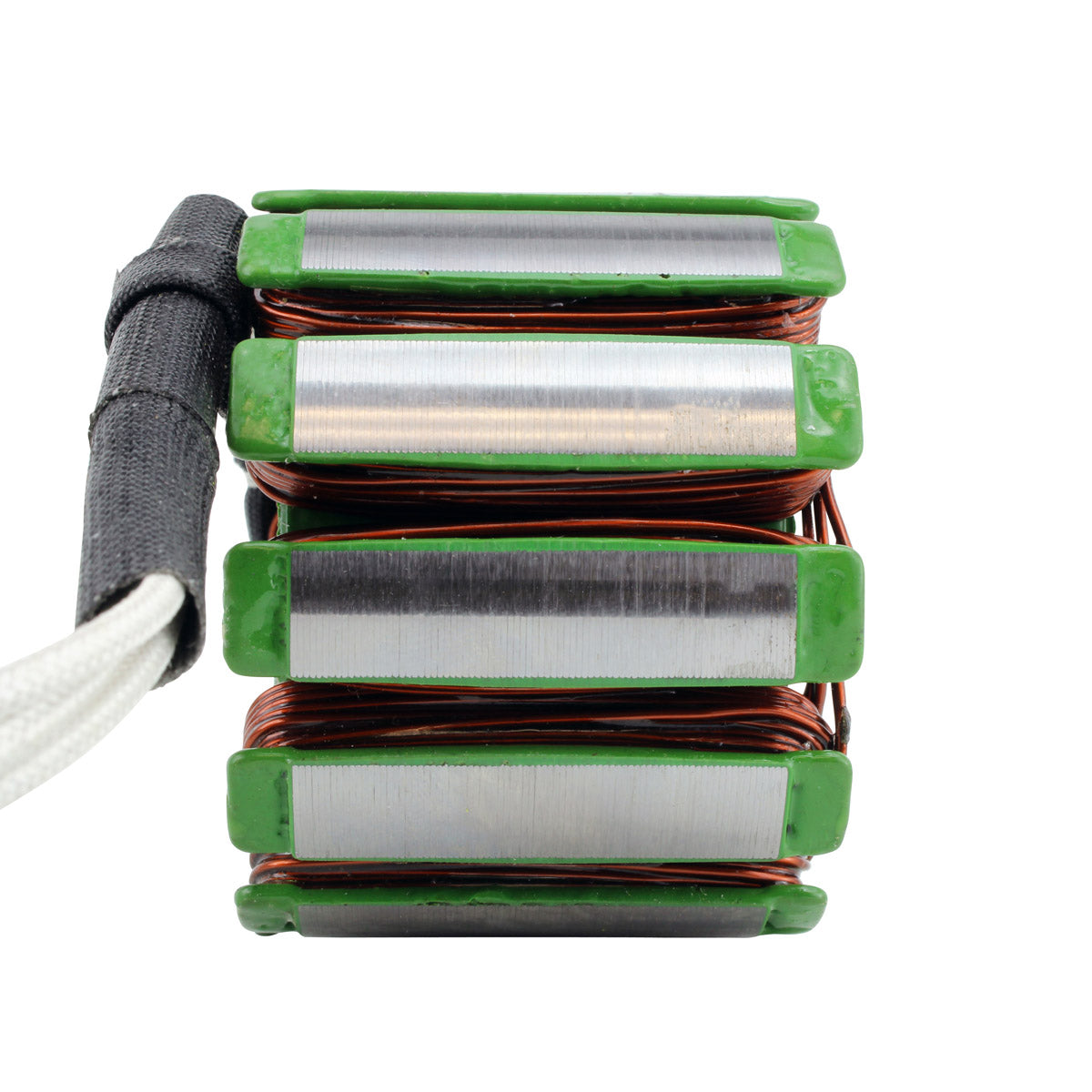

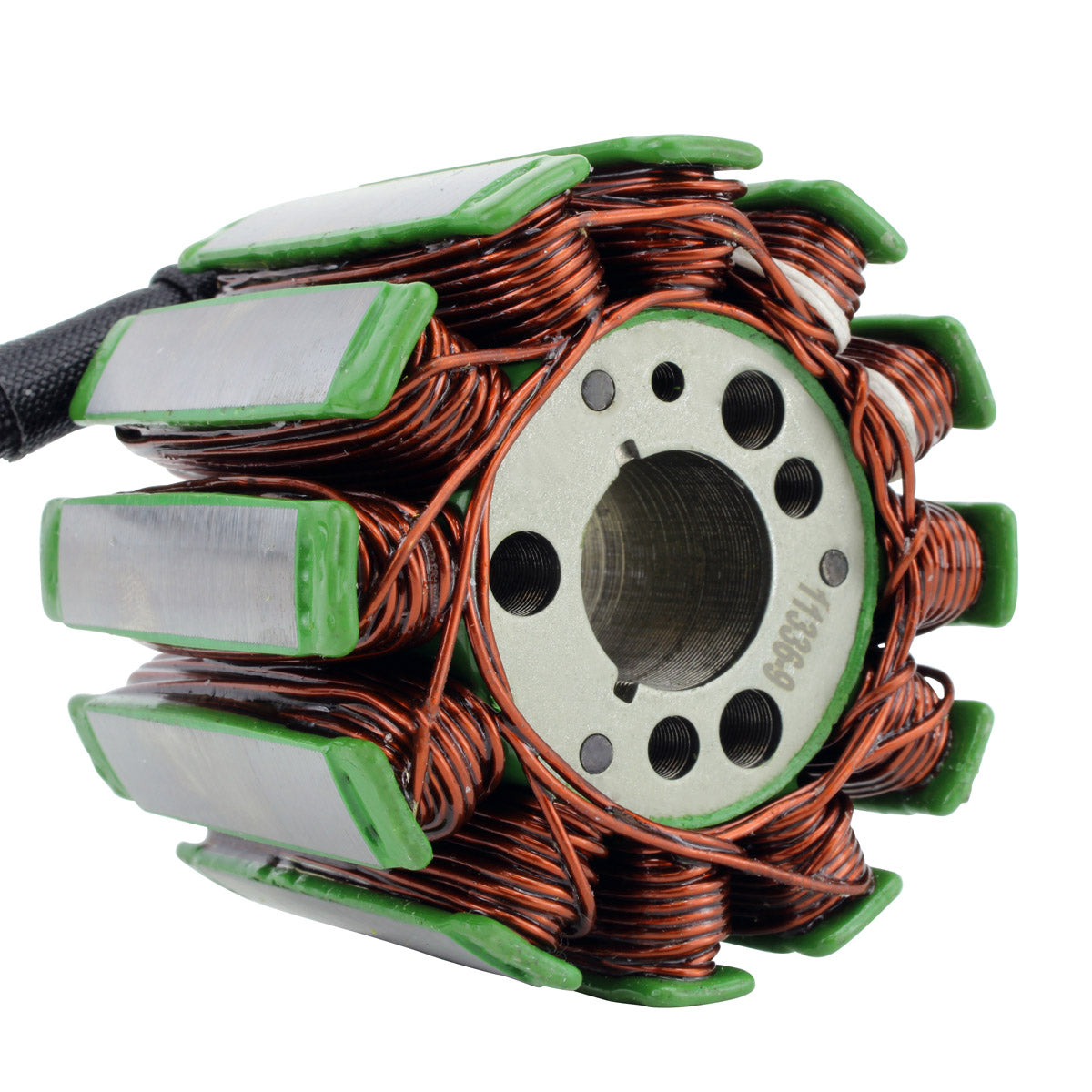

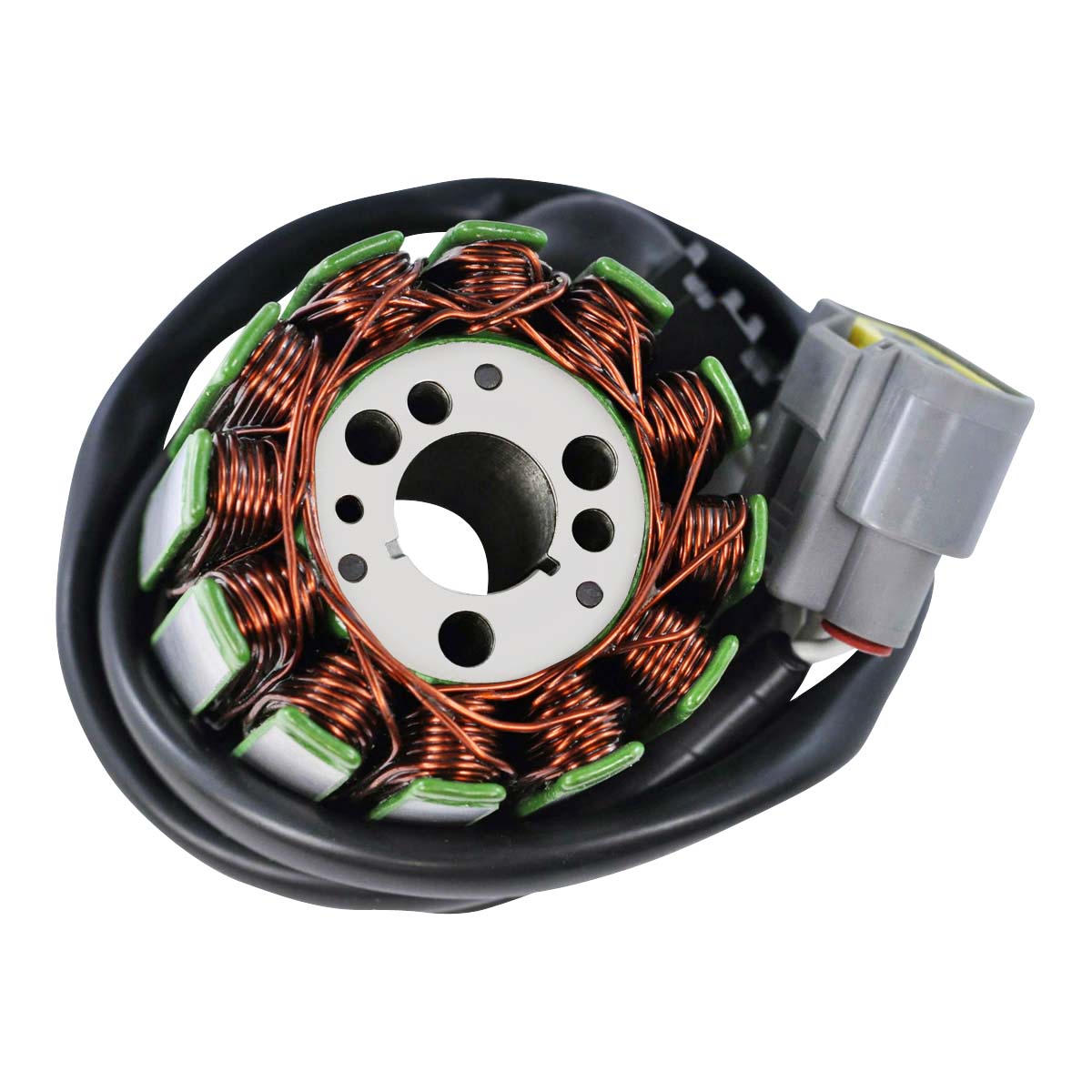

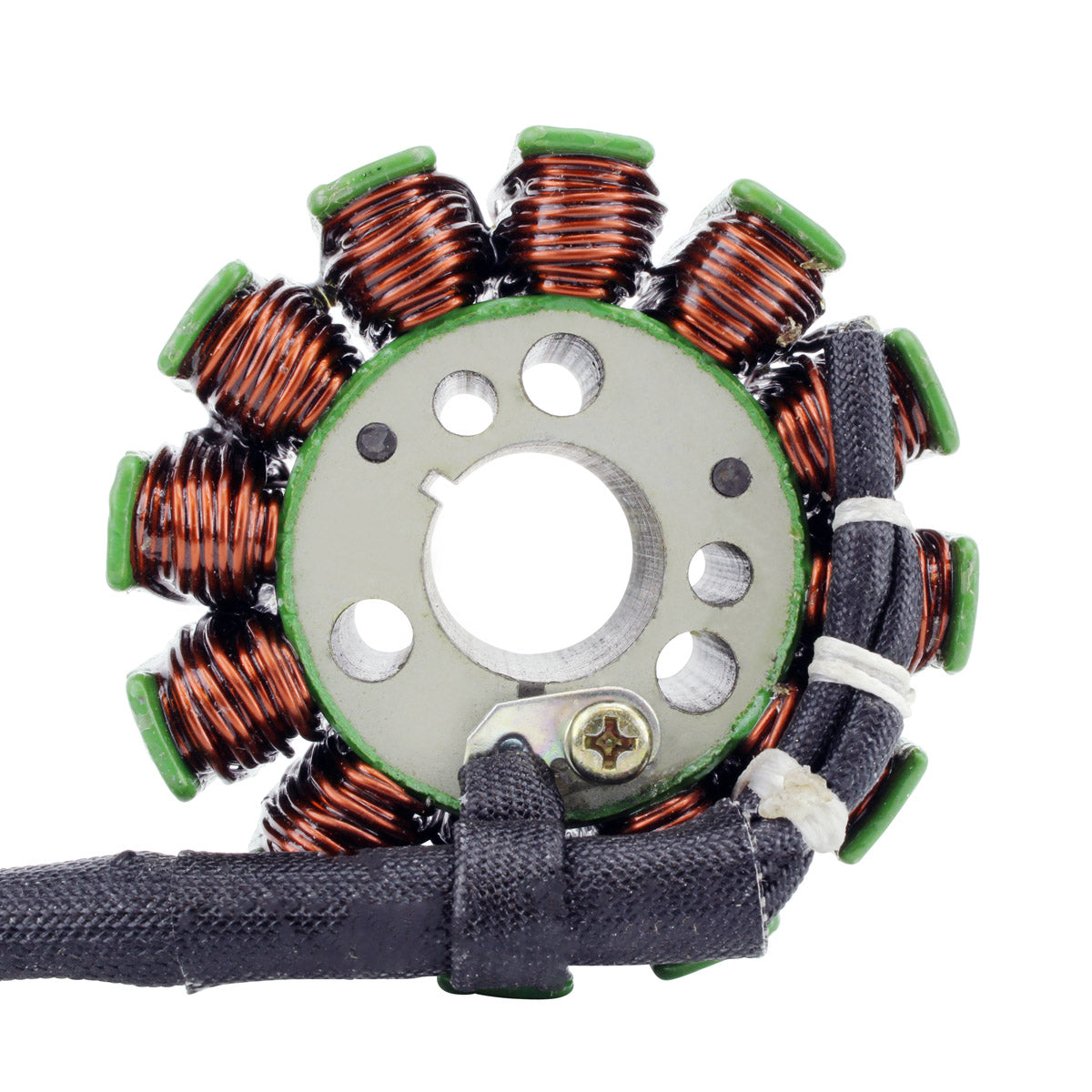

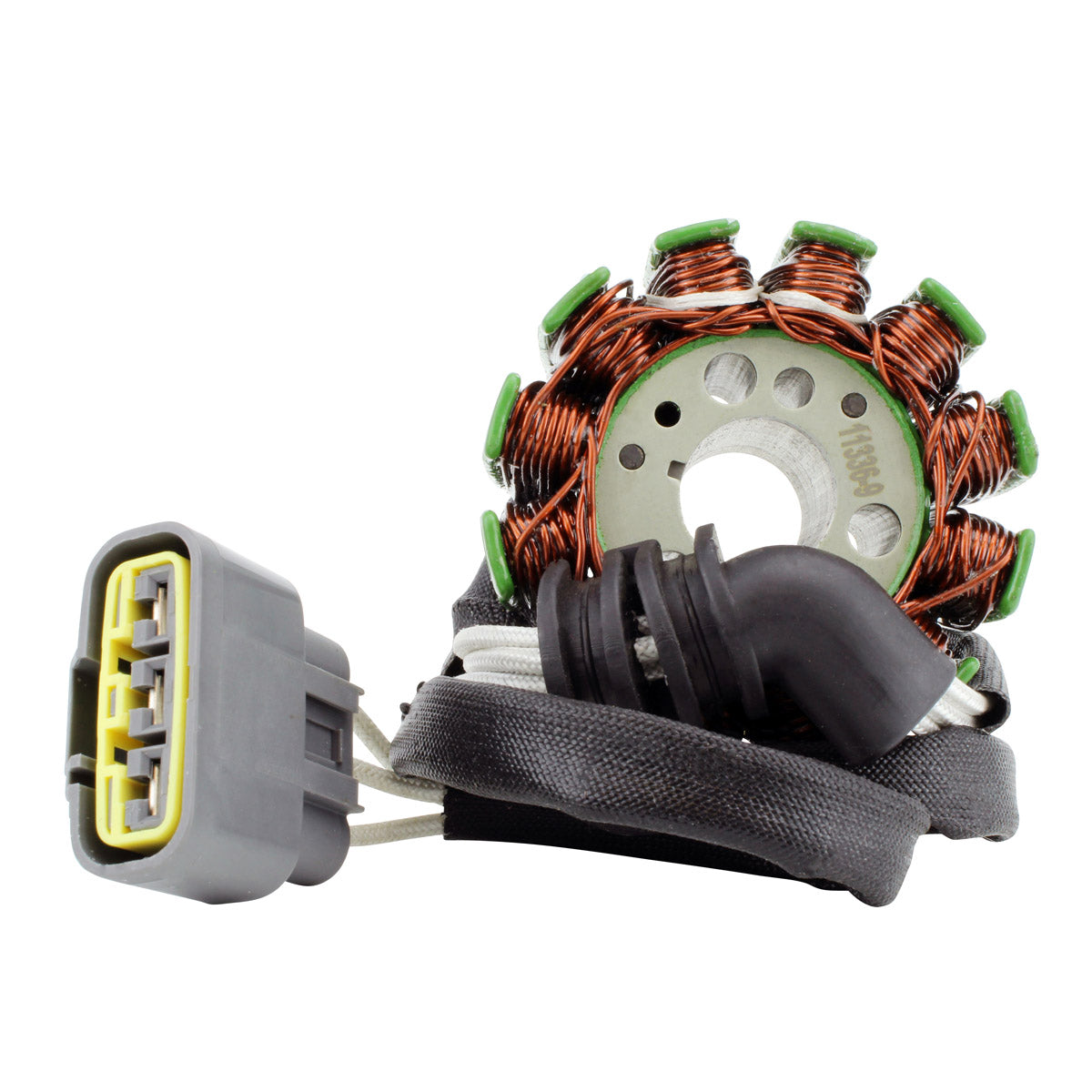

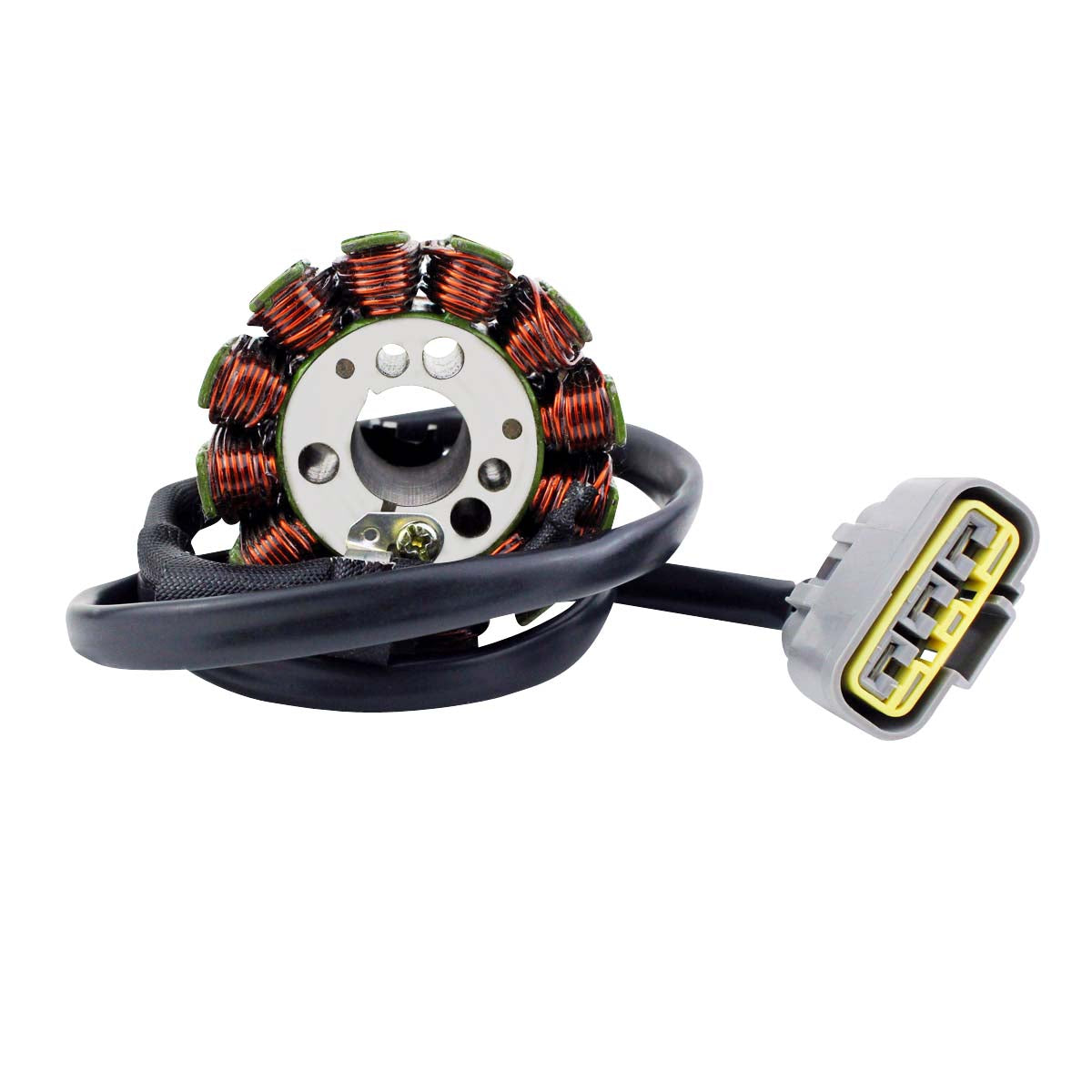

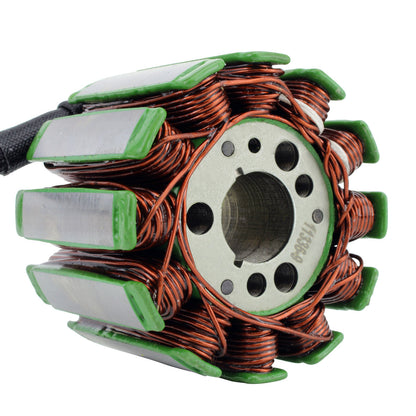

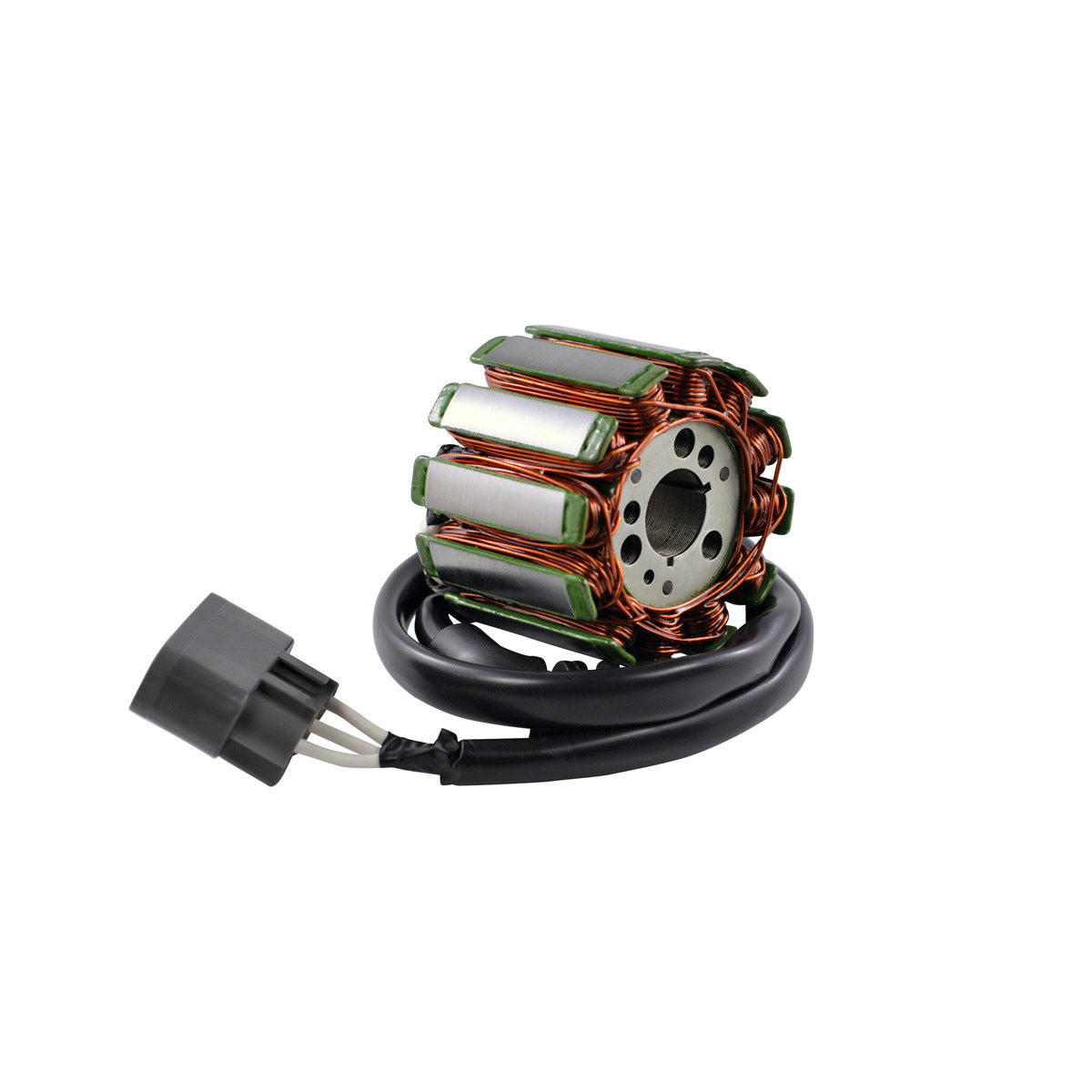

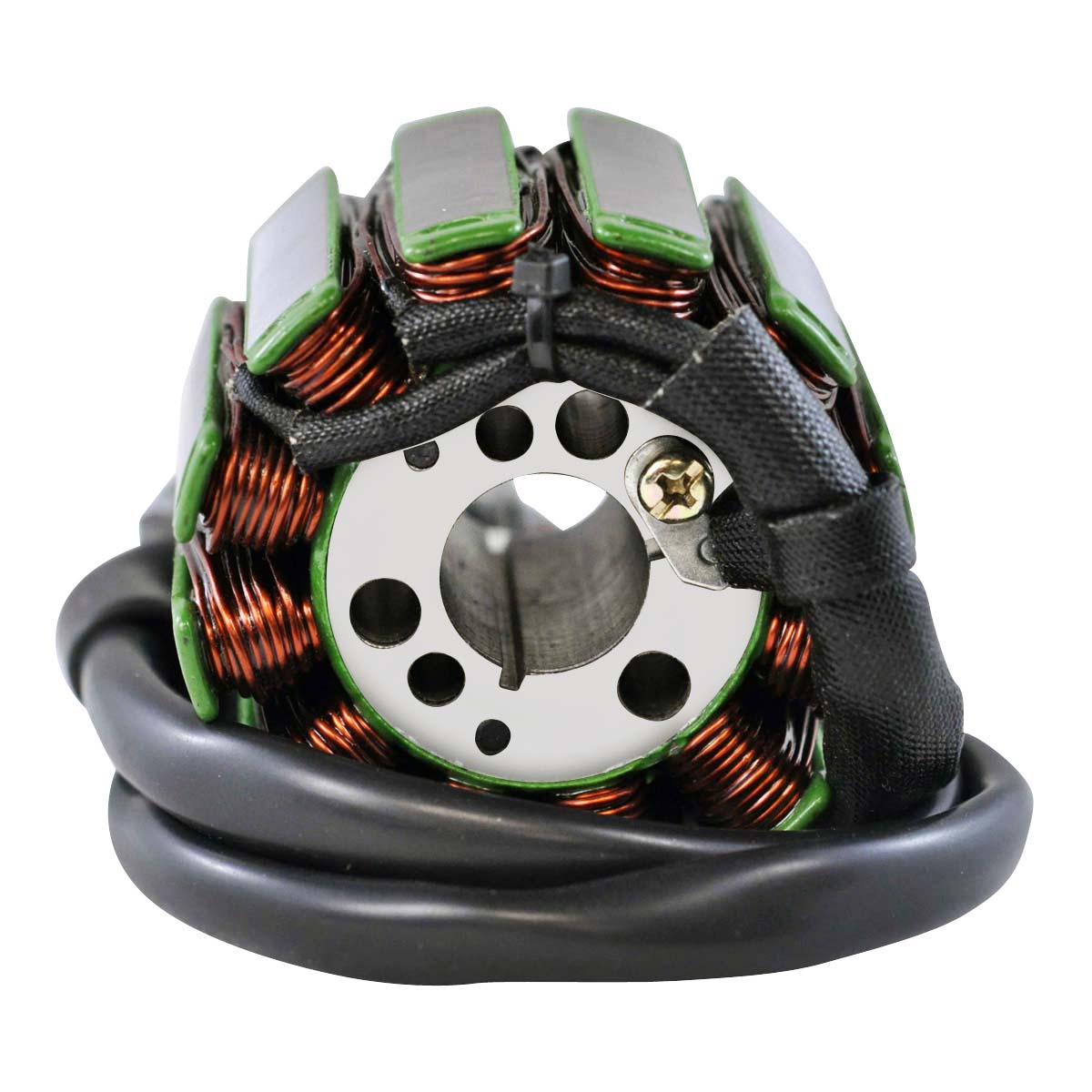

Generator Stator for Yamaha FZ1, FZS1, FZ8 and YZF-R1
FZ1, FZS1, FZ8 and YZF R1 2004-2015 - RMSTATOR part RM01303 - replaces OEM 2D1-81410-10-00
This is a brand new aftermarket generator stator supplied as a direct replacement for the original unit fitted to the Yamaha FZ1, FZS1, FZ8 and YZF R1. It is plug-and-play and a direct fit, so it mounts in the original position and plugs into the original harness through a single 3-pin connector. No cutting, no splicing and no modification to the engine cases is required. The connector and the rubber grommet are both included.
The stator is built on the highest grade of lamination materials and wound with the highest grade of copper winding, resistant to 200 degrees Celsius. That matters on these engines, where the charging system runs hot in traffic and a heat-damaged winding is one of the more common causes of a flat battery on an otherwise healthy bike. All product shipped are tested and all item pictures are accurate. This part is supplied under RMSTATOR part number RM01303.
Key Features
- Brand new aftermarket stator - direct replacement for your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Connector included
- Rubber grommet included
- All product shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 18 mm |
| Exterior diameter | 68 mm |
| Thickness | 42 mm |
| Length of wires, stator to grommet | 125 mm |
| Length of wires, grommet to plug | 500 mm |
| Number of wires | 3 |
| Number of plugs | 1 |
| Number of pins | 3 |
| Alternator resistance, between each white | 0.4 ohms +/-20% |
| Winding temperature rating | 200 degrees Celsius |
| RMSTATOR part number | RM01303 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Yamaha FZ1 | 2004-2015 |
| Yamaha FZS1 | 2004-2015 |
| Yamaha FZ8 | 2004-2015 |
| Yamaha YZF R1 | 2004-2015 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 2D1-81410-10-00 | Yamaha |
| 2D1-81410-01-00 | Yamaha |
| 2D1-81410-00-00 | Yamaha |
| 5VY-81410-00-00 | Yamaha |
| RM01303 | RMSTATOR |
Frequently Asked Questions
Will this fit without modifying the bike?
Yes. It is a direct replacement for the original unit and is plug-and-play, so it fits the original mounting position and connects through the original 3-pin plug. No cutting or splicing is required.
What is included?
The stator, the connector and the rubber grommet. All product shipped are tested.
How do I tell whether my old stator has failed?
Unplug the 3-pin connector and measure between each pair of white wires with a multimeter. A healthy winding reads 0.4 ohms +/-20%. An open circuit between any pair, a large difference between the three pairs, or continuity from any white wire to the stator core all indicate a failed unit. A battery that will not hold charge with a known good regulator rectifier points the same way.
My original carries a different OEM number - will this still fit?
Yamaha used several numbers across this range. This stator covers 2D1-81410-10-00, 2D1-81410-01-00, 2D1-81410-00-00 and 5VY-81410-00-00. Check the number on your original unit against that list, and check the dimensions - 18 mm interior diameter, 68 mm exterior diameter and 42 mm thick.
