Stator for Honda TRX 250 TE & TM Fourtrax Recon 2005-2021
Honda TRX250TE and TRX250TM Fourtrax Recon, 2005 to 2021 - RMSTATOR part RM01153 - replaces OEM 31120-HM8-B01 and 31120-HM8-B00

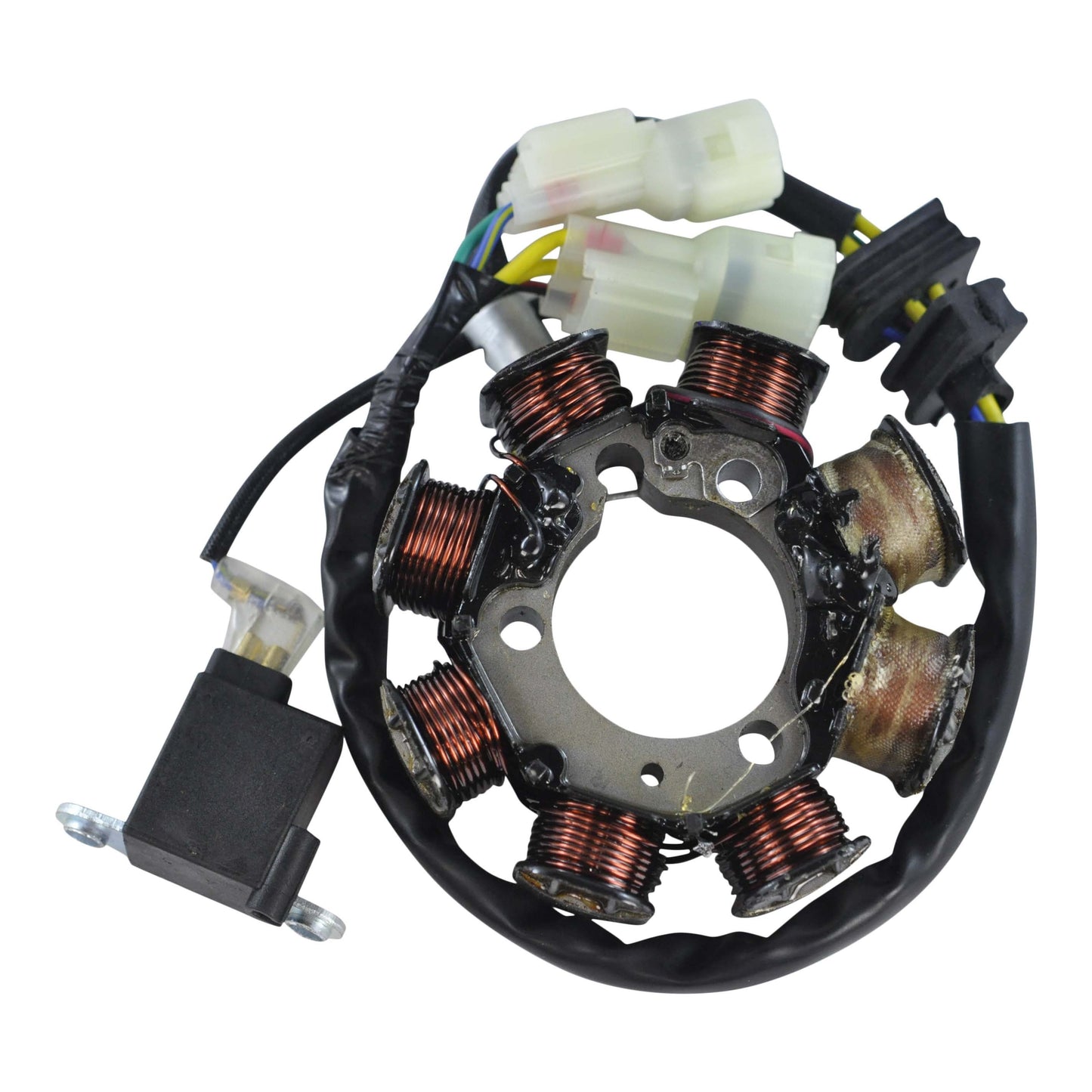

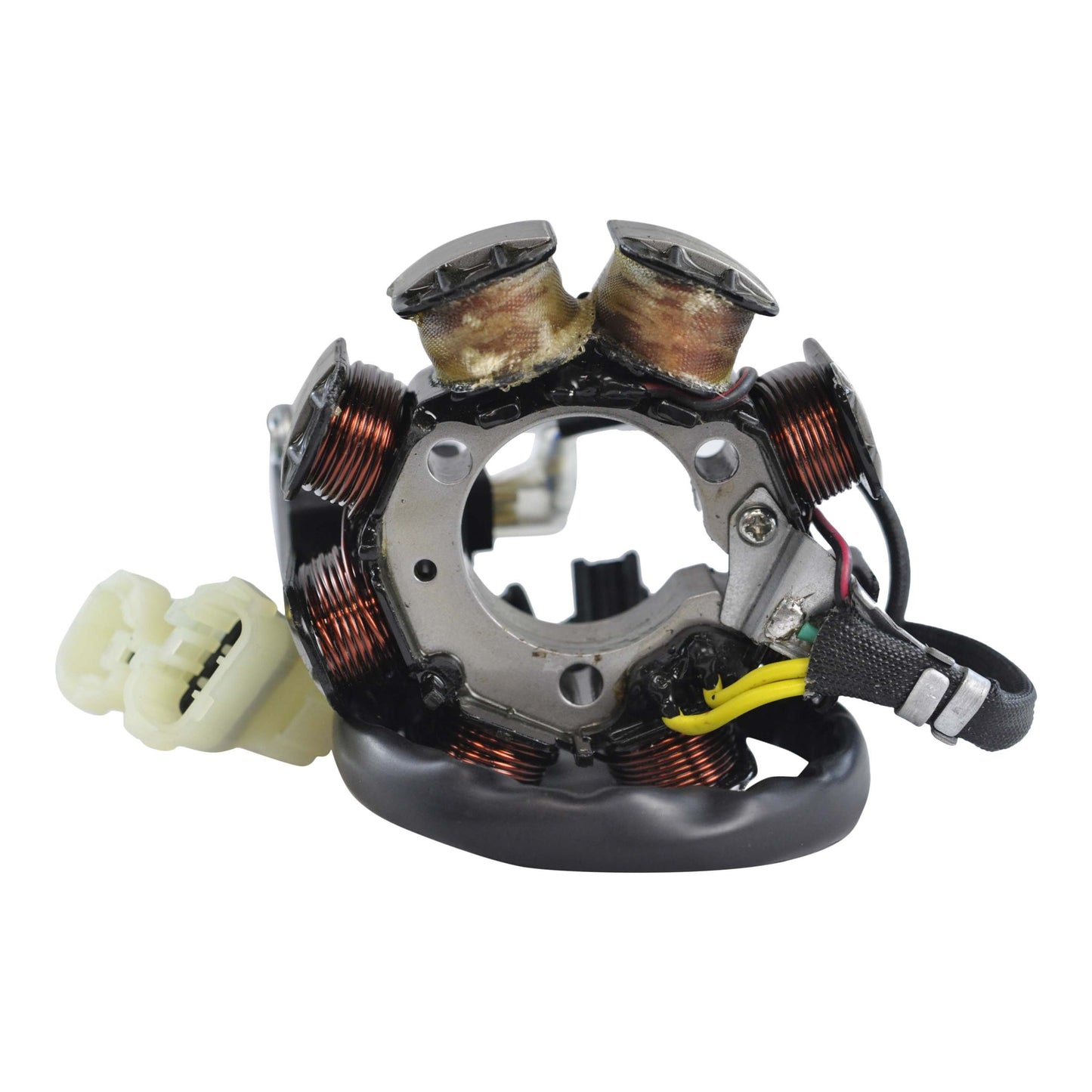

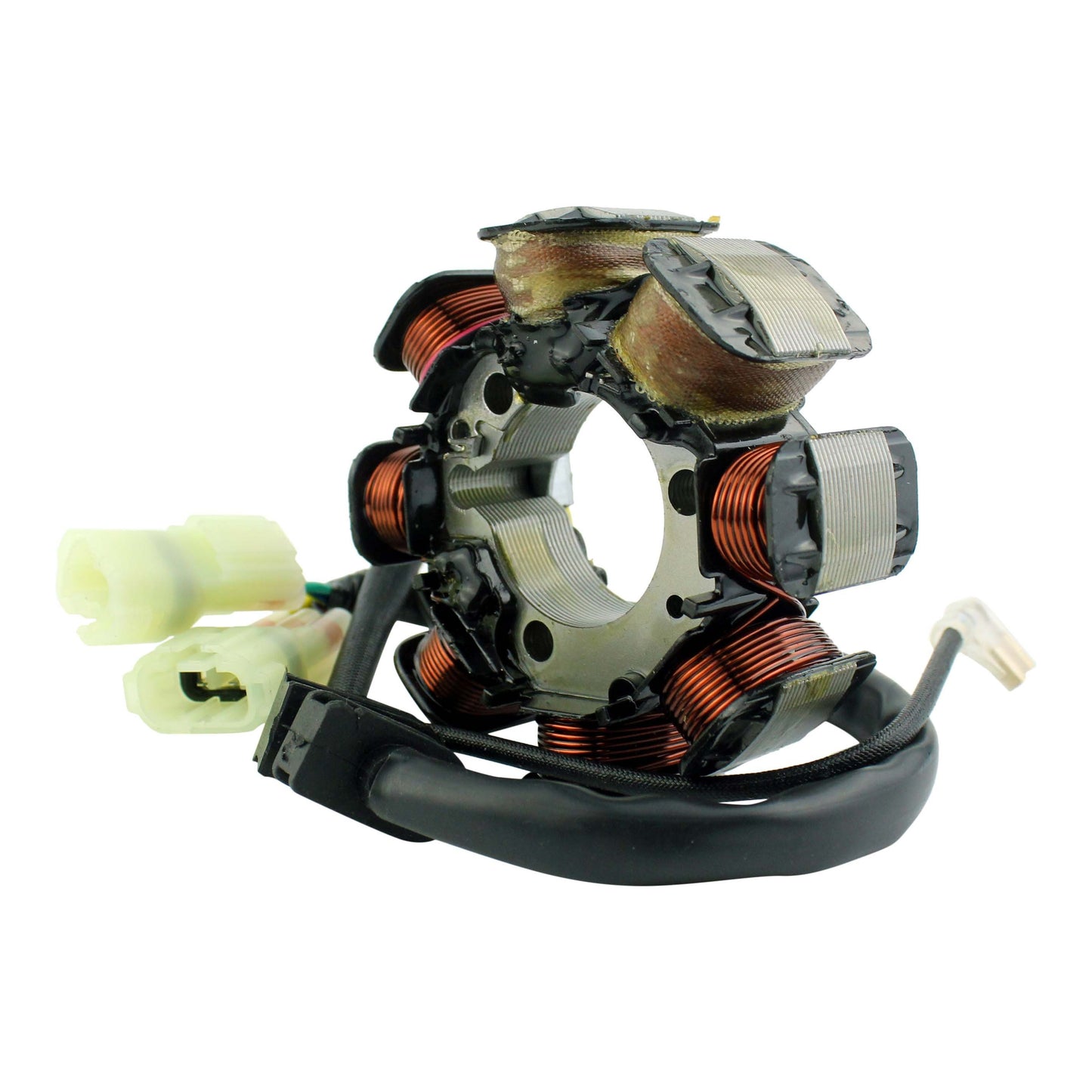

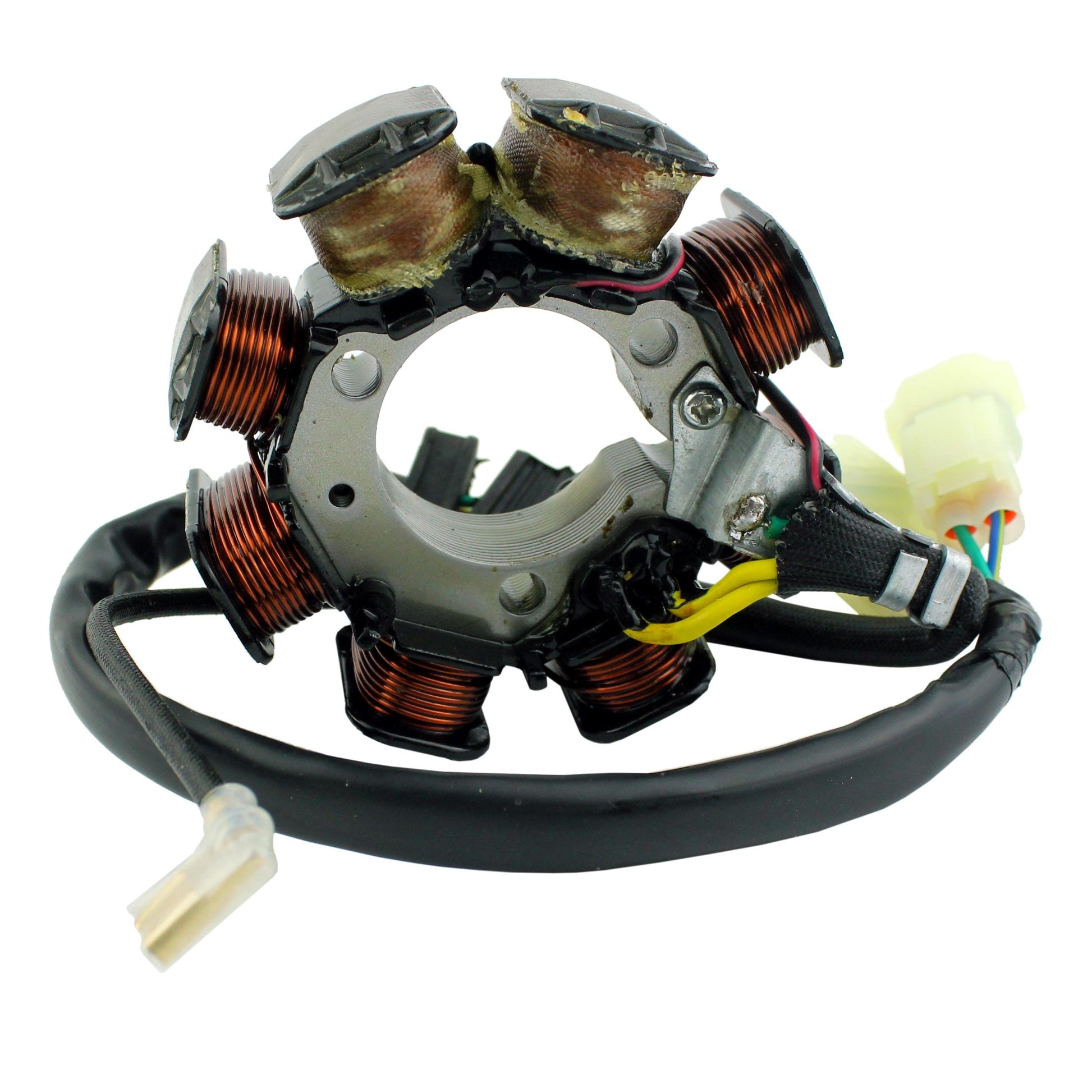

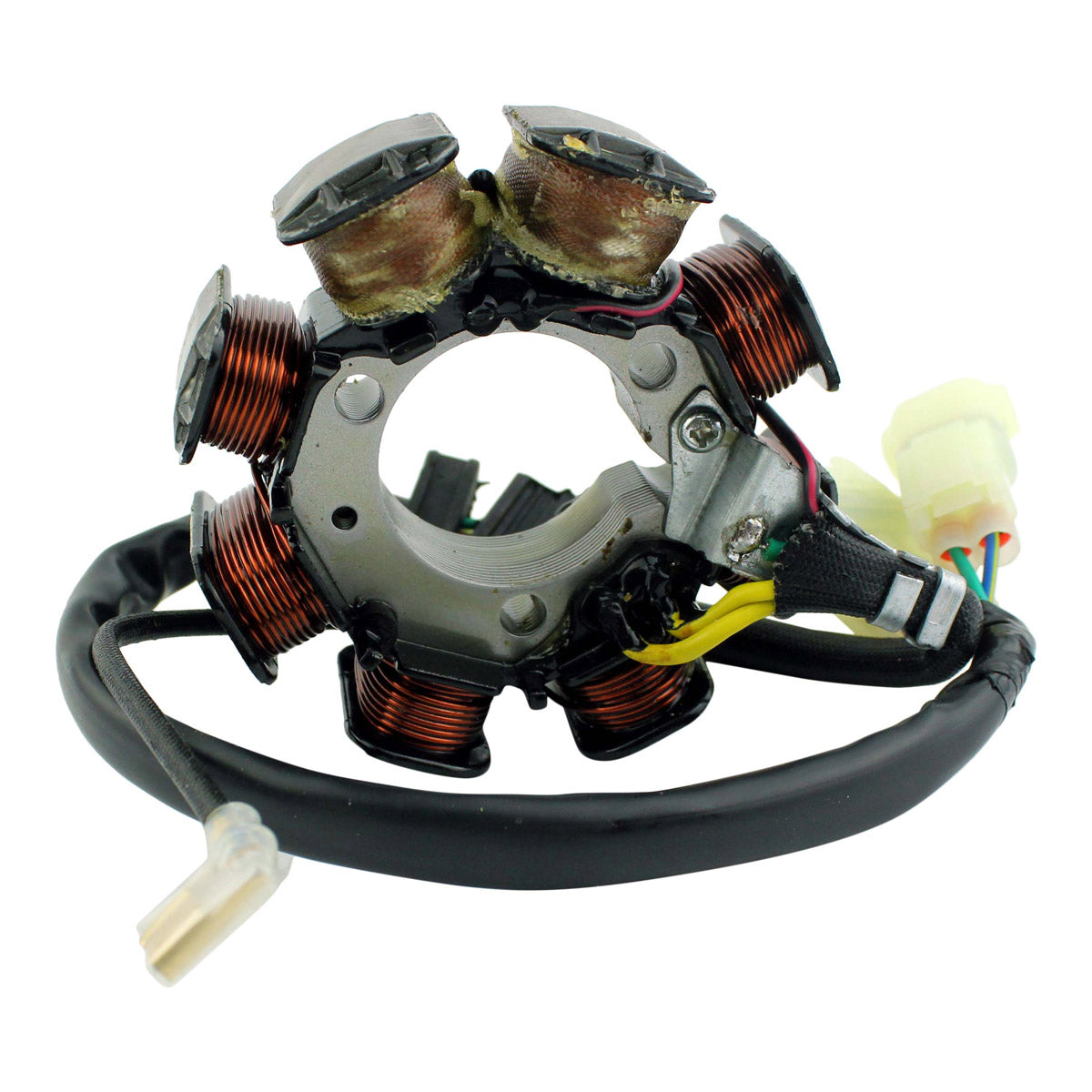

This is a brand new stator built as a direct replacement for the original unit fitted to the Honda TRX250TE and TRX250TM Fourtrax Recon across a long production run from 2005 to 2021. The stator sits behind the flywheel and is responsible for the machine's entire electrical output. Its alternator windings feed the regulator rectifier and the battery, a source winding supplies the ignition circuit, and the pick-up coil reads the flywheel to set the timing. Because all three circuits live on the same plate, a single failure can look like a charging problem, an ignition problem, or both at once.

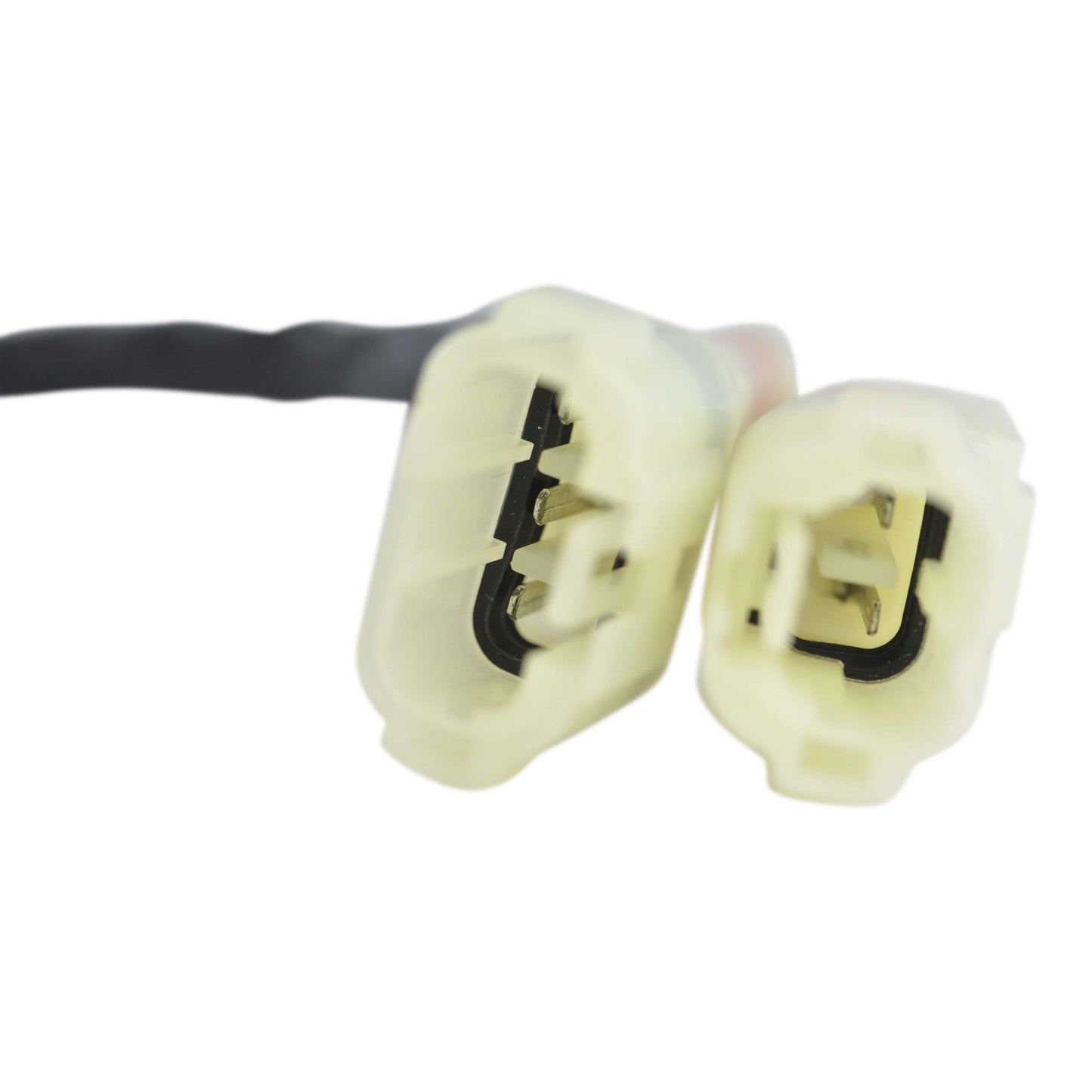

The assembly is plug-and-play and a direct fit - five wires into two plugs with five terminals, matching the factory connectors, harness lengths and mounting pattern, so no cutting, splicing or modification is required. It is built with the highest grade lamination materials and the highest grade copper windings, resistant to 200 degrees C, which matters on an air-cooled utility quad that spends its life at low speed and high engine temperature. The pick-up coil, the connector and the rubber grommet are supplied with it, and every stator is tested before shipping.
Key Features
- Brand new stator - direct replacement for the original unit
- Plug-and-play, direct fit - no cutting, splicing or modification
- Five-wire, two-plug, five-terminal layout matching the factory harness
- Alternator, source and pick-up circuits on one plate
- Highest grade lamination materials for a stable magnetic core
- Highest grade copper windings, resistant to 200 degrees C
- Pick-up coil, connector and rubber grommet included
- Every unit tested before shipping
- Cross references to Honda 31120-HM8-B01 and 31120-HM8-B00
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM01153 |
| Inside diameter | 35 mm |
| Outside diameter | 88 mm |
| Thickness | 18 mm |
| Harness length, stator to grommet | 92 mm |
| Harness length, grommet to plug | 250 mm |
| Pick-up coil wire length | 120 mm |
| Number of wires | 5 |
| Number of plugs | 2 |
| Number of terminals | 5 |
| Alternator resistance, Yellow to Yellow | 0.4 ohms +/- 20% |
| Source 1 resistance, Black/Red to Green | 185 ohms +/- 20% |
| Pick-up 1 resistance, Blue/White to Green | 280 ohms +/- 20% |
| Temperature rating | 200 degrees C |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Honda TRX250TE Fourtrax Recon | 2005-2021 |
| Honda TRX250TM Fourtrax Recon | 2005-2021 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 31120-HM8-B01 | Honda |
| 31120-HM8-B00 | Honda |
| RM01153 | RMSTATOR |
Frequently Asked Questions
Will this fit without modification?
Yes. It is a plug-and-play, direct fit stator for the Honda TRX250TE and TRX250TM Fourtrax Recon from 2005 to 2021. The five wires terminate in the same two plugs as the original and the harness lengths match, so no cutting or splicing is required. Please still confirm the part number on your existing unit before ordering.
What is included in the box?
The stator unit, the pick-up coil, the connector and the rubber grommet. Every stator is tested before shipping.
How do I know my old stator has failed?
Look for a battery that will not stay charged, lights that stay dim as the revs rise, hard starting or no spark at all. Confirm with a multimeter: about 0.4 ohms +/- 20% Yellow to Yellow on the alternator, about 185 ohms +/- 20% Black/Red to Green on the source coil, and about 280 ohms +/- 20% Blue/White to Green on the pick-up. Any circuit reading open, or showing continuity to the stator body, has failed.
Does it fit both the TM and the TE Recon?
Yes. RMSTATOR lists this stator for both the TRX250TM and the TRX250TE Fourtrax Recon across the whole 2005 to 2021 span, replacing Honda parts 31120-HM8-B01 and 31120-HM8-B00.
