12-Pole Stator for Honda TRX 300 Fourtrax and TRX 300 FW

Honda TRX 300 Fourtrax and TRX 300 FW - 1988 to 2000 - OEM reference 31120-HC4-014 and 31120-HC4-004

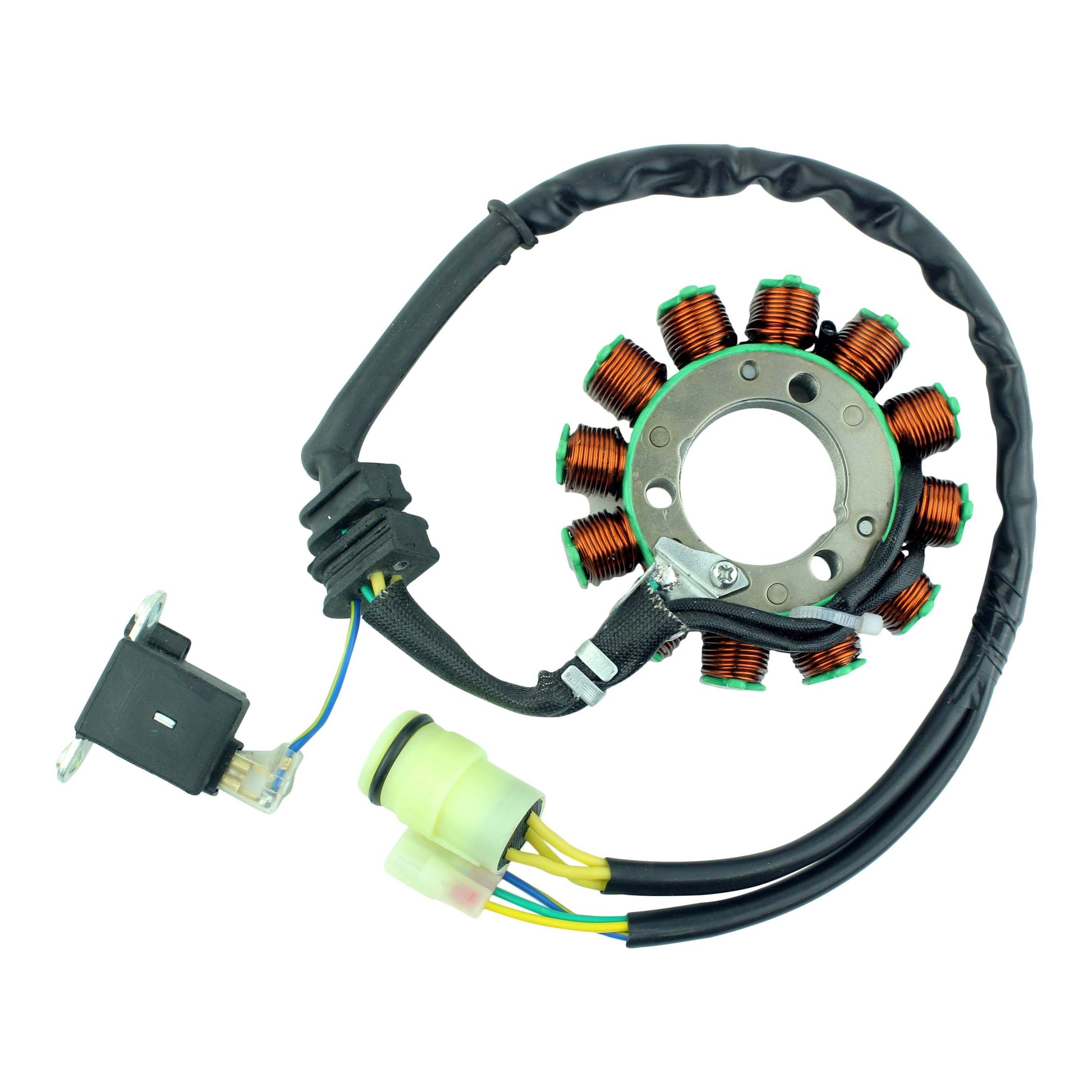

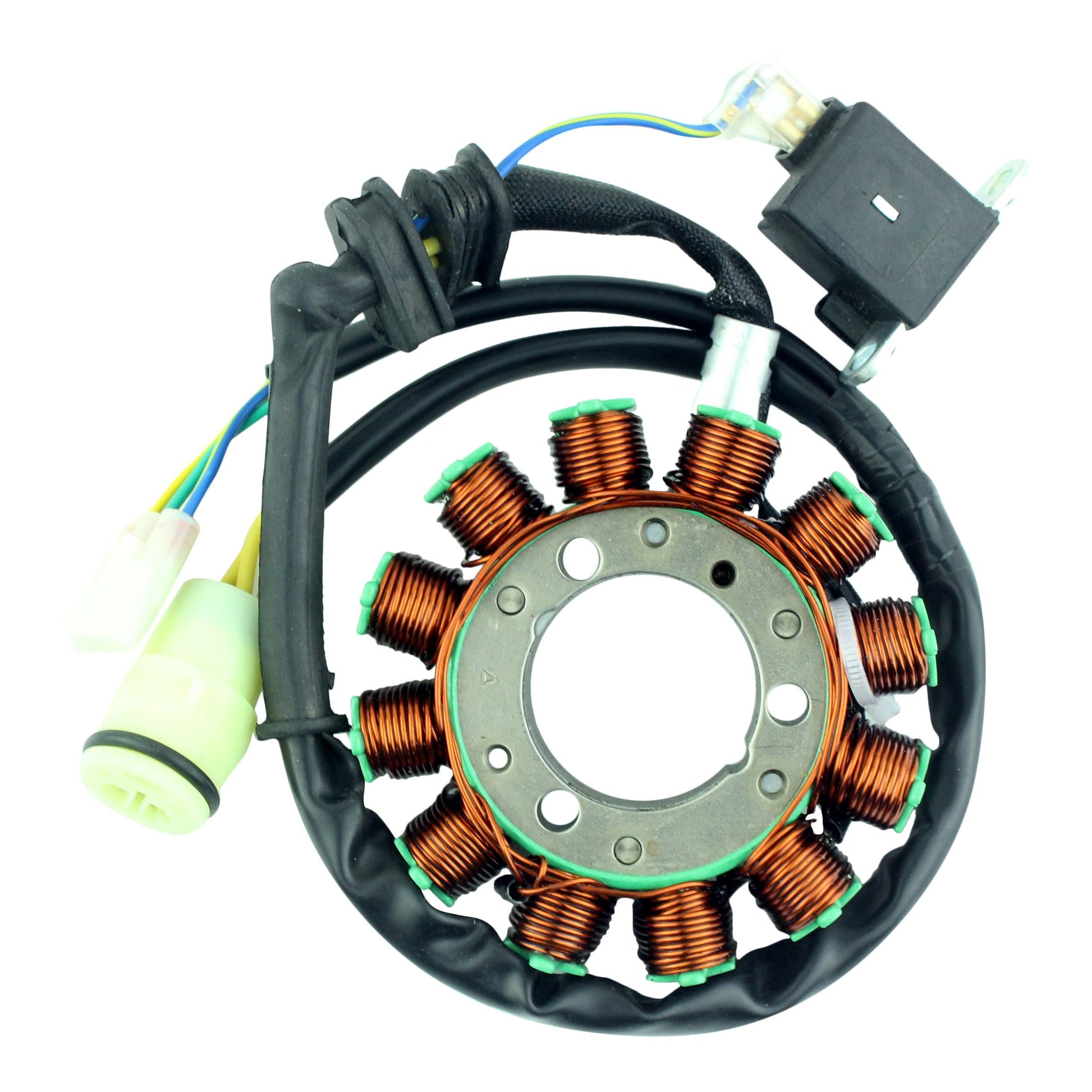

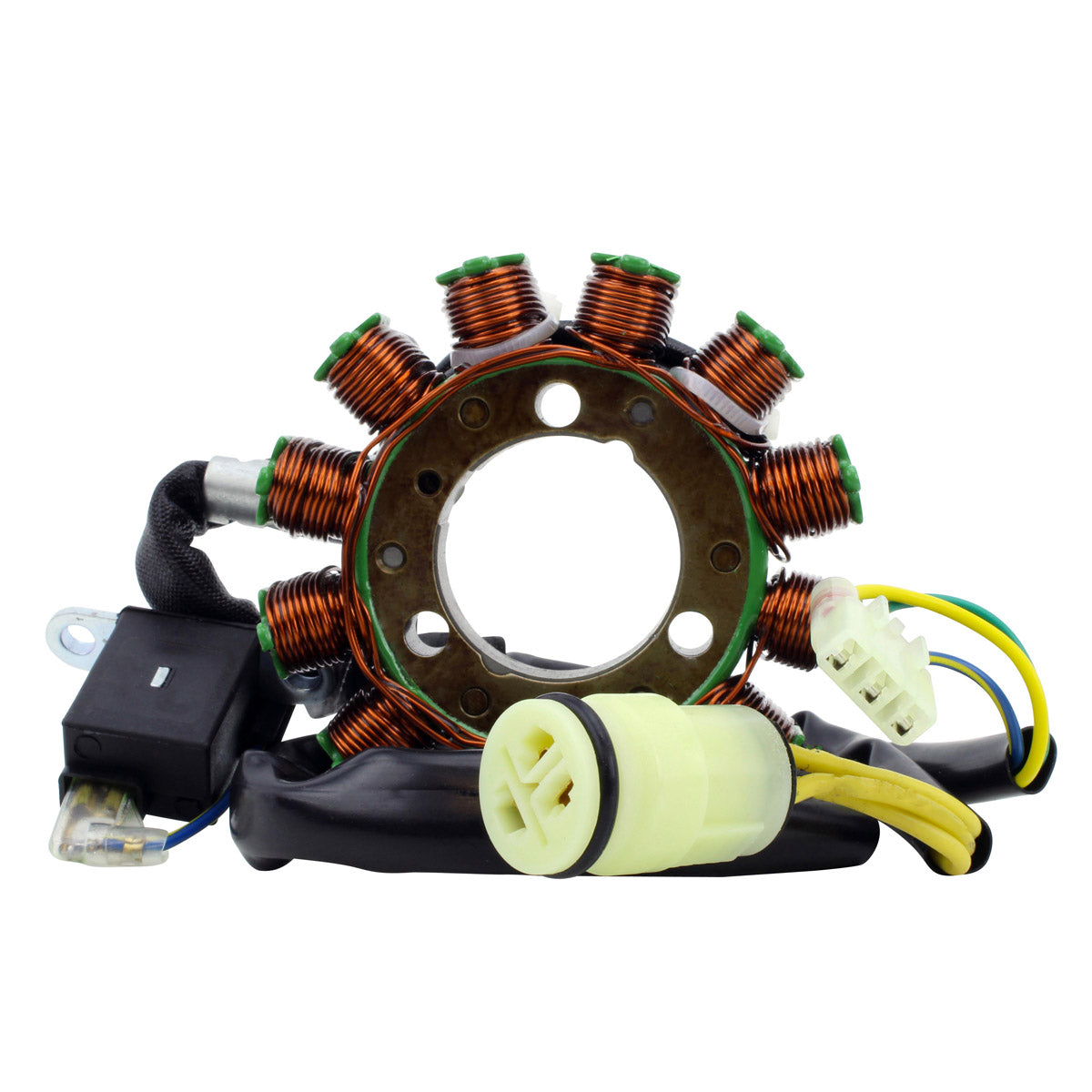

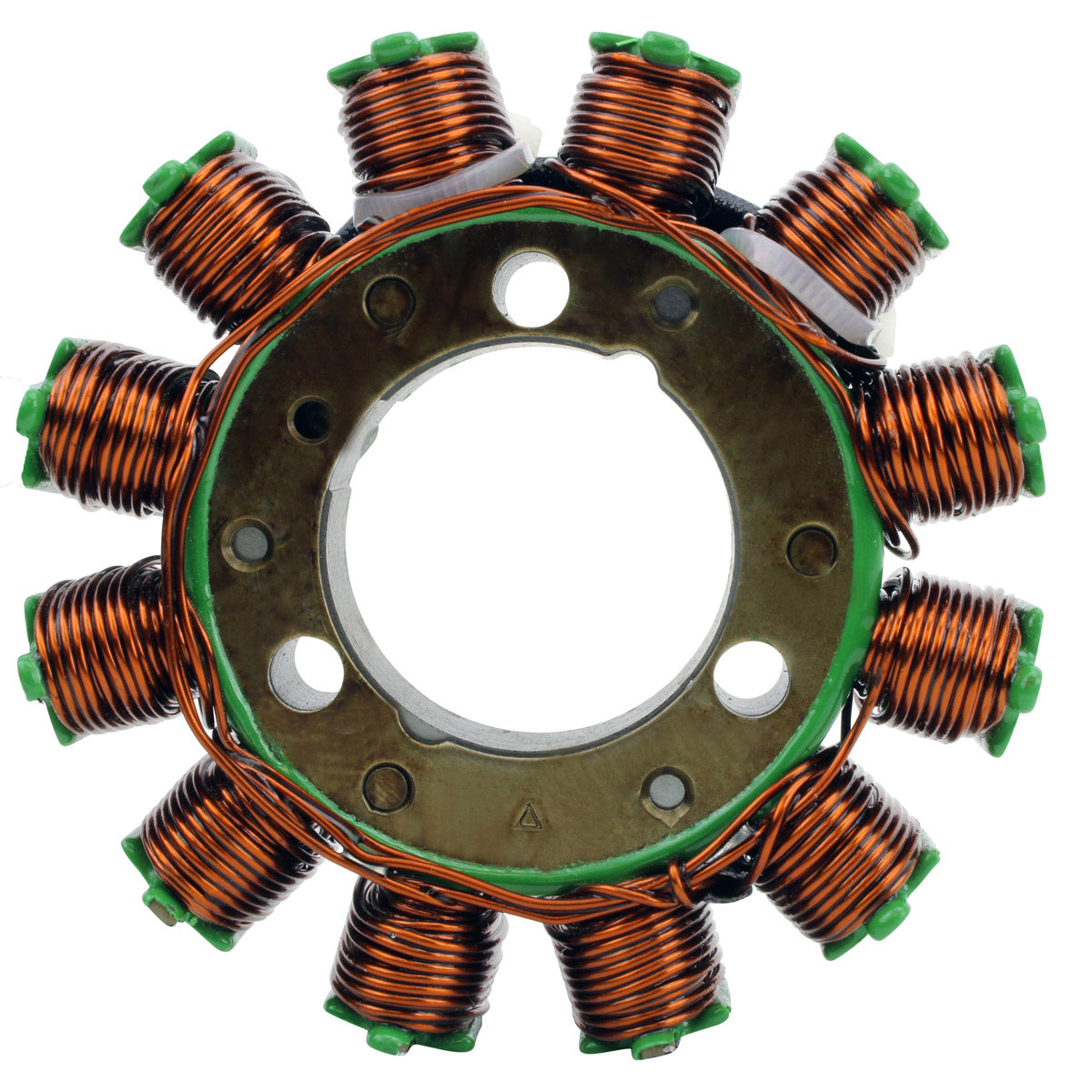

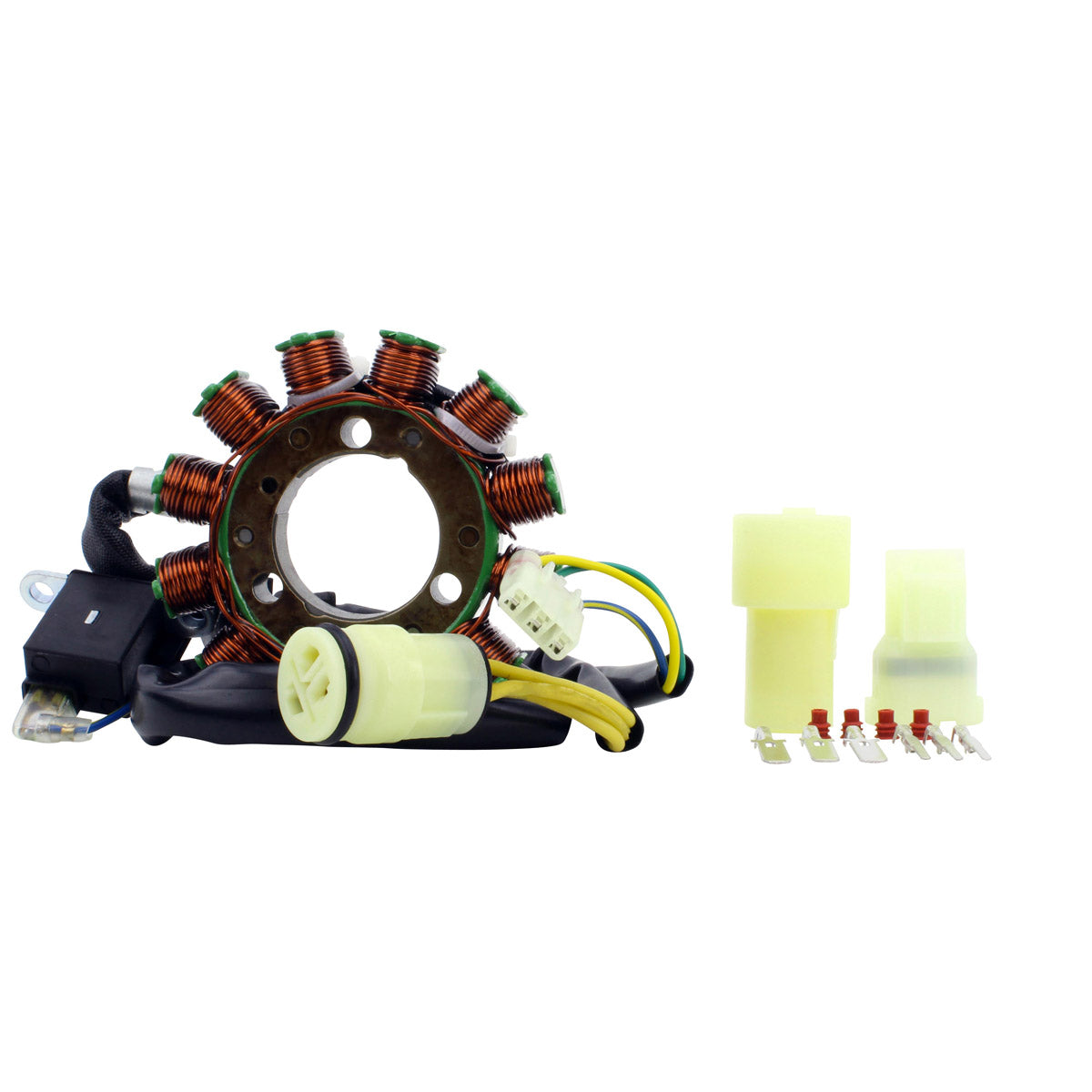

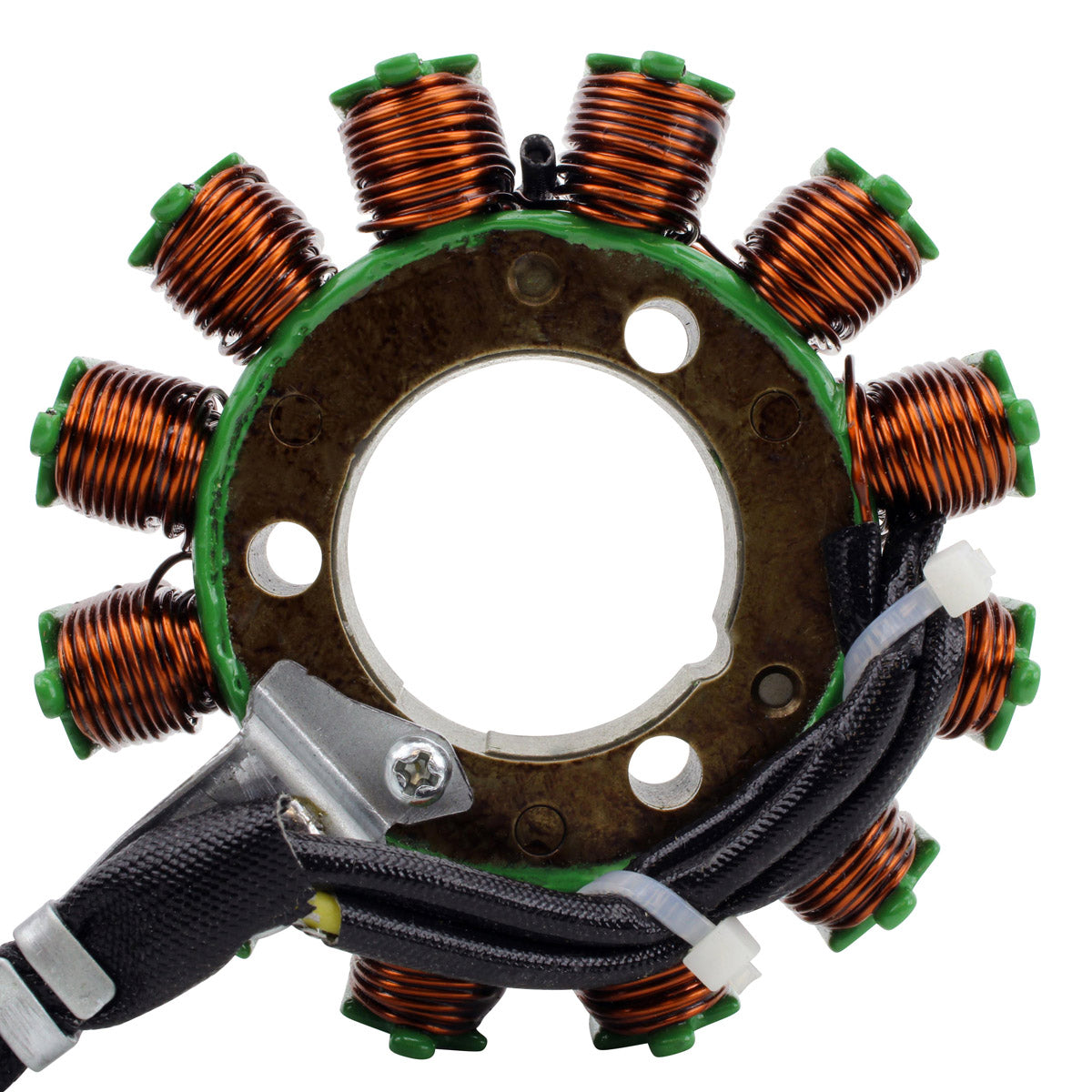

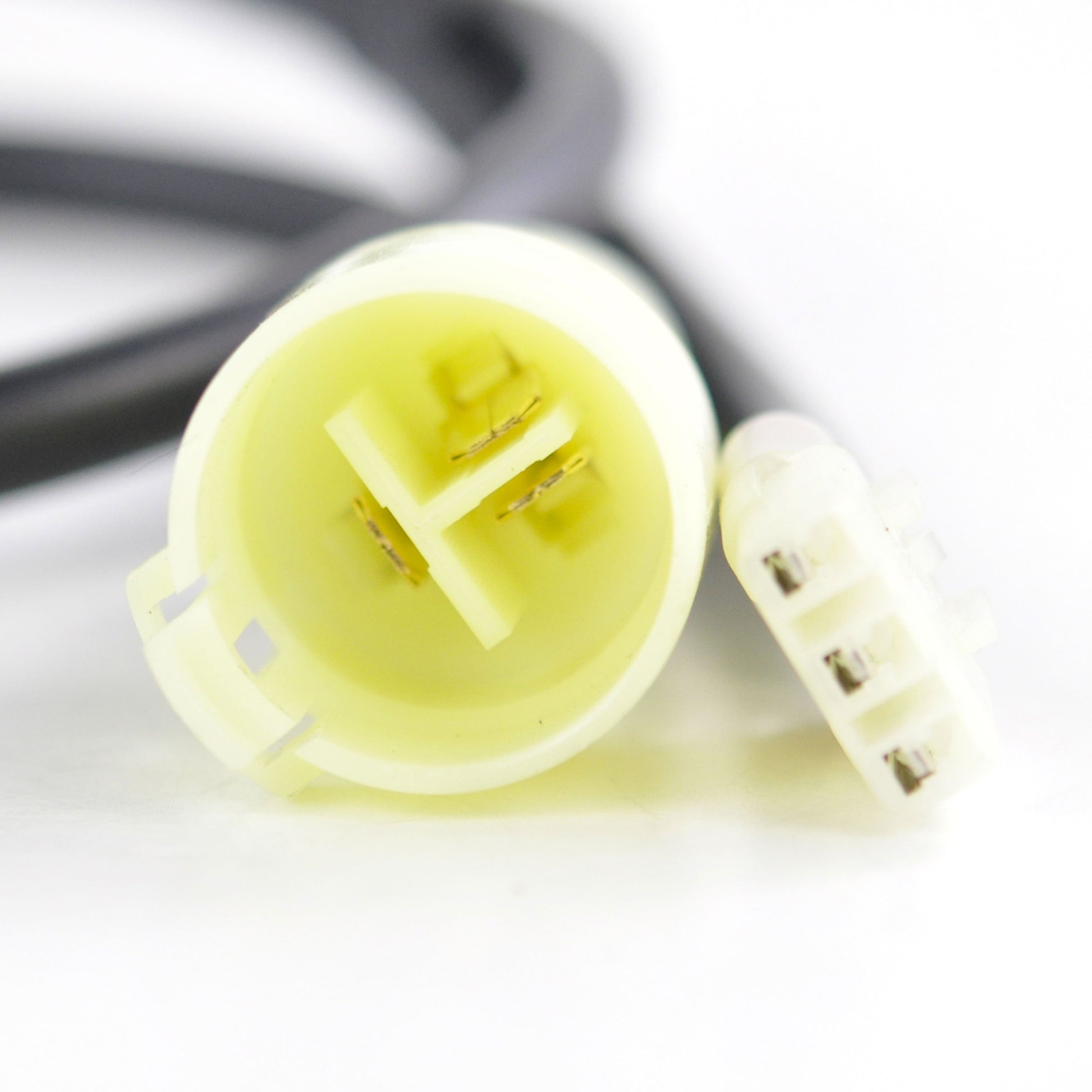

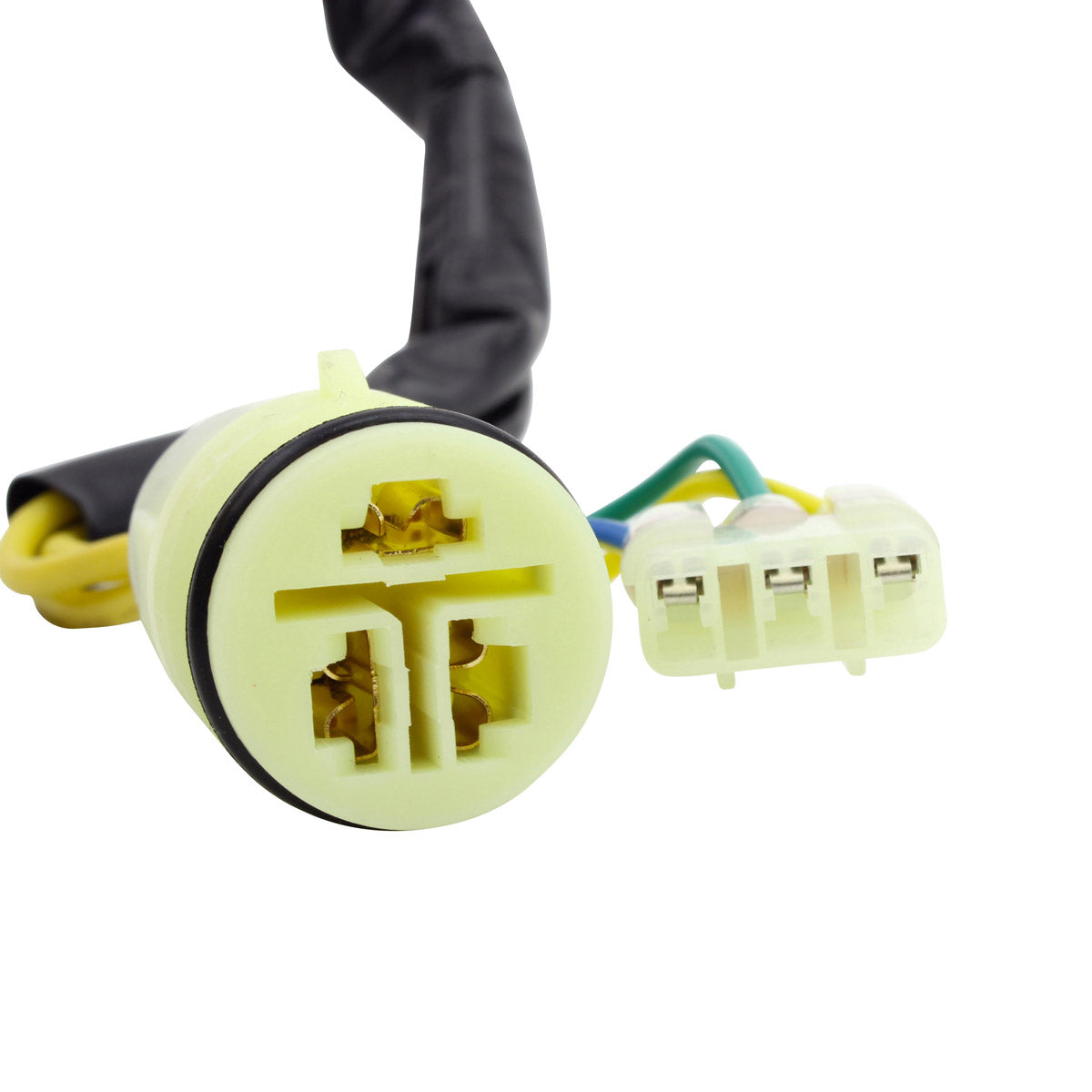

A brand new 12-pole replacement stator for the Honda TRX 300 Fourtrax and the four-wheel-drive TRX 300 FW, built as a direct replacement for the original unit fitted from 1988 through to 2000. It is a plug-and-play, direct fit part: six wires into two plugs on six pins, laid out as the original, so the stator seats in the same position inside the cover and the loom reconnects with no cutting, splicing or adapting. Part number RM01289 cross-references the Honda original part numbers 31120-HC4-014 and 31120-HC4-004.

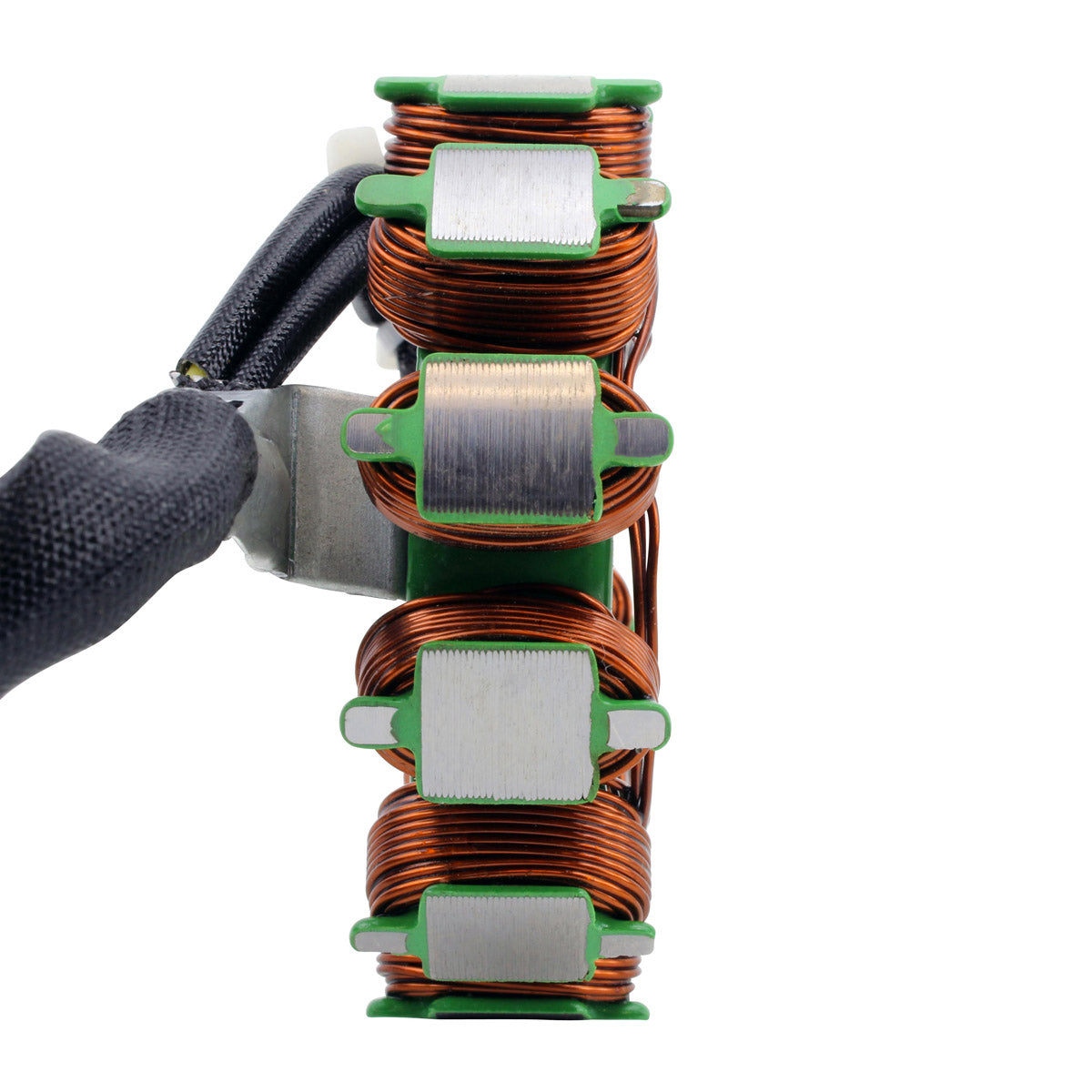

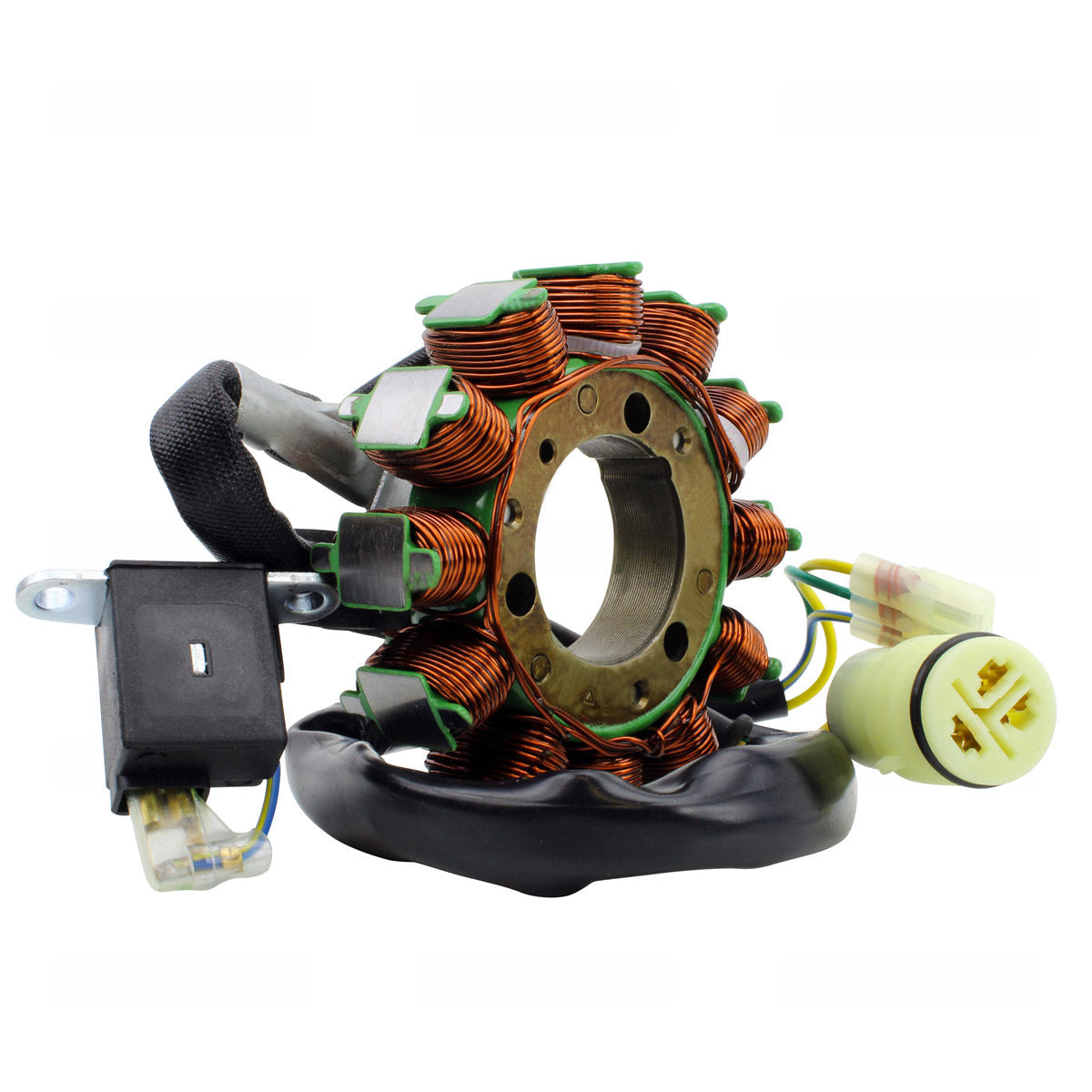

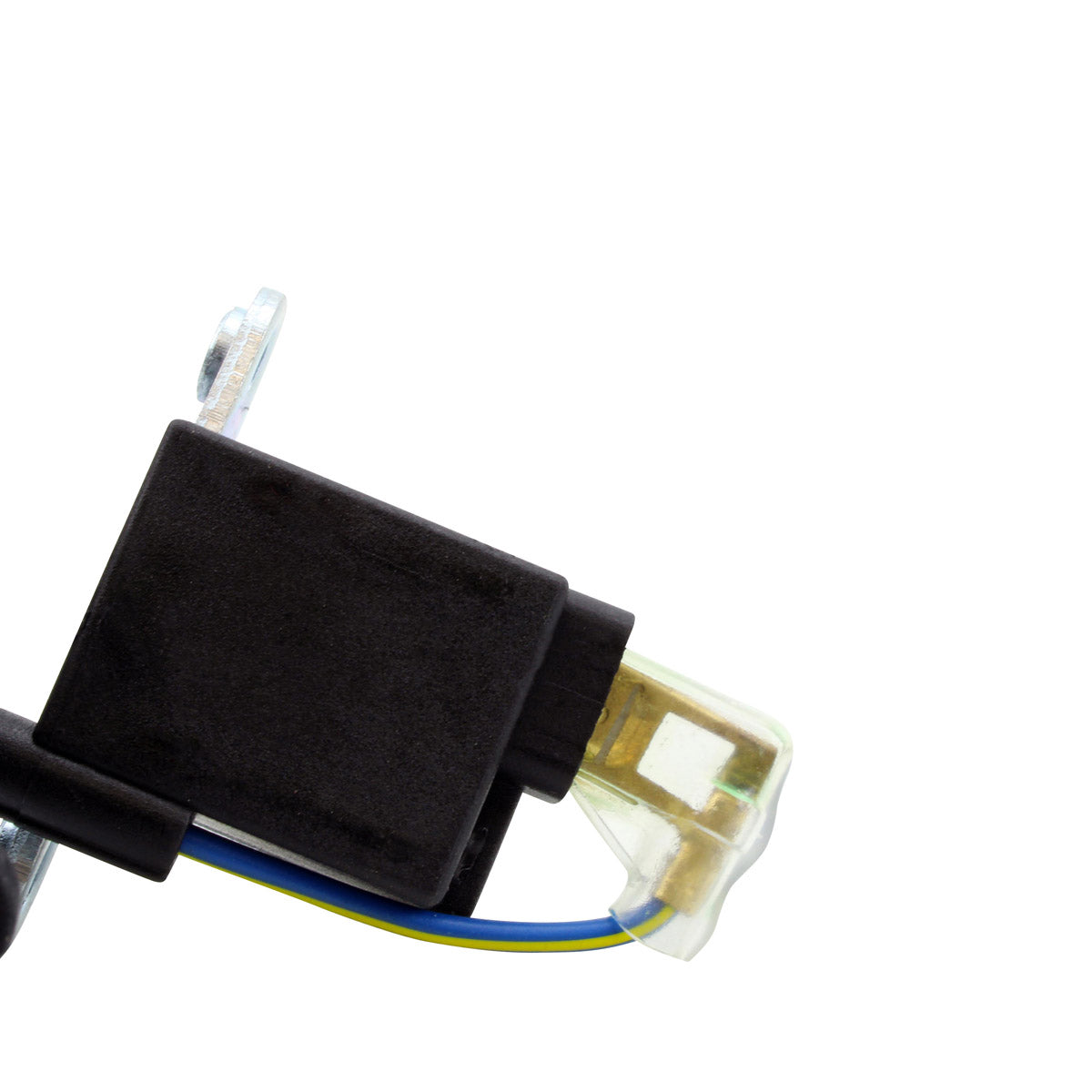

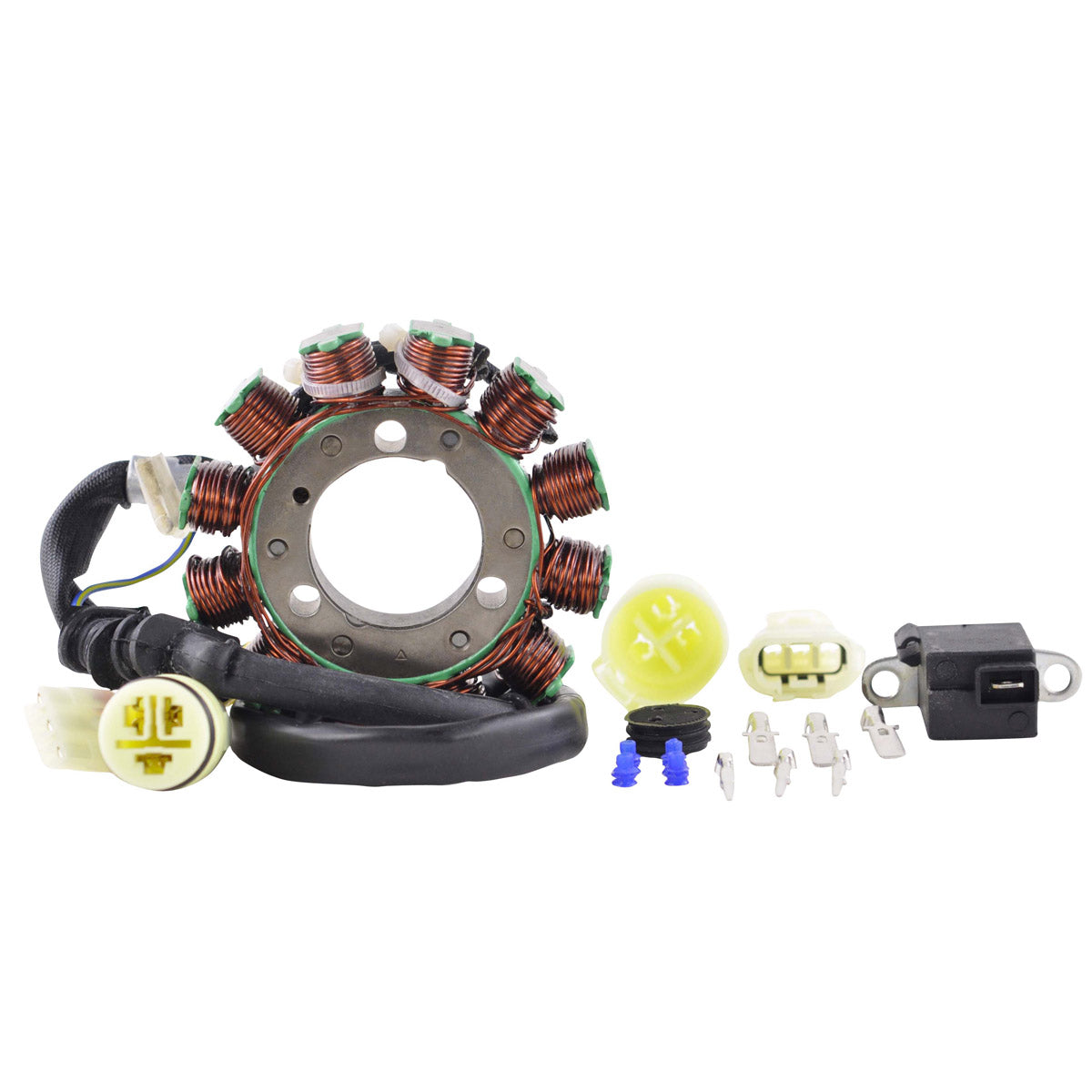

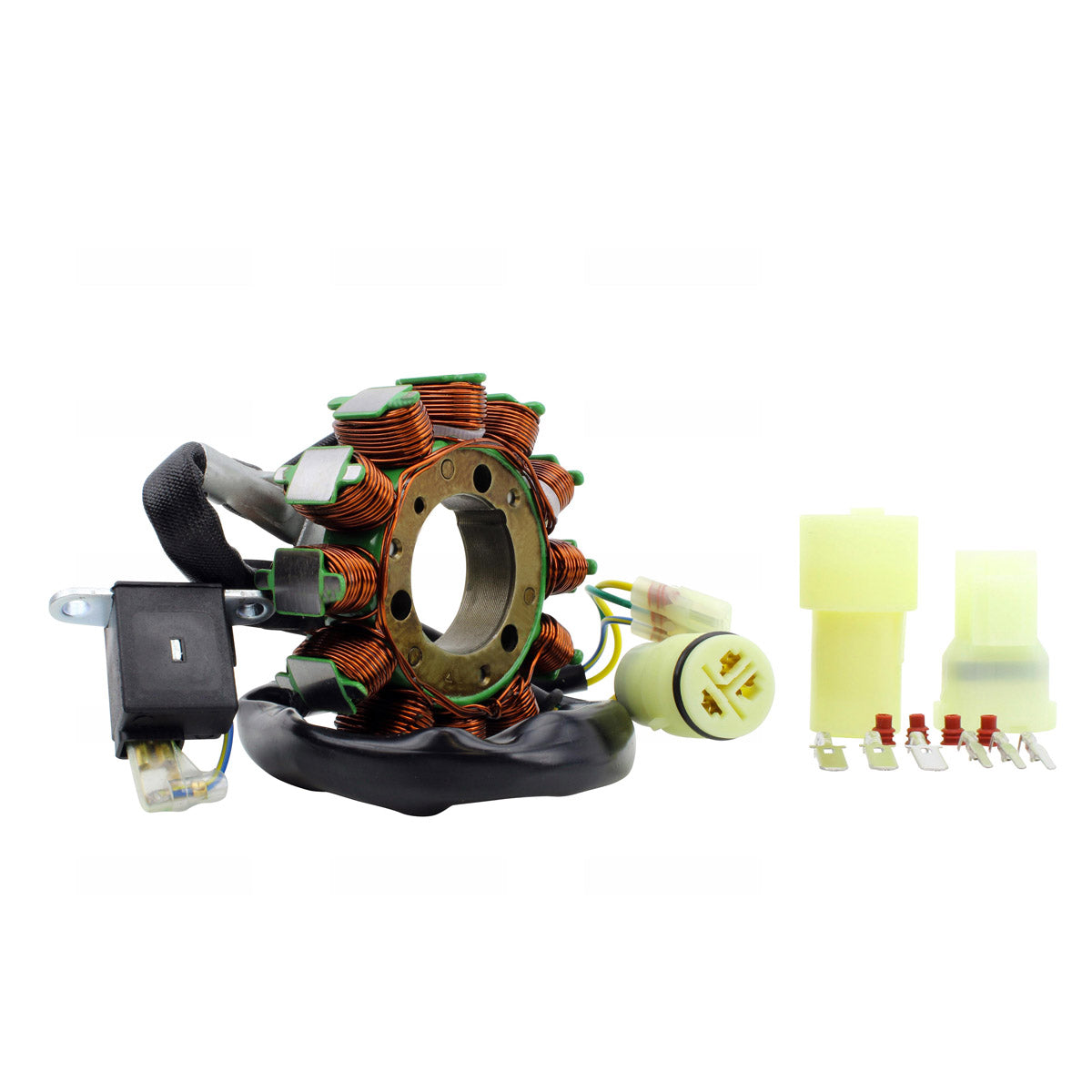

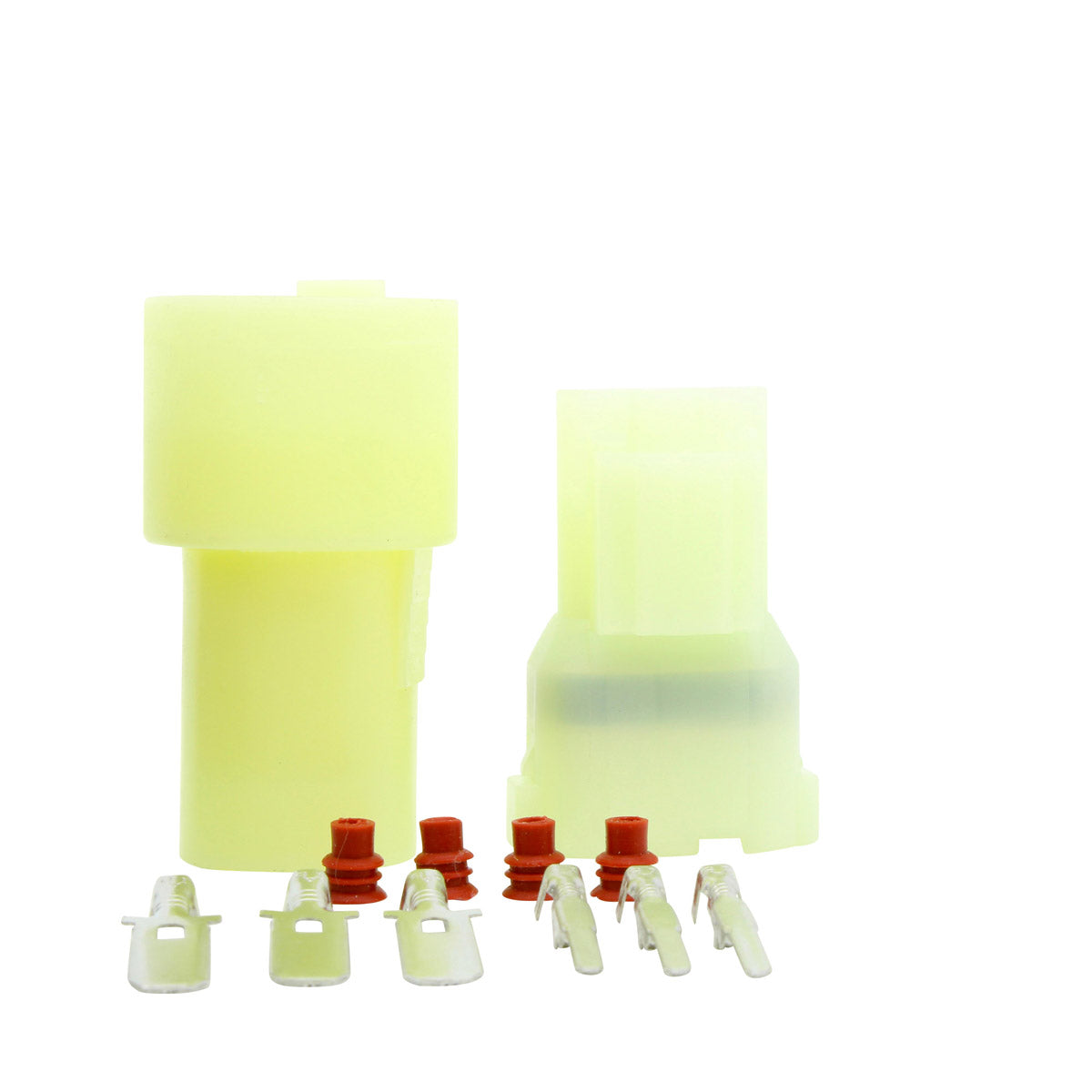

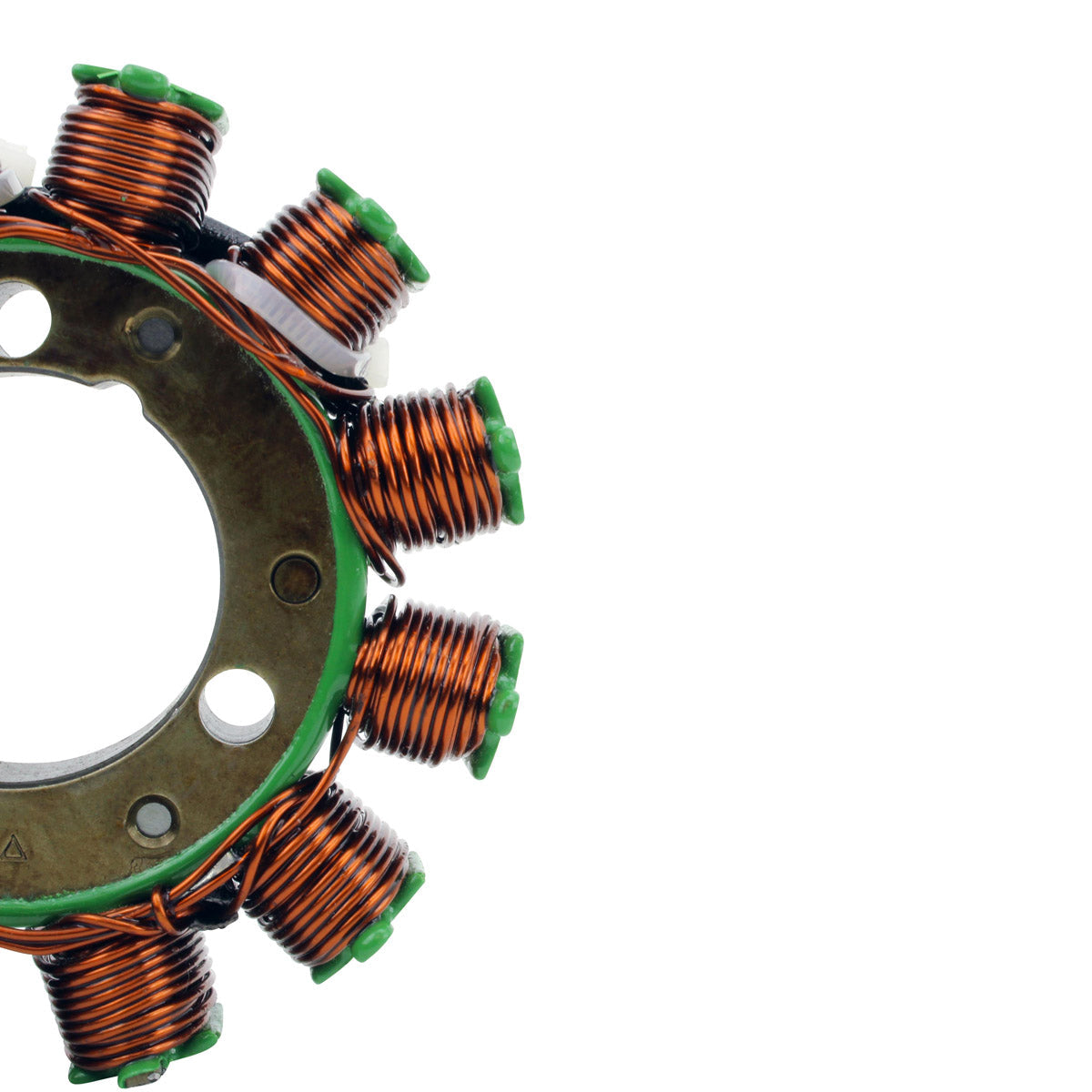

The 12-pole winding is built on highest grade lamination materials with highest grade copper insulated to 200 degrees Celsius, which is what keeps a long-serving utility quad charging properly through repeated heat cycles. Two bench checks confirm the unit: the alternator winding reads 0.4 ohms yellow to yellow, and the pickup reads 335 ohms from blue/yellow to green, each within a 20 percent tolerance. The stator measures 88 mm across the outside, 34 mm through the centre and 15 mm thick, matching the original envelope, and the harness runs 65 mm from the stator to the grommet then a further 290 mm to the plug. The pickup pulsar coil, the connector and the rubber grommet are supplied on the assembly, and all units are tested before shipment.
