Stator for Kawasaki KFX 450 R
Kawasaki KFX 450 R - 2008 to 2014 - OEM reference 21003-0067

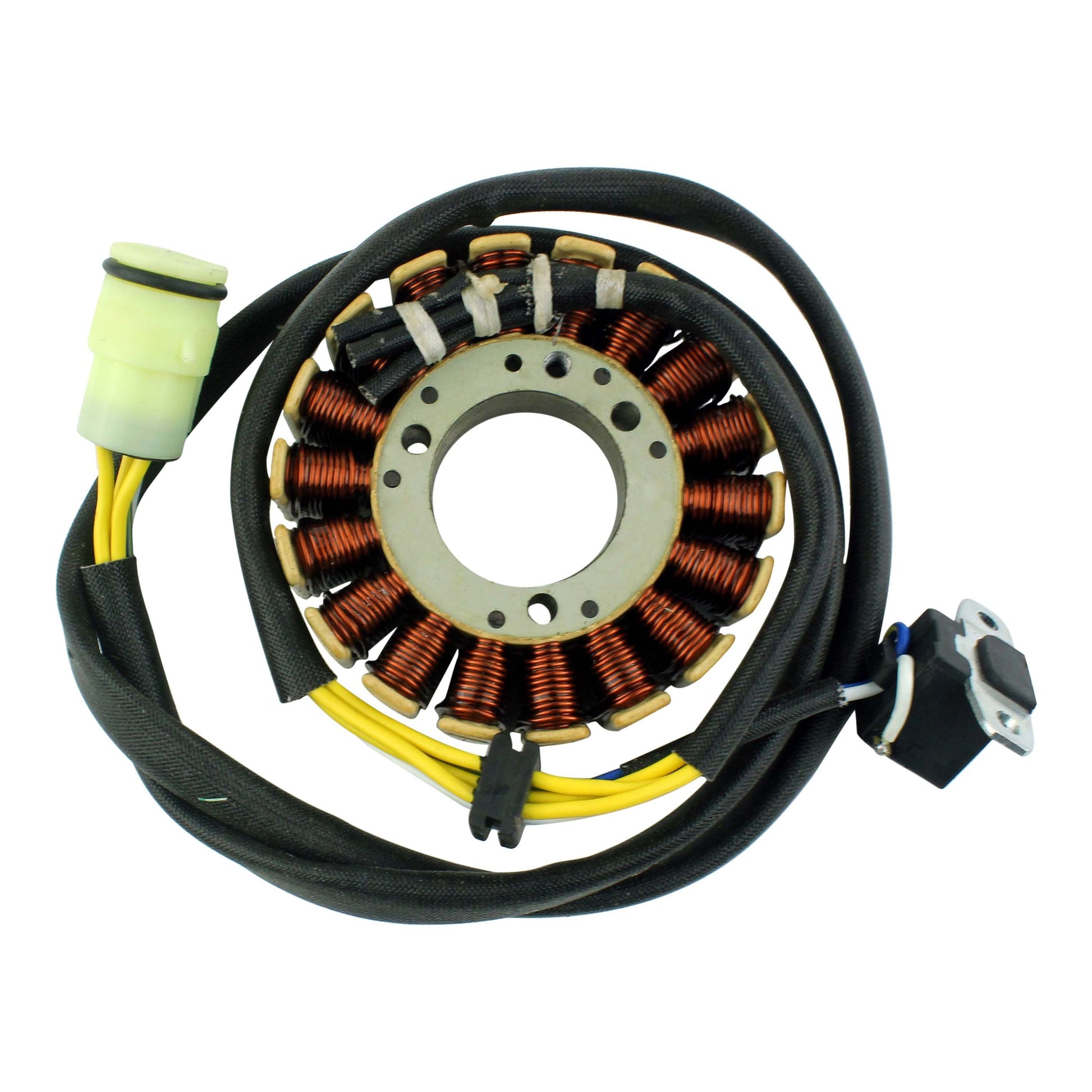

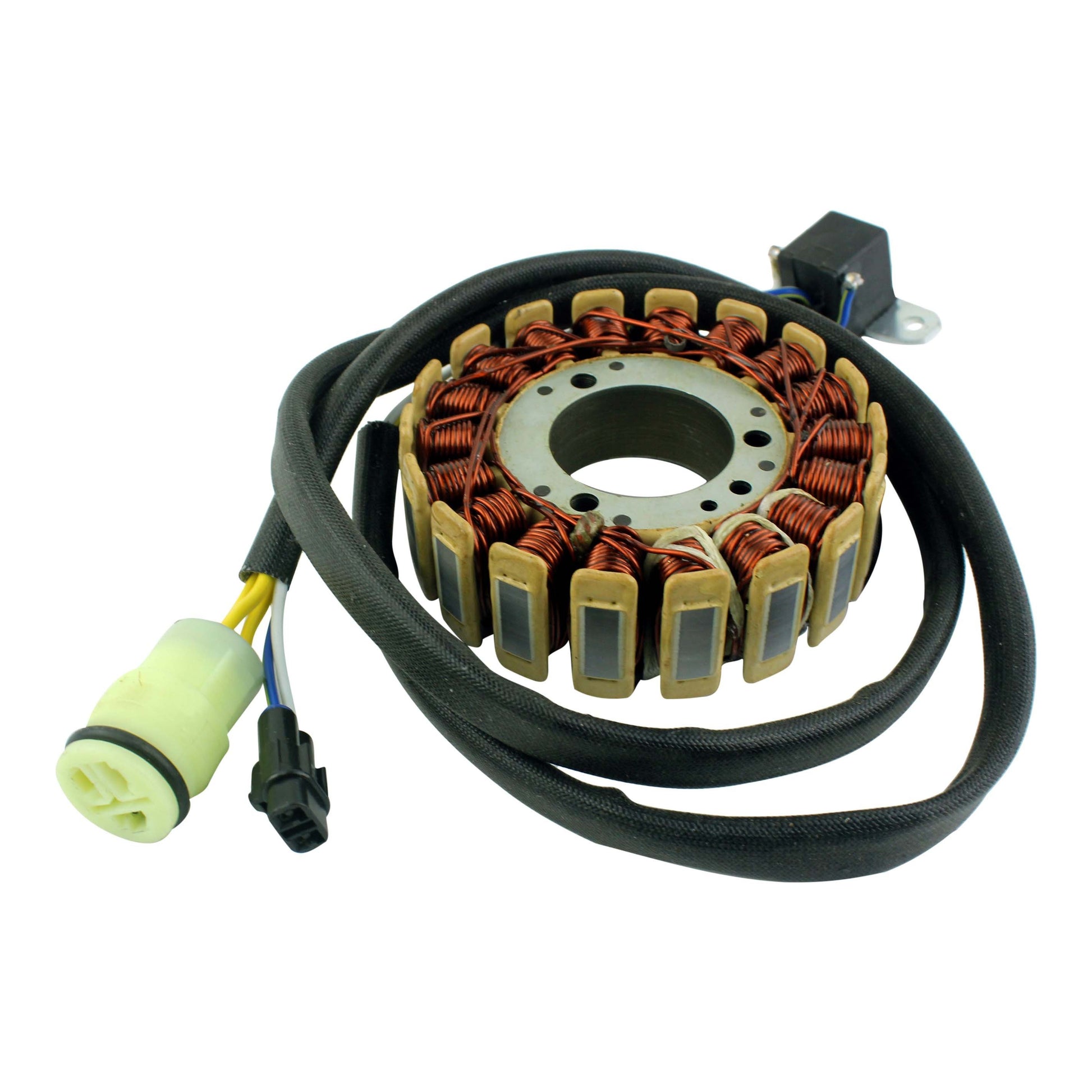

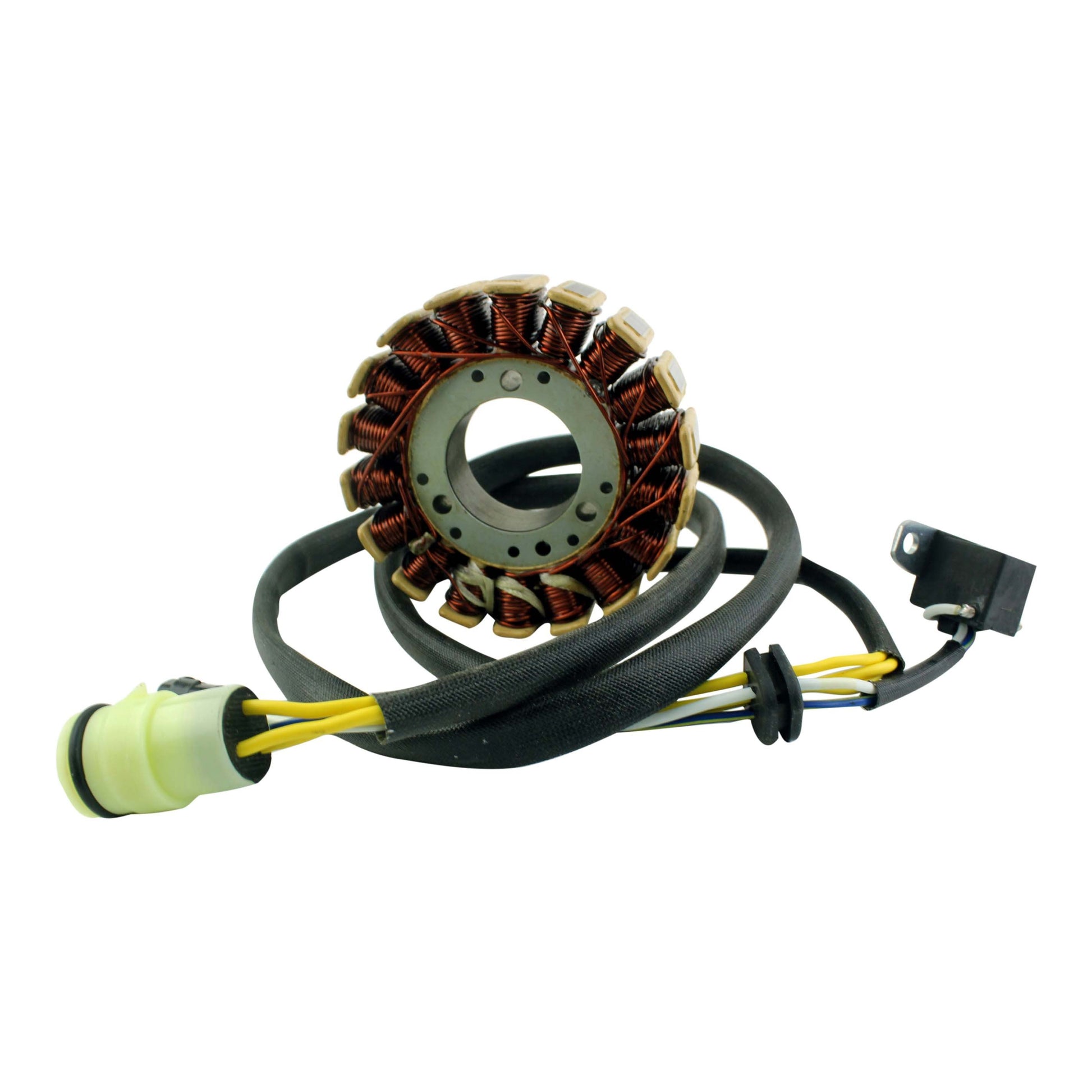

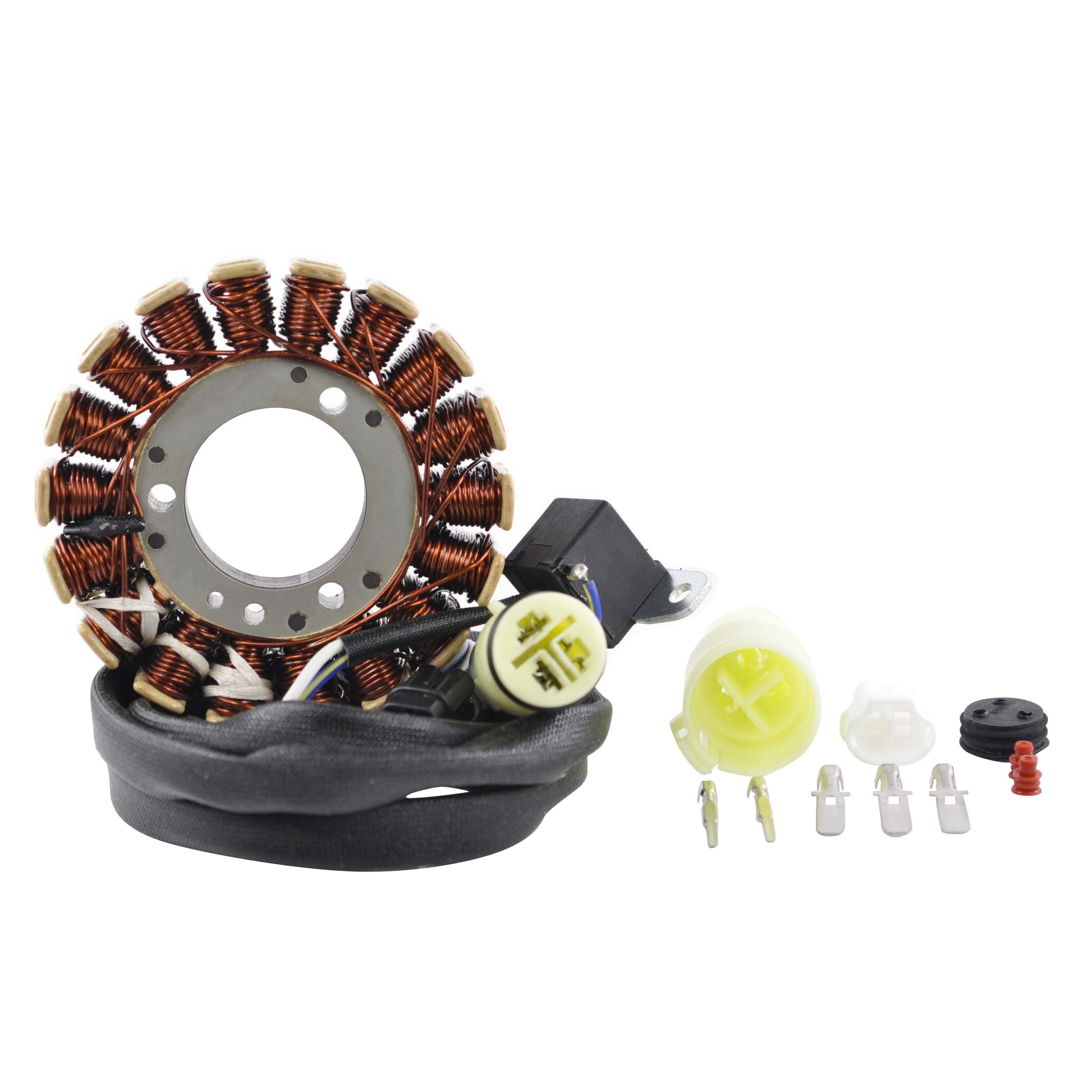

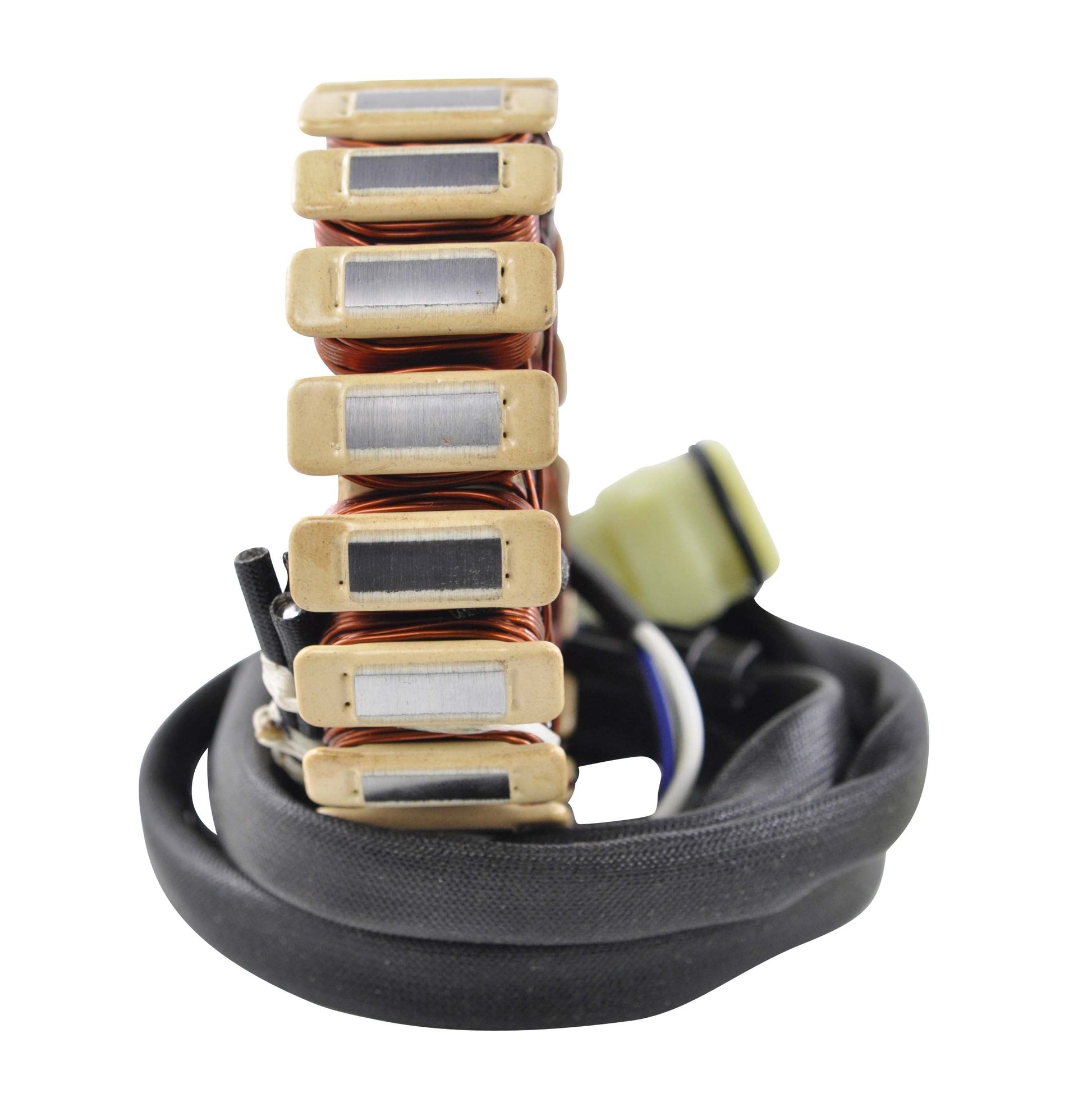

A brand new replacement stator for the Kawasaki KFX 450 R sport quad, built as a direct replacement for the original unit fitted from 2008 through to 2014. This is a plug-and-play, direct fit part: the five-wire output, the two plug bodies and the mounting pattern all follow the original, so the stator seats in the same position behind the flywheel cover and the loom reconnects without cutting or splicing. Part number RM01314 cross-references the Kawasaki original part number 21003-0067.
The stator is wound with the highest grade copper and insulated to a 200 degree Celsius rating, which matters on a high-revving 450 that spends its life under load and heat. Two resistance figures let you verify the part on the bench and again once it is fitted: the alternator winding reads 0.4 ohms yellow to yellow, and the pickup reads 190 ohms from blue/yellow to white, each within a 20 percent tolerance. The assembly is supplied complete with the pickup pulsar coil, the connector and the rubber grommet, so nothing has to be salvaged from the failed unit.
Key Features
- Brand new stator, not a rewound core
- Direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Copper windings rated to 200 degrees Celsius

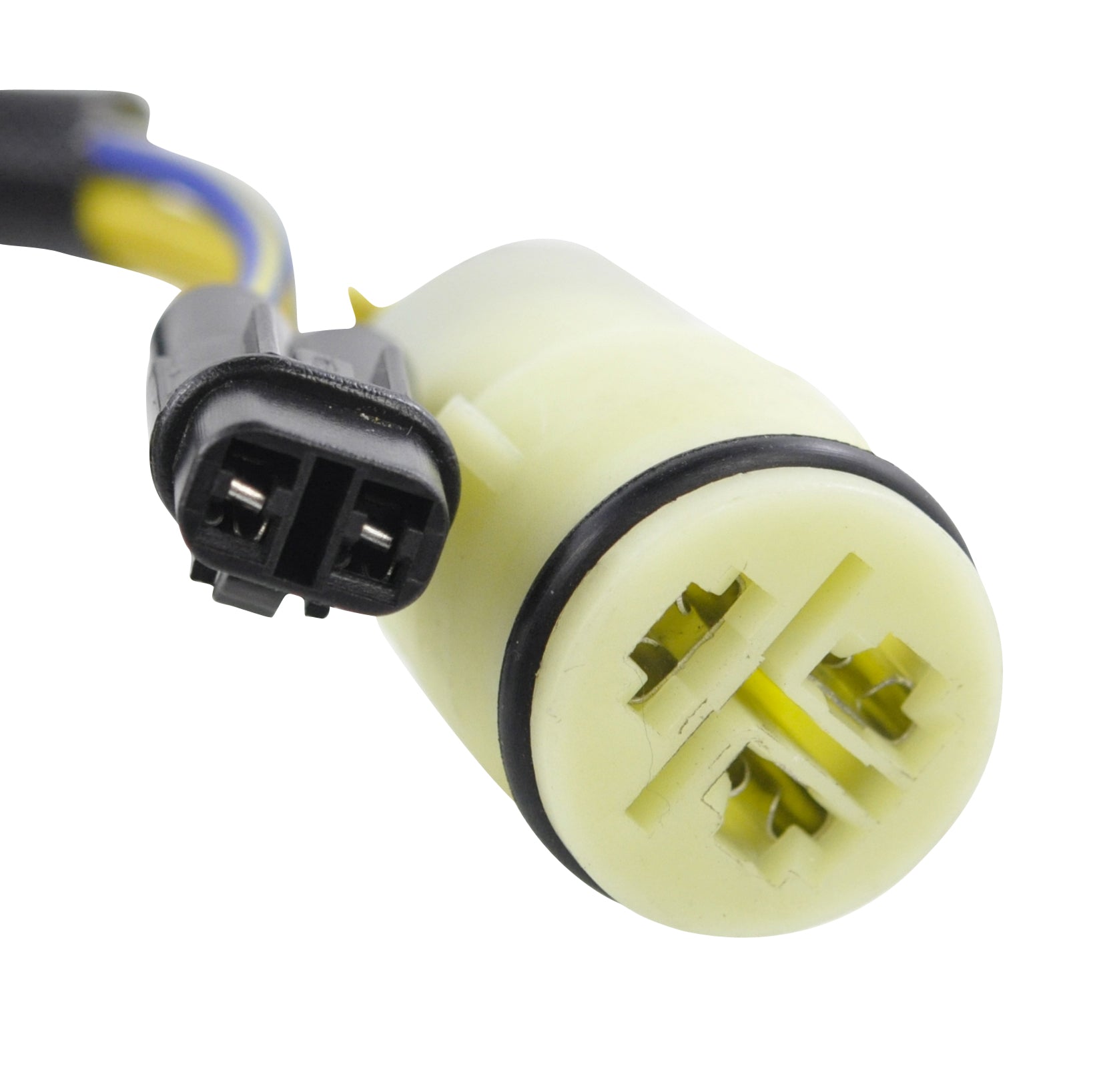

- Five wires, two plugs, five pins as original
- Pickup pulsar coil supplied on the assembly

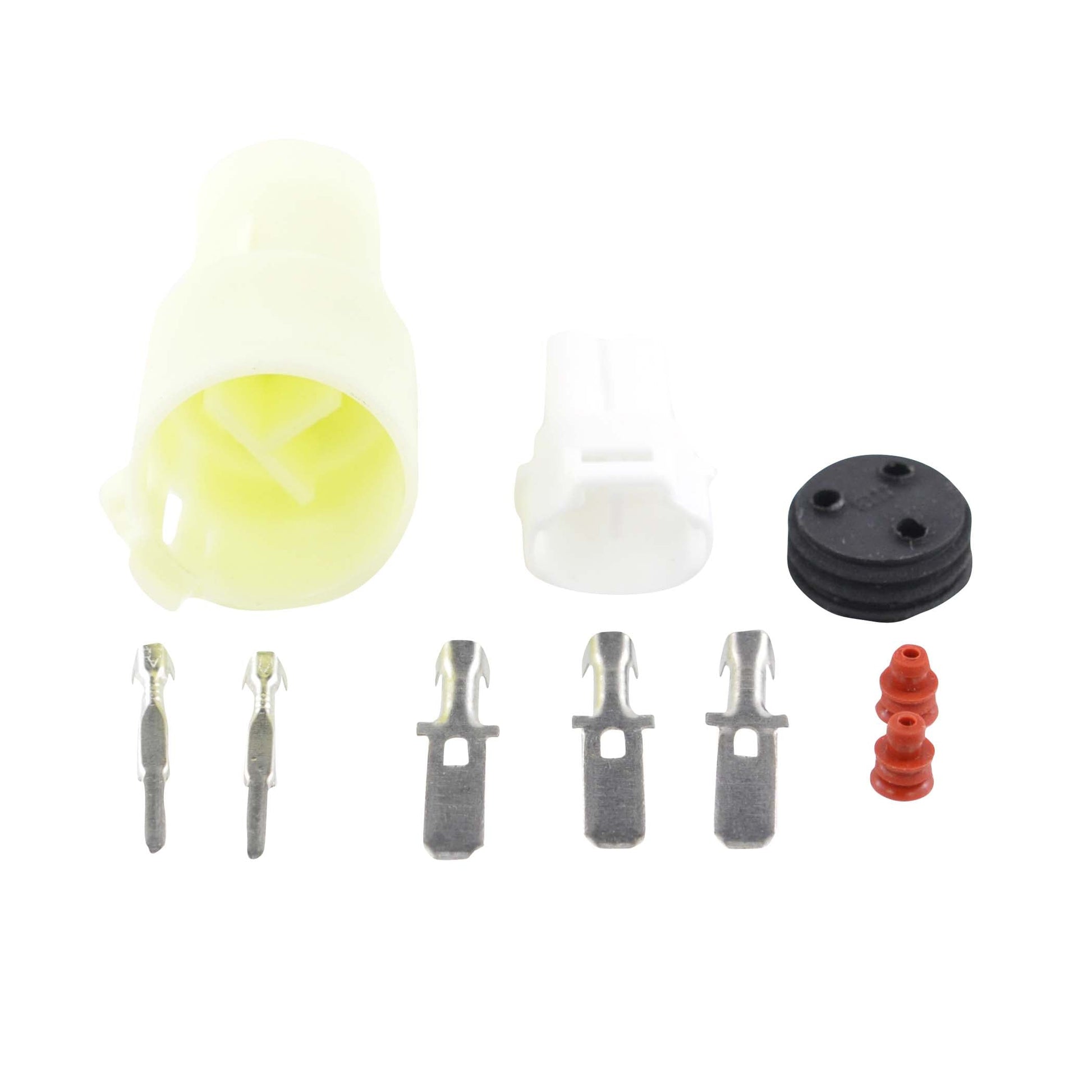

- Connector and rubber grommet included
- Cross-references OEM 21003-0067
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 35 mm |
| Exterior diameter | 92 mm |
| Thickness | 18 mm |
| Wire length (stator to grommet) | 110 mm |
| Wire length (grommet to plug) | 900 mm |
| Pickup coil wire length | 40 mm |
| Number of wires | 5 |
| Number of plugs | 2 |
| Number of pins | 5 |
| Alternator resistance (yellow to yellow) | 0.4 ohms +/-20% |
| Pickup resistance (blue/yellow to white) | 190 ohms +/-20% |
| Copper winding temperature rating | 200 degrees Celsius |
| Part number | RM01314 |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Kawasaki KFX 450 R | 2008-2014 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 21003-0067 | Kawasaki |
Frequently Asked Questions
Will this fit my KFX 450 R without modification?
Yes. It is a direct replacement for the original stator fitted to the Kawasaki KFX 450 R between 2008 and 2014, with the same five wires, two plugs and five pins as the unit it replaces. No cutting, splicing or drilling is needed. Check the number on your existing unit against 21003-0067 before ordering.
What is included?
The stator unit, the pickup pulsar coil, the connector and the rubber grommet are all supplied together as one assembly.
How do I know my old stator has failed?
Typical symptoms are a battery that goes flat in use, dim lighting, and a weak or intermittent spark. Confirm with a multimeter: yellow to yellow should read 0.4 ohms and blue/yellow to white should read 190 ohms, both within 20 percent. An open circuit reading, or continuity between any winding and the stator plate, confirms failure.
Is the lead long enough to reach the original connector?
Yes. The harness runs 110 mm from the stator to the grommet and a further 900 mm from the grommet to the plug, matching the original routing, and the pickup coil lead runs 40 mm.
