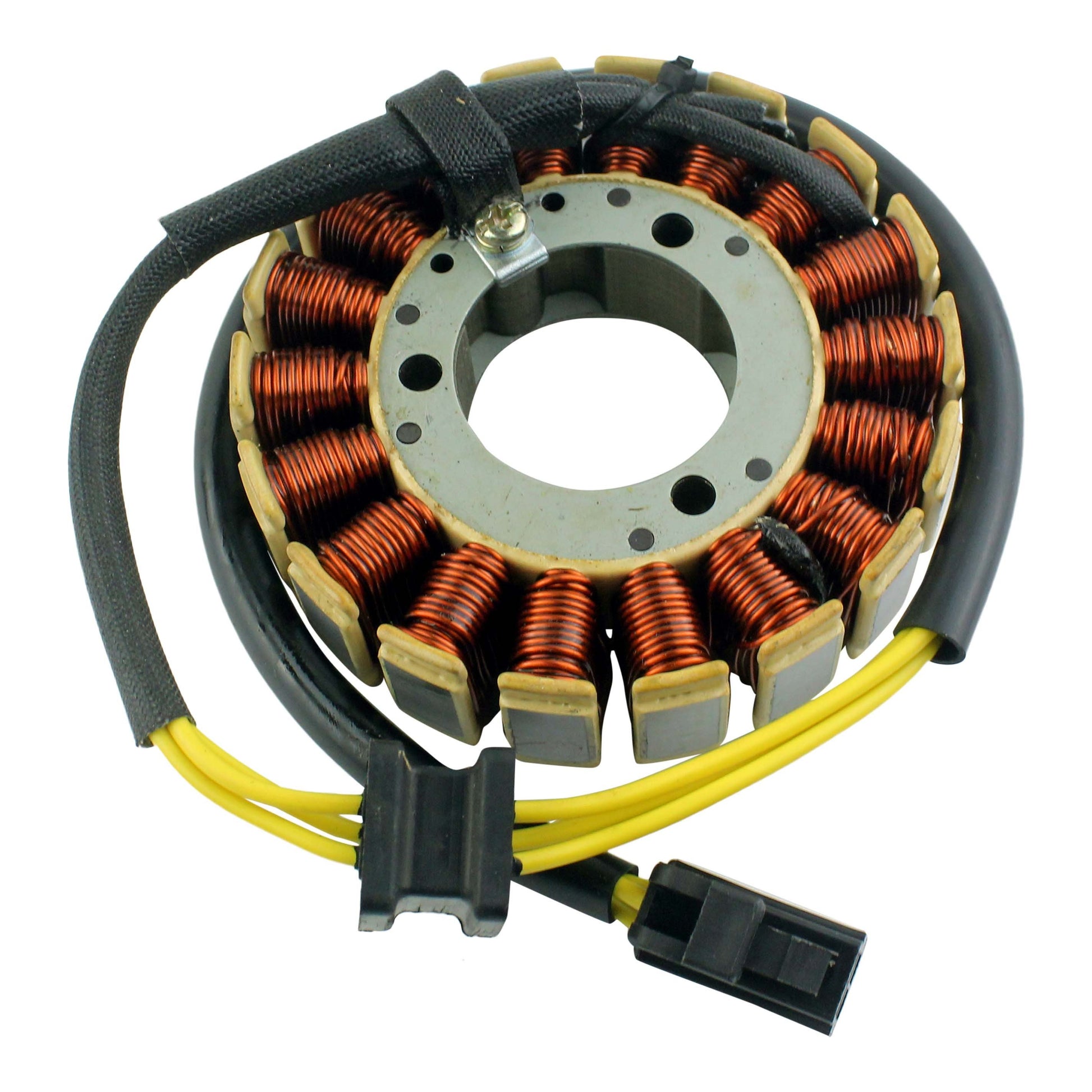

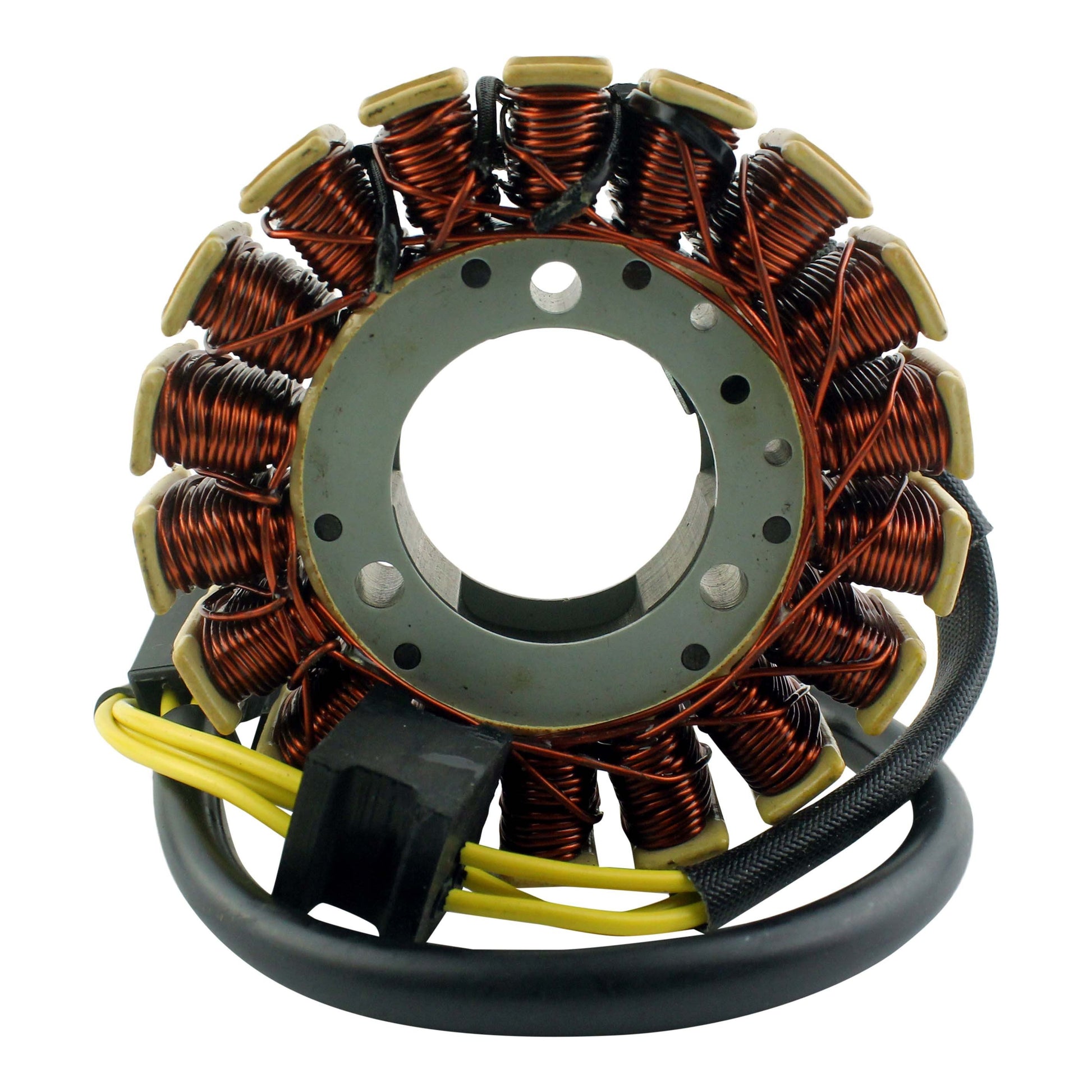

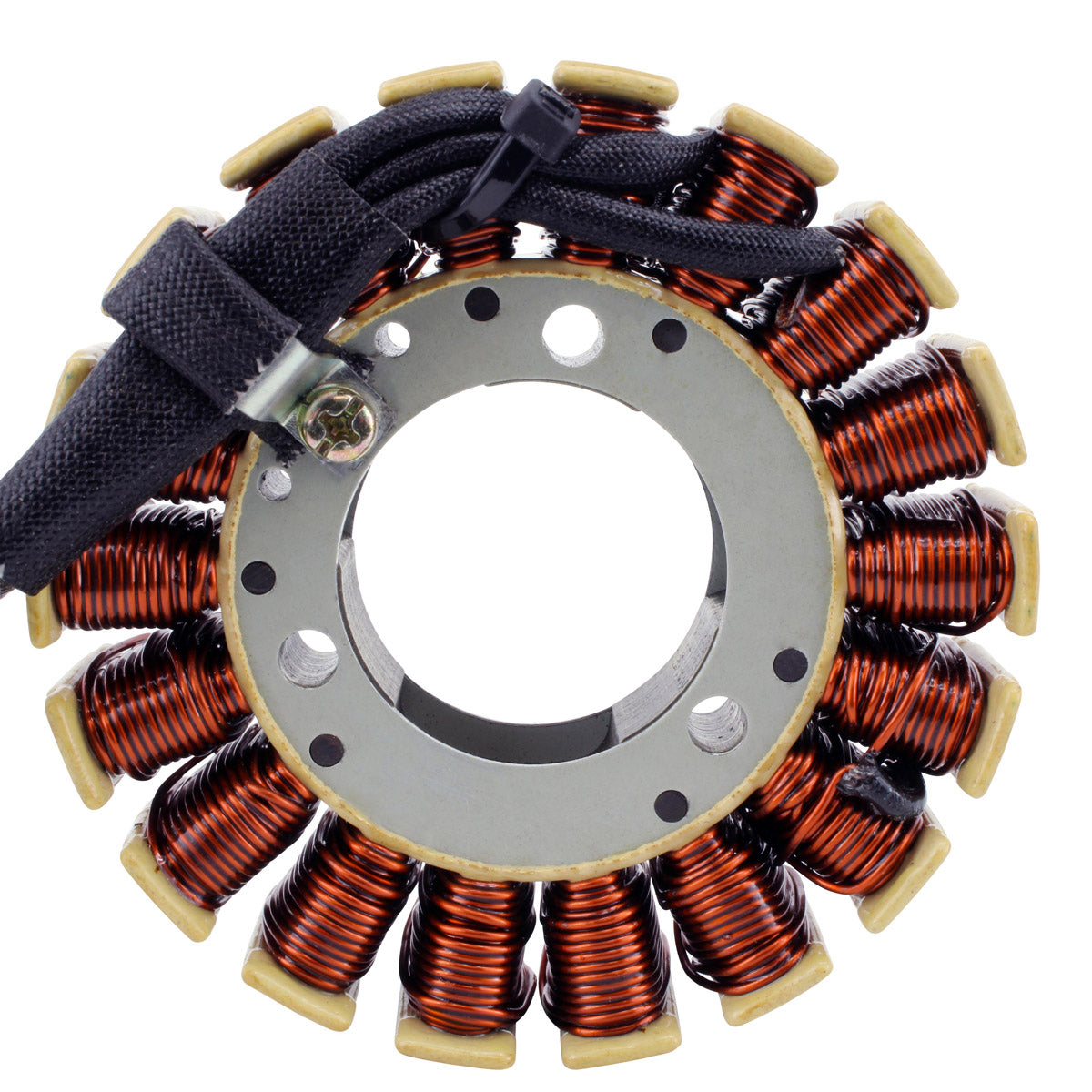

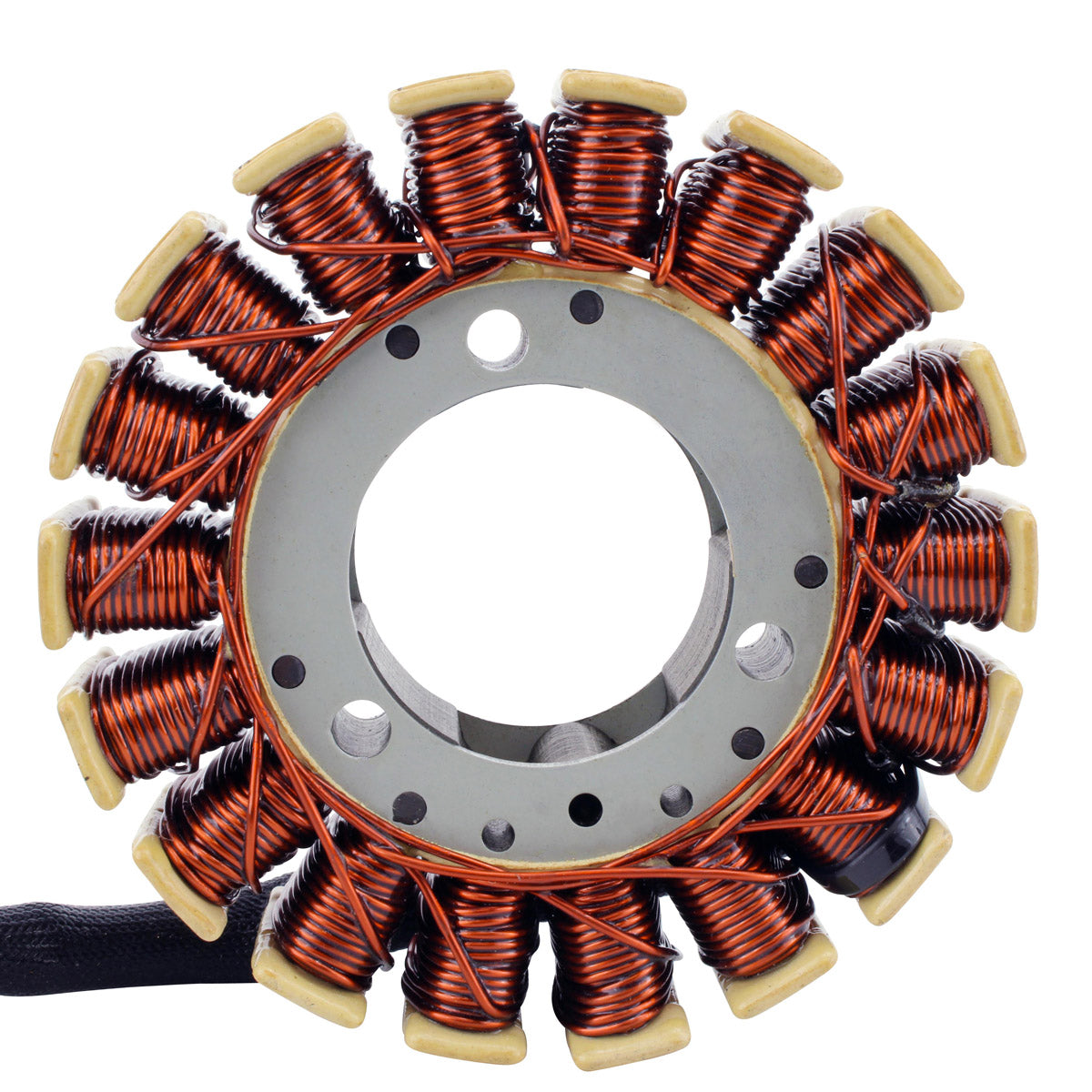

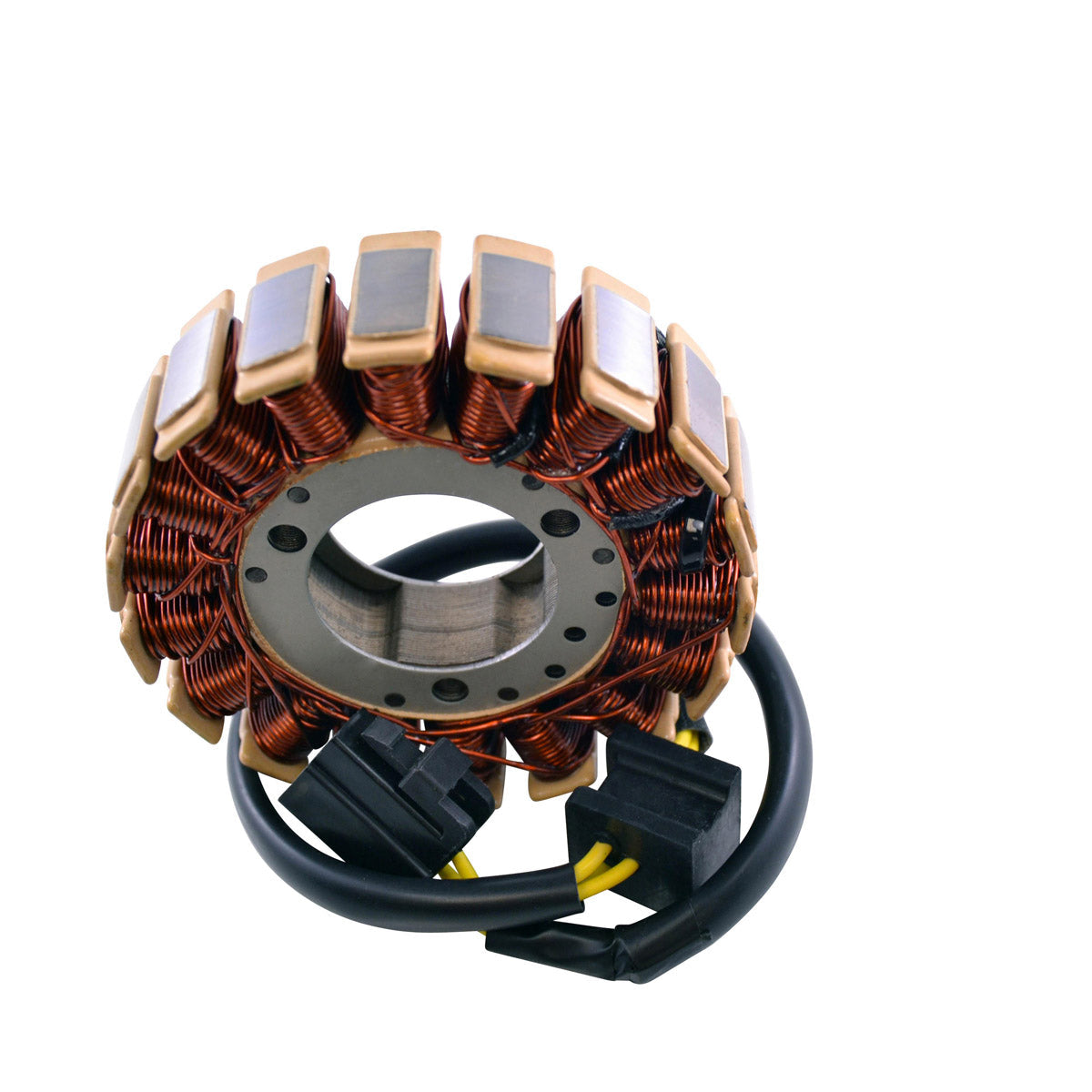

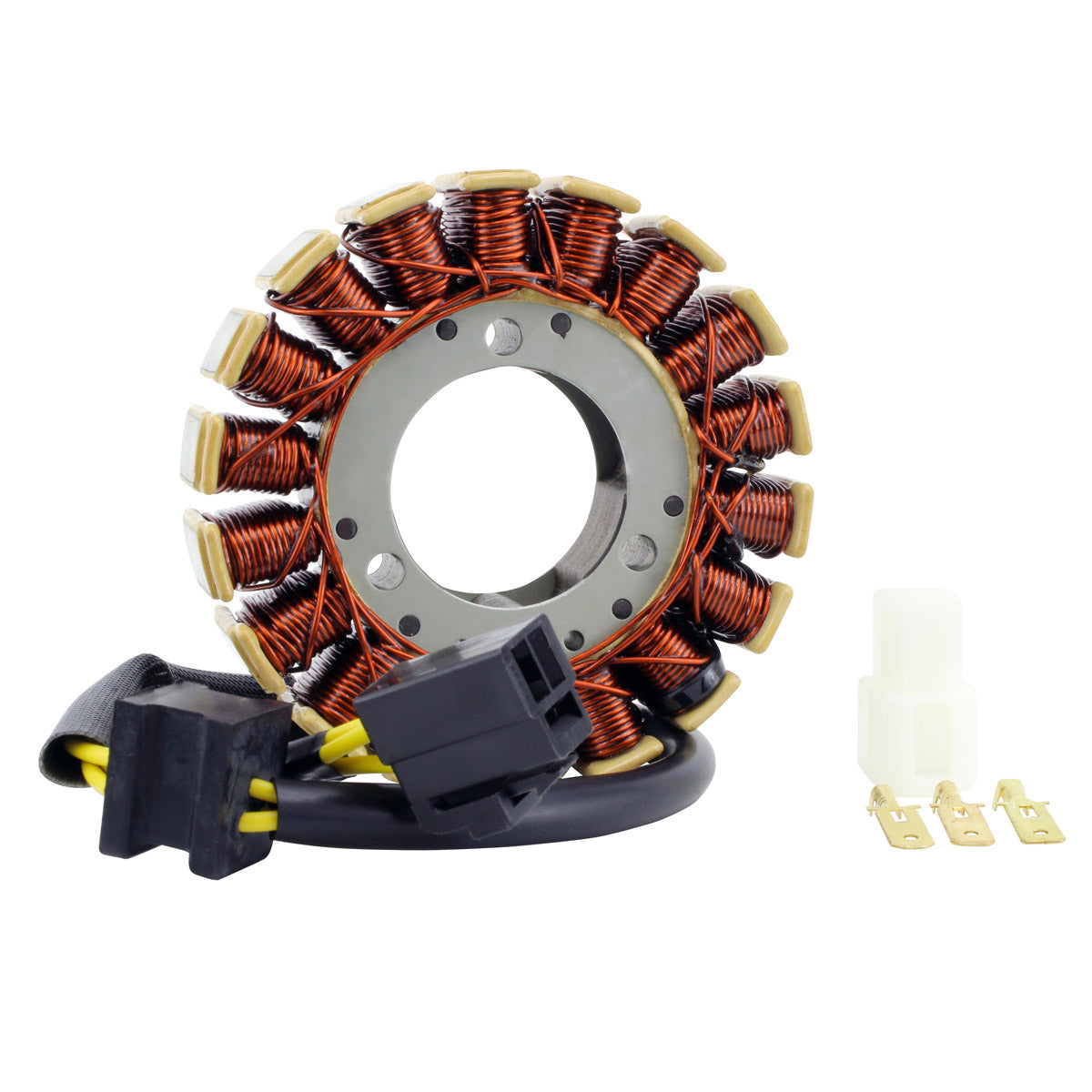

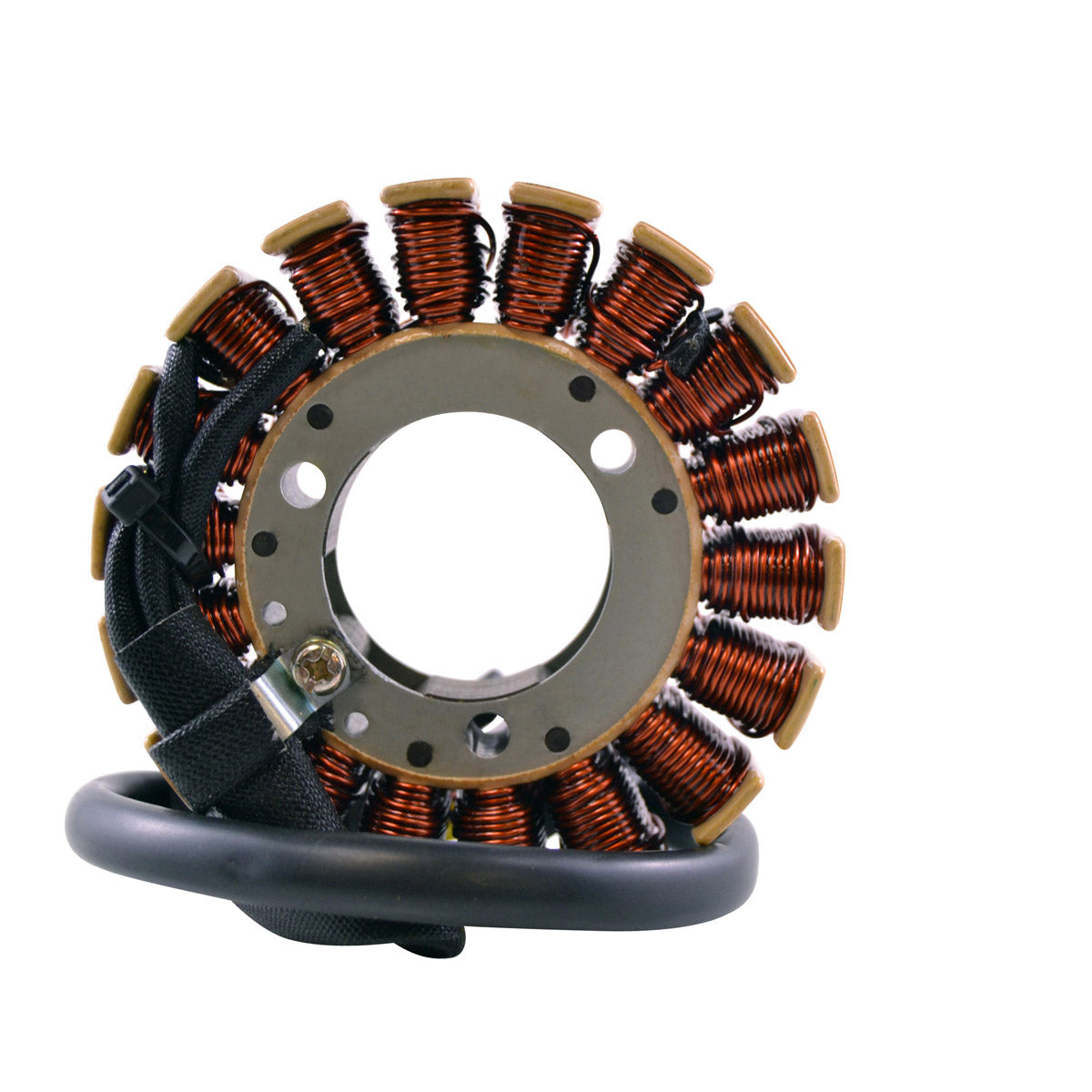

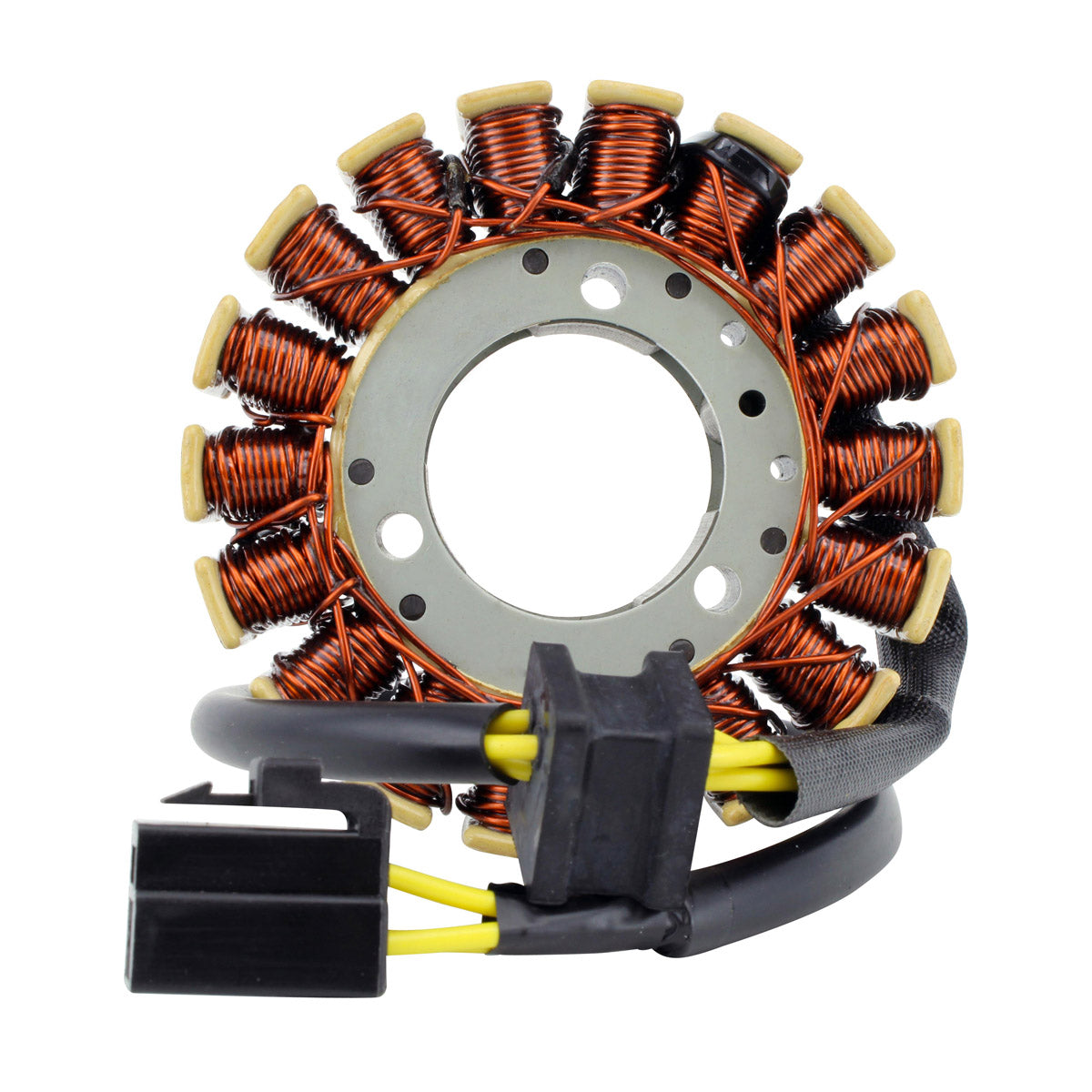

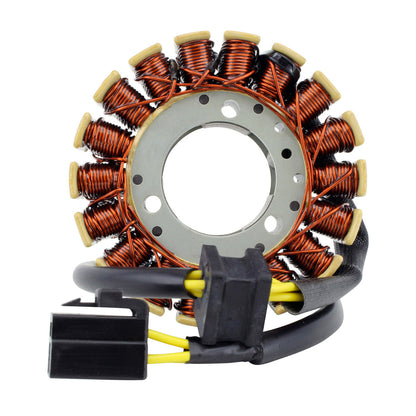

This is a brand new generator stator built as a direct replacement for the original charging unit on the Kawasaki KLF 220 Bayou and KLF 250 Bayou, covering model years 1996 through 2011. The stator sits behind the flywheel and produces all of the electrical power the quad consumes - it supplies the regulator rectifier, which in turn charges the battery and runs the lights, the ignition and the accessories. On a machine of this age the original windings are frequently the first thing to give up, and once they do the battery goes flat no matter how good the battery itself is.
The unit is a plug-and-play, direct fit assembly: three wires into a single three-pin plug, exactly as the factory unit, with the same wire lengths and the same mounting pattern, so nothing needs to be cut, spliced or drilled. It is wound with the highest grade copper, rated to withstand 200 degrees C, on a highest grade lamination stack, and every stator is bench tested before it is packed. A connector and a rubber harness grommet are supplied with the stator so the job can be finished without reusing brittle old rubber or corroded terminals.
Key Features
- Brand new generator stator - direct replacement for the original unit
- Plug-and-play, direct fit - no cutting, splicing or modification

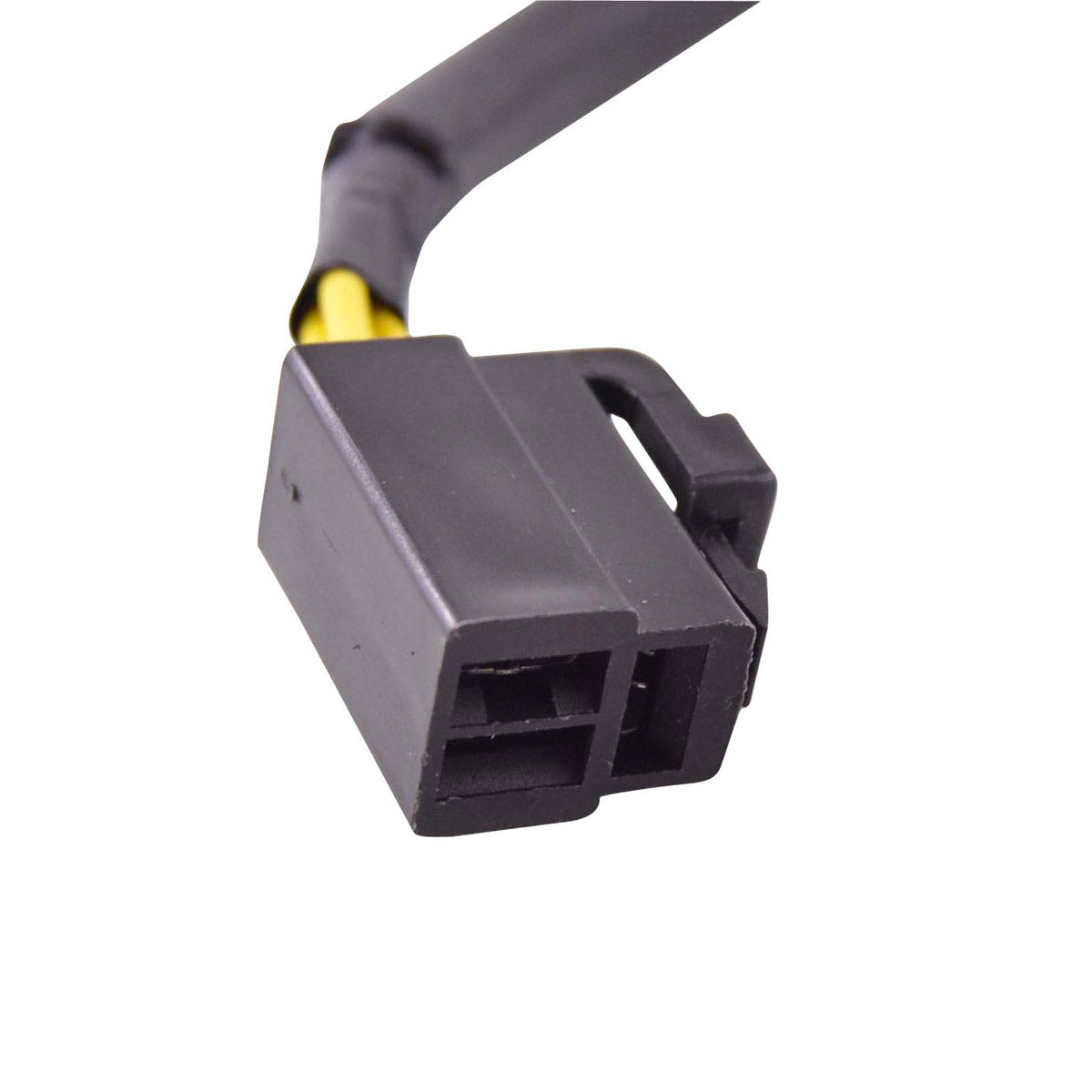

- Simple three-wire, single-plug layout matching the factory harness

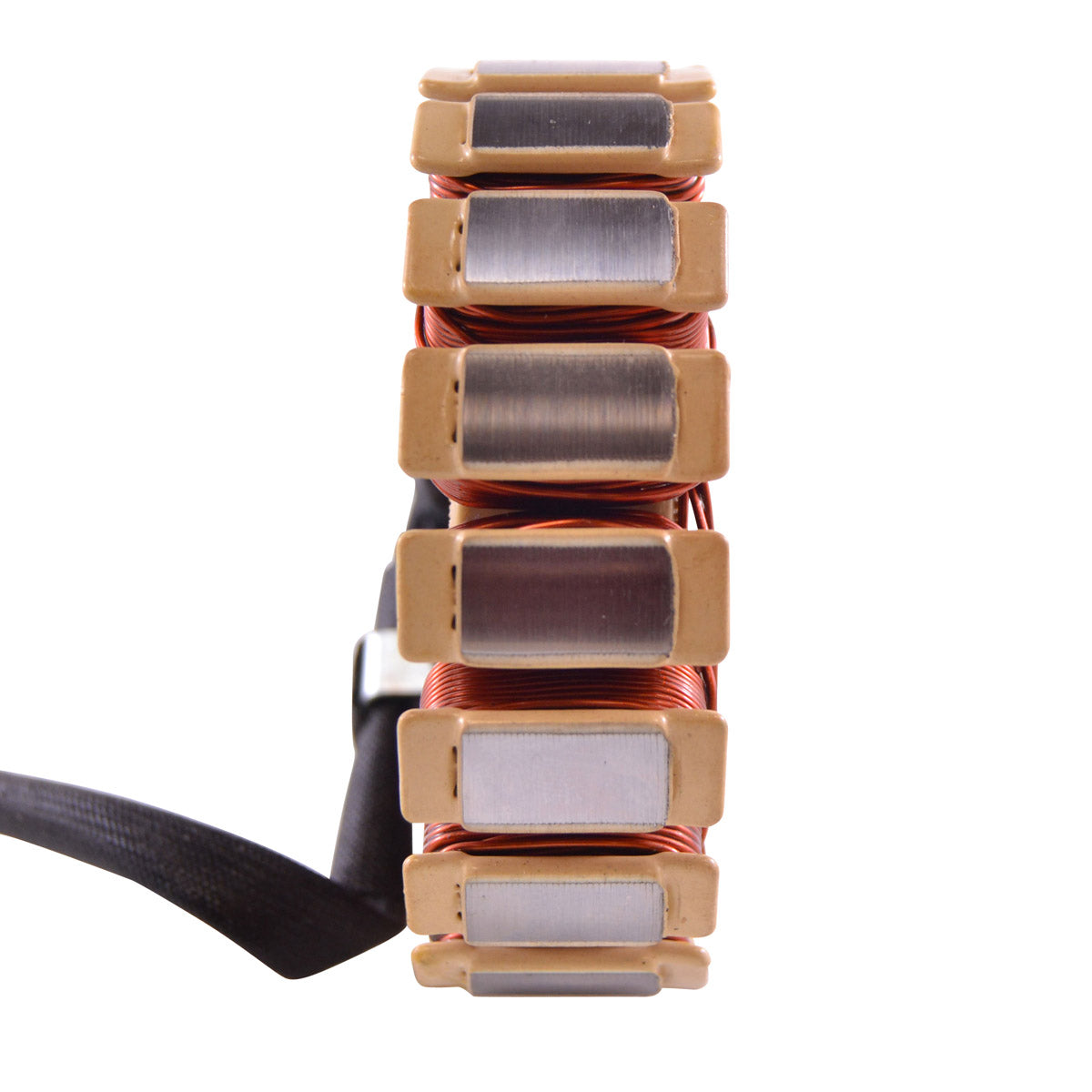

- Highest grade lamination materials for a stable magnetic core
- Highest grade copper windings, resistant to 200 degrees C

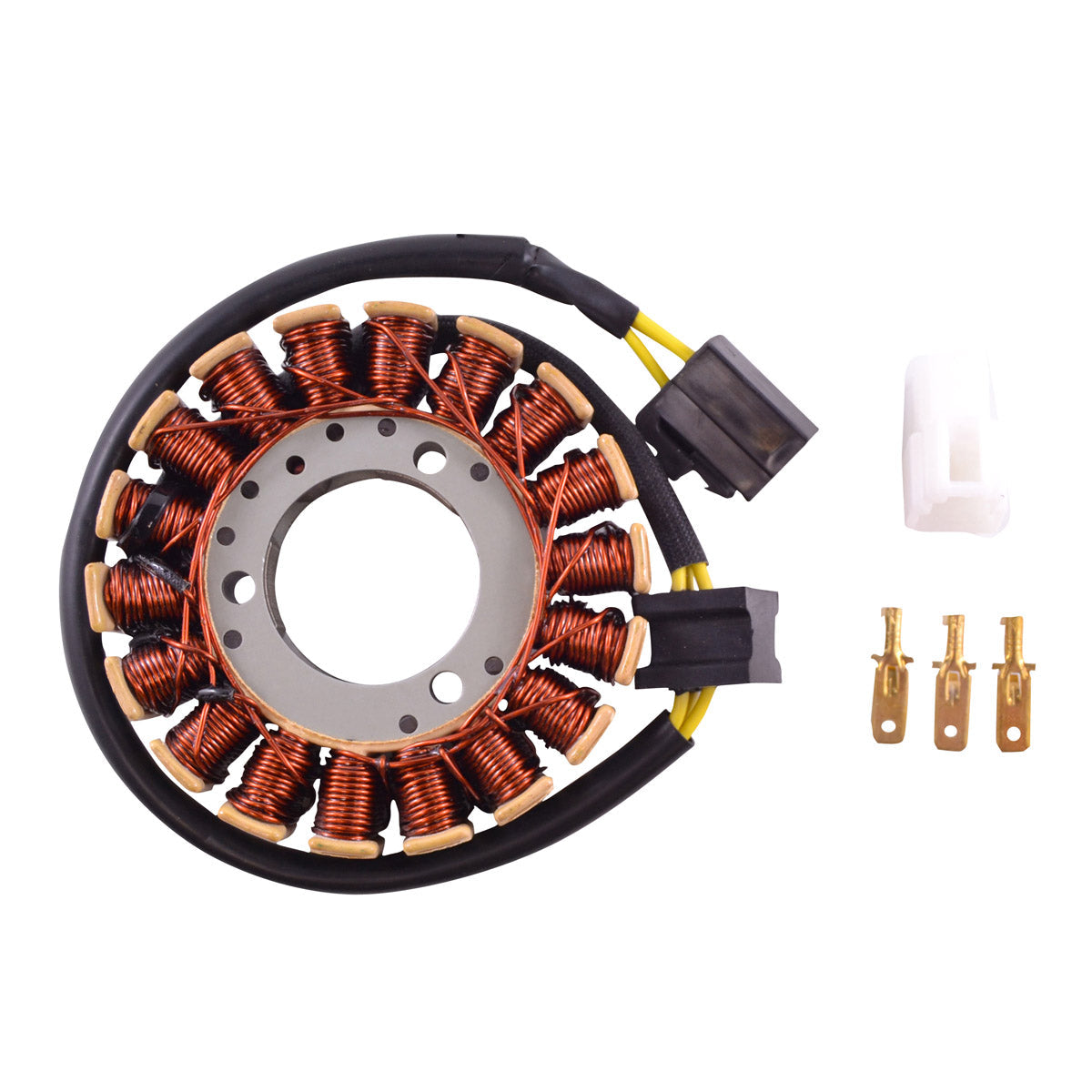

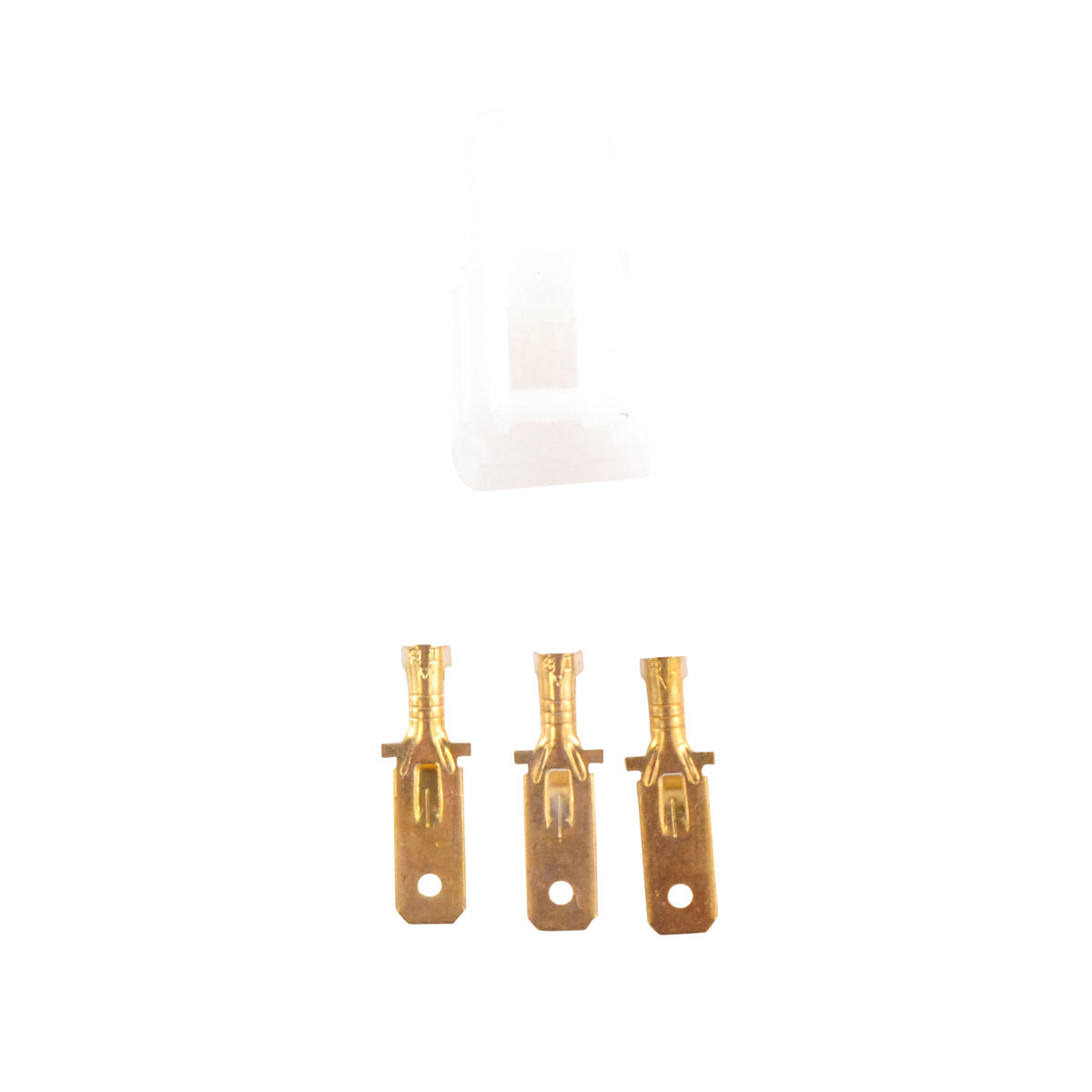

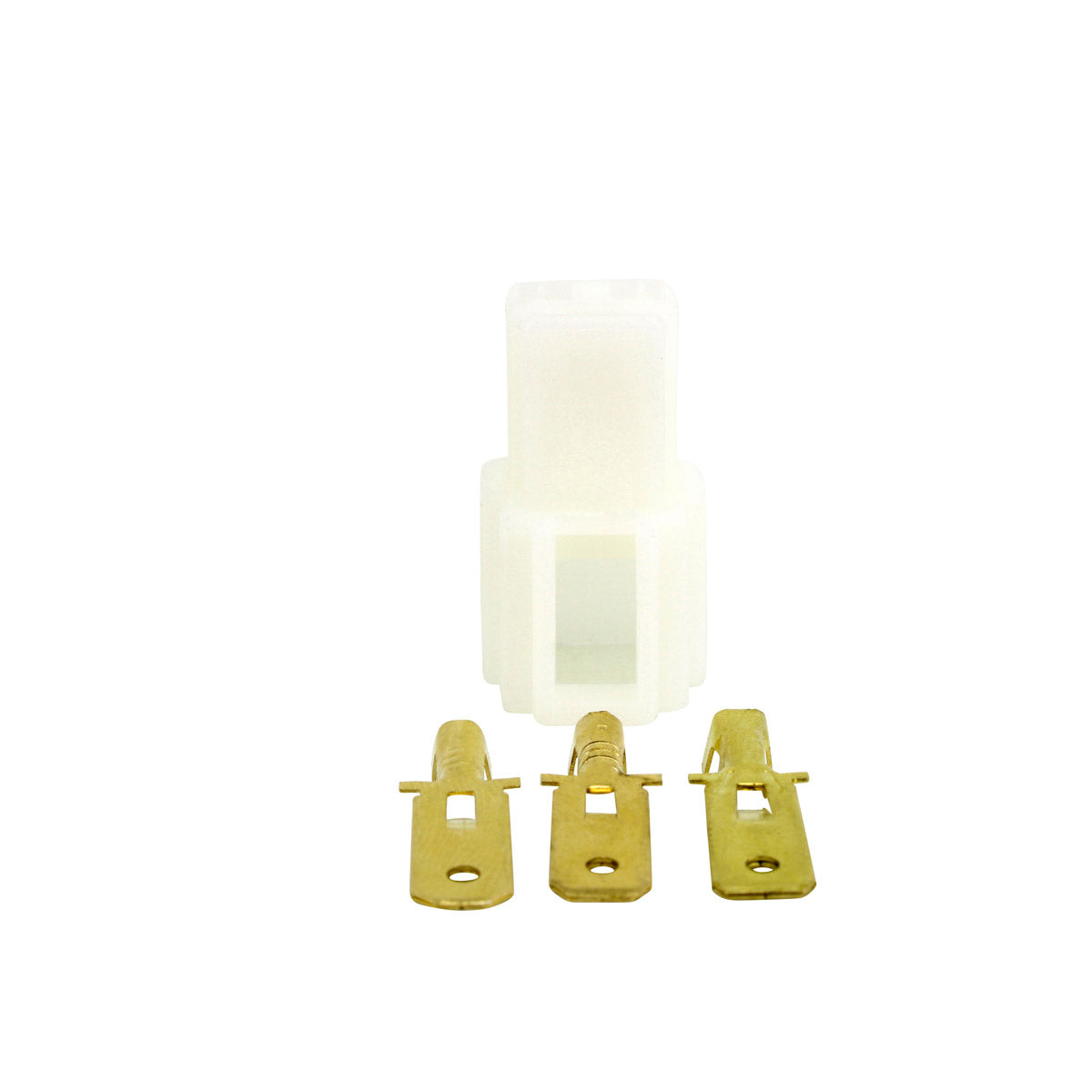

- Connector and rubber grommet included
- Every unit tested before shipment
- Cross references to Kawasaki 21003-1287
Technical Specs
| Specification |
Detail |
| Part number |
RM01319 |
| Interior diameter |
36 mm |
| Exterior diameter |
93 mm |
| Thickness |
18 mm |
| Wire length, stator to grommet |
90 mm |
| Wire length, grommet to plug |
240 mm |
| Number of wires |
3 |
| Number of plugs |
1 |
| Number of pins |
3 |
| Alternator resistance, wire to wire (Yellow) |
0.4 ohms +/- 20% |
| Temperature rating |
200 degrees C |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Kawasaki KLF 220 Bayou |
1996-2011 |
| Kawasaki KLF 250 Bayou |
1996-2011 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 21003-1287 |
Kawasaki |
| RM01319 |
RMSTATOR |
Frequently Asked Questions
Will this fit without modification?
Yes. It is a plug-and-play, direct fit stator for the Kawasaki KLF 220 Bayou and KLF 250 Bayou from 1996 to 2011. The three-wire harness terminates in the same single three-pin plug as the original and the wire lengths match, so no cutting or splicing is needed. Please still check the number on your existing unit before ordering.
What is included in the box?
The generator stator, a connector and a rubber harness grommet. Every unit is tested before it is shipped.
How do I know my old stator has failed?
Typical symptoms are a battery that goes flat within a ride or two, headlights that stay dim as the revs climb, and hard starting. Confirm it with a multimeter: this stator reads about 0.4 ohms +/- 20% wire to wire across the yellow alternator windings. An open circuit means a broken winding, and continuity between any winding and the stator body means it has shorted to earth.
Does this stator include a pickup coil?
No. This application uses a three-wire charging stator only, and the pickup coil is a separate component on these machines. The kit is supplied with the stator, the connector and the rubber grommet.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
