Stator for Kawasaki Ninja ZX-6R 2007-2008 - Replaces 21003-0049
Stator for Kawasaki Ninja ZX-6R 2007-2008 - Replaces 21003-0049
SKU:RMS010-100098
Free shipping over £150. Terms apply
Couldn't load pickup availability
Stator for Kawasaki Ninja ZX-6R
Kawasaki Ninja ZX-6R and ZX6R - 2007 to 2008

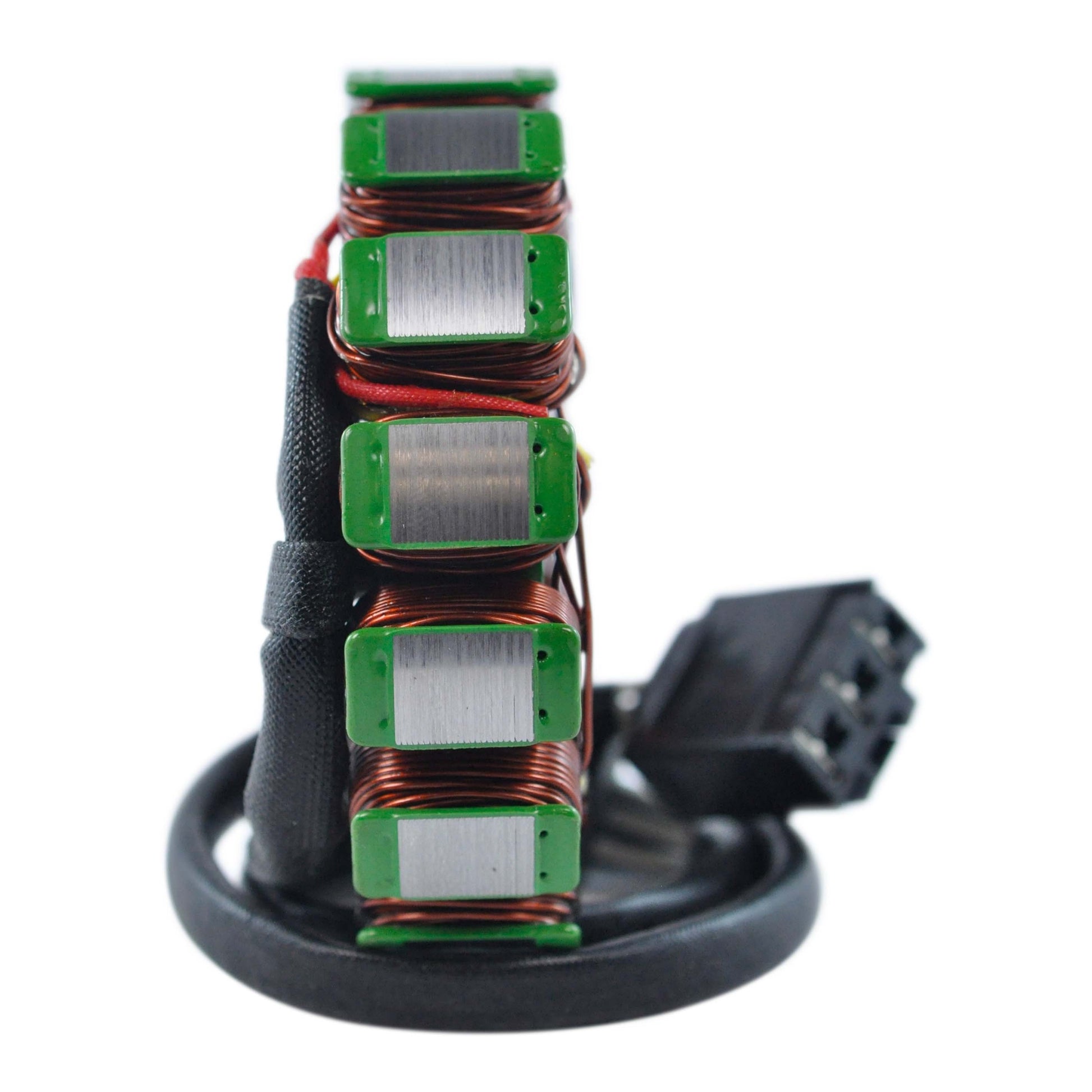

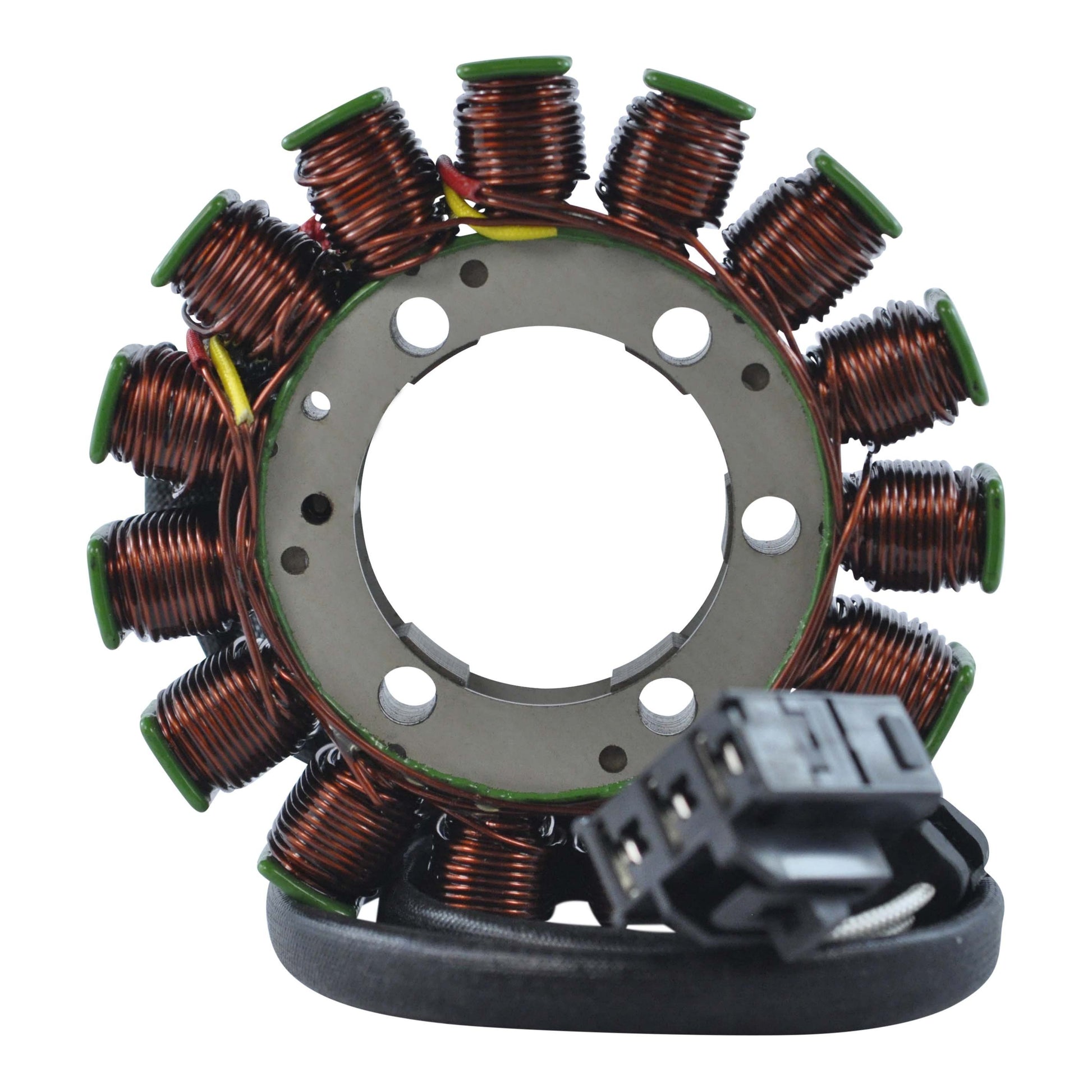

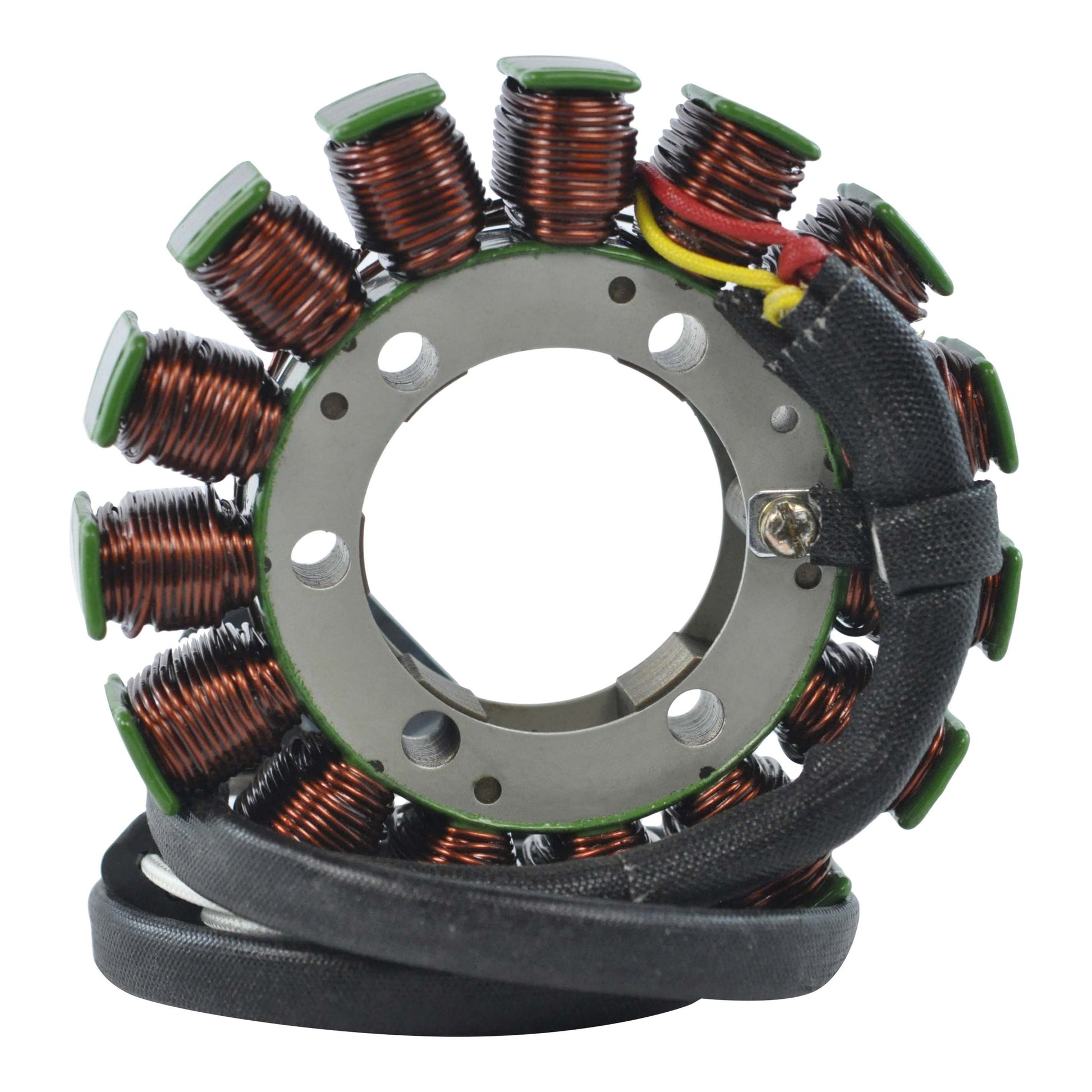

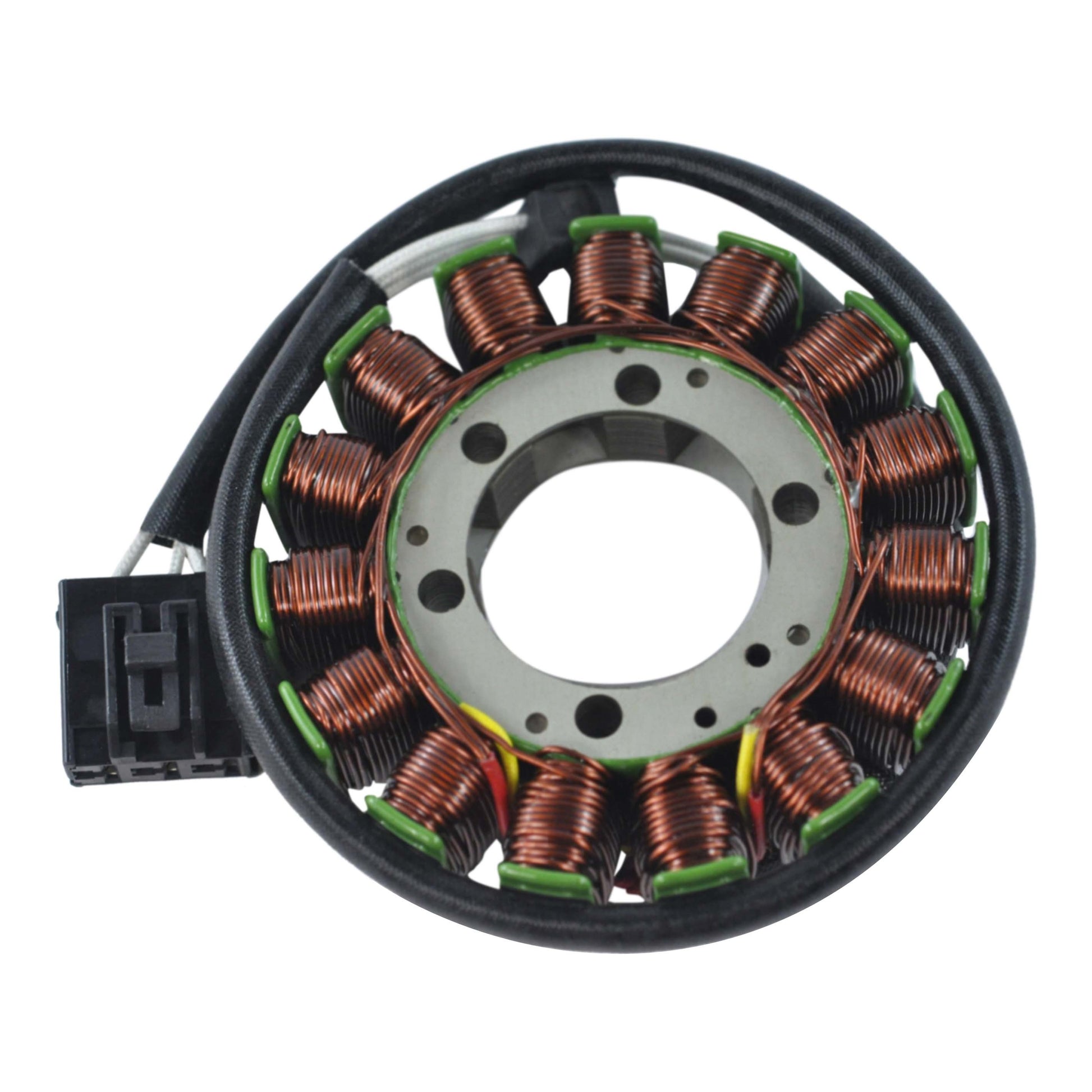

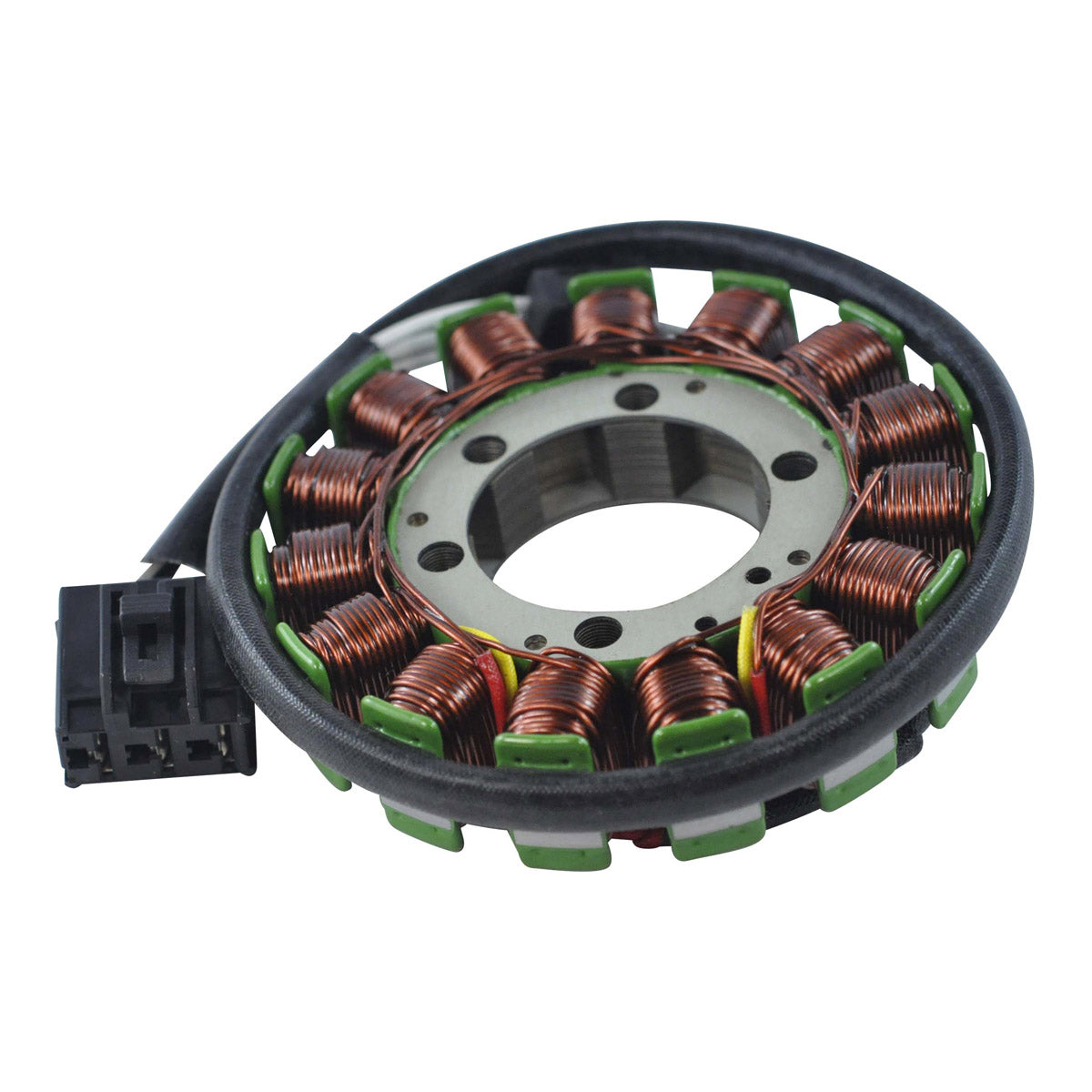

This is a brand new aftermarket stator, a direct replacement for the original charging coil assembly fitted to the 2007 and 2008 Kawasaki Ninja ZX-6R. It is a plug-and-play, direct fit part that drops into the standard mounting position behind the alternator cover and mates with the existing loom, so no cutting, splicing or modification is needed. The connector and rubber grommet are supplied already fitted to the loom.
The unit is wound with the highest grade copper and built on the highest grade lamination materials, with the winding insulation resistant to 200 degrees Celsius. On a high-revving supersport engine the stator runs immersed in hot oil for long periods, and that temperature rating is what stops the varnish breaking down and shorting a leg to earth. Every unit is tested before it is shipped. The package also contains an additional connector for the main harness side, because those plugs are often found melted, corroded or defective and are a major cause of repetitive electrical issues - fitting a new stator into a burnt harness plug usually brings the same fault straight back. Part number RMS010-100098.
Key Features
- Brand new aftermarket stator, direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

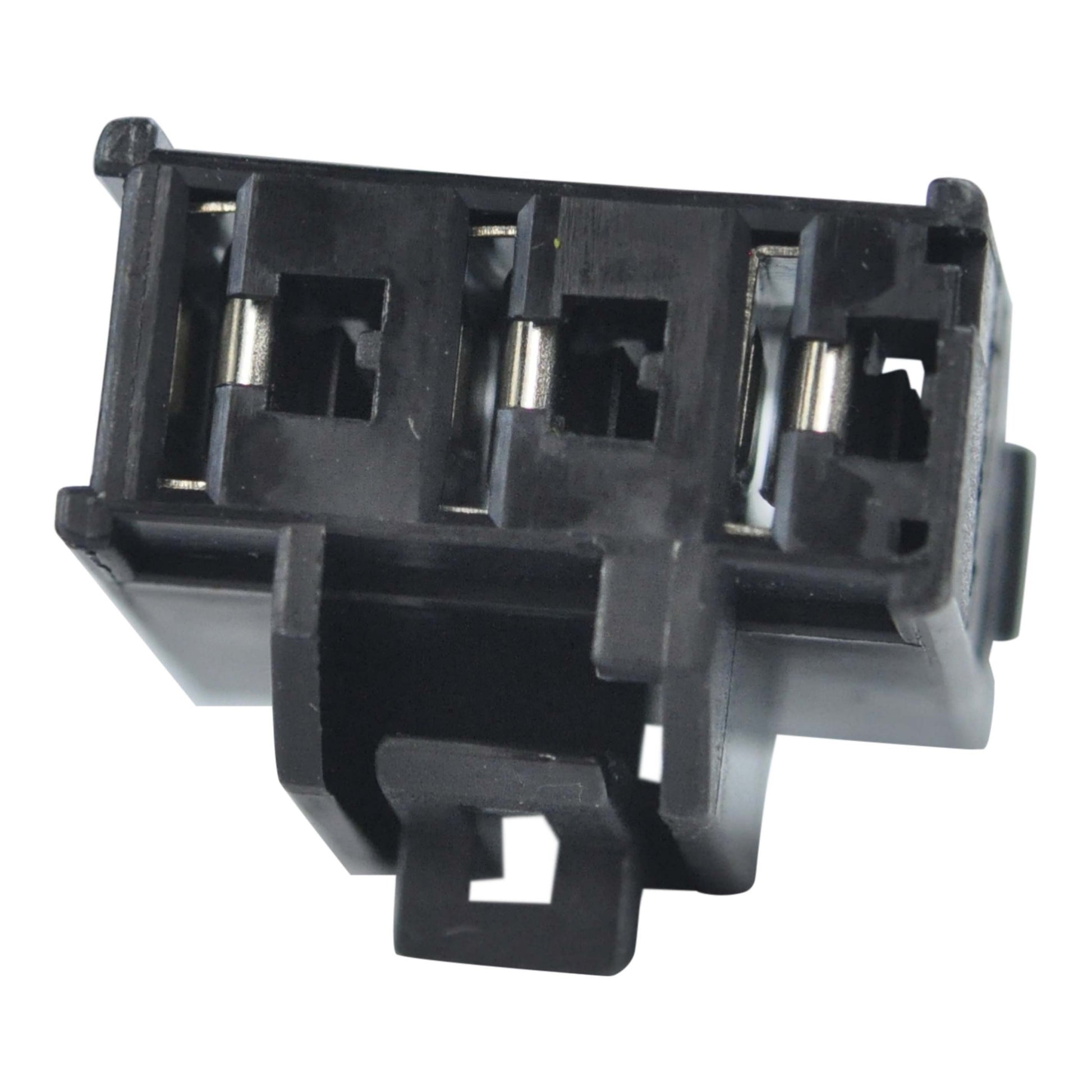

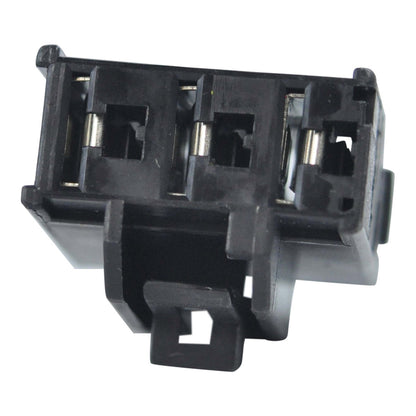

- Connector and rubber grommet supplied

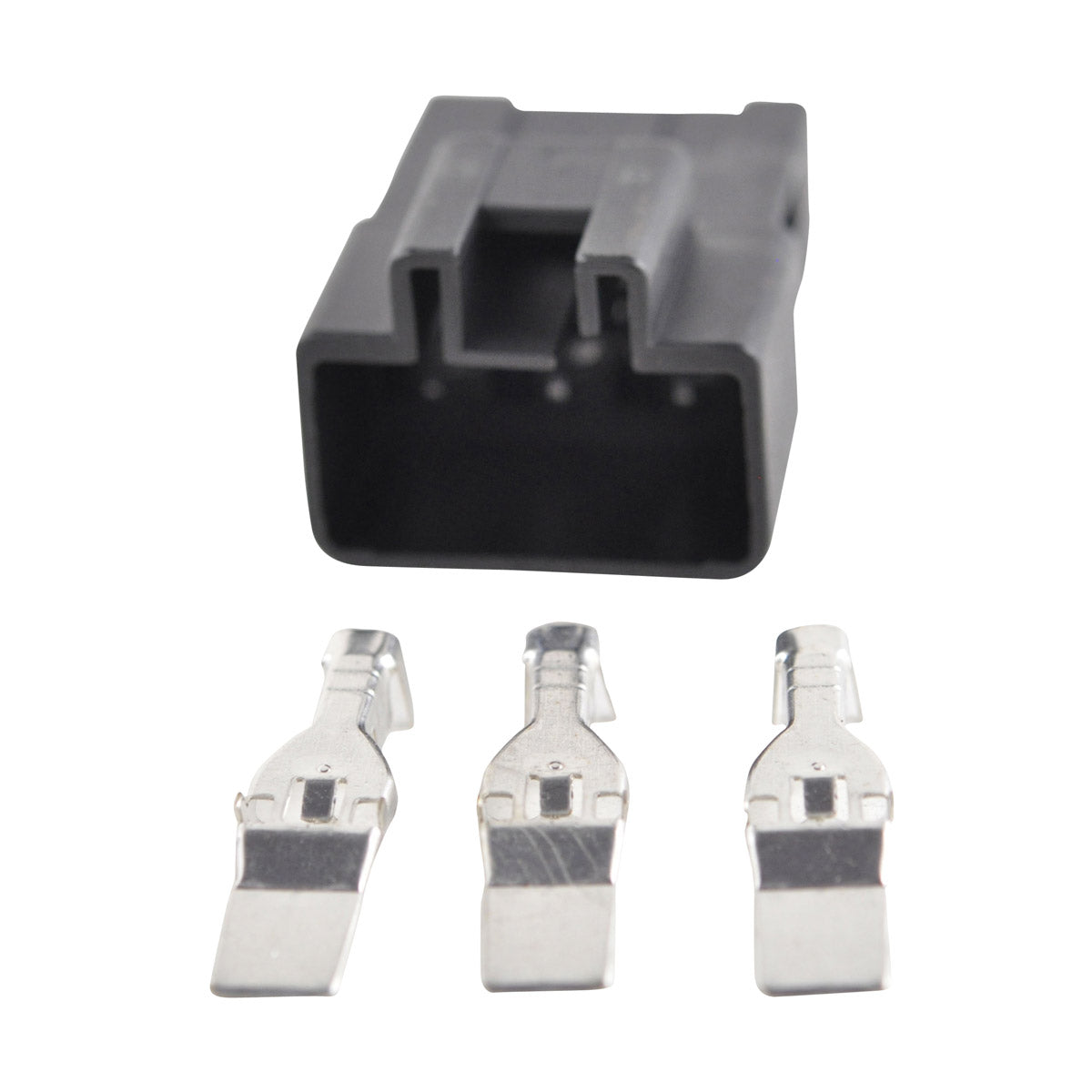

- Additional main harness side connector and connector pins included
- Every unit tested before shipping
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 43.4 mm |
| Exterior diameter | 105 mm |
| Thickness | 16.5 mm |
| Wire length, stator to grommet | 100 mm |
| Wire length, grommet to plug | 500 mm |
| Number of wires | 3 |
| Number of plugs | 1 |
| Number of pins | 3 |
| Wire-to-wire resistance, white to white | 0.4 ohms +/- 20% |
| Winding temperature rating | 200 degrees Celsius |
| Part number | RMS010-100098 |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Kawasaki Ninja ZX-6R / ZX6R | 2007-2008 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 21003-0049 | Kawasaki |
Frequently Asked Questions
Does it fit without modification?
Yes. It is a plug-and-play, direct fit replacement for the standard stator on the 2007 and 2008 Kawasaki Ninja ZX-6R, using the original mounting points and the original loom connector. Please confirm the number stamped on your existing unit matches 21003-0049 before ordering.
What is included in the box?
The stator unit with its connector already fitted, the rubber grommet, an opposite connector for the main harness side, and additional connector pins.
How do I tell whether my old stator has failed?
Unplug the connector and measure between the three white wires. Each pair should read approximately 0.4 ohms, within plus or minus 20 per cent, and the readings should be consistent across all three pairs. An open circuit, a shorted reading, or one leg noticeably different from the other two points to a failed winding. Then check each white wire for continuity to the engine case - any reading at all means the insulation has broken down and the stator must be replaced.
Why does it come with a spare connector?
The main harness side connector on this model is frequently melted, corroded or defective by the time the stator gives up, and is a major cause of repetitive electrical issues. The extra plug and pins let you renew that side of the joint while the fairing is already off.
