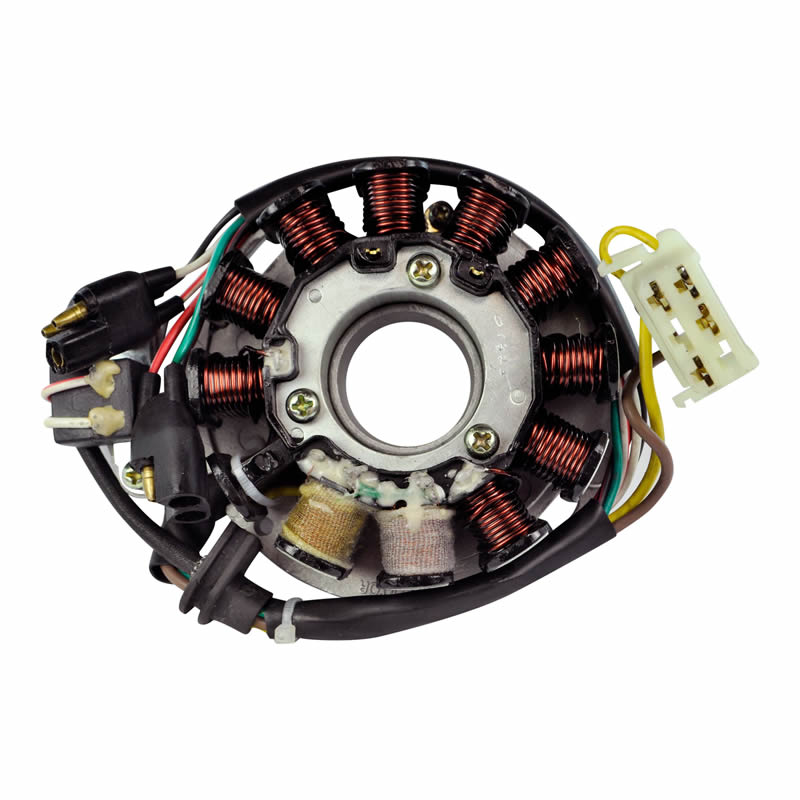

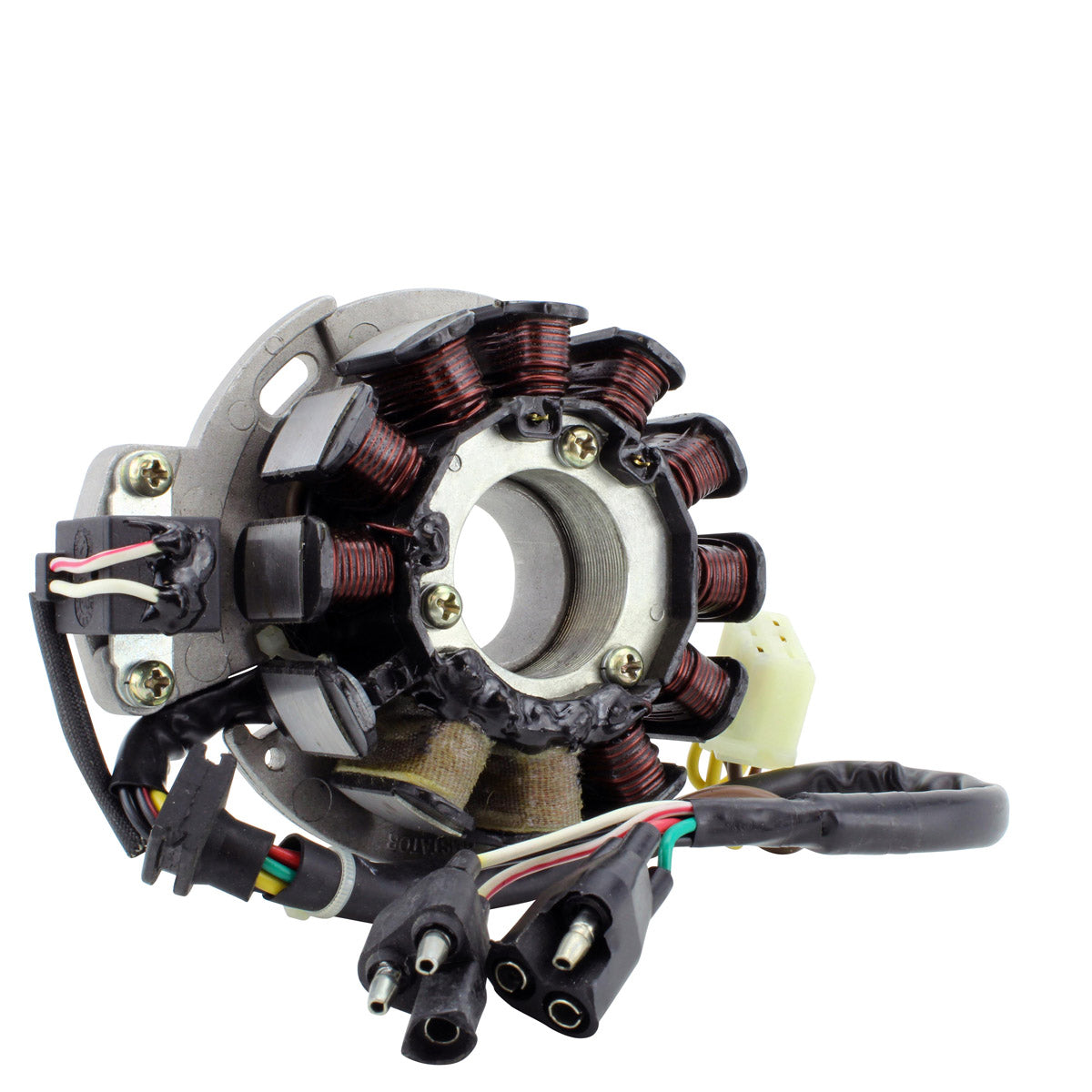

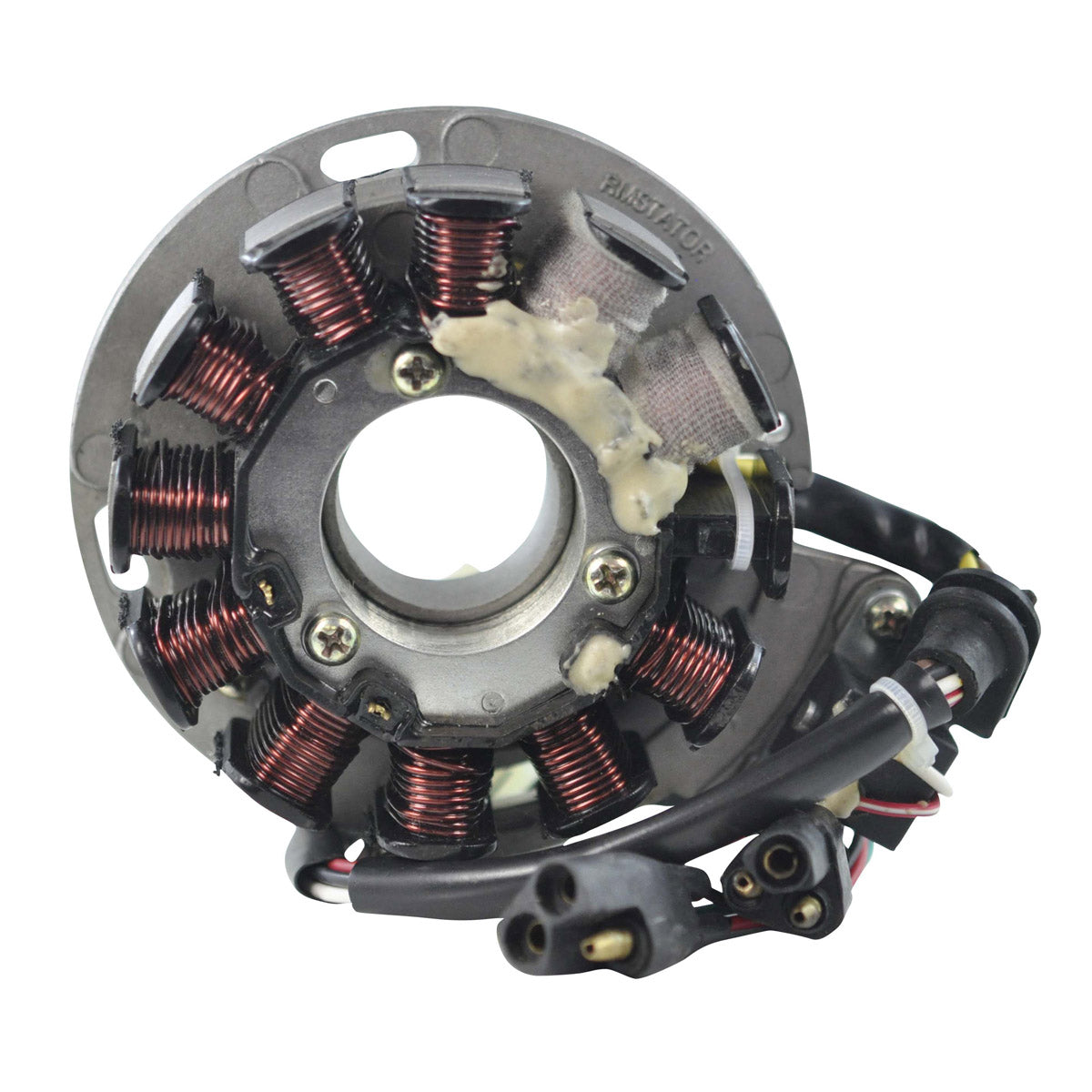

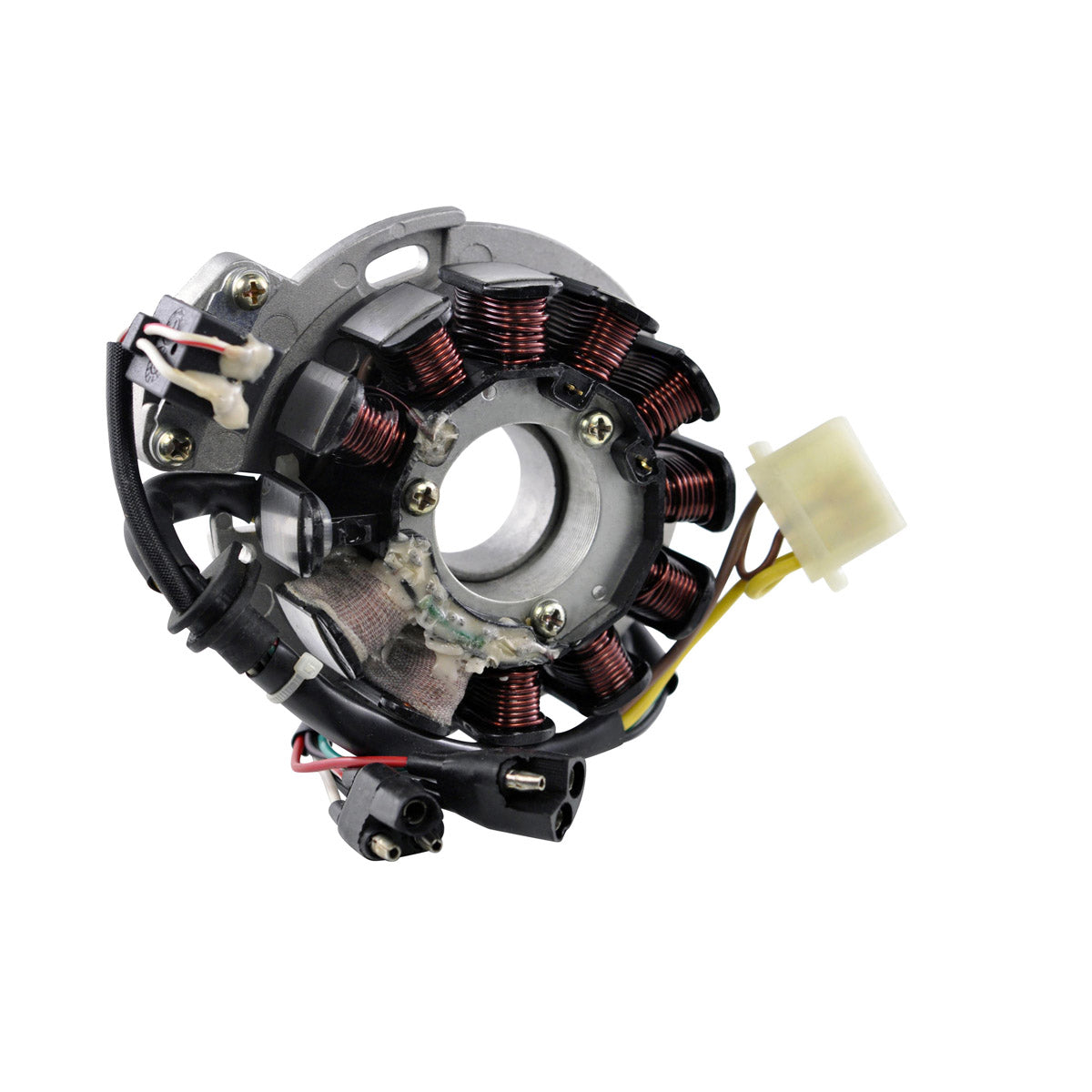

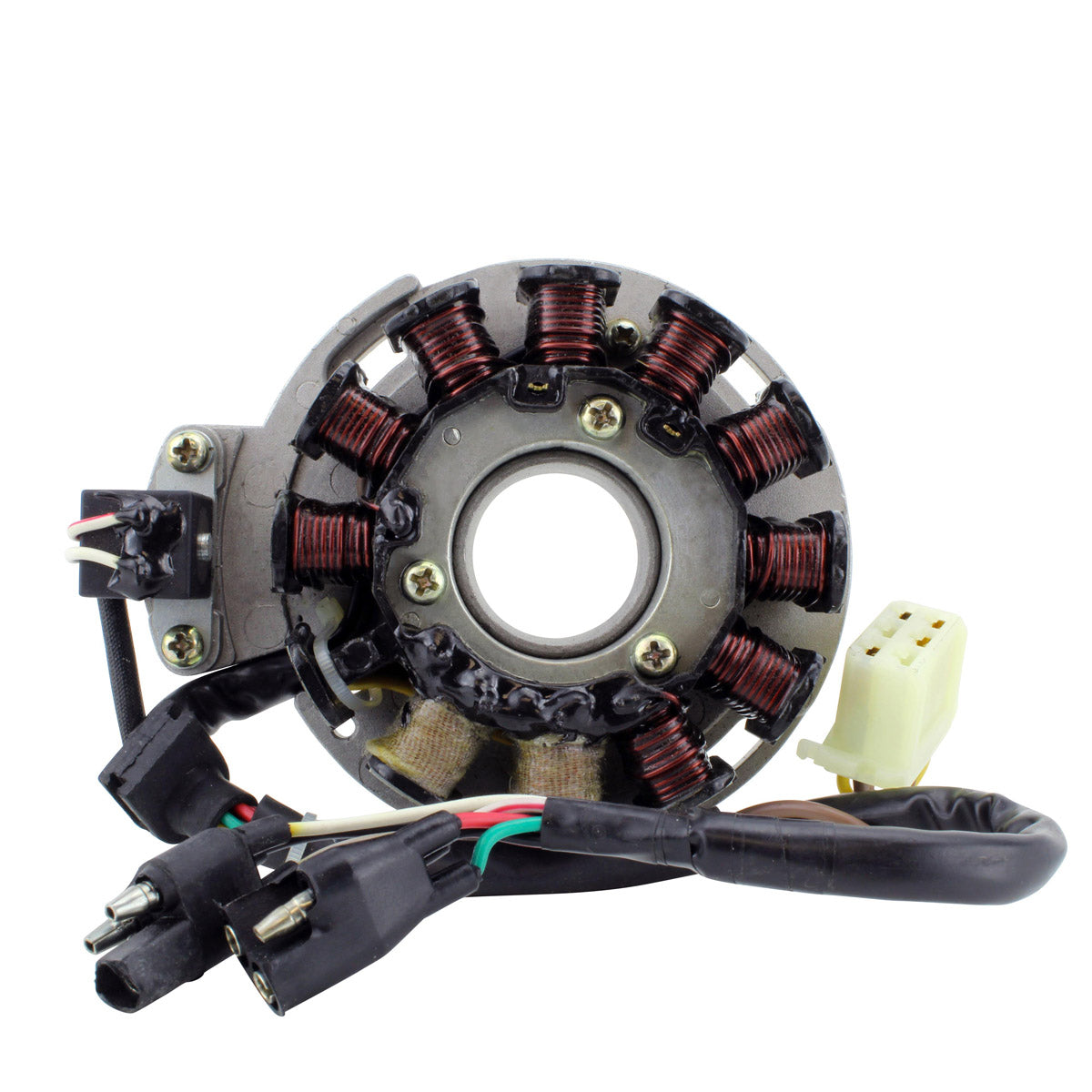

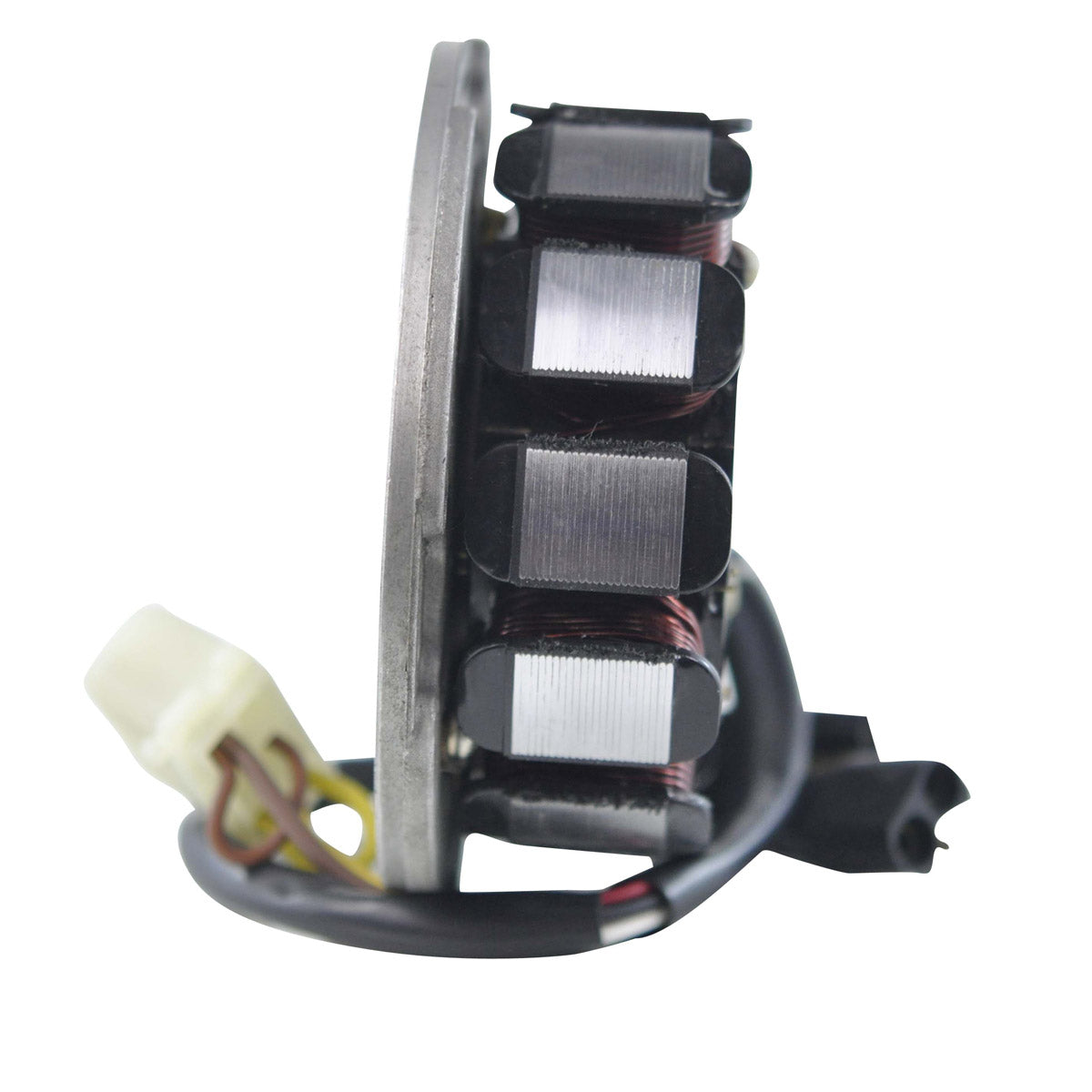

Stator for Polaris 440, 500, 600 and 700 Snowmobiles
440 Pro / XC, 500 XC, 600 RMK / HO Fusion / Pro and 700 Edge / RMK - 1999 to 2009 - RMSTATOR RM01325

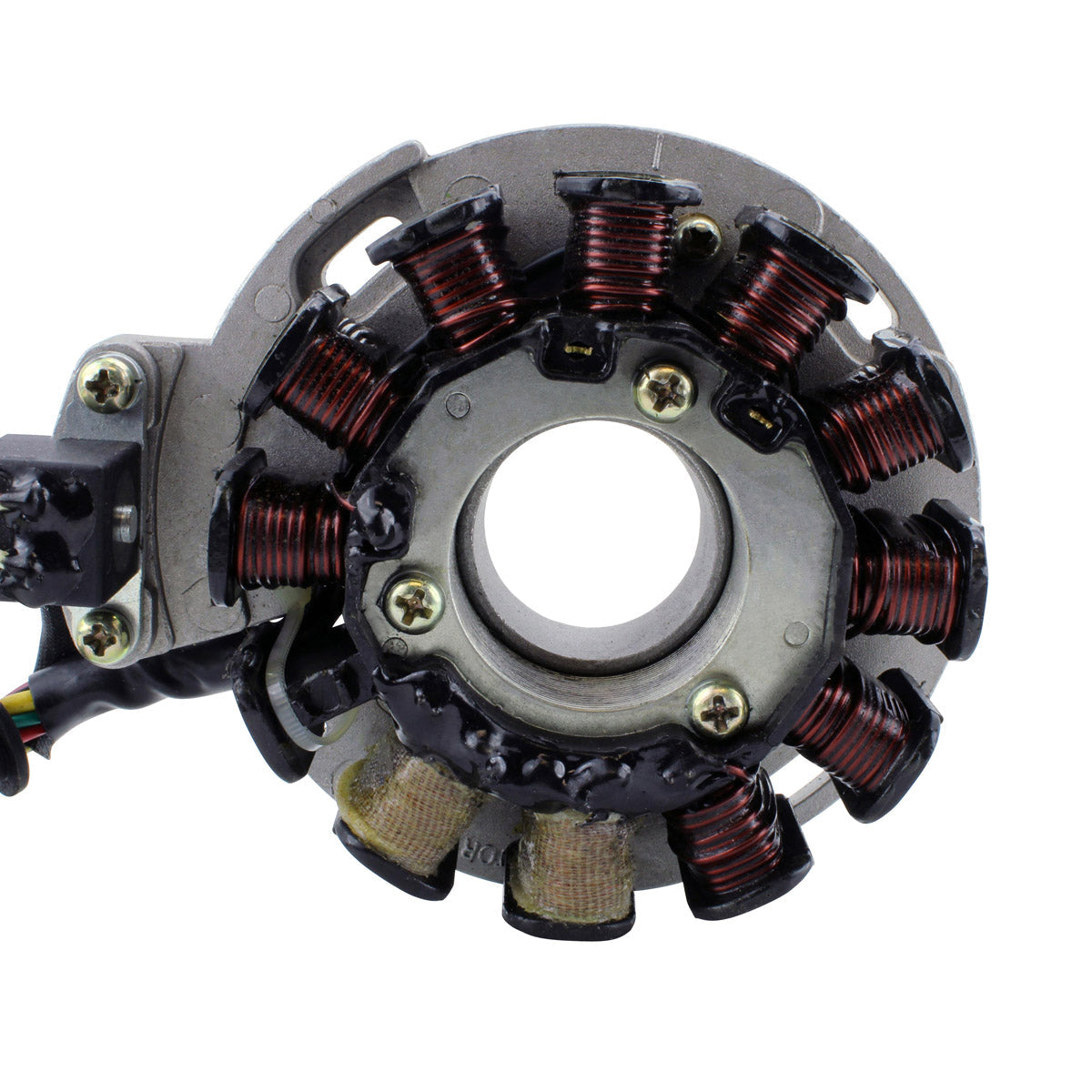

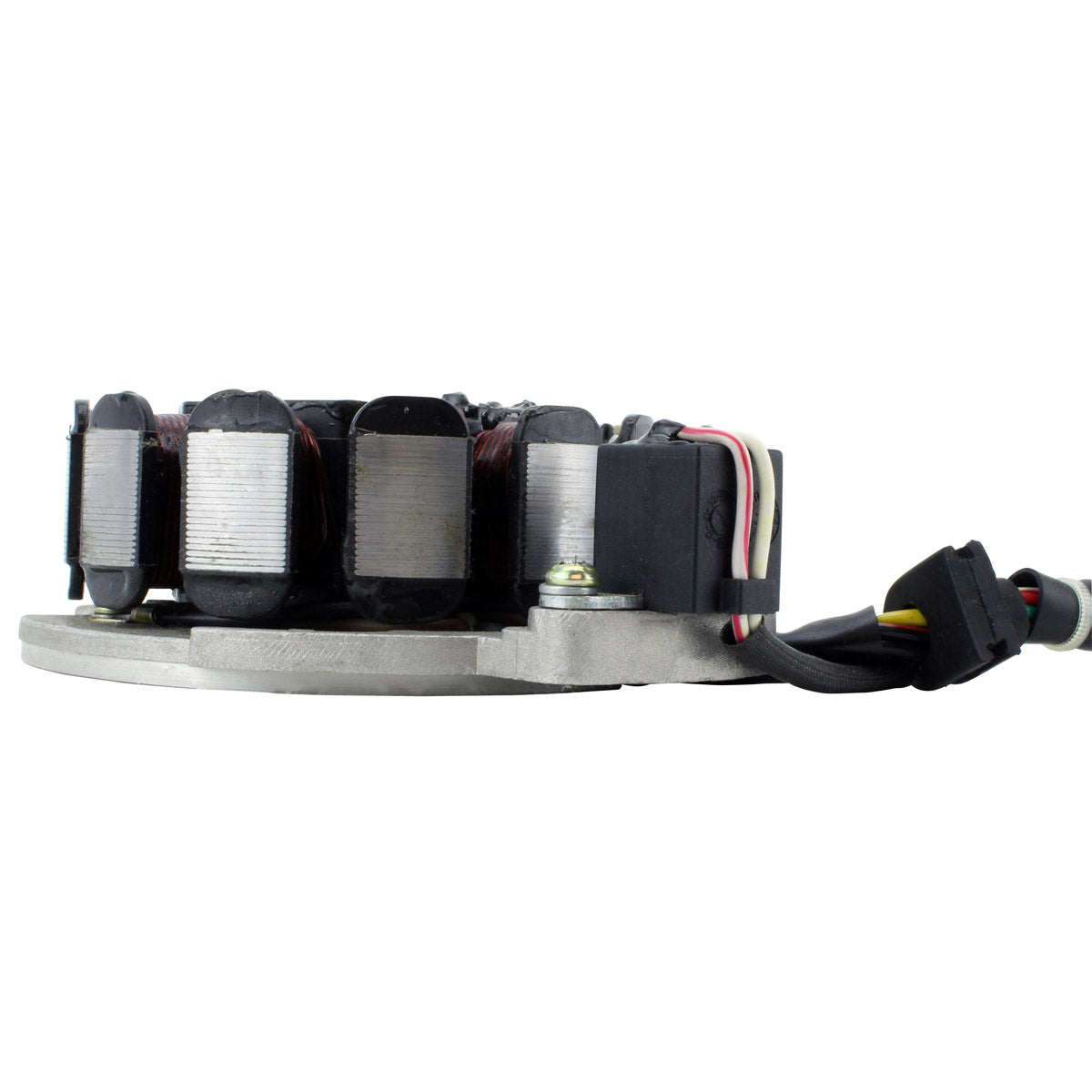

A brand new aftermarket stator built as a direct replacement for the original charging and ignition unit fitted to Polaris 440, 500, 600 and 700 class snowmobiles built between 1999 and 2009. It is a plug-and-play, direct fit assembly, so it mounts in the factory position on the original fixings and requires no modification to the engine, the flywheel or the wiring loom.

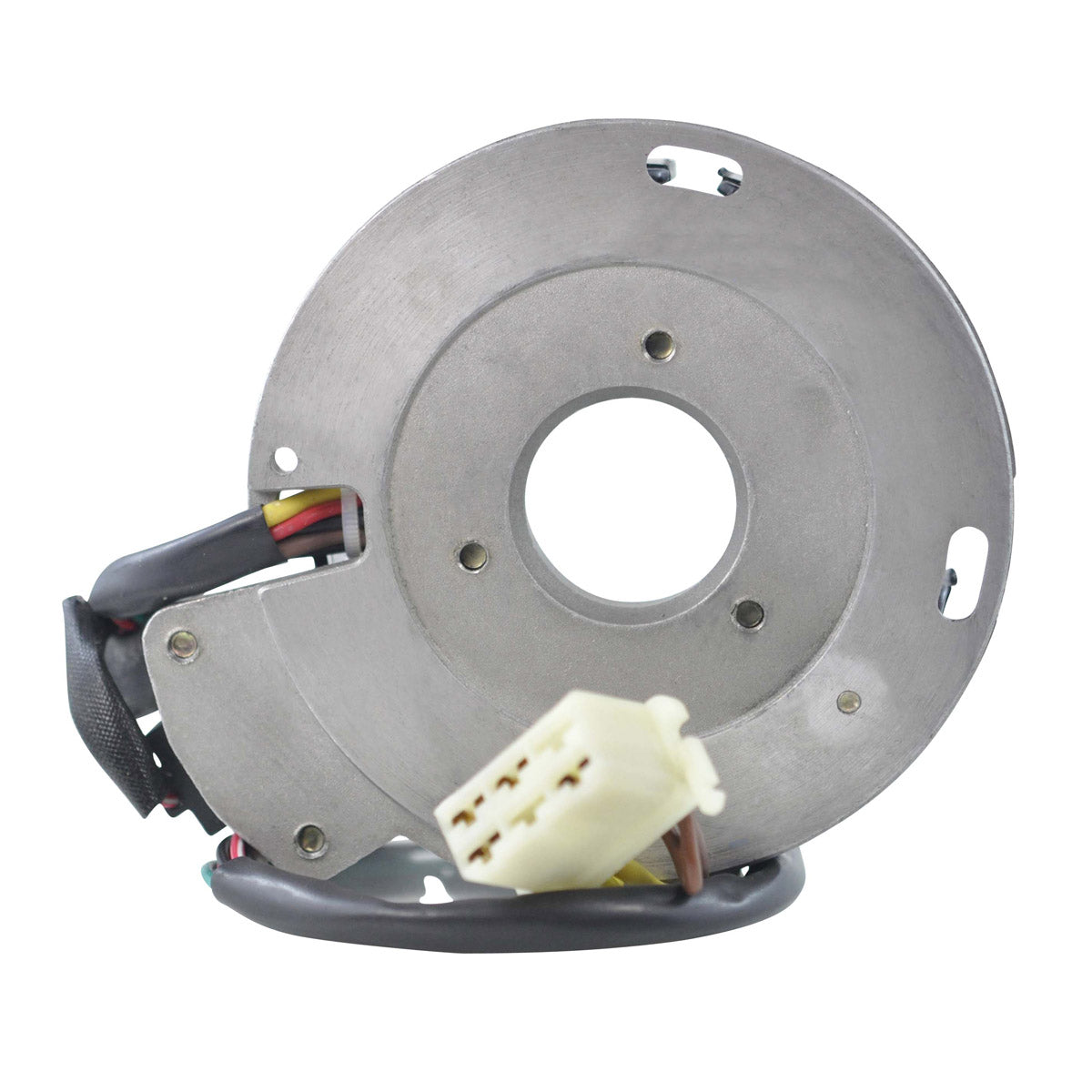

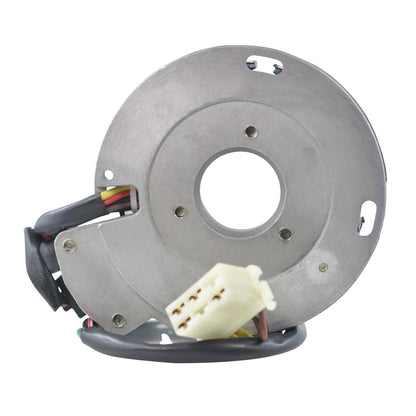

This is a complete assembly rather than a bare stator. The pick-up pulsar coil, the connector, the rubber grommet and the back plate are all supplied with it, so there is nothing to strip off the old unit before fitting. It is built on the highest grade lamination materials and wound with the highest grade copper, rated to withstand 200 degrees Celsius. Every unit is bench tested before it is shipped.
Key Features
- Direct replacement for the original Polaris stator
- Plug-and-play, direct fit, easy installation
- No modification to engine, flywheel or loom required
- Pick-up pulsar coil included

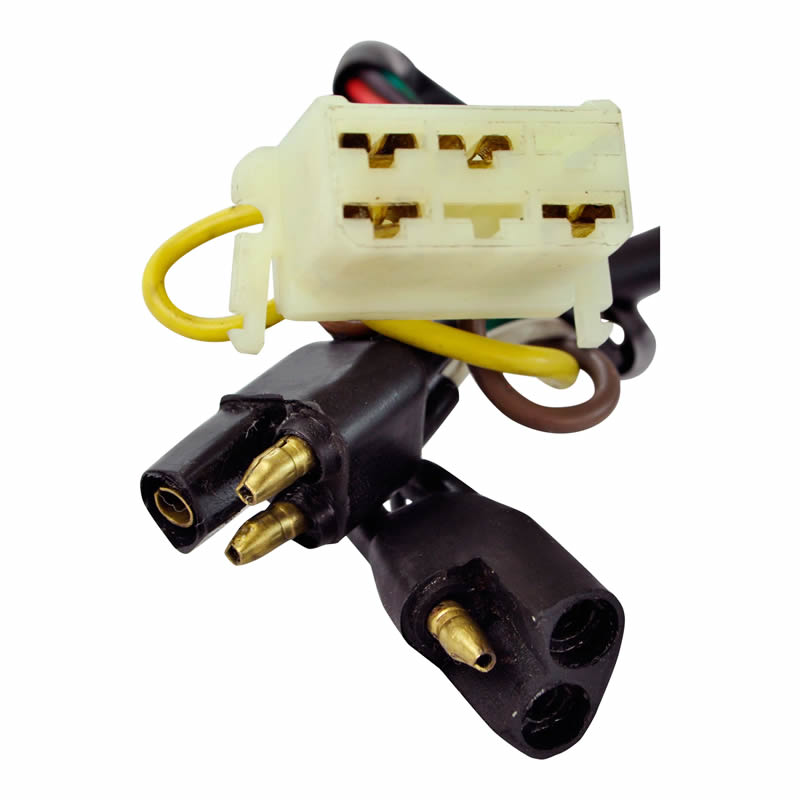

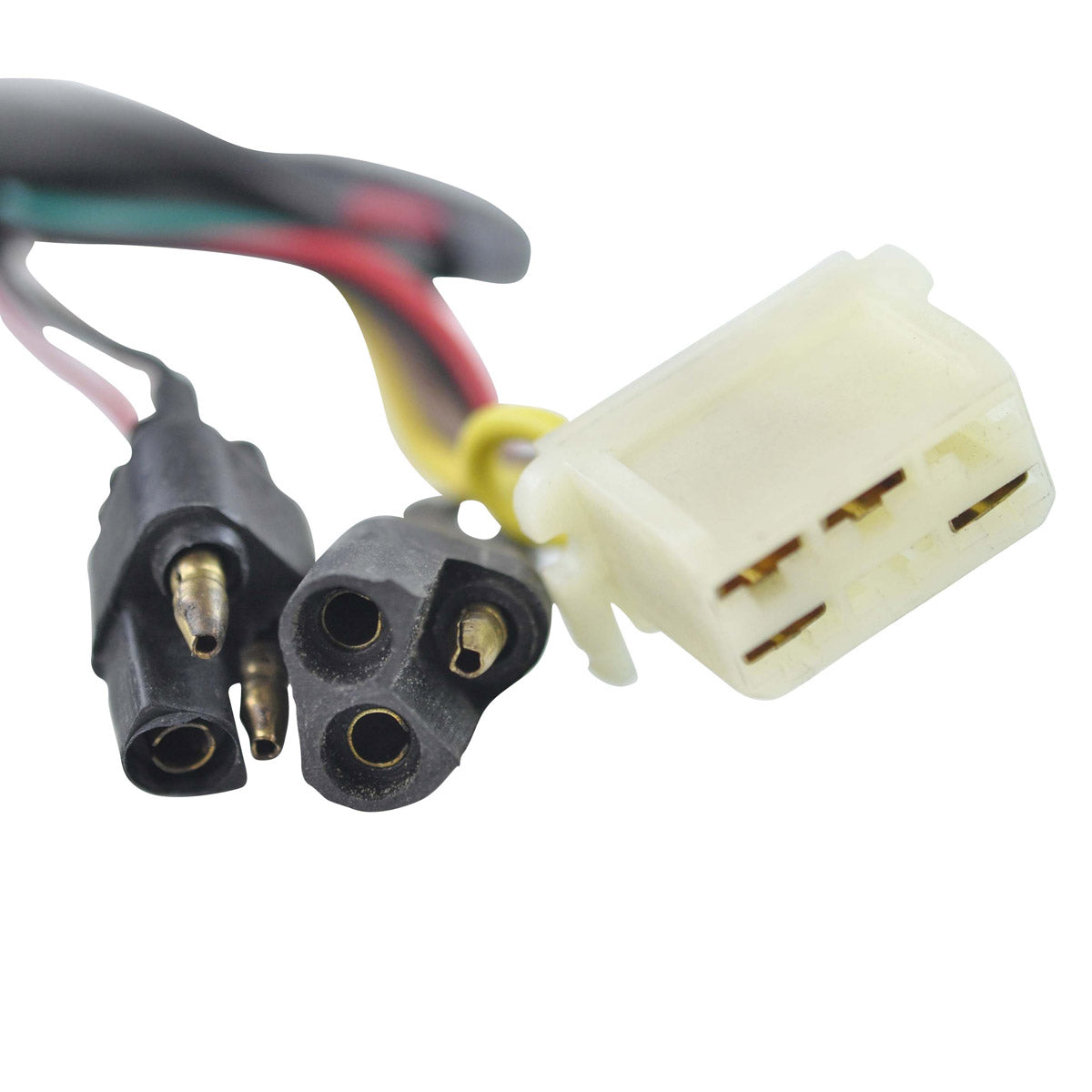

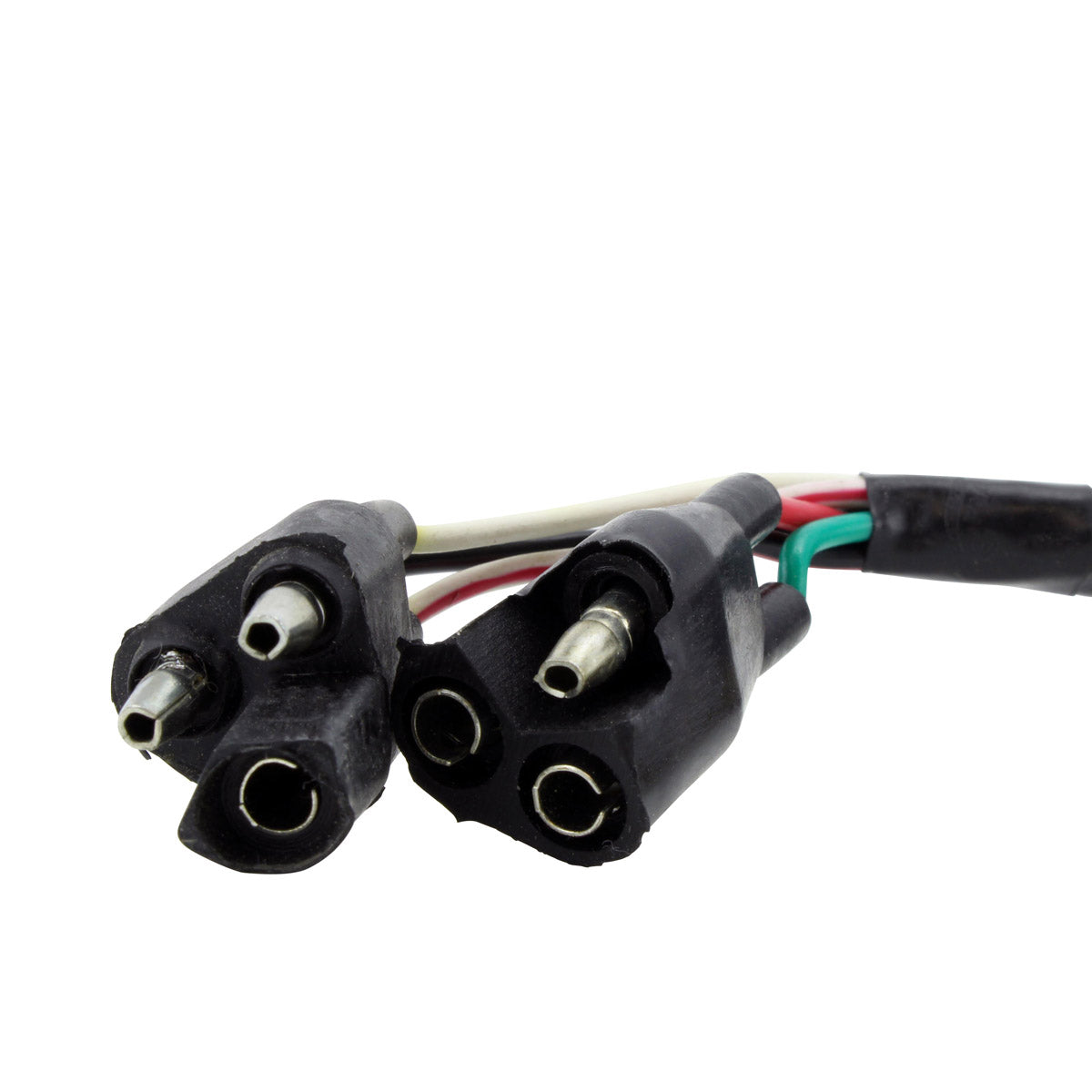

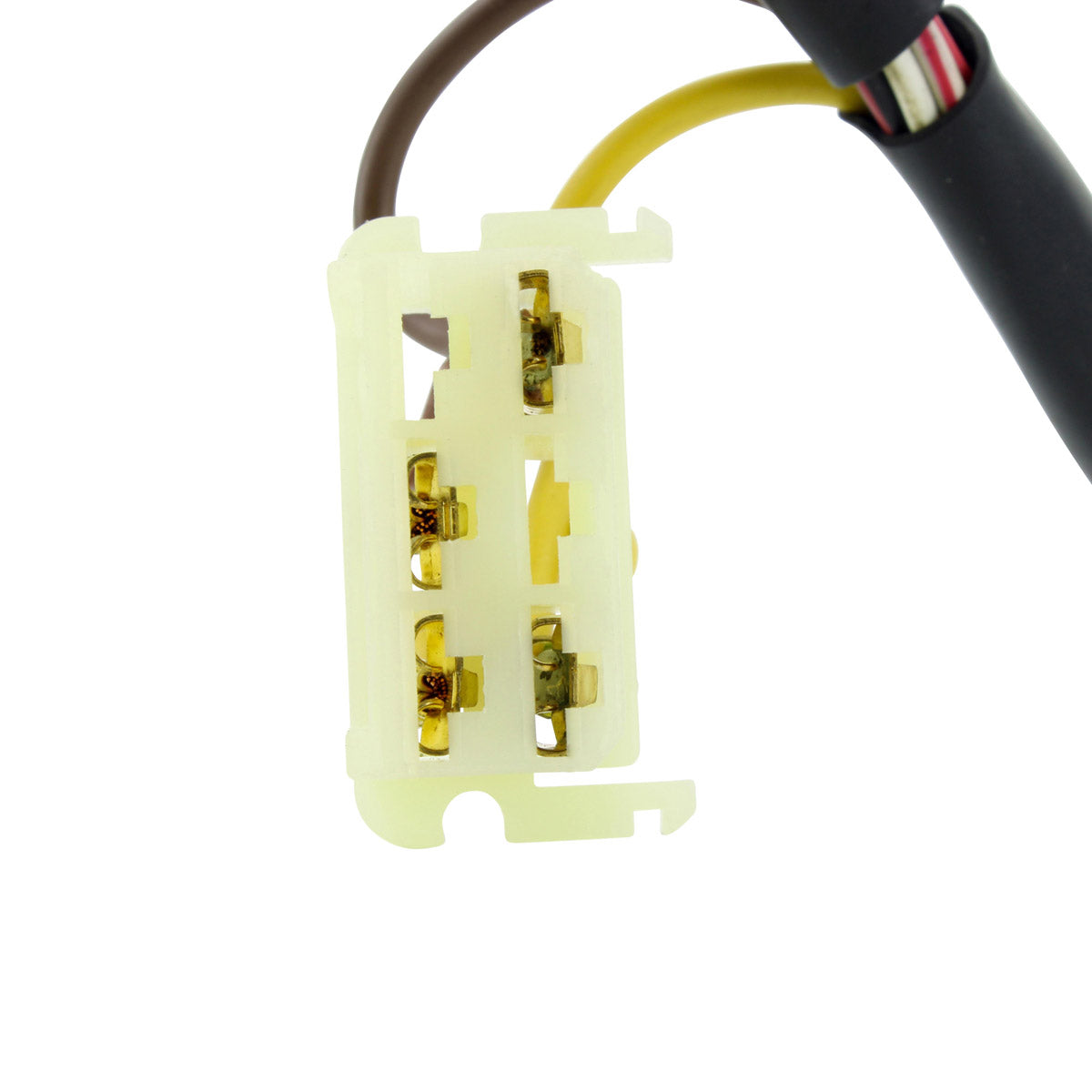

- Connector included
- Rubber grommet included

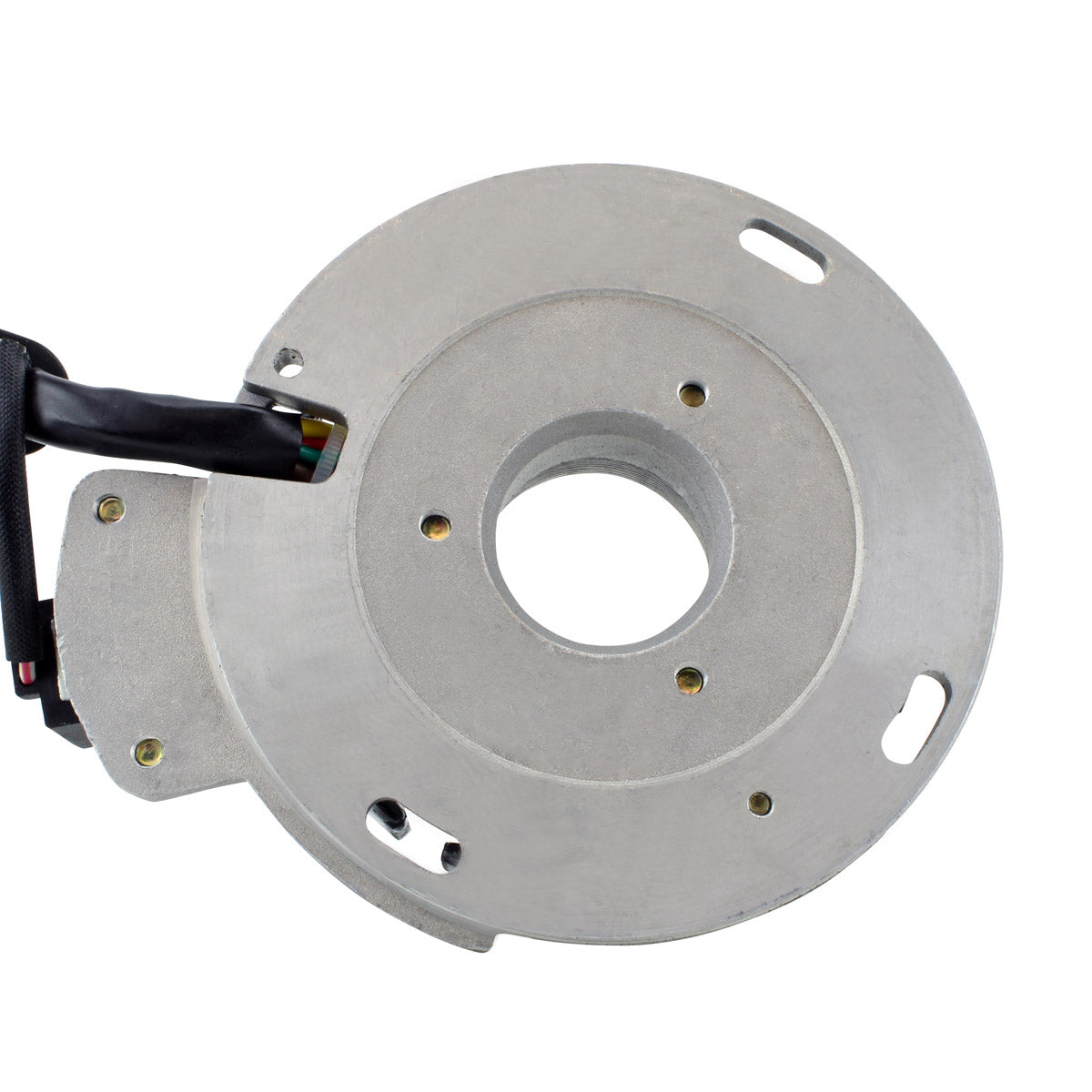

- Back plate included
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Every unit is tested before it is shipped
Technical Specs
| Specification |
Detail |
| Number of wires |
8 |
| Number of terminals |
10 |
| Alternator resistance |
Brown to Yellow = 0.2 ohms +/-20% |
| Pick-up coil 1 resistance |
White/Red to White = 200 ohms +/-20% |
| Source coil 1 resistance |
Red to Green = 7 ohms +/-20% |
| Source coil 2 resistance |
Red to Black/Red = 14 ohms +/-20% |
| Winding temperature rating |
200 degrees Celsius |
| Pick-up pulsar coil |
Included |
| Manufacturer part number |
RM01325 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Polaris 440 Pro |
1999-2009 |
| Polaris 440 XC |
1999-2009 |
| Polaris 500 XC |
1999-2009 |
| Polaris 600 RMK |
1999-2009 |
| Polaris 600 HO Fusion |
1999-2009 |
| Polaris 600 Pro |
1999-2009 |
| Polaris 700 Edge |
1999-2009 |
| Polaris 700 RMK |
1999-2009 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 4010297 |
Polaris |
| 4060222 |
Polaris |
Frequently Asked Questions
Does anything need modifying to fit this stator?
No. It is a direct replacement for the original unit on the models listed above. It mounts in the factory position on the original fixings and plugs into the existing harness, with no cutting or splicing required.
What is included in the box?
The stator assembly, the pick-up pulsar coil, the connector, the rubber grommet and the back plate. Every unit is tested before it is shipped.
How do I tell whether the old stator has failed?
Look for a battery that will not hold charge, dim or flickering lights, a weak or intermittent spark, or a machine that cuts out when hot. Measure the resistance between brown and yellow for the alternator winding, white/red to white for the pick-up coil, red to green and red to black/red for the two source coils, and compare the readings against the specification table above.
Do I need to buy the pick-up pulsar coil separately?
No. The pick-up pulsar coil is supplied already fitted to this assembly, along with the rubber grommet and the back plate, so the complete unit goes in as one piece.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
