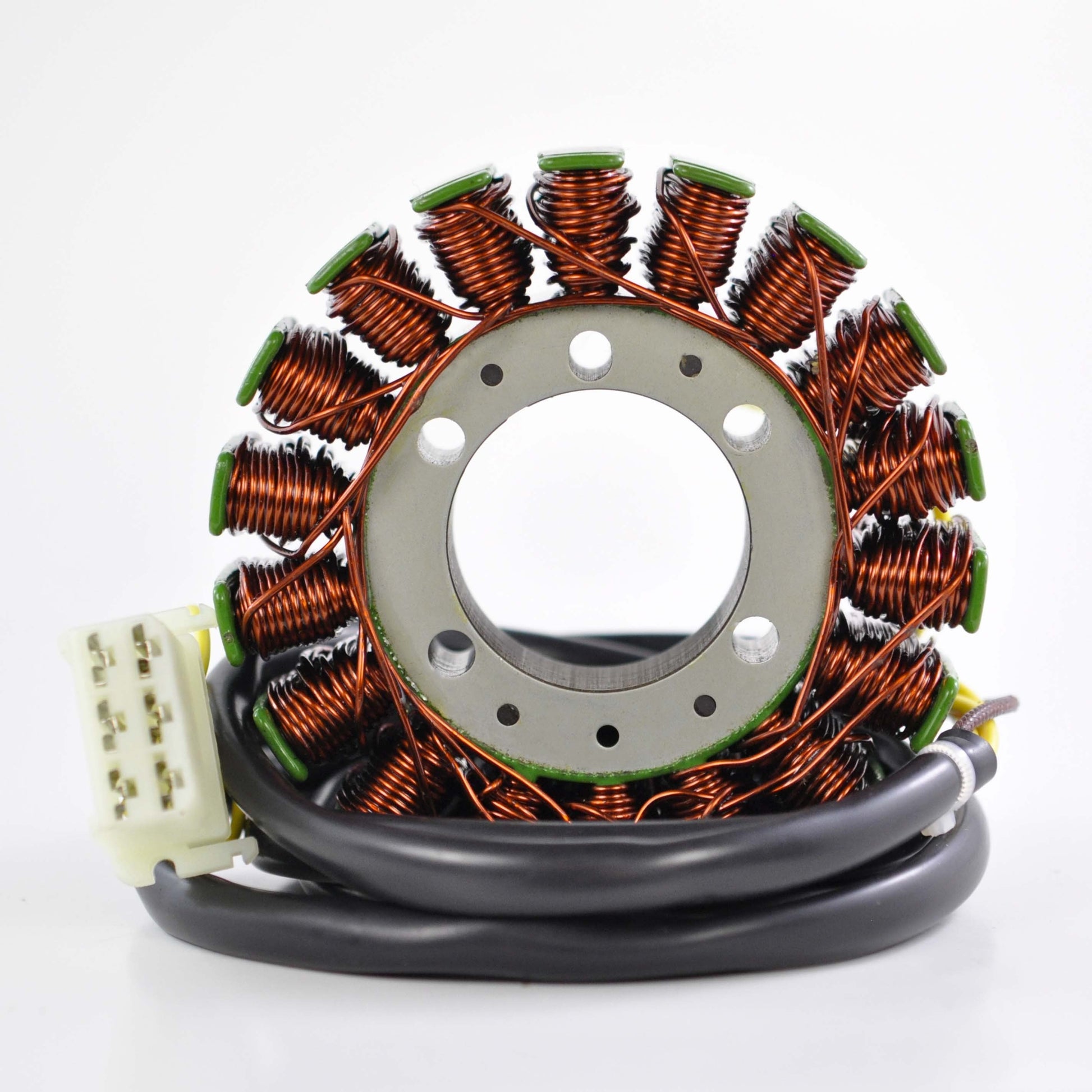

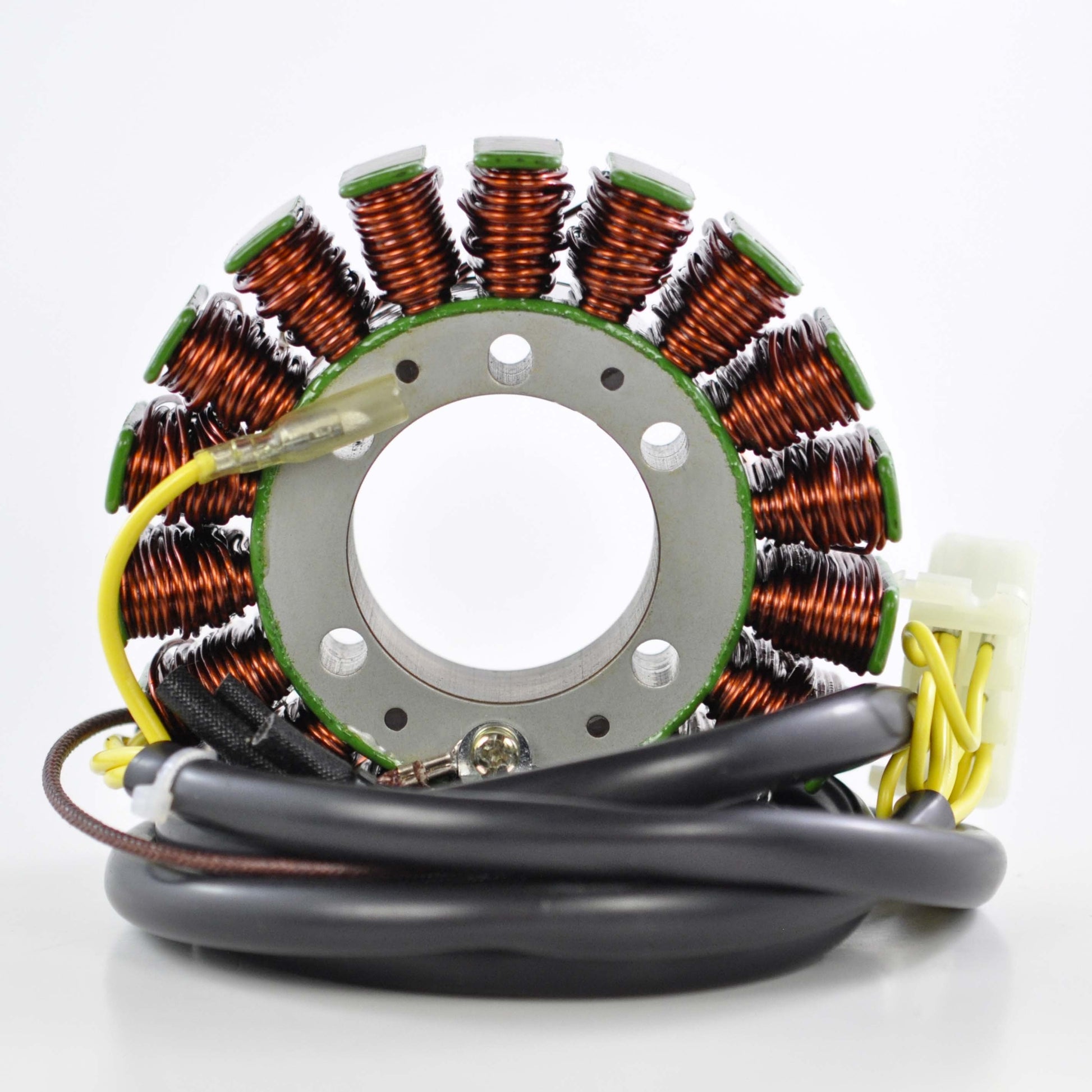

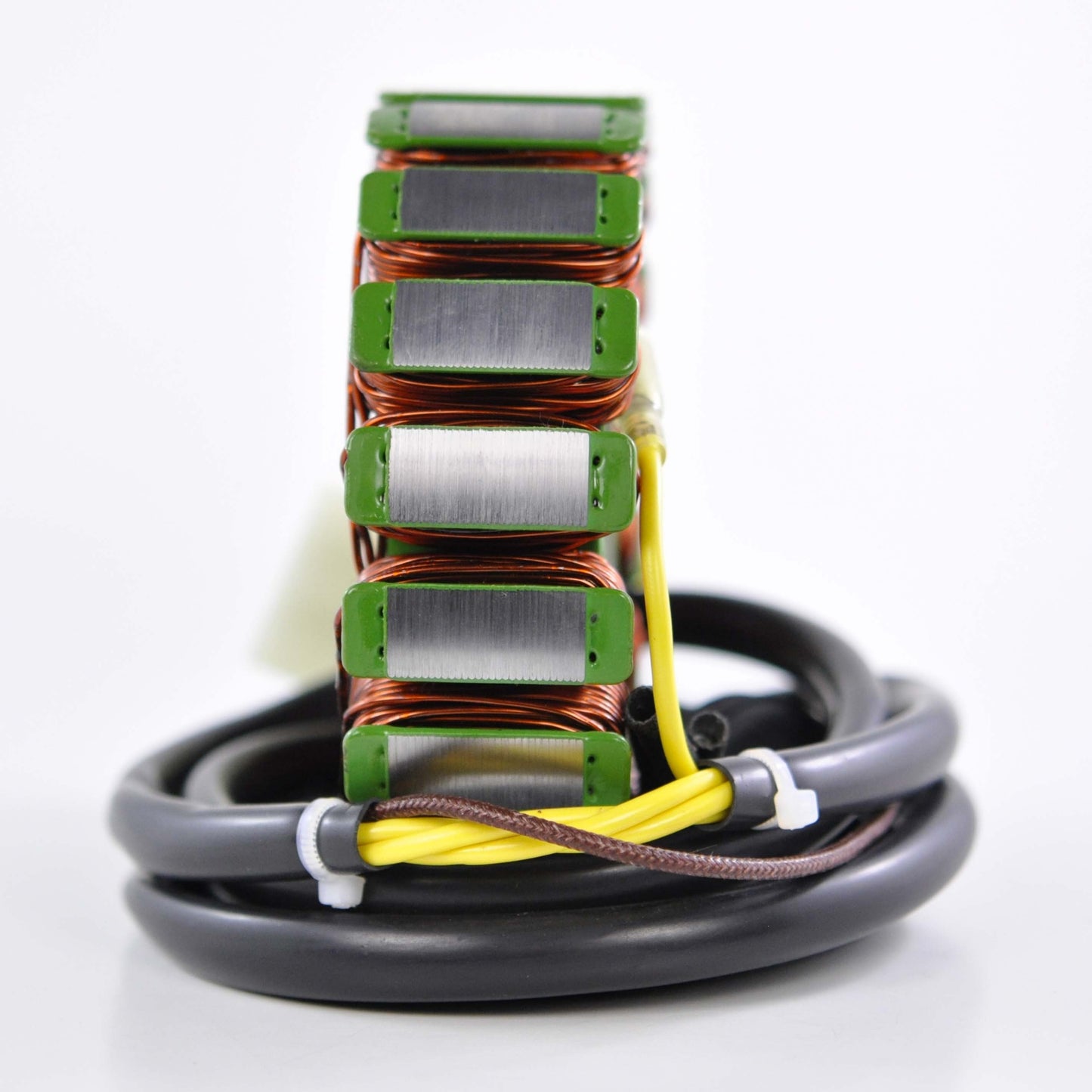

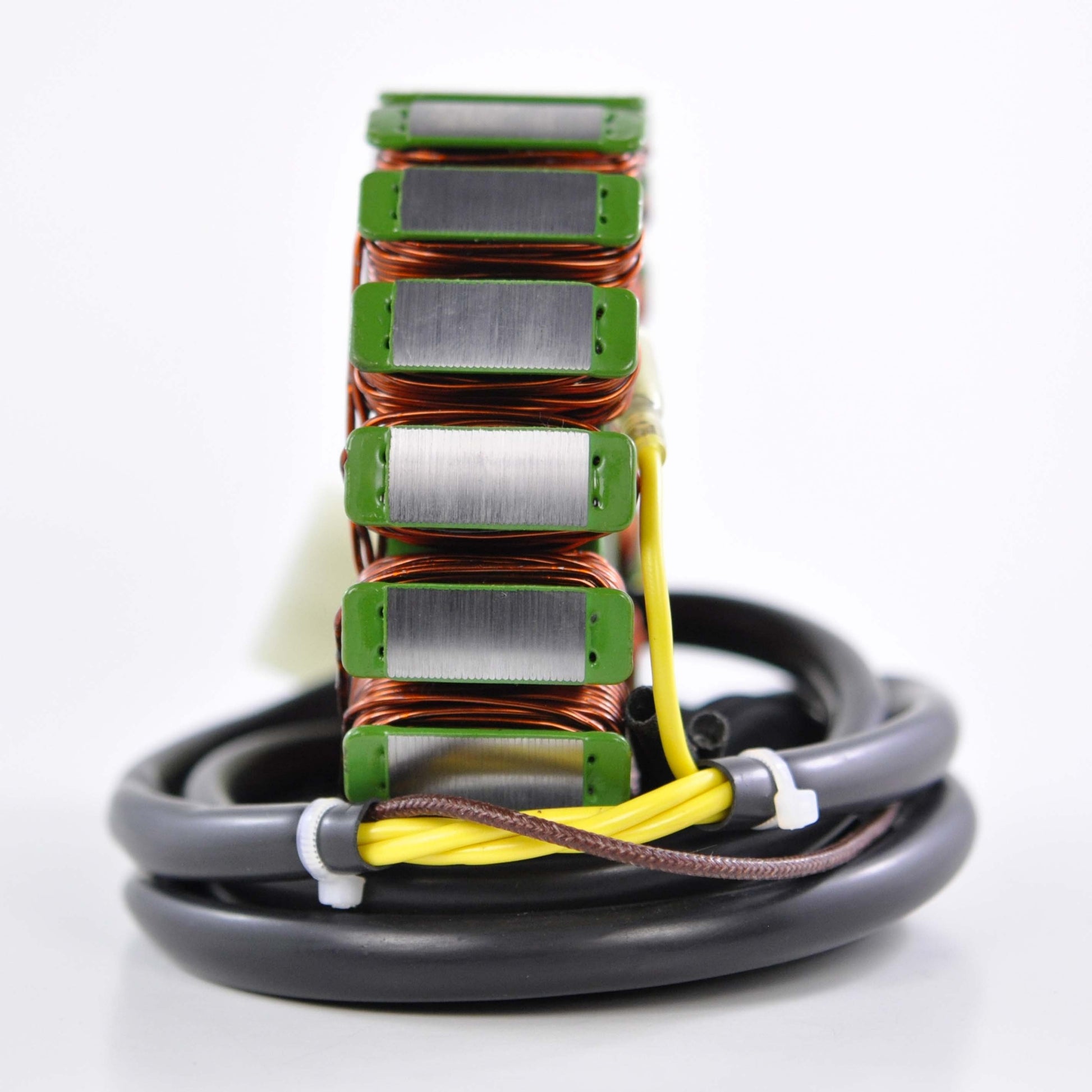

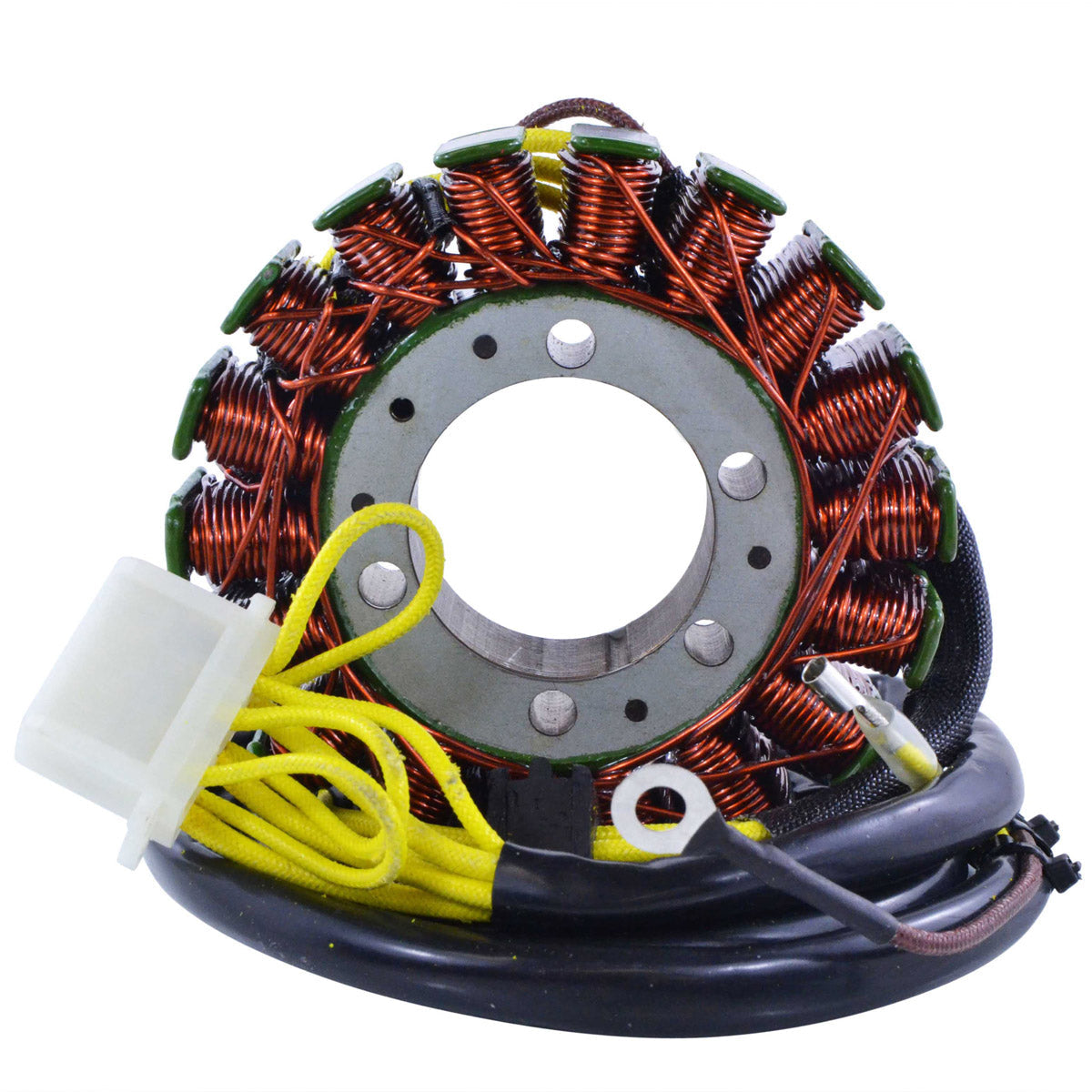

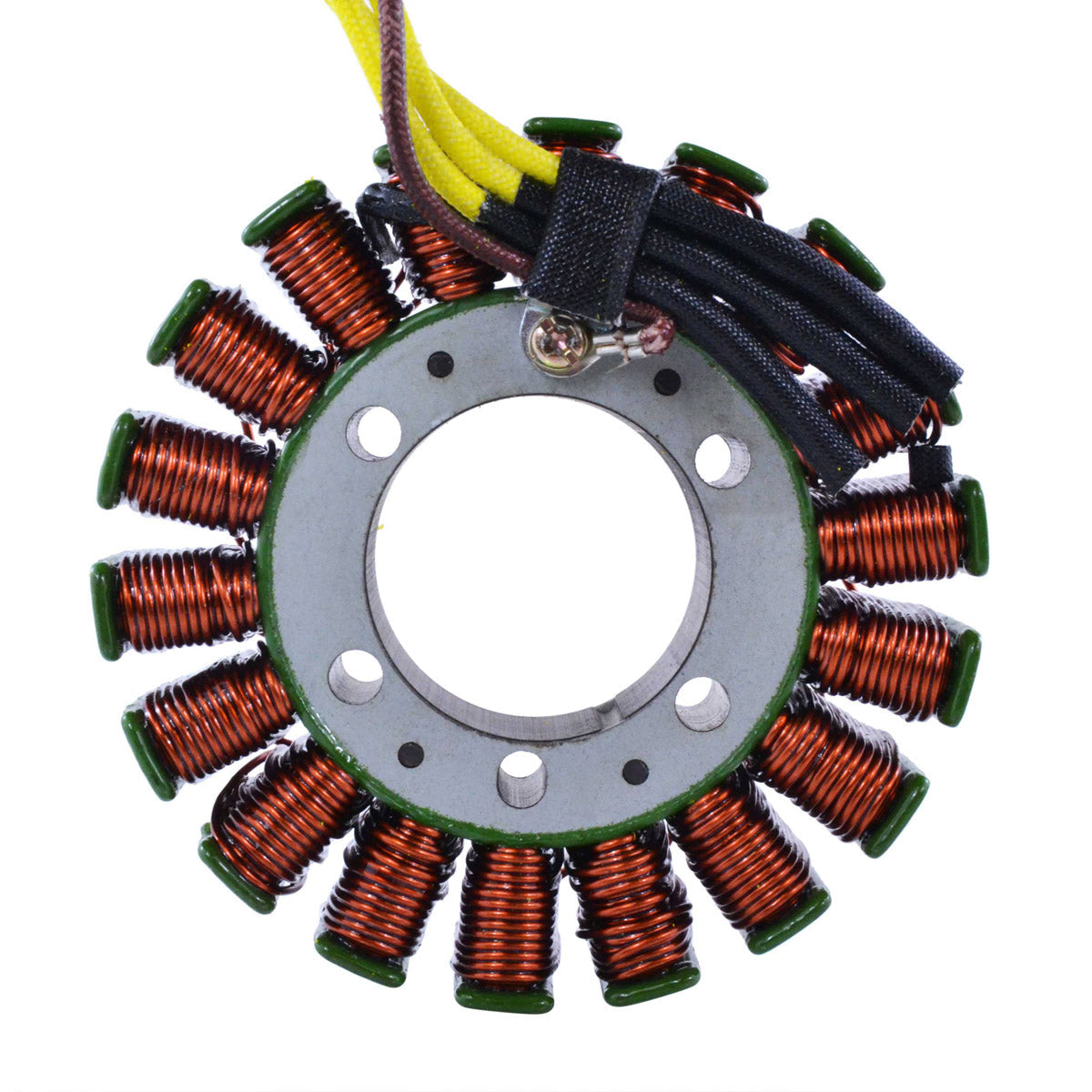

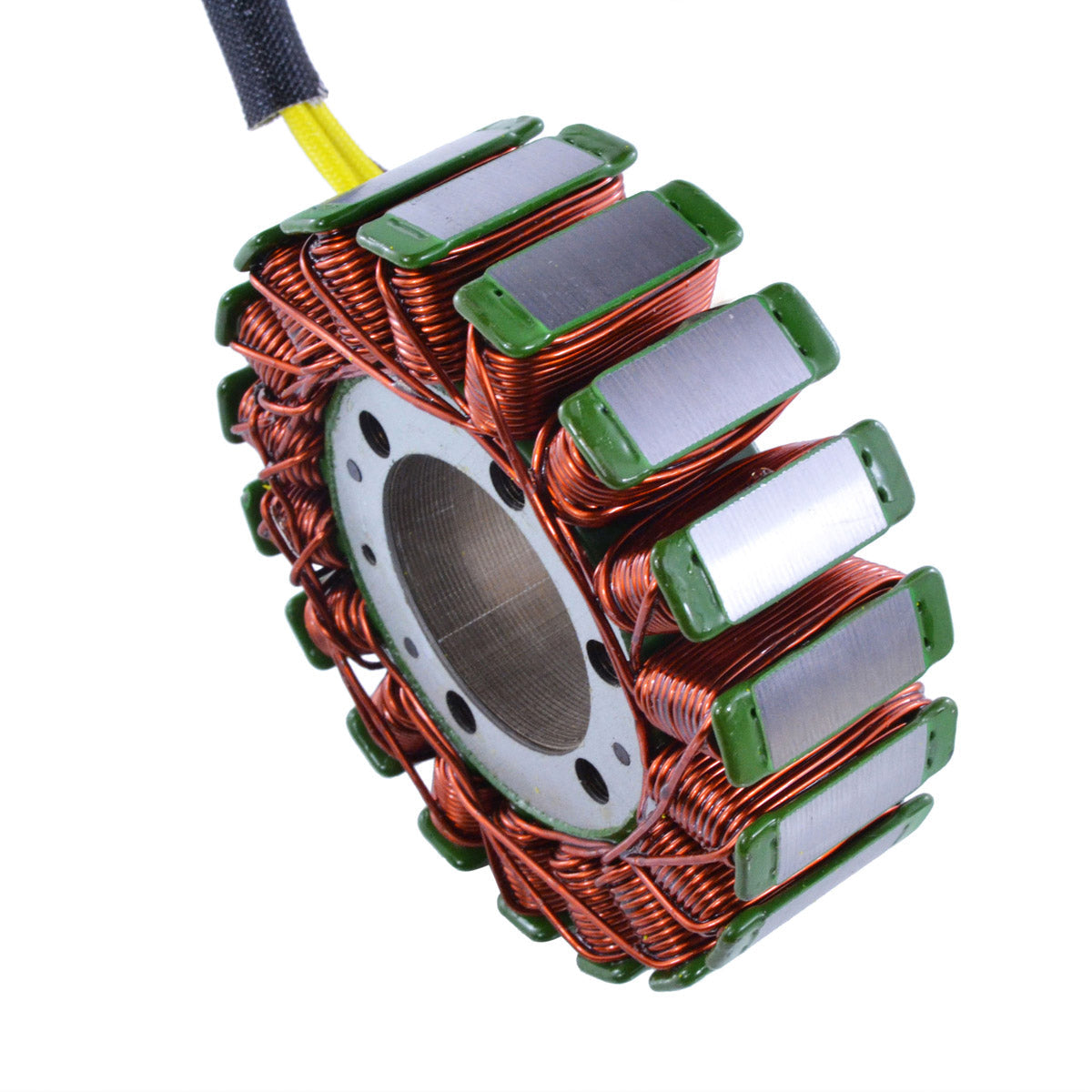

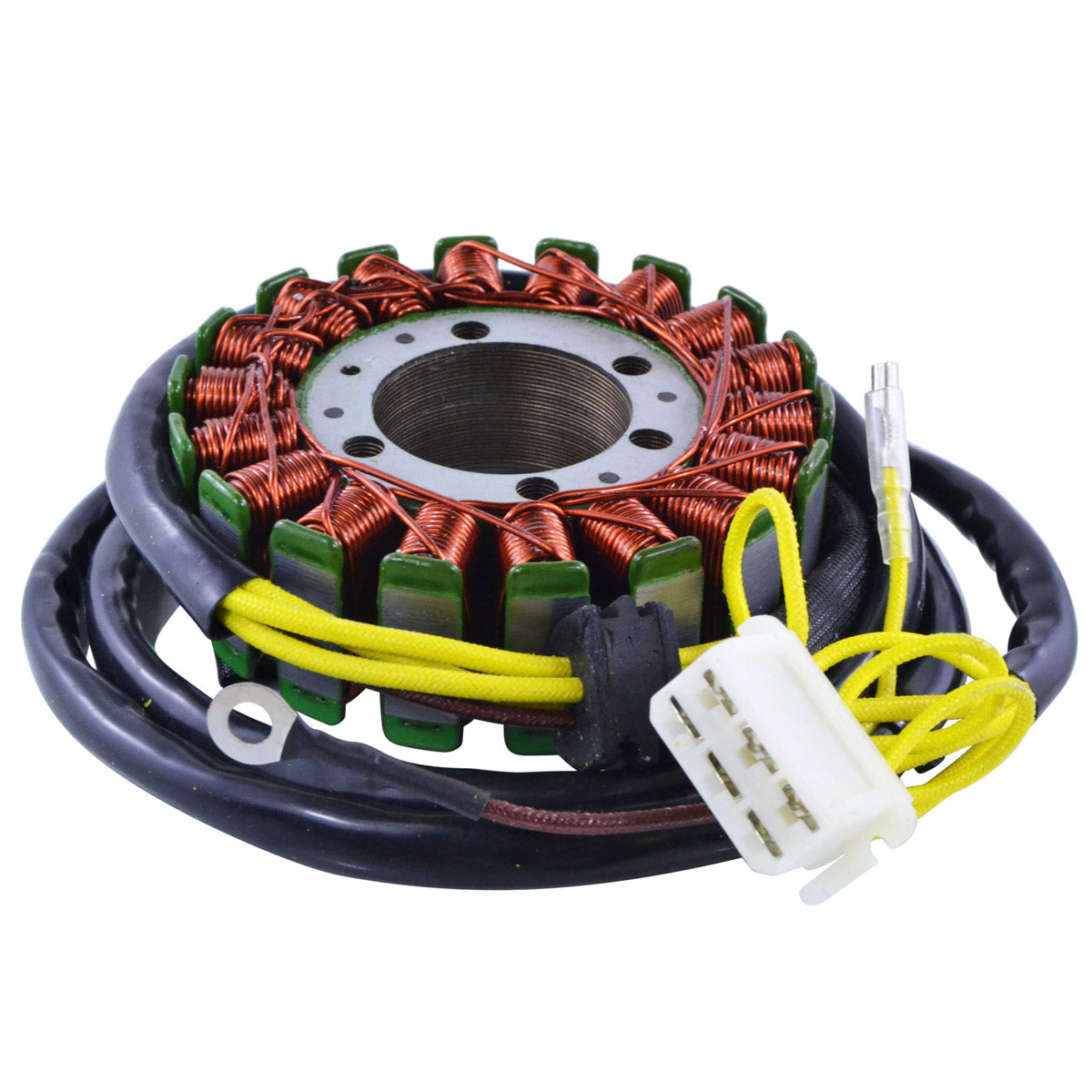

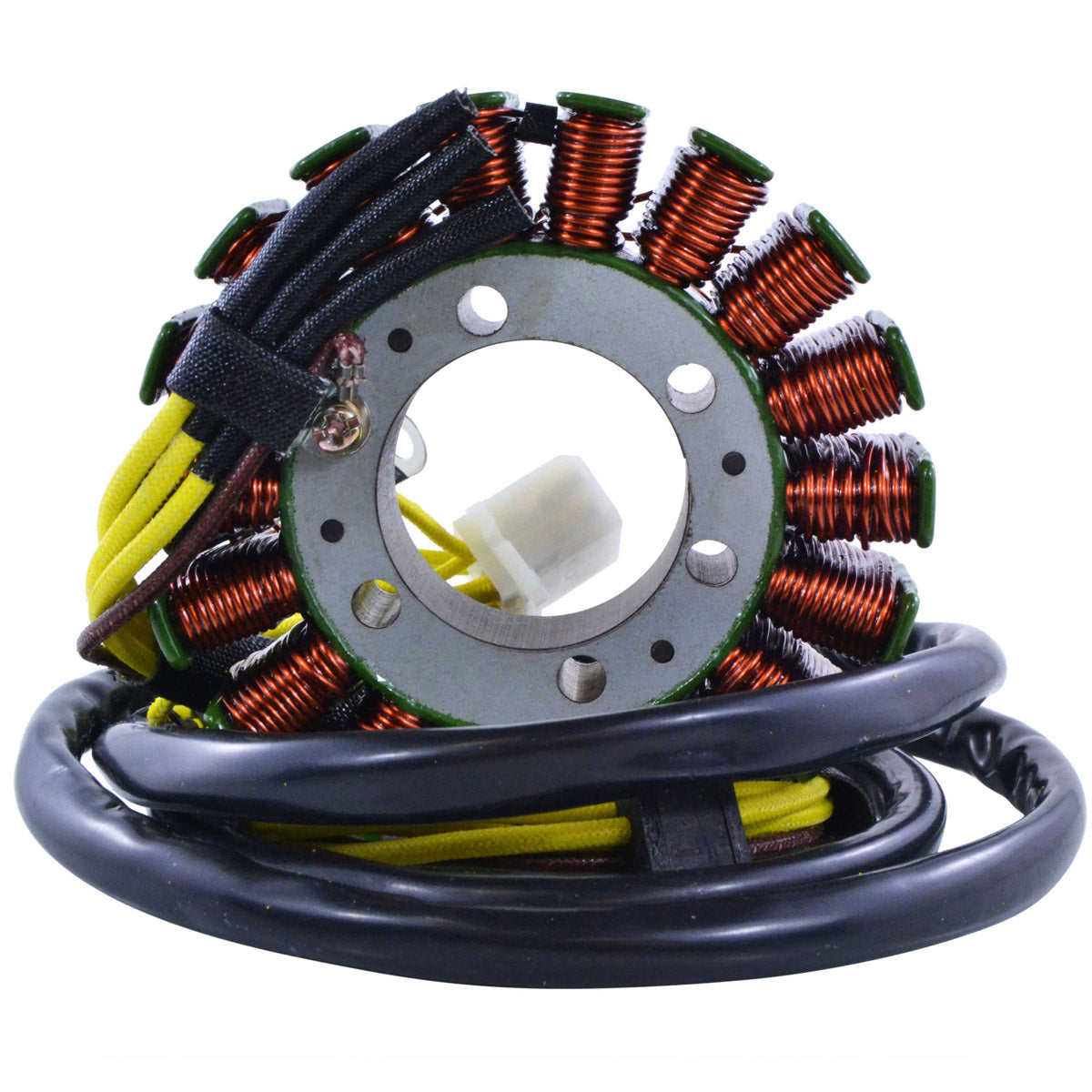

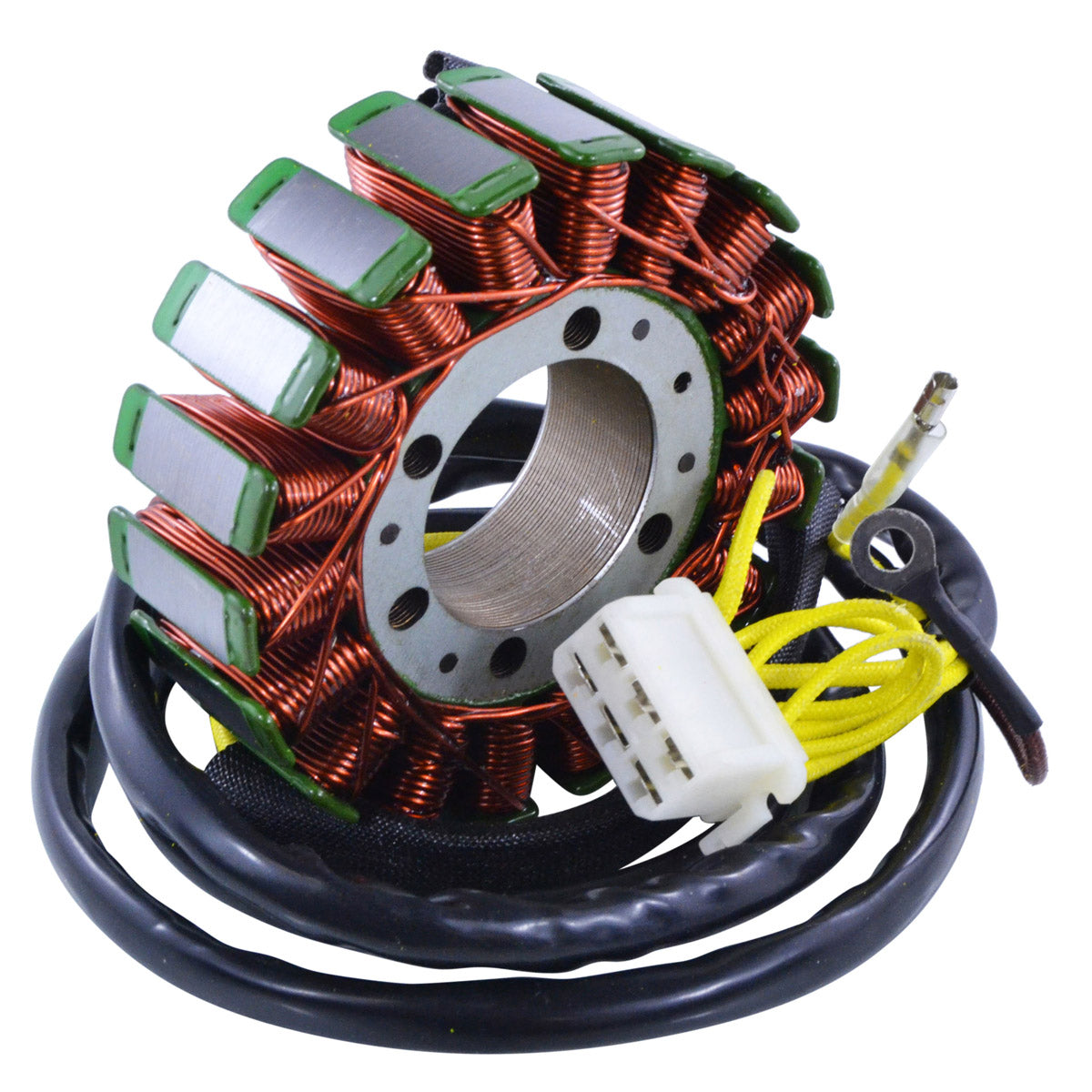

This is a brand new aftermarket stator (RMSTATOR part RM01057) supplied as a direct replacement for Polaris OEM part 4010911, the charging stator fitted to the Sportsman 700 and 800 twins from 2004 to 2007 and to the 2005 Ranger XP 700. It is a plug-and-play, direct fit part - the single 8-pin plug and the 1300 mm harness lead match the factory item, so no cutting, splicing or rerouting is required.

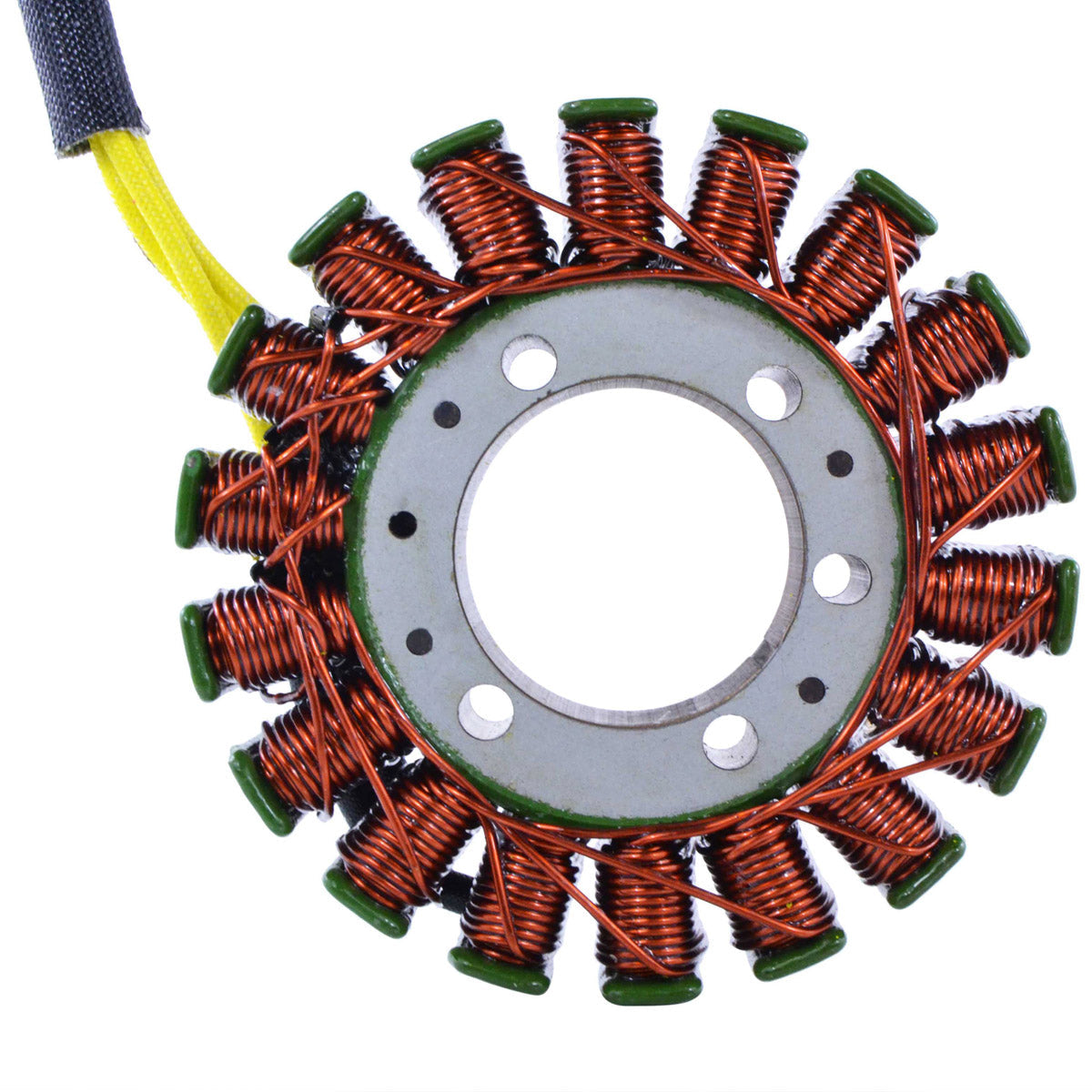

The unit has 18 poles and is wound with the highest grade copper on high grade lamination material, with the winding insulation rated to 200 degrees Celsius. That rating is worth having on the big Polaris twins, where the stator lives in hot oil behind the flywheel cover and heat is the usual reason an original unit fails. The connector and rubber grommet are supplied with the stator, and every unit is tested before it ships.
Key Features
- Brand new aftermarket stator - direct replacement for the original
- Plug-and-play, direct fit, easy installation
- 18 poles
- High grade lamination materials

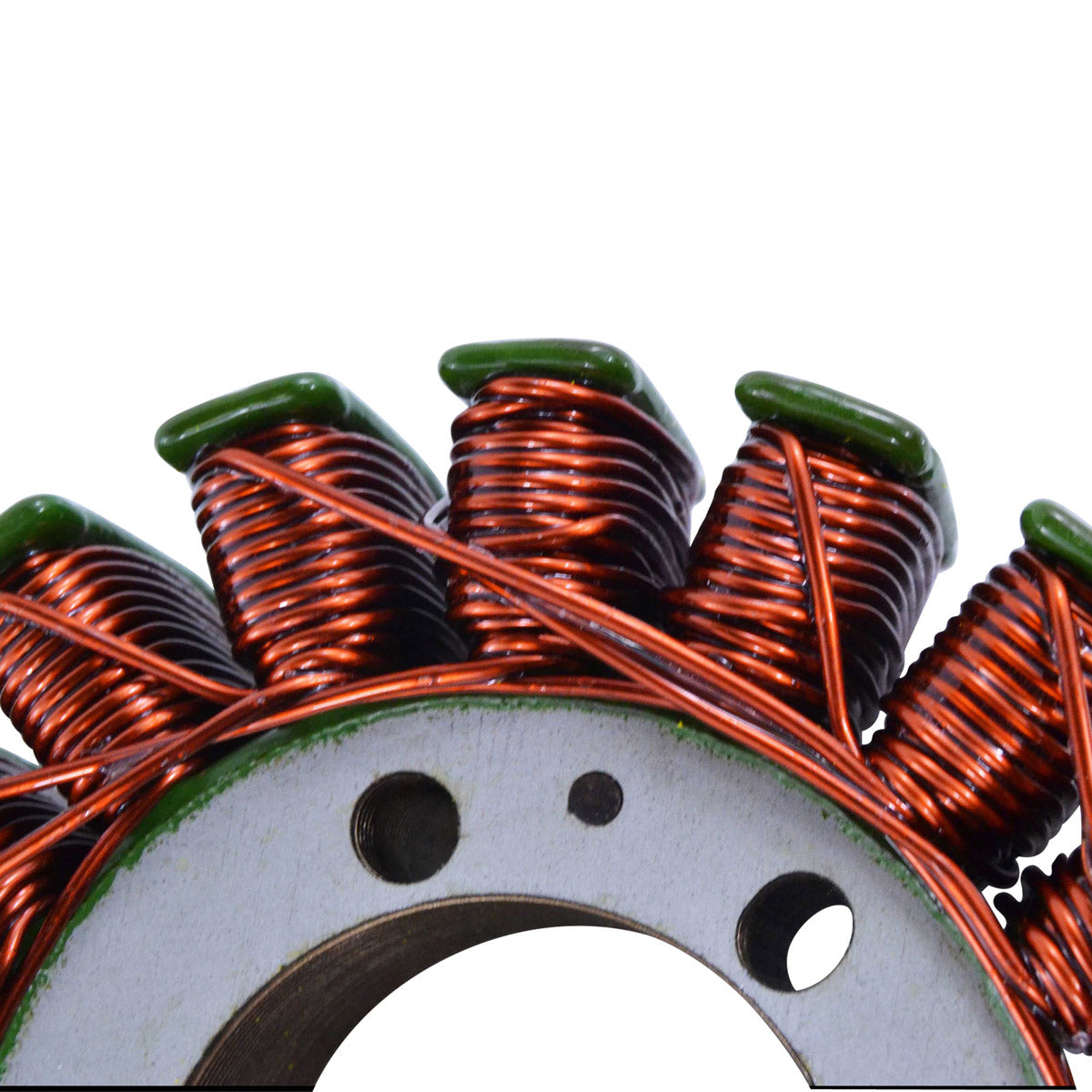

- Copper winding resistant to 200 degrees Celsius

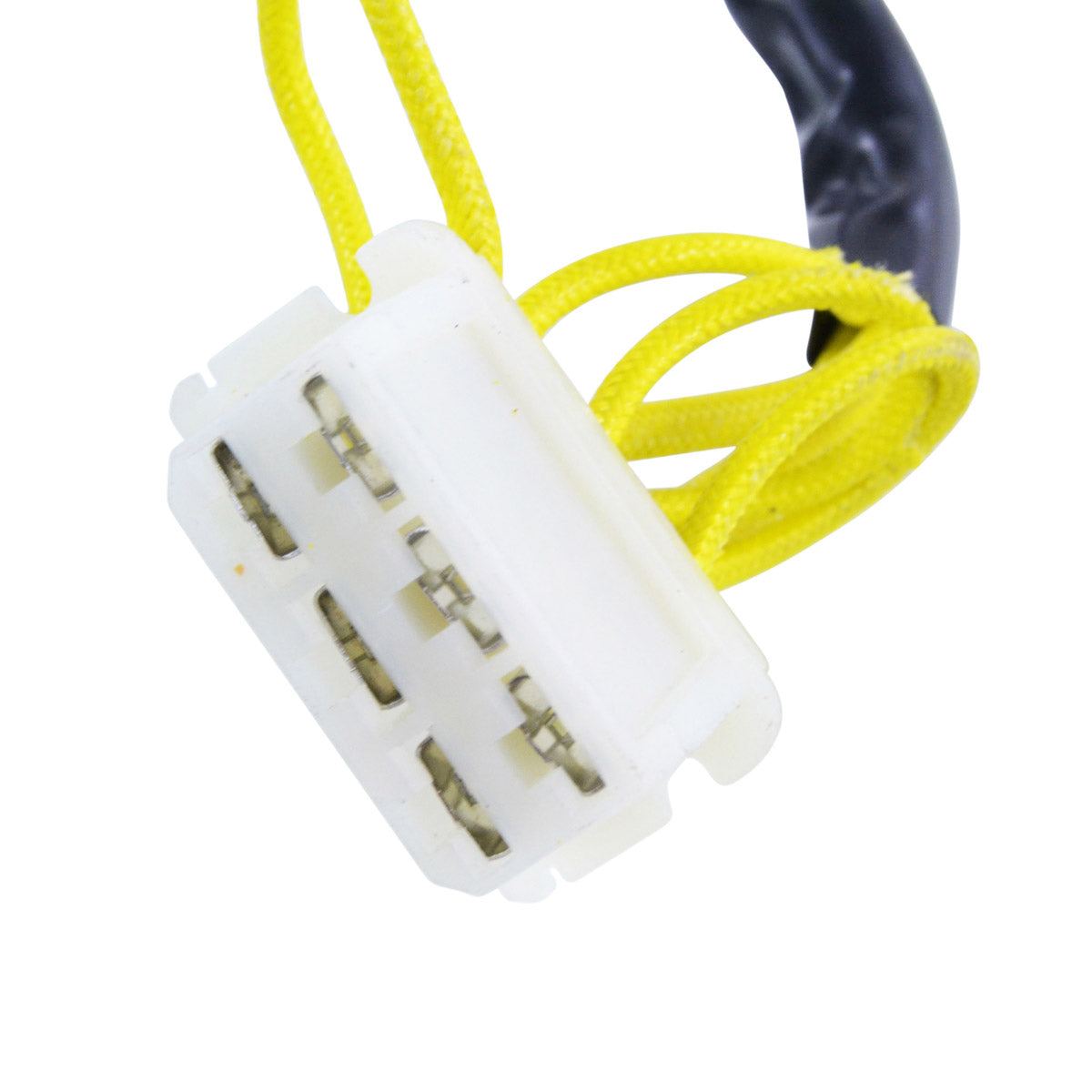

- Connector included

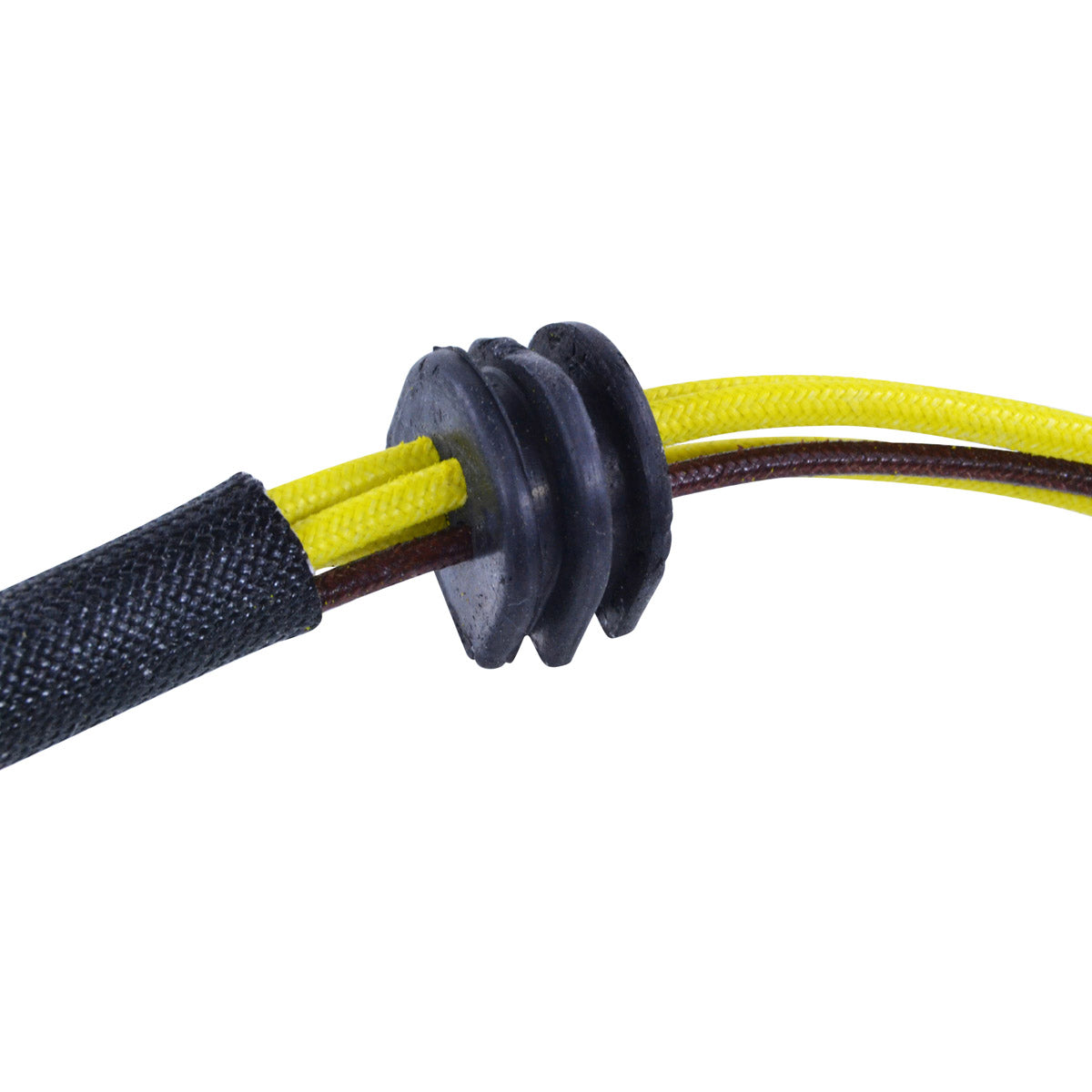

- Rubber grommet included
- Tested before shipment
Technical Specs
| Specification |
Detail |
| Part number |
RM01057 |
| Interior diameter |
42 mm |
| Exterior diameter |
107 mm |
| Thickness |
25 mm |
| Wire length - stator to grommet |
160 mm |
| Wire length - grommet to plug |
1300 mm |
| Number of wires |
5 |
| Number of plugs |
1 |
| Number of pins |
8 |
| Number of poles |
18 |
| Wire resistance (Yellow to Yellow) |
0.5 ohms +/-20% |
| Wire resistance (Yellow to ground) |
O.L (open circuit) |
| Winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model |
Years |
| Polaris Sportsman 700 |
2004-2007 |
| Polaris Sportsman 800 |
2004-2007 |
| Polaris Ranger XP 700 |
2005 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 4010911 |
Polaris |
Frequently Asked Questions
Will this fit without modifying my wiring?

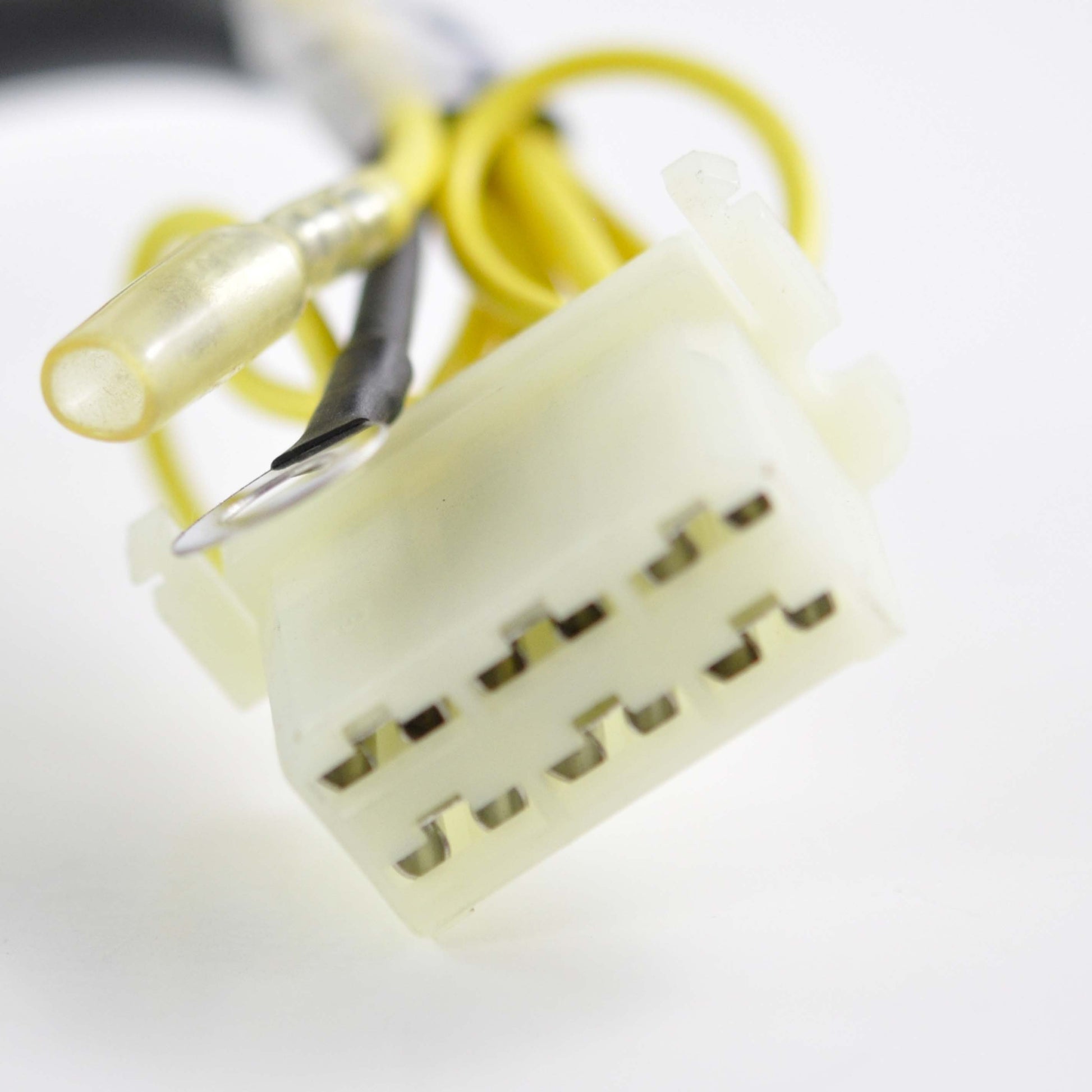

Yes. It is a plug-and-play, direct fit replacement with the same single 8-pin plug and the same 1300 mm lead length as the original, so no cutting or splicing of the harness is needed.
What is included in the box?
The stator, the connector and the rubber grommet.
How do I know my old stator has failed?
With the engine off, measure between the yellow output legs: they should read about 0.5 ohms, within plus or minus 20 percent. Then measure from any yellow wire to the stator body or engine ground - that must read open circuit (O.L). A yellow-to-ground reading with continuity means a winding has shorted to the core and the stator needs replacing. A battery that goes flat on rides and low charging voltage at the battery terminals are the usual symptoms.
Does this replace Polaris part 4010911?
Yes. RMSTATOR list this unit as the replacement for Polaris OEM 4010911. Check the number on your original stator before ordering to be certain of the match.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
