Stator for Ski-Doo Expedition, Grand Touring & Renegade 550 600 2010-2020
Stator for Ski-Doo Expedition, Grand Touring & Renegade 550 600 2010-2020
SKU:RM01464
Free shipping over £150. Terms apply
Couldn't load pickup availability

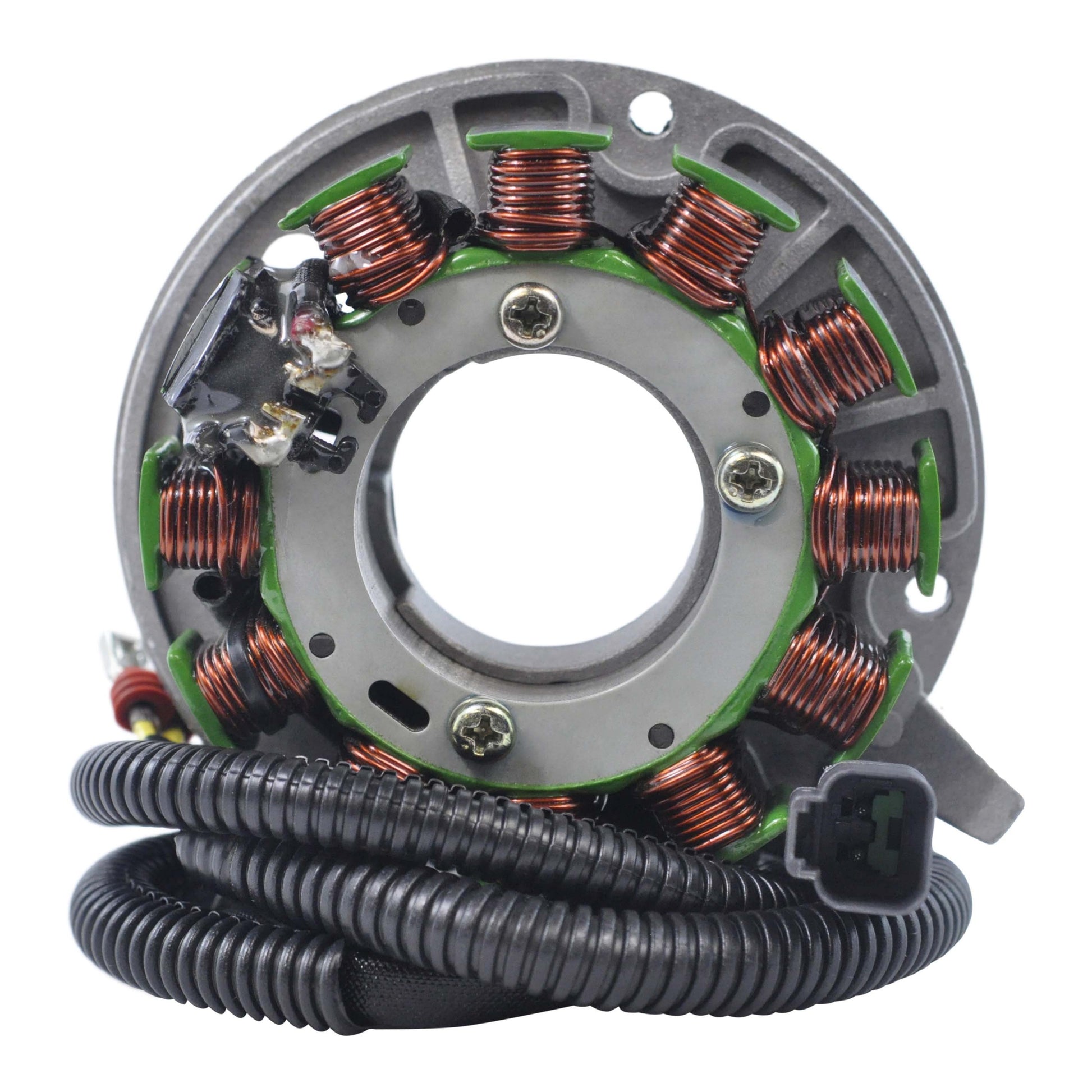

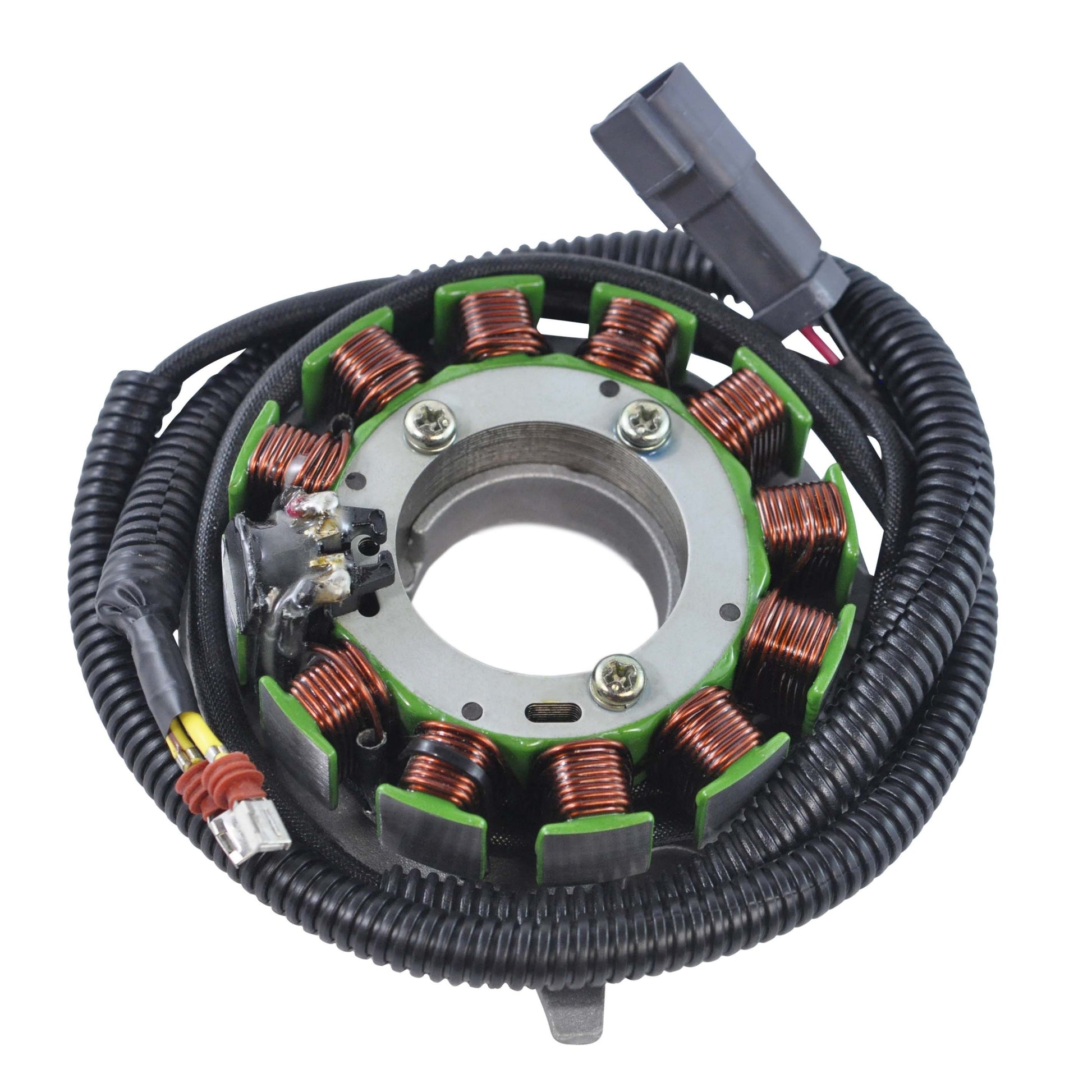

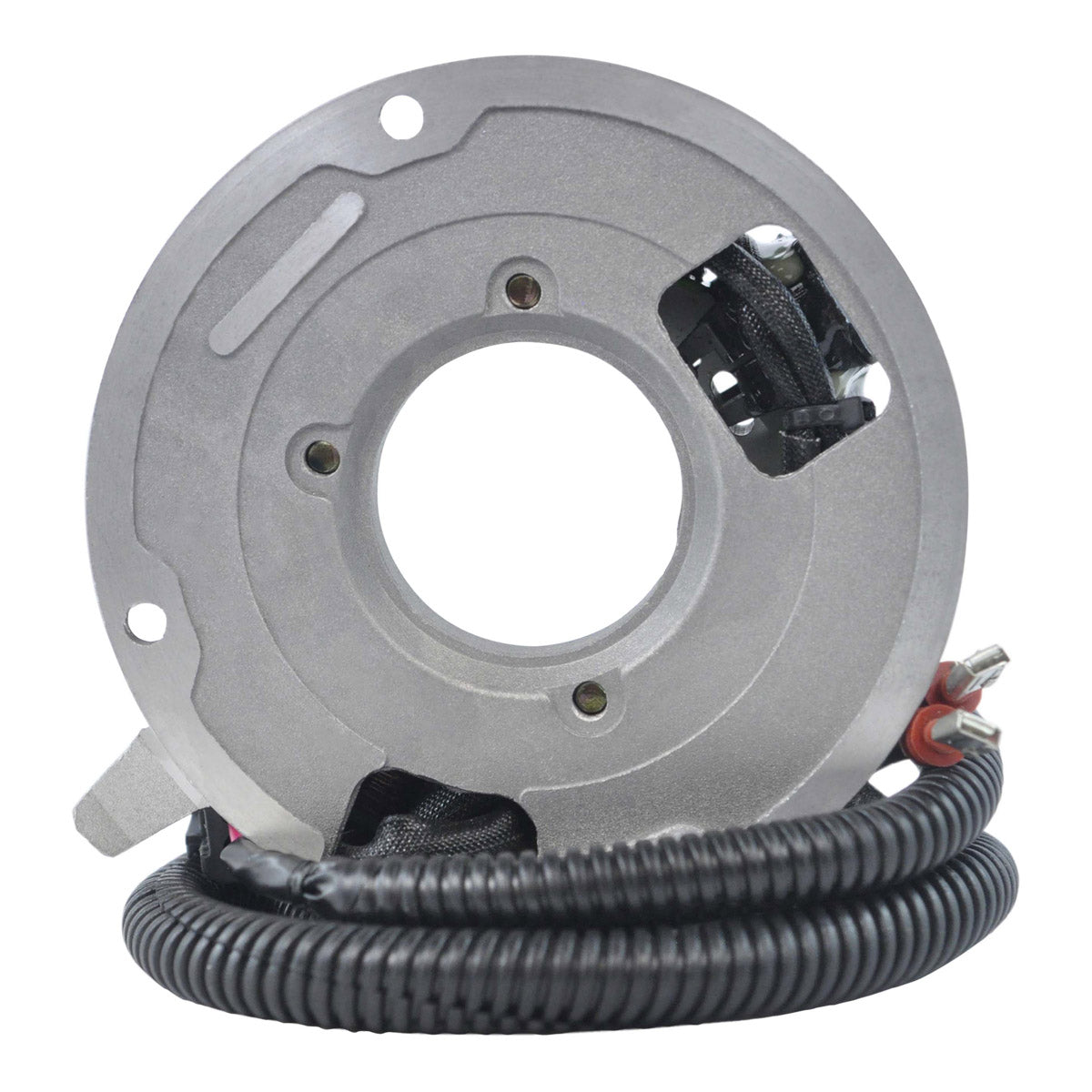

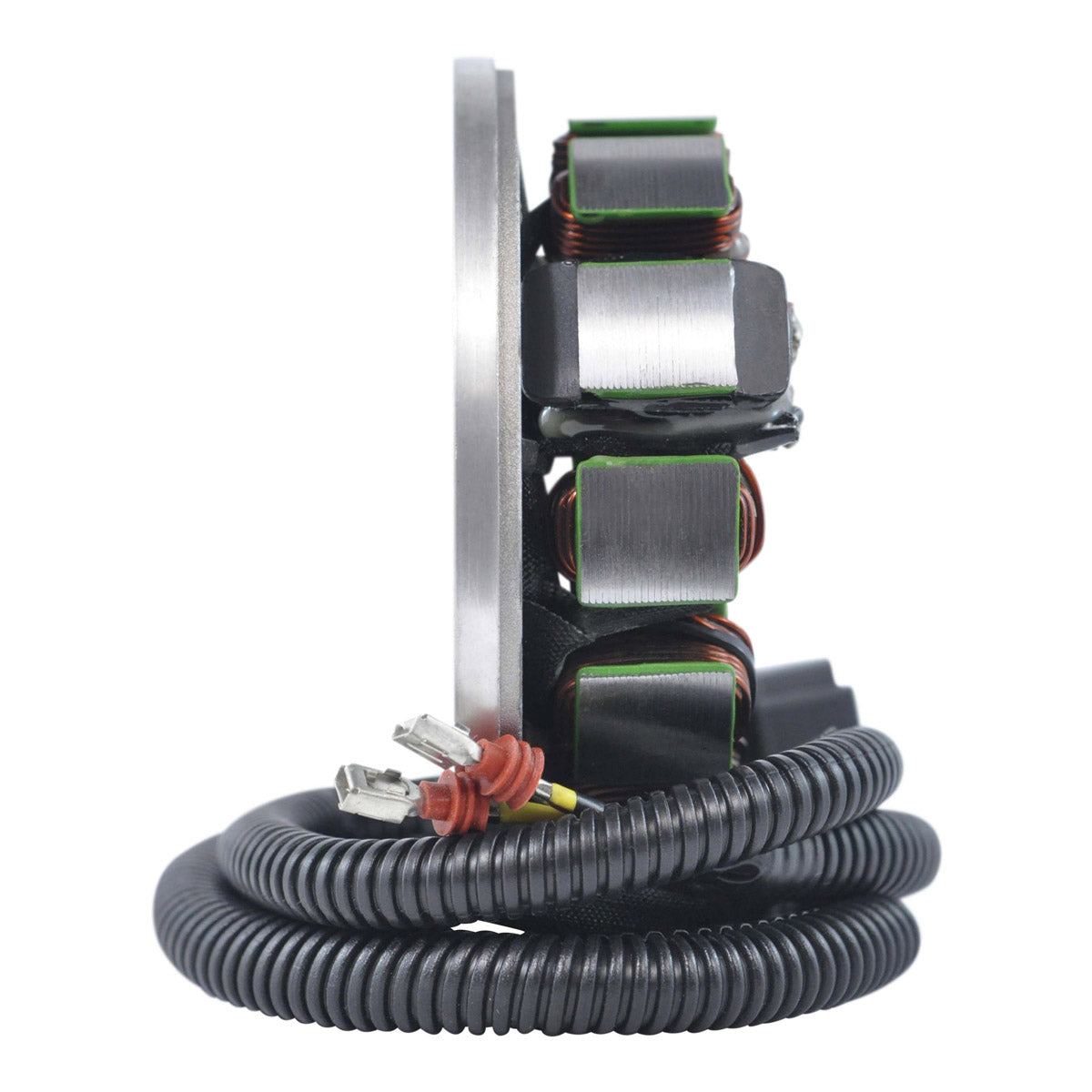

Stator for Ski-Doo Expedition, Grand Touring, MX Z, Renegade, Skandic and Tundra 550 / 600
Ski-Doo 550 and 600 models, 2010-2020 - replaces OEM 420889367
A brand new aftermarket stator built as a direct replacement for the original charging unit fitted to the Ski-Doo 550 and 600 chassis. It is a plug-and-play, direct fit part, so it goes back in exactly where the original came out with no modification to the engine or the wiring loom. The part number is RM01464.

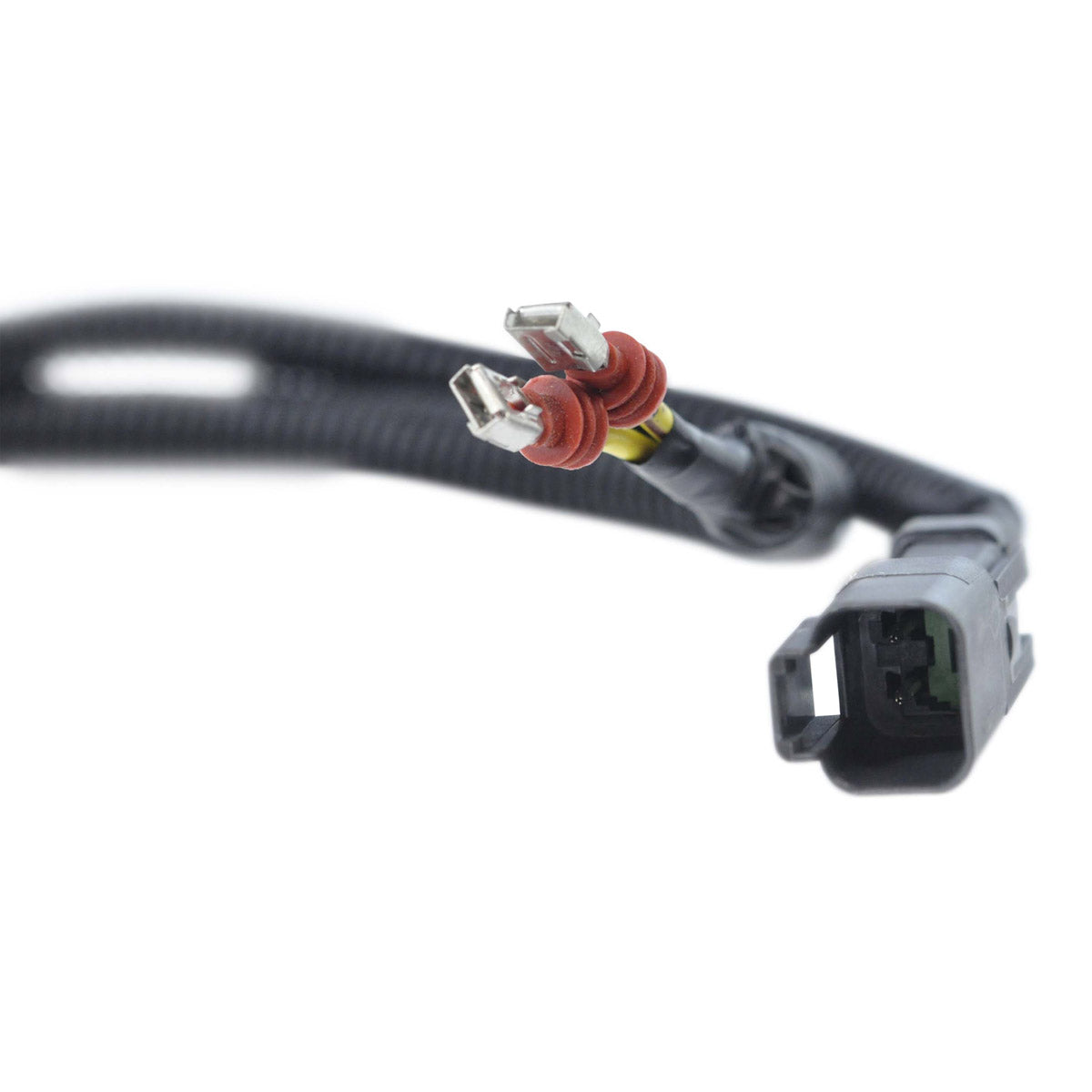

The unit is built on the highest grade lamination materials and wound with the highest grade copper windings, resistant to 200 degrees Celsius. It carries four wires into two plugs with four pins, on 420 mm and 550 mm leads, and the connector is supplied fitted. All products are tested before they are shipped.
Key Features
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Connector included
- All products shipped are tested
- Part number RM01464
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM01464 |
| Interior diameter | 44 mm |
| Exterior diameter | 96 mm |
| Thickness | 18 mm |
| Wire lengths | 420 mm and 550 mm |
| Number of wires | 4 |
| Number of plugs | 2 |
| Number of pins | 4 |
| Alternator resistance, yellow to yellow | 0.4 ohms +/- 20% |
| Source resistance, black to red | 0.8 ohms +/- 20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Ski-Doo Expedition 550 / 600 | 2010-2020 |
| Ski-Doo Grand Touring 550 / 600 | 2010-2020 |
| Ski-Doo MX Z 550 / 600 | 2010-2020 |
| Ski-Doo Renegade 550 / 600 | 2010-2020 |
| Ski-Doo Skandic 550 / 600 | 2010-2020 |
| Ski-Doo Tundra 550 / 600 | 2010-2020 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 420889367 | Ski-Doo |
Frequently Asked Questions
Does this stator need any modification to fit?
No. It is a direct, plug-and-play replacement for the original Ski-Doo unit, supplied with the connector already fitted, so no cutting or splicing of the loom is required.
What is included in the box?
The stator assembly with its connector fitted. All products shipped are tested before they leave us.
How do I know my original stator has failed?
Check it with a multimeter. This unit reads 0.4 ohms +/- 20% yellow to yellow across the alternator windings and 0.8 ohms +/- 20% black to red across the source coil. A reading that is open circuit, shorted to earth, or well outside those figures points to a failed stator.
Are the leads long enough to reach the original connectors?
Yes. The unit is supplied with 420 mm and 550 mm leads terminating in two plugs and four pins in total, matching the original routing on these Ski-Doo chassis.
