Stator for Suzuki DR125 SE 1994-1996 & DR200 SE 1996-2013
Stator for Suzuki DR125 SE 1994-1996 & DR200 SE 1996-2013
SKU:RMS010-100087
Free shipping over £150. Terms apply
Couldn't load pickup availability
Stator for Suzuki DR125 SE and DR200 SE - OEM 32101-42A30 / 32101-42A40
Suzuki DR125 SE 1994-1996 and DR200 SE 1996-2013 - part number RMS010-100087

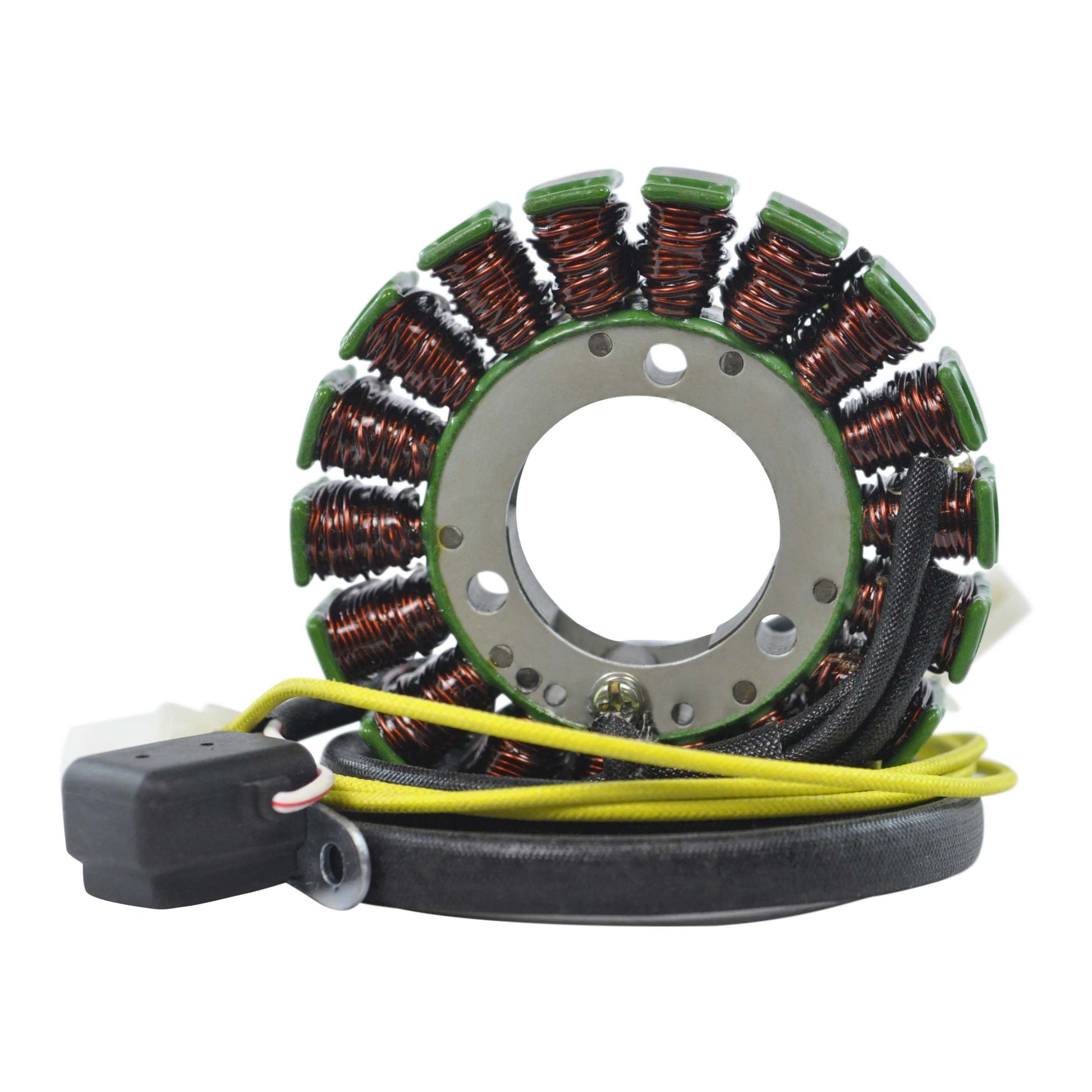

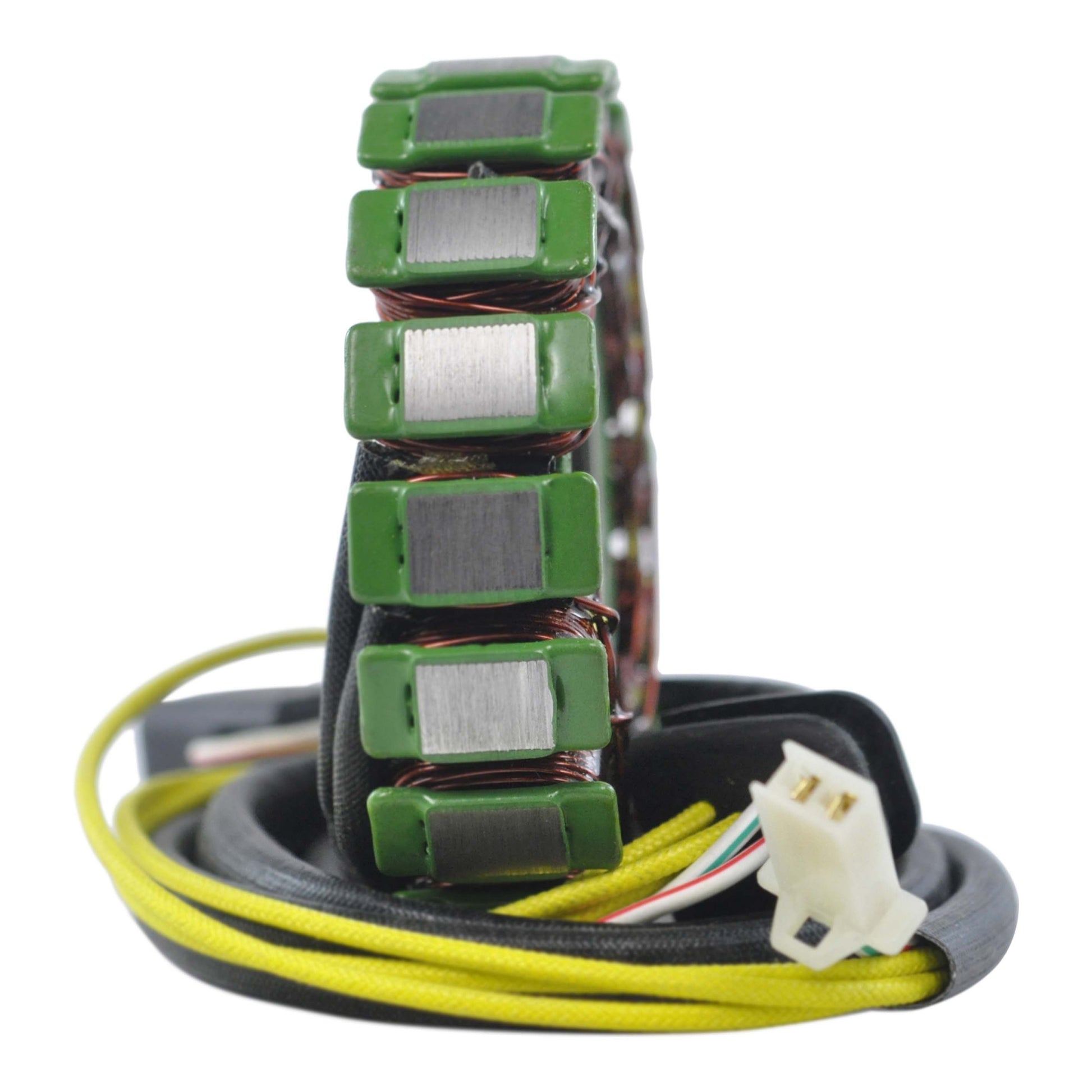

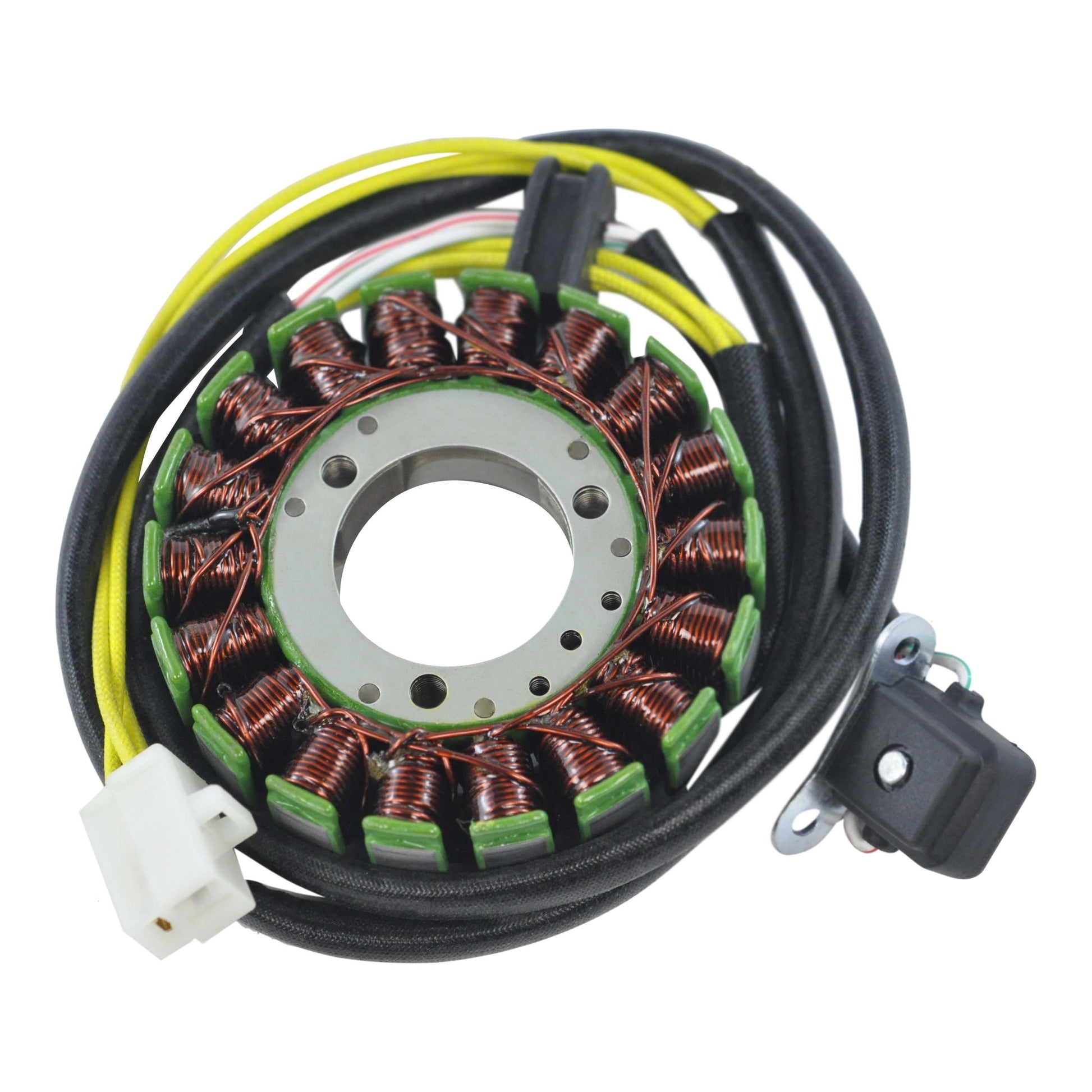

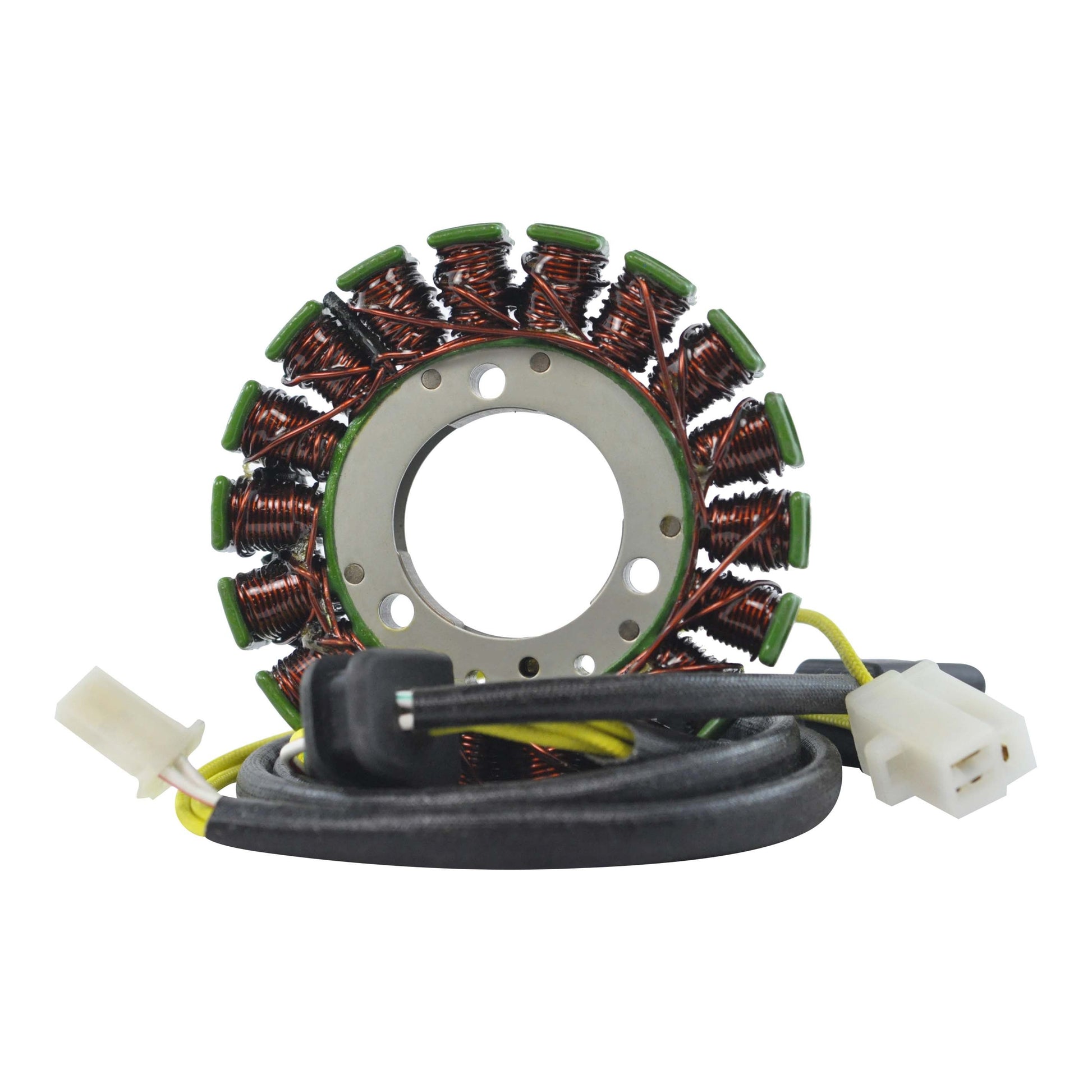

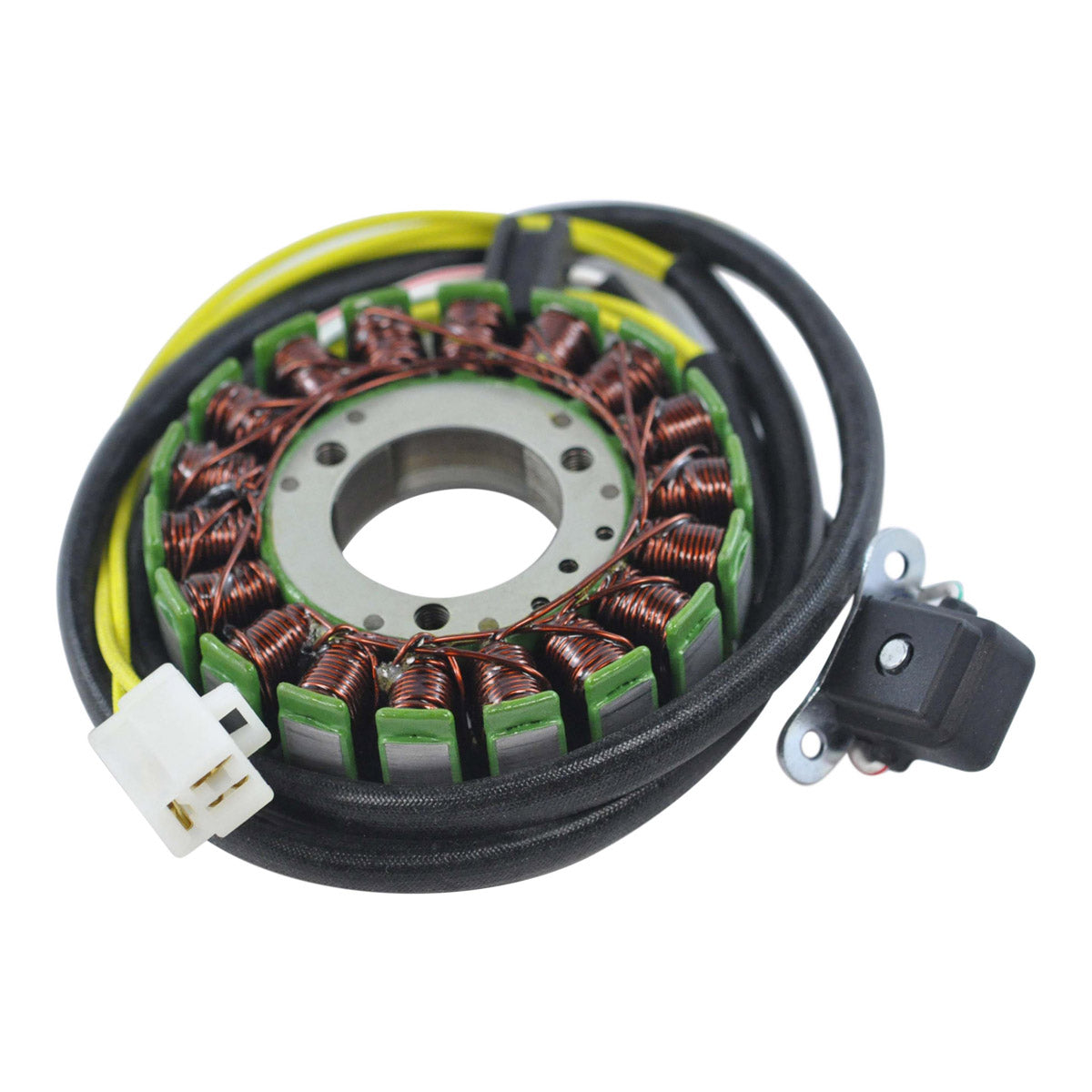

A brand new aftermarket stator built as a direct replacement for the original charging and ignition unit on the Suzuki DR125 SE and DR200 SE. It is a plug-and-play, direct fit assembly, so the original wiring, flywheel and cover positions are all retained and no modification to the bike is needed. The pick up pulsar coil is supplied already mounted on the stator plate, which means the ignition timing reference and the charging windings are replaced together in a single job.

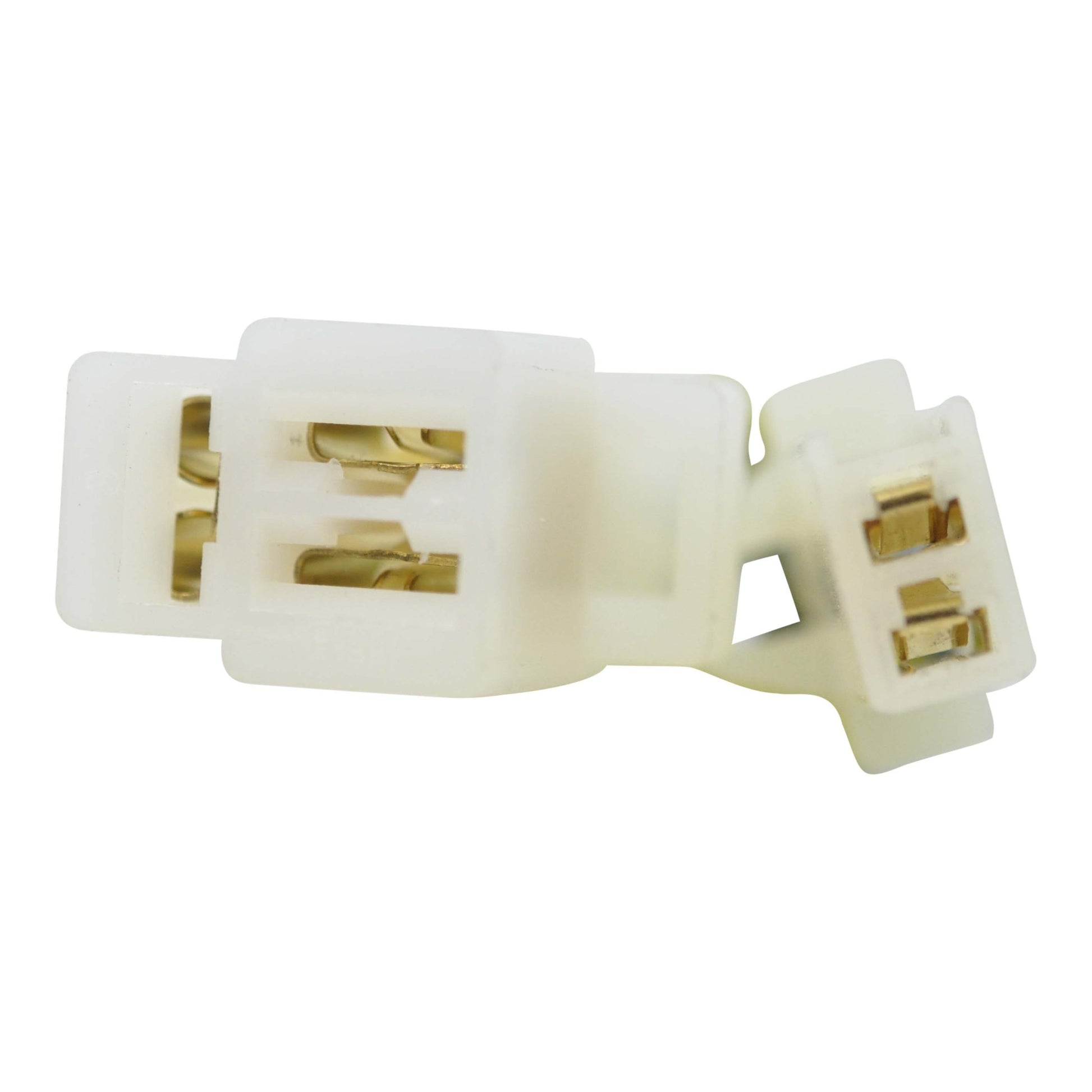

The unit is wound with the highest grade copper windings, rated to resist 200 degrees Celsius, and built on highest grade lamination materials, so it stands up to the heat soak inside a small air-cooled engine case. Every unit is tested before it is shipped. The opposite connector for the main harness side is also included, because that plug is very often melted, corroded or otherwise defective on a bike that has already lost a stator, and a damaged harness plug is a common cause of repeat electrical faults.
Key Features
- Brand new aftermarket stator - direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Pick up pulsar coil included and pre-fitted
- Connector included
- Rubber grommet included
- Opposite connector for the main harness side included
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RMS010-100087 |
| Interior diameter | 35.52 mm |
| Exterior diameter | 92.97 mm |
| Thickness | 16 mm |
| Fixation holes, centre to centre | 30 mm |
| Wire length, stator to grommet | 100 mm |
| Wire length, grommet to plug | 900 mm |
| Pickup coil wire to grommet | 100 mm |
| Number of wires | 5 |
| Number of plugs | 2 |
| Number of pins | 5 |
| Alternator resistance, Yellow to Yellow | 0.6 ohms +/-20% |
| Pickup resistance, White/Green to White/Red | 100 ohms +/-20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Suzuki DR125 SE | 1994-1996 |
| Suzuki DR200 SE | 1996-2013 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 32101-42A30 | Suzuki |
| 32101-42A40 | Suzuki |
Frequently Asked Questions
Will this fit without modifying my bike?
Yes. It is a direct replacement for the original unit and is plug-and-play, so it uses the standard mounting holes and the standard connectors. No cutting, splicing or drilling is required. Before ordering, check that the OEM number stamped on your original unit is 32101-42A30 or 32101-42A40.
What is included in the box?
The stator itself with the pick up pulsar coil already fitted, the connector, the rubber grommet, and the opposite connector for the main harness side. Every unit is tested before it leaves us.
How do I know my old stator has failed?
A meter is the quickest check. Across the two yellow alternator wires you should read about 0.6 ohms, plus or minus 20 per cent. The pickup, measured White/Green to White/Red, should read about 100 ohms, plus or minus 20 per cent. An open circuit, a near-zero short, or continuity between any winding and the stator body points to a failed unit.
Why is a second connector supplied?
The matching plug on the main harness is often melted or corroded by the time a stator fails, and a damaged plug will keep causing charging faults even with a new stator fitted. Supplying the opposite connector lets you renew both halves of the joint at the same time.
