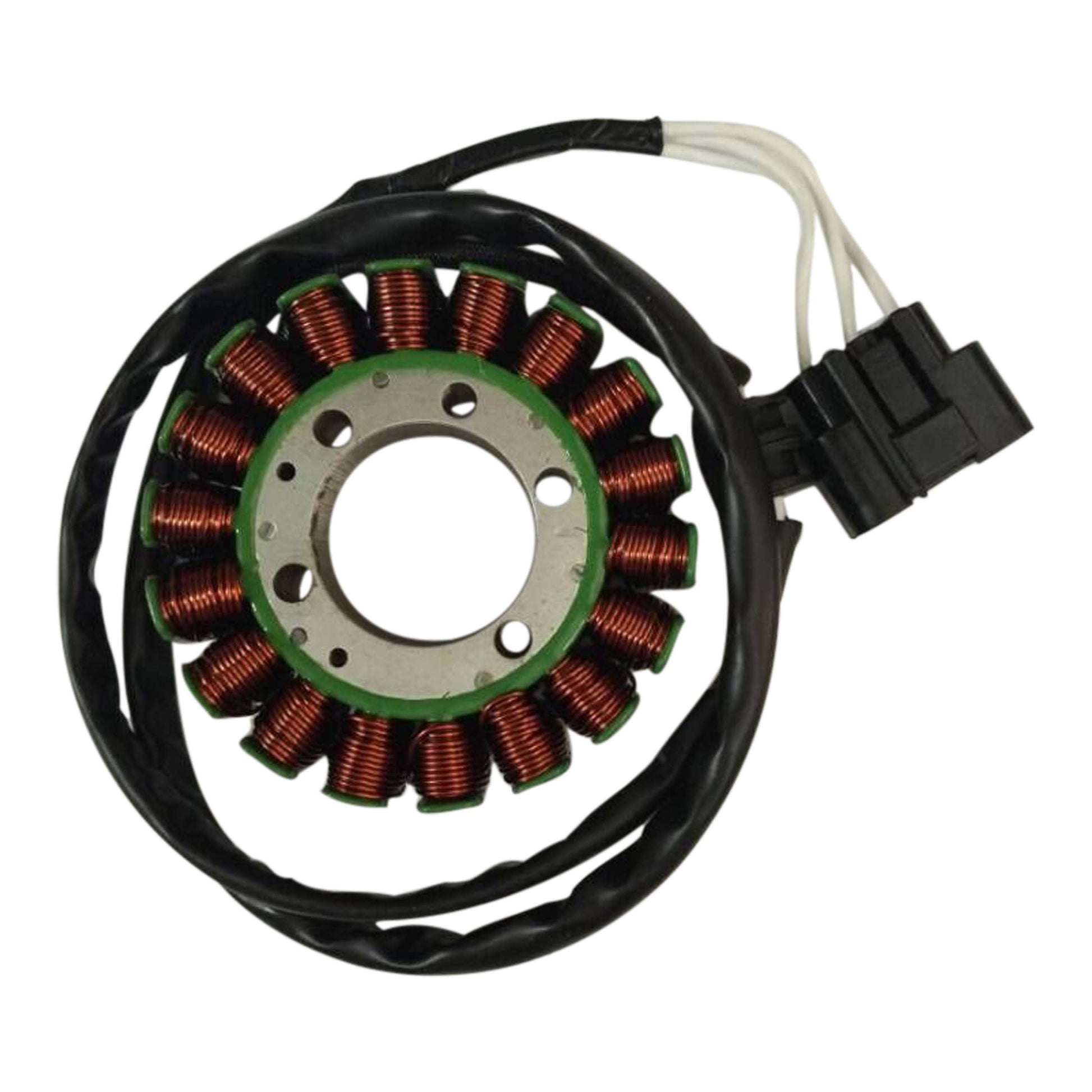

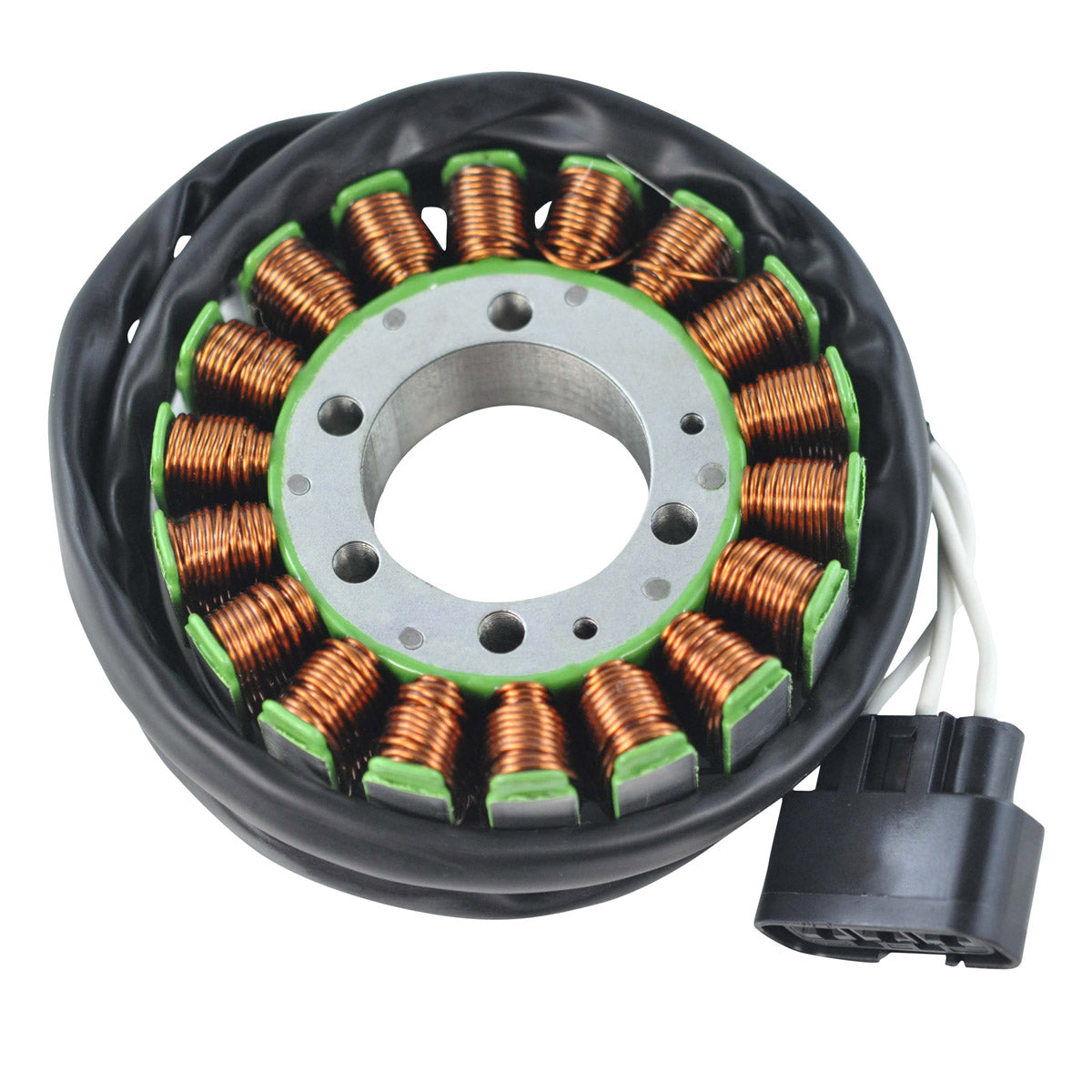

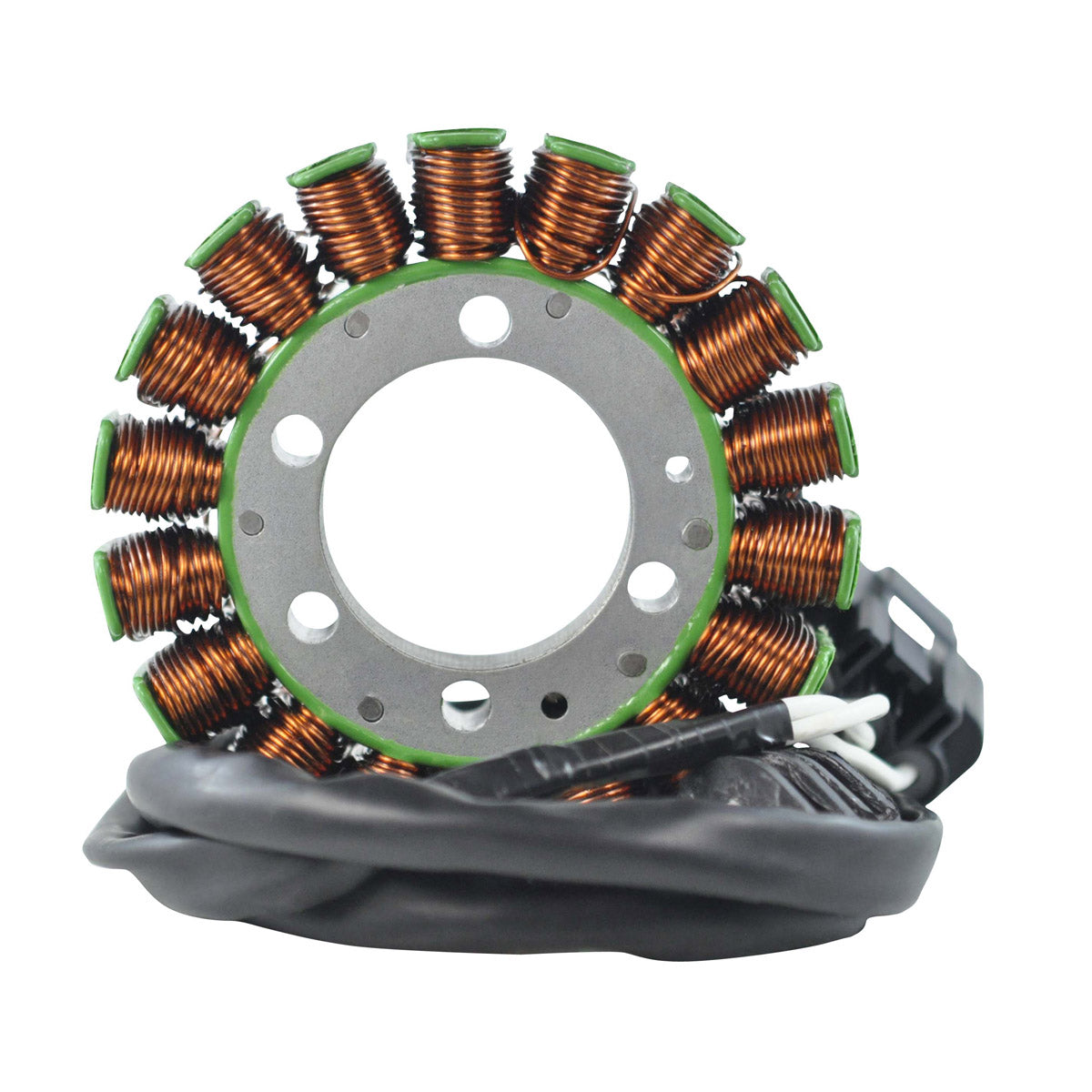

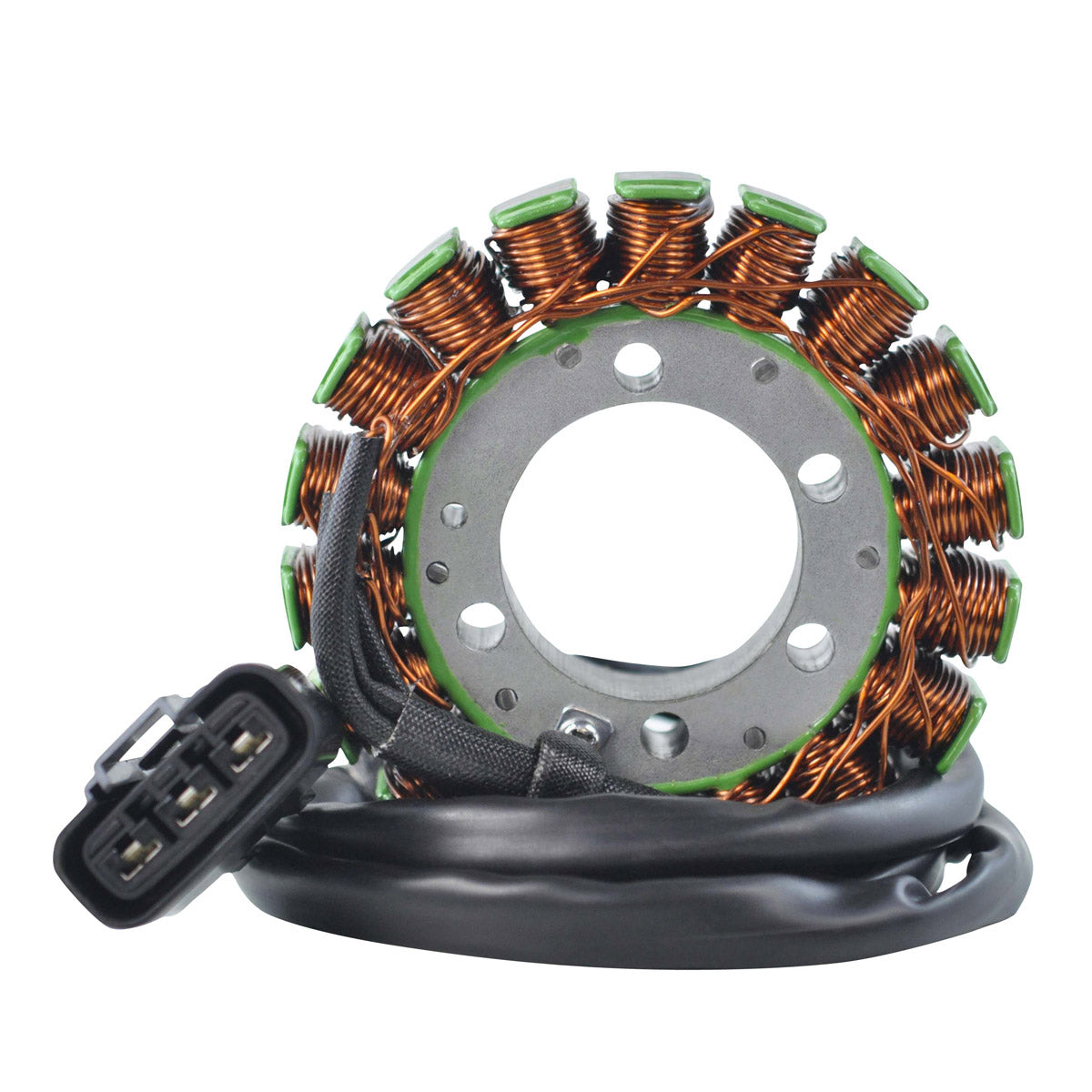

Generator Stator for Yamaha FX Nytro 1000 MTX, RTX and XTX 2008-2011
Yamaha FX Nytro 1000 - 2008 to 2011 - OEM replacement 8GL-81410-00-00 - Part RM01306
This is a brand new generator stator built as a direct replacement for the original charging stator fitted to the Yamaha FX Nytro 1000 in MTX, RTX and XTX form from 2008 to 2011. It cross references Yamaha part number 8GL-81410-00-00 and is a plug-and-play, direct fit item that uses the standard mounting points and the factory connector, so no cutting, splicing or modification of the wiring loom is required.

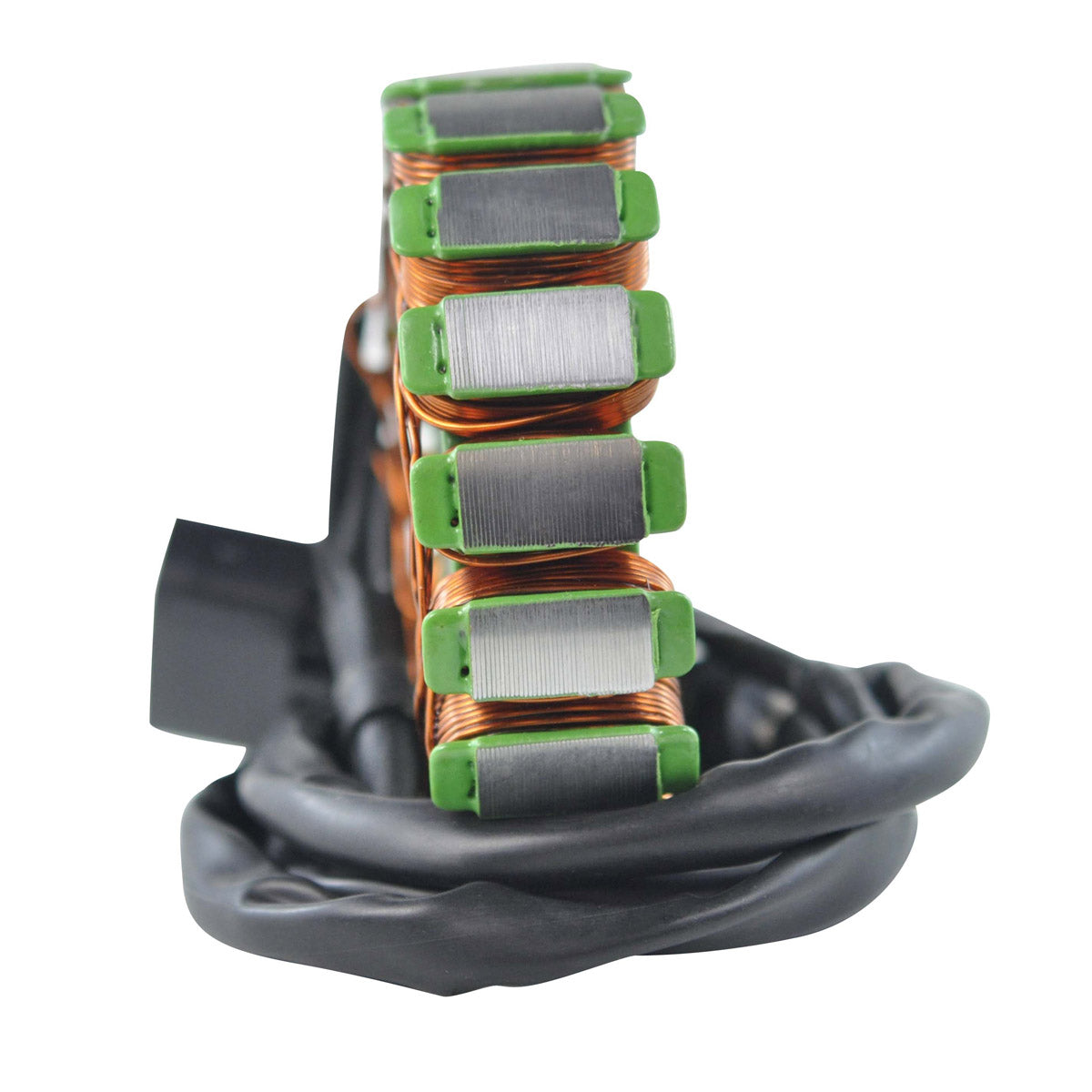

The stator is built on highest grade lamination materials and wound with highest grade copper windings that are resistant to 200 degrees Celsius, giving stable charging output on a machine that runs hard and hot. A connector and a rubber grommet are supplied with the unit, and all shipped units are tested. The long 860 mm lead from the grommet to the plug matches the original routing on these sleds.
Key Features
- Brand new generator stator - direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Connector included
- Rubber grommet included
- All shipped units are tested
- Cross references Yamaha 8GL-81410-00-00
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM01306 |
| Interior diameter | 41 mm |
| Exterior diameter | 104 mm |
| Thickness | 20 mm |
| Wire length (stator to grommet) | 110 mm |
| Wire length (grommet to plug) | 860 mm |
| Number of wires | 3 |
| Number of plugs | 1 |

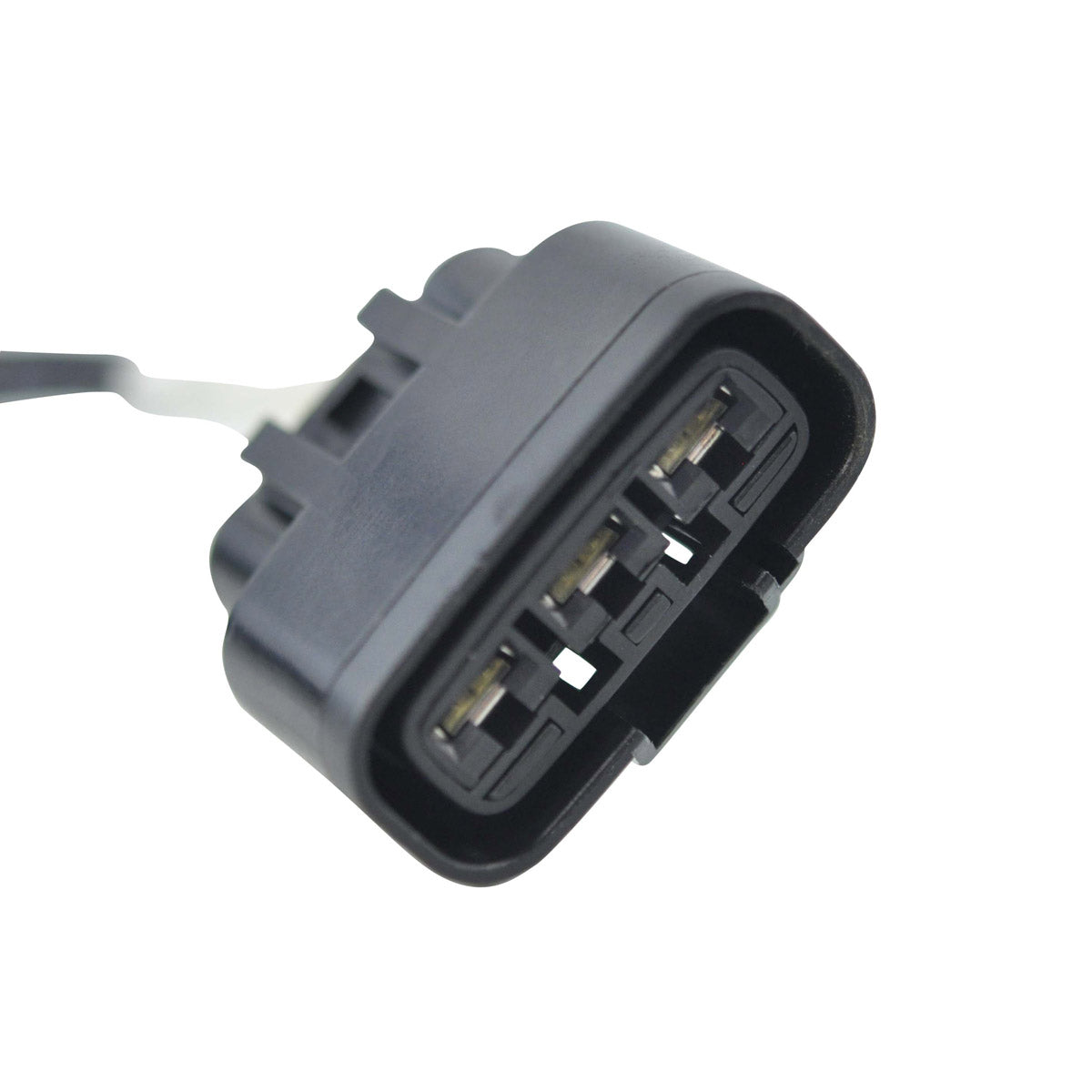

| Number of pins | 3 |
| Wire-to-wire resistance (white to each white) | 0.4 ohms +/- 20% |
| Temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Yamaha FX Nytro 1000 MTX / RTX / XTX | 2008-2011 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 8GL-81410-00-00 | Yamaha |
Frequently Asked Questions
Will it fit without modification?
Yes. This is a direct, plug-and-play replacement for the original generator stator on the 2008 to 2011 FX Nytro 1000, in MTX, RTX or XTX trim. It uses the standard mounting points and the factory connector, so nothing has to be cut or spliced. Confirm your original unit carries part number 8GL-81410-00-00 before ordering.
What is included in the box?
The generator stator assembly, its connector and a rubber grommet. All shipped units are tested.
How do I know my old stator has failed?
Look for a battery that will not hold charge, dim lights, a charging warning, and eventually the sled stopping and refusing to restart. Test the three white wires with a multimeter: each pair should read approximately 0.4 ohms +/- 20%. An open circuit, continuity to the engine case, or a reading well away from that figure confirms a failed stator.
Will the harness reach the original plug position?
Yes. The lead runs 110 mm from the stator body to the grommet and a further 860 mm from the grommet to the plug, following the same routing as the original harness, so the connector arrives at the factory location without extending or shortening the loom.
