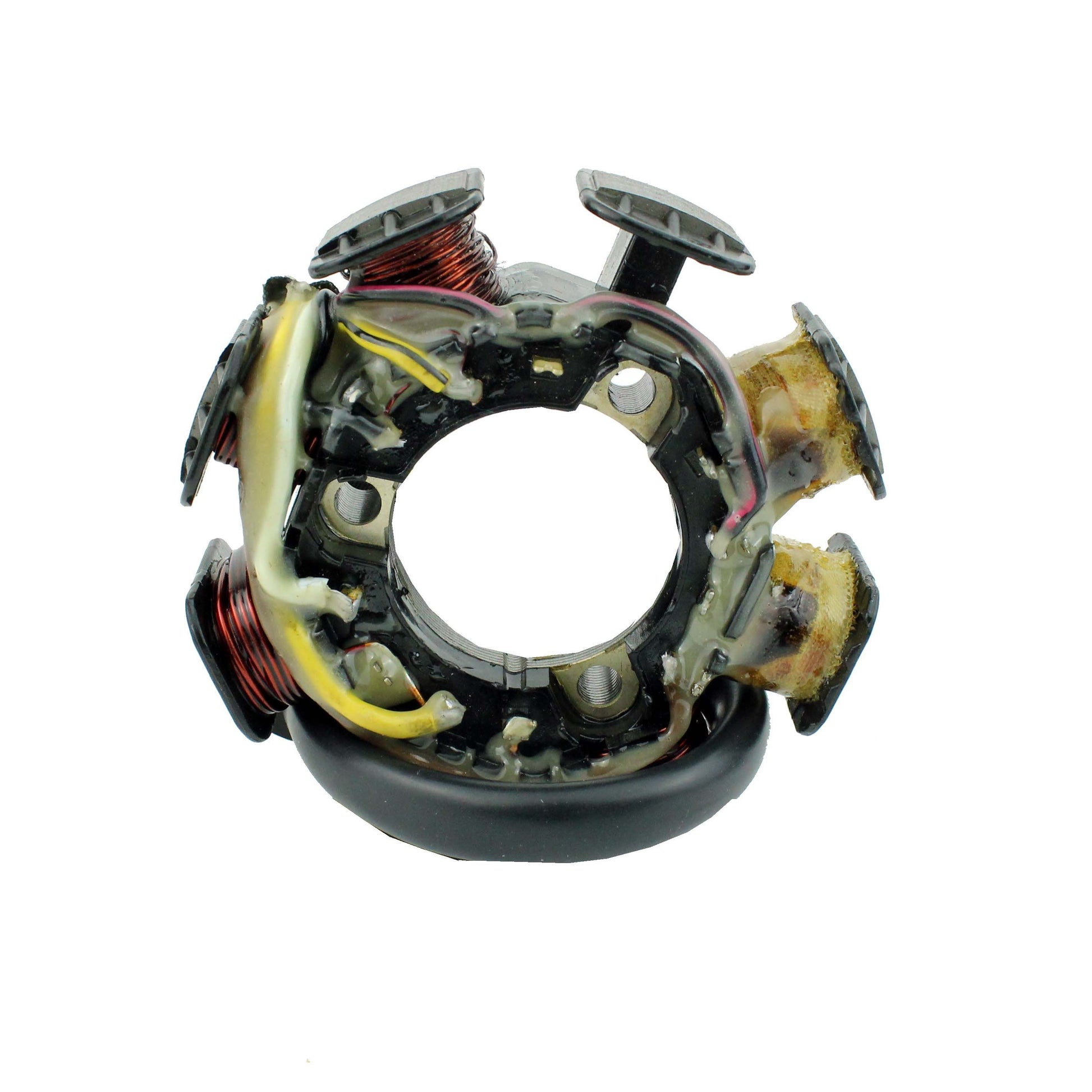

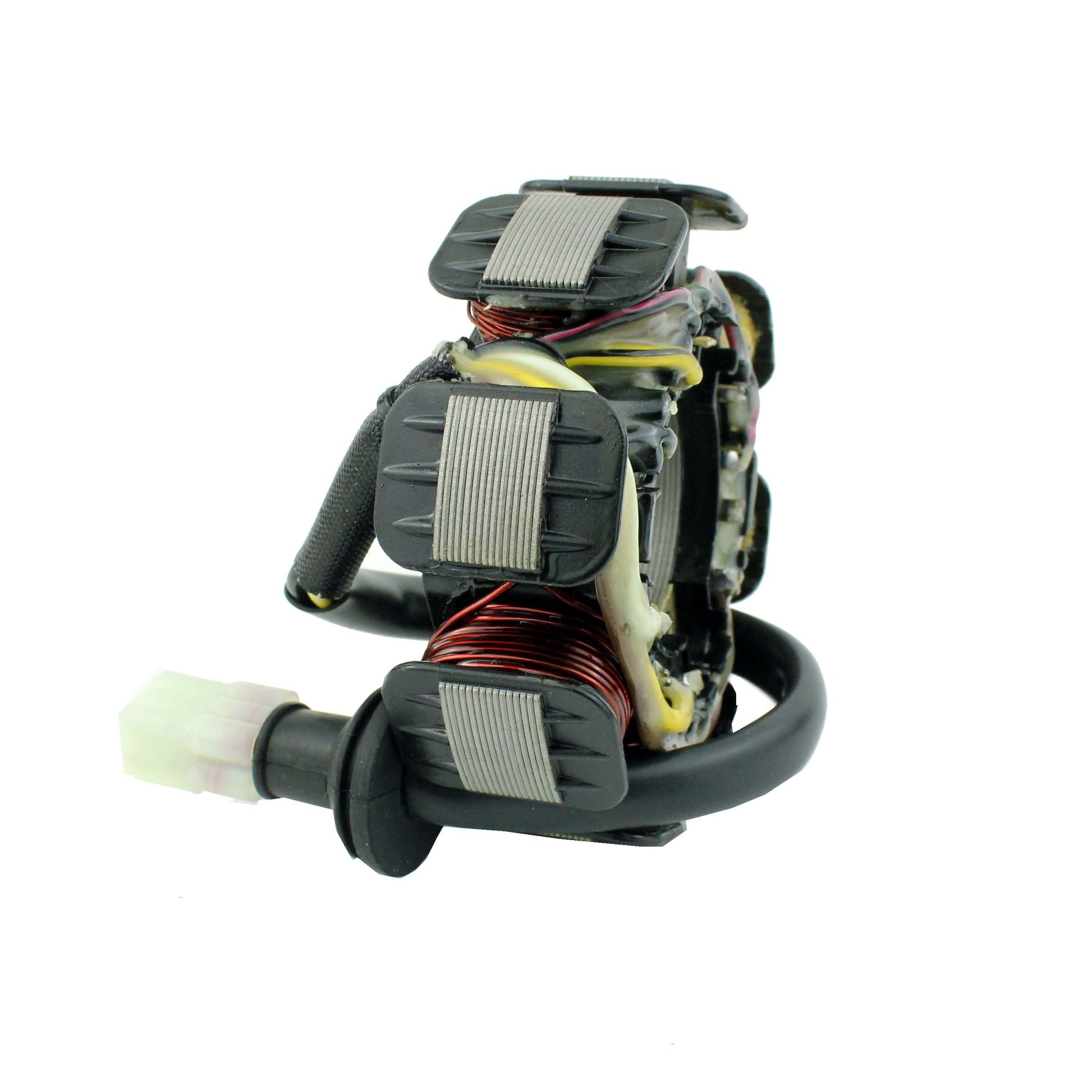

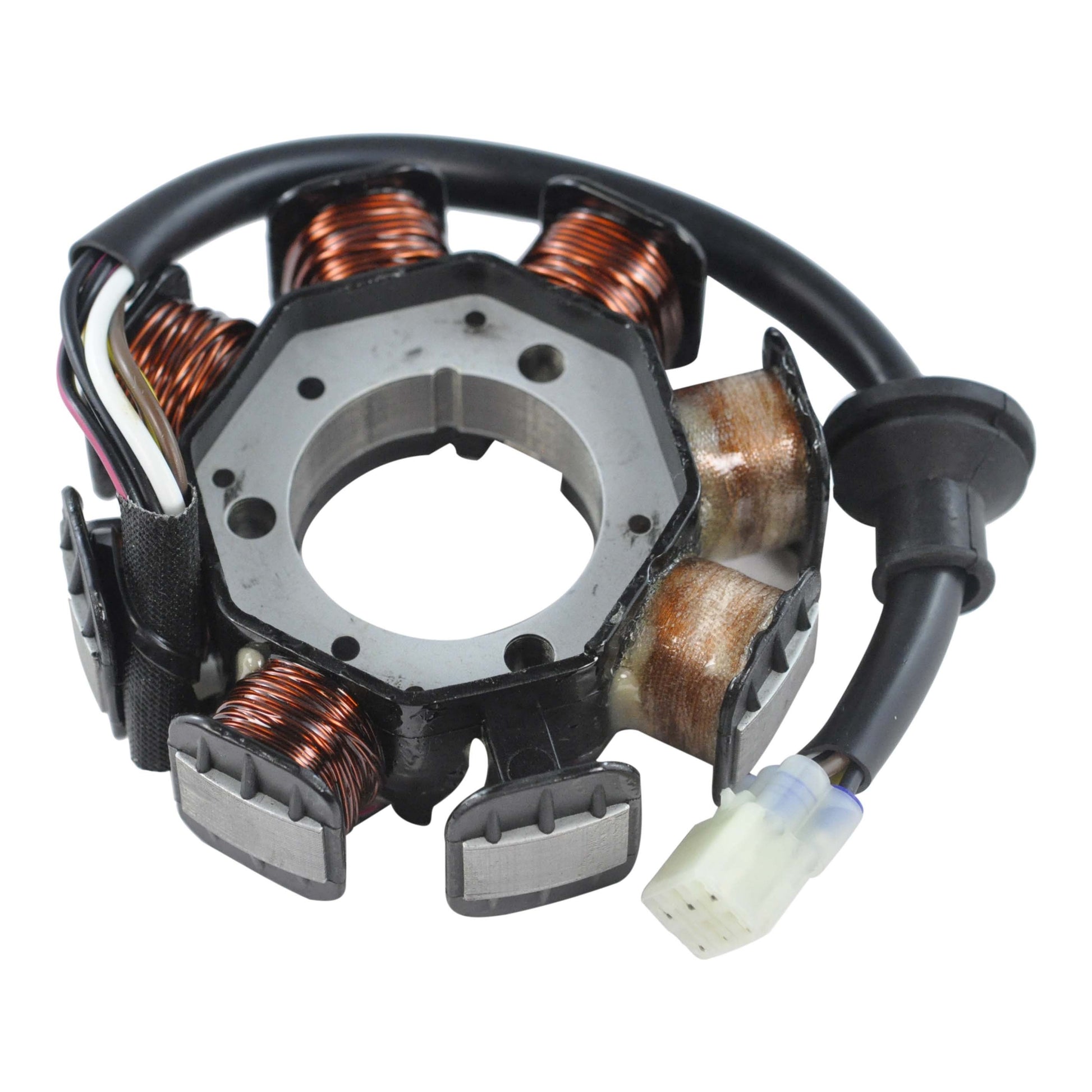

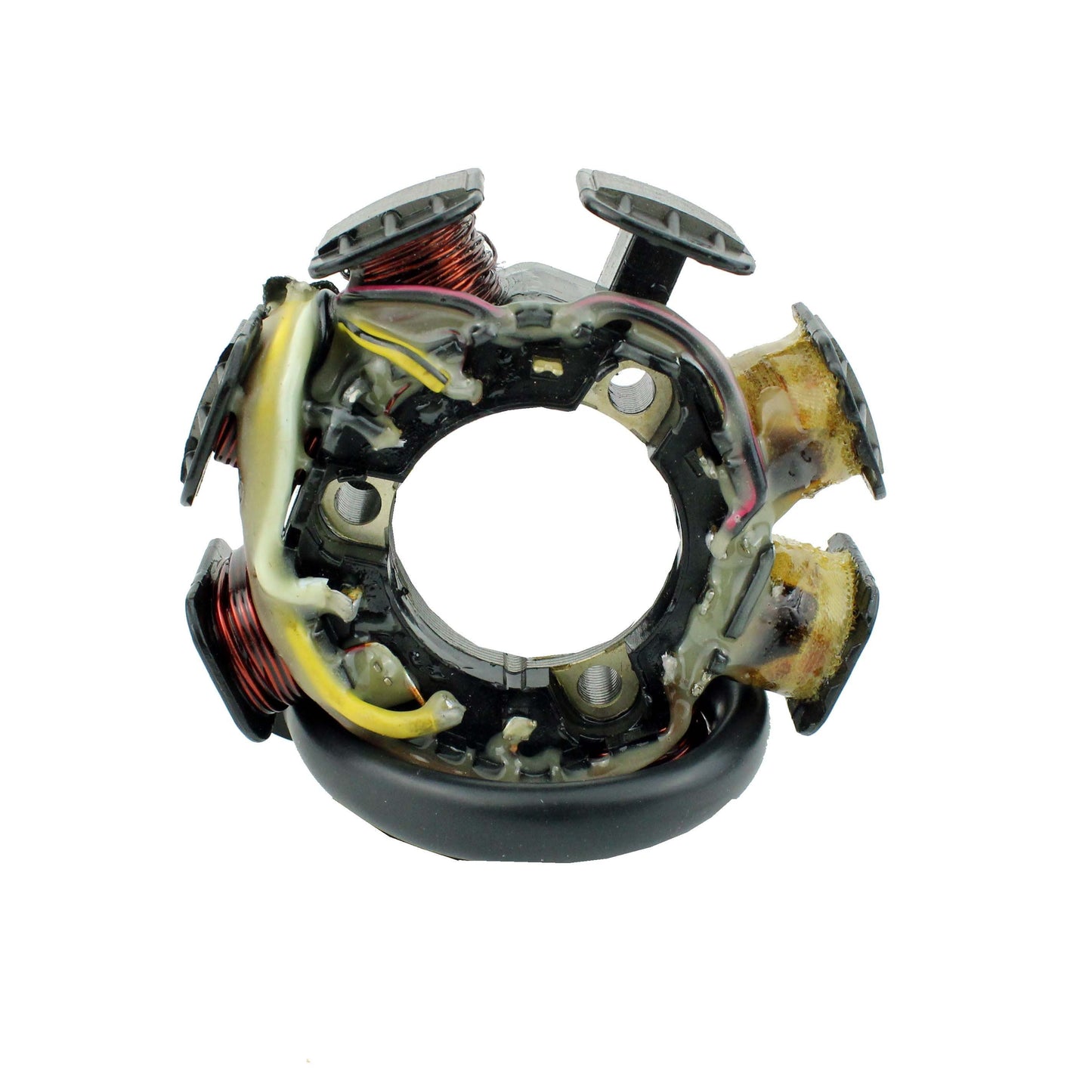

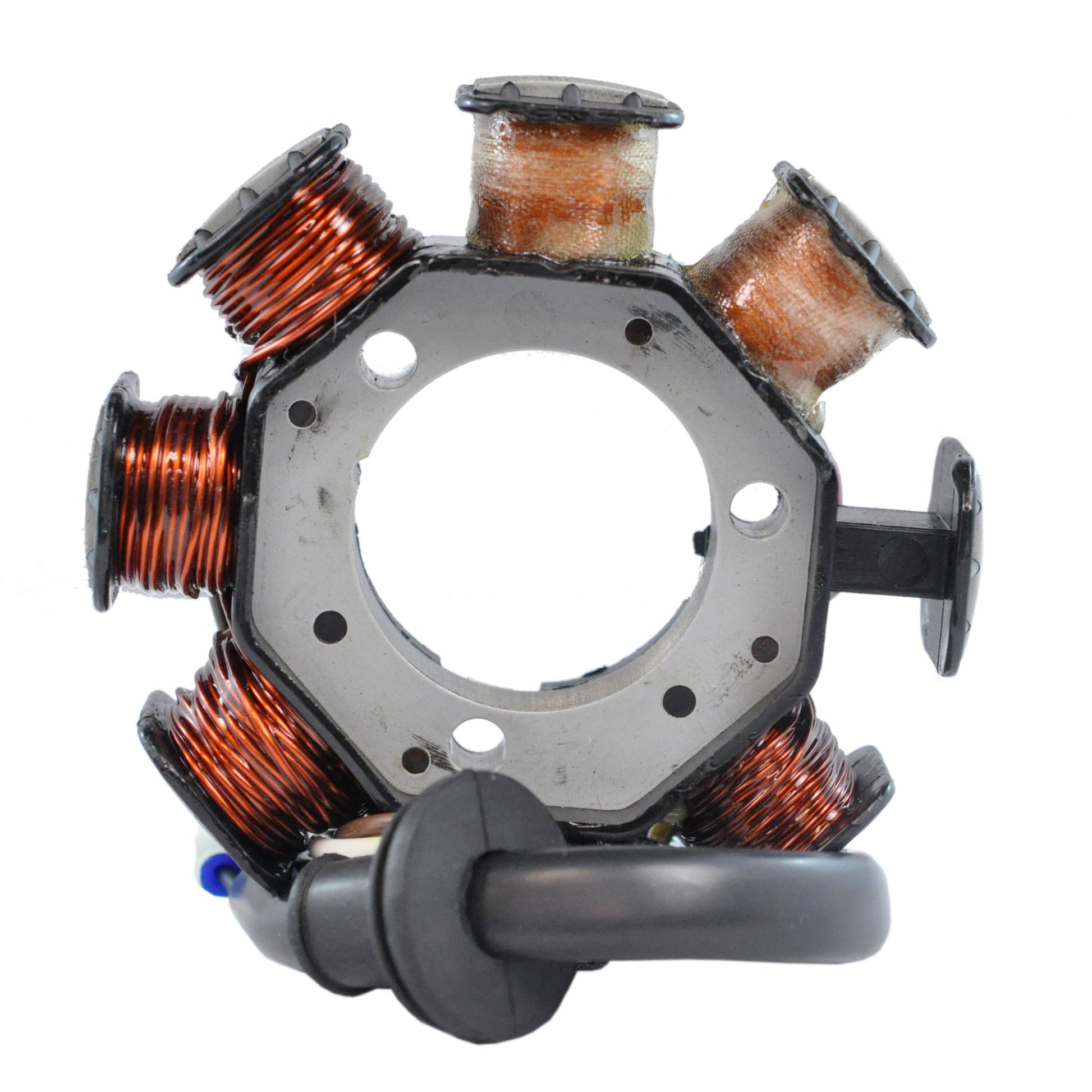

Stator for Yamaha V-Max 500 & V-Max 600
Deluxe, Electric Start, ST and XT variants - 1995 to 1996 - Part RM01307
A brand new stator built as a direct replacement for the original unit on the 1995 and 1996 Yamaha V-Max 500 and V-Max 600 family, including the Deluxe, Electric Start, ST and XT variants. It is plug-and-play and a direct fit, so it mounts on the original bosses and joins the loom through the single factory six-pin plug with no splicing and no adapters.
The stator is wound with the highest grade copper on the highest grade lamination material, rated to withstand 200 degrees Celsius. That temperature rating matters on a stator that lives inside a hot recoil housing, and it is the main reason a tired original loses charging output long before it fails outright. The connector and the rubber grommet are supplied fitted so the harness is renewed along with the windings. Every unit is tested before it is shipped.
Key Features
- Direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings rated to 200 degrees Celsius
- Connector and rubber grommet supplied fitted

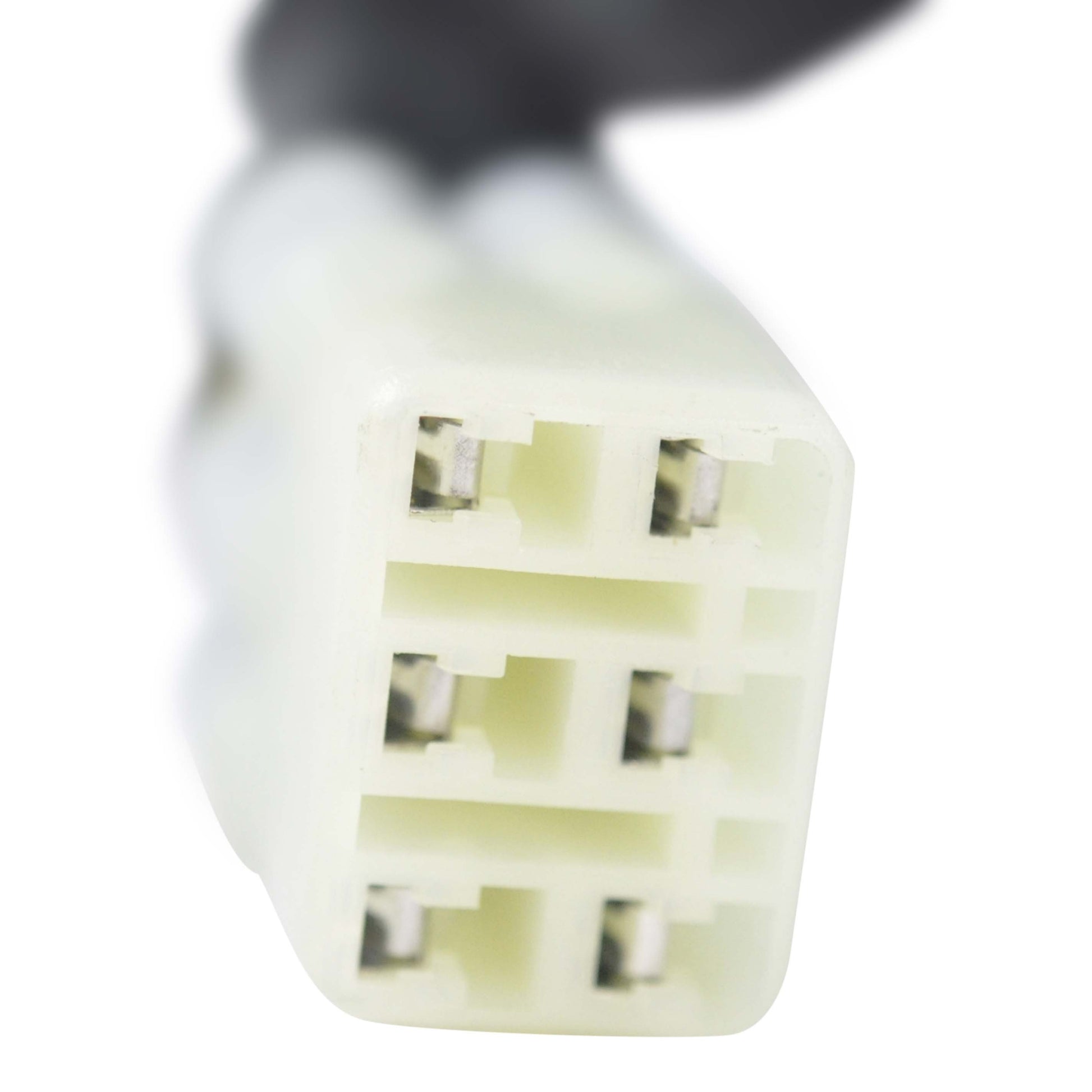

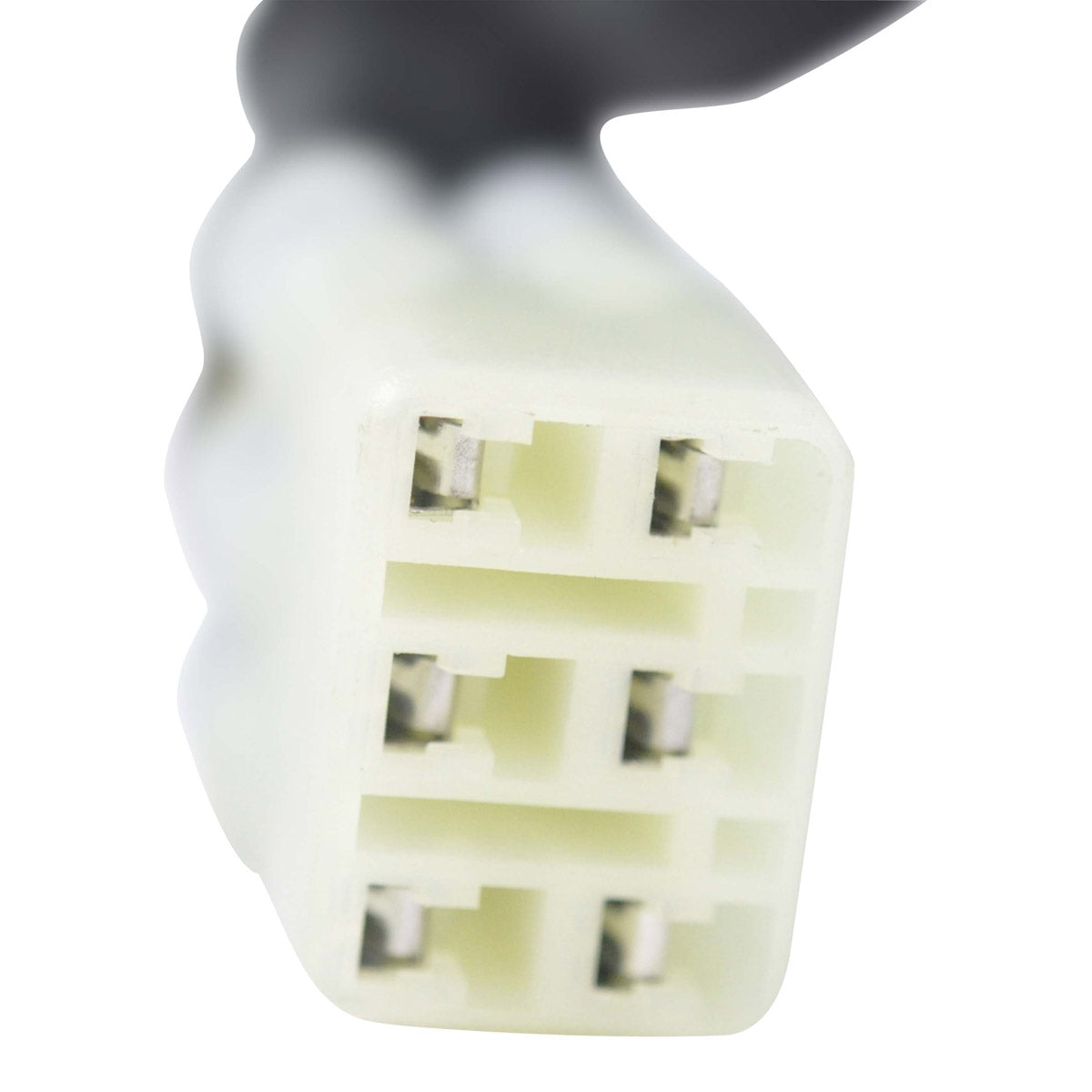

- Single six-pin factory plug, six wires
- Tested before shipping
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 41 mm |
| Exterior diameter | 104 mm |
| Thickness | 15 mm |
| Wire length, stator to grommet | 50 mm |
| Wire length, grommet to plug | 200 mm |
| Number of wires | 6 |
| Number of plugs | 1 |
| Number of pins | 6 |
| Alternator resistance (Yellow to White) | 0.4 ohms +/- 20% |
| Source resistance (Brown to Red/Black) | 314 ohms +/- 20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Yamaha V-Max 500 | 1995-1996 |
| Yamaha V-Max 500 Deluxe | 1995-1996 |
| Yamaha V-Max 500 Electric Start | 1995-1996 |
| Yamaha V-Max 500 XT | 1995-1996 |
| Yamaha V-Max 600 | 1995-1996 |
| Yamaha V-Max 600 Deluxe | 1995-1996 |
| Yamaha V-Max 600 Electric Start | 1995-1996 |
| Yamaha V-Max 600 ST | 1995-1996 |
| Yamaha V-Max 600 XT | 1995-1996 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 8AB-85510-00-00 | Yamaha |
| 8AB-85510-10-00 | Yamaha |
| 8AB-85510-20-00 | Yamaha |
Frequently Asked Questions
Does anything need modifying to fit it?
No. It replaces the original stator directly on the listed models, using the factory mounting positions and the single six-pin plug. No cutting, splicing or drilling.
What comes in the box?
The stator with its connector and rubber grommet already fitted. A pick-up coil is not part of this assembly.
How do I tell whether my stator has failed?
Look for a battery that will not hold charge, headlights that dim or brighten erratically with revs, and weak or lost spark. Then measure the old unit: yellow to white should read about 0.4 ohms and brown to red/black about 314 ohms, both within 20%. An open circuit, a short to the core, or a value well away from those figures means the windings have gone.
My OEM number is 8AB-85510-10-00 rather than 20-00. Is this still correct?
Yes. RMSTATOR lists this stator against all three Yamaha numbers - 8AB-85510-00-00, 8AB-85510-10-00 and 8AB-85510-20-00 - which are supersessions of the same part across the 1995 and 1996 V-Max 500 and 600 range.
