Stator Cover Gasket for Arctic Cat DVX 400, Kawasaki KFX 400 & Suzuki LTZ 400 2003-2014

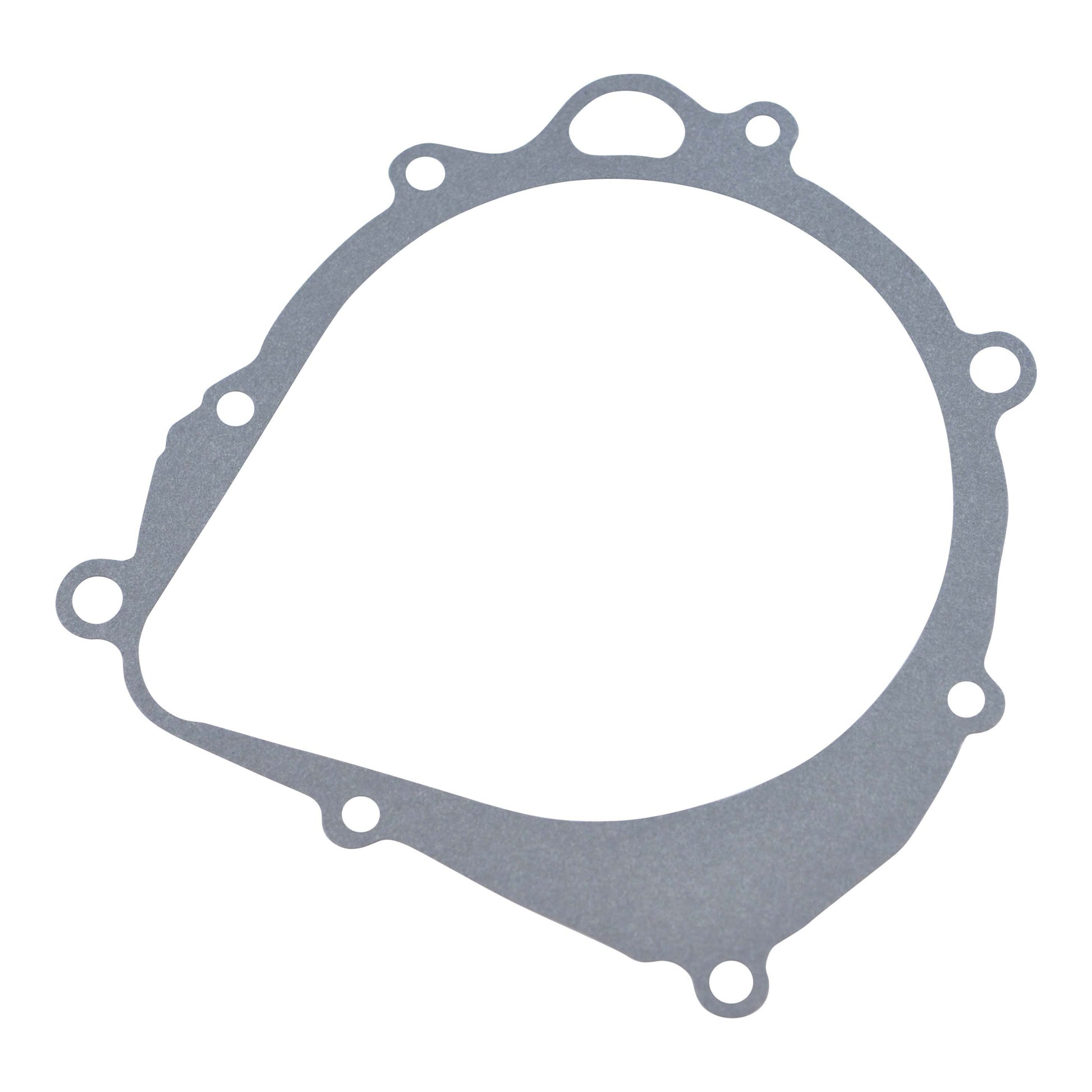

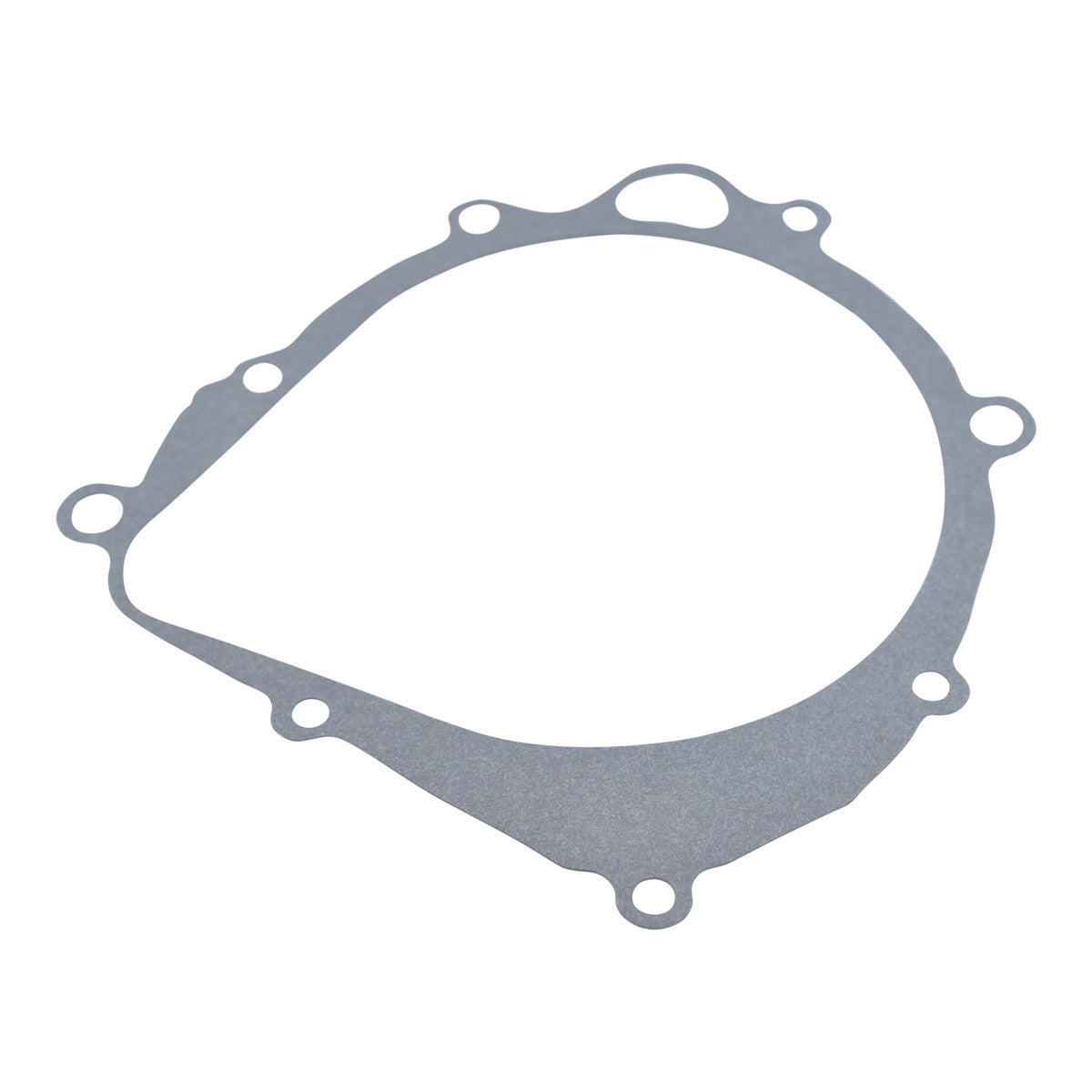

Brand new stator crankcase cover gasket - part RM08020 - fits the shared 400 sport quad platform
The stator cover gasket seals the crankcase side cover against the engine case. It has two jobs: it holds engine oil inside the case, and it keeps water, mud and trail grit away from the stator windings, the pickup coil and the flywheel behind the cover. On a 400 sport quad the cover comes off fairly often - to change a stator, to inspect the charging system, to fit a flywheel puller - and the gasket should be renewed every time. A gasket that has already been crushed once will rarely seal properly again.

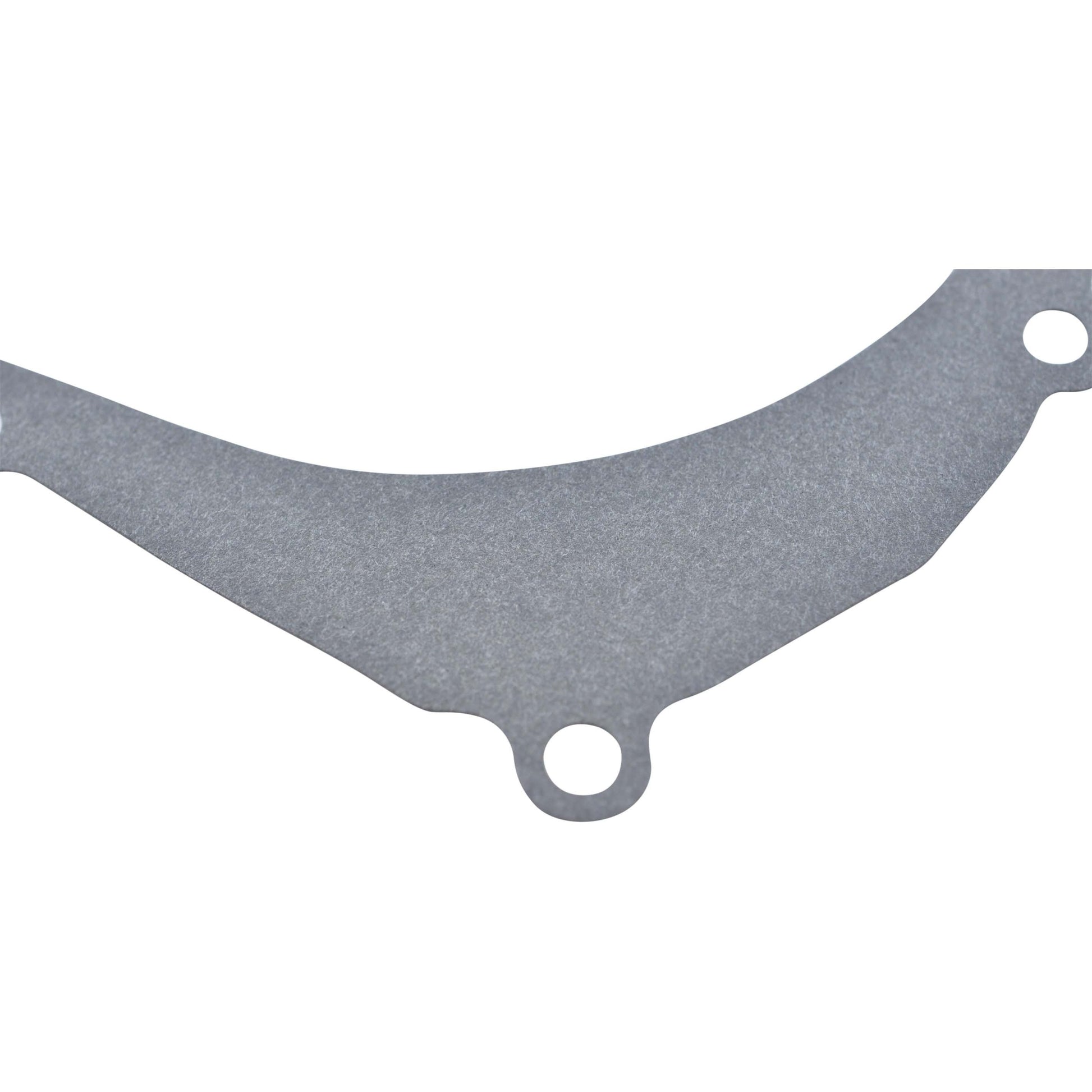

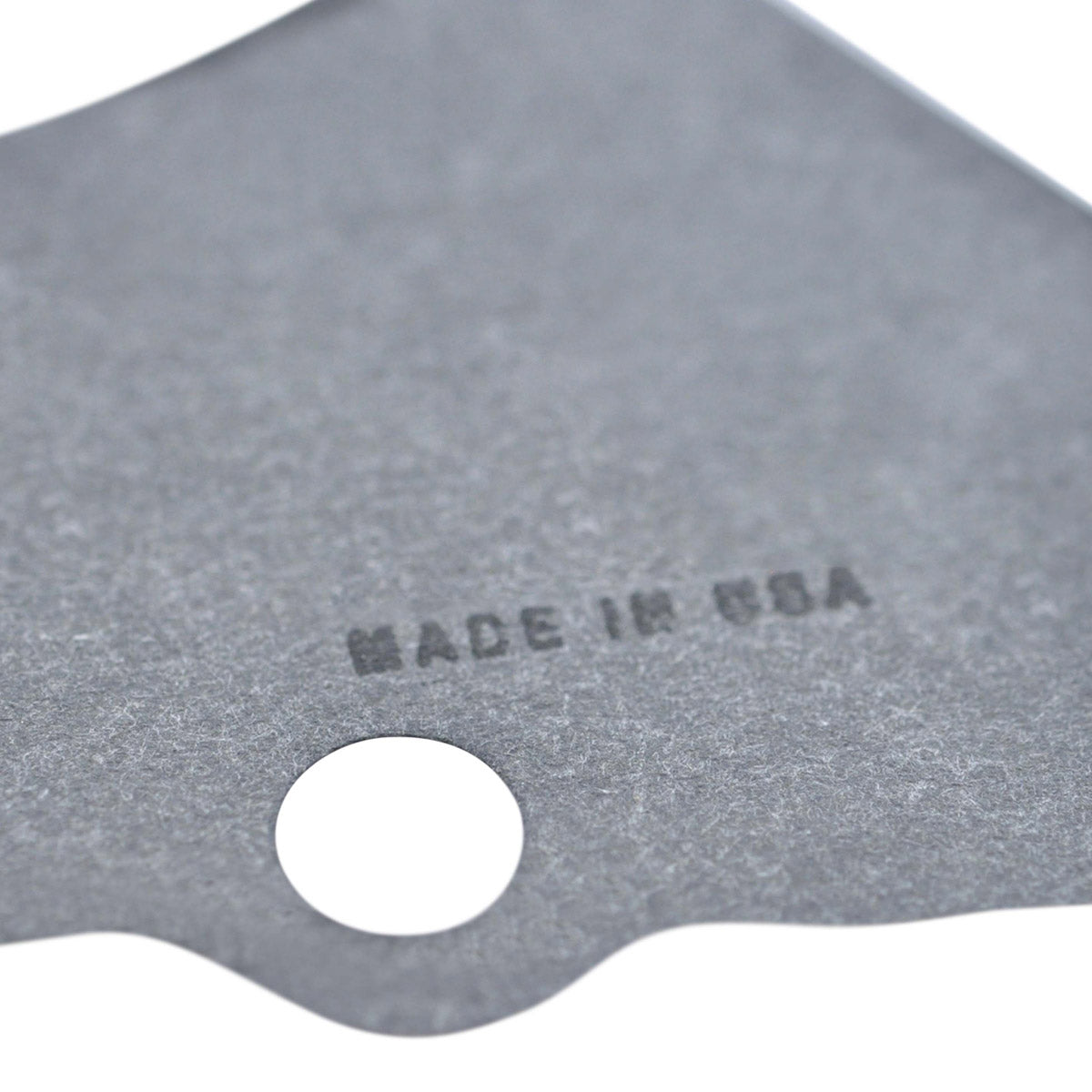

This is a brand new side cover and stator gasket cut to the original pattern for the shared 400 platform used by the Arctic Cat DVX 400, the Kawasaki KFX 400 and the Suzuki LTZ 400 Quadsport. Every bolt hole and oil passage lines up with the factory case, so it drops straight on with no trimming and no modification. It carries a one year limited warranty. The product photographs are accurate representations of the item supplied, so if you are unsure, compare them against your original part before ordering.
Key Features
- Brand new side cover and stator crankcase cover gasket
- Direct replacement for OEM numbers 11483-07G10, 11483-07G00, 11061-S072 and 3409-023
- Cut to the original pattern - no trimming or modification needed
- Ride specific to the 400 sport quad platform, 2003 to 2014
- Covers Arctic Cat, Kawasaki and Suzuki versions of the same engine
- One year limited warranty
- The correct part to fit whenever the stator cover is removed
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM08020 |
| Part type | Stator crankcase cover gasket |
| Condition | Brand new |
| Fitment type | Ride specific |
| Engine size covered | 400 |
| Coverage span | 2003-2014 |
| Warranty | 1 year limited |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Arctic Cat DVX 400 | 2003-2014 |
| Kawasaki KFX 400 | 2003-2014 |
| Suzuki LTZ 400 Quadsport | 2003-2014 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 11483-07G10 | Suzuki |
| 11483-07G00 | Suzuki |
| 11061-S072 | Kawasaki |
| 3409-023 | Arctic Cat |
Frequently Asked Questions
Will this fit without modification?
Yes. It is cut to the OEM pattern for the listed machines, so the bolt holes and oil passages line up with the engine case exactly as the original gasket did. No trimming and no modification is required.
What is included?
One stator crankcase cover gasket. Cover bolts, seals and the stator itself are not included.
How do I know my old gasket needs replacing?
Look for an oil weep or a wet, dirt-caked film below the stator cover, or oil pooling on the cover lip. A gasket that tore on removal, that has gone hard and brittle, or that has taken a permanent set from being compressed should always be replaced rather than refitted.
Why does one gasket cover three different makes?
The Arctic Cat DVX 400, the Kawasaki KFX 400 and the Suzuki LTZ 400 Quadsport share the same 400 engine platform, so they use the same crankcase cover and therefore the same gasket. That is also why the cross reference above lists Suzuki, Kawasaki and Arctic Cat part numbers for the one item.
