Stator Cover Gasket for Arctic Cat 375 / 400 Auto, TBX 400 & Suzuki LTA 400 Eiger 2002-2008 - 11483-38F00
Stator Cover Gasket for Arctic Cat 375 / 400 Auto, TBX 400 & Suzuki LTA 400 Eiger 2002-2008 - 11483-38F00
SKU:RM08035
Free shipping over £150. Terms apply
Couldn't load pickup availability

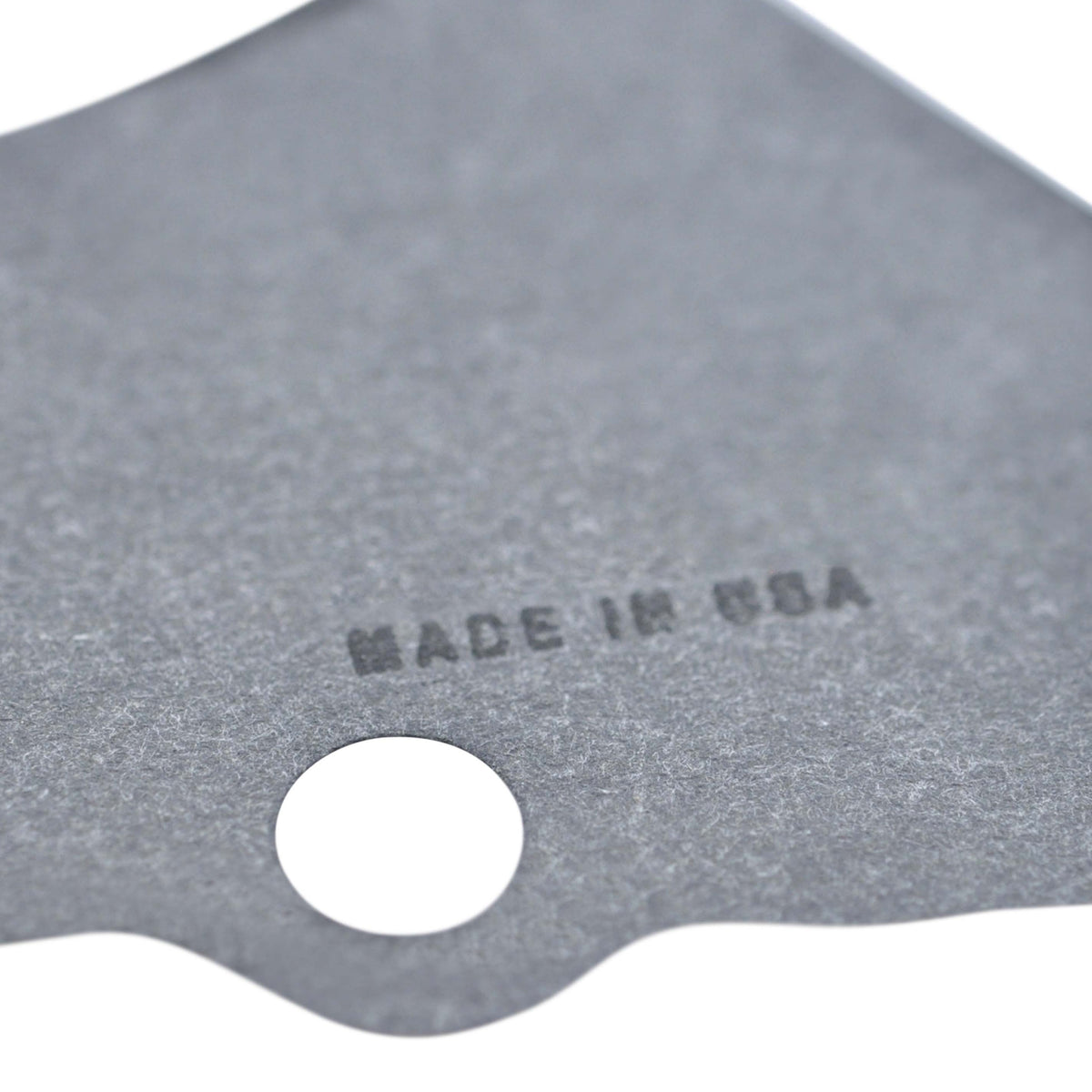

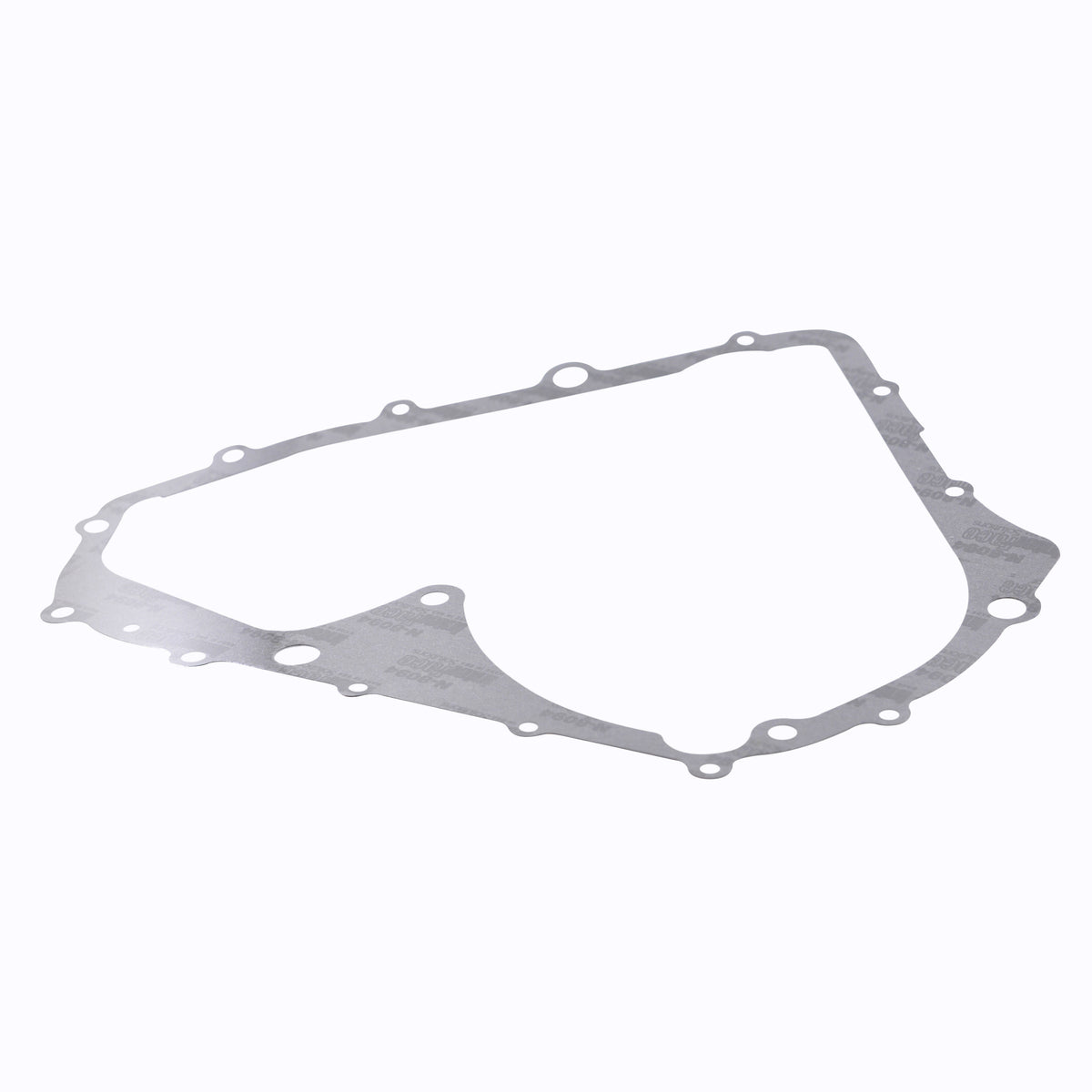

Stator Cover Gasket - Arctic Cat & Suzuki Eiger Auto
Arctic Cat 375 / 400 Auto & Suzuki LTA 400 Eiger - Replaces 11483-38F00
A replacement stator cover gasket for the Arctic Cat 375 / 400 Auto & Suzuki LTA 400 Eiger. It seals the left-hand engine cover that houses the stator, and is the part to renew whenever the cover is removed for a stator, flywheel or pickup coil job.
Key Features
- Direct replacement for the original stator (magneto) cover gasket
- Seals the stator cover against oil leaks
- Made from quality gasket material
- Recommended whenever the stator cover is removed or the stator is replaced
Technical Specs
| Specification | Detail |
|---|---|
| Part Type | Stator / Magneto Cover Gasket |
| Position | Stator (generator) cover |
| Condition | New |
Vehicle Fitment Guide
Years shown are the coverage span for this part. Please confirm against the OEM part number on your original part before ordering.
| Make & Model | Years |
|---|---|
| Arctic Cat 375 Automatic | 2002-2008 |
| Arctic Cat 400 Automatic | 2003-2008 |
| Arctic Cat TBX 400 | 2004-2008 |
| Suzuki LTA 400 Eiger | 2002-2007 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 11483-38F00 | Suzuki |
| 3402-590 | Arctic Cat |
Frequently Asked Questions
Should I replace the gasket when I change the stator?
Yes. A used cover gasket rarely reseals properly, so fitting a new one when the stator cover comes off is the easiest way to avoid oil leaks.
Do I need sealant?
The gasket is designed to seal on its own on clean, flat surfaces. Clean both faces thoroughly before fitting.
