Stator Cover Gasket for Polaris RZR, Ranger, ACE & General 900 1000 2013-2024
Stator Cover Gasket for Polaris RZR, Ranger, ACE & General 900 1000 2013-2024
SKU:RM08030
Free shipping over £150. Terms apply
Couldn't load pickup availability

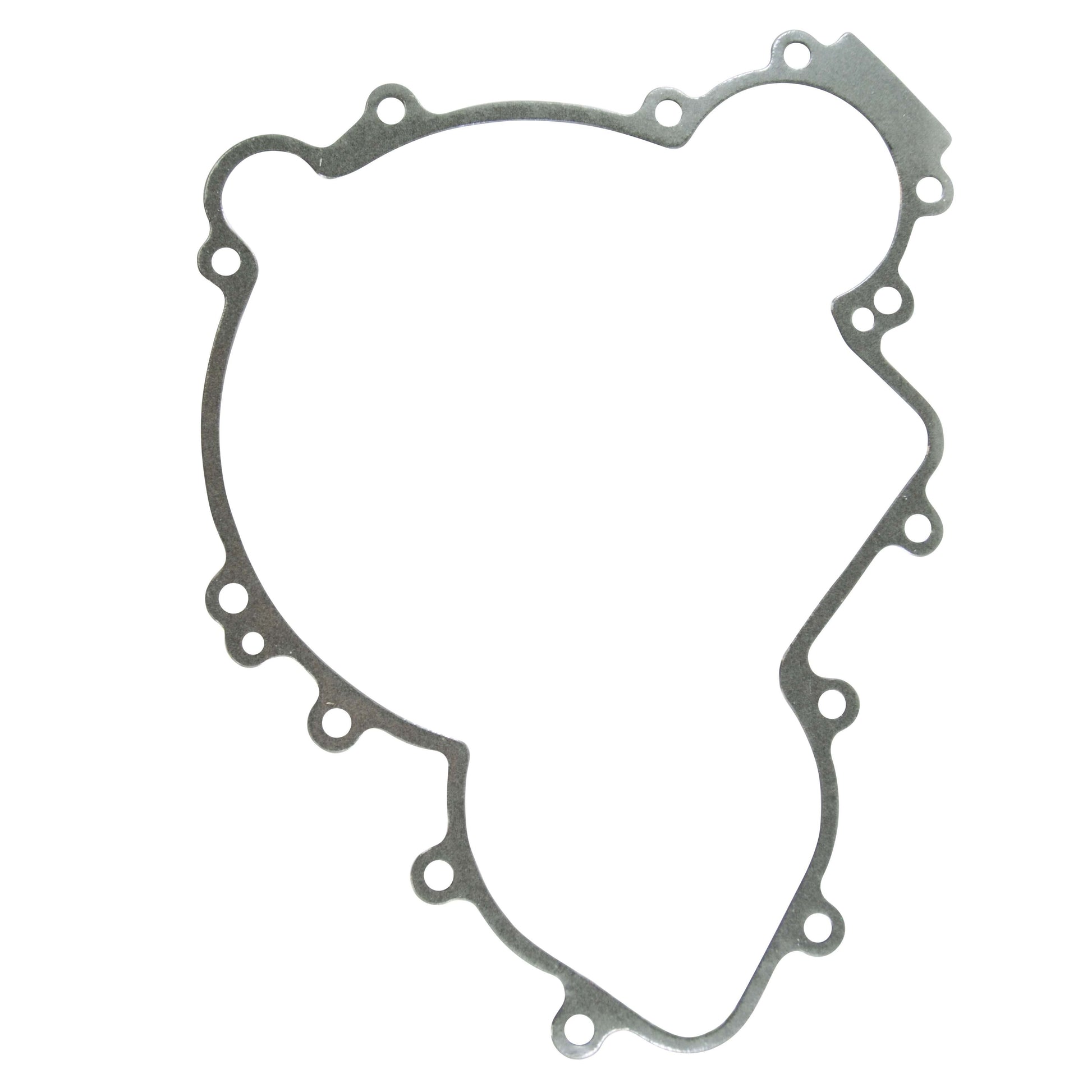

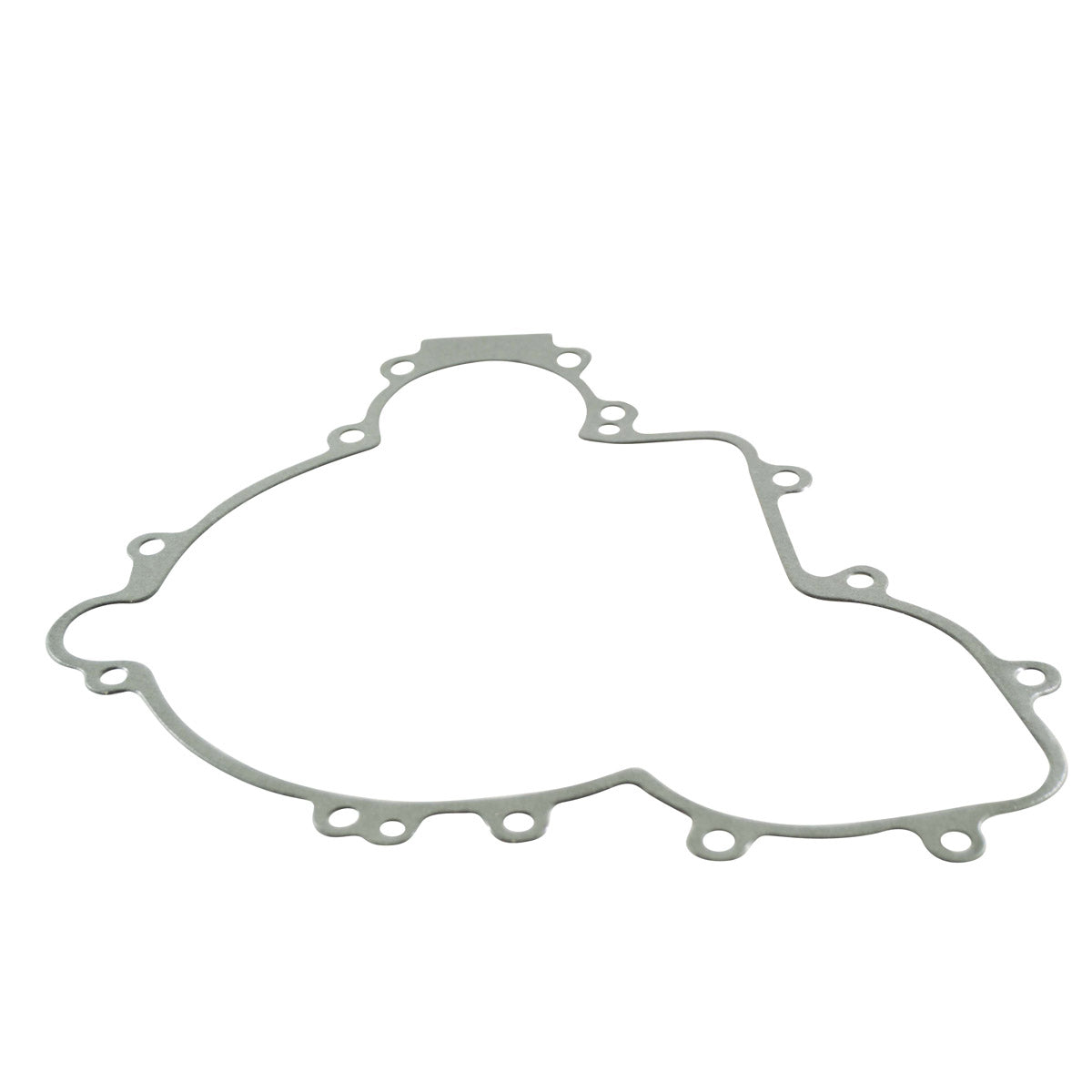

Stator Cover Gasket for Polaris RZR, Ranger, ACE & General 900 1000 2013-2024
OEM-style replacement gasket - part RM08030 - RZR, RZR 4, RZR XP, RZR S, Ranger, Ranger Crew, ACE and General
The stator cover gasket is the seal between the engine case and the stator cover on the left-hand side of the engine. It is a small part with a large job: it keeps engine oil inside the case and keeps dirt, water and trail debris away from the stator windings and the flywheel. Any time the stator cover comes off - to replace a stator, to change a flywheel, to fit a pickup coil or simply to inspect the charging system - the old gasket should be replaced rather than reused, because a compressed gasket rarely seals properly a second time.

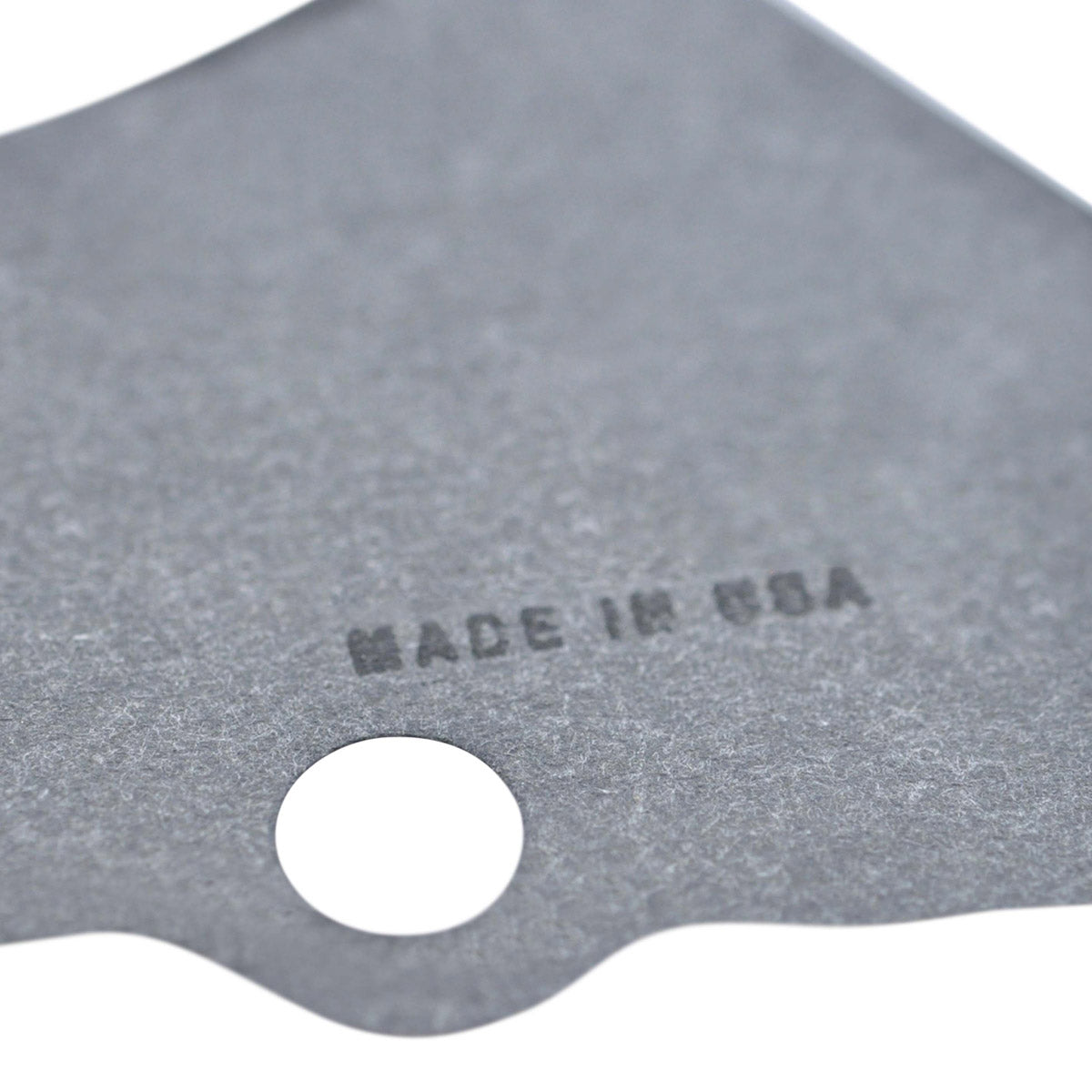

This is a brand new OEM-style replacement gasket made from the highest grade gasket material and cut to the original Polaris pattern, so every bolt hole and every oil passage lines up with the case. It is ride specific to the Polaris 900 and 1000 platform machines listed below and is backed by a one-year warranty. Because it is cut to the factory shape, no trimming, no sealant bead and no modification is needed - it simply drops onto the case and the cover bolts back down over it.
Key Features
- Brand new OEM-style stator cover gasket
- Cut from the highest grade gasket material
- Direct replacement for Polaris part numbers 5813758 and 5814160
- Ride specific to the Polaris 900 and 1000 platform machines listed below

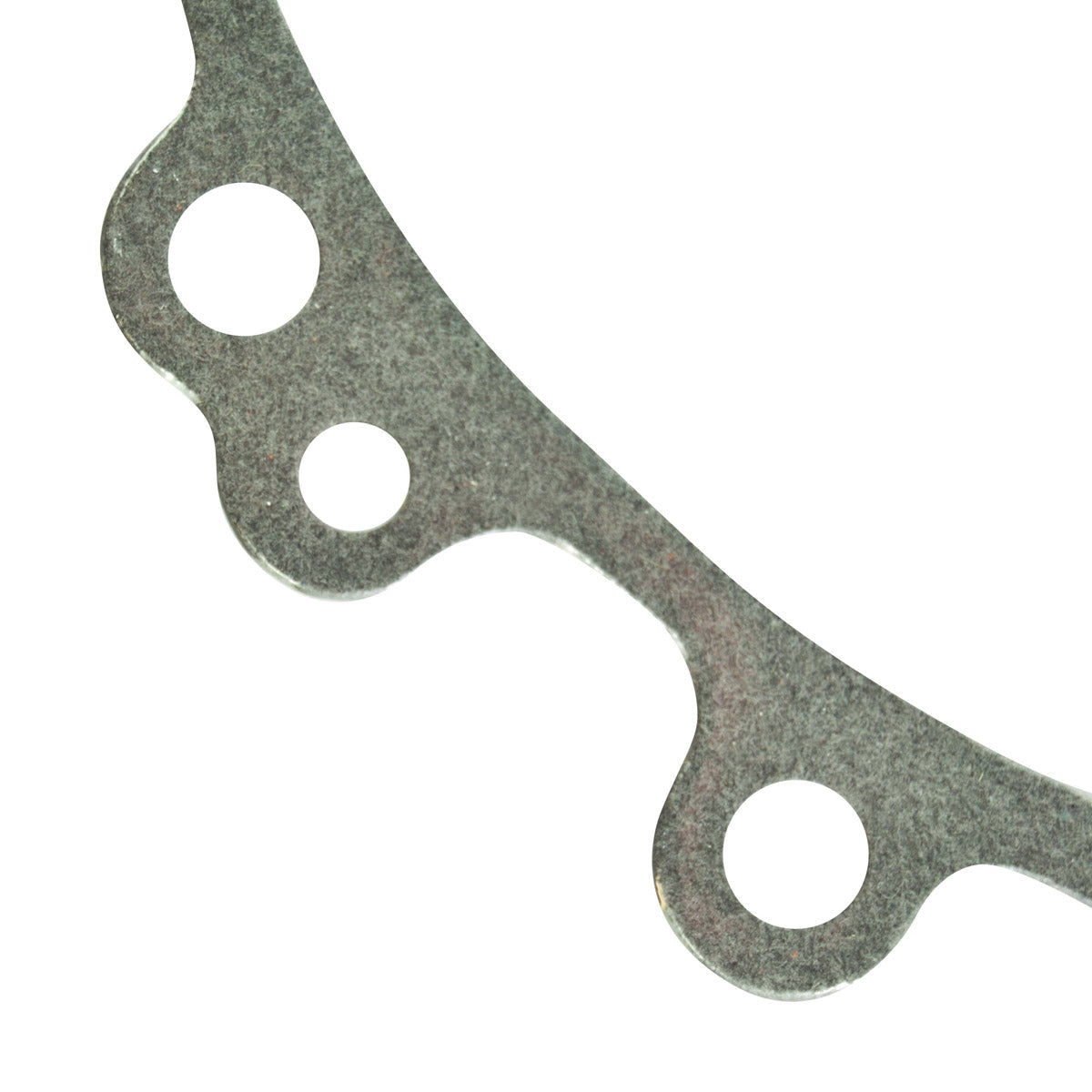

- Original bolt-hole pattern - no trimming or modification needed
- Backed by a one-year warranty
- The correct part to fit whenever the stator cover is removed
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM08030 |
| Part type | Stator cover gasket |
| Style | OEM style replacement |
| Material | Highest grade gasket material |
| Fitment type | Ride specific |
| Engine sizes covered | 900 and 1000 |
| Warranty | 1 year |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Polaris RZR 900 / 1000 | 2013-2024 |
| Polaris RZR 4 900 / 1000 | 2013-2024 |
| Polaris RZR XP 900 / 1000 | 2013-2024 |
| Polaris RZR S 900 / 1000 | 2013-2024 |
| Polaris Ranger 900 / 1000 | 2013-2024 |
| Polaris Ranger Crew 900 / 1000 | 2013-2024 |
| Polaris ACE 900 | 2013-2024 |
| Polaris General 1000 | 2013-2024 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 5813758 | Polaris |
| 5814160 | Polaris |
Frequently Asked Questions
Will this fit without modification?
Yes. It is cut to the OEM pattern for the listed machines, so the bolt holes and oil passages line up with the engine case exactly as the factory gasket did. No trimming and no modification is required.
What is included?
One stator cover gasket. Cover bolts, seals and the stator itself are not included.
How do I know my old gasket needs replacing?
An oil weep or a wet film down the left-hand side of the engine below the stator cover is the usual sign, as is oil collecting on the underside of the cover lip. A gasket that has been torn on removal, that has hardened, or that has taken a permanent set from being compressed should always be replaced rather than refitted.
Do I need sealant as well?
No. The gasket is designed to seal on its own between the clean, dry mating faces of the case and the cover. Fitting it dry to the manufacturer's torque figures is the correct approach; adding a sealant bead can squeeze into oil passages and is not required.
