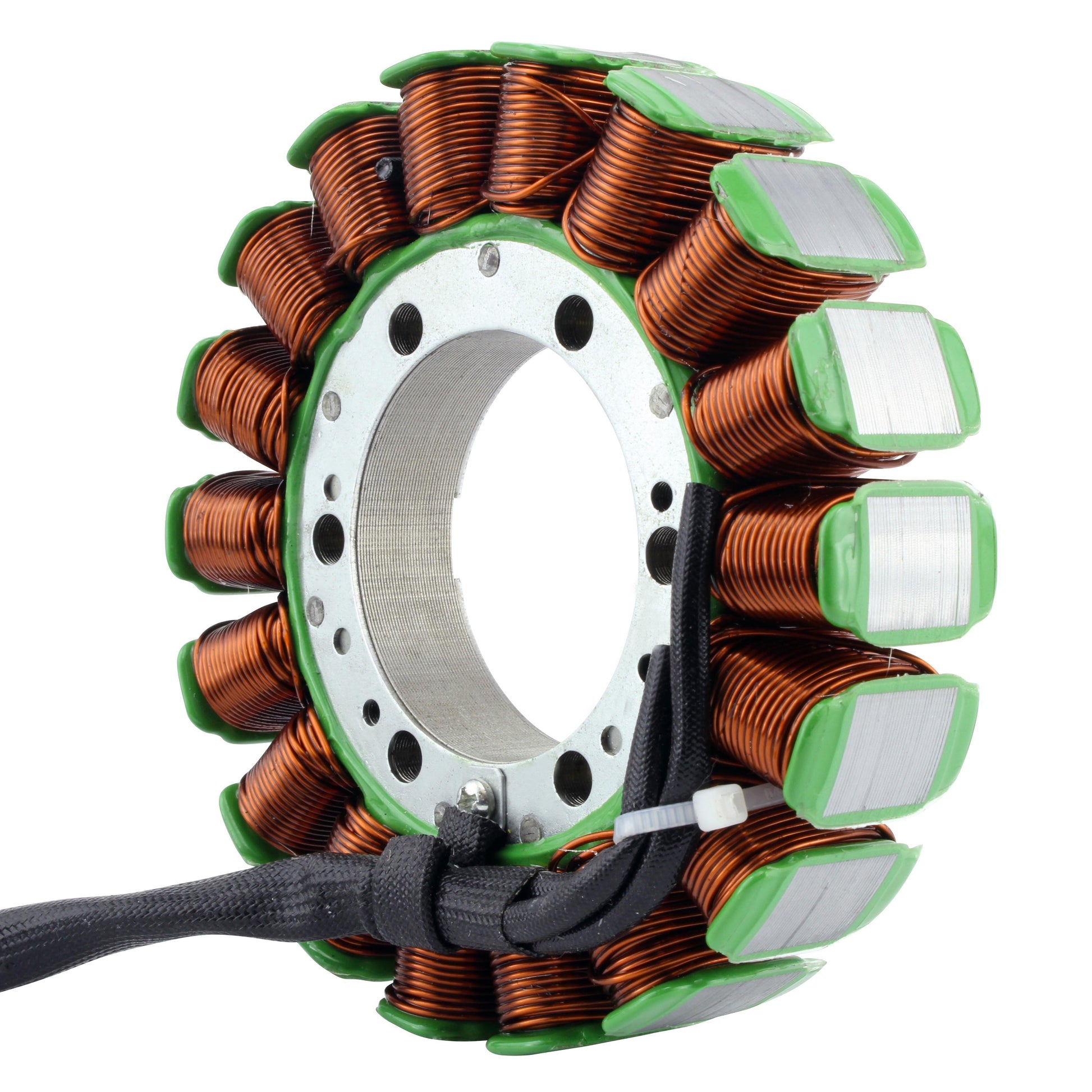

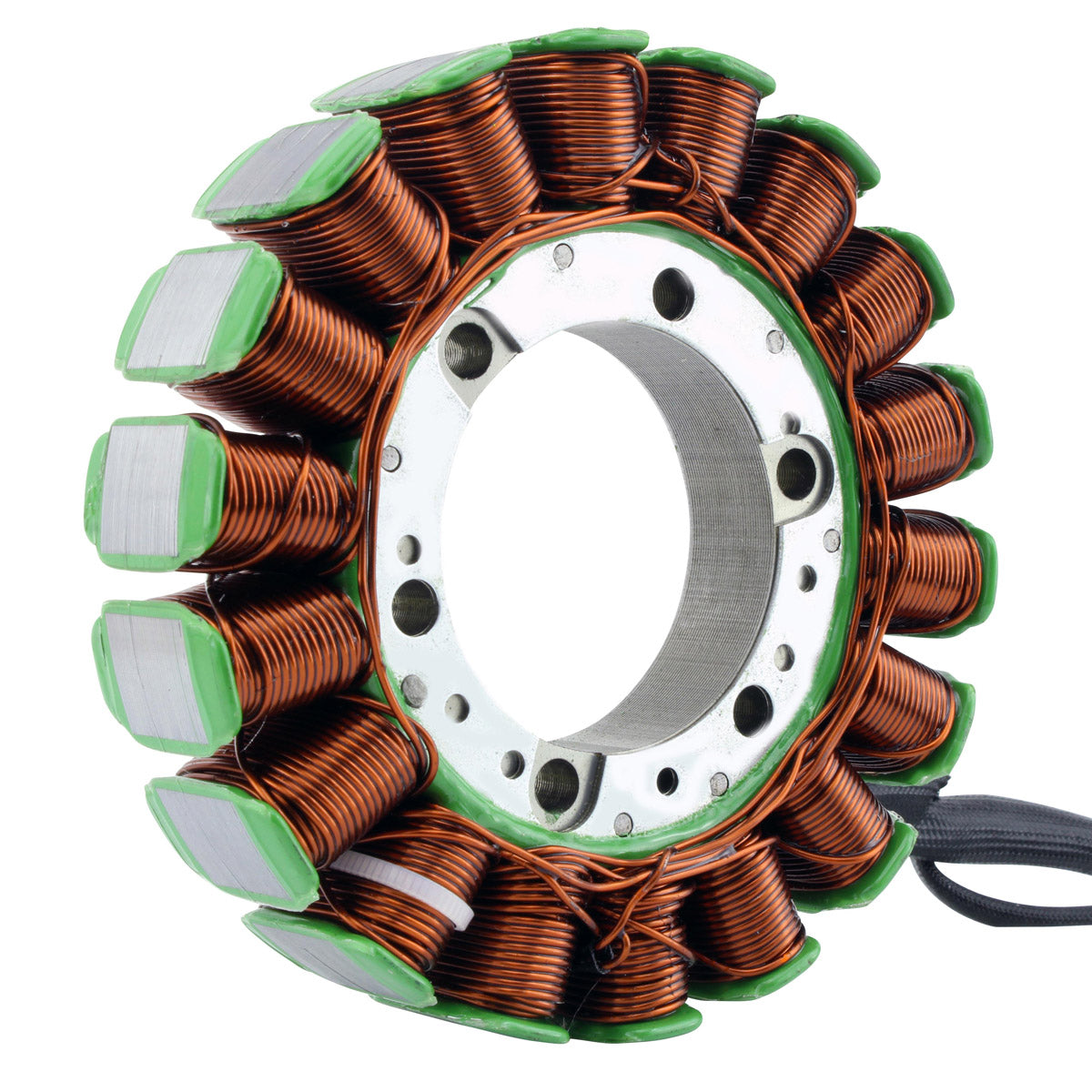

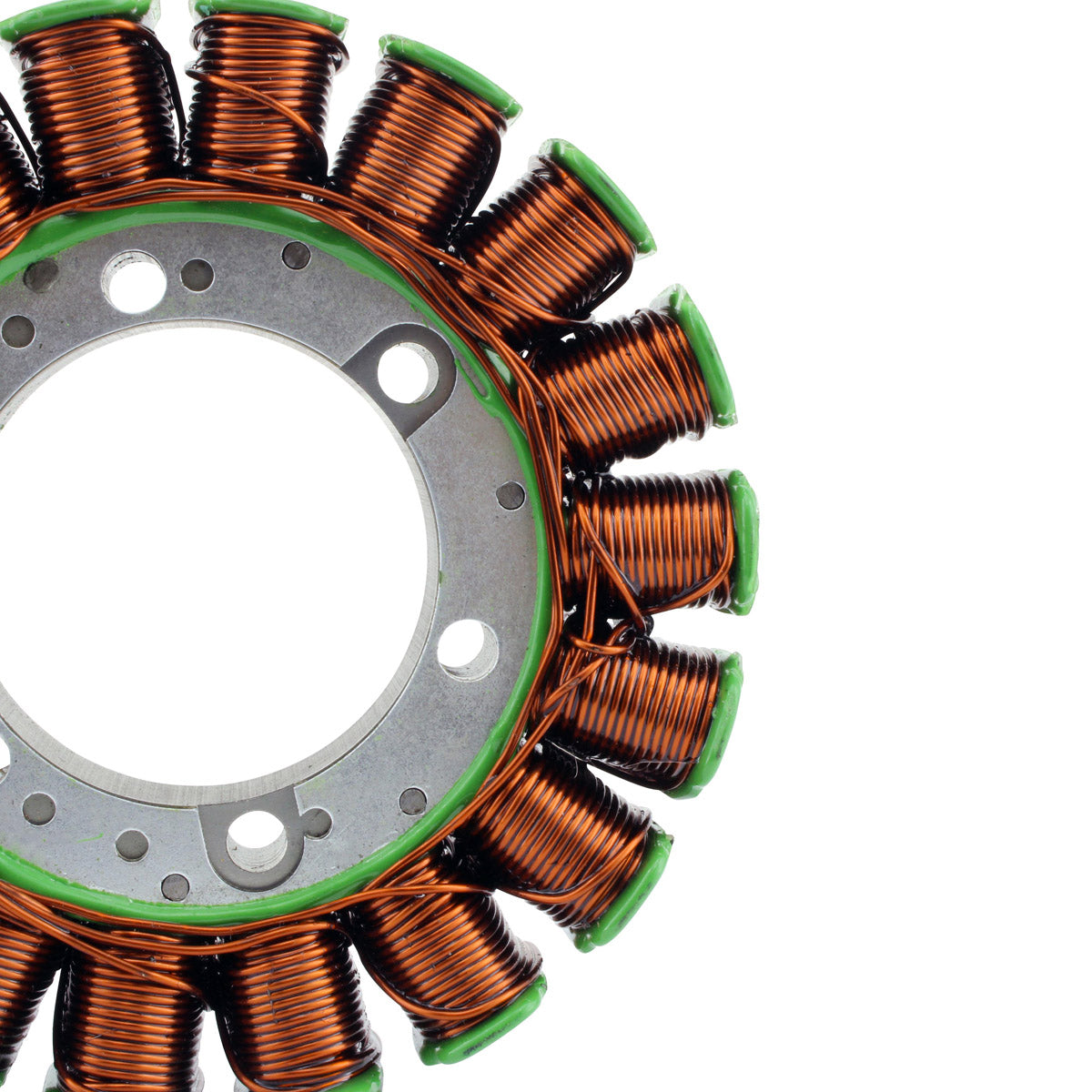

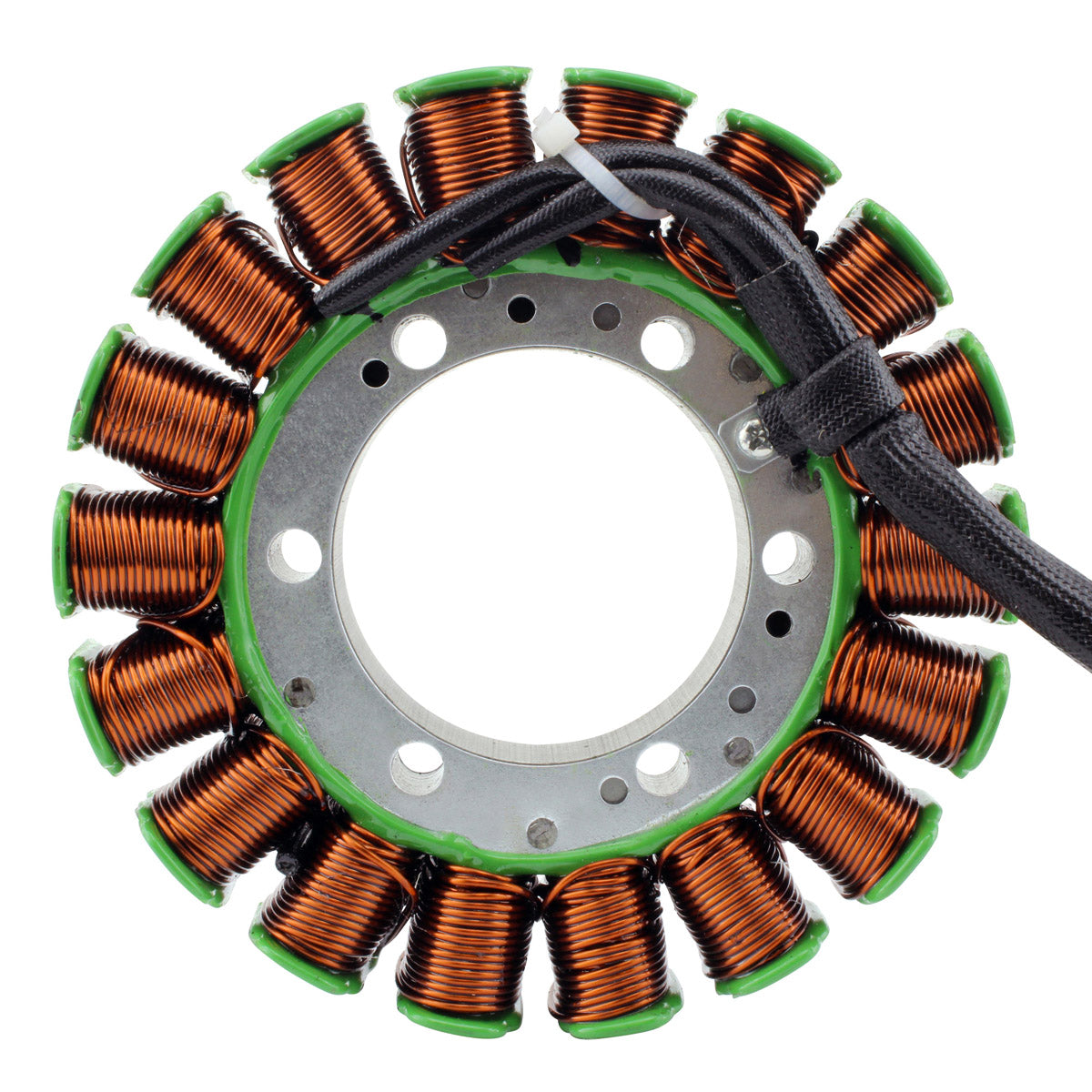

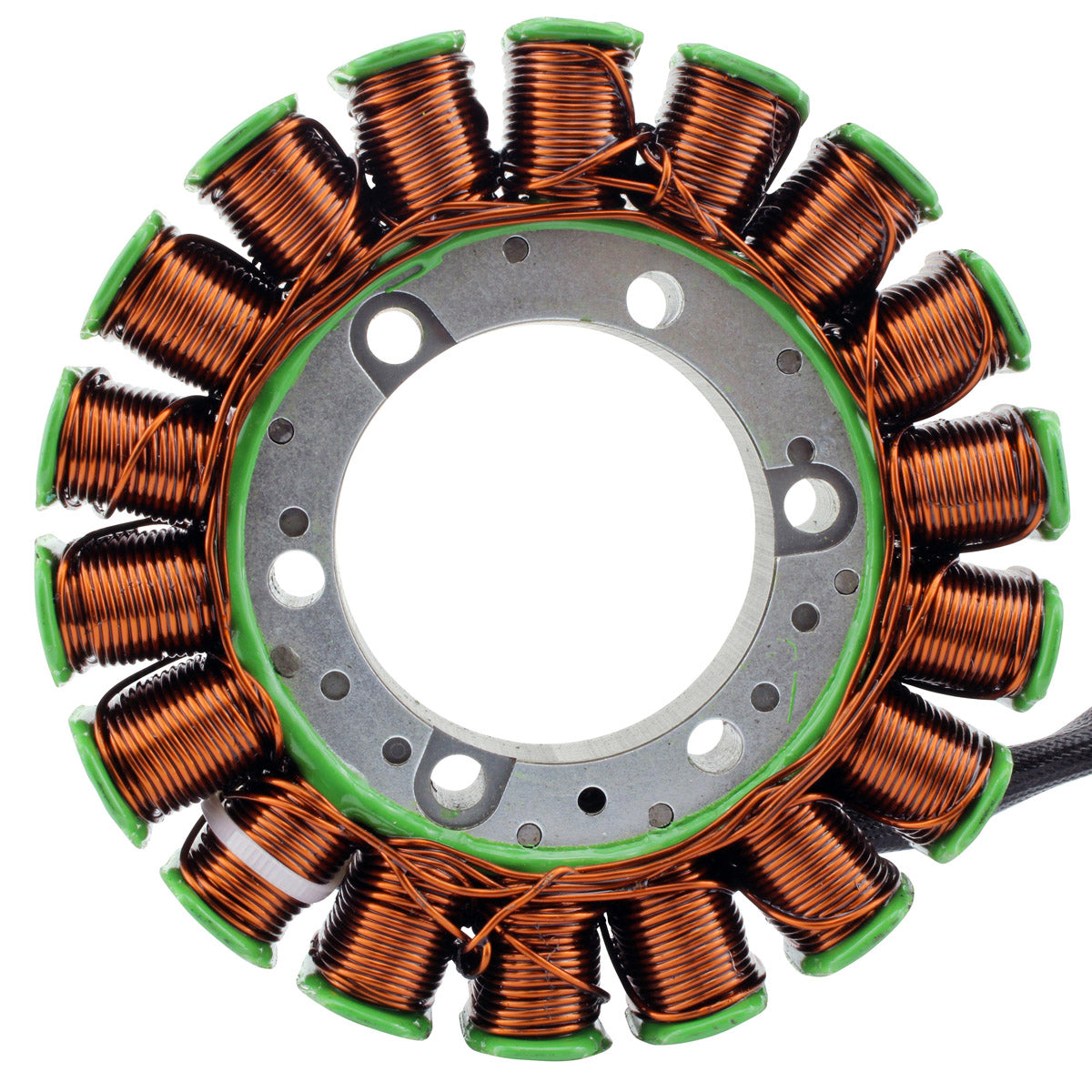

A brand new aftermarket stator, supplied as a direct replacement for the original unit on the Aprilia ETV Caponord 1200. It is plug-and-play and a direct fit, built on the highest grade of lamination materials and wound with the highest grade of copper, which is rated to withstand 200 degrees Celsius. Every product we ship is tested before it leaves us.

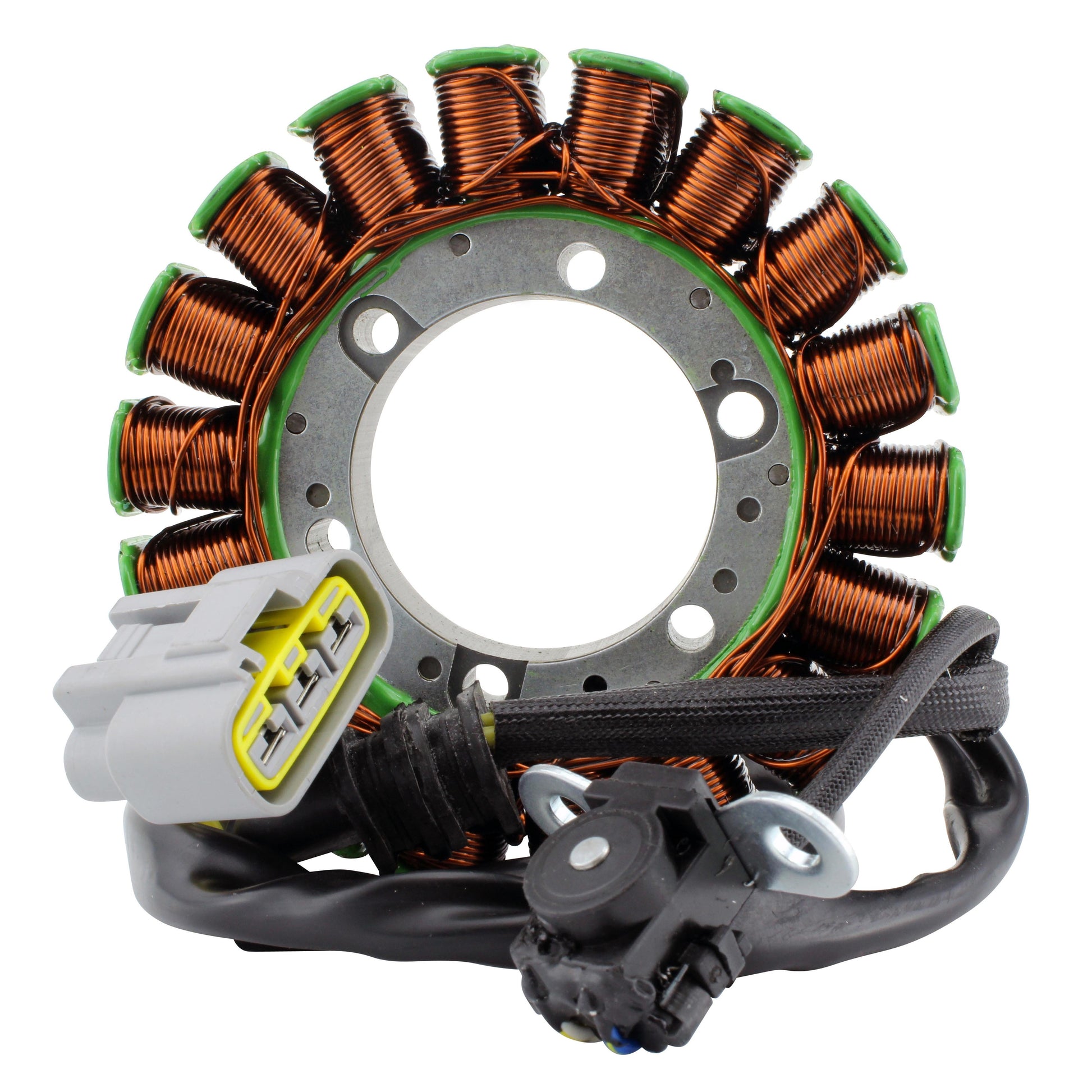

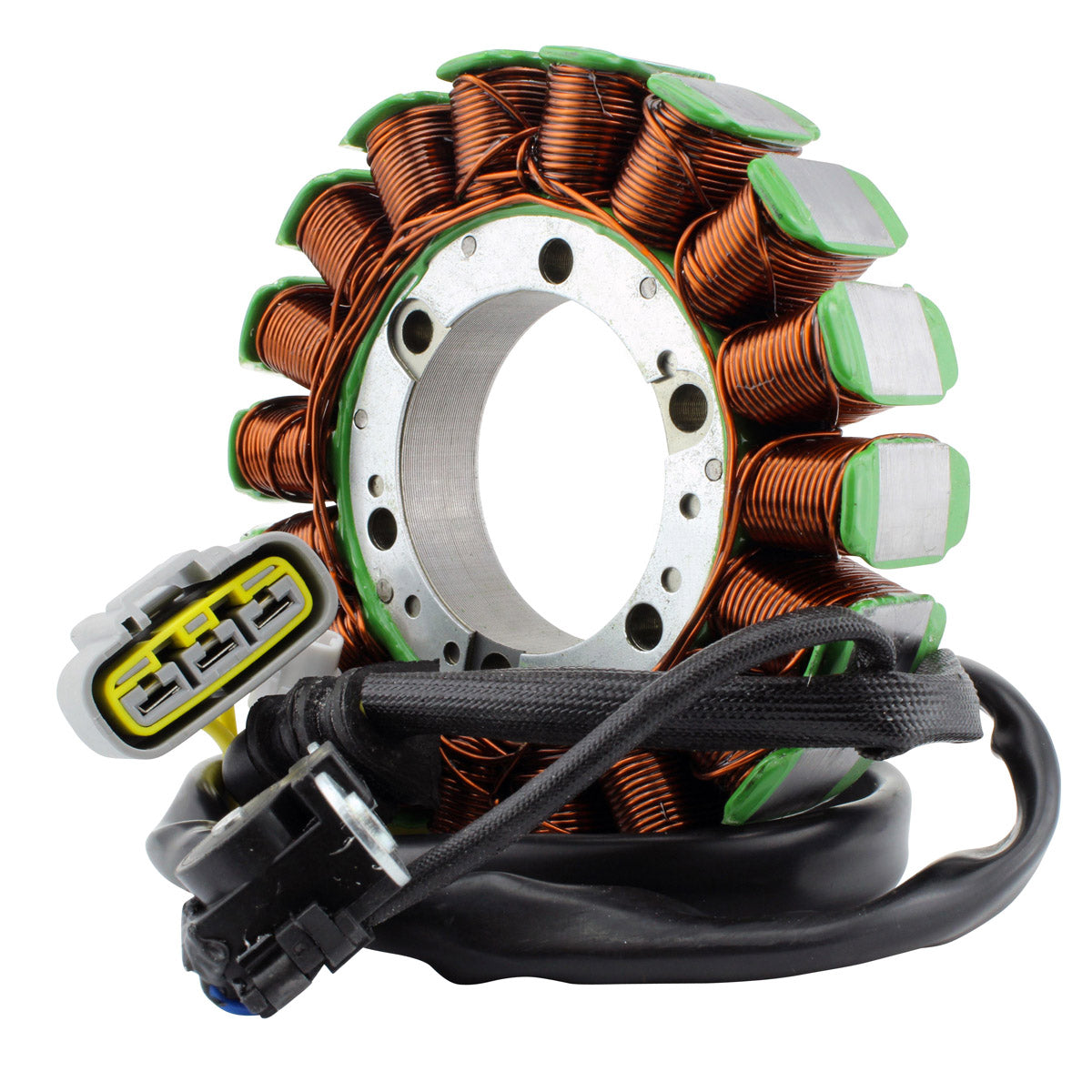

The assembly arrives complete with its pick-up pulsar coil, the connectors and the rubber grommet, so there is nothing further to source before the job can be started. A tired stator on a big-capacity twin usually shows itself first as a battery that will not hold its charge; renewing the complete assembly rather than attempting a rewind restores the charging output to the correct figure and removes the risk of a second failure a few thousand miles later.
Key Features
- Brand new aftermarket stator, not a rewound core
- Direct replacement for the original unit - plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- 18 poles, 5 wires

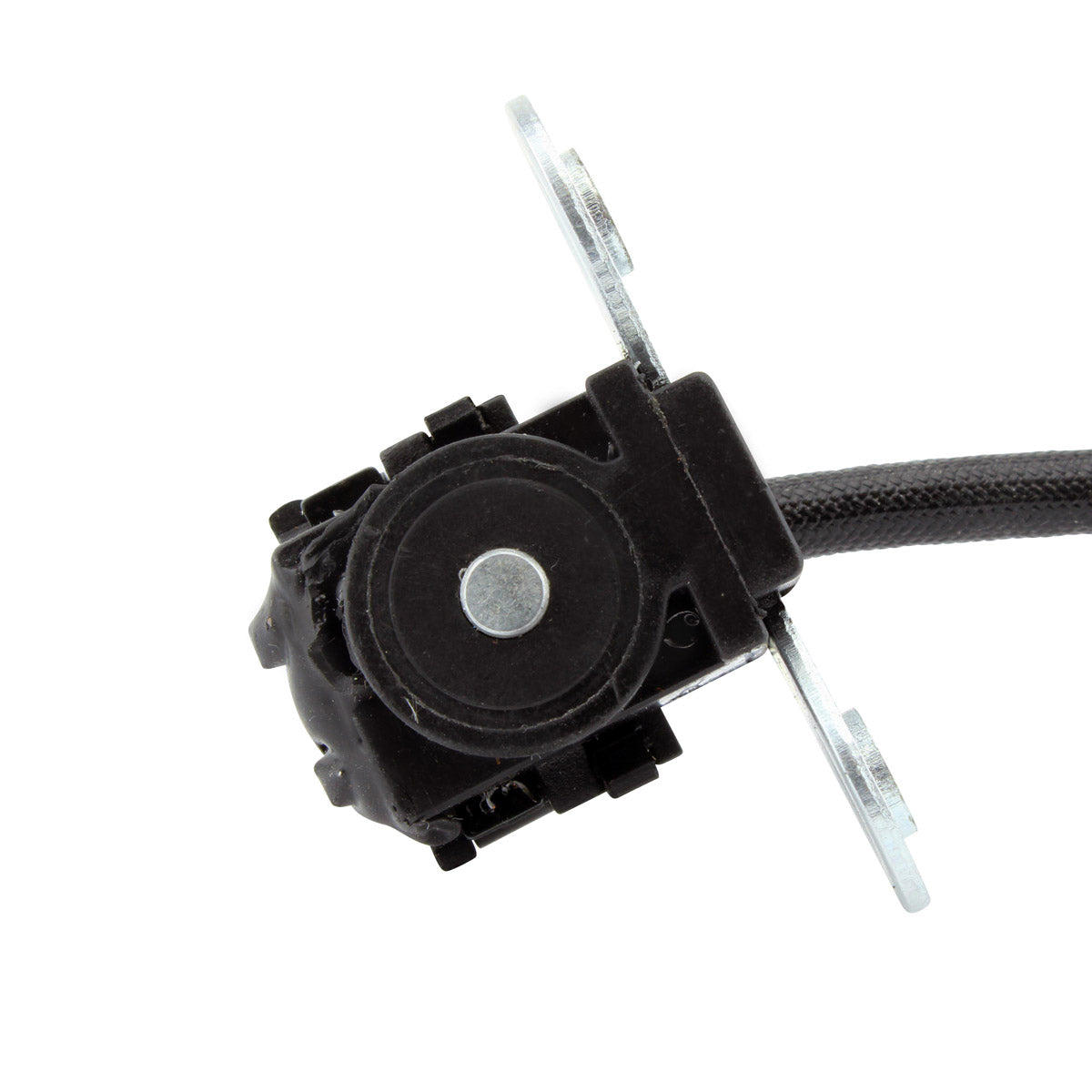

- Pick-up pulsar coil included

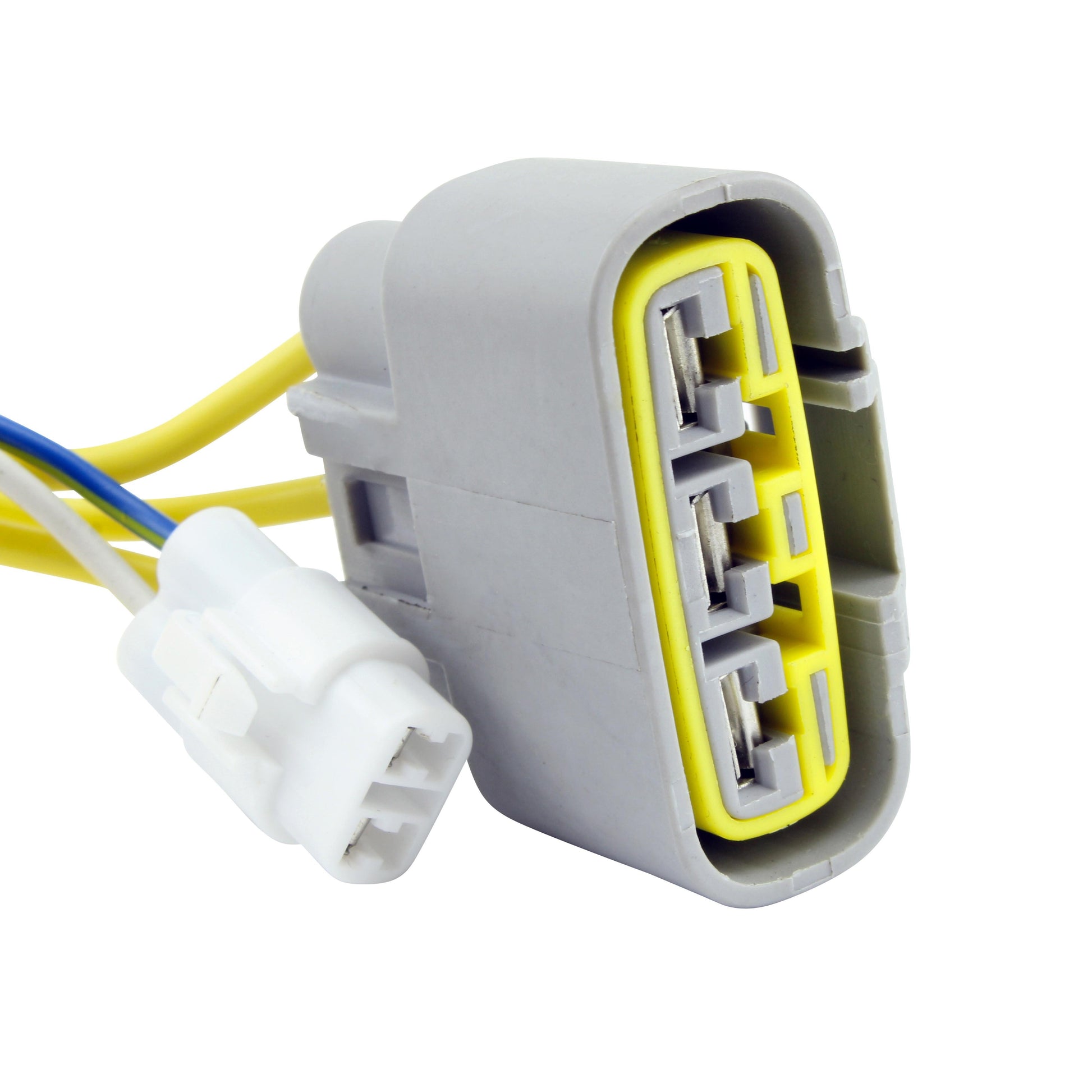

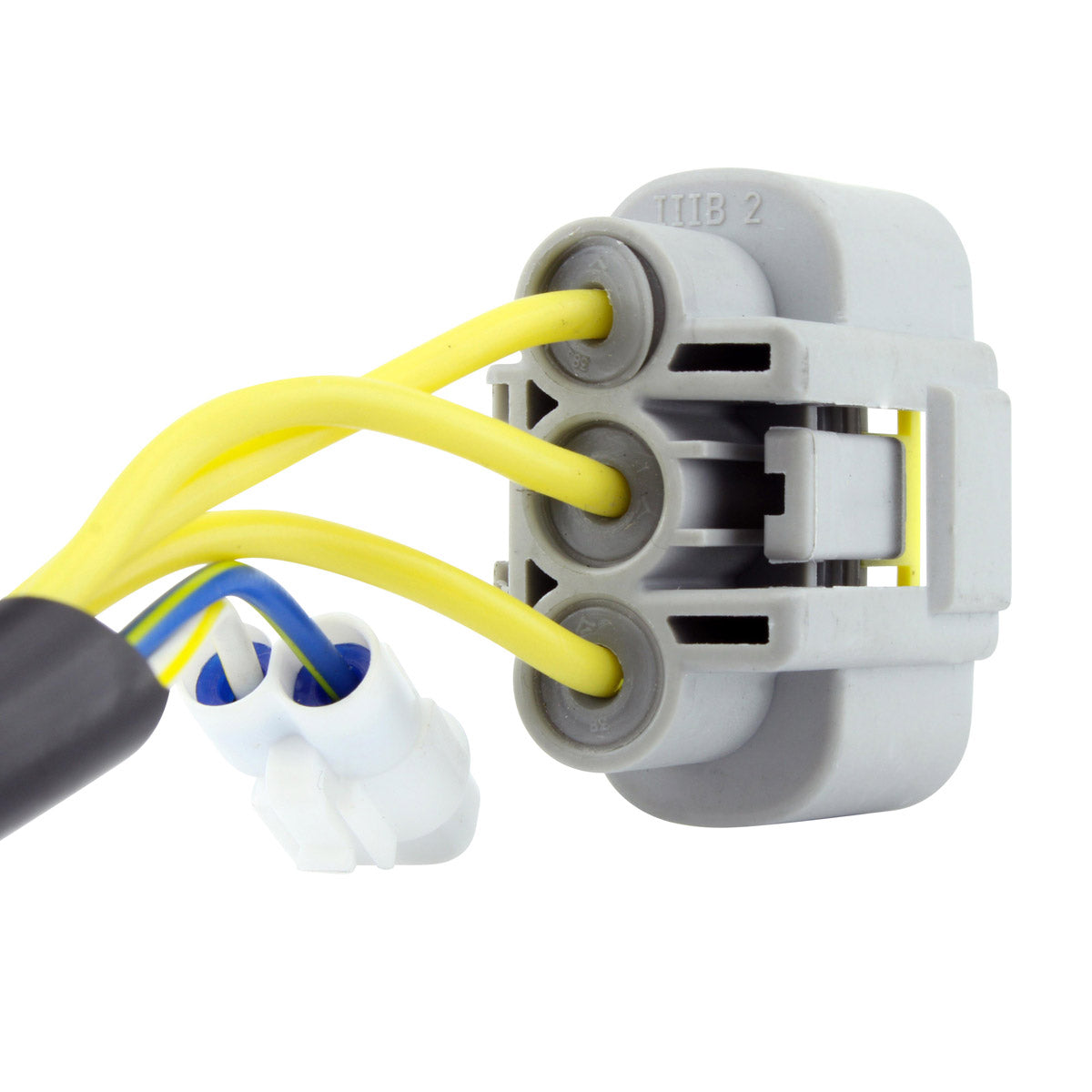

- Connectors included

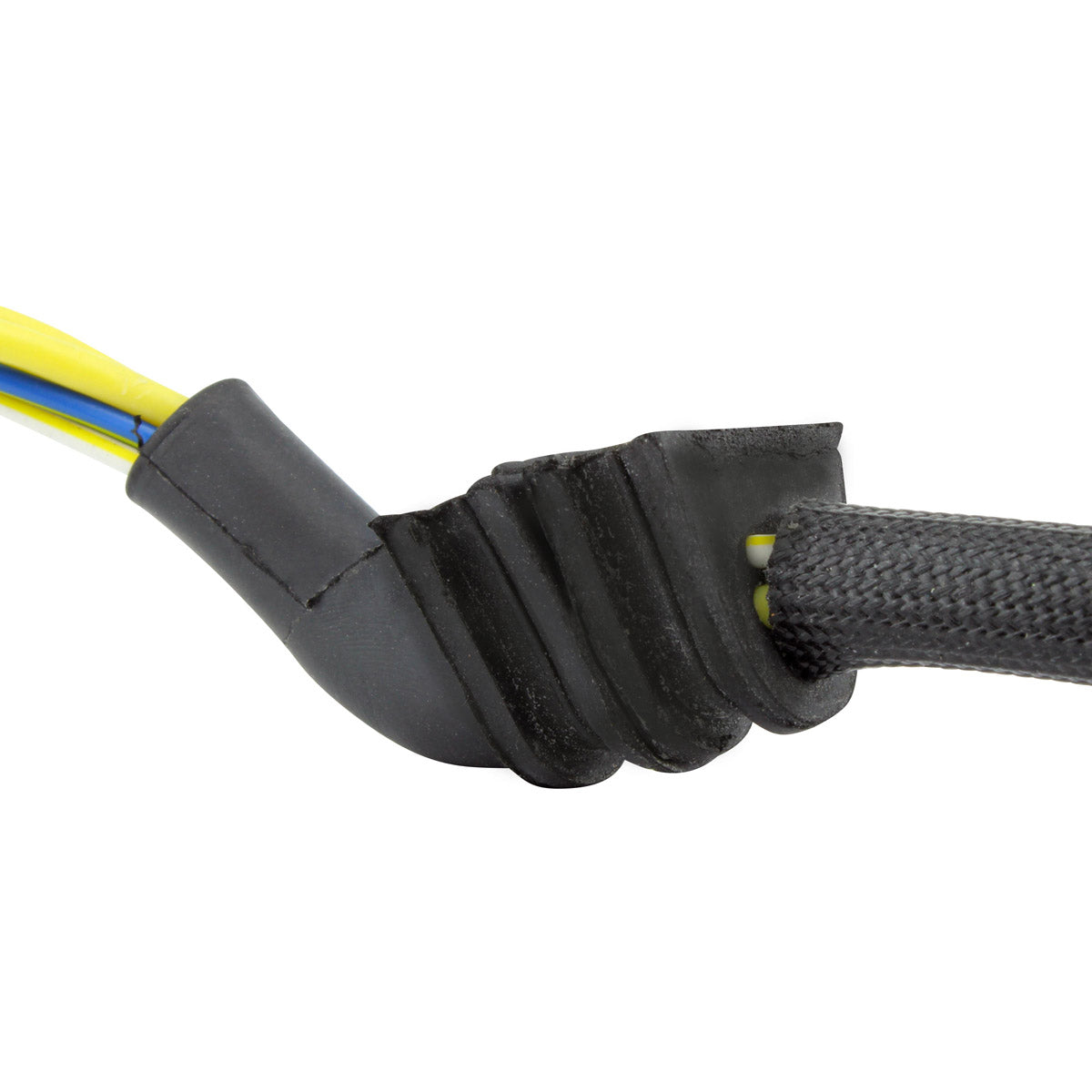

- Rubber grommet included
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Interior diameter |
56 mm |

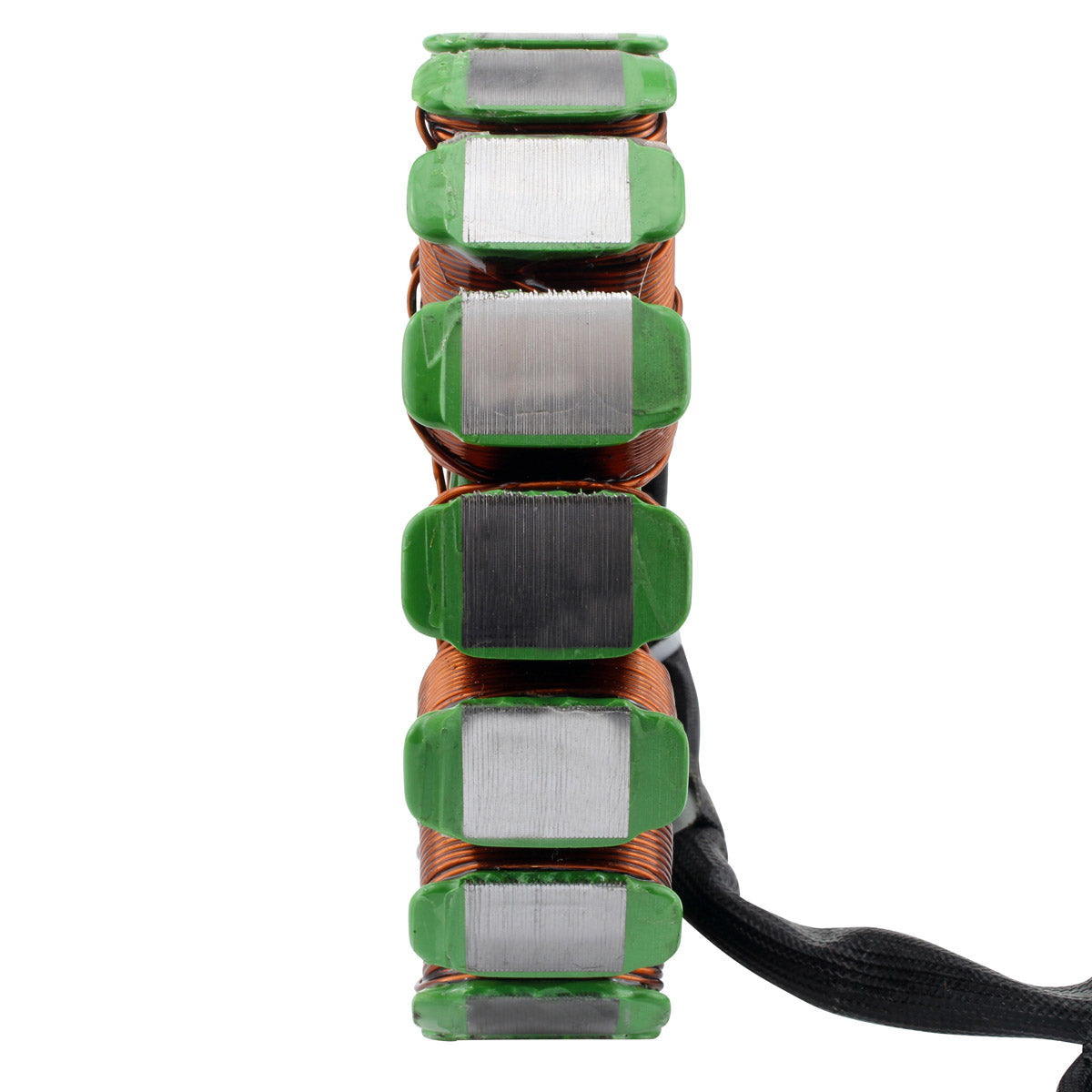

| Thickness |
33 mm |
| Wire length, stator to grommet |
103 mm |
| Wire length, grommet to plug |
665 mm |
| Pickup coil wire to grommet |
87 mm |
| Number of wires |
5 |
| Number of plugs |
2 |
| Number of pins |
5 |
| Number of poles |
18 |
| Alternator resistance, yellow to yellow |
4 ohms +/- 20% |
| Pickup resistance, white/yellow to blue/yellow |
250 ohms +/- 20% |
| Copper winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Aprilia ETV Caponord 1200 Europe |
2013-2017 |
| Aprilia ETV Caponord 1200 America |
2013-2017 |
| Aprilia ETV Caponord 1200 Carabinieri |
2013-2017 |
| Aprilia ETV Caponord 1200 Rally |
2013-2017 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 680199 |
Aprilia |
Frequently Asked Questions
Will this fit my Caponord without modification?
Yes. It is a direct replacement for the original unit on the ETV Caponord 1200 in Europe, America, Carabinieri and Rally specification, built between 2013 and 2017. It mounts in the standard position and uses the standard connectors, so no modification to the wiring loom is needed.
What is included?
The stator assembly with its pick-up pulsar coil already fitted, the connectors and the rubber grommet.
How do I tell whether the old stator has failed?
The first sign is normally a battery that goes flat over a few rides even after a full charge, followed by dimming lights and a machine that will not restart. With the engine off and the plugs disconnected, check for 4 ohms +/- 20% between the yellow alternator wires and 250 ohms +/- 20% across the pickup, from white/yellow to blue/yellow. An open circuit, a very low reading, or continuity between any winding and the stator body confirms the failure.
Is the pick-up pulsar coil supplied separately?
No, it comes already mounted on the stator plate as one assembly, which is how the original part is built. That keeps the pickup air gap correct and means the ignition trigger is renewed at the same time as the charging windings.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
