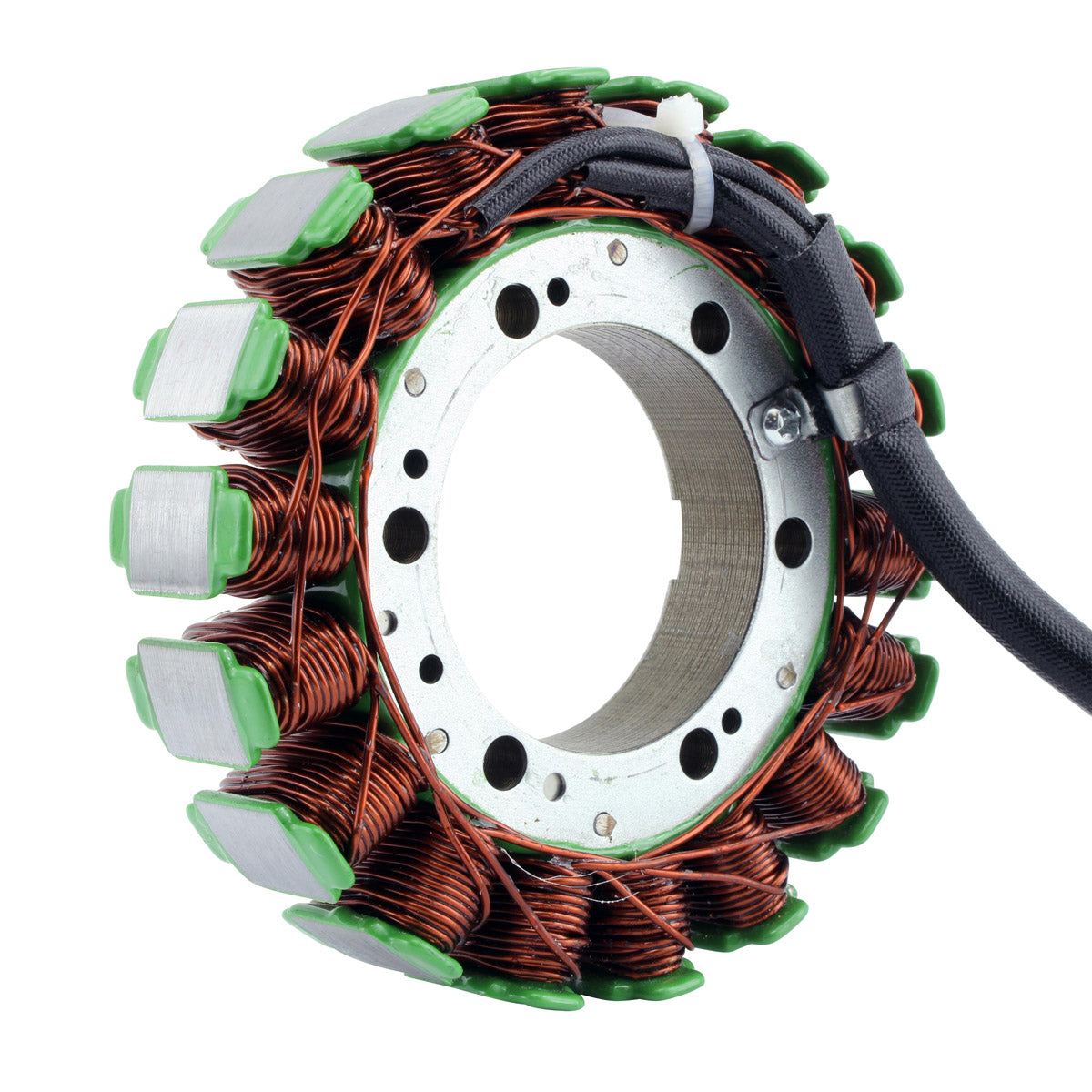

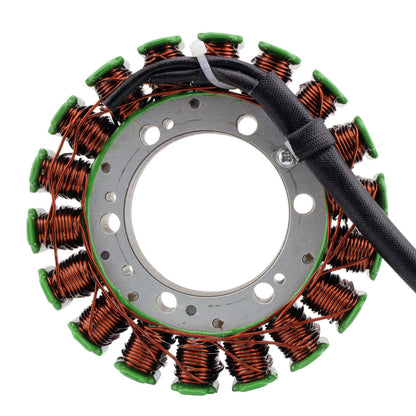

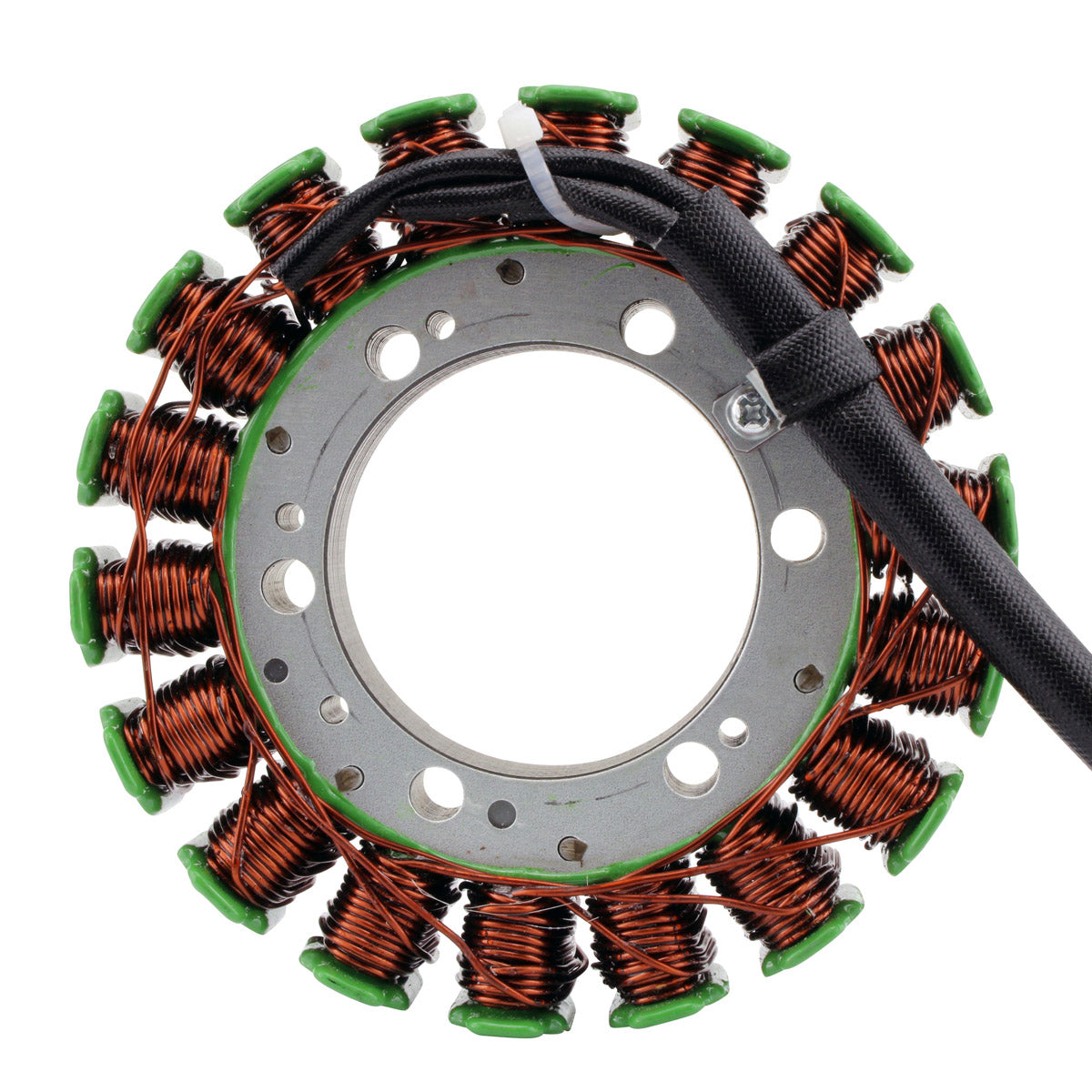

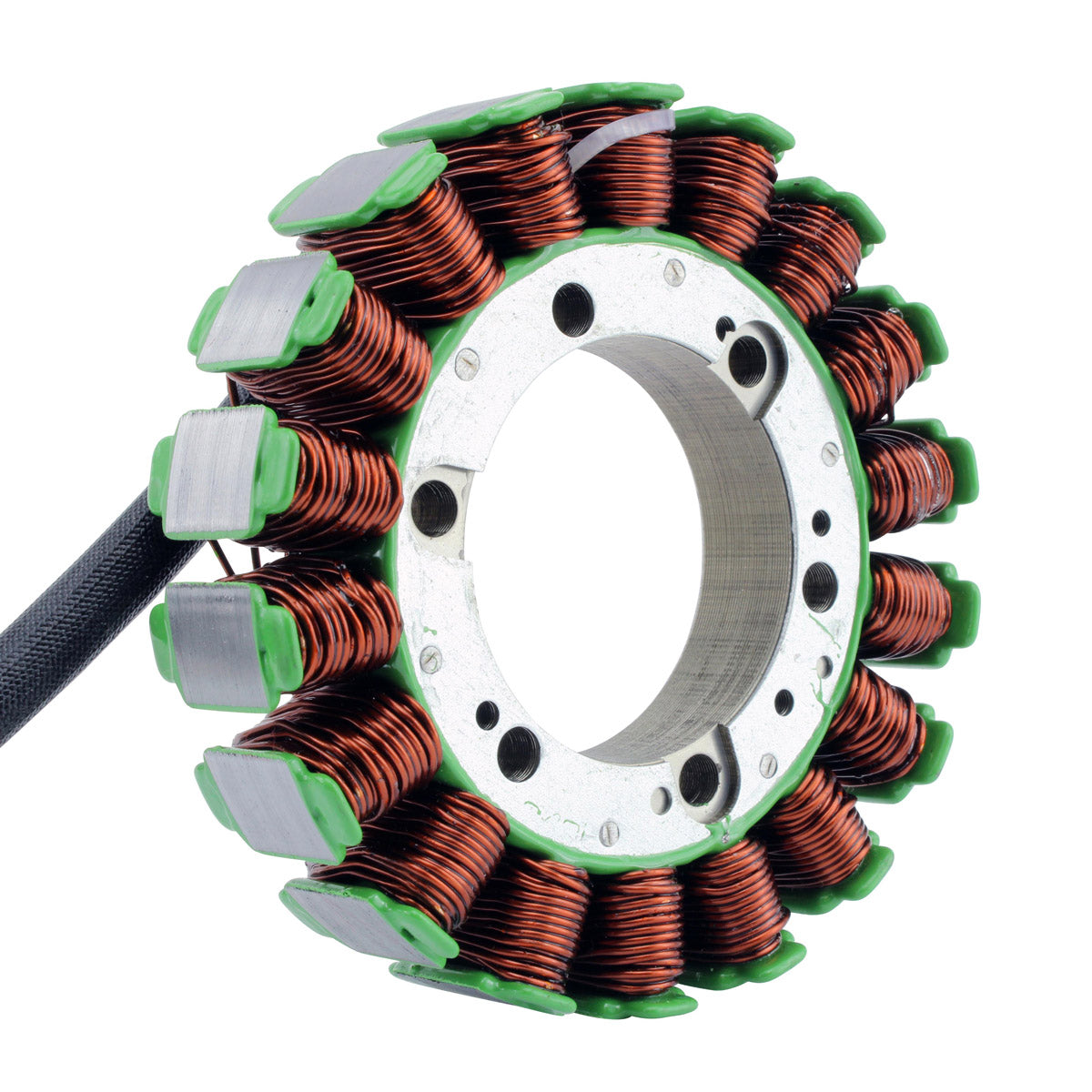

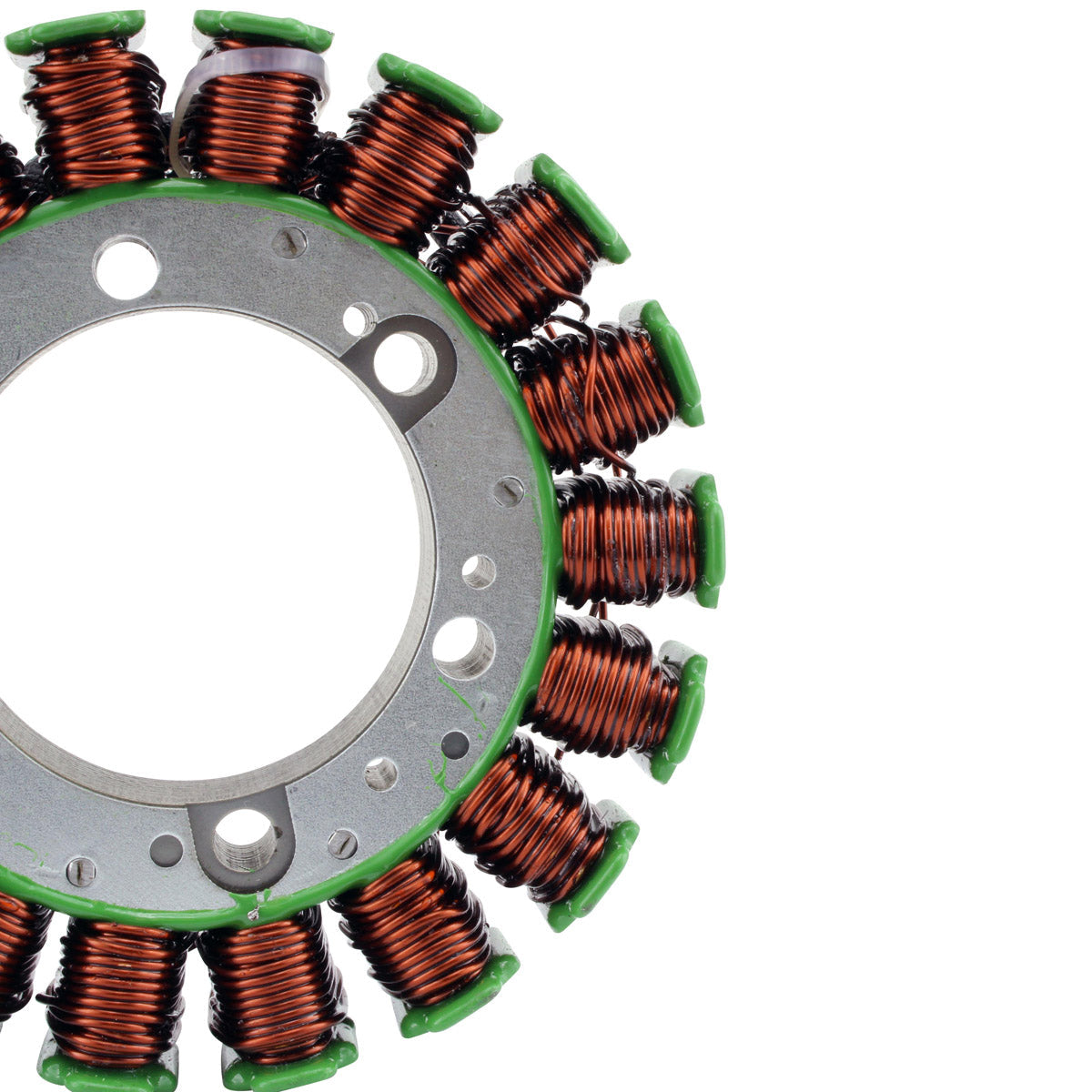

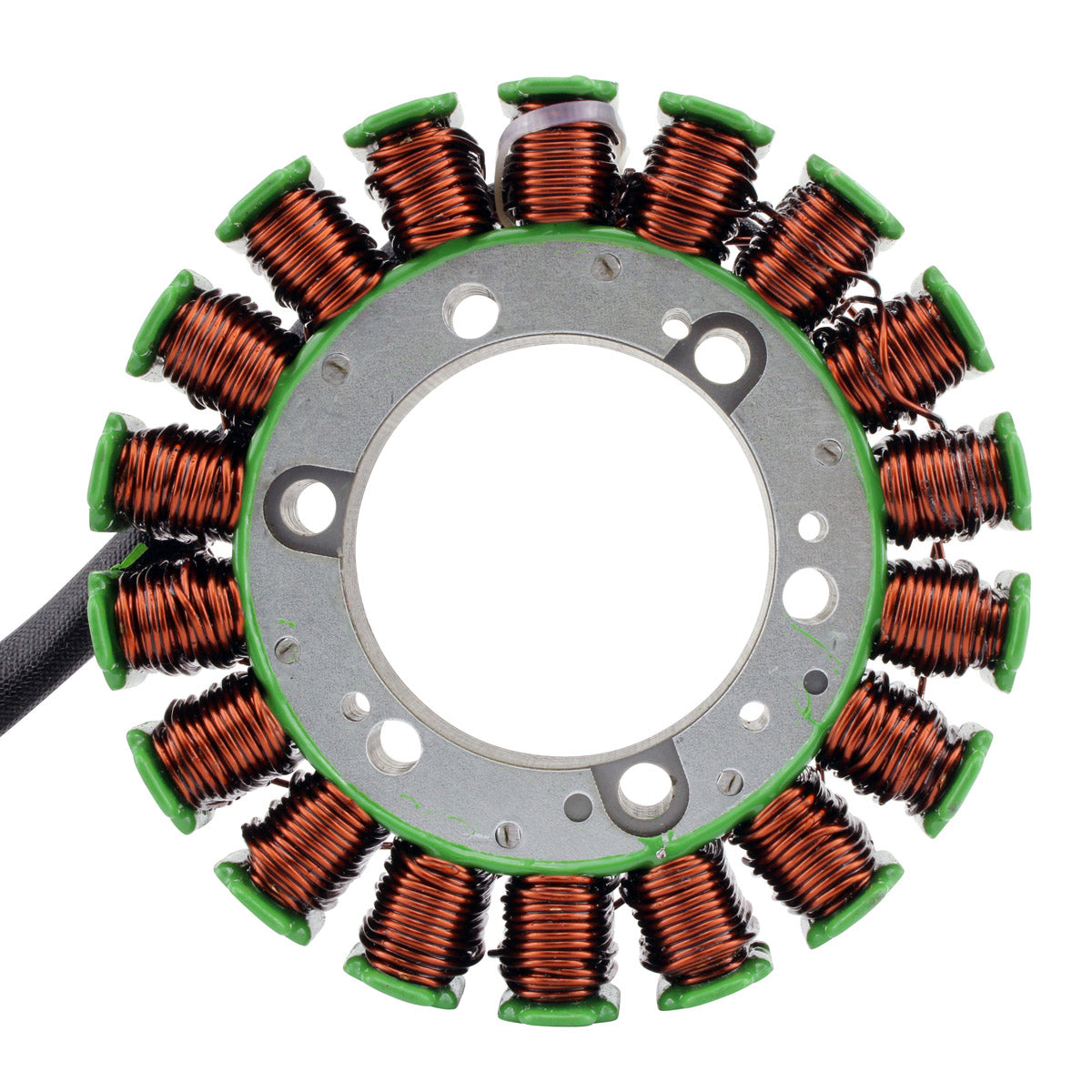

A brand new aftermarket stator, supplied as a direct replacement for the original unit on the Aprilia Shiver and Dorsoduro V-twins. It is plug-and-play and a direct fit, built on the highest grade of lamination materials and wound with the highest grade of copper, which is rated to withstand 200 degrees Celsius. Every product we ship is tested before it leaves us.

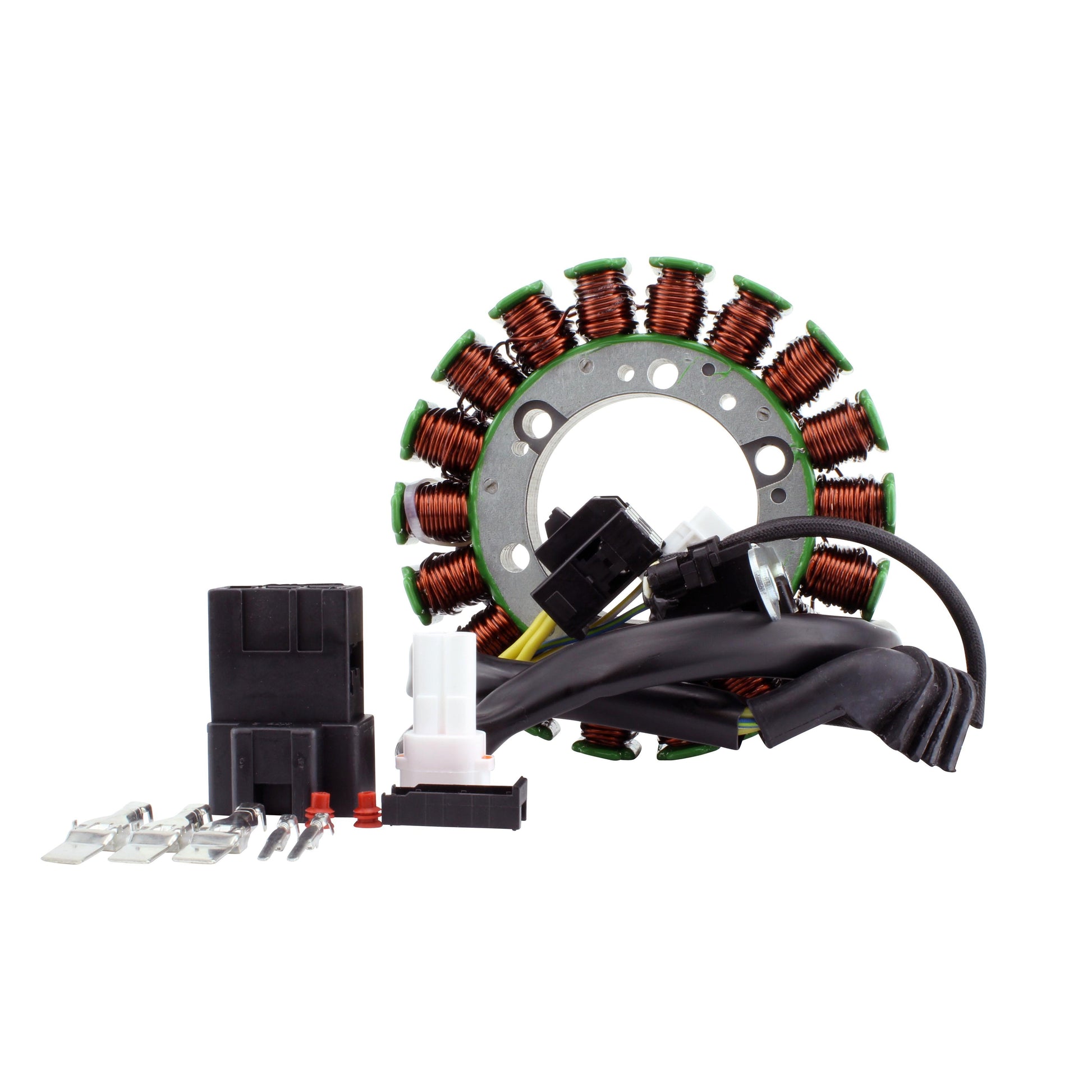

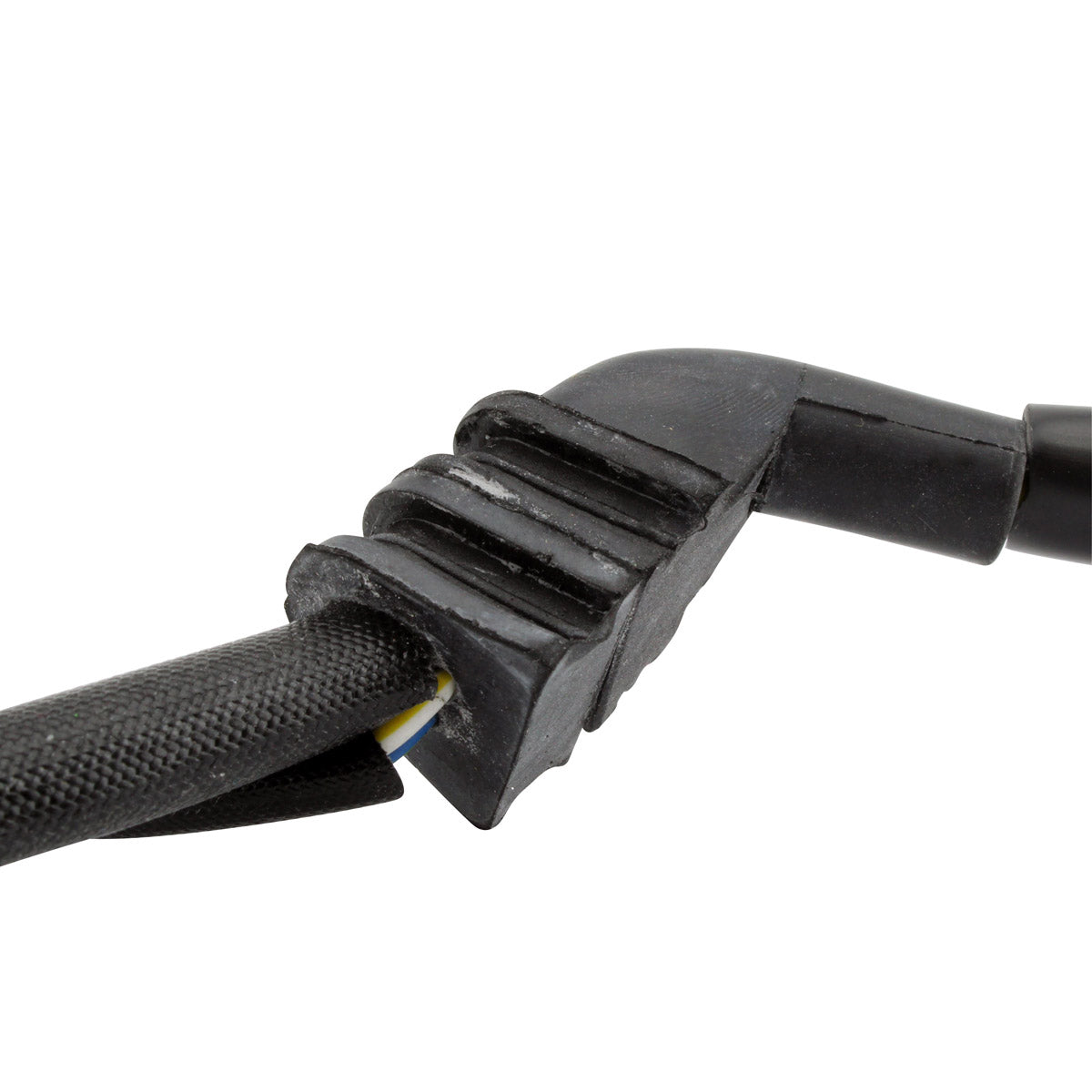

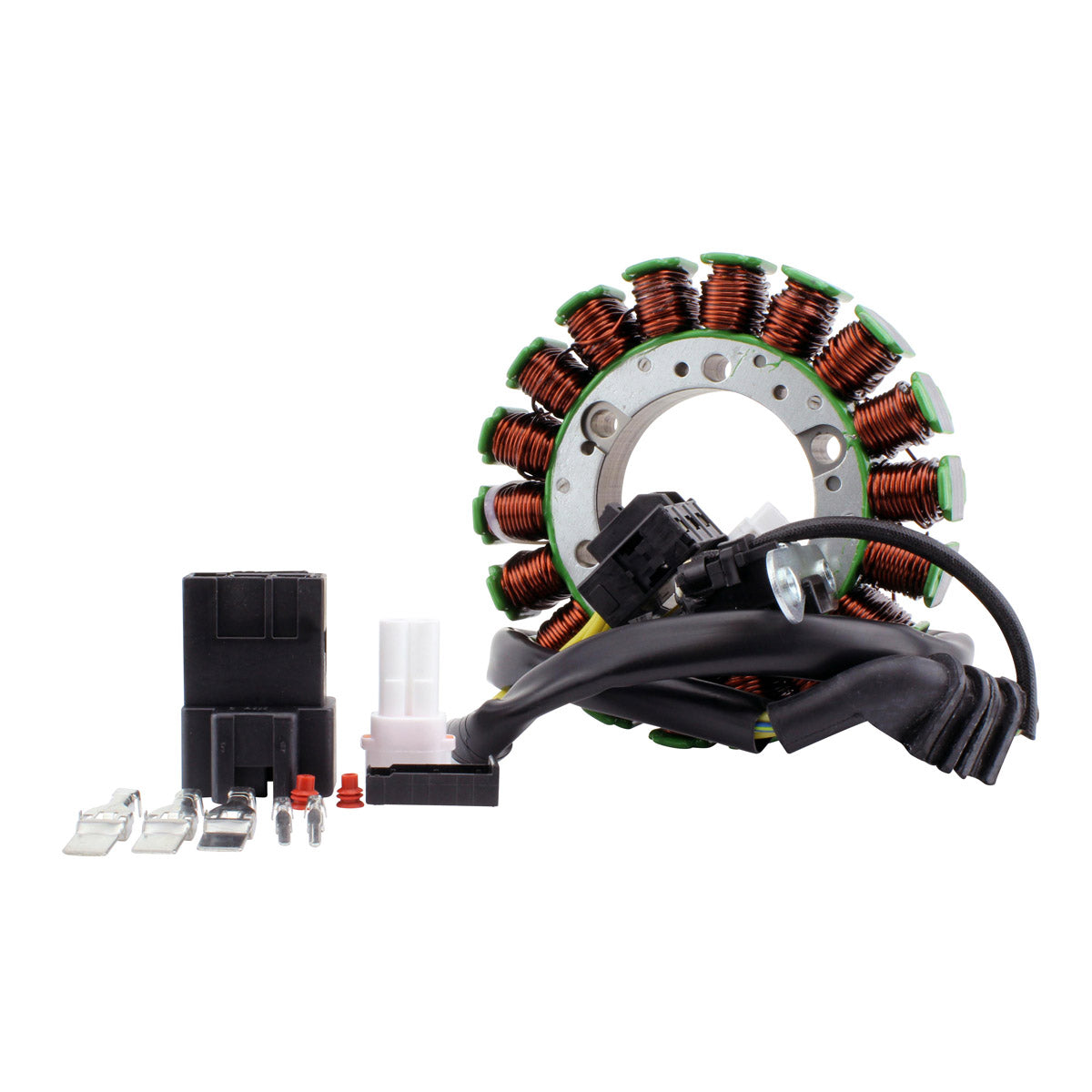

The pick-up pulsar coil is supplied already fitted to the assembly, and the connectors and rubber grommet are included. We also supply the opposite connector from the main harness side, because that half of the plug is very often melted, corroded or defective and is a major cause of repeat electrical issues. All of the item pictures are accurate; if you are in any doubt, compare the part shown against your original unit before ordering.
Key Features
- Brand new aftermarket stator, not a rewound core
- Direct replacement for the original unit - plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- 18 poles, 5 wires

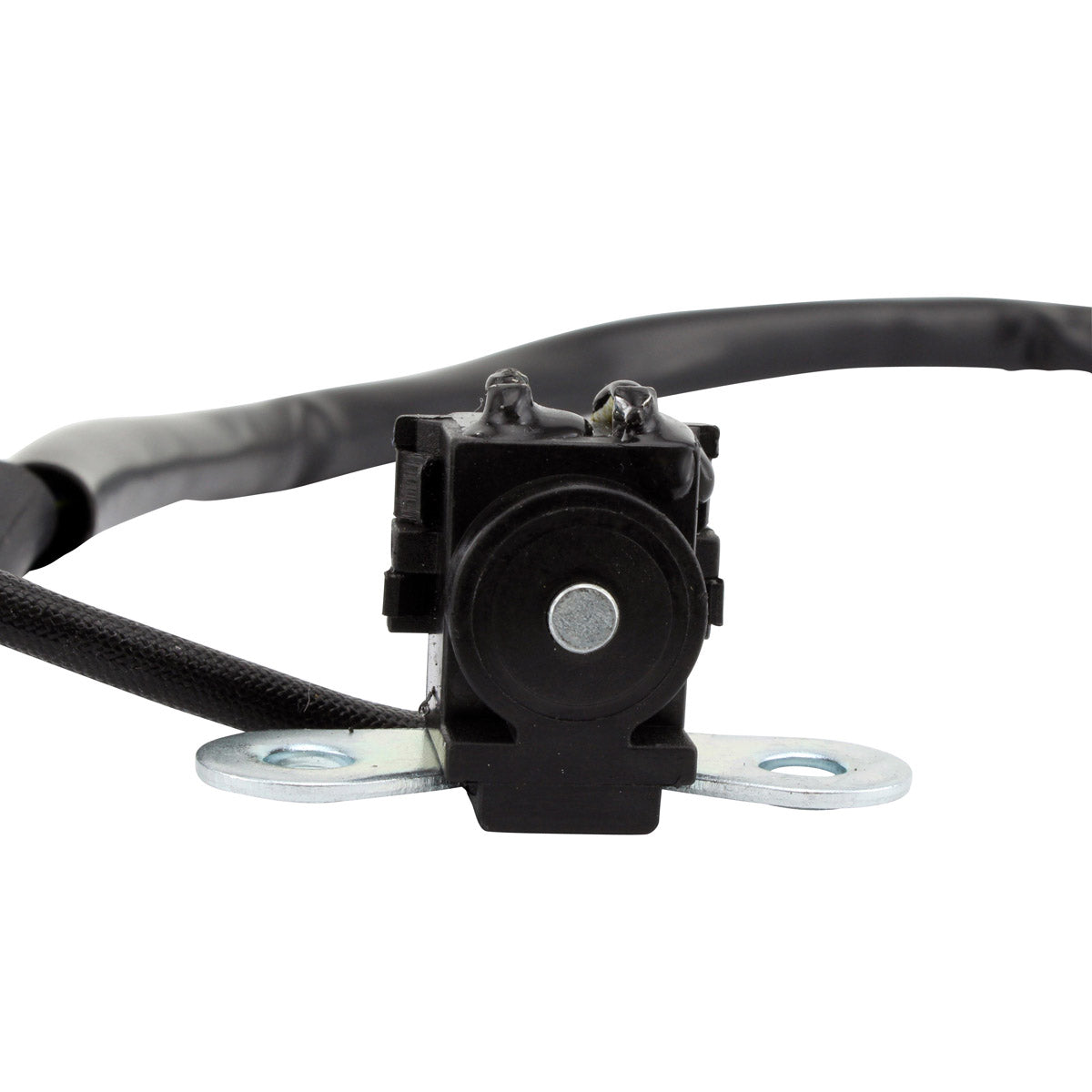

- Pick-up pulsar coil included

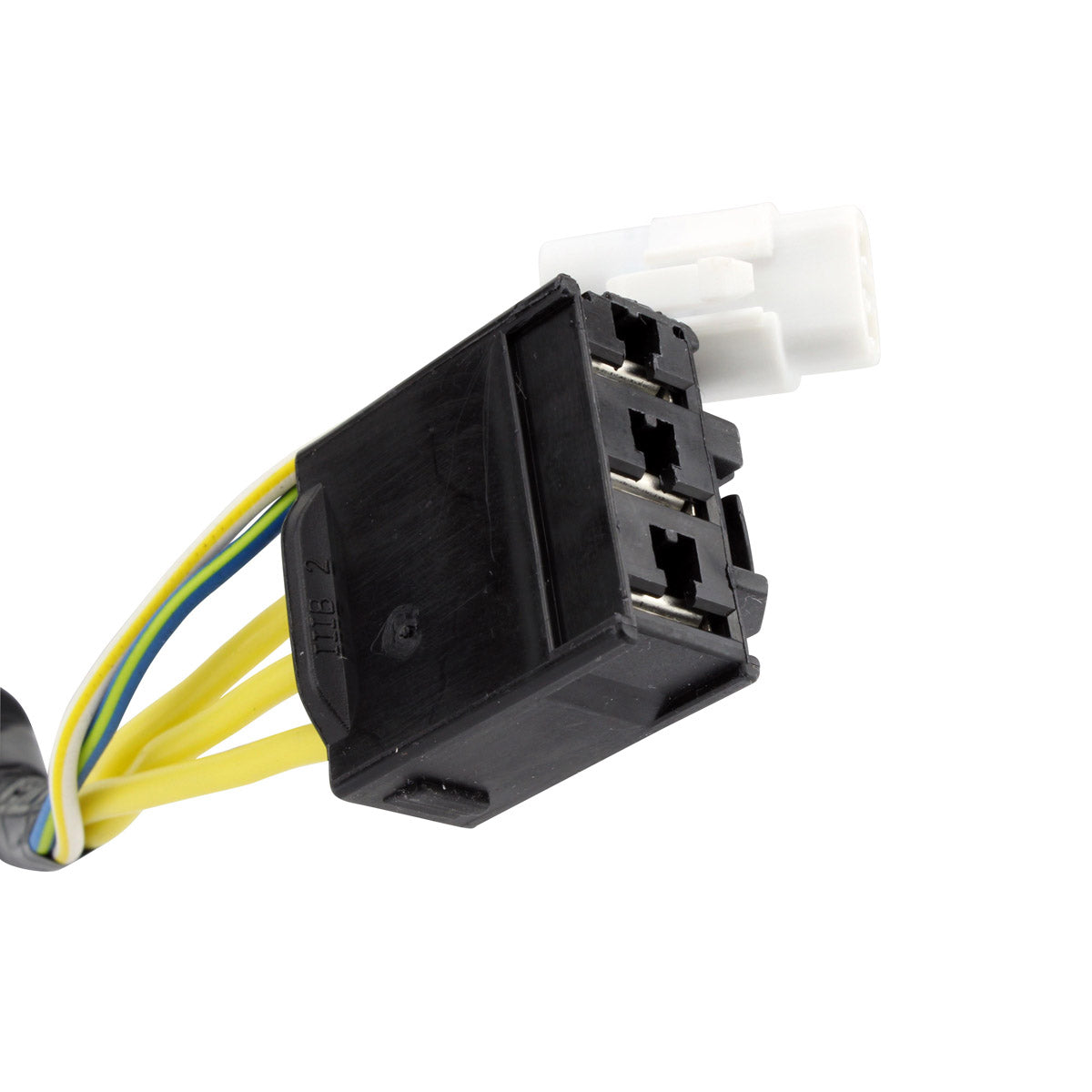

- Connectors and rubber grommet included

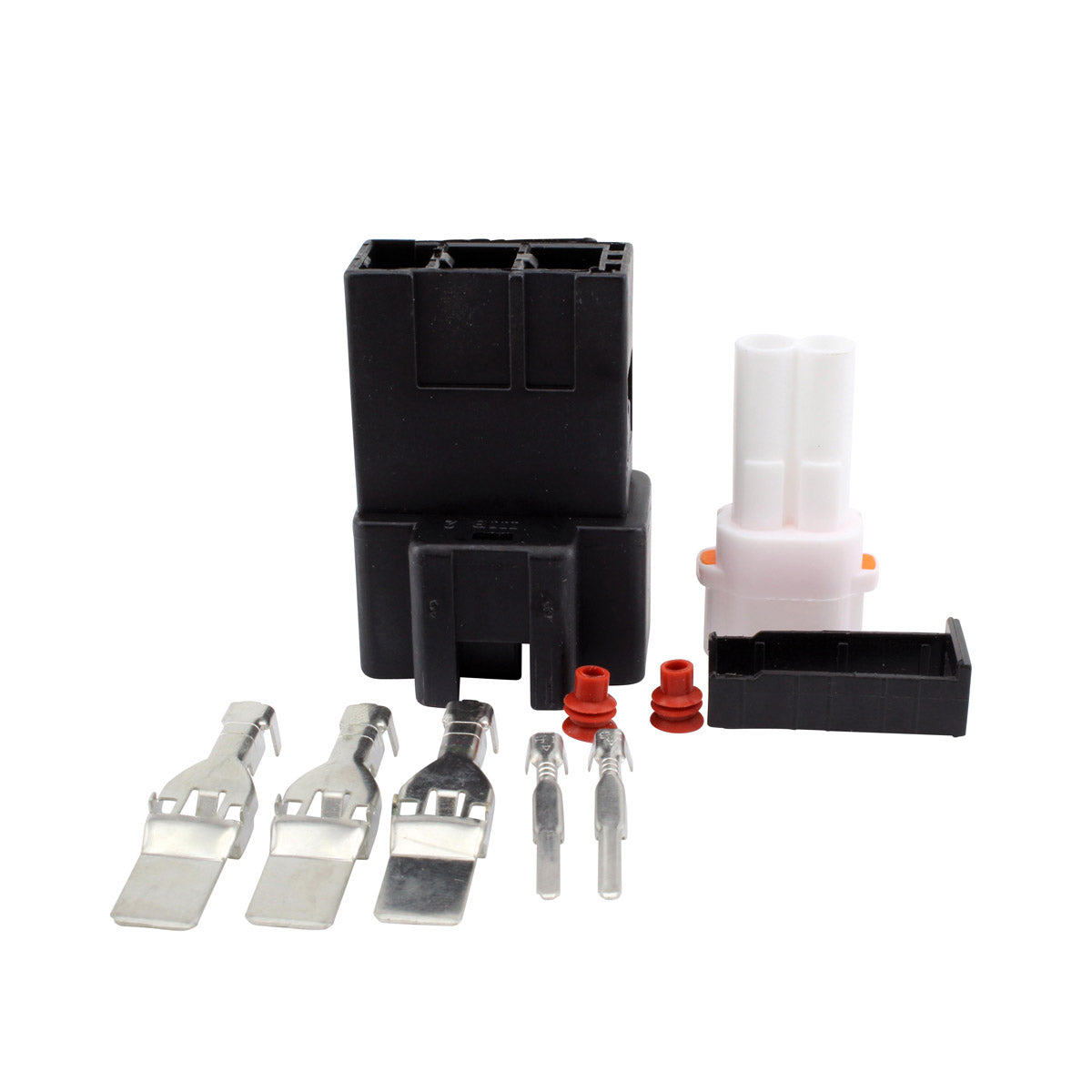

- Opposite connector for the main harness side also included
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Interior diameter |
54 mm |
| Exterior diameter |
118 mm |
| Thickness |

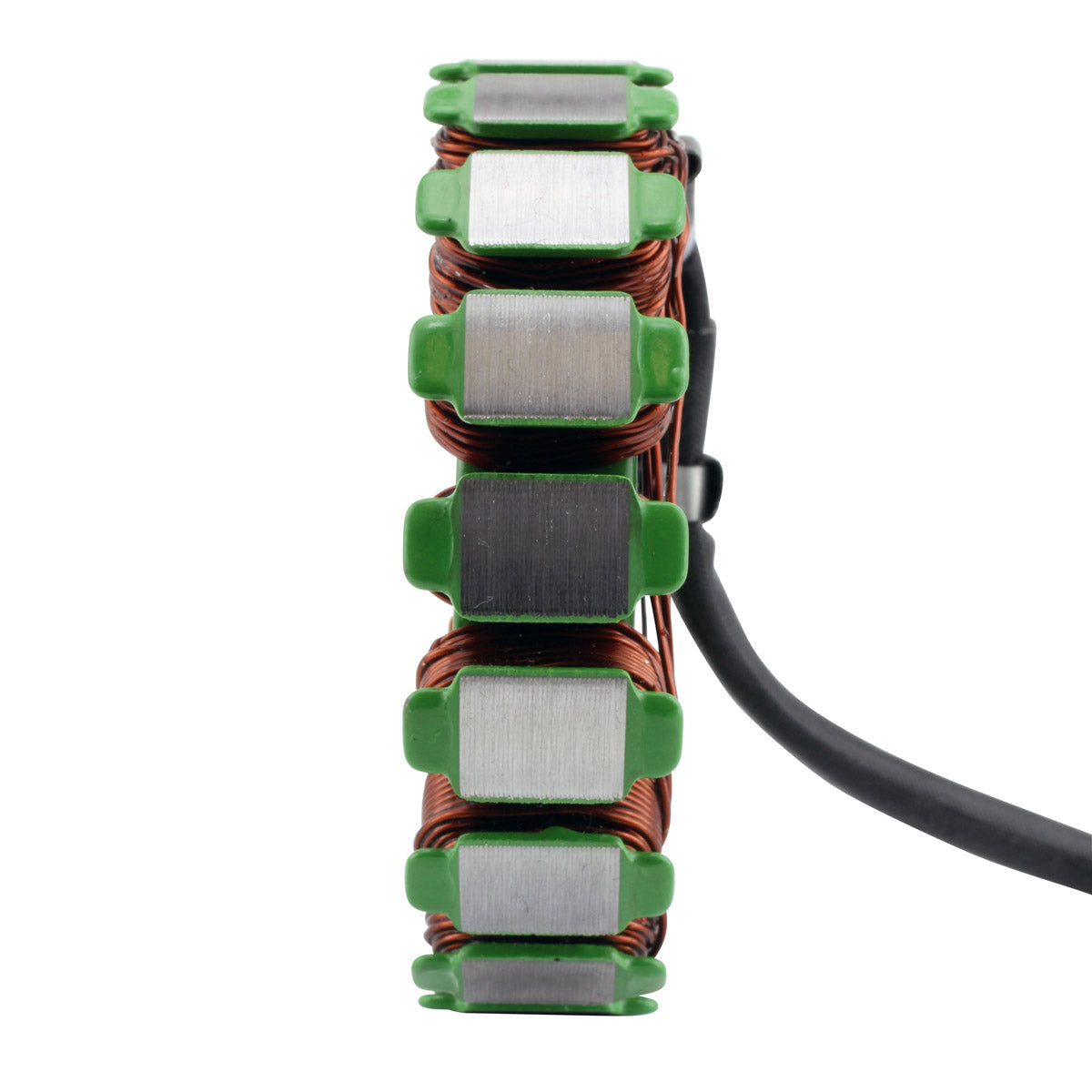

19 mm |
| Wire length, stator to grommet |
110 mm |
| Wire length, grommet to plug |
520 mm |
| Pickup coil wire to grommet |
10 mm |
| Number of wires |
5 |
| Number of plugs |
2 |
| Number of pins |
5 |
| Number of poles |
18 |
| Alternator resistance, between each yellow |
0.4 ohms +/- 20% |
| Pickup resistance, yellow/white to yellow/blue |
272 ohms +/- 20% |
| Copper winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model |
Years |
| Aprilia SL 750 Shiver |
2007-2018 |
| Aprilia SL 750 Shiver GT |
2007-2018 |
| Aprilia SL 900 Shiver |
2007-2018 |
| Aprilia SMV 750 Dorsoduro |
2008-2018 |
| Aprilia SMV 900 Dorsoduro |
2008-2018 |
| Aprilia SMV 1200 Dorsoduro |
2008-2018 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 640168 |
Aprilia |
Frequently Asked Questions
Will it fit without modification?
Yes. The stator is a direct replacement for the original unit on the models listed in the fitment table, so it mounts in the standard position and plugs into the standard connectors. No modification to the loom is required.
What is in the box?
The stator with its pick-up pulsar coil, the connectors, the rubber grommet, and the opposite connector for the main harness side so that both halves of the plug can be renewed at the same time.
How do I confirm my old stator has failed?
Typical symptoms are a battery that will not stay charged, warning lights or a dashboard that behaves oddly at higher revs, and eventually a no-start. With the engine off and the plugs disconnected, measure 0.4 ohms +/- 20% between each pair of yellow alternator wires and 272 ohms +/- 20% across the pickup, from yellow/white to yellow/blue. Readings well outside those figures, or continuity from any winding to the stator body, confirm the unit has failed.
Does one part number cover both the Shiver and the Dorsoduro?
Yes. Aprilia used the same charging assembly across the 750, 900 and 1200 Shiver and Dorsoduro platforms, and this stator replaces OEM reference 640168 on all of them. The dimensions listed above let you check the unit against your original before fitting.
