Stator for Arctic Cat Alterra, HDX, Mud Pro & Prowler 500 550 700 1000 2013-2022
Stator for Arctic Cat Alterra, HDX, Mud Pro & Prowler 500 550 700 1000 2013-2022
SKU:RMS010-104019
Free shipping over £150. Terms apply
Couldn't load pickup availability

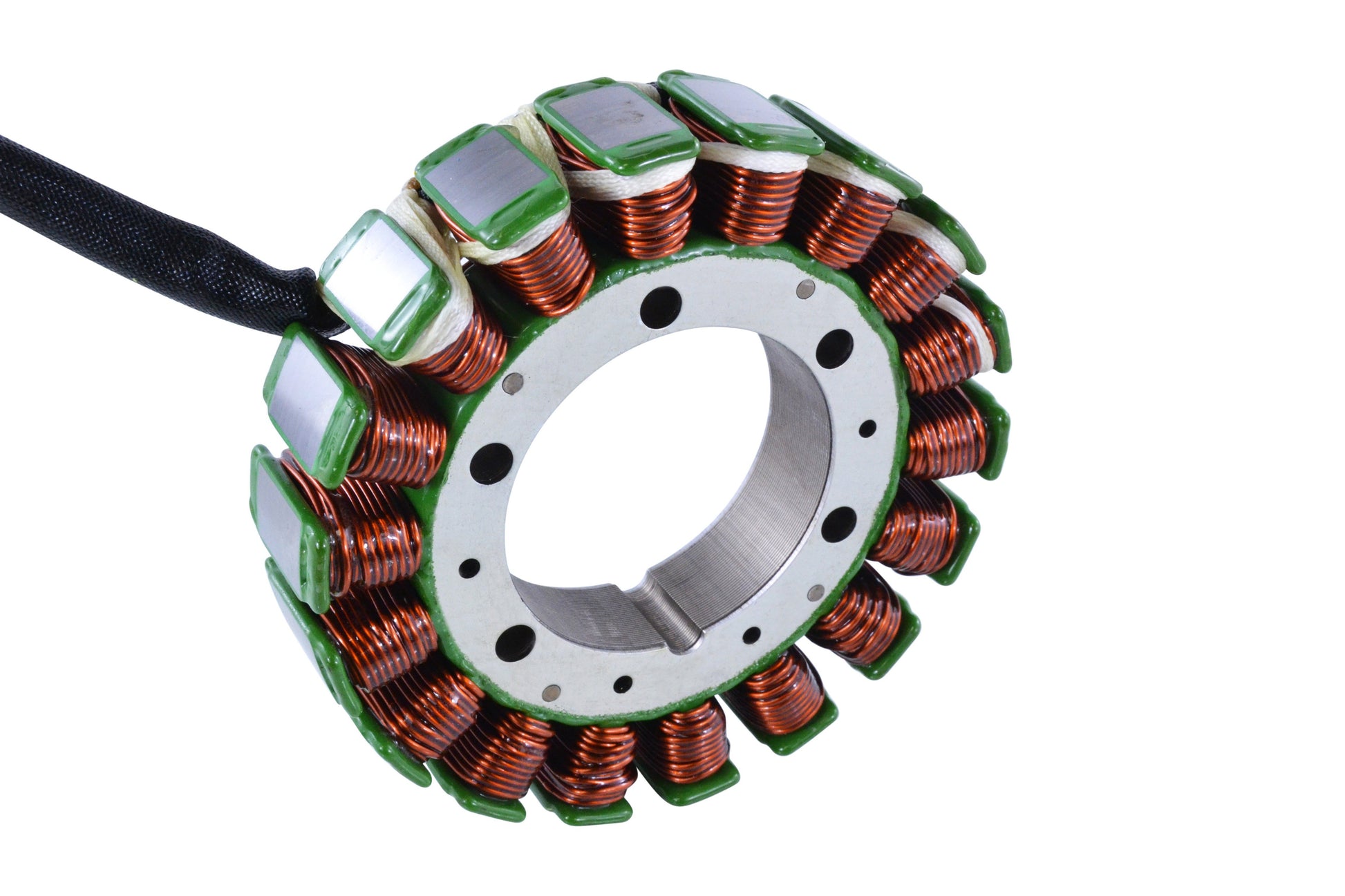

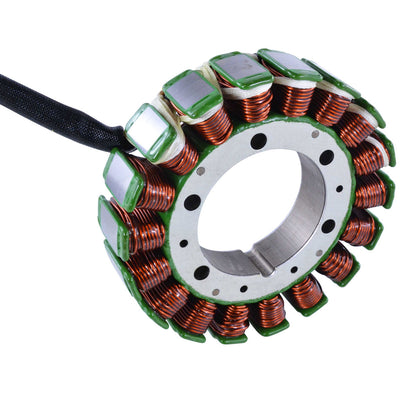

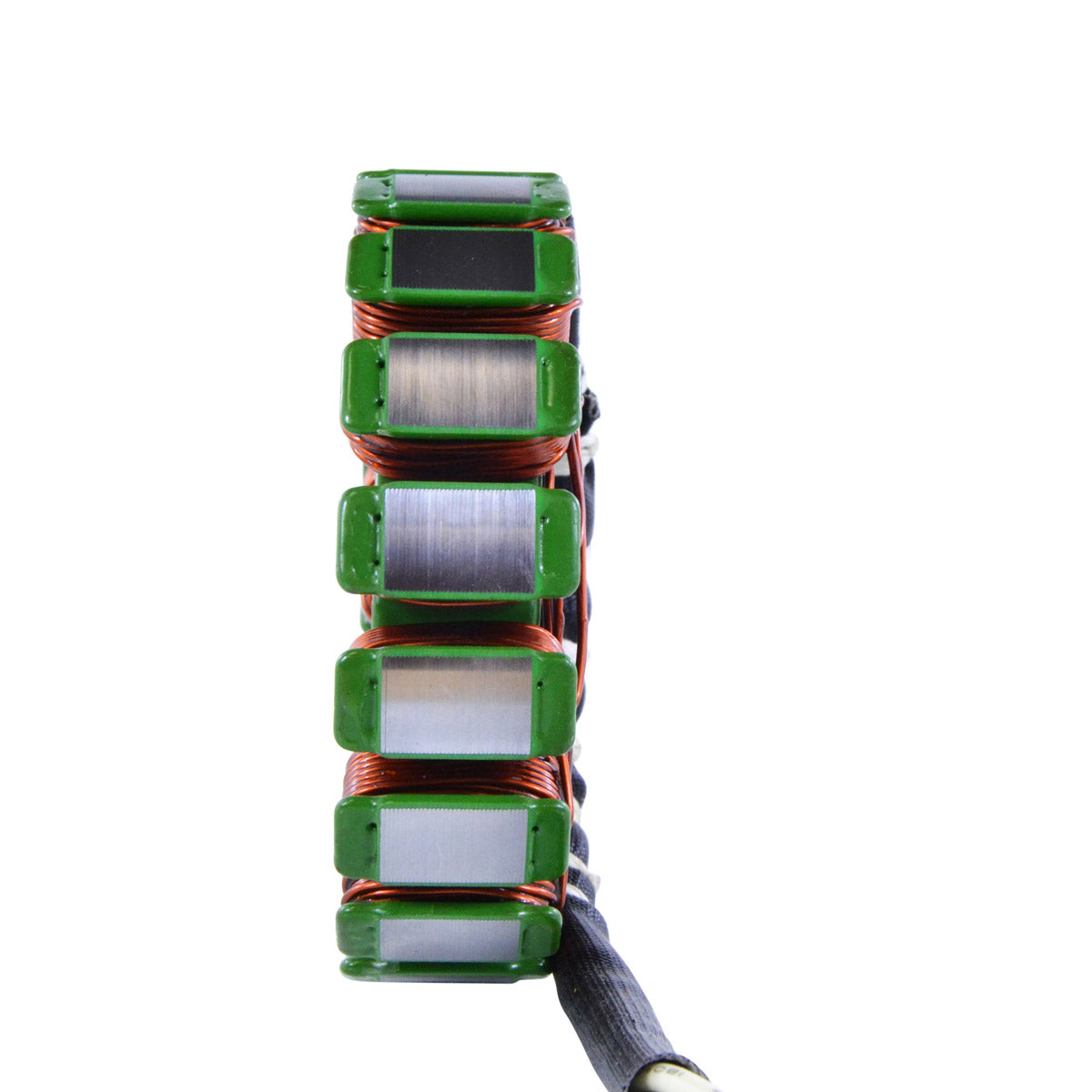

Stator for Arctic Cat 500, 550, 700 and 1000
Alterra, HDX, Mud Pro, TBX, TRV, VLX, XR, XT and Prowler, 2013-2022

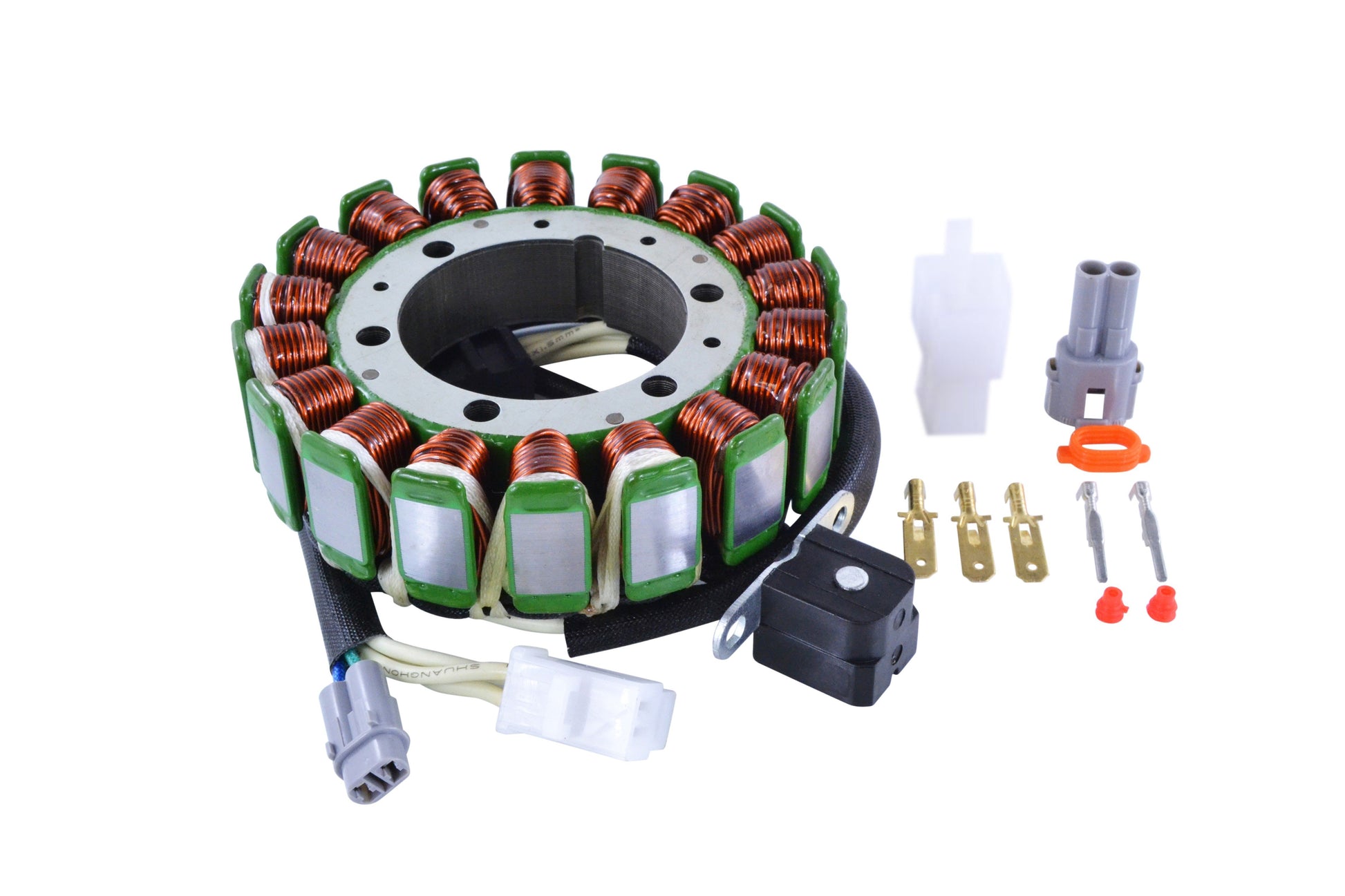

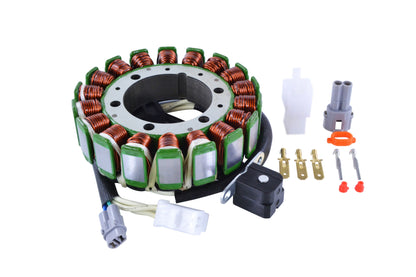

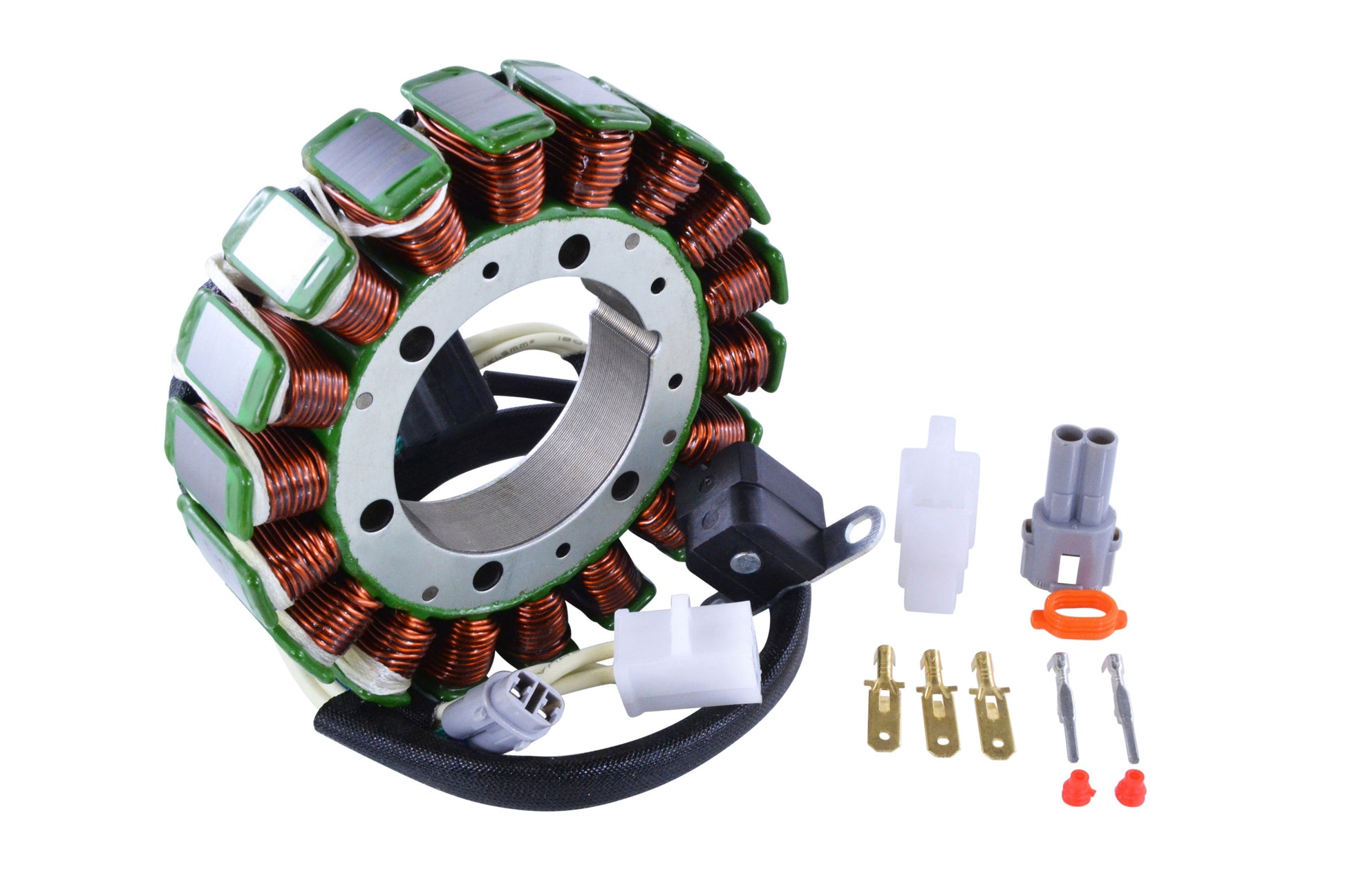

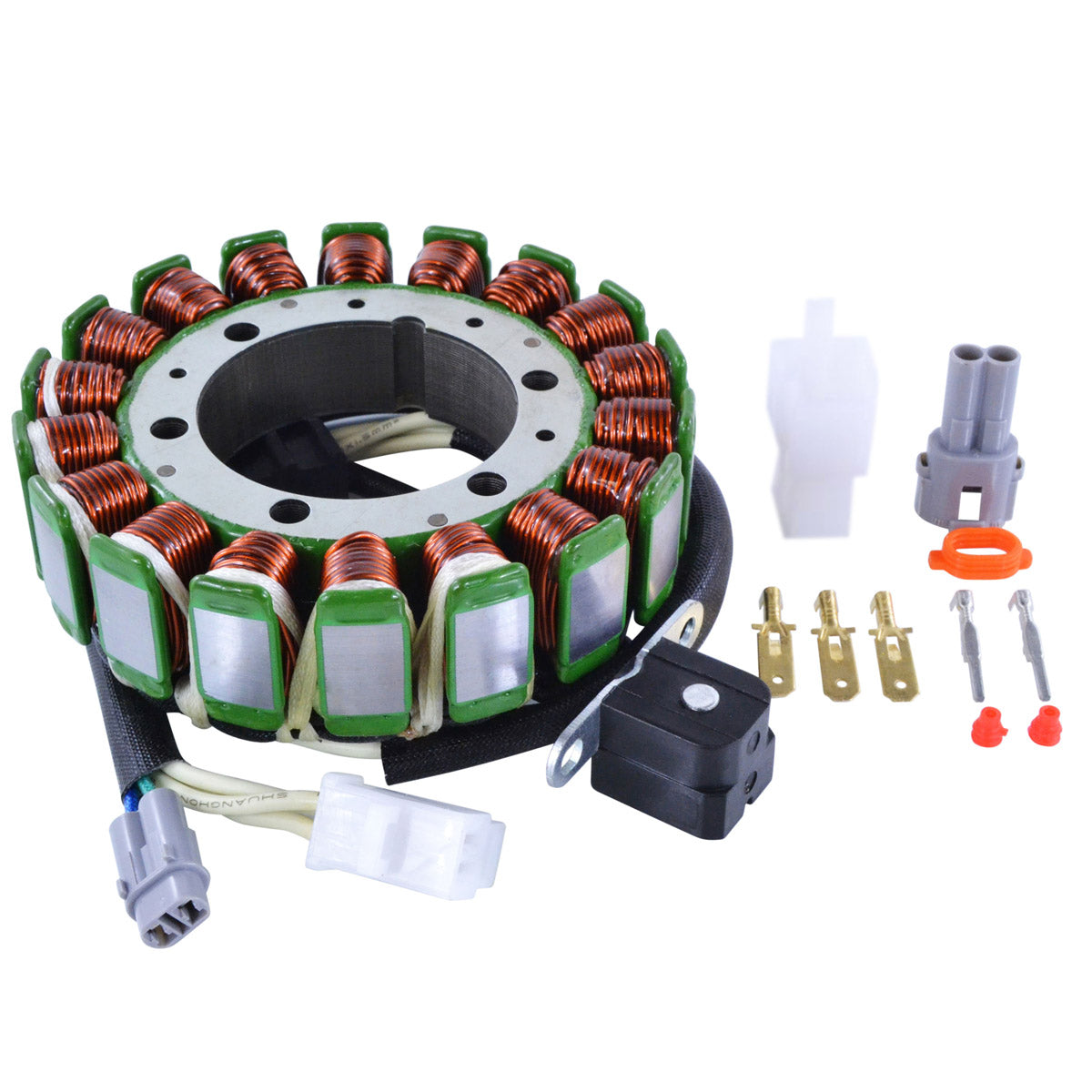

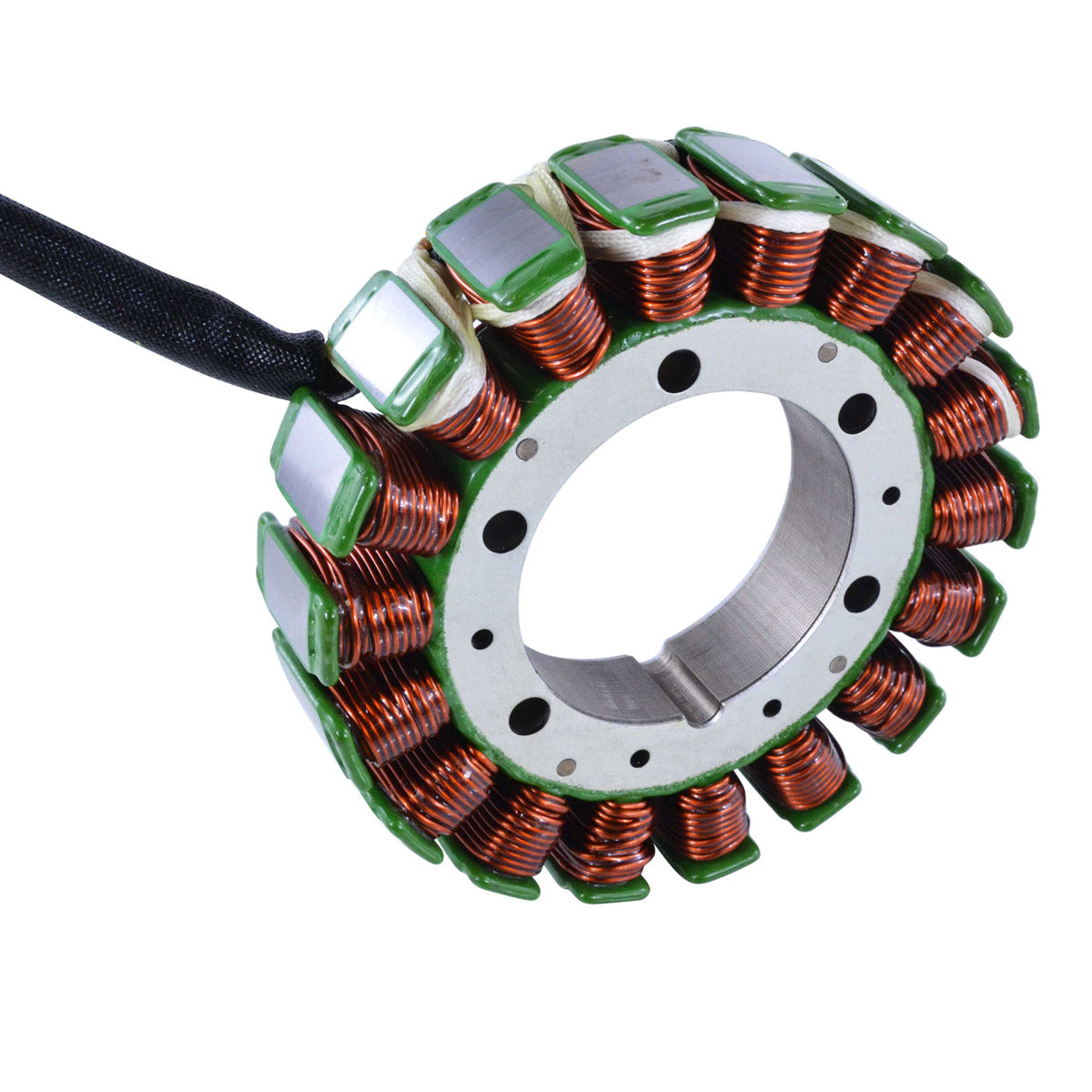

This is a brand new aftermarket stator, supplied complete with its pick up pulsar coil, built as a direct replacement for the original unit fitted to Arctic Cat Alterra, HDX, Mud Pro, TBX, TRV, VLX, XR, XT and Prowler machines in 500, 550, 700 and 1000 form, built between 2013 and 2022. It delivers 20% more output over stock, which is useful on machines running winches, heated grips or auxiliary lighting.

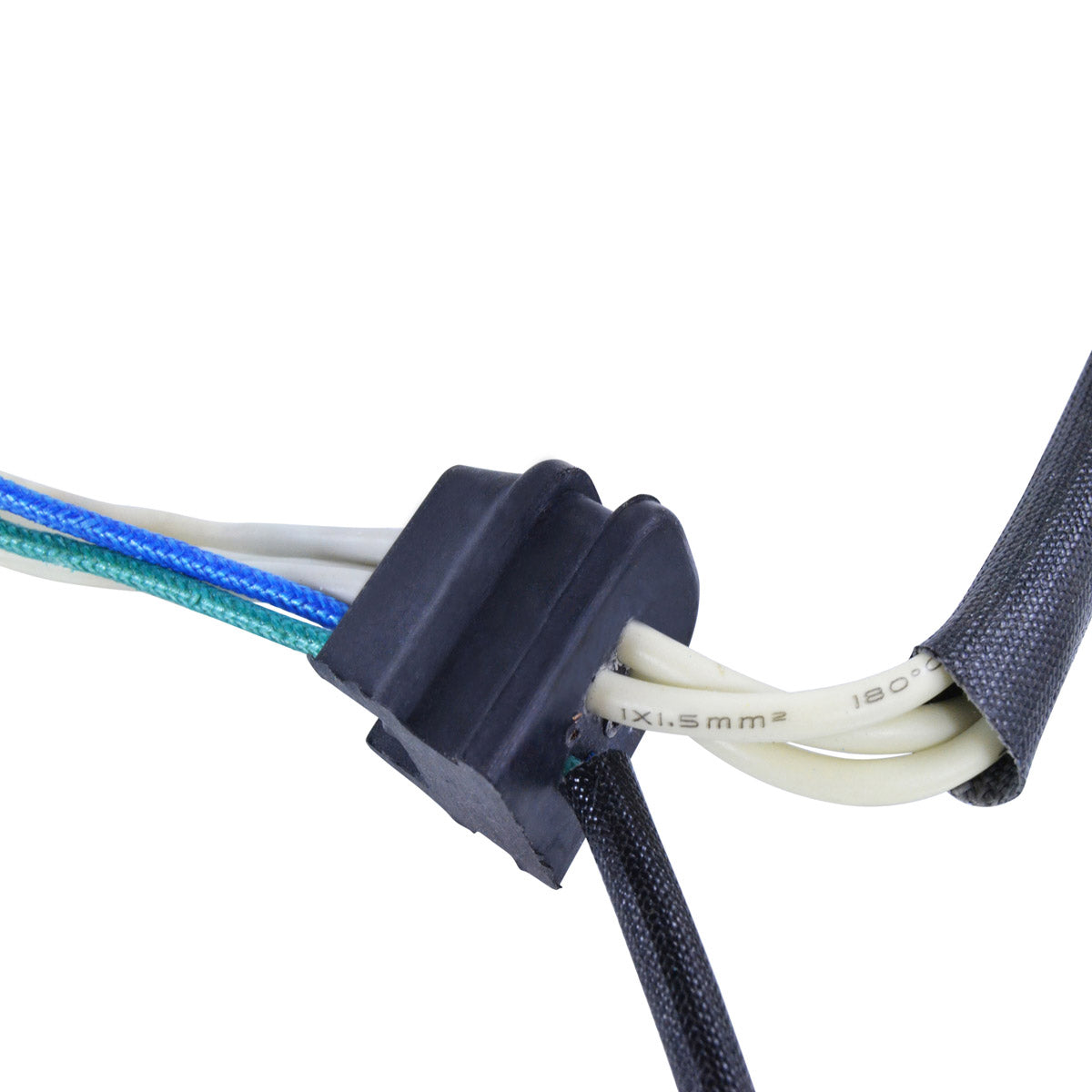

Please note one point before you fit it: you must re-install your original grommet onto the new stator. Once your connector and grommet are in place, the part becomes a plug-and-play unit, a direct fit, and very easy to install. The windings are copper, rated to resist 200 degrees Celsius. Every part is tested before it is shipped. Our part number for this stator is RMS010-104019.
Key Features
- Brand new aftermarket stator, not a rewound or repaired unit
- Direct replacement for the original stator
- 20% more output over stock

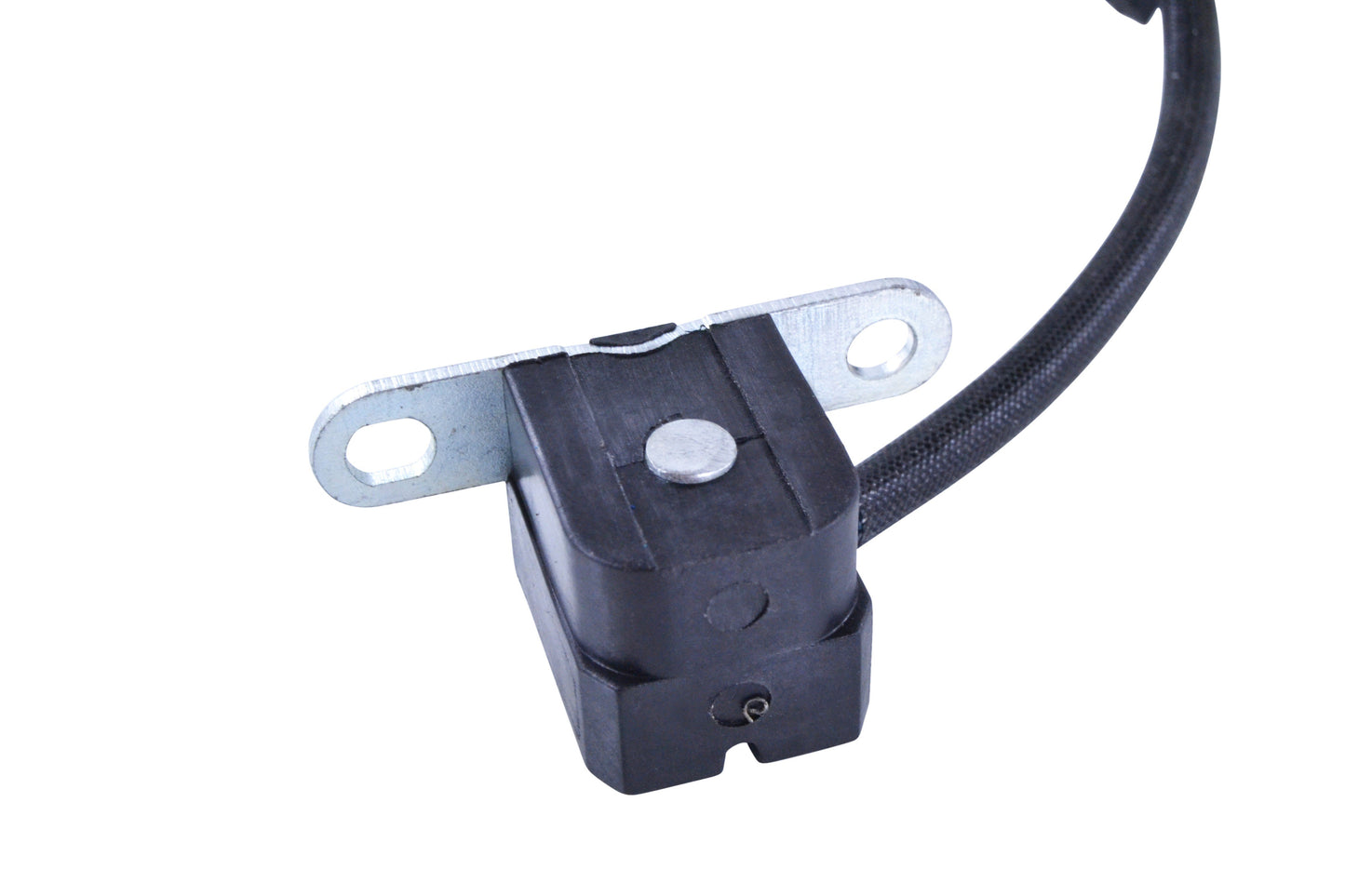

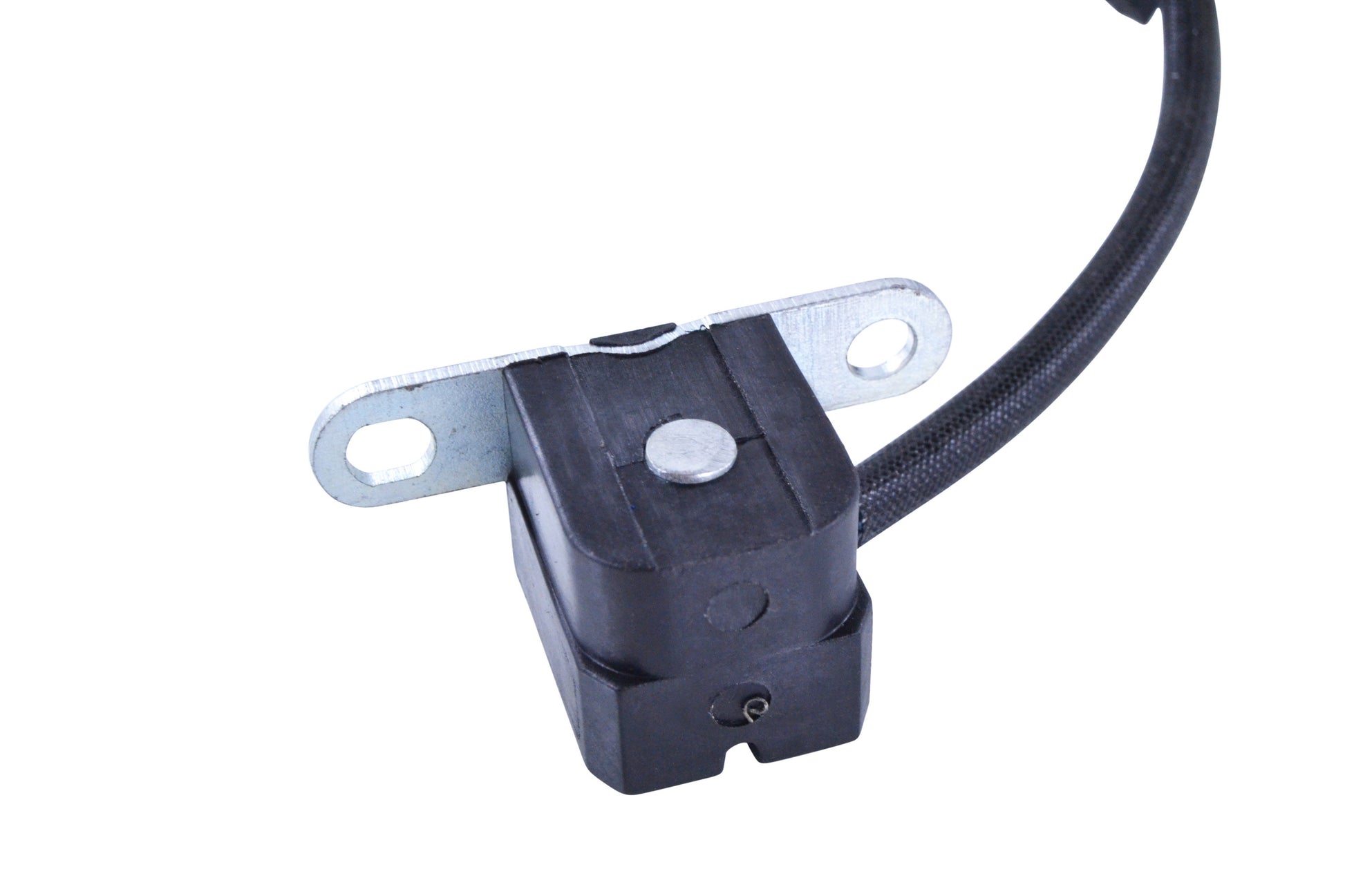

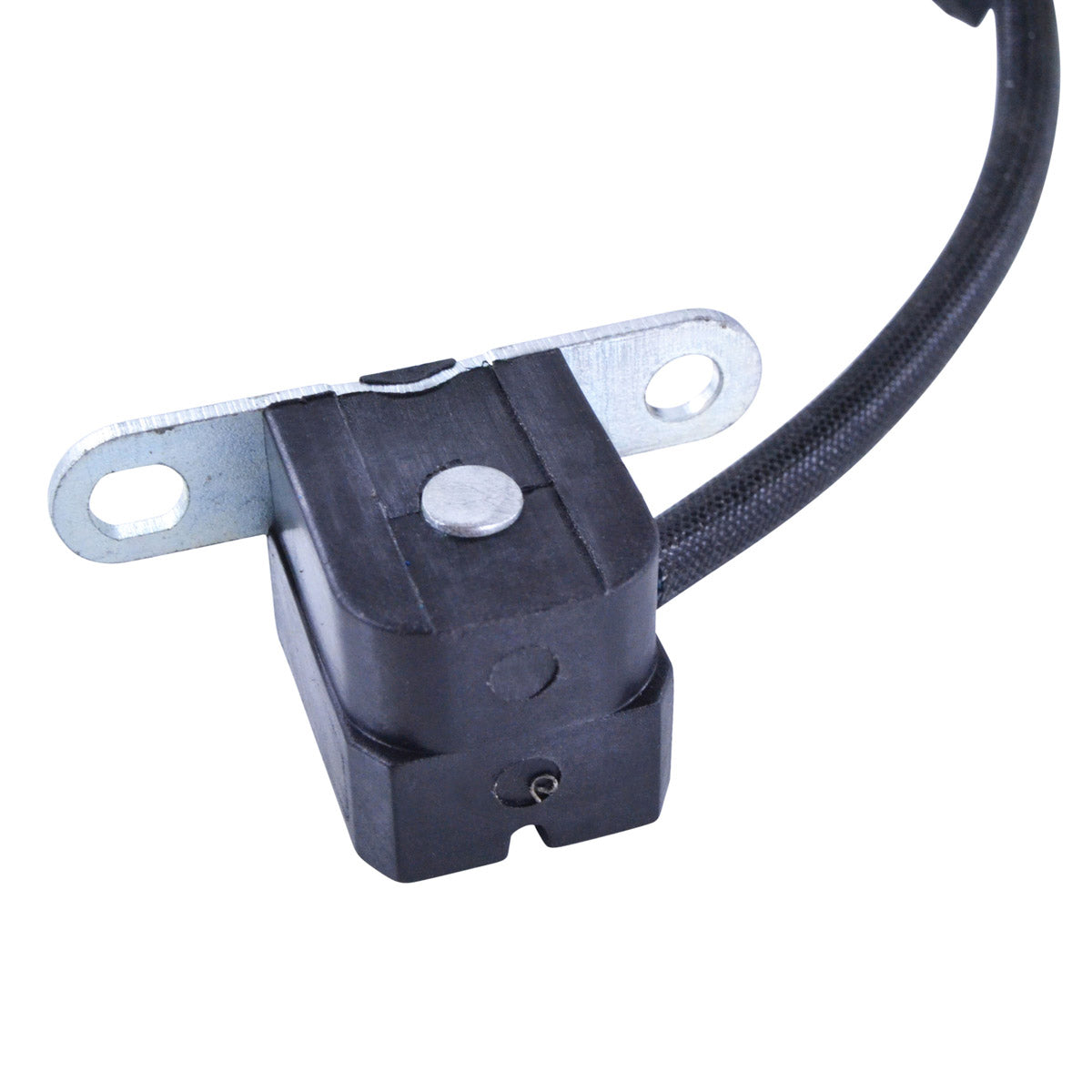

- Pick up pulsar coil included

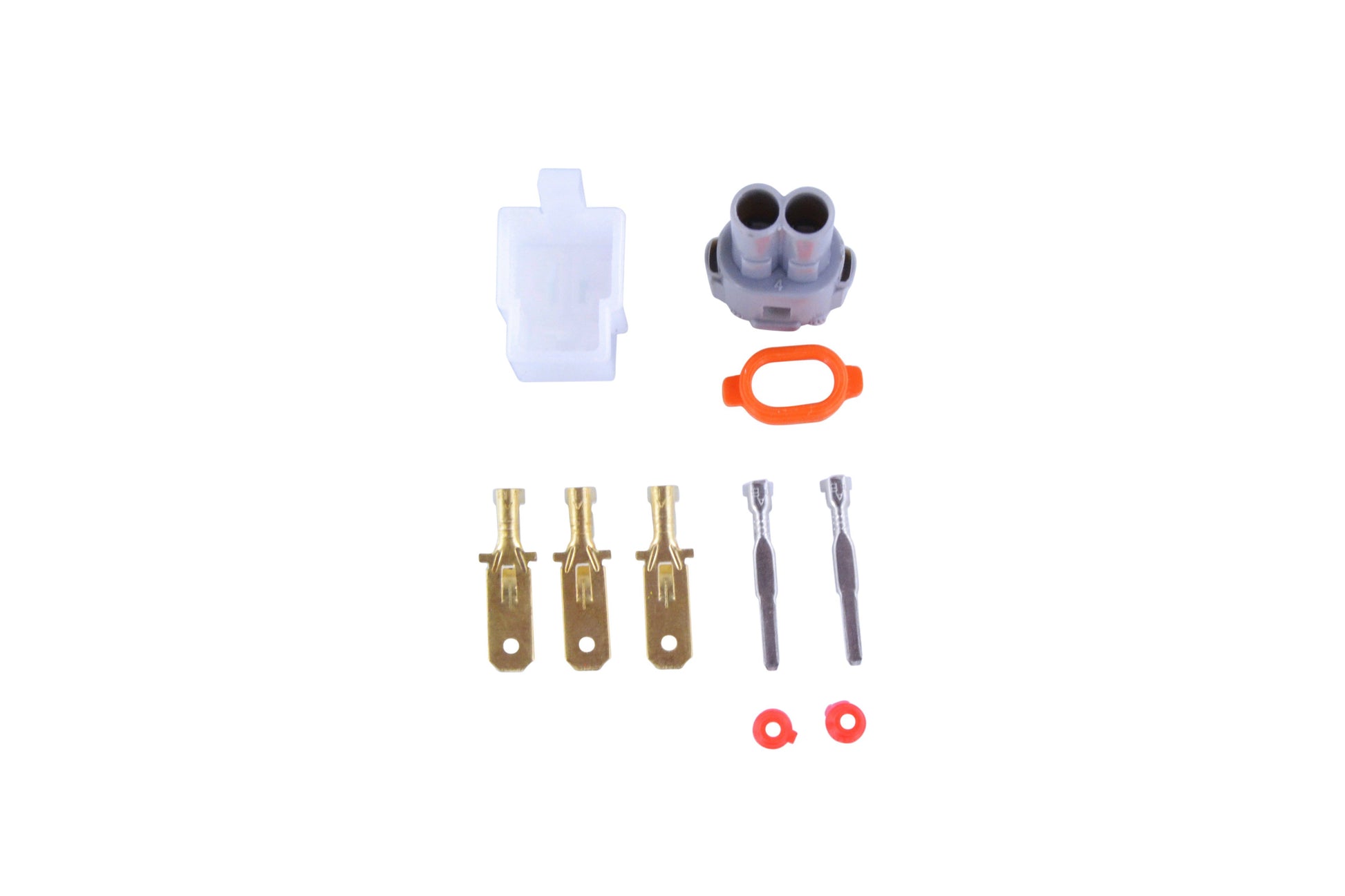

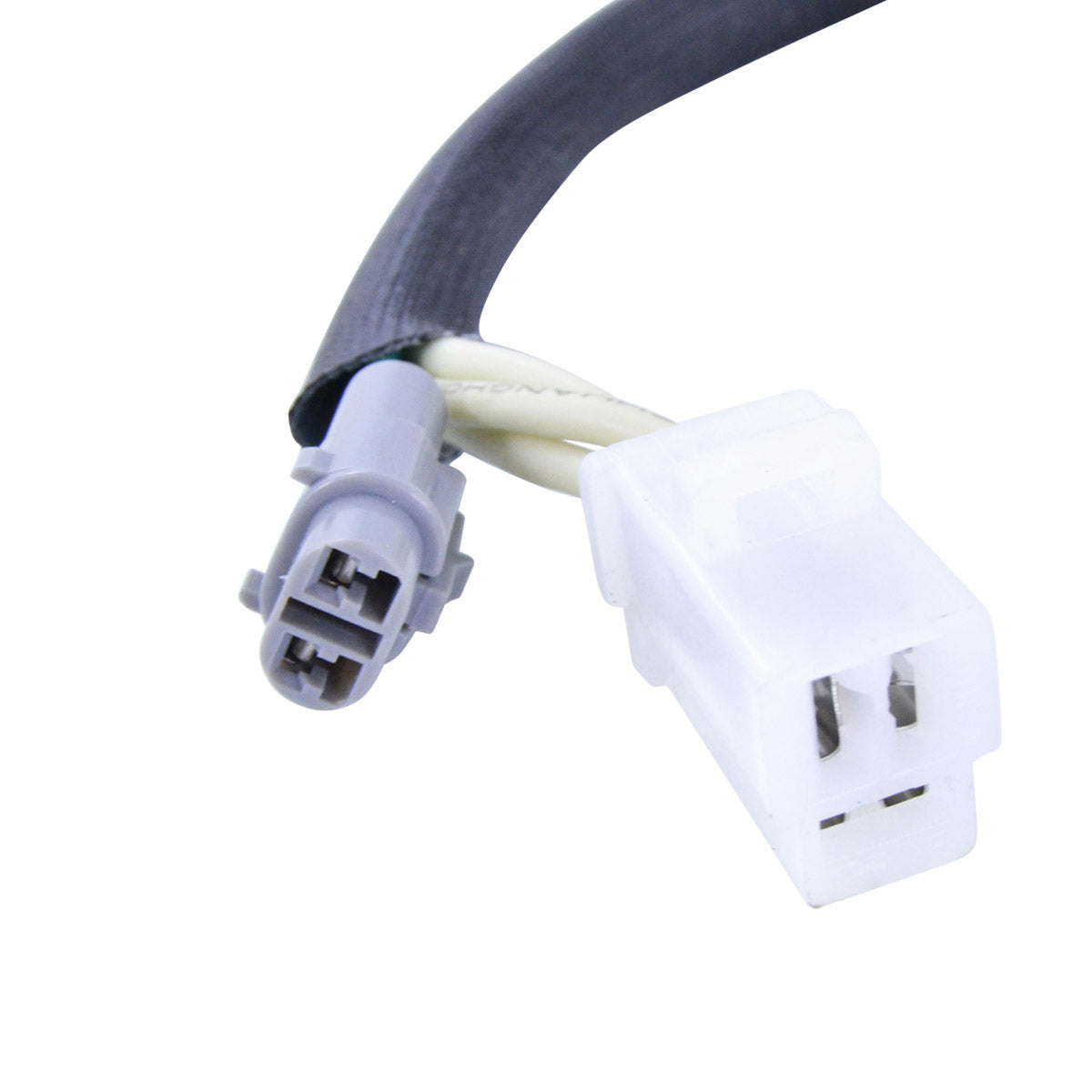

- Connector included, plus the opposite connector for the main harness side

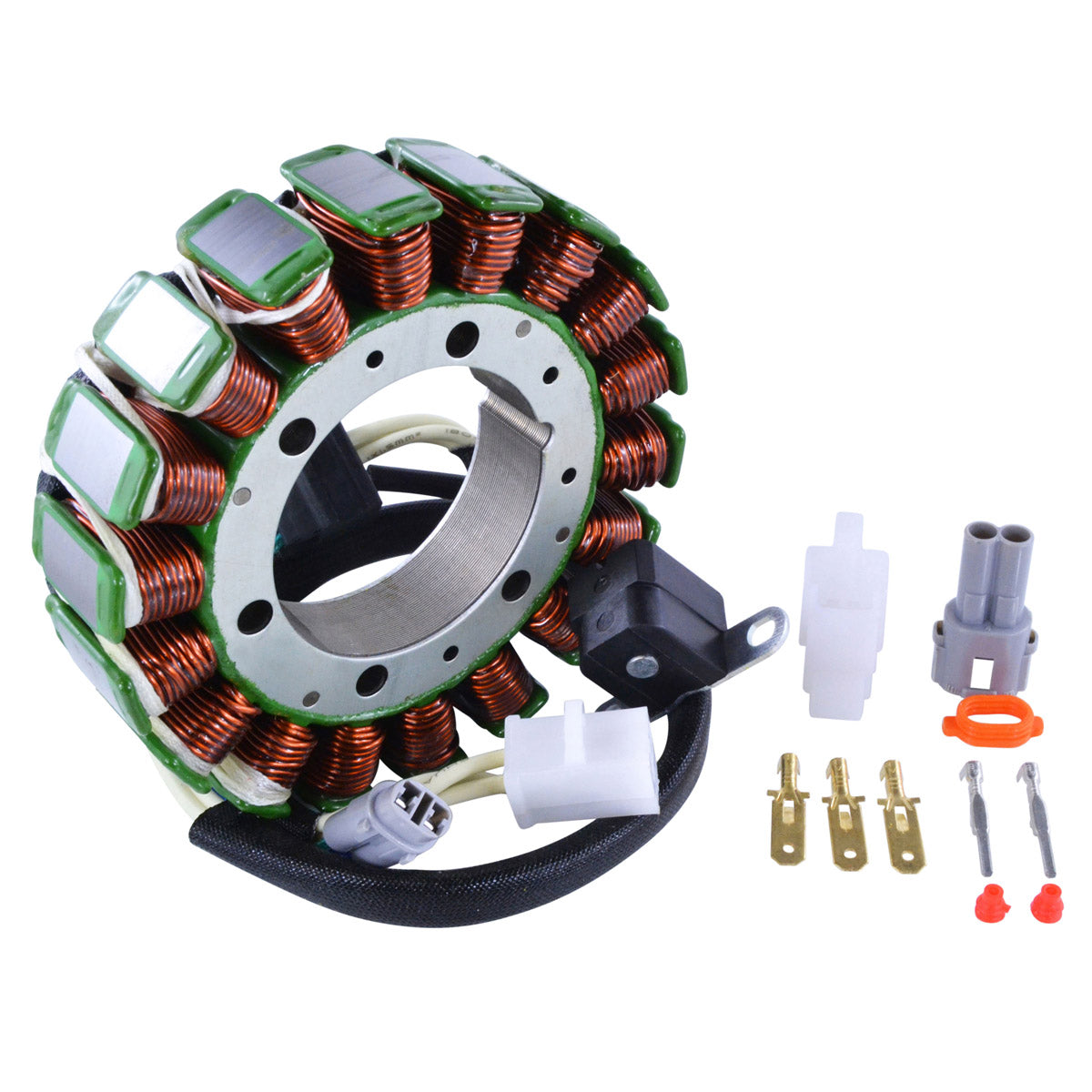

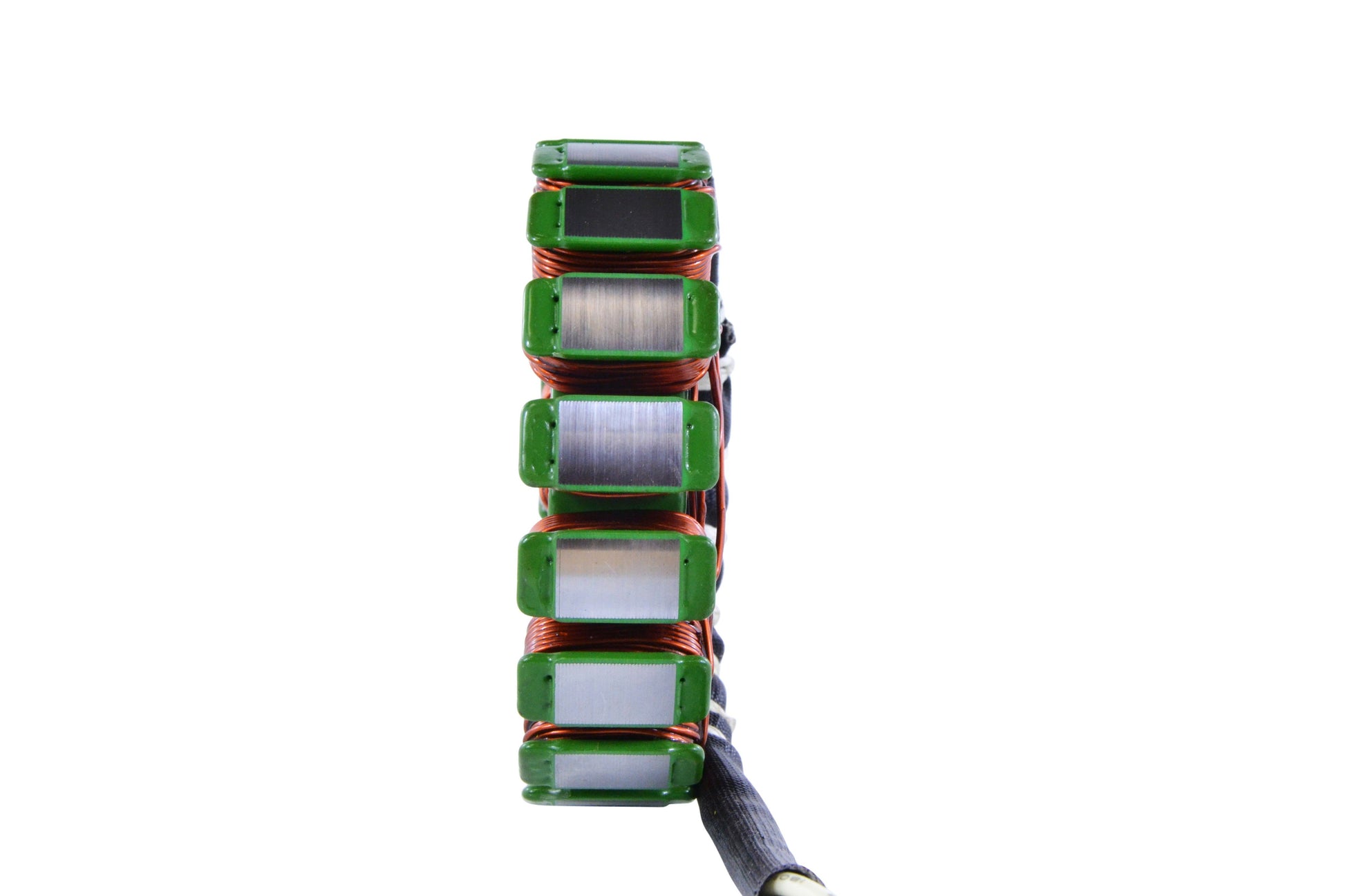

- Copper windings rated to 200 degrees Celsius

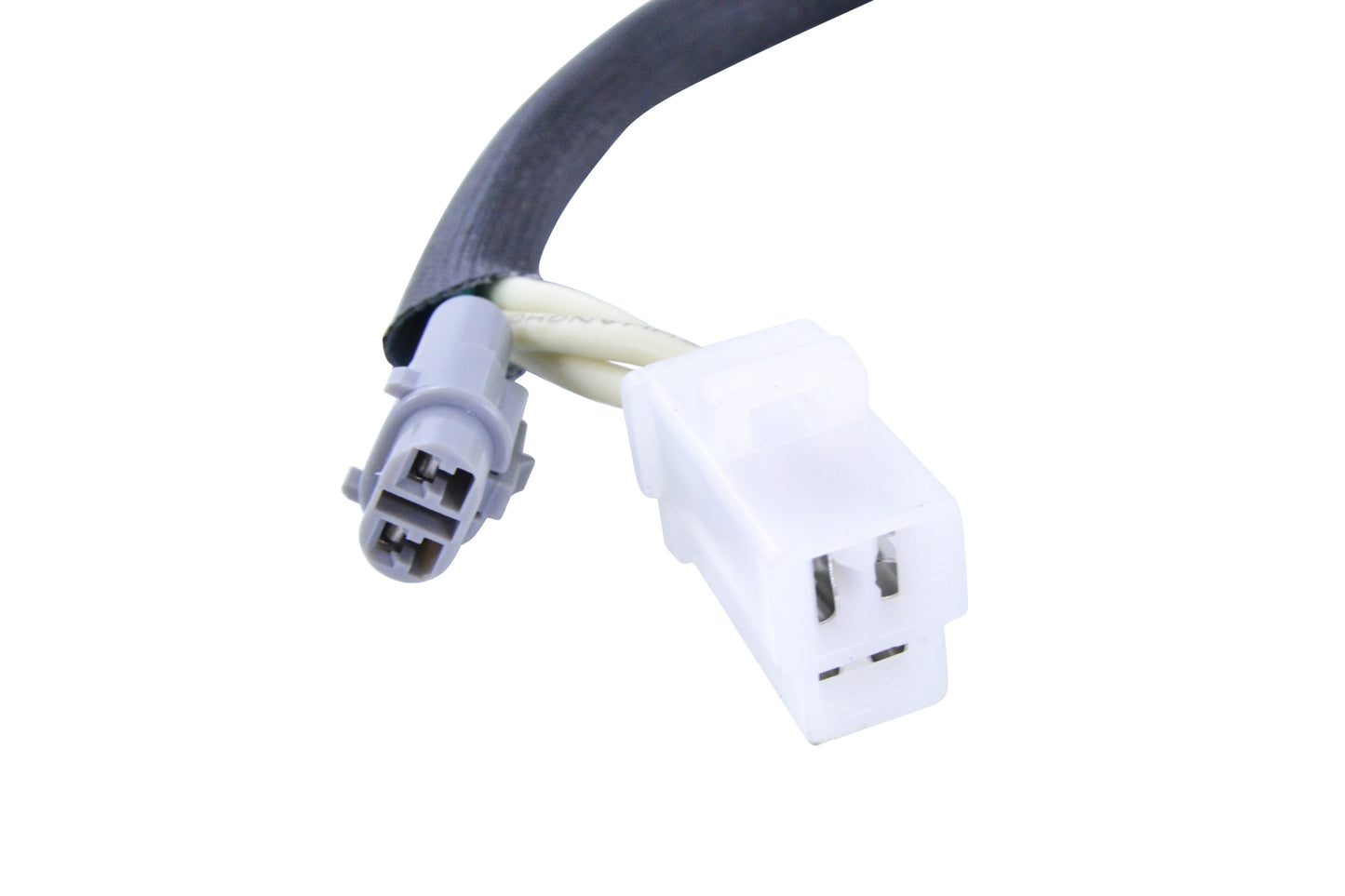

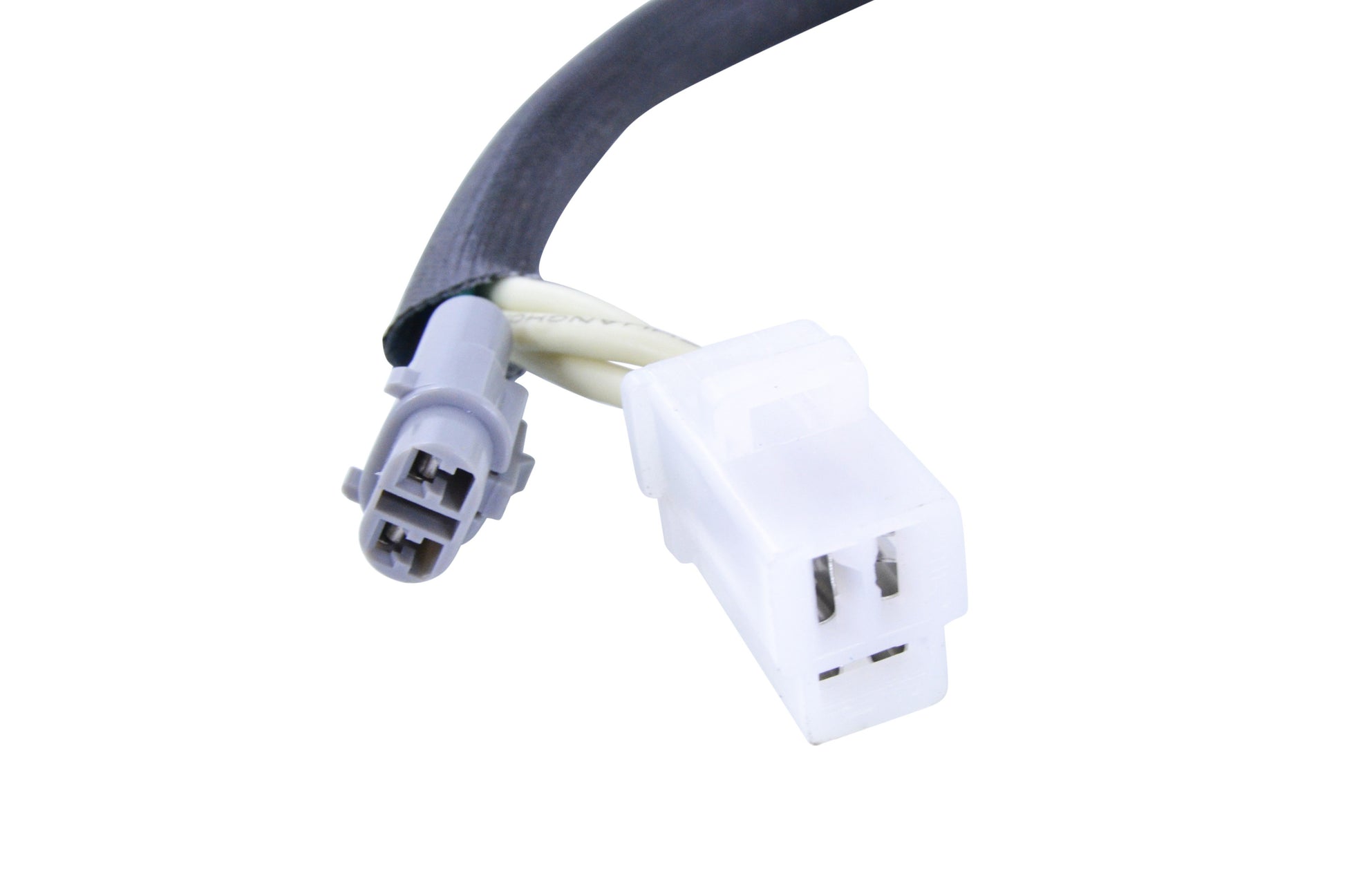

- Five wires, two plugs, five pins

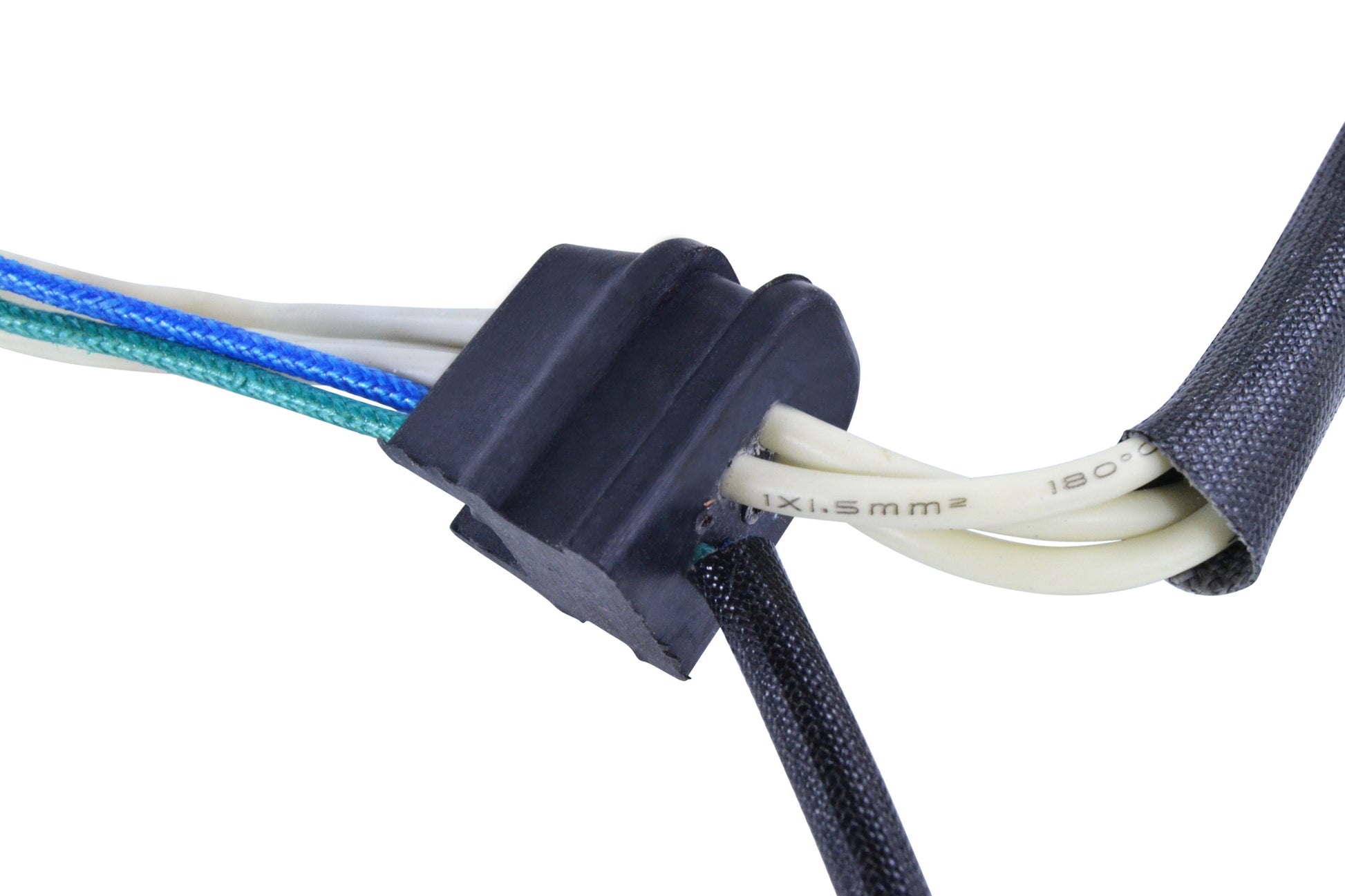

- Your original grommet must be re-installed on the new unit
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RMS010-104019 |
| Interior diameter | 53 mm |
| Exterior diameter | 114 mm |
| Thickness | 17 mm |
| Length of wires, stator to grommet | 100 mm |
| Length of wires, grommet to plug | 300 mm |
| Length of pick up coil wire to grommet | 70 mm |
| Number of wires | 5 |
| Number of plugs | 2 |
| Number of pins | 5 |
| Alternator resistance, White to White | 0.4 ohms +/- 20% |
| Pick up coil resistance, Blue to Green | 200 ohms +/- 20% |
| Power output | 20% more output over stock |
| Copper winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering. Coverage applies to the 500, 550, 700 and 1000 versions of the models listed.
| Make & Model | Years |
|---|---|
| Arctic Cat Alterra | 2013-2022 |
| Arctic Cat HDX | 2013-2022 |
| Arctic Cat Mud Pro | 2013-2022 |
| Arctic Cat TBX | 2013-2022 |
| Arctic Cat TRV | 2013-2022 |
| Arctic Cat VLX | 2013-2022 |
| Arctic Cat XR | 2013-2022 |
| Arctic Cat XT | 2013-2022 |
| Arctic Cat Prowler | 2013-2022 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 0802-065 | Arctic Cat |
| 0802-073 | Arctic Cat |
Frequently Asked Questions
Will this stator fit without modification?
It is a direct fit on the applications listed above, with one preparation step: your original grommet has to be transferred onto the new stator. Once the grommet and connector are in place the unit is plug-and-play and needs no cutting or splicing.
What is included?

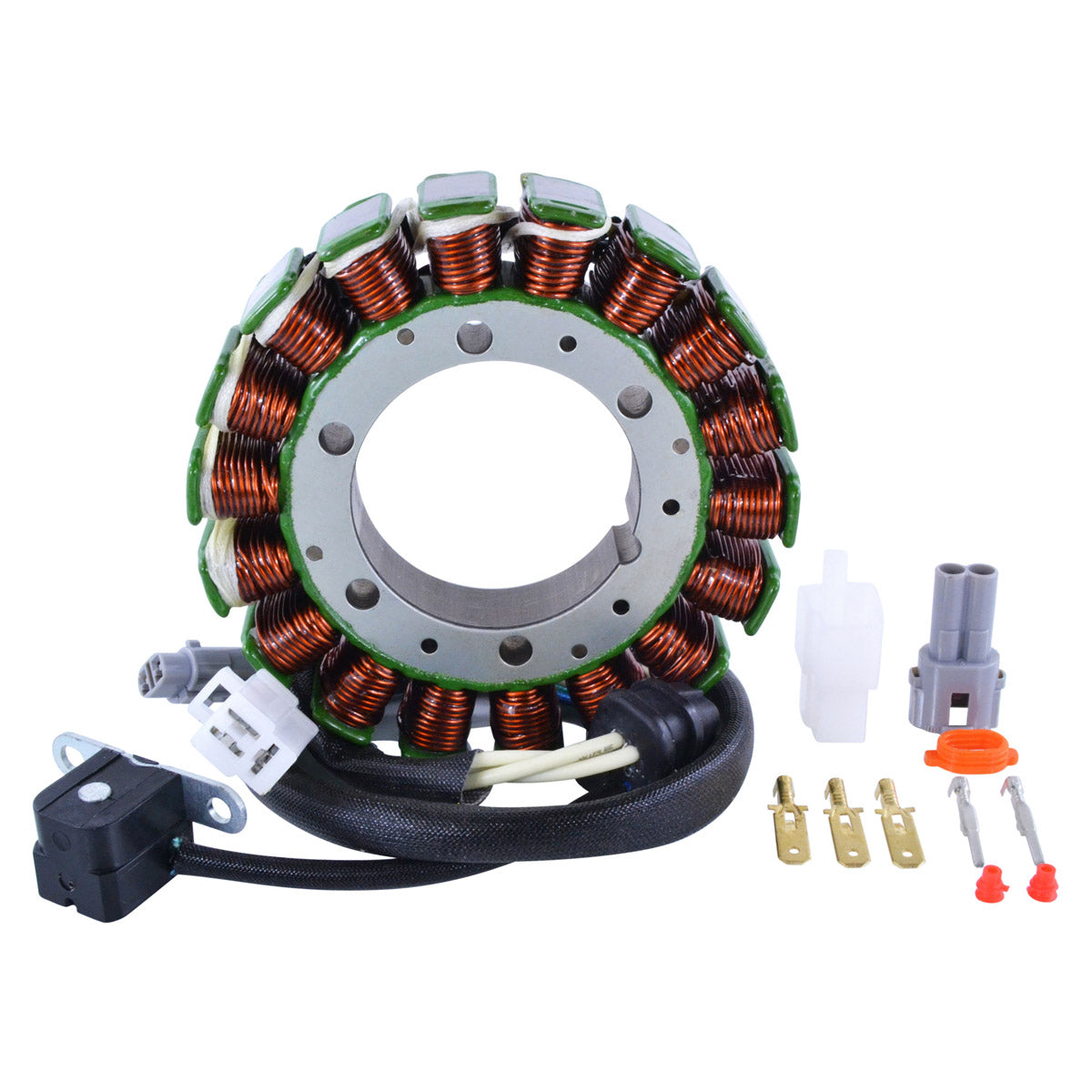

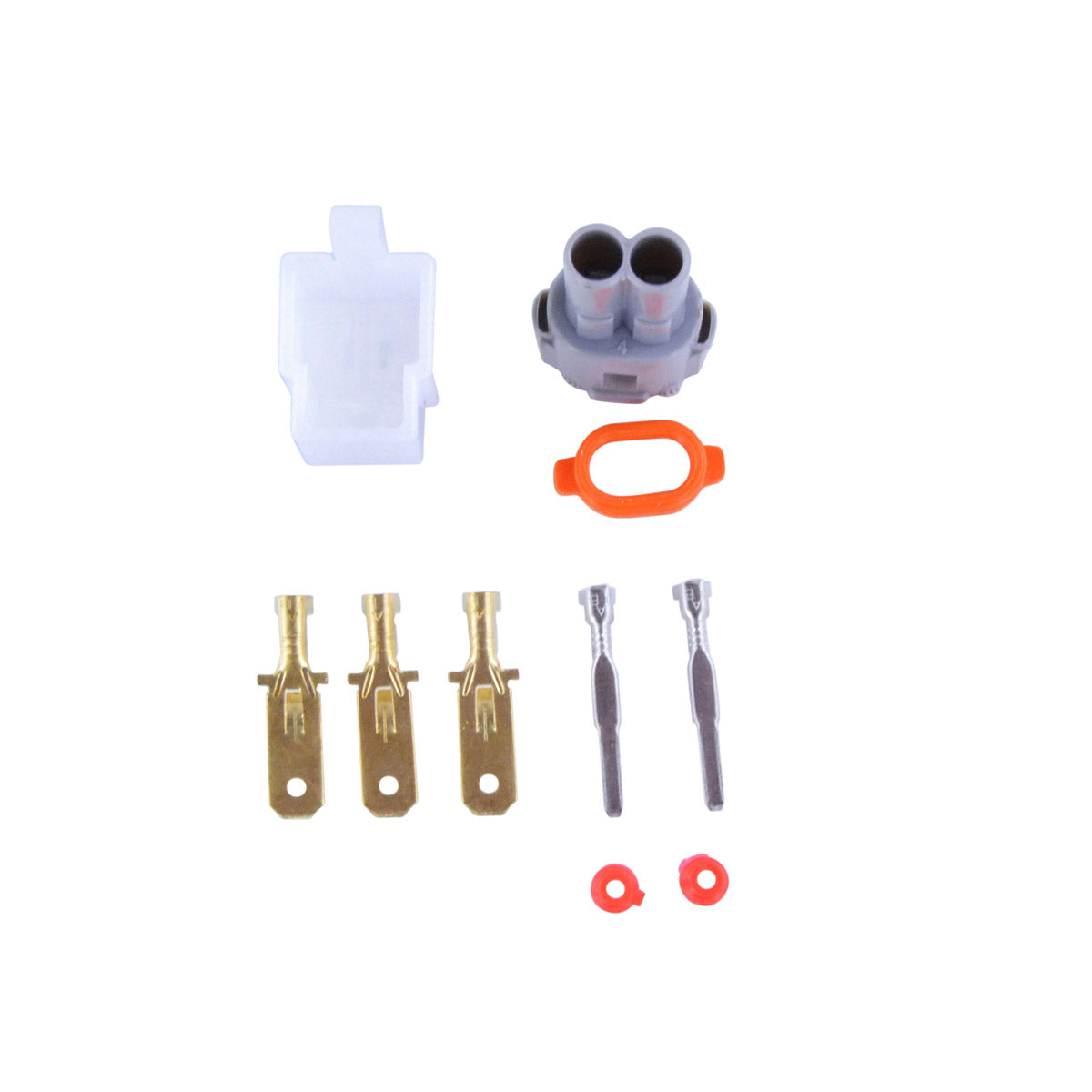

The stator, its pick up pulsar coil, the connector, and the opposite connector for the main harness side. The opposite connector is supplied because that side of the loom is frequently found melted or corroded on these machines.
How can I tell that my old stator has failed?
A flat battery, dim lights or a machine that will not restart after a run are the usual signs. Unplug the stator and measure resistance: the White alternator wires should read 0.4 ohms with a tolerance of plus or minus 20%, and the pick up coil should read 200 ohms Blue to Green, again plus or minus 20%.
What does 20% more output over stock mean in practice?
The alternator winding produces more charging current than the original unit at the same engine speed. On a machine loaded with a winch, spotlights or heated equipment, that extra headroom helps keep the battery topped up at low revs.
