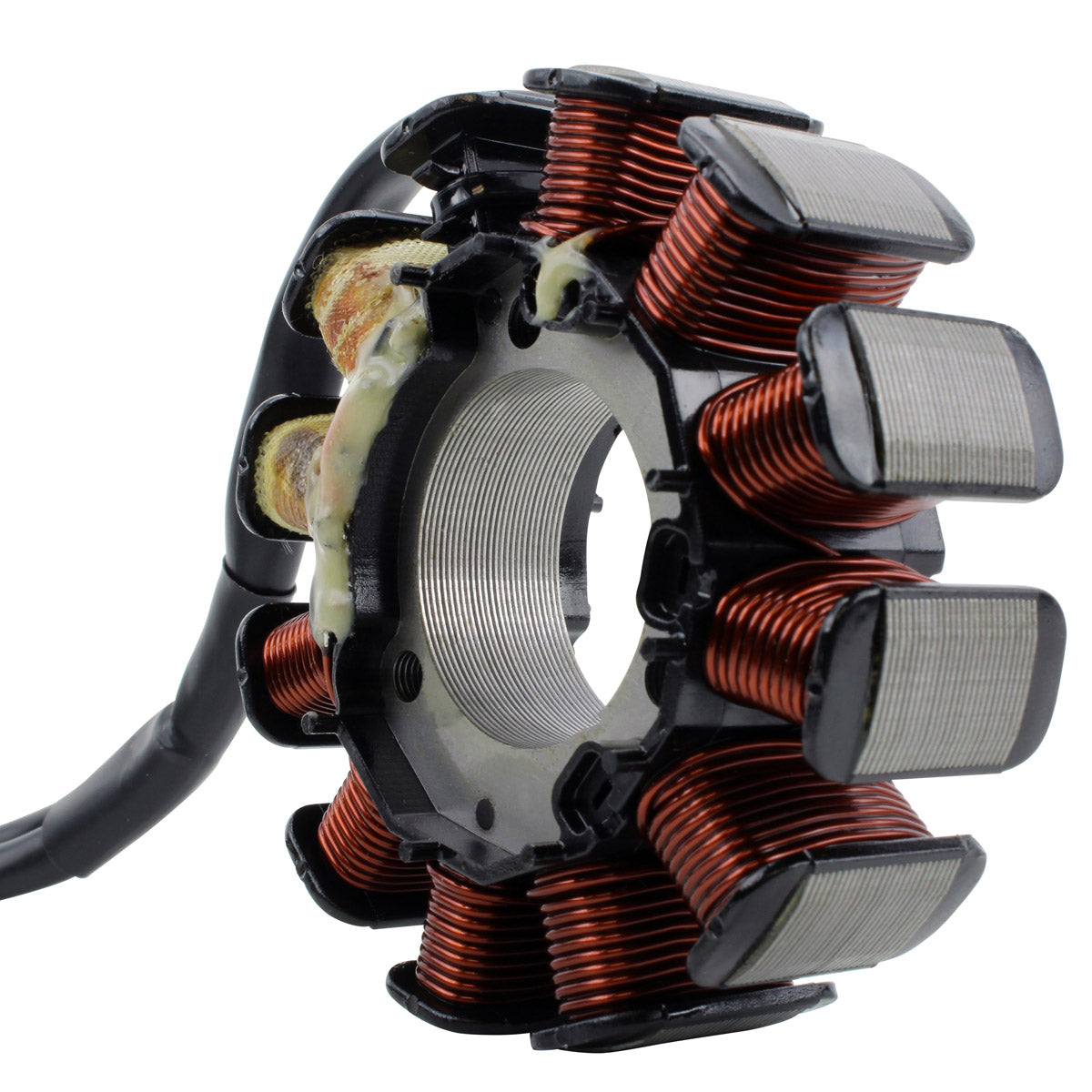

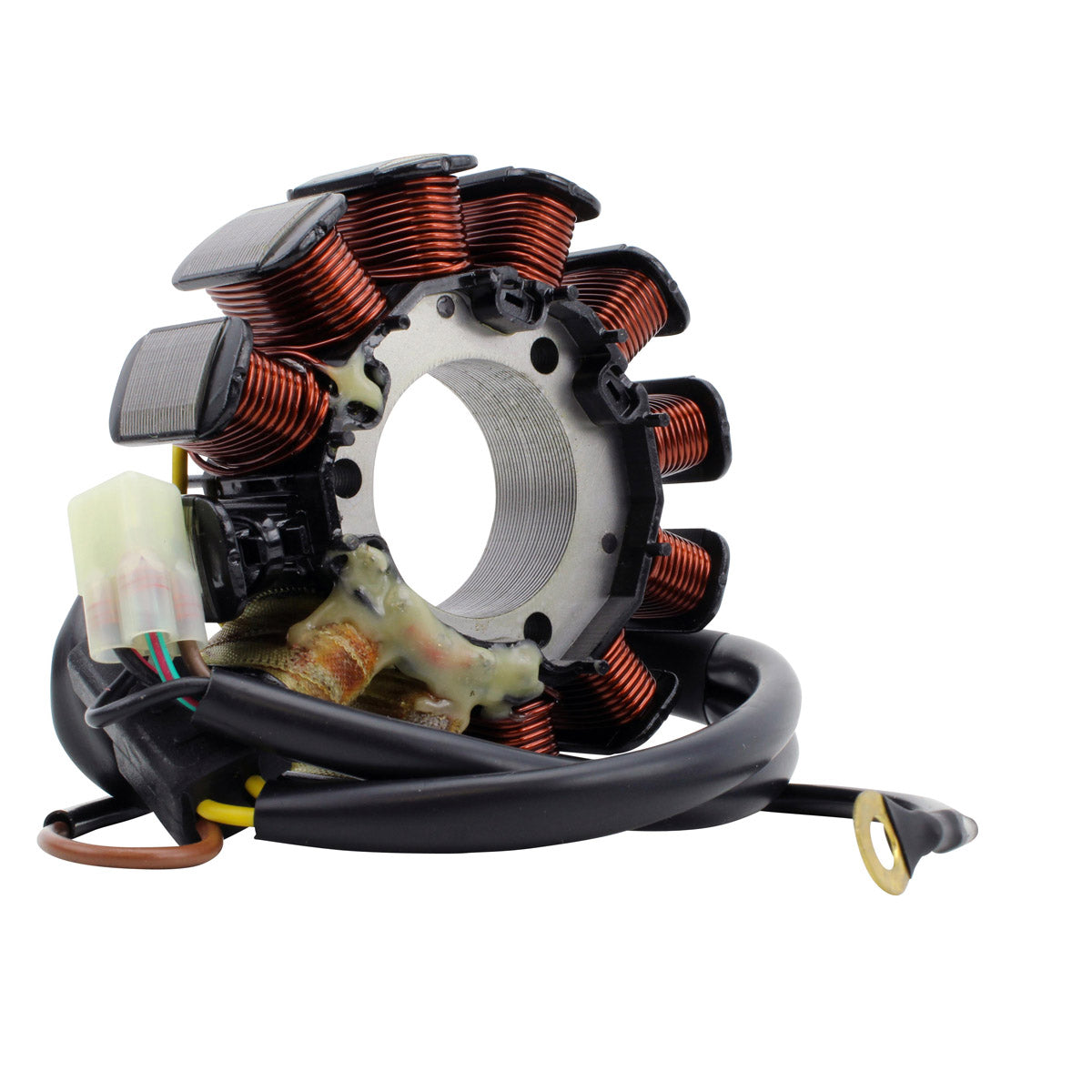

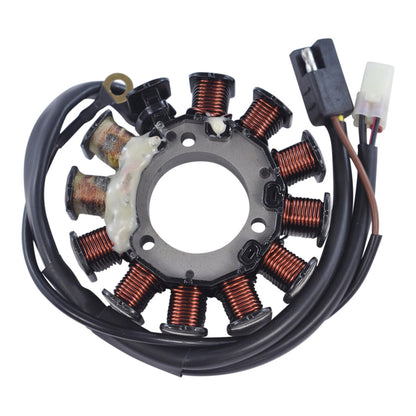

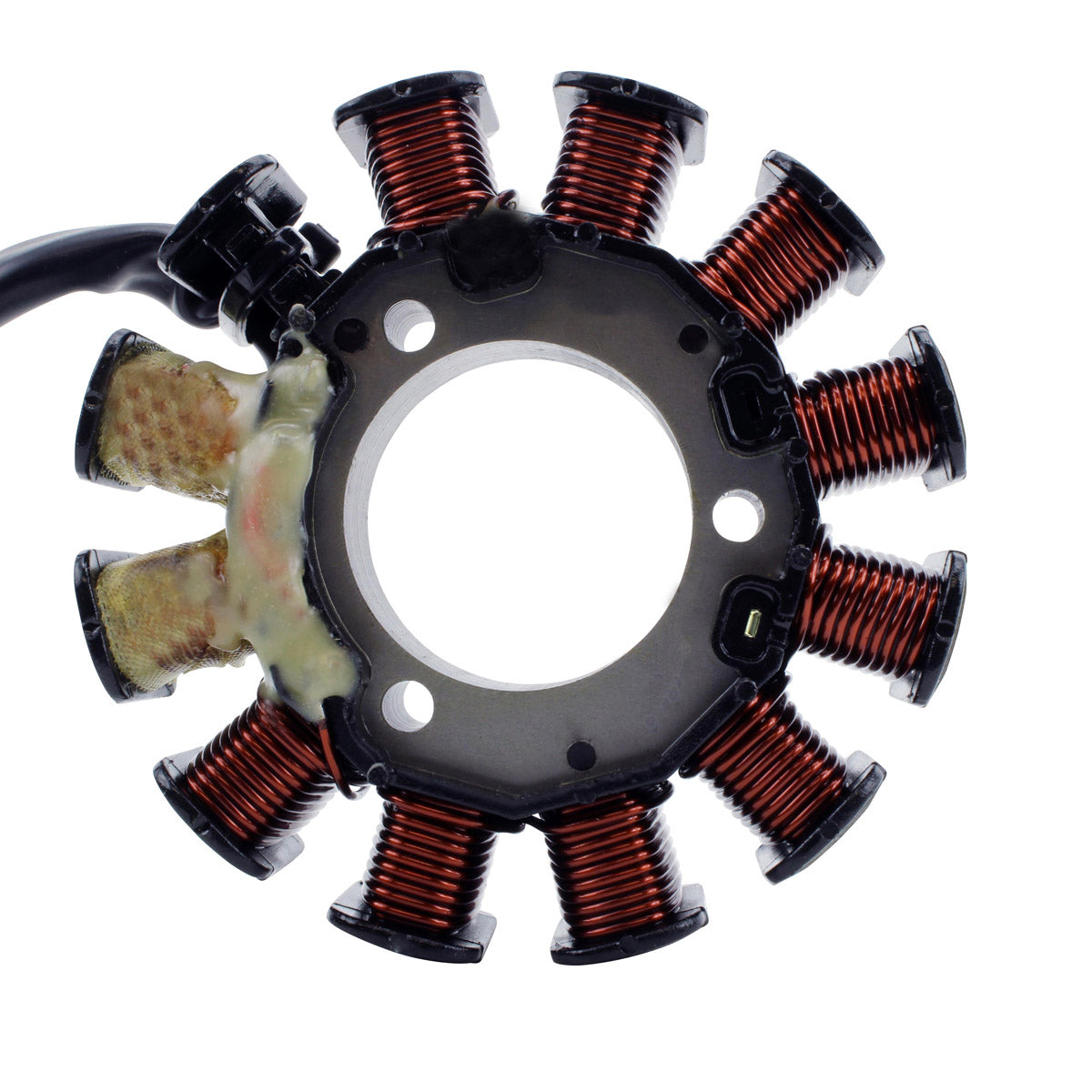

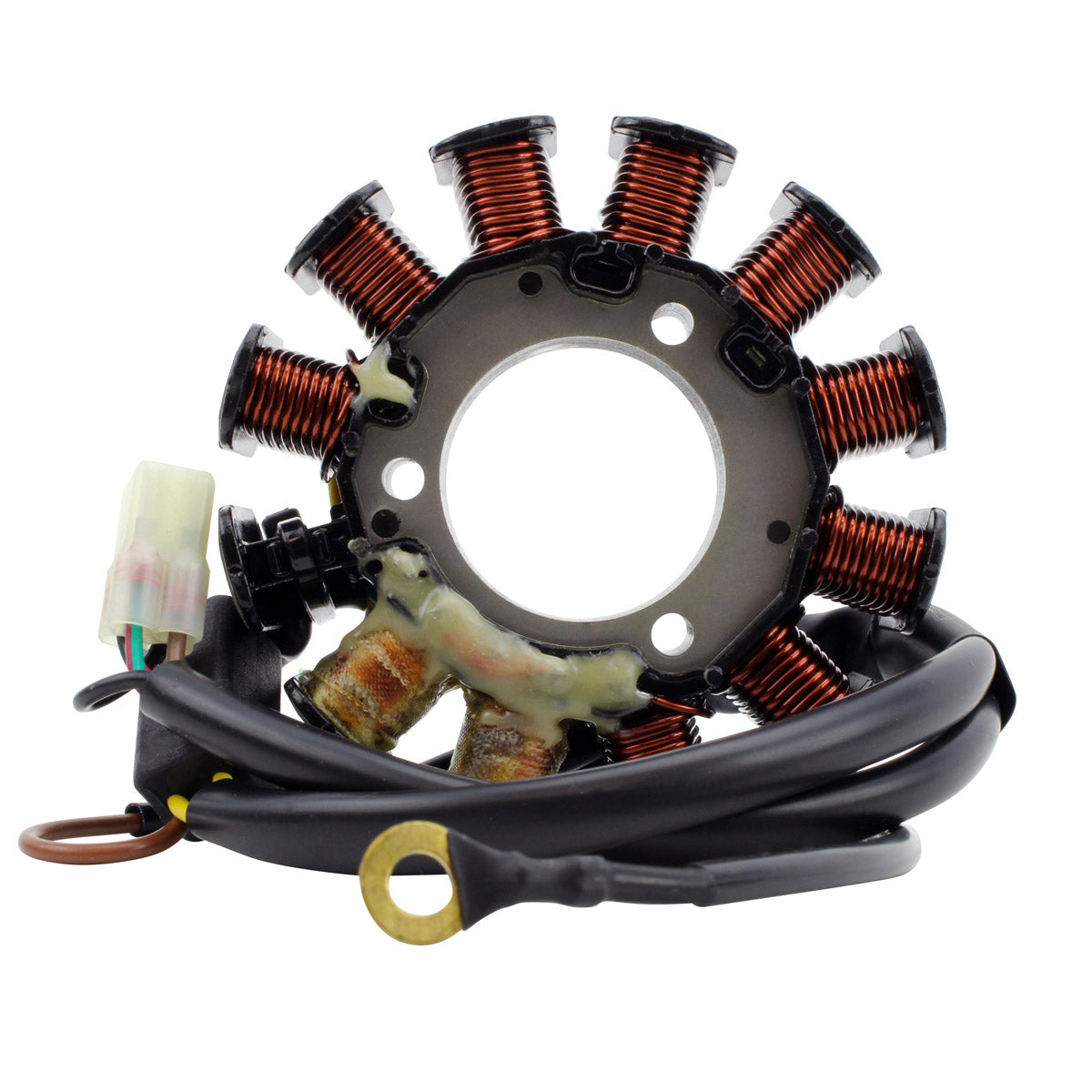

Stator for Arctic Cat Bearcat 570, Mountain Cat & Thundercat 1000 2000-2014
Carburetted Arctic Cat Bearcat 570, F 570, Mountain Cat, Thundercat 1000 and Z 440 Sno Pro, 2000-2014 - RMSTATOR reference RM01301

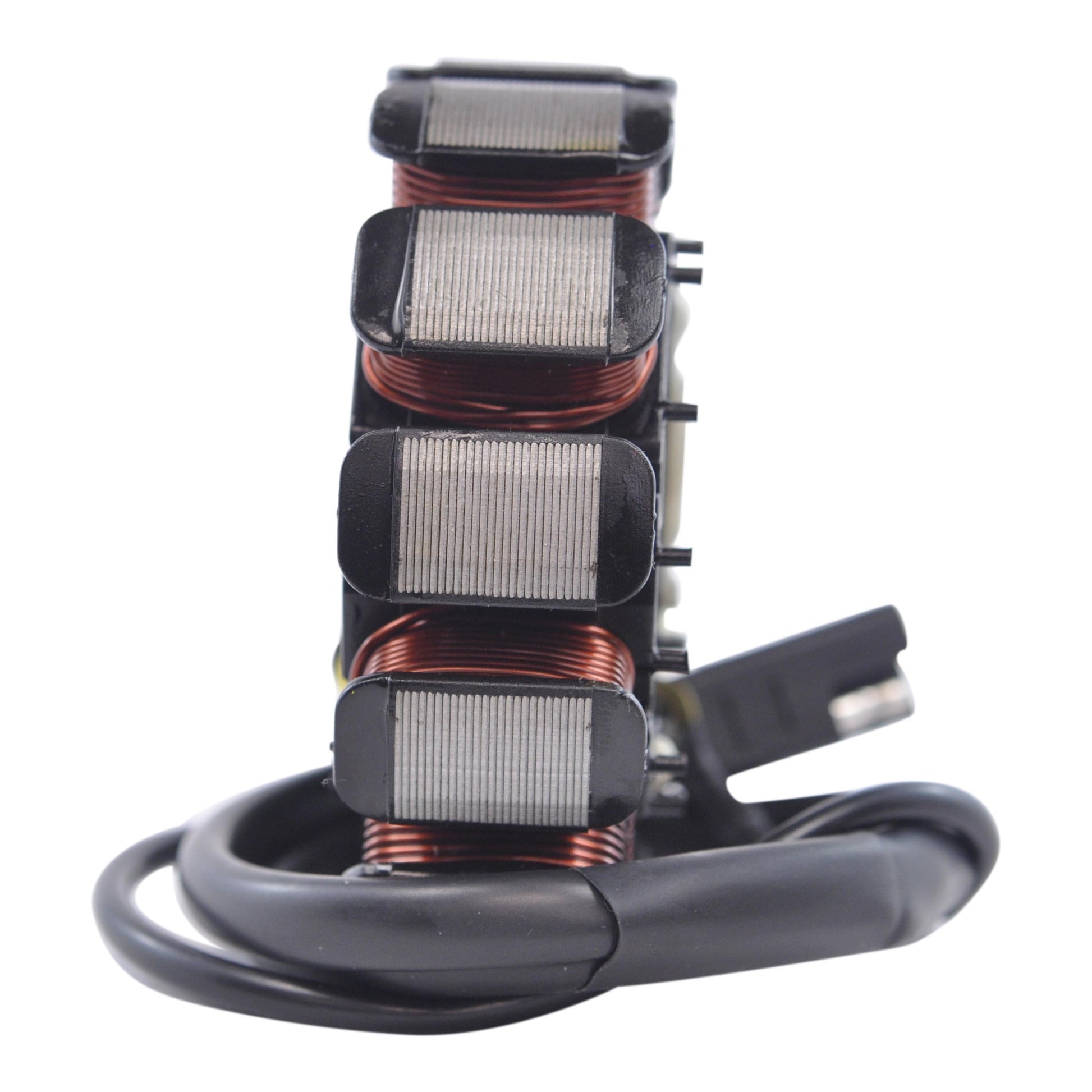

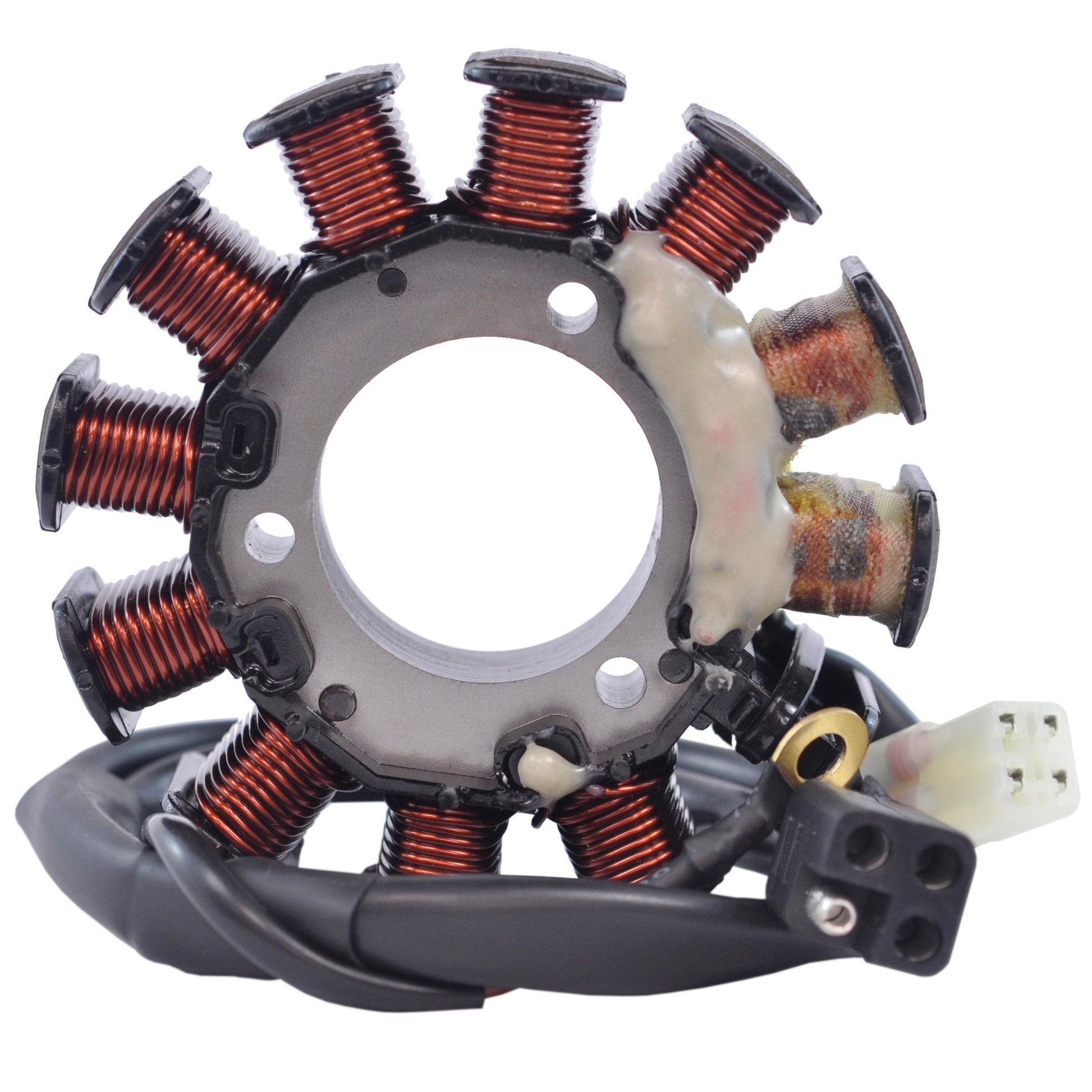

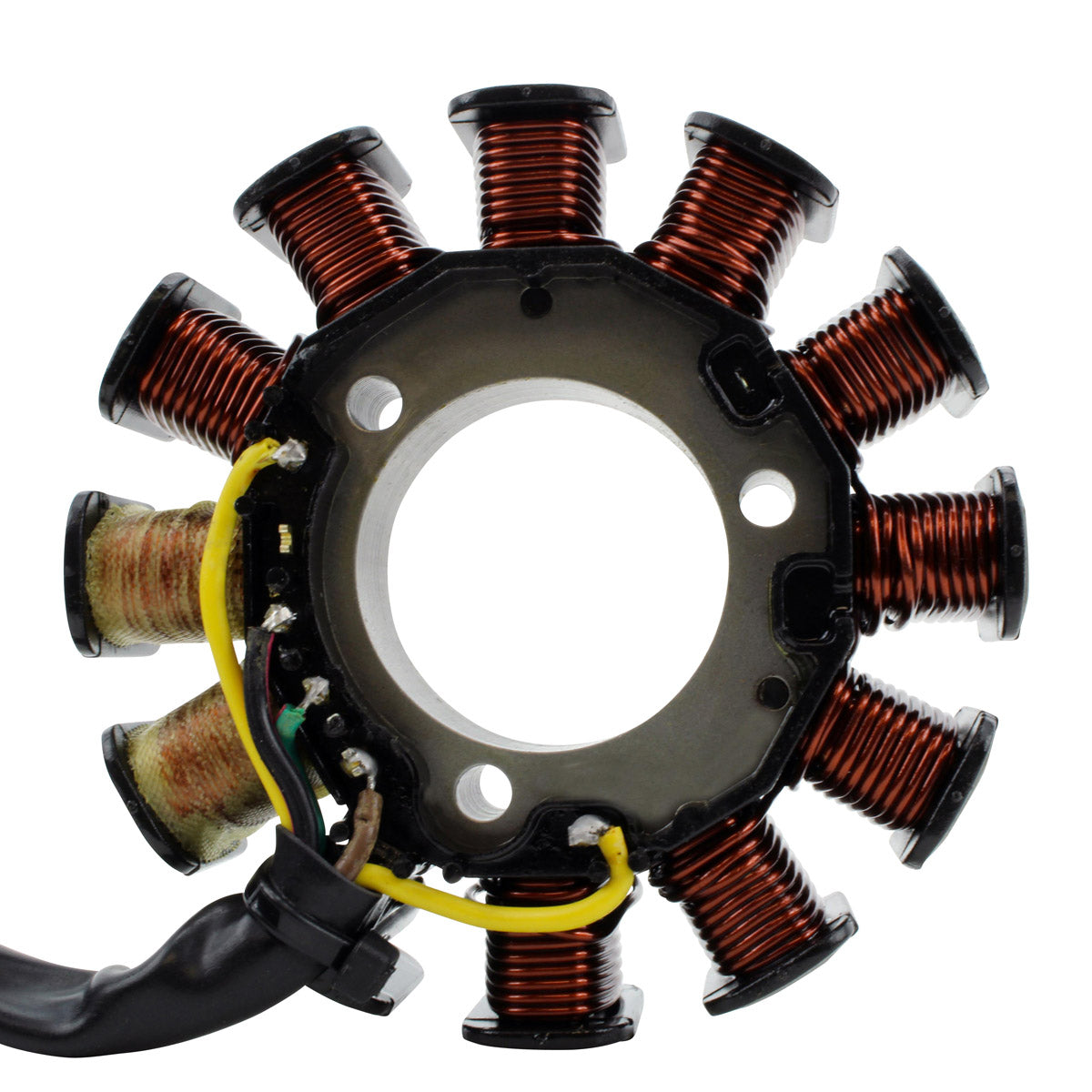

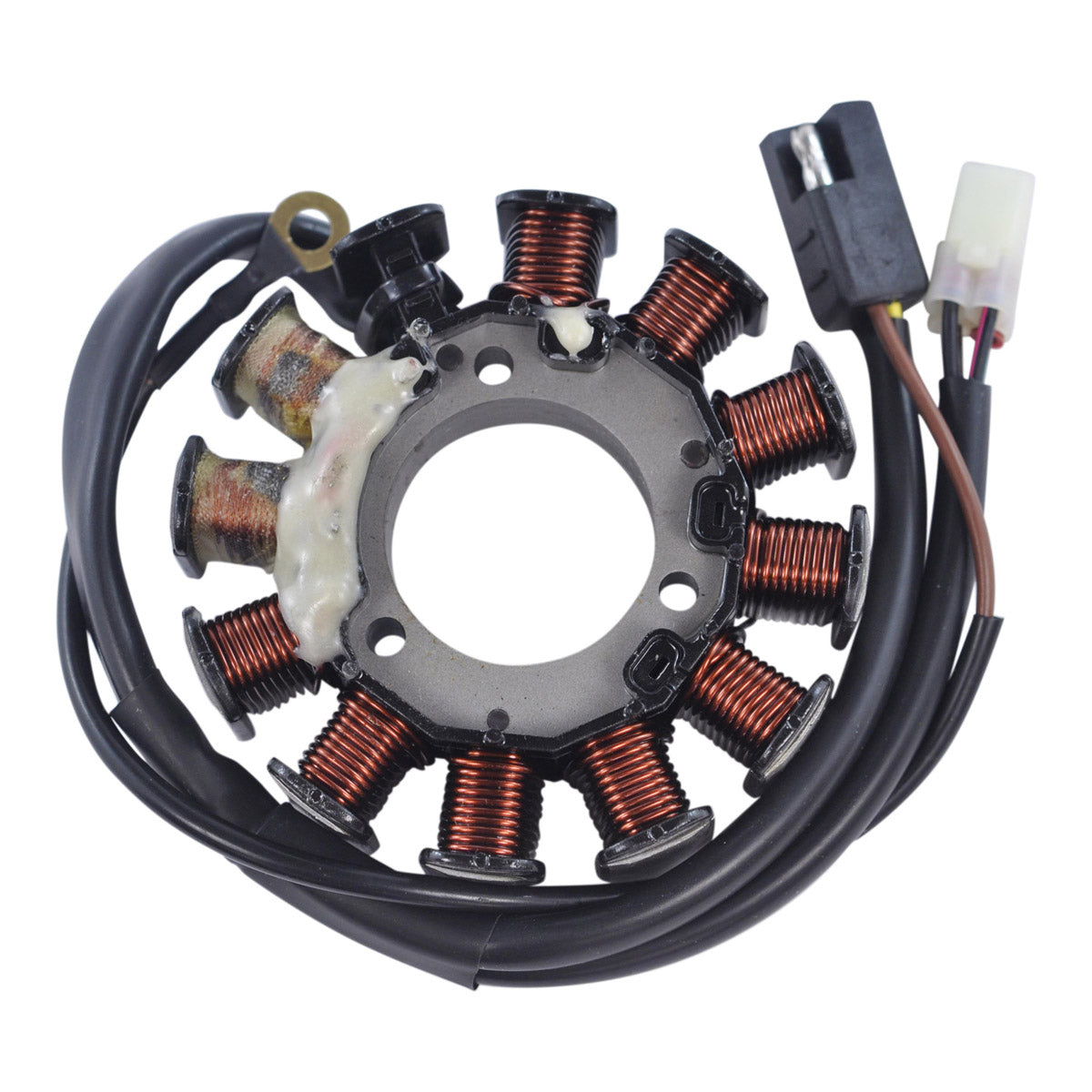

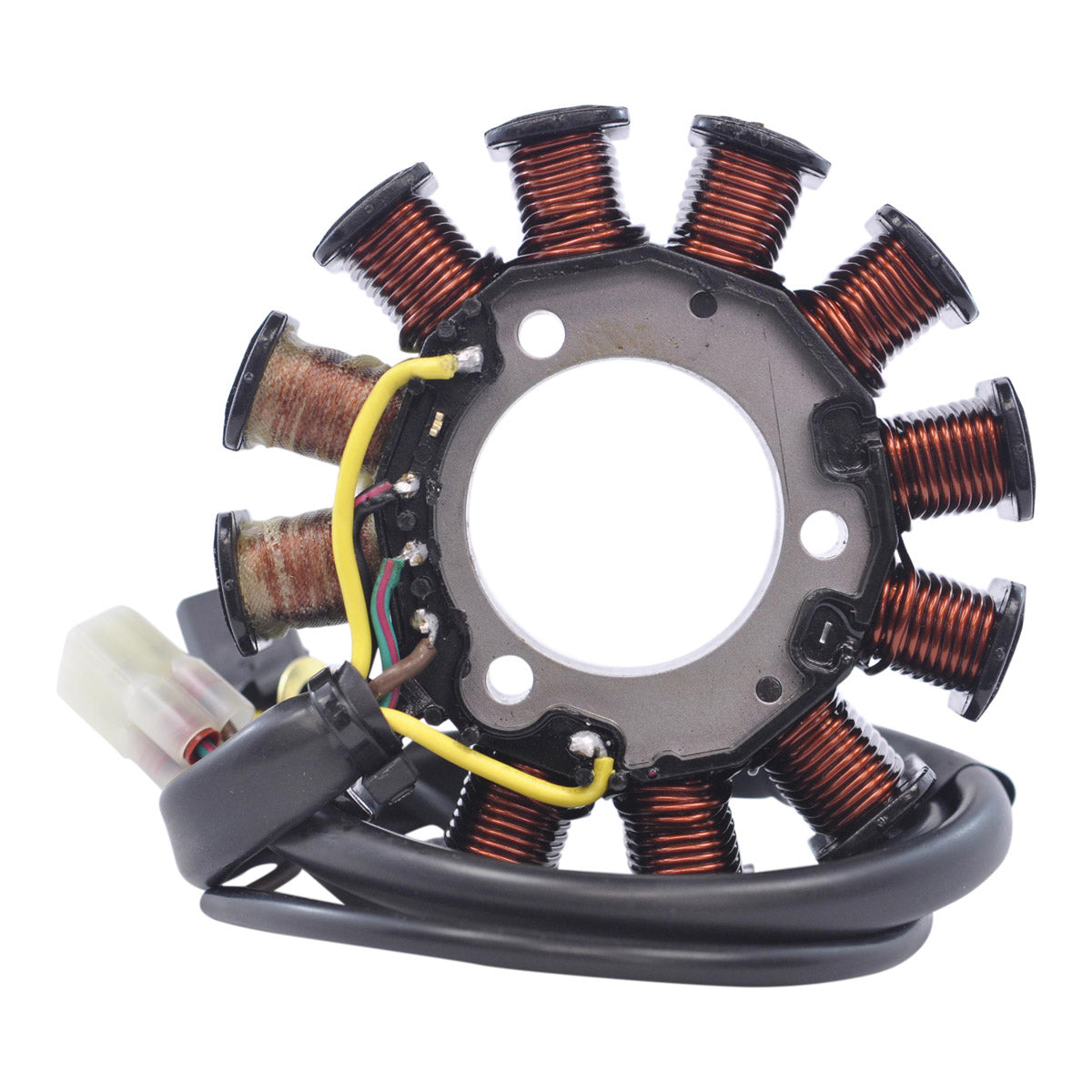

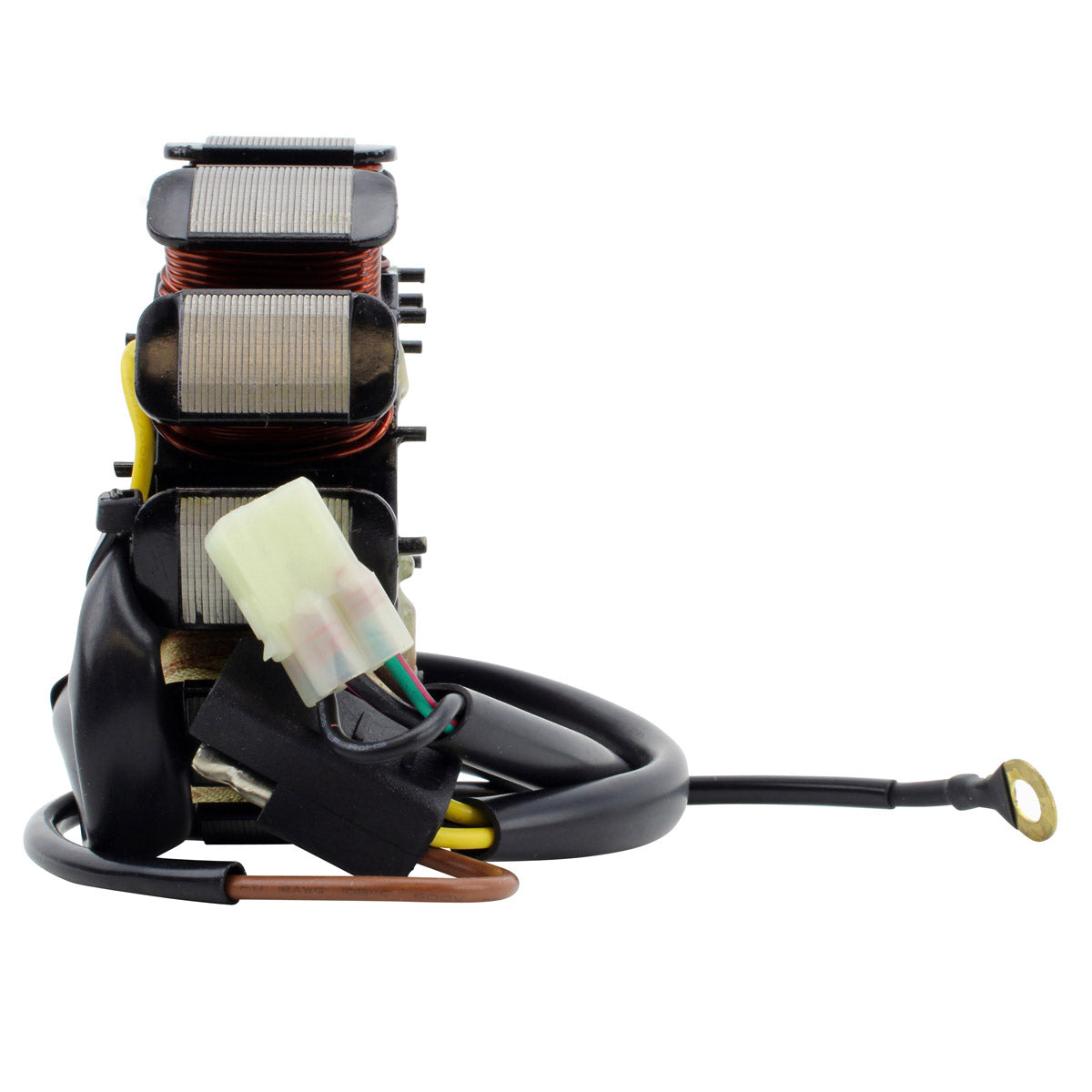

Brand new stator for the carburetted Arctic Cat models built between 2000 and 2014, including the Bearcat 570, the F 570, the Mountain Cat, the Thundercat 1000 and the Z 440 Sno Pro. It is a direct replacement to your original unit - plug-and-play, a direct fit and an easy installation, using the original 38 mm bore, 99 mm outside diameter and 20 mm thickness so it drops straight into the original position.
The unit is built on the highest grade of lamination materials and wound with the highest grade of copper windings, resistant to 200 degrees Celsius. RMSTATOR state that the quality exceeds the OEM equipment. A connector is included and all product shipped is tested. This part carries the reference RM01301 and interchanges with Arctic Cat part numbers 3005-636 and 3006-750.
Key Features
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper windings, resistant to 200 degrees Celsius
- Quality exceeds the OEM equipment

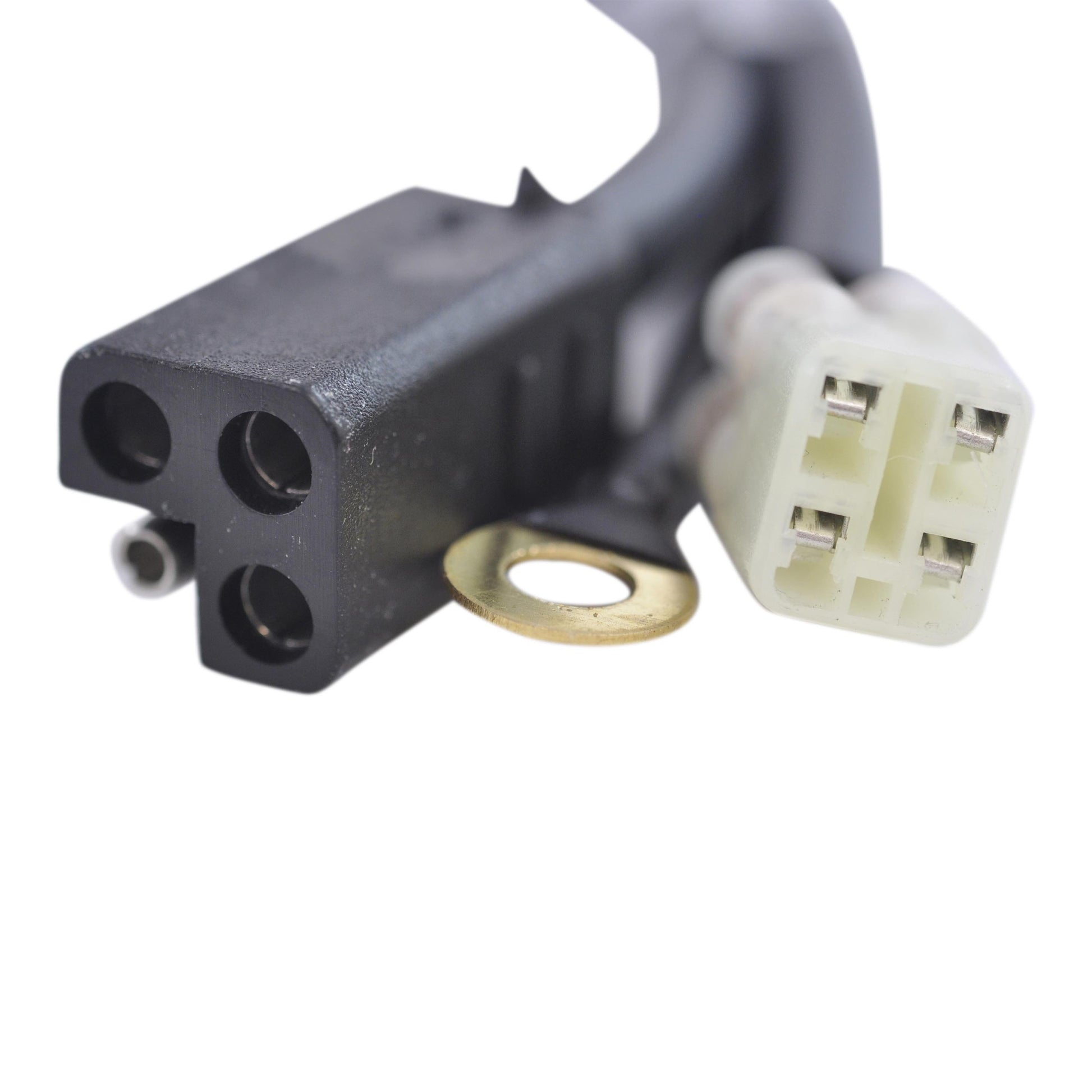

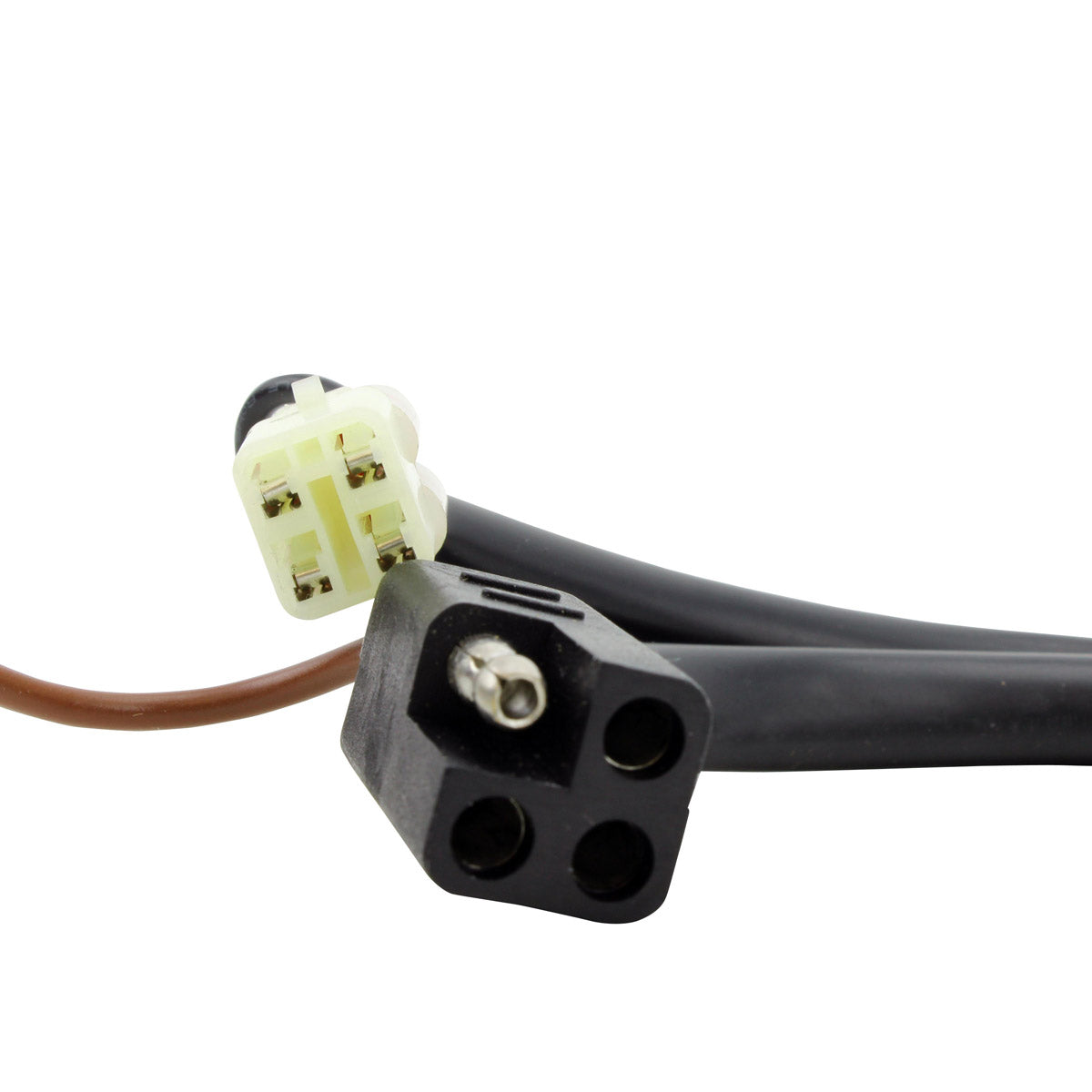

- Connector included
- All product shipped is tested
- Interchanges with Arctic Cat 3005-636 and 3006-750
Technical Specs
| Specification |
Detail |
| Interior diameter |
38 mm |
| Exterior diameter |
99 mm |
| Thickness |
20 mm |
| Alternator resistance, Yellow to Yellow |
0.8 ohms +/-20% |
| Source 1 resistance, Green to Black |
16 ohms +/-20% |
| Source 2 resistance, Green to Brown |
16 ohms +/-20% |
| Temperature rating |
200 degrees Celsius |
| Part reference |
RM01301 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Arctic Cat Bearcat 570 (carb) |
2000-2014 |
| Arctic Cat F 570 (carb) |
2000-2014 |
| Arctic Cat Mountain Cat 1000, 570 (carb) |
2000-2014 |
| Arctic Cat Thundercat 1000 (carb) |
2000-2014 |
| Arctic Cat Z 440 Sno Pro (carb) |
2000-2014 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 3005-636 |
Arctic Cat |
| 3006-750 |
Arctic Cat |
Frequently Asked Questions
Will it fit without modification?
Yes. It is a direct replacement to your original unit on the carburetted Arctic Cat models listed, with the original 38 mm bore, 99 mm outside diameter and 20 mm thickness, so it is plug-and-play and needs no machining or wiring changes.
What is included?
The stator with a connector included. All product shipped is tested before dispatch.
How do I tell whether my old stator has failed?
Typical signs on these sleds are a battery or lighting circuit that will not hold voltage, dim or flickering headlights, weak or intermittent spark and a machine that dies once it warms up. Measure the windings cold: the alternator should read 0.8 ohms +/-20% between the Yellow wires, and each source coil 16 ohms +/-20% - Green to Black and Green to Brown. An open circuit, a dead short, or continuity between any winding and the stator body confirms a failed unit.
Is this only for carburetted machines?
Yes. RMSTATOR list this stator for the carburetted versions of these Arctic Cat models. The two source coils at 16 ohms each are the giveaway - they feed the CDI ignition on the carburetted engines. Check the number on your original unit against 3005-636 or 3006-750 before ordering.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
