Stator for Arctic Cat 700 TRV 700 & Suzuki LTA 700 750 X KingQuad 2005-2018
Arctic Cat 700 and TRV 700, Suzuki LTA 700 and LTA 750 X KingQuad, 2005-2018 - RMSTATOR reference RM01358

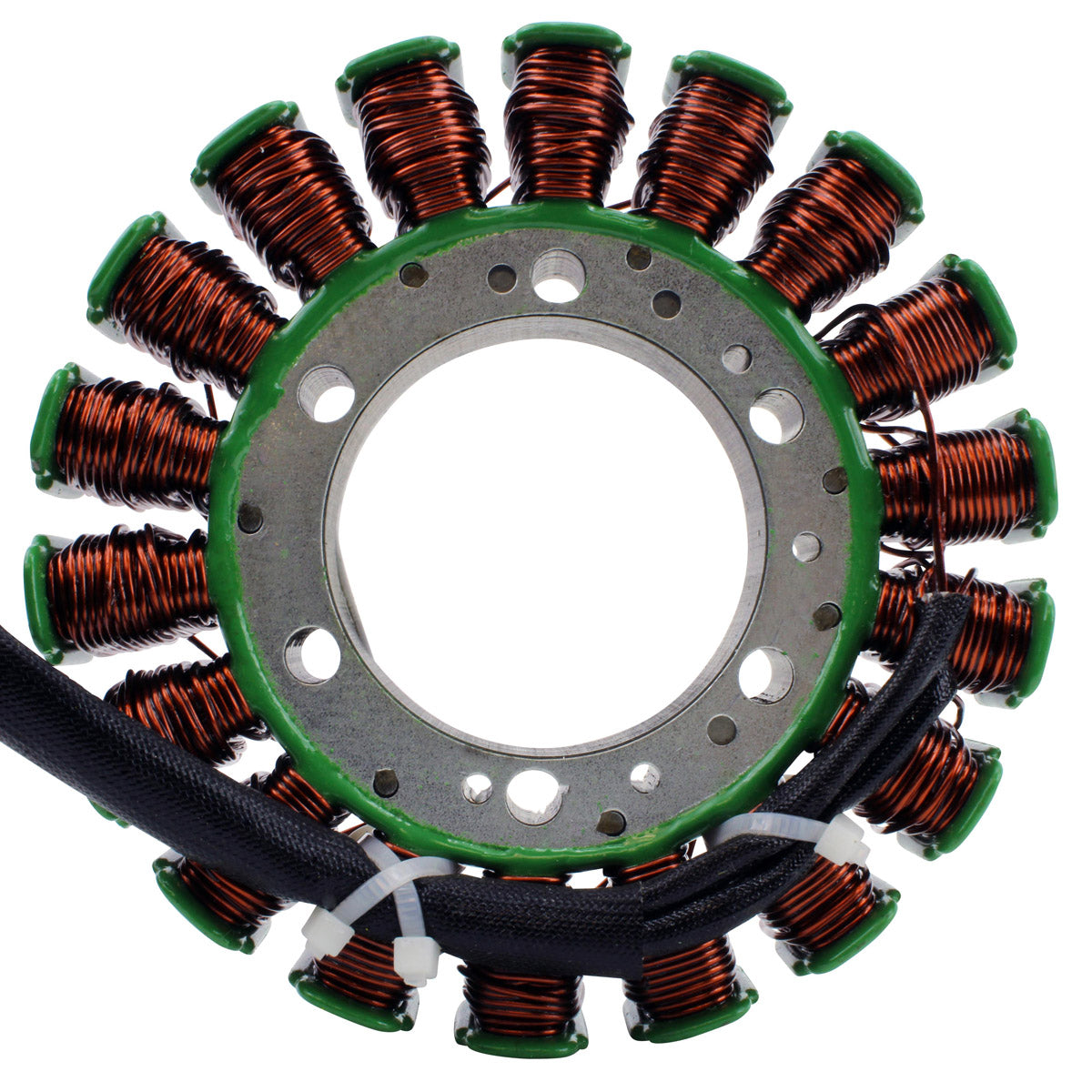

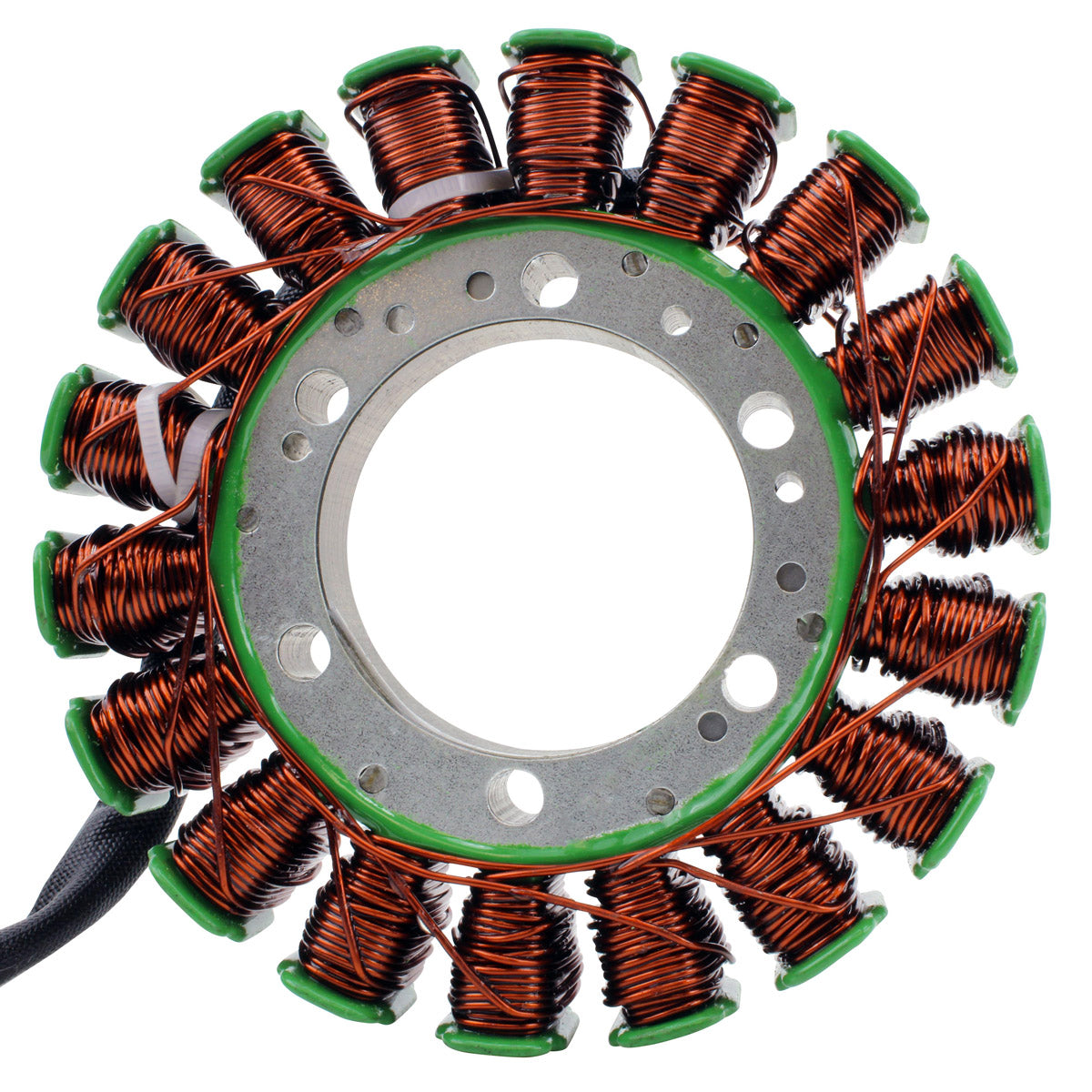

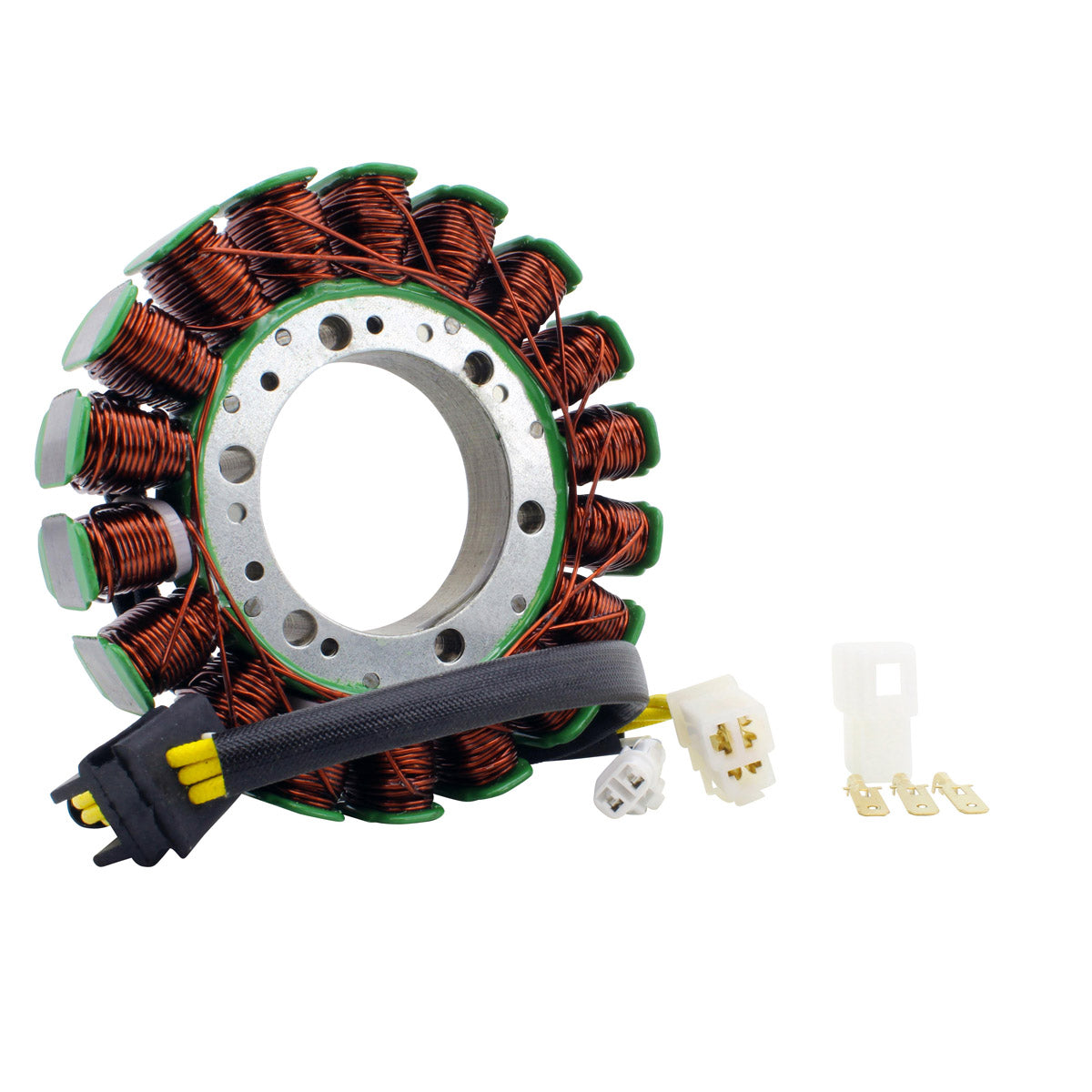

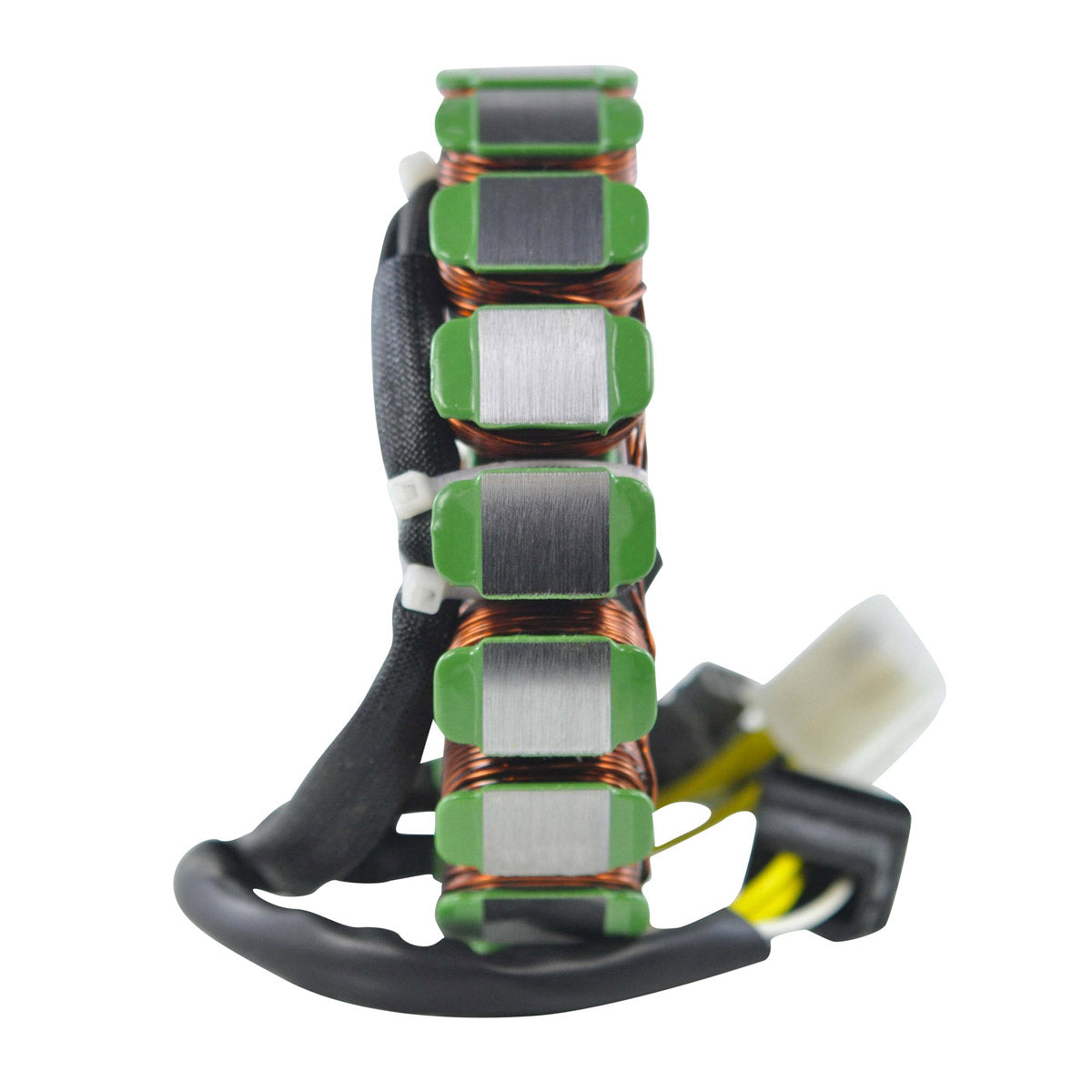

Brand new aftermarket generator stator, built as a direct replacement to your original unit on the Arctic Cat 700 and TRV 700 and on the Suzuki LTA 700 and LTA 750 X KingQuad. It is plug-and-play, a direct fit and an easy installation - the mounting pattern and the plugs match the original part, so nothing has to be cut, spliced or re-pinned.
The unit uses the highest grade lamination materials and copper windings resistant to 200 degrees Celsius. As well as the pick-up pulsar coil, connector and rubber grommet, the opposite connector for the main harness side is supplied: on these machines that connector is a known weak point and is often found melted or corroded, which is a major cause of repeat electrical faults. Every product shipped is tested. This part carries the reference RM01358.
Key Features
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation

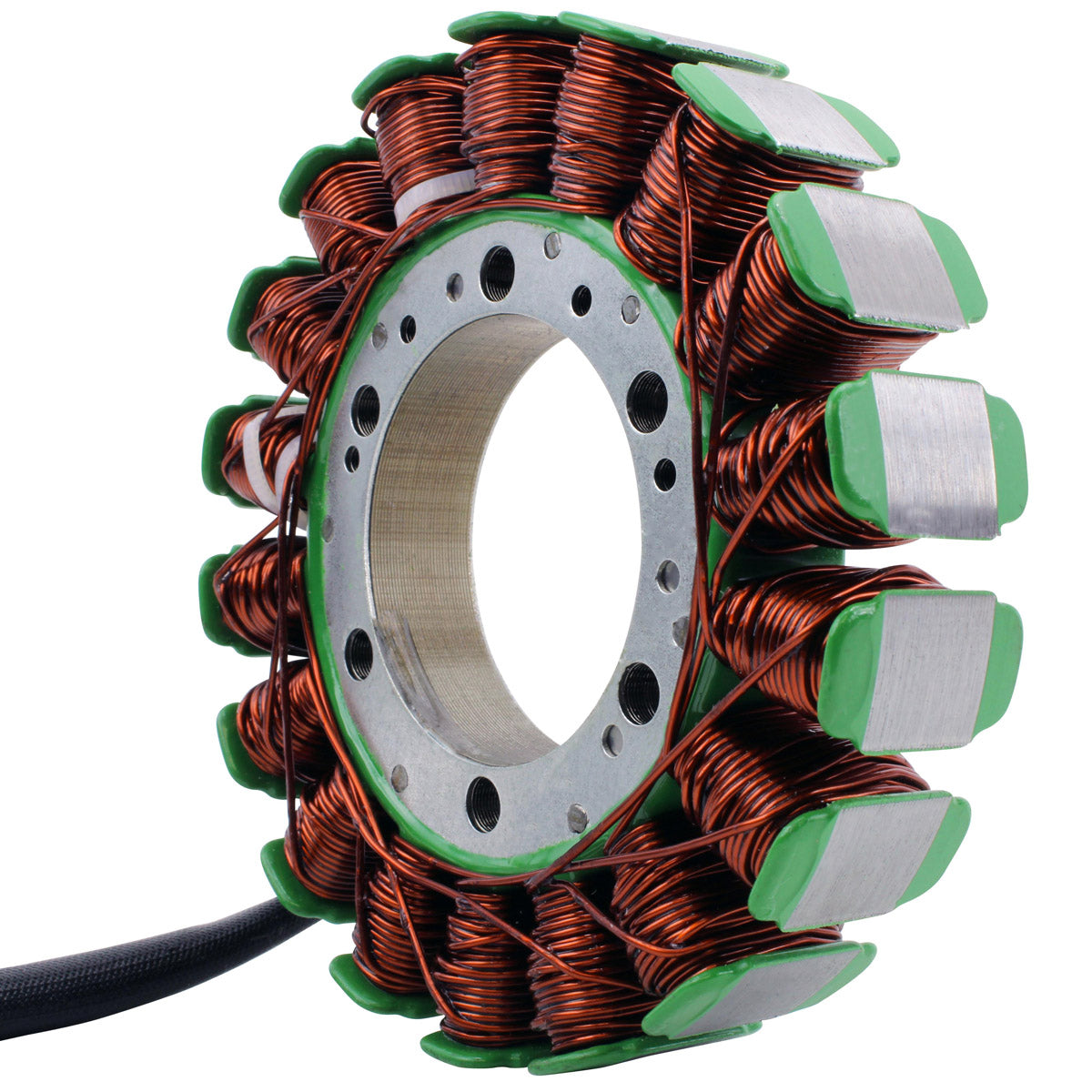

- Highest grade lamination materials
- Copper windings resistant to 200 degrees Celsius

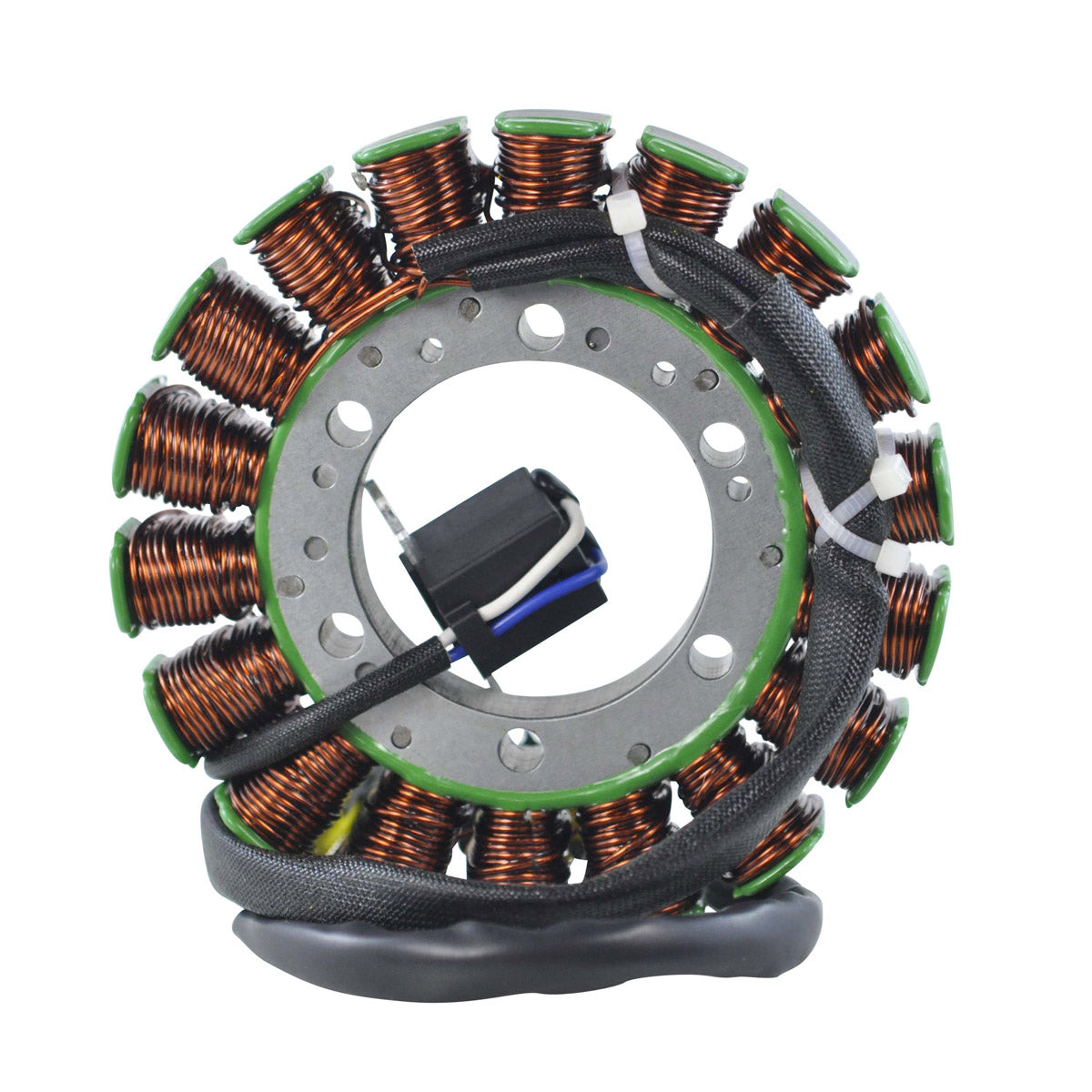

- Pick-up pulsar coil included
- Connector included

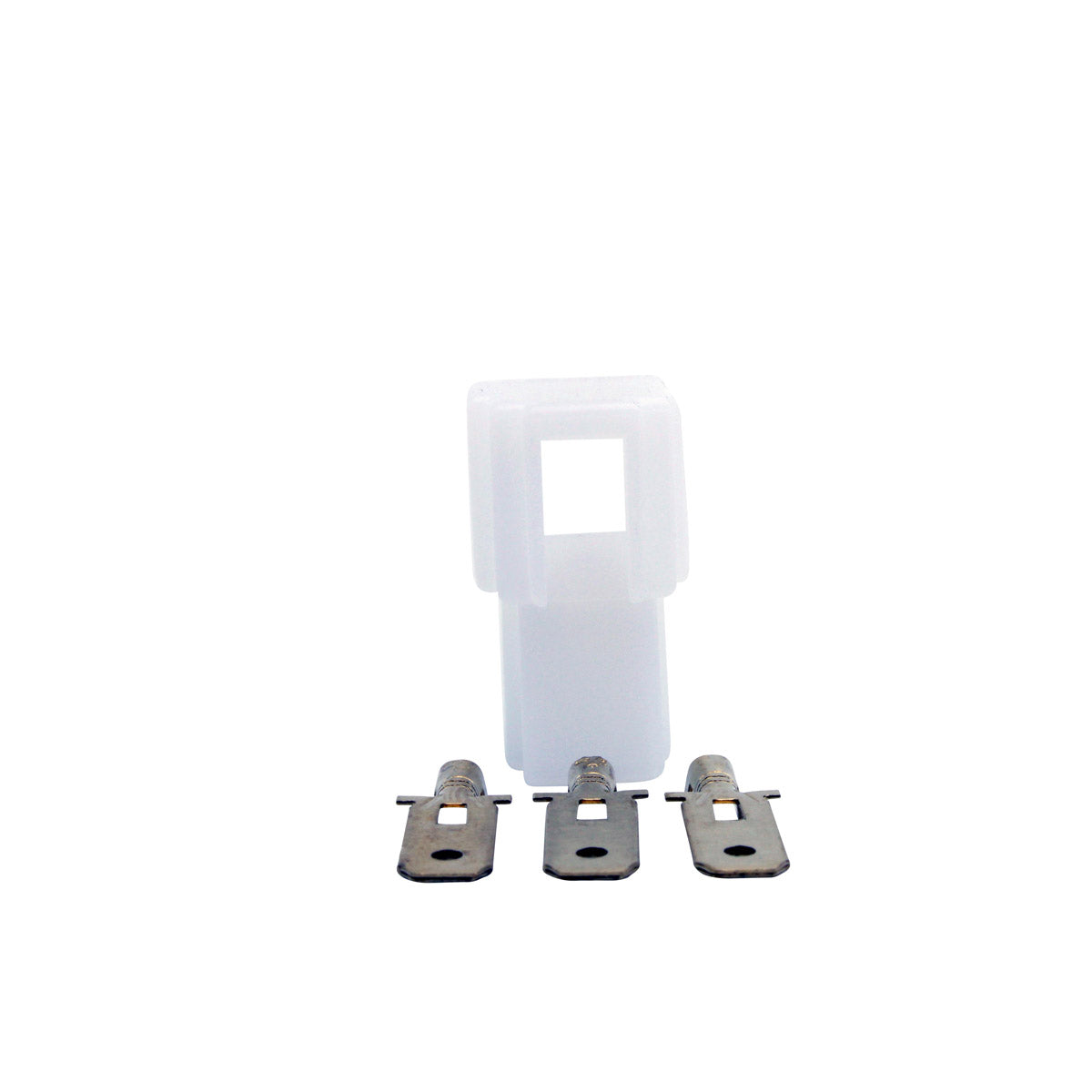

- Opposite connector for the main harness side included
- Rubber grommet included
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Interior diameter |
53 mm |
| Exterior diameter |
125 mm |
| Thickness |
20 mm |
| Number of wires |
5 |

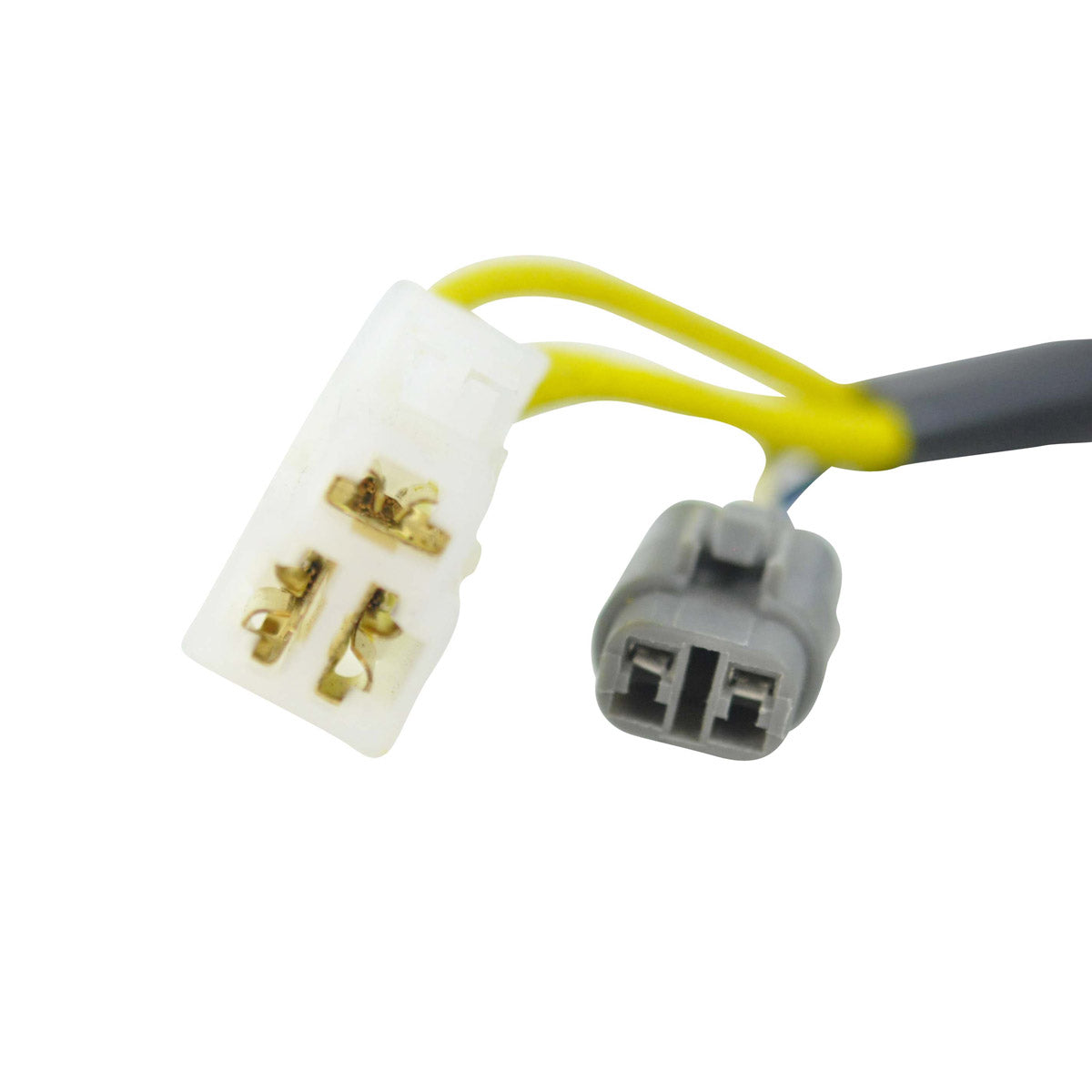

| Number of plugs |
2 |
| Number of pins |
5 |
| Wire length, stator to grommet |
155 mm |
| Wire length, grommet to plug |
435 mm and 475 mm |
| Pick-up coil wire to grommet |
175 mm |
| Alternator resistance, Yellow to Yellow |
0.4 ohms +/-20% |
| Pickup resistance, Blue to White |
208 ohms +/-20% |
| Temperature rating |
200 degrees Celsius |
| Part reference |
RM01358 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Arctic Cat 700 |
2005-2018 |
| Arctic Cat TRV 700 |
2005-2018 |
| Suzuki LTA 700 KingQuad |
2005-2018 |
| Suzuki LTA 750 X KingQuad |
2005-2018 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 3430-067 |
Arctic Cat |
| 32101-31G00 |
Suzuki |
| 32101-31G01 |
Suzuki |
| 32101-31G02 |
Suzuki |
Frequently Asked Questions
Does it fit without modification?

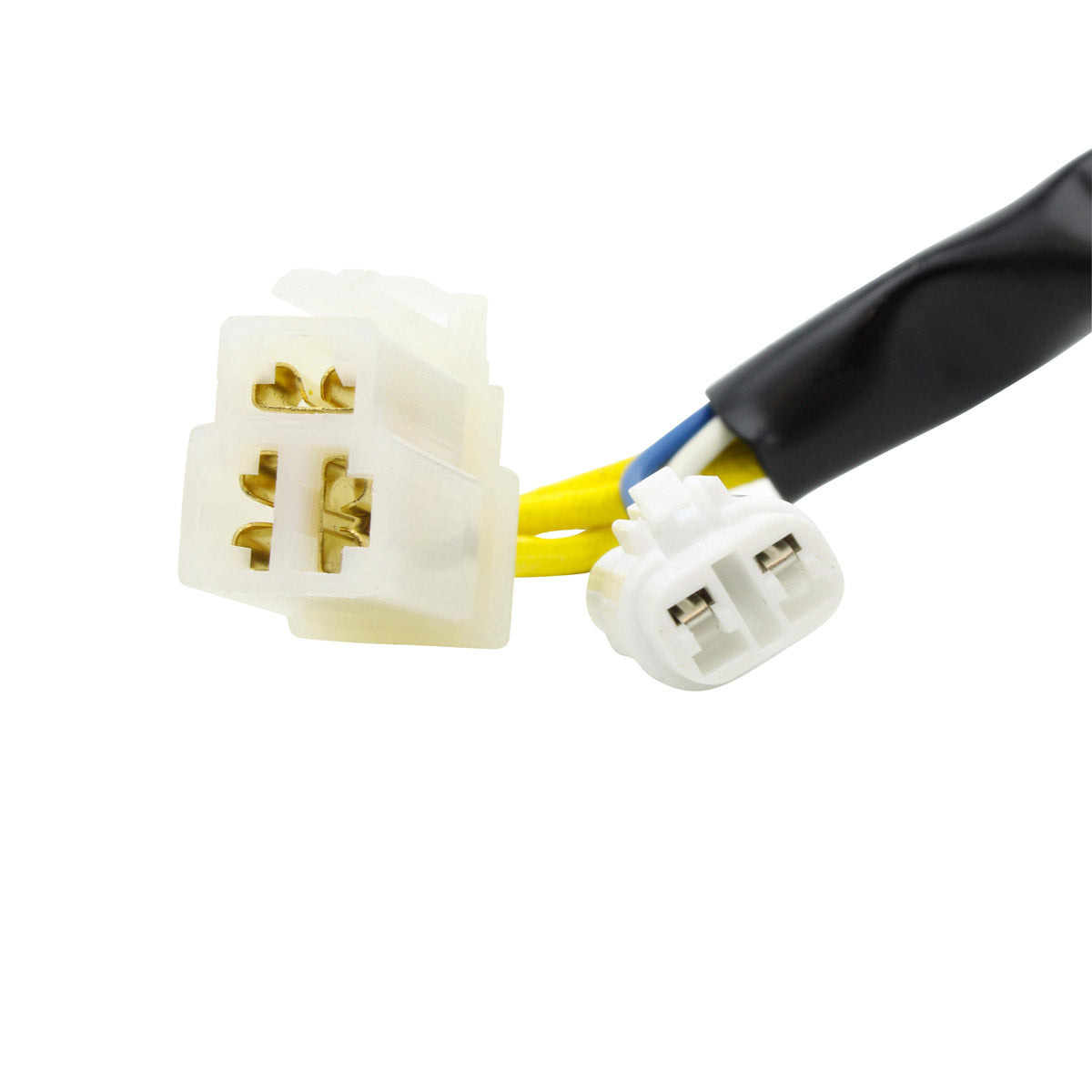

Yes. It is a direct replacement to your original unit, with the same case mounting and the same five-wire, two-plug arrangement, so it is plug-and-play. The Arctic Cat and Suzuki machines listed share this stator because they share the same engine platform.
What is included in the box?

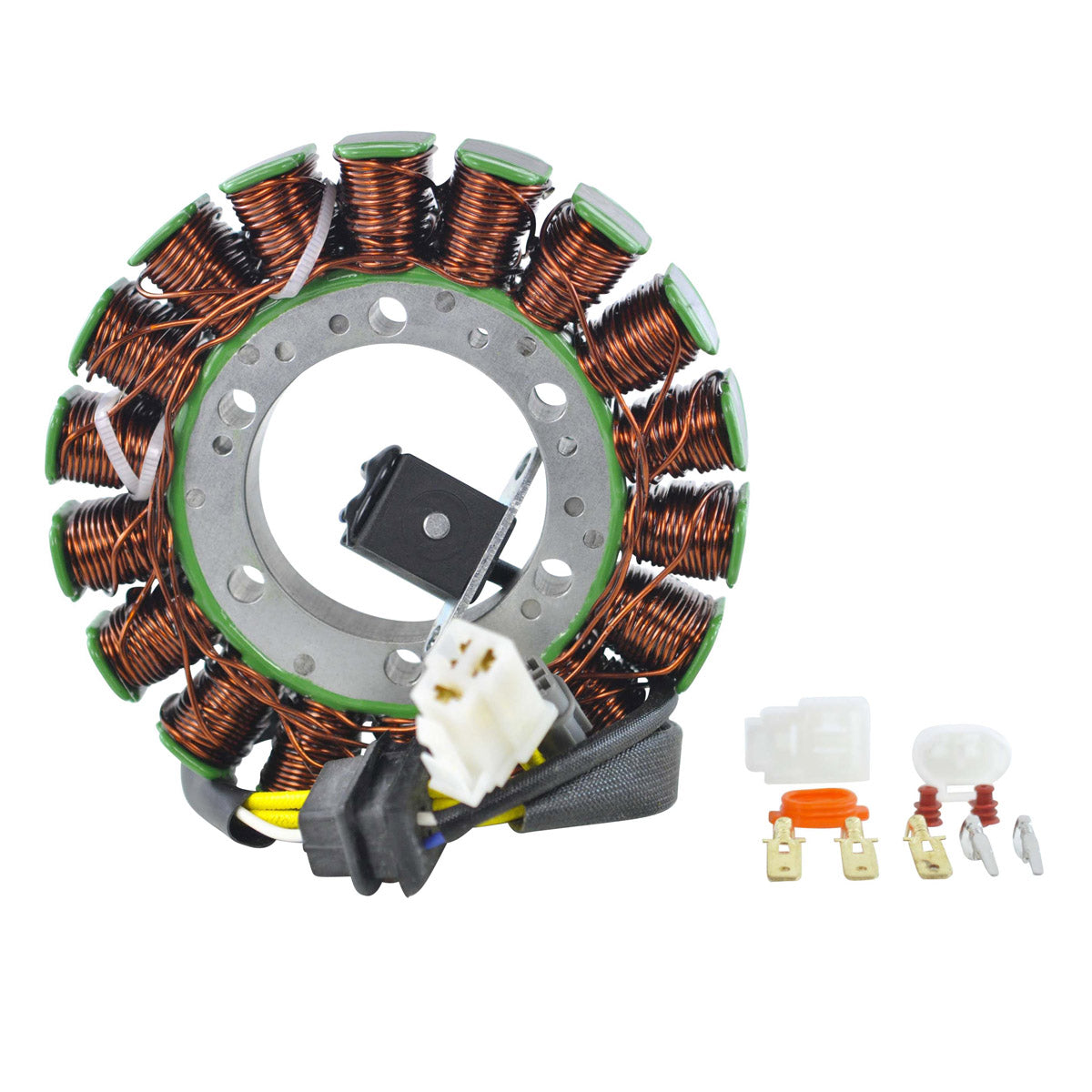

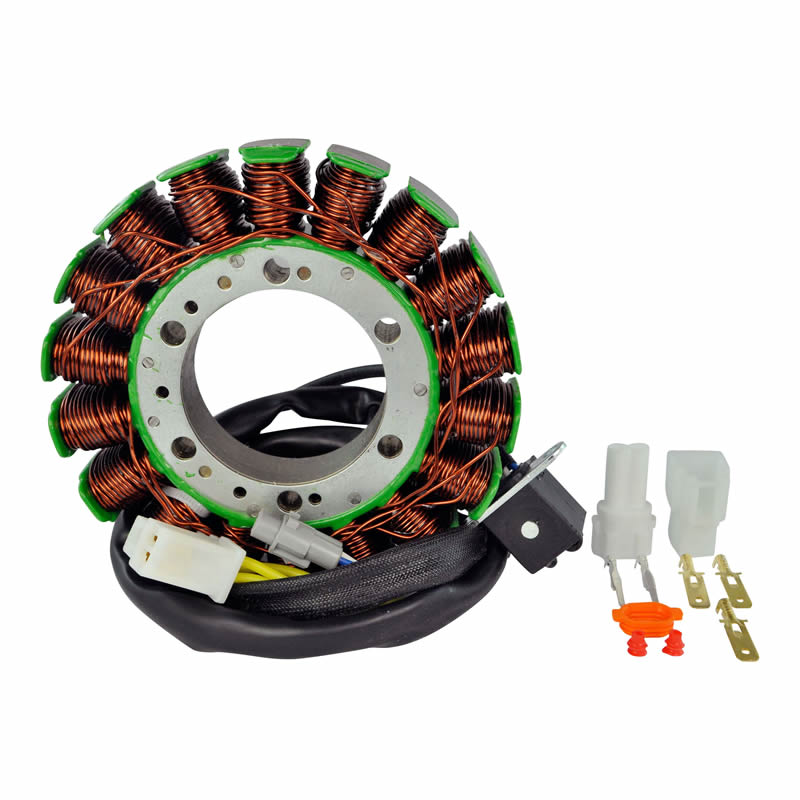

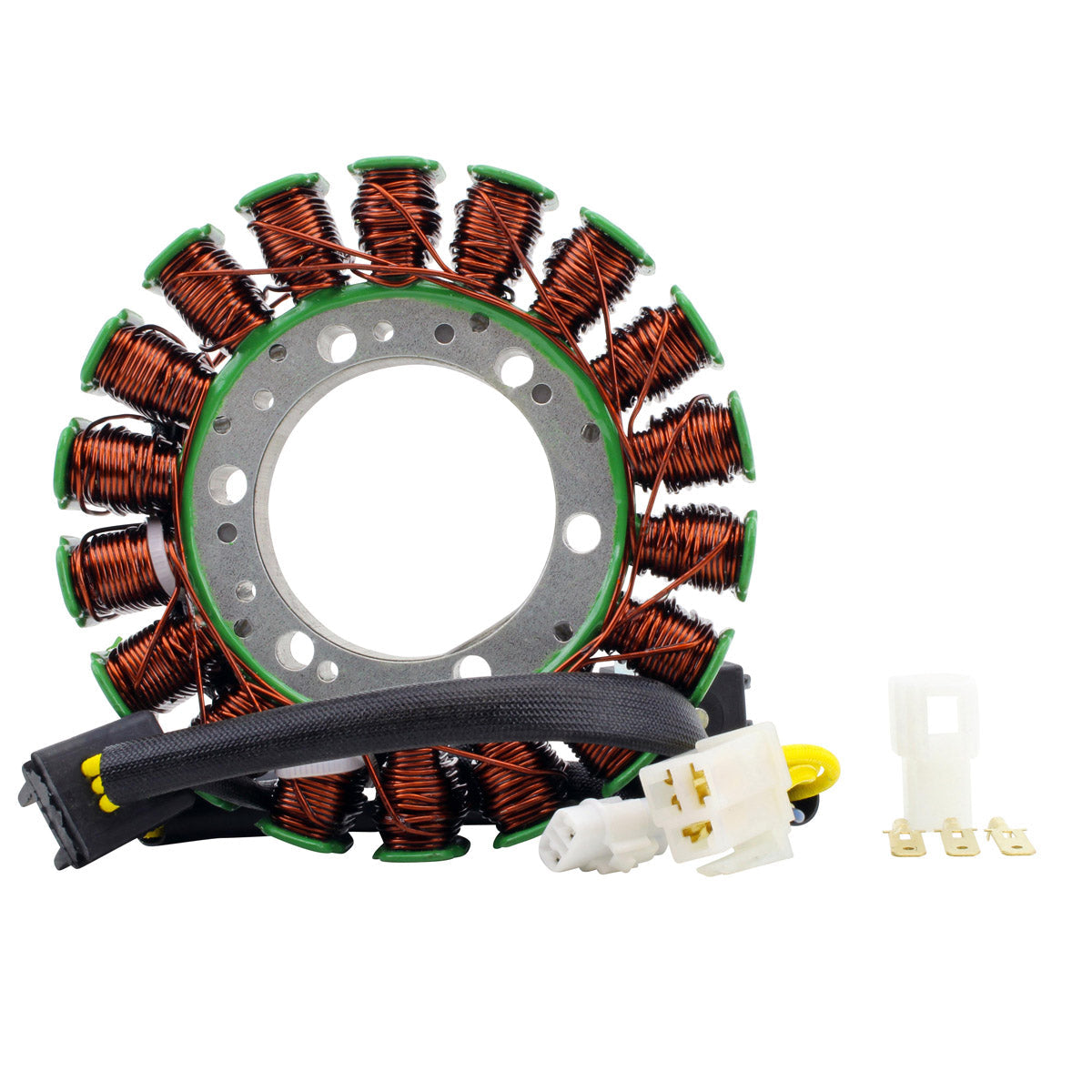

The stator with its pick-up pulsar coil, the connector, the rubber grommet, and the opposite connector for the main harness side. Every product shipped is tested.

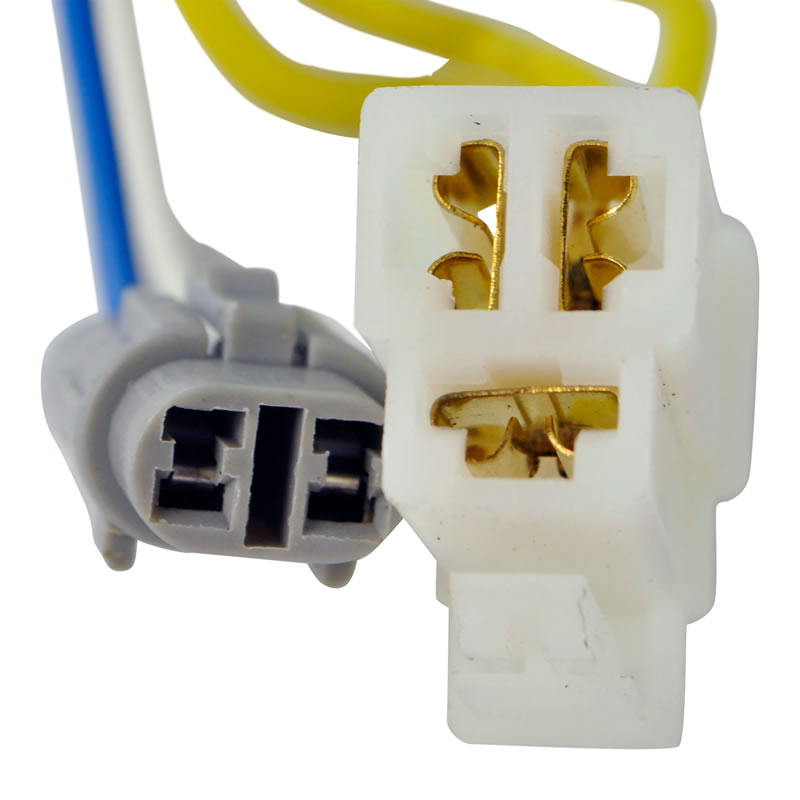

Why is a second connector supplied?

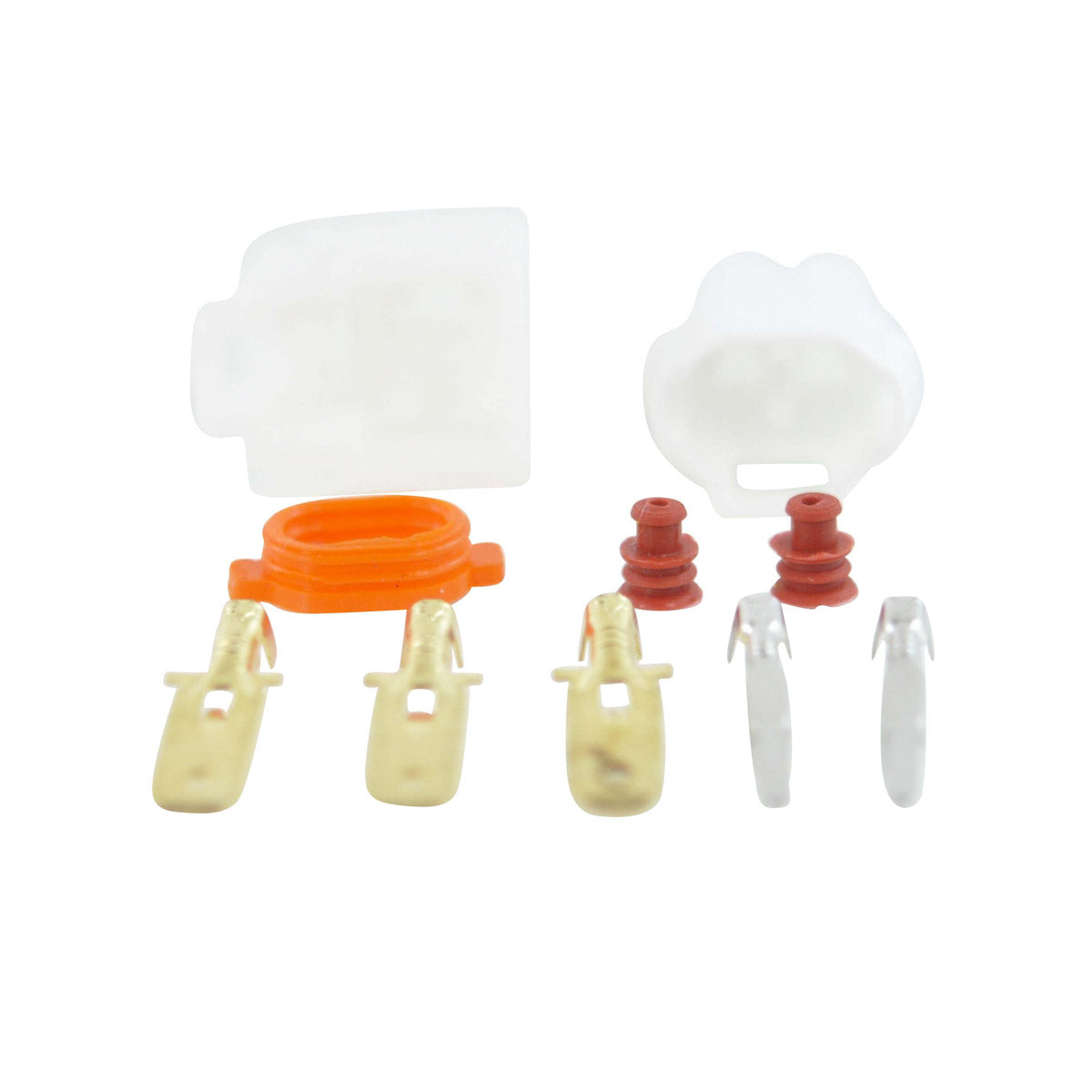

On these models the harness-side connector is often melted, corroded or otherwise defective by the time the stator is replaced, and it is a major cause of repeat electrical problems. Fitting the supplied opposite connector at the same time removes that fault path, so it is worth replacing both halves together rather than plugging a new stator into a burnt socket.
How do I tell whether my old stator has failed?
Look for a battery that will not hold charge, dim or flickering lights, weak or intermittent spark, and charging voltage that does not rise as the engine is revved. Check the windings cold with a multimeter: the alternator should read 0.4 ohms +/-20% between the Yellow wires and the pickup 208 ohms +/-20% from Blue to White. An open circuit, a dead short, or any continuity between a winding and the stator body confirms the unit has failed.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
