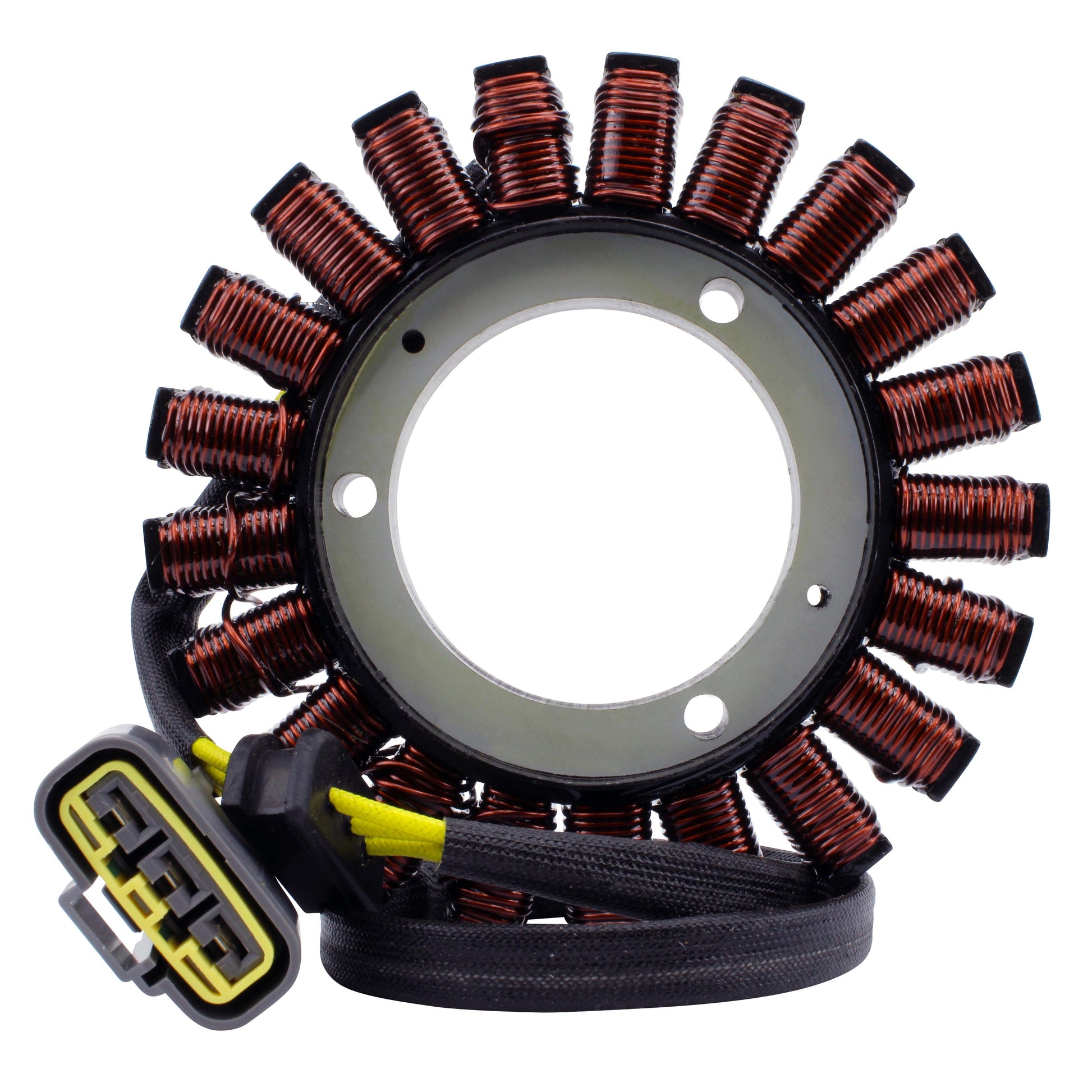

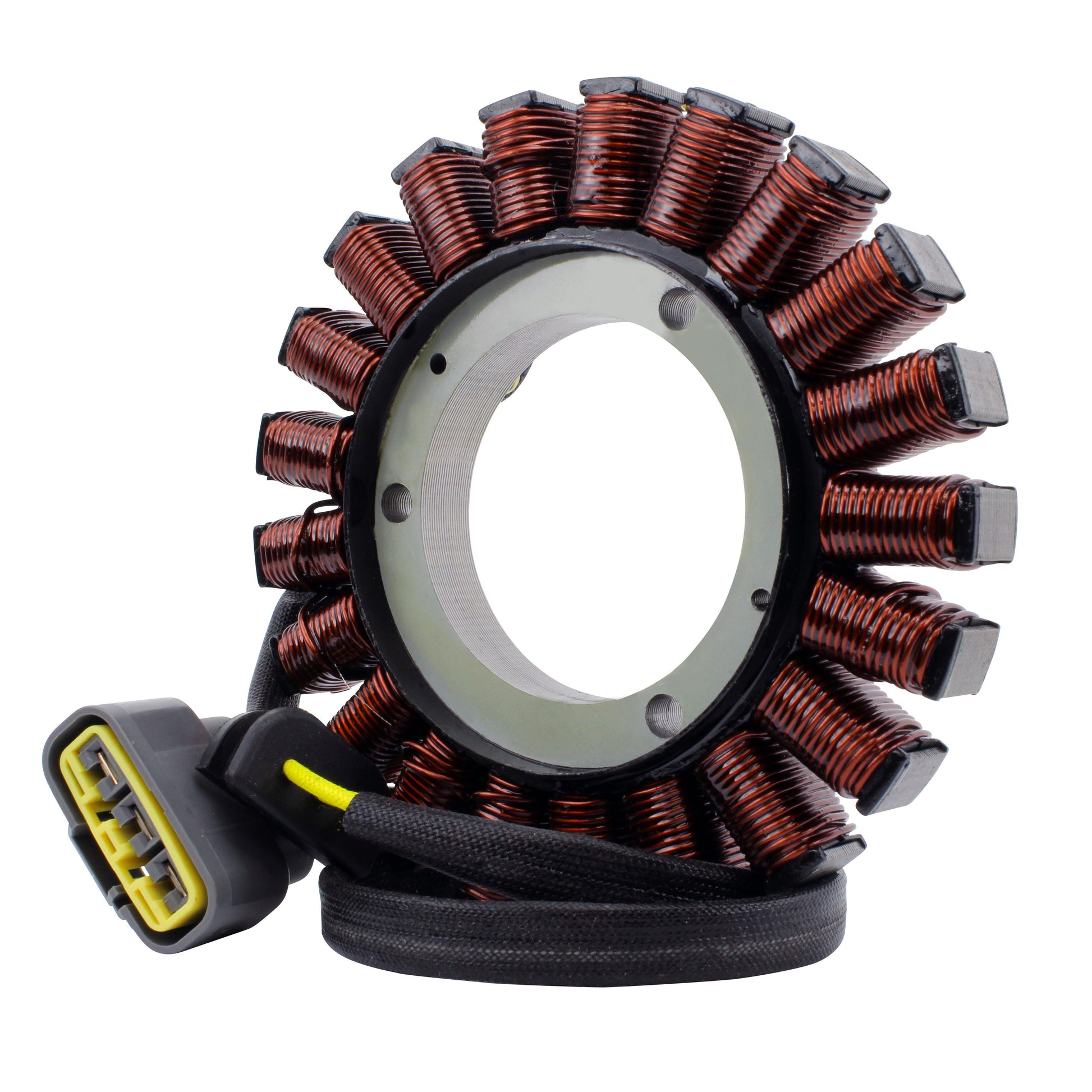

A brand new aftermarket stator built as a direct replacement for the original charging winding on the water-cooled BMW R1200 GS, R1200 R and R1200 RS. It is plug-and-play and a direct fit, so it goes back on the original fixings and plugs into the original harness without modification.

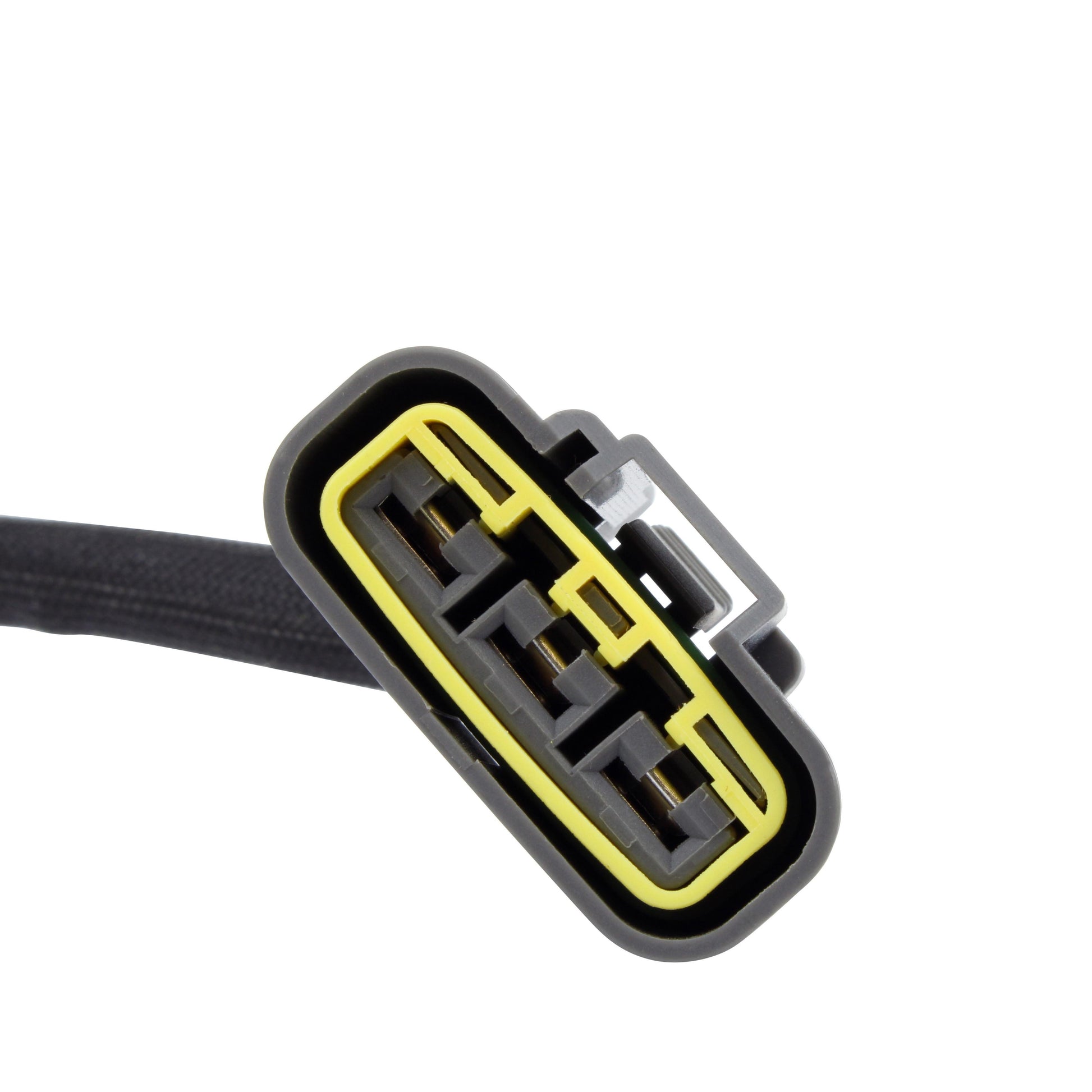

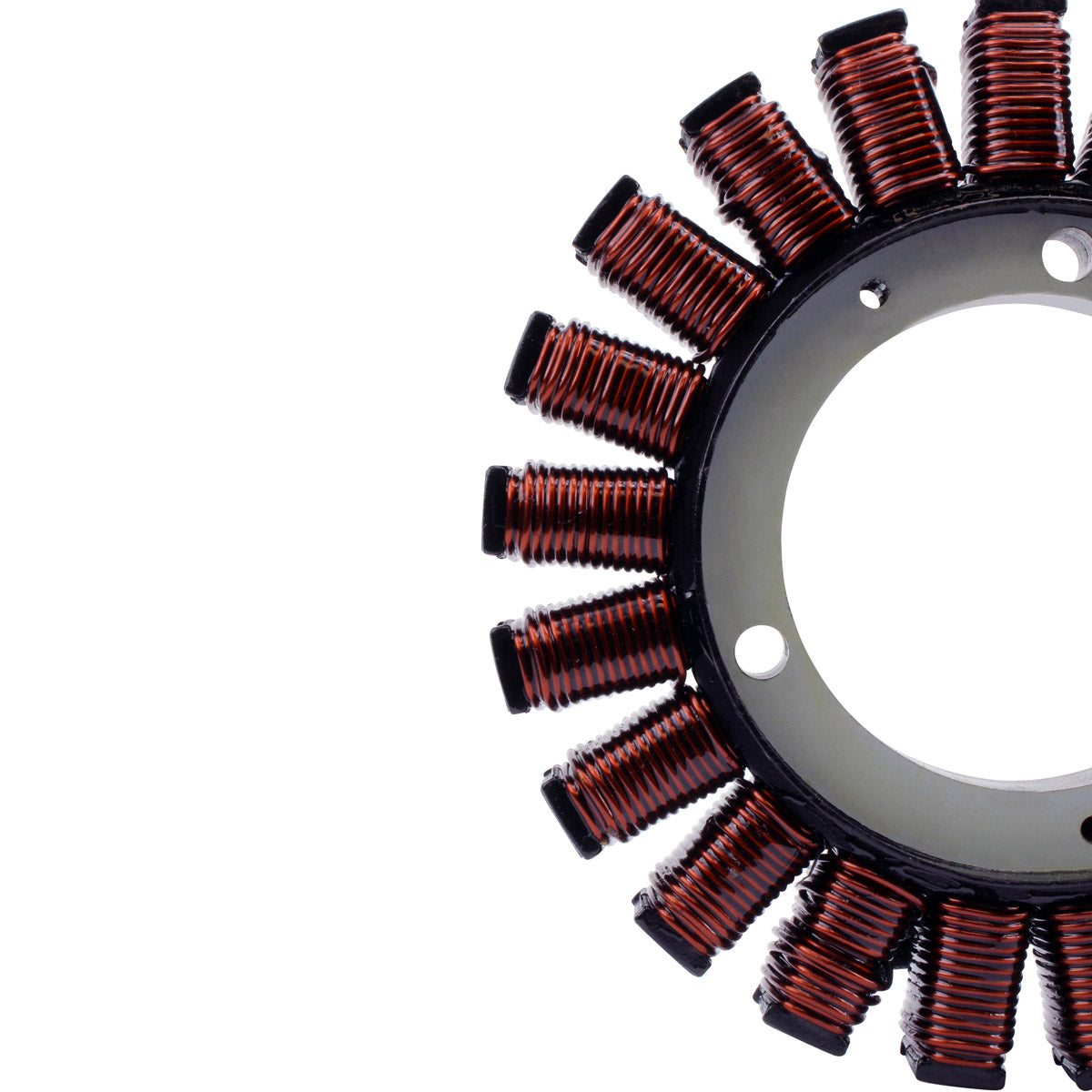

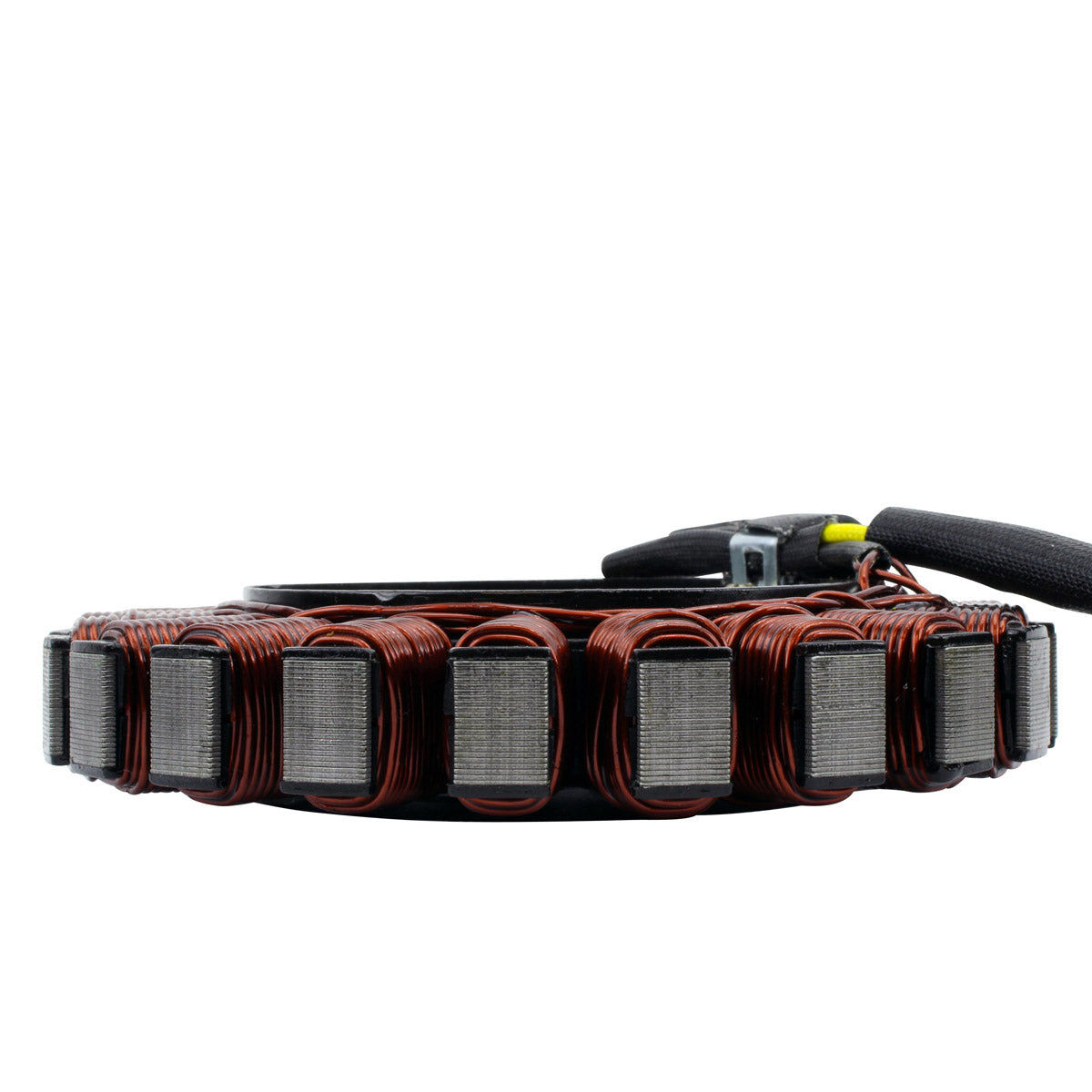

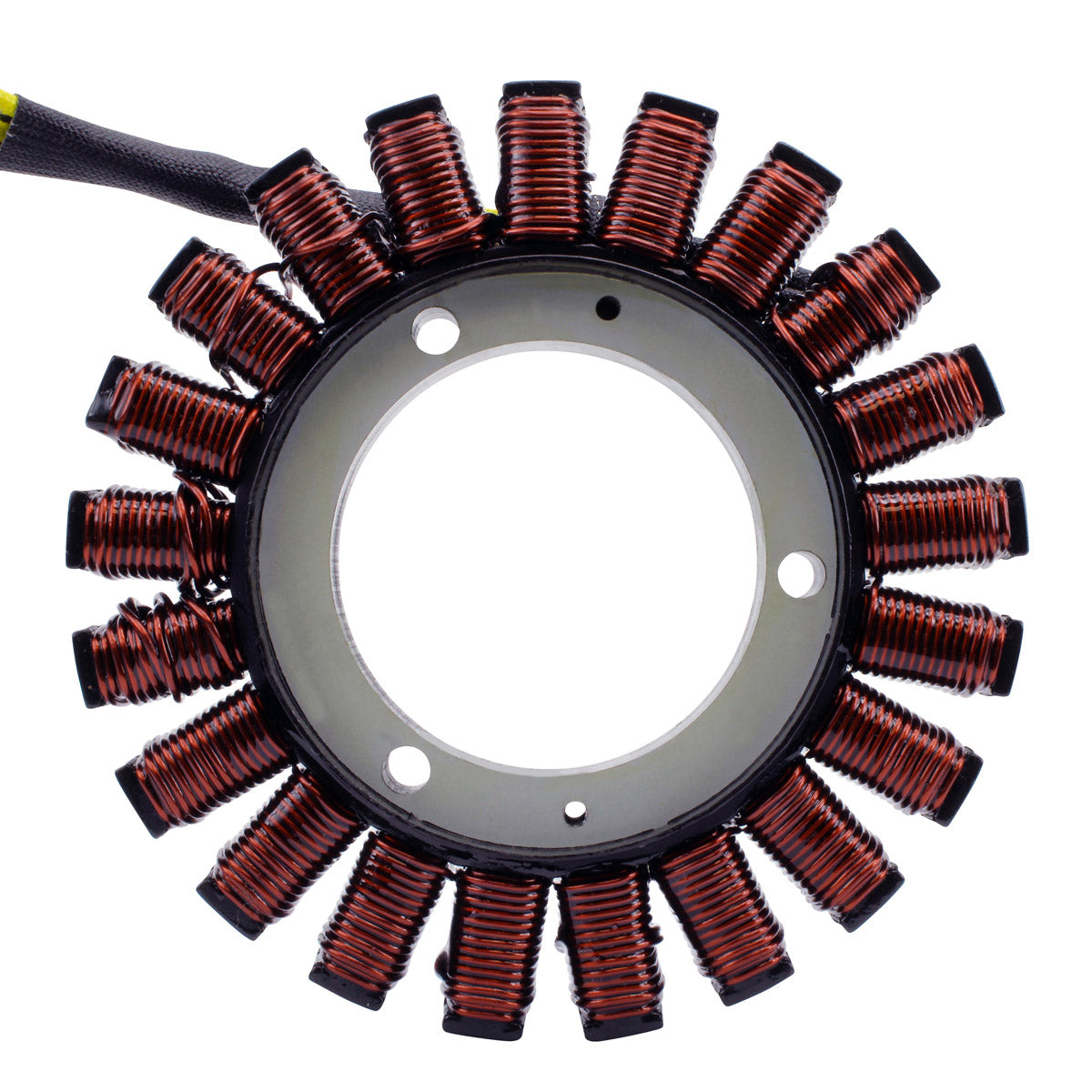

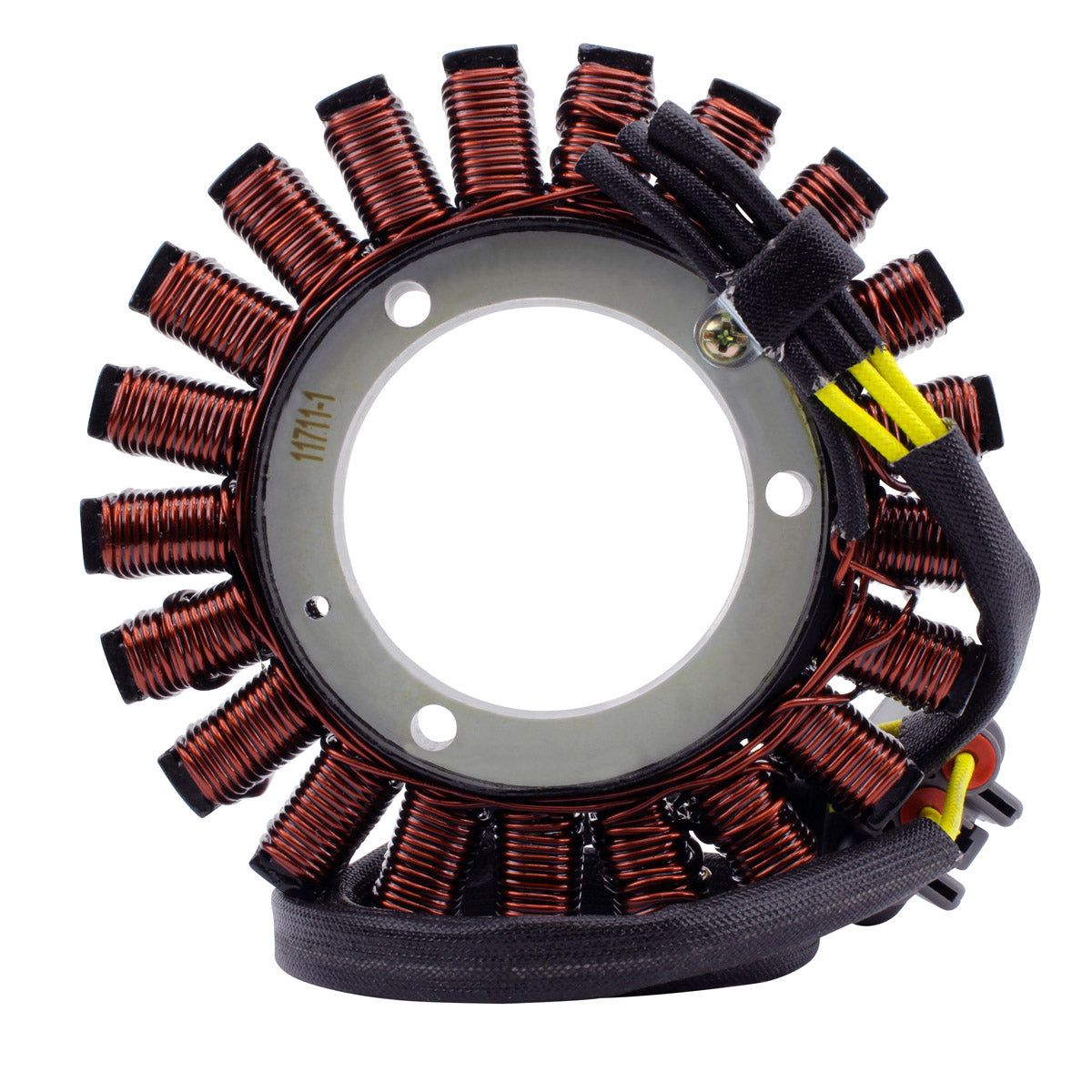

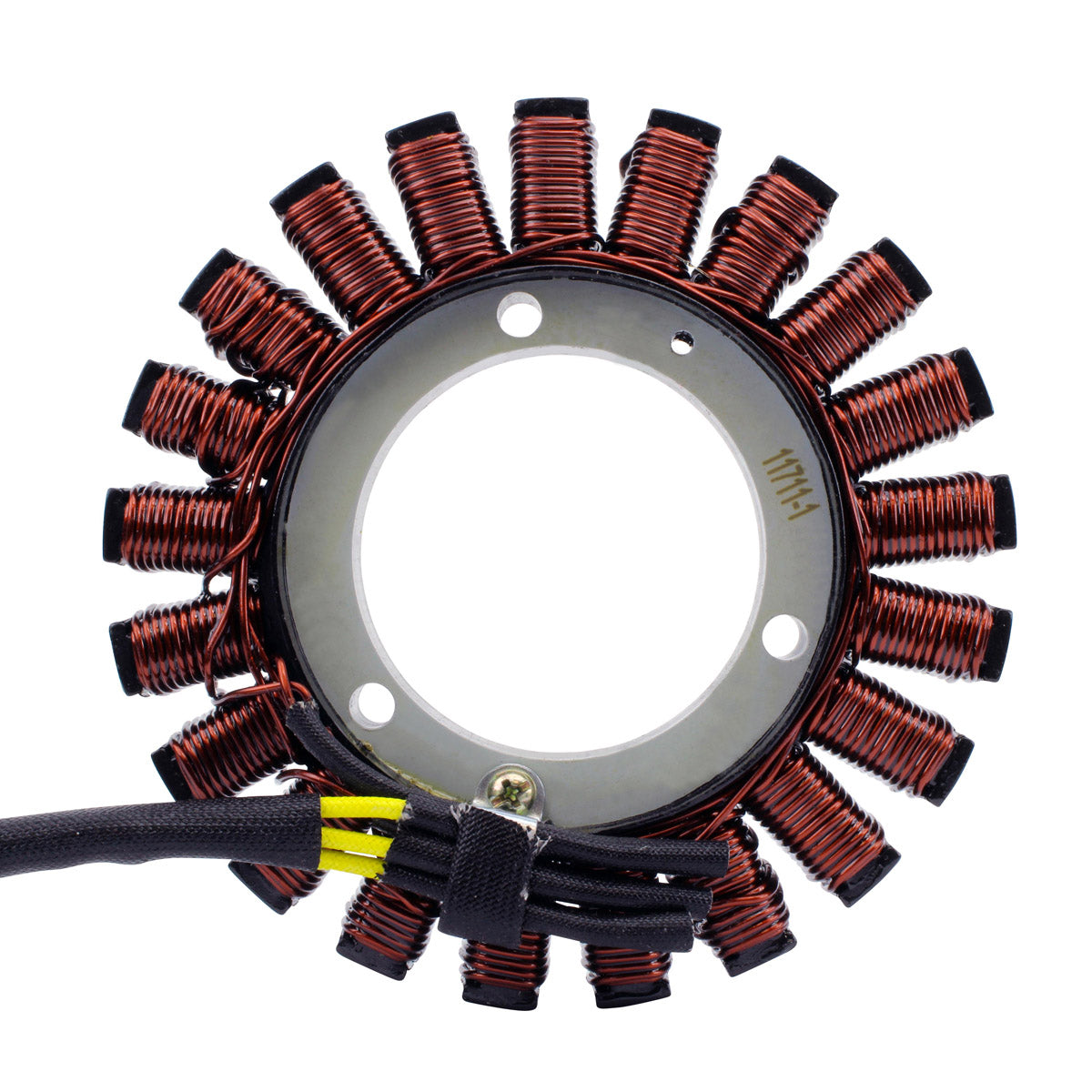

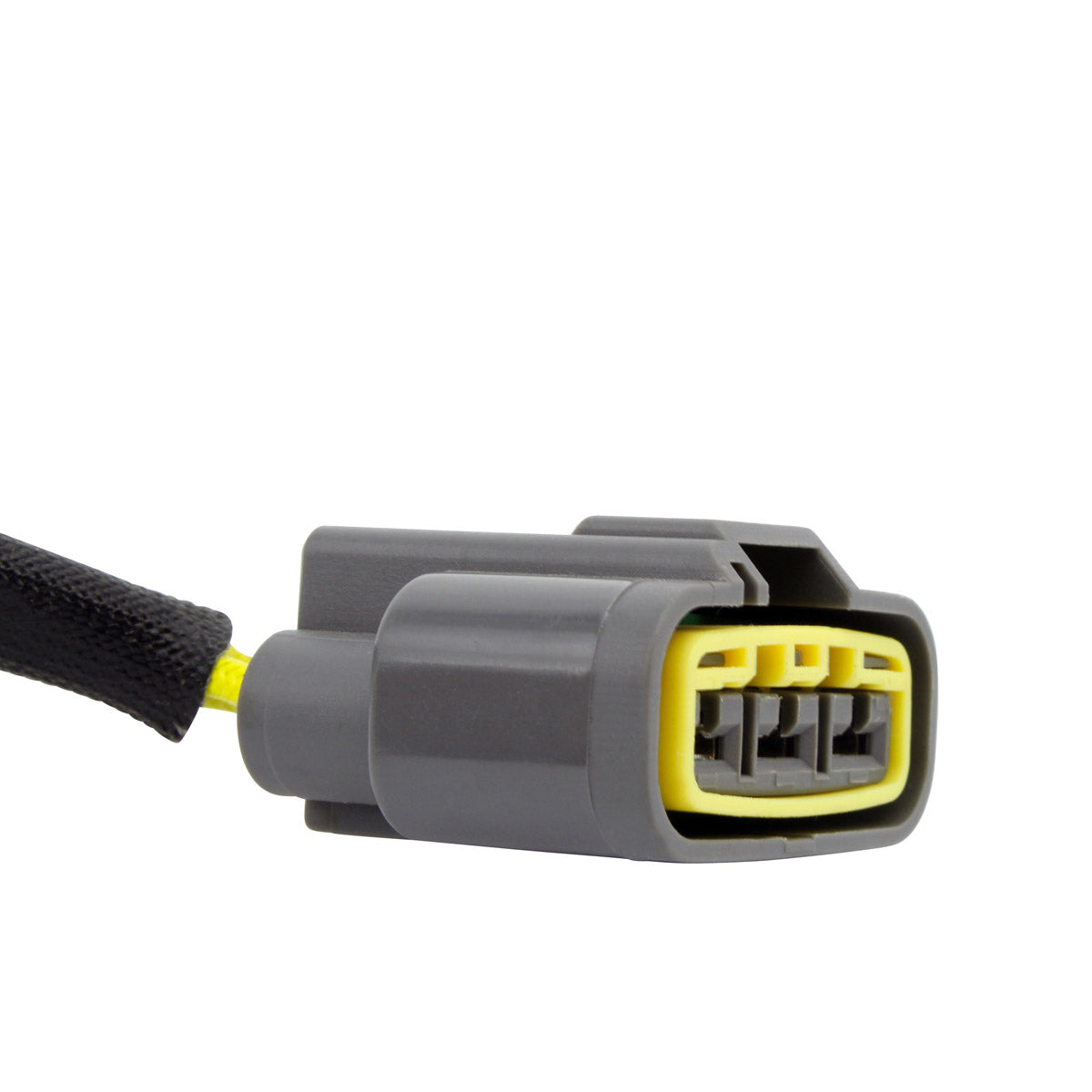

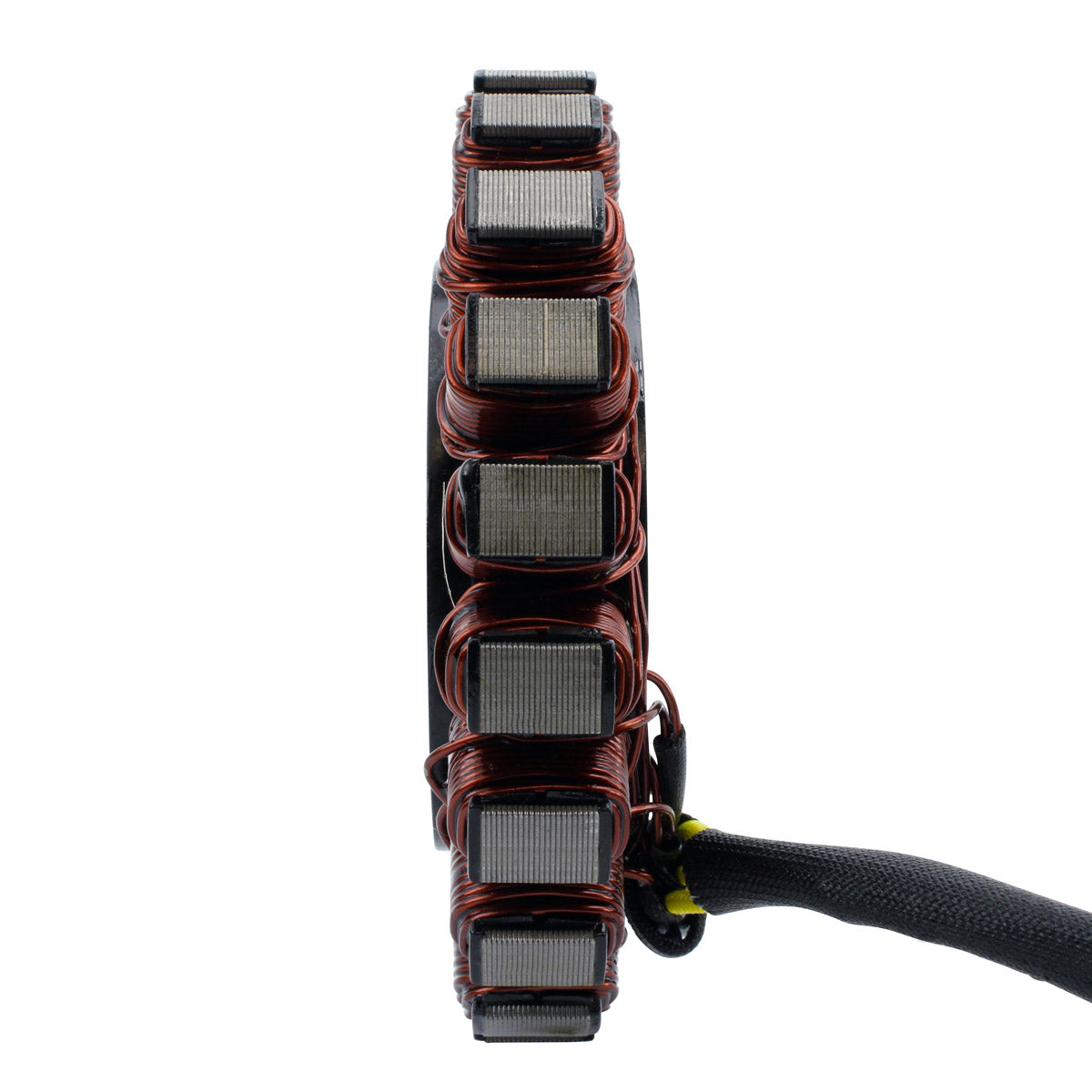

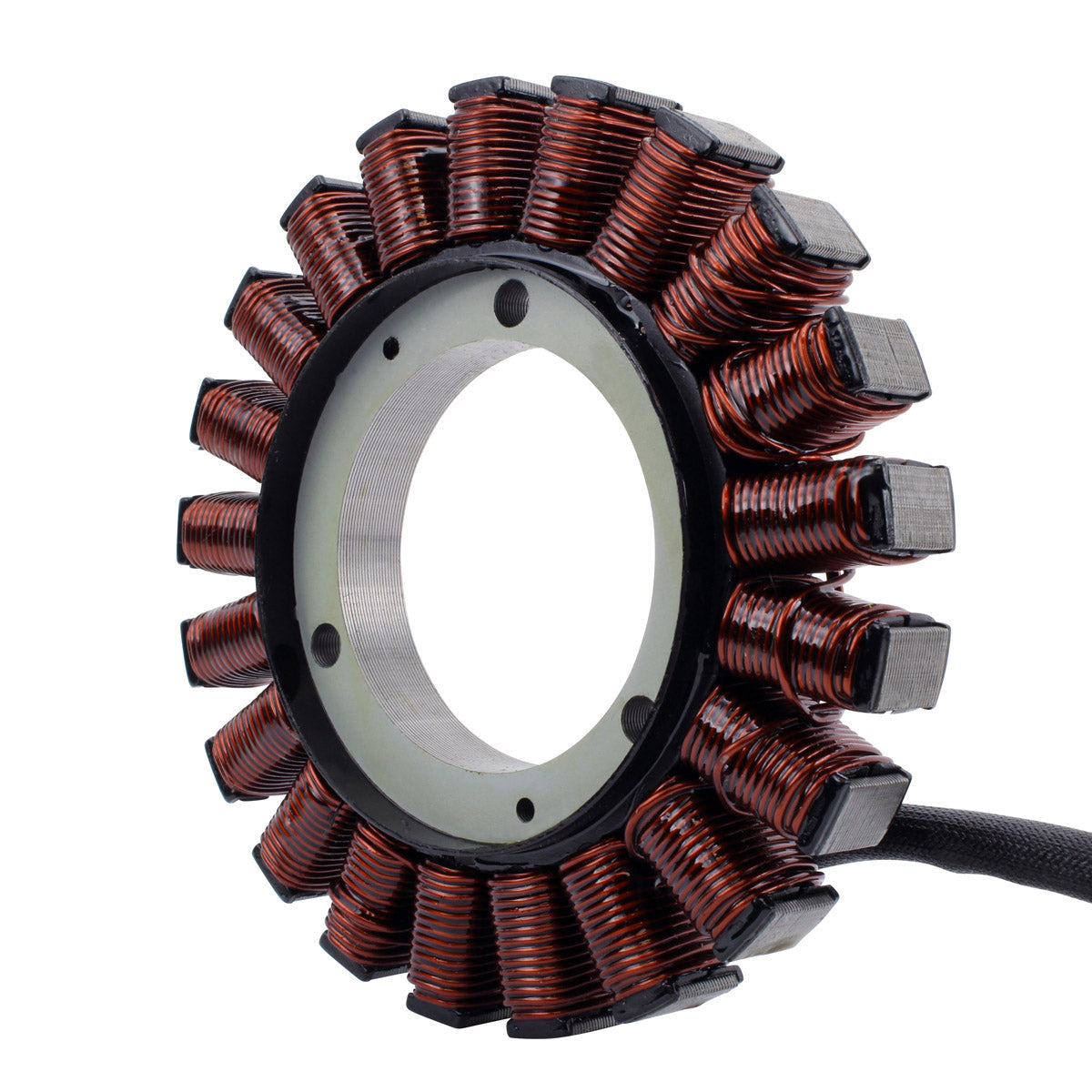

This is a large 21-pole assembly, 133 mm across the outside with a 60 mm interior diameter and 18 mm thickness. Three wires run 68 mm from the stator body to the grommet and a further 470 mm to a single three-pin plug. The windings use the highest grade of copper, rated to resist 200 degrees Celsius, laid on the highest grade of lamination materials. Connectors and a rubber grommet are included, and every unit is tested before it is shipped.
Key Features
- Brand new aftermarket stator
- Direct replacement for your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- 21 poles, 3 wires, 1 plug and 3 pins

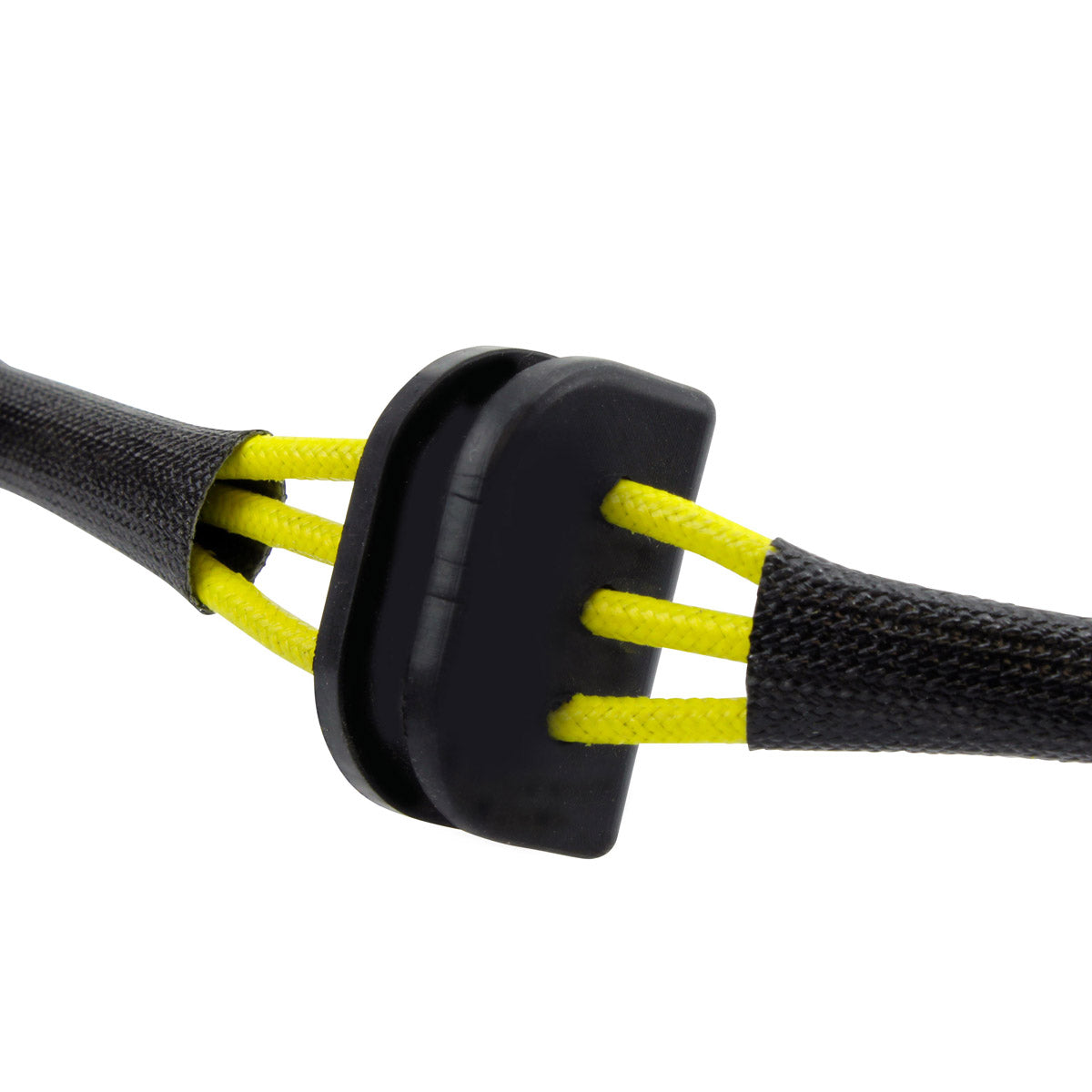

- Connectors and rubber grommet included
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Interior diameter |
60 mm |
| Exterior diameter |
133 mm |
| Thickness |
18 mm |
| Wire length (stator to grommet) |
68 mm |
| Wire length (grommet to plug) |
470 mm |
| Number of wires |
3 |
| Number of plugs |
1 |
| Number of pins |
3 |
| Number of poles |
21 |
| Wire-to-wire resistance (alternator, 3 pin) |
Between each yellow = 0.4 ohms +/-20% |
| Copper winding temperature rating |
200 degrees Celsius |
| Part number |
RMS010-105024 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| BMW R1200 GS |
2012-2018 |
| BMW R1200 R |
2012-2018 |
| BMW R1200 RS |
2012-2018 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 12 31 8 356 824 |
BMW |
| 12 31 7 724 032 |
BMW |
| 12 31 8 526 908 |
BMW |
Frequently Asked Questions
Does it fit without modification?
Yes. It is a plug-and-play, direct fit replacement for the original stator on the BMW models listed above, using the original mounting points and the original three-pin plug.
What is included?
The stator with its connectors and a rubber grommet.
How can I tell my old stator has failed?
The usual signs are charging warnings, a battery that drains in use and charging voltage that does not rise above battery level with the engine running. On the bench, the resistance measured between each pair of the three yellow wires should be about 0.4 ohms within 20 per cent, and none of them should show continuity to the stator core.
How do I confirm this is the right stator for my bike?
Check the number stamped or labelled on your original unit against the cross reference table above - 12 31 8 356 824, 12 31 7 724 032 or 12 31 8 526 908. The physical dimensions in the specification table are also a reliable check, as this unit is 133 mm across with a 60 mm bore and 21 poles.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
