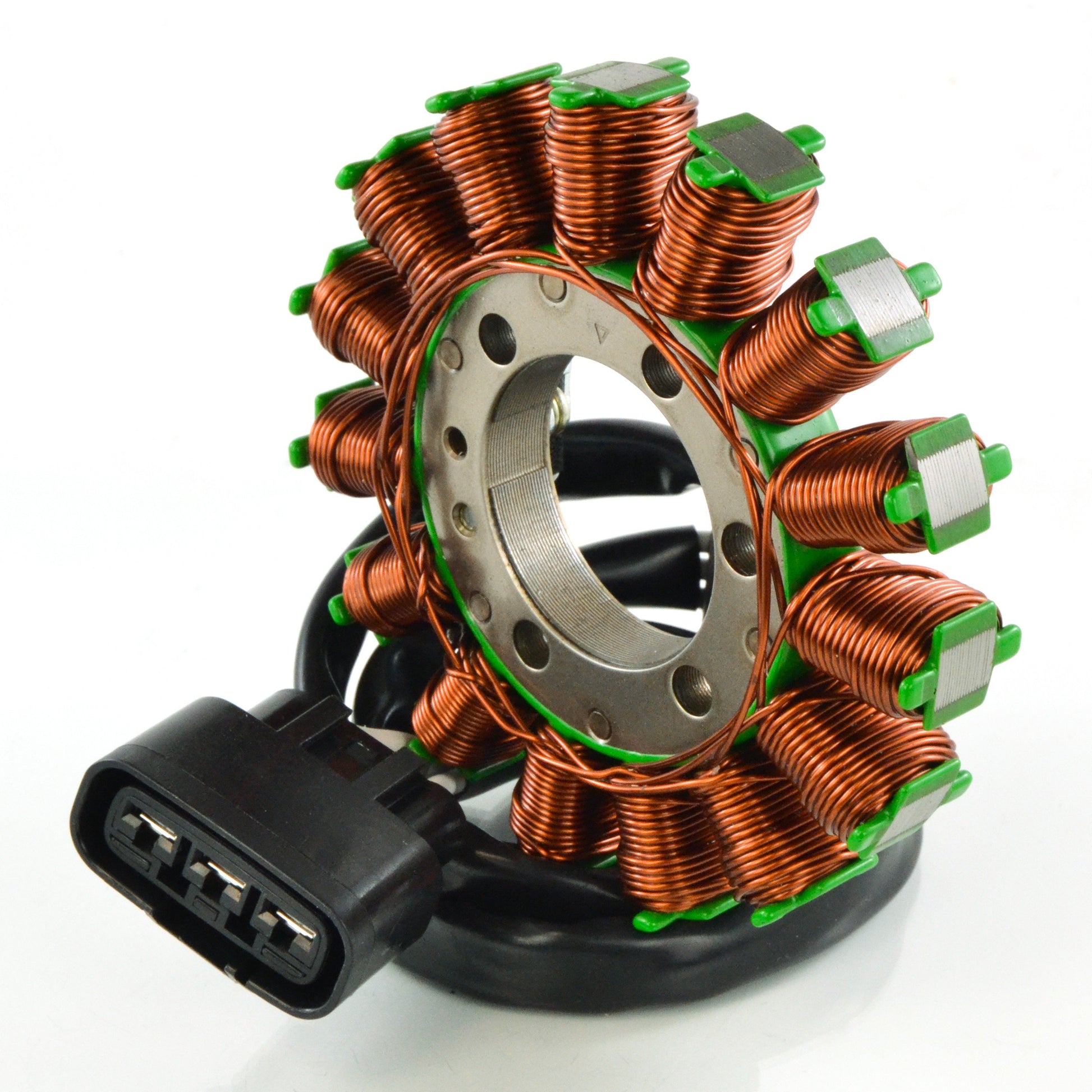

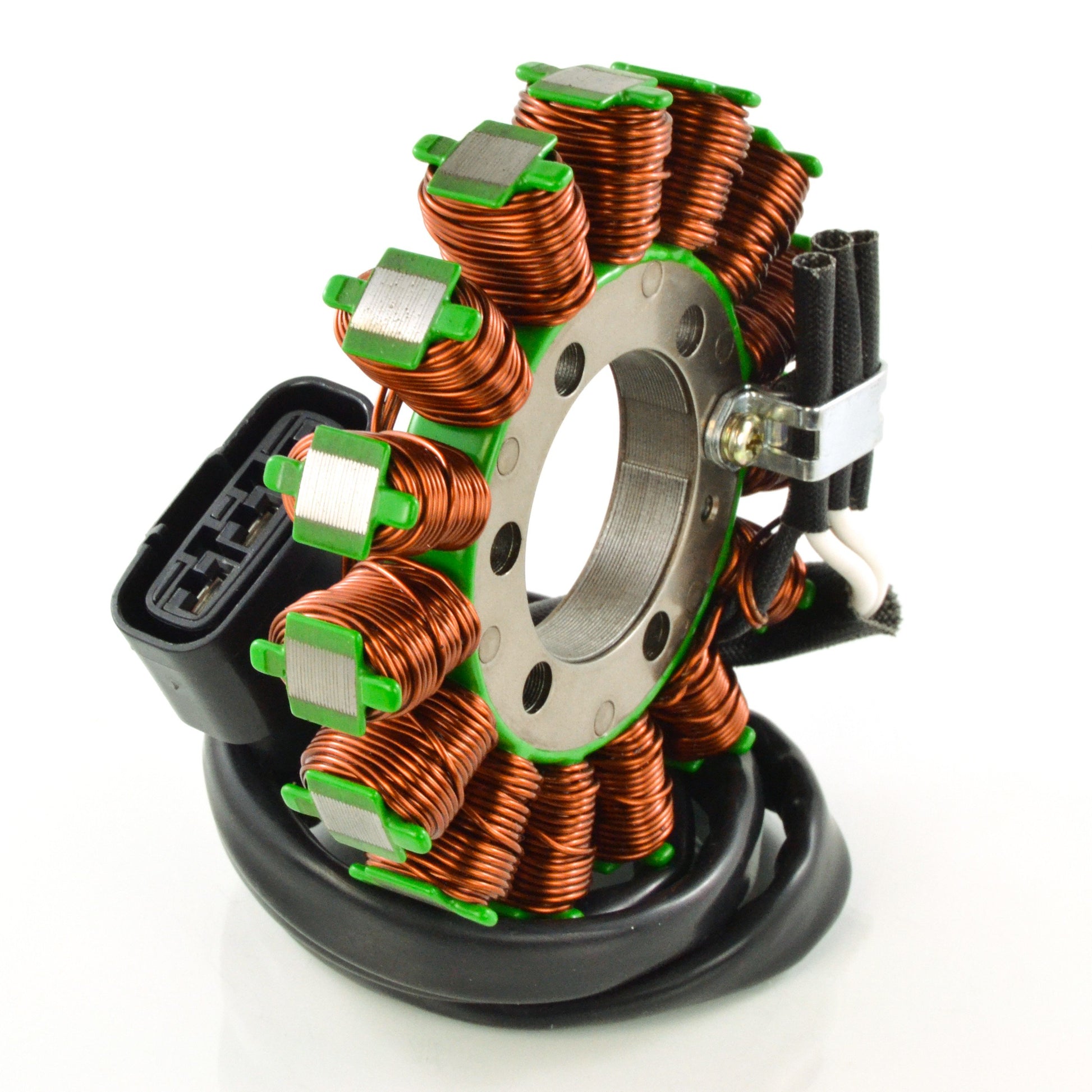

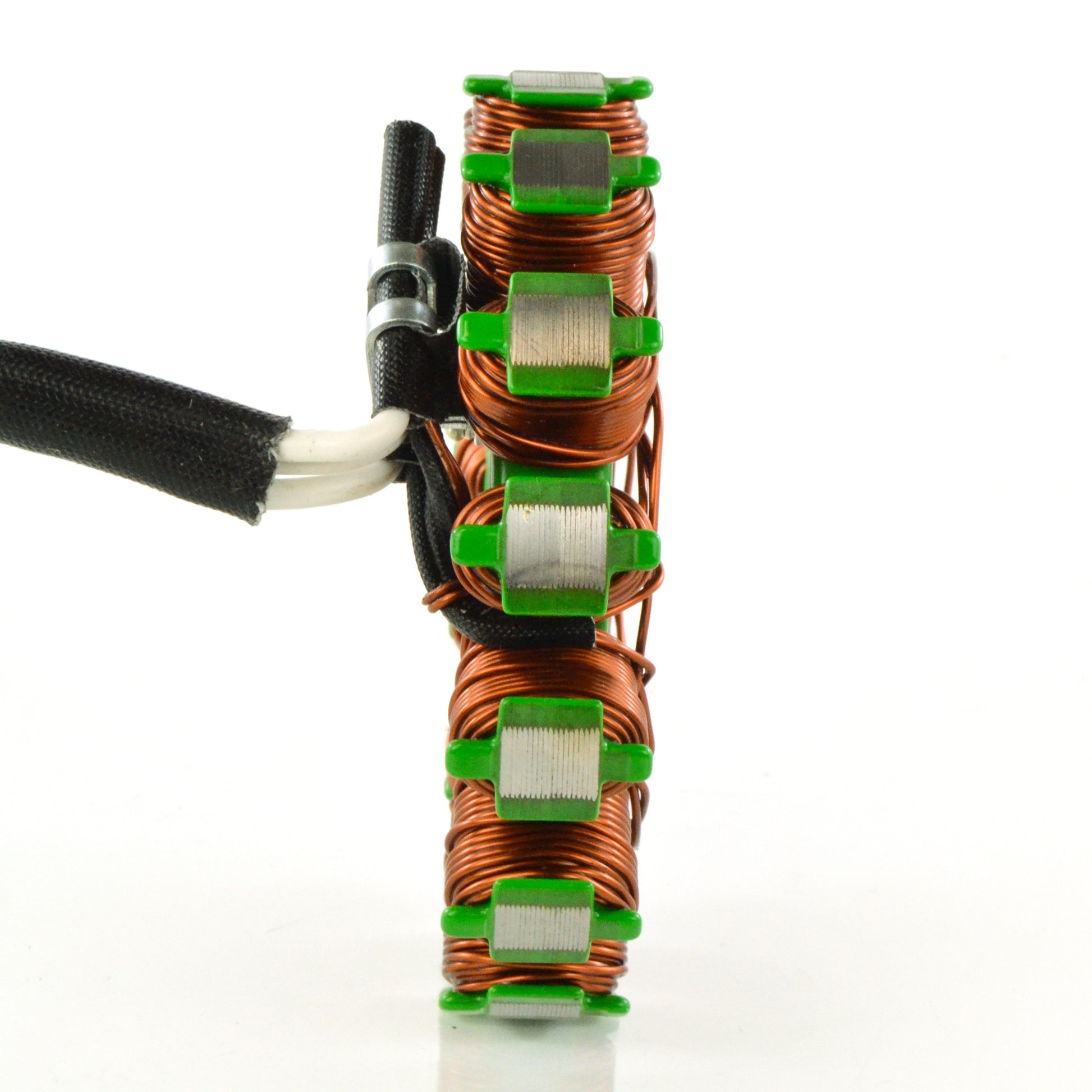

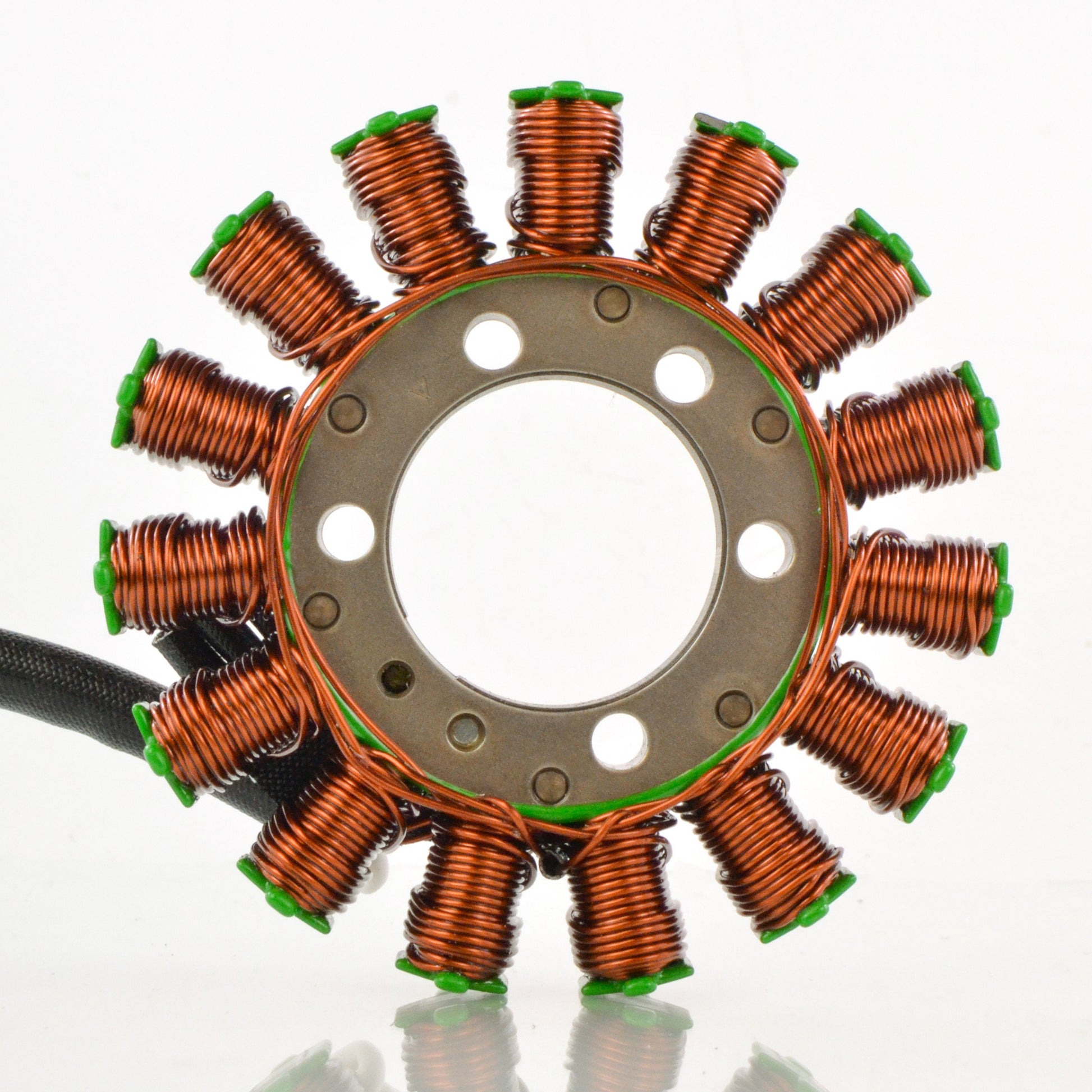

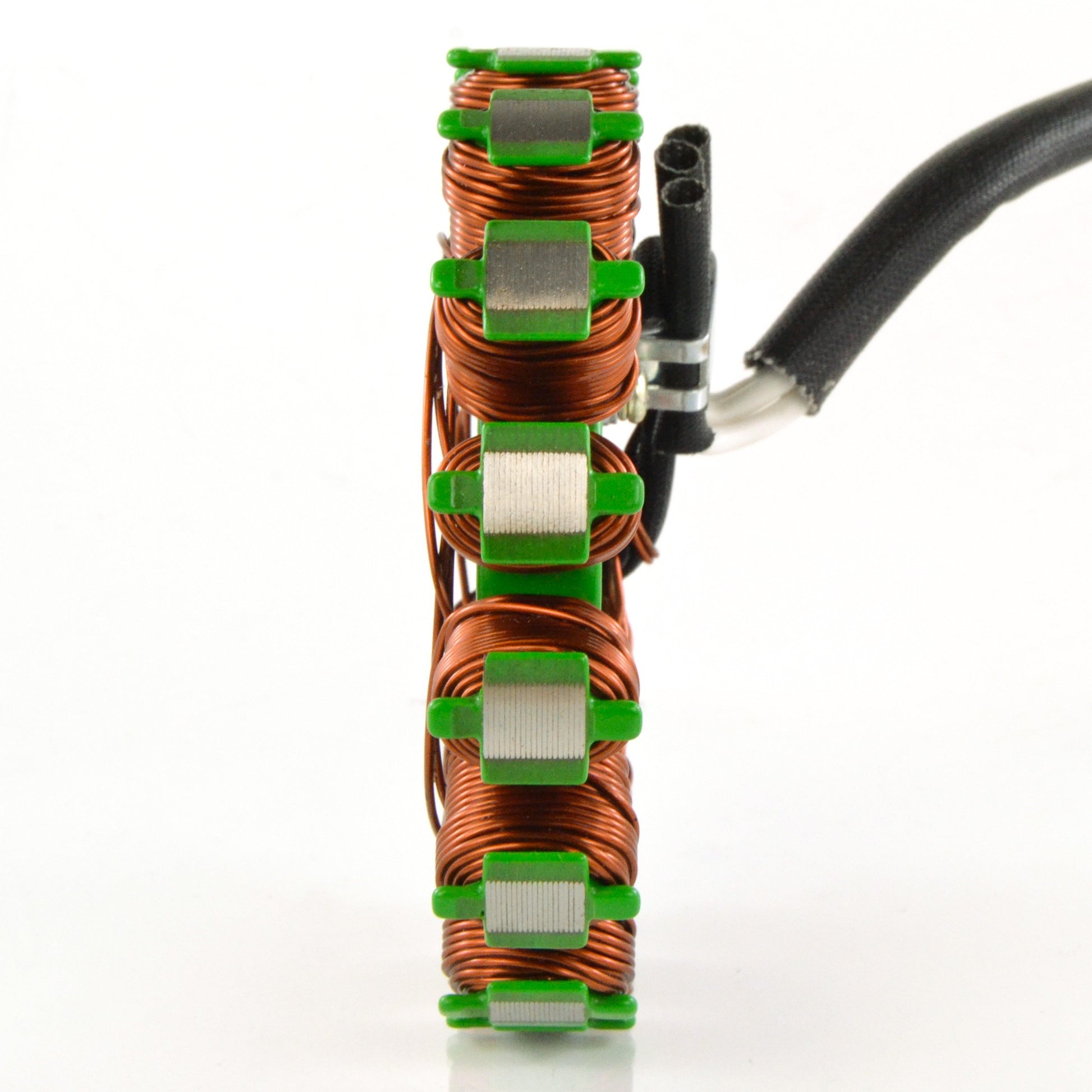

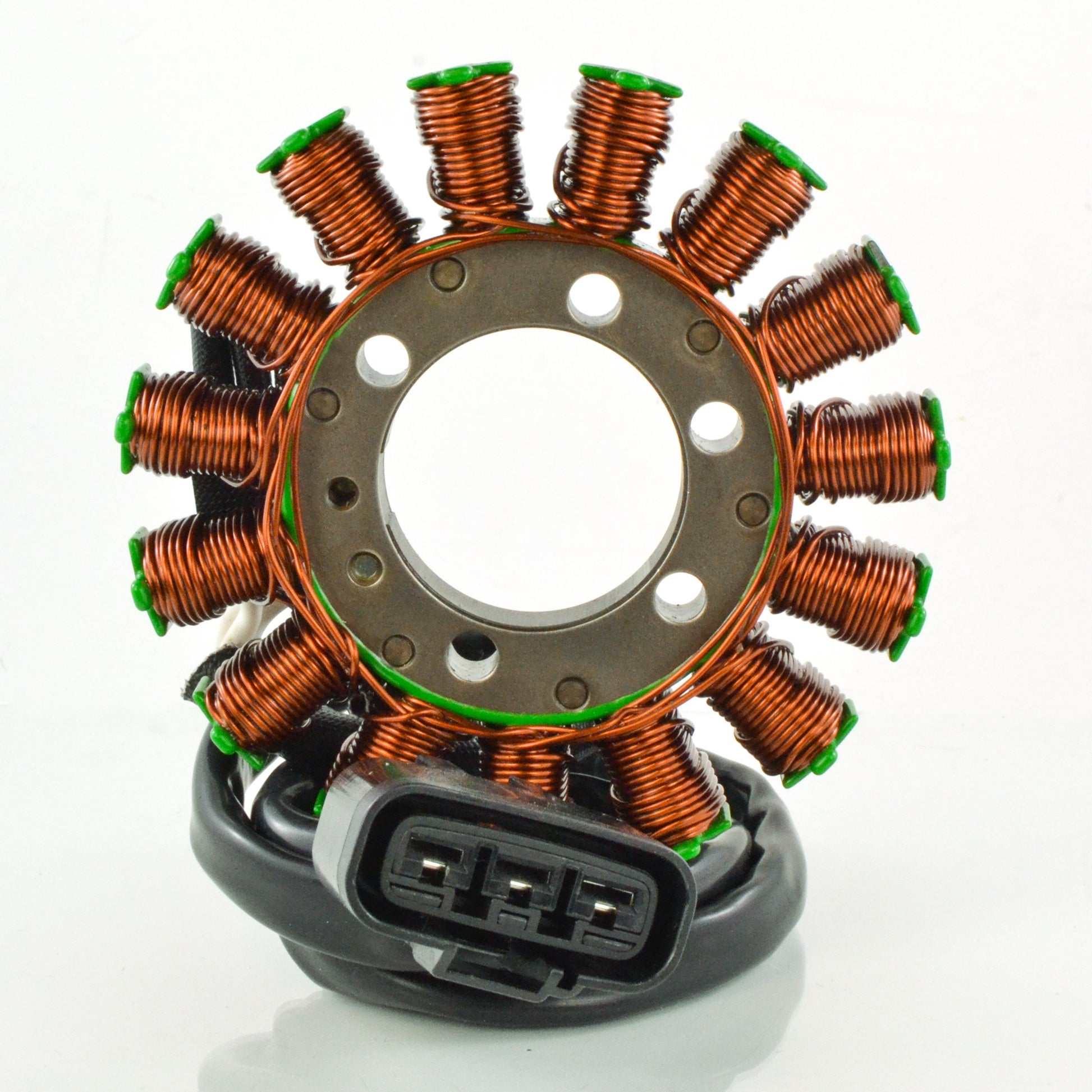

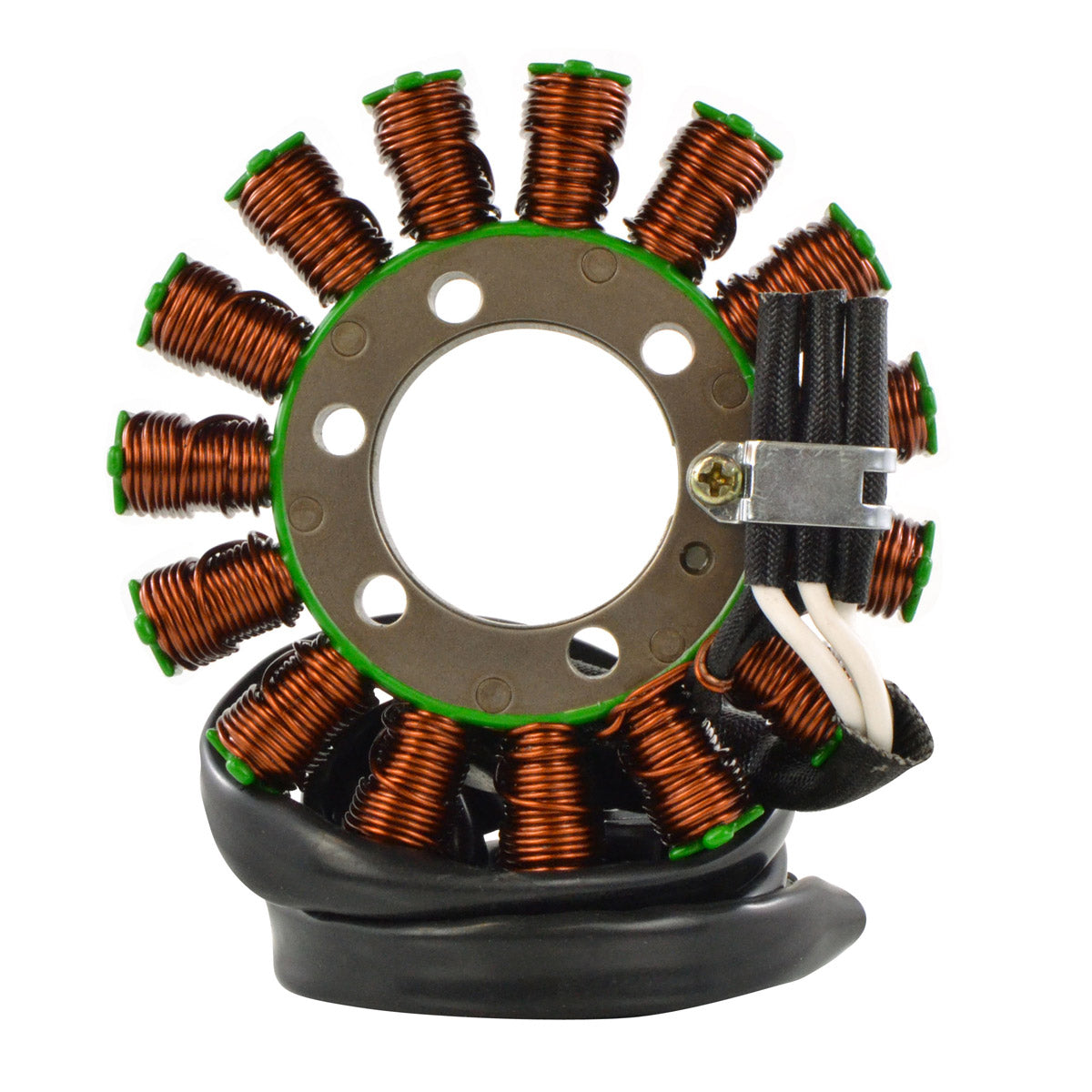

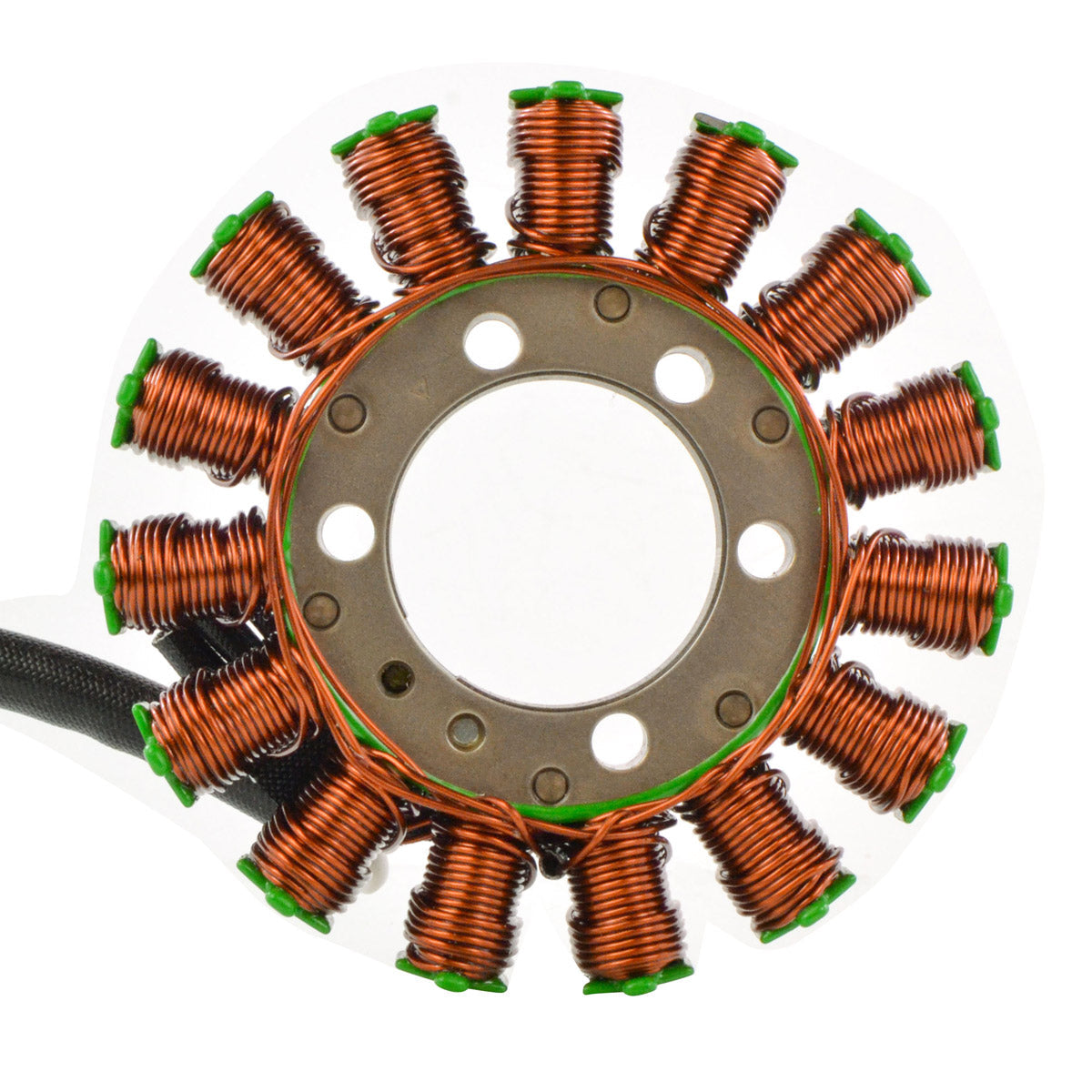

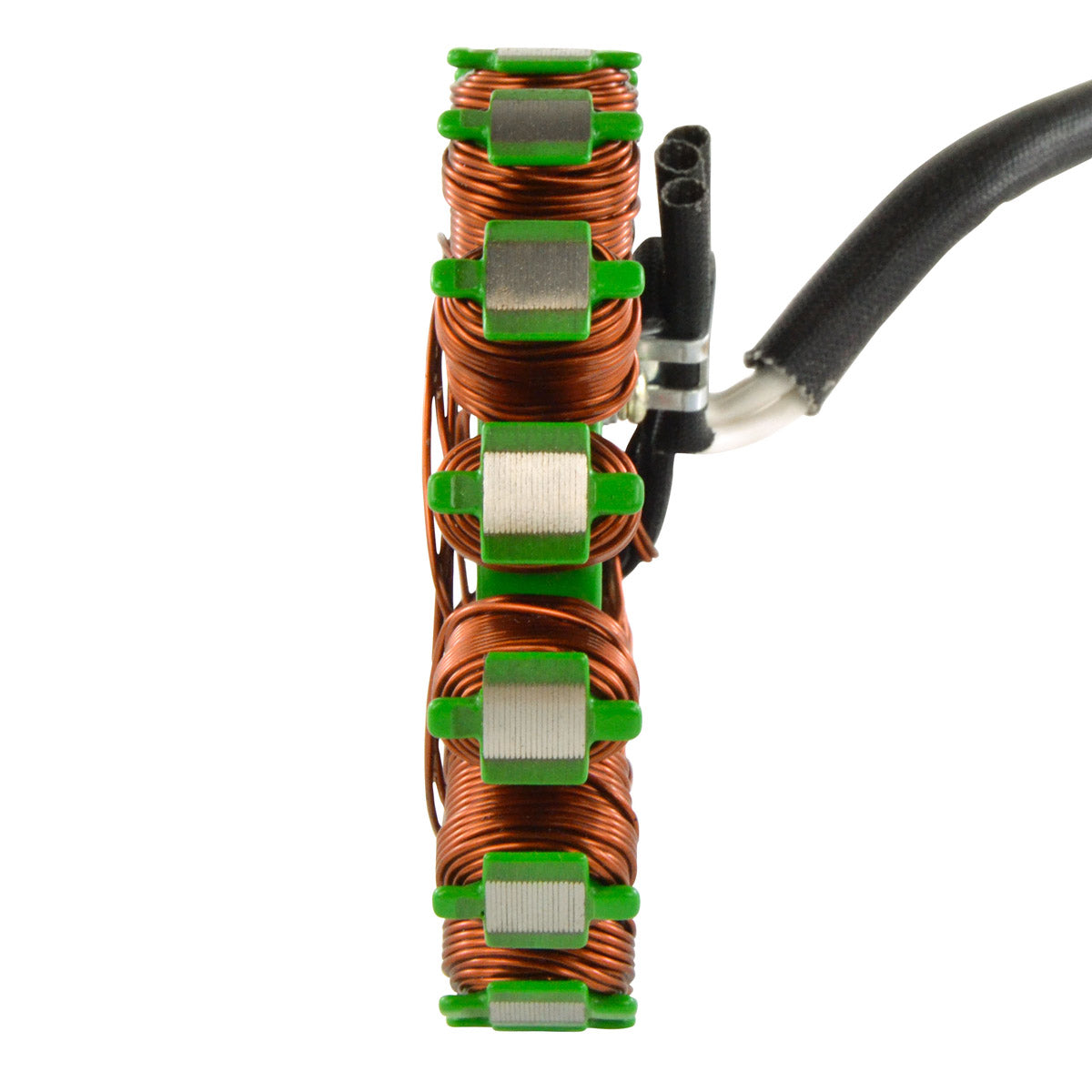

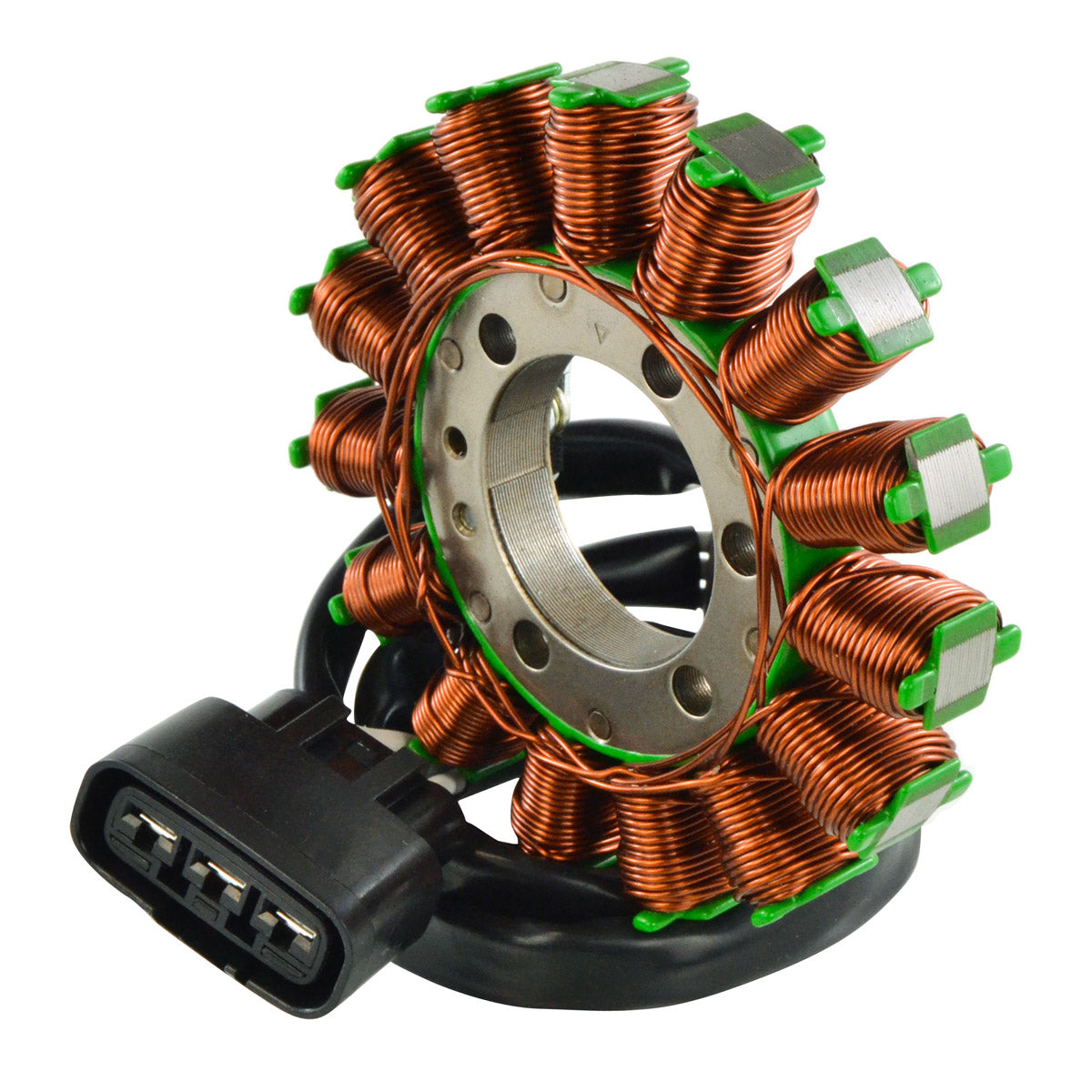

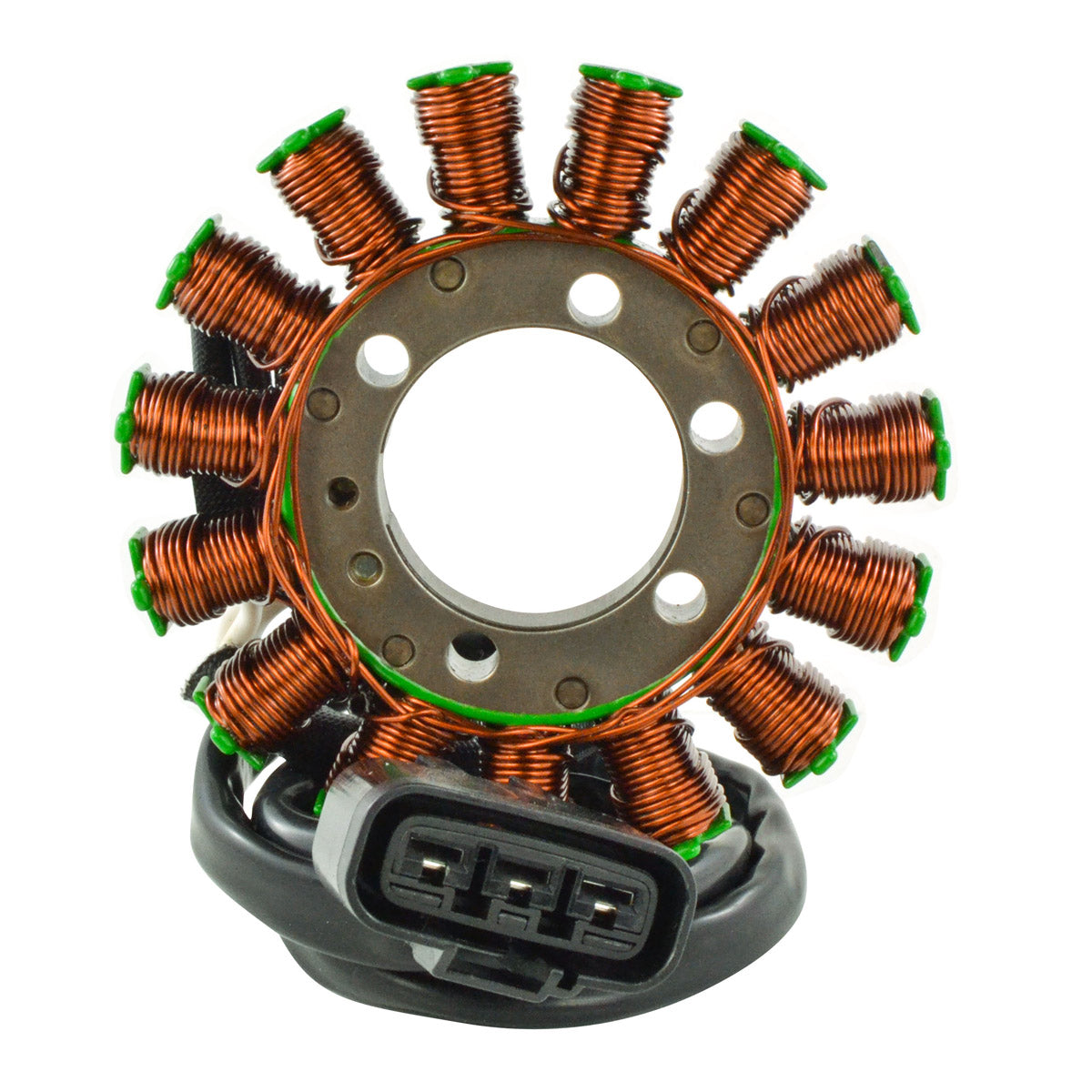

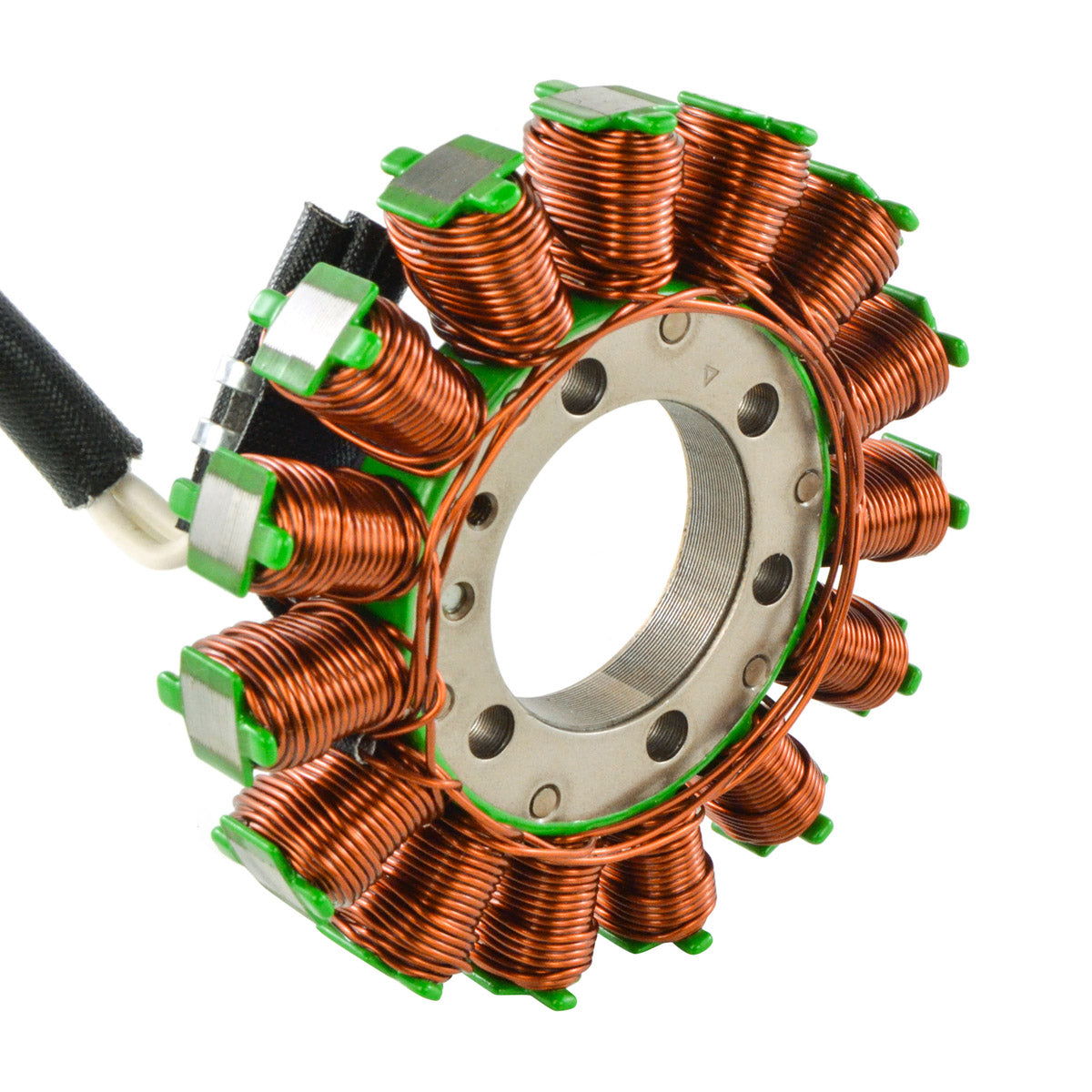

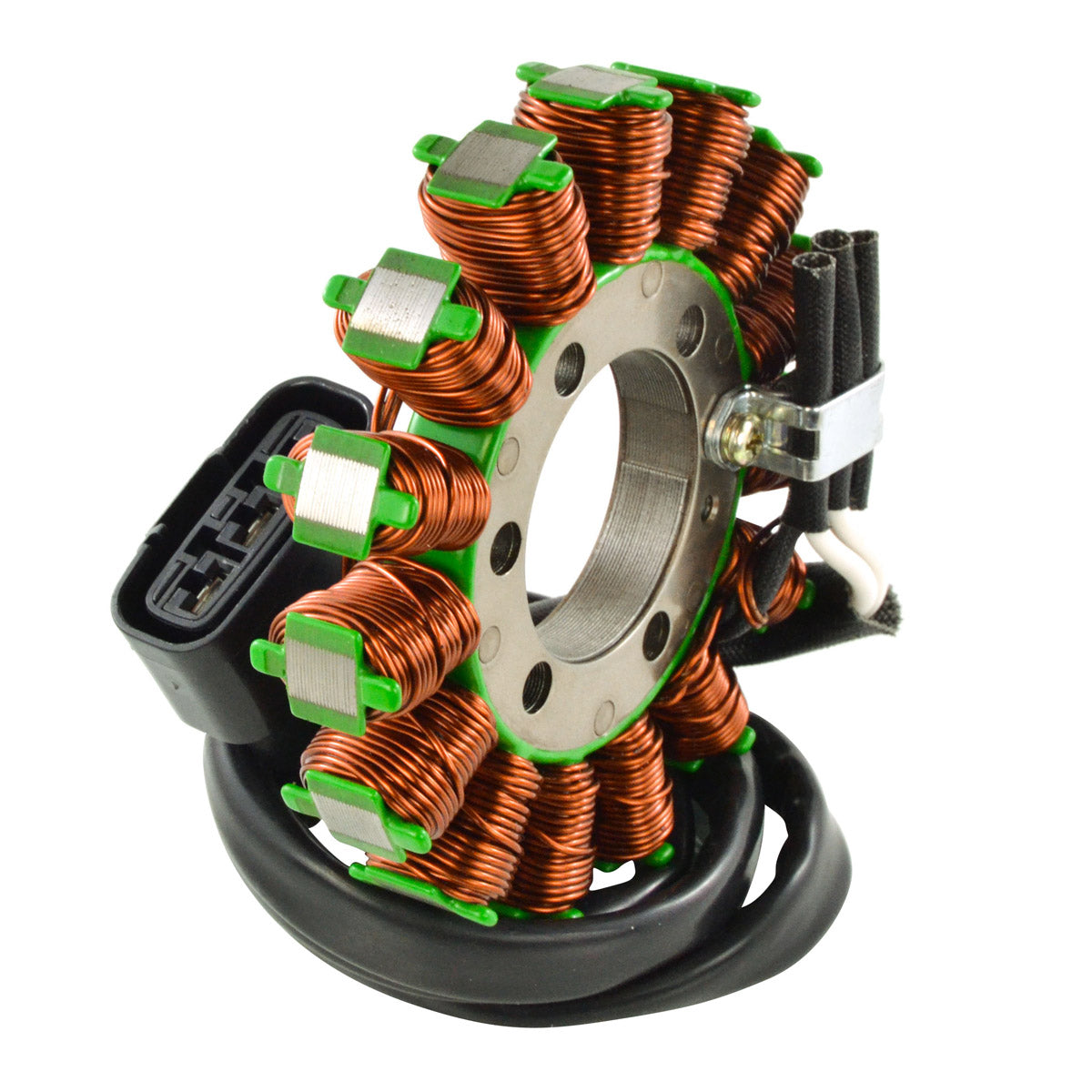

A brand new aftermarket generator stator supplied as a direct replacement for the original unit fitted to the BMW S1000R, S1000RR and HP4 1000. The stator is the fixed three-phase winding inside the alternator cover that produces the AC current the regulator/rectifier converts into the DC supply for the battery, engine management, lighting and instruments. Once a phase shorts or burns out, charging voltage collapses and the machine will run on the battery alone until it stops.
This replacement is built on the highest grade of lamination materials with the highest grade of copper winding, resistant to 200 degrees Celsius. It is a plug-and-play, direct fit using the original mounting points and the original loom plug, so no cutting, splicing or modification is required. Connector and rubber grommet are included. All products shipped are tested.
Key Features
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

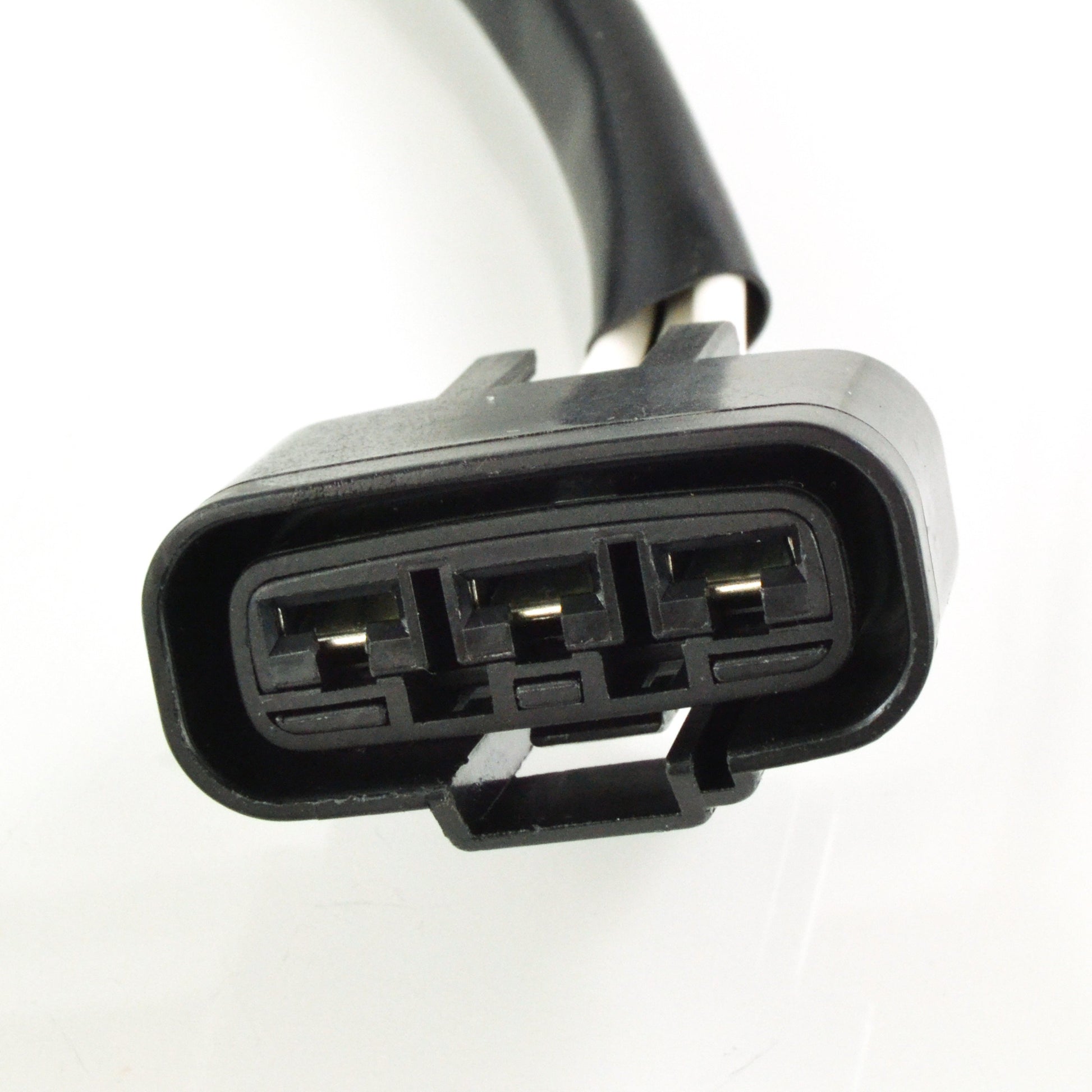

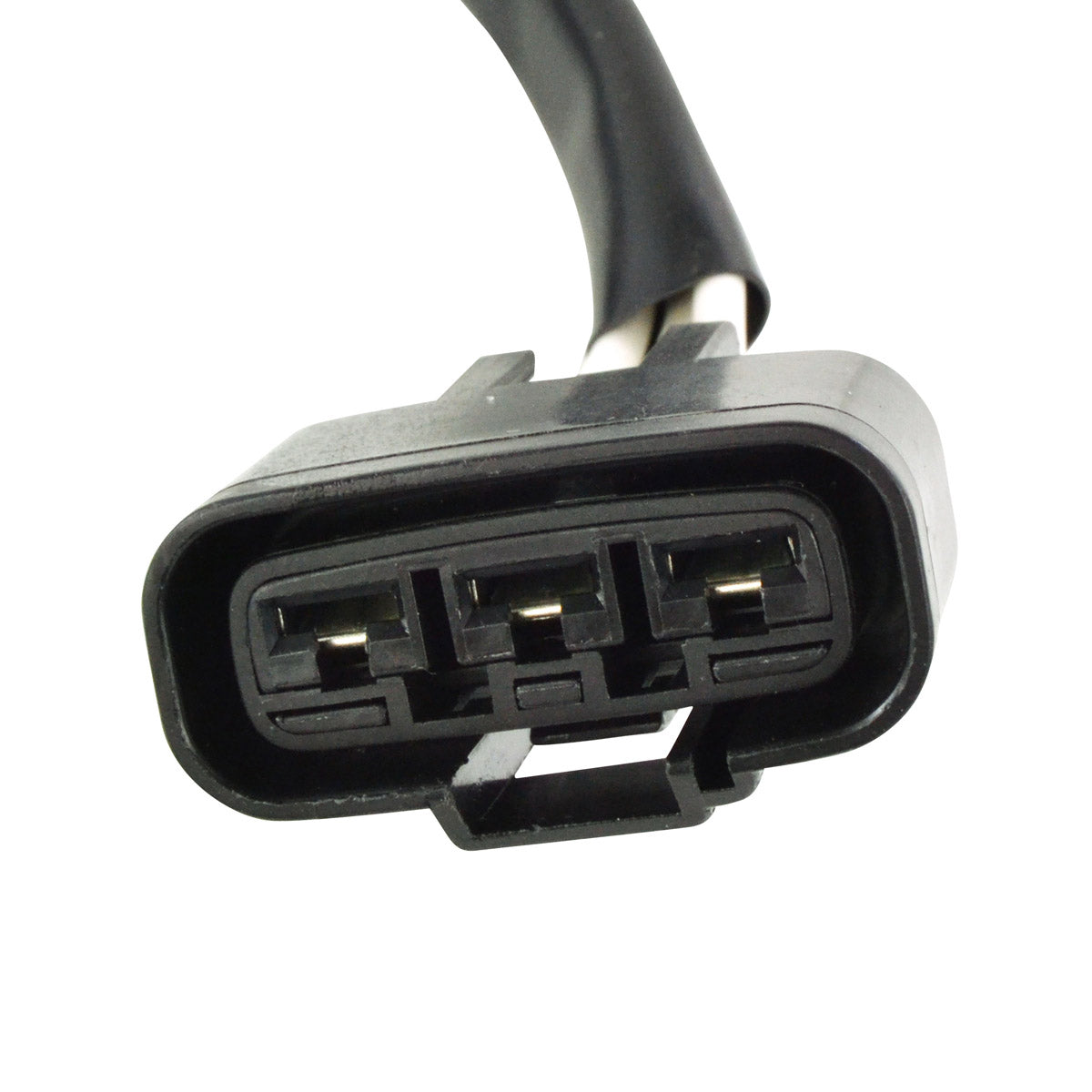

- Connector included

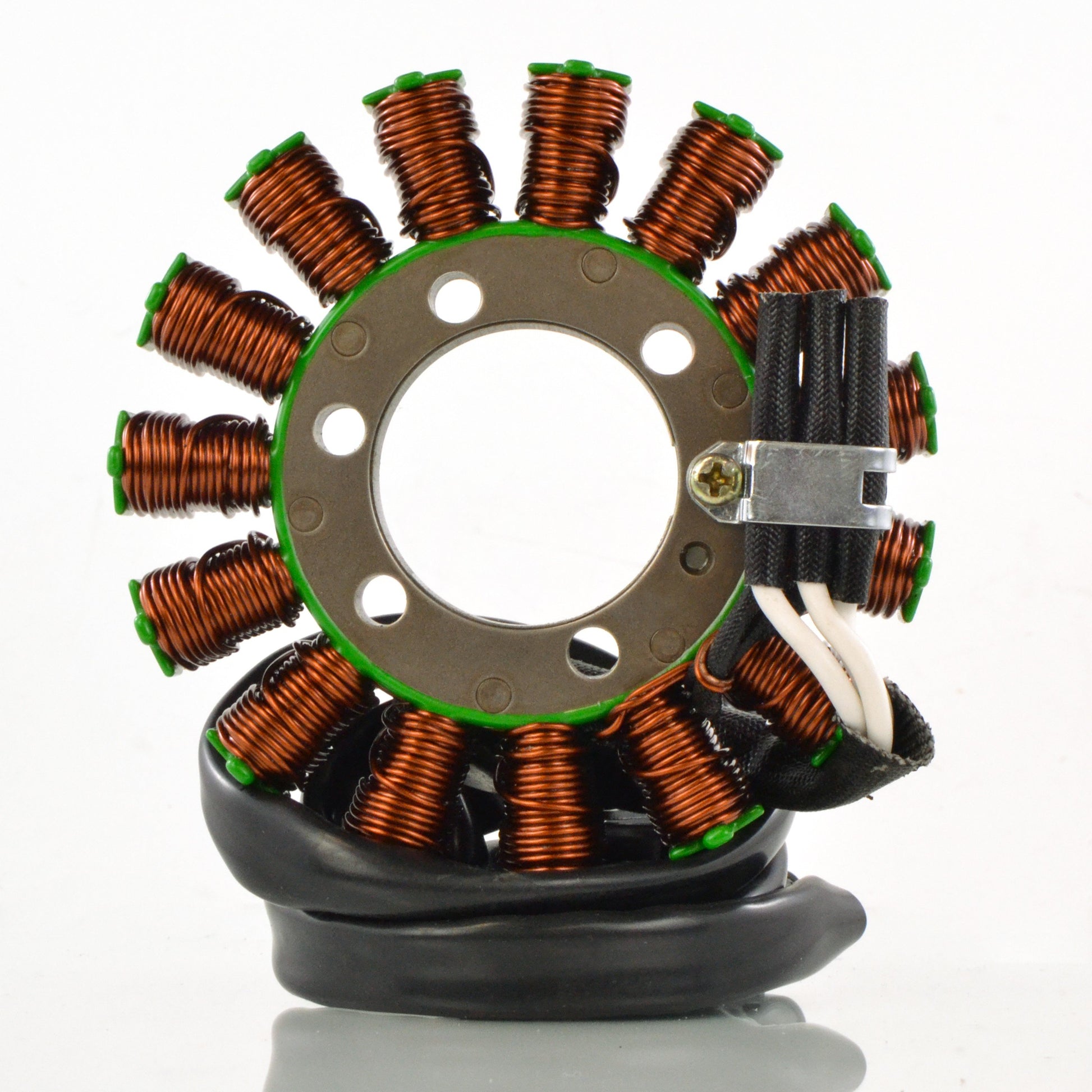

- Rubber grommet included
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Part number |
RMS010-103202 |
| Interior diameter |
38 mm |
| Exterior diameter |
104 mm |
| Thickness |
13 mm |
| Wire length, stator to grommet |
75 mm |
| Wire length, grommet to plug |
670 mm |
| Number of wires |
3 |
| Number of plugs |
1 |
| Number of pins |
3 |
| Alternator resistance, between each grey |
0.4 ohms +/-20% |
| Winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model |
Years |
| BMW S1000R |
2013-2018 |
| BMW S1000RR |
2009-2018 |
| BMW HP4 1000 |
2012-2015, 2017-2018 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 12 31 7 718 420 |
BMW |
Frequently Asked Questions
Does this fit without modification?
Yes. It is a direct replacement for the original unit and installs plug-and-play on the standard mountings using the original loom plug. No cutting, splicing or modification of the harness is required.
What is included?
The stator supplied with its connector and rubber grommet. Every unit is tested before it is shipped.
How do I know my old stator has failed?
With the plug disconnected, measure resistance between each pair of grey wires. A healthy stator reads about 0.4 ohms, within plus or minus 20 per cent, and no wire should show continuity to earth. Readings well outside that, a flat battery in use, or a charging voltage that will not rise at the battery terminals all point to a failed stator.
How do I confirm this is the right part for my bike?
Check the number stamped or labelled on your original unit against the OEM reference 12 31 7 718 420 listed above. If it matches, this is the correct replacement.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
