Stator for Can-Am DS 650 2000-2007
Stator for Can-Am DS 650 2000-2007
SKU:RM01200
Free shipping over £150. Terms apply
Couldn't load pickup availability

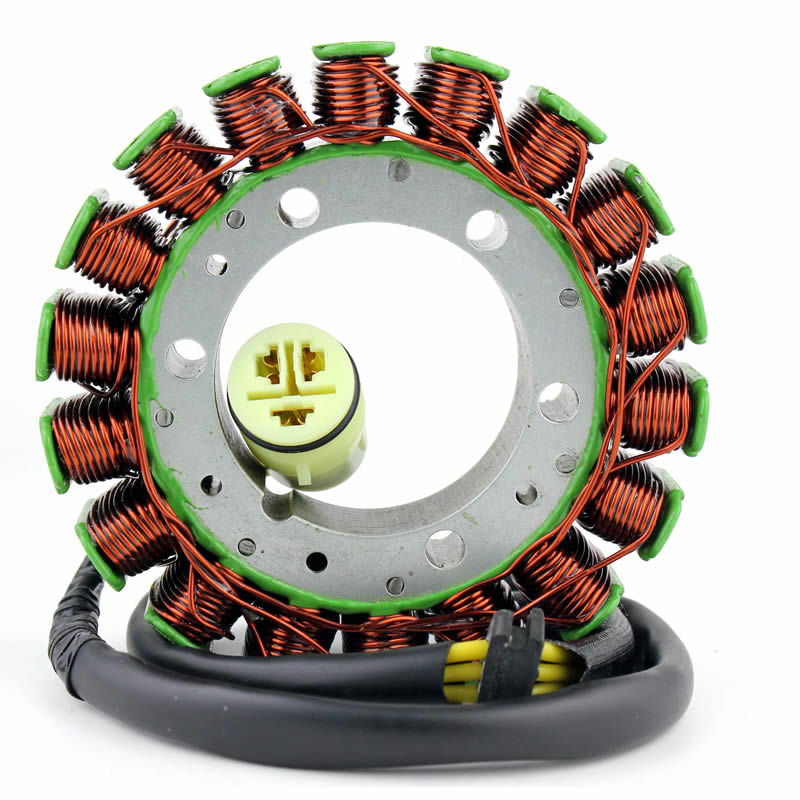

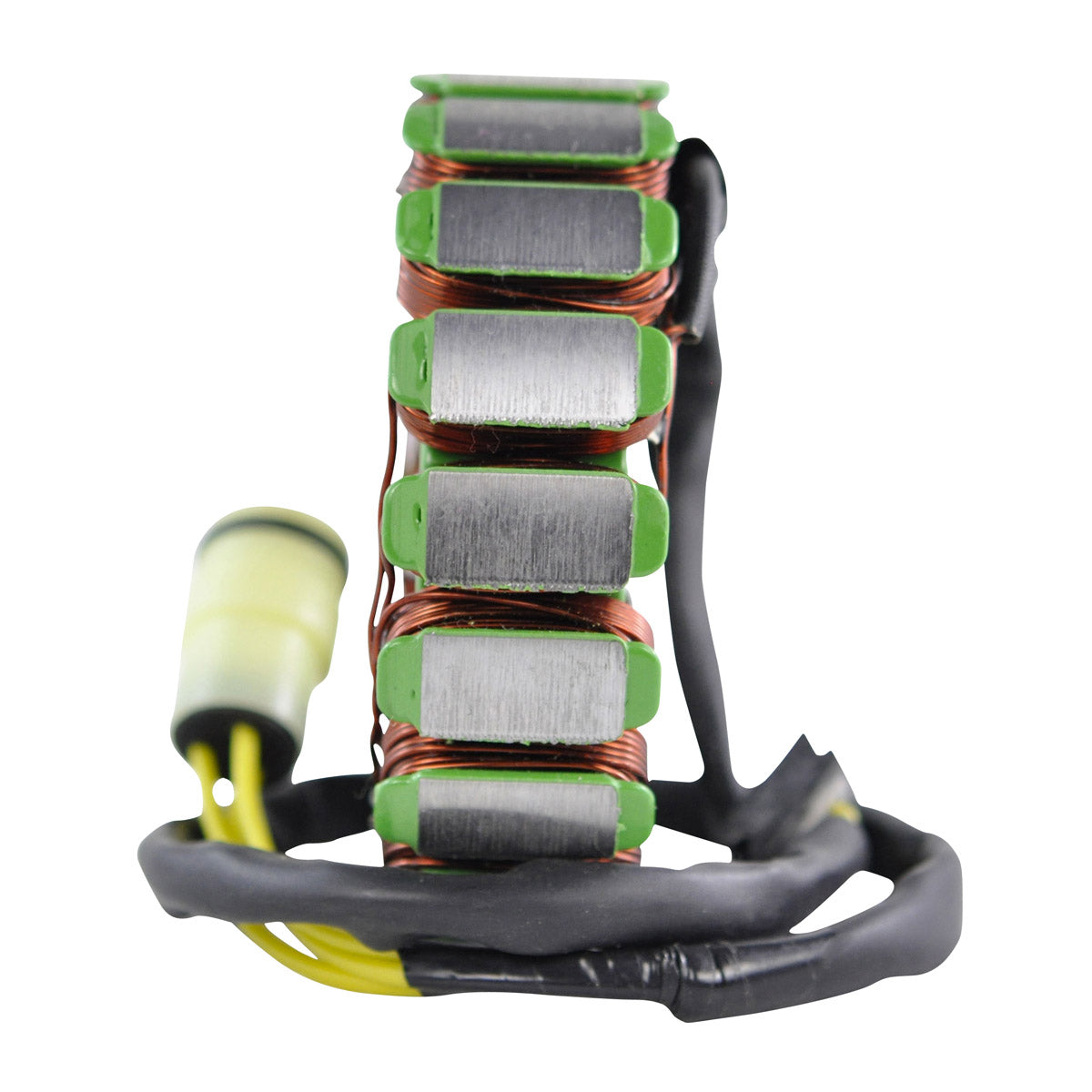

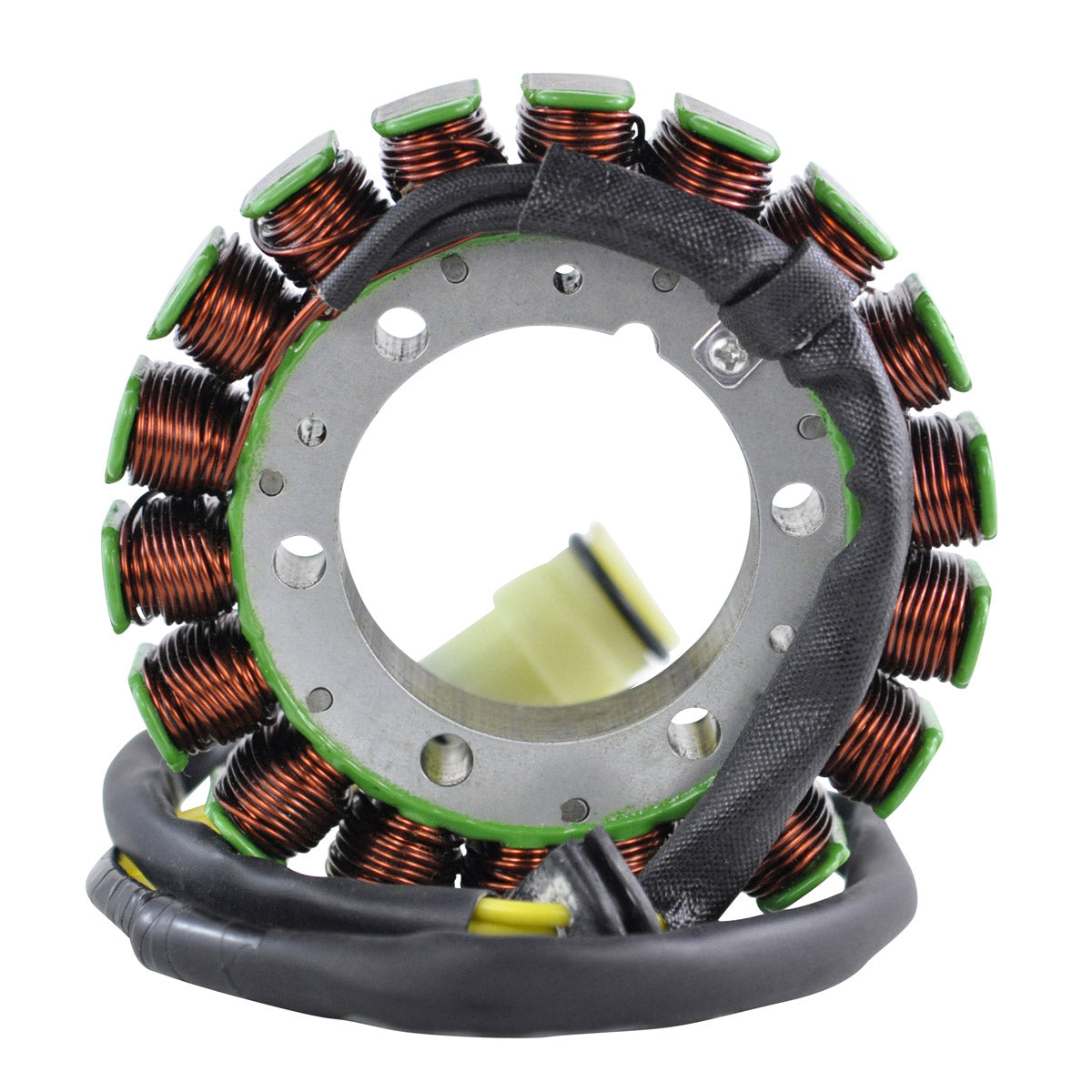

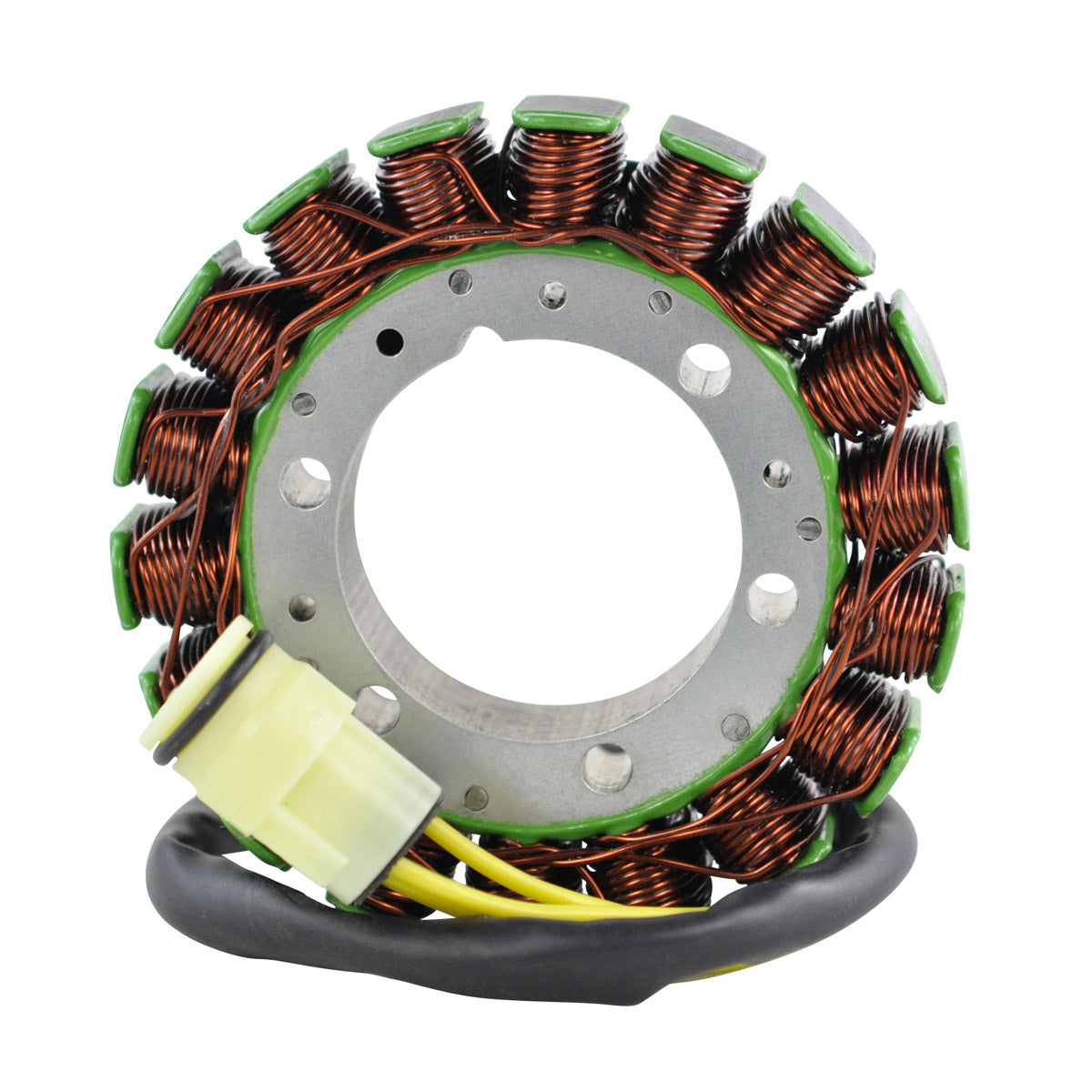

Stator for Can-Am DS 650
Direct replacement stator for the Can-Am DS 650, 2000-2007
This is a brand new stator for the Can-Am DS 650 built between 2000 and 2007, supplied as RMSTATOR part RM01200. It is a direct replacement for your original unit: the same 53 mm interior diameter, 114 mm exterior diameter and 24 mm thickness, with the same three-wire output, so it drops onto the factory mounting points and connects through the supplied plug.
The stator is built on the highest grade lamination materials and wound with the highest grade copper windings, rated to resist 200 degrees Celsius - the heat inside a stator cover is what kills most original units, so the winding rating matters more than anything else on the spec sheet. The connector and rubber grommet are supplied with the stator.
Key Features
- Brand new stator, direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

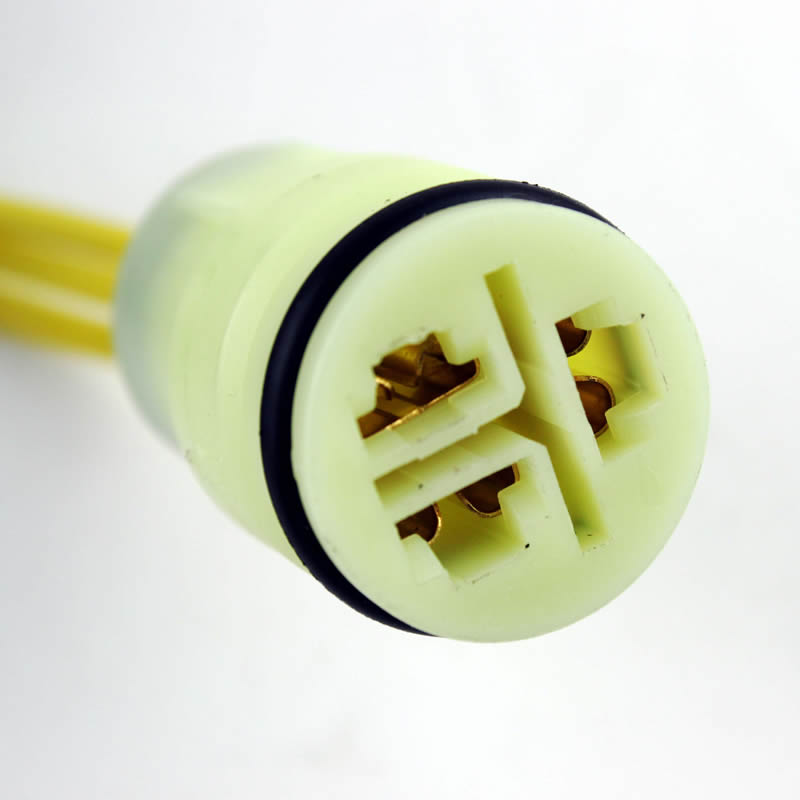

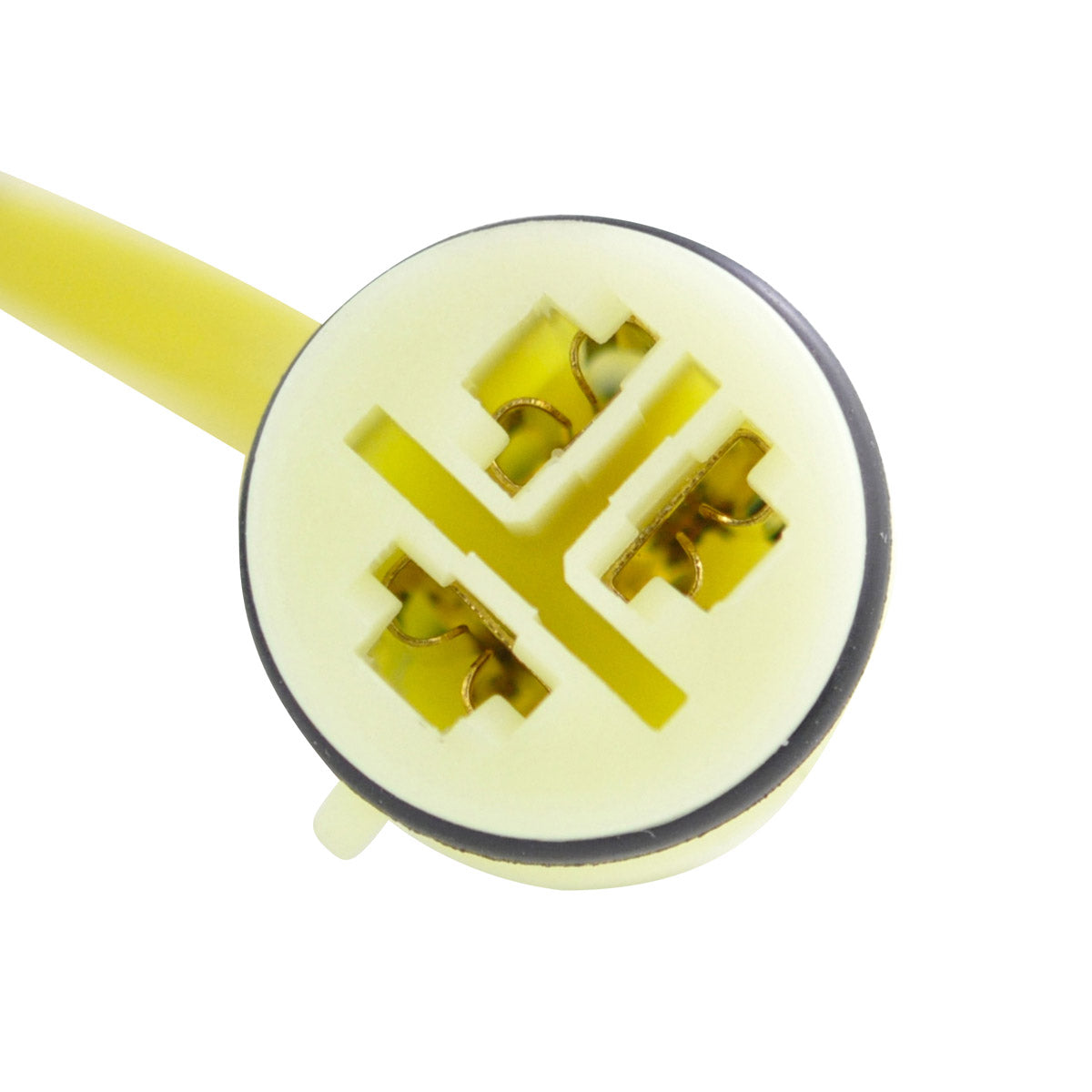

- Connector included
- Rubber grommet included
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 53 mm |
| Exterior diameter | 114 mm |
| Thickness | 24 mm |
| Length of wires, stator to grommet | 100 mm |
| Length of wires, grommet to plug | 410 mm |
| Number of wires | 3 |
| Number of plugs | 1 |
| Number of pins | 3 |
| Alternator resistance, yellow to yellow | 0.4 ohms plus or minus 20% |
| Copper winding temperature rating | 200 degrees Celsius |
| Part number | RM01200 |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Can-Am DS 650 | 2000-2007 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 420296520 | Can-Am |
Frequently Asked Questions
Does this stator fit without modification?
Yes. It is a direct replacement for the original unit on the 2000-2007 DS 650 and uses the factory mounting points and the supplied connector, so no cutting, splicing or drilling is needed.
What is included?
The stator, the connector and the rubber grommet.
How can I tell my old stator has failed?
Check it with a multimeter. The three alternator wires should read about 0.4 ohms plus or minus 20% wire to wire, and none of them should show continuity to the stator body. An open circuit, a short to earth, or a charging voltage that will not rise with engine speed all point to a failed stator.
Which OEM part number does this replace?
It cross references to Can-Am 420296520. Check the number on your original unit before ordering.
