Stator 480W for Can-Am Outlander, Renegade and Defender
Can-Am Outlander 450 / 570 MAX / L, Renegade 570 and Defender HD5 500 - 2015 to 2023

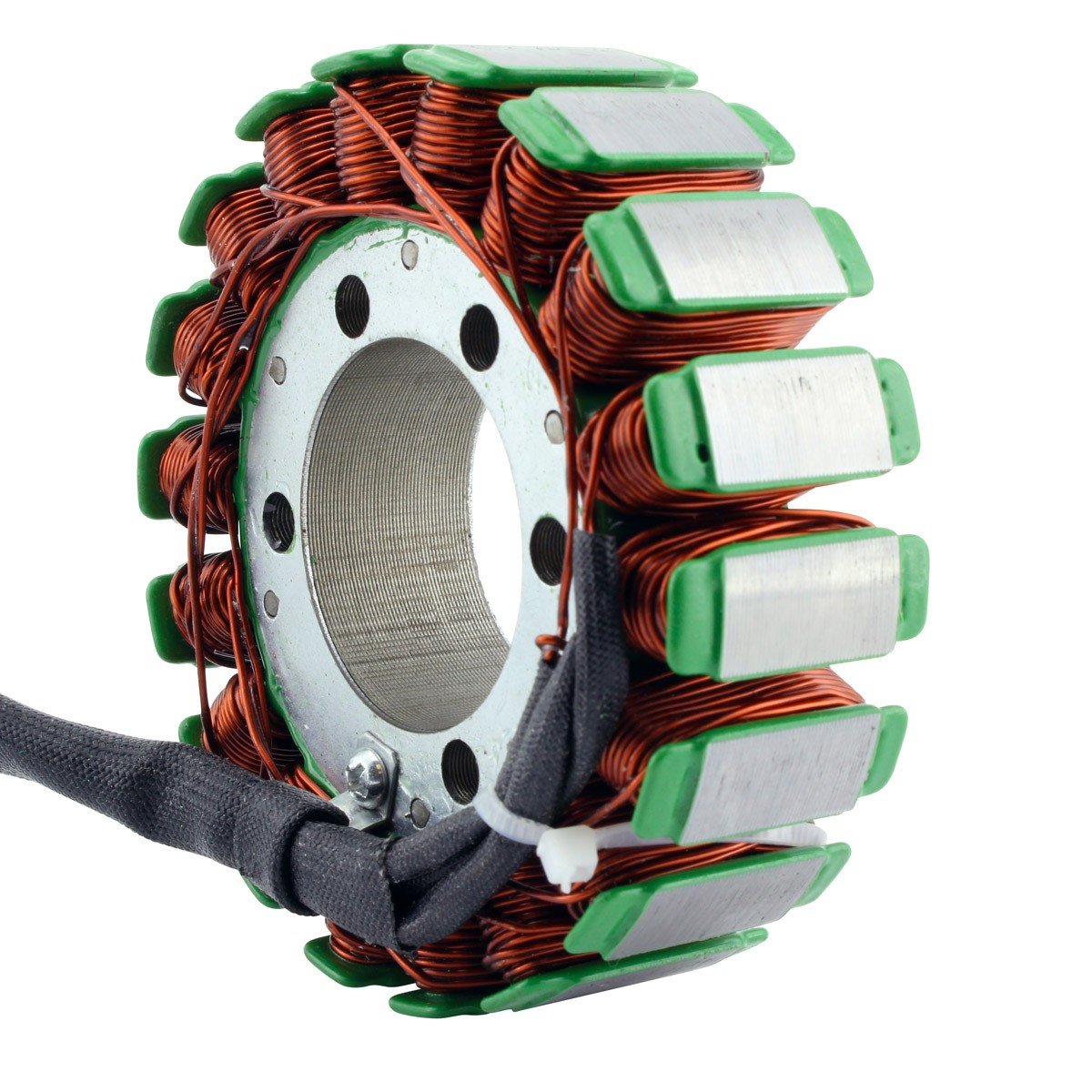

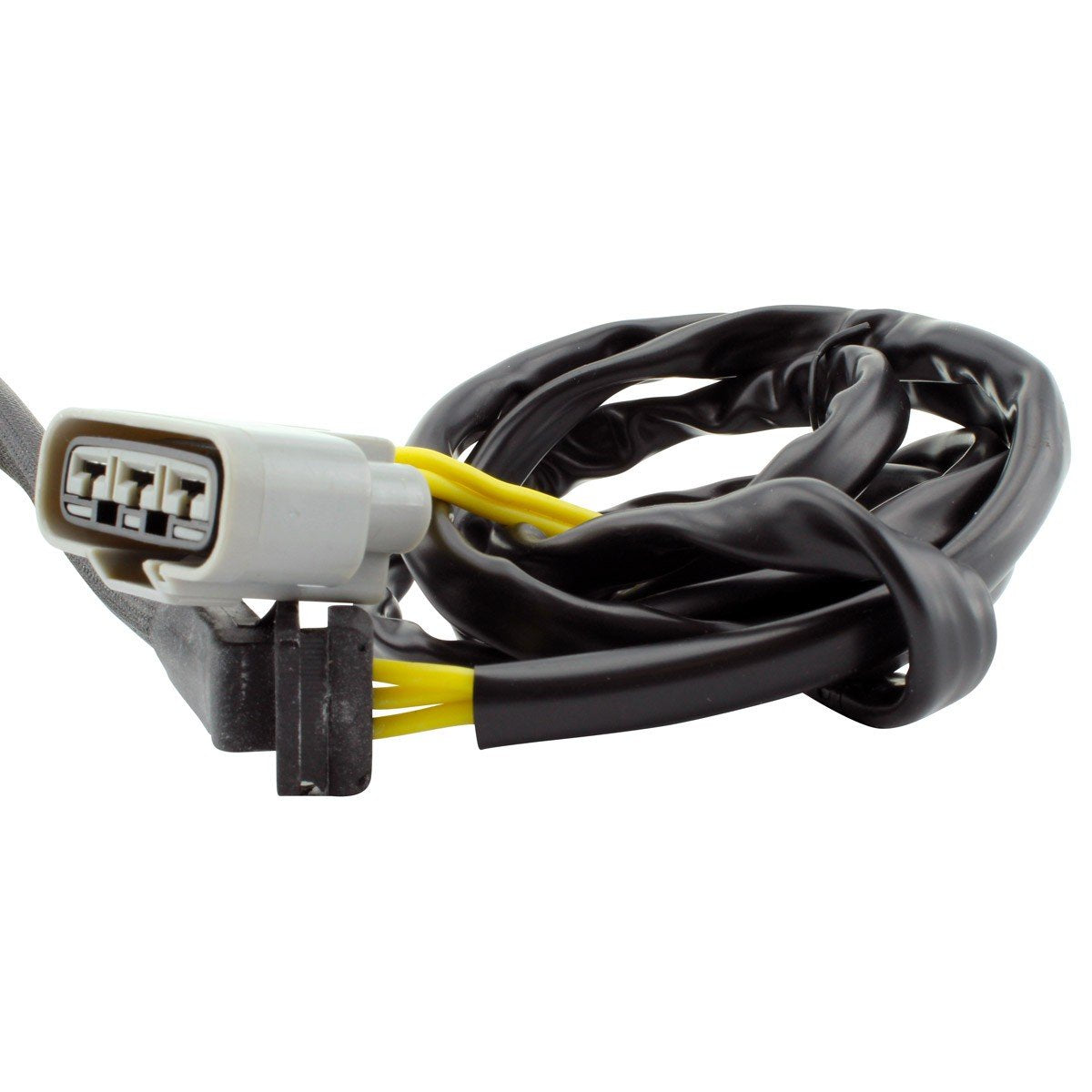

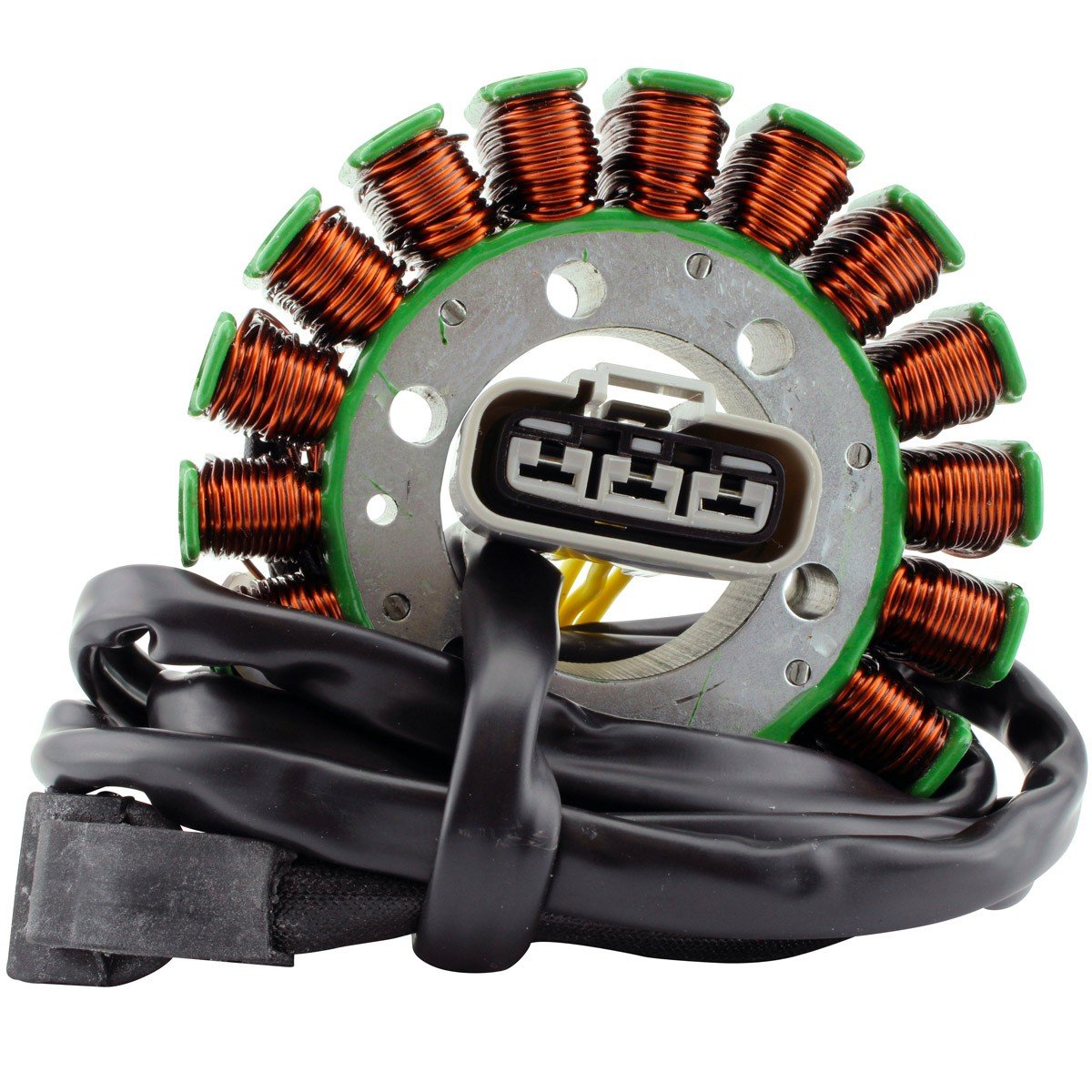

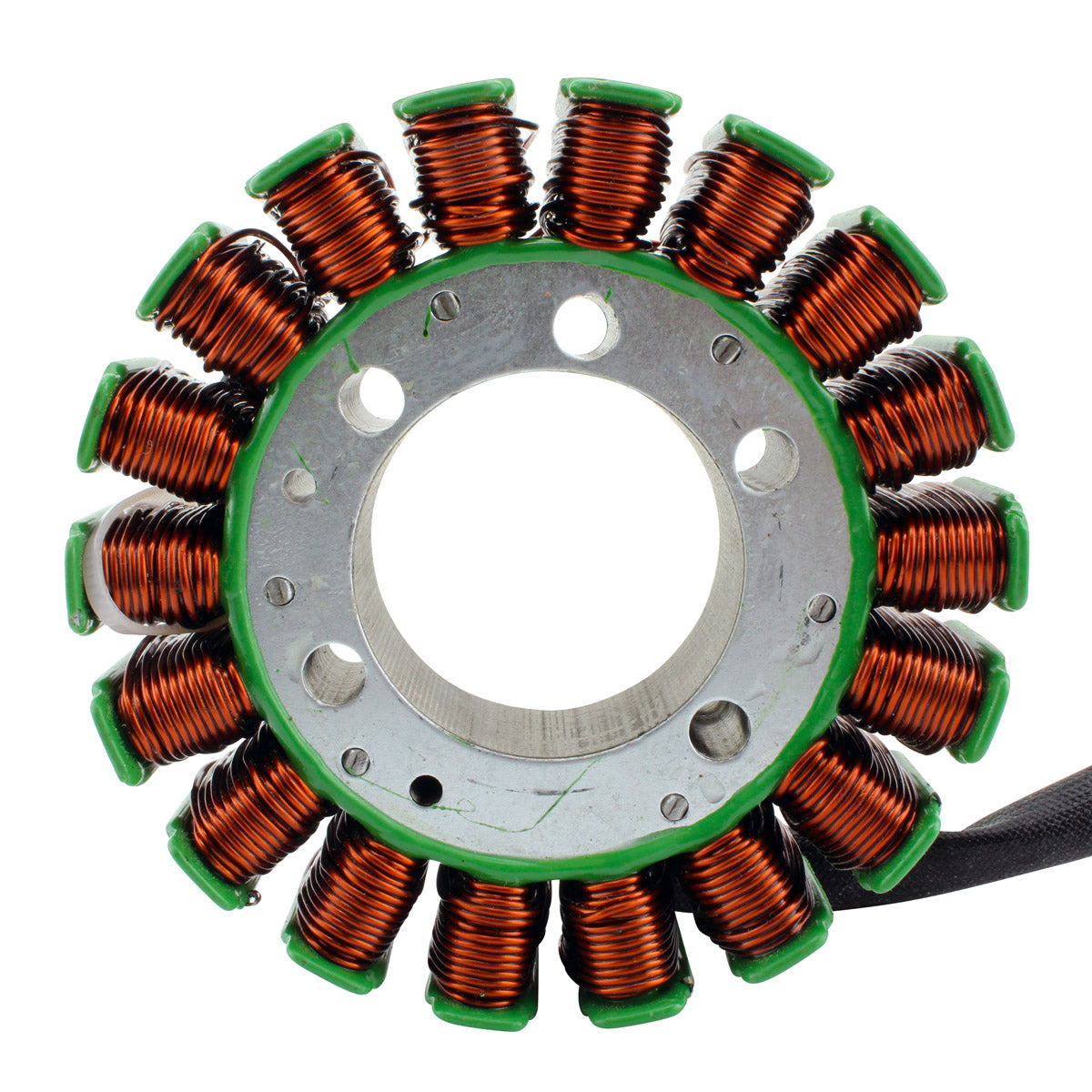

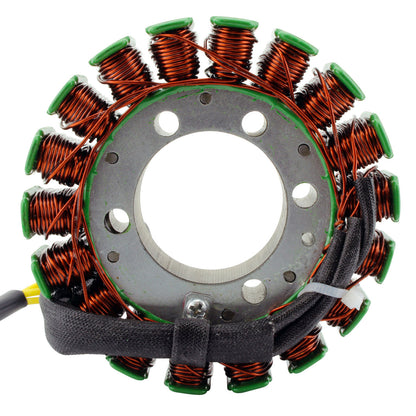

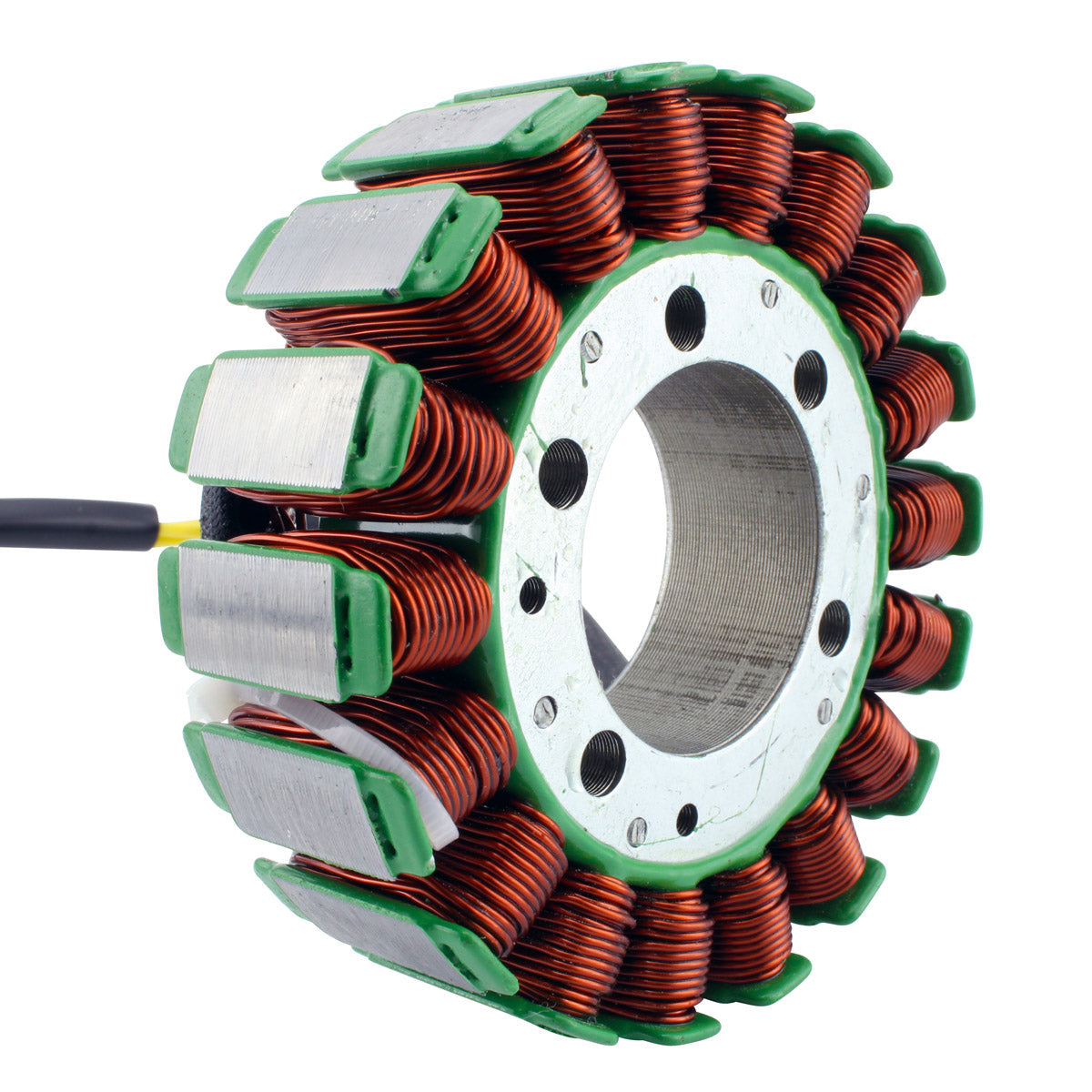

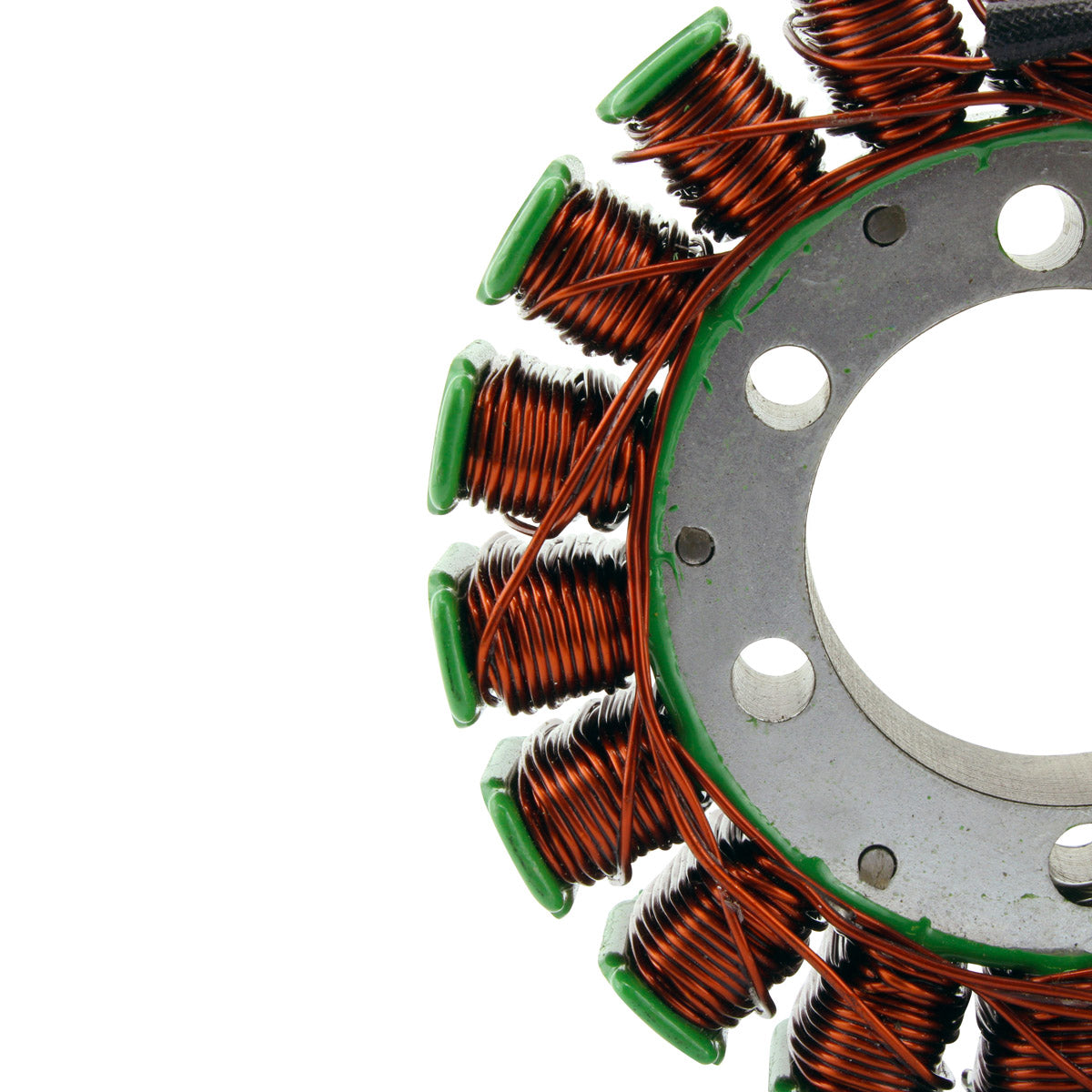

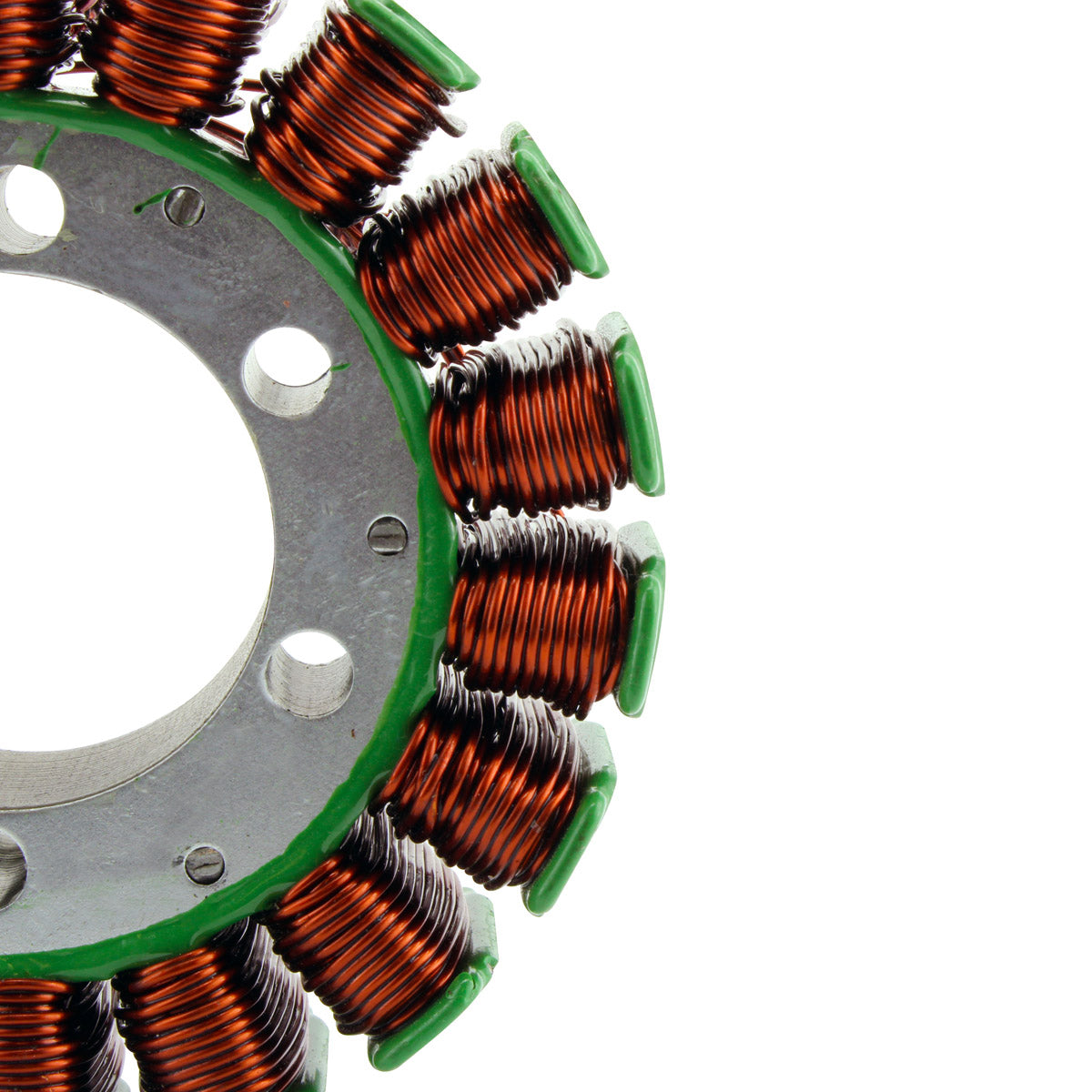

This is a brand new aftermarket 480 watt stator for the Can-Am Outlander 450 and 570 in standard, MAX and L forms, the Renegade 570 and the Defender HD5 500. It is a direct replacement for the original unit - plug-and-play, direct fit and easy to install - and it comes with the connectors and the rubber grommet already fitted.

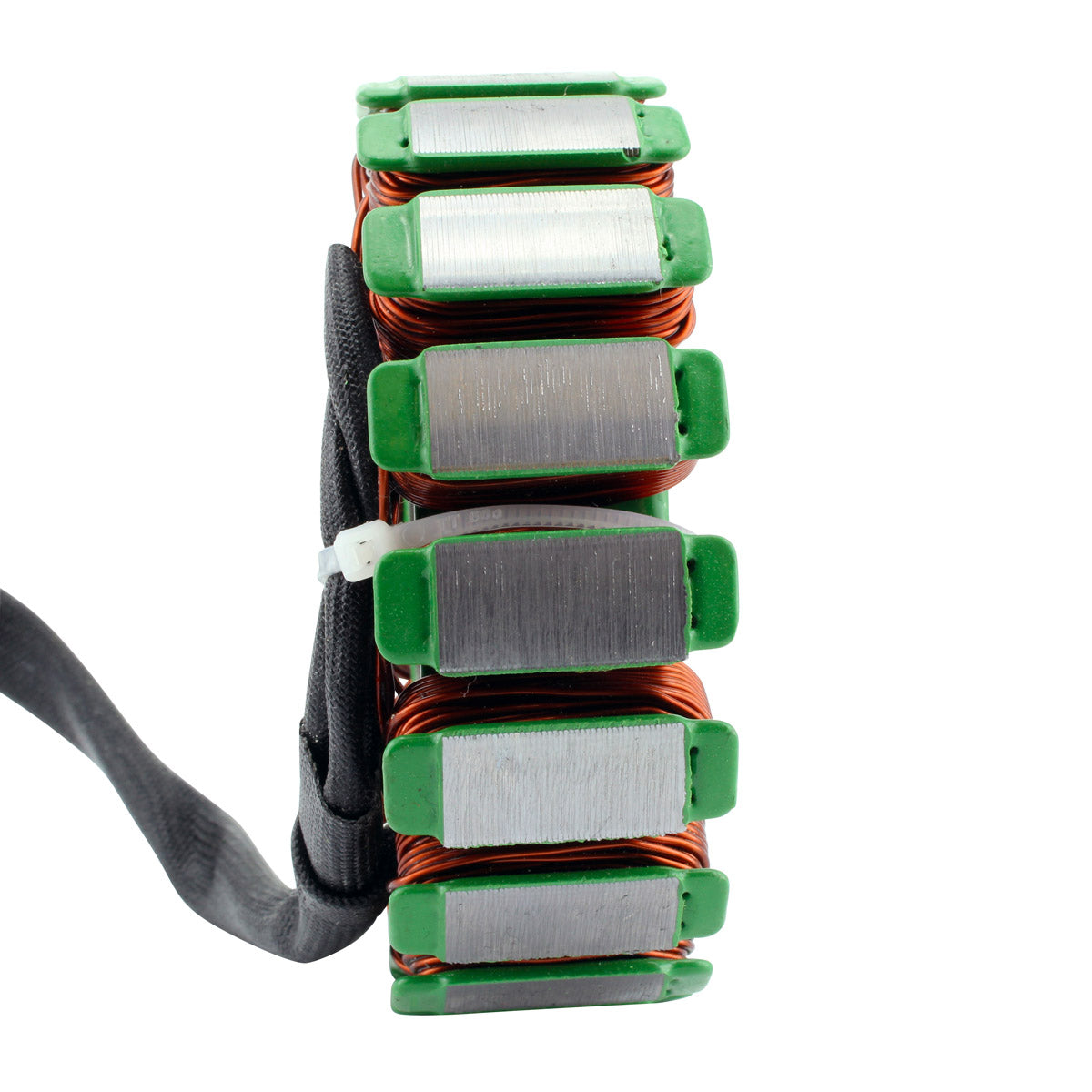

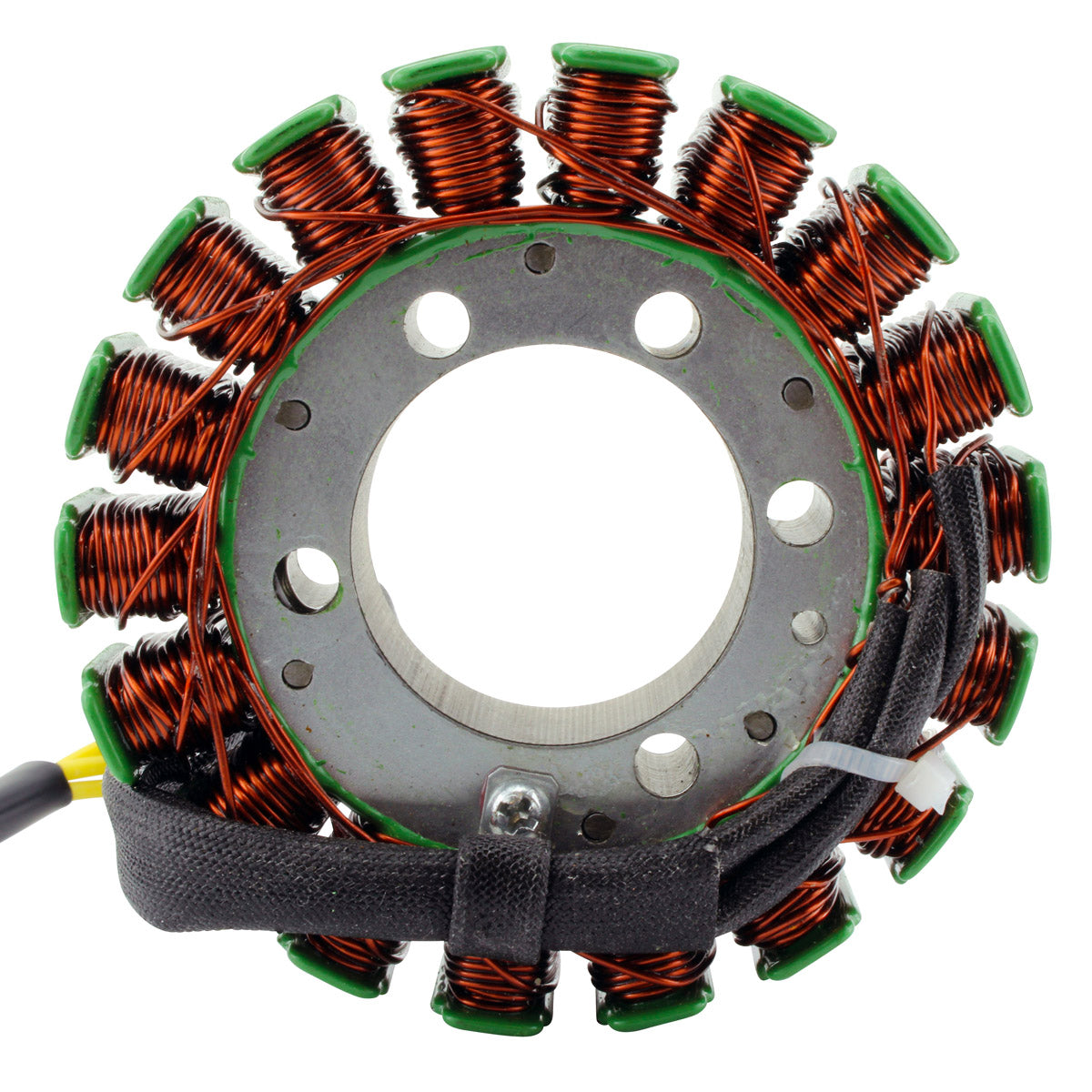

The stator is the fixed winding assembly inside the engine that generates the AC current your charging system rectifies into DC. This is an 18-pole, three-phase unit rated at 480 watts, which is what allows these machines to run a winch, heated grips and auxiliary lighting without flattening the battery. When a stator starts to break down you tend to see the symptoms under load first: a battery that goes flat after a day of winch work, lights that dim at low revs, a charge warning that comes and goes, and eventually a machine that will not restart. This unit is wound with the highest grade of copper, insulated to withstand 200 degrees Celsius, and built on high grade lamination materials, and its 1420 mm lead from the grommet to the plug means the loom routes exactly as the original did.
Key Features
- 480 watt output, 18-pole three-phase stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation

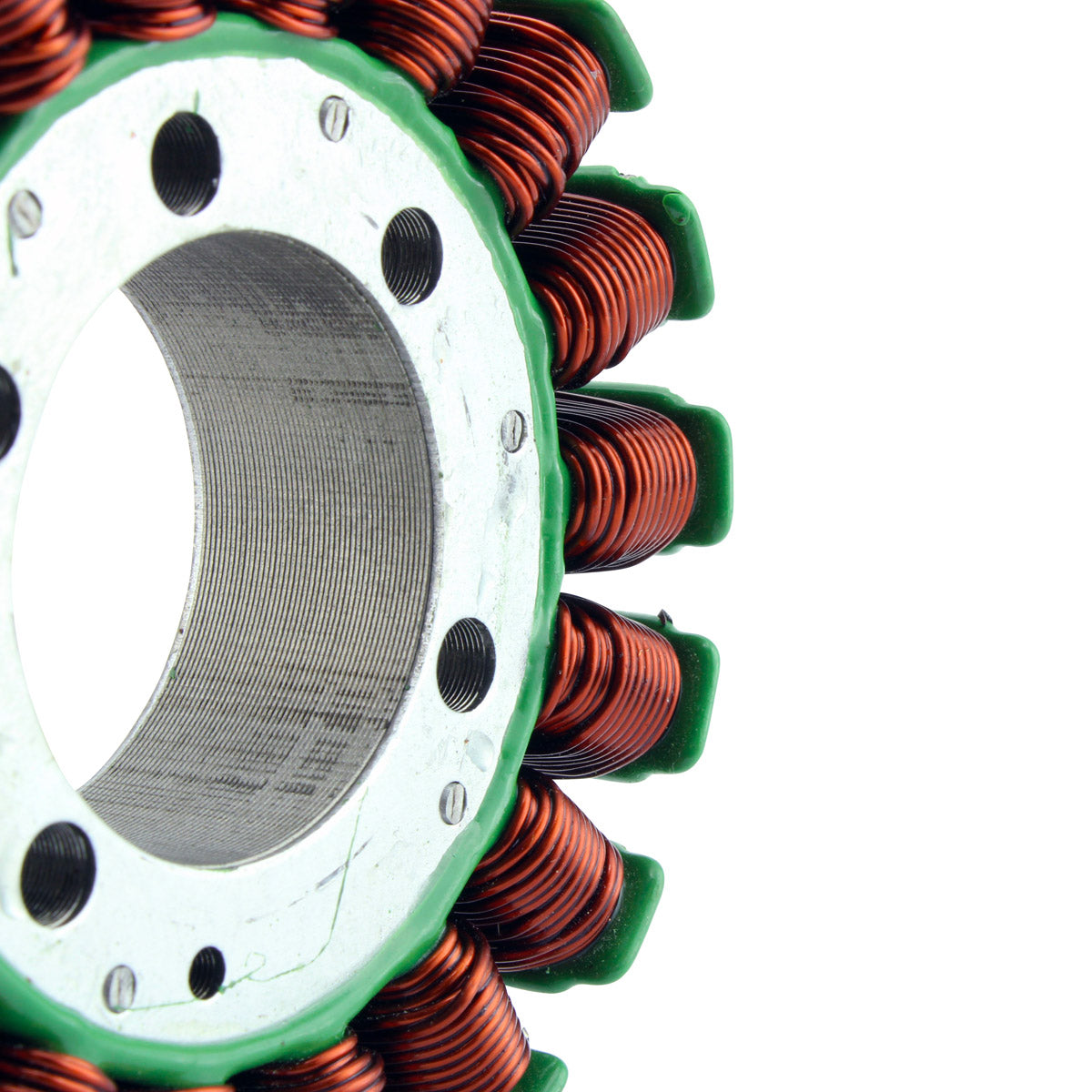

- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Connectors included

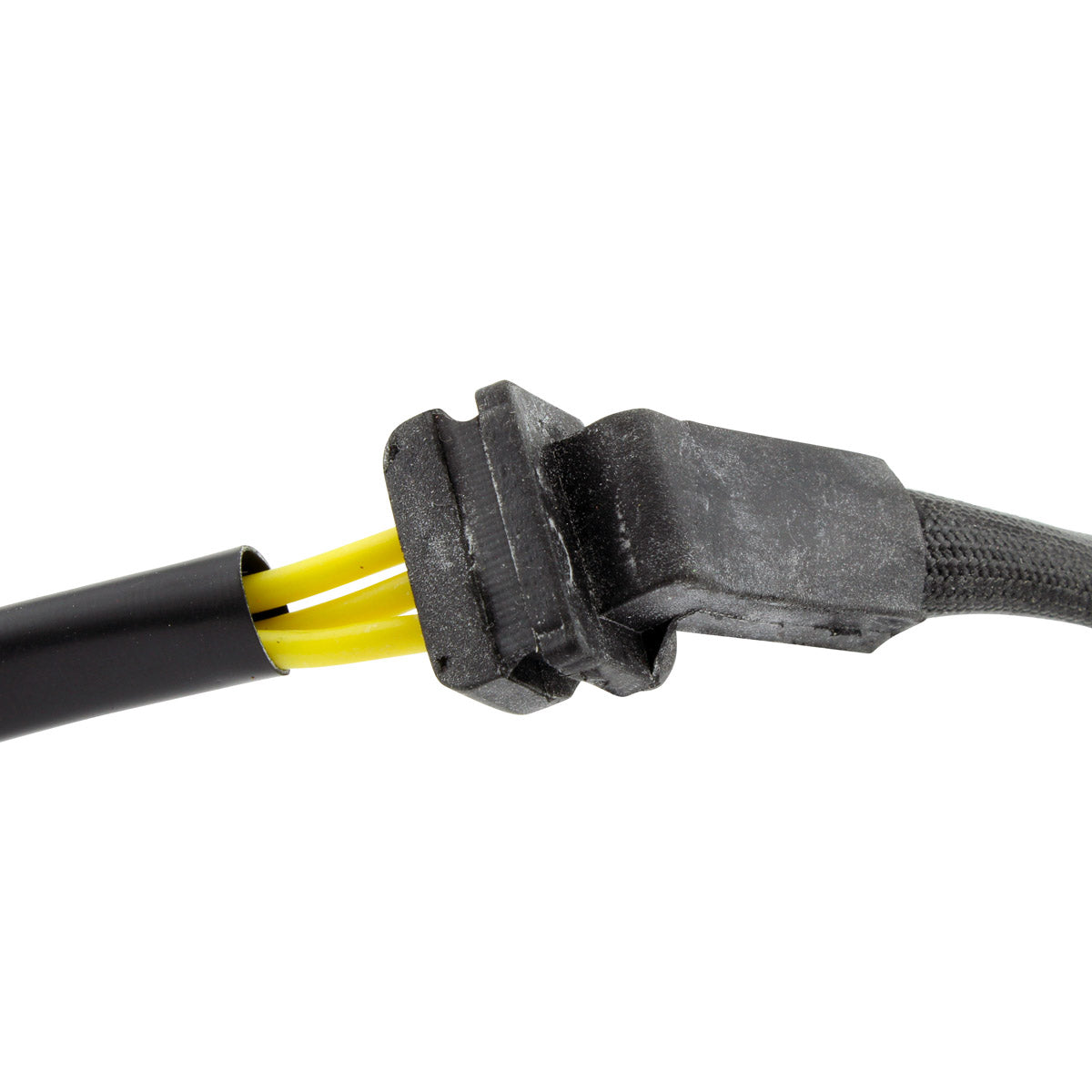

- Rubber grommet included
- Dispatched from the UK with technical fitment support
Technical Specs
| Specification | Detail |
|---|---|
| SKU / Part Code | RMS010-106349 |
| Power output | 480 watts |
| Number of poles | 18 |
| Number of wires | 3 |
| Number of plugs | 1 |
| Number of pins | 3 |
| Alternator resistance | Yellow to yellow = 0.7 ohms +/- 20% |
| Interior diameter | 42 mm |
| Exterior diameter | 104 mm |
| Thickness | 24 mm |
| Length of wires stator to grommet | 155 mm |
| Length of wires grommet to plug | 1420 mm |
| Condition | New aftermarket |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Can-Am Outlander 450 | 2015-2023 |
| Can-Am Outlander 570 | 2015-2023 |
| Can-Am Outlander MAX 450 / 570 | 2015-2023 |
| Can-Am Outlander L 450 / 570 | 2015-2023 |
| Can-Am Renegade 570 | 2015-2023 |
| Can-Am Defender HD5 500 | 2015-2023 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 420685921 | Can-Am |
Frequently Asked Questions
Will this fit without modification?

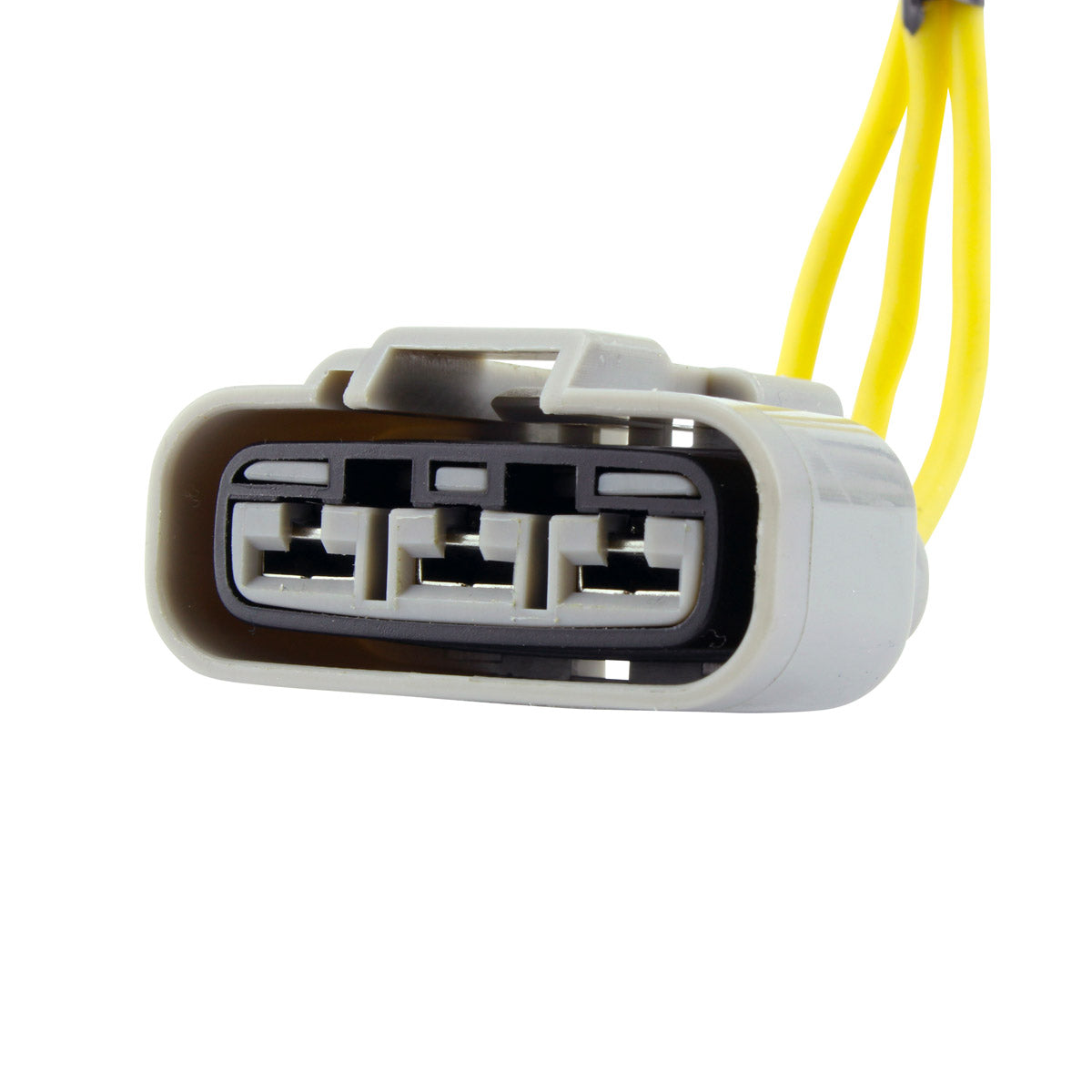

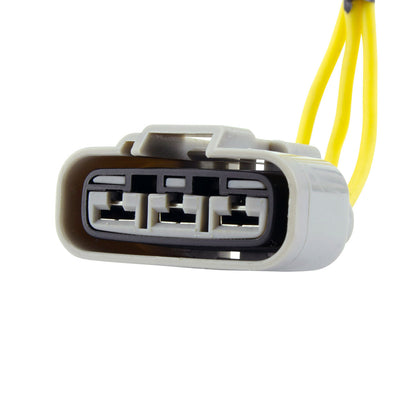

Yes, on the applications listed above. It uses the same single three-pin plug, the same 104 mm outside diameter and the same lead lengths as the original, so it drops straight in with no splicing. Compare Can-Am part number 420685921 against the number on your original unit before ordering.
What is included?
The stator with its connectors and rubber grommet fitted. Reuse the original fixings and, if it is in good condition, the original sealing washer arrangement.
How do I confirm my old stator has failed?
With the engine off and the plug disconnected, measure resistance between each pair of yellow wires - all three readings should be close to 0.7 ohms, plus or minus 20 per cent, and should match each other. Then check from each yellow wire to the stator body: any continuity there means a winding has shorted to earth and the stator is finished.
Is 480 watts enough for a winch and accessories?
480 watts is the output of the original charging system on these models, so this stator restores the machine to its factory capacity. Bear in mind that a winch draws far more than the charging system produces while it is pulling - the battery covers the shortfall and the stator replaces the charge afterwards, so a healthy battery matters as much as a healthy stator.
