Stator for Can-Am Ryker 600 & 900 2019-2022 - Replaces 420296913
Stator for Can-Am Ryker 600 & 900 2019-2022 - Replaces 420296913
SKU:RMS010-106979
Free shipping over £150. Terms apply
Couldn't load pickup availability

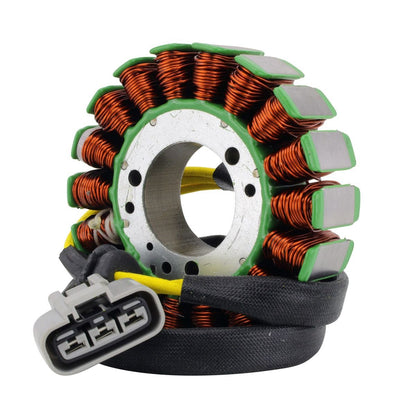

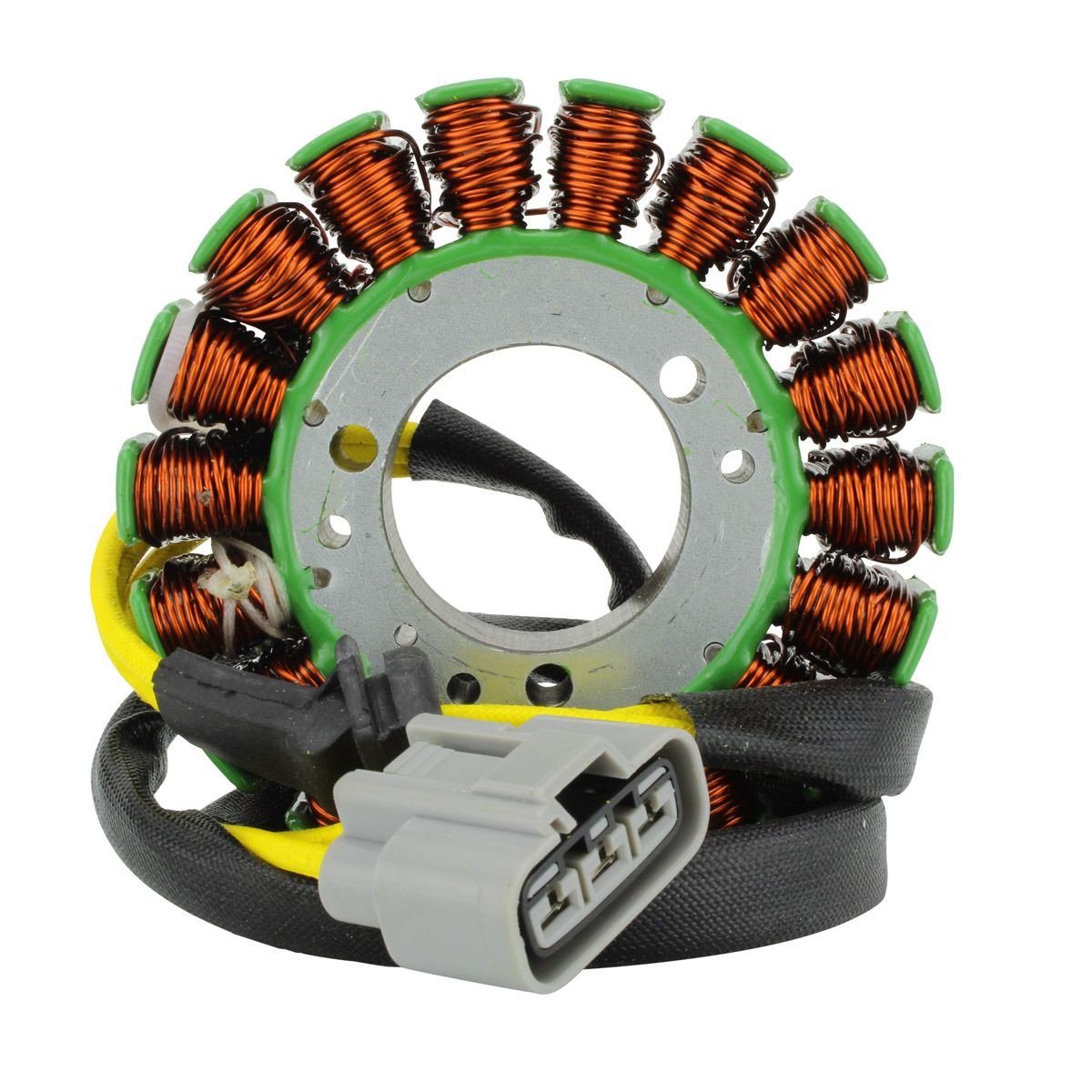

400 Watt Generator Stator for Can-Am Ryker
Ryker 600 and Ryker 900 - 2019 to 2022
A brand new aftermarket generator stator rated at 400 watts, supplied as a direct replacement for the original unit on the Can-Am Ryker 600 and Ryker 900. It is plug-and-play and a direct fit, mounting in the standard position and connecting to the standard three-pin plug. Every product we ship is tested before it leaves us.
The connectors and the rubber grommet are included, so nothing else needs to be sourced before the job is started. The Ryker carries a heavy electrical load for its size once lighting, instruments and accessories are accounted for, and a stator that has lost one of its three phases will keep the machine running for a while on a charged battery before it fails to restart. Fitting a complete new 400 watt assembly restores the full output to the regulator rectifier and the battery.
Key Features
- Brand new aftermarket generator stator, not a rewound core
- Rated at 400 watts
- Direct replacement for the original unit - plug-and-play, direct fit, easy installation
- 18 poles, 3 wires, single plug
- Connectors included
- Rubber grommet included
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Power output | 400 watts |
| Interior diameter | 42 mm |
| Exterior diameter | 115 mm |

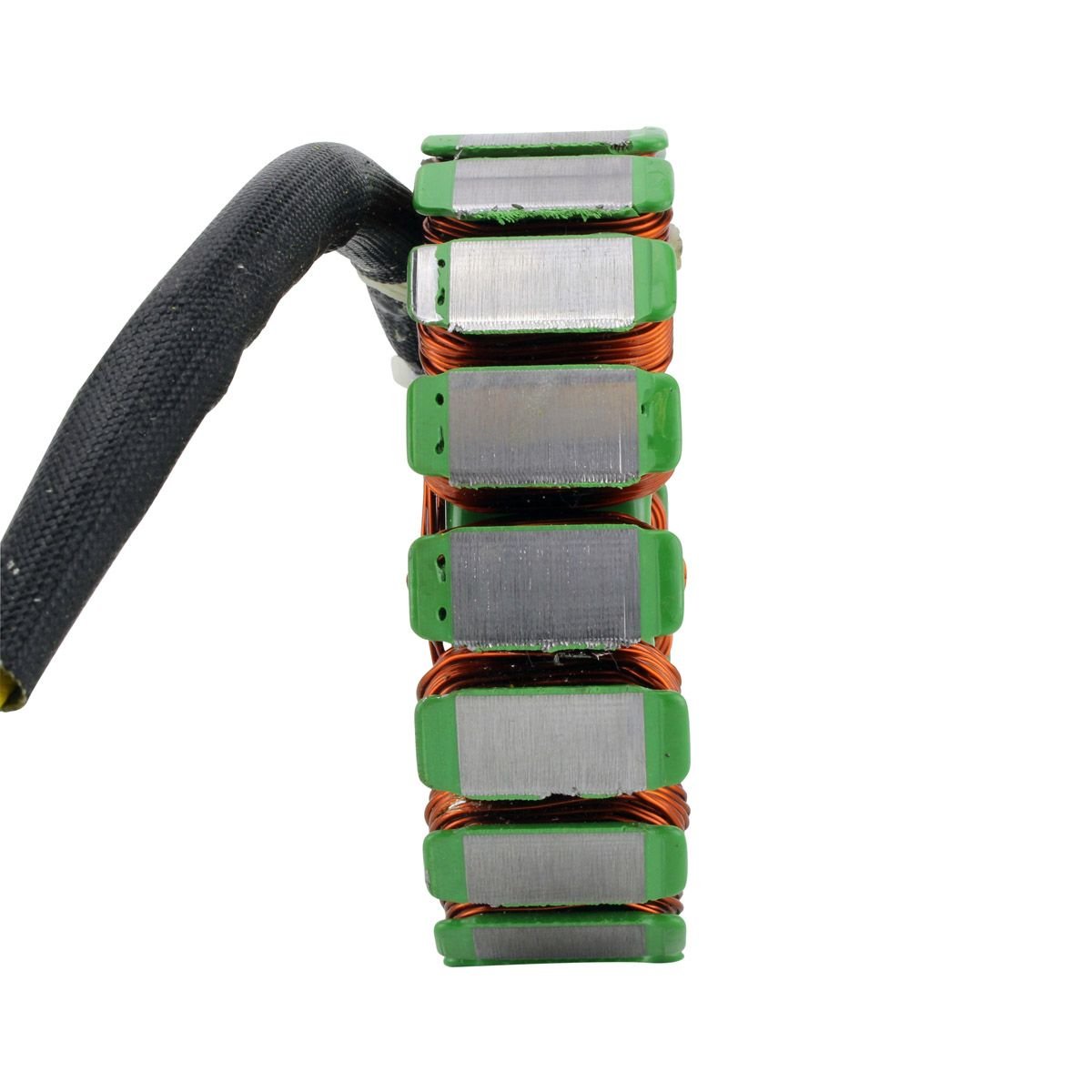

| Thickness | 21 mm |
| Wire length, stator to grommet | 145 mm |
| Wire length, grommet to plug | 580 mm |
| Number of wires | 3 |
| Number of plugs | 1 |
| Number of pins | 3 |
| Number of poles | 18 |
| Alternator resistance, yellow to yellow | 0.5 ohms +/- 20% |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Can-Am Ryker 600 | 2019-2022 |
| Can-Am Ryker 900 | 2019-2022 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 420296913 | Can-Am |
Frequently Asked Questions
Will it fit without modification?
Yes. It is a direct replacement for the original unit on the Ryker 600 and Ryker 900 built between 2019 and 2022. It mounts in the standard position and uses the standard three-pin connector, so the wiring loom does not need to be altered.
What is included?
The 400 watt generator stator, the connectors and the rubber grommet.
How do I tell that the old stator has failed?
The usual signs are a battery that goes flat over a few rides, a charging warning on the display, and eventually a machine that will not restart. With the engine off and the plug disconnected, measure between each pair of yellow wires: the reading should be 0.5 ohms +/- 20%. An open circuit, a short between phases, or continuity from a yellow wire to the stator body confirms that a winding has broken down.
Is one stator used for both the 600 and the 900?
Yes. The Ryker 600 and Ryker 900 share the same 400 watt charging assembly under OEM reference 420296913. Checking that number against your original unit is the quickest way to be certain before ordering.
