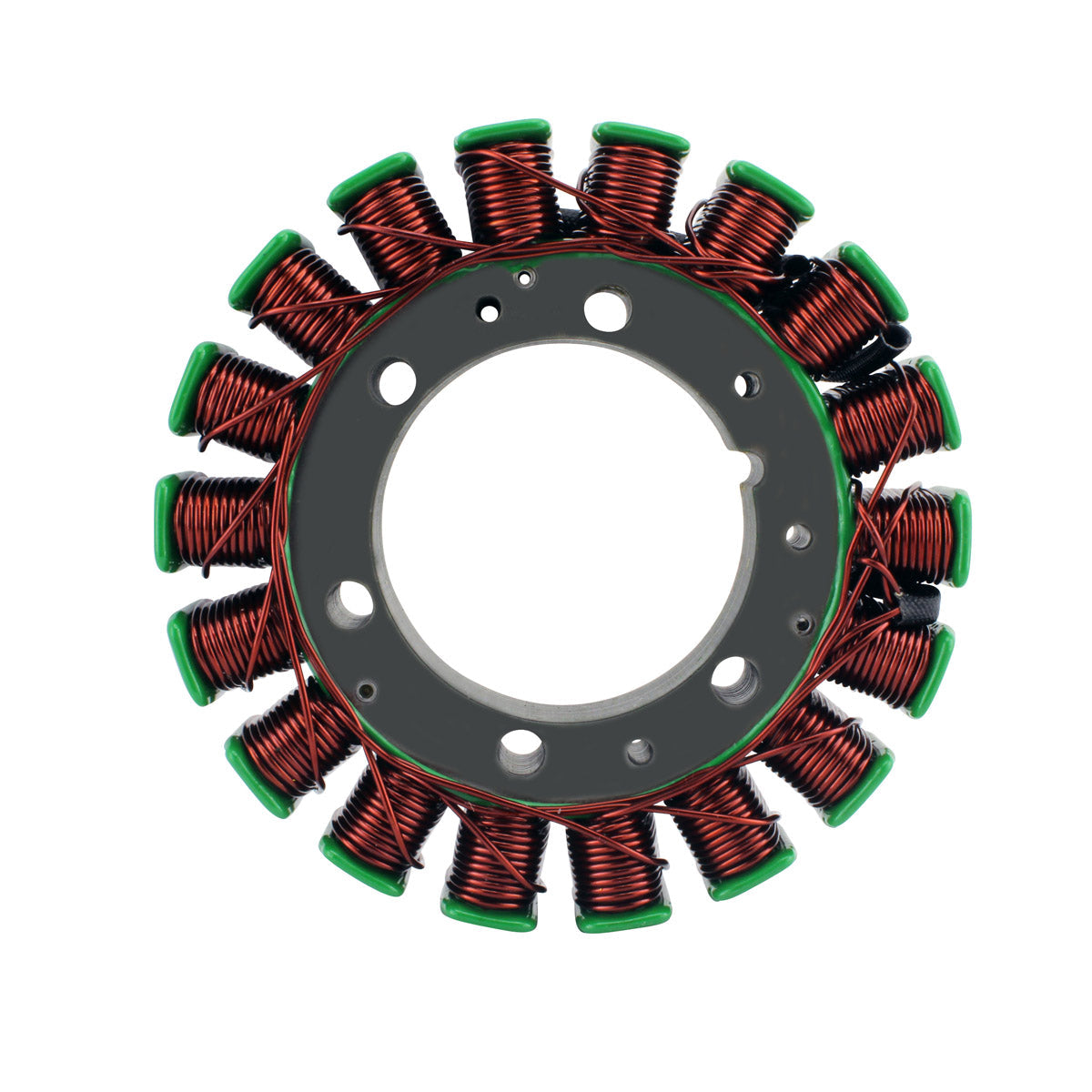

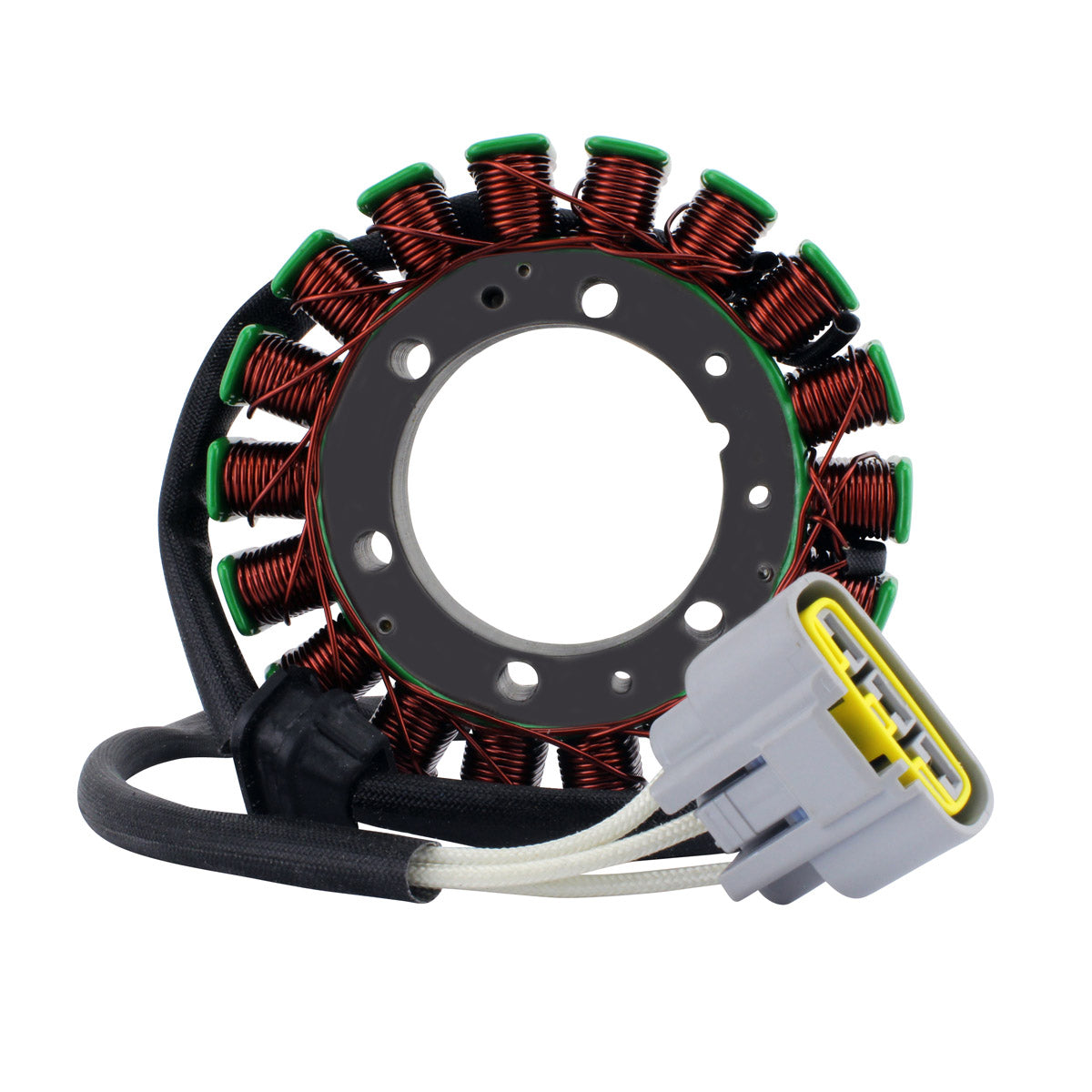

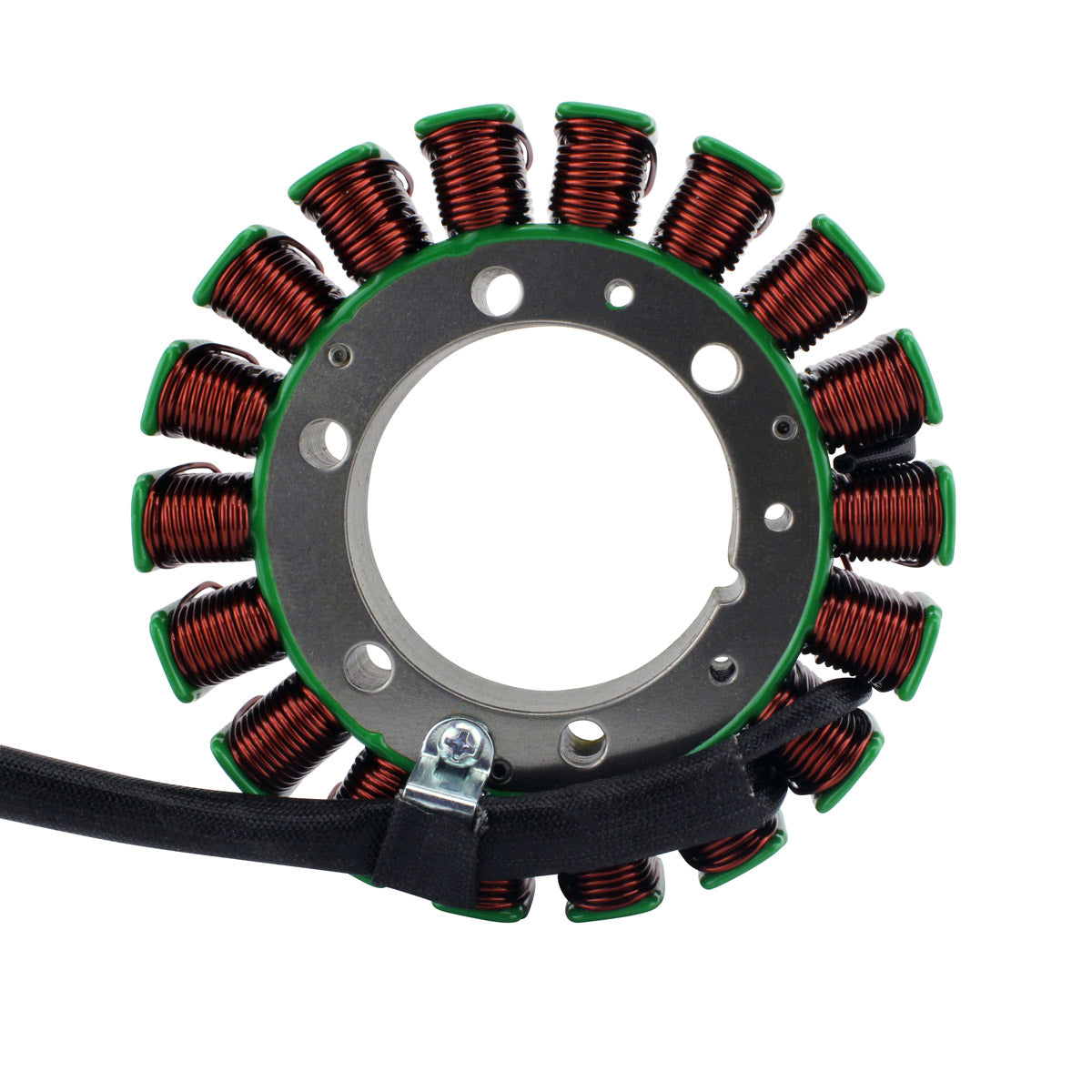

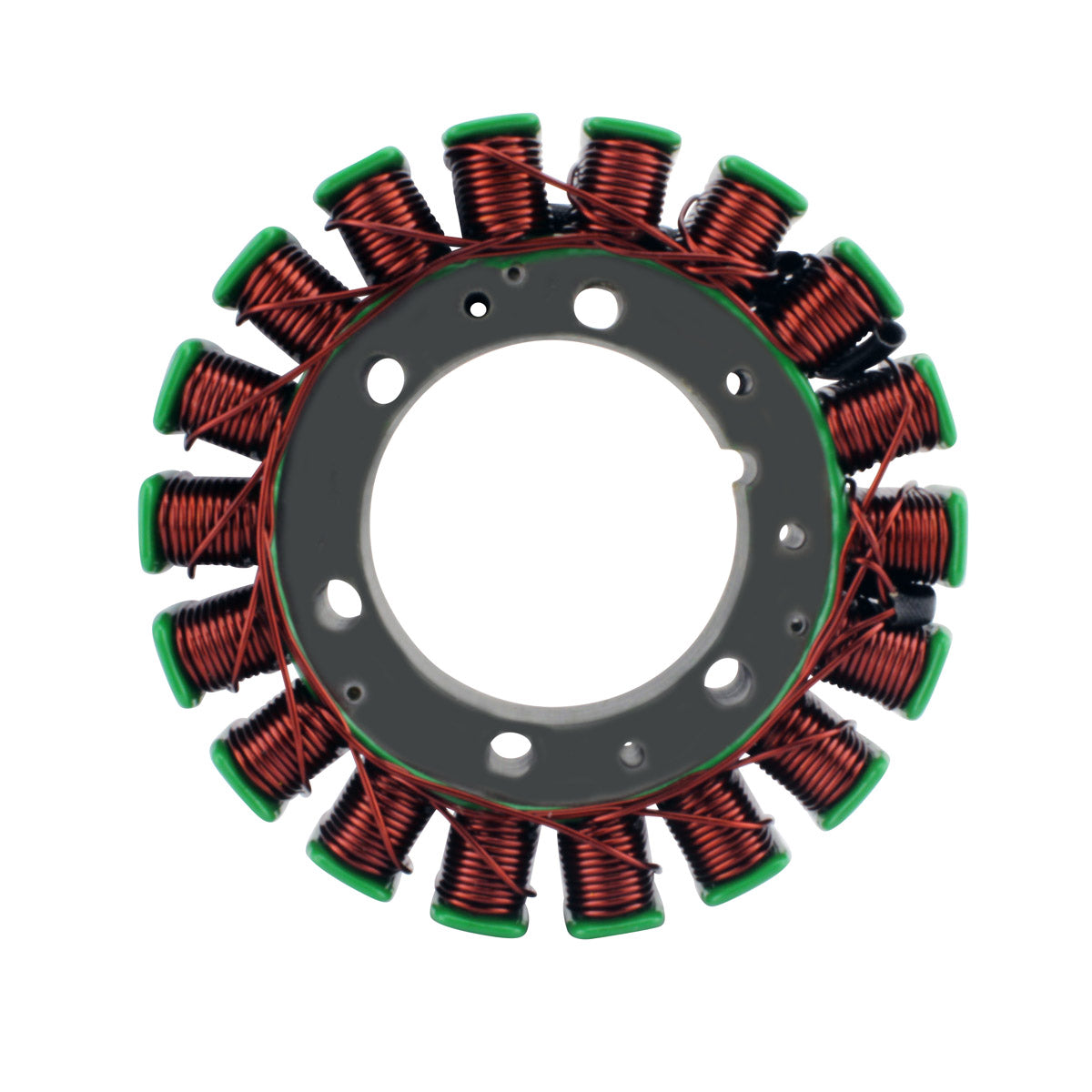

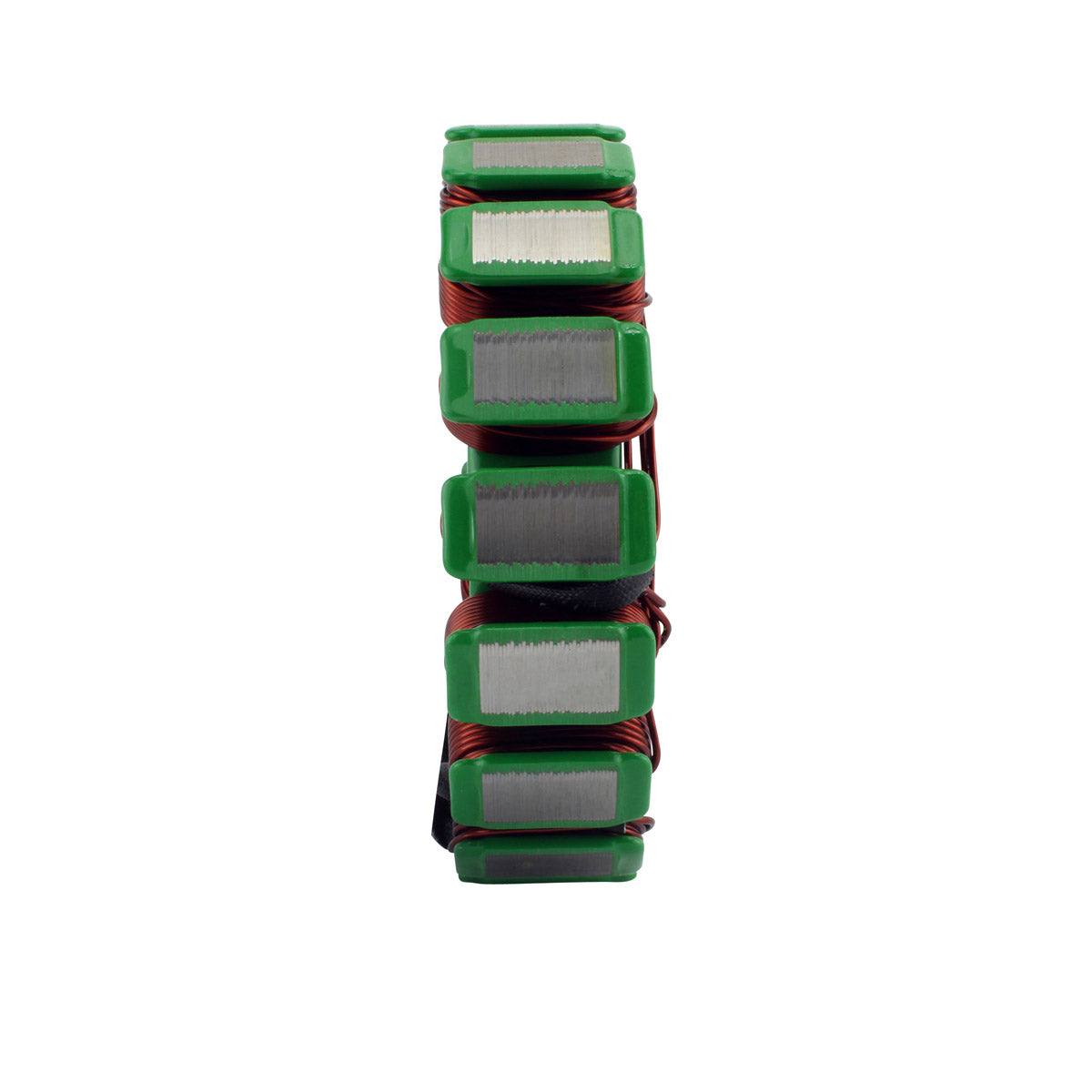

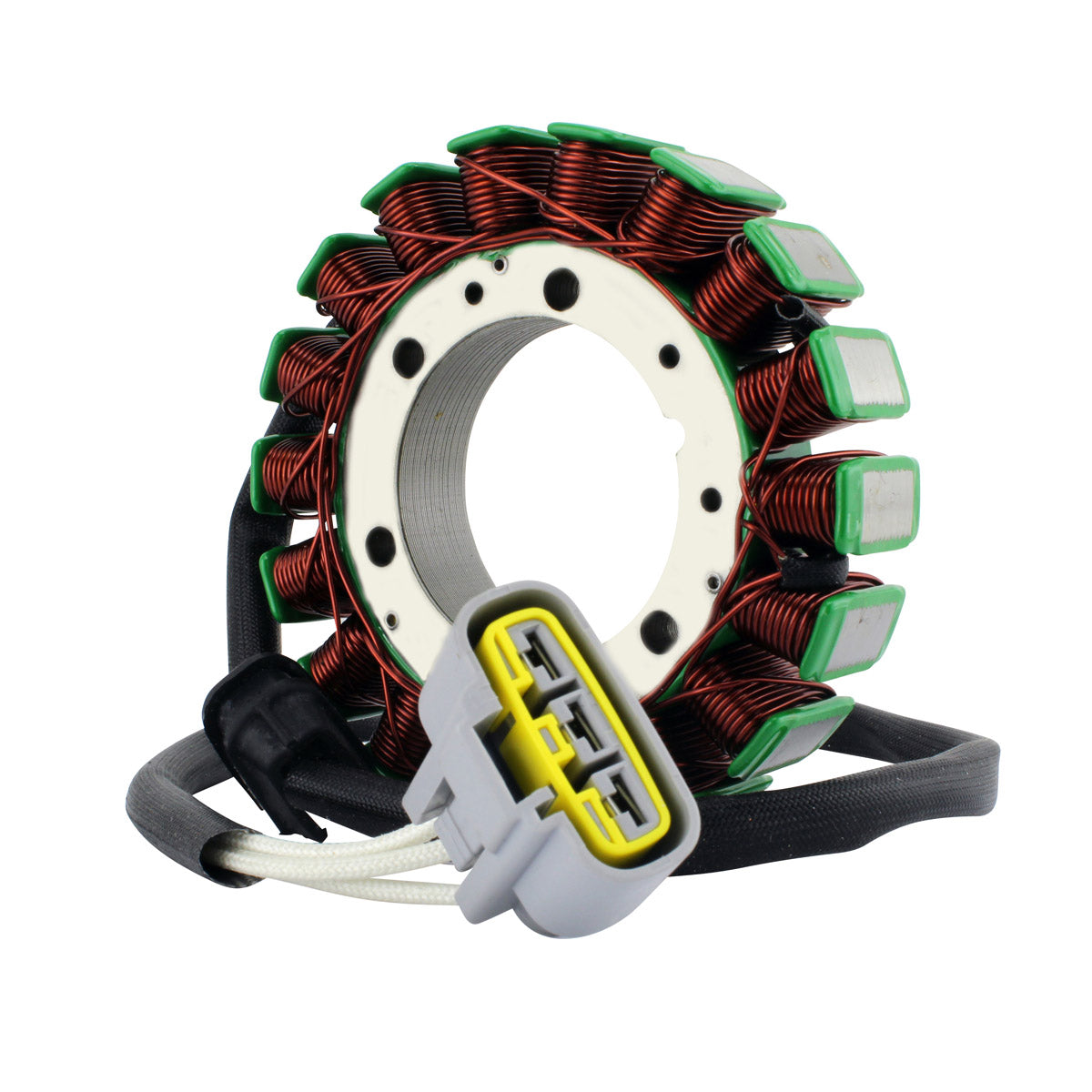

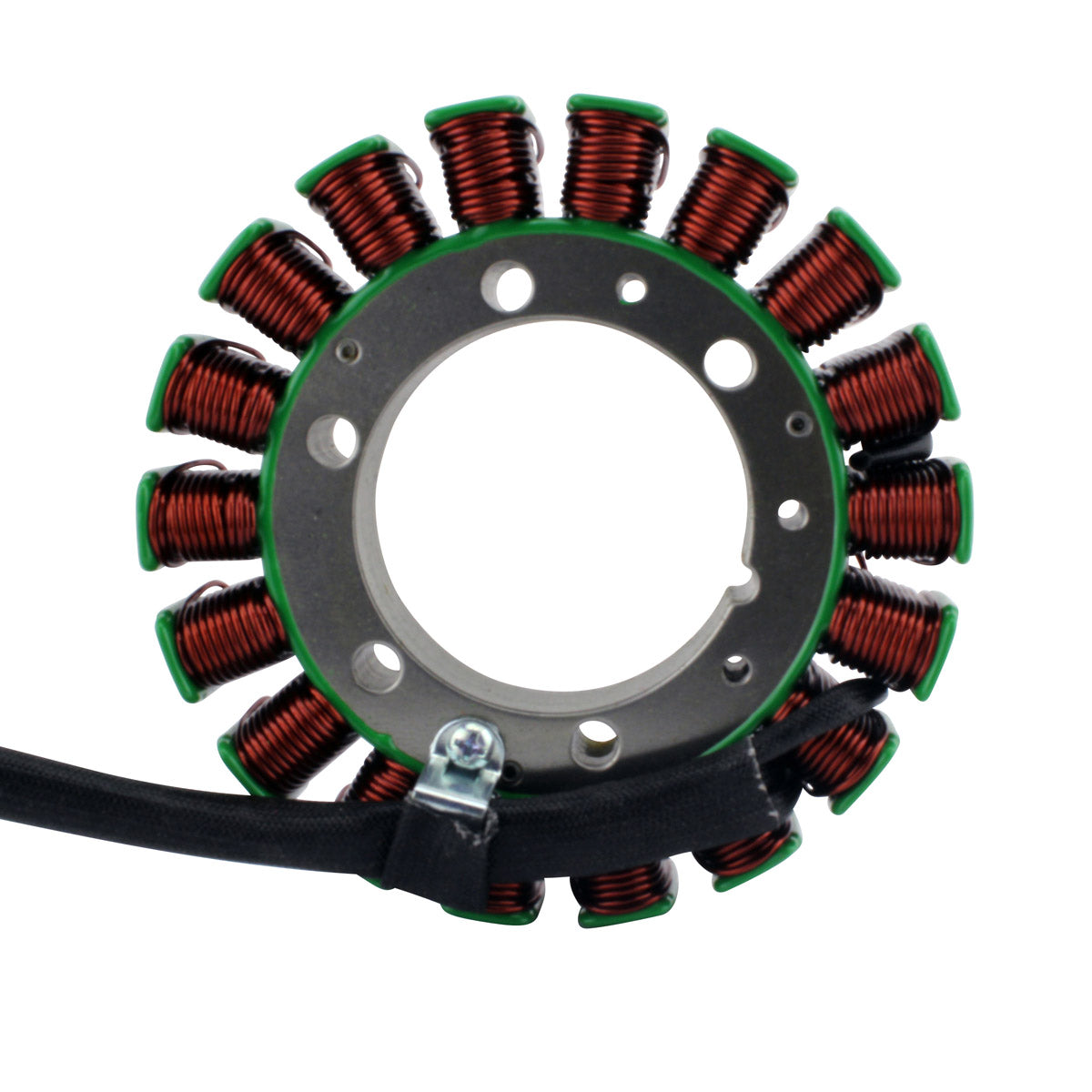

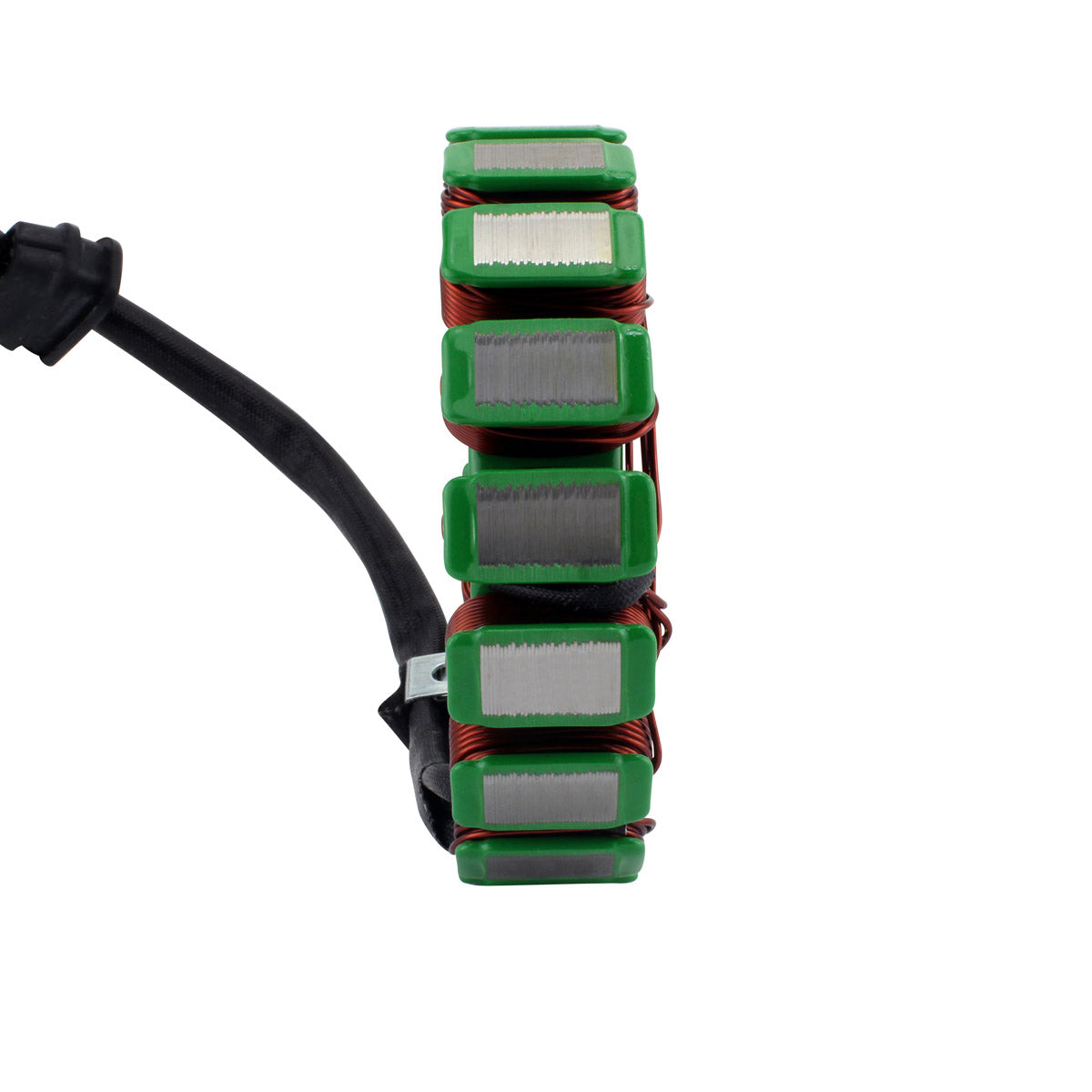

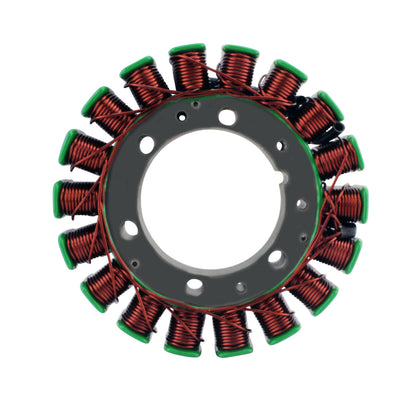

This is a brand new aftermarket stator that is a direct replacement to your original unit on the CFMoto 800 platform, covering the CFORCE, UFORCE, ZFORCE and X8 machines. It installs plug-and-play on the original mounting points and comes with the connectors and a rubber grommet.
The winding is copper resistant to 200 degrees Celsius over high-grade lamination material, which is what a hard-worked utility machine needs from its charging system. Every unit is tested before it is dispatched. This is a three-wire, single-plug alternator stator with eighteen poles, so it carries the whole charging load for the machine - if your CFMoto is flattening batteries, running a low voltage reading at the terminals or losing accessory power under load, the stator is the first thing worth testing.
Key Features
- Direct replacement for the original unit
- Plug-and-play installation

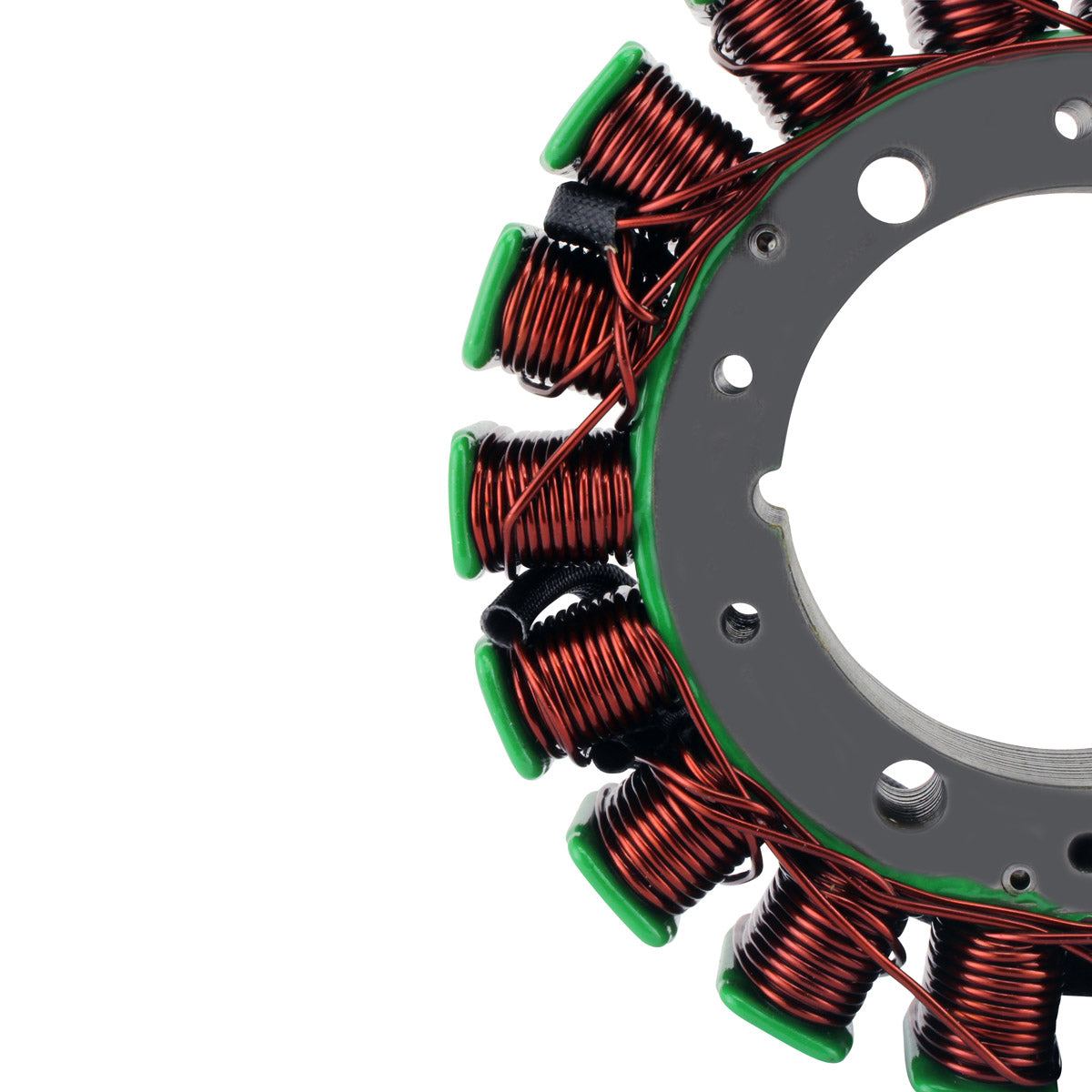

- Copper winding resistant to 200 degrees Celsius
- High-grade lamination materials

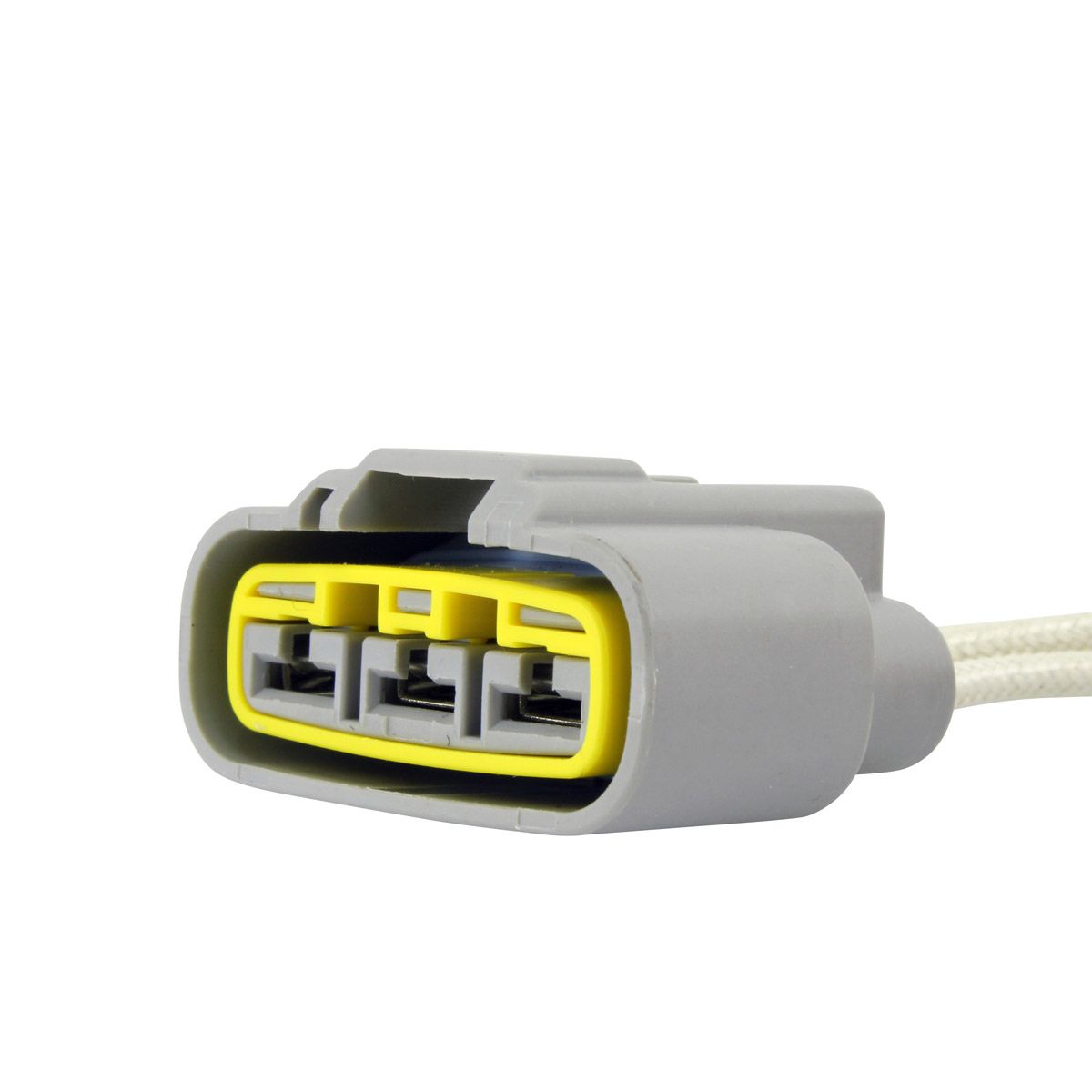

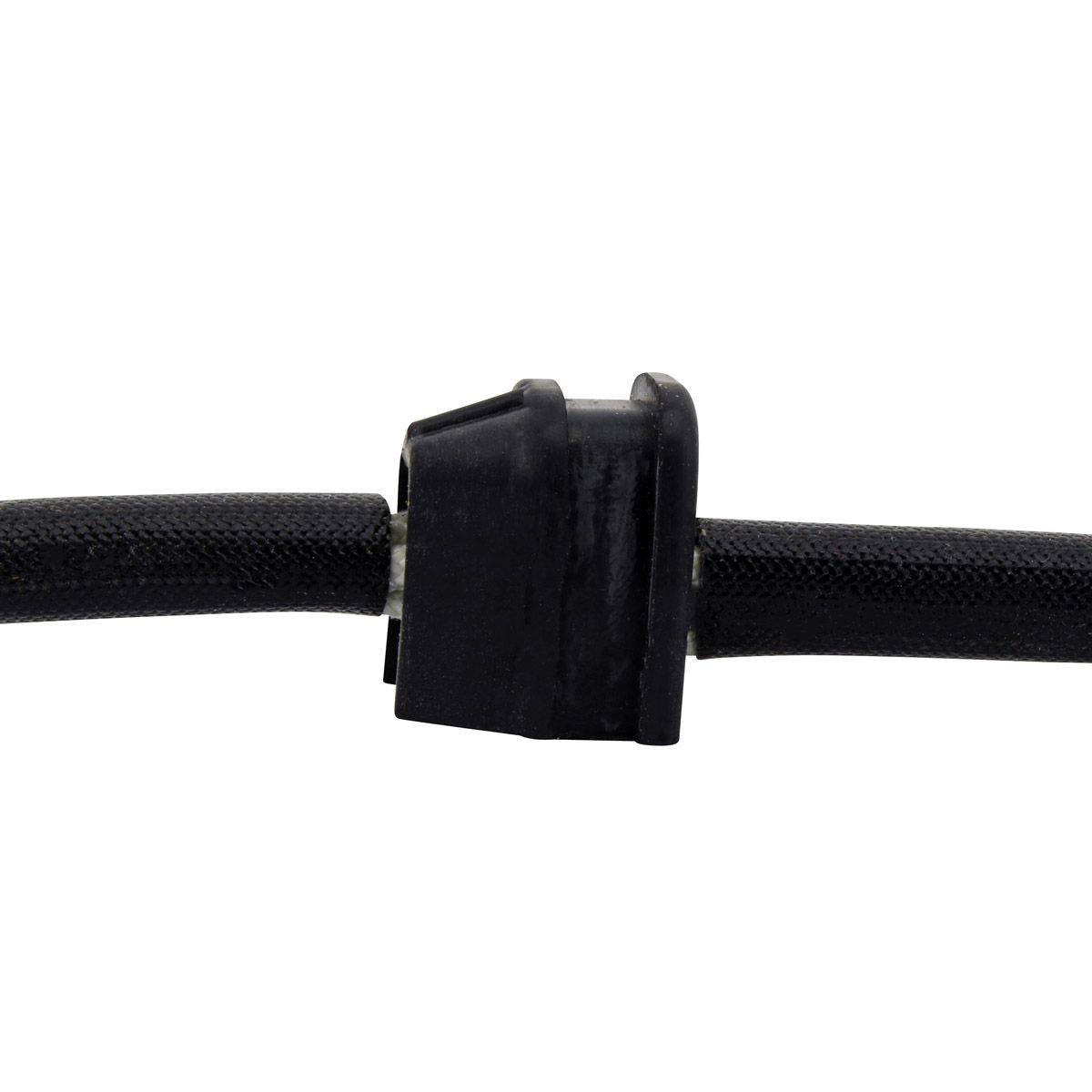

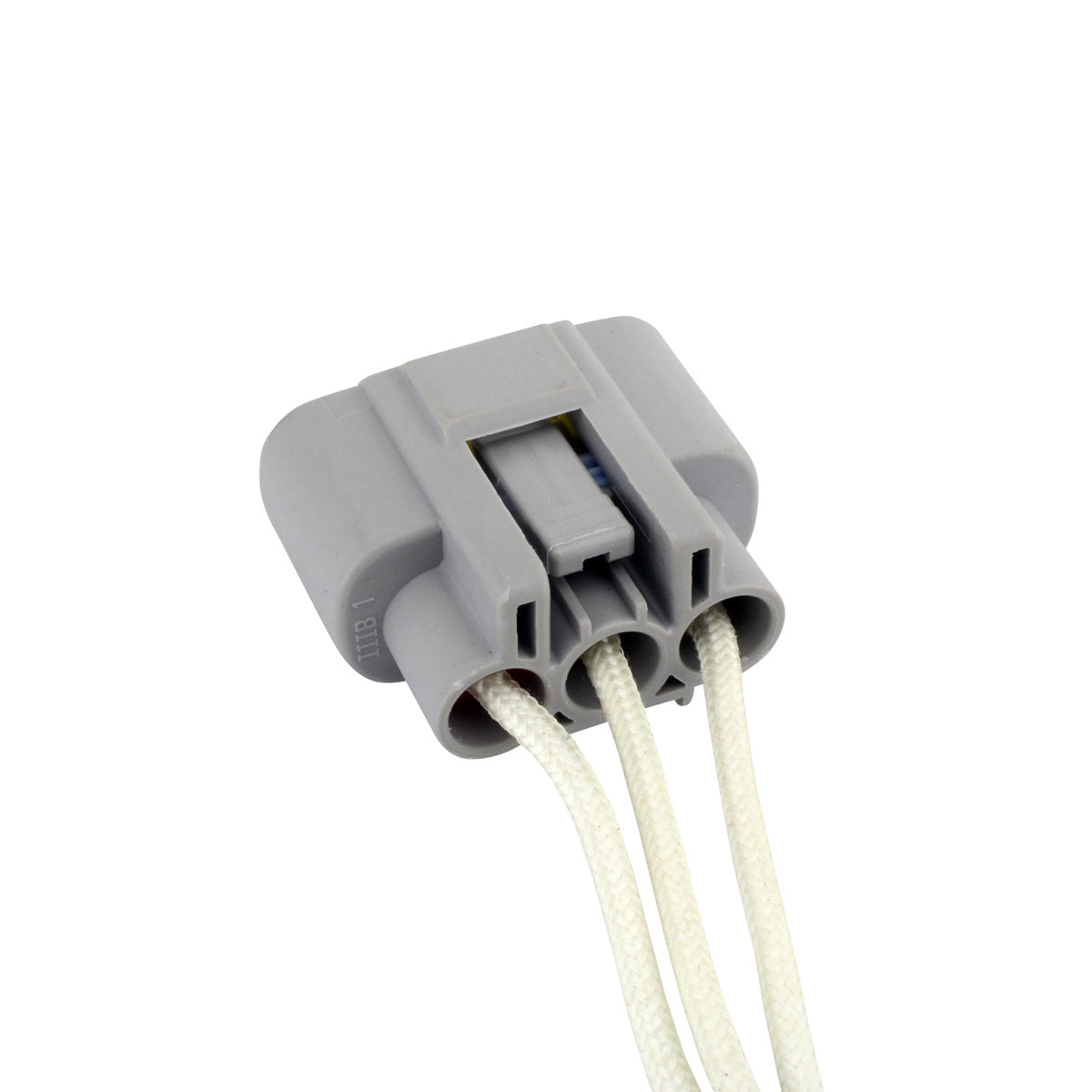

- Connectors and rubber grommet included
- Fits four CFMoto 800 model families
- Tested before shipping
Technical Specs
| Specification |
Detail |
| Interior diameter |
54 mm |
| Exterior diameter |
115 mm |
| Thickness |
18 mm |
| Number of poles |
18 |
| Number of wires |
3 |
| Number of plugs |
1 |
| Number of pins |
3 |
| Alternator resistance, Yellow to Yellow |
0.6 ohms plus or minus 20 percent |
| Alternator resistance, Yellow to ground |
O.L, open line |
| Wire length, stator to grommet |
125 mm |
| Wire length, grommet to plug |
480 mm |
| Winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model |
Years |
| CFMoto CFORCE 800 |
2013-2023 |
| CFMoto UFORCE 800 |
2013-2023 |
| CFMoto ZFORCE 800 |
2013-2023 |
| CFMoto X8 800 |
2013-2023 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 0800-032000 |
CFMoto |
| 0800-032000-2000 |
CFMoto |
Frequently Asked Questions
Will it fit without modification?
Yes. It is a direct replacement to the original unit and installs plug-and-play using the original mounting points and connector, so no rewiring is required on the models listed above.
What is included in the box?
The stator unit, the connectors and a rubber grommet.
How do I test my existing stator?
With the engine off, measure resistance between each pair of the three yellow wires - each pair should read about 0.6 ohms, allowing 20 percent either way. Then measure from any yellow wire to the stator body or engine earth: that reading should be O.L, an open line. Any continuity to ground means the winding has shorted and the stator needs replacing.
Does this stator include a pickup coil?
No. This is a three-wire alternator stator with a single three-pin plug, supplied with connectors and a grommet. The pickup coil is a separate component on these machines and is not part of this assembly.
