7-Coil Stator for Aprilia, E-Ton and Polaris 50-90cc Two Strokes
Aprilia Rally and Scarabeo 50, E-Ton DXL and RXL 70 90, Polaris Sportsman, Predator and Scrambler 50 90 - 1990-2007

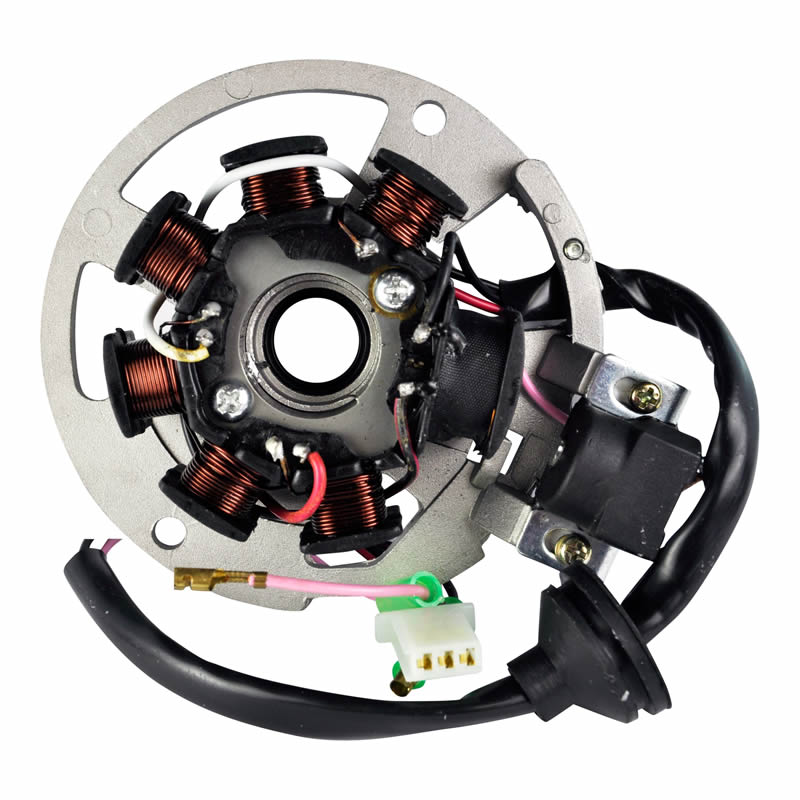

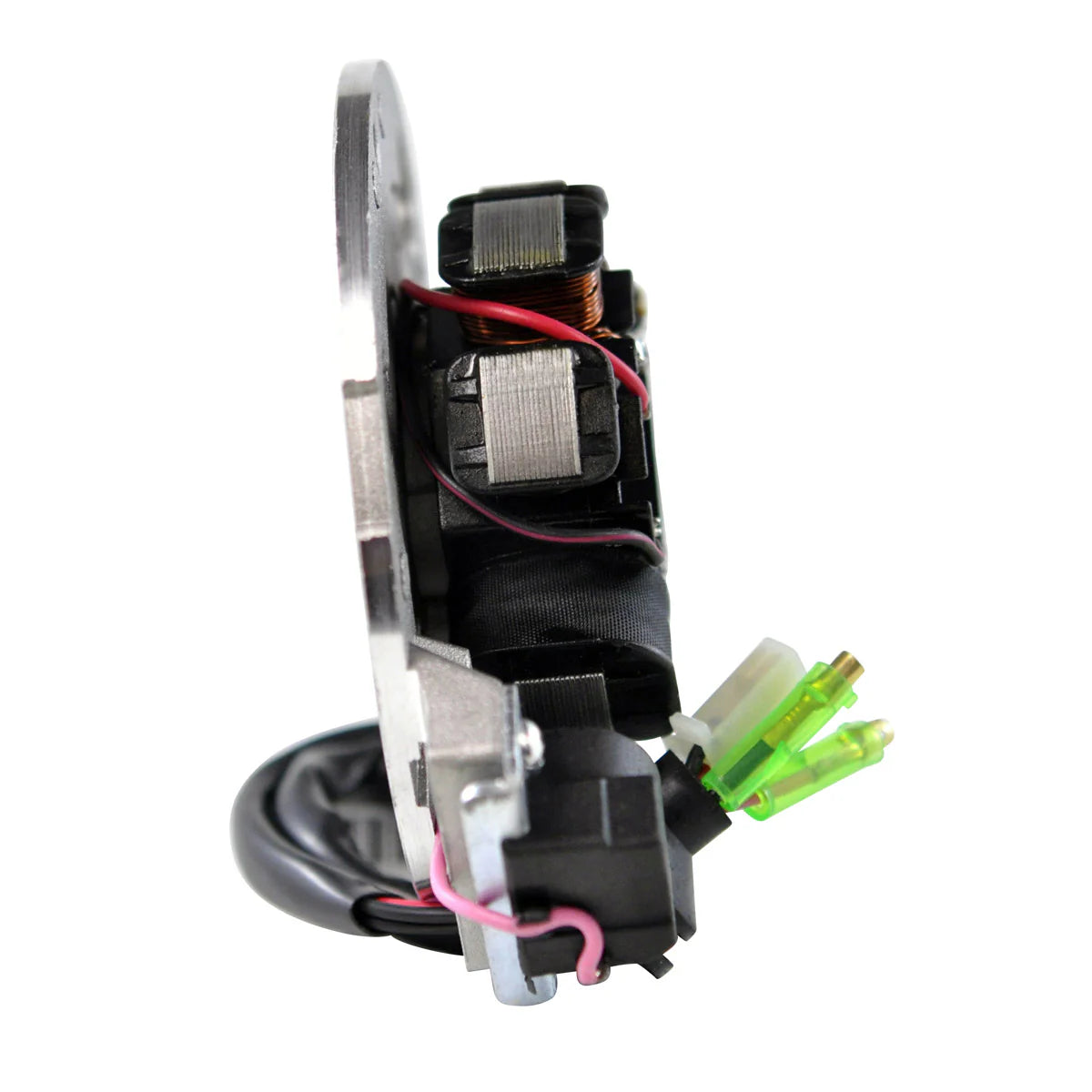

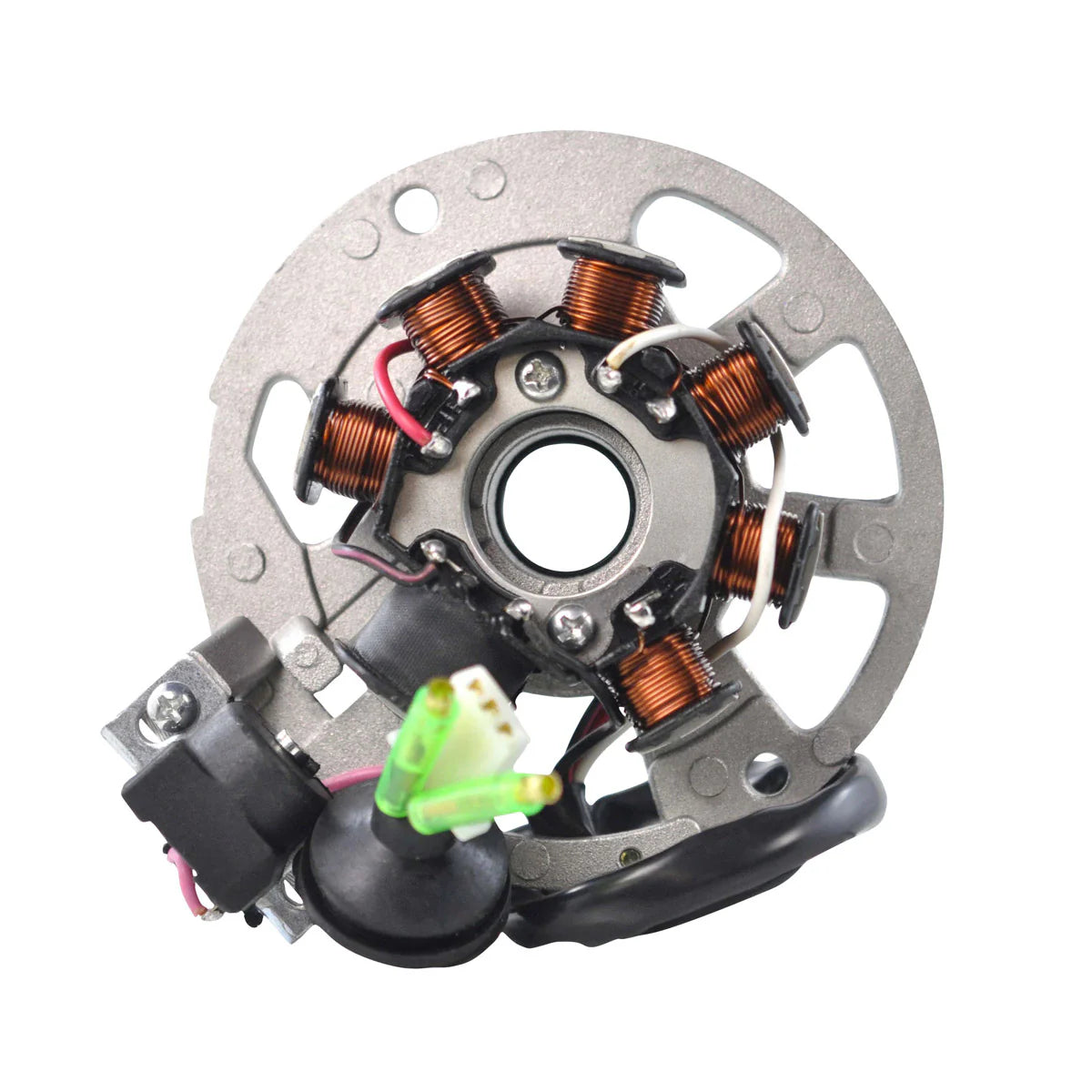

This is a brand new 7-coil stator with 5 wires, designed for two stroke engines and supplied as a direct replacement for the original unit (RMSTATOR part RM01053). It carries a 3-pin plug plus two loose wires, exactly as the factory item does, so installation is plug-and-play with no cutting or splicing of the machine's harness.
The stator uses the highest grade lamination materials and highest grade copper windings that are resistant to 200 degrees Celsius. It ships complete with the pickup pulsar coil, connector, rubber grommet and the back plate, so the assembly can go straight onto the engine. Every unit is tested before it leaves the factory.
Key Features
- Brand new 7-coil stator with 5 wires for two stroke engines

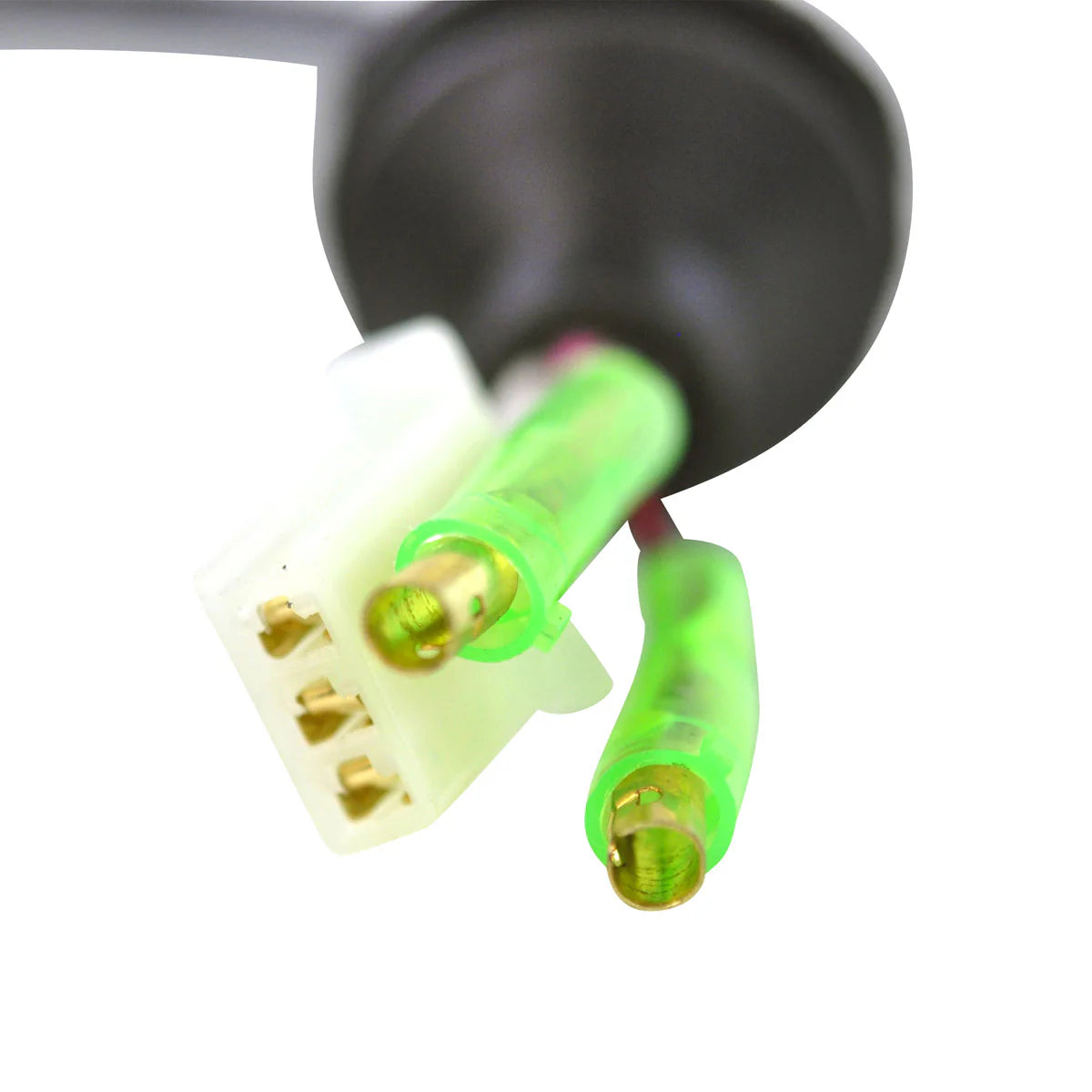

- 3-pin plug plus 2 loose wires
- Direct replacement - plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Pickup pulsar coil, connector and rubber grommet included

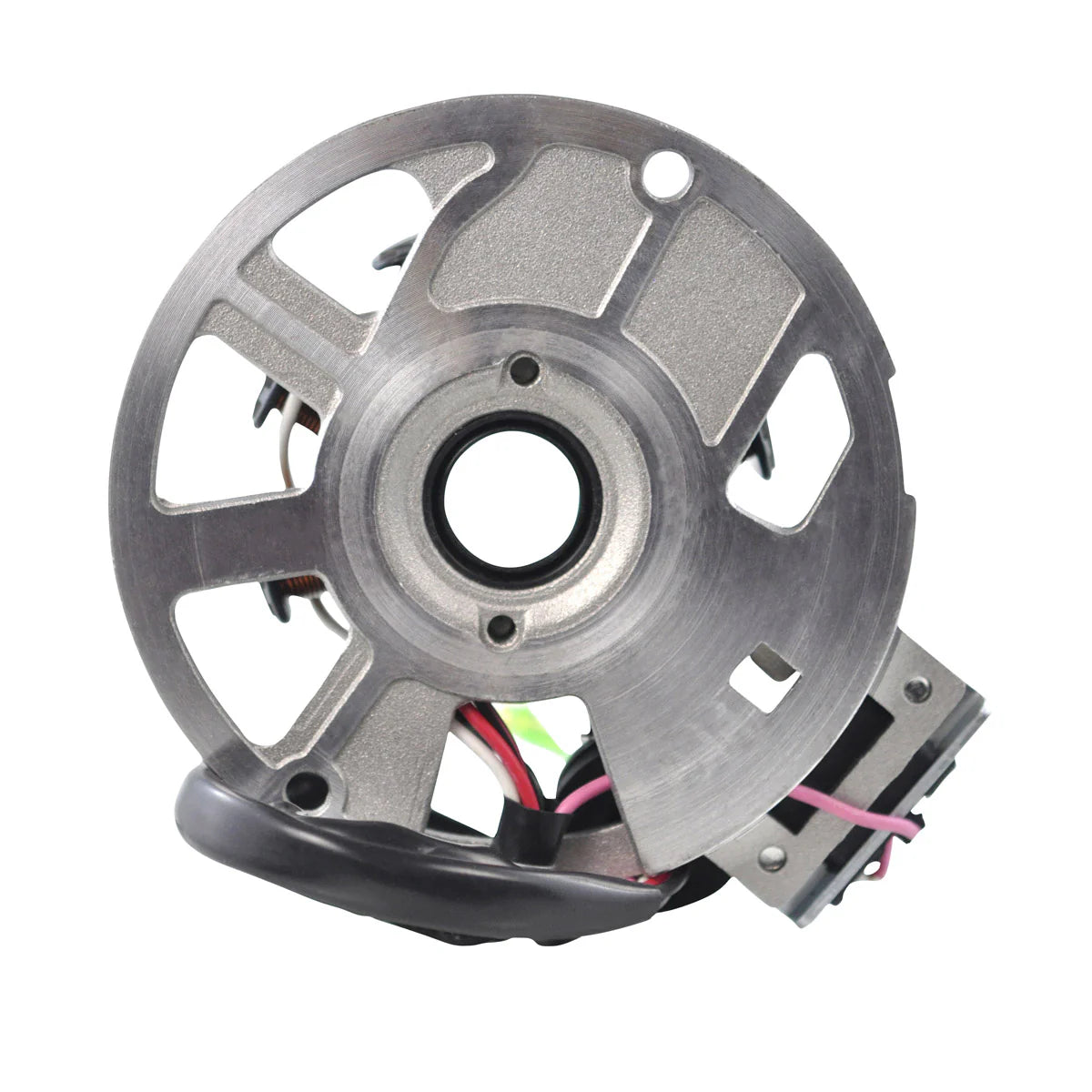

- Back plate included
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM01053 |
| Number of coils | 7 |
| Interior diameter | 79 mm |
| Exterior diameter | 27 mm |
| Thickness | 13 mm |
| Bolt hole spacing | 103 mm |
| Wire length - stator to grommet | 79 mm |
| Wire length - grommet to plug | 200 mm |
| Pickup coil wire length to grommet | 100 mm |
| Number of wires | 5 |
| Number of plugs | 3 |
| Number of pins | 5 |
| Alternator resistance (Red to White) | 0.4 ohms +/-20% |
| Pickup resistance (Pink to Black) | 500 ohms +/-20% |
| Source resistance (Black/Red to Black) | 300 ohms +/-20% |
| Recommended air gap | No less than 0.010 in |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Aprilia Rally 50 | 1990-2007 |
| Aprilia Scarabeo 50 | 1990-2007 |
| E-Ton DXL 70 and 90 | 1990-2007 |
| E-Ton RXL 70 and 90 | 1990-2007 |
| Polaris Sportsman 50 and 90 | 1990-2007 |
| Polaris Predator 50 and 90 | 1990-2007 |
| Polaris Scrambler 50 and 90 | 1990-2007 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 0450521 | Polaris |
| 0450522 | Polaris |
| 0450523 | Polaris |
| 0450998 | Polaris |
| 0451000 | Polaris |
| AP8206462 | Aprilia |
| AP8212701 | Aprilia |
| 01-ETON-50-70-90 | E-Ton |
| A31100116000 | Cross reference |
| 78201600 | Cross reference |
| 3KJ-85560-00-00 | Cross reference |
| 3ES-85560-01-00 | Cross reference |
Frequently Asked Questions
Will this fit without modifying my wiring?
Yes. It is a plug-and-play, direct fit replacement with the same 3-pin plug and two loose wires as the original, so no cutting or splicing is required.
What is included in the box?
The 7-coil stator, the pickup pulsar coil, the connector, the rubber grommet and the back plate.
How do I know my old stator has failed?
Measure the windings with a multimeter and compare with the figures above: alternator (Red to White) about 0.4 ohms, pickup (Pink to Black) about 500 ohms and source (Black/Red to Black) about 300 ohms, each within plus or minus 20 percent. Readings that are open circuit, near zero, or shorted to the stator body mean the unit has failed. A flat battery, dim lights or no spark are the usual warning signs.
What air gap should I set on installation?
RMSTATOR specify an air gap of no less than 0.010 in. The bolt holes are spaced 103 mm apart to match the original back plate mounting.
