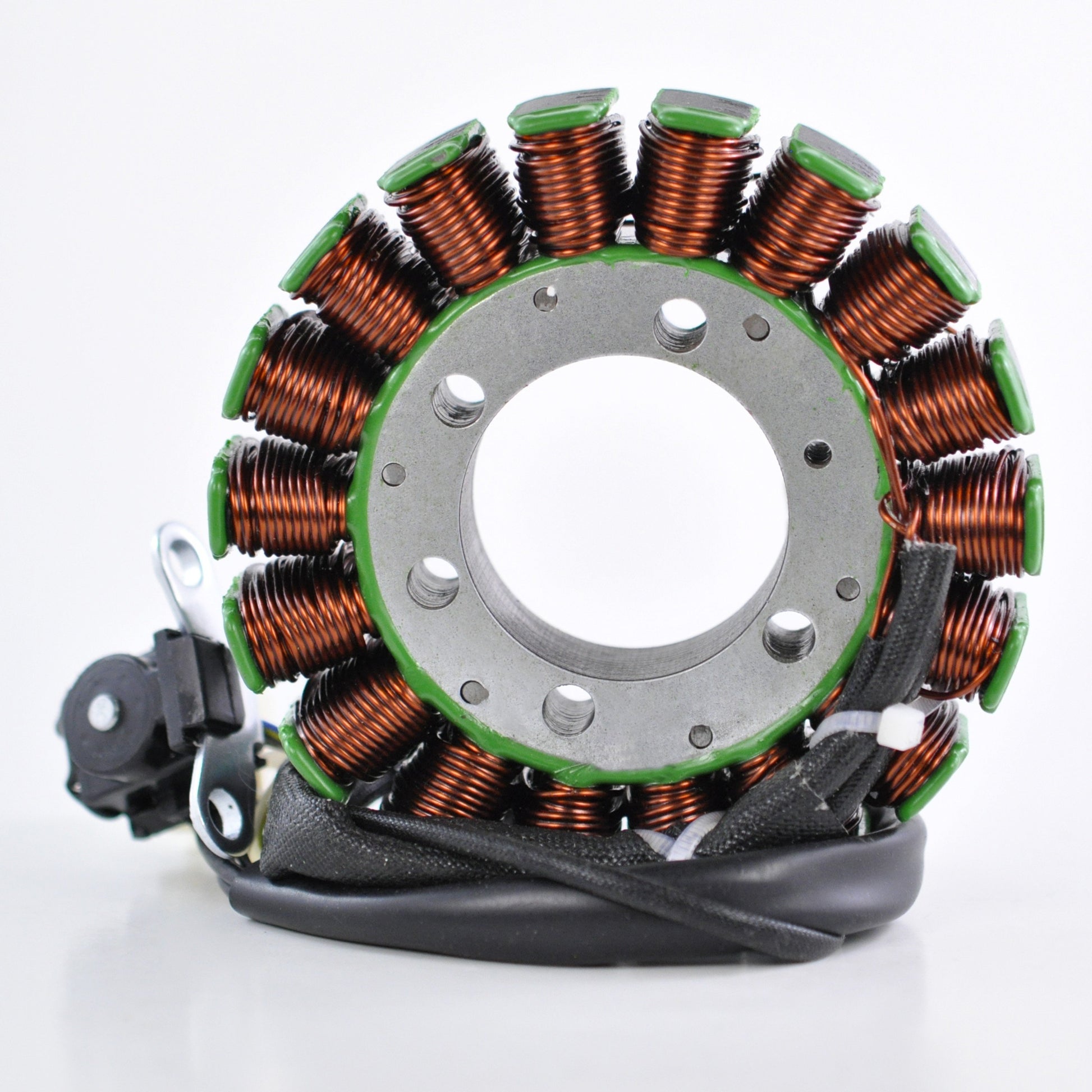

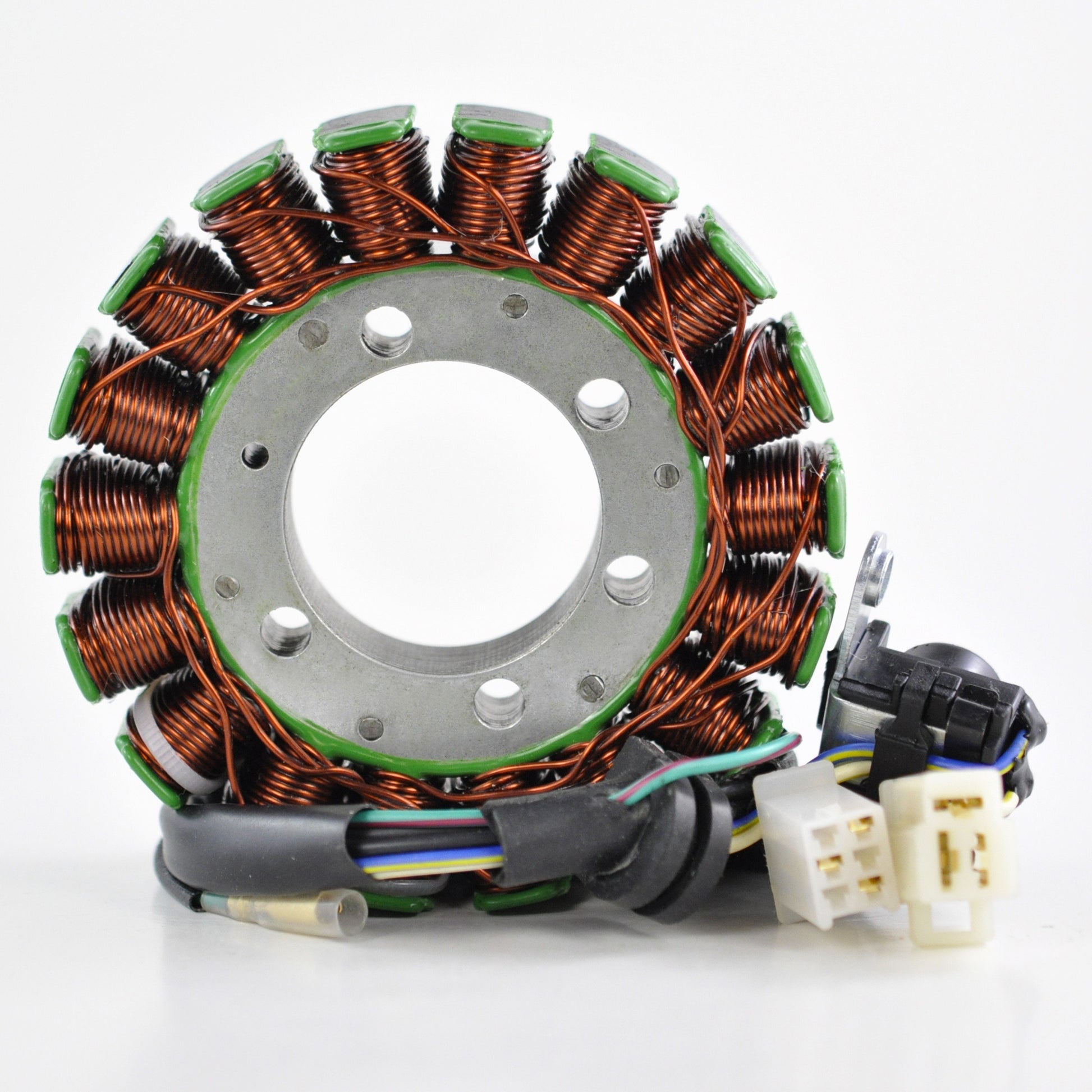

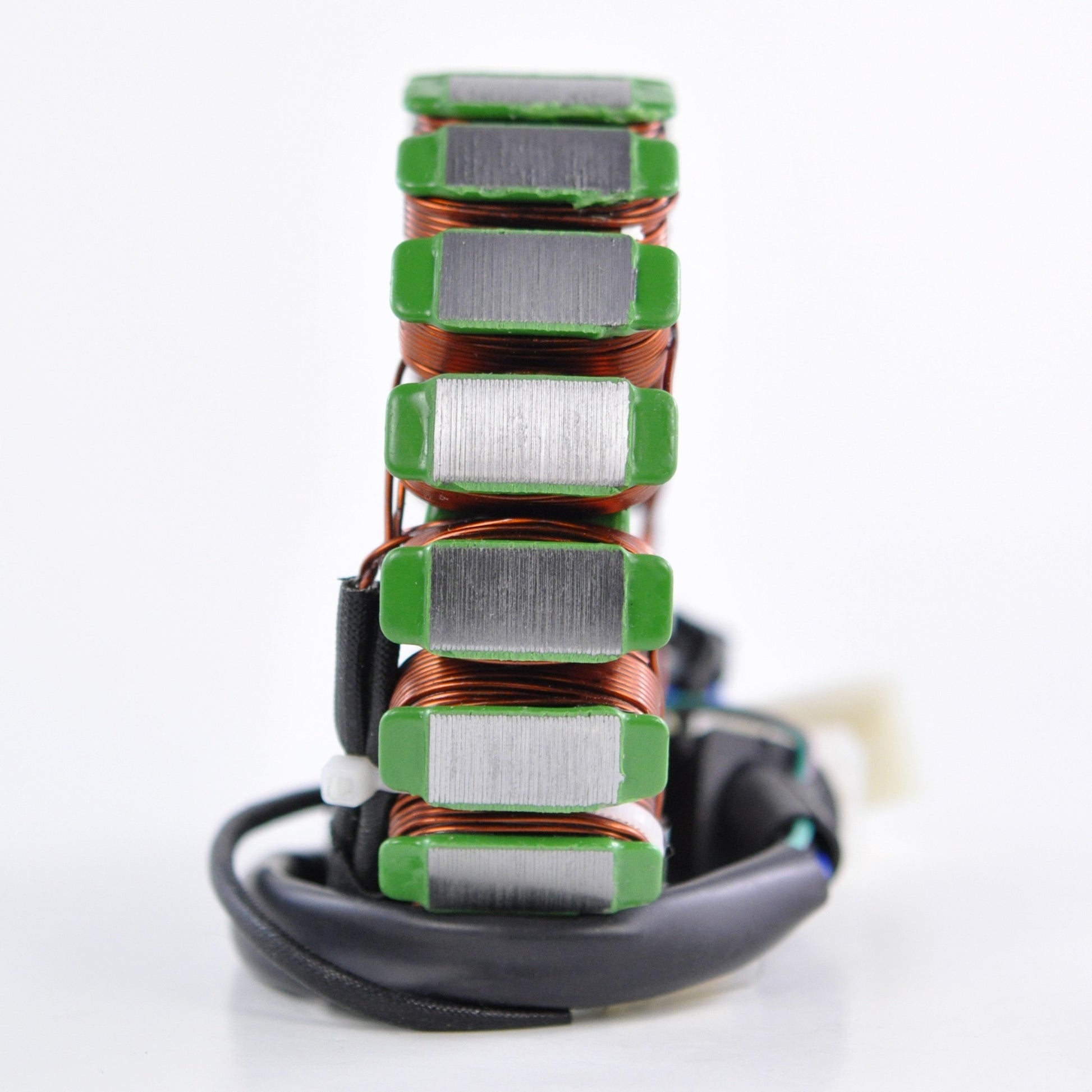

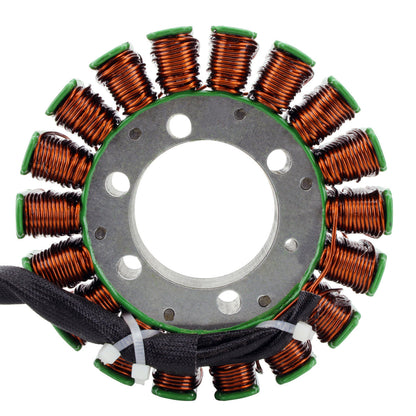

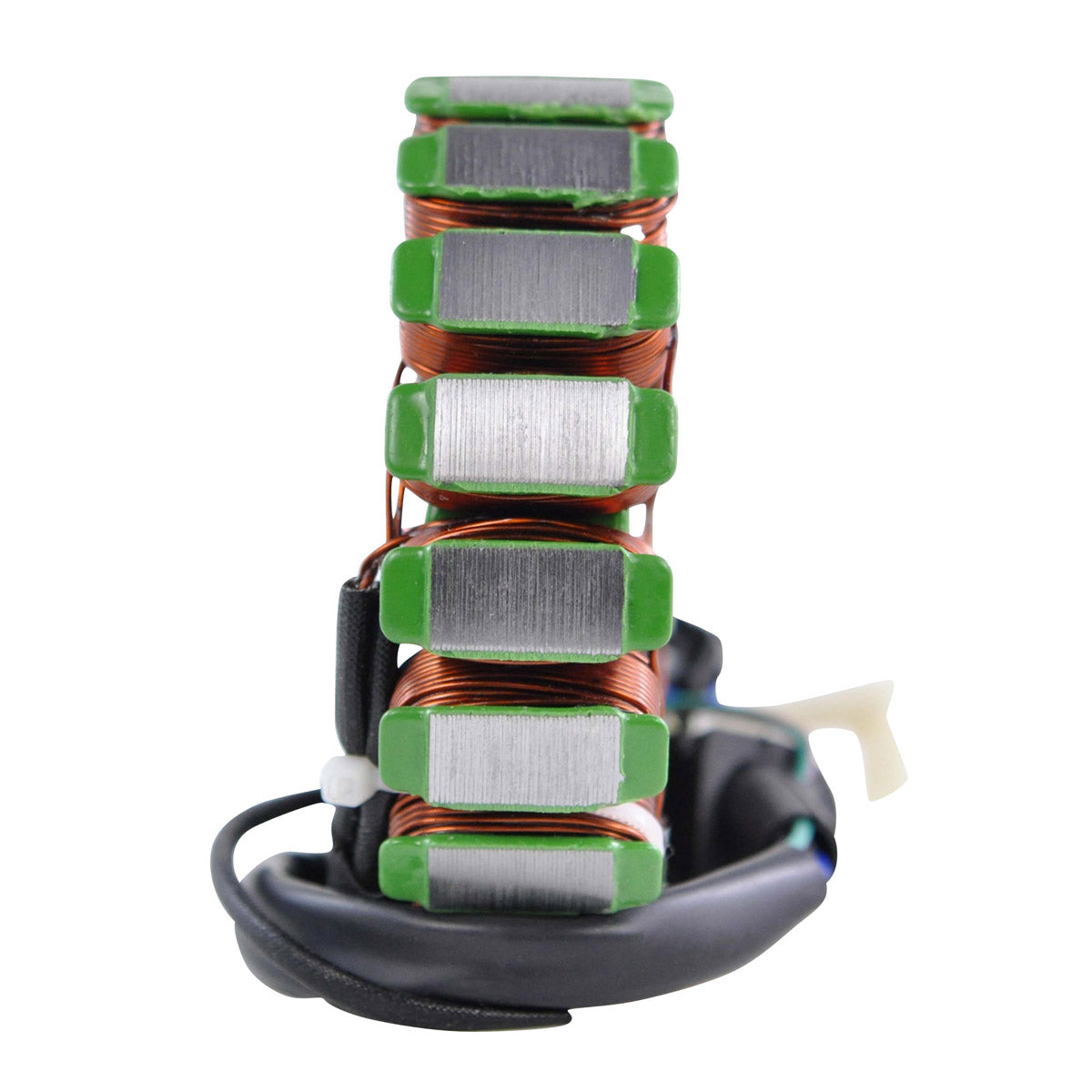

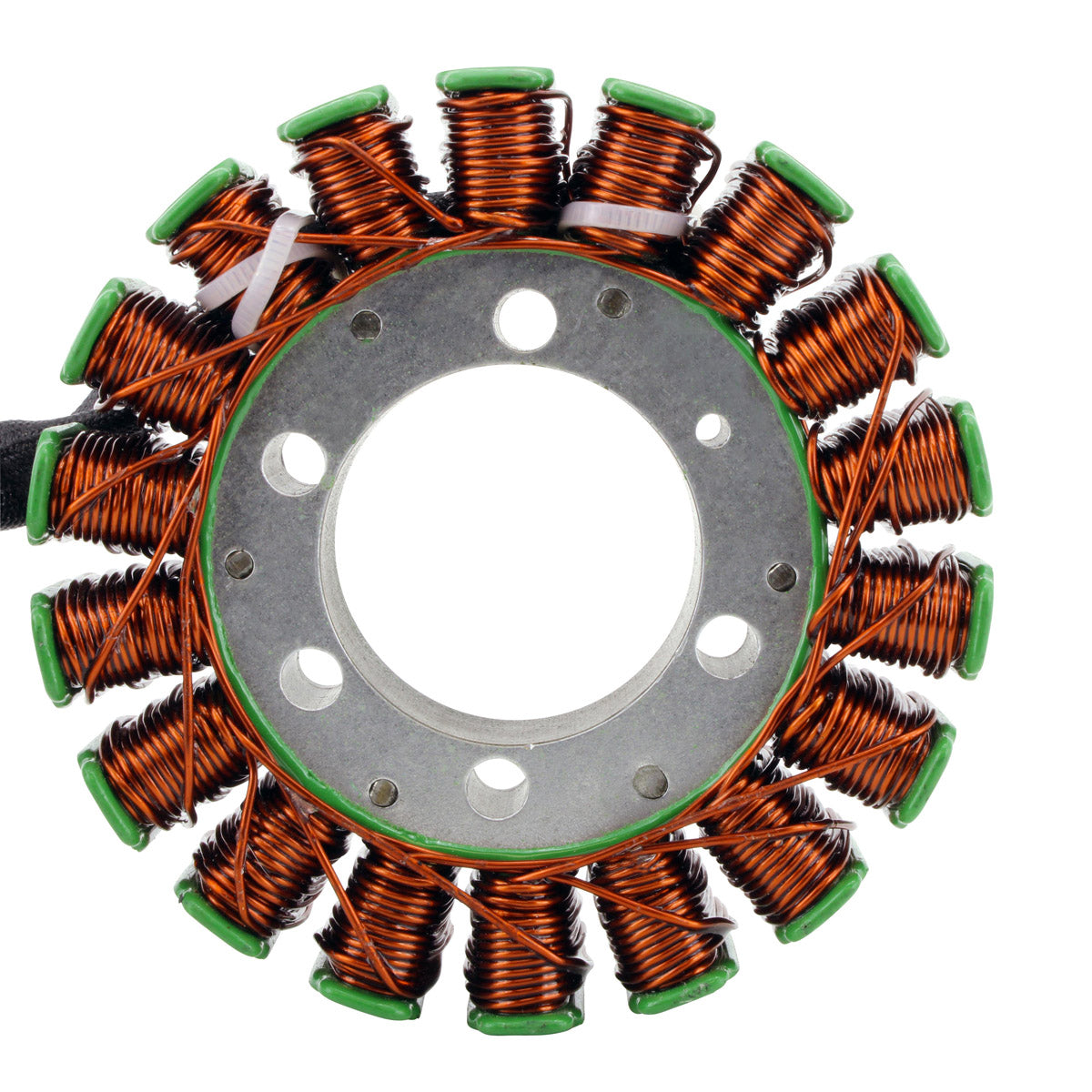

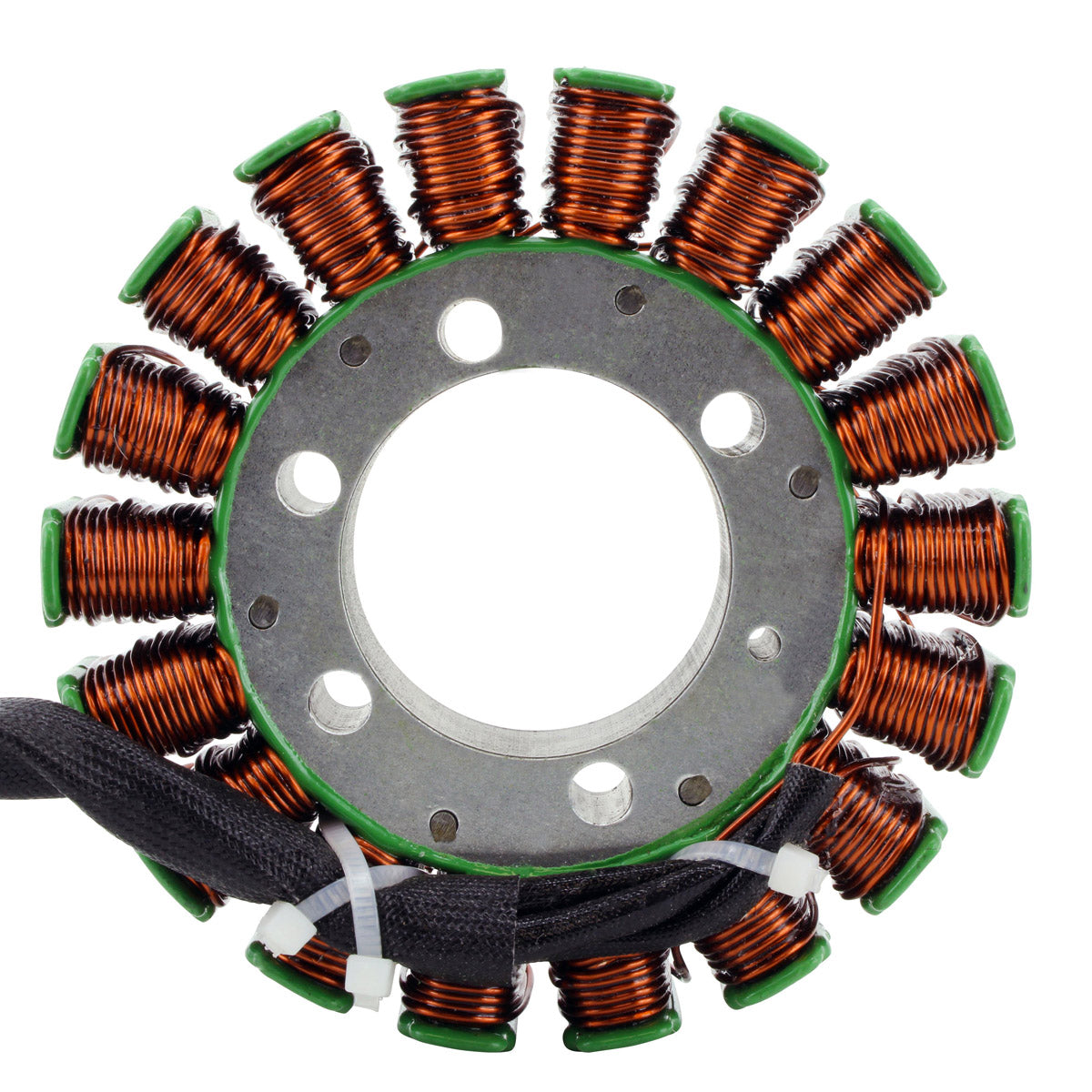

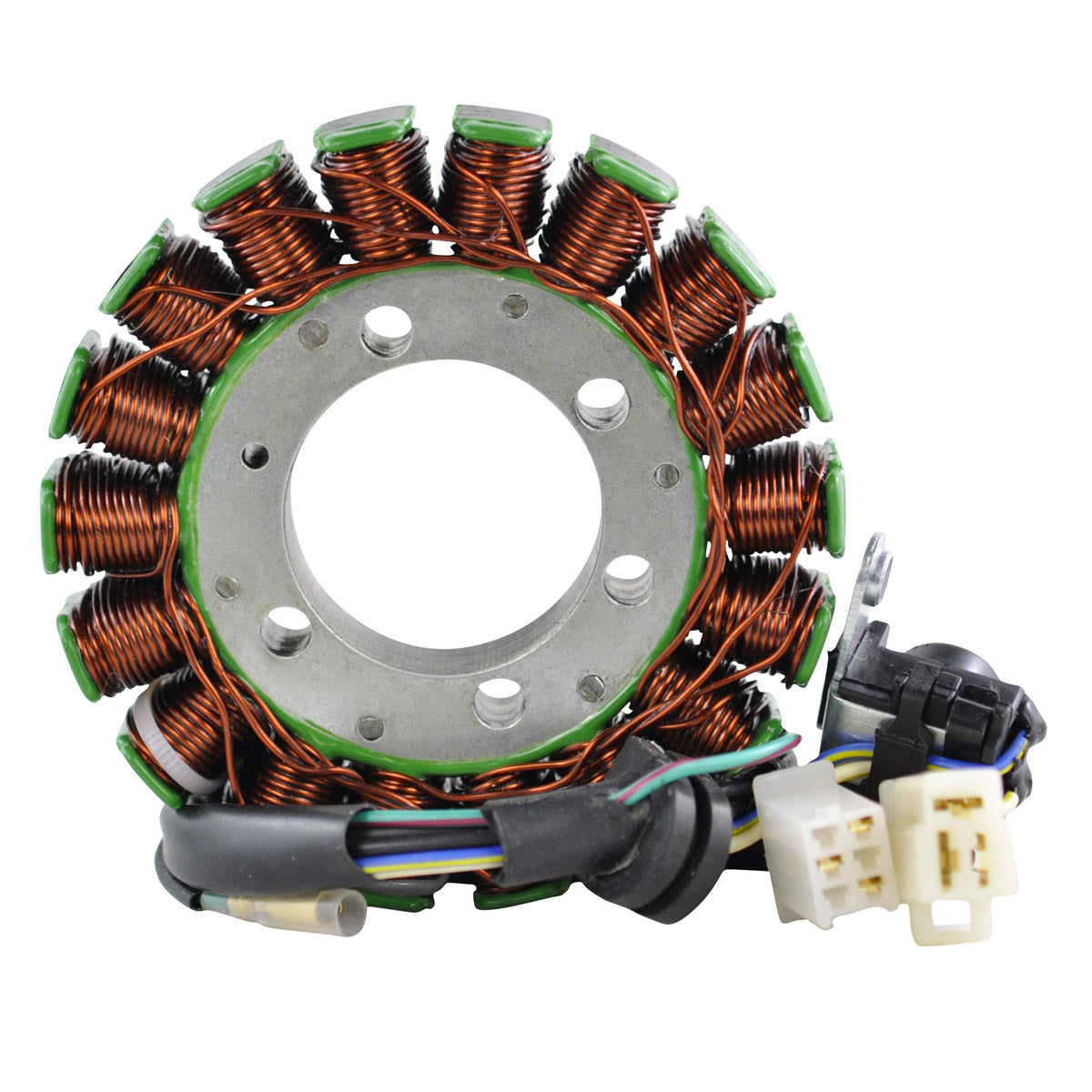

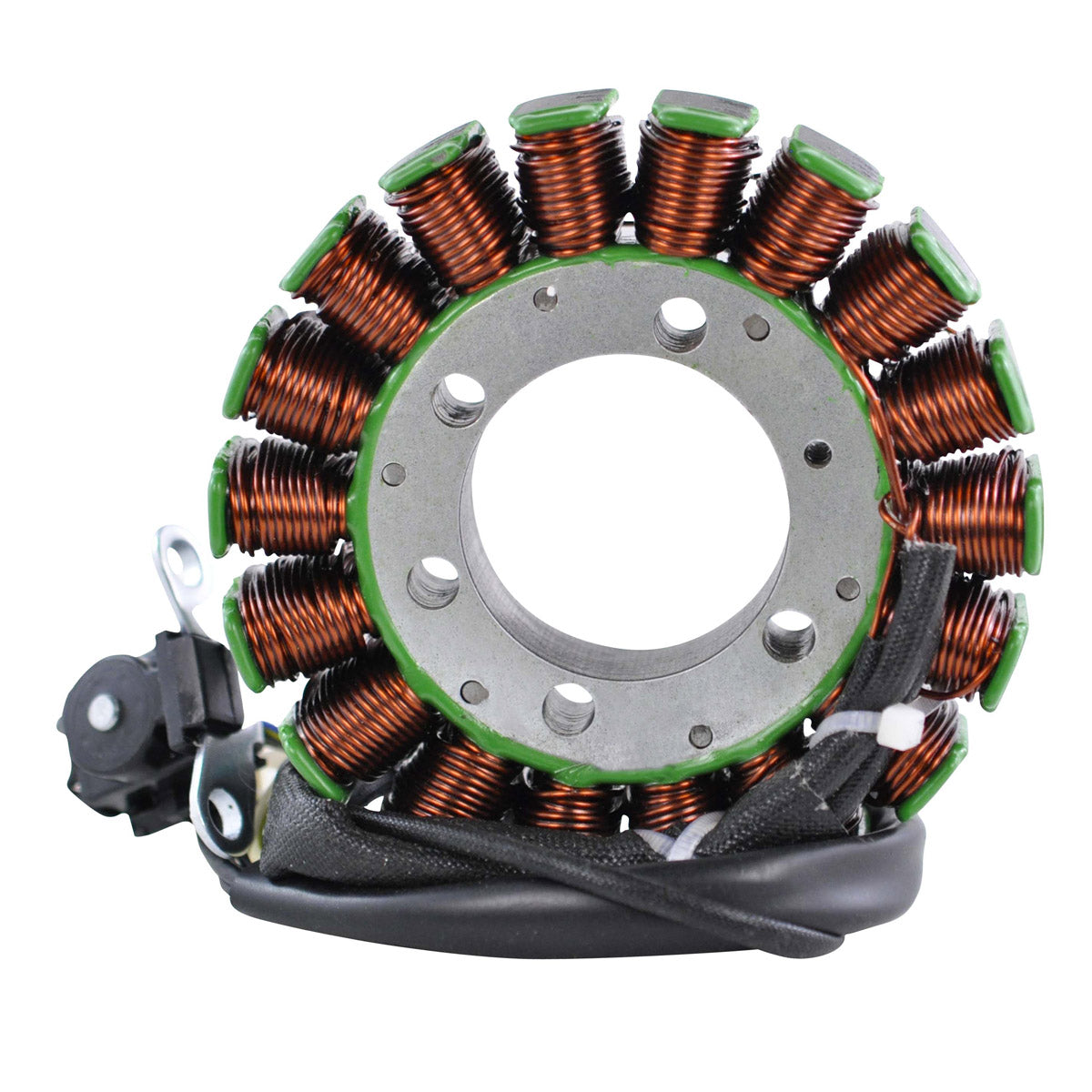

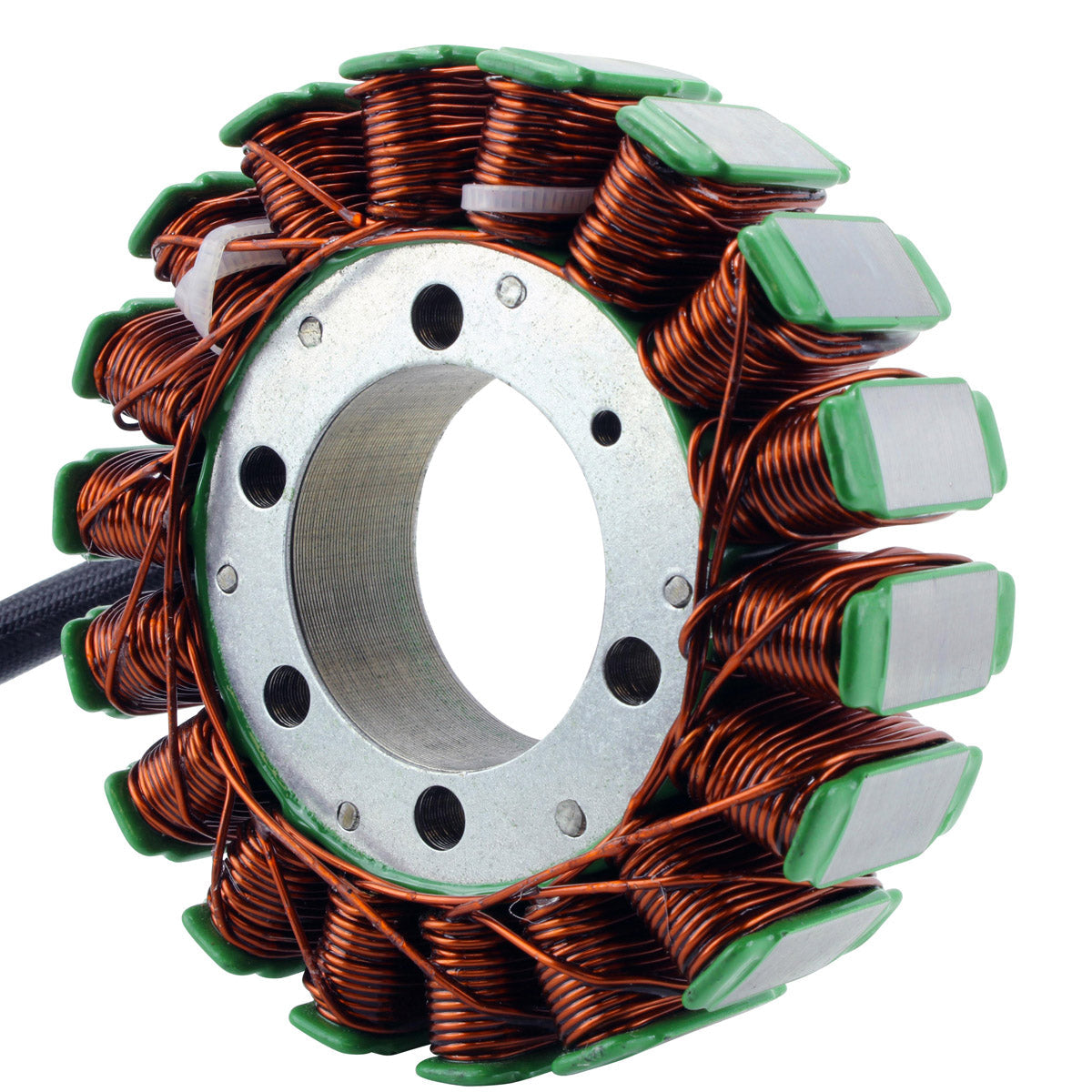

This is a brand new aftermarket generator stator for the Honda CBR 250 R and the CB and CBR 300 singles. It is a direct replacement for the original unit, and it comes complete with the pickup pulsar coil already fitted, so the charging side and the ignition trigger are renewed together in one job rather than two.
The stator is plug-and-play and a direct fit, with the connector and rubber grommet supplied, so installation is straightforward. It is built on the highest grade lamination materials and wound with the highest grade copper, insulated to withstand 200 degrees Celsius. Every unit is tested before it is shipped.
Key Features
- Brand new aftermarket stator, not a rewind or a refurbished core

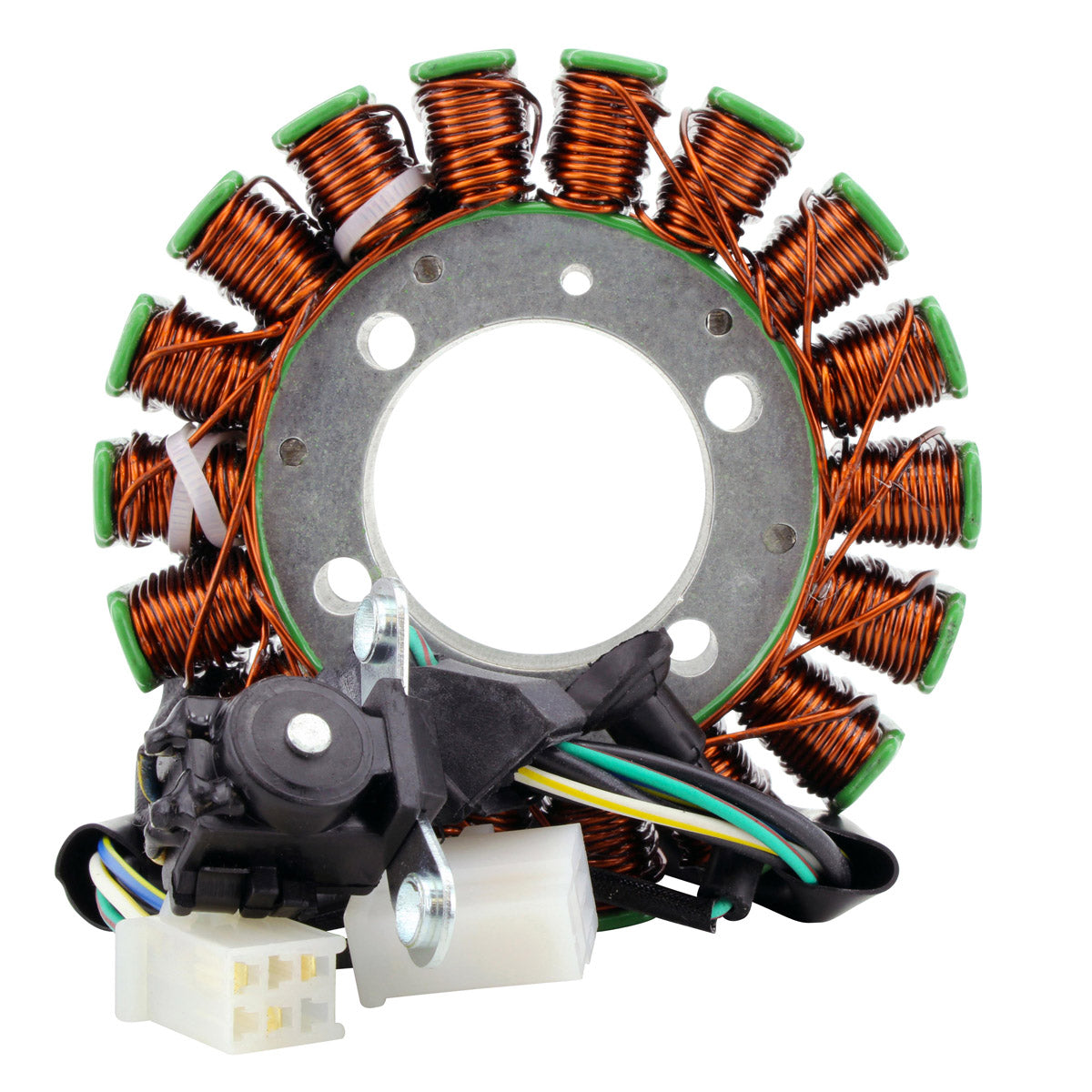

- Pickup pulsar coil included and already fitted

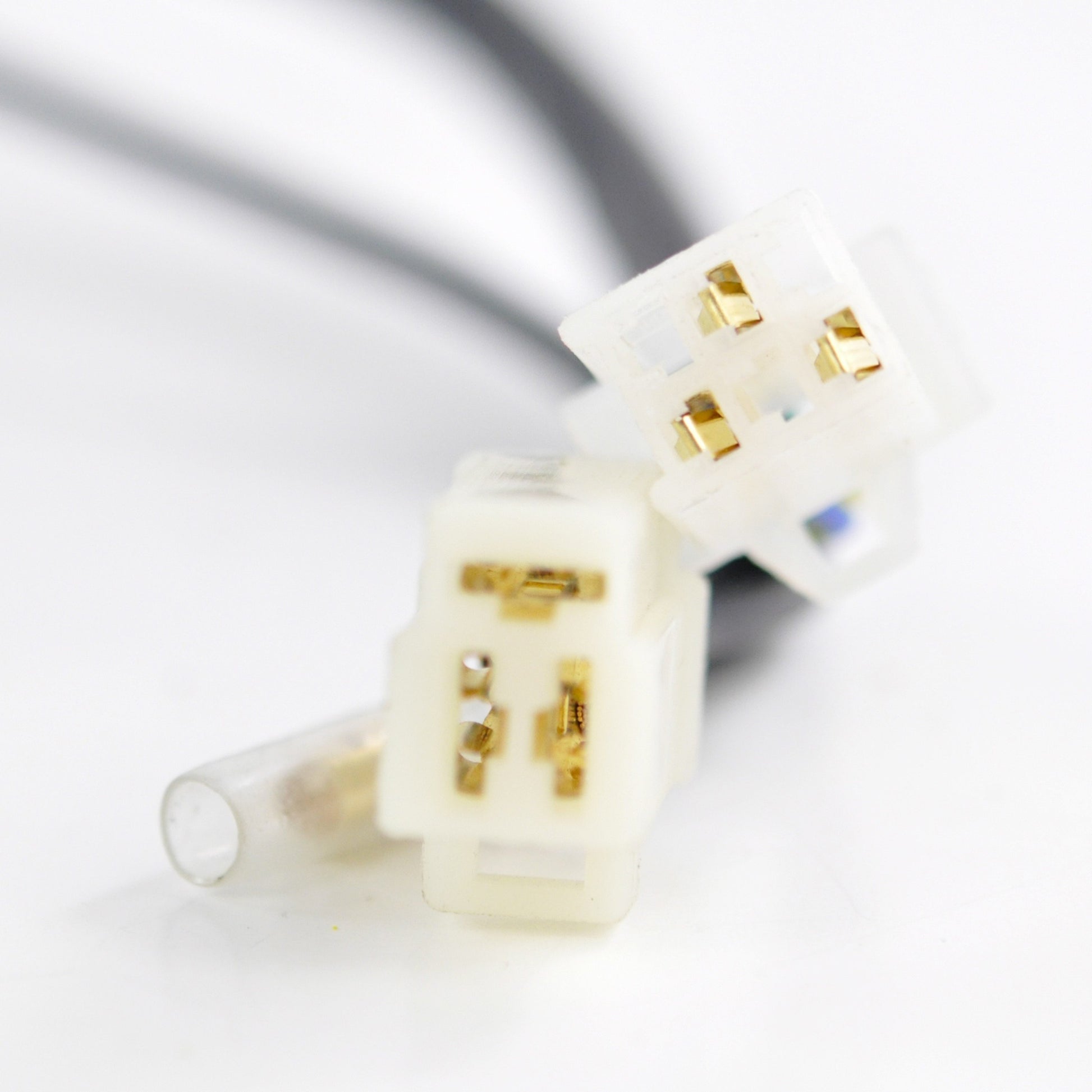

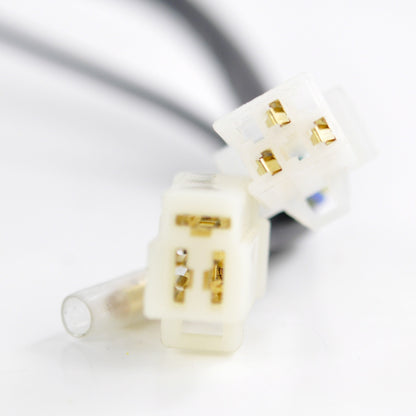

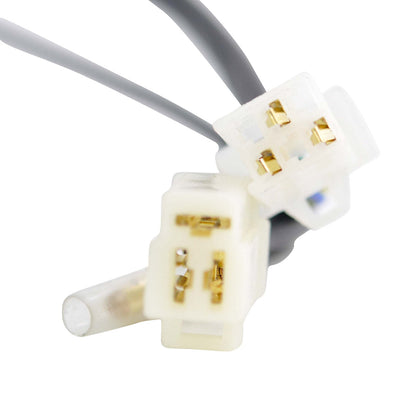

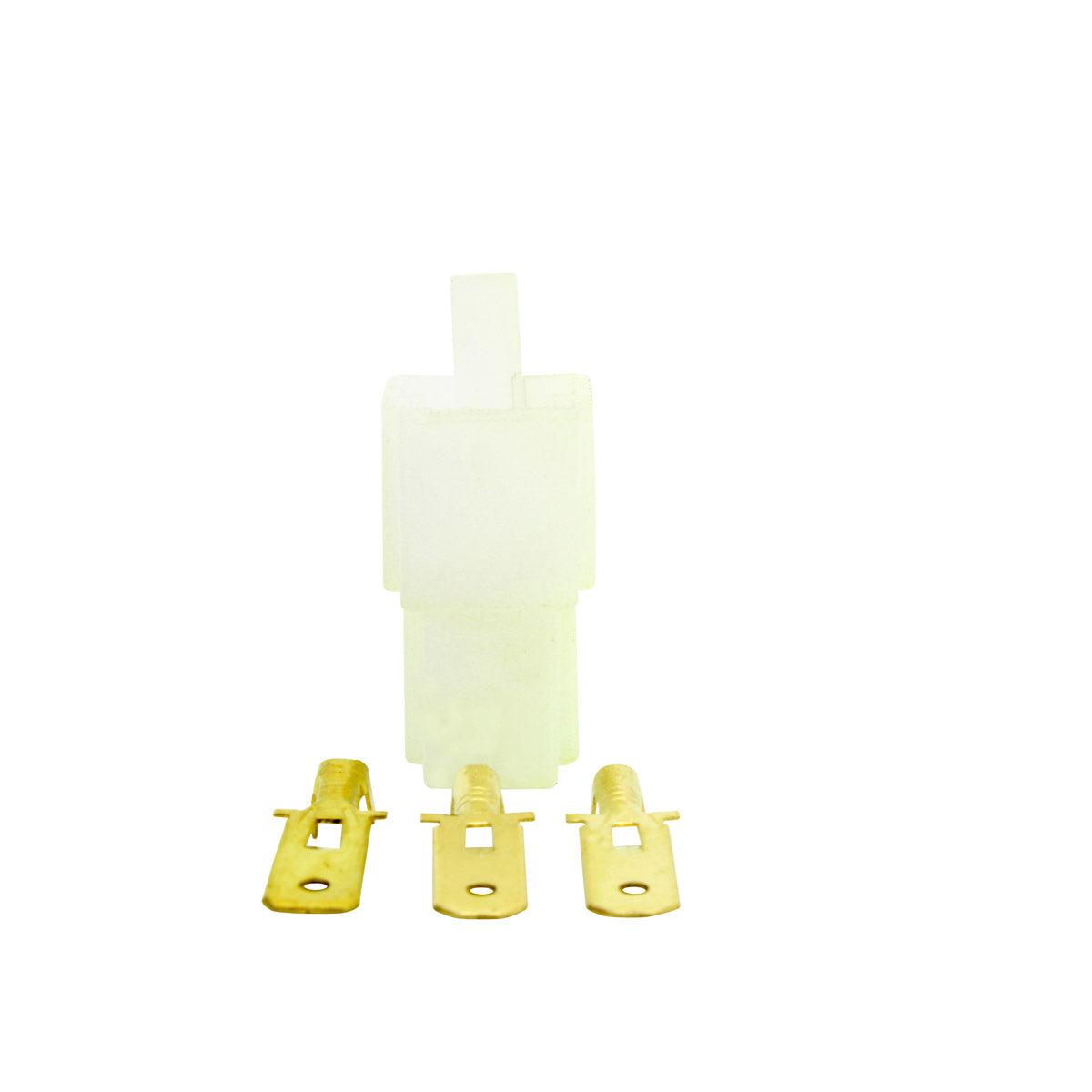

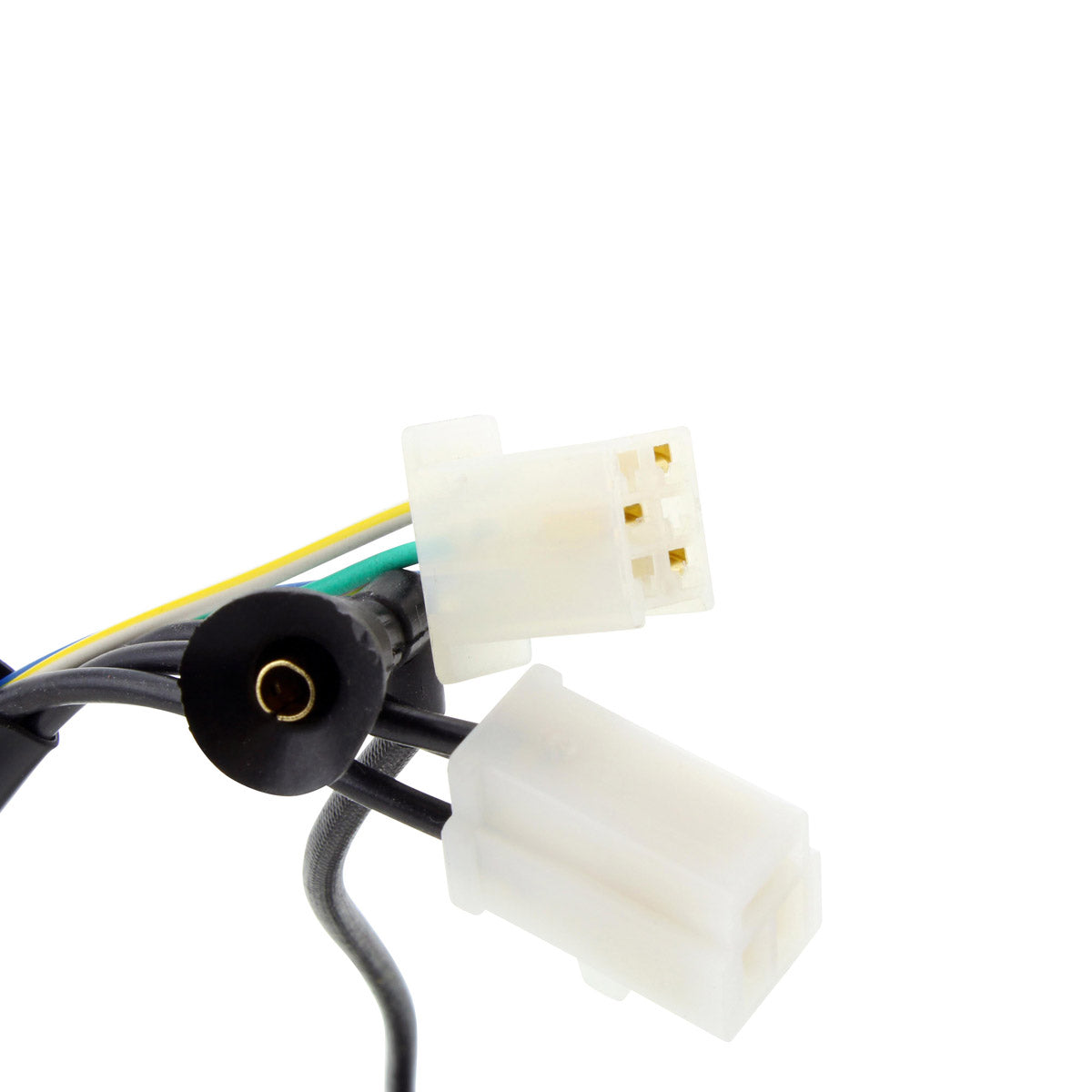

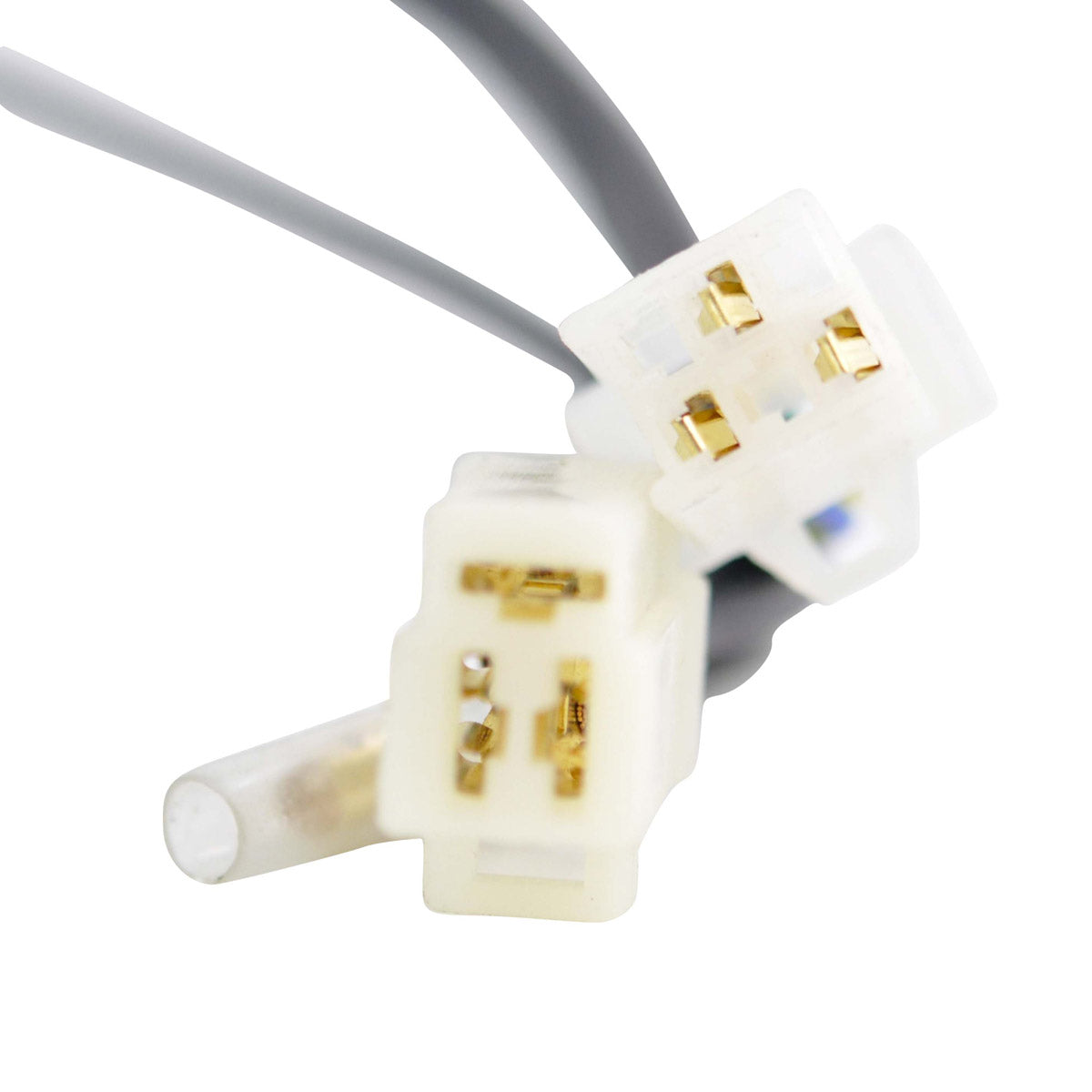

- Connector and rubber grommet included
- Plug-and-play, direct fit, easy installation
- Highest grade copper windings, resistant to 200 degrees Celsius
- Highest grade lamination materials
- Every unit tested before it leaves the factory
Technical Specs
| Specification |
Detail |
| Part number |
RM01550 |
| Interior diameter |
42 mm |
| Exterior diameter |
107 mm |
| Thickness |
22 mm |
| Wire length, stator to grommet |
60 mm |
| Wire length, grommet to plug |
180 mm |
| Pickup coil wire length to grommet |
20 mm |
| Number of wires |
6 |
| Number of plugs |
3 |
| Number of pins |
10 |
| Alternator resistance, black to black |
0.6 ohms +/- 20% |
| Pickup resistance, white/yellow to blue/yellow |
232 ohms +/- 20% |
Vehicle Fitment Guide
| Make & Model |
Years |
| Honda CBR 250 R |
2011-2013 |
| Honda CB 300 |
2015-2022 |
| Honda CBR 300 |
2015-2022 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 31120-KYJ-901 |
Honda |
Frequently Asked Questions
Does this stator fit without modification?
Yes. On the models and years listed above it is a plug-and-play, direct fit replacement. The connector and rubber grommet are supplied, so there is no need to cut, splice or rewire the standard loom.
What is included?

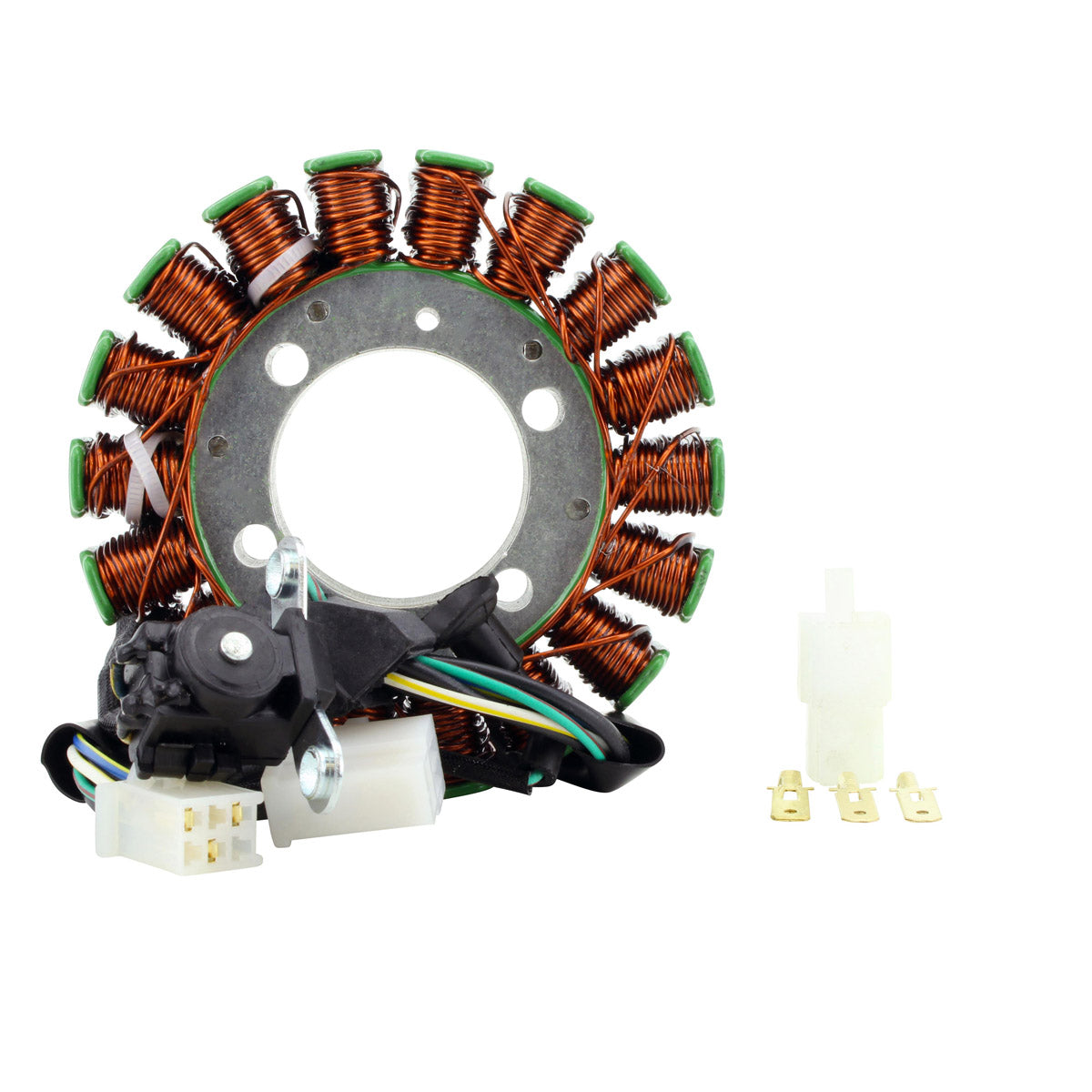

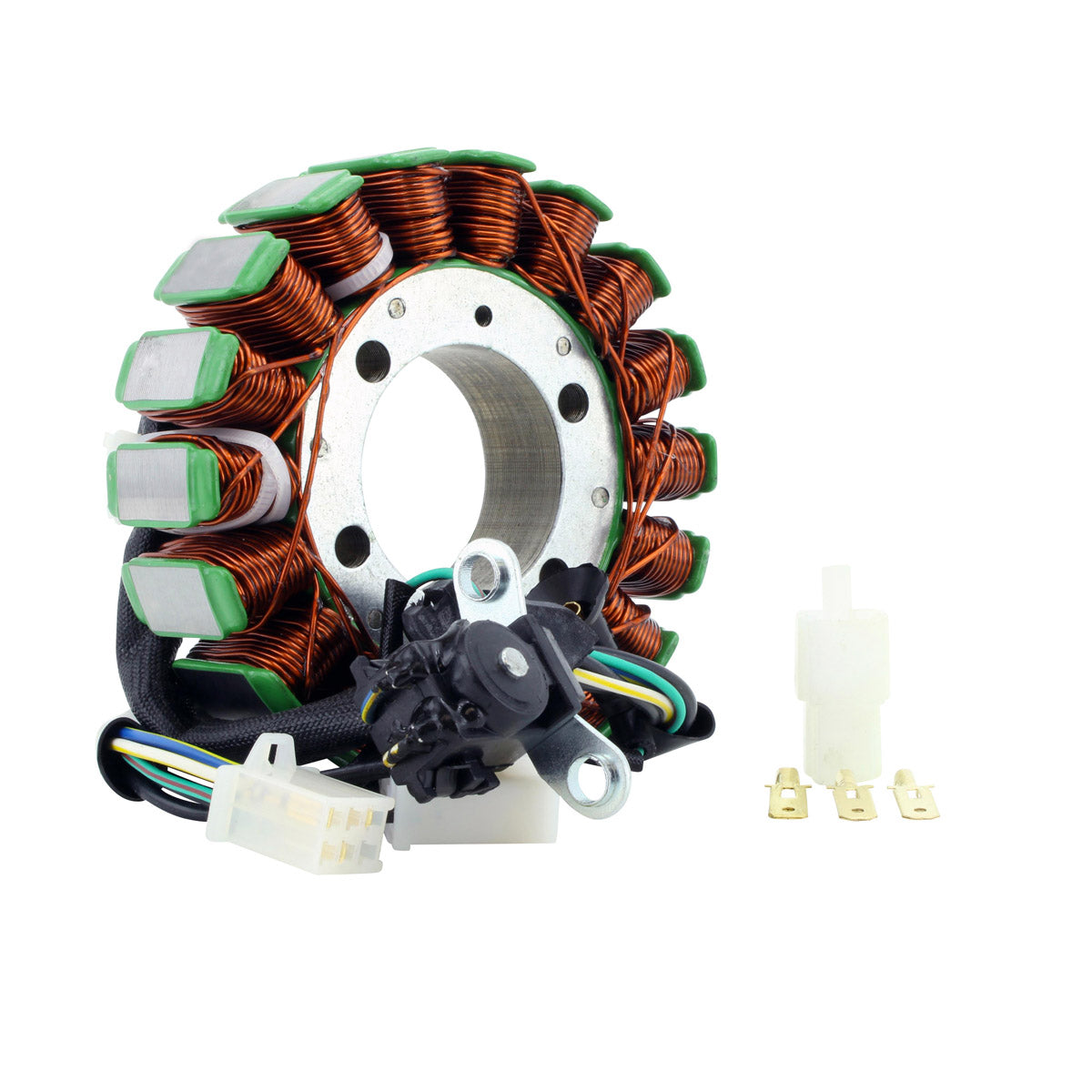

The stator, the pickup pulsar coil, the connector and the rubber grommet.
How can I tell my old stator has failed?
The classic symptoms are a battery that goes flat and will not recover, dim or flickering lights, and a bike that runs on the battery alone until it dies. Measure across the black alternator wires: the reading should be close to 0.6 ohms, within 20 per cent. An open circuit, a very low reading, or continuity between a winding and the stator body all mean the stator has failed.
Why does this part include the pickup pulsar coil?
On this Honda design the pickup pulsar coil is mounted on the same backing plate as the charging windings and shares the loom out to the plugs. Supplying the two together means the ignition trigger is renewed at the same time, and the pickup can be checked on the bench: white/yellow to blue/yellow should read about 232 ohms, within 20 per cent.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
