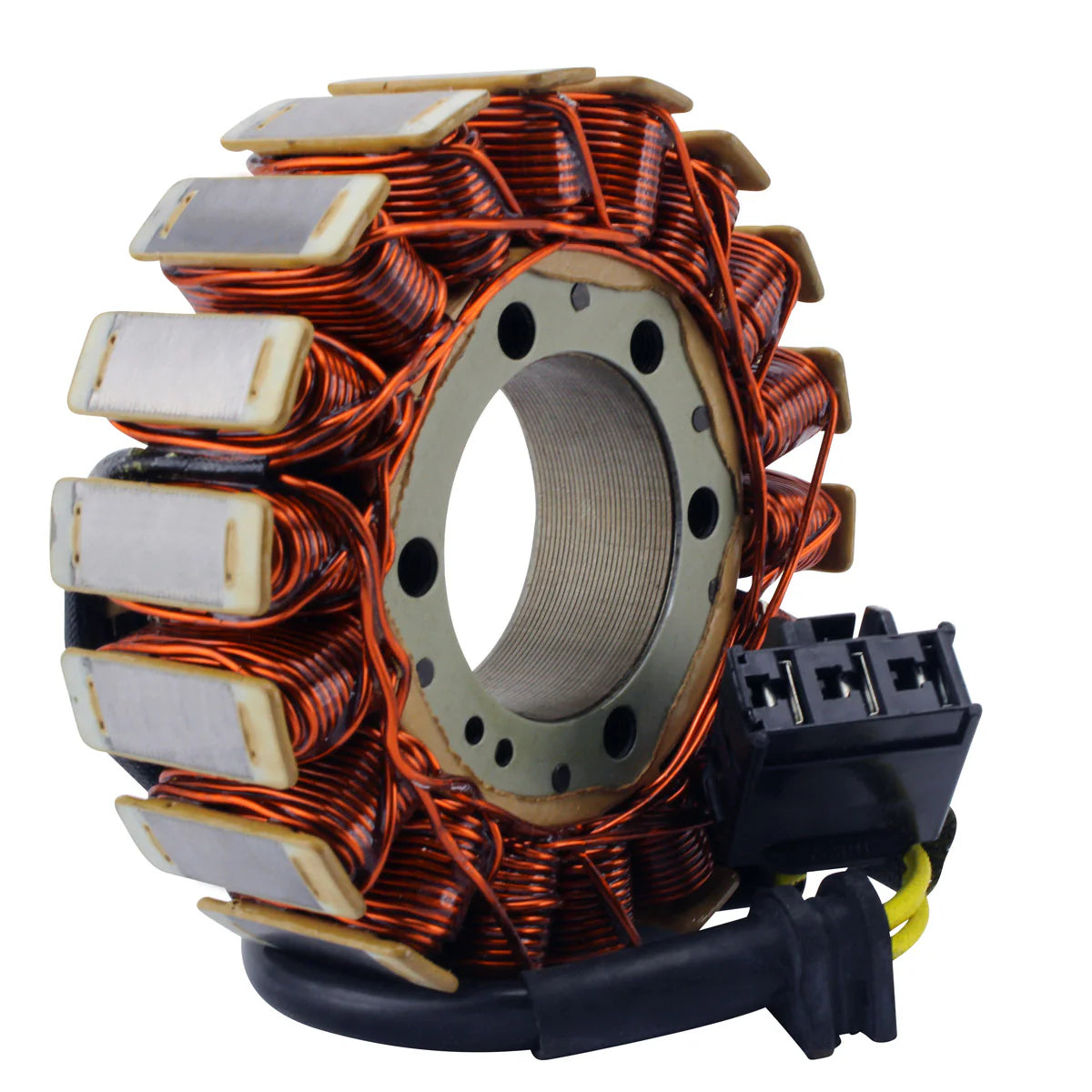

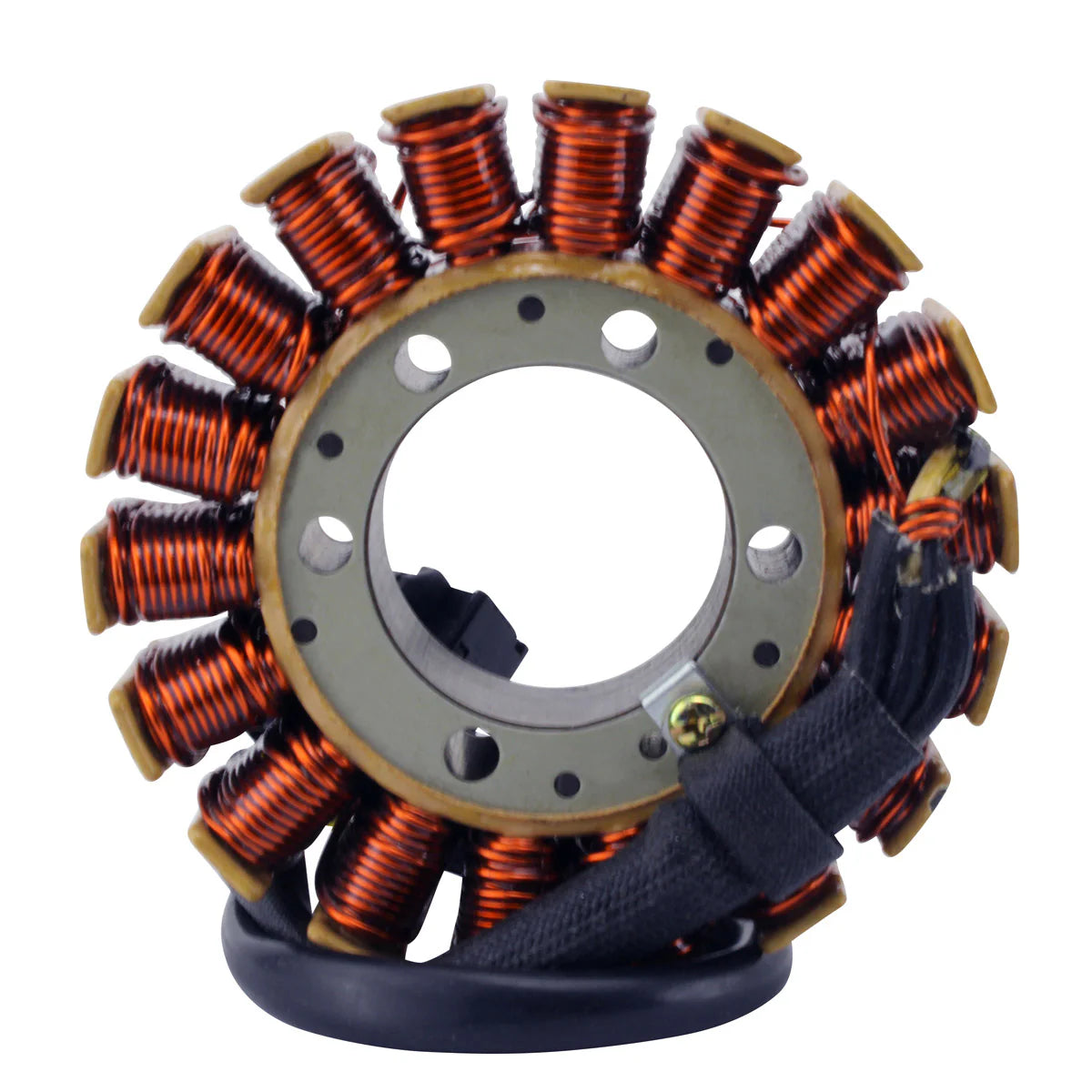

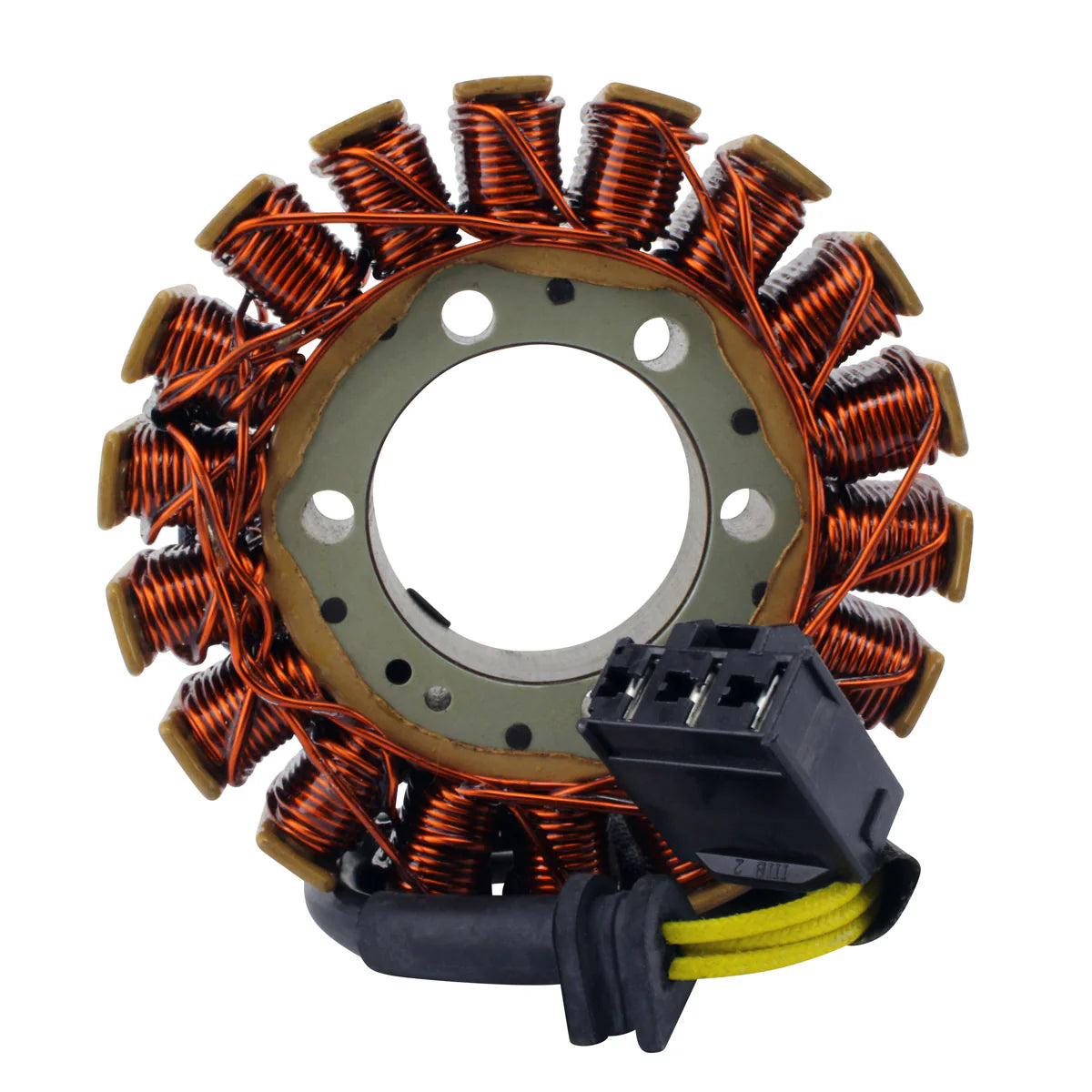

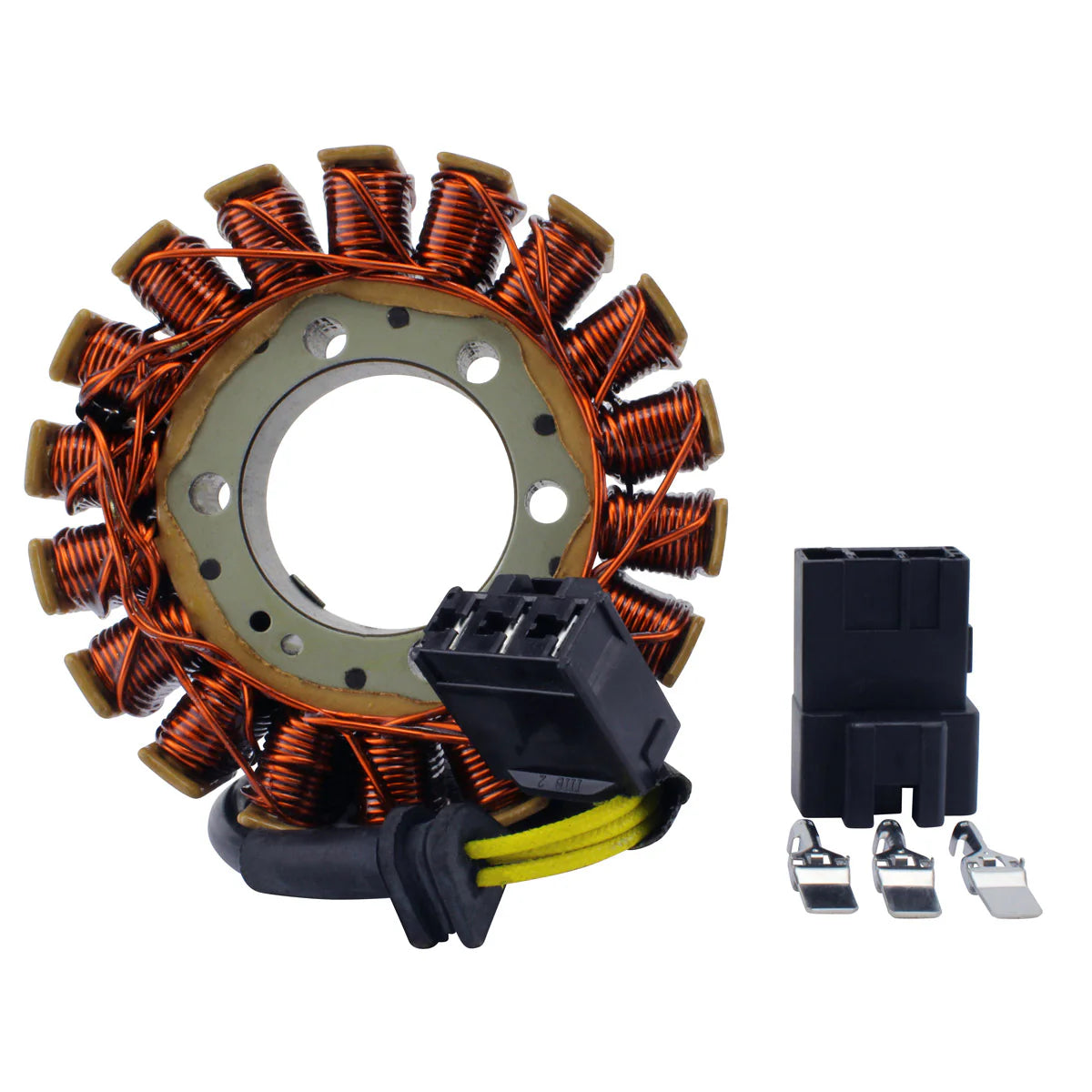

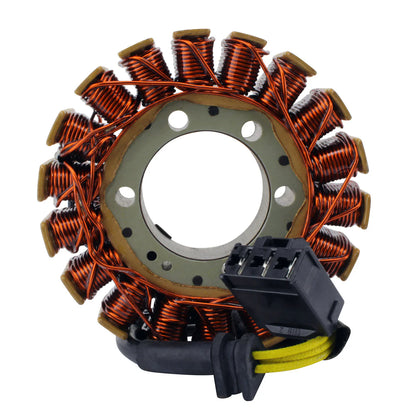

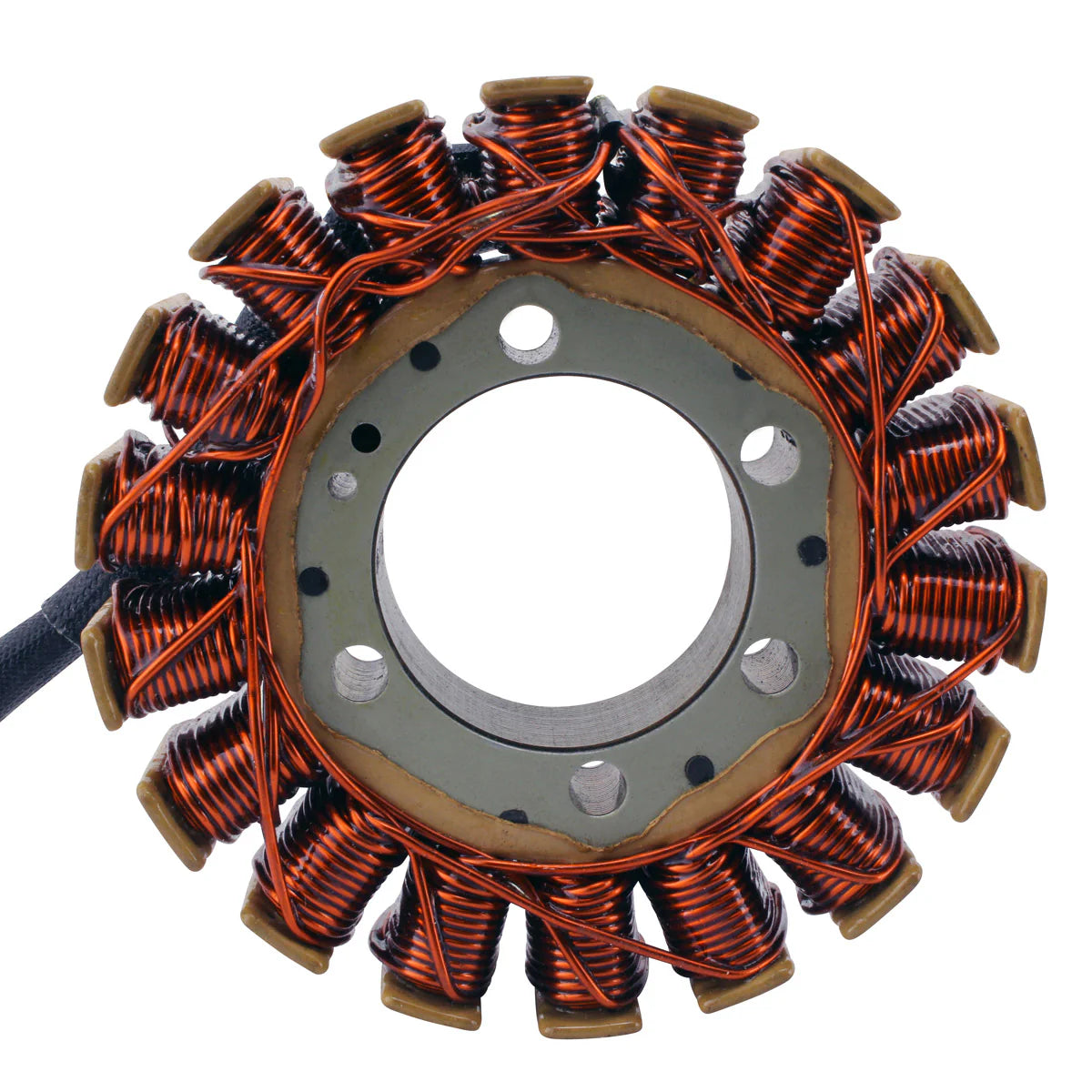

This stator is a direct replacement for the charging coil fitted to the Honda CBR 600 F4i. It is built to OEM specification for a direct plug-in fit, restoring the factory charging output with no wiring modification required.
The stator is a 3-wire unit with a single 3-pin plug, matching the OEM connector, and has an alternator wire-to-wire resistance of 0.5 Ohms +/-20% between the yellow wires.
Key Features
- Direct OEM fit and function replacement
- 3-wire stator with 3-pin plug
- Alternator resistance 0.5 Ohms +/-20% (yellow-yellow)
- Factory-length wiring to the original connector position
Technical Specs
| Specification |
Detail |
| Interior Diameter |
42mm |
| Exterior Diameter |
108mm |
| Thickness |
24mm |
| Wire Length (Stator to Grommet) |
120mm |
| Wire Length (Grommet to Plug) |
135mm |
| Number of Wires |
3 |
| Number of Plugs |
1 |
| Number of Pins |
3 |
| Wire-to-Wire Resistance (Yellow-Yellow) |
0.5 Ohms +/-20% |
Vehicle Fitment Guide
| Make & Model |
Years |
| Honda CBR 600 F4i |
2001-2006 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 31120-MBW-J21 |
Honda |
Frequently Asked Questions
Will this fit without modification?
Yes, this stator is a direct plug-in replacement for the Honda CBR 600 F4i - no cutting or splicing is required.
What's included?
One replacement stator with its factory-length wiring and connector.
How do I know my stator has failed?
Weak or no charging, a battery that won't hold charge, or dim/flickering lights are common signs. Testing the wire-to-wire resistance against the 0.5 Ohms +/-20% spec above will confirm a fault.
Will the wire colours match my original loom?
The stator may use a different wire colour code to your original, but all wires are installed in the correct order, so match by connector position rather than colour.
