Stator for Honda CMX 250 Rebel 1996-2016 - Replaces 31120-KEN-671
Stator for Honda CMX 250 Rebel 1996-2016 - Replaces 31120-KEN-671
SKU:RMS010-103828
Free shipping over £150. Terms apply
Couldn't load pickup availability

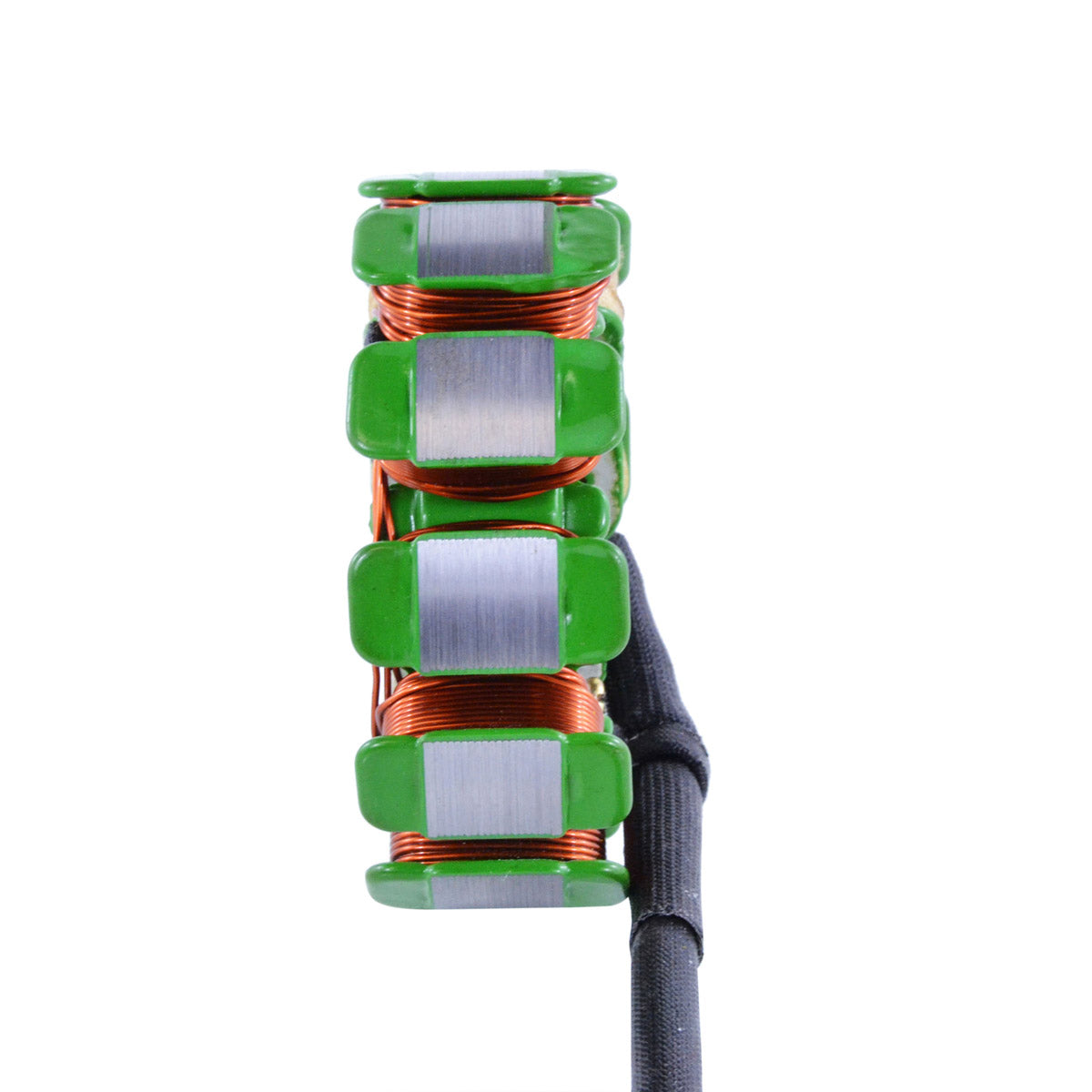

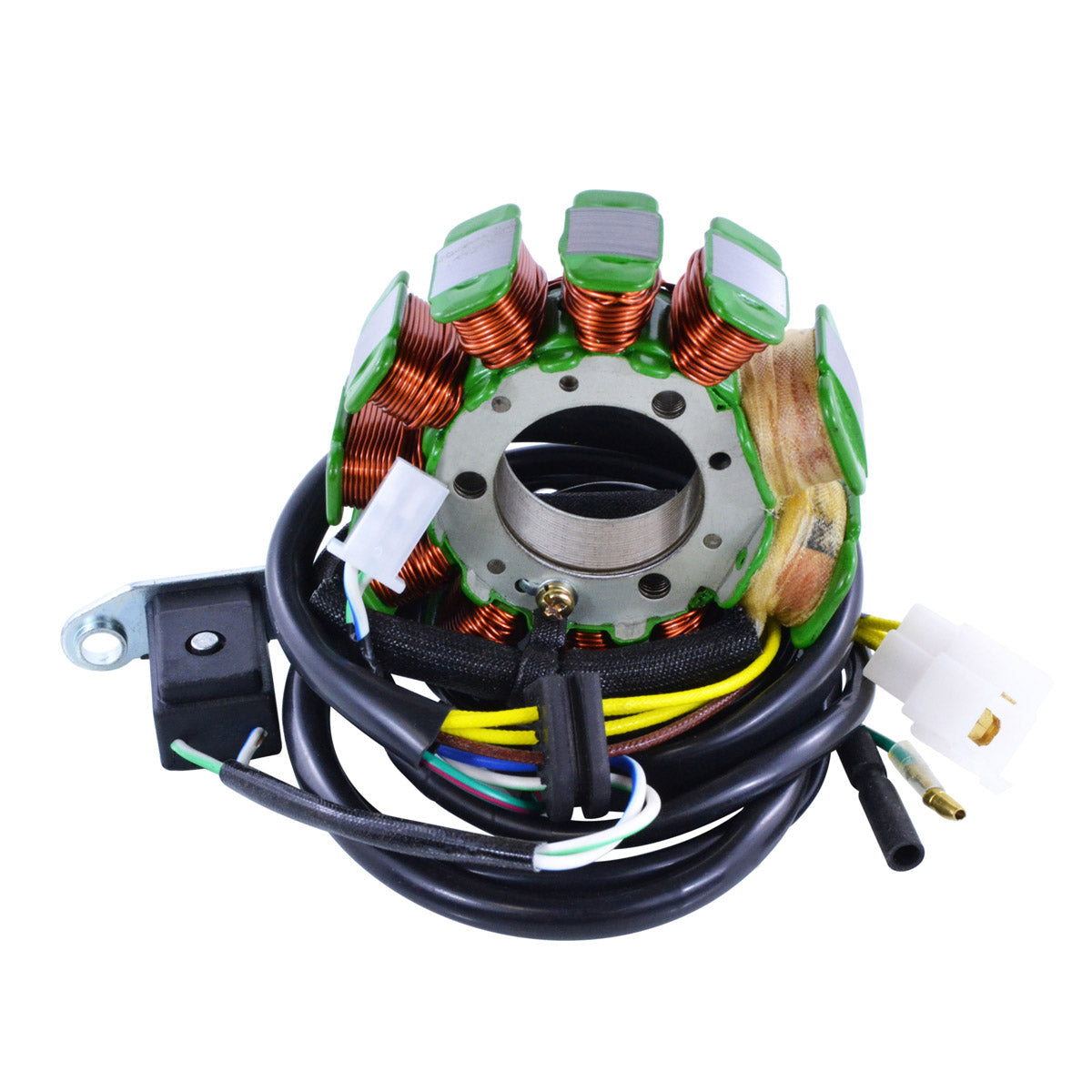

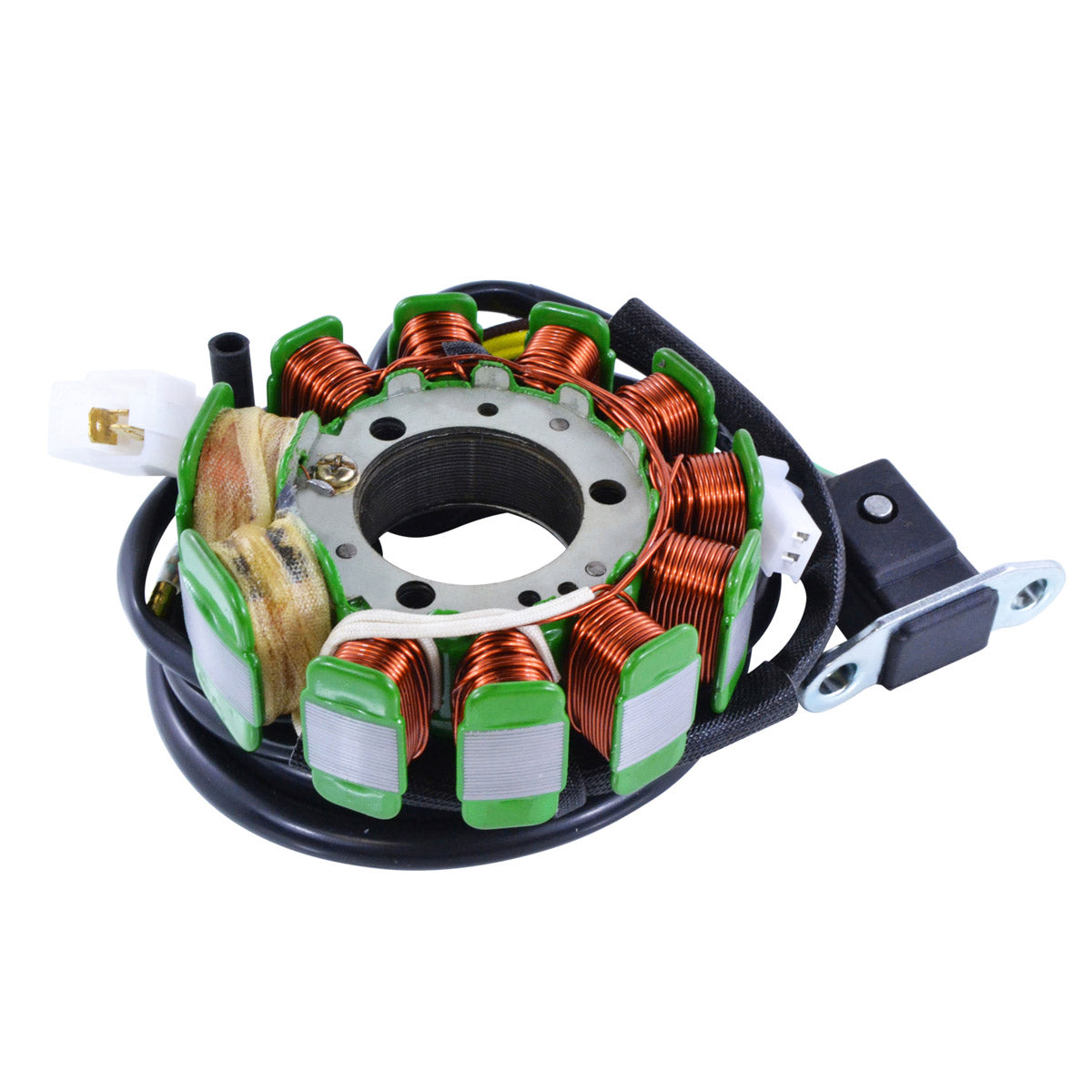

Stator for Honda CMX 250 Rebel
Honda CMX 250 Rebel 1996-2016 - Replaces 31120-KEN-671

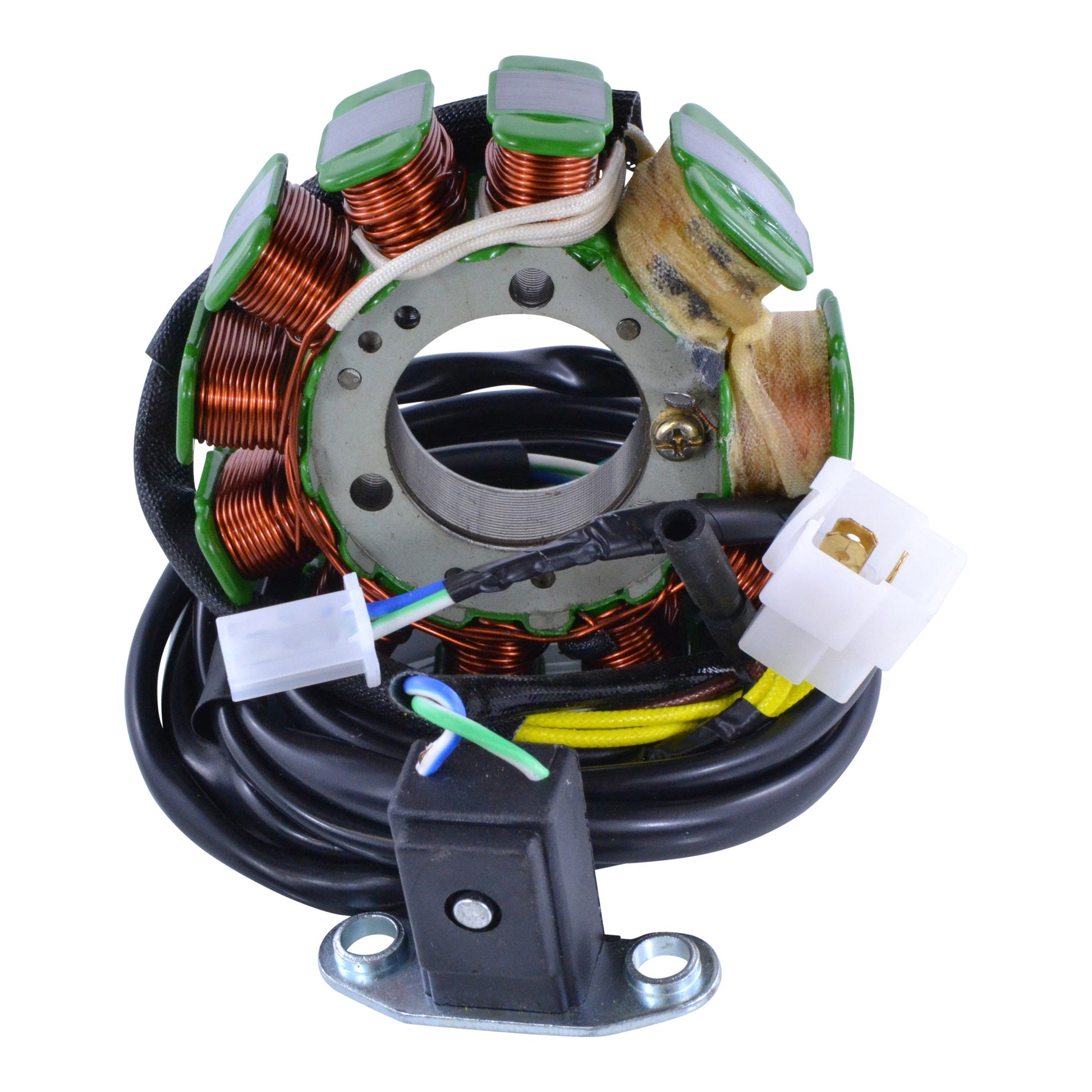

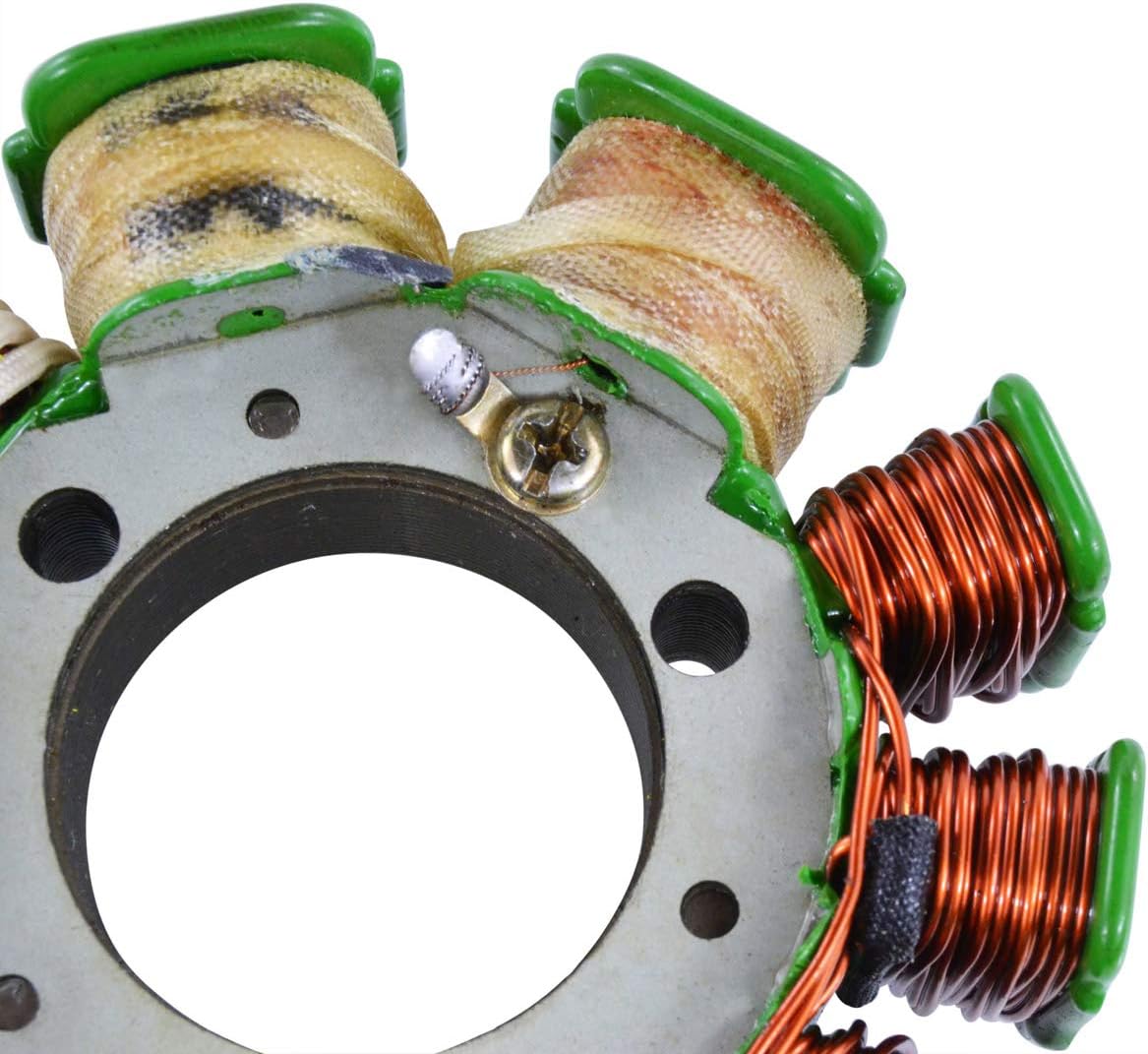

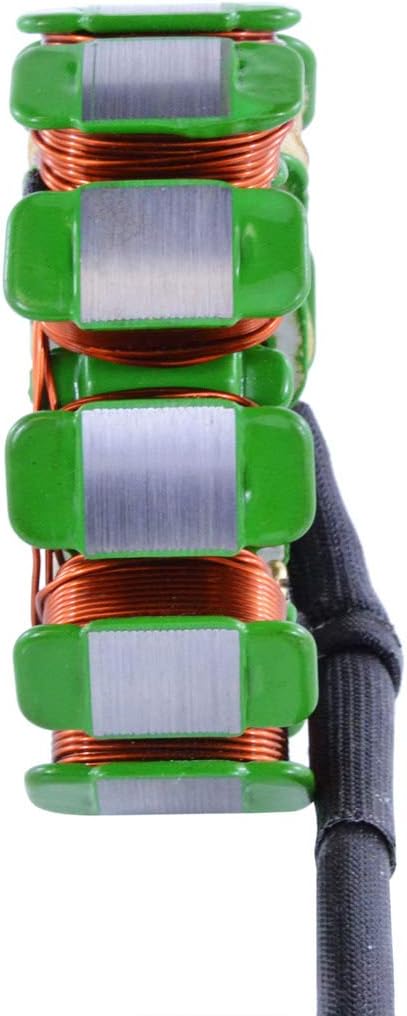

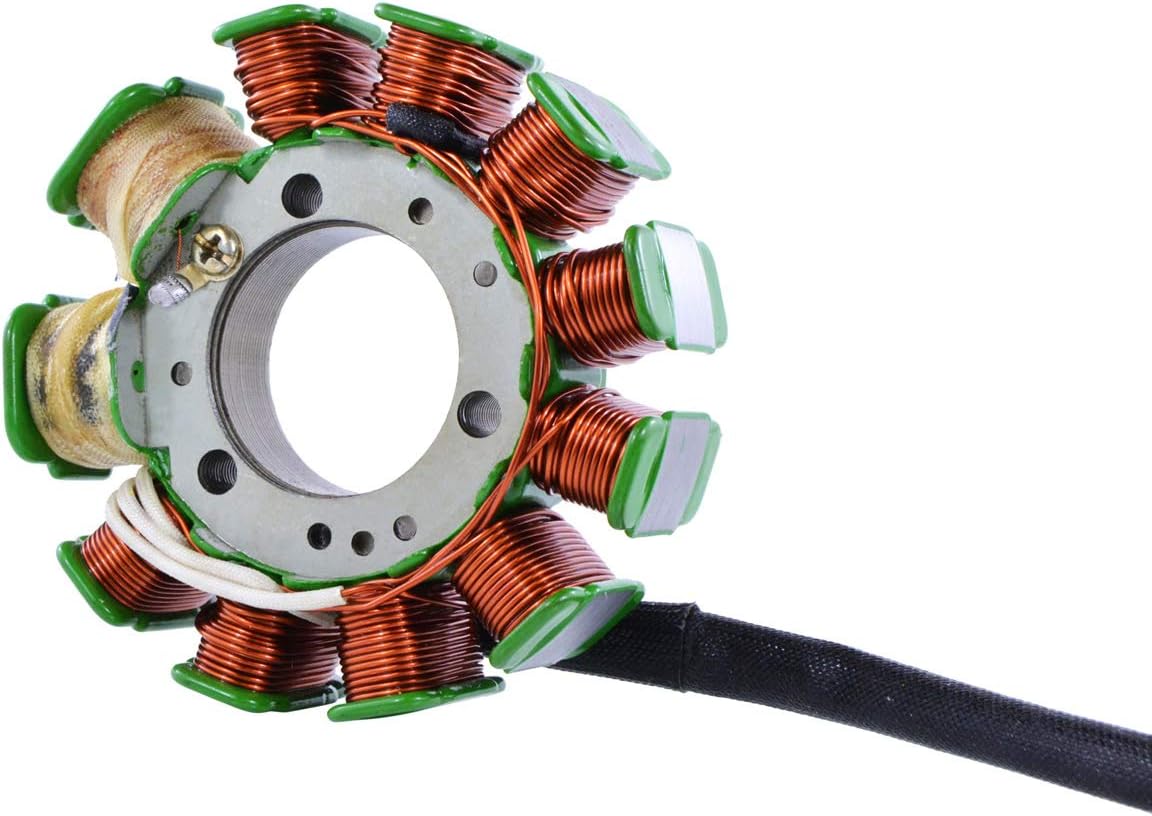

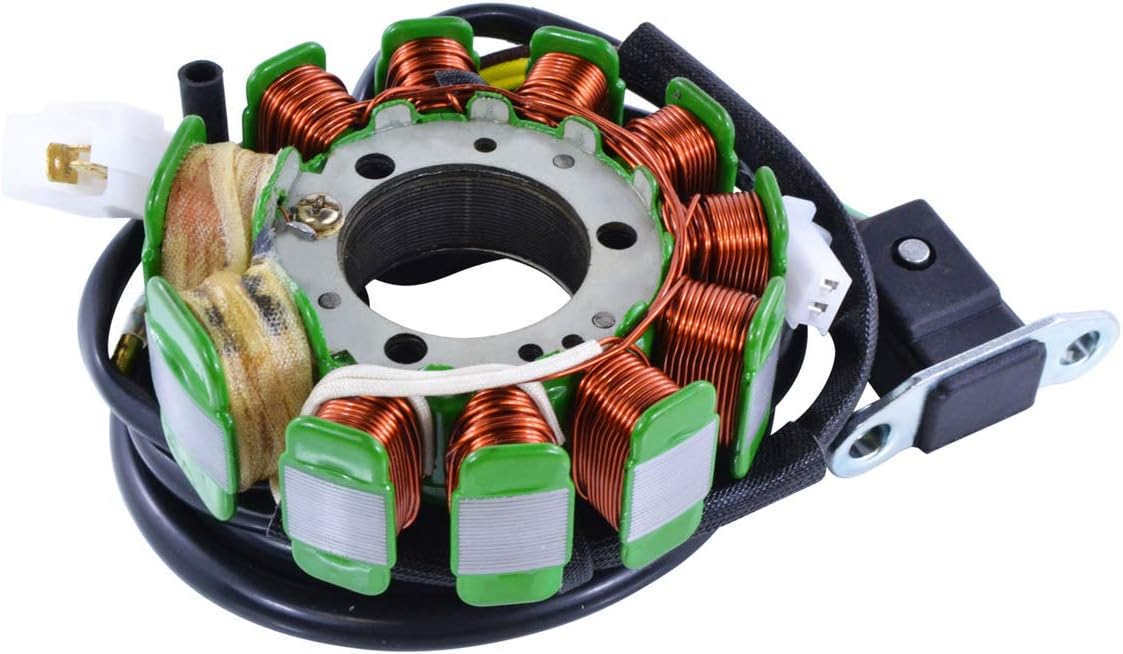

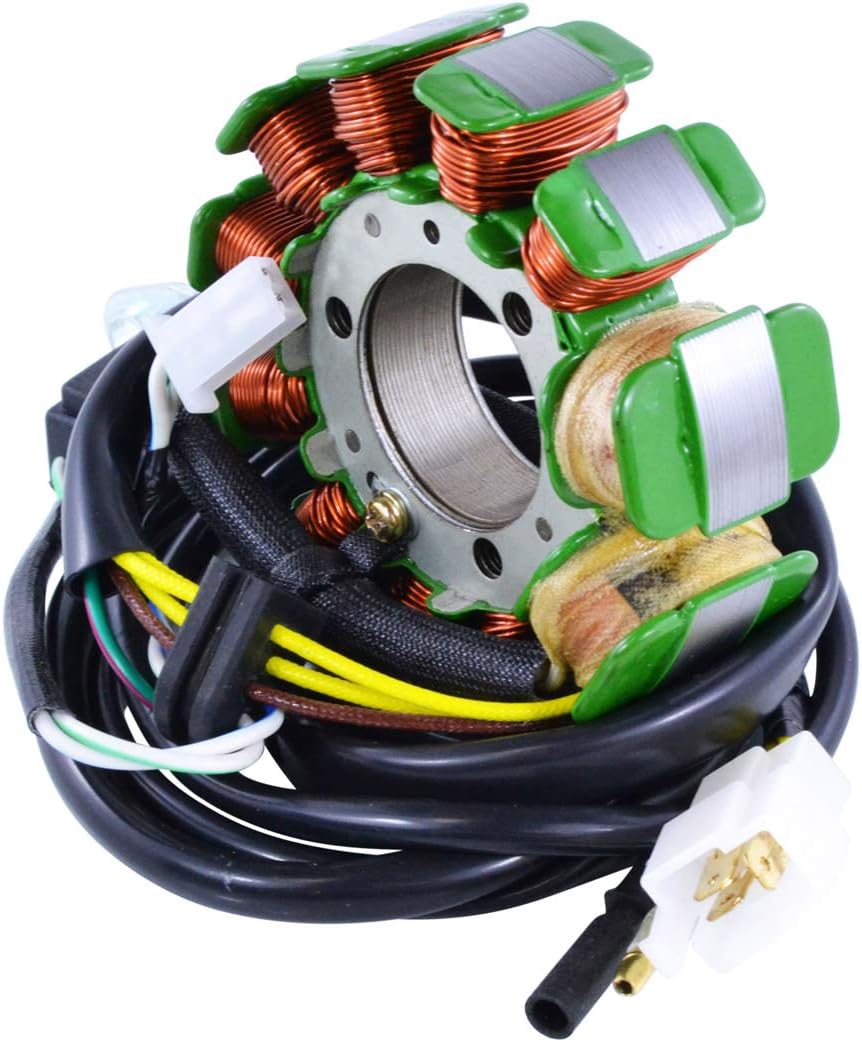

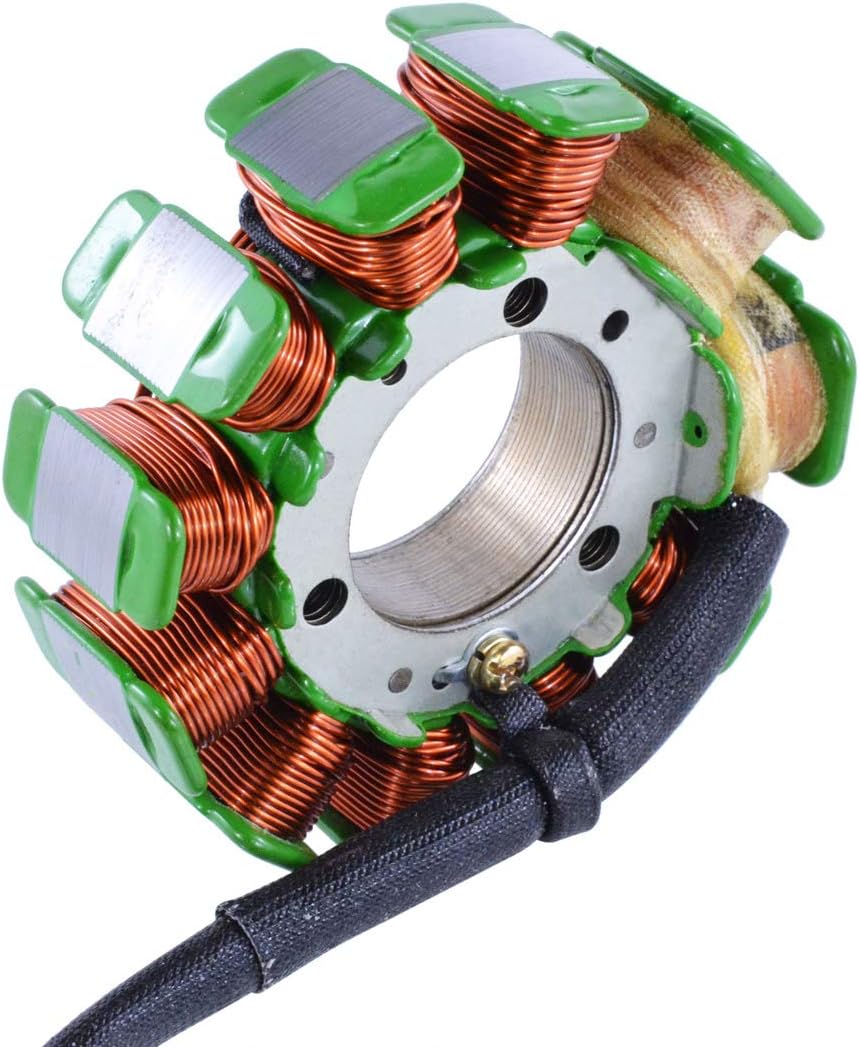

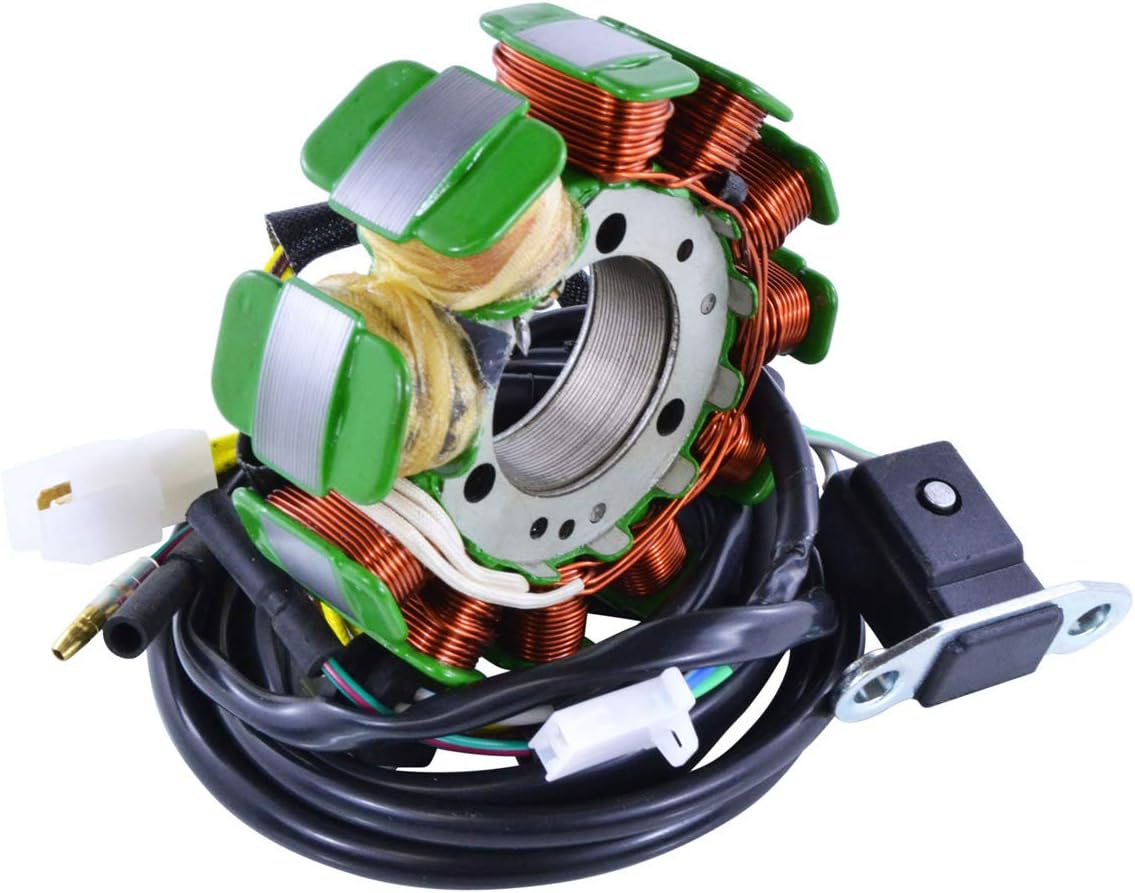

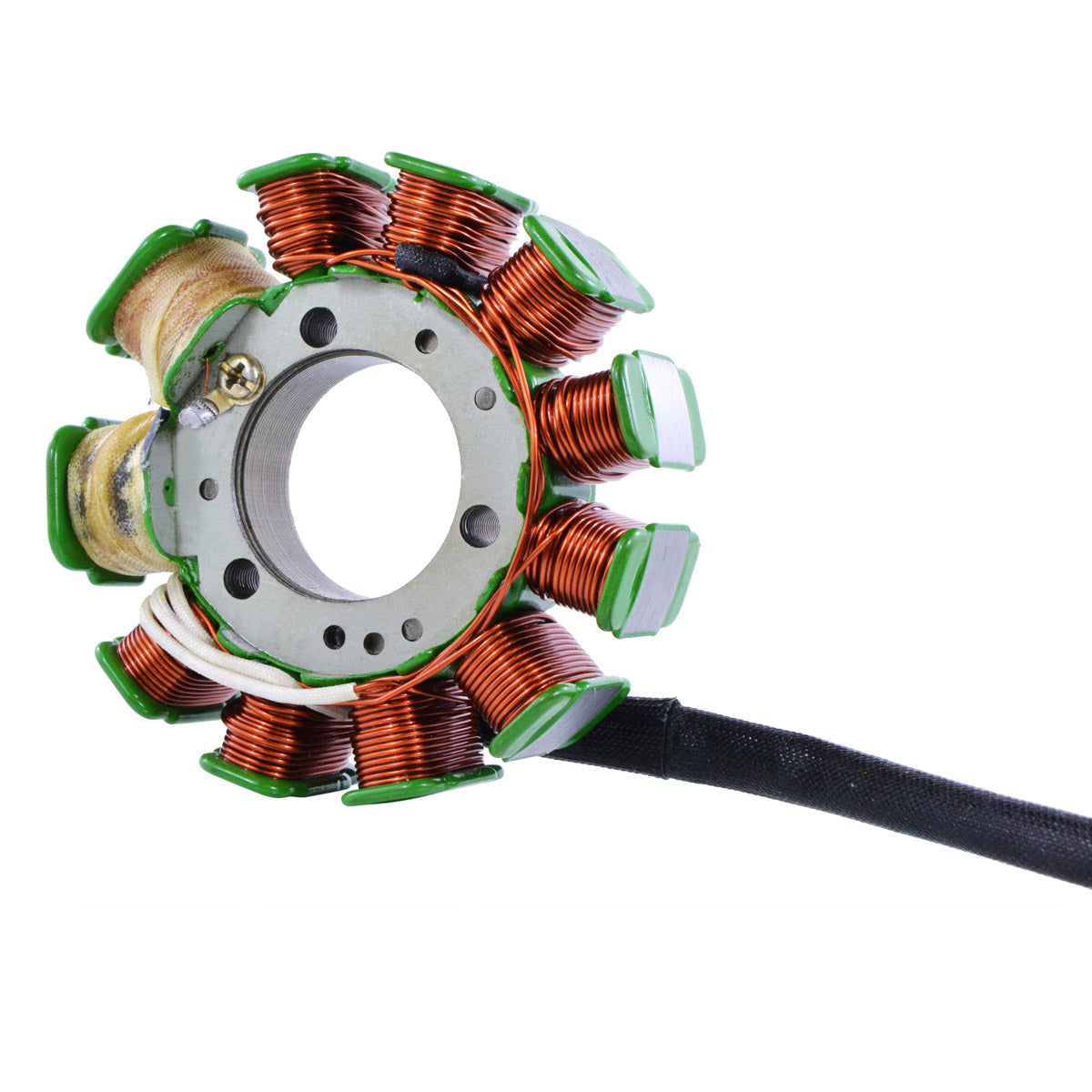

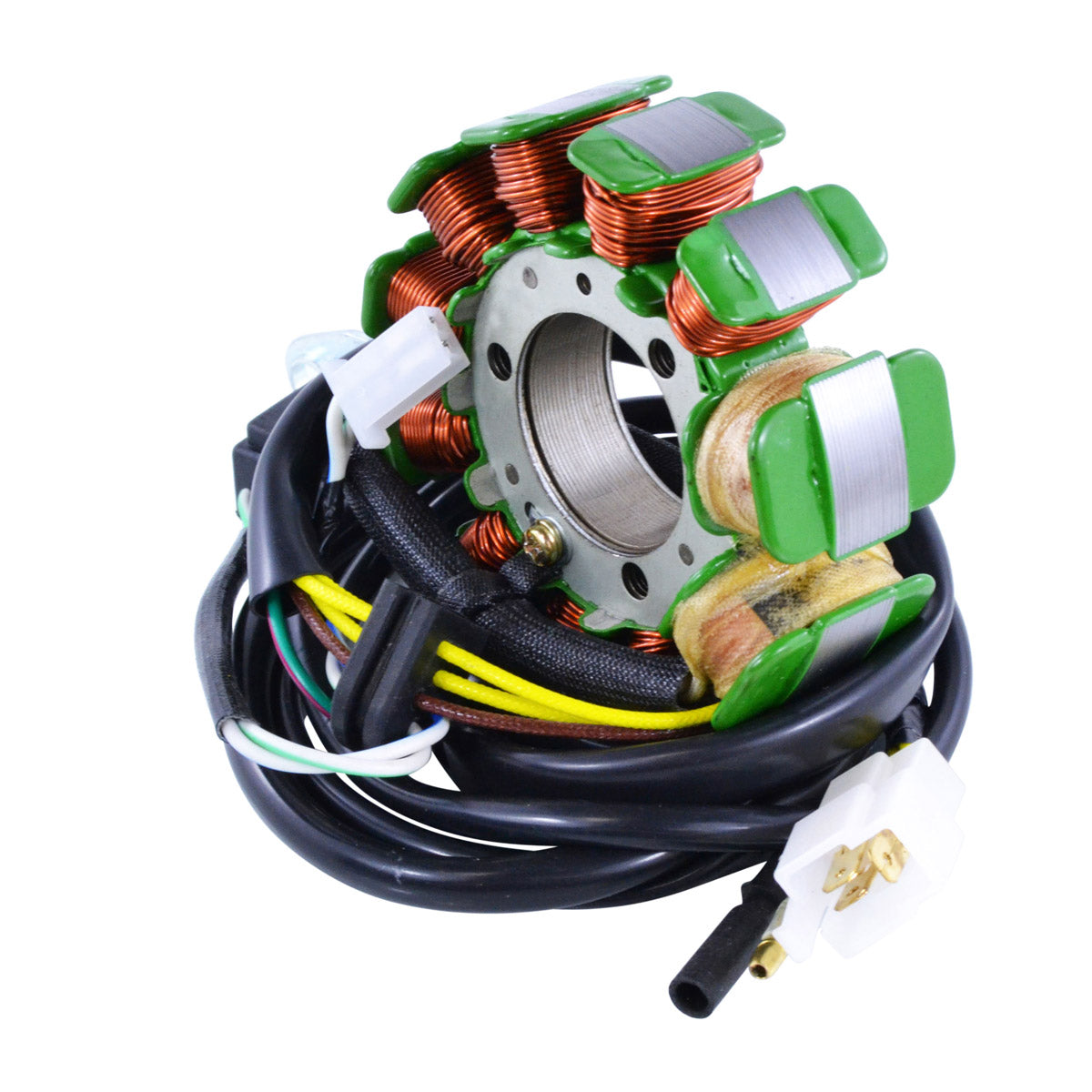

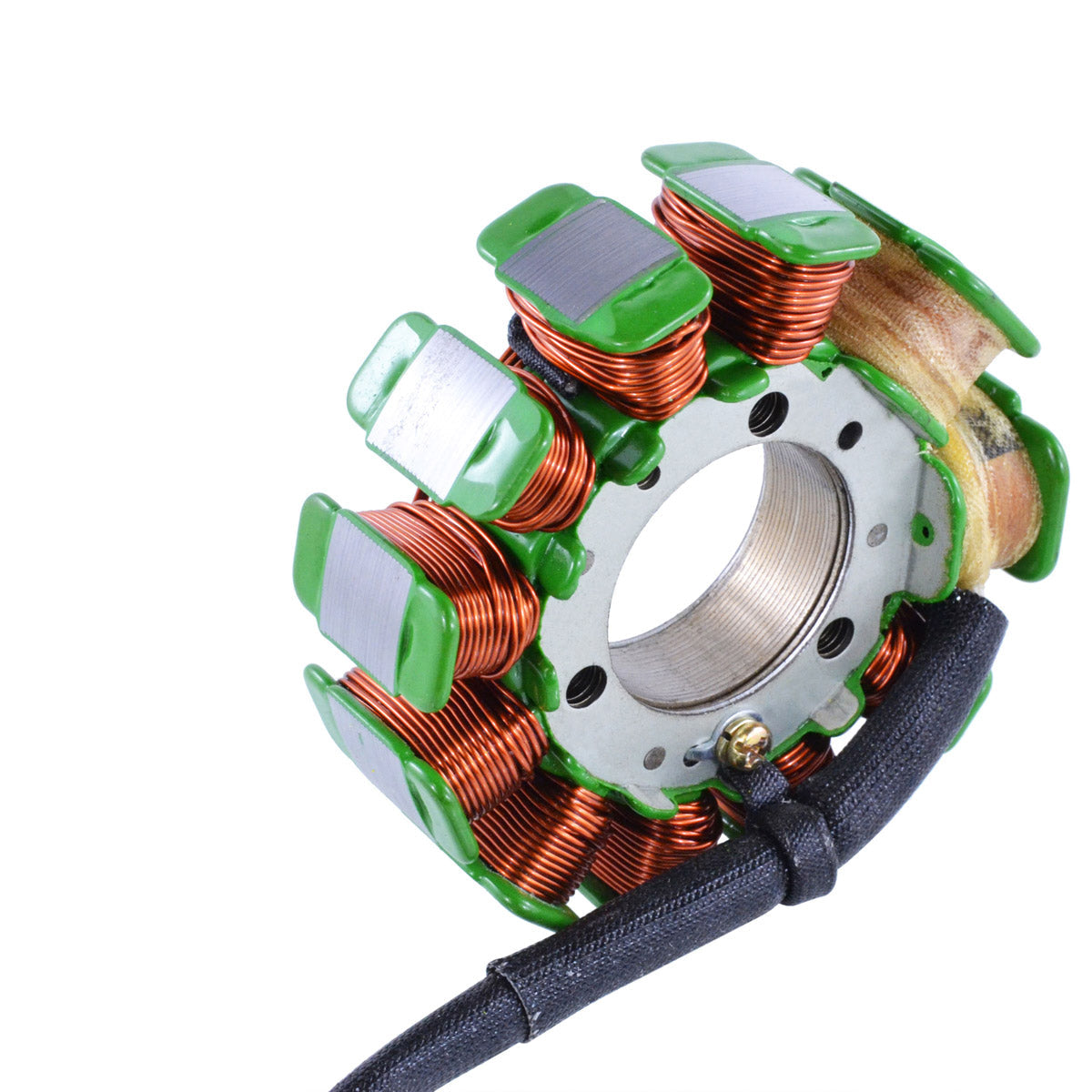

This is a brand new aftermarket stator built as a direct replacement for the original charging coil assembly fitted to the Honda CMX 250 Rebel. It arrives complete and ready to fit, with the pick up pulsar coil, the connector and the rubber grommet already installed, so the unit drops straight into the left-hand engine case in place of the failed original with no modification, no rewiring and no splicing.
RMSTATOR build this unit with the highest grade lamination materials and the highest grade copper windings, rated to withstand 200 degrees Celsius - the heat range that kills most original stators after two decades of service. RMSTATOR also supply the opposite connector, the main harness side half of the plug, because that side is very often melted, corroded or otherwise defective on a bike that has suffered a charging fault, and leaving it in place is a common cause of repeat electrical problems. Every unit is bench tested before it leaves the factory.
Key Features
- Brand new aftermarket stator - a direct replacement for your original unit
- Plug-and-play, direct fit, easy installation with no modification required

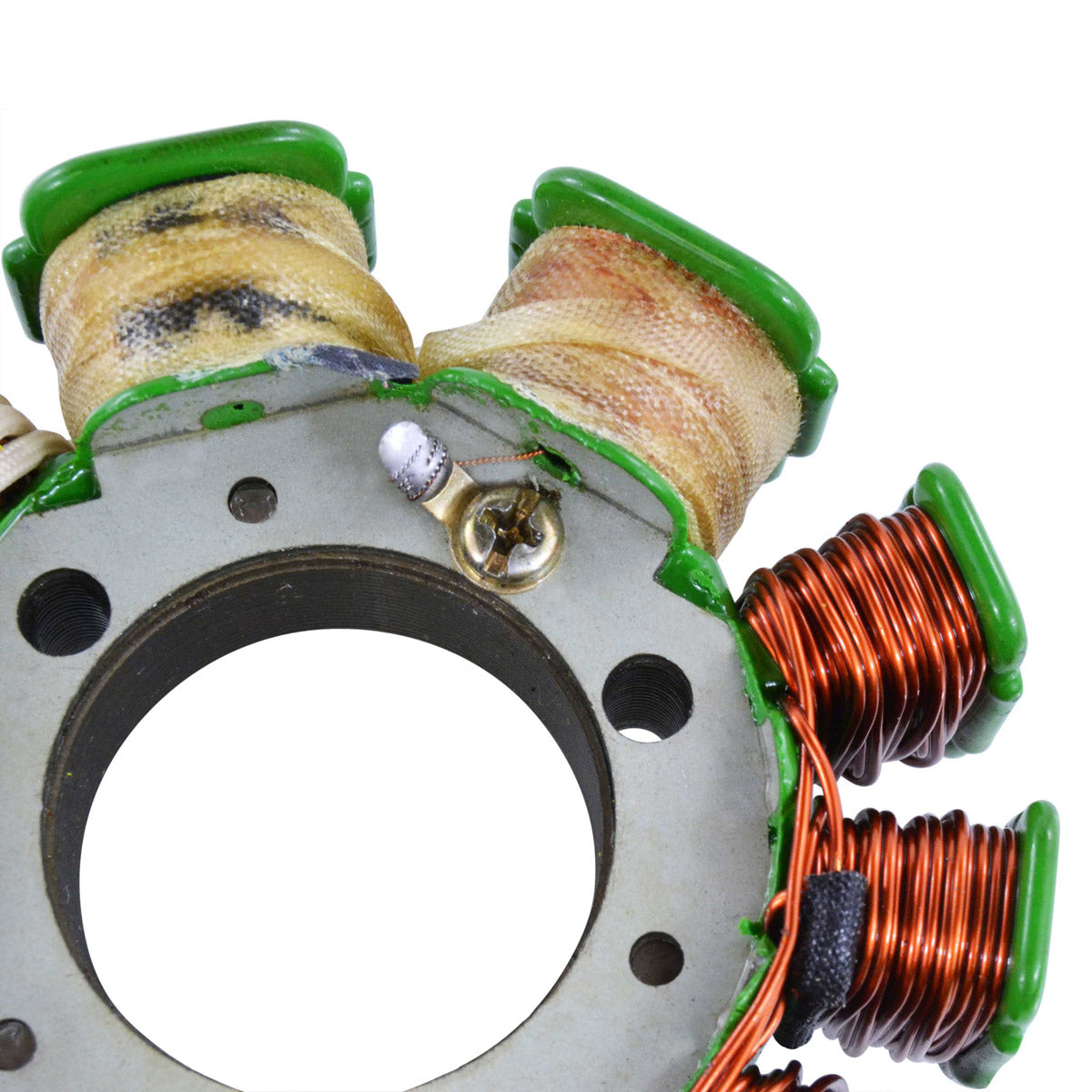

- Highest grade lamination materials for a stable magnetic circuit
- Highest grade copper windings, resistant to 200 degrees Celsius
- Connector and rubber grommet included
- Every unit is tested before it is shipped

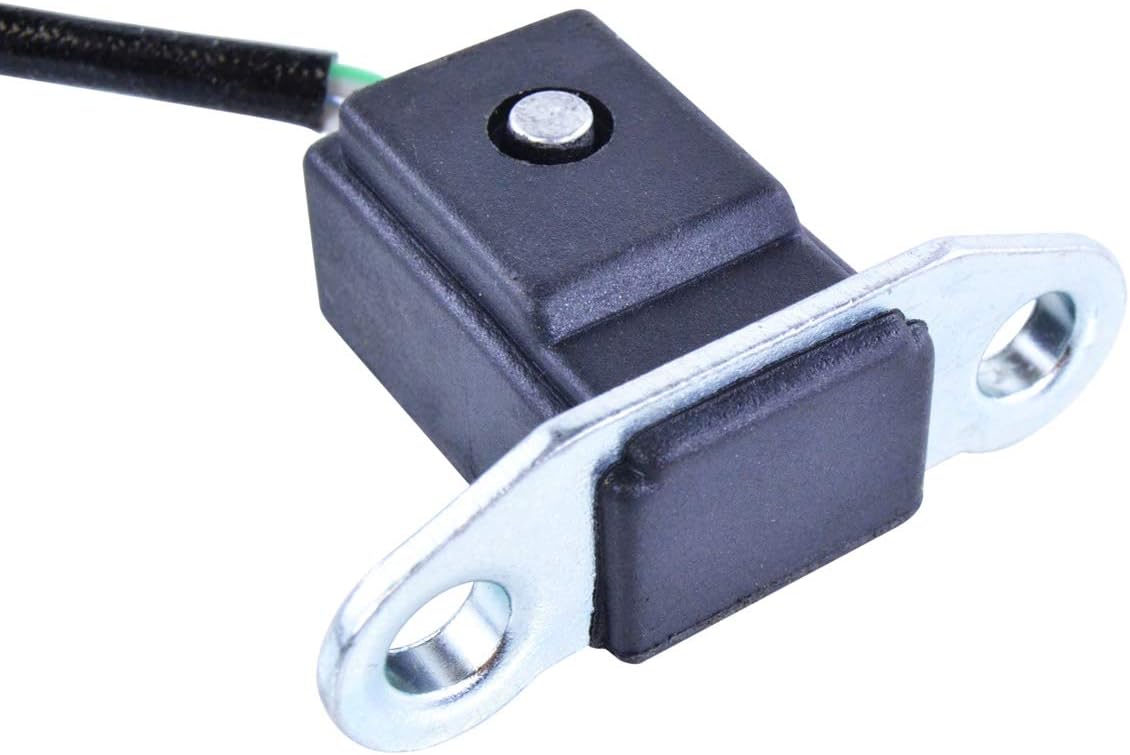

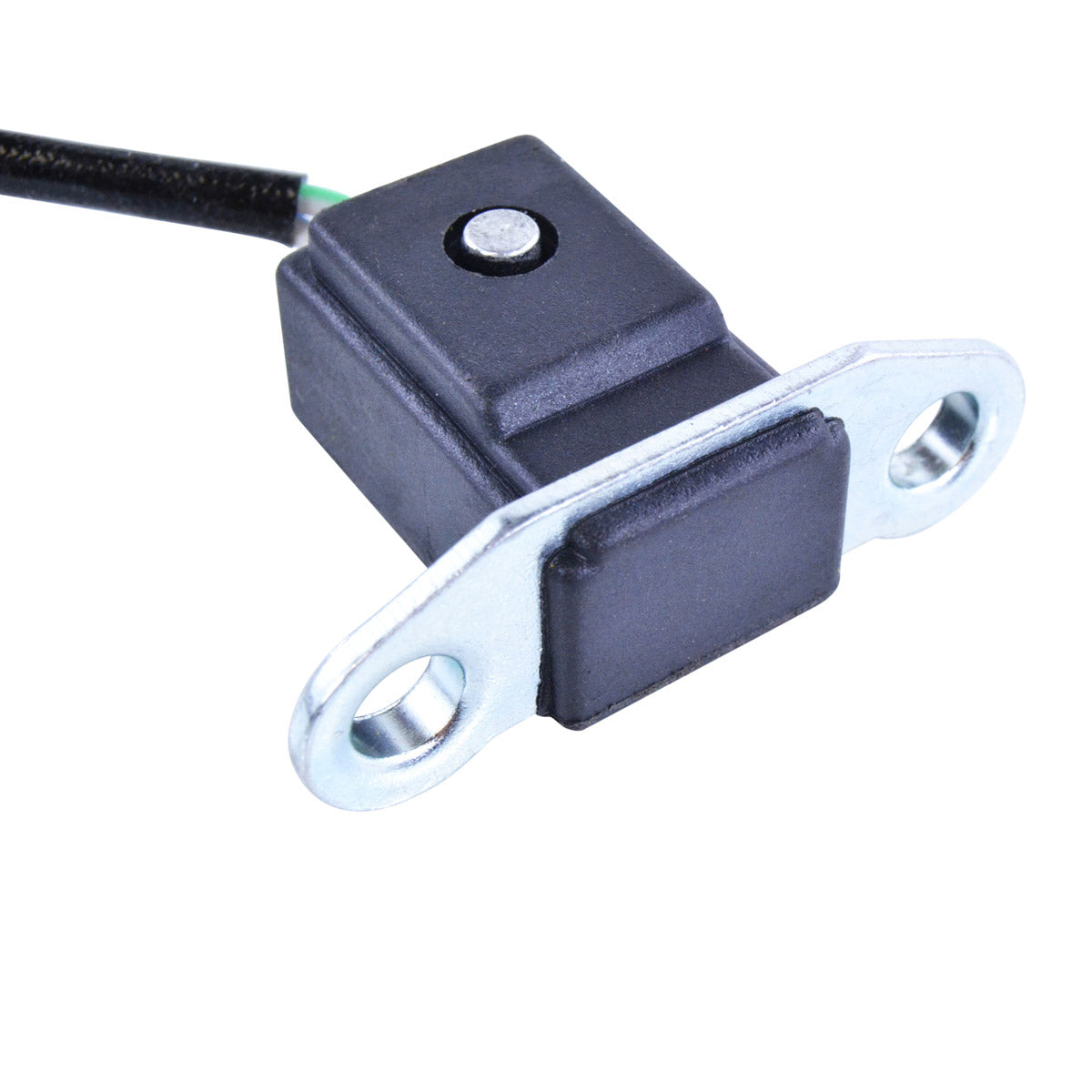

- Pick up pulsar coil included

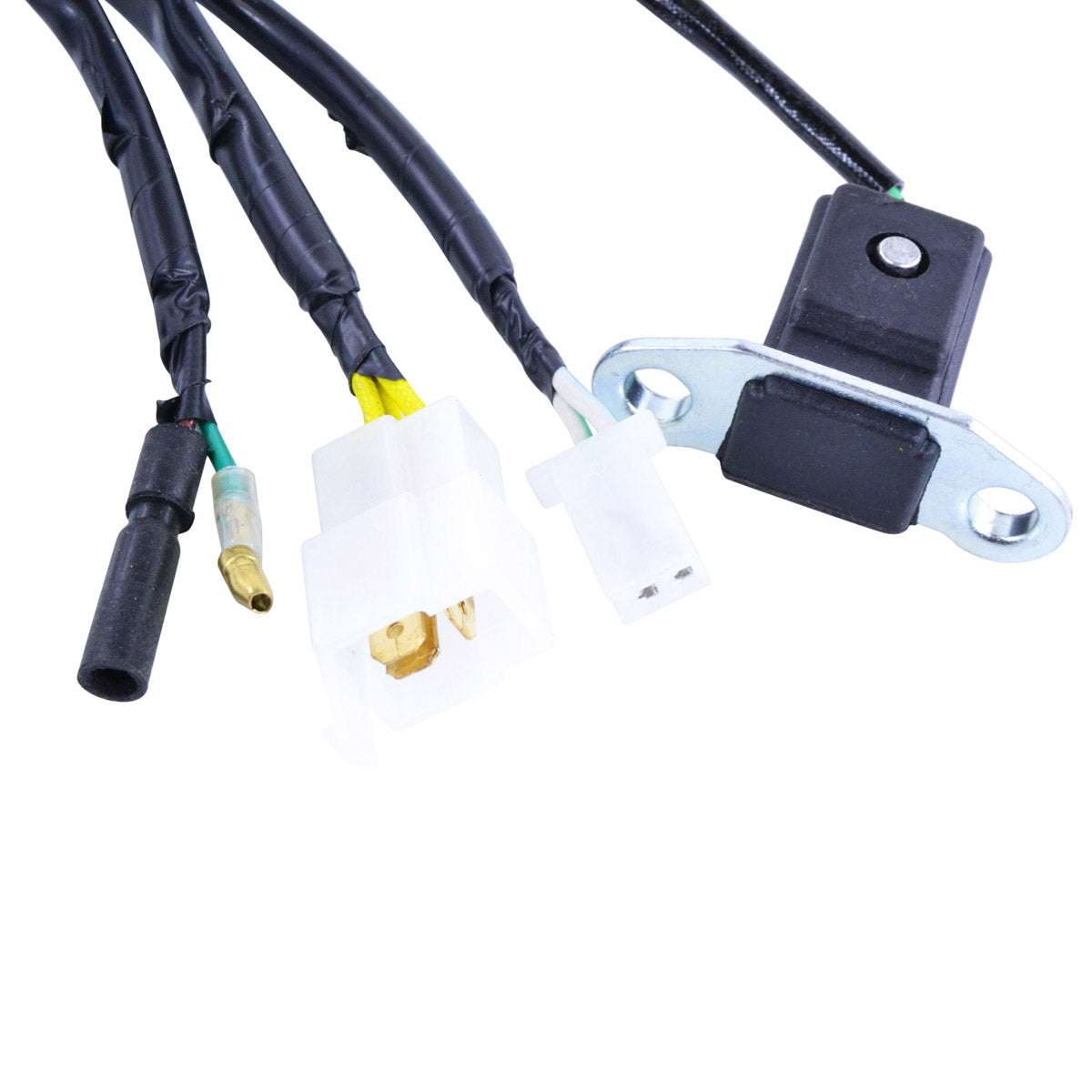

- Opposite connector (main harness side) supplied as well, so both halves of the plug are renewed
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 35 mm |
| Exterior diameter | 93 mm |
| Thickness | 18 mm |
| Length of wires stator to grommet | 150 mm |
| Length of wires grommet to plug | 800 mm |
| Length of pickup coil wire to grommet | 120 mm |
| Number of wires | 6 |
| Number of plugs | 2 |
| Number of pins | 6 |
| Alternator resistance | Between each yellow = 0.4 ohms +-20% |
| Pickup resistance | Green/White to Blue/White = 125 ohms +-20% |
| Source resistance | Black/Red to ground = 200 ohms +-20% |
| Winding temperature rating | Resistant to 200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Honda CMX 250 Rebel | 1996-2016 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 31120-KEN-671 | Honda |
Frequently Asked Questions
Will this stator fit without modifying my bike?
Yes. It is a direct, plug-and-play replacement for the original unit. The mounting pattern, the wire lengths and the connector all match the factory part, so it bolts into the engine case and plugs into the existing harness with no cutting, drilling or splicing.
What is included in the box?

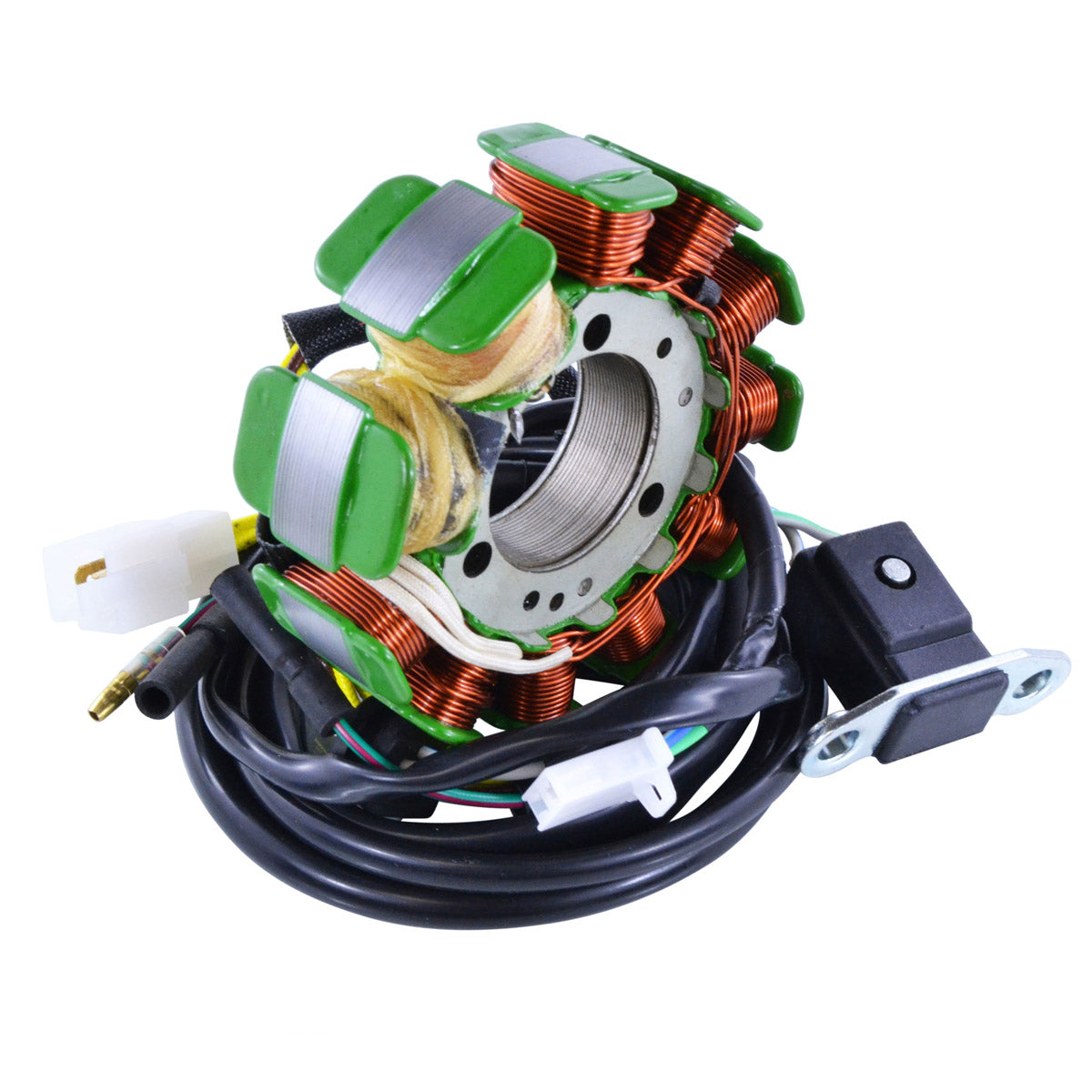

The stator itself, the pick up pulsar coil, the connector, the rubber grommet, and in addition the opposite connector for the main harness side so that both halves of the plug can be renewed at the same time.
How do I know my old stator has failed?
The usual signs are a battery that will not stay charged, dimming or flickering lights as the engine revs, and a bike that runs progressively worse the longer it is ridden. Confirm it with a multimeter: measure between each pair of yellow wires and you should read about 0.4 ohms, and check that no wire reads continuity to earth. A reading far outside those figures, or any short to ground, points to a failed stator.
Why does the kit include a second connector?
On a bike that has run with a charging fault, the main harness side of the plug is very often melted or corroded by heat and resistance. Fitting a new stator into a damaged plug simply repeats the fault, so the matching harness side connector is supplied with the part.
