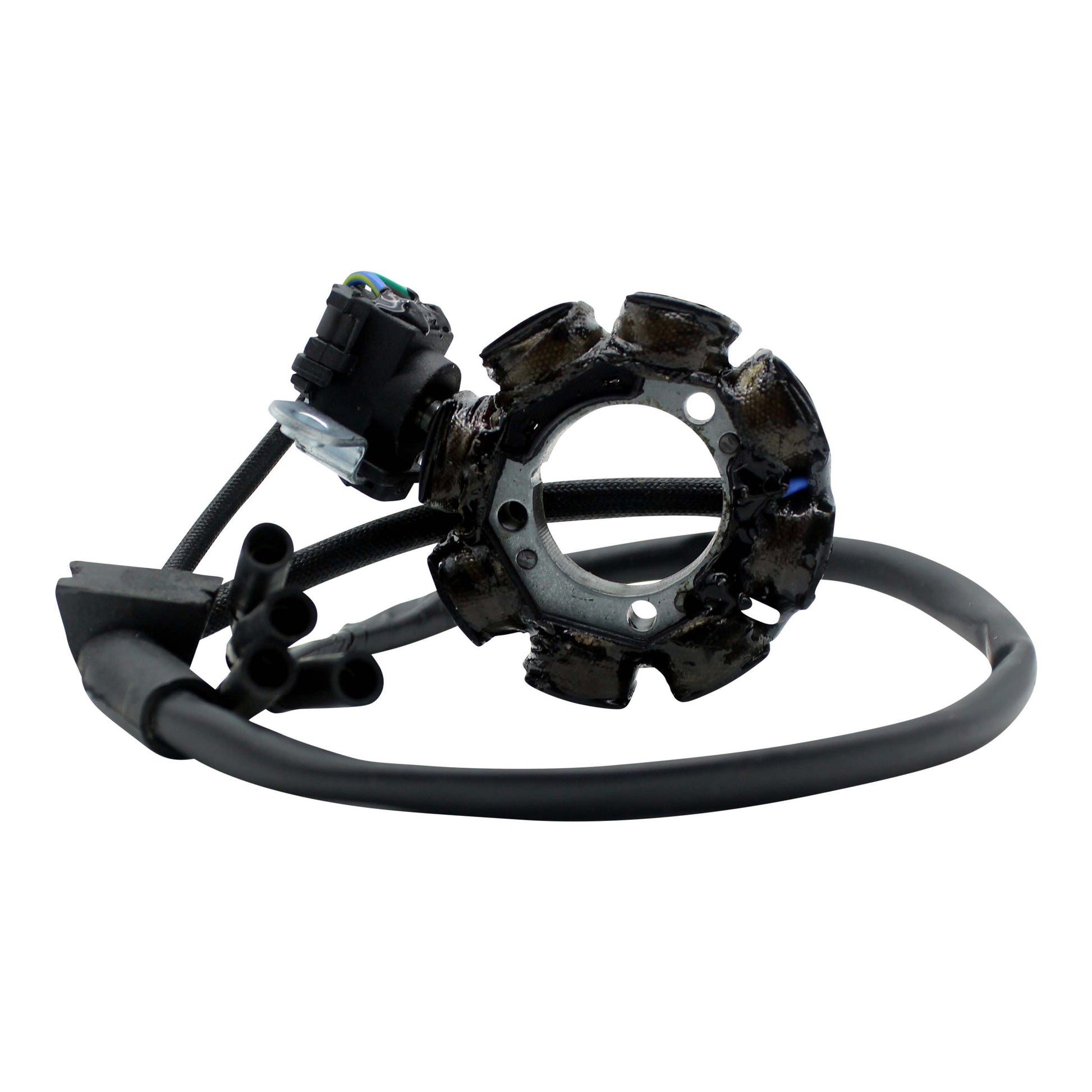

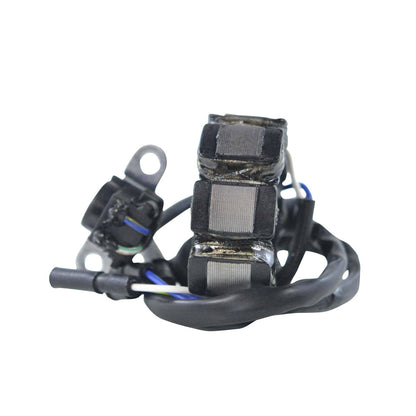

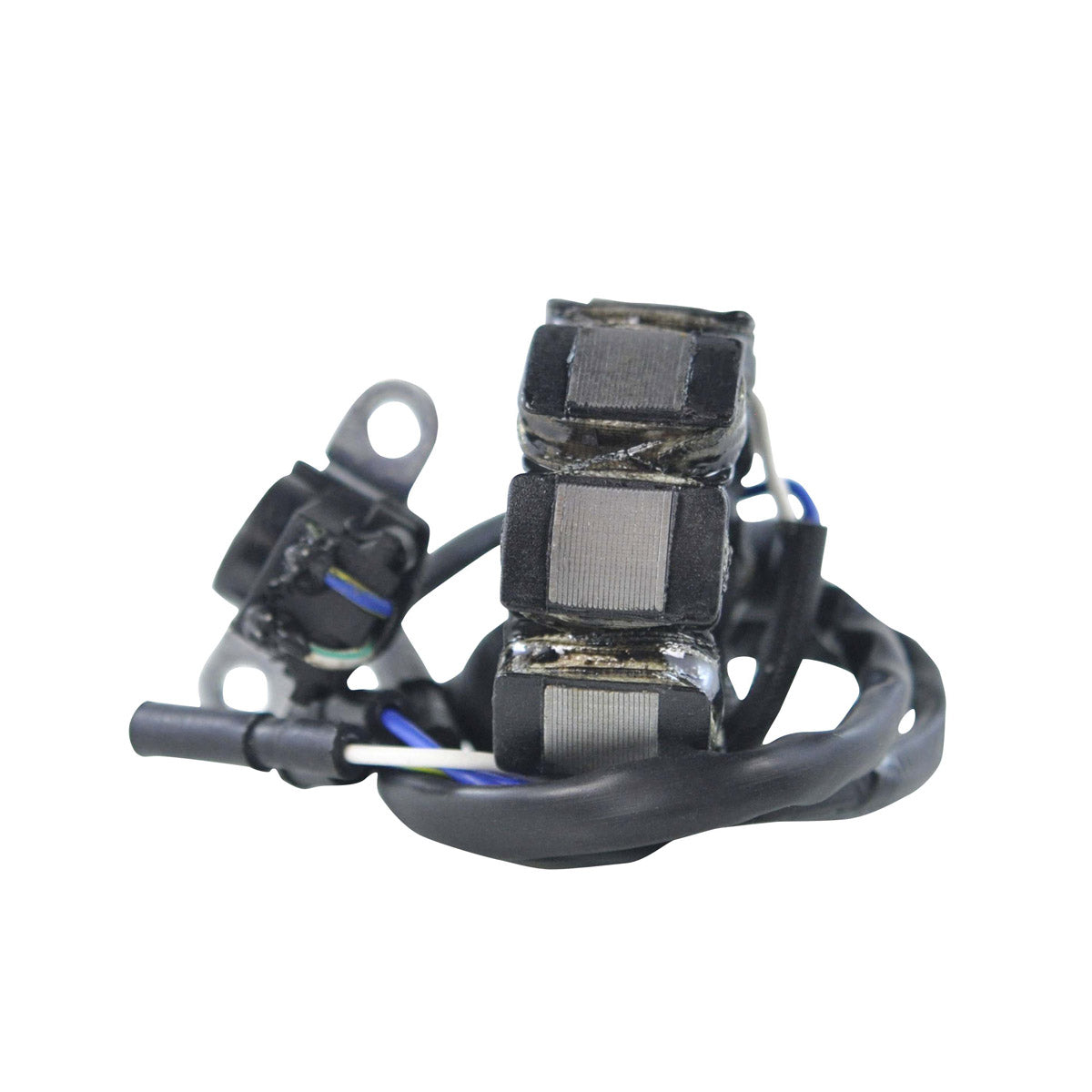

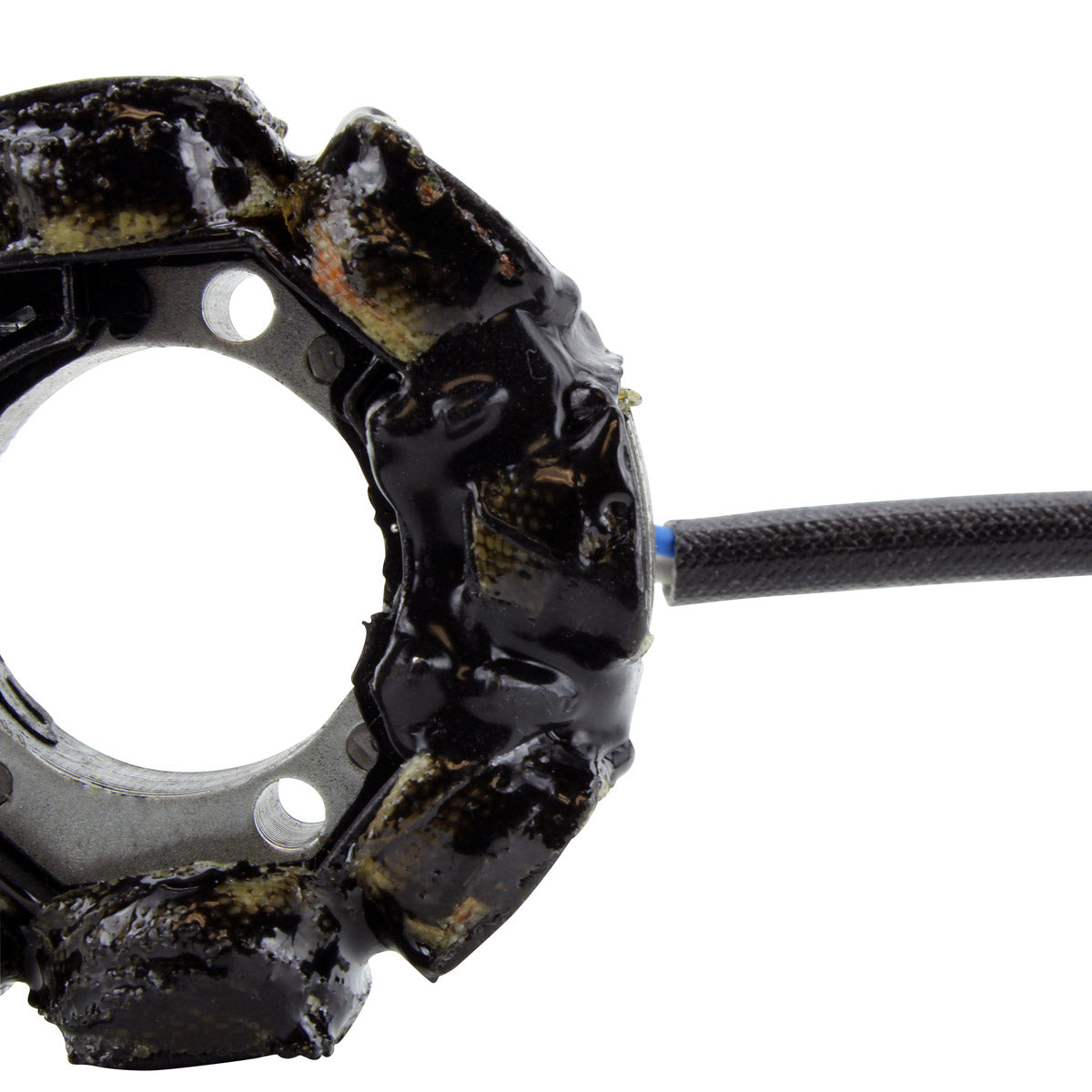

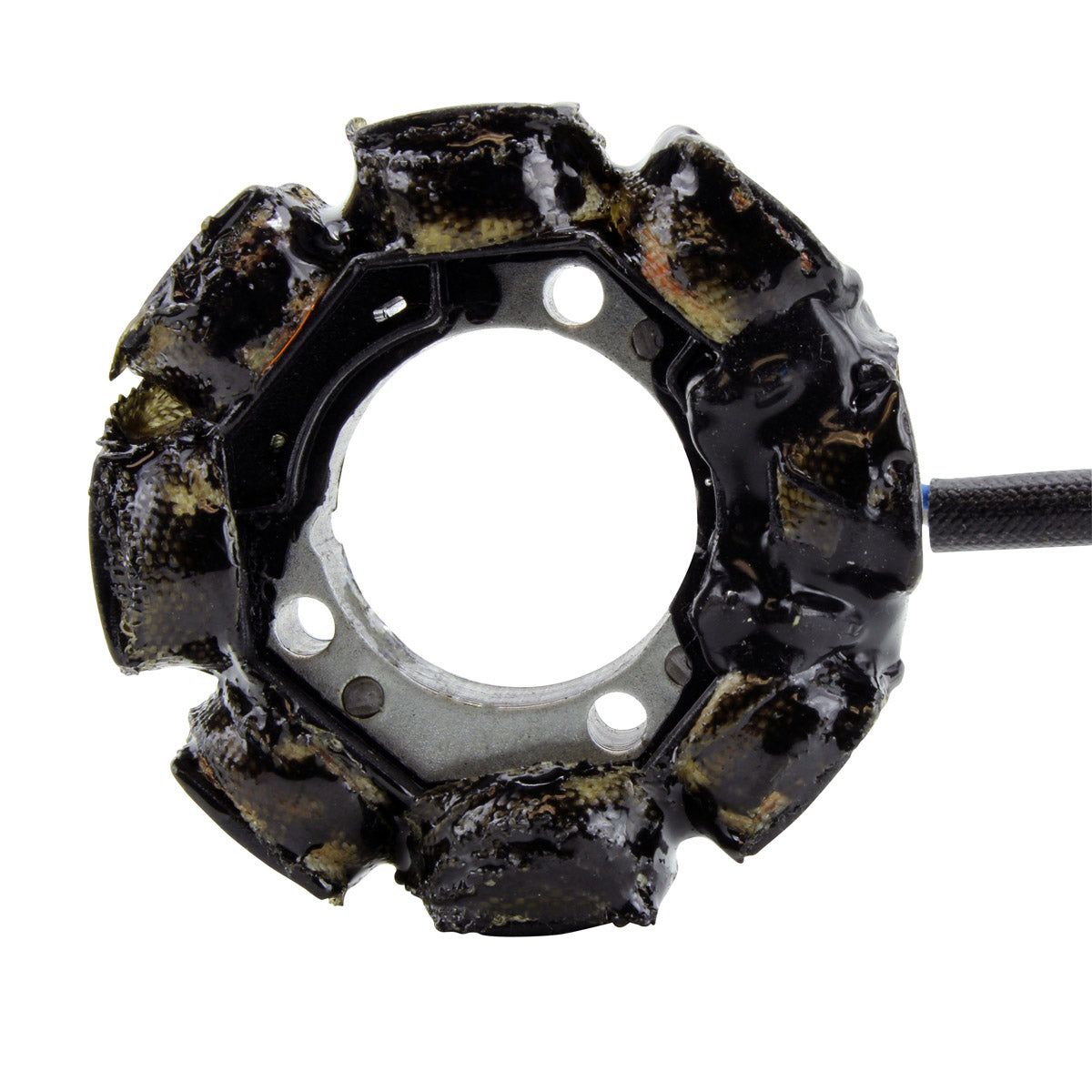

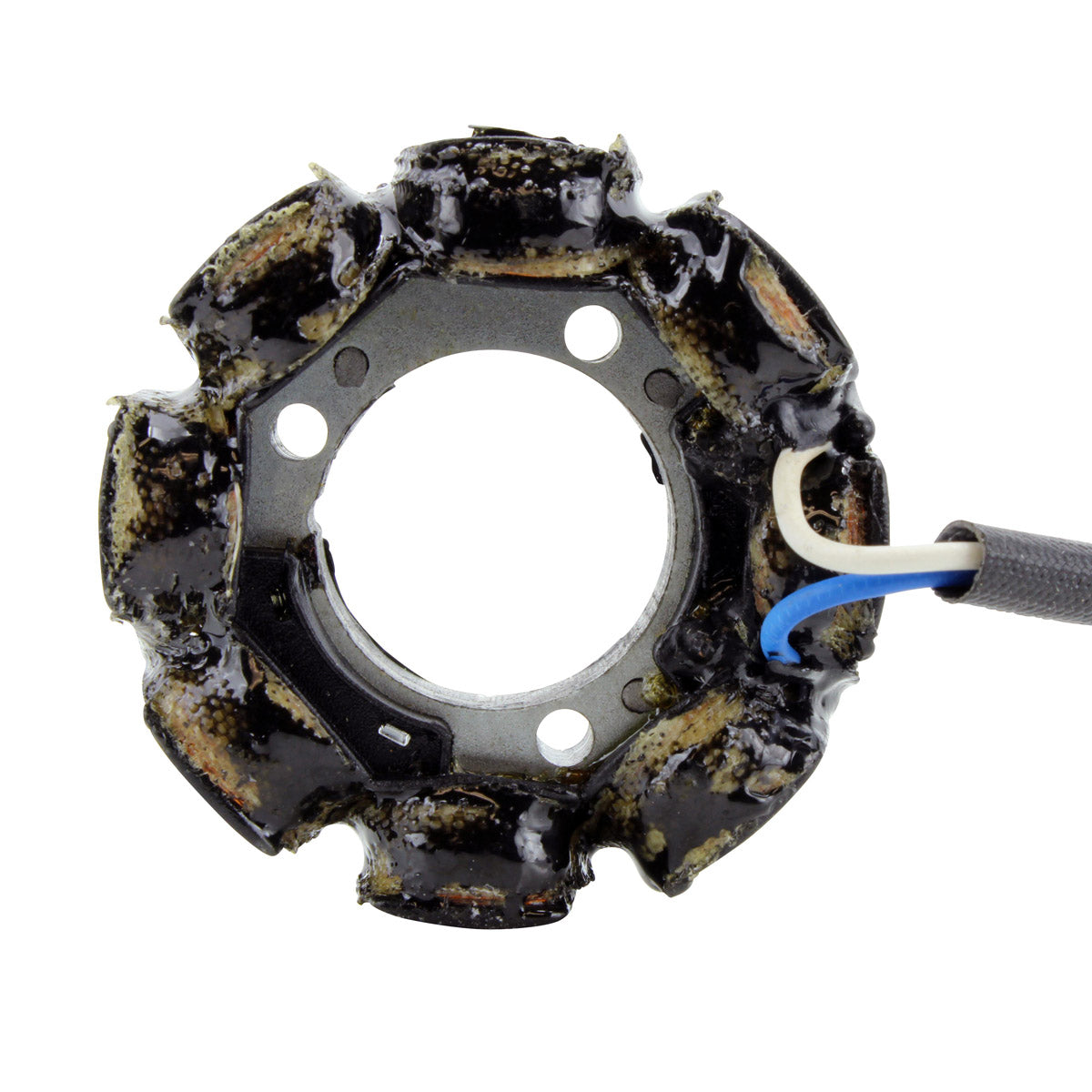

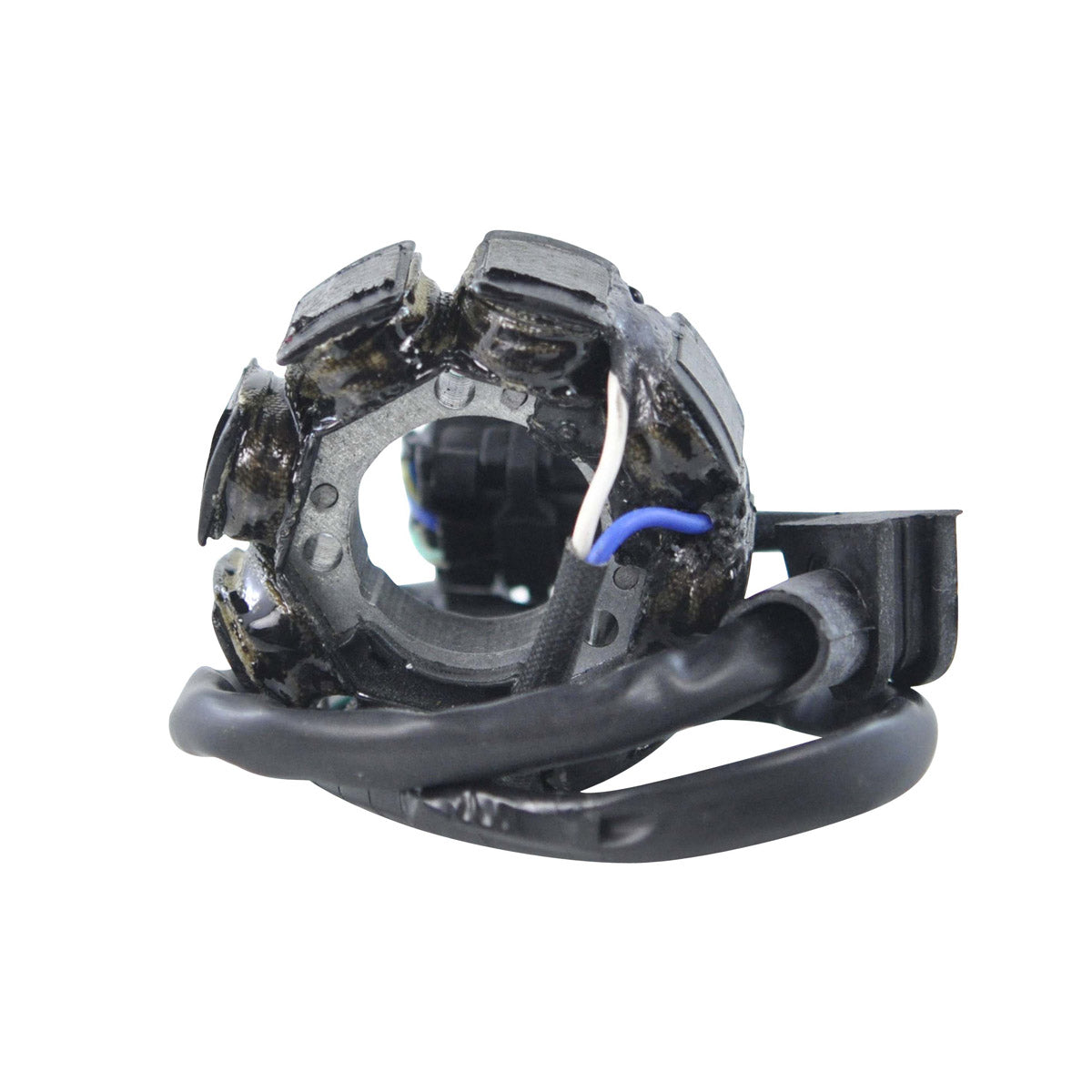

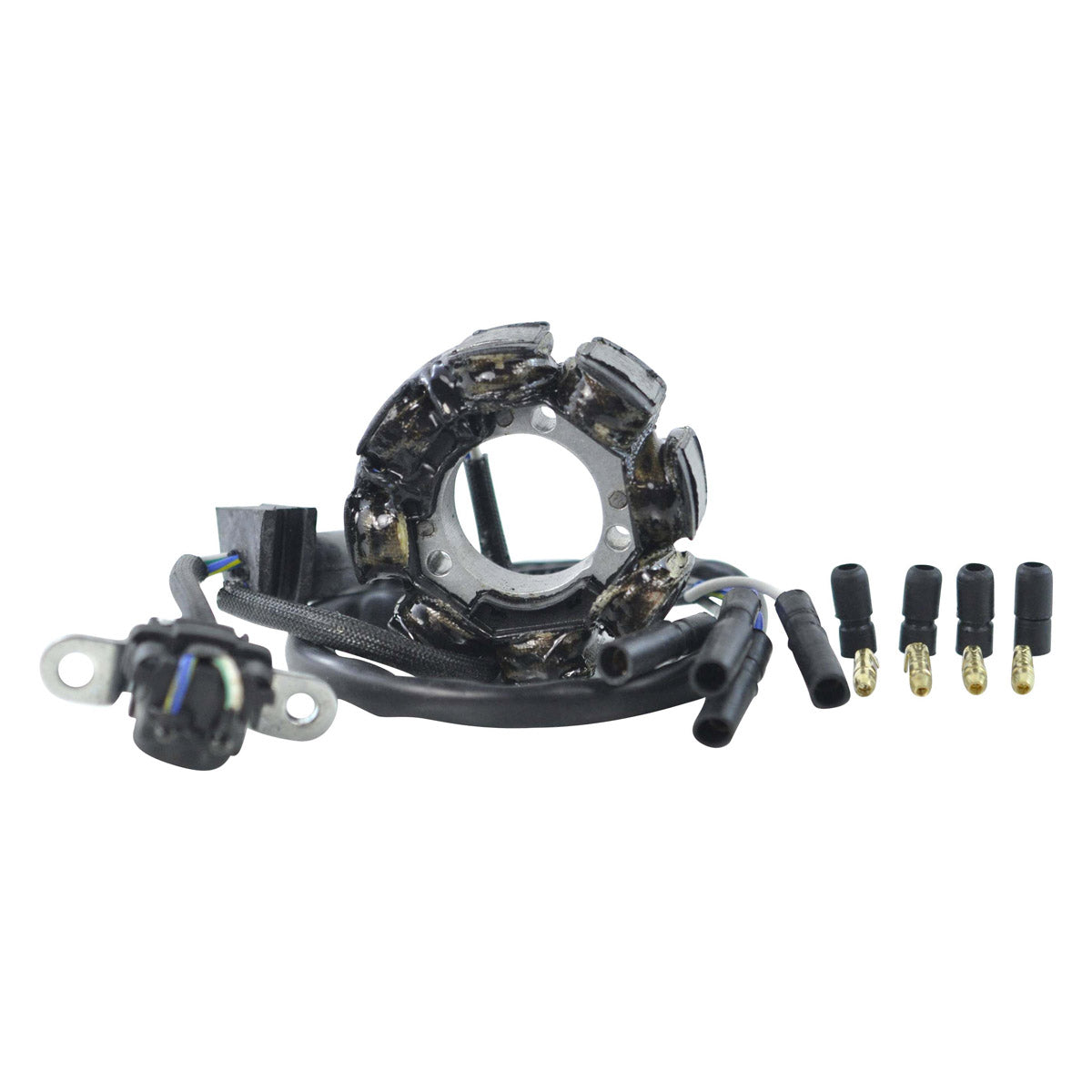

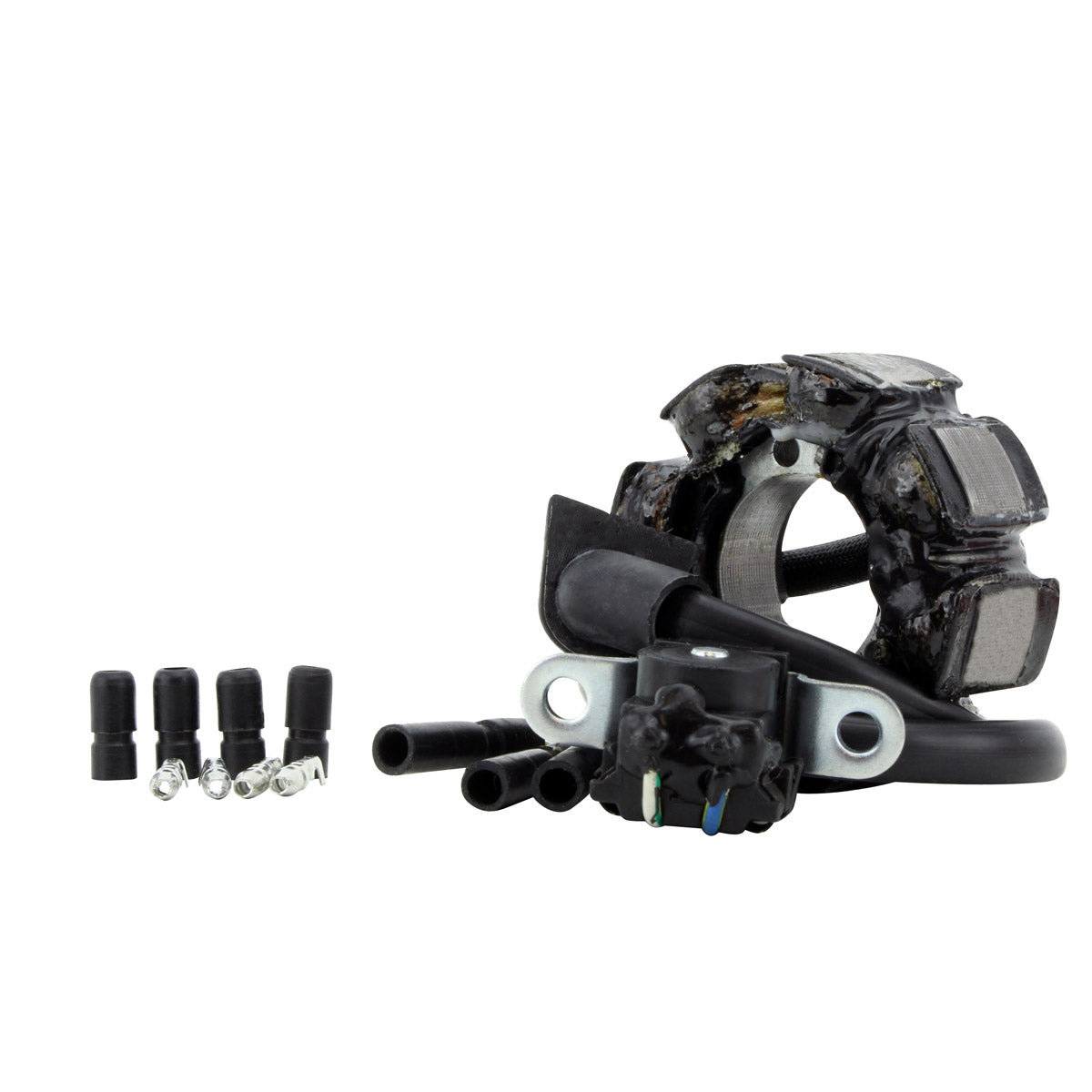

A brand new aftermarket stator built as a direct replacement for the original unit fitted to the Honda CRF450R. It is a plug-and-play, direct fit part that mounts straight into the ignition cover with no modification to the engine or the loom. The part number is RM01451.

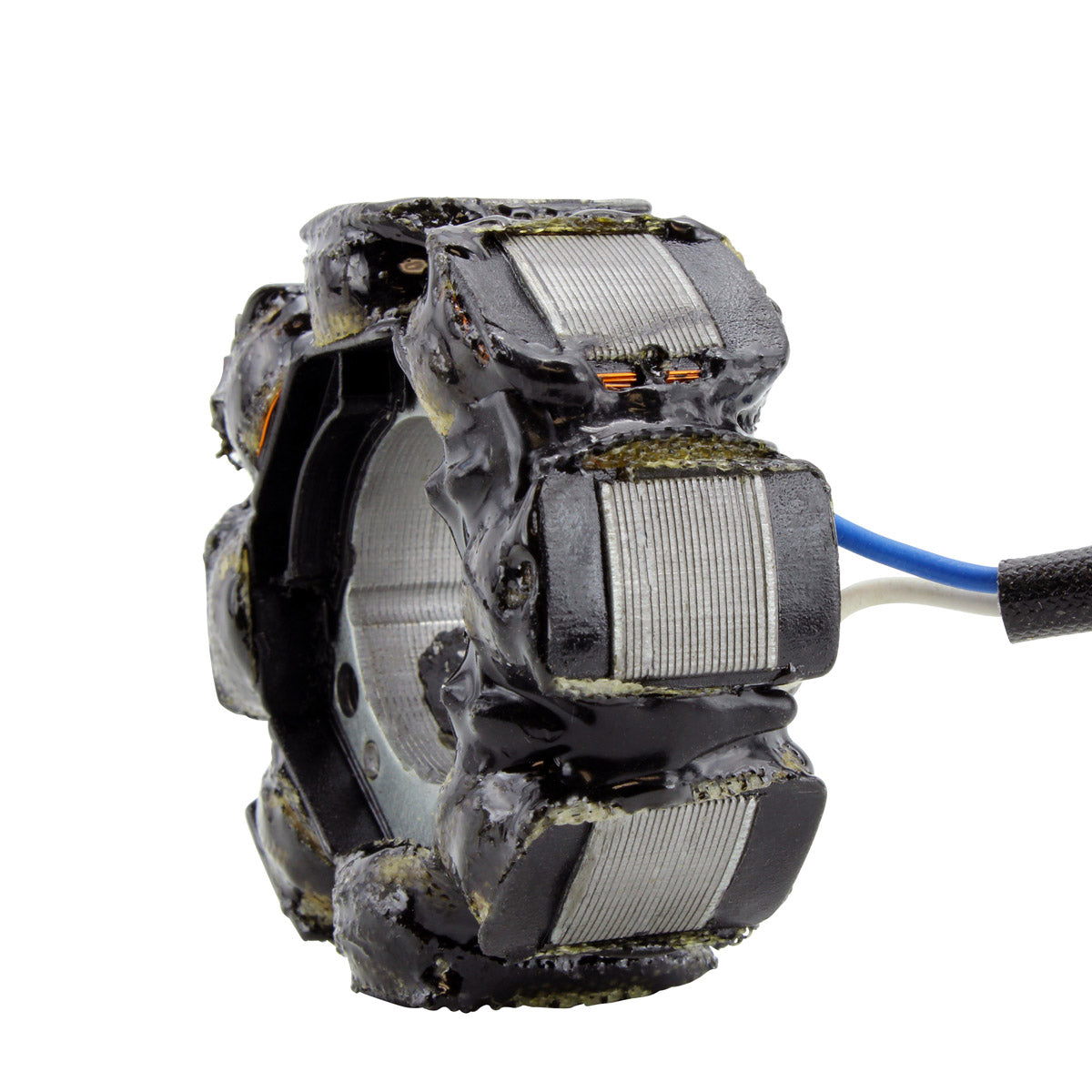

The assembly is built on the highest grade lamination materials and wound with the highest grade copper windings, resistant to 200 degrees Celsius. The pick up pulsar coil, the connector and the rubber grommet are all supplied fitted, and every unit is tested before it is shipped.
Key Features
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Pick up pulsar coil included

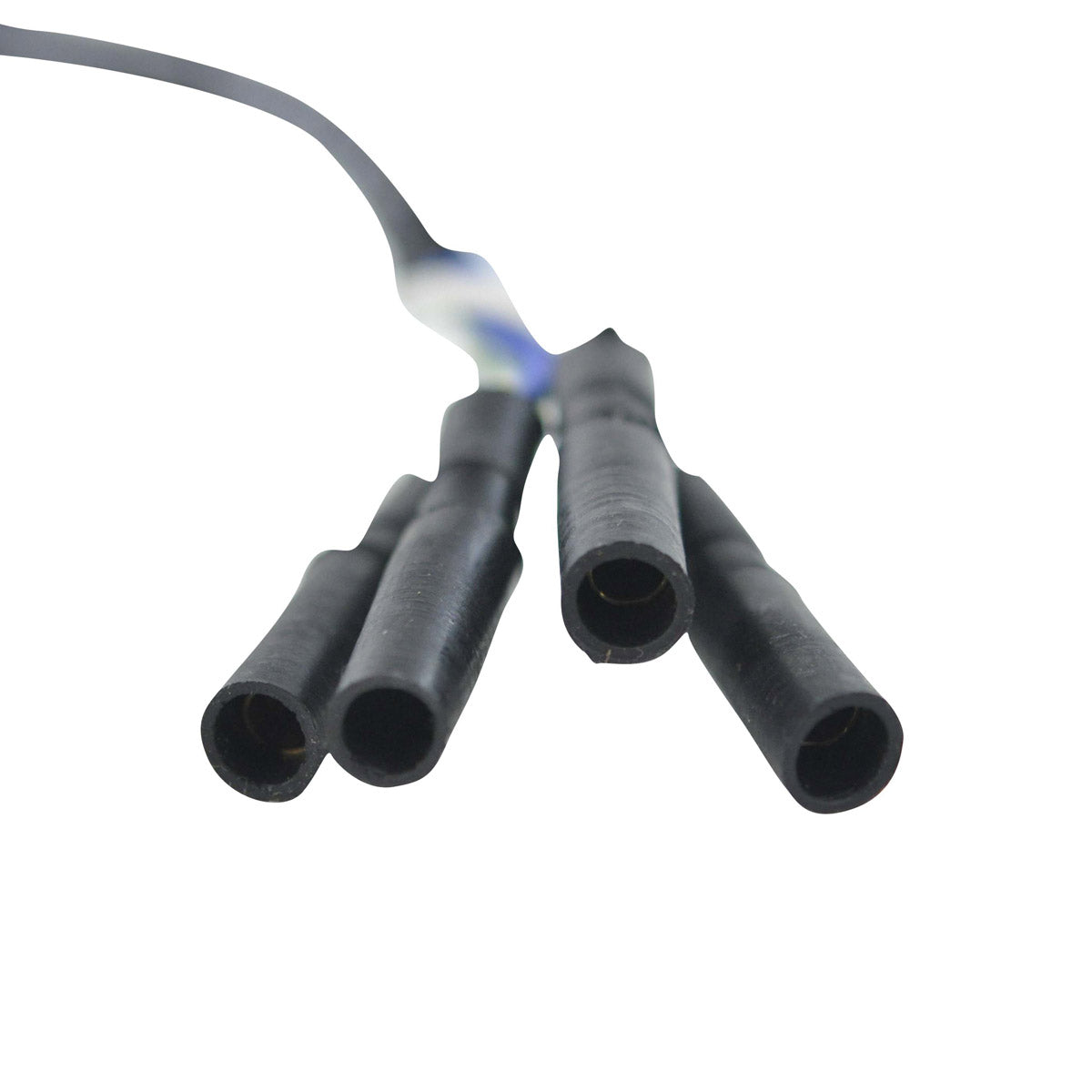

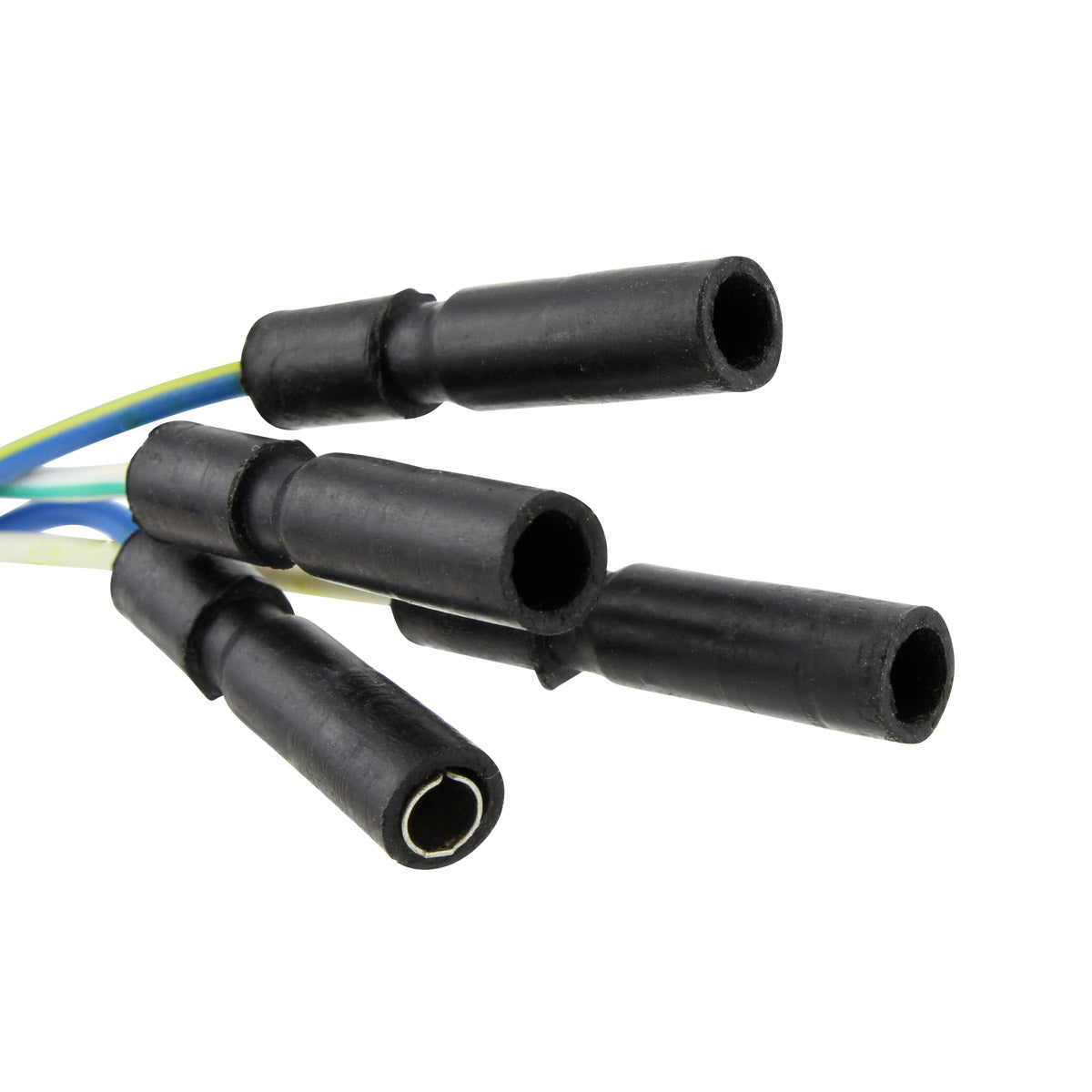

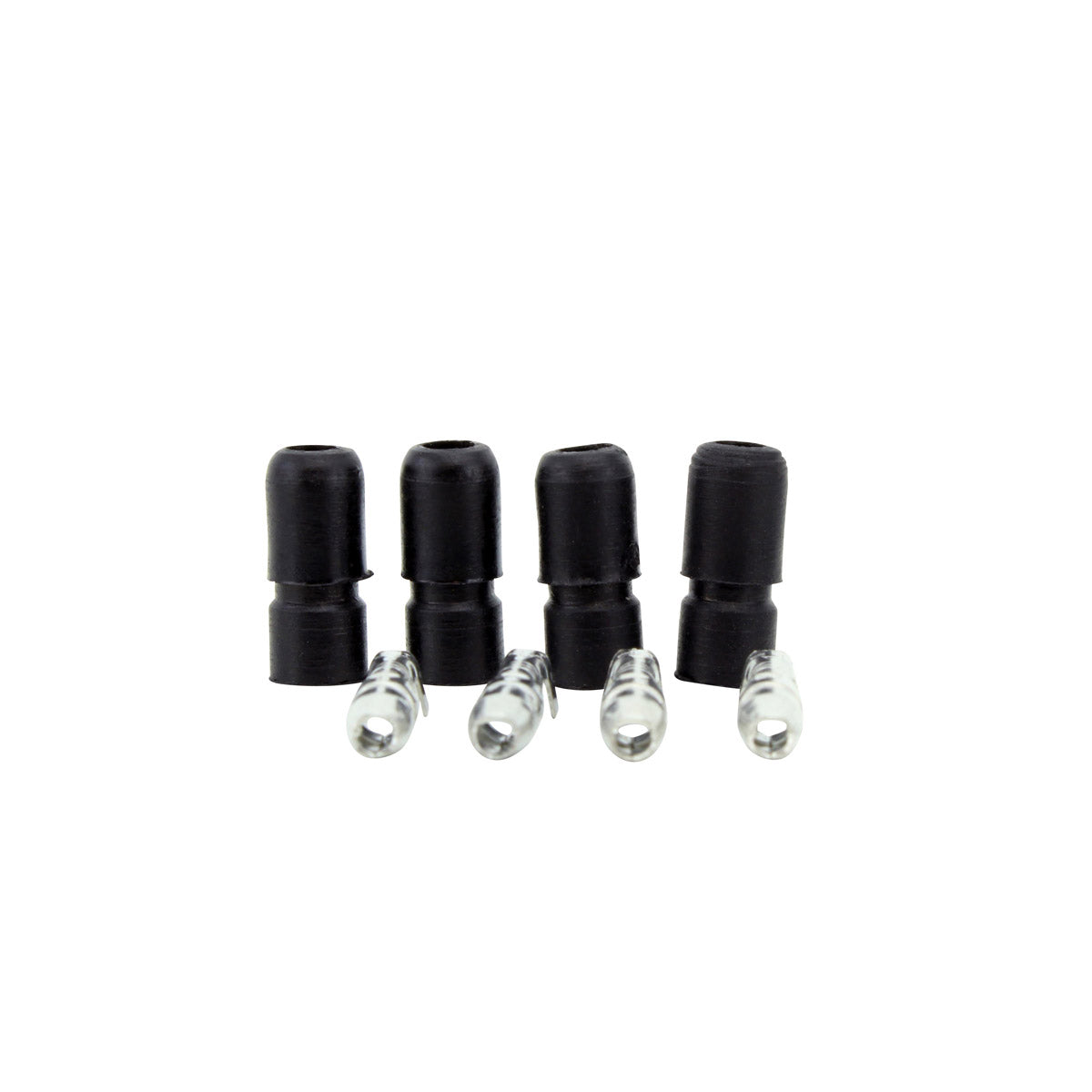

- Connector included
- Rubber grommet included
- All products shipped are tested
- Part number RM01451
Technical Specs
| Specification |
Detail |
| Part number |
RM01451 |
| Interior diameter |
28 mm |
| Exterior diameter |
60 mm |
| Thickness |
13 mm |
| Wire length, stator to grommet |
110 mm |
| Wire length, grommet to plug |
300 mm |
| Pickup coil wire length to grommet |
50 mm |
| Number of wires |
4 |
| Number of plugs |
4 |
| Number of pins |
4 |
| Pickup resistance, white/green to blue/yellow |
270 ohms +/- 20% |
| Source resistance, white to blue |
22 ohms +/- 20% |
| Winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model |
Years |
| Honda CRF450R |
2002-2003 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 31100-MEB-670 |
Honda |
| 31100-MEB-671 |
Honda |
Frequently Asked Questions
Does this stator need any modification to fit?
No. It is a direct, plug-and-play replacement for the original unit on the 2002 and 2003 Honda CRF450R. The connector and rubber grommet are already fitted, so no cutting or splicing of the loom is needed.
What is included in the box?

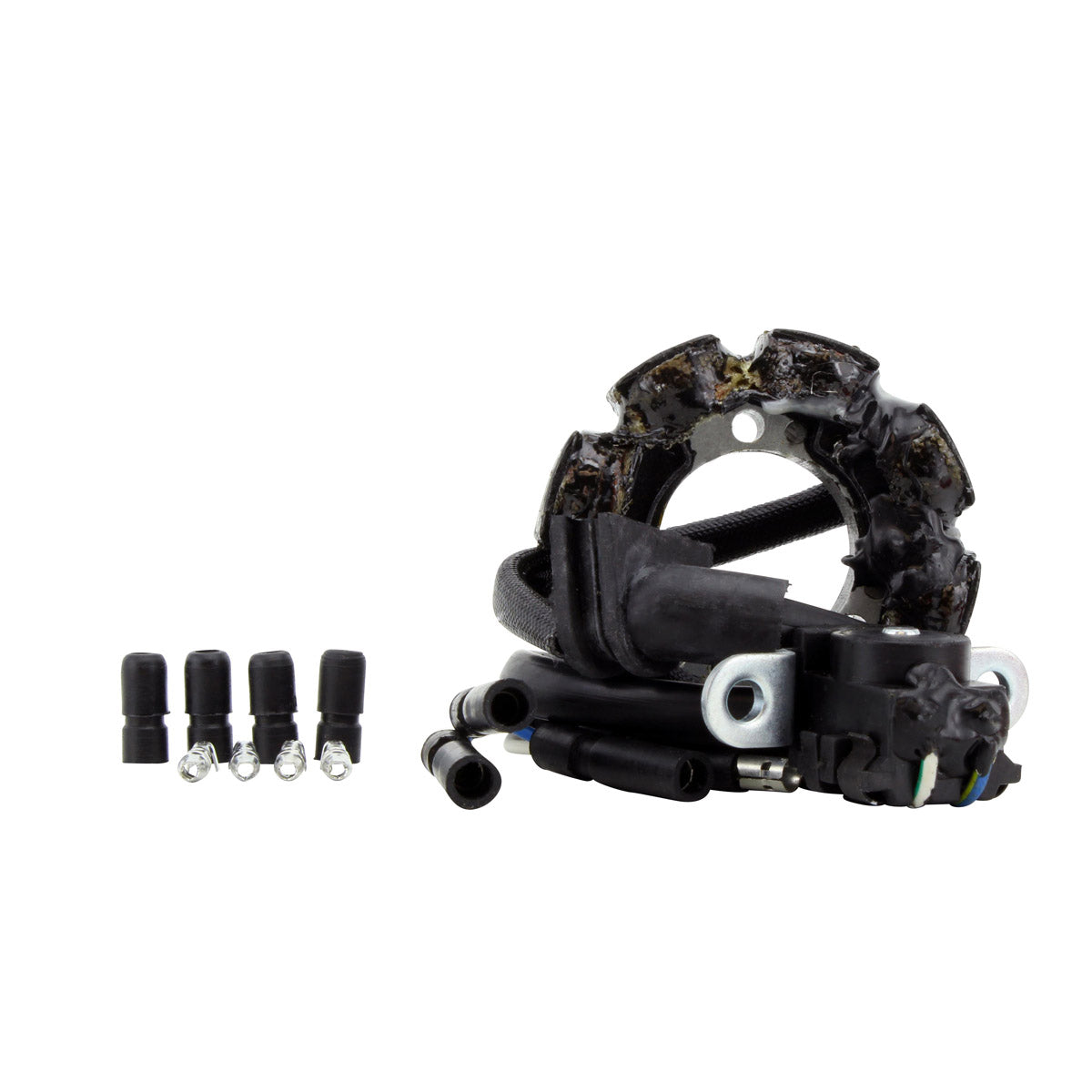

The stator assembly, the pick up pulsar coil, the connector and the rubber grommet, supplied as one ready to fit unit. All products shipped are tested.
How do I know my original stator has failed?
Check it with a multimeter. This unit reads 270 ohms +/- 20% white/green to blue/yellow across the pickup and 22 ohms +/- 20% white to blue across the source coil. A reading that is open circuit, shorted to earth, or well outside those figures points to a failed stator.
Is the pick up pulsar coil included, or do I move mine across?
The pick up pulsar coil is supplied with this stator and is already fitted to the assembly. You do not need to transfer the coil from your old unit.
