Generator Stator for Honda CRF 150 F 2003-2005
Generator Stator for Honda CRF 150 F 2003-2005
SKU:RMS010-101554
Free shipping over £150. Terms apply
Couldn't load pickup availability
Stator for Honda CRF 150 F
Honda CRF 150 F 2003, 2004, 2005 - Part number RMS010-101554

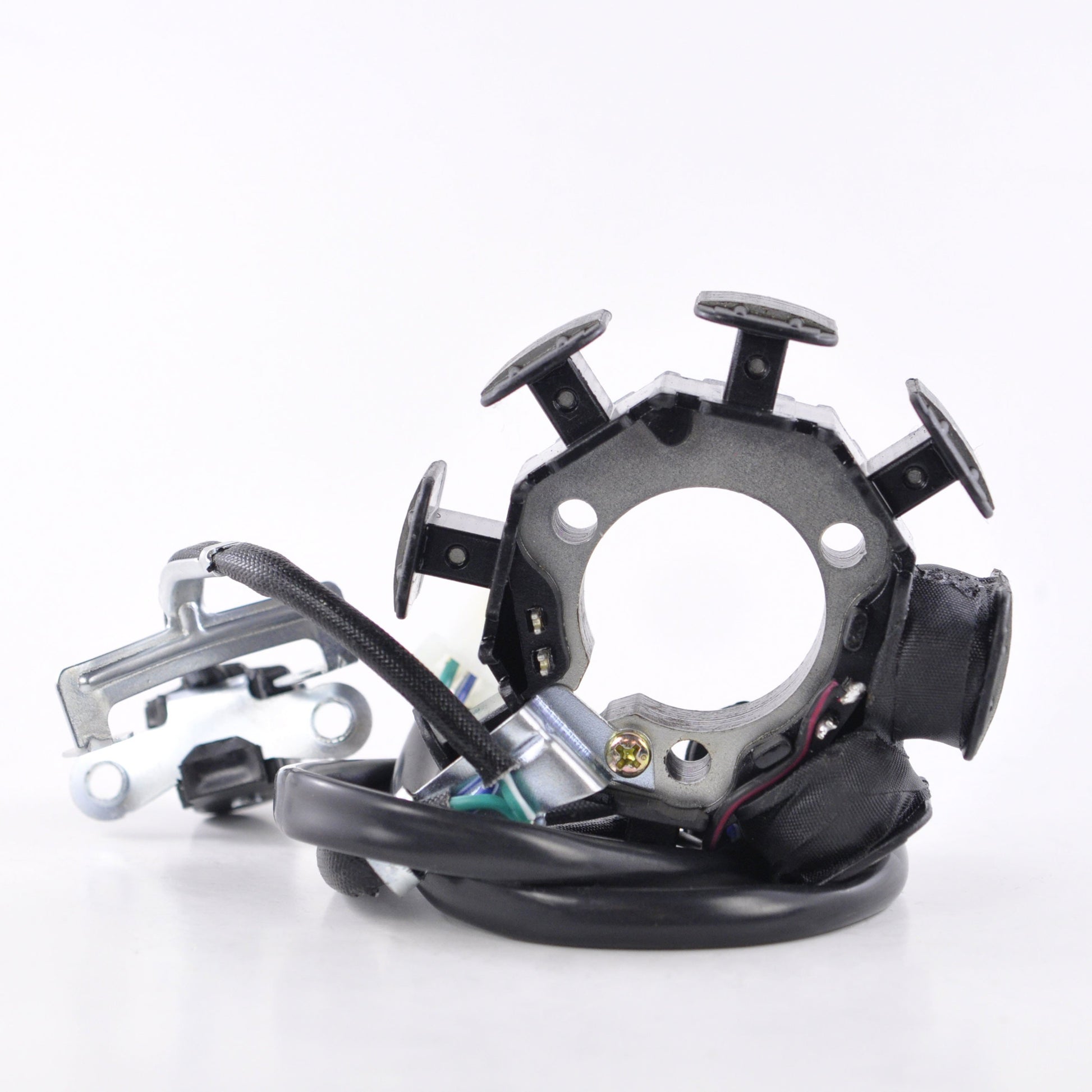

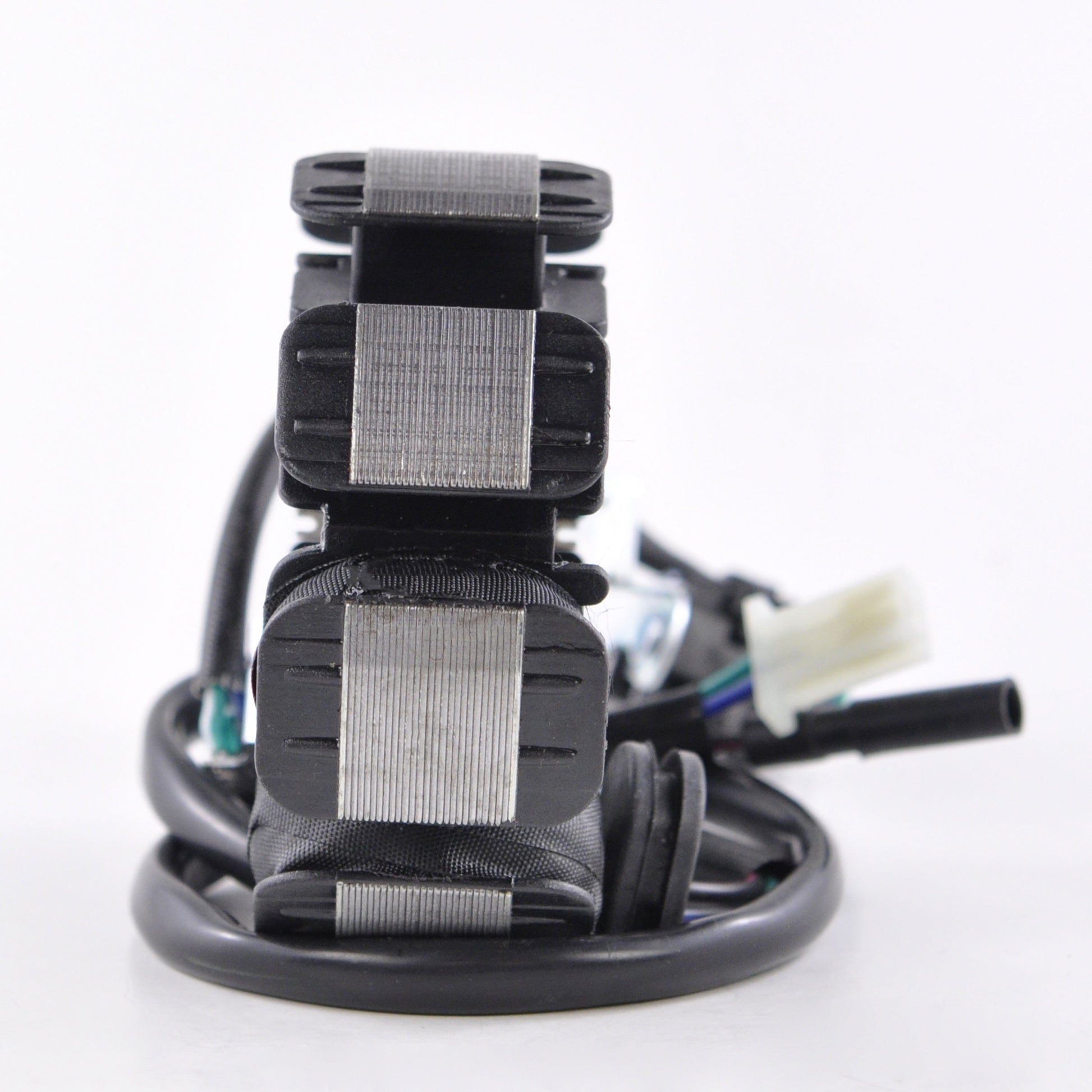

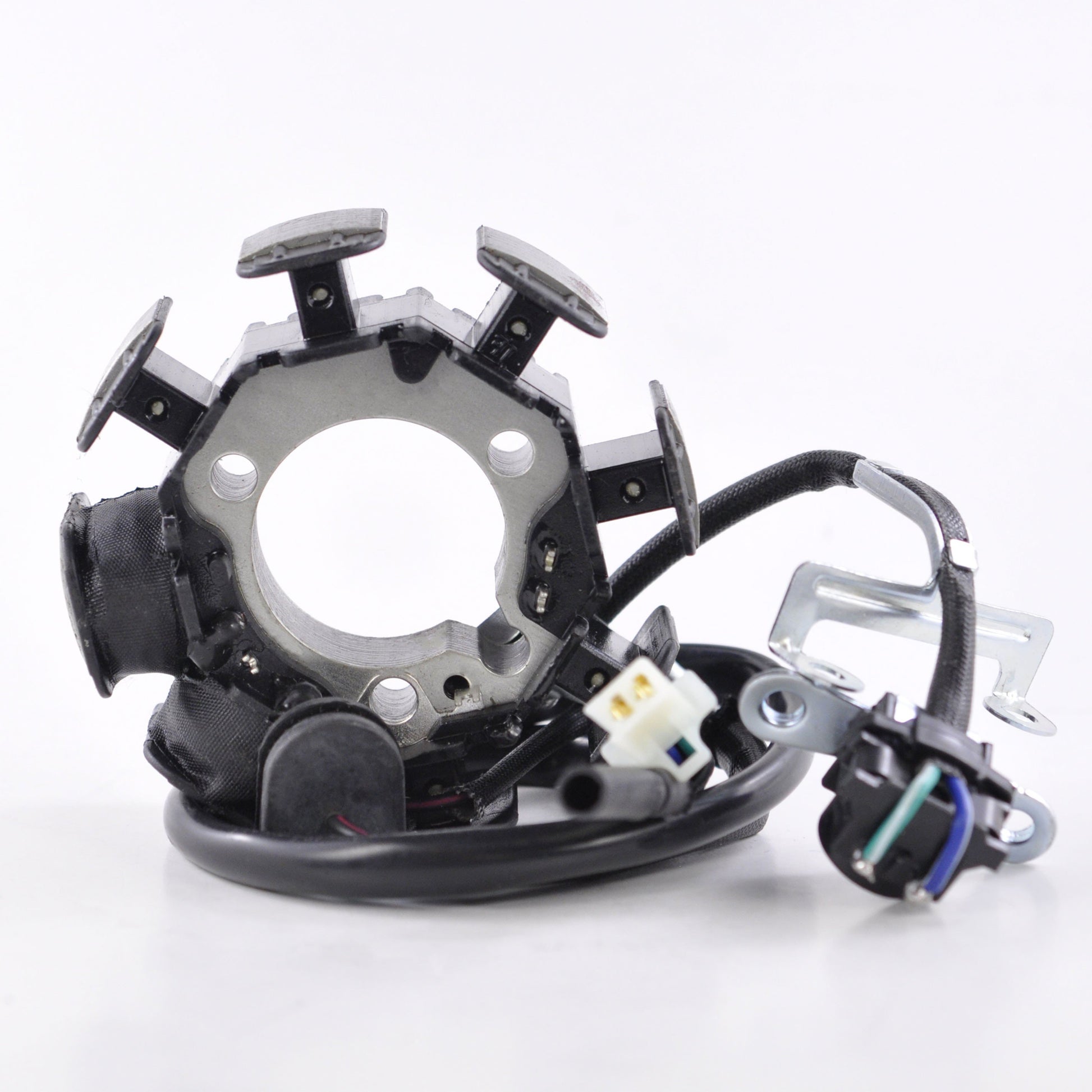

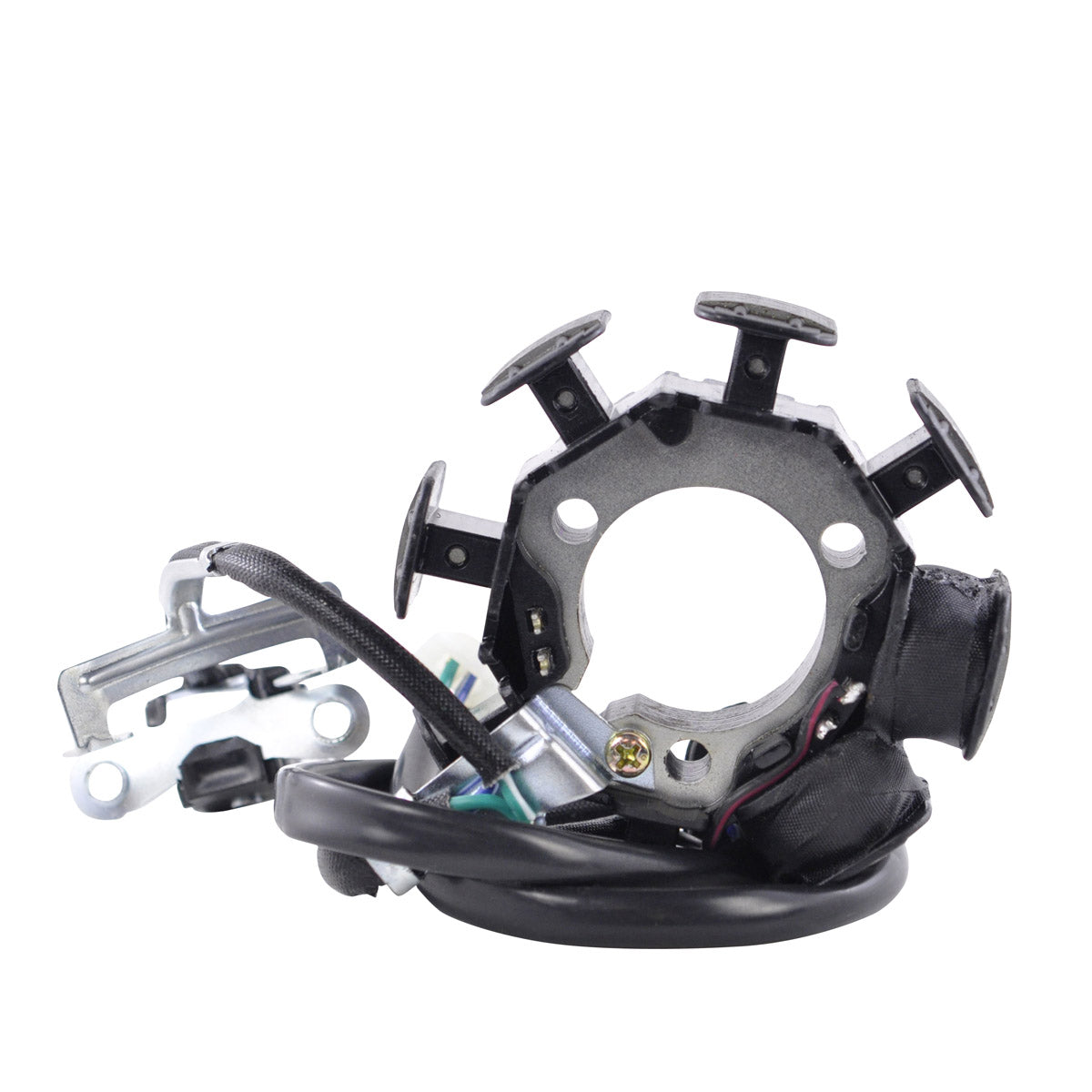

This is a brand new aftermarket stator, built as a direct replacement for the original unit fitted to the Honda CRF 150 F. It is a plug-and-play, direct fit assembly that mounts in the original position behind the flywheel and uses the original connectors, so no modification of the wiring loom is required.
The core is made from the highest grade lamination materials and the windings are the highest grade copper, resistant to 200 degrees Celsius. The pick-up pulsar coil is supplied already fitted to the plate, and the connector and rubber grommet are included, so the complete ignition and charging assembly arrives ready to install. All products shipped are tested.
Key Features
- Brand new aftermarket stator, direct replacement for your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Pick-up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RMS010-101554 |
| Interior diameter | 35 mm |
| Exterior diameter | 88 mm |
| Thickness | 18 mm |
| Wire length, stator to grommet | 75 mm |
| Wire length, grommet to plug | 415 mm |
| Pick-up coil wire length to grommet | 215 mm |
| Number of wires | 3 |
| Number of plugs | 2 |
| Number of pins | 3 |
| Pick-up resistance (Green to Blue/White) | 238 ohms +/-20% |
| Source coil resistance (Green to Black/Red) | 188 ohms +/-20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Honda CRF 150 F | 2003, 2004, 2005 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 31120-KPT-901 | Honda |
| 31120-KPT-902 | Honda |
Frequently Asked Questions
Will this fit without modification?
Yes. It is a plug-and-play, direct fit replacement for the original CRF 150 F stator, 2003 to 2005. It uses the original mounting points and the original plugs, so no cutting or splicing of the loom is needed. Please confirm the OEM part number on your original unit before ordering.
What is included in the box?

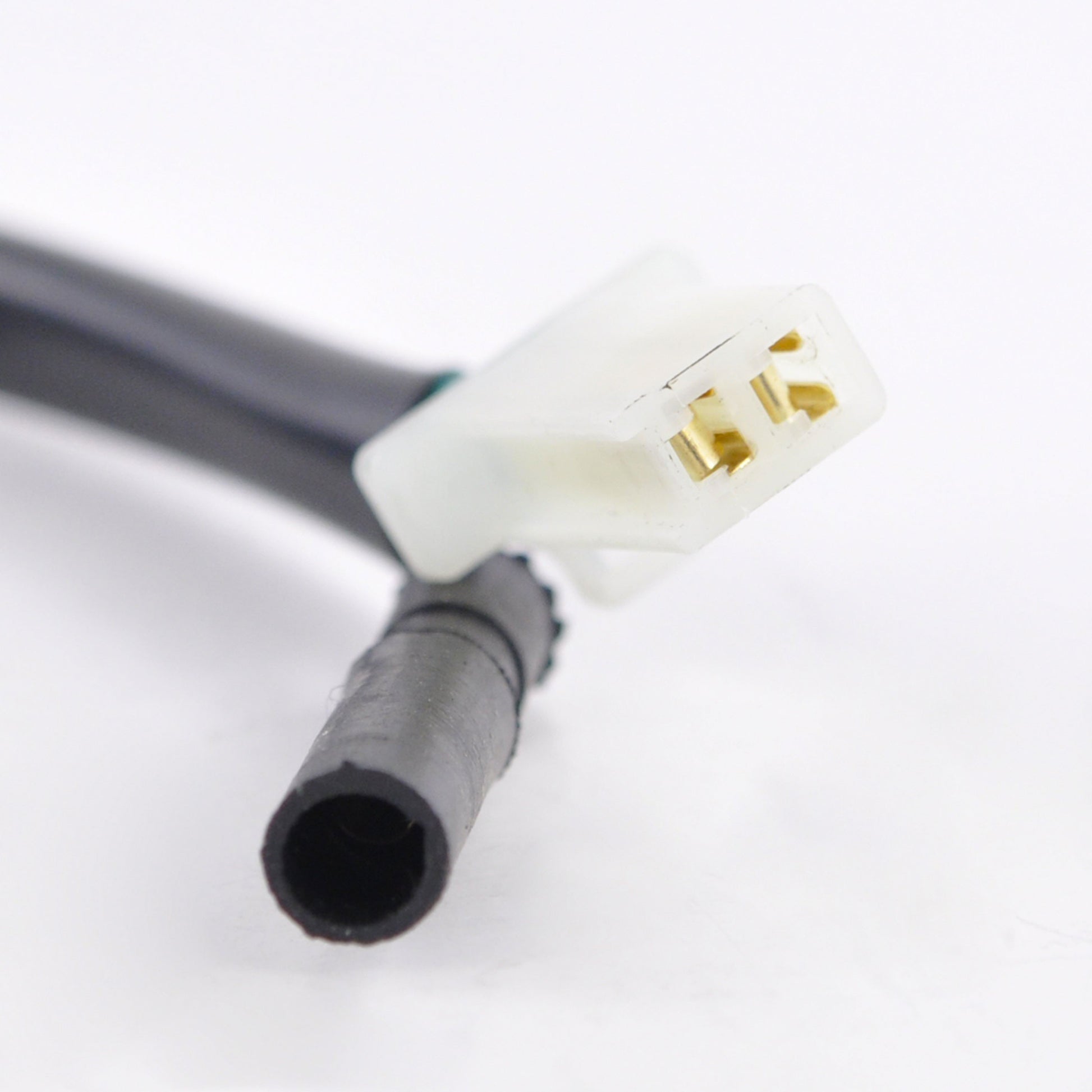

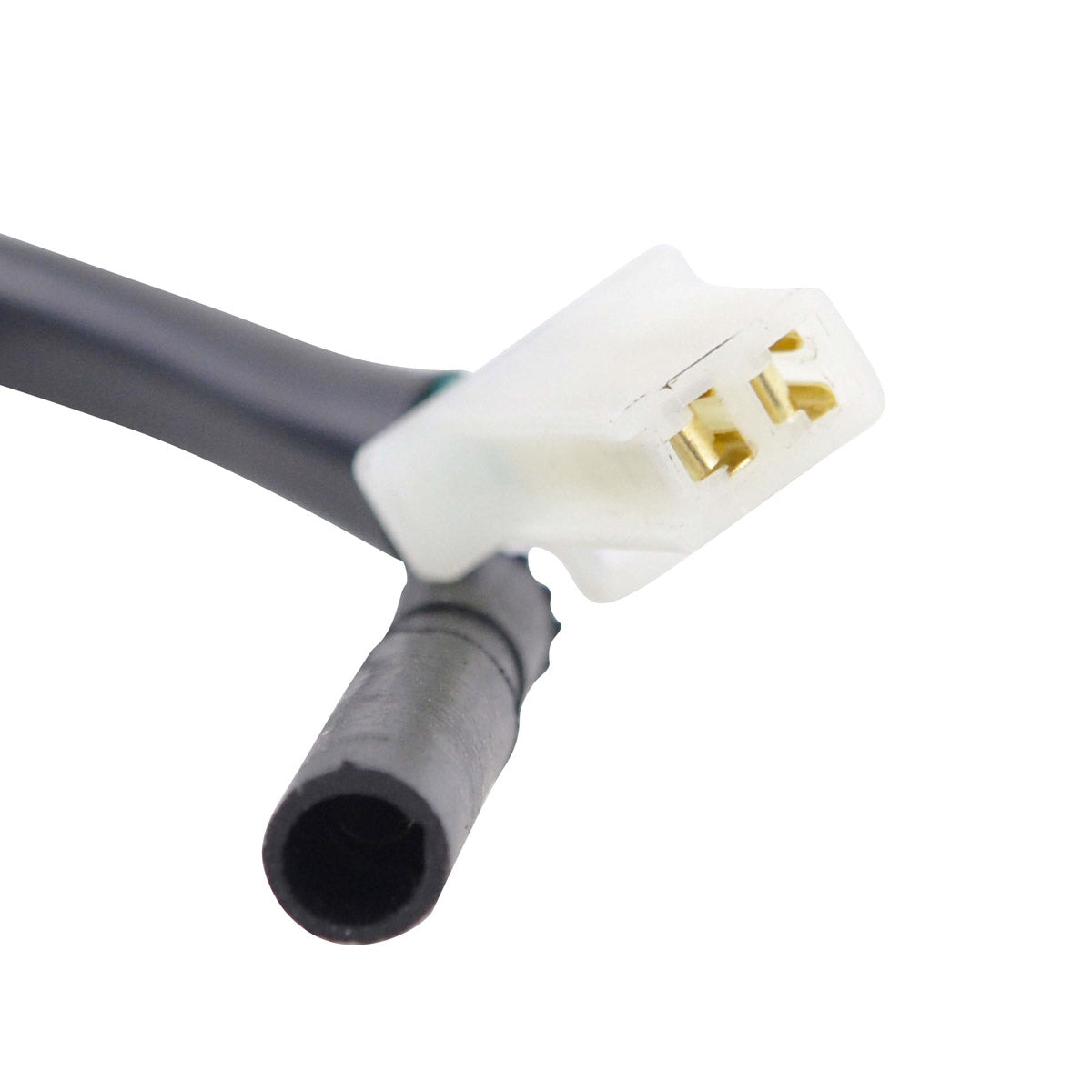

You receive the stator plate with the pick-up pulsar coil already fitted, the connector and the rubber grommet - a complete 3-wire, 2-plug assembly ready to install.
How do I tell if my old stator has failed?
Check the two circuits with a multimeter against the figures in the specification table. The pick-up should read 238 ohms +/-20% from Green to Blue/White, and the source coil 188 ohms +/-20% from Green to Black/Red. An open circuit, a reading well outside those values, or continuity between a winding wire and the stator plate indicates a failed unit. On this model a dead pick-up gives no spark, while a failed source coil gives a weak or intermittent spark.
Does this include the pick-up pulsar coil?
Yes. The pick-up pulsar coil is supplied fitted, with 215 mm of wire from the coil to the grommet, so the ignition trigger and the source coil are replaced together as one assembly.
