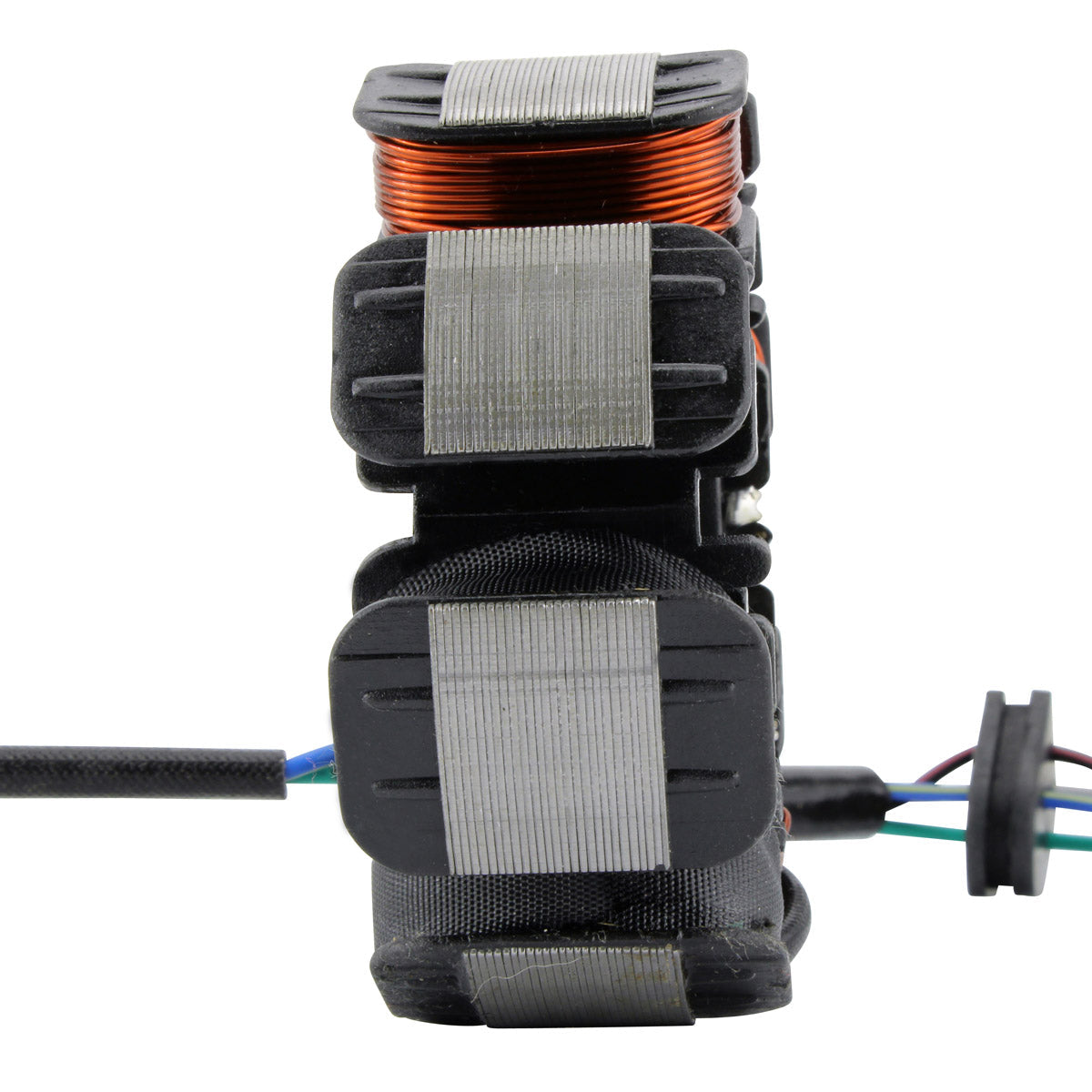

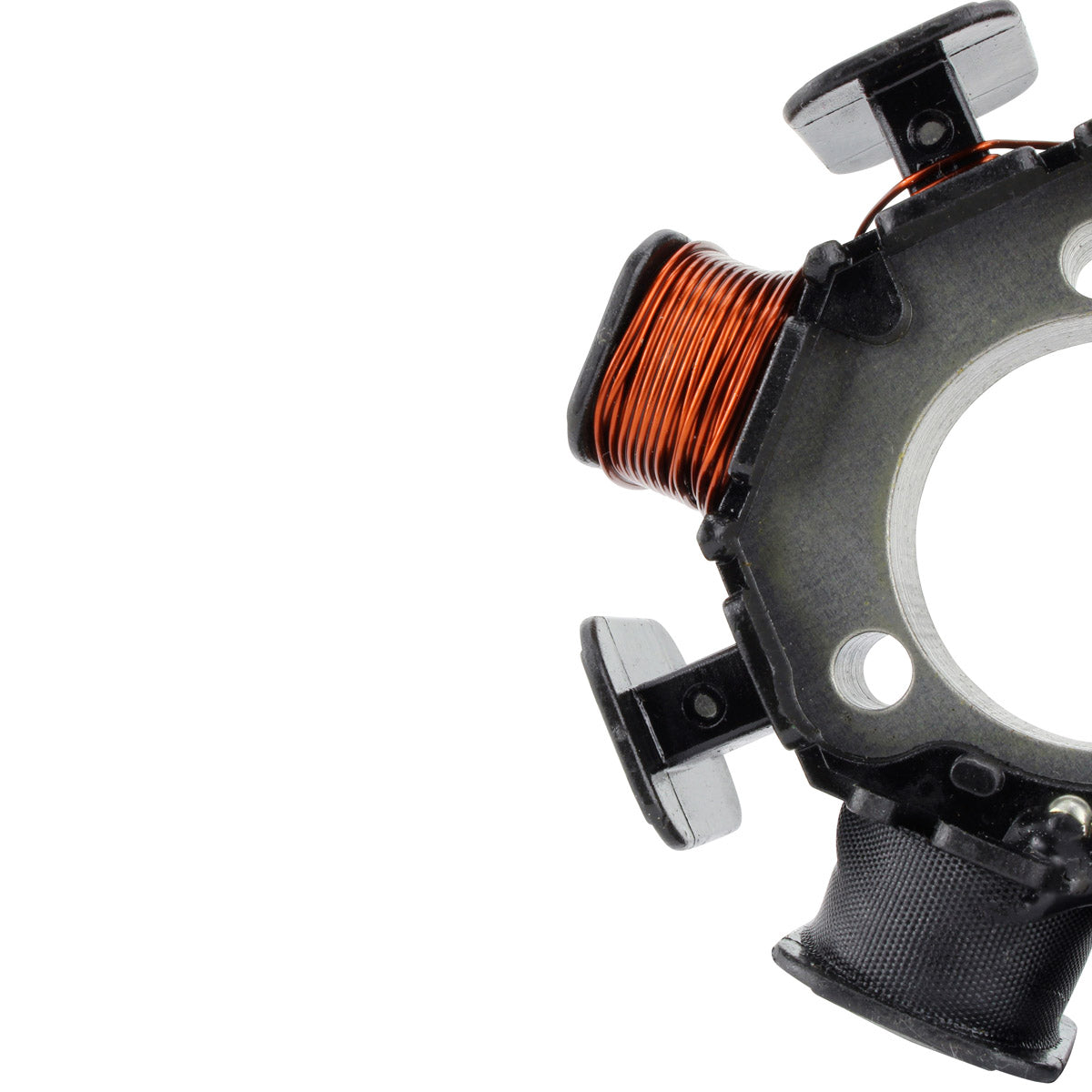

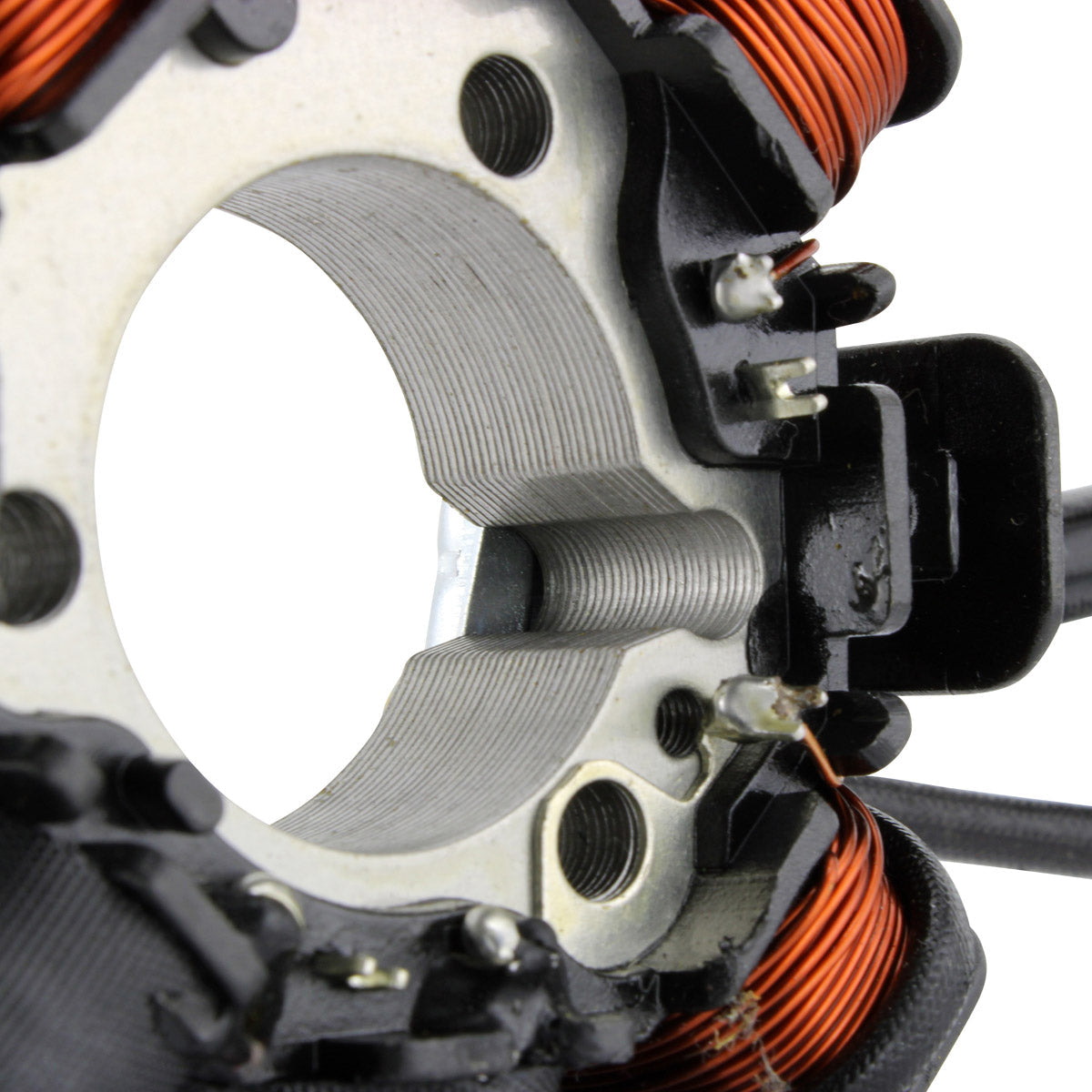

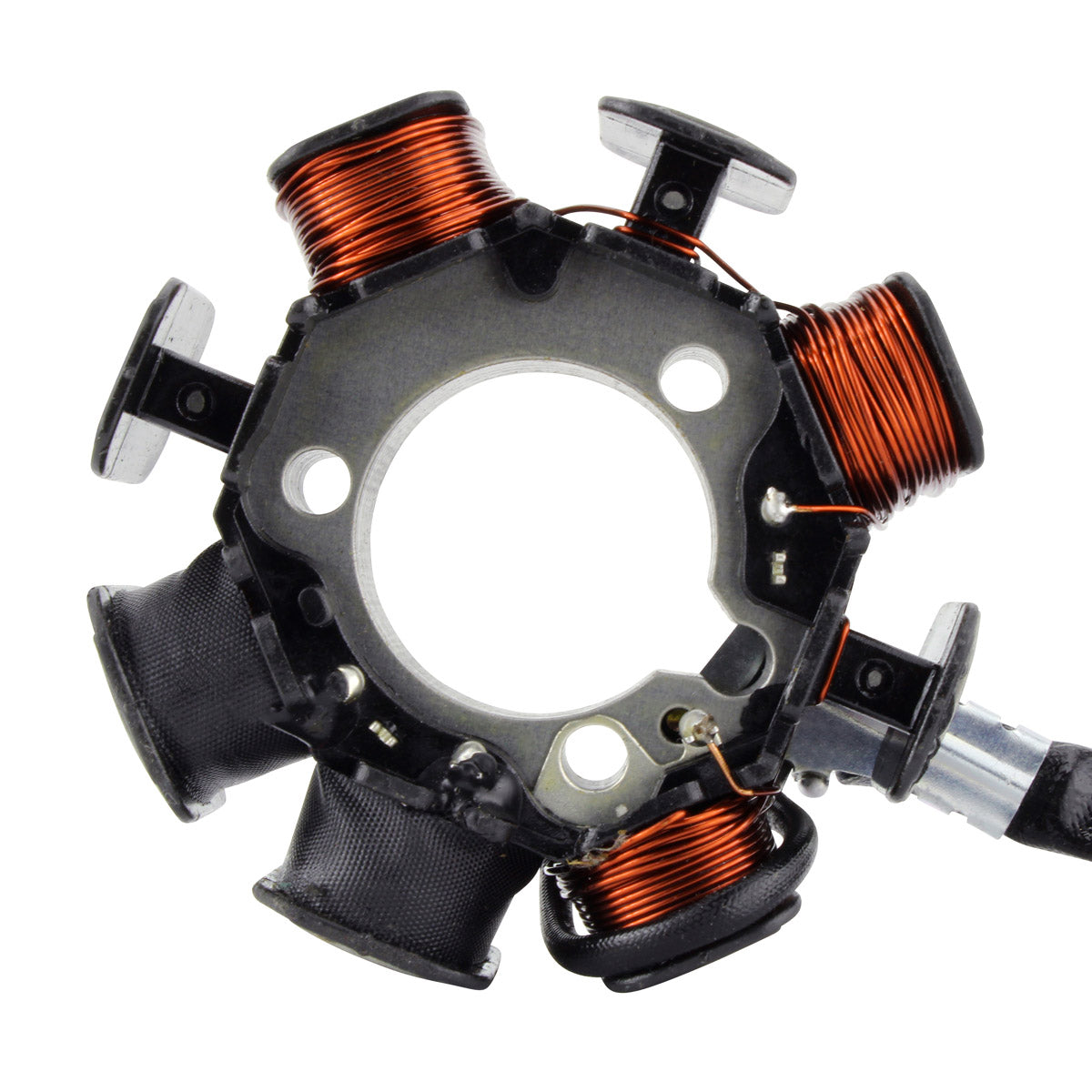

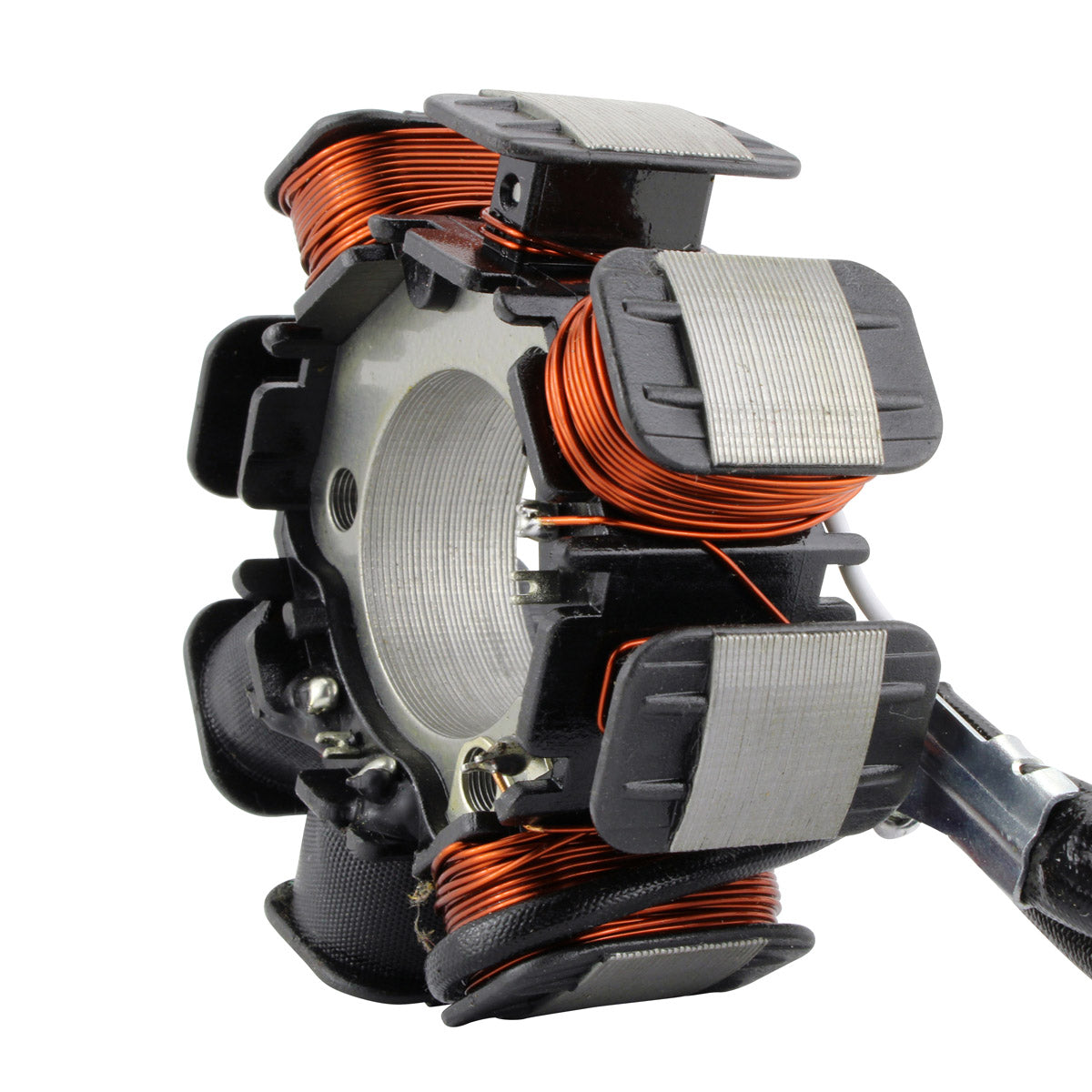

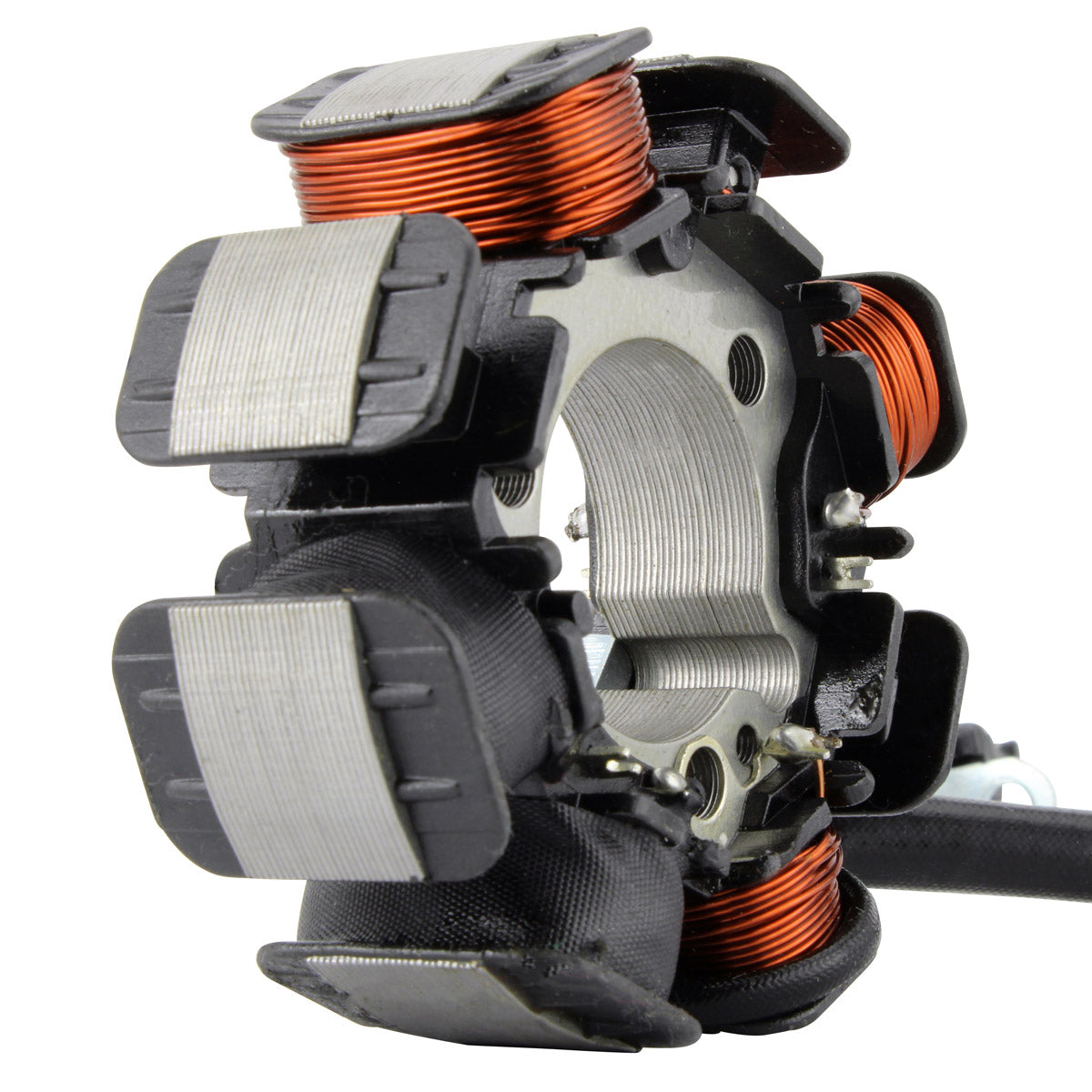

This is a brand new aftermarket stator built as a direct replacement for the charging and ignition stator fitted to the Honda CRF 230 F. It is a plug-and-play, direct fit part: the mounting pattern, wire routing and connectors match the original unit, so the assembly drops straight into the left-hand crankcase cover with no modification to the loom, no cutting and no splicing.
The stator is wound with the highest grade copper winding, rated to withstand 200 degrees Celsius, over the highest grade of lamination material. The pick-up pulsar coil is supplied already fitted, along with the connectors and rubber grommet, so you receive a complete assembly rather than a bare core. Every unit is tested before it leaves the factory.
Key Features
- Brand new aftermarket stator, not a repaired or rewound core
- Direct replacement for the original unit - plug and play, direct fit
- Highest grade lamination materials for stable magnetic performance
- Highest grade copper winding, resistant to 200 degrees Celsius

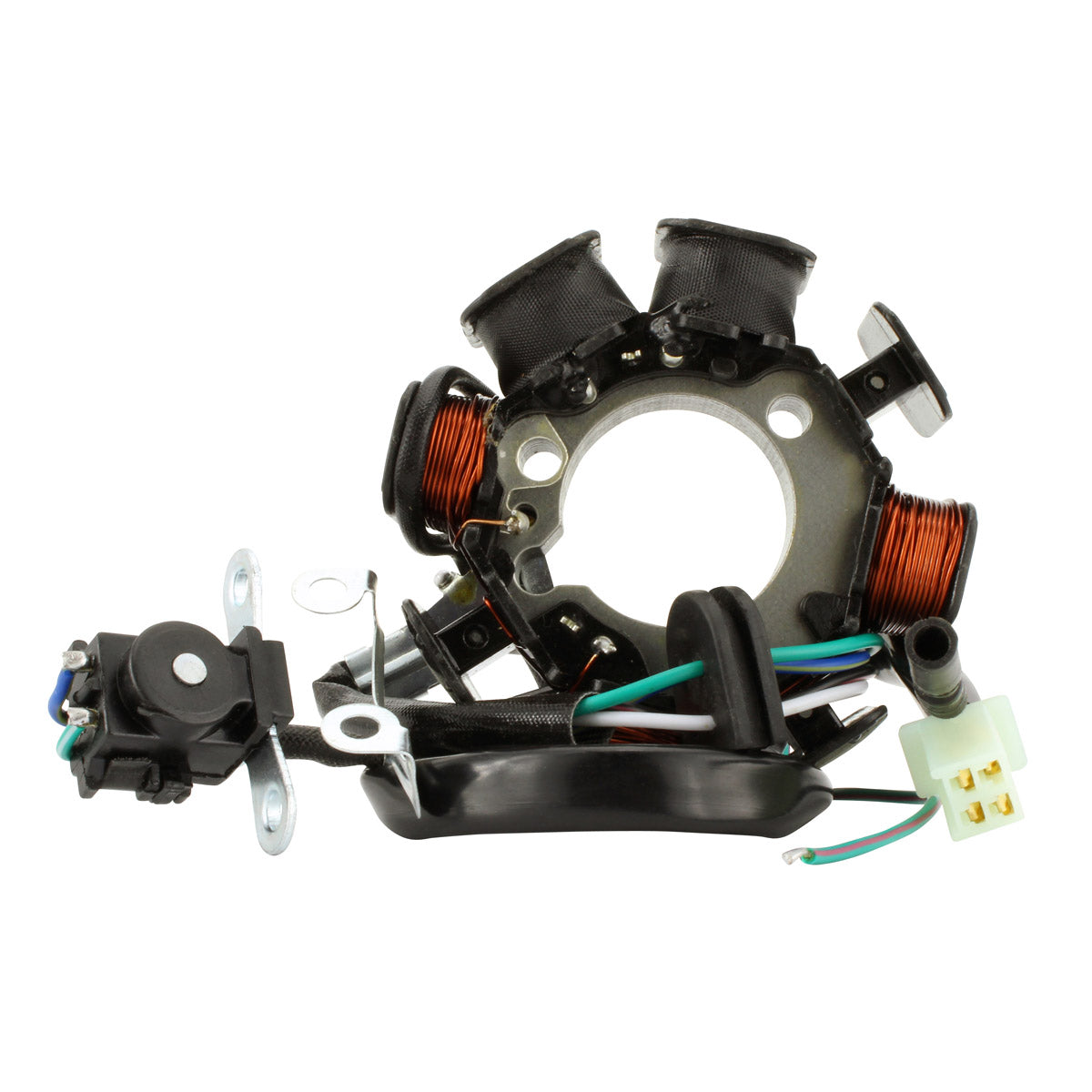

- Pick-up pulsar coil included
- Connectors included

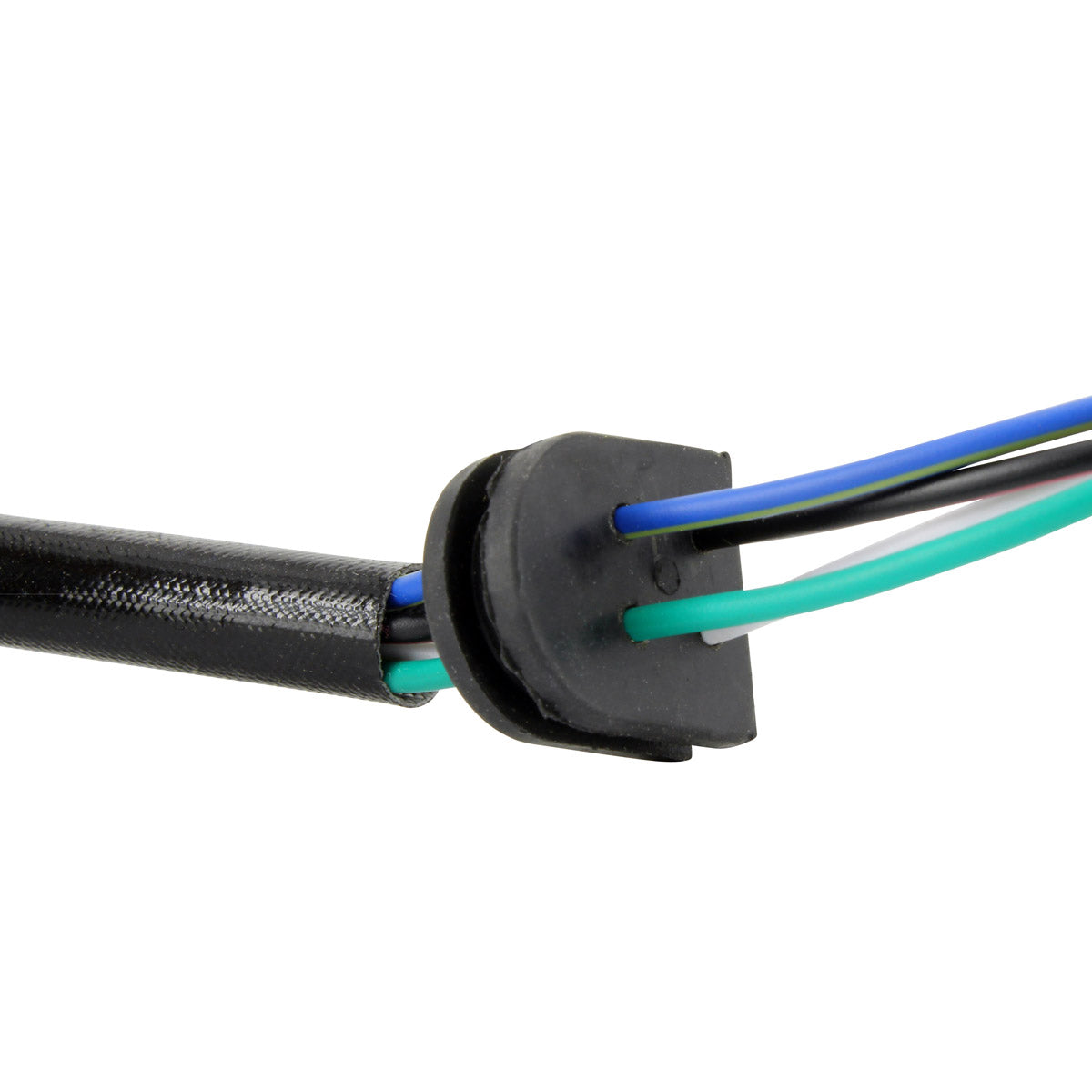

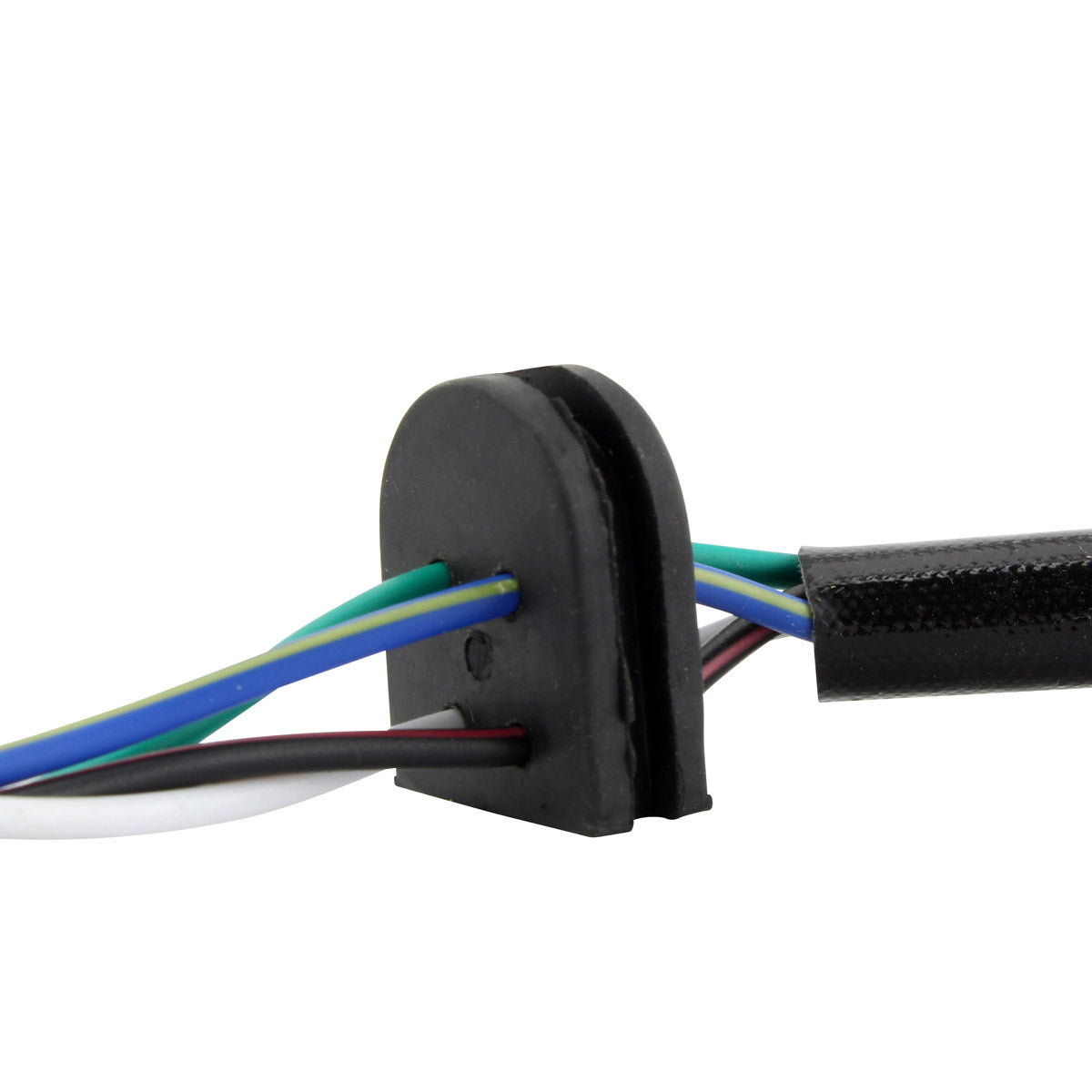

- Rubber grommet included
- Every unit is tested before it is shipped

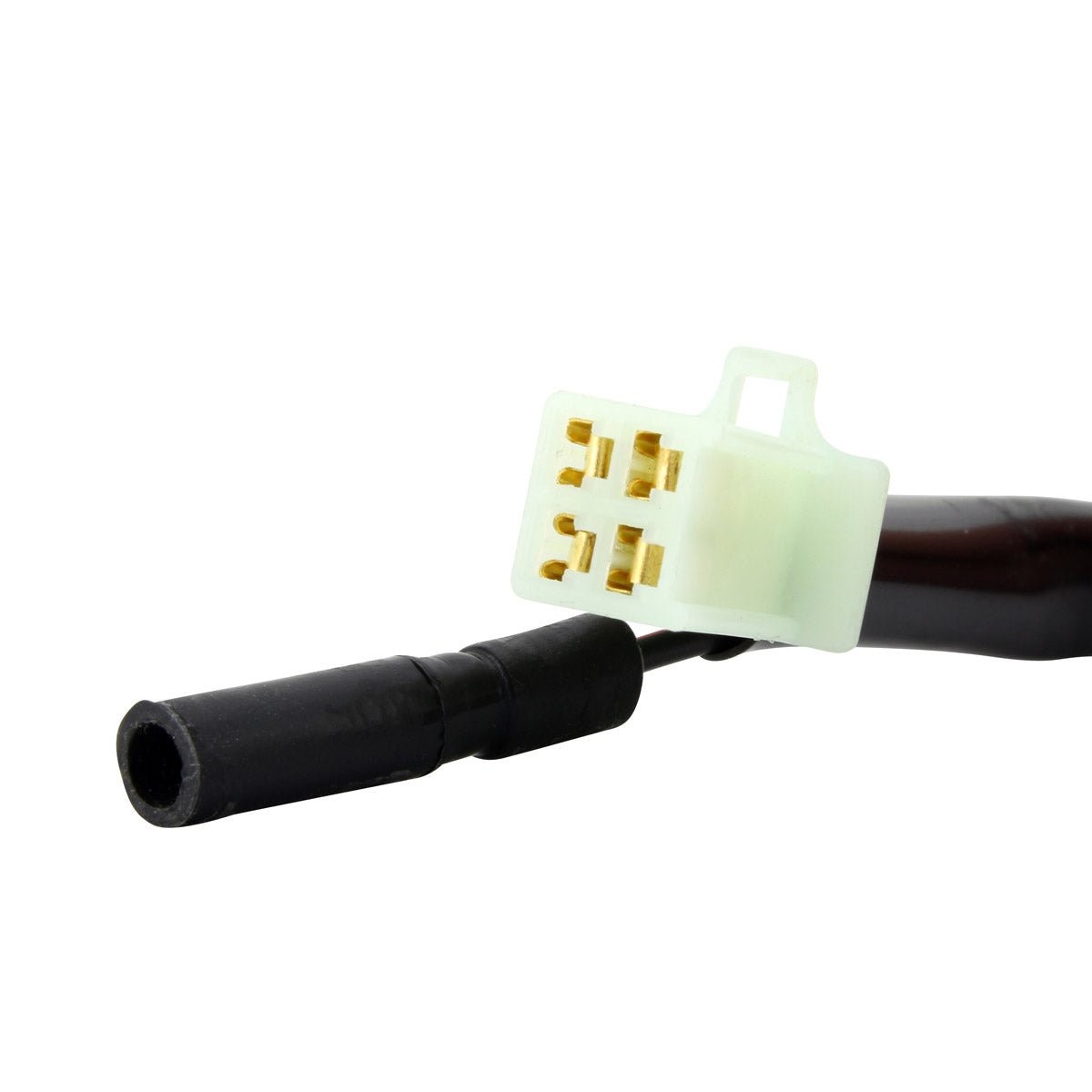

- Complete assembly with 8 poles and 5 wires on 2 plugs
Technical Specs
| Specification |
Detail |
| SKU |
RMS010-107294 |
| Interior diameter |
35 mm |
| Exterior diameter |
88 mm |
| Thickness |
18 mm |
| Wire length (stator to grommet) |
70 mm |
| Wire length (grommet to plug) |
400 mm |
| Pick-up coil wire length (to grommet) |
130 mm |
| Number of wires |
5 |
| Number of plugs |
2 |
| Number of pins |
5 |
| Number of poles |
8 |
| Temperature rating |
200 degrees Celsius |
| Alternator resistance (White-Green) |
2.3 ohms +/-20% |
| Pick-up resistance (Blue/Yellow-Green) |
240 ohms +/-20% |
| Source resistance (Black/Red-Green) |
200 ohms +/-20% |
Vehicle Fitment Guide
| Make & Model |
Years |
| Honda CRF 230 F |
2003-2009 |
| Honda CRF 230 F |
2012-2019 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 31120-KPS-901 |
Honda |
| 31120-KPS-902 |
Honda |
Frequently Asked Questions
Will this fit my bike without modification?
Yes. It is a direct, plug-and-play replacement for the original stator on the Honda CRF 230 F for the model years listed above. The connectors and mounting points match the factory unit, so no cutting, splicing or loom modification is required.
What is included?
You receive the stator assembly with the pick-up pulsar coil already fitted, the connectors and the rubber grommet.
How do I know my old stator has failed?
Typical symptoms are a battery that will not stay charged, dim or flickering lights, a bike that runs only while the battery holds out, or no spark at all. A resistance check across the leads is the usual confirmation: on this unit the alternator winding should read about 2.3 ohms White to Green, the pick-up about 240 ohms Blue/Yellow to Green and the source coil about 200 ohms Black/Red to Green, each within plus or minus 20 percent. Readings that are open circuit, shorted to the core or far outside those figures point to a failed stator.
Does it include the pick-up pulsar coil?

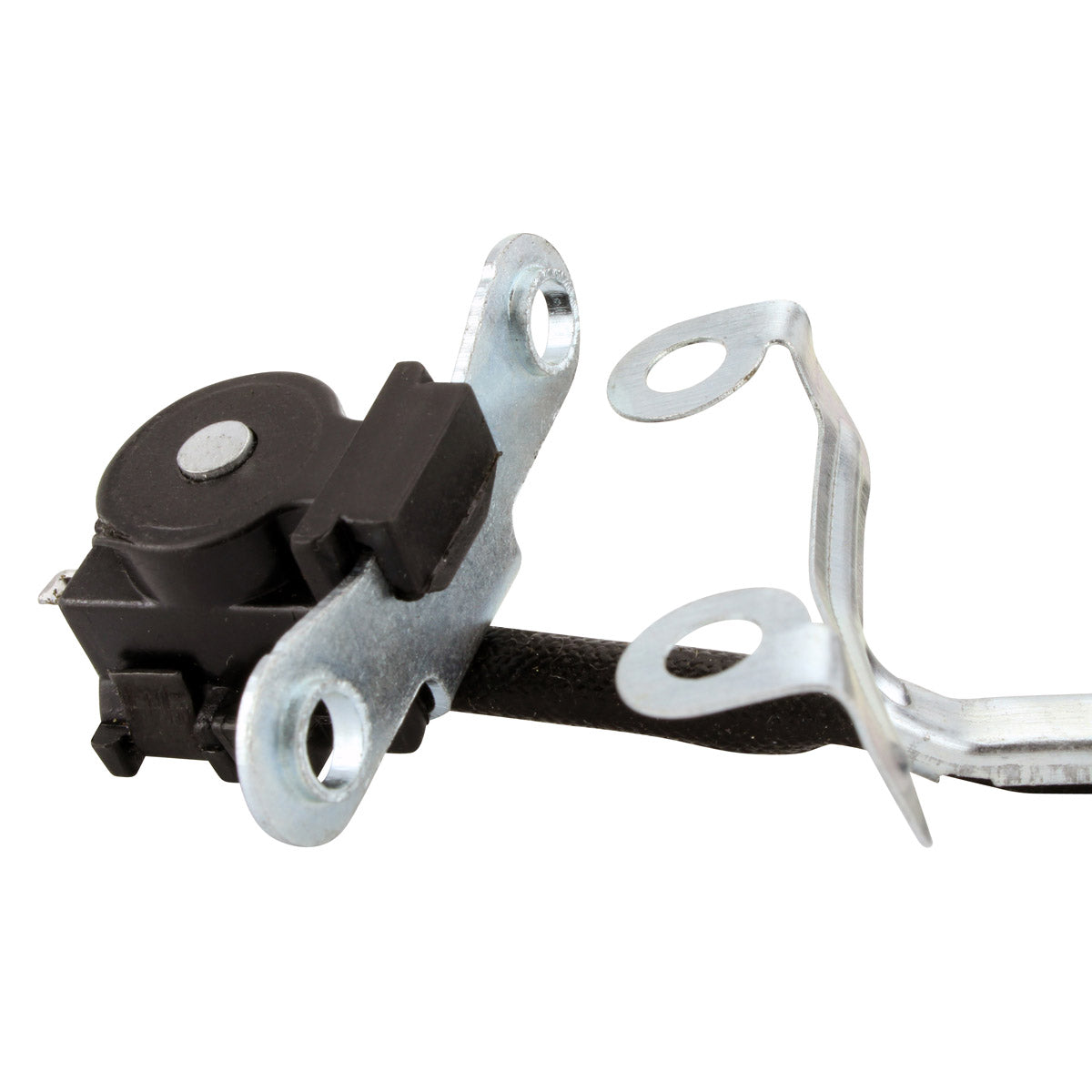

Yes. The pick-up pulsar coil is included and already mounted on the stator plate, with 130 mm of wire from the coil to the grommet, so the ignition trigger is replaced at the same time as the charging winding.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
