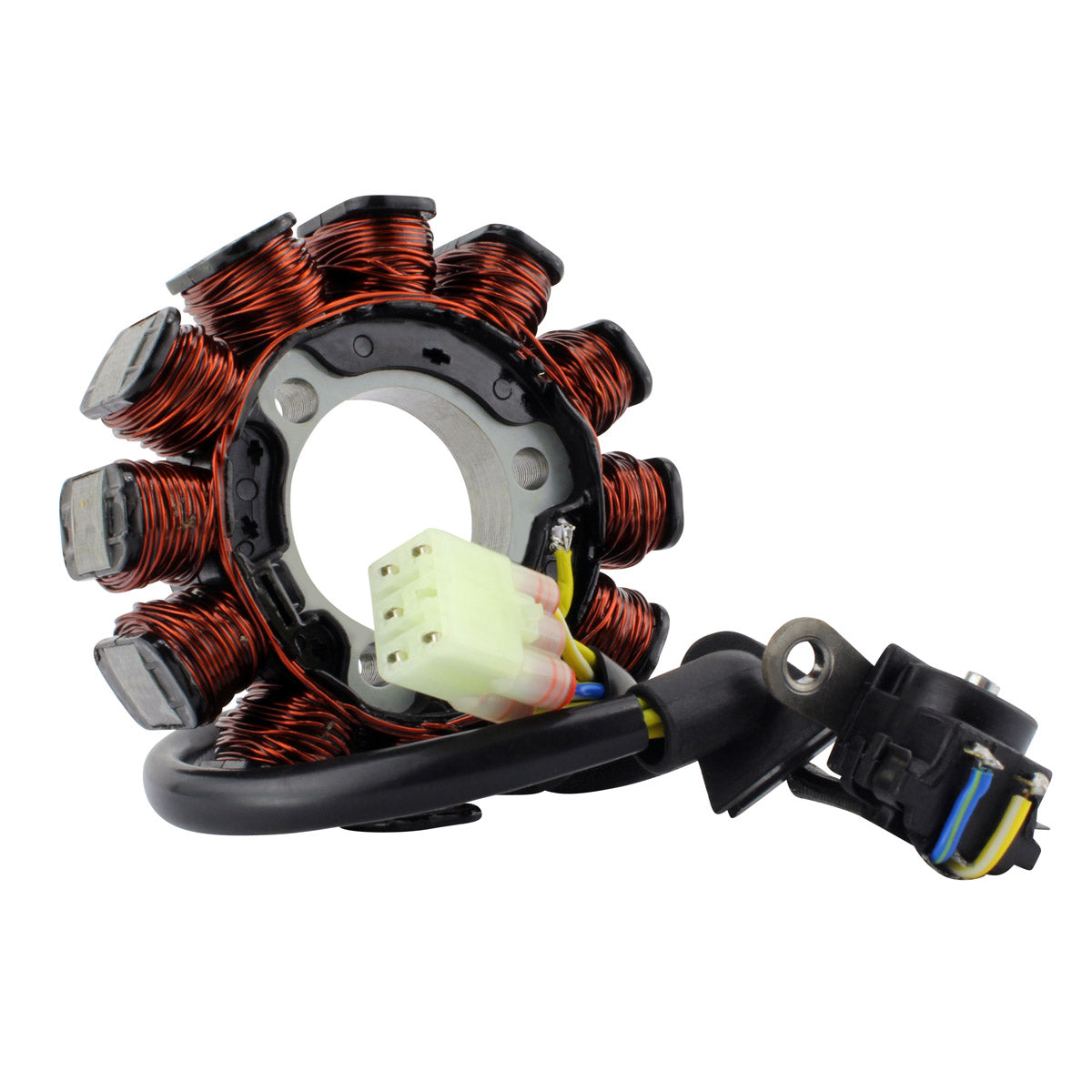

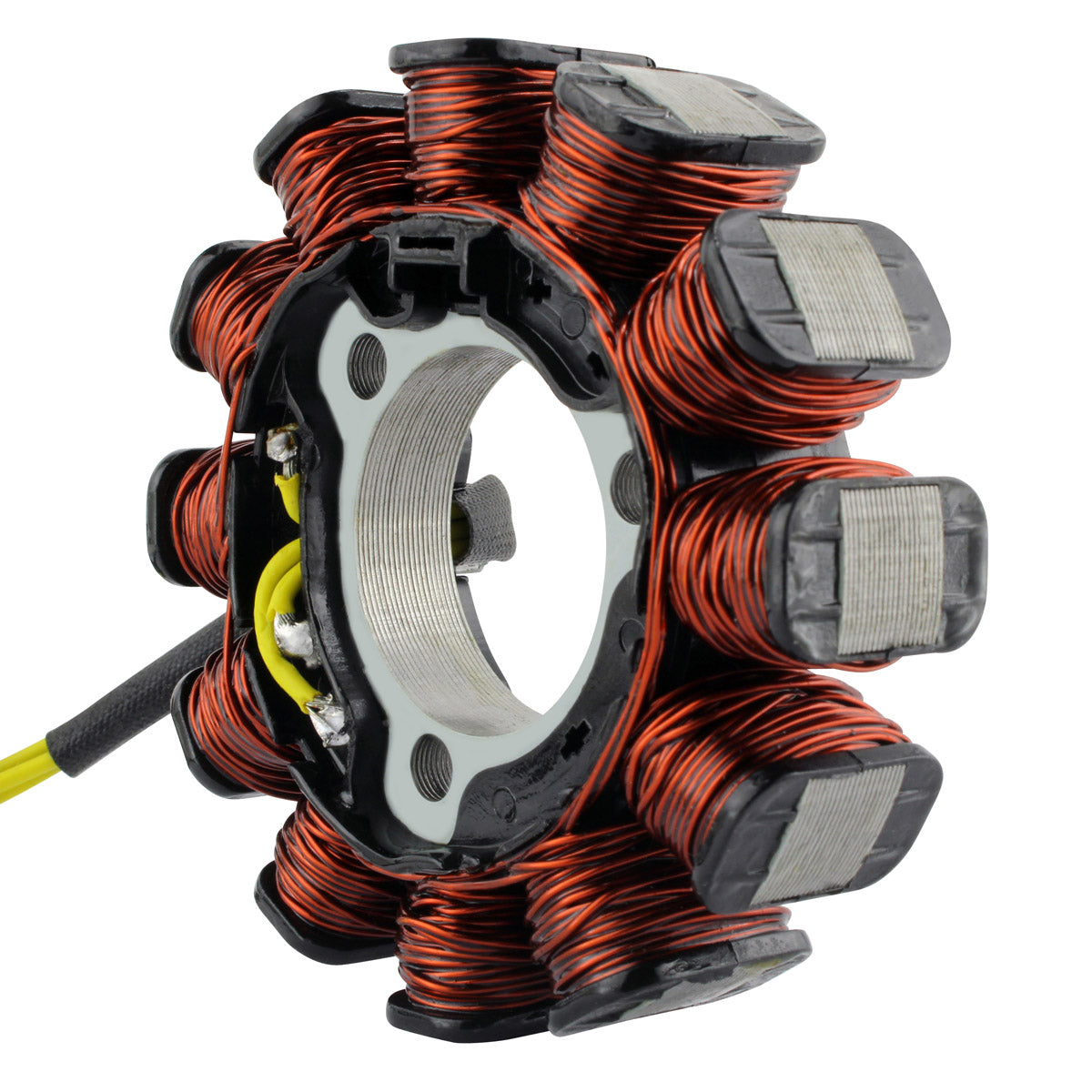

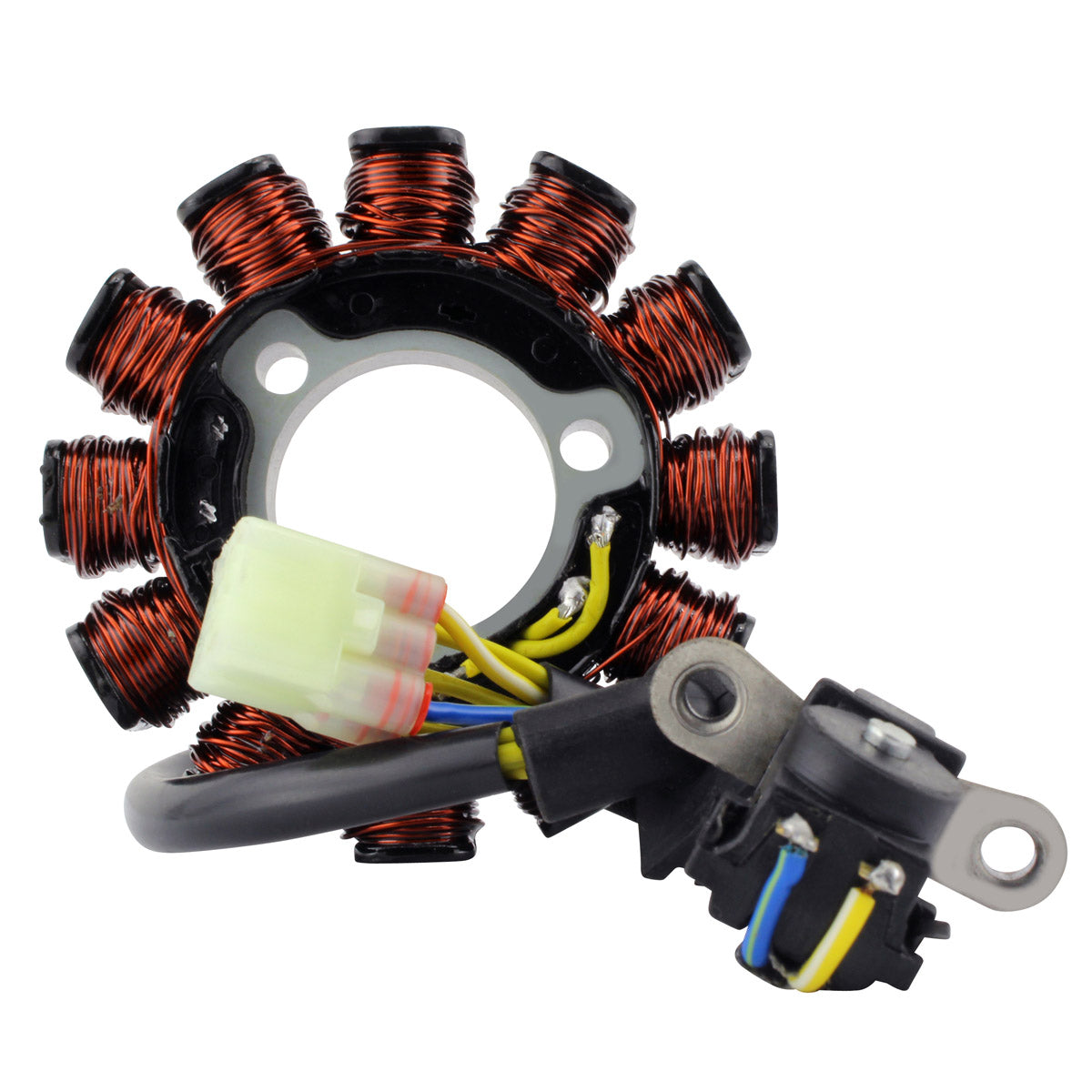

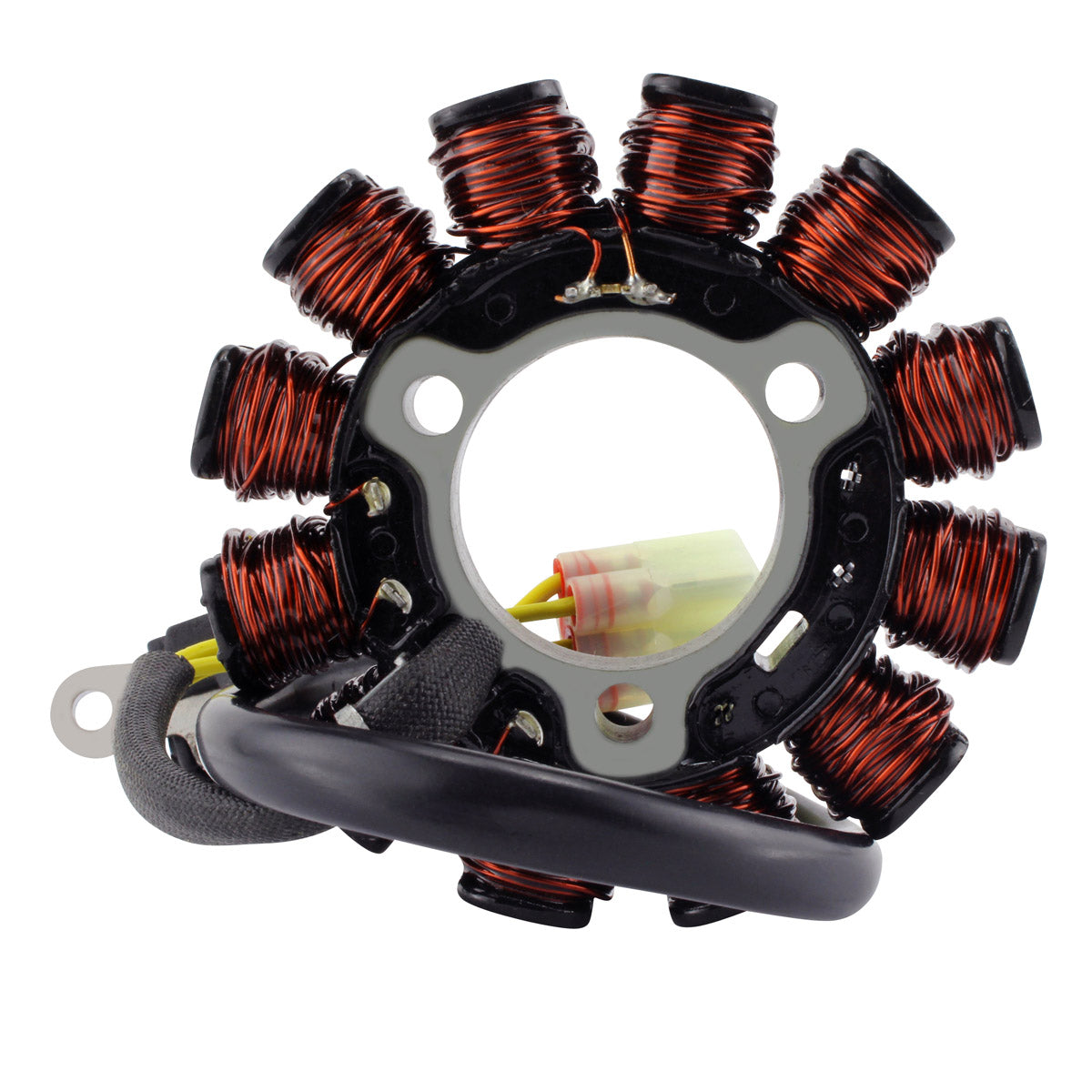

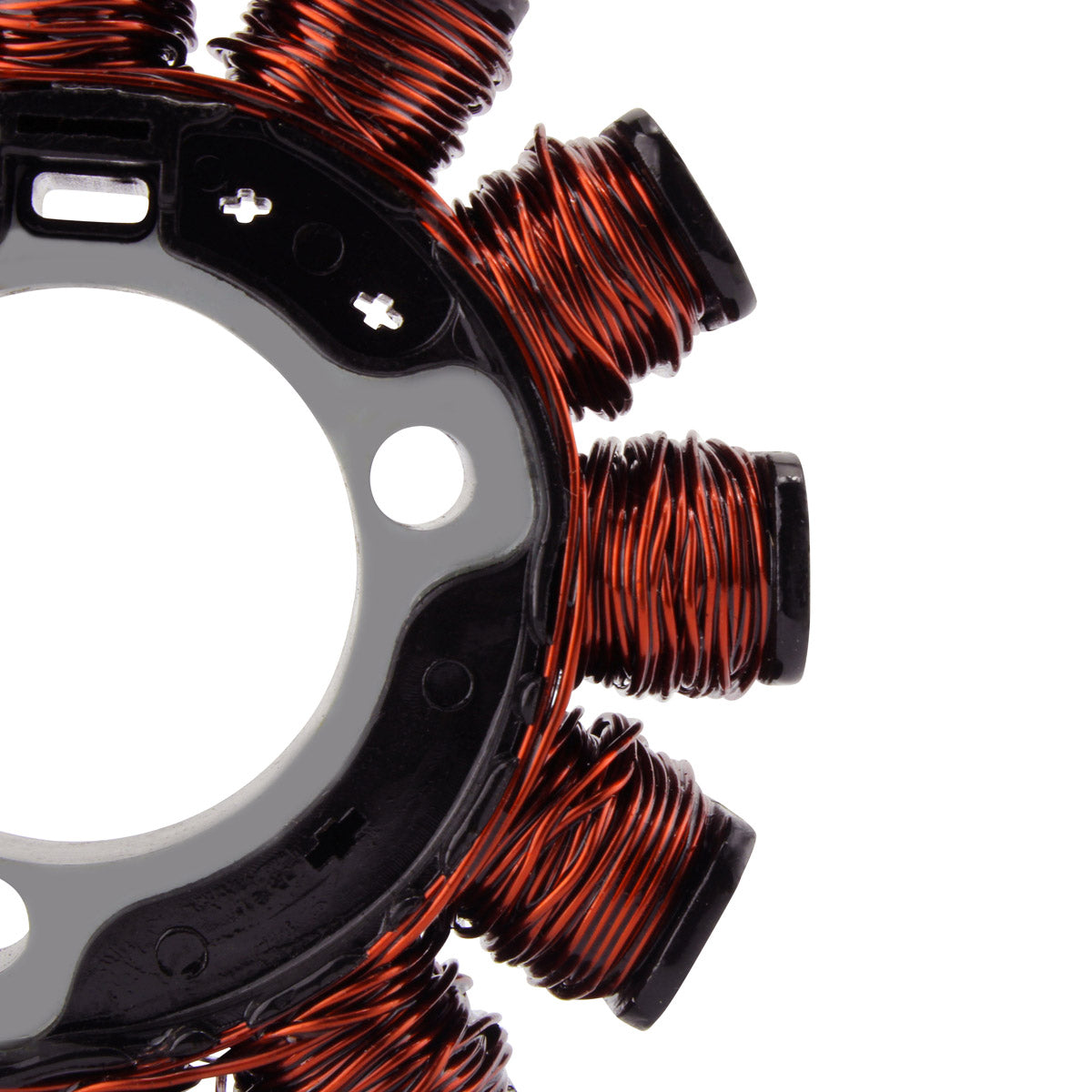

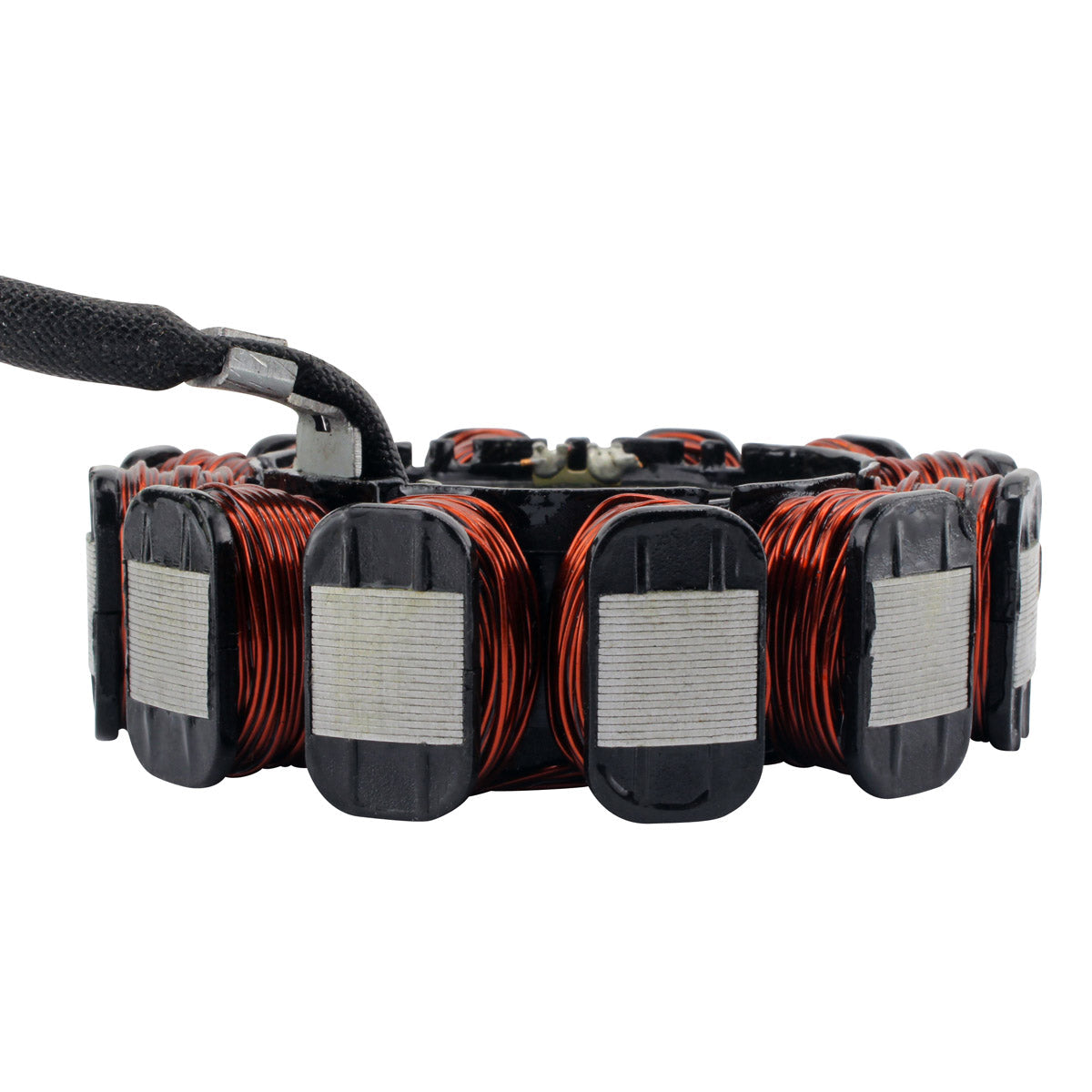

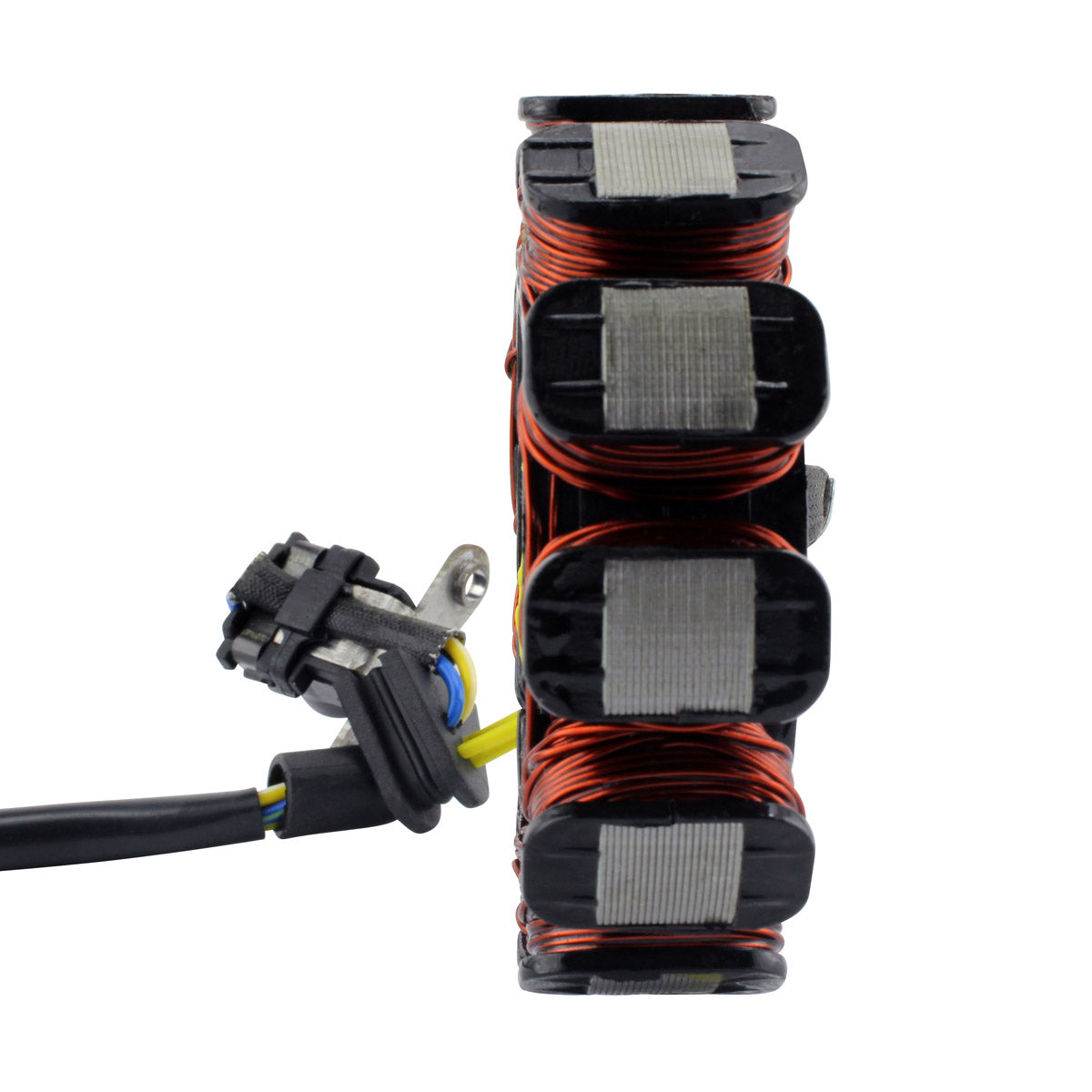

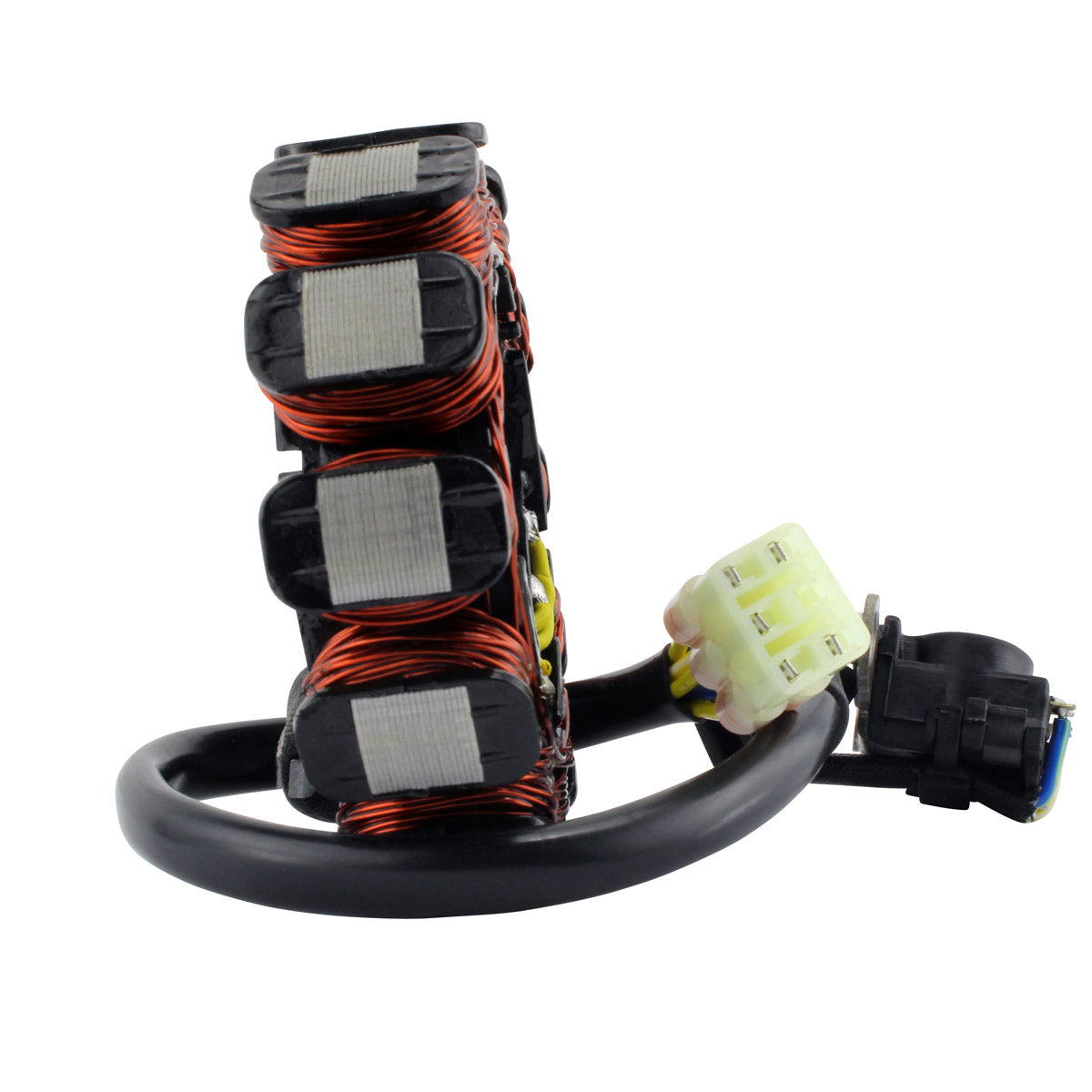

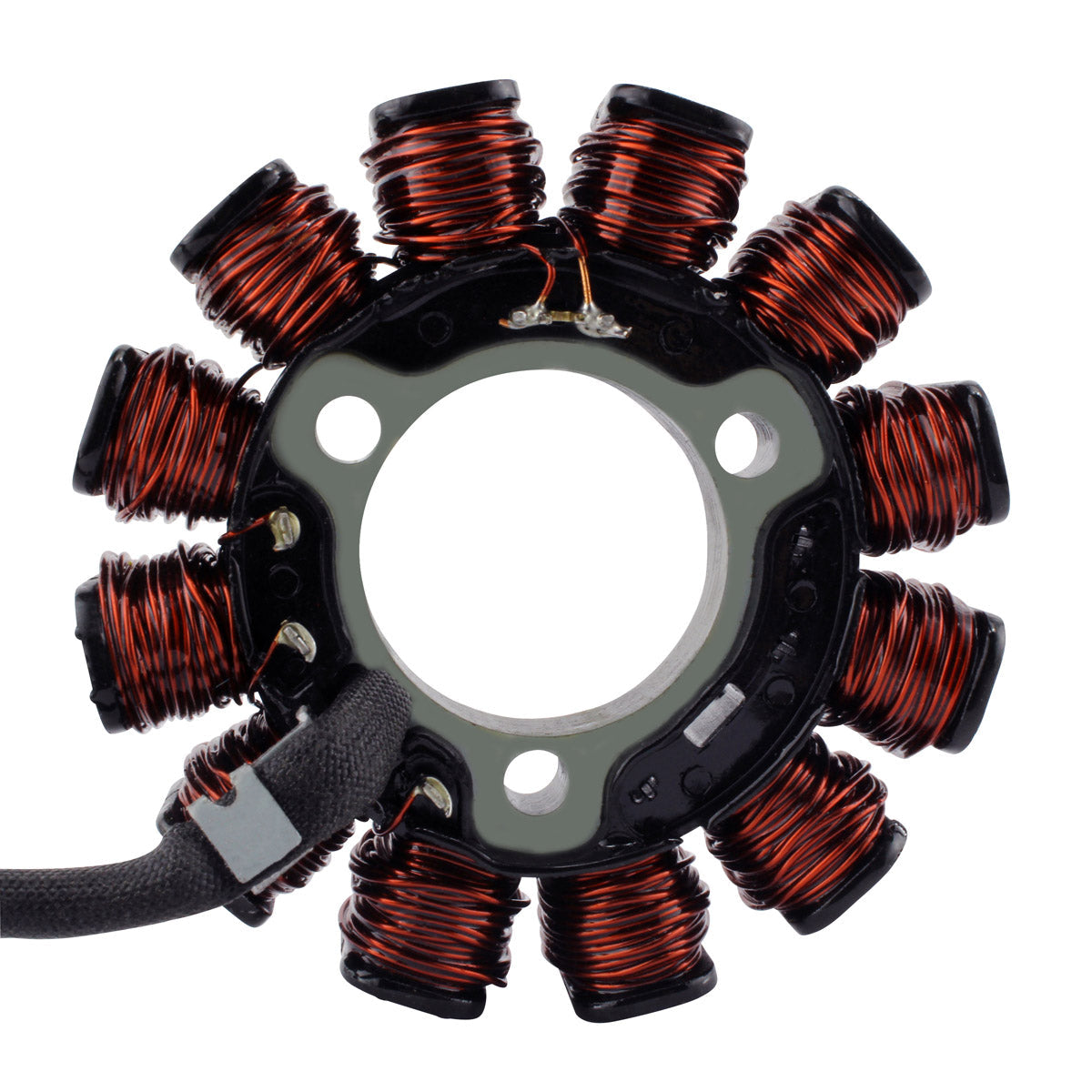

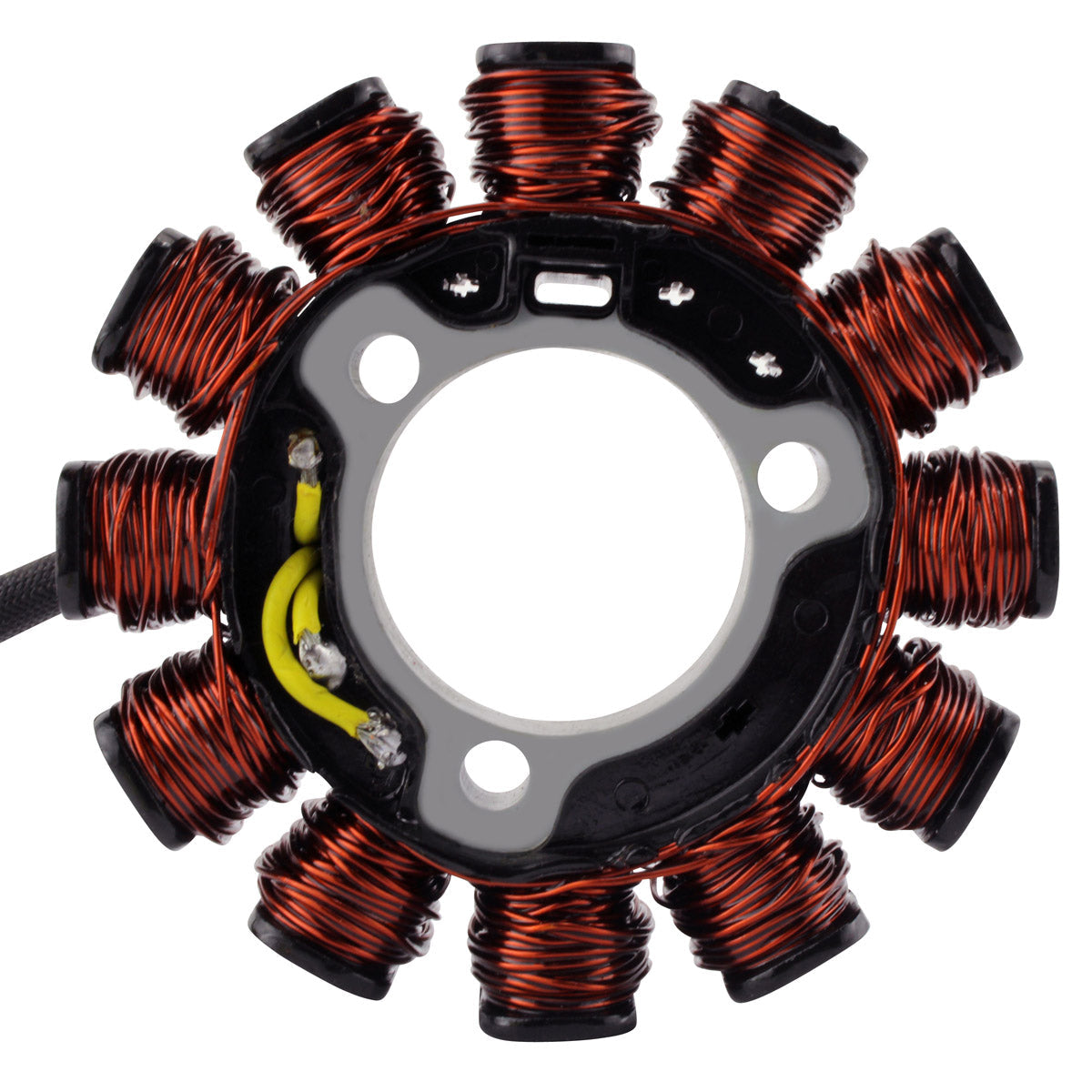

This is a brand new aftermarket stator built as a direct replacement for the original unit fitted to the Honda CRF 450 R and CRF 450 RX of 2017 and 2018. It is plug-and-play and a direct fit, so it sits on the original mounting points inside the ignition cover and plugs into the standard loom with no modification. Every unit is tested before it leaves the workshop.
The stator uses the highest grade of lamination materials and the highest grade of copper winding, resistant to 200 degrees Celsius, and it gives 20% more output over stock while working with all other OEM components. The pick up pulsar coil is supplied already fitted to the assembly, so the ignition trigger is renewed at the same time as the charging coils, and connectors and a rubber grommet are included with the part.
Key Features
- Brand new aftermarket stator, direct replacement for your original unit
- Plug-and-play, direct fit, easy installation
- 20% more output over stock, works with all other OEM components
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

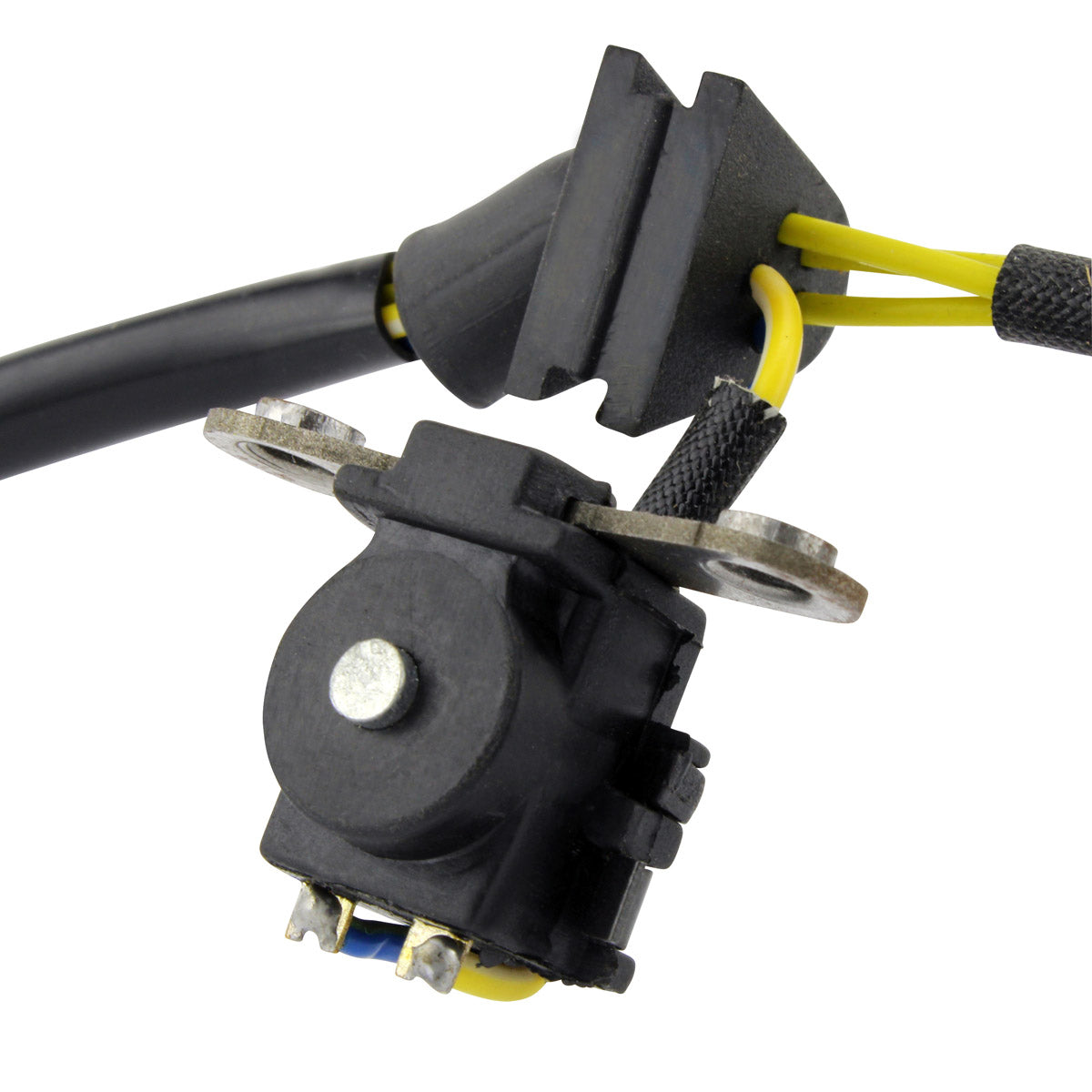

- Pick up pulsar coil included

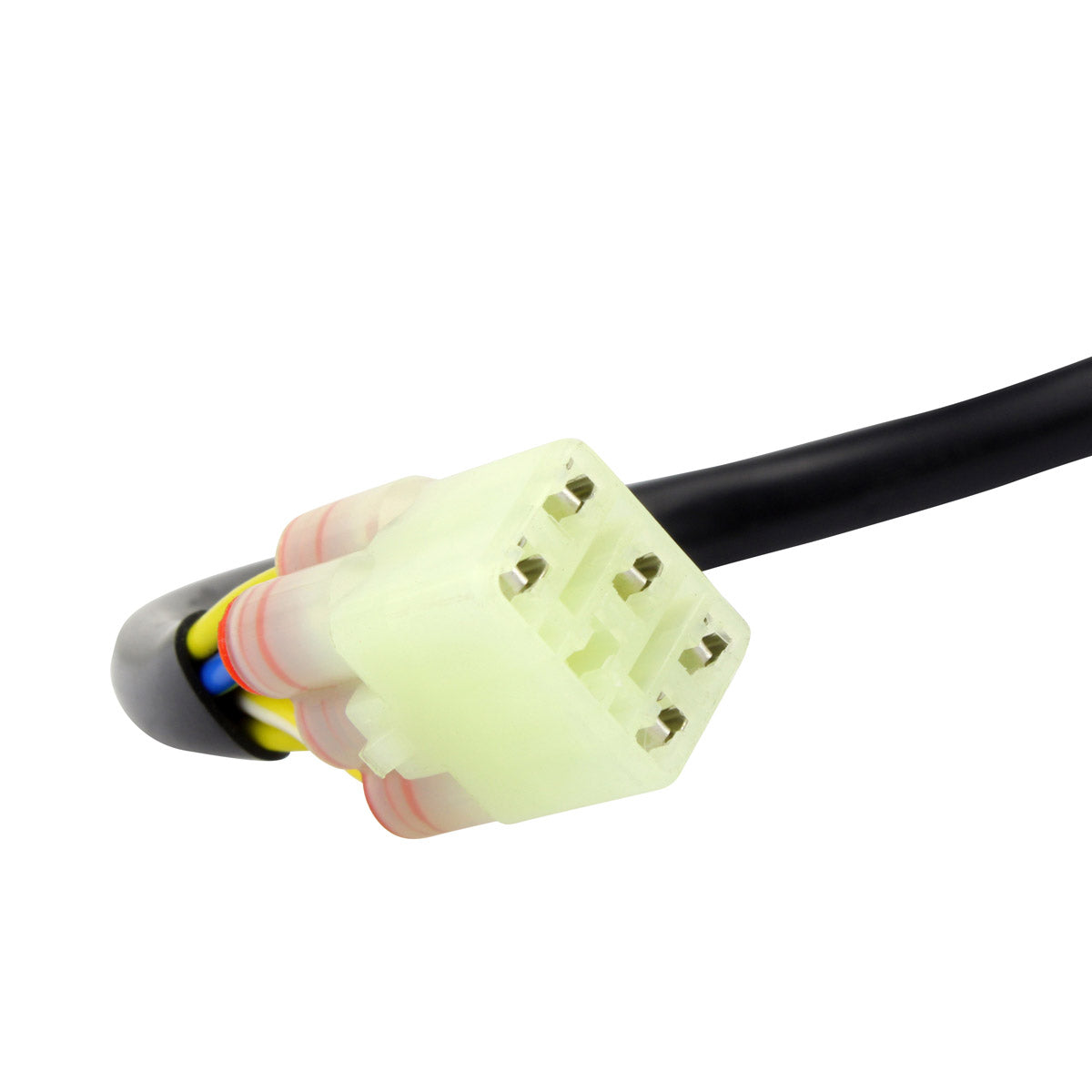

- Connectors included
- Rubber grommet included
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Part number |
RMS010-107646 |
| Interior diameter |
35 mm |
| Exterior diameter |
89 mm |
| Thickness |
12 mm |
| Wire length, stator to grommet |
70 mm |
| Wire length, grommet to plug |
240 mm |
| Pick up coil wire to grommet |
40 mm |
| Number of wires |
5 |
| Number of plugs |
1 |
| Number of pins |
5 |
| Number of poles |
12 |
| Alternator resistance |
Yellow to Yellow = 1.3 ohms +-20% |
| Alternator to ground |
Yellow to ground = O.L |
| Pickup resistance |
Blue/Yellow to White/Yellow = 244 ohms +-20% |
| Winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model |
Years |
| Honda CRF 450 R |
2017-2018 |
| Honda CRF 450 RX |
2017-2018 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 31120-MKE-A01 |
Honda |
Frequently Asked Questions
Does it fit without modification?
Yes. It is a direct replacement for the original unit on the CRF 450 R and CRF 450 RX models listed above and uses the standard mounting points and the single 5-pin plug, so no cutting or splicing of the harness is needed.
Is the pick up pulsar coil supplied with it?
Yes. The pick up pulsar coil is included as part of the assembly, along with the connectors and a rubber grommet, so the ignition trigger and the charging coils are replaced together.
How do I know the old stator has failed?
A failing stator usually shows up as a battery that will not hold charge, dim or flickering lights, or a bike that will not run properly once the battery is low. Use the resistance figures above to check: about 1.3 ohms yellow to yellow, open circuit (O.L) from yellow to ground, and about 244 ohms across the pickup wires. Values well outside these suggest a shorted or open winding.
Can I keep my standard regulator rectifier?
Yes. Although this stator gives 20% more output over stock, it is designed to work with all other OEM components, so the original regulator rectifier and battery can be retained.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
