Honda CTX700 Generator Stator - RM01549
CTX700, CTX700N, CTX700D and CTX700ND - 2014-2018 - OEM replacement 31120-MJF-A01

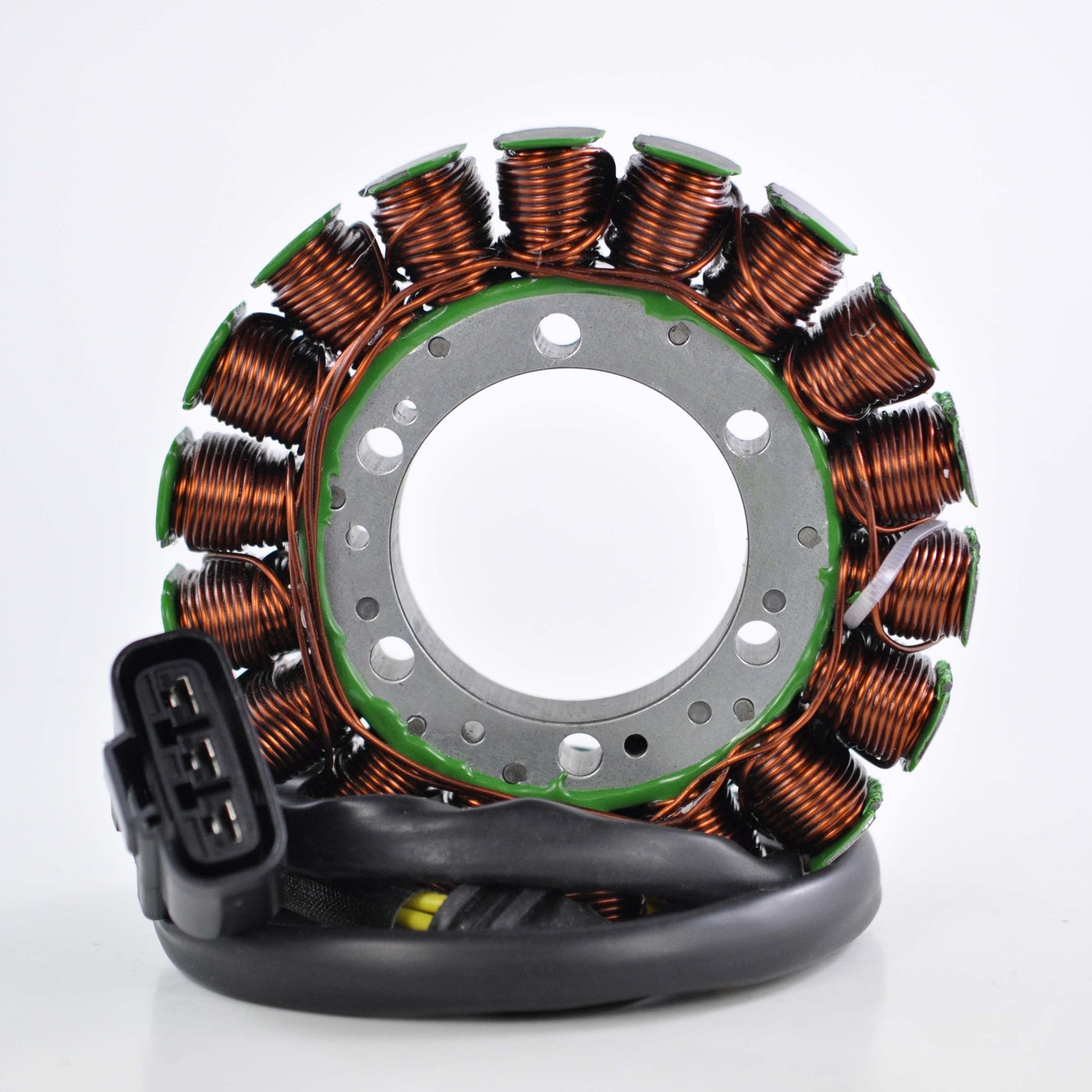

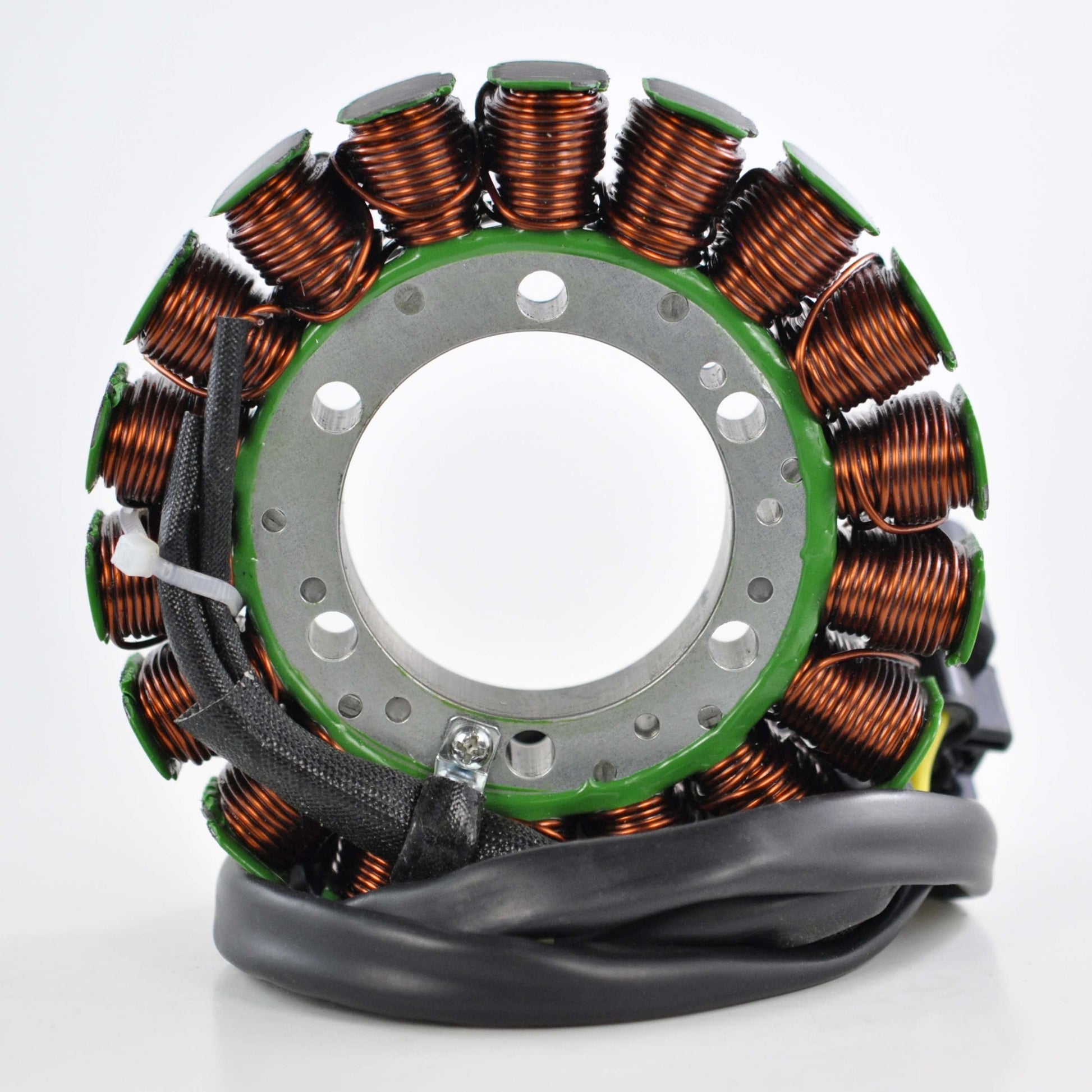

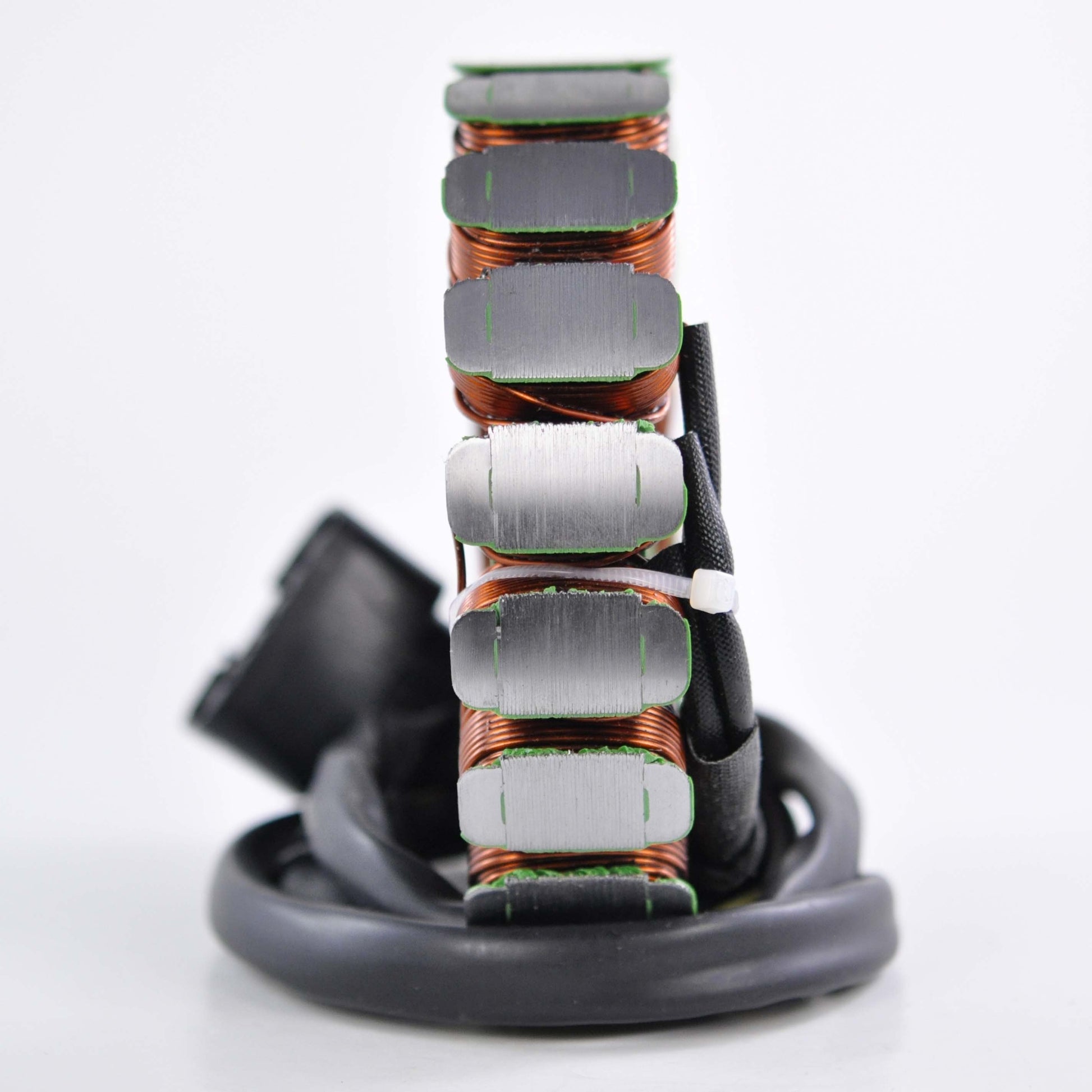

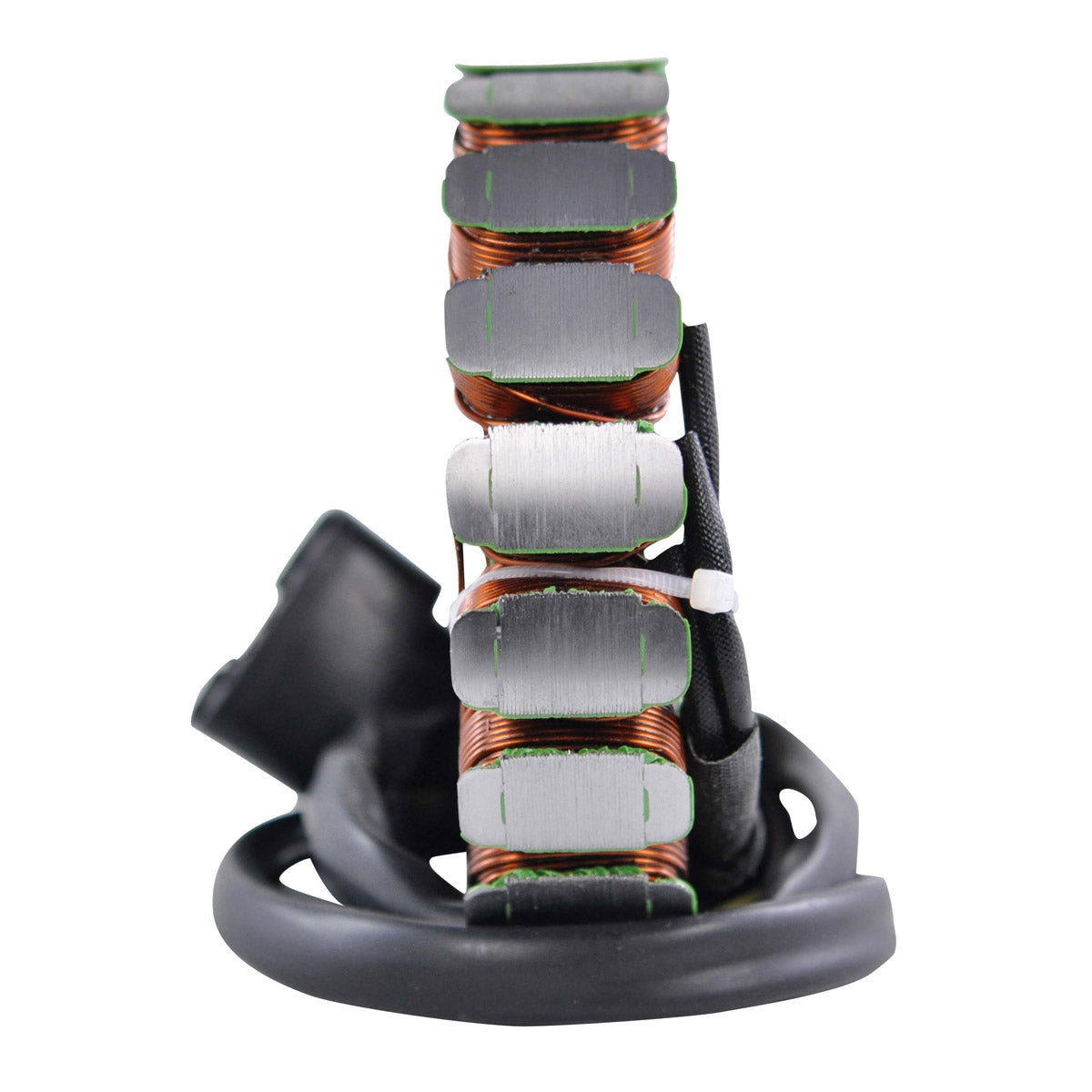

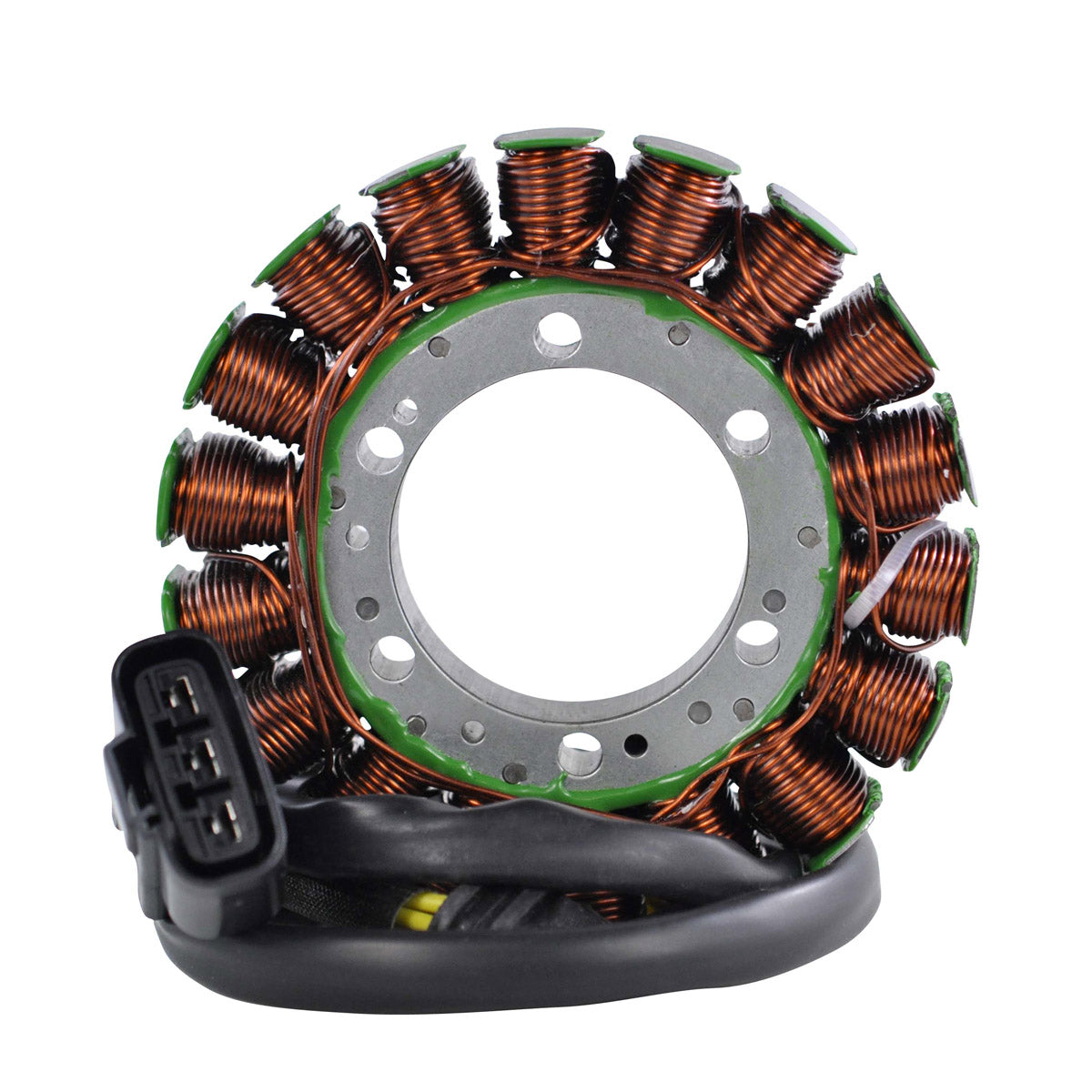

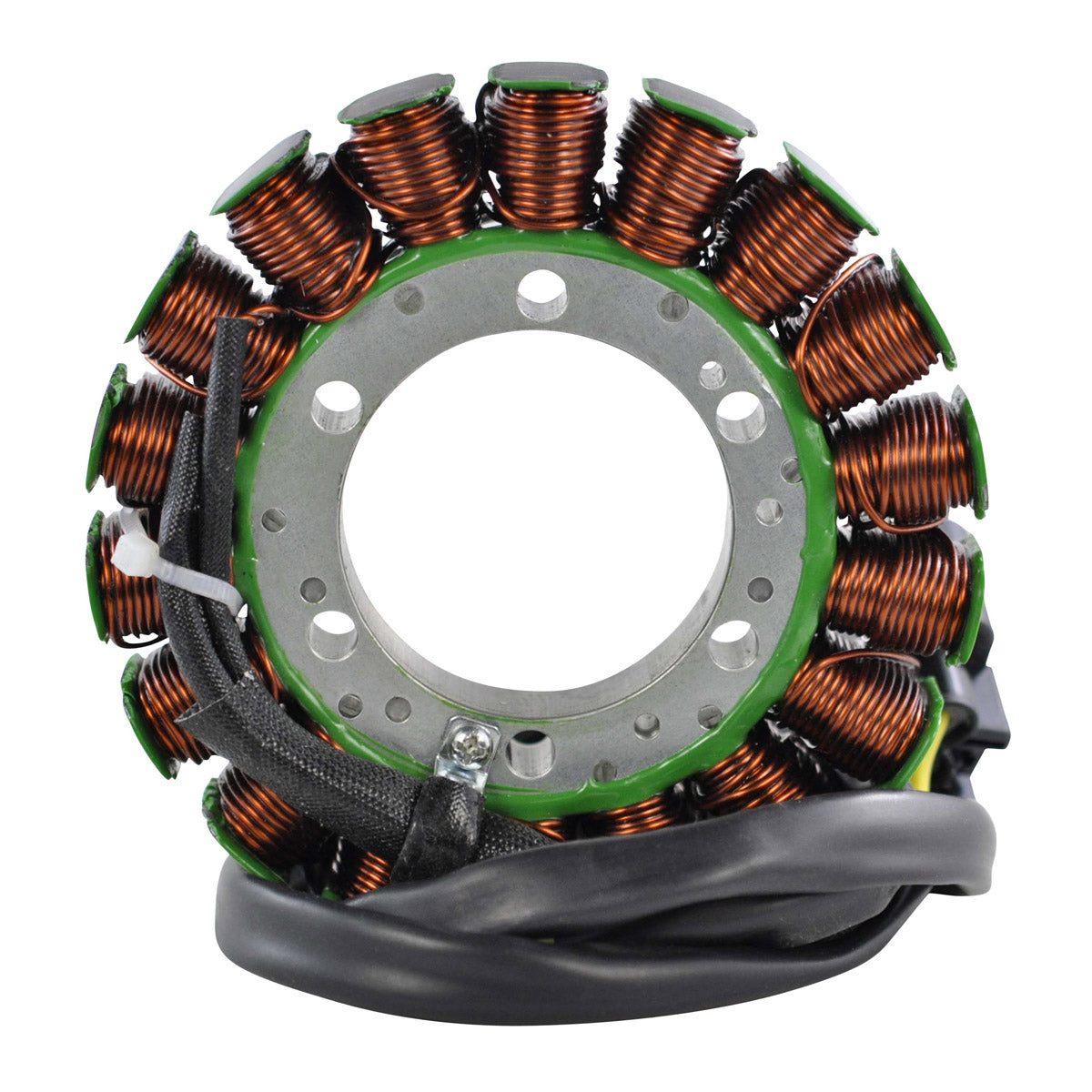

This is a brand new aftermarket generator stator supplied as a direct replacement for the original charging unit on the Honda CTX700 family. It is a plug-and-play, direct fit assembly built to the original 54 mm interior diameter, 124 mm exterior diameter and 20 mm thickness, with the original 120 mm lead from the stator to the grommet and the long 670 mm run from the grommet to the plug. It bolts into the standard stator cover and follows the original harness route to the original connector position, so nothing on the bike needs to be altered.
The unit is built on highest grade lamination materials and wound with highest grade copper windings that are resistant to 200 degrees Celsius. On the CTX700 the stator sits inside the engine case in hot oil, so the insulation class of the winding is what determines how long a replacement lasts and how well it copes with the constant heat cycling of commuting and touring use. The connector and the rubber grommet are both included, and every unit is tested before it is shipped.
Key Features
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Connector included
- Rubber grommet included

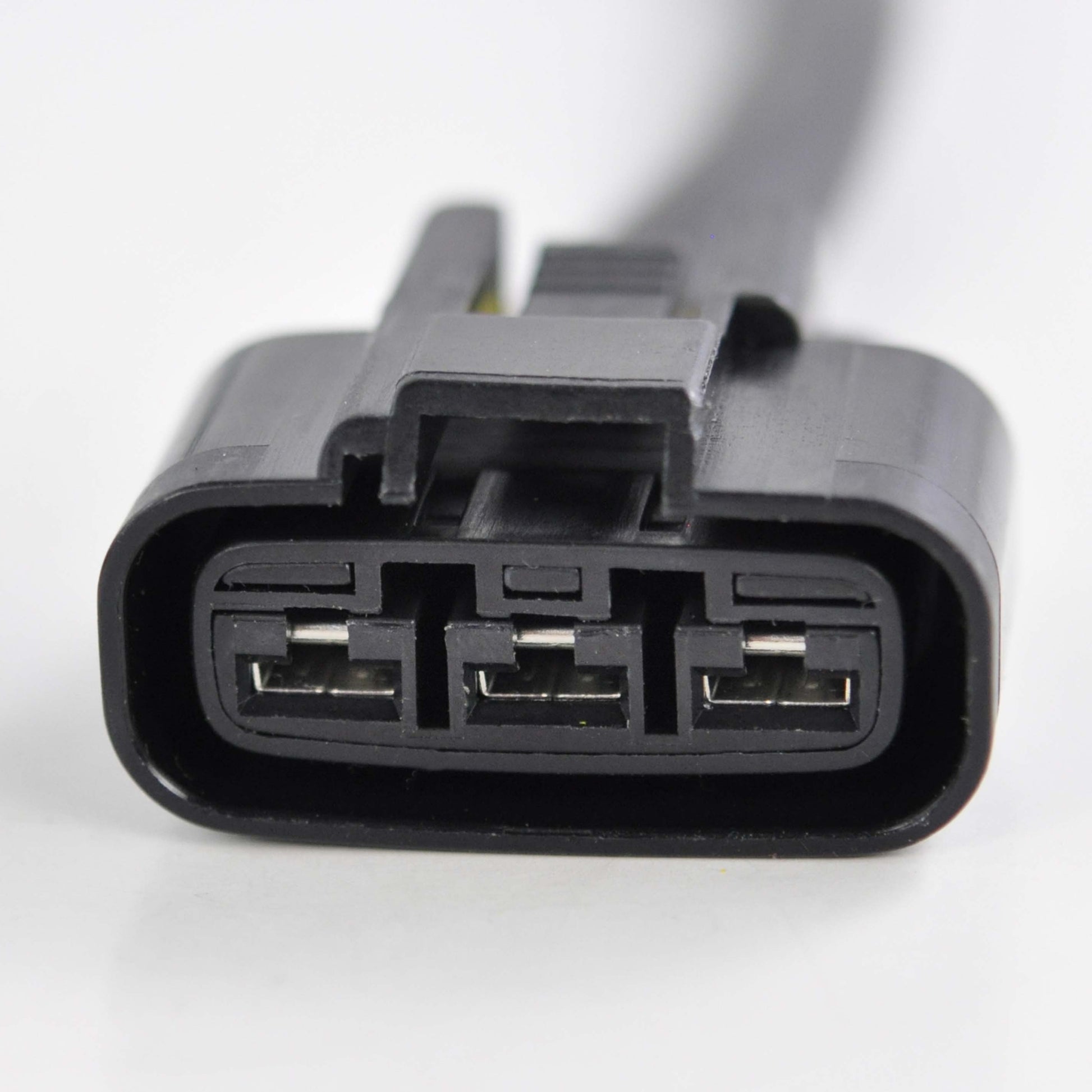

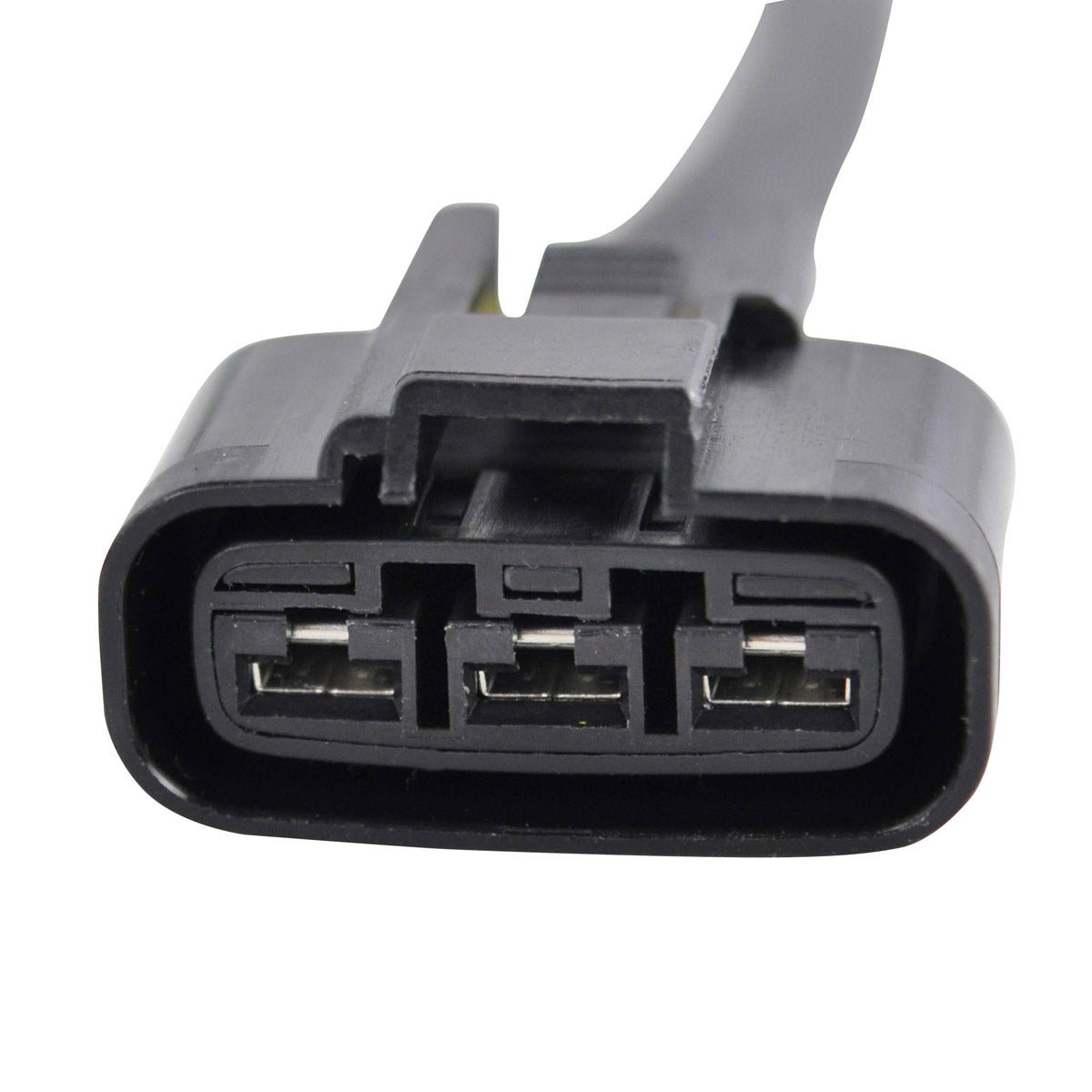

- Three yellow wires into a single three-pin plug
- Full 670 mm harness run from grommet to plug
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 54 mm |
| Exterior diameter | 124 mm |
| Thickness | 20 mm |
| Wire length, stator to grommet | 120 mm |
| Wire length, grommet to plug | 670 mm |
| Number of wires | 3 |
| Number of plugs | 1 |
| Number of pins | 3 |
| Wire-to-wire resistance | Yellow to Yellow = 0.5 ohms +/- 20% |
| Winding temperature rating | 200 degrees Celsius |
| Part reference | RM01549 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Honda CTX700 | 2014-2018 |
| Honda CTX700N | 2014-2018 |
| Honda CTX700D | 2014-2018 |
| Honda CTX700ND | 2014-2018 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 31120-MJF-A01 | Honda |
Frequently Asked Questions
Will it fit without modification?
Yes. This is a direct, plug-and-play replacement matching the original dimensions, the 120 mm and 670 mm wire runs and the original three-pin plug, so it fits the standard stator cover and connects to the untouched harness. No cutting, splicing or drilling is required.
What is included?
The stator, the connector and the rubber grommet. All products shipped are tested before dispatch.
How do I tell whether my original stator has failed?
With the plug disconnected, measure between each pair of yellow wires. Every combination should read 0.5 ohms +/- 20%. An open circuit on any leg, a reading well outside that band, or continuity between a yellow wire and the stator core or engine case confirms the stator has failed. A charging voltage that stays at resting battery level when the engine is revved points to the same conclusion.
Does the same stator cover the DCT models?
This part covers the CTX700, CTX700N, CTX700D and CTX700ND, which includes both the manual and the dual clutch variants of the CTX700 range, all replacing Honda 31120-MJF-A01. Check the number on your original unit against that reference before ordering.
