Stator - Honda SXS 500 & SXS 520 Pioneer

Honda SXS 500 Pioneer 2015-2021 and SXS 520 Pioneer 2021 - RMSTATOR part RMS010-107118

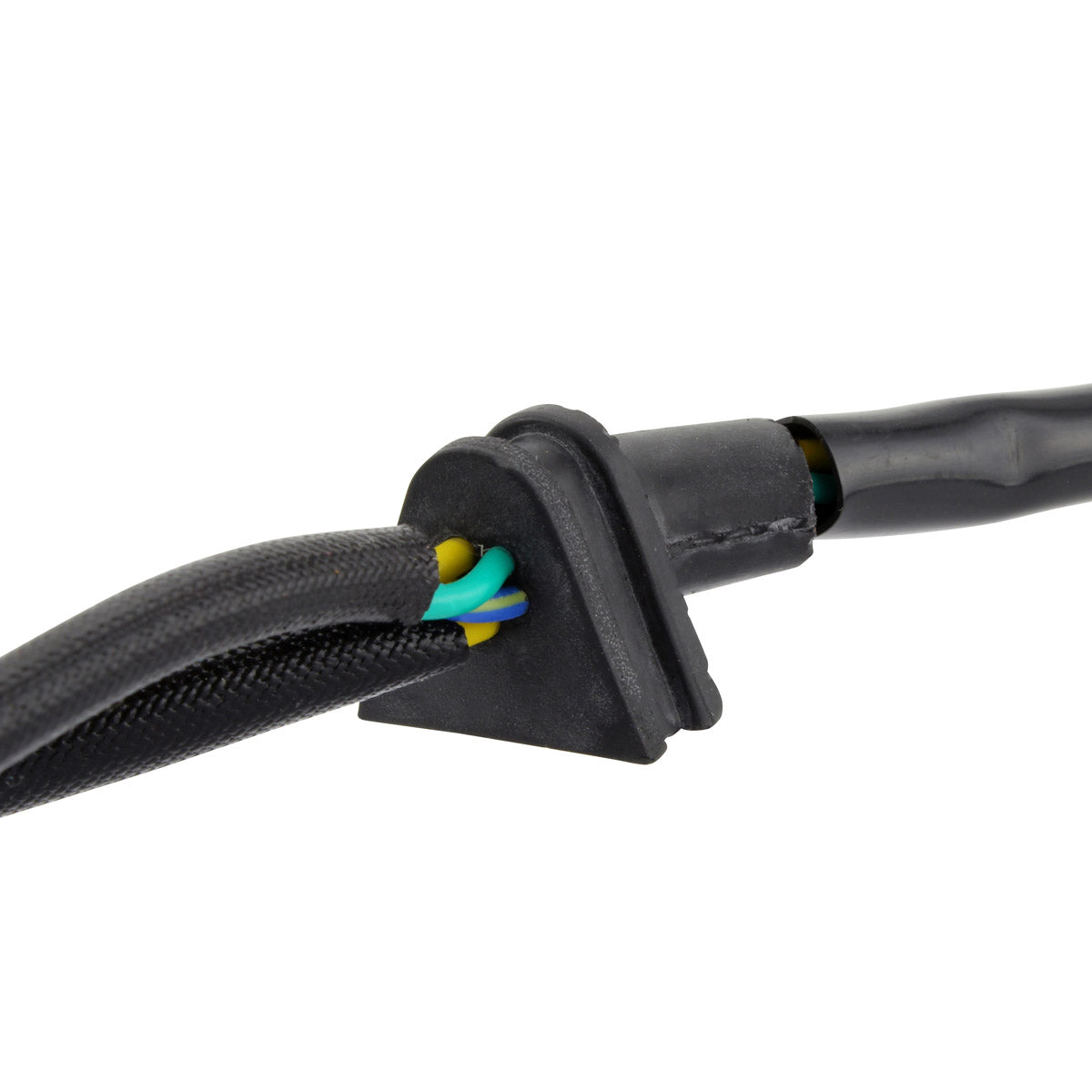

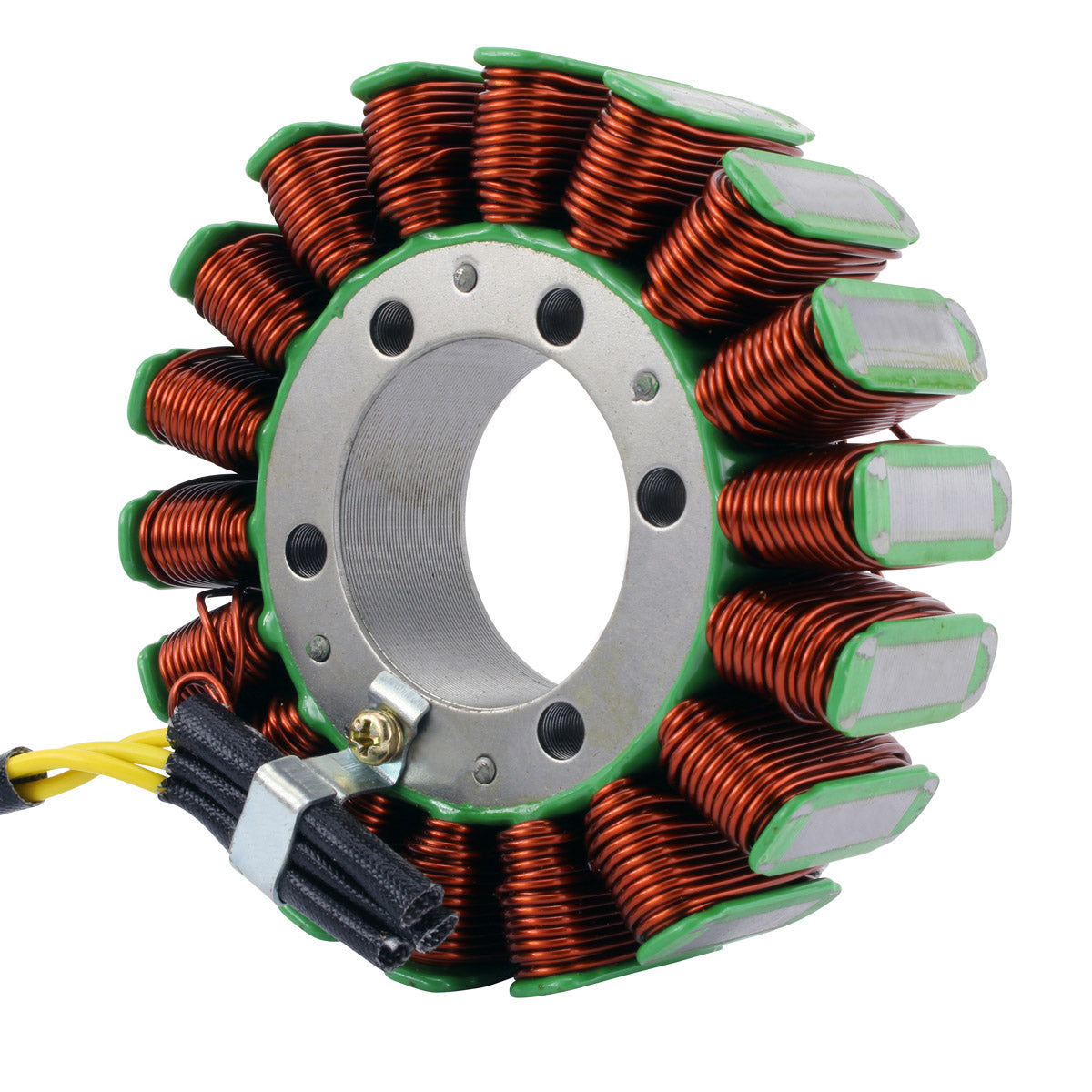

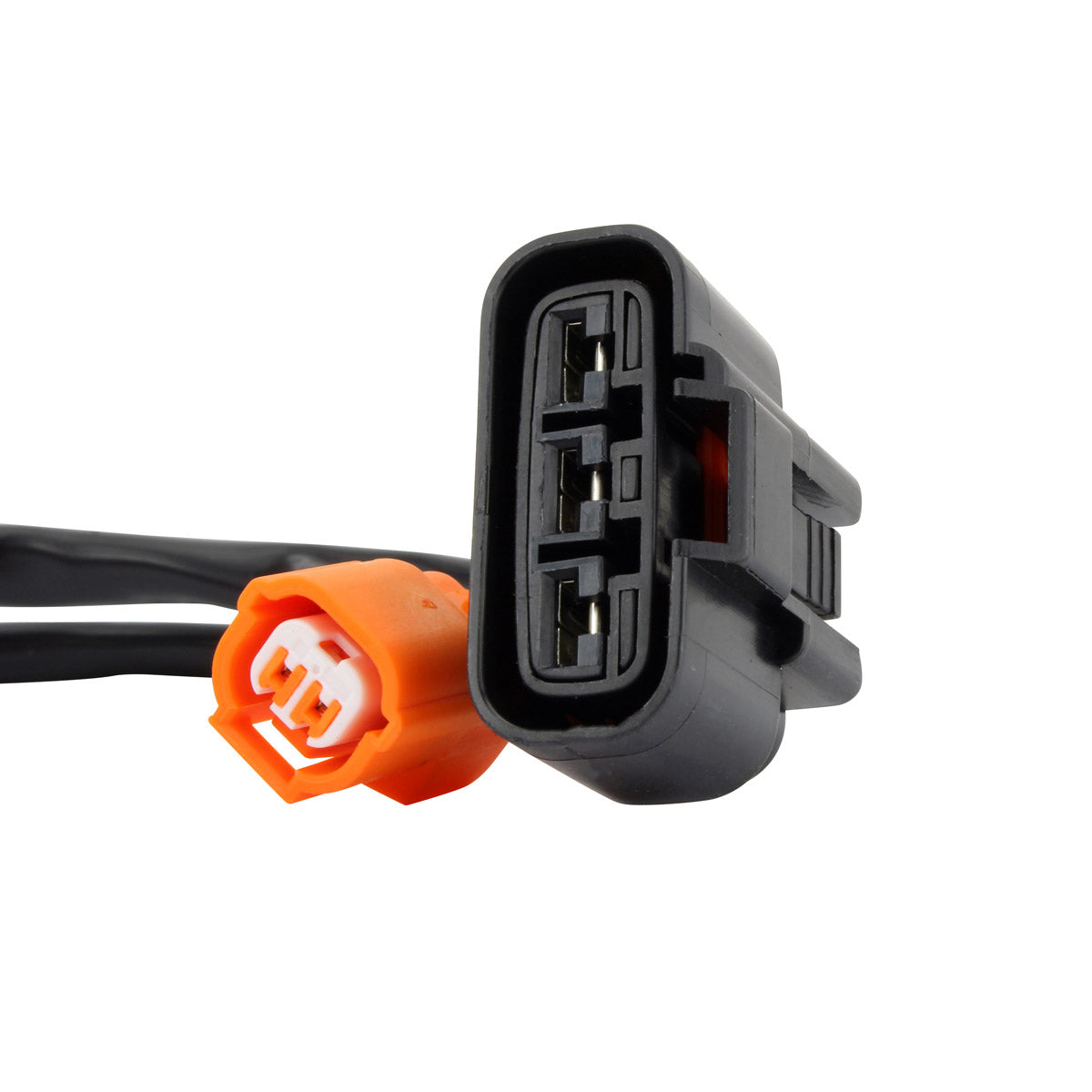

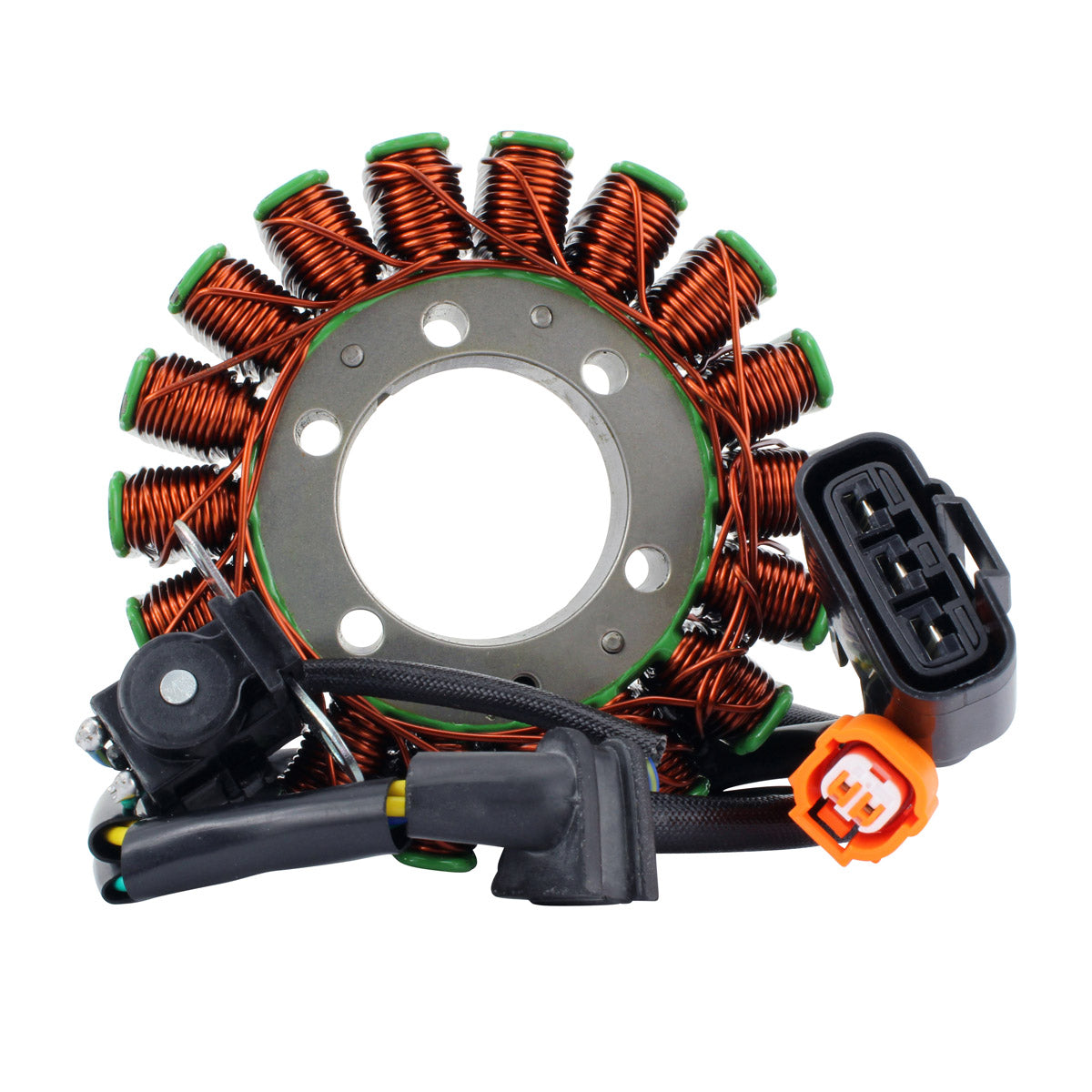

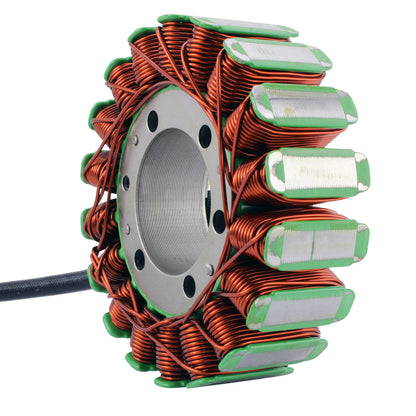

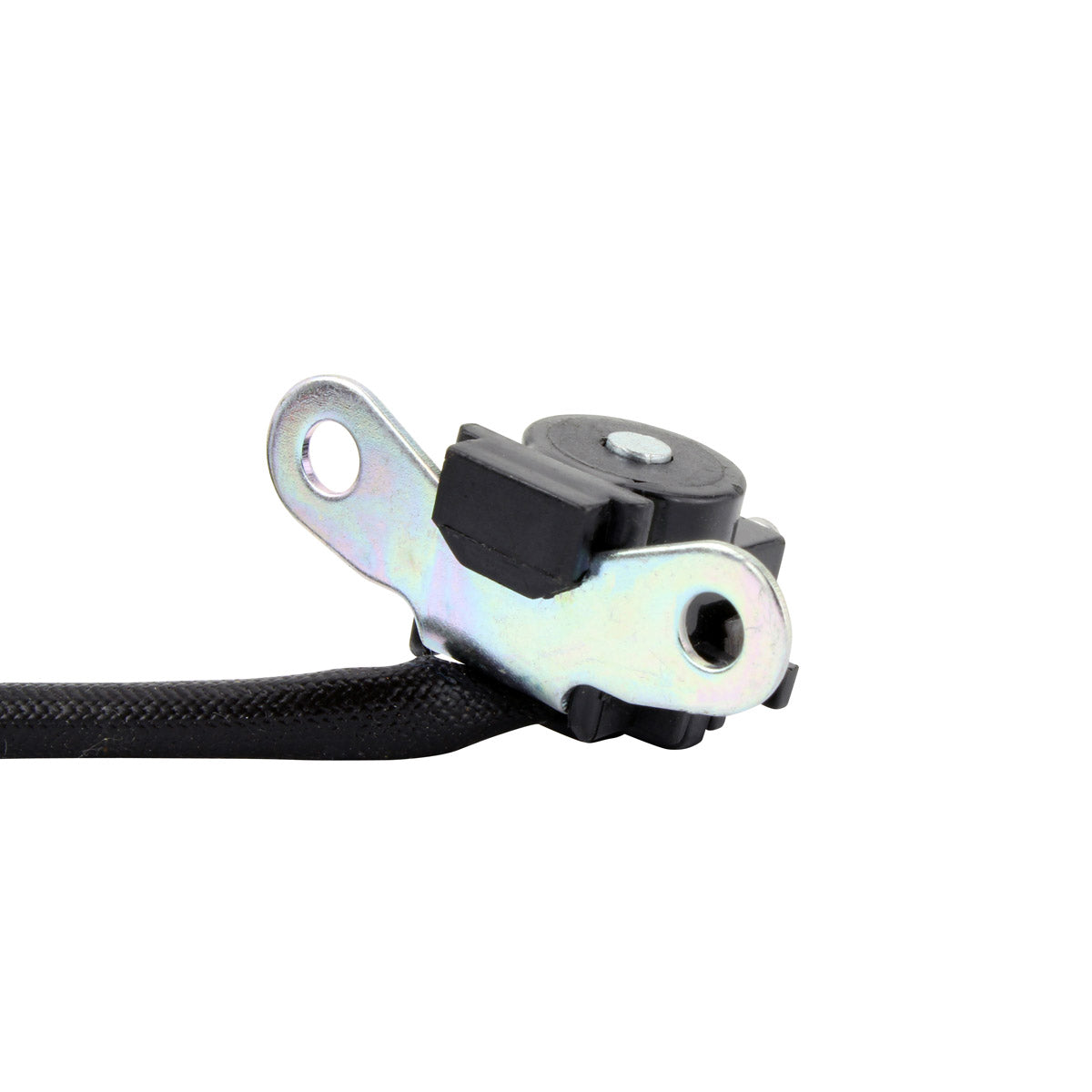

This is a brand new aftermarket stator built as a direct replacement for the original unit in the Honda SXS 500 Pioneer and the SXS 520 Pioneer. It is a plug-and-play, direct fit assembly supplied with the pick up pulsar coil, the connectors and the rubber grommet, so the complete unit seats in the engine cover and plugs into the standard harness with no modification.

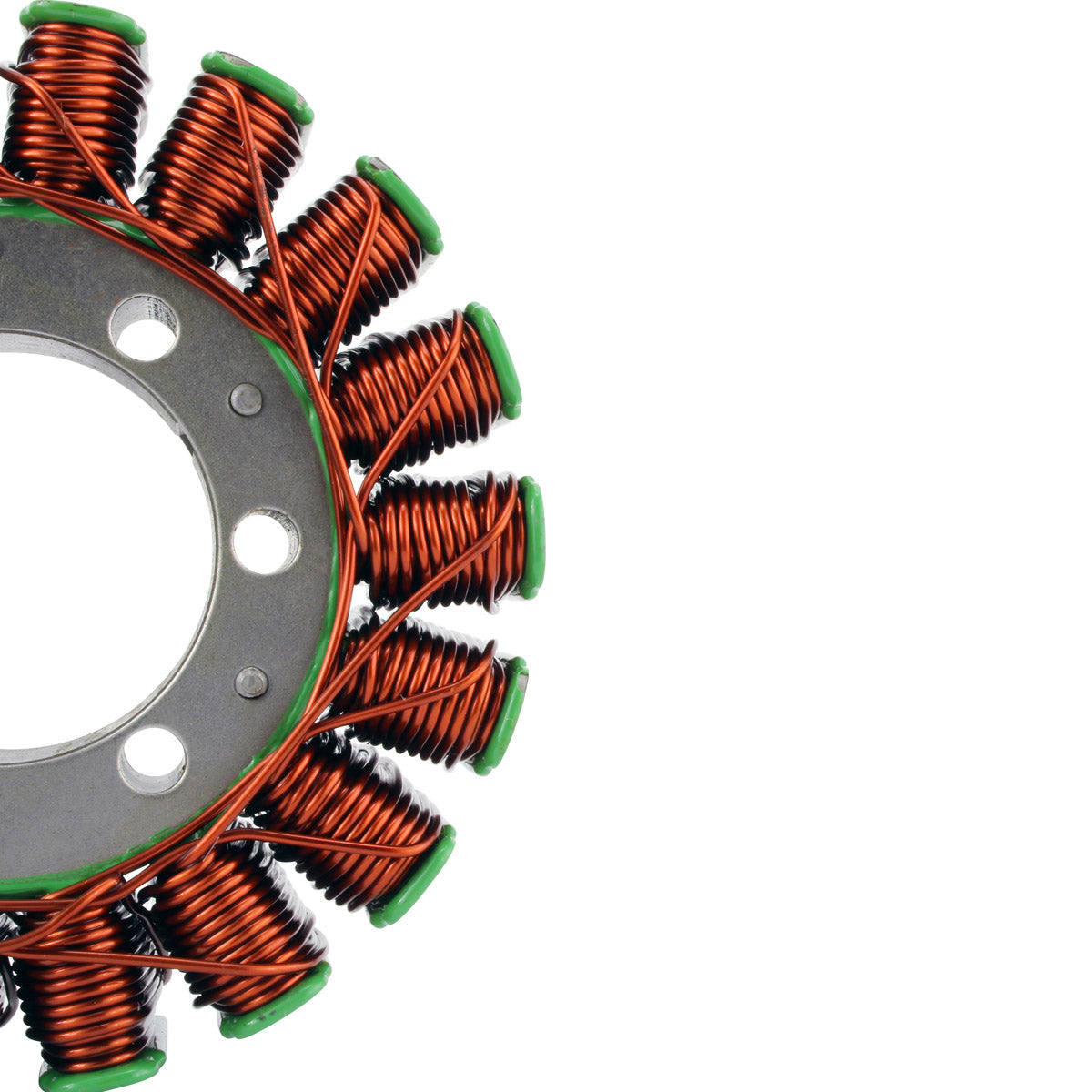

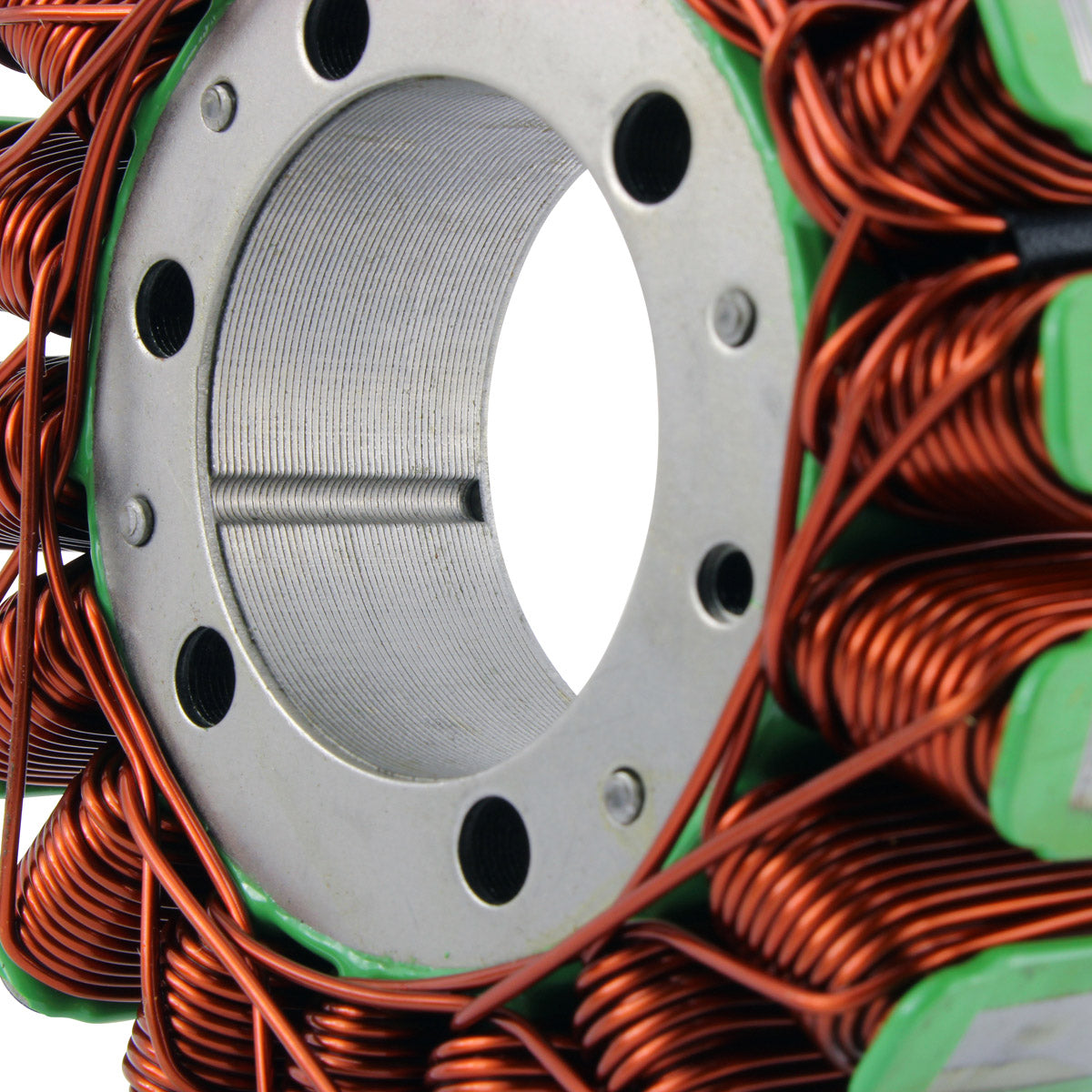

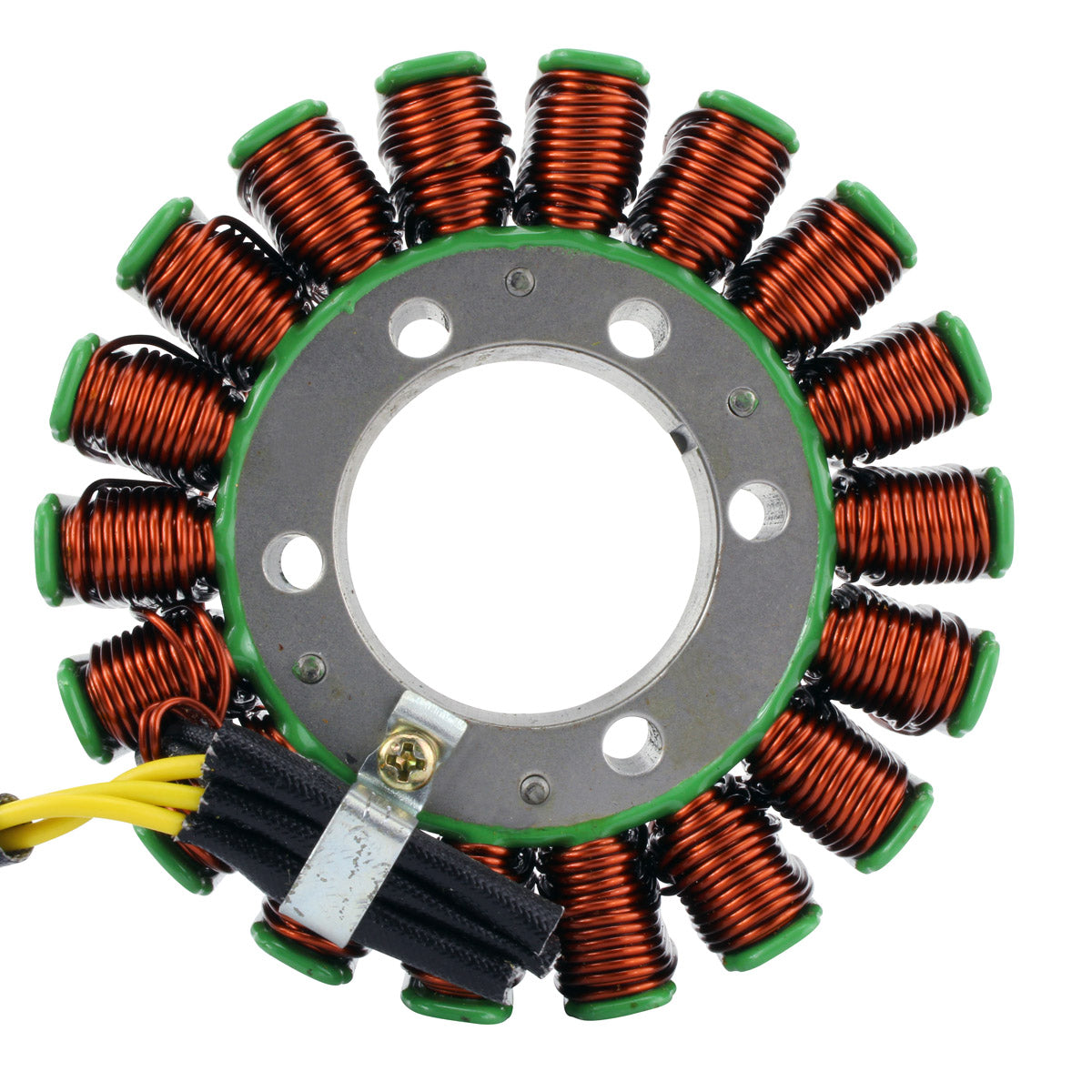

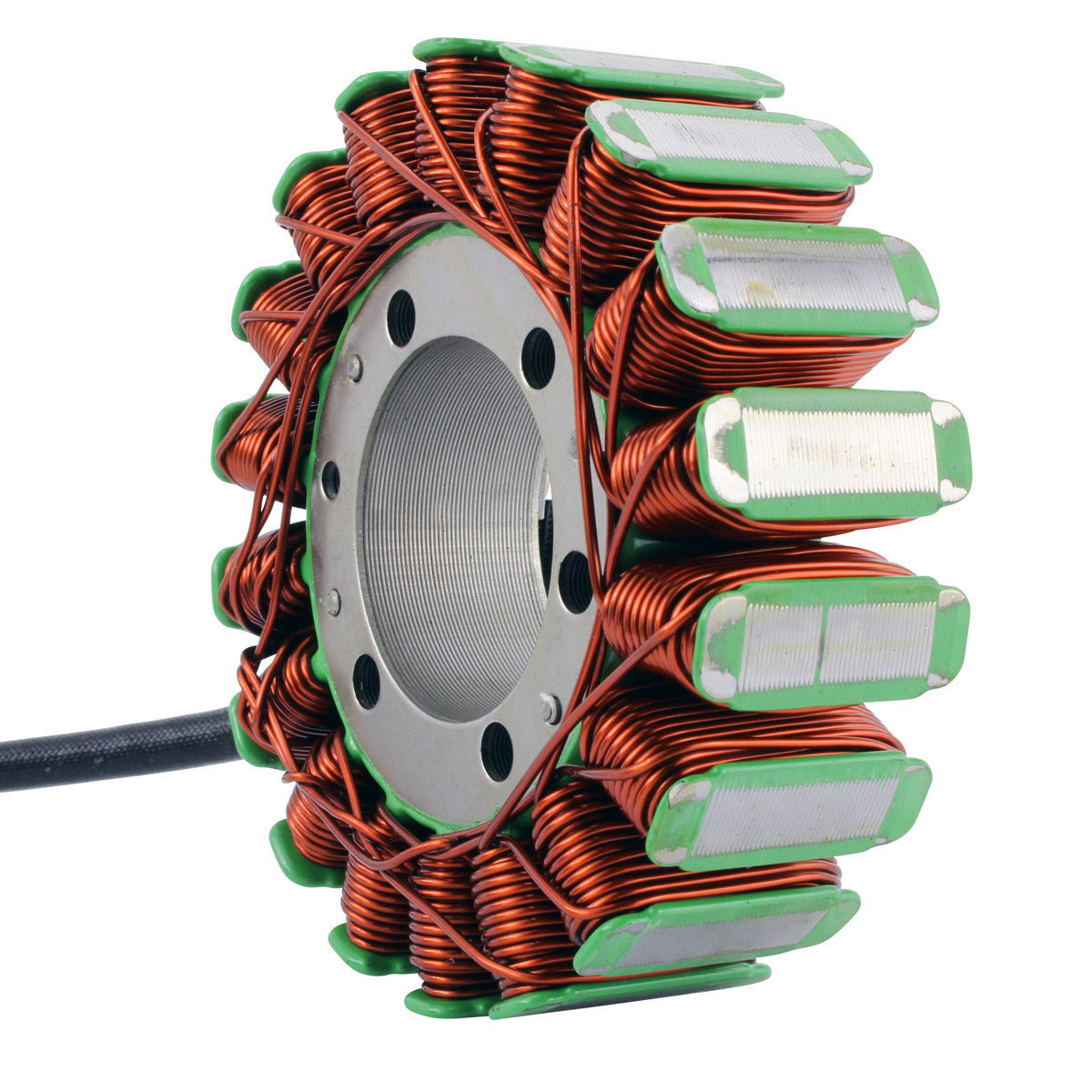

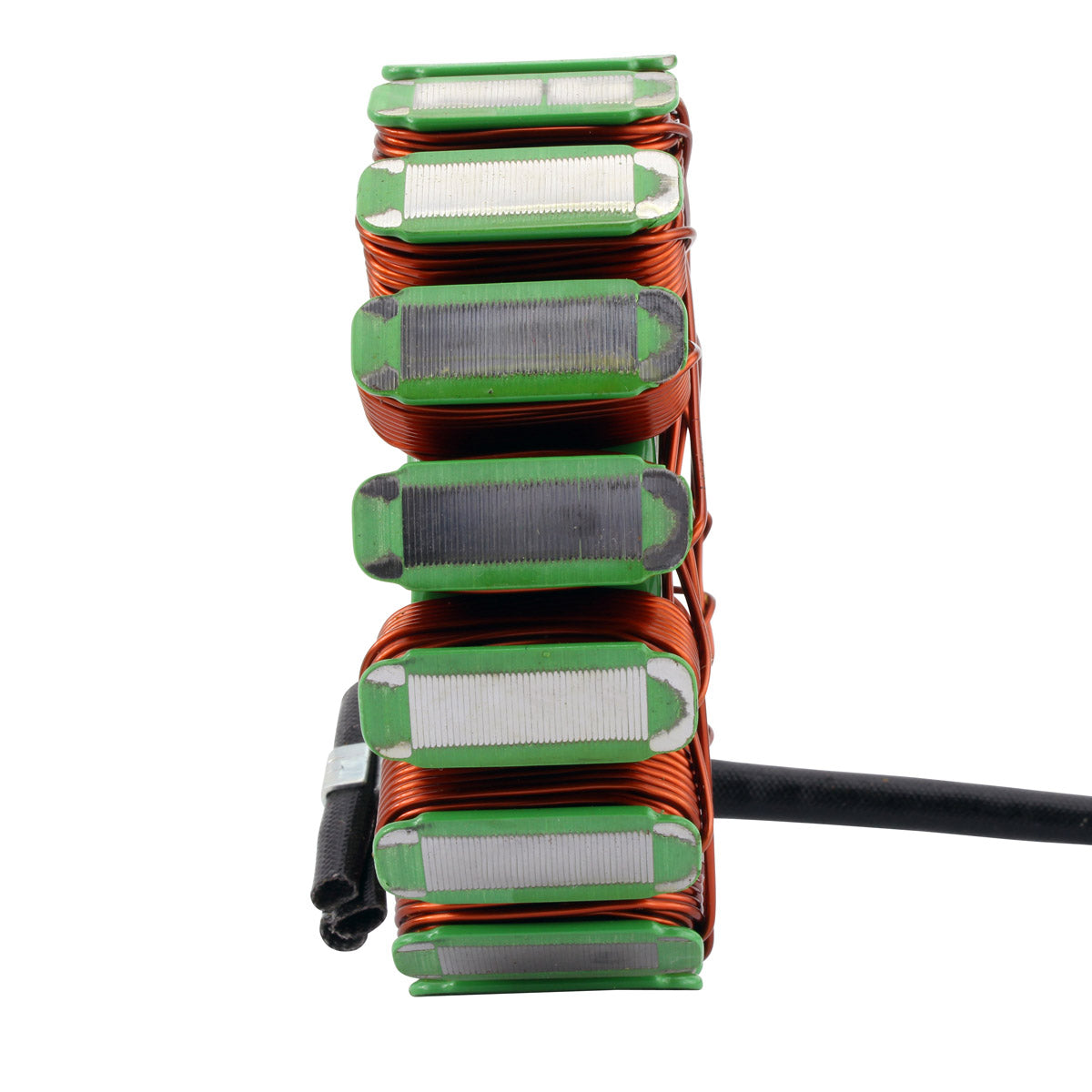

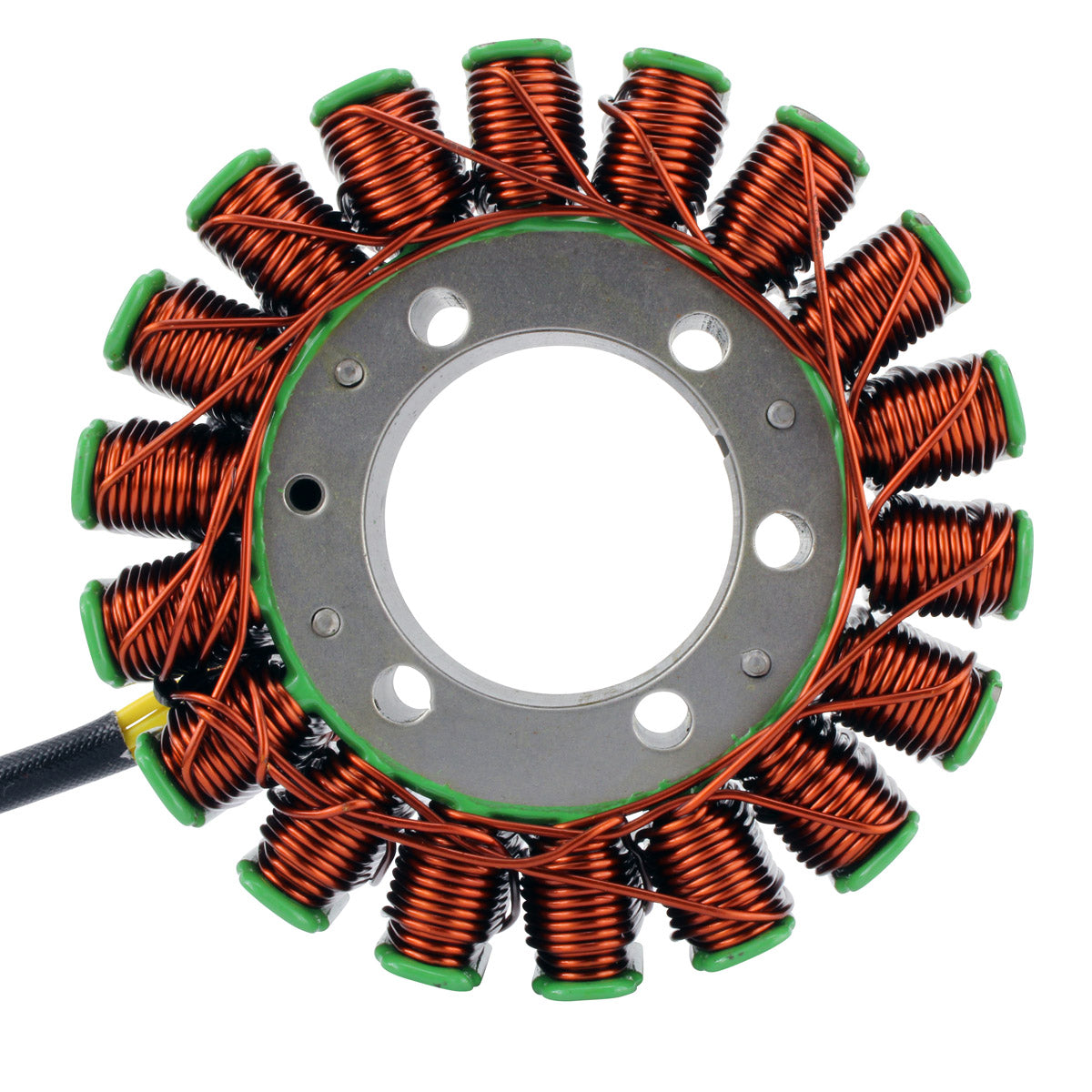

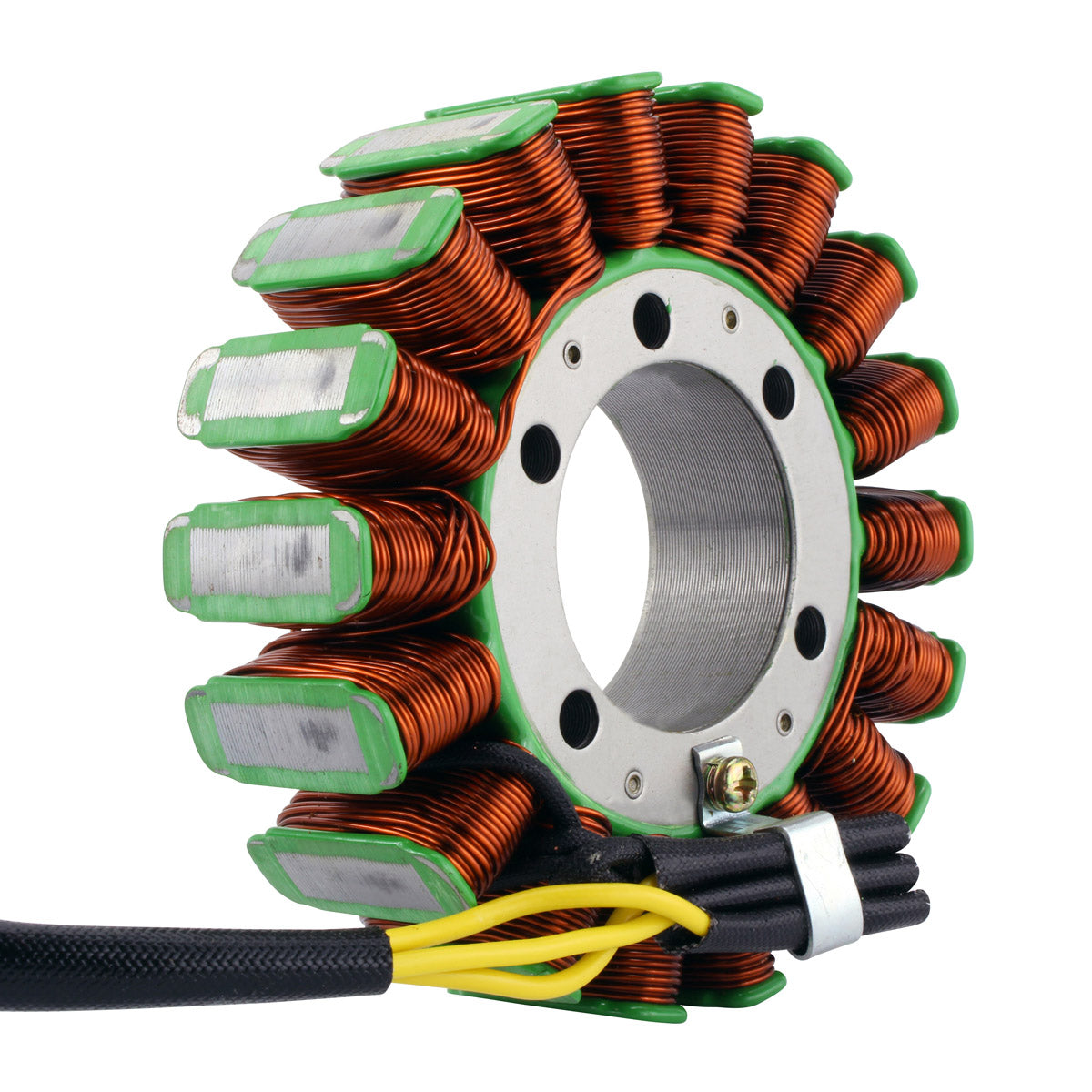

The stator is wound on the highest grade of lamination materials using the highest grade of copper winding, rated to withstand 200 degrees Celsius. It measures 107 mm on the exterior diameter with a 42 mm interior diameter and 26 mm of thickness, and carries 18 poles across 5 wires, 2 plugs and 5 pins. Alternator resistance measures 0.5 ohms between each yellow wire and the pickup measures 232 ohms from blue/yellow to green, both within plus or minus 20 per cent. Every unit is tested before it is shipped.

A Pioneer side-by-side spends its working life at low road speed with a heavy accessory load - lights, winch, heated grips - which keeps the charging system under constant demand and the stator cover hot. When the winding insulation finally breaks down, the machine drains its battery instead of charging it, and a failing pickup in the same assembly will cause hard starting or a stumble under load. This replacement covers both circuits in a single fit.
