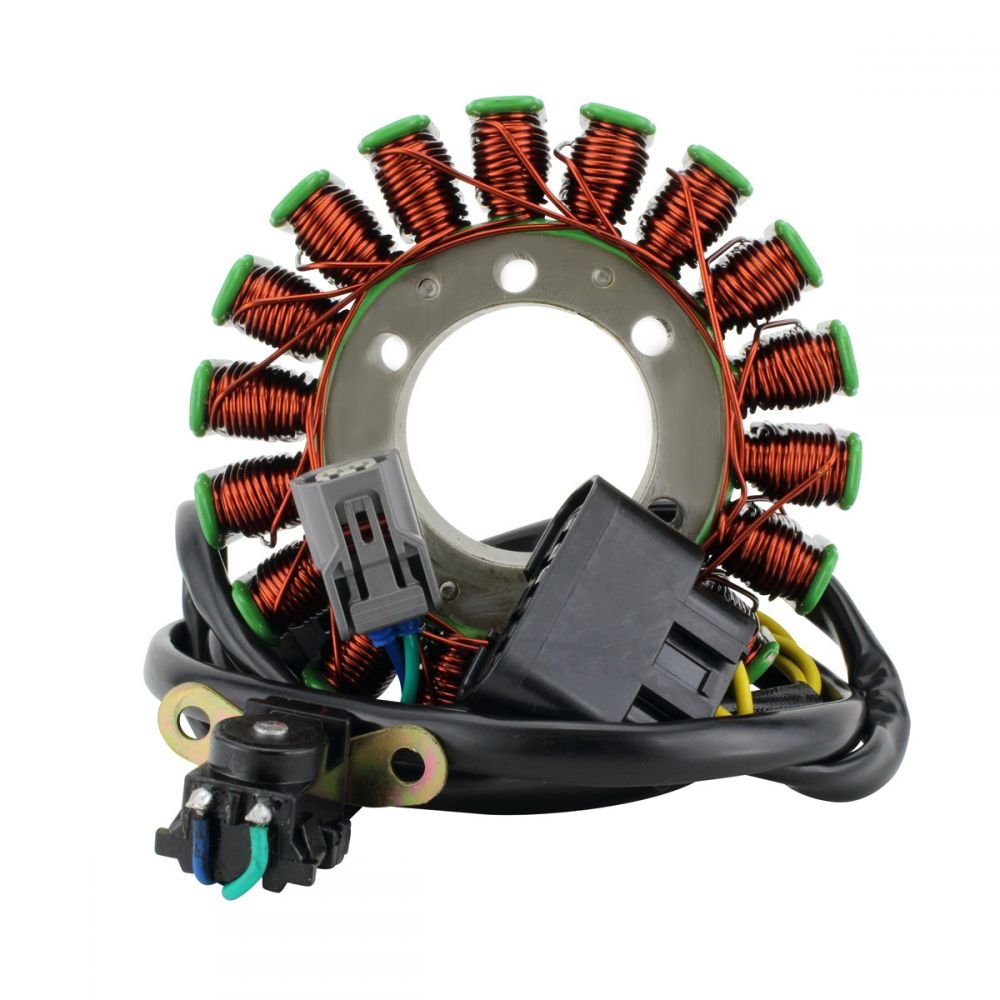

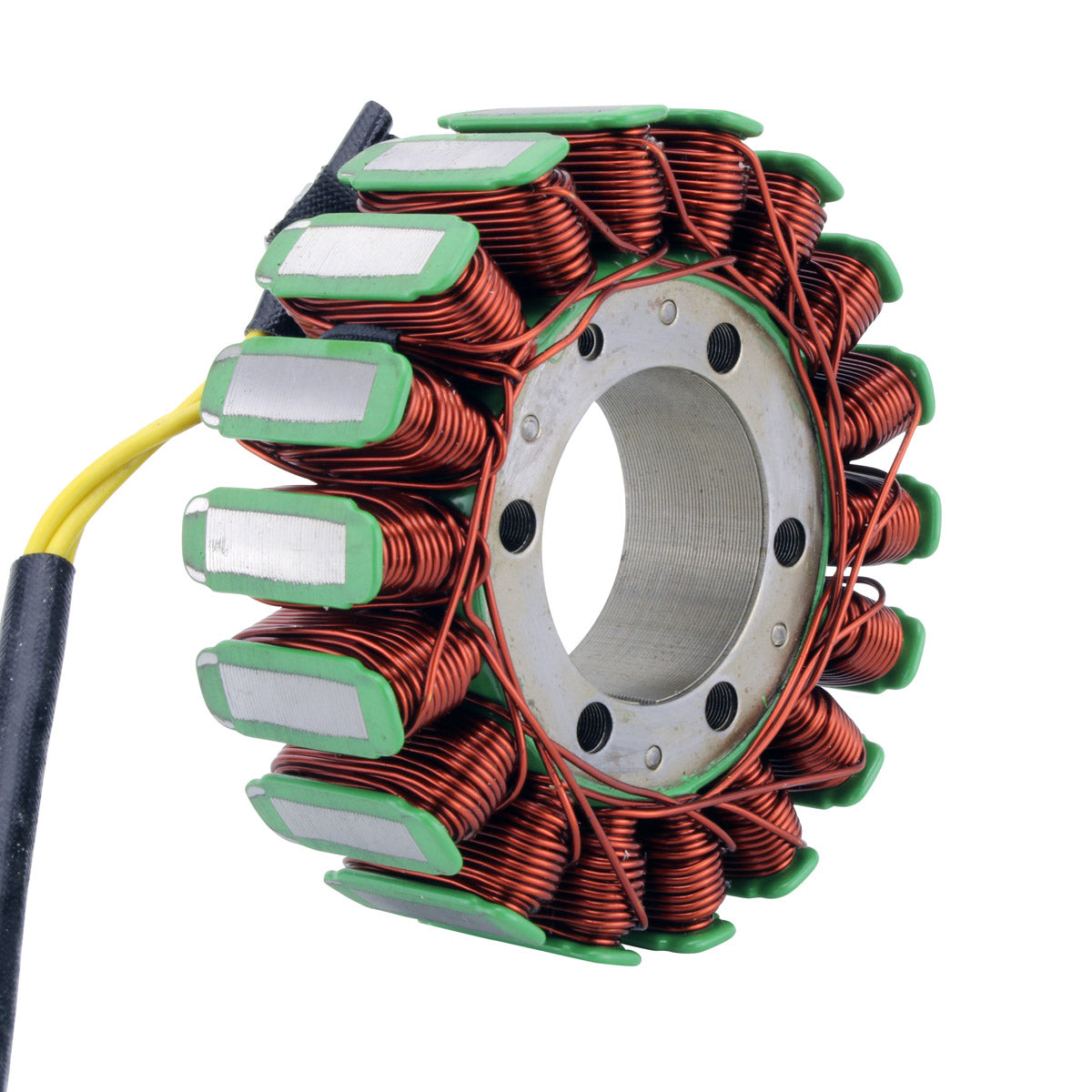

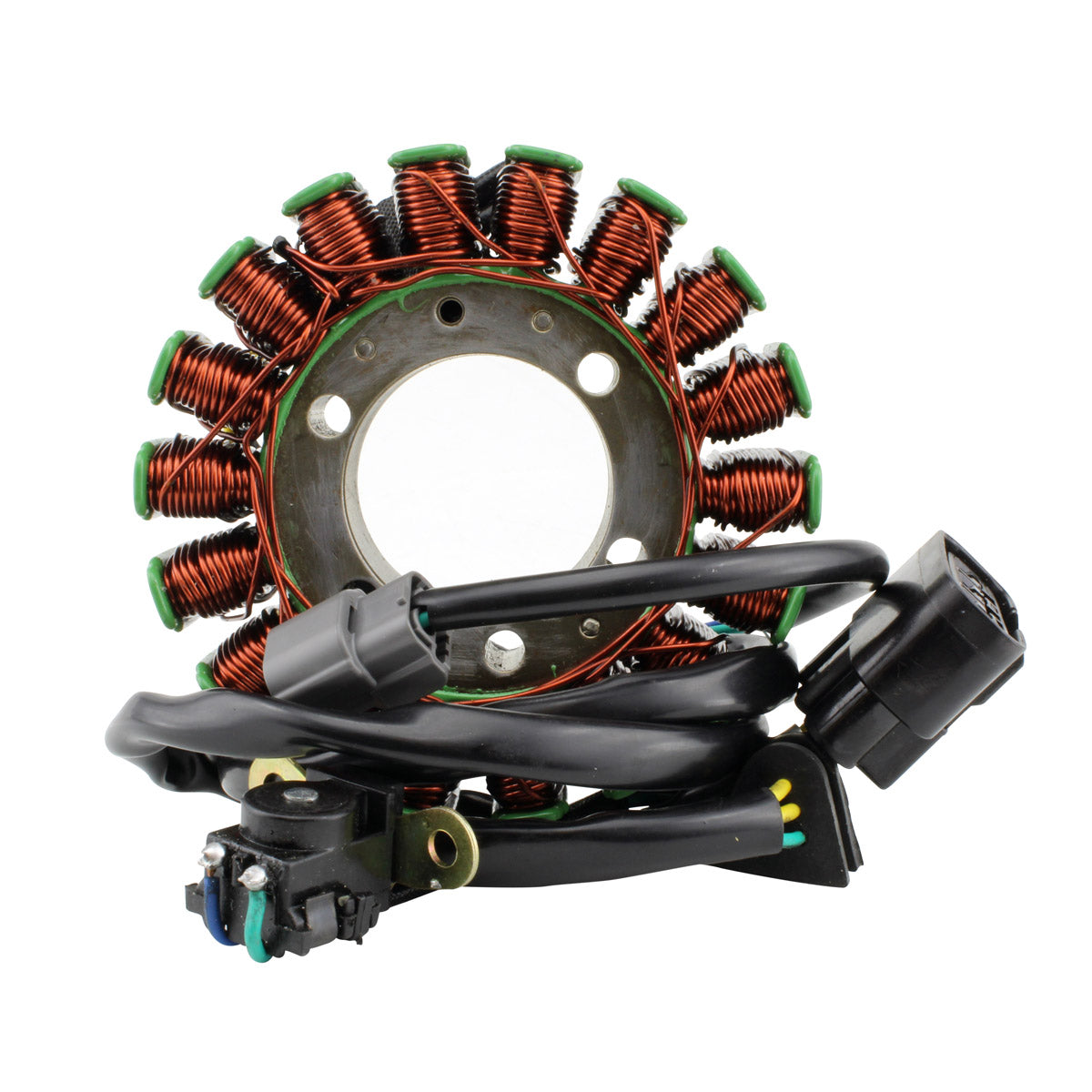

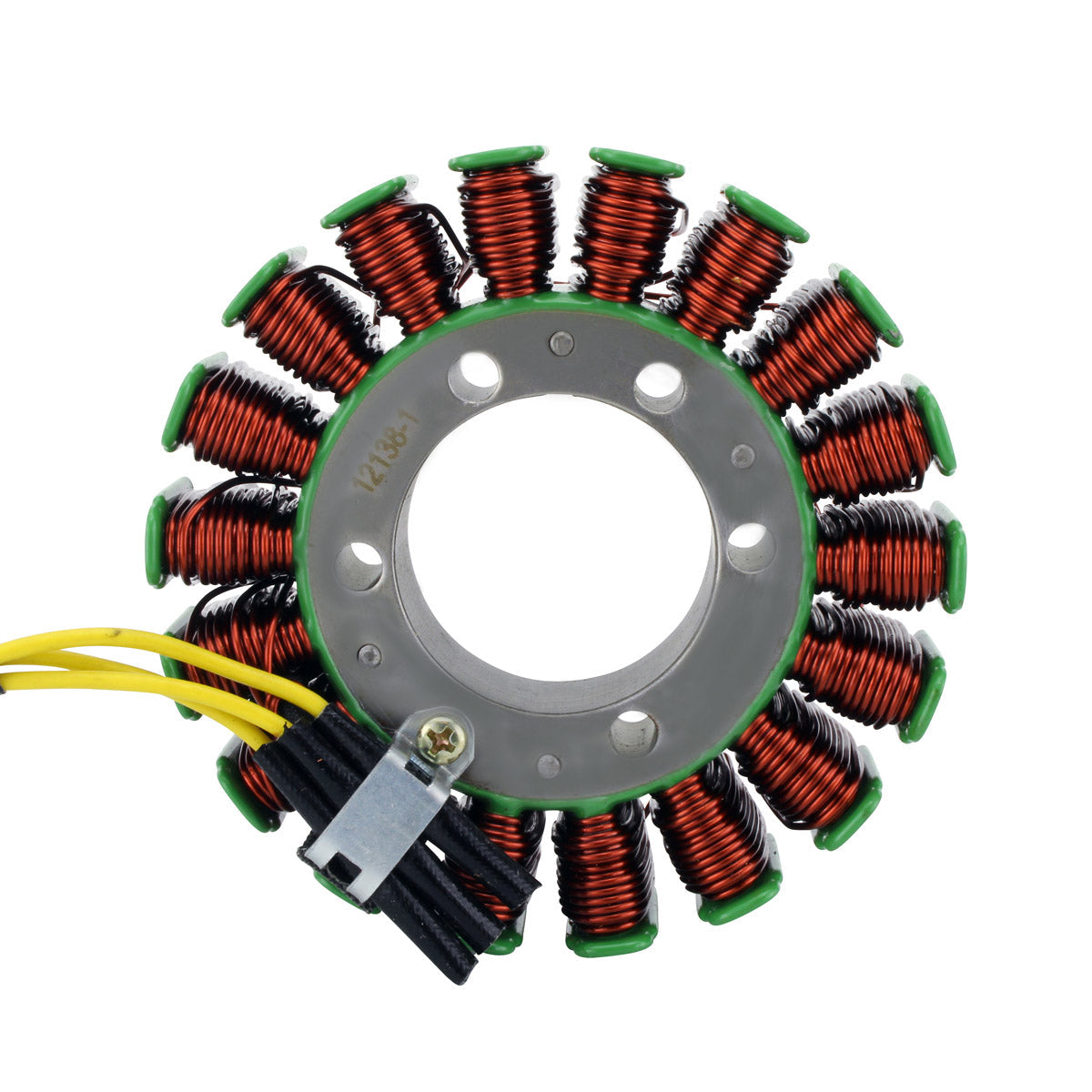

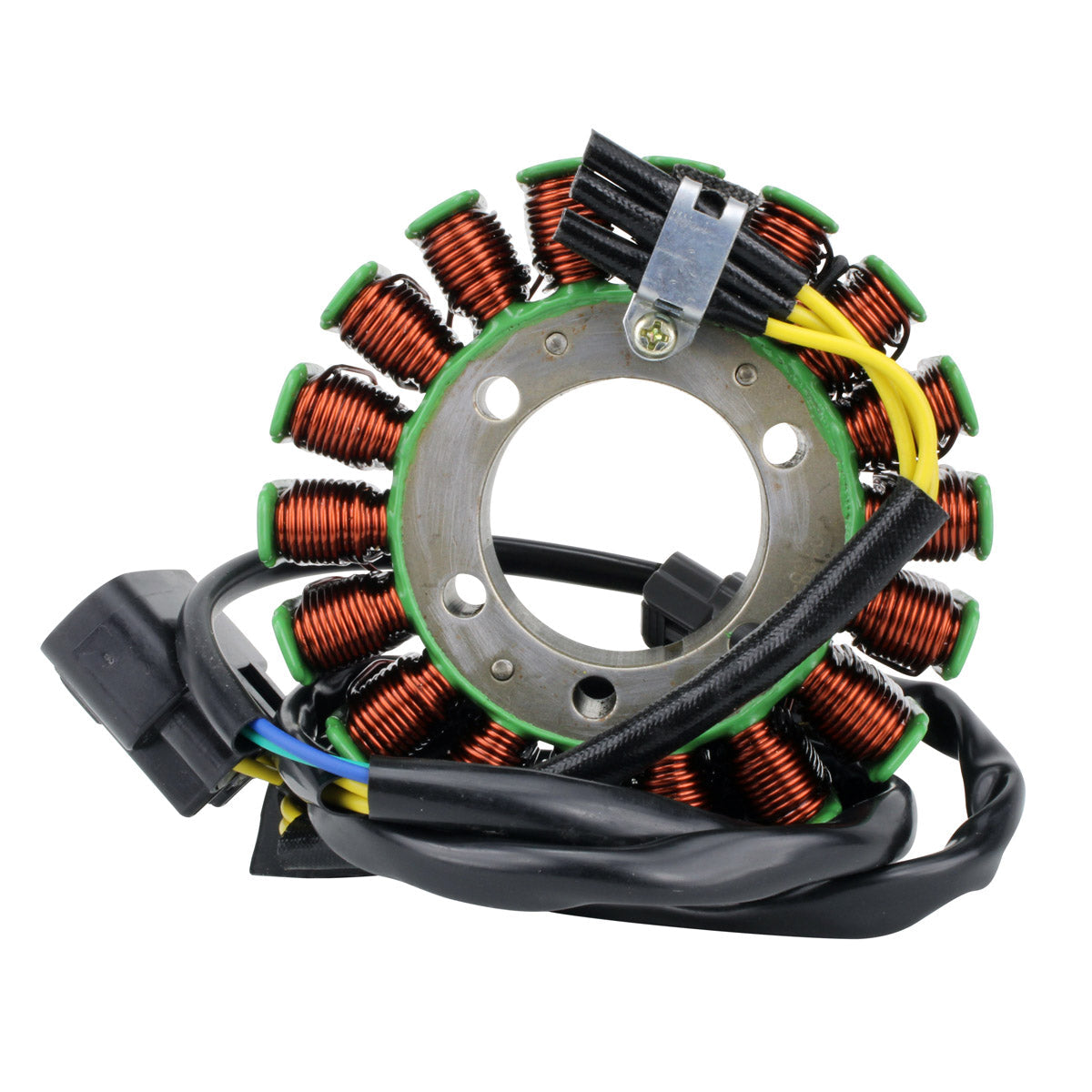

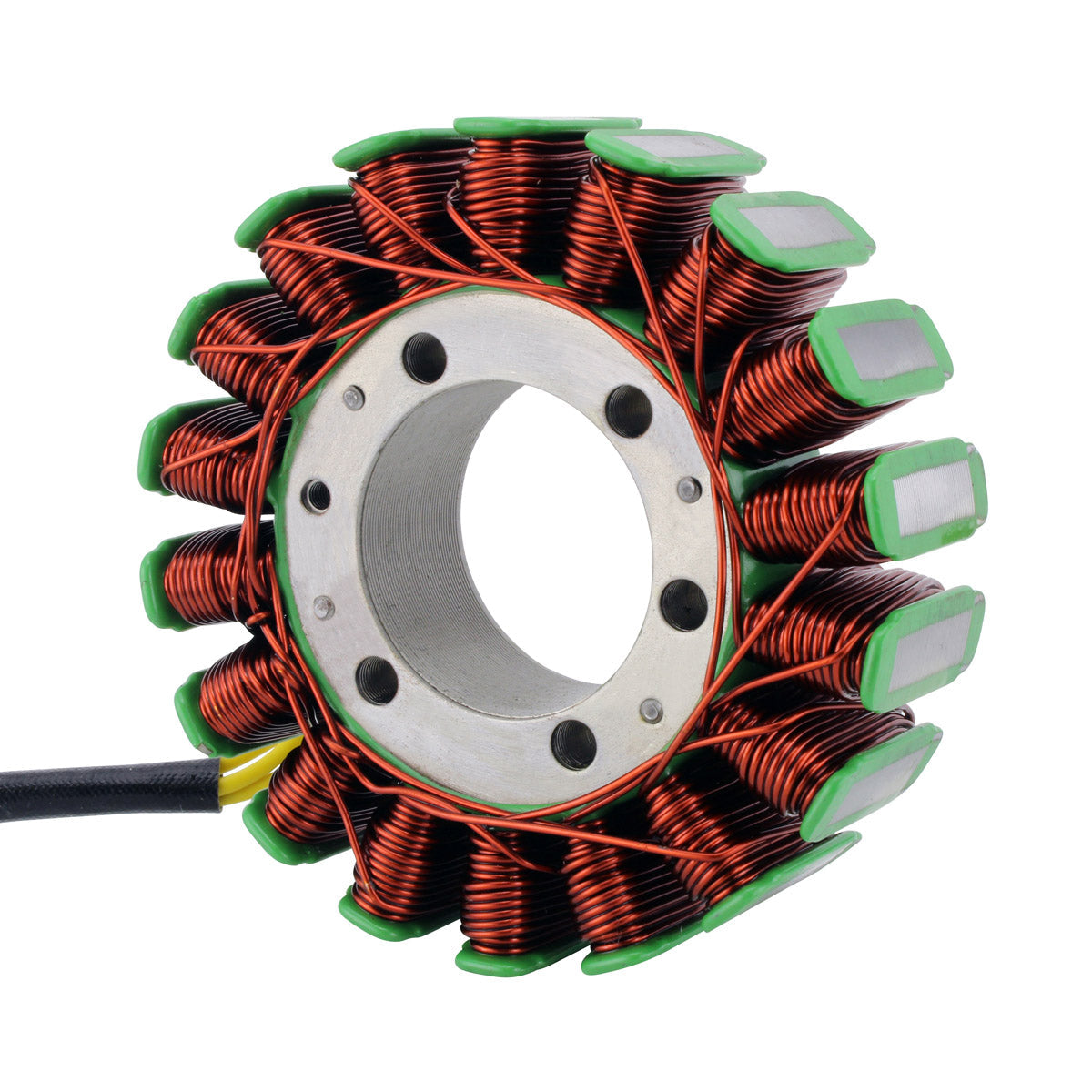

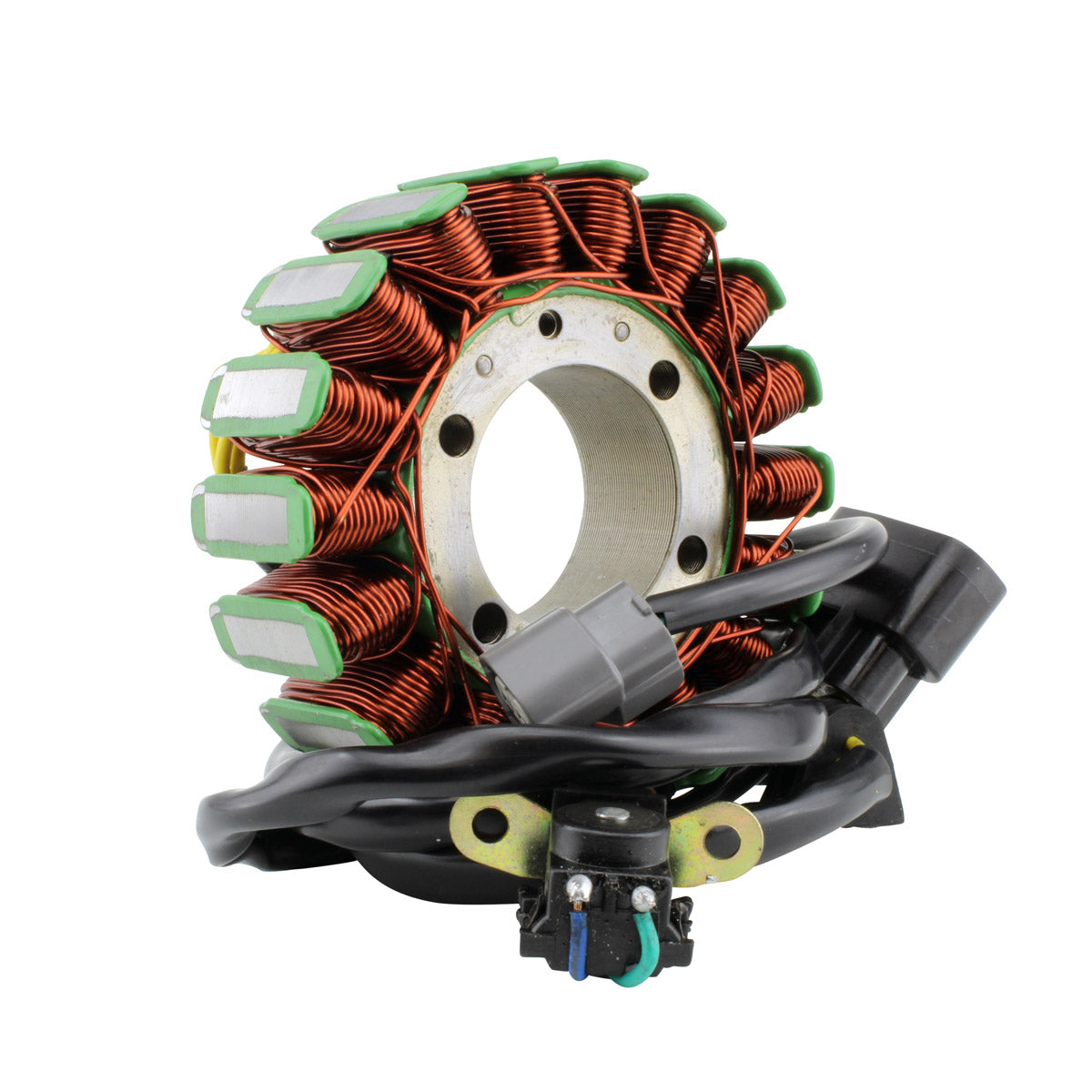

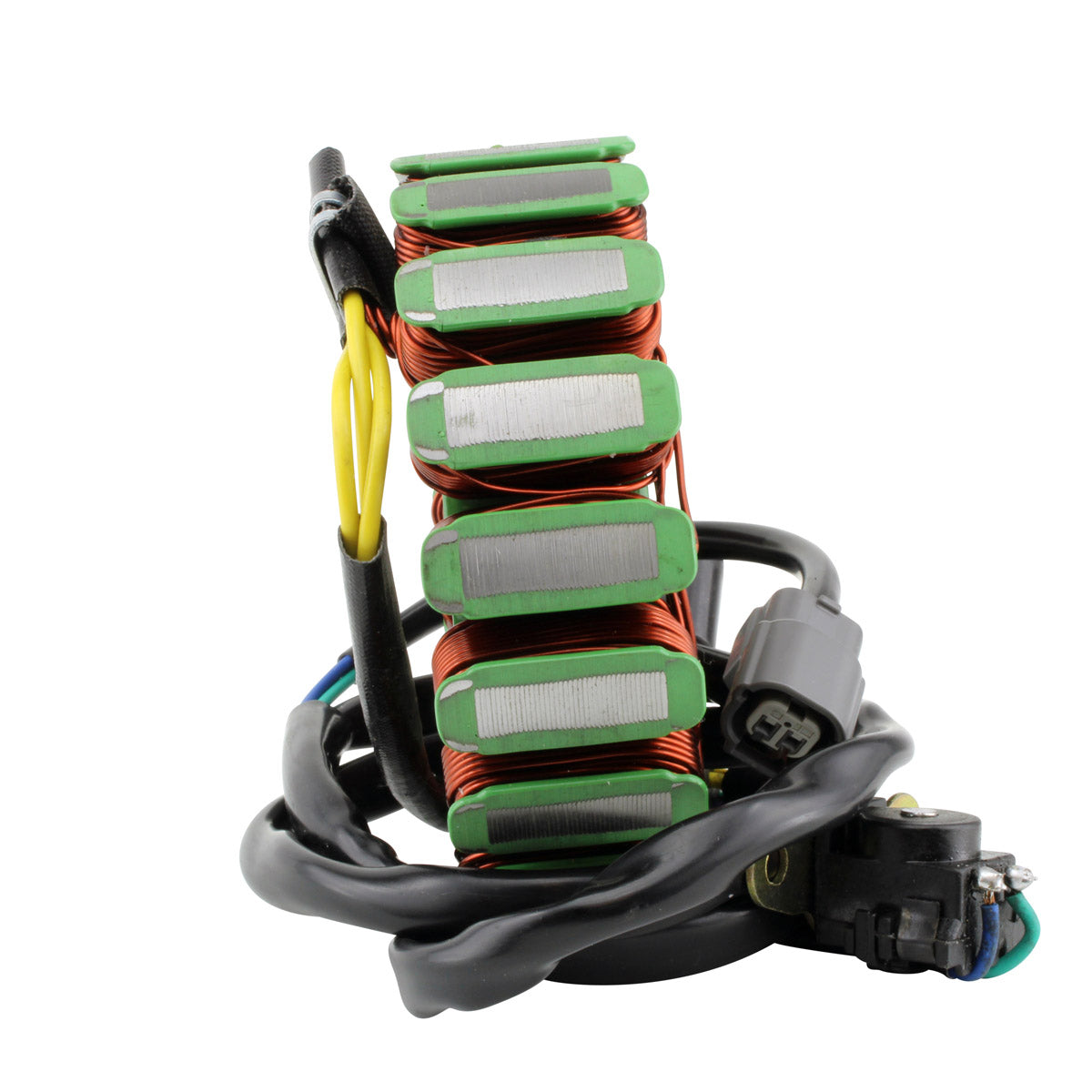

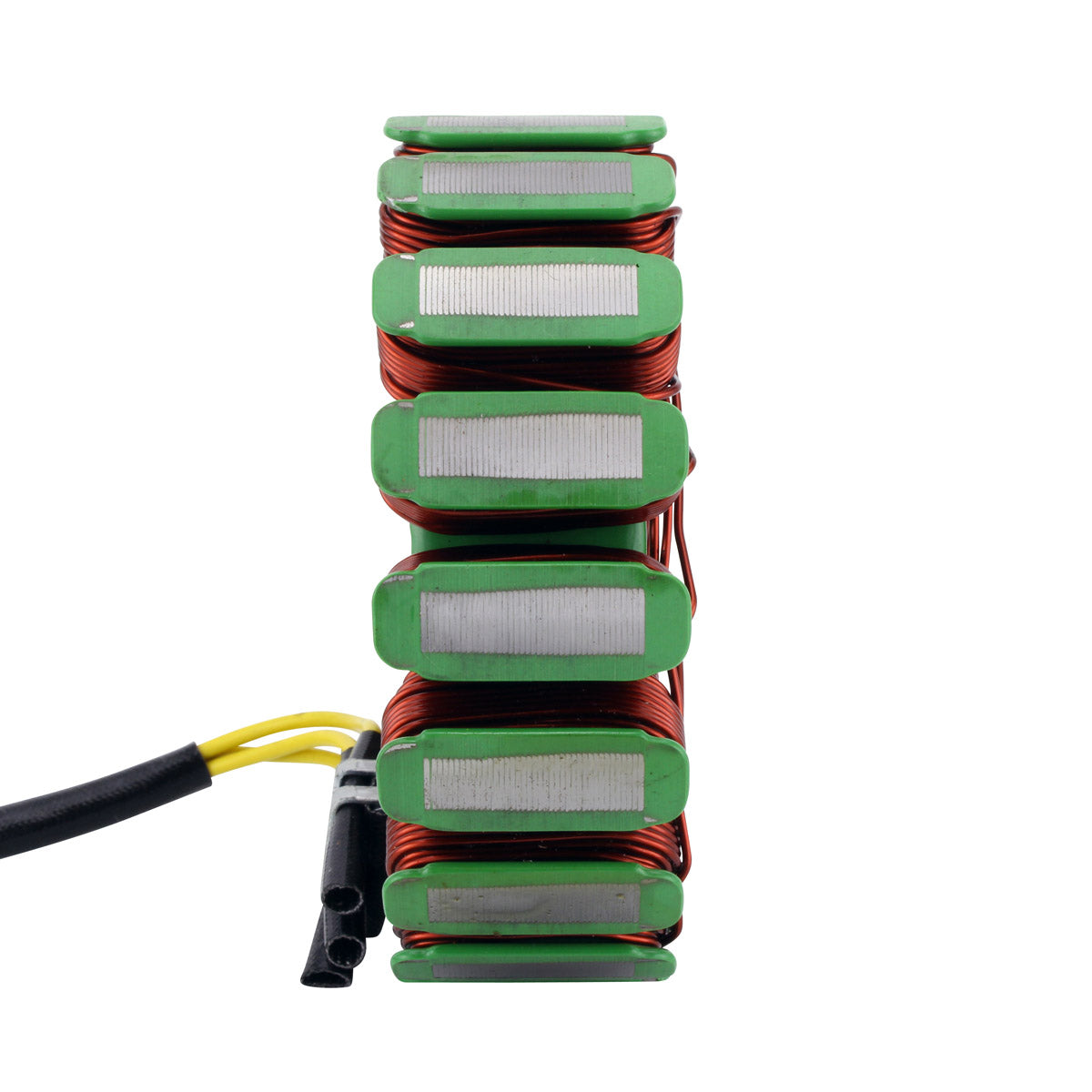

This is a brand new aftermarket generator stator, built as a direct replacement for the original unit fitted to the Honda TRX 420 Rancher FE, FM, TE and TM from 2014 to 2021. It is supplied complete with the pick-up coil, the connectors and the rubber grommet already fitted, so the assembly is plug-and-play. Every unit shipped is tested before it leaves the warehouse.
The stator does two jobs at once on the Rancher. Its eighteen poles generate the alternating current that the regulator rectifier turns into the DC that charges the battery and runs the lights, while the pick-up coil mounted on the same plate gives the ignition its trigger signal. Heat, vibration and oil contamination eventually break down the winding insulation, and the result is a battery that will not stay charged, dim or flickering lights, weak or intermittent spark, and finally a machine that will not start. This unit measures 107 mm across the outer diameter with a 42 mm interior diameter and a 20 mm thickness, carries five wires through two plugs, and reads 0.6 ohms across the yellow alternator wires and 241 ohms across the pick-up coil. Part number RMS010-106989.
Key Features
- Brand new aftermarket stator - direct replacement for the original unit

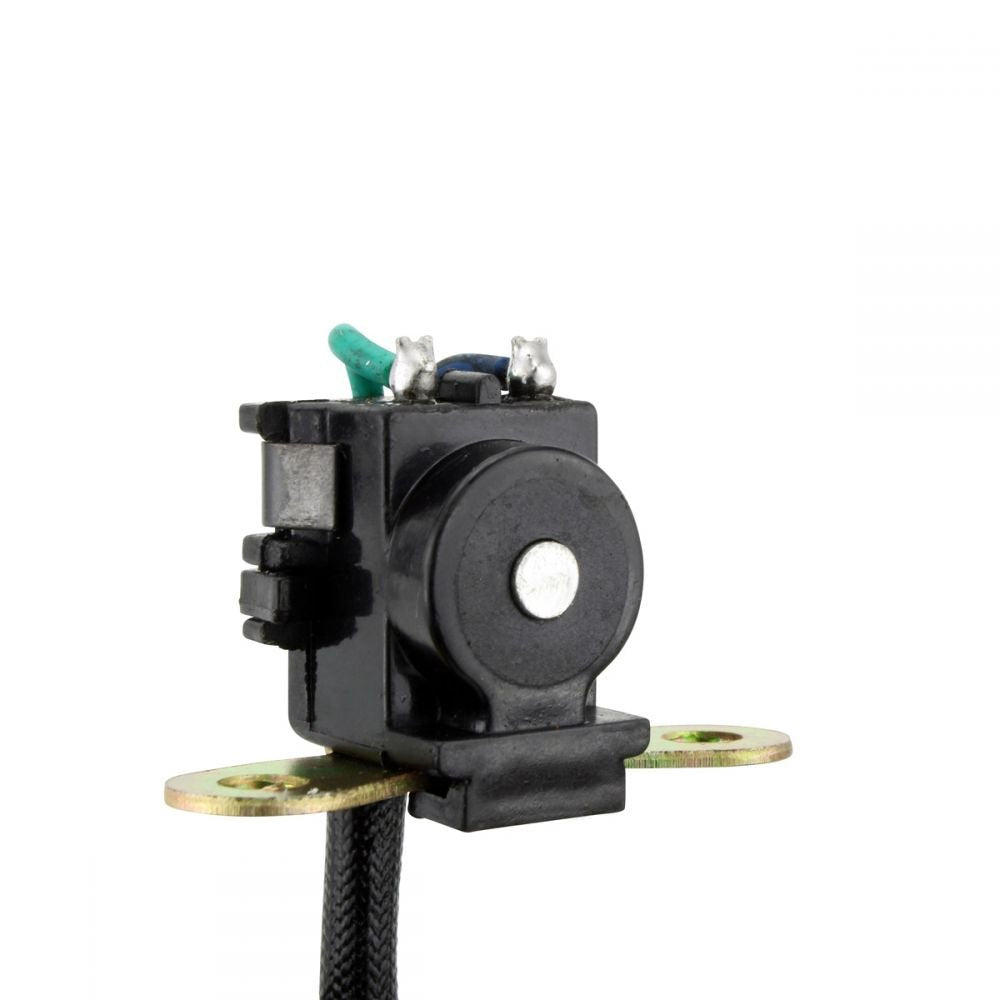

- Pick-up coil included and pre-fitted
- Connectors and rubber grommet included
- Plug-and-play, direct fit, easy installation

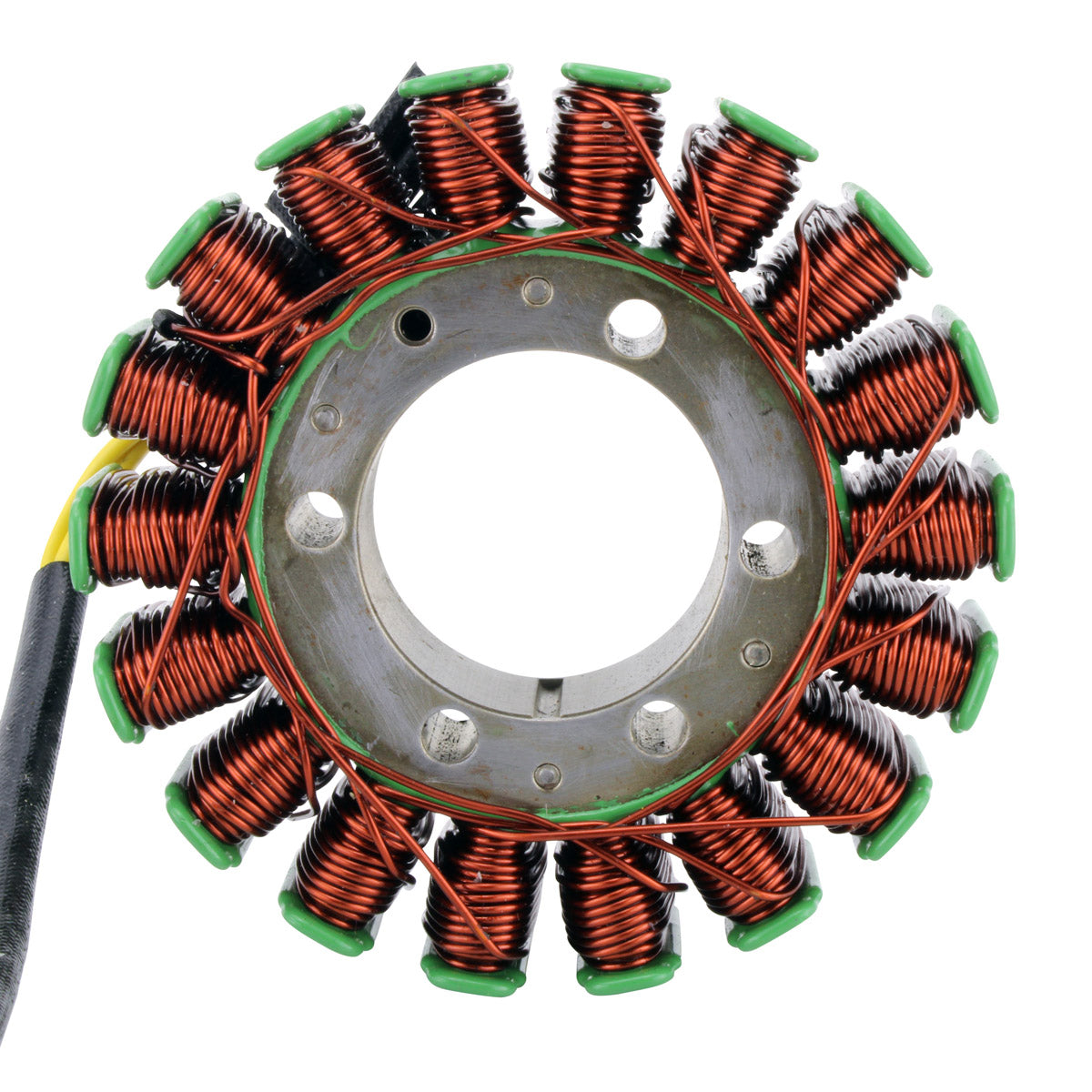

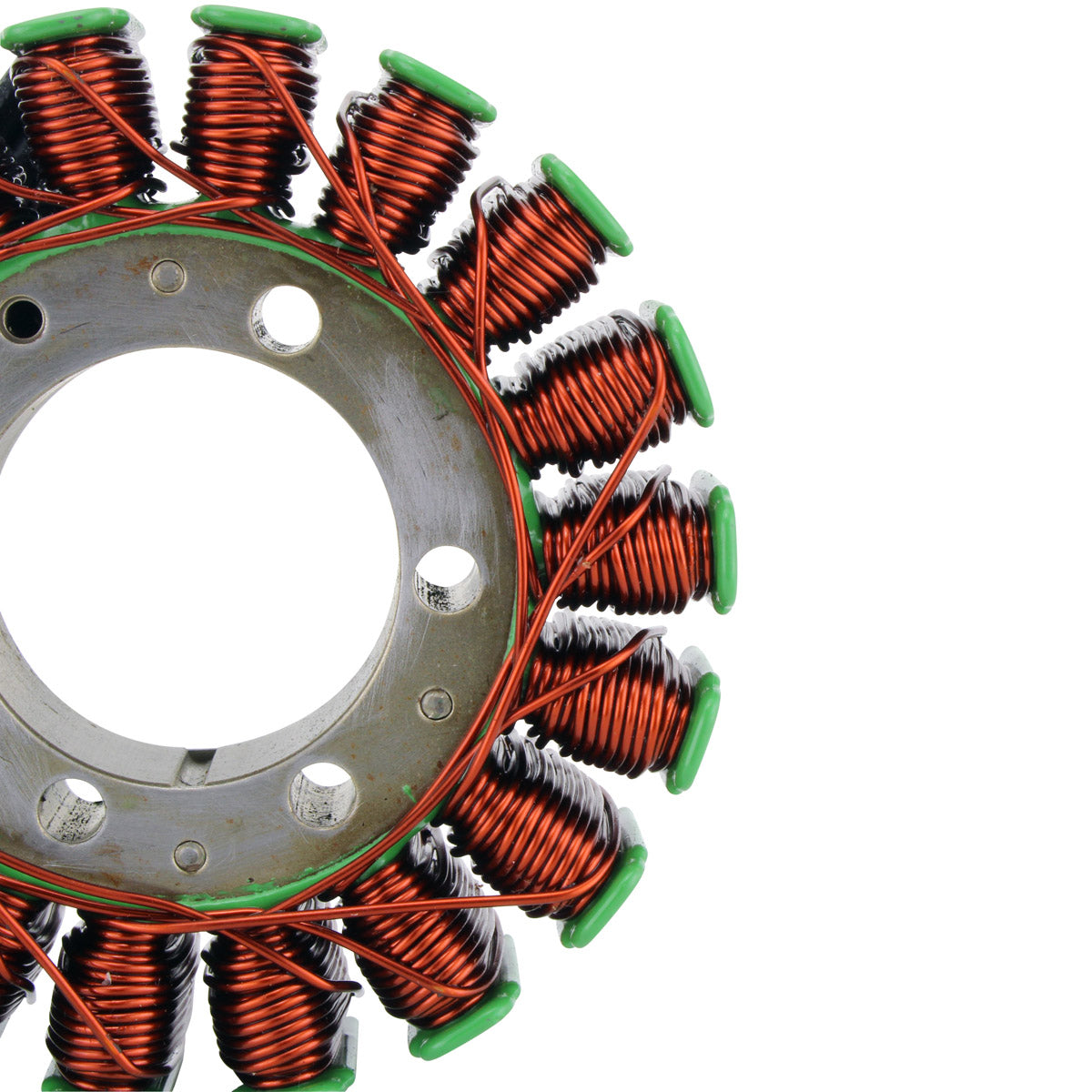

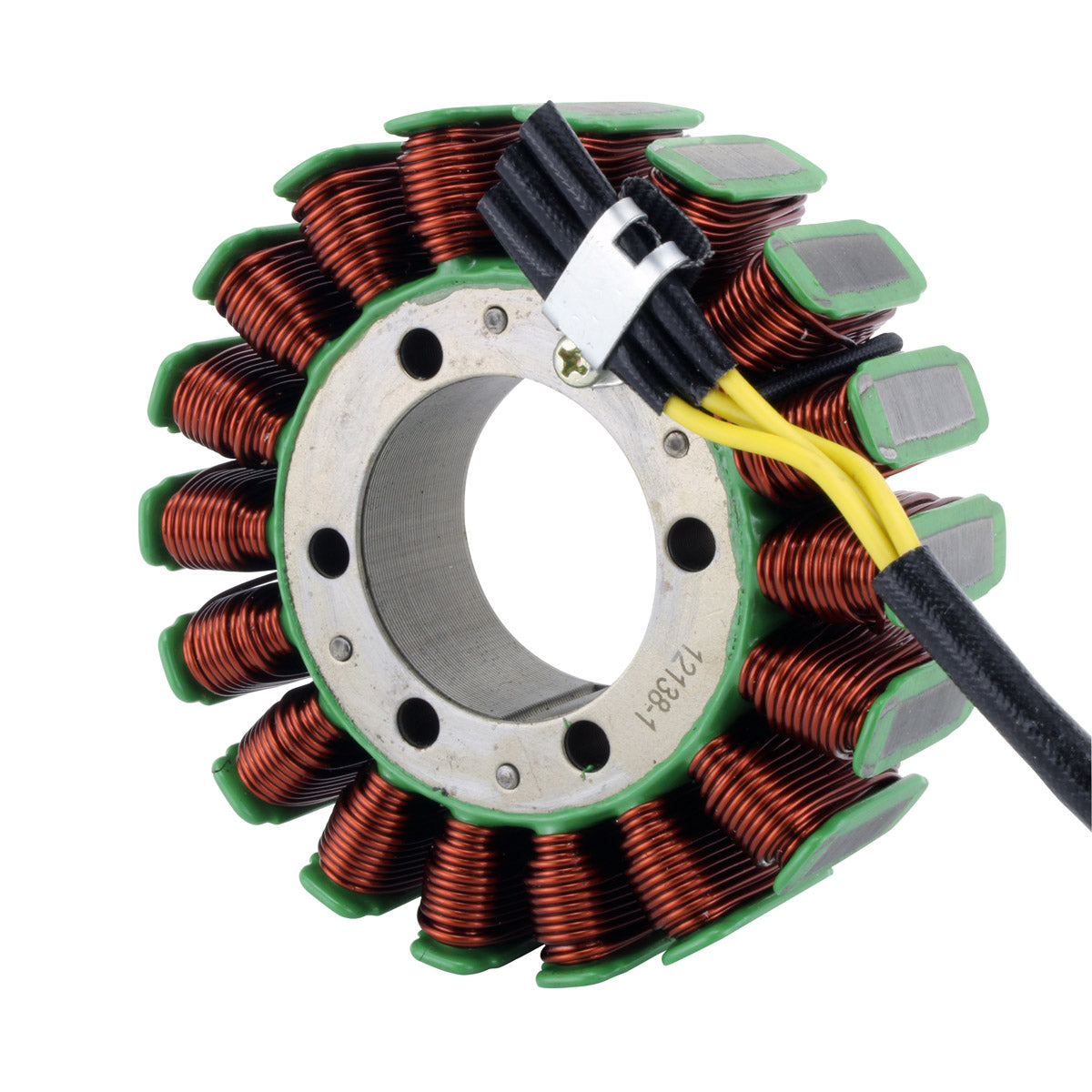

- 18-pole winding

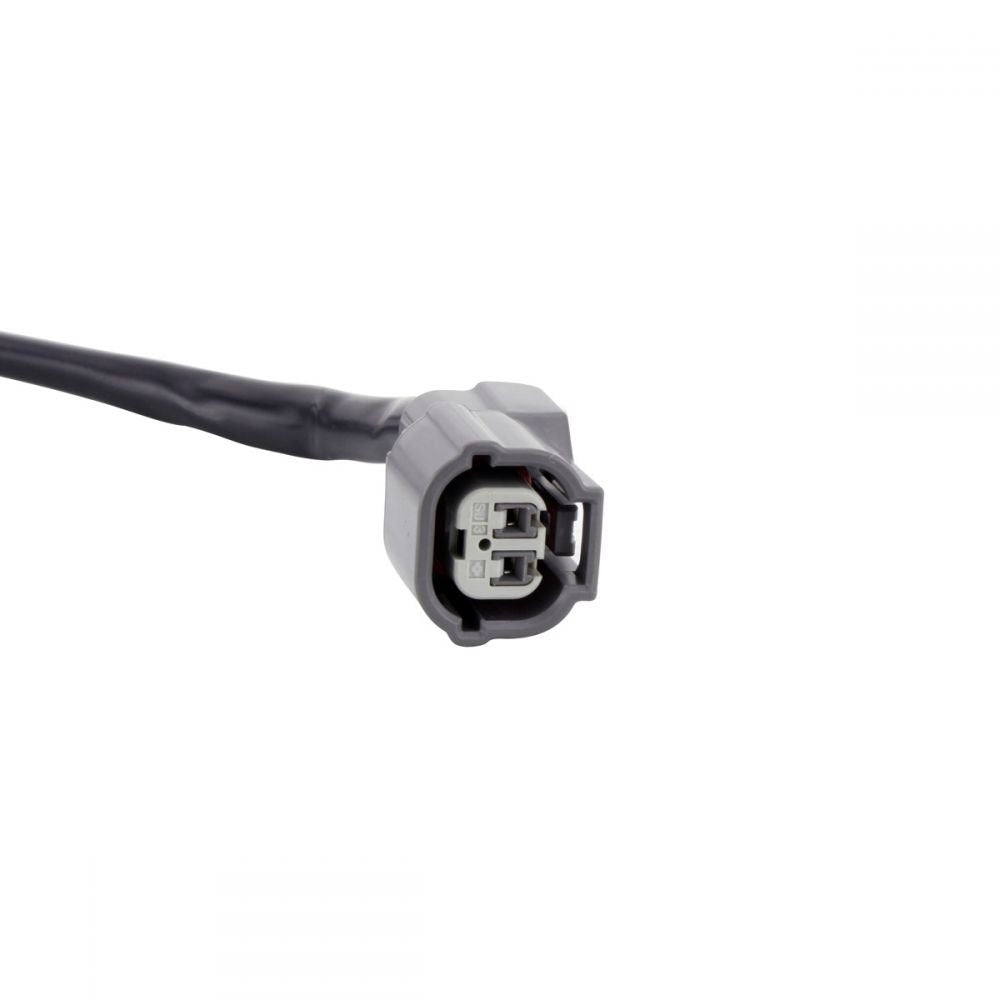

- Five wires routed through two plugs
- Every unit is tested before shipment
Technical Specs
| Specification |
Detail |
| Part Number |
RMS010-106989 |
| Interior Diameter |
42 mm |
| Exterior Diameter |
107 mm |
| Thickness |
20 mm |
| Wire Length (stator to grommet) |
110 mm |
| Wire Length (grommet to plug 1) |
385 mm |
| Wire Length (grommet to plug 2) |
835 mm |
| Pick-Up Coil Wire Length (to grommet) |
80 mm |
| Number of Wires |
5 |
| Number of Plugs |
2 |
| Number of Pins |
5 |
| Number of Poles |
18 |
| Alternator Resistance (yellow to yellow) |
0.6 ohms +/- 20% |
| Pick-Up Coil Resistance (blue to green) |
241 ohms +/- 20% |
Vehicle Fitment Guide
| Make & Model |
Years |
| Honda TRX 420 Rancher FE |
2014-2021 |
| Honda TRX 420 Rancher FM |
2014-2021 |
| Honda TRX 420 Rancher TE |
2014-2021 |
| Honda TRX 420 Rancher TM |
2014-2021 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 31120-HR3-A42 |
Honda |
| 31120-HR3-A41 |
Honda |
Frequently Asked Questions
Will it fit without modification?
Yes. It is a direct, plug-and-play replacement for the original stator on the TRX 420 Rancher. The connectors and grommet are already fitted and the two plugs match the original loom, so no cutting or splicing is needed.
What is included?
The stator, the pick-up coil, the connectors and the rubber grommet. Nothing further is needed to complete the fit.
How do I know the old stator has failed?
A battery that goes flat overnight or never comes back up to charge, lights that dim or flicker with engine speed, weak or intermittent spark and hard starting are the usual signs. Confirm with a meter: across the two yellow alternator wires you should read about 0.6 ohms, and across the blue and green pick-up wires about 241 ohms, both within 20%. An open circuit, a short to the core, or a reading well outside those figures means the stator has broken down.
Why does this stator have two plugs?

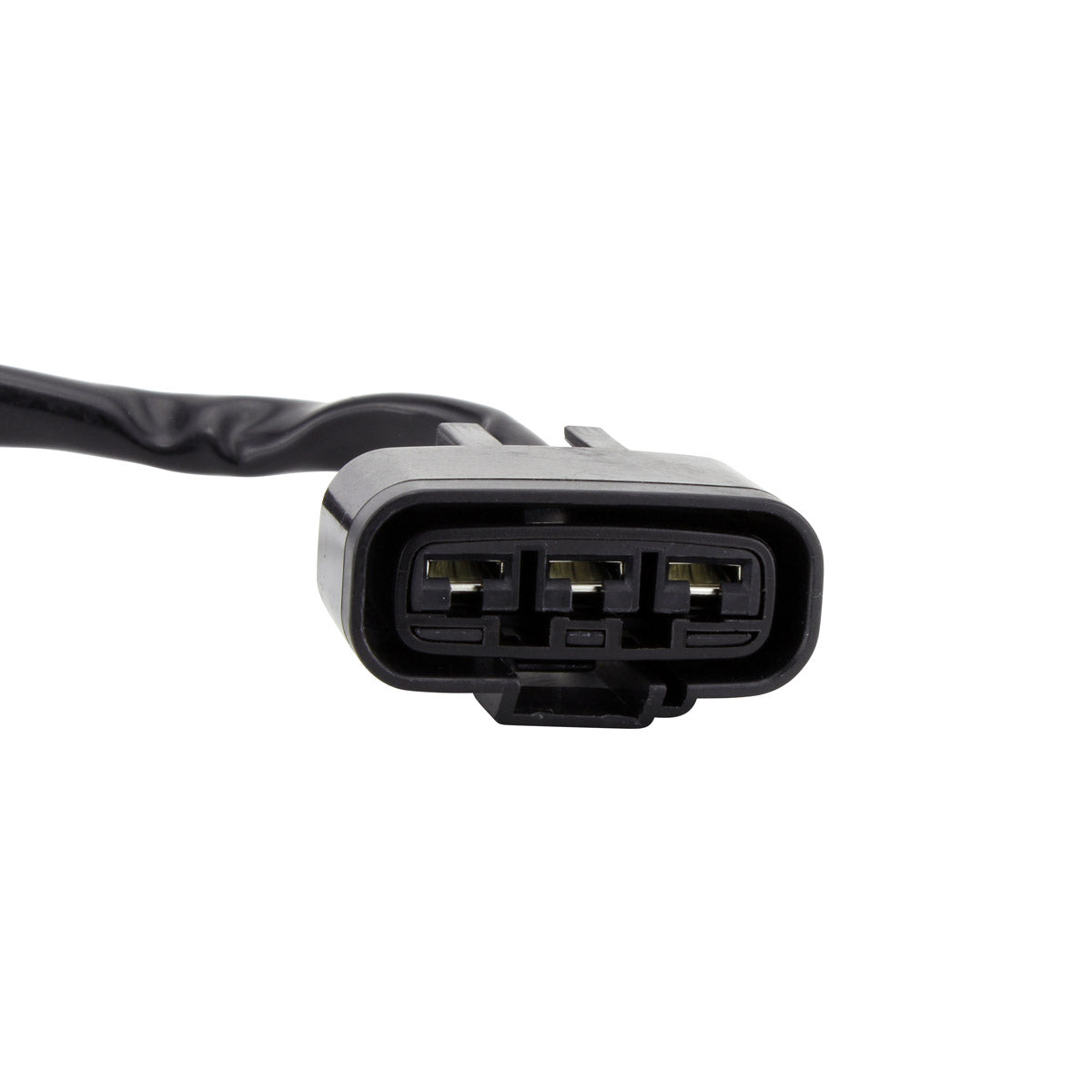

The five wires are split between two connectors on this application - one for the alternator output and one for the pick-up coil signal - which is why the two plug leads are different lengths, 385 mm and 835 mm from the grommet. Both are supplied fitted and both match the original loom.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
