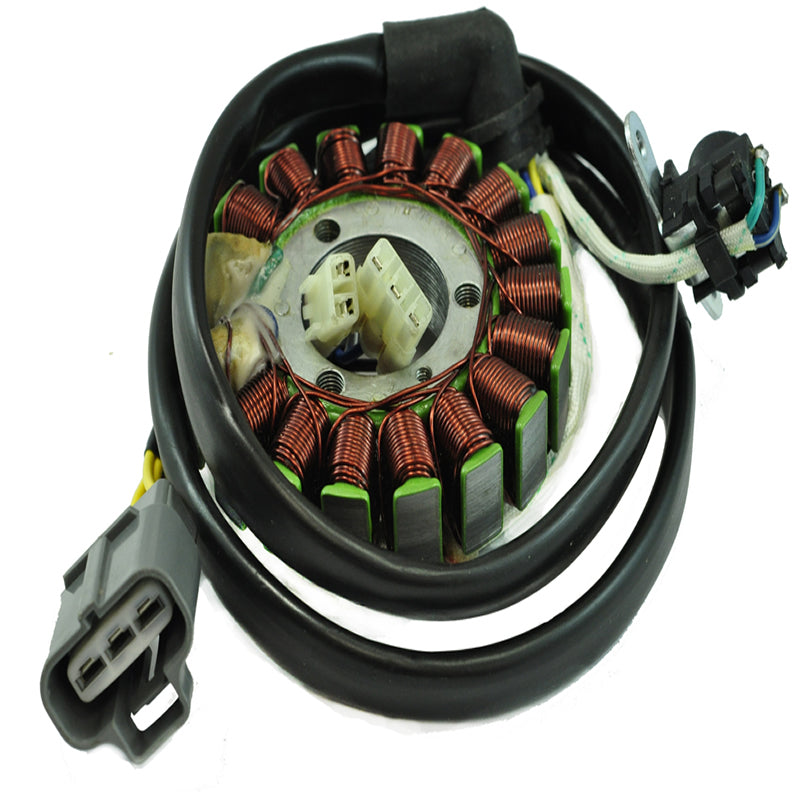

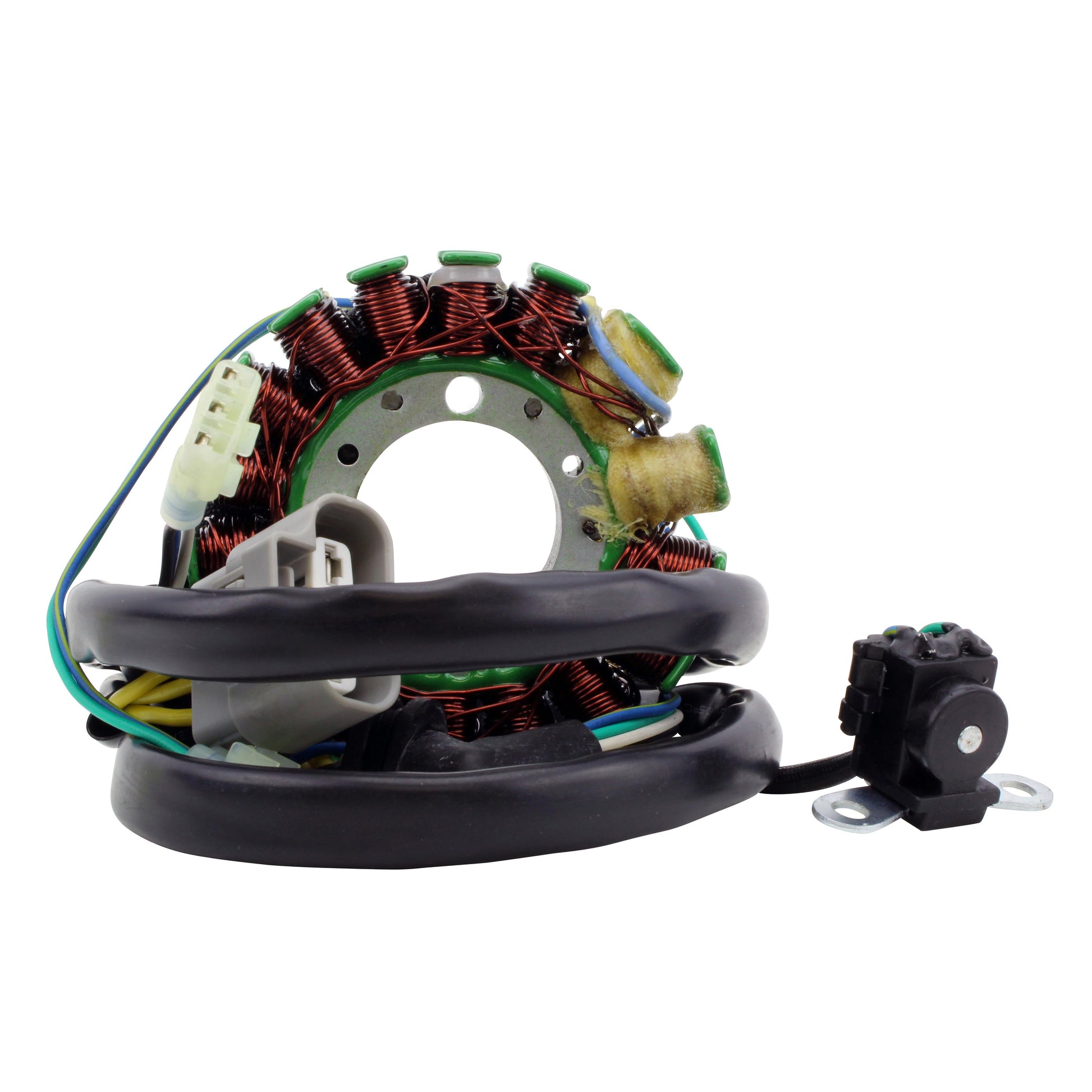

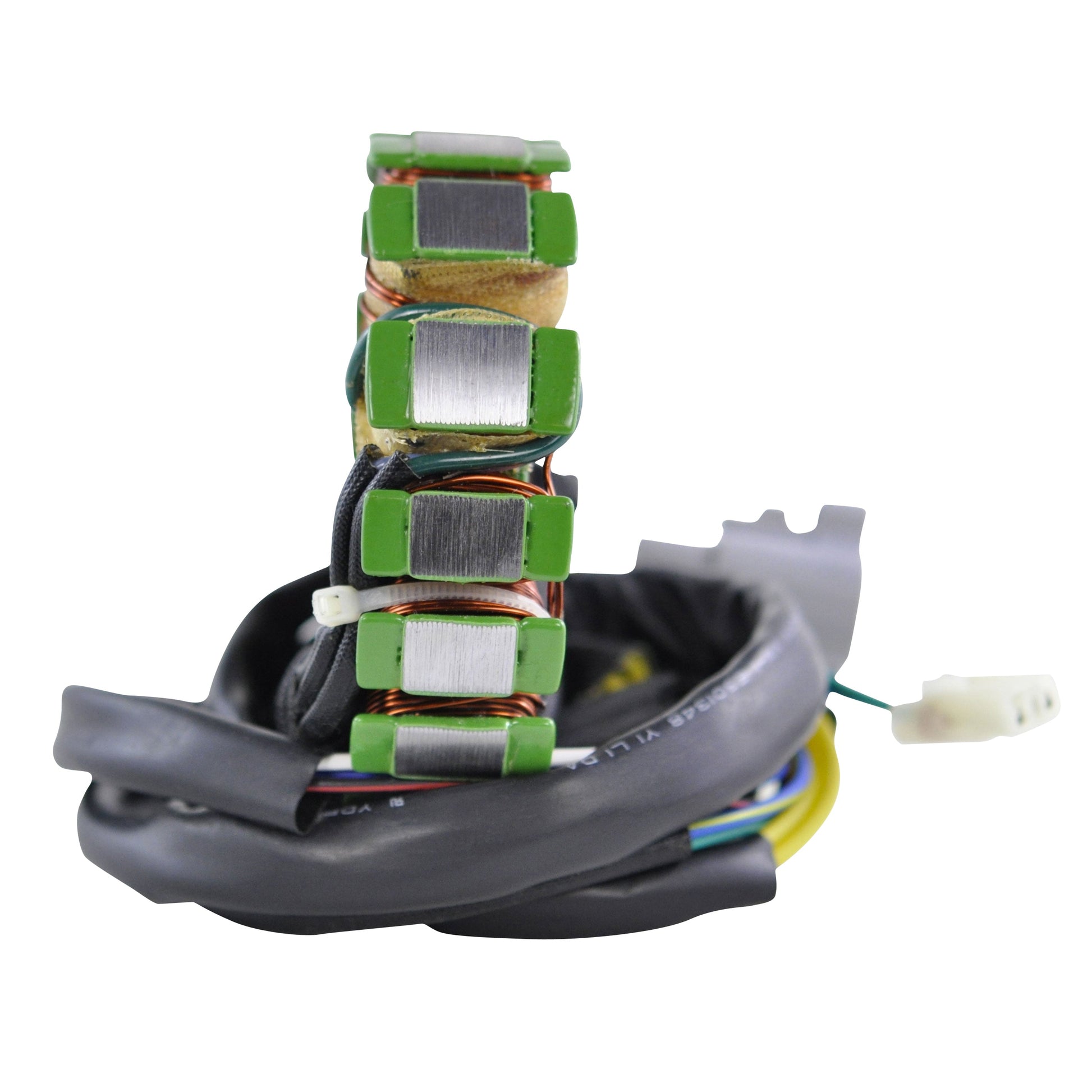

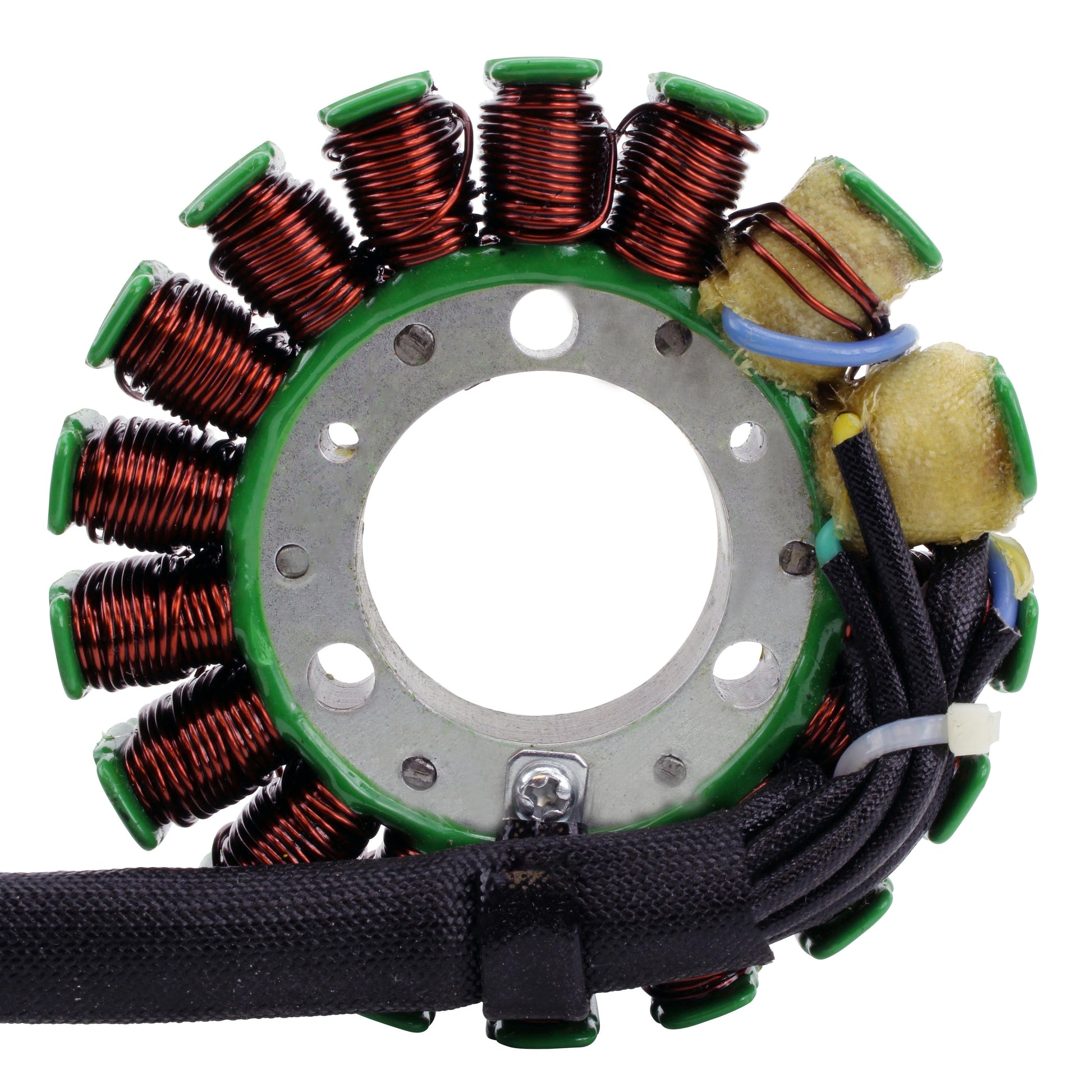

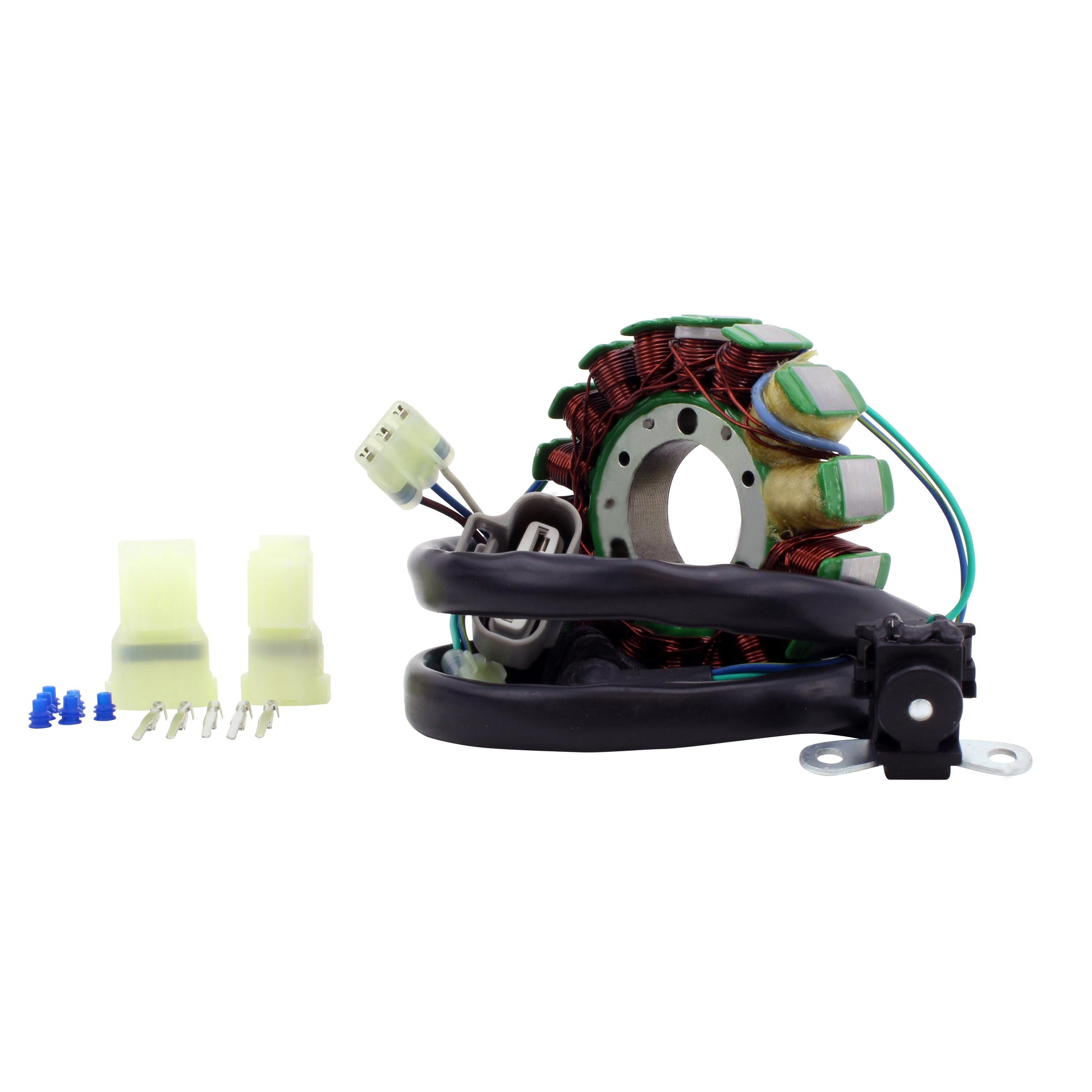

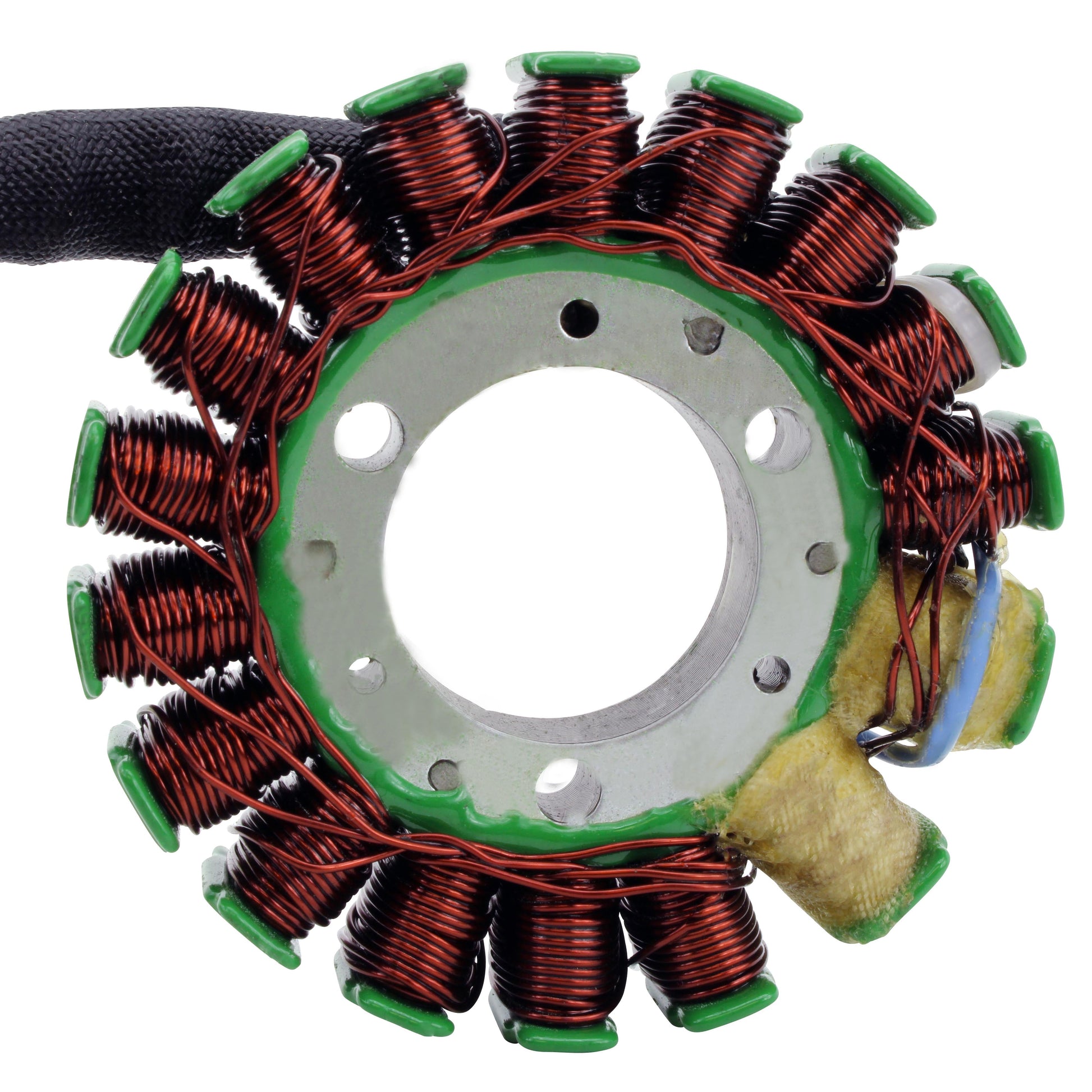

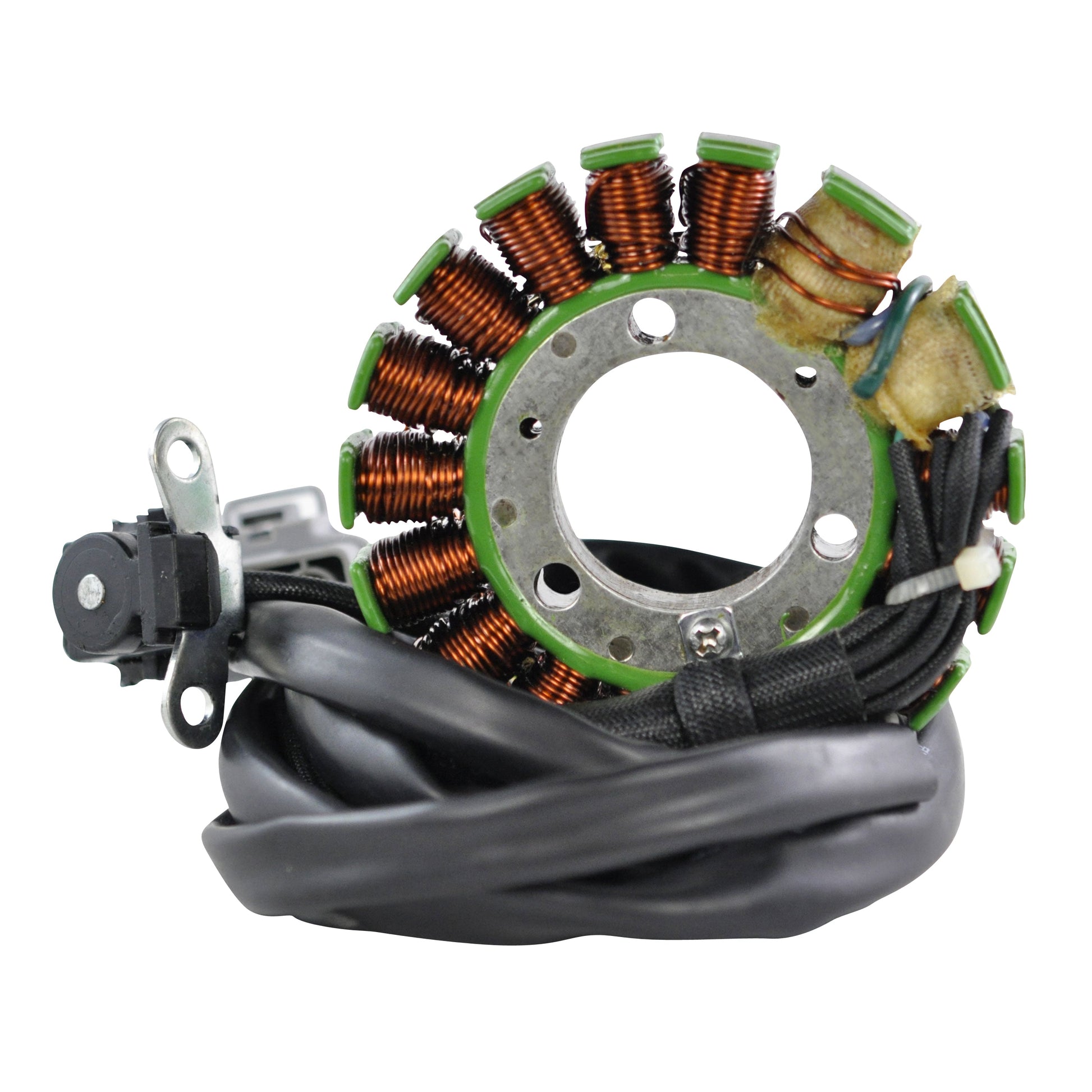

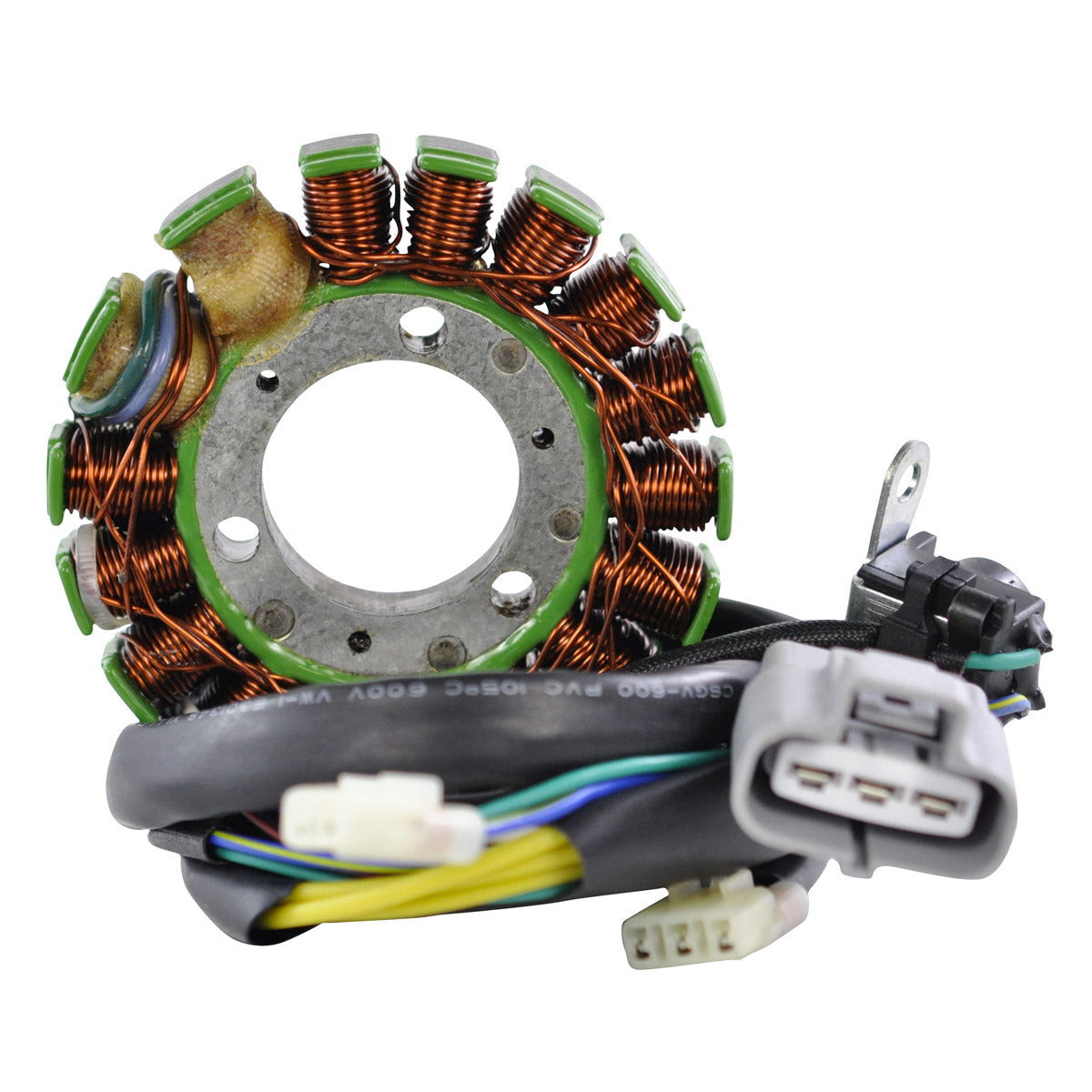

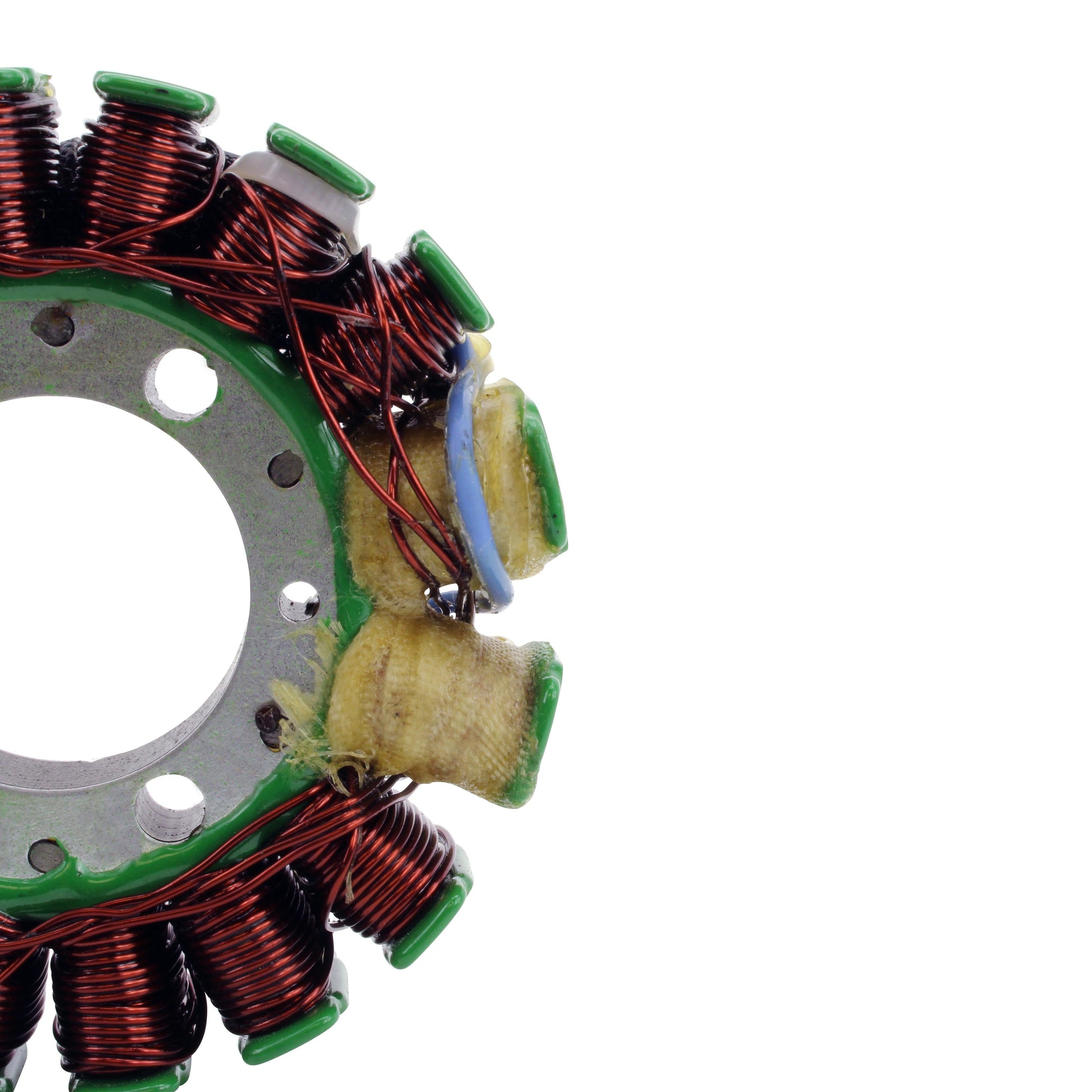

The RM01108 is a brand new high output aftermarket stator for the Honda TRX 450 R built in 2004 and 2005. It is a direct replacement for the original unit, fitting the standard mounting points and connecting to the existing harness, so installation is plug-and-play with no cutting, drilling or splicing. Output is approximately 20 percent higher than the standard stator and the part works with all other OEM components.

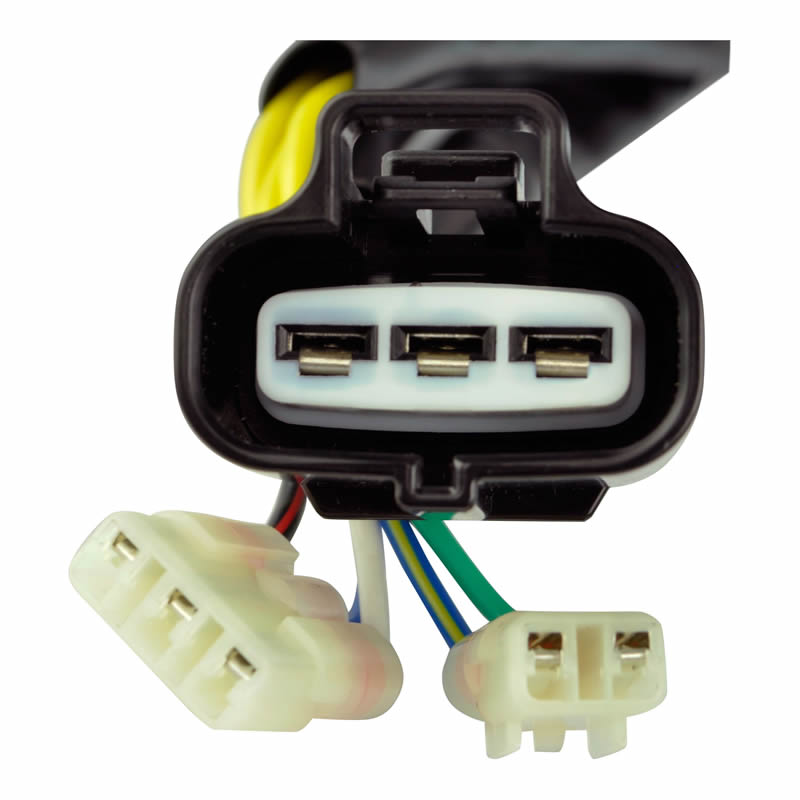

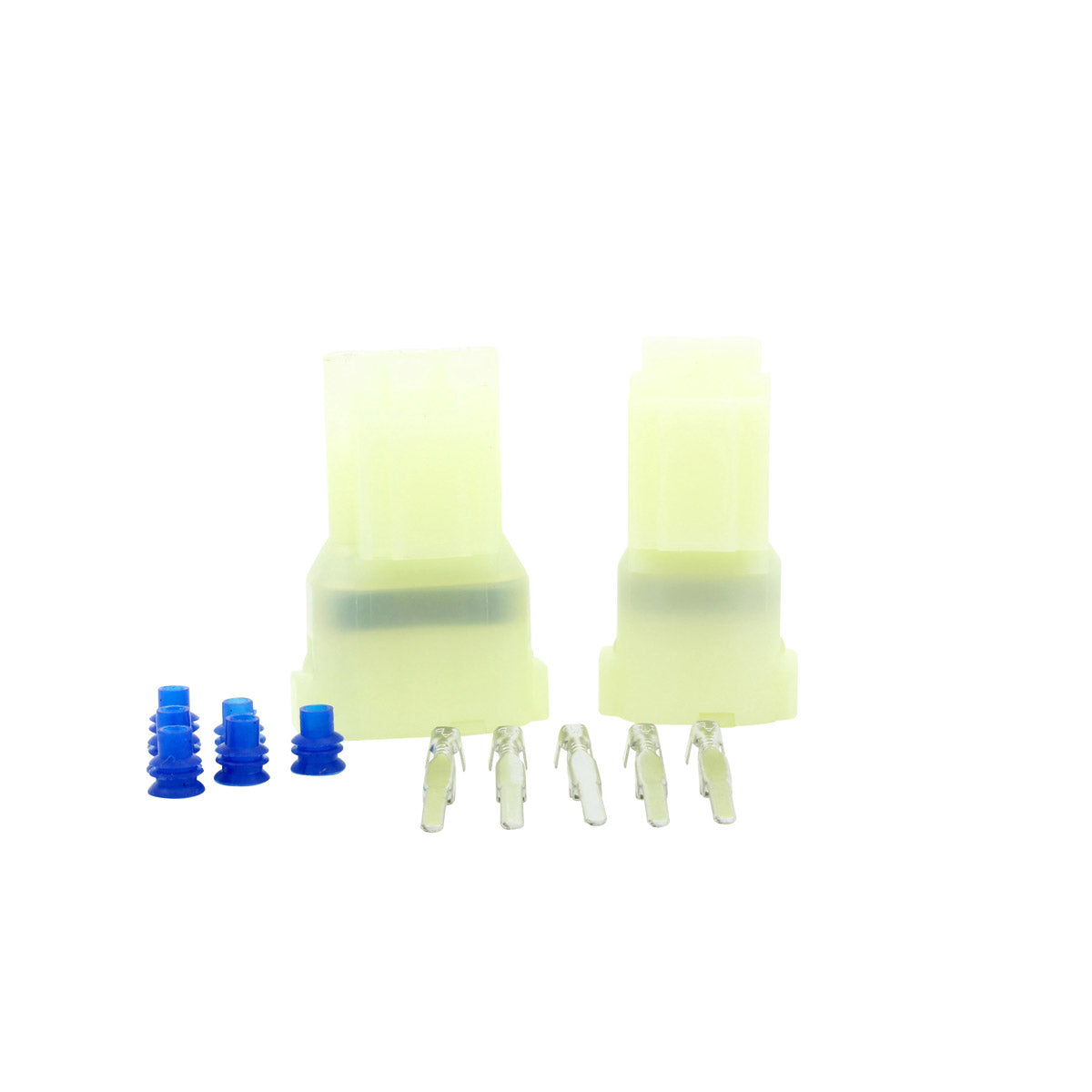

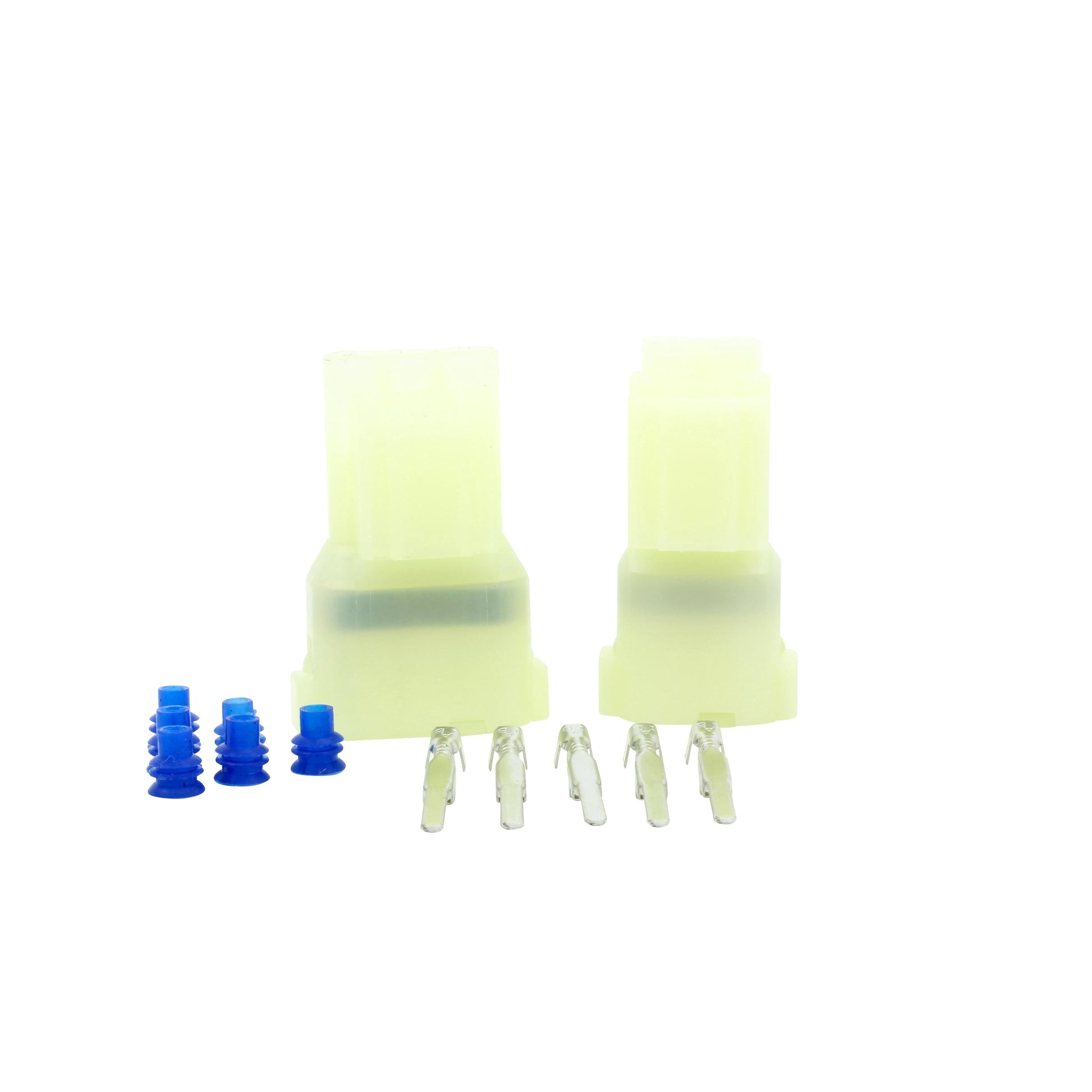

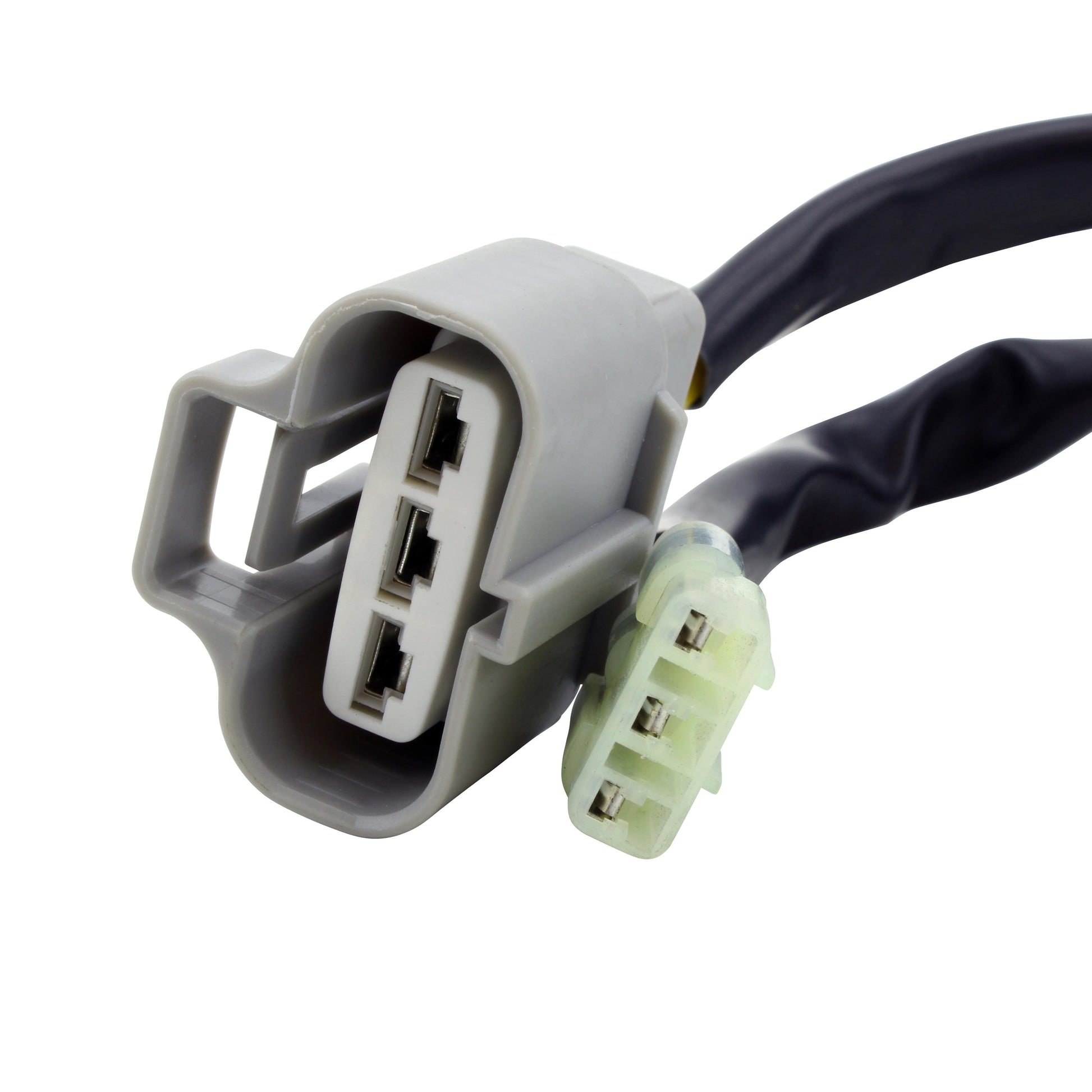

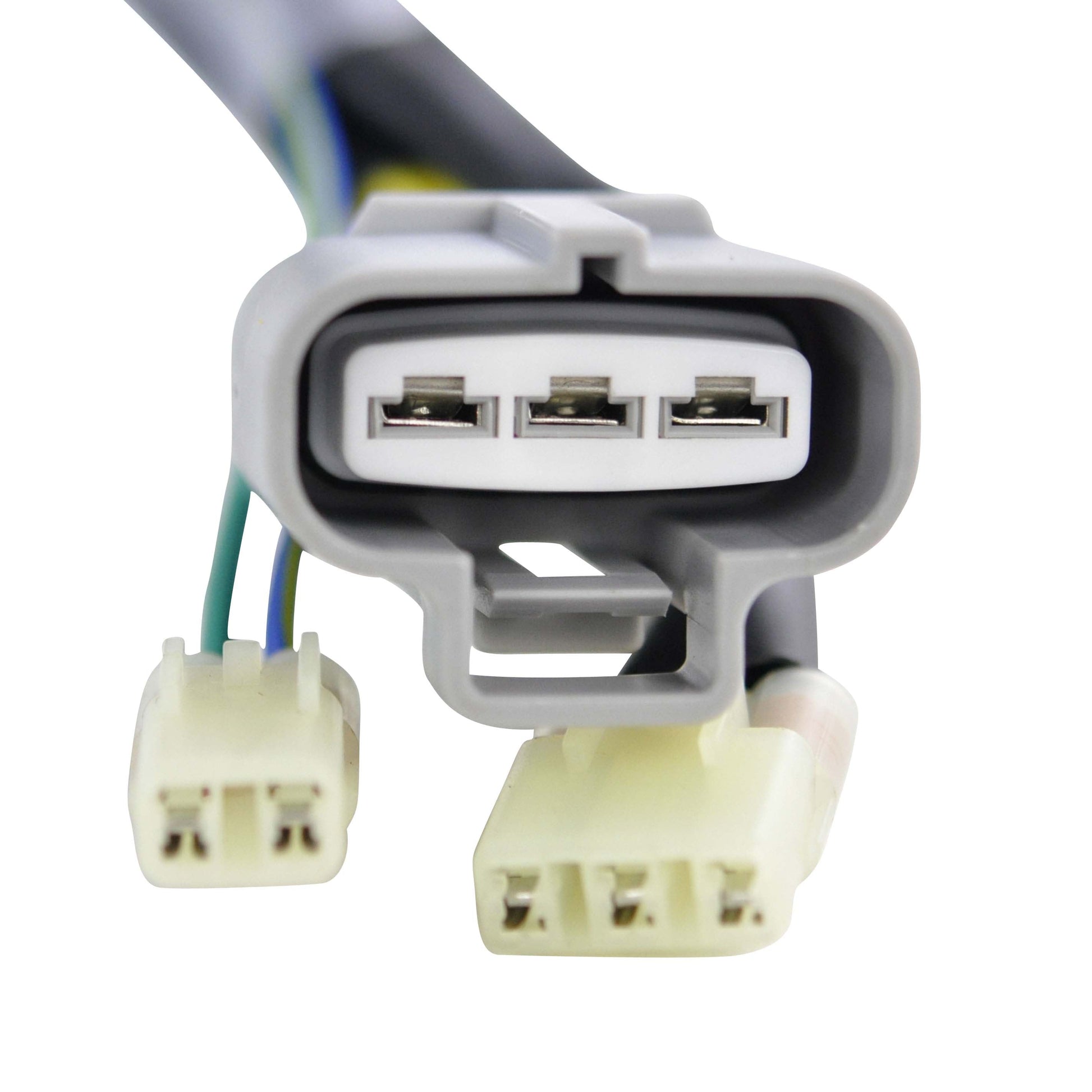

The stator is built on the highest grade lamination material and wound with the highest grade copper, resistant to 200 degrees Celsius. The pick-up pulsar coil, the connector and the back plate are included. RMSTATOR also supply the opposite connector for the main harness side, because the original is frequently melted, corroded or defective and is a major cause of repeat electrical faults. Every unit is tested before it is shipped.
Key Features
- Brand new high output aftermarket stator
- Approximately 20 percent more output than the standard stator
- Works with all other OEM components
- Direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Pick-up pulsar coil, connector and back plate included
- Opposite connector for the main harness side also included
- Every unit tested before dispatch
Technical Specs
| Specification |
Detail |
| Part number |
RM01108 |
| Interior diameter |
34 mm |
| Exterior diameter |
92 mm |
| Thickness |
15 mm |
| Wire length, stator to grommet |
75 mm |
| Wire length, grommet to plug |
900 mm |
| Pick-up coil wire to grommet |
80 mm |
| Number of wires |
8 |
| Number of plugs |
3 |
| Number of pins |
8 |
| Alternator resistance, between each Yellow |
0.4 ohms +/-20% |
| Alternator, Yellow to ground |
Open circuit |
| Pick-up resistance, Green to Blue |
250 ohms +/-20% |
| Source resistance, Black/Red to Blue |
36 ohms +/-20% |
| Source 2 resistance, Blue to White |
7 ohms +/-20% |
| Winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model |
Years |
| Honda TRX 450 R |
2004-2005 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 31120-HP1-003 |
Honda |
Frequently Asked Questions
Does this stator fit without modification?
Yes. The RM01108 is a direct replacement for the original stator on the 2004 and 2005 Honda TRX 450 R. It is plug-and-play, uses the standard mounting points and mates with the existing harness, so no cutting, drilling or splicing is required.
What is included in the box?

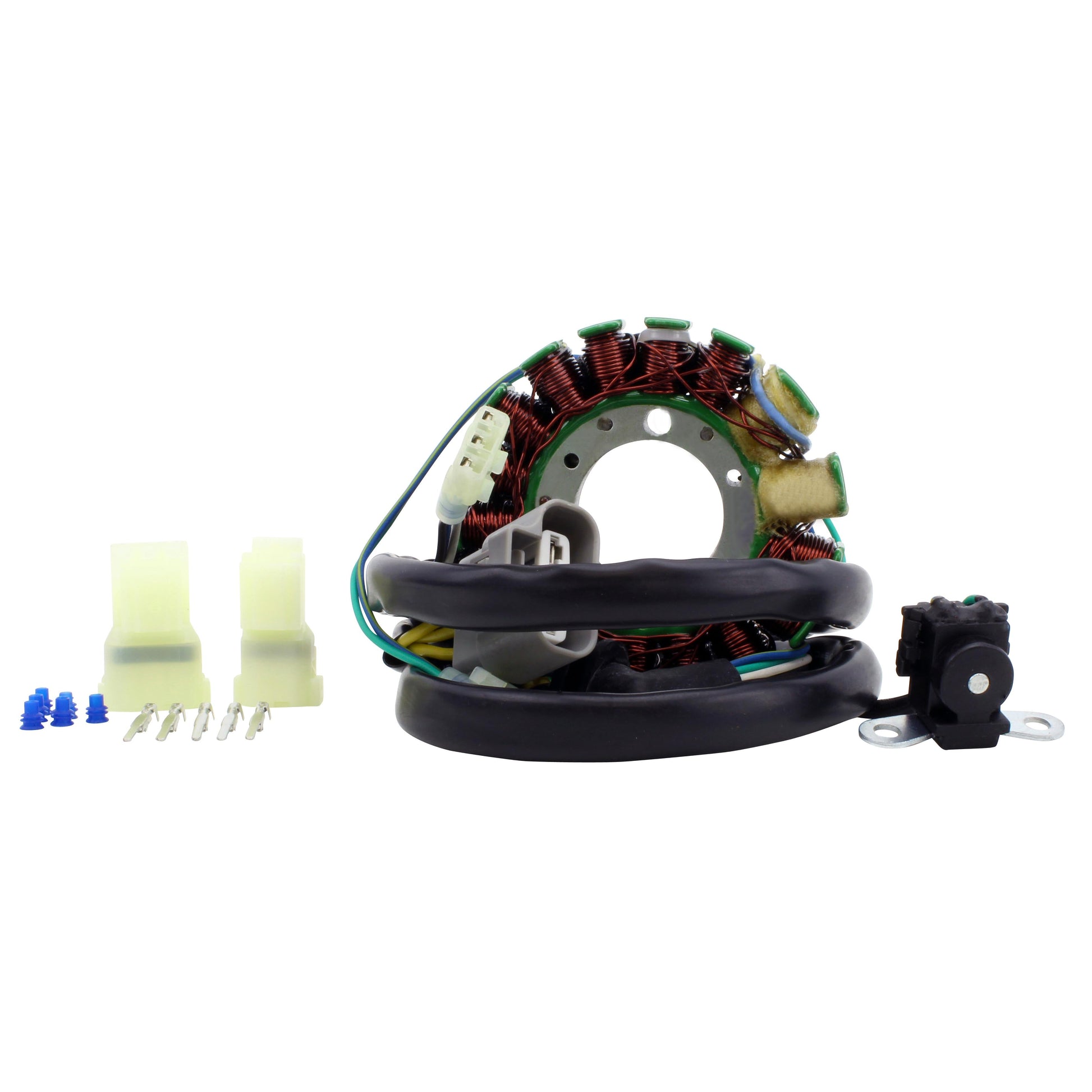

You receive the high output stator, the pick-up pulsar coil, the connector, the back plate and an additional opposite connector for the main harness side.
How do I confirm the old stator has failed?
Test with a multimeter against the values above. The alternator should read about 0.4 ohms between each Yellow wire and show an open circuit from any Yellow wire to ground. The pick-up should read about 250 ohms from Green to Blue, the source coil about 36 ohms from Black/Red to Blue, and the second source about 7 ohms from Blue to White, each within 20 percent. Continuity to ground or readings far outside these bands confirm a failed stator.
Why does this stator have two source coil readings?
The TRX 450 R charging and ignition assembly includes more than one source winding, which is why the RM01108 carries 8 wires and lists two separate source measurements, 36 ohms from Black/Red to Blue and 7 ohms from Blue to White. Both should be checked when diagnosing an ignition or charging fault.
