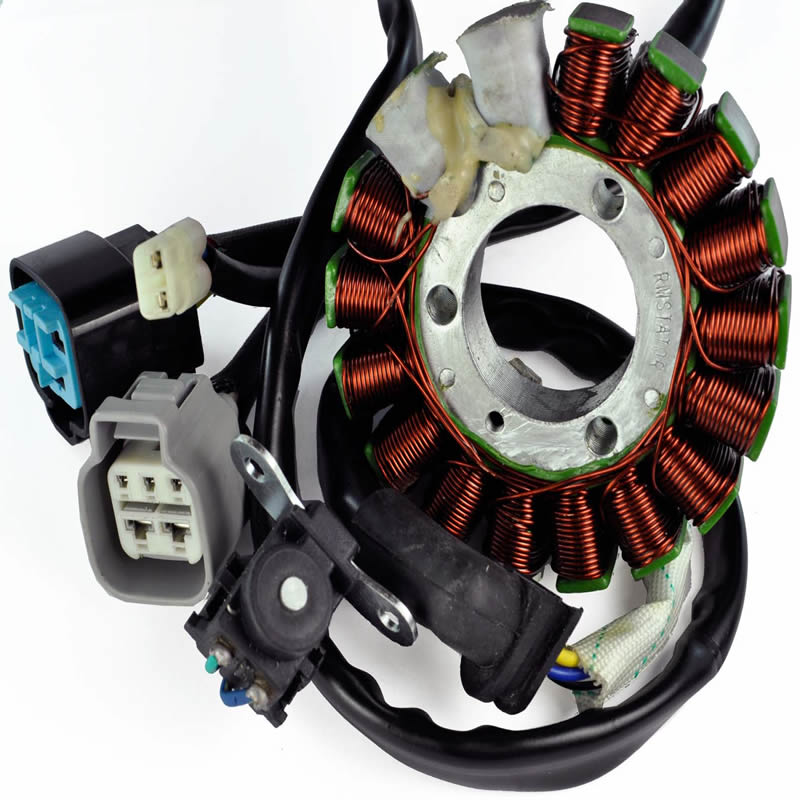

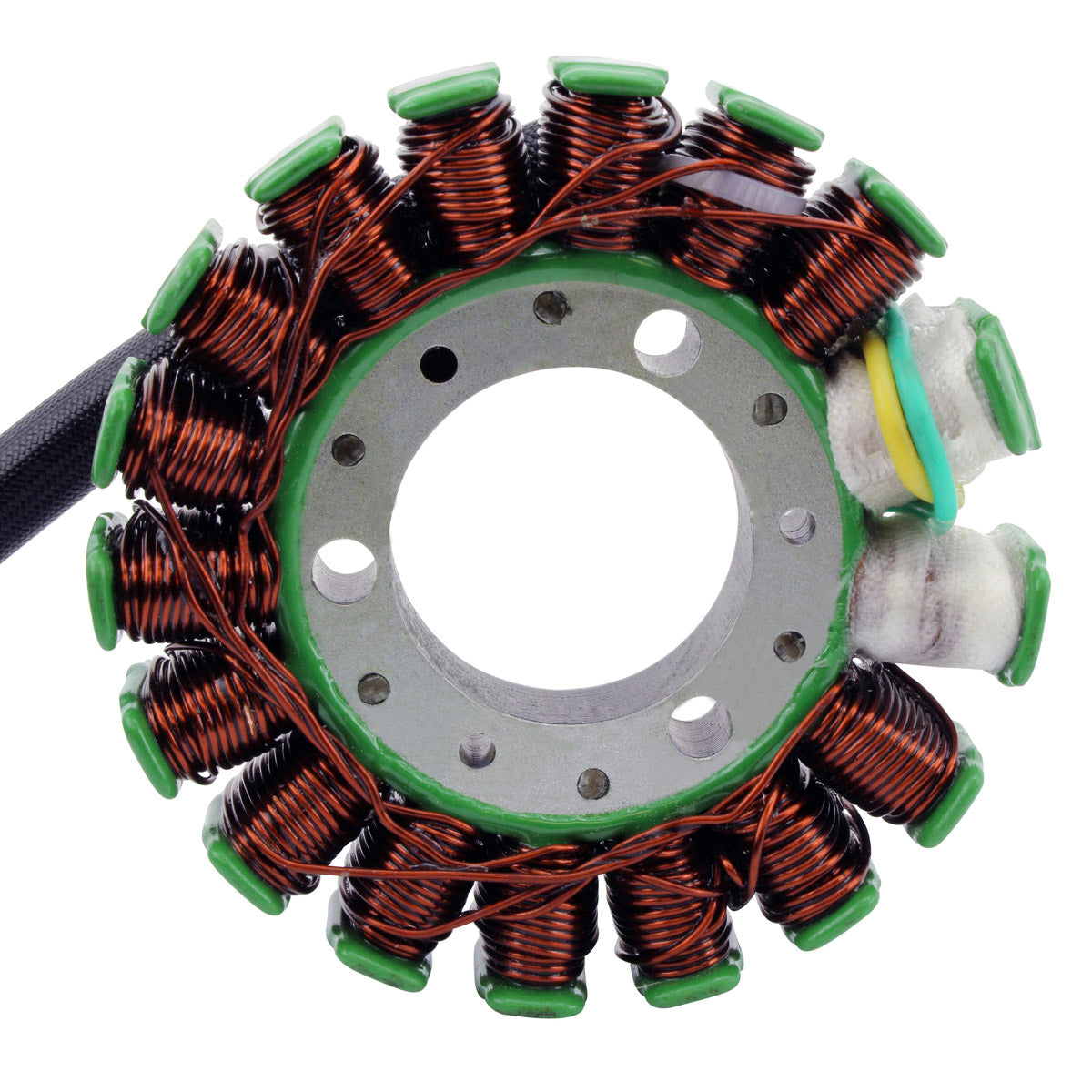

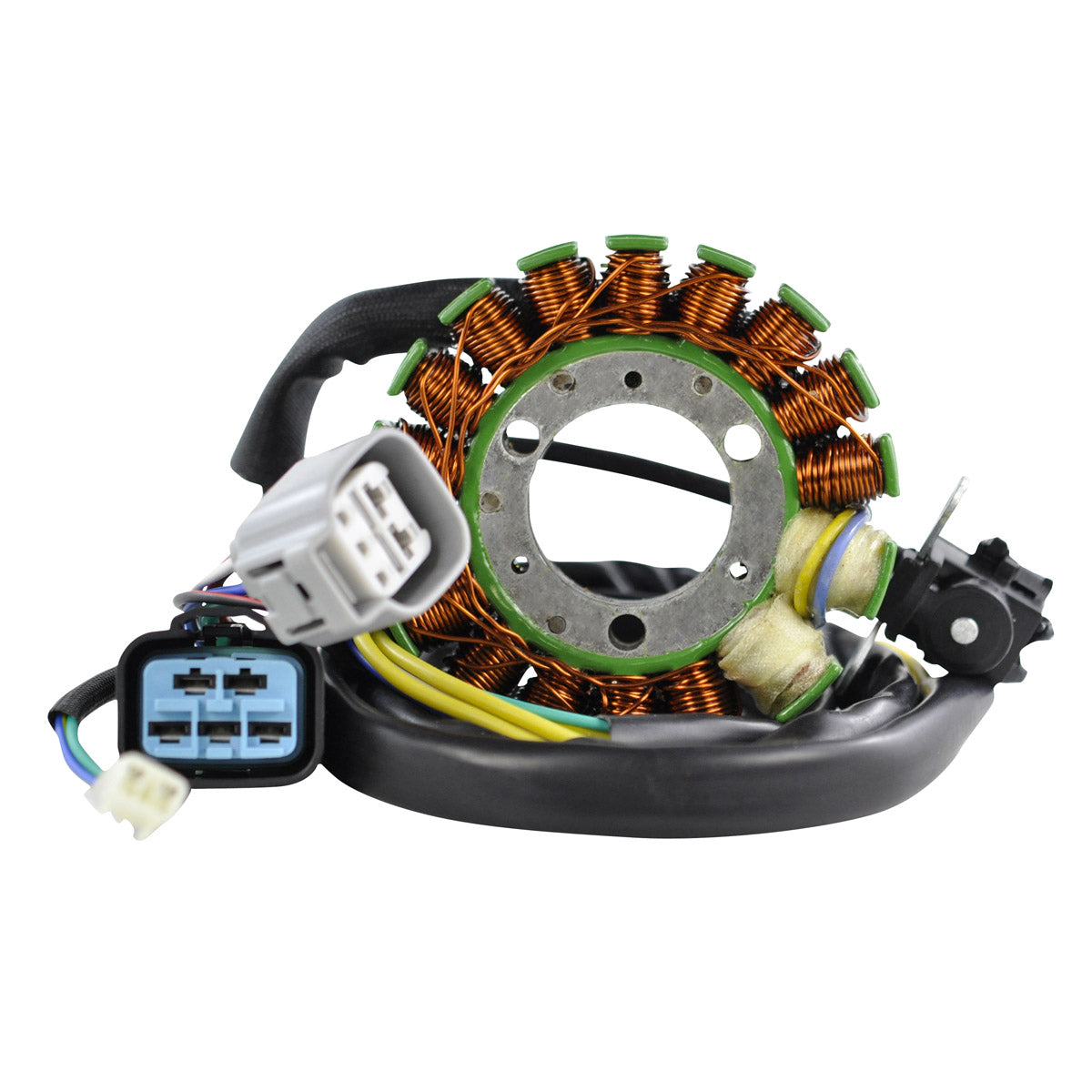

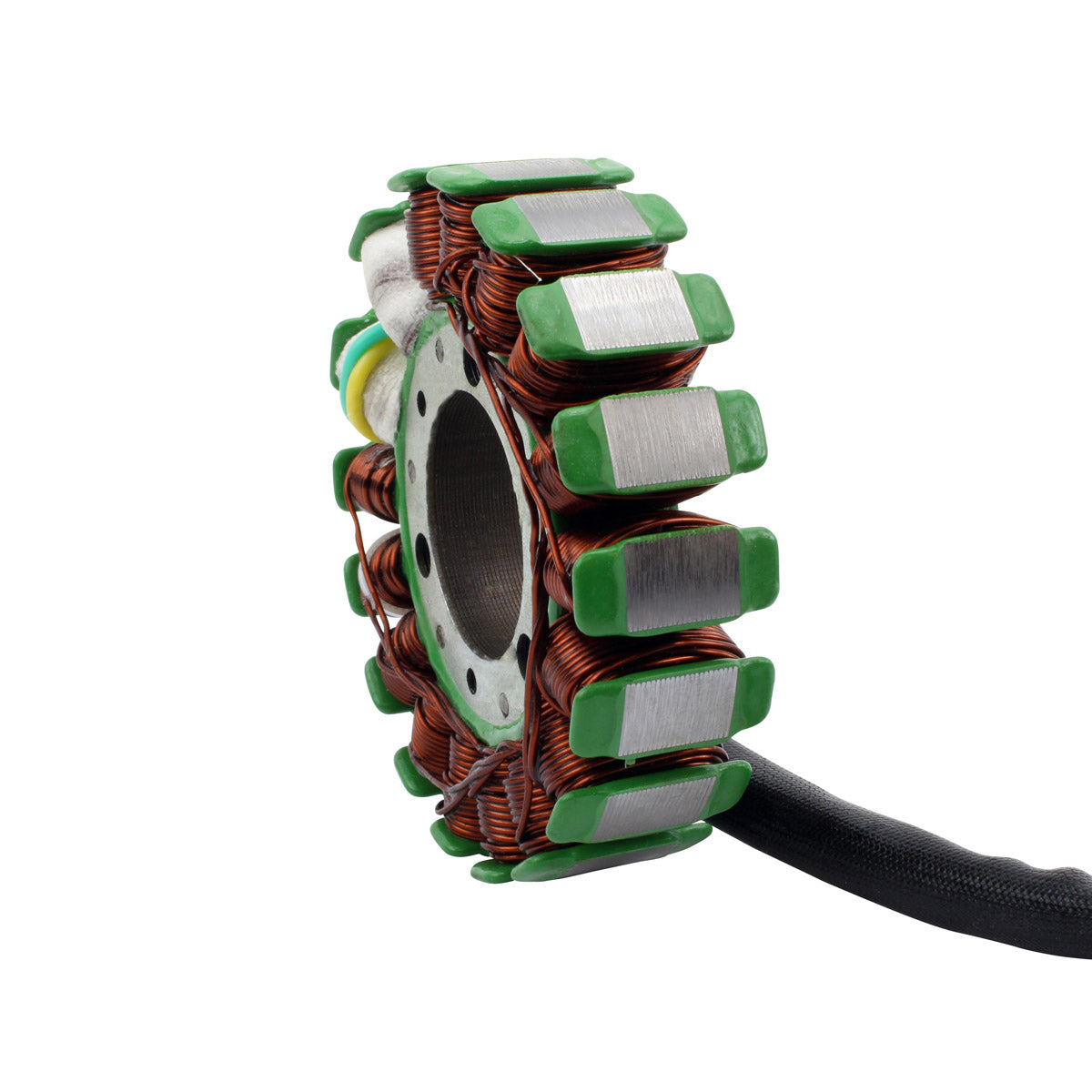

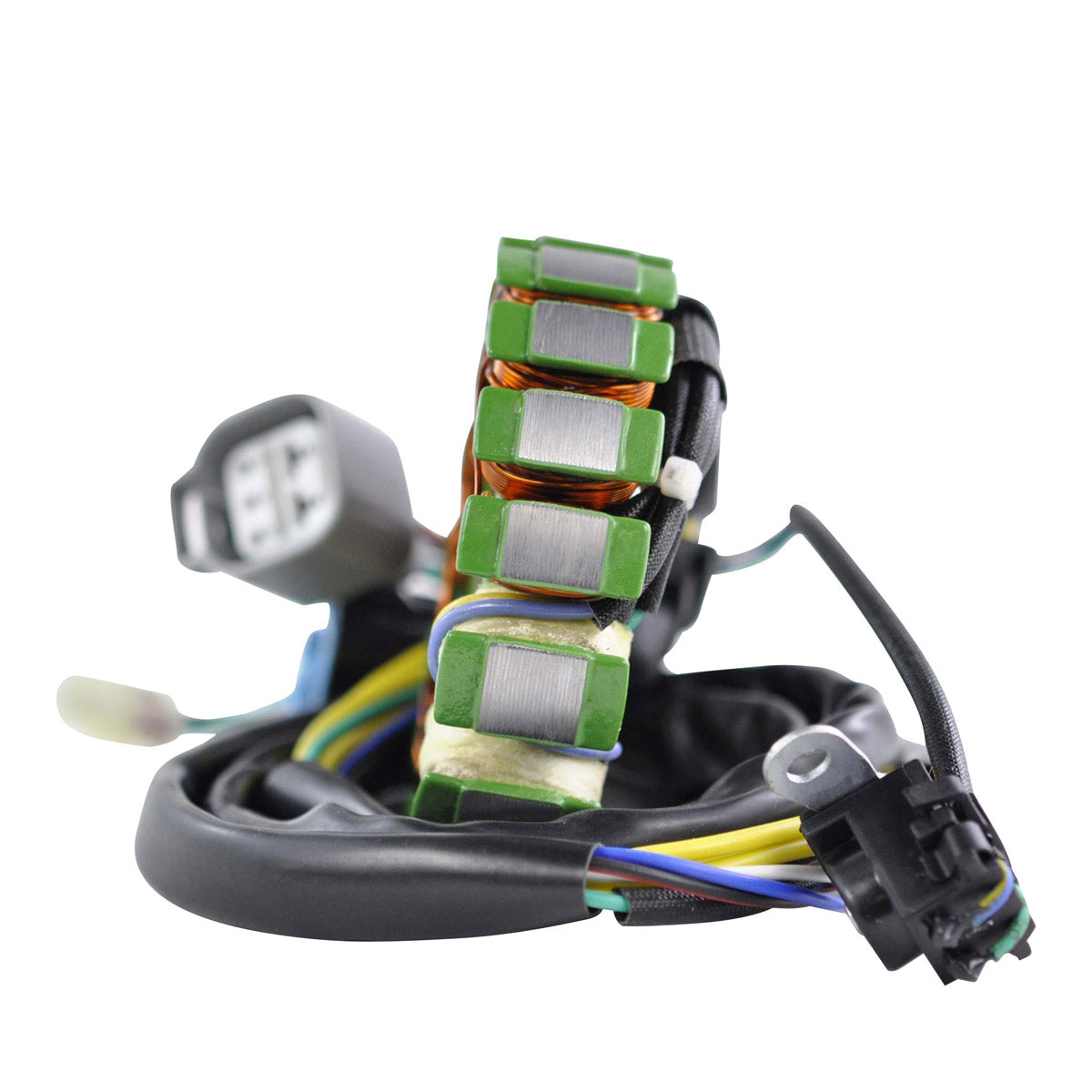

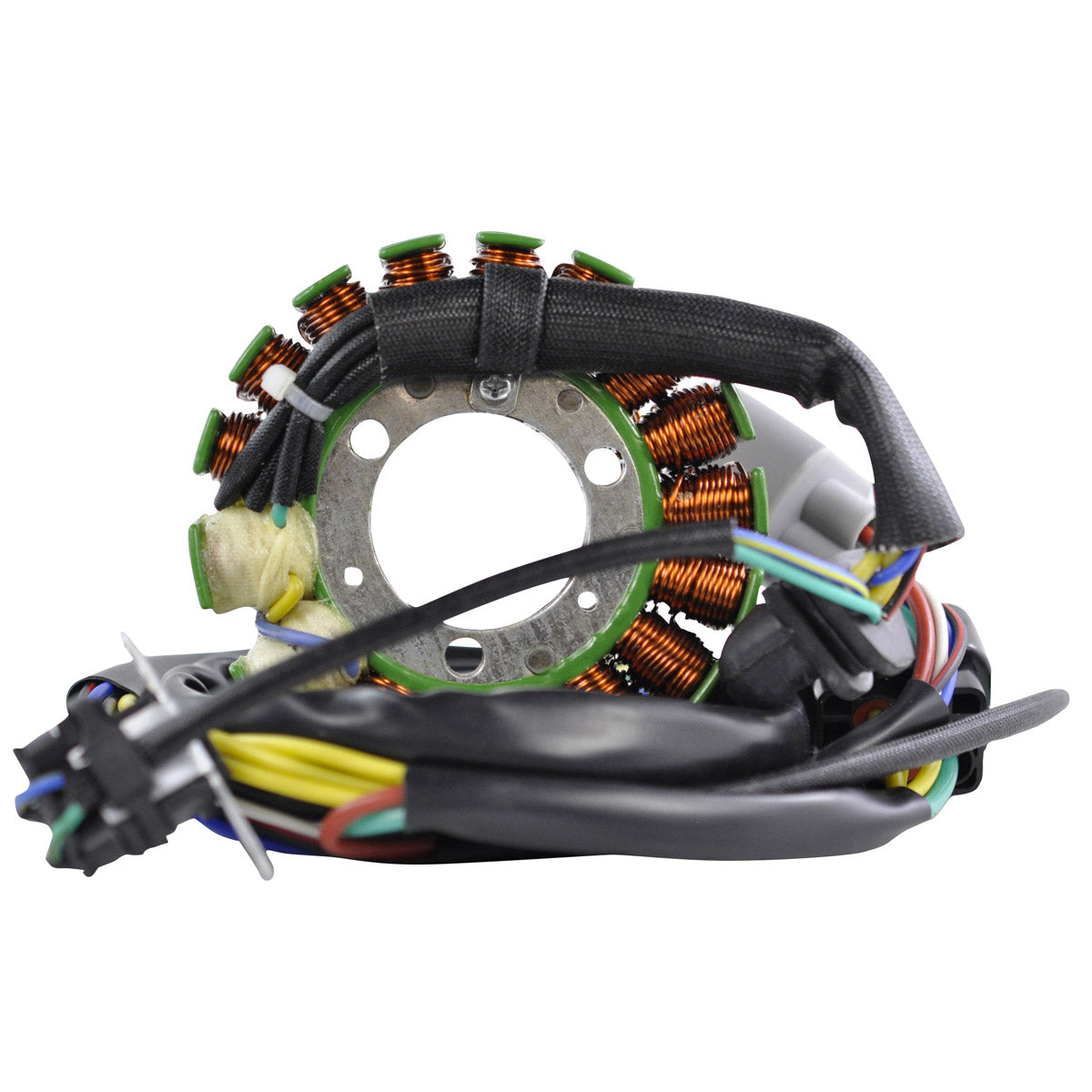

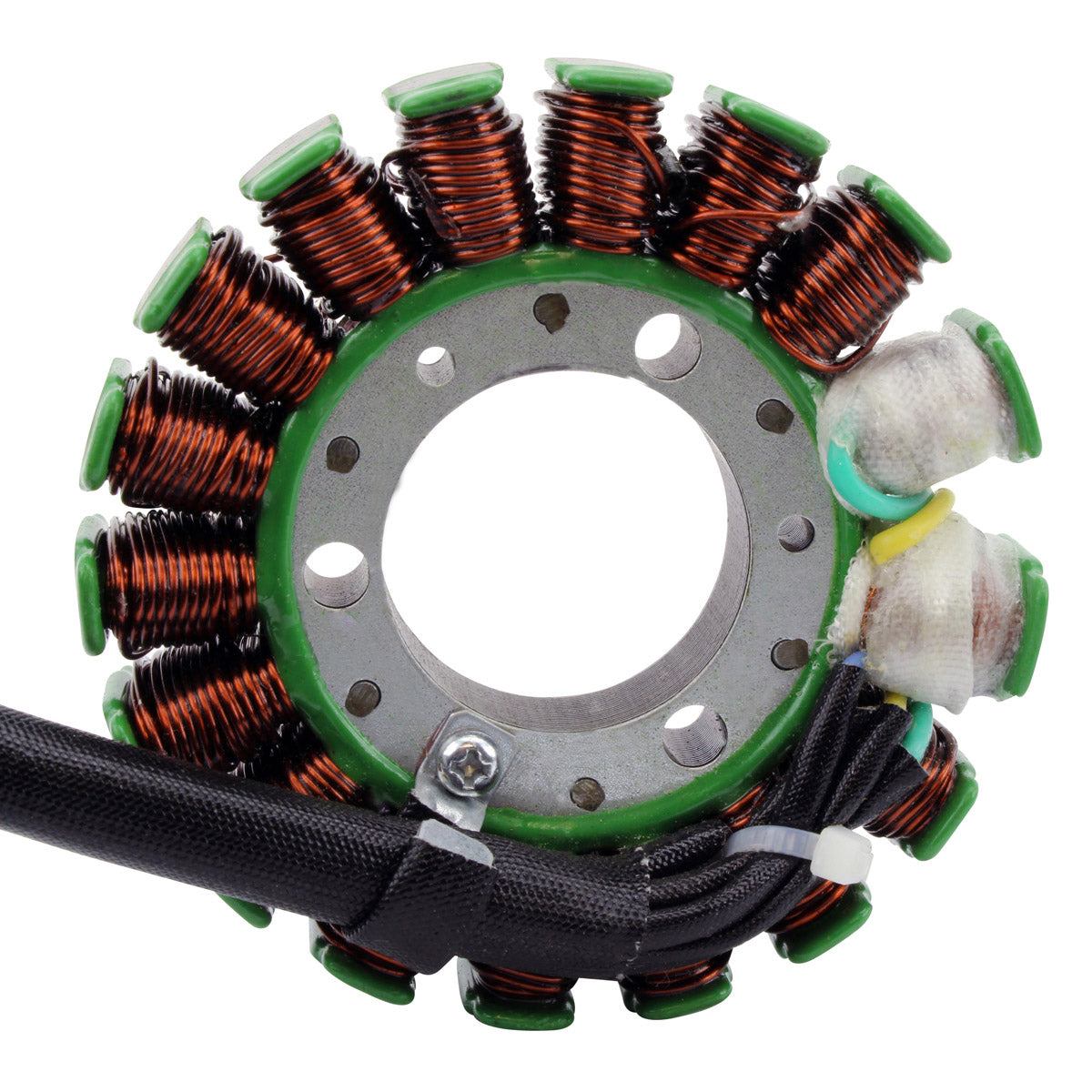

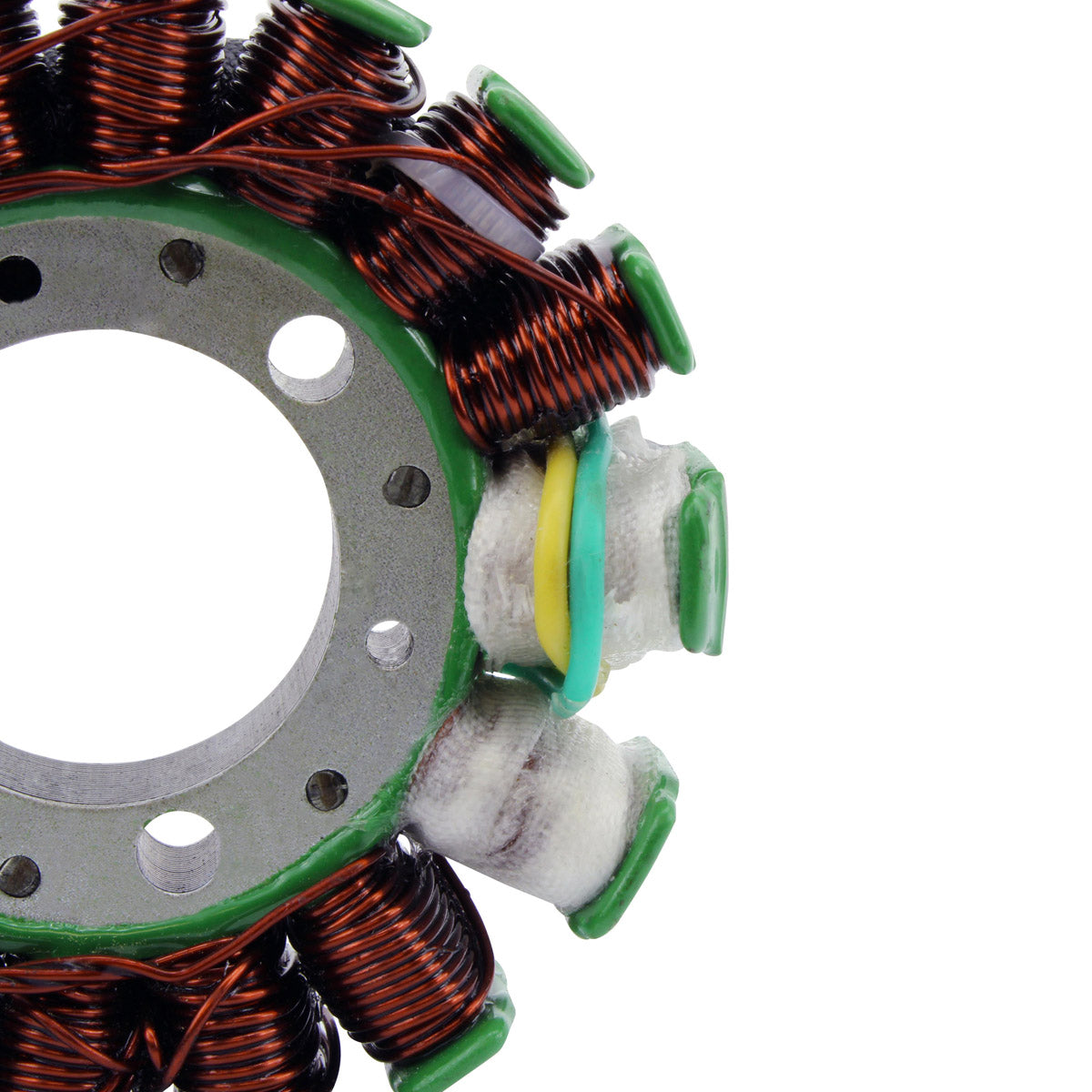

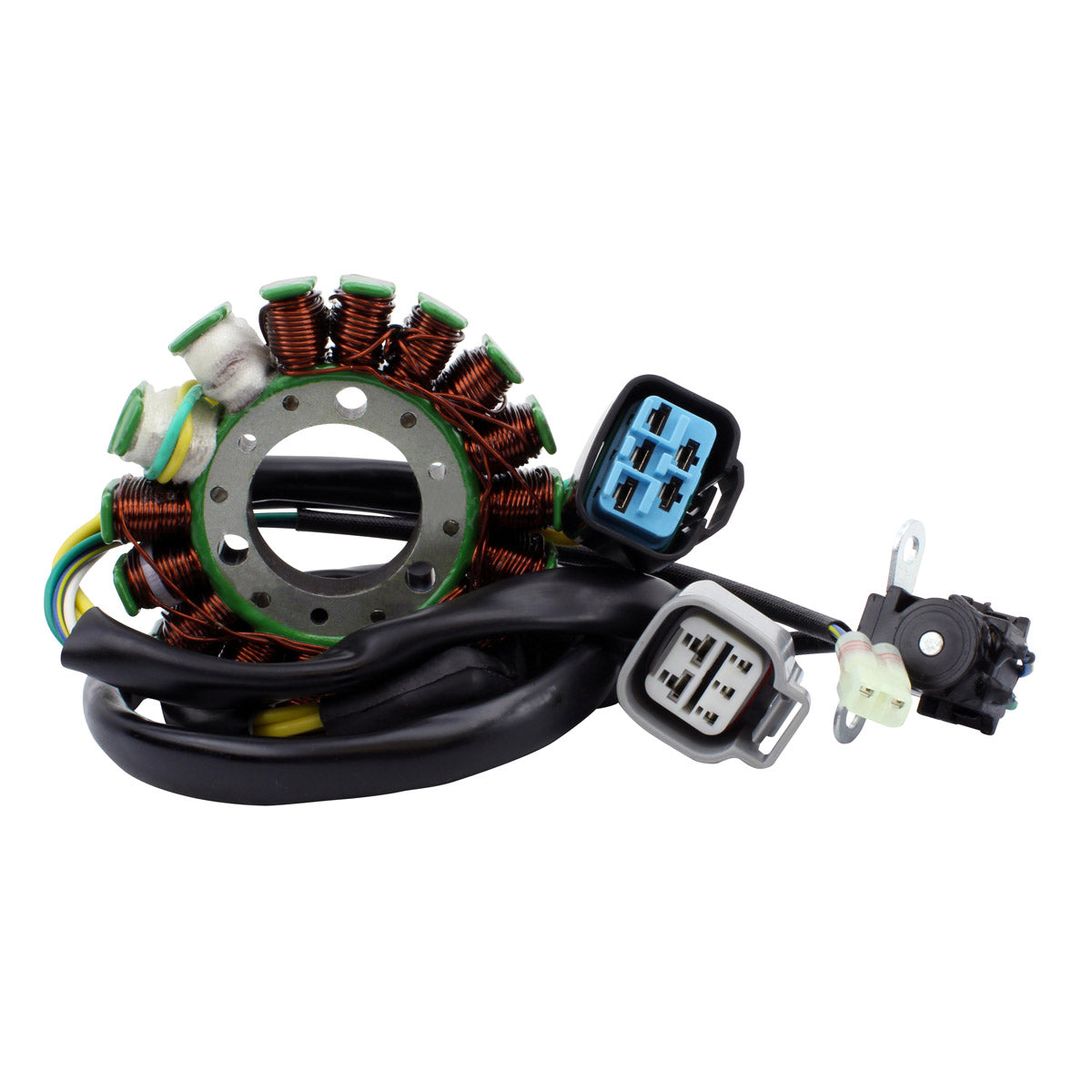

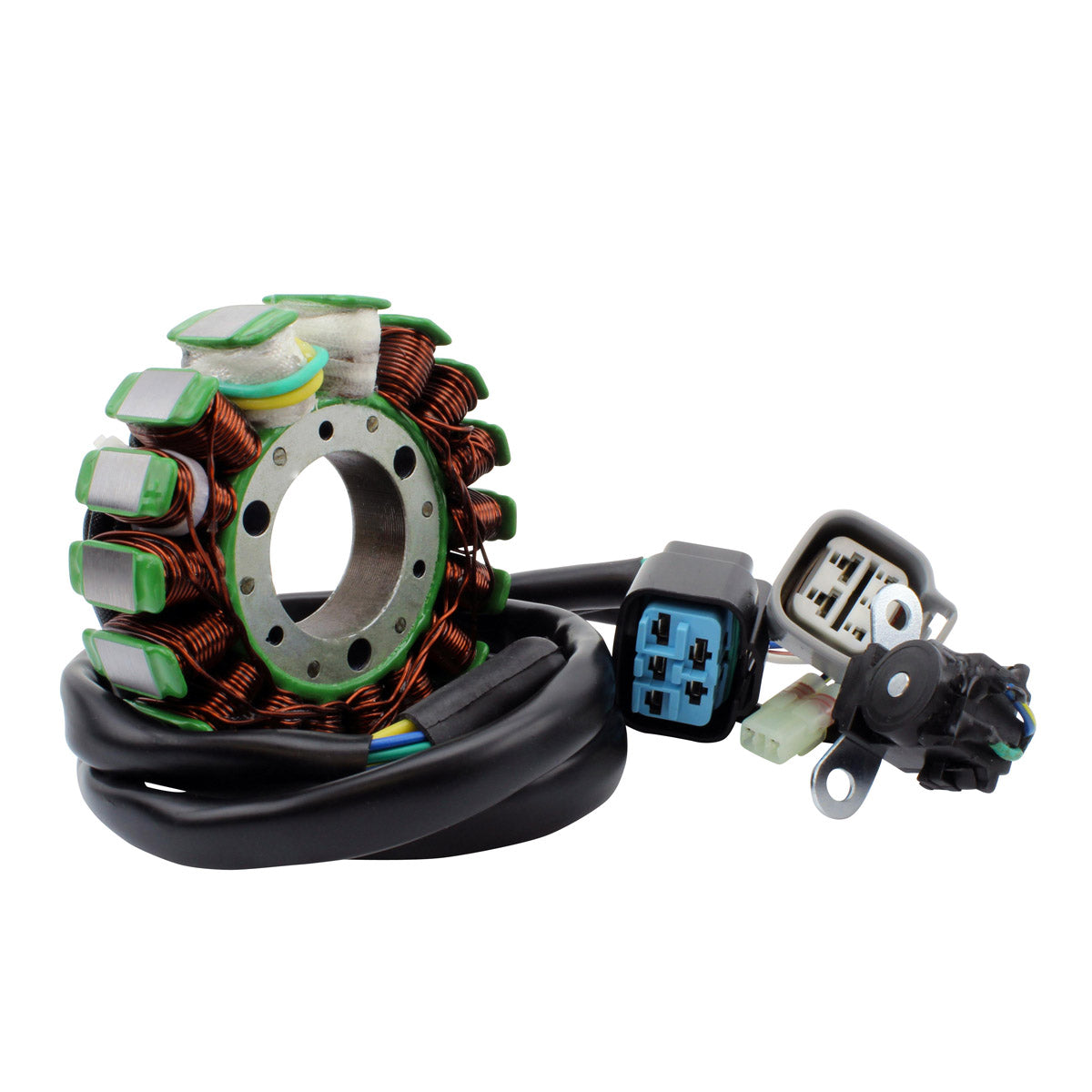

This is a brand new stator for the Honda TRX 450 R, TRX 450 ER and TRX 450 Sportrax built between 2006 and 2014, supplied as RMSTATOR part RM01316. It is a direct replacement for your original unit, fits the factory mounting points and plugs into the existing harness, so no cutting or splicing is required.
This is a twelve-wire assembly across three plugs, carrying the alternator winding, the pick-up pulsar coil and two source circuits - so it replaces the whole ignition and charging side of the engine cover in one part. The windings are the highest grade copper on the highest grade lamination materials, resistant to 200 degrees Celsius, and the 920 mm lead from the grommet to the plug reproduces the factory routing. Every unit is tested before it is shipped.
Key Features
- Brand new stator, direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

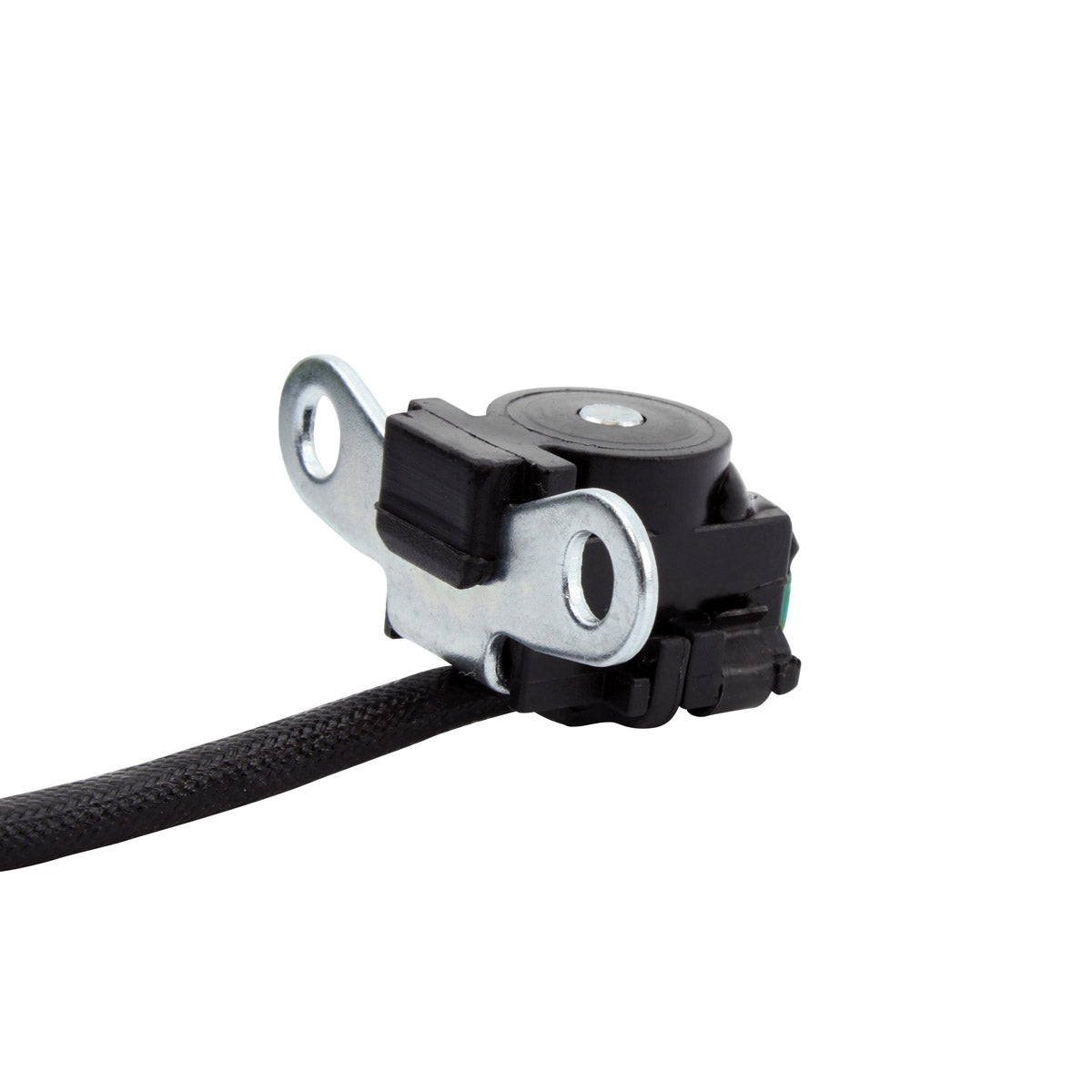

- Pick-up pulsar coil included
- Connector included
- Rubber grommet included
- All units are tested before shipping
Technical Specs
| Specification |
Detail |
| Interior diameter |
34 mm |
| Exterior diameter |
95 mm |
| Thickness |
15 mm |
| Length of wires, stator to grommet |
40 mm |
| Length of wires, grommet to plug |
920 mm |
| Length of pick-up coil wire to grommet |
75 mm |
| Number of wires |
12 |
| Number of plugs |
3 |
| Number of pins |
12 |
| Alternator resistance, yellow to yellow |
0.4 ohms plus or minus 20% |
| Pick-up resistance, green to blue |
250 ohms plus or minus 20% |
| Source 1 resistance, black/red to blue |
36 ohms plus or minus 20% |
| Source 2 resistance, blue to white |
9 ohms plus or minus 20% |
| Part number |
RM01316 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Honda TRX 450 R |
2006-2014 |
| Honda TRX 450 ER |
2006-2014 |
| Honda TRX 450 Sportrax |
2006-2014 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 31120-HP1-601 |
Honda |
Frequently Asked Questions
Does this stator fit without modification?
Yes. It is a direct replacement for the original unit, matching it at 34 mm interior diameter, 95 mm exterior diameter and 15 mm thickness, and it uses the factory mounting points and the supplied connector, so no cutting, splicing or drilling is needed.
What is included?
The stator, the pick-up pulsar coil, the connector and the rubber grommet.
How can I tell my old stator has failed?
Test each circuit cold with a multimeter. Expect 0.4 ohms plus or minus 20% yellow to yellow, 250 ohms plus or minus 20% green to blue on the pick-up, 36 ohms plus or minus 20% black/red to blue on source 1 and 9 ohms plus or minus 20% blue to white on source 2. Readings well outside those values, or continuity from any winding to the stator body, mean the unit has failed.
Why does it have twelve wires?

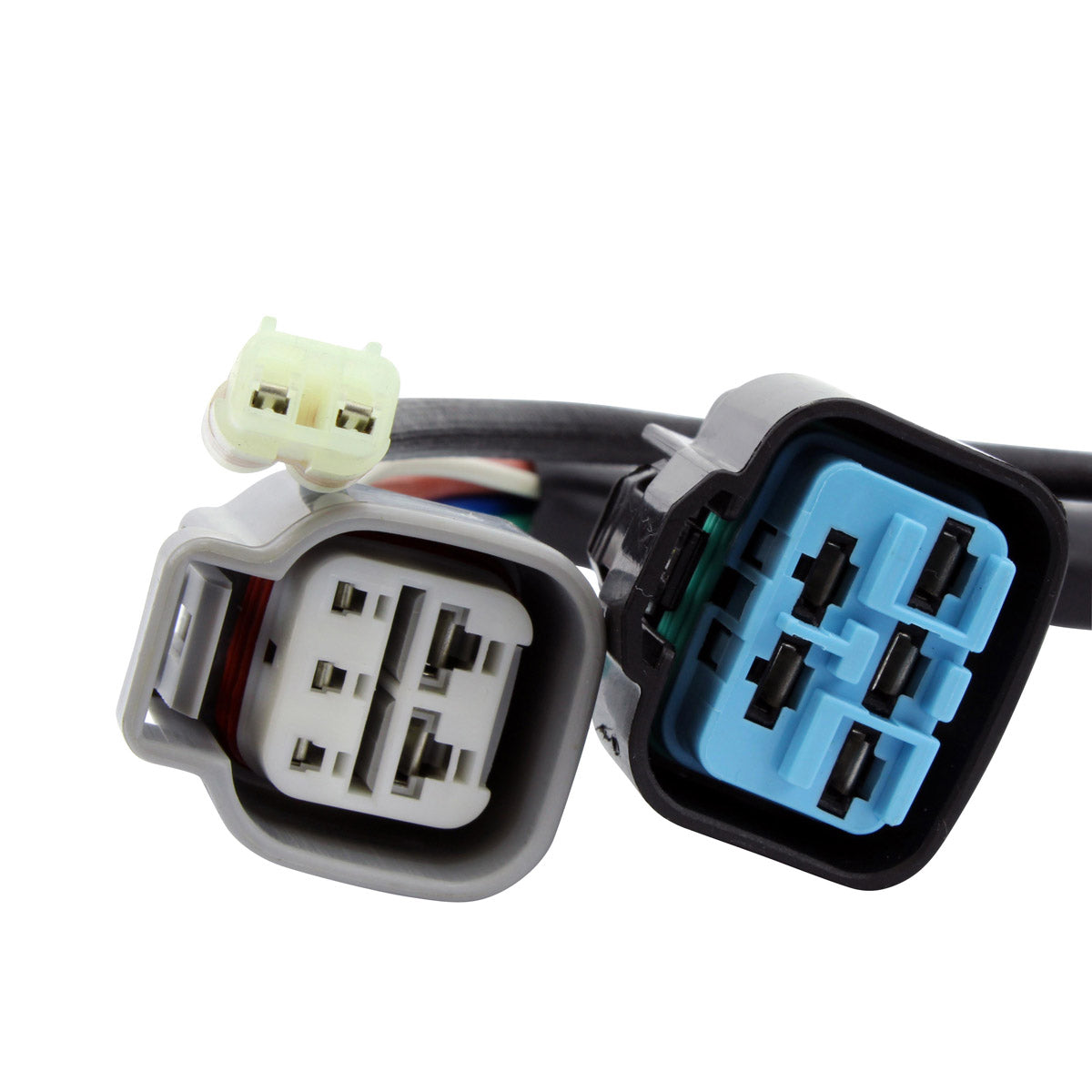

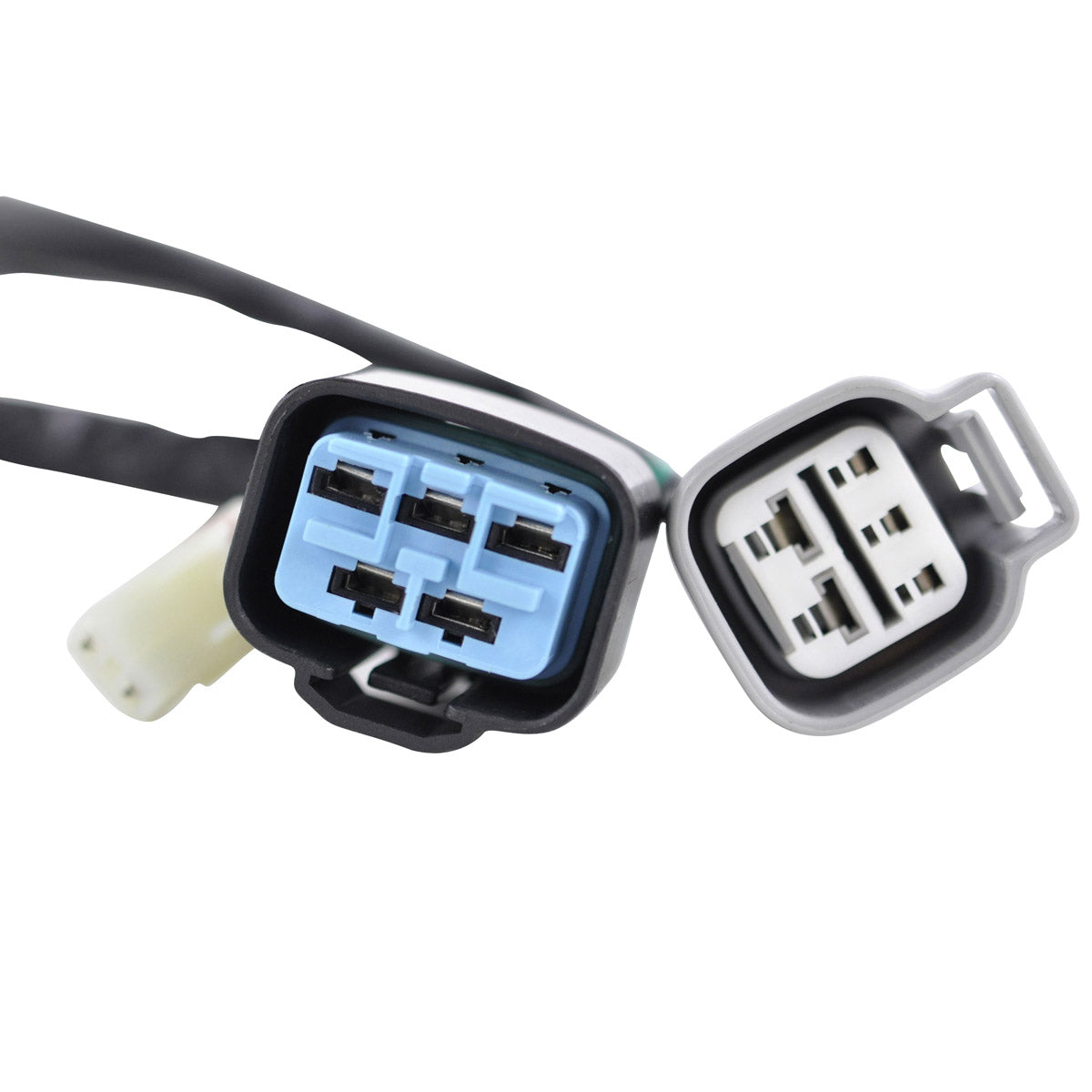

The TRX 450 stator carries the charging winding, the pick-up pulsar coil and two source coils, which between them run to three separate plugs and twelve pins. All of them are supplied on this one assembly.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
