Generator Stator for Honda VF700F and VF750F Interceptor
Honda VF700F / VF750F Interceptor, 1983-1985 - Part RMS010-103423

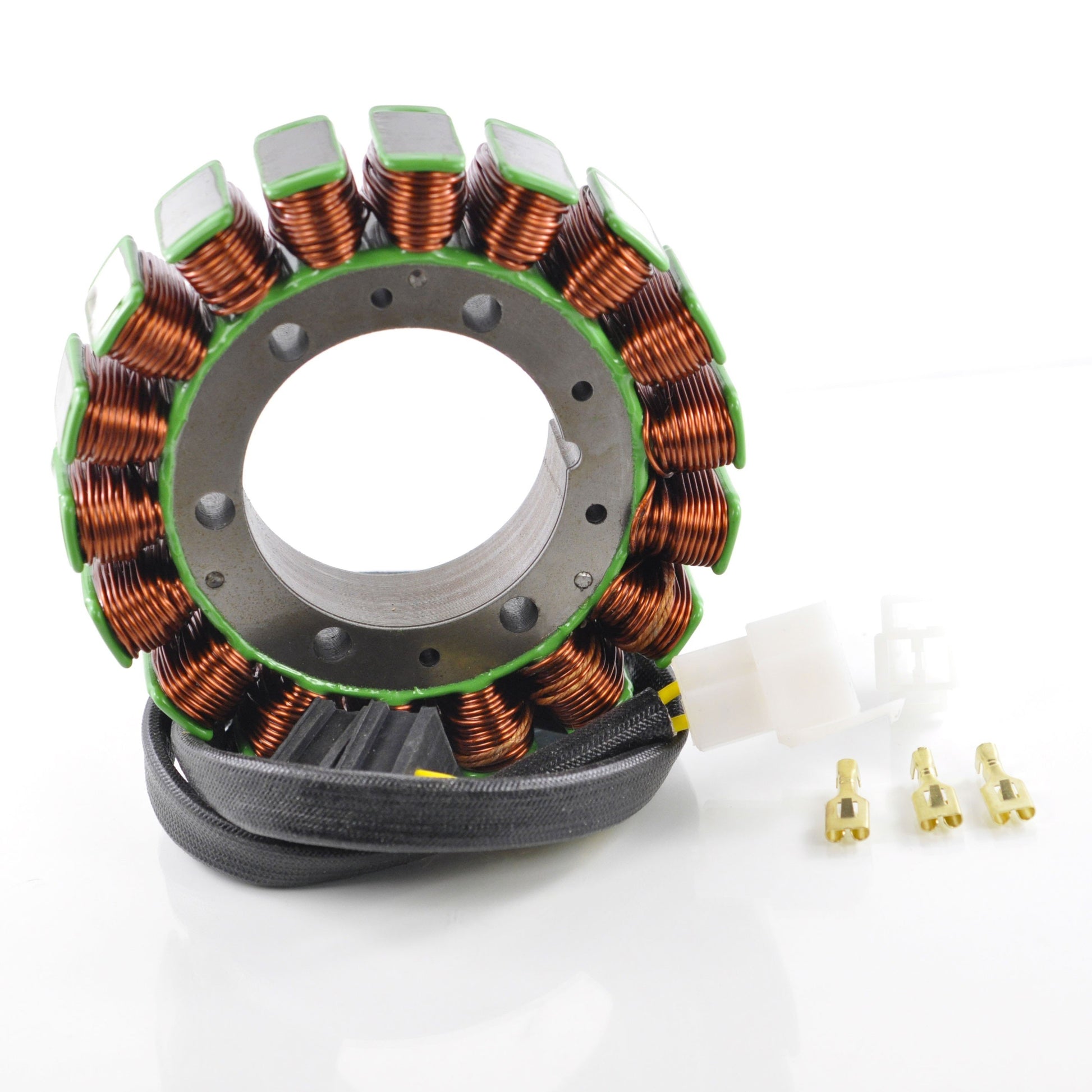

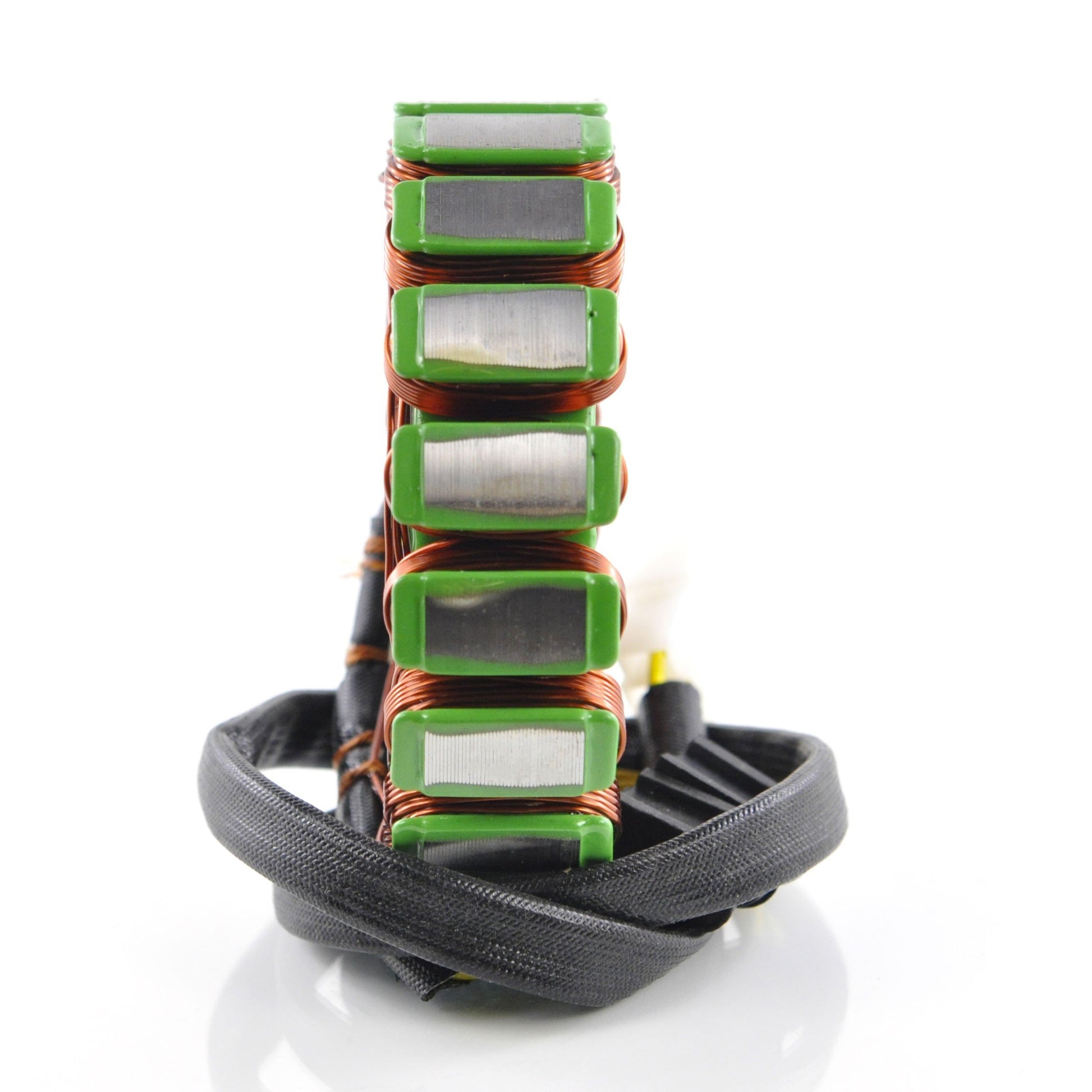

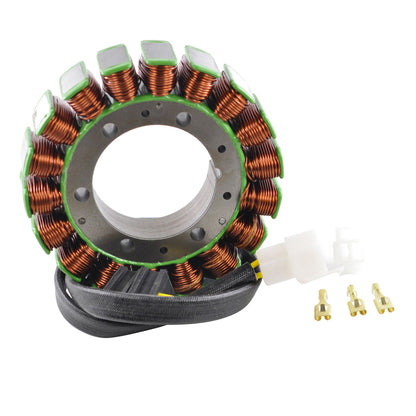

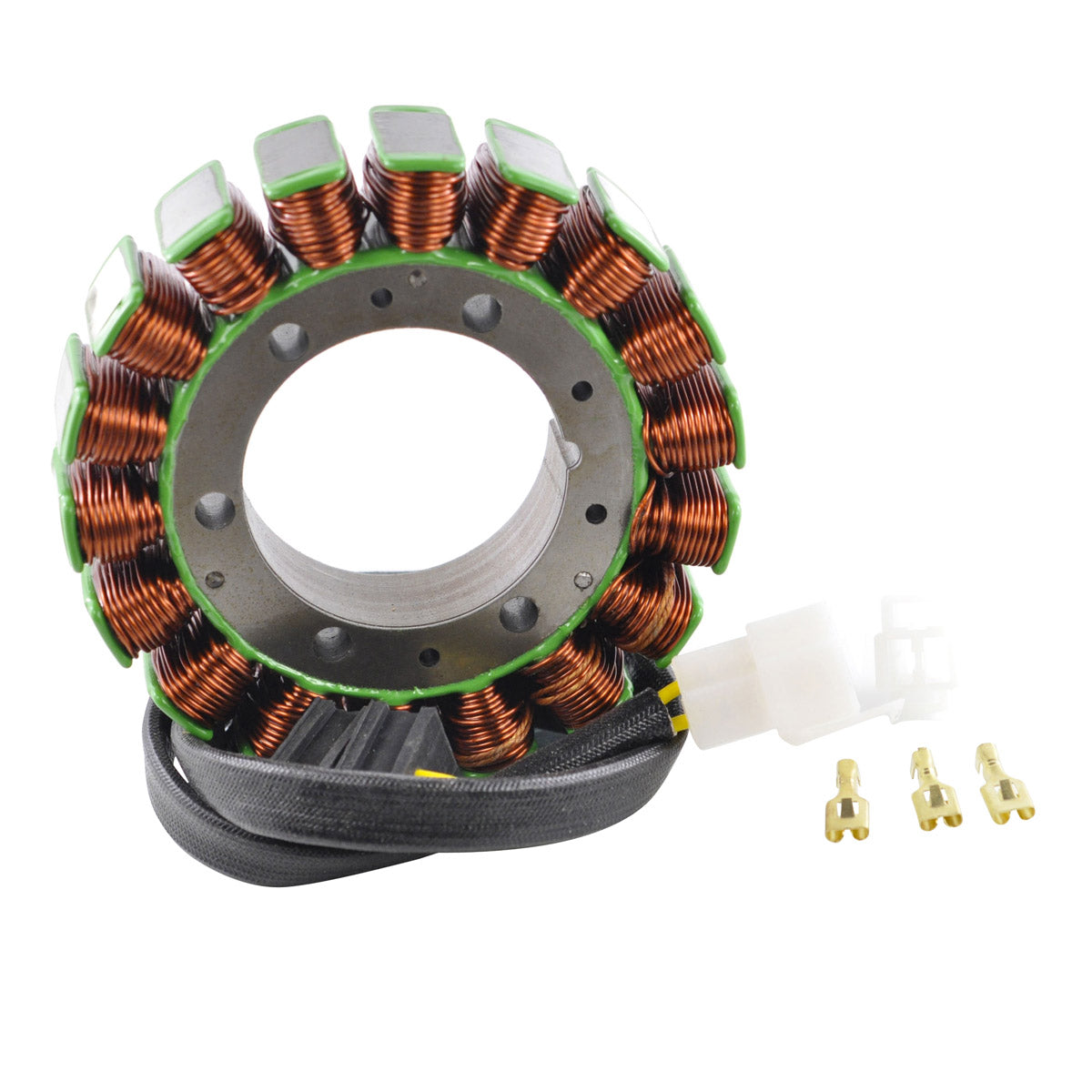

A brand new aftermarket generator stator supplied as a direct replacement for the original unit on the Honda VF700F and VF750F Interceptor. The stator produces the three-phase AC current that the regulator/rectifier converts into the DC supply which charges the battery and runs the ignition, lighting and instruments. On these V4 Hondas a stator with shorted or burnt windings is a well known cause of a battery that will not stay charged and of low charging voltage at higher revs.
This replacement is wound with the highest grade copper windings, resistant to 200 degrees Celsius, on highest grade lamination materials. It is a plug-and-play, direct fit using the original mountings and the original loom plug, so no cutting, splicing or modification is needed. Connector and rubber grommet are included, and the opposite connector for the main harness side is supplied as well, because these are often melted, corroded or defective and a major cause of repetitive electrical issues. All products shipped are tested.
Key Features
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

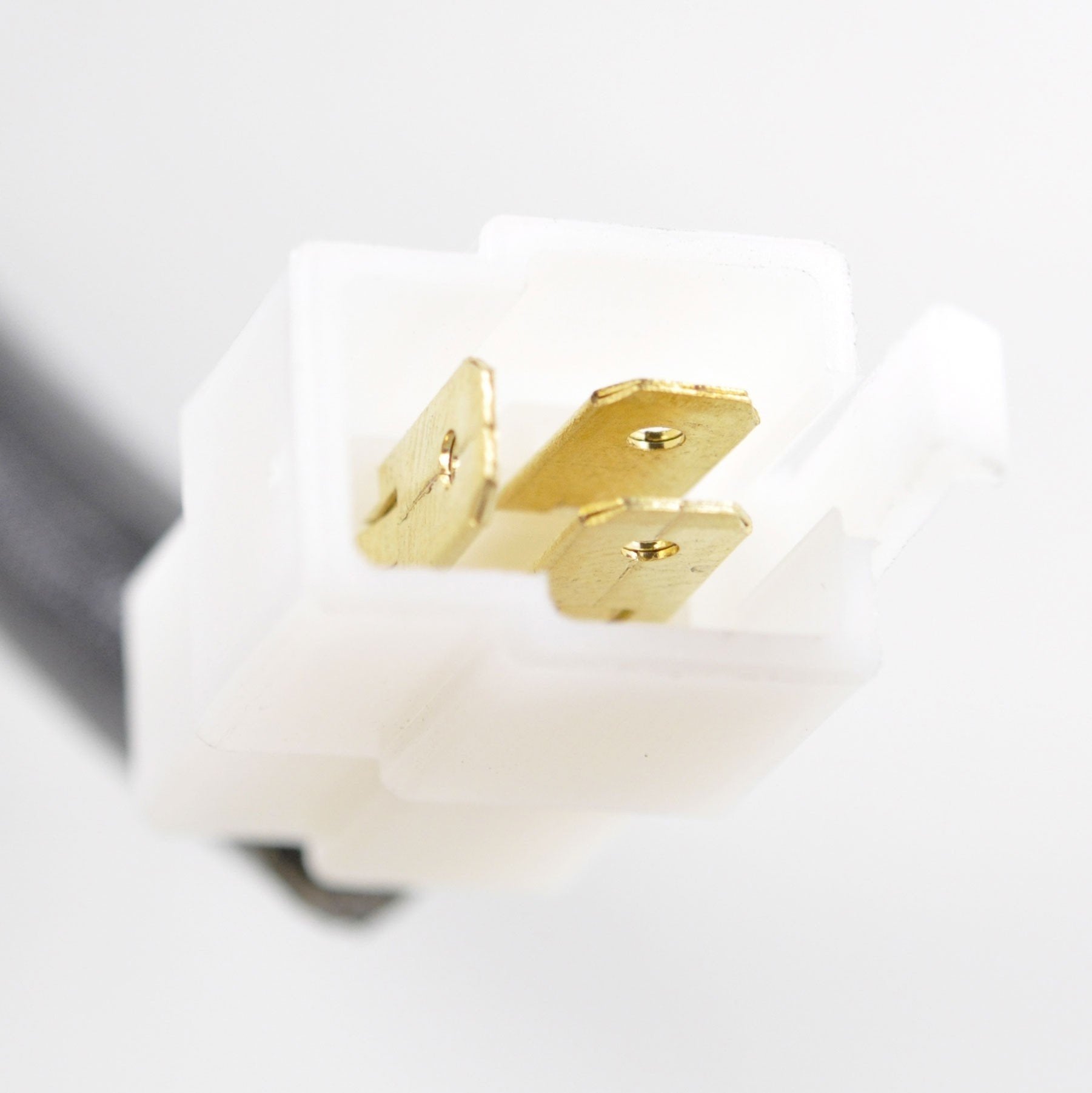

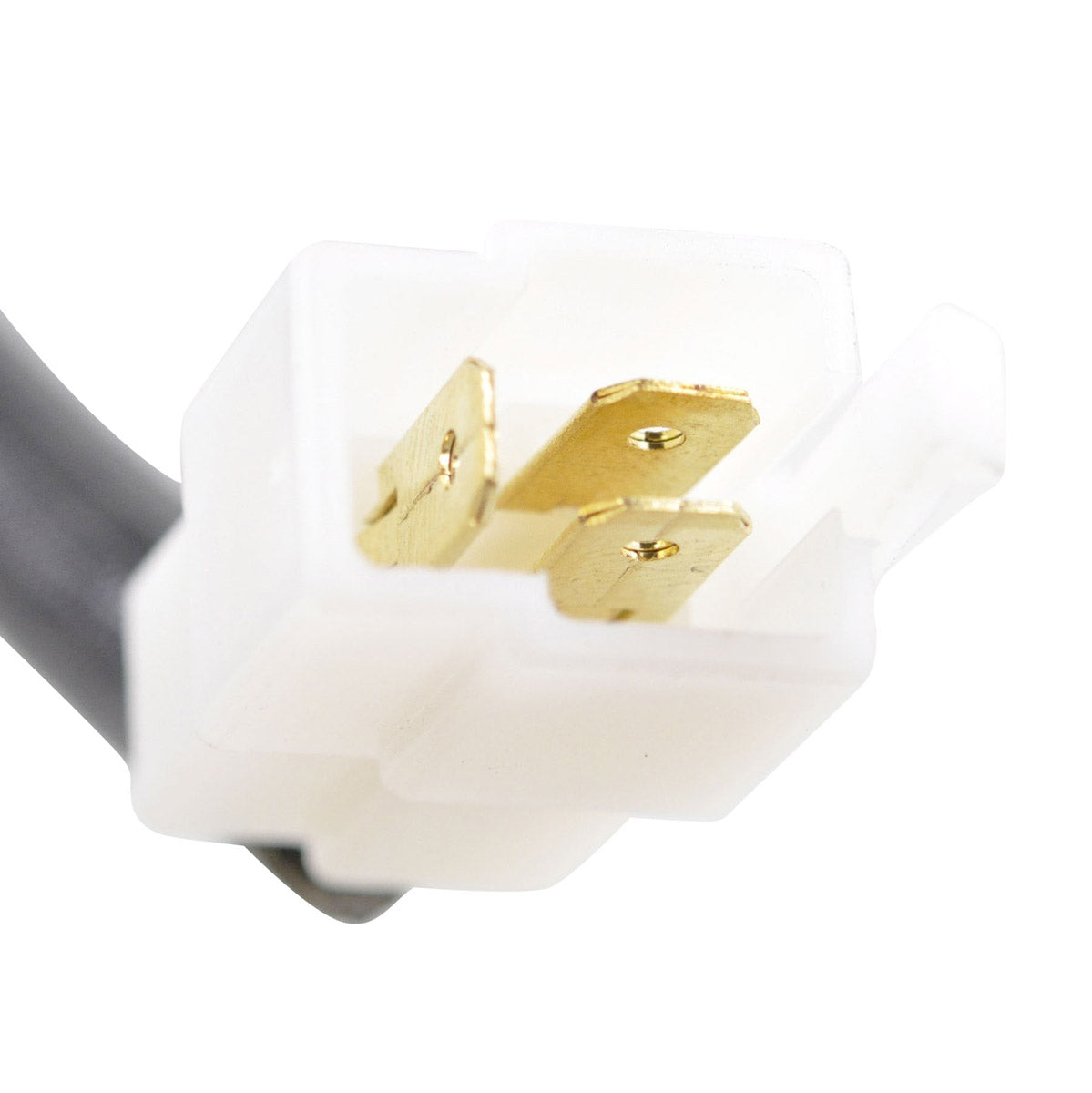

- Connector included
- Rubber grommet included

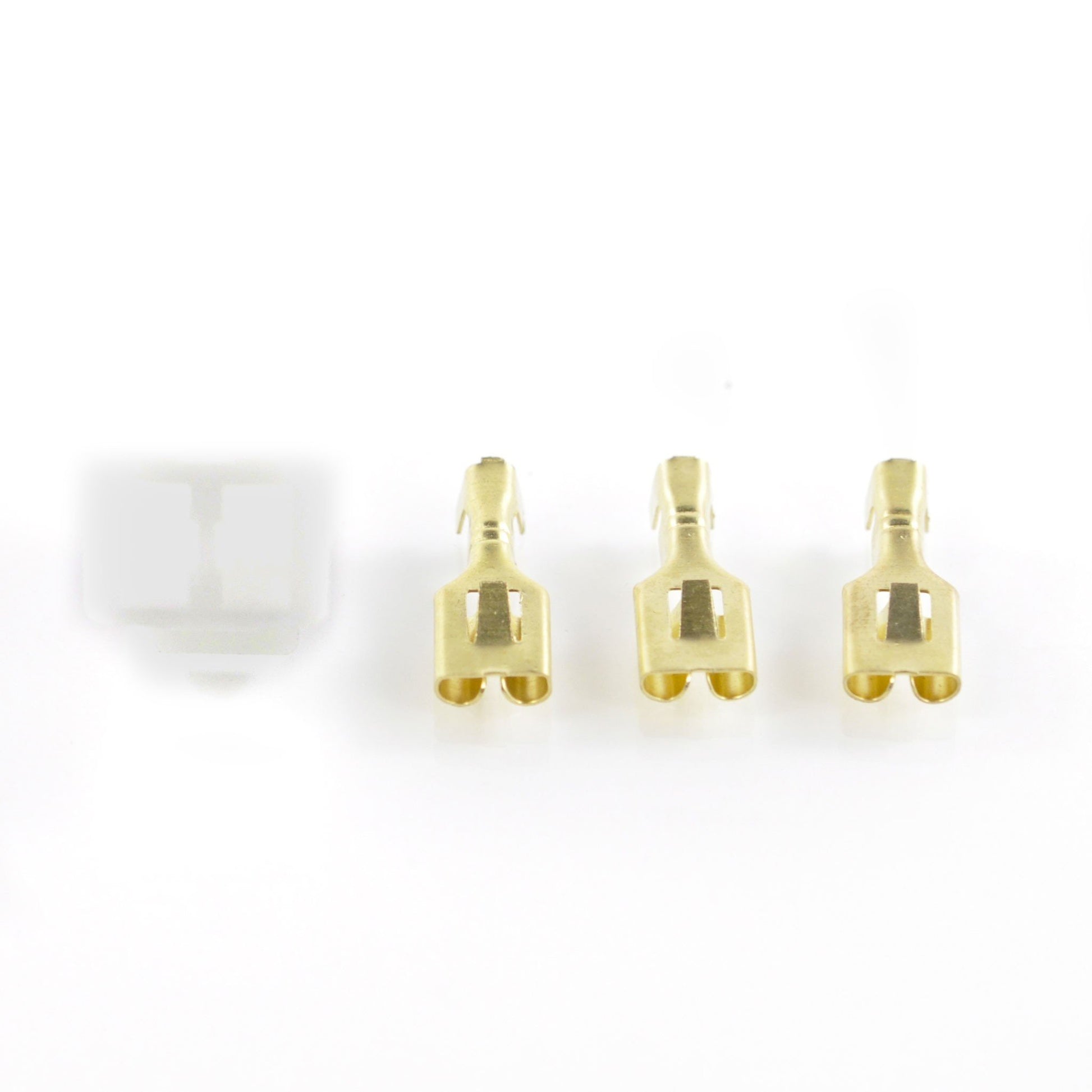

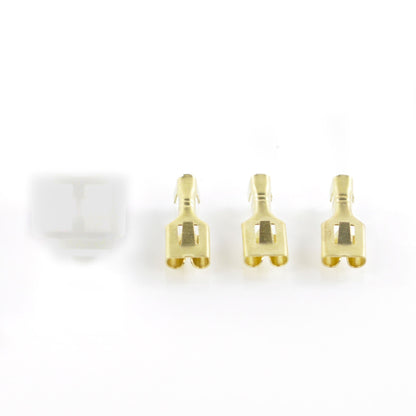

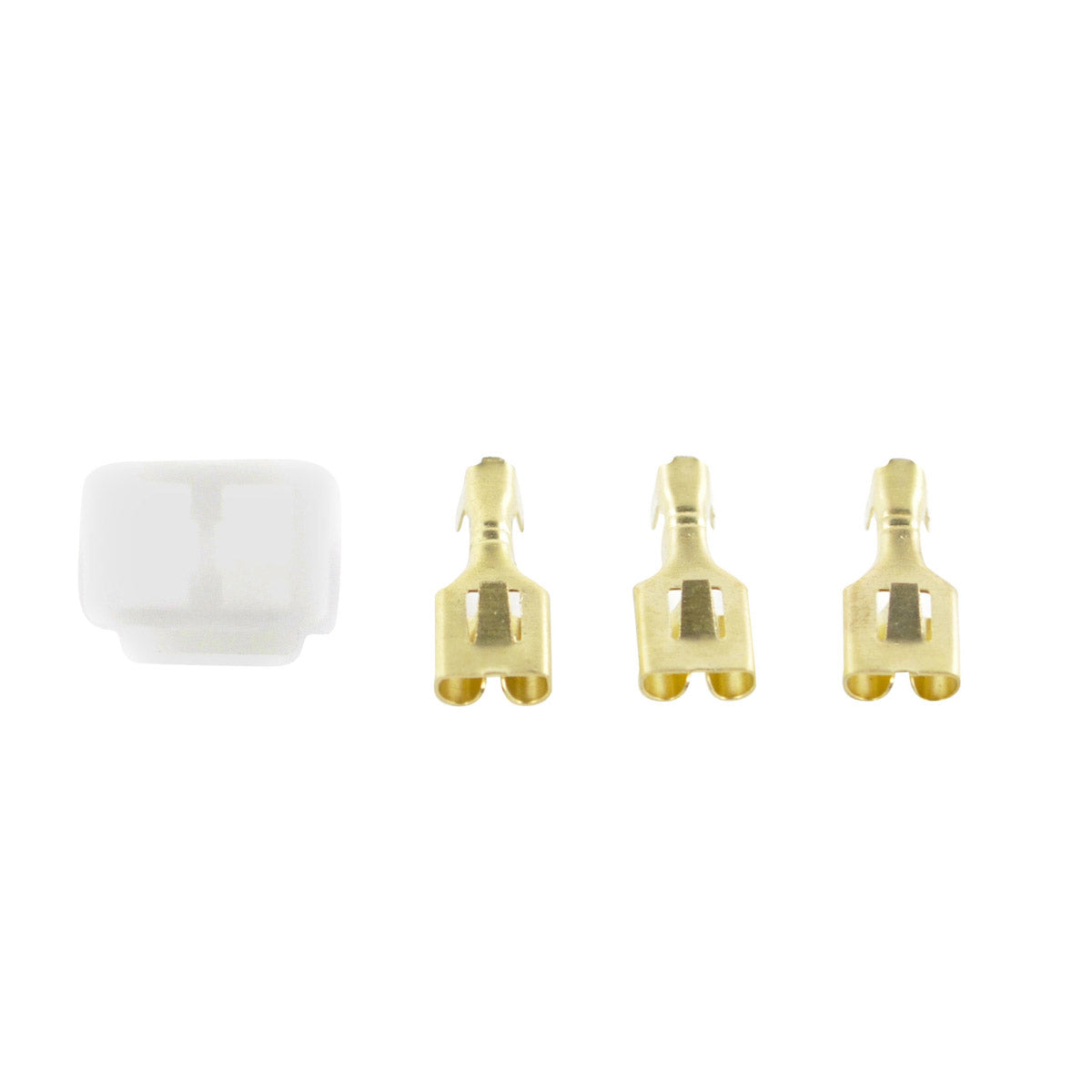

- Opposite connector (main harness side) included
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RMS010-103423 |
| Interior diameter | 54 mm |
| Exterior diameter | 115 mm |
| Thickness | 24 mm |
| Wire length, stator to grommet | 80 mm |
| Wire length, grommet to plug | 600 mm |
| Number of wires | 3 |
| Number of plugs | 1 |
| Number of pins | 3 |
| Alternator resistance, between each yellow | 0.4 ohms +/-20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Honda VF700F Interceptor | 1983-1985 |
| Honda VF750F Interceptor | 1983-1985 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 31120-MB2-004 | Honda |
| 31120-MB2-690 | Honda |
| 31120-MB2-691 | Honda |
Frequently Asked Questions
Does this fit without modification?
Yes. It is a direct replacement for the original unit, fitting the standard mounting points and plugging into the original 3-pin loom connector. No cutting, splicing or modification of the wiring is required.
What is included?
The stator with its connector and rubber grommet, plus the opposite connector for the main harness side so both halves of a commonly damaged joint can be renewed together.
How do I know my old stator has failed?
Disconnect the plug and measure between each pair of yellow wires. A serviceable stator reads about 0.4 ohms, within plus or minus 20 per cent, and none of the yellow wires should show continuity to earth. A battery that goes flat in use, dim lights and charging voltage that does not rise with revs are the usual symptoms.
Which original part numbers does this replace?
It cross references to Honda 31120-MB2-004, 31120-MB2-690 and 31120-MB2-691. Check the number on your original unit against that list before ordering.
